Eaton Fuller RTOF-11707LL Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTOF-11707LL is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | $29.52 | Add to Cart | |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 23159 | Auxiliary Drive Gear | 1 | Replaces 21321. | $232.07 | Add to Cart |

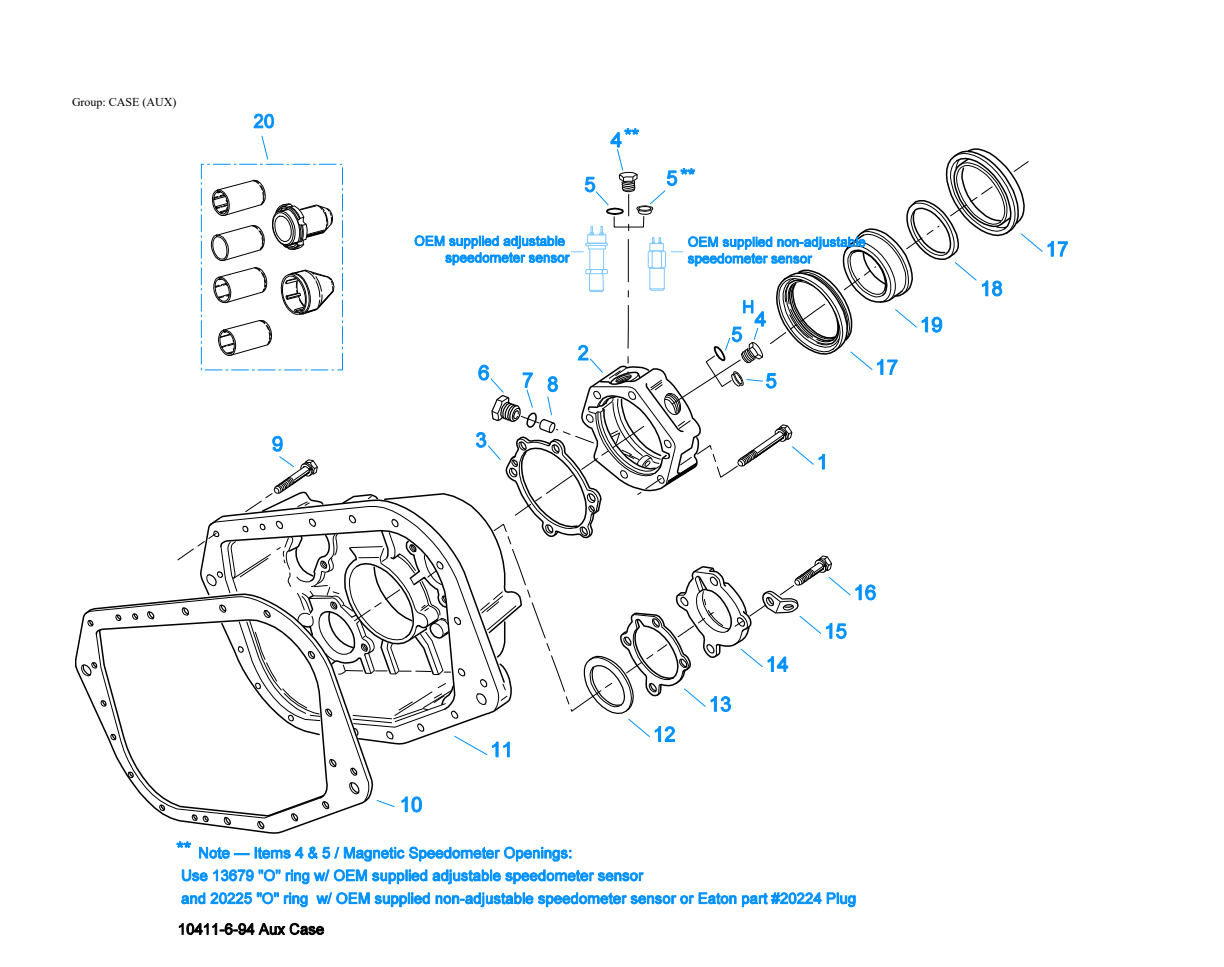

Case (Aux)
Item 5Item 5Item 5Item 11Item 7Item 9Item 10Item 16Item 14Item 1Item 5Item 12Item 17Item 20Item 13Item 8Item 18Item 6Item 2Item 19Item 17Item 3Item 15Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-611 | Capscrew | 6 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 2 | S-2164 | Rear Brg Cover Assy | 1 | Replaces 22733, 4302026, S-1553, S-2367. MECHANICAL AND MAGNETIC | $221.50 | Add to Cart |
| 3 | 21364 | Gasket | 1 | $2.65 | Add to Cart | |
| 4 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 5 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.60 | Add to Cart |
| 5 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 5 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 6 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 7 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 8 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 9 | X-8L-602 | Capscrew | 17 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 9 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 10 | 14335 | Gasket | 2 | $4.43 | Add to Cart | |
| 11 | 21431 | Rear Housing | 1 | $470.53 | Add to Cart | |
| 11 | 21627 | Rear Housing | 1 | USE W/OIL COOLER | $359.09 | Add to Cart |
| 12 | K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart |
| 13 | 4305978 | Gasket | 2 | Replaces 4302246. | $7.06 | Superseded by 4309436Add to Cart |
| 14 | 4302320 | Cover | 2 | Replaces 21346. | $43.61 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 17 | K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 18 | 4301960 | Seal | 1 | $32.26 | Add to Cart | |
| 19 | A-6299 | Spacer-slinger Assy | 1 | Replaces 21359, 4301959. | $86.20 | Add to Cart |
| 20 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement |

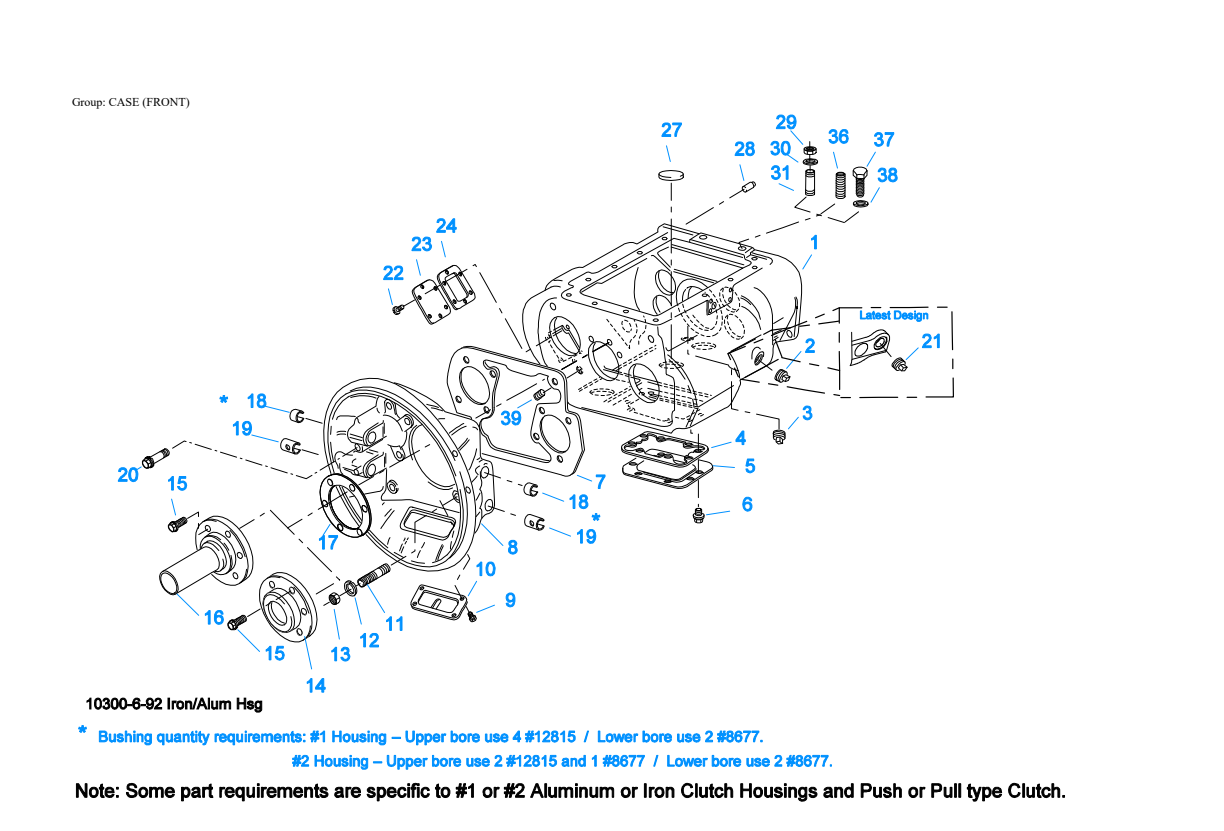

Case (Front)
Item 1Item 1Item 7Item 7Item 4Item 37Item 10Item 11Item 16Item 6Item 14Item 22Item 19Item 27Item 8Item 9Item 2Item 12Item 28Item 39Item 15Item 19Item 38Item 24Item 3Item 36Item 29Item 5Item 31Item 21Item 18Item 23Item 3Item 20Item 15Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2209 | Case Assy | 1 | Replaces 21317, S-1547. | $2,035.52 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-4772 | Clutch Housing Assy | 1 | Replaces A-4344, A-4771. #2 PUSH-PULL ALUM. | $2,336.63 | Add to Cart |
| 8 | A-6064 | Clutch Housing Assy | 1 | Replaces A-4342, A-4770, A-6062, A-6063, A-6065. #1 PUSH-PULL ALUM. | $1,376.22 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Bearing Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 14 | 20552 | Front Brg Cover | 1 | 1-3/4" PULL | $72.77 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" USE 6 PCS WITH PULL TYPE COVER USE 4 PCS WITH PUSH TYPE COVER | $2.34 | Add to Cart |
| 15 | X-8L-619 | Capscrew | 2 | 3/8"-16X1-1/4" - USE WITH PUSH TYPE COVER | $13.50 | Add to Cart |
| 16 | 20549 | Front Bearing Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 16 | 20551 | Front Brg. Cover | 1 | 1-3/4" PUSH | $97.05 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 21 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |

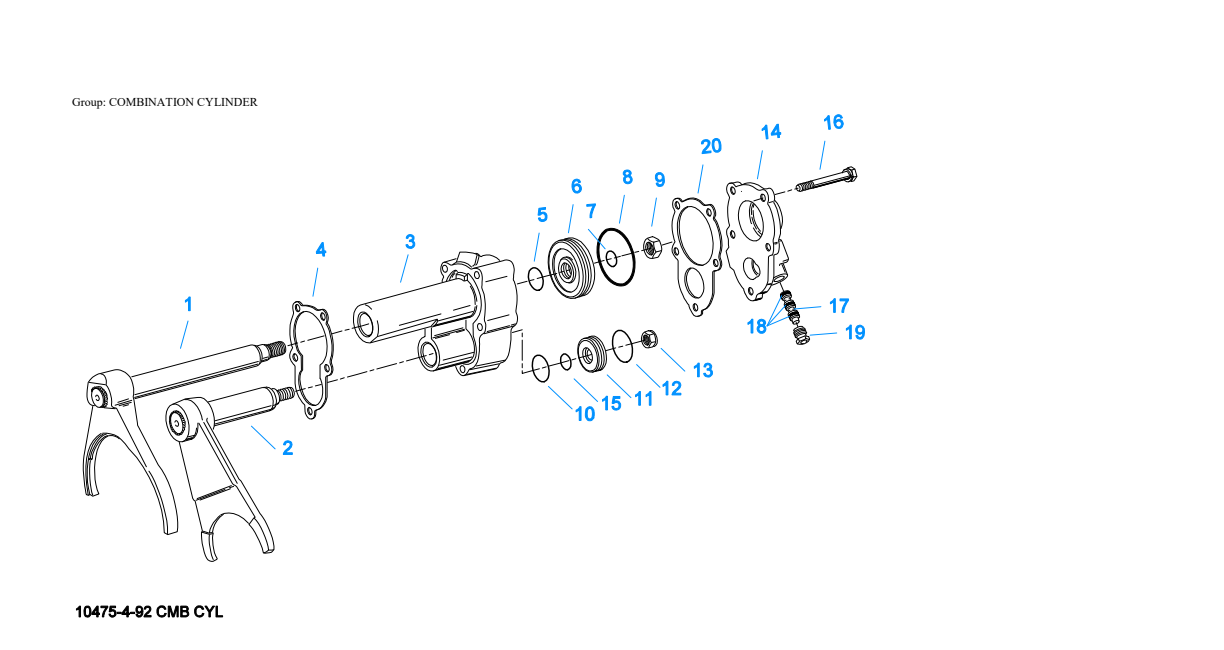

Combination Cylinder
Item 1Item 2Item 11Item 17Item 1Item 9Item 13Item 18Item 3Item 6Item 19Item 8Item 4Item 16Item 20Item 14Item 12Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5159 | Yoke Assy | 1 | Replaces 21333. RANGE | $228.57 | Add to Cart |
| 2 | A-5160 | Yoke Assy | 1 | Replaces 21335. REDUCTION | $116.06 | Add to Cart |
| 3 | 21330 | Cylinder | 1 | $203.12 | Add to Cart | |
| 4 | 21332 | Gasket | 1 | $2.27 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 7 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 8 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 9 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 10 | 14644 | O-ring | 1 | $4.17 | Add to Cart | |
| 11 | K-2427 | Piston Kit | 1 | Replaces 21337, 4301320. | $21.95 | Add to Cart |
| 12 | 20423 | O-ring | 1 | $12.75 | Add to Cart | |
| 13 | X-1-803 | Nut | 1 | 1/2"-20 | $1.87 | Add to Cart |
| 14 | 21329 | Cylinder Cover | 1 | $158.07 | Add to Cart | |
| 15 | 21338 | Gasket | 1 | USE W/21337 PISTON | $2.55 | Add to Cart |
| 15 | 4301348 | O-ring | 1 | USE W/4301320 PISTON | $1.56 | Add to Cart |
| 16 | X-8L-631 | Capscrew | 5 | Replaces X8631. 3/8"-16X3-1/2" | $3.11 | Add to Cart |
| 17 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |
| 18 | 13653 | O-ring | 3 | $3.00 | Add to Cart | |
| 19 | 15719 | Plug | 1 | $5.86 | Add to Cart | |
| 20 | 21331 | Gasket | 1 | $2.35 | Add to Cart |

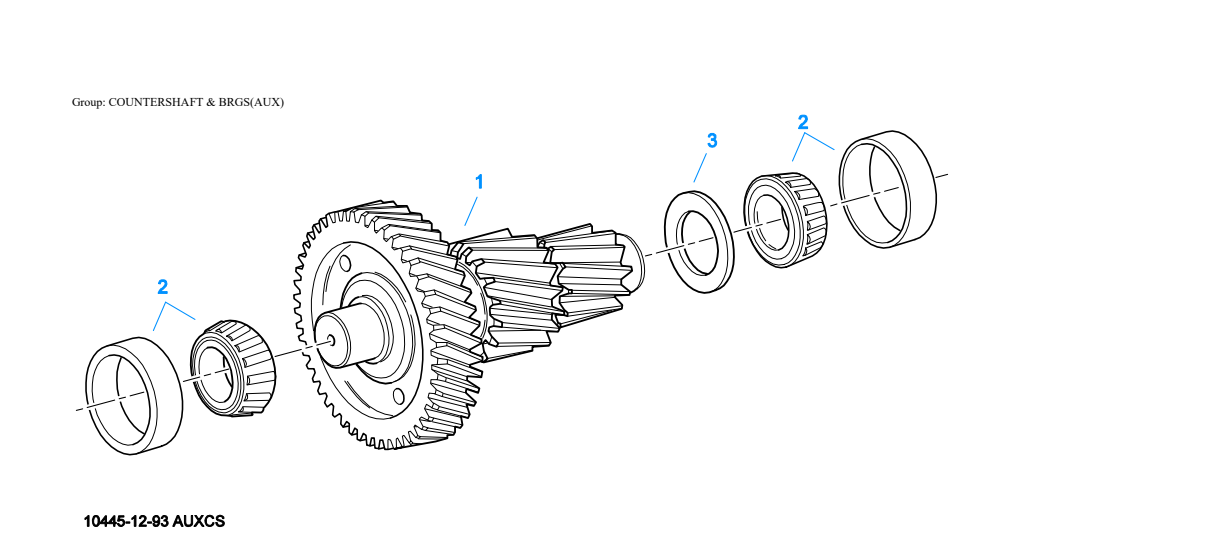

Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3499 | Countershaft Repl Kit | 2 | Replaces A-6841. | $436.87 | Add to Cart |
| 2 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 3 | 21342 | Spacer | 2 | $8.55 | Add to Cart |

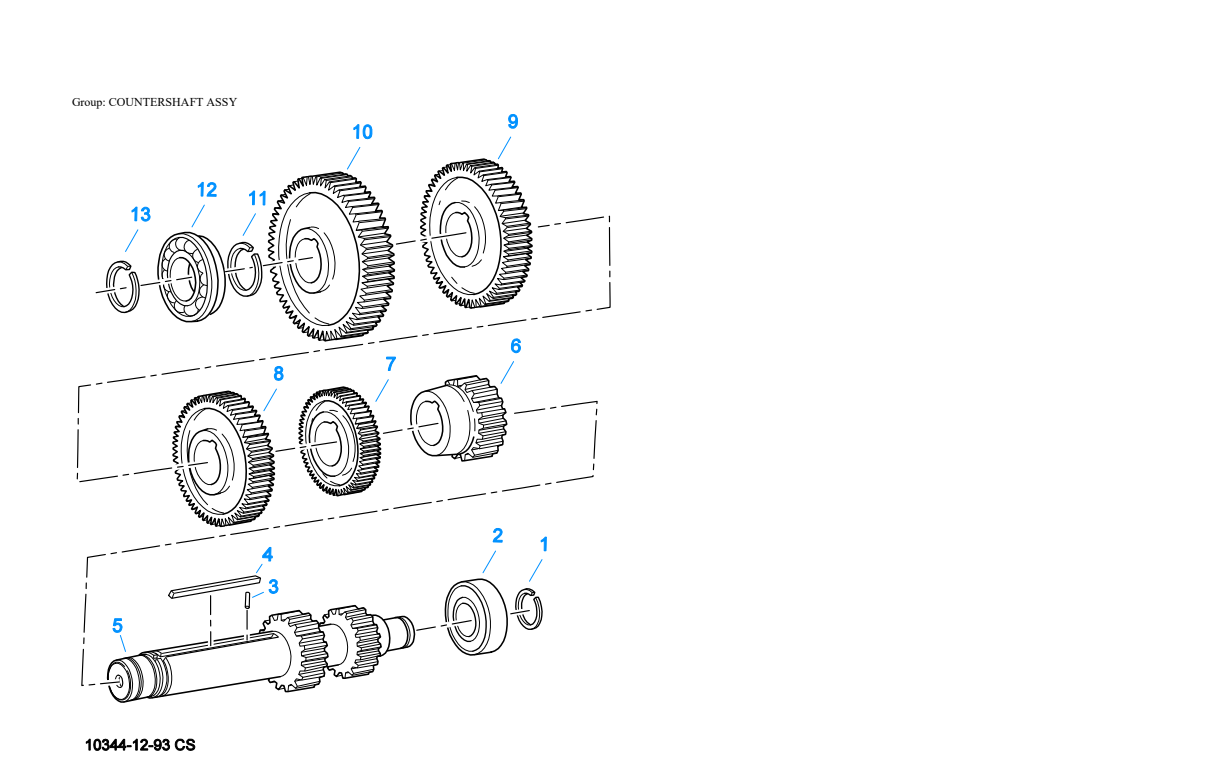

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | No longer available - Call for replacement | ||
| 3 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 4 | 16664 | Key | 2 | $9.41 | Add to Cart | |
| 5 | 20134 | Countershaft | 2 | $1,073.59 | Add to Cart | |
| 6 | 4300293 | 1ST Gear-cntrshft | 2 | Replaces 19178. | No longer available - Call for replacement | |
| 7 | 19613 | 2ND Gear-cntrshft | 2 | $192.26 | Add to Cart | |
| 8 | 4300289 | Od Gear-cntrshft | 2 | Replaces 19181. | $264.61 | Add to Cart |
| 9 | 14307 | No Longer Available | 1 | Call for availability | ||
| 9 | 14886 | No Longer Available | 1 | Call for availability | ||
| 9 | 14905 | No Longer Available | 2 | Call for availability | ||
| 10 | 4300287 | Drive Gear-cntrshft | 2 | Replaces 20133. | $201.81 | Add to Cart |
| 11 | 20085 | Snap Ring | 2 | $2.29 | Add to Cart | |
| 12 | 81022 | Ball Bearing | 2 | Replaces 5566509. | $65.37 | Add to Cart |
| 13 | 15253 | Snap Ring | 2 | $5.67 | Add to Cart |

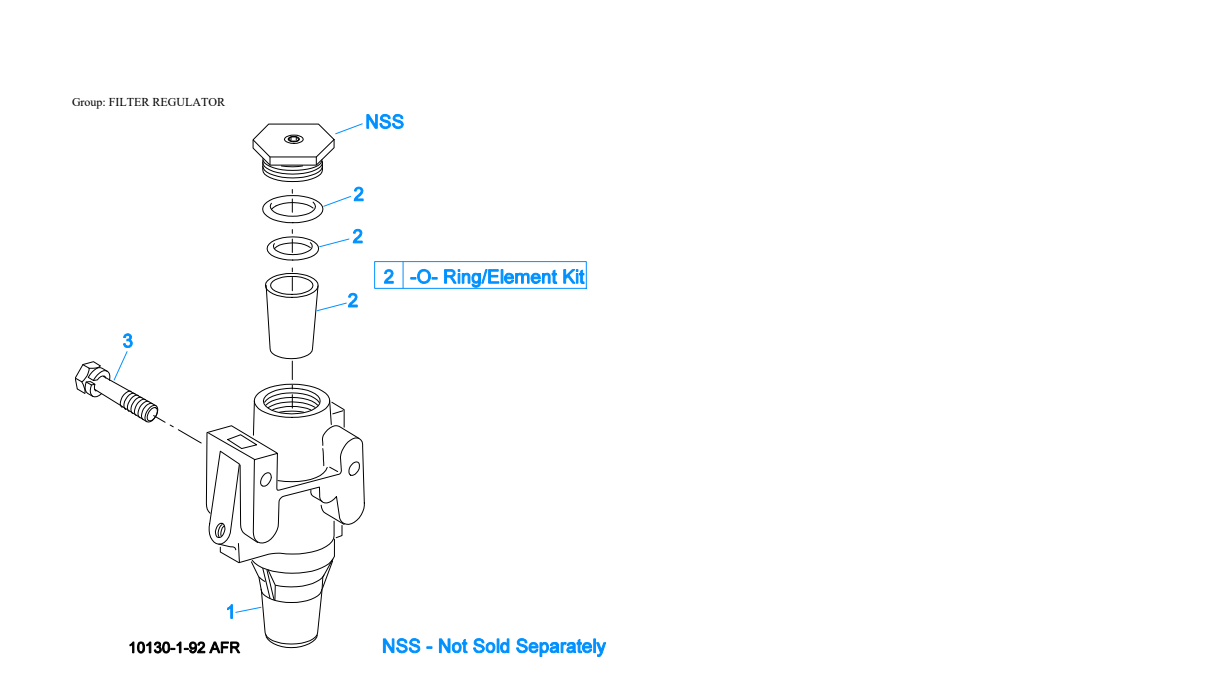

Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

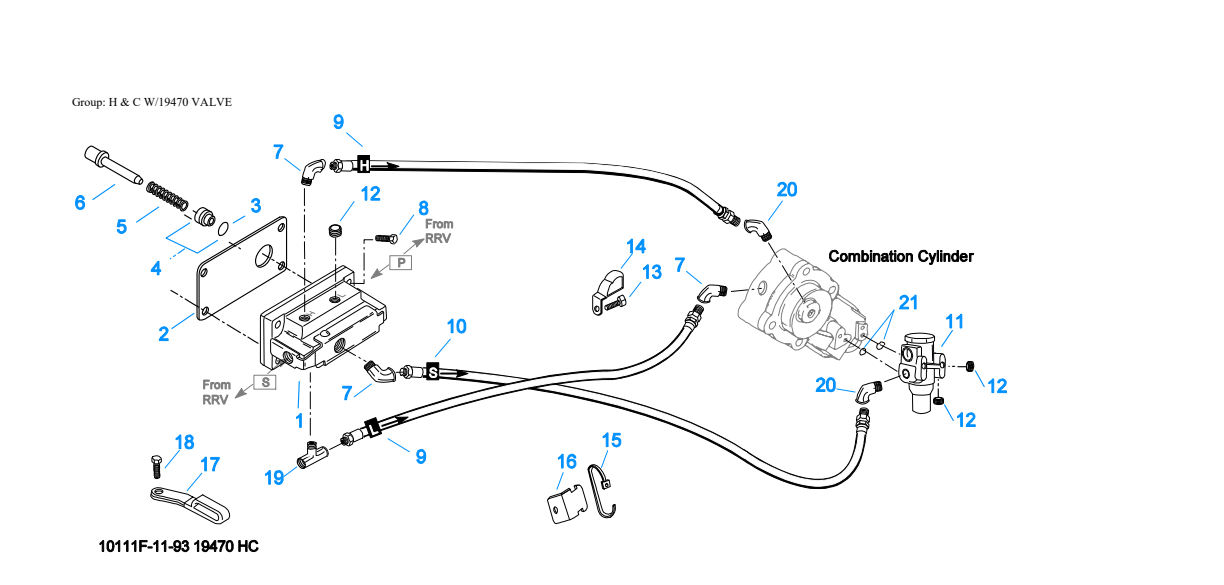

H & C W/19470 Valve
Item 1Item 4Item 4Item 1Item 17Item 11Item 20Item 7Item 9Item 8Item 5Item 9Item 6Item 18Item 20Item 21Item 7Item 12Item 2Item 3Item 12Item 10Item 13Item 15Item 7Item 16Item 12Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-401 | Capscrew | 4 | 1/4"-20X1-1/8" | $4.03 | Add to Cart |
| 9 | 55509 | Hose Assy | 2 | 34" | $25.31 | Add to Cart |
| 10 | 55528 | Hose Assy | 1 | 36" | $22.77 | Add to Cart |
| 11 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-600 | Capscrew | 1 | 3/8"-16X1" | $1.76 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 21086 | Branch Tee | 1 | 1/8" | $13.10 | Add to Cart |
| 20 | 12880 | Elbow | 2 | 1/8" | $5.59 | Add to Cart |
| 21 | 15114 | O-ring | 2 | $1.59 | Add to Cart |

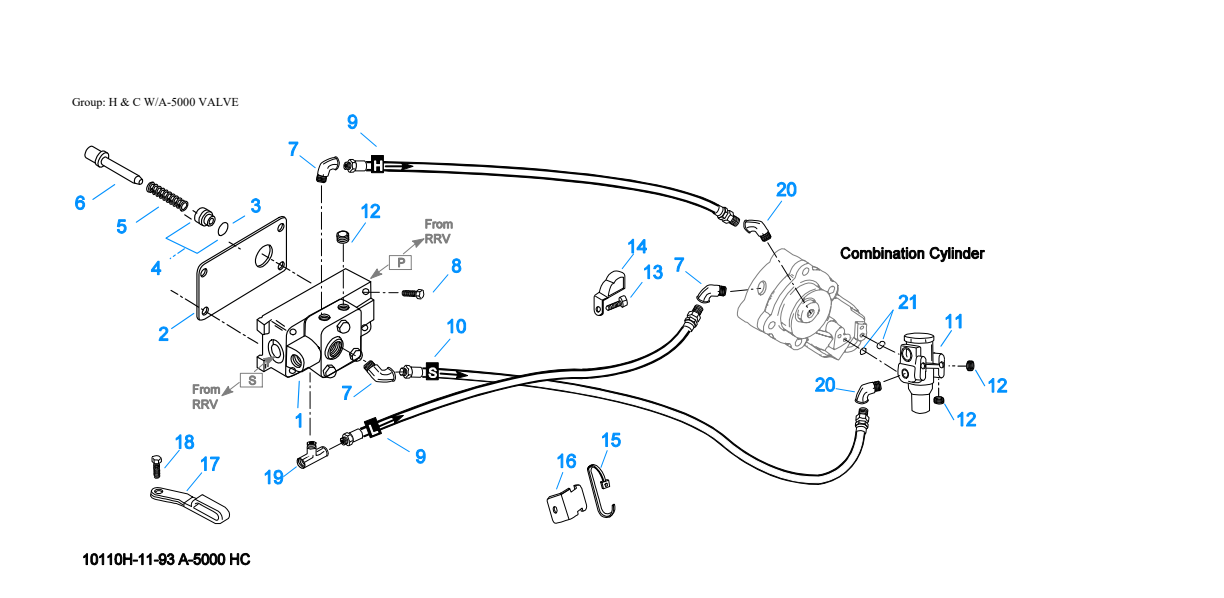

H & C W/A-5000 Valve
Item 4Item 1Item 17Item 12Item 11Item 1Item 9Item 12Item 10Item 7Item 12Item 15Item 20Item 9Item 5Item 7Item 6Item 14Item 20Item 7Item 3Item 18Item 2Item 16Item 8Item 21Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55509 | Hose Assy | 2 | 34" | $25.31 | Add to Cart |
| 10 | 55528 | Hose Assy | 1 | 36" | $22.77 | Add to Cart |
| 11 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-600 | Capscrew | 1 | 3/8"-16X1" | $1.76 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 21086 | Branch Tee | 1 | 1/8" | $13.10 | Add to Cart |
| 20 | 12880 | Elbow | 2 | 1/8" | $5.59 | Add to Cart |
| 21 | 15114 | O-ring | 2 | $1.59 | Add to Cart |

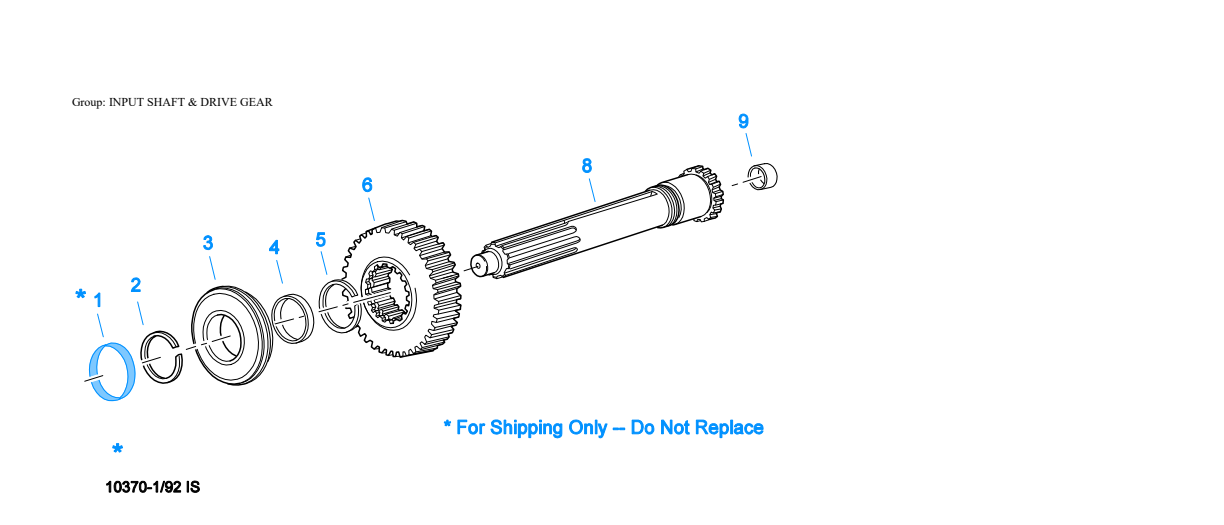

Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16396 | Spacer | 1 | $27.52 | Add to Cart | |
| 5 | 14289 | Snap Ring | 1 | $2.37 | Add to Cart | |
| 6 | K-2321 | Update Kit | 1 | Replaces 14654, 19168, 19182. | $975.22 | Add to Cart |
| 8 | S-1661 | Input Shaft Assy | 1 | Replaces 2054023569, 691518. 2" PULL - USE W/FBC 20550 | $166.91 | Add to Cart |
| 8 | S-1662 | Input Shaft Assy | 1 | Replaces 20541, 23570, 4300430, S-1507. 2" PUSH - USE W/FBC 20549 | Call for availability | |
| 8 | S-2916 | Input Shaft Assy | 1 | Replaces 20530, 4304354. 1-3/4" PUSH | Call for availability | |
| 8 | S-2917 | Input Shaft Assy | 1 | Replaces 20531, 4304355. 1-3/4" PULL | $391.22 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart |

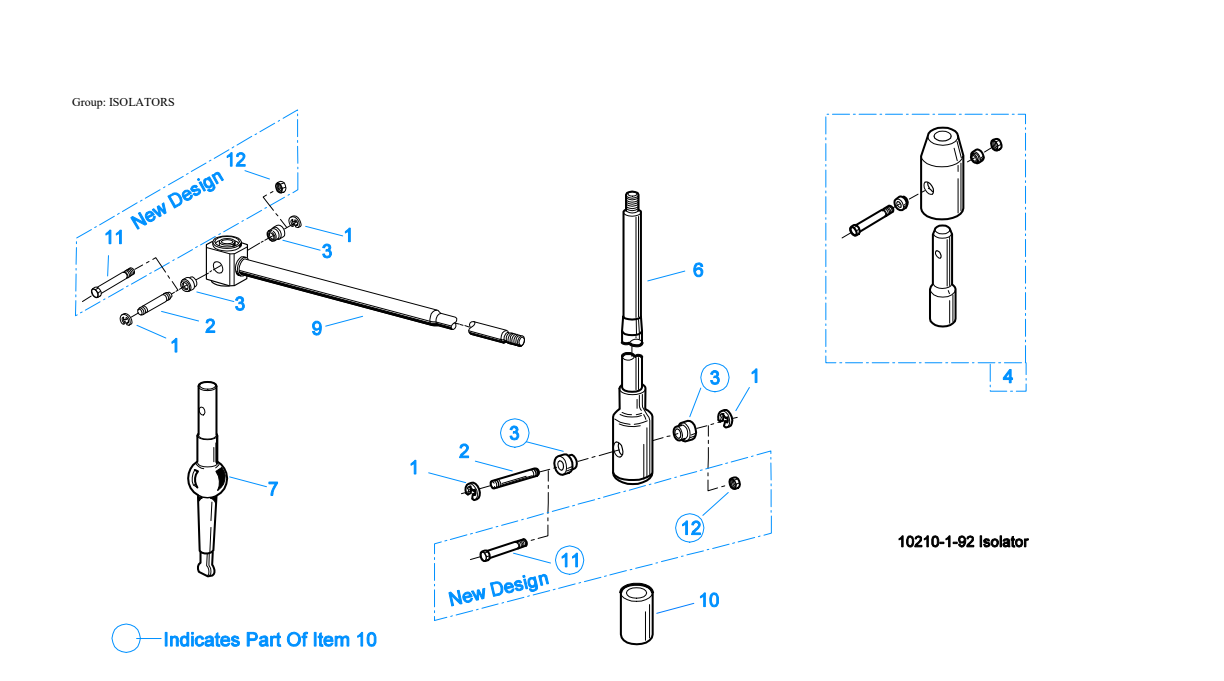

Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1457 | O-ring Kit | 1 | FOR INSERT VALVE | $5.84 | Add to Cart | |
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW | $219.19 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1922 | Master Valve Repair Kit | 1 | FOR A-5015 VALVE | $50.56 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVE | $3.99 | Add to Cart | |
| K-1986 | Basic Overhaul Kit | 1 | $919.46 | Add to Cart | ||
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2045 | Basic Rebuild Kit | 1 | $725.52 | Add to Cart | ||
| K-2054 | O-ring Kit | 1 | FOR COMBINATION CYLINDER | $21.62 | Add to Cart | |
| K-2055 | Master Valve Repair Kit | 1 | FOR A-5315 VALVE | $24.90 | Add to Cart | |
| K-2061 | Gasket Kit | 1 | $70.29 | Add to Cart | ||
| K-2077 | Gasket Kit | 1 | FOR AUXILIARY SECTION | $13.08 | Add to Cart | |
| K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2321 | Update Kit | 1 | Replaces 14654, 19168, 19182. | $975.22 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart | |
| K-2427 | Piston Kit | 1 | Replaces 21337, 4301320. | $21.95 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2489 | Key & Washer Kit | 1 | Replaces 21339. CONTAINS 3-SIDED KEY | $117.22 | Add to Cart | |
| K-2746 | Small Parts Kit | 1 | $472.99 | Add to Cart | ||
| K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-3192 | Master Valve Repair Kit | 1 | FOR A-6915 VALVE | $31.63 | Add to Cart | |
| K-3194 | Master Valve Repair Kit | 1 | FOR A-7315 VALVE | $41.55 | Add to Cart | |
| K-3209 | Idler Shaft Repl Kit | 1 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3470 | Oil Cooler Kit | 1 | Replaces K-3210. | $1,278.35 | Add to Cart | |
| K-3471 | Pump Installation Kit | 1 | Replaces K-3126. | Call for availability | ||
| K-3491 | Synchronizer Kit | 1 | Replaces K-2445. LO RANGE / SMALL PIN | $219.37 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. LO RANGE / LARGE PIN | $228.43 | Add to Cart | |
| K-3499 | Countershaft Repl Kit | 1 | Replaces A-6841. | $436.87 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | |||
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. FOR A-5000 VALVE | No longer available - Call for replacement | ||
| S-1554 | Range Section Assy | 1 | $5,844.96 | Add to Cart | ||
| S-1661 | Input Shaft Assy | 1 | Replaces 2054023569, 691518. 2" PULL | $166.91 | Add to Cart | |
| S-1662 | Input Shaft Assy | 1 | Replaces 20541, 23570, 4300430, S-1507. 2" PUSH | Call for availability | ||
| S-1781 | Mainshaft Assy | 1 | Replaces 4300285, S-1551. | $308.35 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2164 | Rear Brg Cover Assy | 1 | Replaces 22733, 4302026, S-1553, S-2367. MECHANICAL AND MAGNETIC | $221.50 | Add to Cart | |
| S-2209 | Case Assy | 1 | Replaces 21317, S-1547. | $2,035.52 | Add to Cart | |
| S-2547 | Roadranger Valve Assy | 1 | Replaces A-5036. RTO - W/SHIFT DIAGRAM MEDALLION | $119.11 | Add to Cart | |
| S-2916 | Input Shaft Assy | 1 | Replaces 20530, 4304354. 1-3/4" PUSH | Call for availability | ||
| S-2917 | Input Shaft Assy | 1 | Replaces 20531, 4304355. 1-3/4" PULL | $391.22 | Add to Cart |

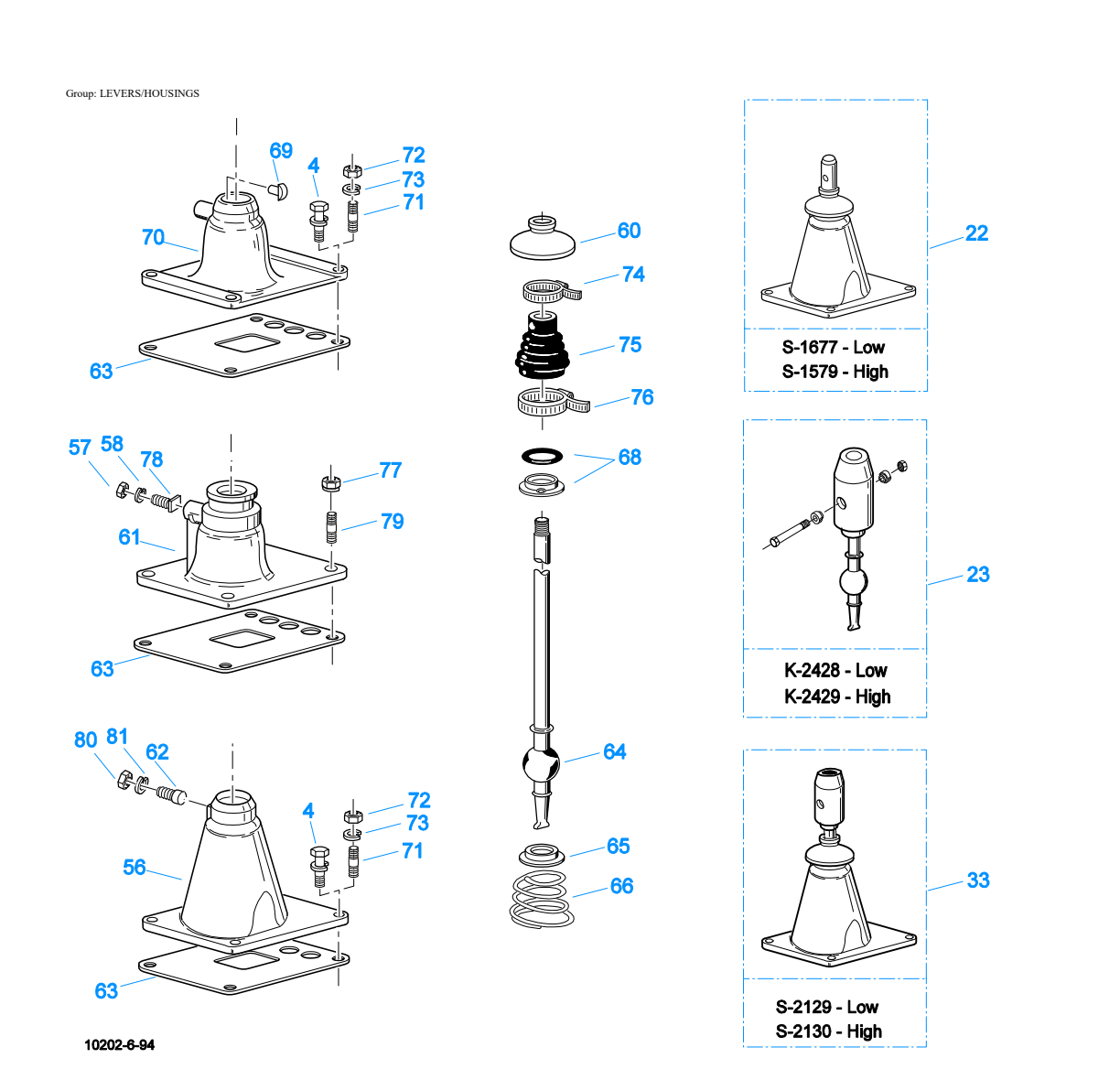

Levers/Housings
Item 33Item 71Item 77Item 74Item 71Item 80Item 4Item 4Item 57Item 66Item 60Item 64Item 76Item 65Item 63Item 63Item 61Item 56Item 68Item 81Item 79Item 23Item 58Item 73Item 75Item 69Item 63Item 73Item 72Item 72Item 22Item 70Item 78Item 62Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 22 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 22 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 56 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630K-. HIGH TOWER | $136.74 | Add to Cart |
| 57 | X-1-500 | Nut | 1 | 5/16"-24 | Call for availability | |
| 58 | X-3-500 | Lockwasher | 1 | 5/16" | $1.66 | Add to Cart |
| 60 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 61 | K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW, USE W/14795 BOOT | $219.19 | Add to Cart |
| 62 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 63 | 4305294 | Gasket | 1 | Replaces 4303431. | $9.67 | Add to Cart |
| 64 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 64 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 65 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 66 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 68 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 69 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 70 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 71 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 72 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 73 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 74 | 14453 | Clamp | 1 | $4.89 | Add to Cart | |
| 75 | 14795 | Boot | 1 | $75.78 | Add to Cart | |
| 76 | 14454 | Clamp | 1 | No longer available - Call for replacement | ||
| 77 | X-1-604 | Nut | 4 | 3/8"-24 | Call for availability | |
| 78 | 14461 | Pin | 1 | Call for availability | ||
| 79 | 14236 | No Longer Available | 4 | Call for availability | ||
| 80 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 81 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |

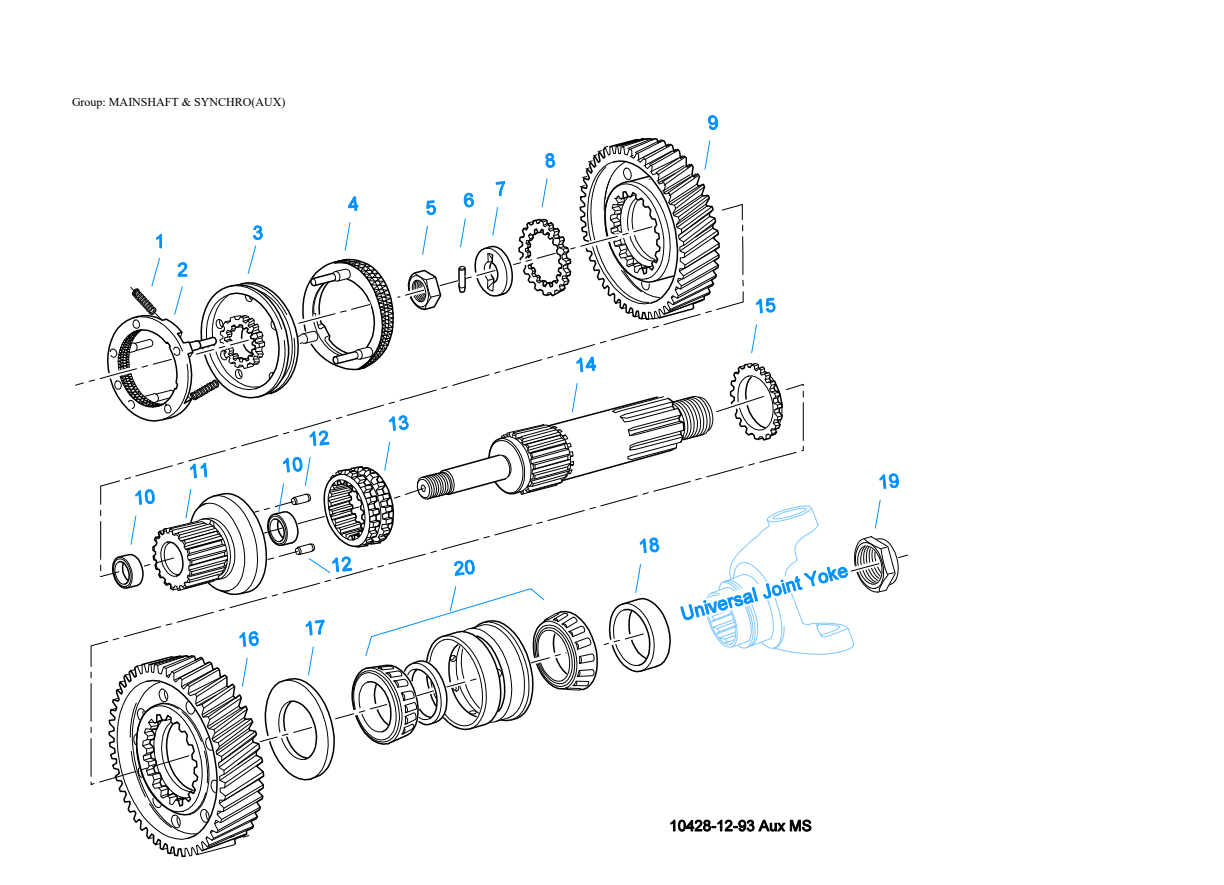

Mainshaft & Synchro(Aux)
Item 1Item 2Item 6Item 9Item 4Item 3Item 8Item 16Item 10Item 19Item 11Item 5Item 15Item 10Item 14Item 13Item 18Item 7Item 12Item 12Item 20Item 17Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 5 | 21365 | Nut | 1 | $5.90 | Add to Cart | |
| 6 | 17332 | Dowel Pin | 1 | $3.11 | Add to Cart | |
| 7 | 21347 | Washer | 1 | $16.95 | Add to Cart | |
| 8 | 21350 | Washer | 1 | $32.29 | Add to Cart | |
| 9 | 21319 | Reduction Gear | 1 | $314.41 | Add to Cart | |
| 10 | 21352 | Bushing | 2 | $5.70 | Add to Cart | |
| 11 | A-5156 | Mainshaft Assy | 1 | Replaces 21351. | $274.21 | Add to Cart |
| 12 | 21652 | Pin | 2 | $2.11 | Add to Cart | |
| 13 | 21360 | Sliding Clutch | 1 | $98.22 | Add to Cart | |
| 14 | 21325 | Mainshaft | 1 | $278.64 | Add to Cart | |
| 15 | 21354 | Washer | 1 | $42.64 | Add to Cart | |
| 16 | 21361 | Deep Reduction Gear | 1 | $337.77 | Add to Cart | |
| 17 | 21358 | Washer | 1 | $33.50 | Add to Cart | |
| 18 | 20191 | Rotor | 1 | Replaces 16295. | $40.36 | Add to Cart |
| 19 | 22254 | Nut | 1 | Replaces 11956. | $15.84 | Add to Cart |
| 20 | 21356-BOX | Bearing | 1 | Replaces 21356. | $223.33 | Add to Cart |

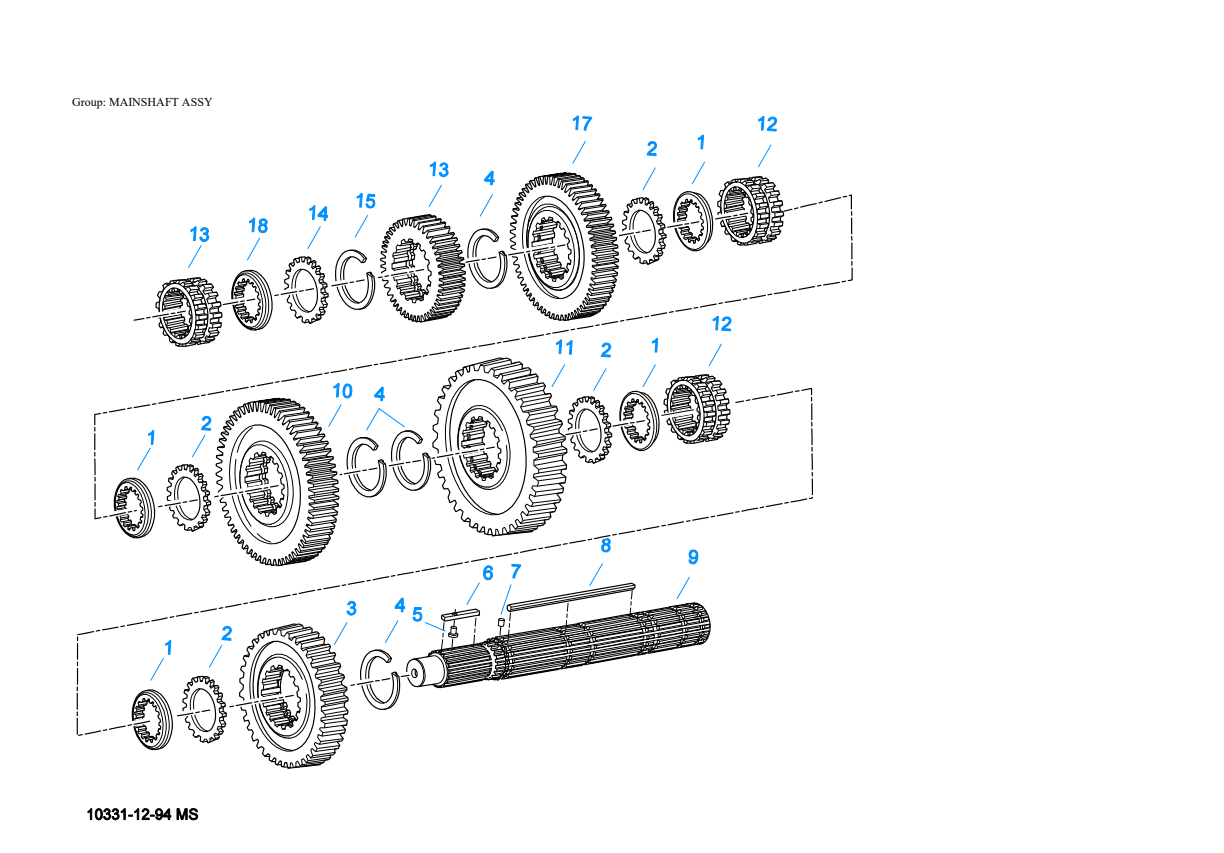

Mainshaft Assy
Item 9Item 1Item 1Item 11Item 1Item 10Item 1Item 6Item 8Item 18Item 4Item 2Item 15Item 2Item 7Item 2Item 2Item 14Item 12Item 3Item 13Item 13Item 12Item 4Item 17Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14711 | Washer .248-.250 White | 4 | Replaces 18701. | $10.25 | Add to Cart |
| 1 | 14712 | Washer .253-.255 Green | 4 | Replaces 18702. | $10.51 | Add to Cart |
| 1 | 14713 | Washer .258-.260 Orange | 4 | Replaces 18703. | $10.51 | Add to Cart |
| 1 | 14714 | Washer .263-.265 Purple | 4 | Replaces 18704. | $10.61 | Add to Cart |
| 1 | 14715 | Washer .268-.270 Yellow | 4 | Replaces 18705. | $10.61 | Add to Cart |
| 1 | 14716 | Washer .273-.275 Black | 4 | Replaces 18706. | $10.61 | Add to Cart |
| 1 | 4300382 | Washer .249-WHITE | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 4 WASHERS. USE WITH 3-SIDED KEY | $12.09 | Add to Cart |
| 1 | 4300383 | Washer .254-GREEN | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 4 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 1 | 4300384 | Washer .259-ORANGE | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 4 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 1 | 4300385 | Washer .264-PURPLE | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 4 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 1 | 4300386 | Washer .269-YELLOW | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 4 WASHERS. USE WITH 3-SIDED KEY | No longer available - Call for replacement | |
| 1 | 4300387 | Washer .274-BLACK | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 4 WASHERS. USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 1 | 4300830 | Washer .244-BLUE | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 4 WASHERS. USE | $9.36 | Add to Cart |
| 2 | 14749 | Spacer | 4 | $6.93 | Add to Cart | |
| 3 | 19313 | Reverse Gear- Mainshaft | 1 | $271.82 | Add to Cart | |
| 4 | 14750 | Snap Ring | 4 | $2.20 | Add to Cart | |
| 5 | 14832 | Pin | 1 | $6.50 | Add to Cart | |
| 6 | A-3456 | Key & Pin Assy | 1 | Replaces 14884. | $32.16 | Add to Cart |
| 7 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 8 | 4300976 | 3-SIDED Key | 1 | MUST USE MATCHING WASHERS | $17.24 | Add to Cart |
| 8 | K-2489 | Key & Washer Kit | 1 | Replaces 21339. CONTAINS 3-SIDED KEY | $117.22 | Add to Cart |
| 9 | S-1781 | Mainshaft Assy | 1 | Replaces 4300285, S-1551. | $308.35 | Add to Cart |
| 10 | 4300292 | 1ST Gear-mainshaft | 1 | Replaces 19177. | No longer available - Call for replacement | |
| 11 | 4300294 | Lo Gear-mainshaft | 1 | Replaces 19082. | $260.57 | Add to Cart |
| 12 | 14709 | Sliding Clutch | 2 | $92.80 | Add to Cart | |
| 13 | K-2321 | Update Kit | 1 | Replaces 14654, 19168, 19182. | $975.22 | Add to Cart |
| 14 | 14273 | Spacer | 1 | $362.01 | Add to Cart | |
| 15 | 14289 | Snap Ring | 1 | $2.37 | Add to Cart | |
| 17 | 4300290 | 2ND Gear-mainshaft | 1 | Replaces 19612. | $202.37 | Add to Cart |
| 18 | 14274 | Washer .248-.250 White | 1 | Replaces 18717. | $15.94 | Add to Cart |
| 18 | 14276 | Washer .258-.260 Orange | 1 | Replaces 18719. | $8.51 | Add to Cart |
| 18 | 14277 | Washer .263-.265 Purple | 1 | Replaces 18720. | $7.62 | Add to Cart |
| 18 | 14278 | Washer .268-.270 Yellow | 1 | Replaces 18721. | $7.51 | Add to Cart |
| 18 | 14279 | Washer .273-.275 Black | 1 | Replaces 18722. | $110.63 | Add to Cart |
| 18 | 4300512 | Washer .253-.255 Green | 1 | Replaces 14275, 18718. | $15.54 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20464 | Shift Diagram Label | 1 | $28.59 | Add to Cart | ||
| 21075 | Warning Label | 1 | $55.52 | Add to Cart | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |

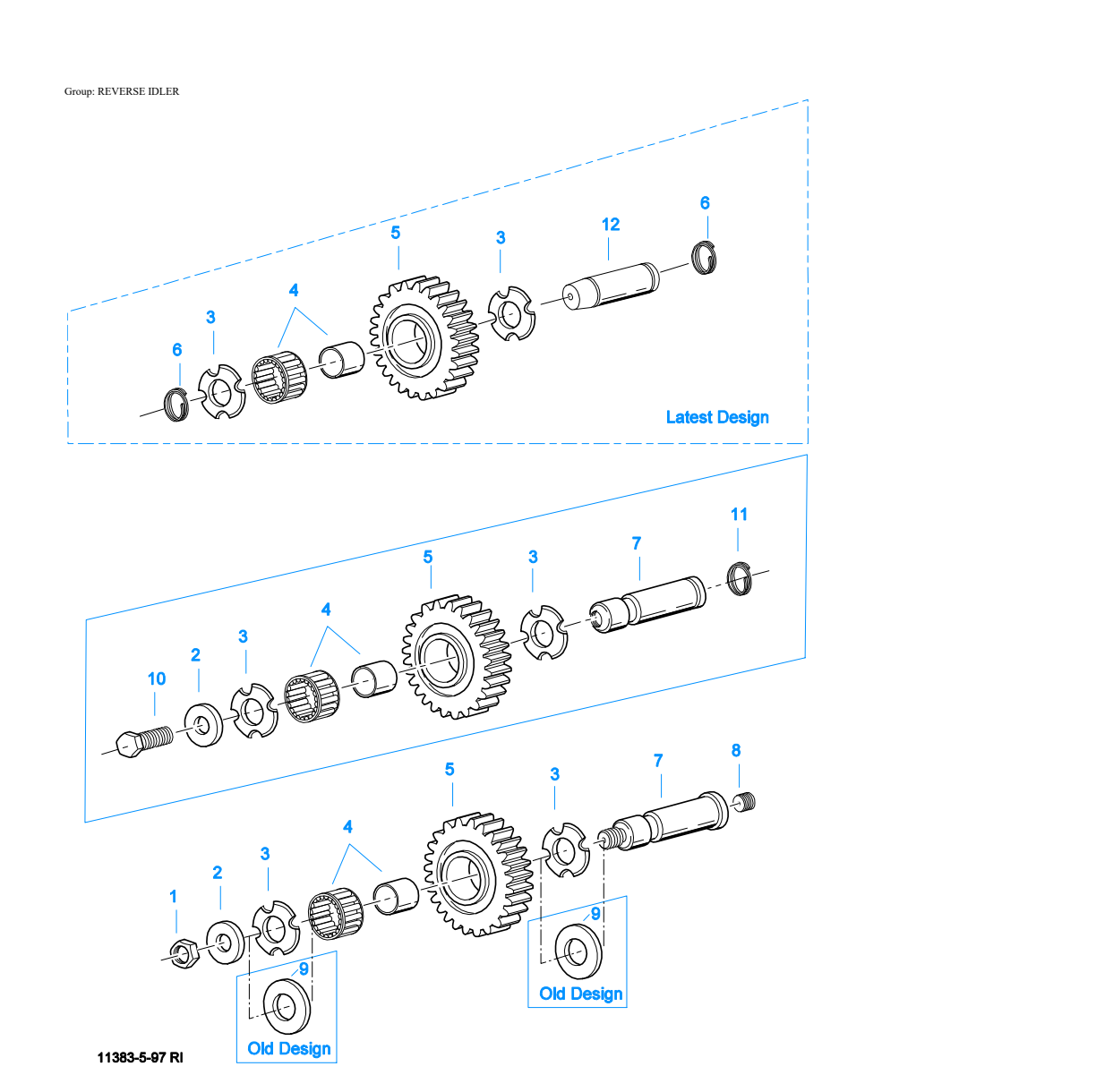

Reverse Idler
Item 7Item 11Item 7Item 4Item 2Item 5Item 4Item 6Item 9Item 10Item 2Item 8Item 12Item 9Item 4Item 3Item 6Item 5Item 3Item 5Item 3Item 3Item 3Item 3Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 4303336 | Retaining Ring | 4 | $2.70 | Add to Cart | |
| 7 | K-3209 | Idler Shaft Repl Kit | 2 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 4 | $5.69 | Superseded by 4302982Add to Cart | |
| 10 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | 4305513 | Idler Shaft | 2 | $22.92 | Add to Cart |

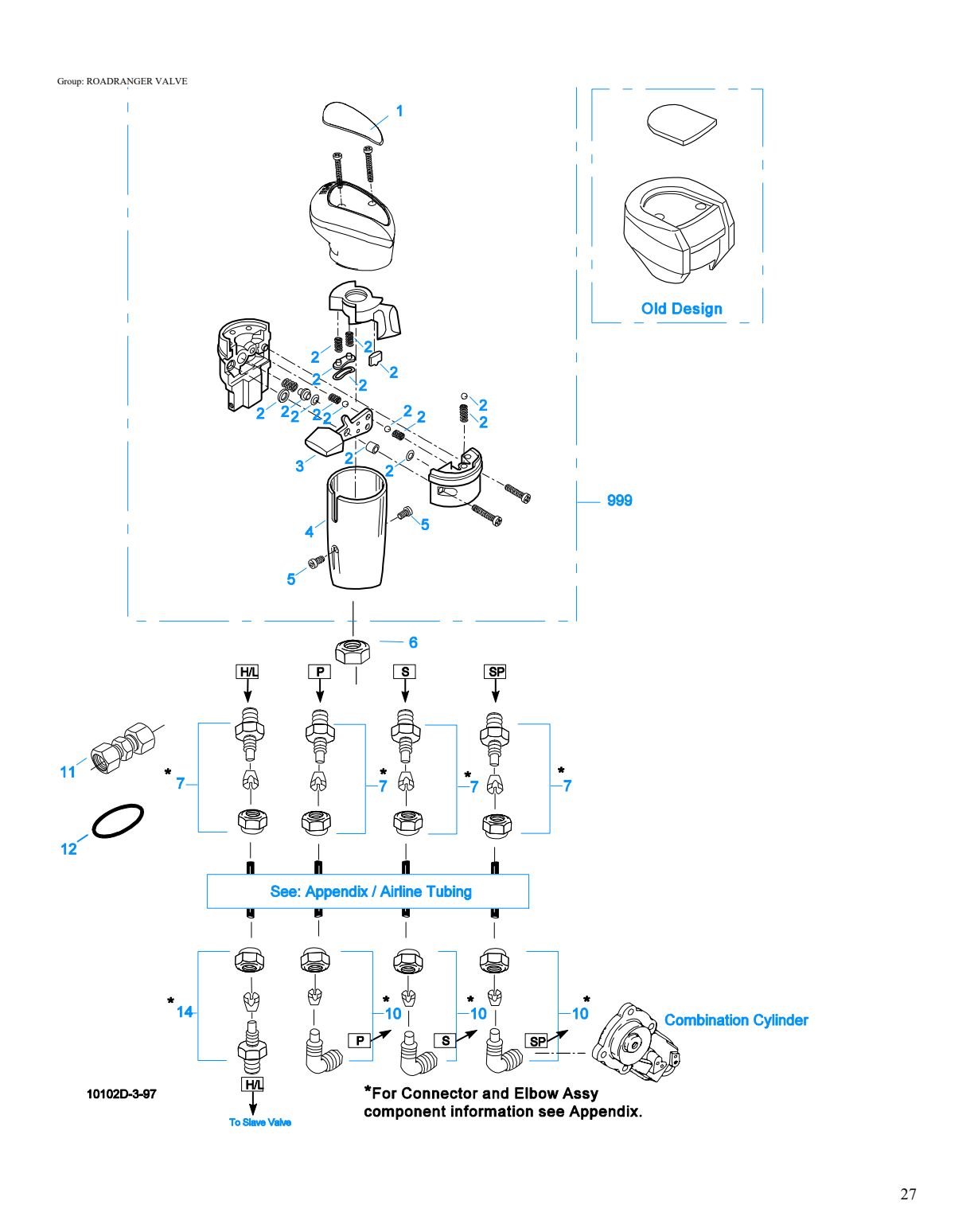

Roadranger Valve
Item 4Item 10Item 2Item 10Item 2Item 7Item 7Item 2Item 2Item 1Item 2Item 2Item 7Item 3Item 6Item 2Item 11Item 10Item 5Item 2Item 12Item 5Item 14Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 21691 | Logo Medallion | 1 | Replaces 4302349, 4300370. (OLD DESGIN) FULLER LOGO (LEFT OF DRIVER) | No longer available - Call for replacement | |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586103 | Shift Diagram Medallion | 1 | RTO | $28.59 | Add to Cart |
| 2 | K-1922 | Master Valve Repair Kit | 1 | FOR A-5015 VALVE | $50.56 | Add to Cart |
| 2 | K-2055 | Master Valve Repair Kit | 1 | FOR A-5315 VALVE | $24.90 | Add to Cart |
| 2 | K-3192 | Master Valve Repair Kit | 1 | FOR A-6915 VALVE | $31.63 | Add to Cart |
| 2 | K-3194 | Master Valve Repair Kit | 1 | FOR A-7315 VALVE | $41.55 | Add to Cart |
| 3 | 20496 | Lever | 1 | $18.41 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 4 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 4 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 14 | 84002 | Connector Assy | 1 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 14 | 84004 | Connector Assy | 1 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 14 | 84006 | Connector Assy | 1 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 999 | A-6915 | Roadranger Valve Assy | 1 | Replaces A-5015. STANDARD-W/LOGO | $88.11 | Add to Cart |
| 999 | A-7315 | Roadranger Valve Assy | 1 | Replaces A-5315. (LEFT OF DRIVER)-W/LOGO | $156.40 | Add to Cart |
| 999 | S-2547 | Roadranger Valve Assy | 1 | Replaces A-5036. RTO - W/SHIFT DIAGRAM MEDALLION | $119.11 | Add to Cart |
Shift Bar Housing (F)
Item 11Item 7Item 17Item 1Item 14Item 5Item 27Item 16Item 37Item 15Item 29Item 28Item 25Item 8Item 9Item 8Item 4Item 30Item 22Item 13Item 31Item 6Item 3Item 24Item 22Item 35Item 22Item 10Item 32Item 23Item 34Item 3Item 12Item 22Item 33Item 36Item 22Item 32Item 40Item 26Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1613 | No Longer Available | 1 | Replaces 19770, 22958. HOUSING ONLY | Call for availability | |
| 1 | S-1614 | No Longer Available | 1 | Replaces 19702, 21737. HOUSING ONLY-FOR TORQUE LIMITER | Call for availability | |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 4 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 5 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 6 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 7 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 8 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 8 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 9 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 10 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 11 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 12 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 13 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 14 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 15 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $1.72 | Add to Cart |
| 16 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 17 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 22 | 15776 | Lockscrew | 1 | USE W/19703 SHIFT BLOCK | $5.74 | Add to Cart |
| 22 | 3220 | Lockscrew | 4 | $4.28 | Add to Cart | |
| 23 | 19705 | Shift Yoke | 1 | LO/REVERSE | $470.58 | Add to Cart |
| 24 | 19708 | Yoke Bar | 1 | LO/REVERSE - W/TORQUE LIMITER | Call for availability | |
| 24 | 19710 | Yoke Bar | 1 | LO/REVERSE | Call for availability | |
| 25 | 19703 | Shift Block | 1 | 1ST/2ND | $128.62 | Add to Cart |
| 26 | 19707 | Yoke Bar | 1 | 1ST/2ND | $39.12 | Add to Cart |
| 27 | 16135 | Shift Yoke | 1 | 1ST/2ND | $74.79 | Add to Cart |
| 28 | 19704 | Shift Block | 1 | 3RD/OD | $126.14 | Add to Cart |
| 29 | 19706 | Yoke Bar | 1 | 3RD/OD | $124.08 | Add to Cart |
| 30 | 4300536 | Shift Yoke | 1 | Replaces 19878. 3RD/OD | $126.57 | Add to Cart |
| 31 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 32 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 33 | 19790 | Plunger | 1 | $29.54 | Add to Cart | |
| 34 | 19791 | Spring | 1 | $3.52 | Add to Cart | |
| 35 | 19838 | Spring | 1 | $3.46 | Add to Cart | |
| 36 | 19792 | Retainer | 1 | $7.44 | Add to Cart | |
| 37 | 19793 | Snap Ring | 1 | $1.89 | Add to Cart | |
| 38 | 15133 | Gasket | 1 | $1.58 | Add to Cart | |
| 39 | 15132 | Spring Cover | 1 | $5.57 | Add to Cart | |
| 40 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" | $1.76 | Add to Cart |
Slave Valve -
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
Slave Valve - A-
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RTOF-11707LL, with every part in the manual matched to our live inventory. We stock 386 of the 413 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Combination Cylinder Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/19470 Valve H & C W/A-5000 Valve Input Shaft & Drive Gear Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Reverse Idler Roadranger Valve Shift Bar Housing (F) Slave Valve - Slave Valve - A-
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTOF-11707LL transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTOF-11707LL |
| Transmission type | 7-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 35 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTOF-11707LL
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
