Eaton Fuller RTXF-11509 Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTXF-11509 is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 1 | $2.01 | Add to Cart | |
| 2 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 3 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 4 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 5 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 6 | 18869 | No Longer Available | 1 | Call for availability |

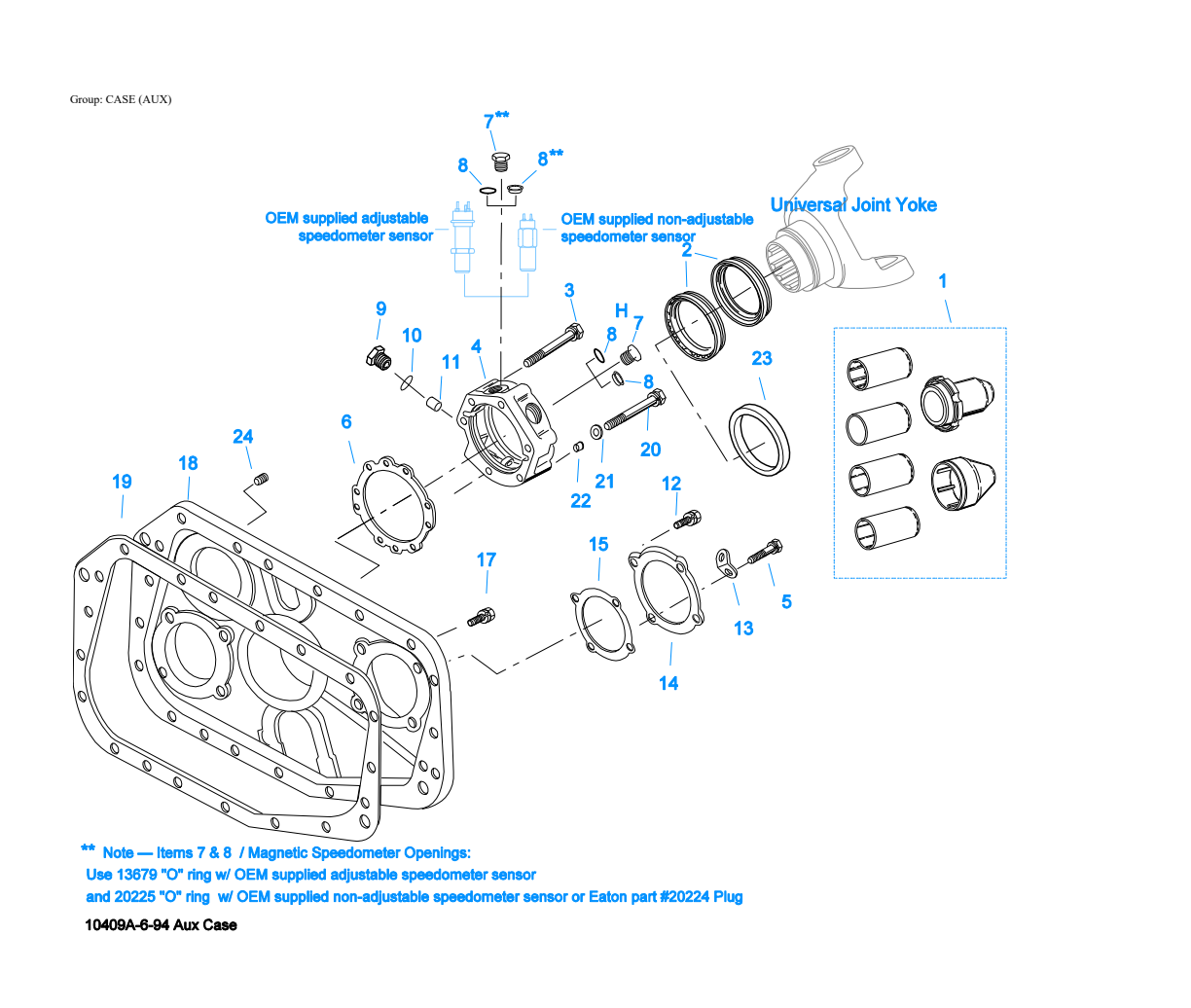

Case (Aux)
Item 17Item 5Item 14Item 8Item 8Item 12Item 19Item 6Item 7Item 24Item 4Item 15Item 11Item 7Item 9Item 13Item 3Item 1Item 10Item 22Item 23Item 8Item 20Item 18Item 2Item 8Item 21Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | ||
| 2 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 3 | X-8L-616 | Capscrew | 5 | Replaces X8616. 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 4 | S-2136 | Rear Brg Cover Assy | 1 | Replaces 21950, 22040, 22041, 22042, 43020064302007, S-1563. EXTENDED | $308.32 | Add to Cart |
| 4 | S-2149 | Rear Brg Cover Assy | 1 | Replaces 20208, 21062. | $329.84 | Add to Cart |
| 5 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" - USE WITH 20815 LIFTING EYES | $1.76 | Add to Cart |
| 6 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 7 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 8 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.60 | Add to Cart |
| 8 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE | $2.06 | Add to Cart |
| 8 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 9 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 10 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 11 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 12 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 13 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 14 | 16724 | Rear Brg Cover | 2 | $18.78 | Add to Cart | |
| 15 | 17097 | Gasket | 2 | $2.77 | Add to Cart | |
| 17 | X-8L-609 | Capscrew | 14 | 3/8"-16X1-3/4" | $2.11 | Add to Cart |
| 17 | X-8L-614 | Capscrew | 5 | 3/8"-16X2" | $3.24 | Add to Cart |
| 18 | 19468 | Rear Housing | 1 | Replaces 16912. W/OIL COOLER | $691.66 | Add to Cart |
| 18 | 19469 | Rear Housing | 1 | Replaces 19465. | $805.70 | Superseded by 19465Add to Cart |
| 19 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 20 | X-8-681 | Capscrew | 1 | 3/8"-16X2-3/4" | $4.00 | Add to Cart |
| 21 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 22 | 19709 | Collar | 1 | $2.04 | Add to Cart | |
| 23 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 24 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |

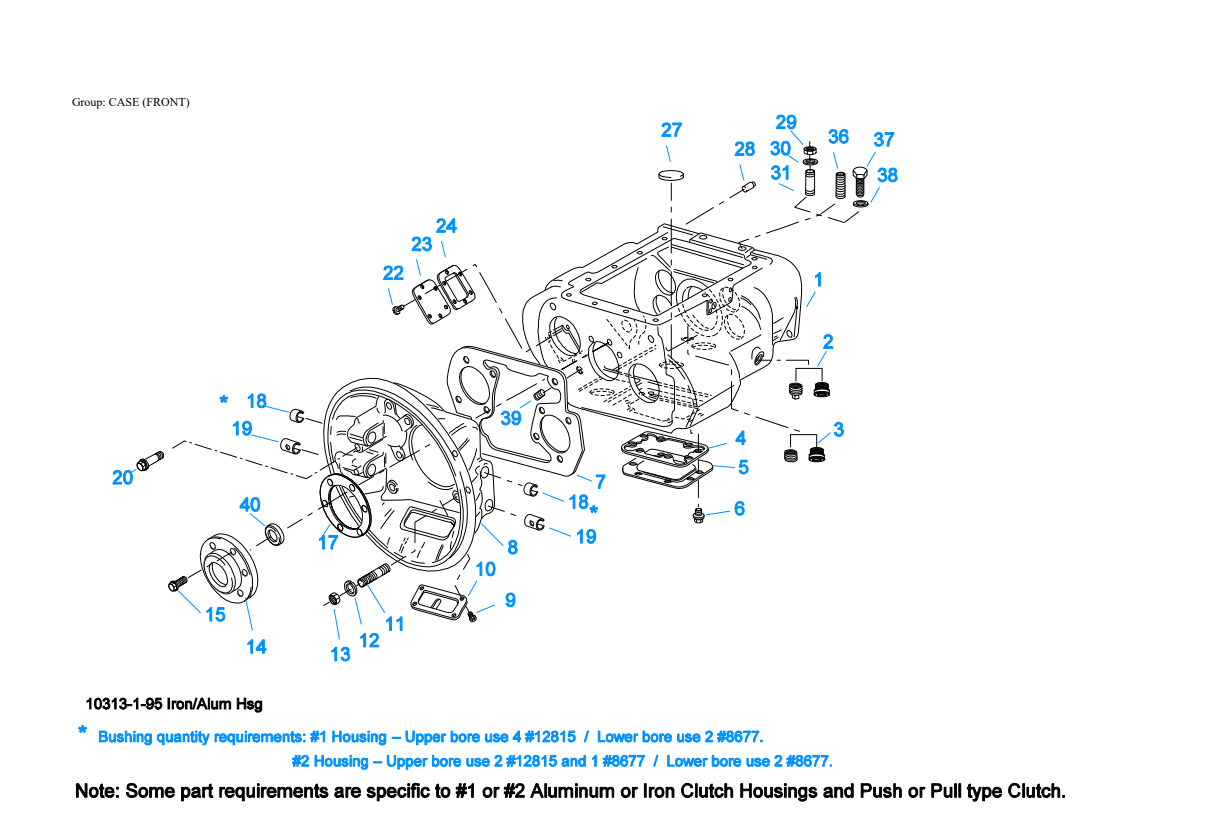

Case (Front)
Item 1Item 7Item 1Item 7Item 4Item 14Item 37Item 10Item 11Item 6Item 22Item 40Item 19Item 27Item 8Item 9Item 12Item 28Item 39Item 19Item 38Item 24Item 2Item 36Item 29Item 3Item 31Item 15Item 13Item 18Item 23Item 5Item 3Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1318 | Case Assy | 1 | Replaces 15390. | $3,327.93 | Add to Cart |
| 2 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | K-1659 | Clutch Housing Kit | 1 | Replaces A-4342. #1 PUSH-PULL ALUM. | $870.59 | Add to Cart |
| 8 | K-1661 | Clutch Housing Kit | 1 | Replaces A-4344. #2 PUSH-PULL ALUM. | $1,650.63 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 15111 | Front Bearing Cover | 1 | 2" PULL | $47.29 | Add to Cart |
| 14 | 18699 | Front Bearing Cover | 1 | 1-3/4" & 2" PULL W/SEAL | $234.50 | Add to Cart |
| 14 | 20550 | Front Bearing Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 40 | 16977 | Seal | 1 | 2" | $17.24 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 8879 | Bearing | 2 | $70.13 | Add to Cart | |
| 2 | A-4588 | No Longer Available | 2 | D/G 18870 - C/S 16934 | Call for availability | |
| 3 | 81052 | Bearing | 2 | Replaces 81008. | $59.71 | Add to Cart |
| 4 | 16723 | Snap Ring | 2 | $2.12 | Add to Cart |

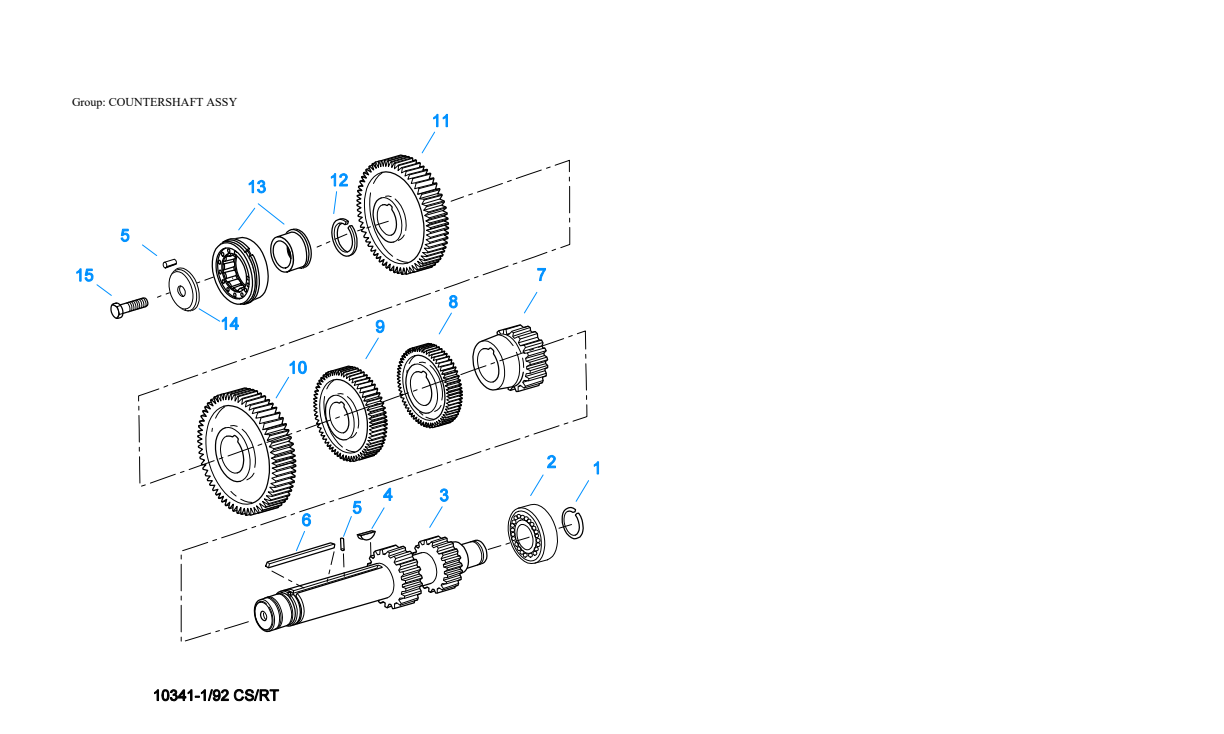

Countershaft Assy
Item 1Item 7Item 14Item 10Item 9Item 8Item 12Item 5Item 4Item 15Item 11Item 6Item 2Item 3Item 5Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | No longer available - Call for replacement | ||
| 3 | K-2934 | Countershaft Repl Kit | 2 | Replaces 19549. | $357.67 | Add to Cart |
| 4 | X-6-E | Key | 2 | $4.27 | Superseded by 230292Add to Cart | |
| 5 | 62511 | Roll Pin | 4 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 16753 | 1ST Gear-cntrshft | 2 | $117.99 | Add to Cart | |
| 8 | 18523 | No Longer Available | 2 | Call for availability | ||
| 9 | 18521 | Od Gear-cntrshft | 2 | Call for availability | ||
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 16390 | No Longer Available | 2 | OPTIONAL IF PTO GEARS ARE NOT USED | Call for availability | |
| 10 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 11 | 19566 | No Longer Available | 2 | Call for availability | ||
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 4302677, 4304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |

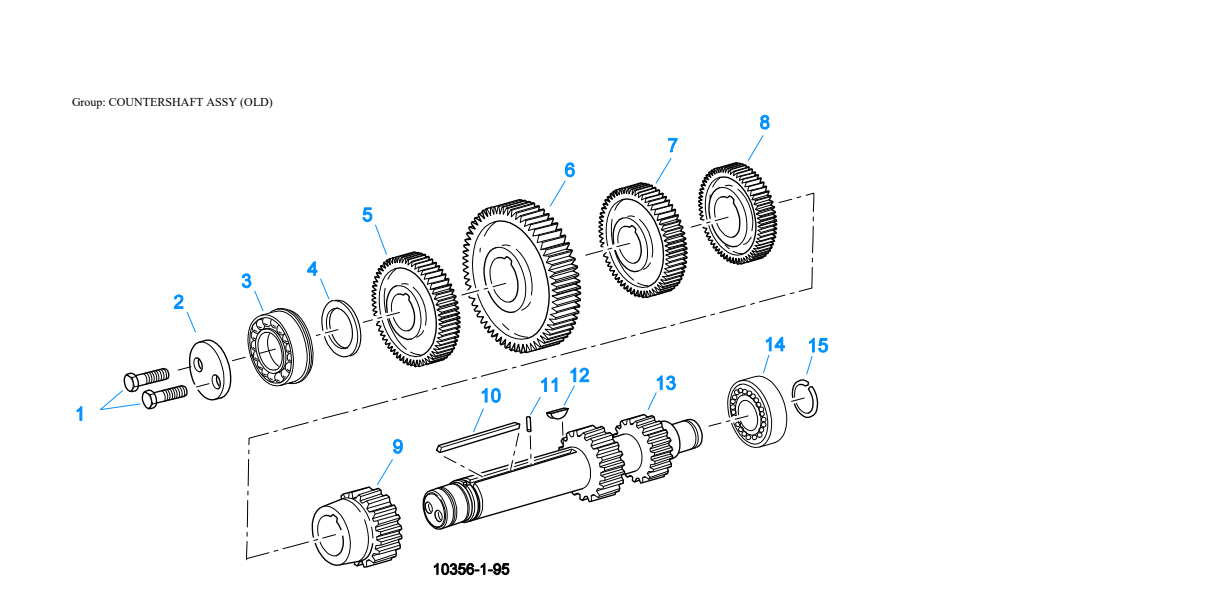

Countershaft Assy (Old)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-802 | Capscrew | 4 | 1/2"-20X1" | $5.49 | Add to Cart |
| 2 | 7484 | Retainer | 2 | Call for availability | ||
| 3 | 20899 | Bearing | 2 | Replaces 81007. | $265.80 | Add to Cart |
| 4 | 15949 | Spacer | 2 | $31.56 | Add to Cart | |
| 5 | 19568 | No Longer Available | 2 | Call for availability | ||
| 6 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 6 | 16390 | No Longer Available | 2 | OPTIONAL IF PTO GEARS ARE NOT USED | Call for availability | |
| 6 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 7 | 18521 | Od Gear-cntrshft | 2 | Call for availability | ||
| 8 | 18523 | No Longer Available | 2 | Call for availability | ||
| 9 | 16753 | 1ST Gear-cntrshft | 2 | $117.99 | Add to Cart | |
| 10 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 11 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 12 | X-6-E | Key | 2 | $4.27 | Superseded by 230292Add to Cart | |
| 13 | 18796 | No Longer Available | 2 | Call for availability | ||
| 14 | 14366 | Bearing | 2 | No longer available - Call for replacement | ||
| 15 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart |

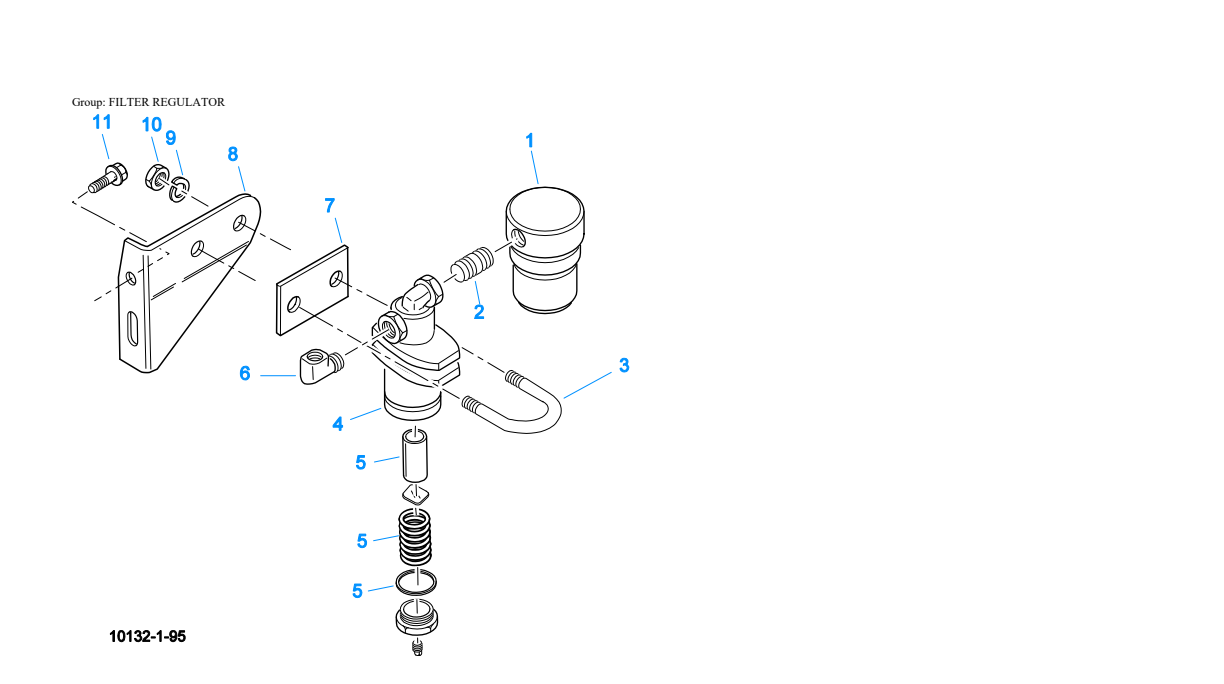

Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16743 | Regulator Valve | 1 | $93.29 | Add to Cart | |
| 2 | 16741 | Nipple | 1 | 1/4" | Call for availability | |
| 3 | 16742 | U-bolt | 1 | 1/4"-20 | $7.36 | Add to Cart |
| 4 | A-4041 | No Longer Available | 1 | $49.01 | Add to Cart | |
| 5 | K-1486 | Repair Kit-filter | 1 | $53.23 | Add to Cart | |
| 6 | 16865 | Street Ell | 1 | $5.05 | Add to Cart | |
| 7 | 18860 | No Longer Available | 1 | Call for availability | ||
| 8 | 17107 | No Longer Available | 1 | Call for availability | ||
| 9 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 10 | X-1-401 | Nut | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8L-601 | Capscrew | 2 | 3/8"-16X3/4" | $6.35 | Add to Cart |

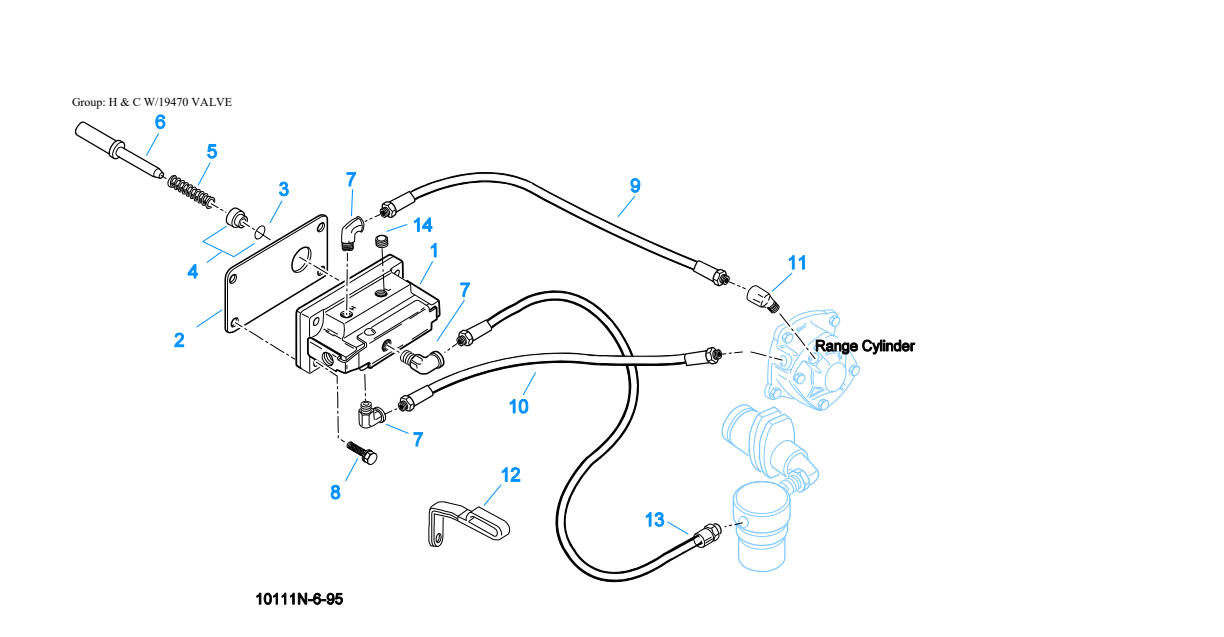

H & C W/19470 Valve
Item 7Item 7Item 5Item 1Item 4Item 6Item 9Item 10Item 7Item 8Item 2Item 3Item 14Item 13Item 12Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 2 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-401 | Capscrew | 4 | 1/4"-20X1-1/8" | $4.03 | Add to Cart |
| 9 | 55522 | Hose Assy | 1 | 28" | $19.70 | Add to Cart |
| 10 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 11 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 12 | 18769 | Hose Clamp | 1 | Replaces 12152. | $4.43 | Add to Cart |
| 13 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
| 14 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |

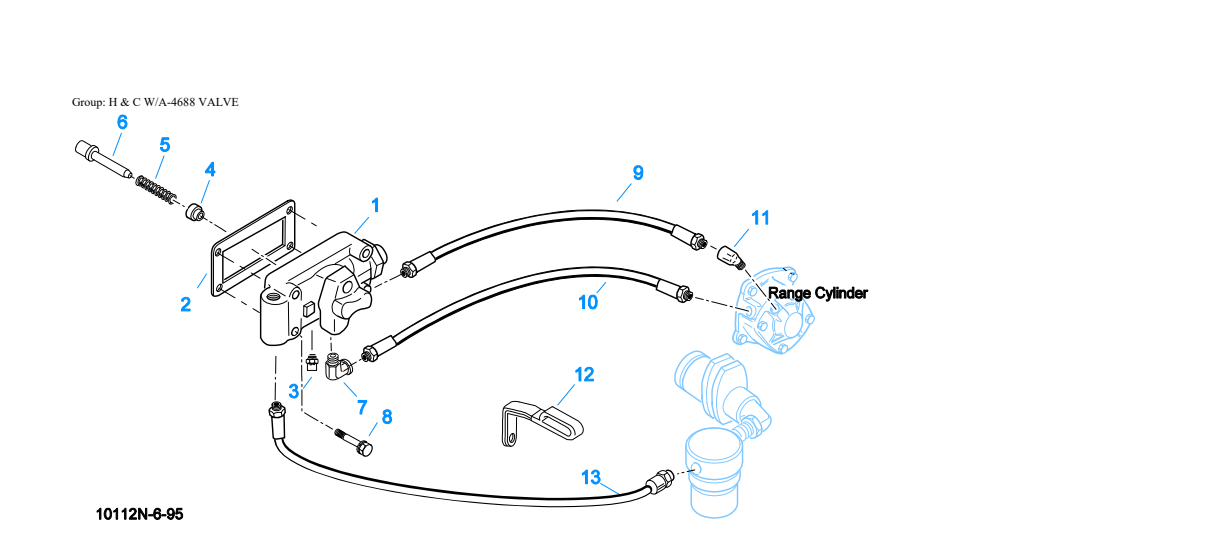

H & C W/A-4688 Valve
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4688 | Slave Valve Assy | 1 | Replaces 15125, 19464, A-3991. | No longer available - Call for replacement | |
| 2 | 15758 | Gasket | 1 | $2.25 | Add to Cart | |
| 3 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 6 | 14361 | Pin | 1 | $44.42 | Add to Cart | |
| 7 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8L-411 | Capscrew | 4 | Replaces X8411. 1/4"-20X1-3/4" | $14.93 | Add to Cart |
| 9 | 55522 | Hose Assy | 1 | 28" | $19.70 | Add to Cart |
| 10 | 55524 | Hose Assy | 1 | 27" | $20.10 | Add to Cart |
| 11 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 12 | 18769 | Hose Clamp | 1 | Replaces 12152. | $4.43 | Add to Cart |
| 13 | 55525 | Hose Assy | 1 | 17" | $17.77 | Add to Cart |
H & C W/A-5000 Valve
Item 7Item 7Item 7Item 1Item 14Item 2Item 9Item 12Item 10Item 5Item 6Item 8Item 11Item 4Item 3Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55522 | Hose Assy | 1 | 28" | $19.70 | Add to Cart |
| 10 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 11 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 12 | 18769 | Hose Clamp | 1 | Replaces 12152. | $4.43 | Add to Cart |
| 13 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
| 14 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |

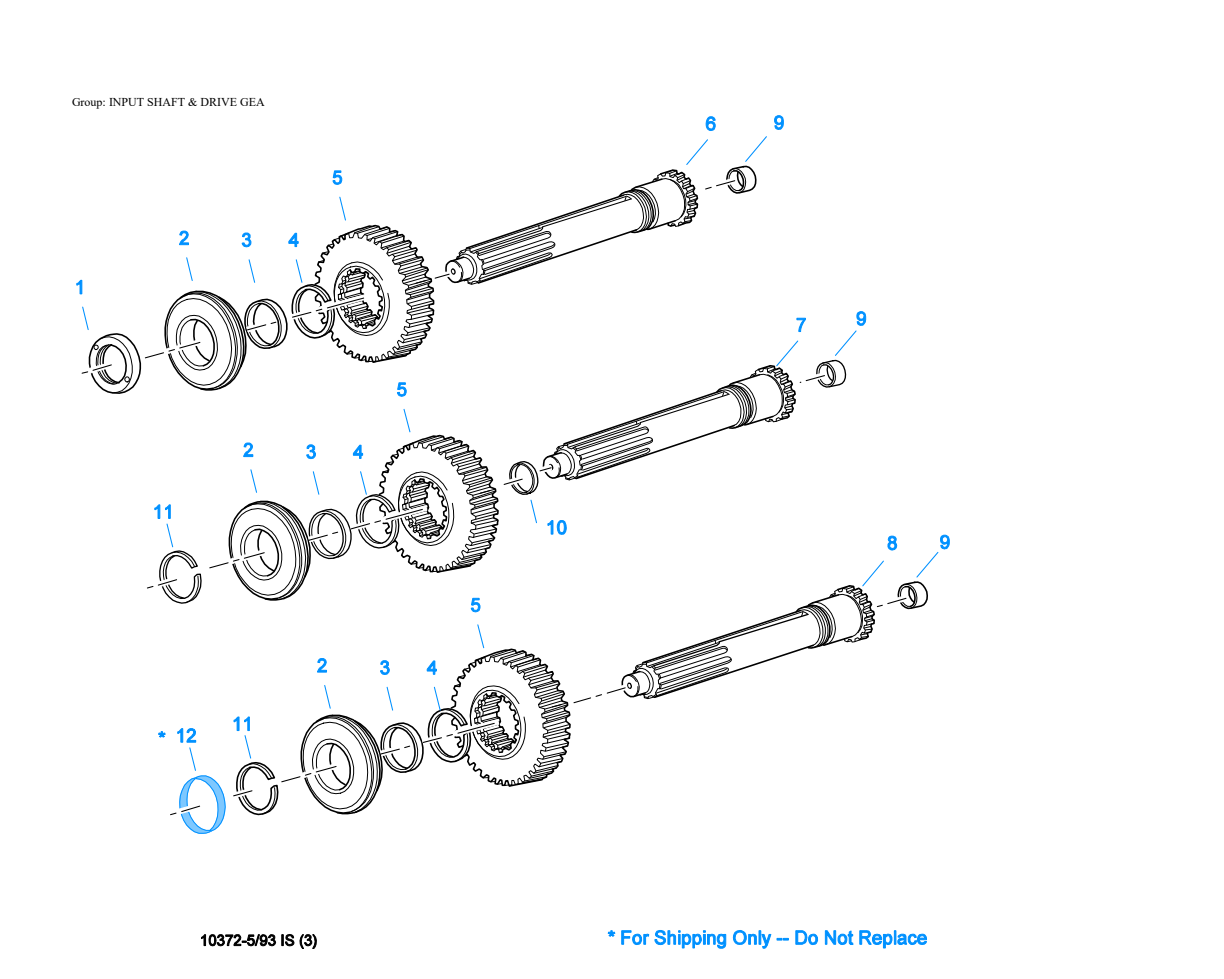

Input Shaft & Drive Gea
Item 7Item 11Item 4Item 4Item 11Item 5Item 5Item 4Item 1Item 5Item 2Item 2Item 2Item 12Item 9Item 6Item 9Item 8Item 3Item 10Item 9Item 3Item 3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 8997 | Nut | 1 | PULL | $18.45 | Add to Cart |
| 2 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 3 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 4 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 5 | 19565 | No Longer Available | 1 | Call for availability | ||
| 6 | S-1128 | Input Shaft | 1 | Replaces 16465. 2" PULL - USE W/FBC 15111 | $89.76 | Add to Cart |
| 7 | S-1409 | Input Shaft | 1 | Replaces 18837. 2" PULL W/SEAL - USE W/FBC 18699 | $627.18 | Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 2053523566, 4302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart | |
| 10 | 16978 | Sleeve | 1 | 2" W/SEAL | $27.60 | Add to Cart |
| 11 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 12 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |

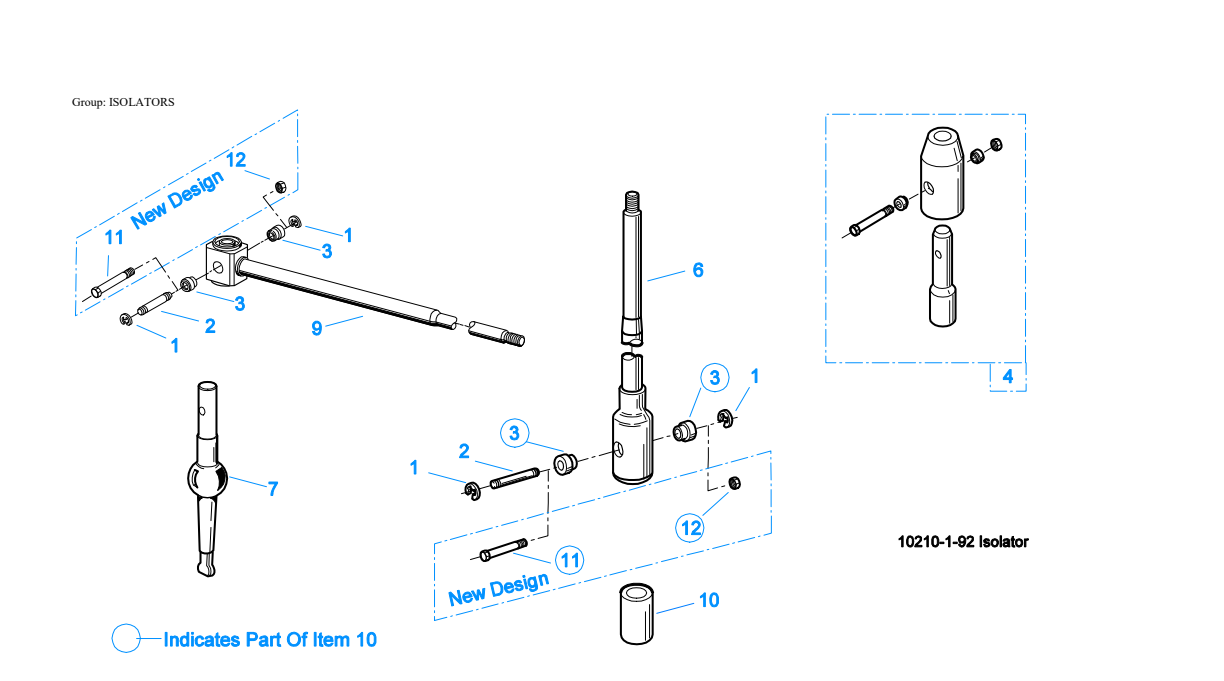

Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1063 | Basic Overhaul Kit | 1 | $969.80 | Add to Cart | ||
| K-1431 | Range Cyl-kit | 1 | $229.35 | Add to Cart | ||
| K-1450 | O-ring Kit-range | 1 | $12.61 | Add to Cart | ||
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1486 | Repair Kit-filter | 1 | $53.23 | Add to Cart | ||
| K-1510 | Small Parts Kit | 1 | Call for availability | |||
| K-1566 | Valve Repair Kit | 1 | FOR A-3546 VALVE | $117.51 | Add to Cart | |
| K-1603 | Gasket Kit | 1 | FOR AUXILIARY SECTION | $18.46 | Add to Cart | |
| K-1613 | Cap Replacement Kit | 1 | Replaces 16429, 18707. FOR A-4688 VALVE | $65.98 | Add to Cart | |
| K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW | $219.19 | Add to Cart | |
| K-1659 | Clutch Housing Kit | 1 | Replaces A-4342. #1 PUSH-PULL ALUM. | $870.59 | Add to Cart | |
| K-1661 | Clutch Housing Kit | 1 | Replaces A-4344. #2 PUSH-PULL ALUM. | $1,650.63 | Add to Cart | |
| K-1699 | Repair Kit-slave Valve | 1 | FOR A-4688 VALVE | $17.70 | Add to Cart | |
| K-1700 | Oil Cooler Kit | 1 | Call for availability | |||
| K-1704 | Pump Installation Kit | 1 | Call for availability | |||
| K-1858 | Basic Rebuild Kit | 1 | $847.61 | Add to Cart | ||
| K-1921 | Master Valve Repair Kit | 1 | FOR A-6909 & A-5010 VALVES | $20.03 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1963 | Valve Conversion Kit | 1 | CONVERTS A-4688 TO A-5000 VALVE | $314.28 | Add to Cart | |
| K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart | |
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2010 | Valve Conversion Kit | 1 | FOR A-5010 VALVE | $207.41 | Add to Cart | |
| K-2199 | Gasket Kit | 1 | $80.16 | Add to Cart | ||
| K-2256 | Oil Seal Kit | 1 | Replaces 14337, 19109, 21036. | $18.84 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2468 | Clutch Installation Kit | 1 | FOR USE WITH S-1659 INPUT SHAFT ASSY AND 81504 INPUT SHAFT BEARING | $318.86 | Add to Cart | |
| K-2934 | Countershaft Repl Kit | 1 | Replaces 19549. | $357.67 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-3217 | Idler Shaft Repl Kit | 1 | Replaces 4302981. | $75.22 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3491 | Synchronizer Kit | 1 | Replaces K-2445. LO RANGE / SMALL PIN | $219.37 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. LO RANGE / LARGE PIN | $228.43 | Add to Cart | |
| K-3493 | Synchronizer Replacement Kit | 1 | Replaces K-2447. SLIDING CLUTCH INCLUDED IN KIT | $311.07 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | |||
| K-4125 | Clutch Installation Kit (rt), Hydraulic Release | 1 | STANDARD RT INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $455.35 | Superseded by K4125CLAdd to Cart | |
| S-1128 | Input Shaft | 1 | Replaces 16465. 2" PULL | $89.76 | Add to Cart | |
| S-1219 | Yoke Assy Low-rev | 1 | $72.34 | Add to Cart | ||
| S-1318 | Case Assy | 1 | Replaces 15390. | $3,327.93 | Add to Cart | |
| S-1341 | Mainshaft Assy | 1 | Replaces 16761, 18729. | $160.78 | Add to Cart | |
| S-1409 | Input Shaft | 1 | Replaces 18837. 2" PULL W/SEAL | $627.18 | Add to Cart | |
| S-1440 | Shift Bar Hsg (std) | 1 | Replaces 15890, 15928, 16913, 17115, 1718017182, 17428, 18571, 18640, 1864418840, 18847, 19448, 19449, 1945319454, 19455, 19605, 20074, 2021020211. HOUSING ONLY | $980.10 | Add to Cart | |
| S-1441 | Shift Bar Hsg (f) | 1 | Replaces 15891, 16340, 16564, 17114, 1712817181, 17218, 17492, 17577, 1790018203, 18436, 18642, 18646, 1888619159, 19450, 19451, 19456, 1945719458, 19717, 19956, 20072, 2021220213, 21134, 22956, S-1106, S-1361, S-1370, S-1374, S-1375, S-1378. HOUSING ONLY | $942.03 | Add to Cart | |
| S-1445 | Shift Bar Hsg (x) | 1 | Replaces 18920, 20135, 20214, 20215, 2048721135. HOUSING ONLY (X) | $1,001.65 | Add to Cart | |
| S-1446 | Shift Bar Hsg (xf) | 1 | Replaces 18925, 20136, 20216, 20217, 2048821136, S-1361. HOUSING ONLY (XF) | $999.67 | Add to Cart | |
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. FOR A-5000 VALVE | No longer available - Call for replacement | ||
| S-1527 | Shift Bar Hsg Assy (x) | 1 | Replaces 20215, 21135. COMPLETE (X) | $1,530.41 | Add to Cart | |
| S-1528 | Shift Bar Hsg Assy (xf) | 1 | Replaces 20217, 21136. COMPLETE (XF) | $1,372.01 | Add to Cart | |
| S-1529 | Shift Bar Hsg Assy (f) | 1 | Replaces 20213, 22956. COMPLETE | $1,378.84 | Add to Cart | |
| S-1531 | Shift Bar Hsg Assy (std) | 1 | Replaces 20211, 22955. COMPLETE | $1,372.01 | Add to Cart | |
| S-1659 | Input Shaft | 1 | Replaces 2053523566, 4302661. 2" PULL | $110.63 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2136 | Rear Brg Cover Assy | 1 | Replaces 21950, 22040, 22041, 22042, 43020064302007, S-1563. EXTENDED | $308.32 | Add to Cart | |
| S-2149 | Rear Brg Cover Assy | 1 | Replaces 20208, 21062. | $329.84 | Add to Cart | |
| S-2540 | Roadranger Valve Assy | 1 | Replaces A-5037. RT - W/SHIFT DIAGRAM MEDALLION | $113.85 | Add to Cart | |
| S-2541 | Roadranger Valve Assy | 1 | Replaces A-5040. RTO - W/SHIFT DIAGRAM MEDALLION | $155.71 | Add to Cart |

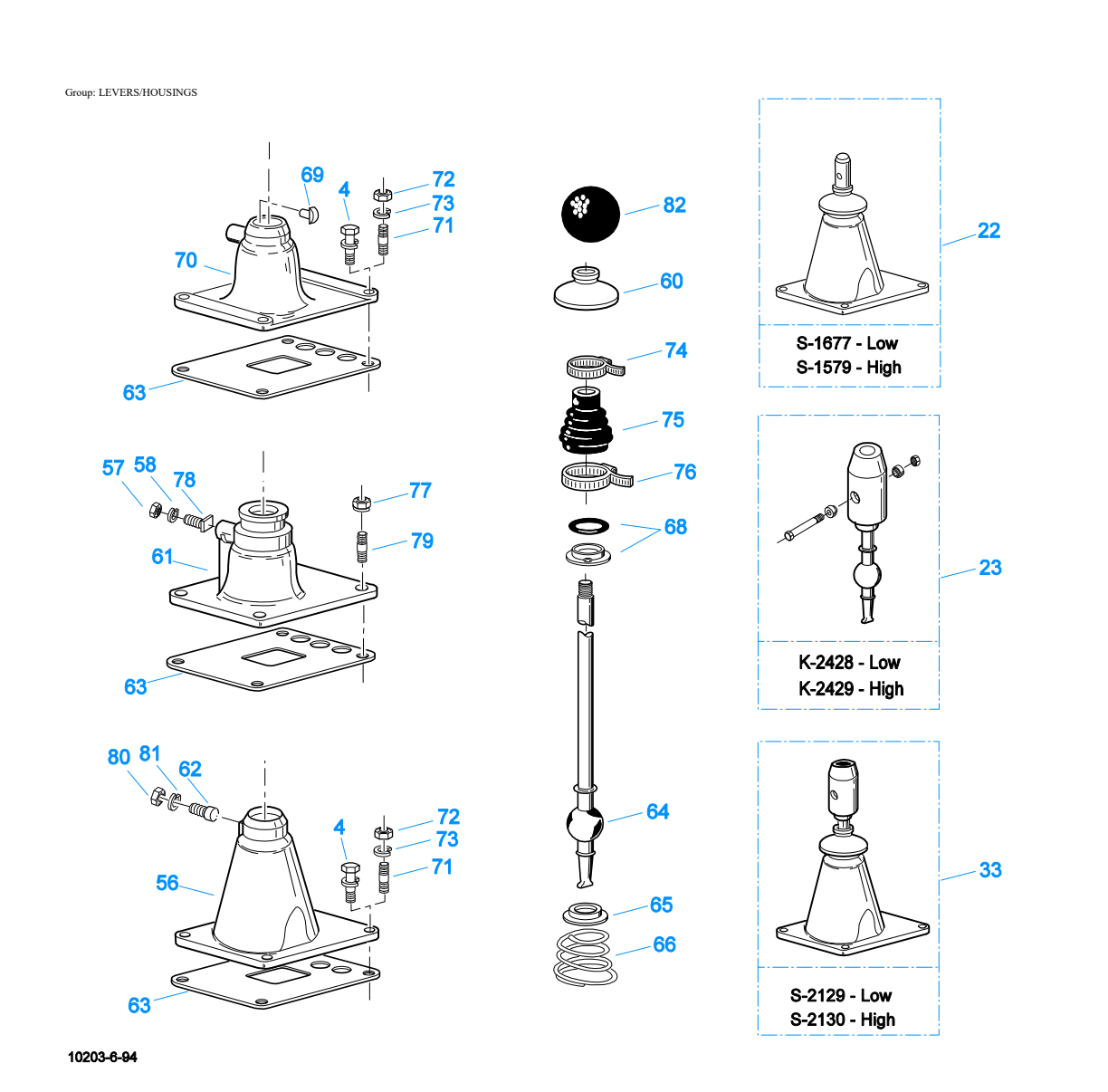

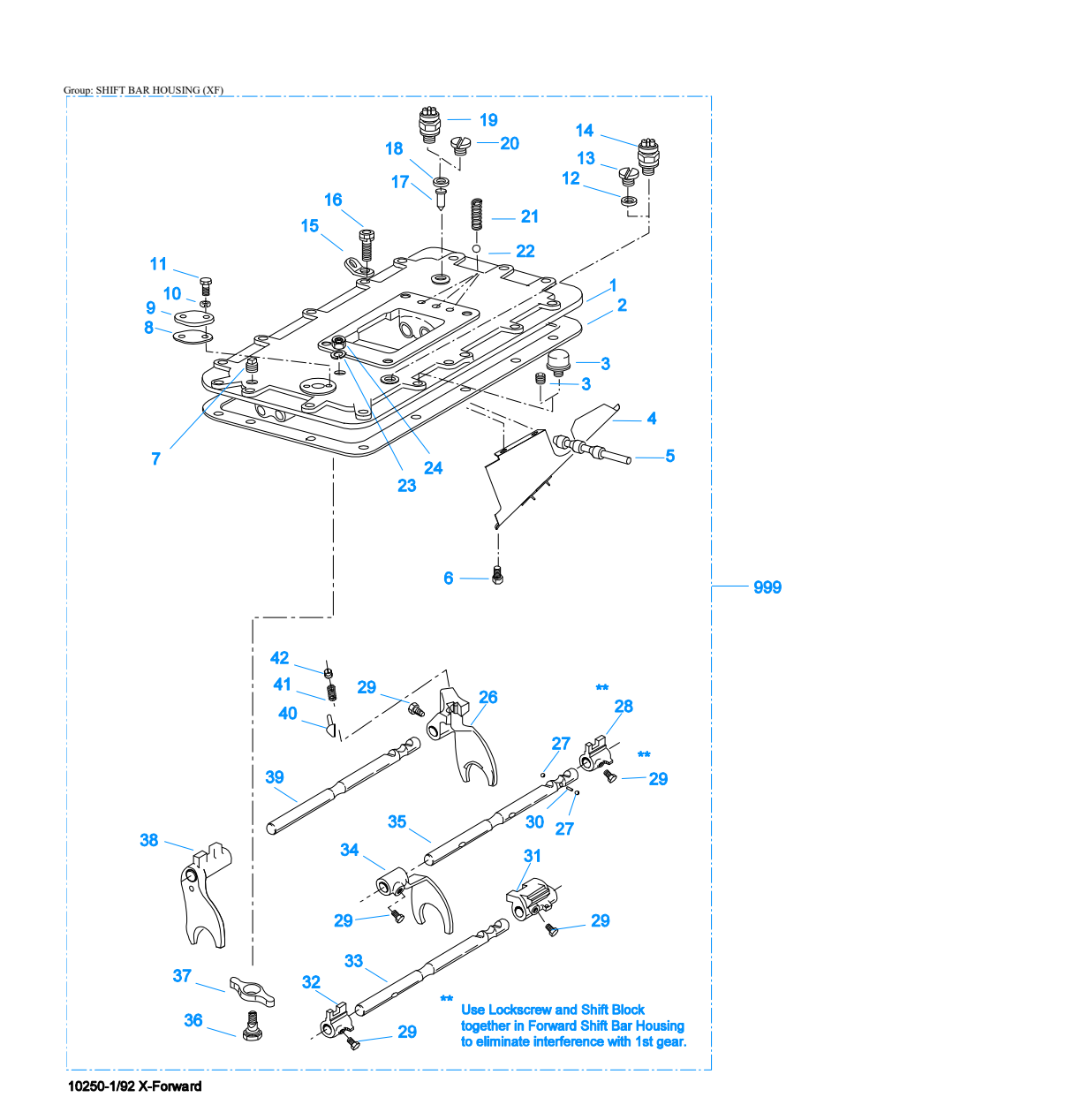

Levers/Housings
Item 71Item 4Item 71Item 77Item 69Item 80Item 74Item 66Item 61Item 4Item 72Item 79Item 76Item 63Item 68Item 65Item 60Item 82Item 23Item 81Item 72Item 70Item 56Item 58Item 63Item 33Item 57Item 73Item 64Item 63Item 73Item 75Item 23Item 78Item 62Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 56 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 57 | X-1-500 | Nut | 1 | 5/16"-24 | Call for availability | |
| 58 | X-3-500 | Lockwasher | 1 | 5/16" | $1.66 | Add to Cart |
| 60 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 61 | K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW, USE W/14795 BOOT | $219.19 | Add to Cart |
| 62 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 63 | 4305294 | Gasket | 1 | Replaces 4303431. | $9.67 | Add to Cart |
| 64 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 64 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 65 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 66 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 68 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 69 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 70 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 71 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 72 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 73 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 74 | 14453 | Clamp | 1 | $4.89 | Add to Cart | |
| 75 | 14795 | Boot | 1 | $75.78 | Add to Cart | |
| 76 | 14454 | Clamp | 1 | No longer available - Call for replacement | ||
| 77 | X-1-604 | Nut | 4 | 3/8"-24 | Call for availability | |
| 78 | 14461 | Pin | 1 | Call for availability | ||
| 79 | 14236 | No Longer Available | 4 | Call for availability | ||
| 80 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 81 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 82 | 17560 | Lever Grip | 1 | 1/2"-13 | $8.86 | Add to Cart |

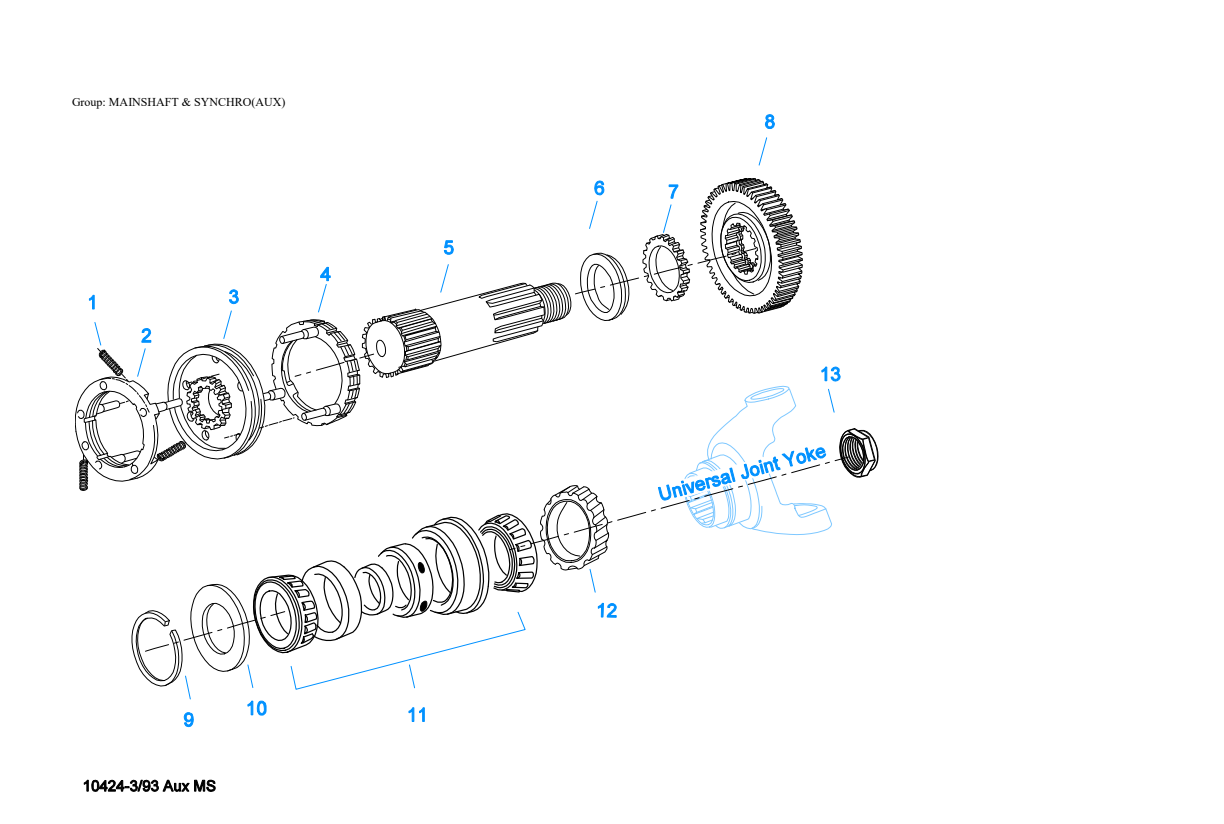

Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 20336 | Sliding Clutch | 1 | $135.43 | Add to Cart | |
| 4 | A-6153 | Synchronizer Assy | 1 | Replaces A-4416. LO RANGE - SMALL PIN | $130.43 | Add to Cart |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE - LARGE PIN | $146.52 | Add to Cart |
| 5 | 14320 | Mainshaft | 1 | No longer available - Call for replacement | ||
| 6 | 14332 | Washer | 1 | $24.93 | Add to Cart | |
| 7 | 14331 | Washer | 1 | $38.64 | Add to Cart | |
| 8 | 14326 | Lo Gear-mainshaft | 1 | Call for availability | ||
| 9 | 14327 | Snap Ring | 1 | $2.85 | Add to Cart | |
| 10 | 14330 | Washer | 1 | $31.53 | Add to Cart | |
| 11 | 14367 | Bearing | 1 | $451.69 | Add to Cart | |
| 12 | 20192 | Rotor | 1 | $36.80 | Add to Cart | |
| 13 | 22254 | Nut | 1 | Replaces 11956. | $15.84 | Add to Cart |

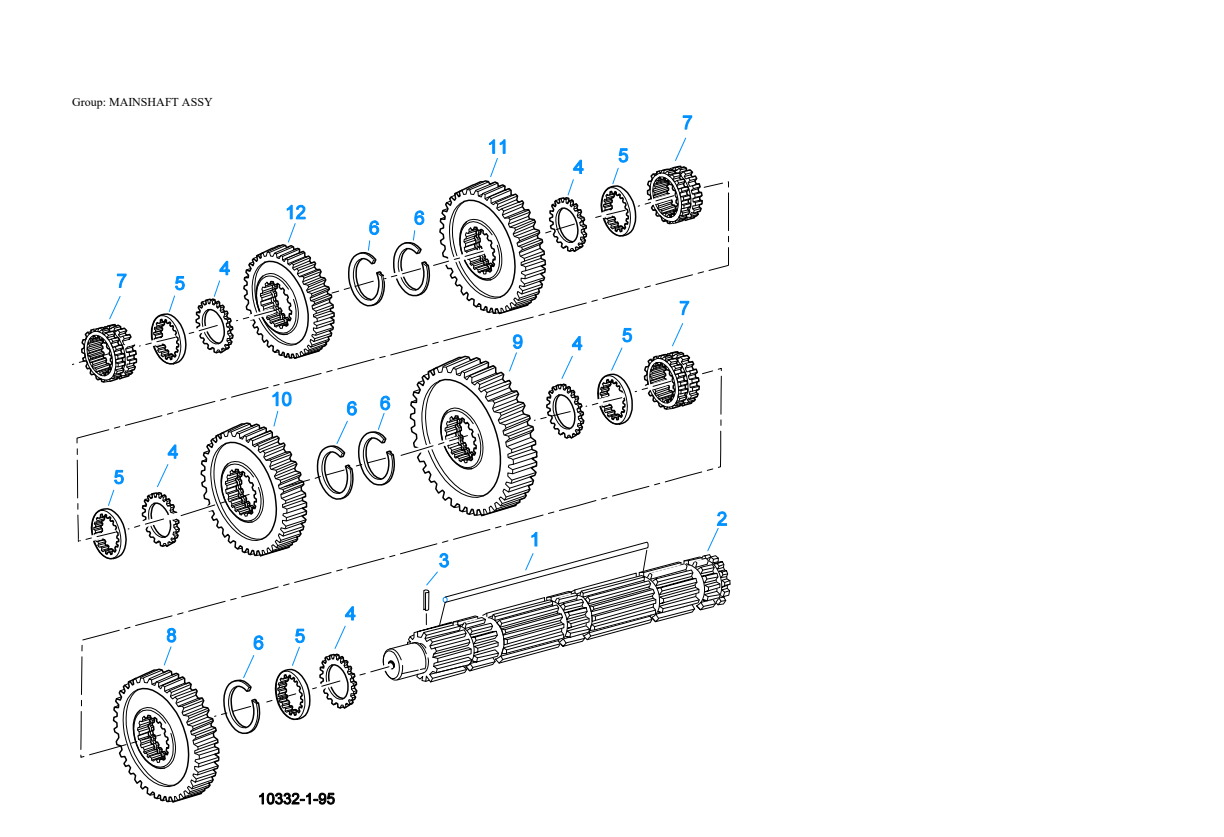

Mainshaft Assy
Item 7Item 7Item 9Item 8Item 4Item 6Item 12Item 4Item 7Item 4Item 6Item 2Item 5Item 4Item 6Item 6Item 5Item 11Item 5Item 6Item 5Item 5Item 3Item 10Item 4Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 17109 | Hex (6-SIDED) Key | 1 | MUST USE MATCHING WASHERS | $14.34 | Add to Cart |
| 2 | S-1341 | Mainshaft Assy | 1 | Replaces 16761, 18729. | $160.78 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14749 | Spacer | 5 | $6.93 | Add to Cart | |
| 5 | 14711 | Washer .248-.250 White | 5 | Replaces 18701. | $10.25 | Add to Cart |
| 5 | 14712 | Washer .253-.255 Green | 5 | Replaces 18702. | $10.51 | Add to Cart |
| 5 | 14713 | Washer .258-.260 Orange | 5 | Replaces 18703. | $10.51 | Add to Cart |
| 5 | 14714 | Washer .263-.265 Purple | 5 | Replaces 18704. | $10.61 | Add to Cart |
| 5 | 14715 | Washer .268-.270 Yellow | 5 | Replaces 18705. | $10.61 | Add to Cart |
| 5 | 14716 | Washer .273-.275 Black | 5 | Replaces 18706. | $10.61 | Add to Cart |
| 6 | 14750 | Snap Ring | 5 | $2.20 | Add to Cart | |
| 7 | 16118 | Sliding Clutch | 3 | $42.03 | Add to Cart | |
| 8 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 9 | 16754 | Lo Gear-mainshaft | 1 | $194.39 | Add to Cart | |
| 10 | 16752 | 1ST Gear-mainshaft | 1 | $125.00 | Add to Cart | |
| 11 | 18522 | 2ND Gear-mainshaft | 1 | Call for availability | ||
| 12 | 19567 | No Longer Available | 1 | Call for availability | ||
| 12 | 4304514 | Od Gear-mainshaft | 1 | Replaces 4302664, 4303698, 4304316. | $145.10 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 18683 | Warning Label | 1 | Call for availability | |||
| 20398 | Shift Diagram Label | 1 | Replaces 19675. RT-RTX | $28.59 | Add to Cart | |
| 20399 | Shift Diagram Label | 1 | Replaces 19677, 19679. RTO | $28.59 | Add to Cart | |
| 21250 | Shift Diagram Label | 1 | Replaces 19835. RT-RTX | $28.59 | Add to Cart | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |

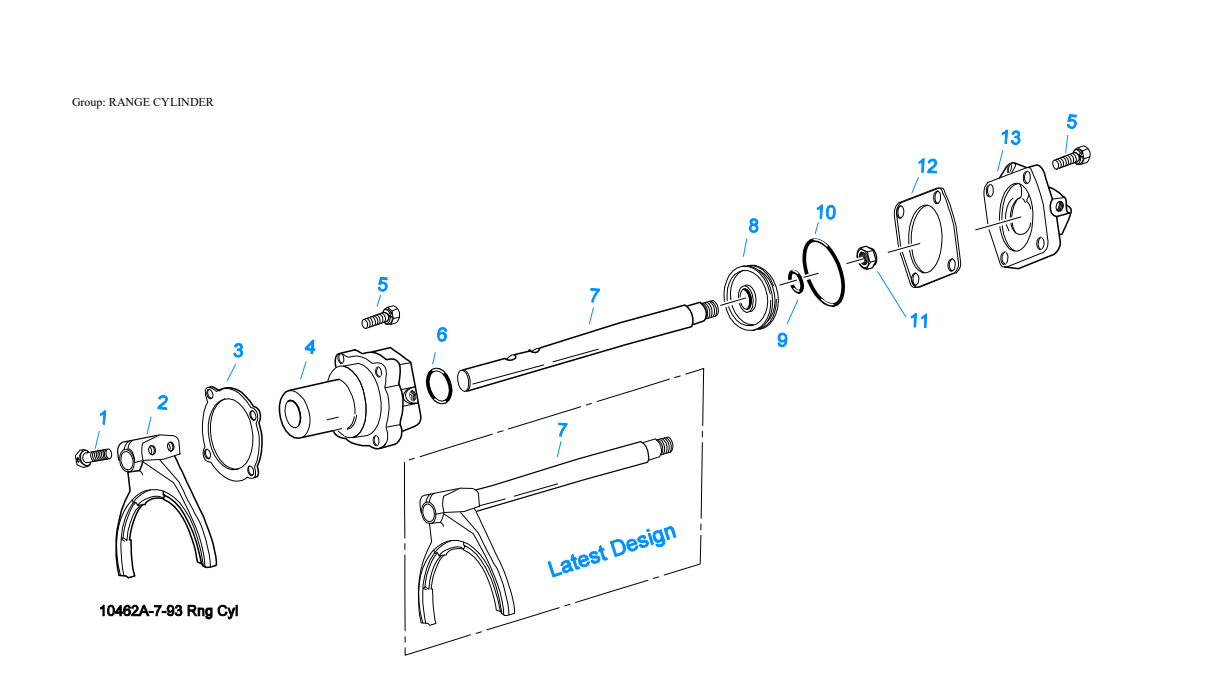

Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-809 | Bolt | 2 | Replaces X7810, X7811. 1/2"-20X1-3/4" | $1.89 | Add to Cart |
| 2 | 22823 | Shift Yoke | 1 | Replaces 16775. | $82.40 | Add to Cart |
| 3 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 4 | 16778 | Auxiliary Cylinder | 1 | $181.93 | Add to Cart | |
| 5 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 6 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 7 | 16993 | Yoke Bar | 1 | $193.71 | Superseded by A6162Add to Cart | |
| 7 | A-6162 | Welded Yoke & Bar Assy | 1 | $193.71 | Add to Cart | |
| 8 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 9 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 10 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 11 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 12 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 13 | 14799 | No Longer Available | 1 | Call for availability |

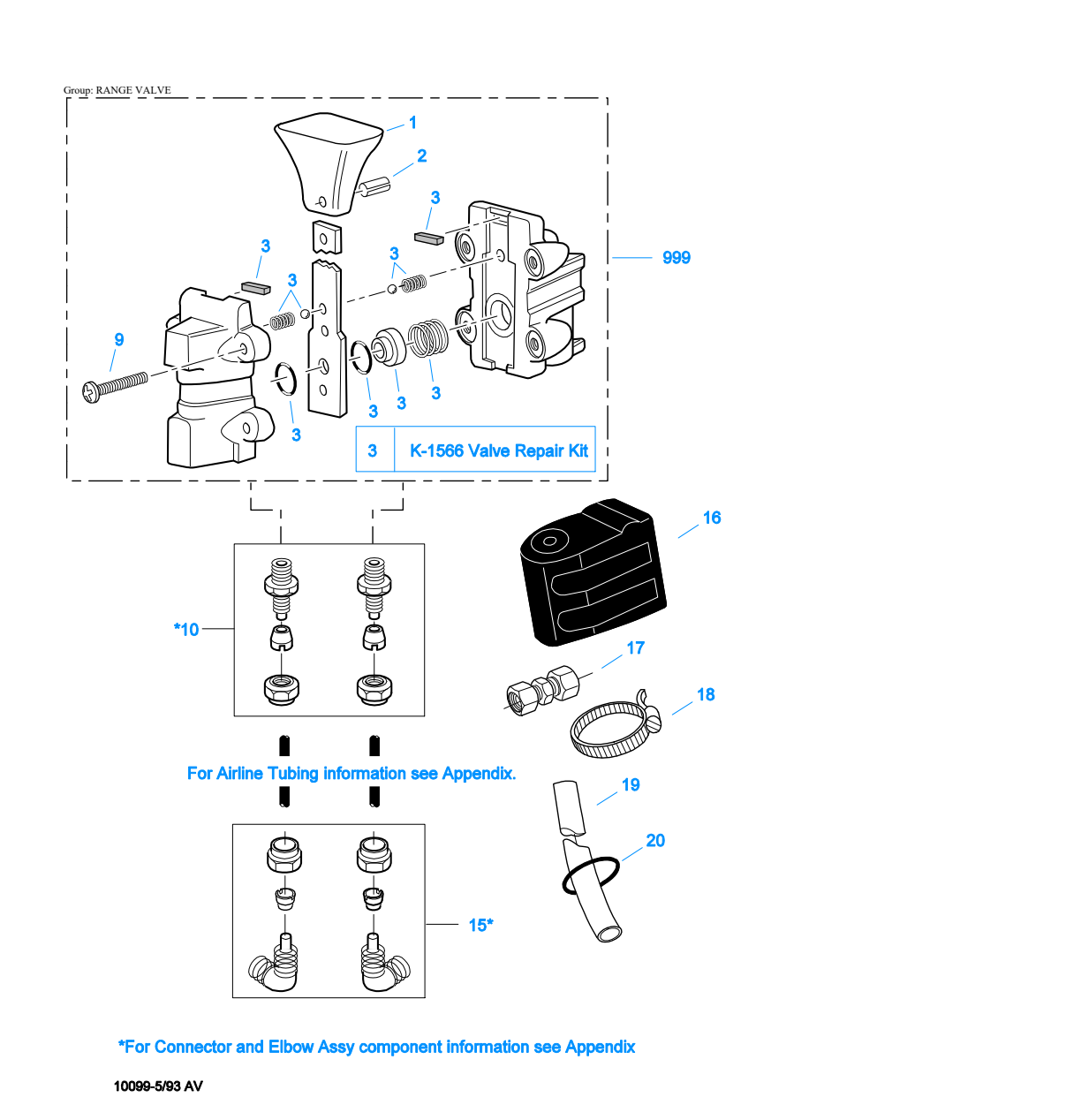

Range Valve
Item 1Item 17Item 19Item 16Item 3Item 18Item 3Item 9Item 3Item 3Item 3Item 3Item 3Item 3Item 15Item 10Item 3Item 2Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 15120 | Knob | 1 | $127.07 | Superseded by A3546Add to Cart | |
| 2 | 62512 | Roll Pin | 1 | $1.96 | Add to Cart | |
| 3 | K-1566 | Valve Repair Kit | 1 | FOR A-3546 VALVE | $117.51 | Add to Cart |
| 9 | X-13-214 | Screw | 4 | 8-32X3/4" | $2.40 | Add to Cart |
| 10 | 84002 | Connector Assy | 2 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 10 | 84004 | Connector Assy | 2 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 10 | 84006 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- | $6.01 | Add to Cart |
| 15 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 15 | 85002 | Elbow Assy | 2 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 15 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 16 | 18905 | No Longer Available | 1 | Call for availability | ||
| 17 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 17 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 17 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 18 | 14441 | Clamp | 1 | Replaces 14465. | $3.54 | Add to Cart |
| 19 | 80120 | Sheathing (50 Ft Roll) | 1 | 5/32" - BLACK 50' | Call for availability | |
| 20 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 999 | A-3546 | Range Valve Assy | 1 | Replaces 18268, 18269, 18272. | $127.07 | Add to Cart |

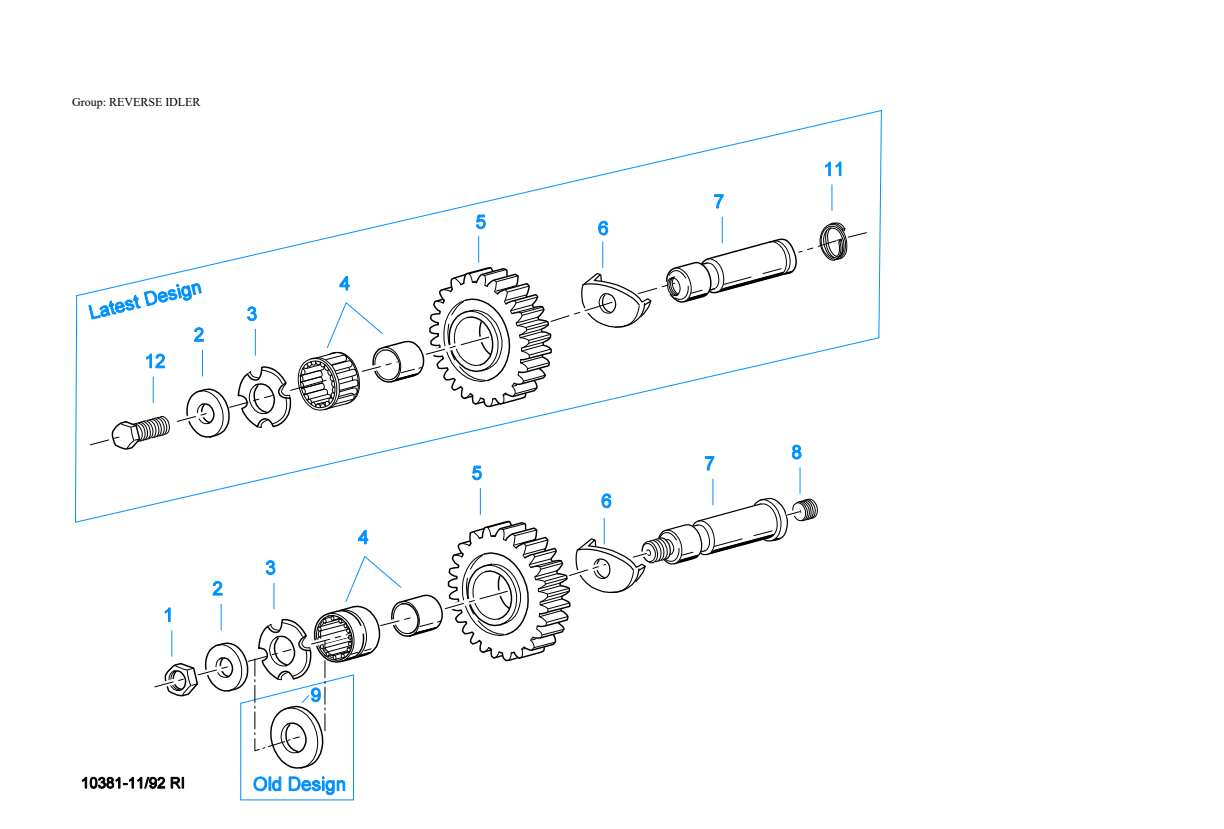

Reverse Idler
Item 7Item 5Item 4Item 1Item 8Item 12Item 9Item 7Item 6Item 4Item 3Item 6Item 2Item 11Item 5Item 2Item 3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 2 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 16403 | Washer | 2 | $18.45 | Add to Cart | |
| 7 | K-3217 | Idler Shaft Repl Kit | 2 | Replaces 4302981. | $75.22 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 2 | $5.69 | Superseded by 4302982Add to Cart | |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
Road Speed Governor
Item 4Item 14Item 5Item 2Item 4Item 21Item 5Item 5Item 5Item 5Item 4Item 20Item 12Item 12Item 4Item 17Item 12Item 11Item 25Item 19Item 11Item 4Item 16Item 5Item 11Item 26Item 18Item 11Item 11Item 11Item 12Item 23Item 22Item 24Item 1Item 3Item 13Item 12Item 15Item 4Item 12Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
| 2 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 3 | A-4688 | Slave Valve Assy | 1 | Replaces 15125, 19464, A-3991. | No longer available - Call for replacement | |
| 4 | 84002 | Connector Assy | 4 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 4 | 84004 | Connector Assy | 4 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 4 | 84006 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 5 | 85001 | Elbow Assy | 6 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 5 | 85002 | Elbow Assy | 6 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 5 | 85003 | Elbow Assy | 6 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 12769 | Nipple | 2 | 1/8" | $16.67 | Add to Cart |
| 12 | 12881 | Tee | 2 | 1/8" | $11.68 | Add to Cart |
| 13 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |
| 14 | X-8-434 | Capscrew | 2 | 1/4"-20X2" | $1.73 | Add to Cart |
| 15 | 7935 | Breather | 1 | $4.12 | Add to Cart | |
| 16 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 17 | 20199 | Plate | 1 | Replaces 18724. | $13.20 | Add to Cart |
| 18 | 18734 | Valve | 1 | $129.03 | Add to Cart | |
| 19 | 18656 | No Longer Available | 1 | Call for availability | ||
| 20 | 15899 | Pin | 1 | RT-RTF-RTO-RTOF | $4.30 | Add to Cart |
| 20 | 20119 | Pin | 1 | RTX-RTXF | Call for availability | |
| 21 | 18685 | No Longer Available | 1 | Call for availability | ||
| 22 | X-3-305 | Lockwasher | 2 | #10 | Call for availability | |
| 23 | X-1-250 | No Longer Available | 2 | #10-32 | Call for availability | |
| 24 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 25 | 18675 | Valve | 1 | $166.96 | Add to Cart | |
| 26 | 18684 | No Longer Available | 1 | Call for availability |

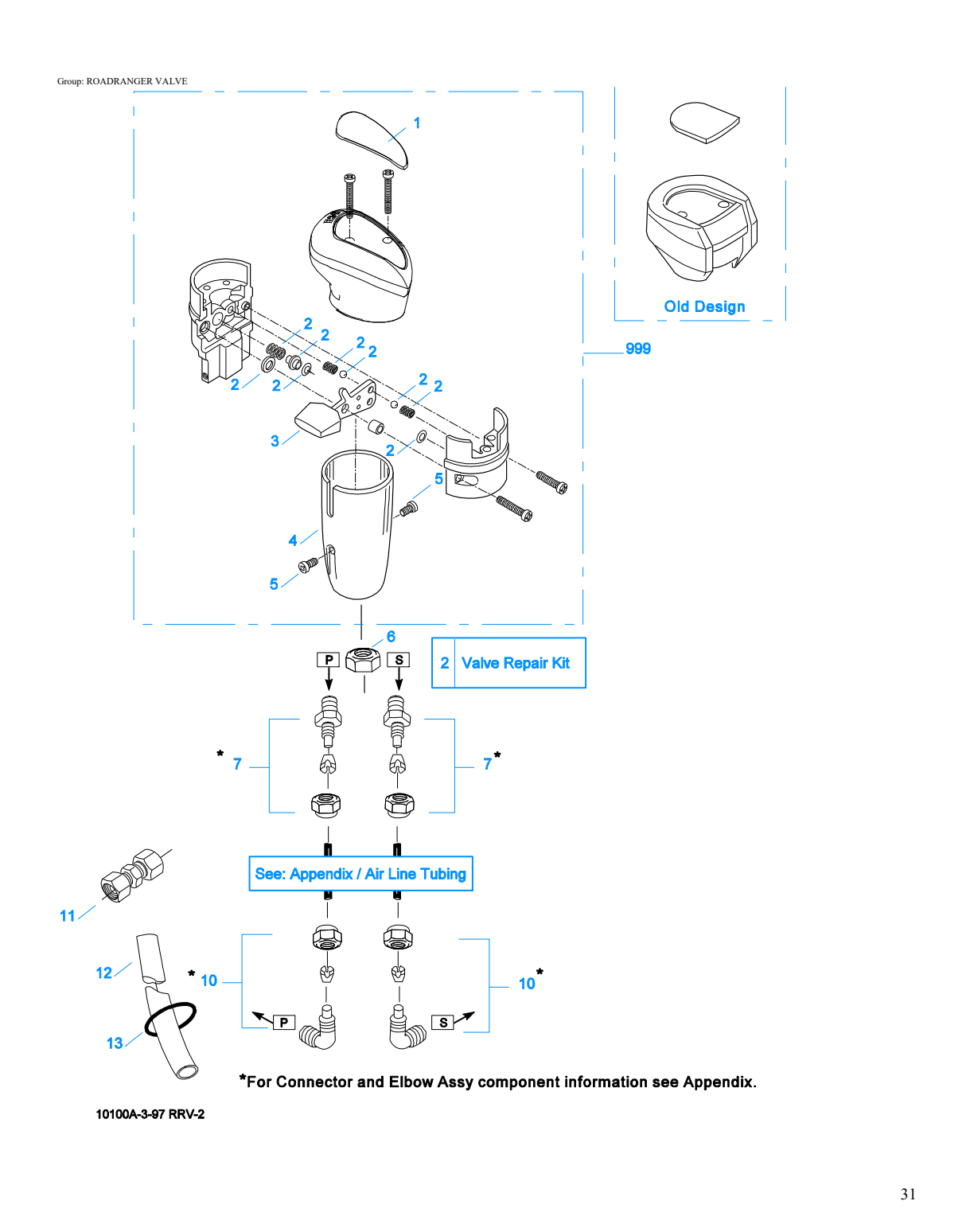

Roadranger Valve
Item 10Item 2Item 2Item 2Item 1Item 12Item 2Item 3Item 2Item 7Item 13Item 2Item 2Item 10Item 6Item 5Item 5Item 11Item 7Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586104 | Shift Diagram Medallion | 1 | RT | $28.59 | Add to Cart |
| 1 | 5586105 | Shift Diagram Medallion | 1 | RTO | $28.59 | Add to Cart |
| 2 | K-1921 | Master Valve Repair Kit | 1 | FOR A-6909 & A-5010 VALVES | $20.03 | Add to Cart |
| 3 | 20495 | Lever | 1 | $15.43 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 2 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 2 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 2 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 80120 | Sheathing (50 Ft Roll) | 1 | 5/32" - BLACK 50' | Call for availability | |
| 13 | 13571 | O-ring Clamp | 1 | $2.11 | Add to Cart | |
| 999 | A-6909 | Roadranger Valve Assy | 1 | Replaces A-5010, A-5310. STANDARD-W/LOGO | $88.64 | Add to Cart |
| 999 | S-2540 | Roadranger Valve Assy | 1 | Replaces A-5037. RT - W/SHIFT DIAGRAM MEDALLION | $113.85 | Add to Cart |
| 999 | S-2541 | Roadranger Valve Assy | 1 | Replaces A-5040. RTO - W/SHIFT DIAGRAM MEDALLION | $155.71 | Add to Cart |
Shift Bar Housing (Xf)
Item 1Item 17Item 5Item 6Item 7Item 8Item 19Item 12Item 26Item 29Item 37Item 24Item 4Item 3Item 15Item 29Item 20Item 36Item 30Item 27Item 27Item 11Item 21Item 31Item 41Item 18Item 14Item 35Item 34Item 22Item 29Item 42Item 32Item 29Item 10Item 38Item 16Item 39Item 28Item 29Item 23Item 40Item 33Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1446 | Shift Bar Hsg (xf) | 1 | Replaces 18925, 20136, 20216, 20217, 2048821136, S-1361. HOUSING ONLY | $999.67 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 20070 | Oil Trough | 1 | $17.04 | Add to Cart | |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 6 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 8 | 20209 | Gasket | 1 | $2.29 | Add to Cart | |
| 9 | 20199 | Plate | 1 | Replaces 18724. | $13.20 | Add to Cart |
| 10 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8-406 | Capscrew | 2 | 1/4"-20X3/4" | $1.71 | Add to Cart |
| 12 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $1.72 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4"- OR USE 14 PCS OF X- 8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | X-10-801 | Washer | 1 | 1/2" | $1.15 | Add to Cart |
| 24 | X-1-803 | Nut | 1 | 1/2"-20 | $1.87 | Add to Cart |
| 26 | 16338 | Shift Yoke | 1 | REVERSE/LO | $301.13 | Add to Cart |
| 27 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 28 | 15770 | Shift Block | 1 | 1ST/2ND | $59.80 | Add to Cart |
| 29 | 22943 | Lockscrew | 1 | USE W/15770 SHIFT BLOCK | $15.26 | Add to Cart |
| 29 | 3220 | Lockscrew | 4 | $4.28 | Add to Cart | |
| 30 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 31 | 19062 | Shift Block | 1 | 3RD/OD | $52.62 | Add to Cart |
| 32 | 20120 | Shift Block | 1 | Replaces 18924. 3RD/OD | $52.32 | Add to Cart |
| 33 | 18931 | Yoke Bar | 1 | Replaces 4302759. 3RD/OD | $72.63 | Add to Cart |
| 33 | 20118 | Yoke Bar | 1 | 3RD/OD-W/ROAD SPEED GOVERNOR | $58.66 | Add to Cart |
| 34 | 18922 | Shift Yoke | 1 | 1ST/2ND | $81.23 | Add to Cart |
| 35 | 18930 | Yoke Bar | 1 | 1ST/2ND | $88.80 | Add to Cart |
| 36 | 18919 | Actuator Pivot Pin | 1 | $16.12 | Superseded by K3100Add to Cart | |
| 37 | 18918 | No Longer Available | 1 | Call for availability | ||
| 38 | 4305575 | Shift Yoke | 1 | Replaces 20450. 3RD/OD | $142.49 | Add to Cart |
| 39 | 18929 | Yoke Bar | 1 | REVERSE/LO | $70.01 | Add to Cart |
| 40 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 41 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 42 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 999 | S-1528 | Shift Bar Hsg Assy (xf) | 1 | Replaces 20217, 21136. COMPLETE | $1,372.01 | Add to Cart |
Slave Valve -
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
Slave Valve - A-
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4688 | Slave Valve Assy | 1 | Replaces 15125, 19464, A-3991. | No longer available - Call for replacement | |
| 2 | K-1699 | Repair Kit-slave Valve | 1 | FOR A-4688 VALVE | $17.70 | Add to Cart |
| 3 | 19463 | Piston | 1 | Replaces 15126. | $60.69 | Add to Cart |
| 4 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 5 | K-1613 | Cap Replacement Kit | 1 | Replaces 16429, 18707. FOR A-4688 VALVE | $65.98 | Add to Cart |
| 6 | X-8S-401 | Capscrew | 2 | 1/4"-20X1-1/8" | $2.75 | Add to Cart |
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RTXF-11509, with every part in the manual matched to our live inventory. We stock 423 of the 478 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Countershaft Assy (Old) Filter Regulator H & C W/19470 Valve H & C W/A-4688 Valve H & C W/A-5000 Valve Input Shaft & Drive Gea Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Range Cylinder Range Valve Reverse Idler Road Speed Governor Roadranger Valve Shift Bar Housing (Xf) Slave Valve - Slave Valve - A-
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTXF-11509 transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTXF-11509 |
| Transmission type | 9-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 39 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTXF-11509
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
