Fabco TC 38 Parts Manual
Rear Output Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5 | 233-0455 | Bearing Cone | $262.57 | Add to Cart | ||
| 6 | 233-0456 | Bearing Cup | $66.36 | Add to Cart | ||
| 7 | 233-0457 | Bearing Cone | $116.75 | Add to Cart | ||
| 7A | 233-0458 | Bearing Cup | $118.22 | Add to Cart | ||
| 17 | 235-0484 | Cap Output Shaft Bearing | $194.36 | Add to Cart | ||
| 17A | 235-0632 | Cap Speedo | $155.81 | Add to Cart | ||
| 23 | 237-0589 | Carrier, Rear Output | $365.80 | Add to Cart | ||
| 26 | 265-0238 | Bolt, Hh Nc X | $7.99 | Add to Cart | ||
| 41 | 427-0466 | Gasket, Rear Output Seal Carrier | $18.07 | Add to Cart | ||
| 44 | 432-0554 | Gear, 35T Rear Output | $421.67 | Add to Cart | ||
| 57 | 688-0634 | Nut, 1 -20 Self Locking | $13.81 | Add to Cart | ||
| 57A | 688-0743 | Nut, Bearing Lock | $57.92 | Add to Cart | ||
| 59 | 688-0697-004 | Nut, Self Locking | $123.88 | Add to Cart | ||
| 65 | 732-0372 | Seal Rear Output , Tc | -38 REAR | $35.06 | Add to Cart |

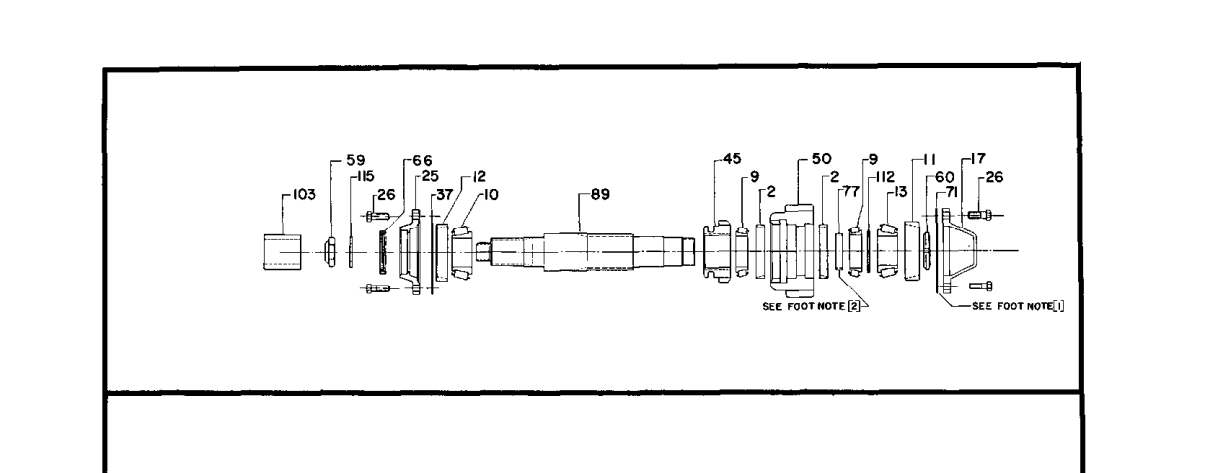

Front Output Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | 233-0274 | Bearing Cup | $31.95 | Add to Cart | ||
| 9 | 233-0485 | Bearing Cone | $84.92 | Add to Cart | ||
| 10 | 233-0487 | Bearing Cone | $175.88 | Add to Cart | ||
| 11 | 233-0545 | Bearing Cup | $61.62 | Add to Cart | ||
| 12 | 233-0547 | Bearing Cup | $50.82 | Add to Cart | ||
| 13 | 233-0548 | Bearing Cone | $67.58 | Add to Cart | ||
| 25 | 237-0587 | 002 Carrier, Front Output Seal | Call for availability | |||
| 37 | 427-0339 | Gasket, Carrier | $20.04 | Add to Cart | ||
| 45 | 432-0556 | Gear, 20T Clutch | $558.03 | Add to Cart | ||
| 50 | 432-0677 | Gear, 35T Front Output | $1,254.58 | Add to Cart | ||
| 59 | 688-0697 | 004 Nut, 1 ’12-12 Self Locking | Call for availability | |||
| 60 | 688-0739 | Nut, Bearing Lock | $74.56 | Add to Cart | ||
| 66 | 732-0384 | Seal Front Output | $30.88 | Add to Cart | ||
| 71 | 744-1322 | Shim Coral .031 | $13.49 | Add to Cart | ||
| 744-2322 | Shim Pink .016 | $10.95 | Add to Cart | |||
| 744-3322 | Shim Blue .005 | $16.41 | Add to Cart | |||
| 744-4322 | Shim Red .002 | $16.39 | Add to Cart | |||
| 77 | 756-0268 | 01 1 Ring Brg Spcr .560 Thk | Call for availability | |||
| 756-0268 | 012 Ring Brg Spcr .565 Thk | Call for availability | ||||
| 89 | 769-0455 | Shaft, Front Output | $1,665.87 | Add to Cart | ||
| 103 | 883-0988 | Tube Shipping Oil Seal Protector | $2.51 | Add to Cart | ||
| 112 | 927-0827 | 001 Washer, Front Output Shaft Rear (2 .010 Id X 2 .75 Od X .145 Thk) | Call for availability | |||
| 115 | 927-0828 | Washer, Between Bearing & Yoke (1 .957 Id X 2 .50 Od X .125 Thk) #71) To Achieve .003 To .008 End Float. Spacer Ring Thickness (item #77) To Achieve Front Output Shaft | .003 to | $28.08 | Add to Cart |
Intermediate Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | 232-0274 | Bearing Cup | Call for availability | |||
| 3 | 233-0376 | Bearing Cup | $123.43 | Add to Cart | ||
| 4 | 233-0377 | Bearing Cone | $106.63 | Add to Cart | ||
| 18 | 235-0529 | Cap Speedo Shipping | $1.69 | Add to Cart | ||
| 19 | 235-0622 | Cap Intermediate Front | Call for availability | |||
| 19A | 235-0629 | Cap Intermediate Front | $253.78 | Add to Cart | ||
| 20 | 235-0623 | Cap Intermediate Rear | $694.32 | Add to Cart | ||
| 40 | 427-0529 | Gasket, Intermediate Rear Cap | $22.94 | Add to Cart | ||
| 42 | 432-0234 | Gear, Speedo Drive 4T | No longer available - Call for replacement | |||
| 43 | 432-0235 | Gear, Speedo Driven 17T | Call for availability | |||
| 46 | 432-0558 | Gear, 34T Direct | $848.23 | Add to Cart | ||
| 48 | 432-0675 | Gear, 41T Underdrive | $1,943.13 | Add to Cart | ||
| 58 | 688-0694 | Nut, 11/z-12 Self Locking | $26.83 | Add to Cart | ||
| 58A | 688-0739 | Nut, 13%2-18 Bearing Lock Tc | -38 INTERMEDIATE | $74.56 | Add to Cart |
Input Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 8 | 233-0479 | Bearing Cup | $65.93 | Add to Cart | ||
| 16 | 235-0375 | 002 Cap Input Shaft Rear | Call for availability | |||
| 24 | 237-0587 | 001 Carrier, Seal Input | Call for availability | |||
| 47 | 432-0674 | Gear, 19T Underdrive Pinion | $791.04 | Add to Cart | ||
| 49 | 432-0676 | Gear, 35T Input | $1,053.26 | Add to Cart | ||
| 76 | 756-0268 | 006 Ring Brg Spcr .435 Thk | Call for availability | |||
| 78 | 756-0269 | Ring Space Input Shaft Rear ,278 Thk | No longer available - Call for replacement | |||
| 84 | 762-0292 | Ring Split Ret. | $38.79 | Add to Cart | ||
| 90 | 769-0453 | Shaft, Input | $3,422.02 | Add to Cart |
Air Operated Front Drive Declutch
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 758-0338 | Plastic Plug | $8.27 | Add to Cart | ||
| 2 | 235-0352 | Cap Air Shift Cyl | $63.16 | Add to Cart | ||
| 3 | 675-0224 | O-ring Air Shift Cap & Adaptor | Call for availability | |||
| 4 | 883-0887 | 006 Tube Air Shift | Call for availability | |||
| 5 | 265-0892 | Capscrew, Shift Cyl Mtg | $8.08 | Add to Cart | ||
| 6 | 688-0464 | Nut, Shift Piston | $8.21 | Add to Cart | ||
| 7 | 927-0643 | Washer, Shift Piston | $8.10 | Add to Cart | ||
| 8 | 675-0326 | O-ring Shift Piston | Call for availability | |||
| 9 | 753-0232 | Piston Shift | $77.81 | Add to Cart | ||
| 10 | 339-0223 | Felt Ring Shift Piston | $13.62 | Add to Cart | ||
| 11 | 782-0288 | O-ring Shift Shaft | $6.16 | Add to Cart | ||
| 12 | 769-0285 | Shaft, Air Front Drive Shift | $698.97 | Add to Cart | ||
| 13 | 736-0747 | Ring Nylon Bump , Fabco Automotive Corporation | $9.38 | Add to Cart | ||
| 14 | 777-0485 | Spring Air Shift Return | $72.08 | Add to Cart | ||
| 15 | 883-0479 | Adaptor, Air Shift Cyl | $54.52 | Add to Cart | ||
| 16 | 367-0295 | Fork, Front Drive Shift | $510.67 | Superseded by 3670293Add to Cart | ||
| 17 | 724-0222 | Set Screw | $25.97 | Add to Cart | ||
| 18 | 947-0223 | Lockwire | $46.99 | Add to Cart | ||
| 19 | 758-0364 | Plastic Plug | $1.45 | Add to Cart | ||
| 20 | 798-0245 | Switch Indicator | $30.28 | Add to Cart | ||
| 21 | 927-0427 | Washer, Copper | $8.16 | Add to Cart | ||
| 22 | 746-0678 | Dowel Switch Operating | $2.55 | Add to Cart | ||
| 23 | 427-0399 | Gasket, Shift Shaft Cap | $72.58 | Add to Cart | ||
| 24 | 235-0372 | Cap Shift Shaft | $16.48 | Add to Cart | ||
| 25 | 265-0343 | Capscrew, Operated Front Drive Declutch | $8.01 | Add to Cart |
H-N-U Air Shift H-U Air Shift
Item 18Item 13Item 10Item 14Item 15Item 36Item 25Item 24Item 23Item 34Item 35Item 37Item 38Item 39Item 40Item 37Item 41Item 42Item 43Item 10Item 44
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 758-0338 | Plastic Plug | $8.27 | Add to Cart | ||
| 2 | 235-0352 | Cap Air Shift Cyl | $63.16 | Add to Cart | ||
| 3 | 675-0224 | O-ring Air Shift &adaptor | Call for availability | |||
| 6 | 688-0464 | Nut, Shift Piston | $8.21 | Add to Cart | ||
| 7 | 927-0643 | Washer, Shift Piston | $8.10 | Add to Cart | ||
| 8 | 675-0326 | O-ring Shift Piston | Call for availability | |||
| 9 | 753-0232 | Piston Shift | $77.81 | Add to Cart | ||
| 10 | 339-0223 | Felt Ring Shift Piston | $13.62 | Add to Cart | ||
| 11 | 782-0288 | O-ring Shift Shaft | $6.16 | Add to Cart | ||
| 13 | 736-0747 | Ring Nylon Bump | $9.38 | Add to Cart | ||
| 14 | 777-0485 | Spring Air Shift Return | $72.08 | Add to Cart | ||
| 15 | 883-0479 | Adaptor, Air Shift Cyl | $54.52 | Add to Cart | ||
| 17 | 724-0222 | Set Screw | $25.97 | Add to Cart | ||
| 18 | 947-0223 | Lockwire | $46.99 | Add to Cart | ||
| 23 | 427-0399 | Gasket, Shift Shaft Cap | $72.58 | Add to Cart | ||
| 24 | 235-0372 | Cap Shift Shaft | $16.48 | Add to Cart | ||
| 25 | 265-0343 | Capscrew | $8.01 | Add to Cart | ||
| 34 | 367-0294 | Fork, Direct Drive Shift | $435.12 | Add to Cart | ||
| 35 | 367-0268 | Fork, Under Drive Shift | $436.51 | Add to Cart | ||
| 36 | 742-0877 | Shaft, H-n-u Air Shift | No longer available - Call for replacement | |||
| 37 | 883-0887 | 003 Tube Shift Cyl | Call for availability | |||
| 39 | 688-0643 | Nut, Special | $66.66 | Add to Cart | ||
| 40 | 724-0582 | Set Screw, Allan Head | $7.98 | Add to Cart | ||
| 41 | 883-0893 | Adaptor, Piggyback Cyl | $105.73 | Add to Cart | ||
| 42 | 769-0286 | Shaft, Piggyback Cyl | $898.65 | Add to Cart | ||
| 43 | 883-0887 | 007 Tube Piggyback Cyl & Pto Cyl | Call for availability | |||
| 44 | 788-0546 | 006 Stud Piggyback Cyl Mtg | Call for availability | |||
| 45 | 688-0323 | Nut | $5.40 | Add to Cart | ||
| 782-0288 | O-ring Shift Shaft | $6.16 | Add to Cart | |||
| 38 | 265-0982 | Capscrew, Air Shift Cyl | $11.84 | Add to Cart |
Parts Not Designated on A Drawing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 51 | 478-0254 | Housing Main Case | Call for availability | |||
| 94 | 793-0377 | Cover, Main Case | $128.65 | Add to Cart | ||
| 39 | 427-0464 | Gasket, Main Cover | $45.58 | Add to Cart | ||
| 32 | 273-0687 | Bracket, Case Lifting | $26.05 | Add to Cart | ||
| 27 | 265-0239 | Capscrew, Cover Mtg | $8.79 | Add to Cart | ||
| 26 | 265-0238 | Capscrew, Cover Mtg | $7.99 | Add to Cart | ||
| 107 | 927-0749 | Washer: Cover Mtg Screw Lock | $52.20 | Add to Cart | ||
| 52 | 626-0228 | Label Serial Plate | No longer available - Call for replacement | |||
| 62 | 724-0276 | Screw, Serial Plate Mtg Drive | $7.94 | Add to Cart | ||
| 80 | 758-0274 | Plug 314 NPT Magnetic Drain | $8.70 | Add to Cart | ||
| 79 | 758-0229 | Plug % NPT Fill And Level | $6.68 | Add to Cart | ||
| 81 | 758-0293 | Plug '12 NPT Return Line Hole , To Figs 1 And 2 (page 2) . 38 Service And Parts Manual | $5.11 | Add to Cart |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 235-0375-002 | Cap, Input Shaft Rear | $423.89 | Add to Cart | |||
| 237-0587-001 | Carrier, Seal, Input | $821.92 | Superseded by 2370587003Add to Cart | |||
| 237-0587-002 | Carrier, Front Output Seal | $266.38 | Add to Cart | |||
| 744-0352-001 | Shim, Red .002 | $16.45 | Add to Cart | |||
| 744-0352-002 | Shim, Blue .005 | $8.73 | Add to Cart | |||
| 744-0352-003 | Shim, Pink .015 | $17.89 | Add to Cart | |||
| 744-0352-004 | Shim, Coral .030 | $20.20 | Add to Cart | |||
| 756-0268-001 | Ring, Brg Spcr .250 Thk | $198.99 | Add to Cart | |||
| 756-0268-002 | Ring, Brg Spcr .255 Thk | $114.03 | Add to Cart | |||
| 756-0268-003 | Ring, Brg Spcr .260 Thk | $179.17 | Add to Cart | |||
| 756-0268-004 | Ring, Brg Spcr .265 Thk | $109.83 | Add to Cart | |||
| 756-0268-005 | Ring, Brg Spcr .270 Thk | $46.90 | Add to Cart | |||
| 756-0268-006 | Ring, Brg Spcr .435 Thk | $37.65 | Add to Cart | |||
| 756-0268-007 | Ring, Brg Spcr .440 Thk | $152.00 | Add to Cart | |||
| 756-0268-008 | Ring, Brg Spcr ,445 Thk A/r | $44.94 | Add to Cart | |||
| 756-0268-009 | Ring, Brg Spcr .450 Thk | $97.94 | Add to Cart | |||
| 756-0268-010 | Ring, Brg Spcr .455 Thk | $42.70 | Add to Cart | |||
| 756-0268-011 | Ring, Brg Spcr .560 Thk | No longer available - Call for replacement | ||||
| 756-0268-012 | Ring, Brg Spcr .565 Thk | No longer available - Call for replacement | ||||
| 756-0268-013 | Ring, Brg Spcr .570 Thk A/r | $195.30 | Add to Cart | |||
| 756-0268-014 | Ring, Brg Spcr .575 Thk | $23.09 | Add to Cart | |||
| 756-0268-015 | Ring, Brg Spcr .580 Thk | $37.43 | Add to Cart | |||
| 758-0374-108 | Plug, Speedo Shipping | No longer available - Call for replacement | ||||
| 769-0454 | Shaft, Intermediate | Call for availability | ||||
| 769-0456 | Shaft, Rear Output | Call for availability | ||||
| 769-0466 | Shaft, Rear Output | $4,135.95 | Add to Cart | |||
| 769-0467 | Shaft, Intermediate | $1,787.60 | Add to Cart | |||
| 788-0546-006 | Stud, Piggyback Cyl. Mtg | $34.85 | Add to Cart | |||
| 836-0222 | Vent | $14.69 | Add to Cart | |||
| 836-0223 | Vent | $22.40 | Add to Cart | |||
| 883-0473 | Tube, Speedo Driven Gear | $194.82 | Add to Cart | |||
| 883-0887-003 | Tube, Shift Cyl | $124.99 | Add to Cart | |||
| 883-0887-006 | Tube, Air Shift | $114.00 | Add to Cart | |||
| 883-0887-007 | Tube, Piggyback Cyl. & Pto Cyl | $295.00 | Add to Cart | |||
| 884-0228 | Tube, Spacer Speedo Gear .829 Thk | Call for availability | ||||
| 927-0758 | Washer, Bearing Spacer Rear Output Shaft (2.156 Id X 3.00 Od X .145 Thk) | $56.02 | Add to Cart | |||
| 927-0775-001 | Washer, Rear Output Shaft Front (1.062 Id X 2.25 Od X .187 Thk) | No longer available - Call for replacement | ||||
| 927-0775-007 | Washer, Intermediate Shaft Rear (1.540 Id X 2.50 Od X .250 Thk) | $127.63 | Add to Cart | |||
| 927-0827-001 | Washer, Front Output Shaft Rear | $48.73 | Add to Cart | |||
| 927-0827-003 | Washer, Intermediate Shaft Front (2.010 Id X 2.75 Od X .080 Thk) | $77.60 | Add to Cart | |||
| 927-0829 | Washer, Rear Output Shaft Front (1.78 Id X 2.25 Od X .125 Thk) | $64.77 | Add to Cart |
This is the complete factory parts breakdown for the Fabco Transfer Case TC-38, with every part in the manual matched to our live inventory. We stock 135 of the 168 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search. Try the part number with no dashes.
This Fabco Illustrated Parts List covers the shafts, gear sets, housings and service parts for your transfer case, with exploded diagrams and OEM part numbers.
| Transfer case type | Fabco transfer case |
| Document | Illustrated Parts List (Fabco) |
| Length | 10 pages |
| Format | PDF, view below or download free |
What’s inside
- Input, output & idler shaft assemblies
- Gear sets & ratio components
- Case halves, covers & housings
- Shift mechanism & air-control parts
- Bearing, seal & gasket kits
- Power-take-off & split-shaft components (where fitted)
- Exploded diagrams with OEM part numbers
Fabco parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Fabco transfer case units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
