Mack CRDP 200 / CRDP 202 Differential Parts Manual
Service Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 205SP79 | Kit, Bearing & Seal (w/ Power Divider Lockout) | Includes (1) 62AX408, (1) 62AX494, (1) 62AX404, (1) 64AX267, (1) 64AX239, (1) 62AX241, (1) 46AX531, (1) 46AX489, (1) 62AX497, (1) HM516448, (1) 592A, (1) 88AX458, (1) 88AX456, (1) 56AX423, (1) 56AX396, (1) 56AX283, (1) 50KH249, (1) 629KB132, (2) 50KH252P1, (3) 50KH252P2, (1) 531KB11 | $1,191.58 | Add to Cart | |
| 1 | 205SP78 | Kit, Bearing & Seal | Includes (1) 64AX239, (1) 64AX267, (1) 62AX494, (1) 46AX533, (1) 47687, (1) 592A, (1) 62AX497, (1) 62AX408, (1) 46AX531, (1) 62AX241, (1) 62AX471, (1) 88AX456, (1) 88AX458, (2) 50KH252P1, (2) 50KH252P2, (1) 56AX415, (1) 56AX423 | $1,170.89 | Add to Cart |
Crdp 200/202
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3AX1803X | Screw, Yoke (7/8in-14 X 3in) | Interchanges with Mack 3AX1749X. Sold as a 5-pack | $41.58 | Add to Cart | |
| 2 | 297KB219P2 | Clamp | Interchanges with Mack 297KB117BP2 | $17.49 | Add to Cart | |
| 3 | 192MU51P18 | Yoke | Interchanges with Rockwell 92NYS38-69 | $658.91 | Add to Cart | |
| 4 | 88AX458 | Seal, Yoke, Front | Interchanges with National 4491V | $15.71 | Add to Cart | |
| 5 | 49KH335C | Front Seal | $100.91 | Add to Cart | ||
| 6 | 56AX415 | O-ring, Front Cover | Sold as a 10-pack | $44.98 | Add to Cart | |
| 7 | 46AX489 | Bearing, Cage (15 Rollers) | Interchanges with BCA 1213L, Navistar 127546R91 | $85.78 | Add to Cart | |
| 7 | 46AX490 | Bearing, Cage (w/ Lockout) | Interchanges with BCA 1213V, Navistar 107081H1 | $99.64 | Add to Cart | |
| 8 | 53KH383B | Retainer | $152.59 | Add to Cart | ||
| 9 | 33KN411A | Cage (fine Spline) | $892.55 | Add to Cart | ||
| 9 | 33KN412A | Cage (fine Spline W/ Lockout) | $800.42 | Add to Cart | ||
| 10 | 30KN12 | Wedge, Set (24 Pcs.) | Interchanges with Mack 30KN112 | $89.71 | Add to Cart | |
| 10 | 30KN114 | Wedge, Set (24 Pcs.) (current) | Interchanges with Mack 30KN32 | $127.38 | Add to Cart | |
| 11 | 35KN16A | Ring, Power Divider, Inner | Use w/ 30KN12 | $35.81 | Add to Cart | |
| 11 | 35KN23 | Ring, Power Divider, Inner | Use w/ 30KN114. Current Design | $41.18 | Add to Cart | |
| 12 | 35KN17A | Ring, Power Divider, Outer | Use w/ 30KN12 | $39.19 | Add to Cart | |
| 12 | 35KN24 | Ring, Power Divider, Outer | Use w/ 30KN114. Current Design | $41.56 | Add to Cart | |
| 13 | 32KN38 | Cam, Power Divider, Inner | Interchanges with Mack 32KN230A | $75.62 | Add to Cart | |
| 14 | 267KC234 | Nut, Pinion, Locking (2-3/8in-12) | $77.02 | Add to Cart | ||
| 15 | 31KN411 | Cam, Power Divider, Outer (fine Spline) | $1,430.02 | Add to Cart | ||
| 15 | 31KN412 | Cam, Power Divider, Outer (w/ Lockout) | Fine Spline | $1,370.23 | Add to Cart | |
| 16 | 62AX241 | Cone | Interchanges with BCA 596, Navistar 141377H1 | $81.48 | Add to Cart | |
| 17 | 64AX88 | Cup | Interchanges with BCA 592A, Navistar 132478H1 | $49.30 | Add to Cart | |
| 18 | 36KN32 | Housing, Power Divider | — | Call for availability | ||
| 19 | 51KH318 | Shim | — | Call for availability | ||
| 20 | 429GC112P1 | Screw (5/8in-11 X 1-3/4in) | Interchanges with Mack 6AX1231 | — | Call for availability | |
| 21 | 37AX256 | Washer (.469in I.d.) | Interchanges with Mack 441SZ16 | $1.59 | Add to Cart | |
| 22 | 6AX1360X | Screw (7/16in-14 X 1-1/2in) | Interchanges with Mack 6AX1190. Sold as a 10-pack | $37.40 | Add to Cart | |
| 23 | Spacer | Click on following links for more info:. Spacer and Shim Chart. Spacer and Shim Chart | — | Call for availability | ||
| 24 | 52KH1111P3 | Spacer | $74.23 | Add to Cart | ||
| 25 | 62AX497 | Cone | Interchanges with BCA H715348 | $121.64 | Add to Cart | |
| 26 | Gear | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 27 | 90KH410 | Shaft, Interaxle | $808.14 | Add to Cart | ||
| 28 | 36AX7X | Washer (5/8in I.d.) | Interchanges with Navistar 103325 | $1.16 | Add to Cart | |
| 29 | 53KH261B | Retainer Assembly (include Tube) | $215.08 | Add to Cart | ||
| 30 | 88KH25A | Tube | $46.17 | Add to Cart | ||
| 31 | 46AX531 | Bearing, Interaxle | Interchanges with BCA 1211, Mack 46AX492 | $47.07 | Add to Cart | |
| 32 | 49KH339B | Interchanges with Mack 49KH211 | $37.39 | Add to Cart | ||
| 33 | 88AX456 | Seal | Interchanges with National 4492V | $14.24 | Add to Cart | |
| 34 | 56AX389 | O-ring | Sold as a 5-pack | $45.29 | Add to Cart | |
| 35 | 64AX242 | Cup | Interchanges with BCA H715311, Navistar 107580R1 | $98.97 | Add to Cart | |
| 36 | 50KH252P2 | Gasket (.015in Thk) | Interchanges with Mack 50KH216P2. Sold as a 10-pack | $34.40 | Add to Cart | |
| 37 | 50KH252P1 | Gasket (.031in Thk) | Interchanges with Mack 50KH216P1. Sold as a 10-pack | $34.10 | Add to Cart | |
| 38 | 37AX472U | Washer (3/8in I.d.) | $427.40 | Add to Cart | ||
| 39 | 6AX1309X | Screw (3/8in-16 X 1-1/2in) | Interchanges with Navistar 16923R91 | $2.67 | Add to Cart | |
| 40 | 63AX83 | Plug | Interchanges with Mack 49AX247, Mack 63AX1. Sold as a 10-pack | $28.50 | Add to Cart | |
| 40 | 49AX73 | Plug, Magnetic | Sold as a 5-pack | $28.51 | Add to Cart | |
| 41 | 49AX235 | Plug, Filler | Interchanges with Navistar 1662472C2 | — | Call for availability | |
| 42 | 64KH416 | Housing, Carrier Assembly | — | Call for availability | ||
| 43 | 3AX1665 | Screw (5/8in-18 X 2in) | Sold as a 6-pack | $27.98 | Add to Cart | |
| 43 | 419GC113B | Screw (5/8in-18 X 1-3/4in) | Interchanges with Navistar 1662466C1, Mack 3AX1372. Sold as a 6-pack | $50.73 | Add to Cart | |
| 44 | 35AX1252 | Washer (5/8in I.d.) | — | Call for availability | ||
| 45 | 181MU51P19 | Yoke | Interchanges with Dana 6.5-4-3261-1 | $444.16 | Add to Cart | |
| 46 | 50KH319 | Gasket, Front Cover (lockout Application) | — | Call for availability | ||
| 47 | 21AX907 | Nut, Thru Shaft (1-1/2in-18 Locking) | $28.22 | Add to Cart | ||
| 48 | 33KN416A | Kit, Cage | Includes (1) 33KN411A, (1) 30KN12, (1) 35KN16A, (1) 35KN17A. Interchanges with Mack 33KN416 | $1,048.79 | Add to Cart |

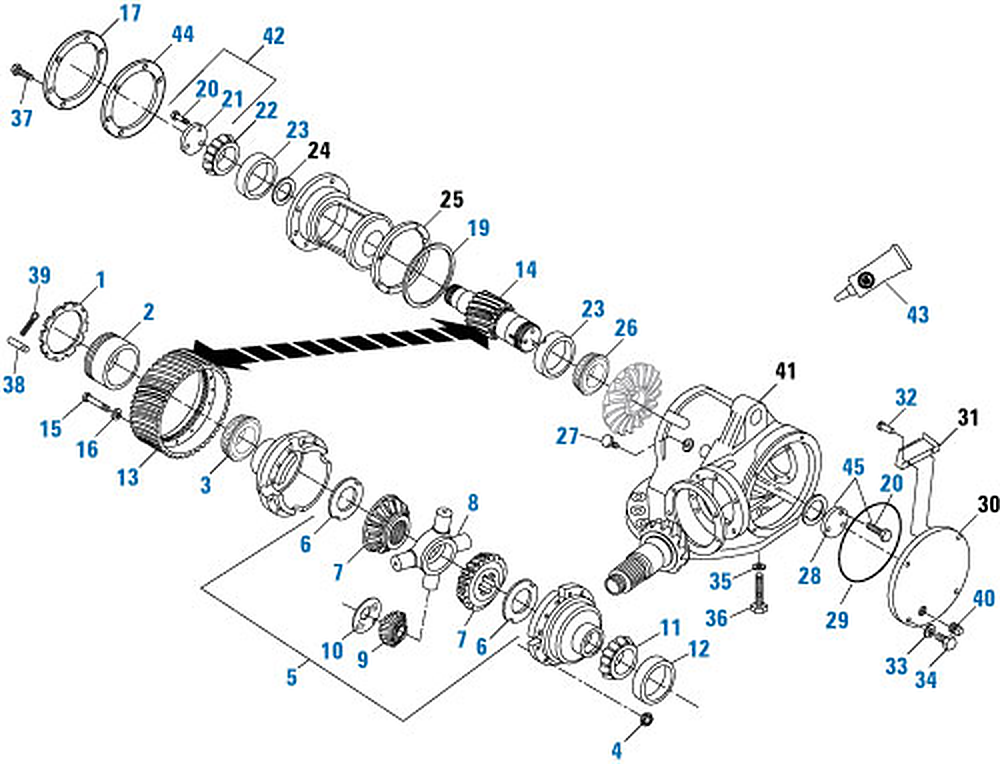

Crdp 200/202 (2)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 43KH223 | Nut, Adjusting | Interchanges with Mack 8AC26 | $43.71 | Add to Cart | |
| 2 | 64AX239 | Cup, Carrier (rh) | Interchanges with Timken 47623A | $75.87 | Add to Cart | |
| 3 | 62AX404 | Cone | Interchanges with Timken 47687, Navistar 132084R91 | $54.30 | Add to Cart | |
| 4 | 108KH11 | Nut (5/8in-18) | Sold as a 12-pack | $68.11 | Add to Cart | |
| 5 | Differential Nest Kit | Kit, Nest (crdpc 202/CRD 203) | Includes (1) 32KH228A, (2) 34KH263, (2) 38KH220, (4) 37KH210, (4) 33KH263A | $1,044.12 | Add to Cart | |
| 6 | 38KH220 | Washer, Thrust, Side Gear | Sold as a 2-pack | $44.39 | Add to Cart | |
| 7 | 34KH262 | Gear, Side (46 Teeth) | CRDPC 200/CRD 201 | $209.48 | Add to Cart | |
| 7 | 34KH263 | Gear, Side (43 Teeth) | CRDPC 202/CRD 203 | $190.41 | Add to Cart | |
| 8 | 32KH228A | Spider | Interchanges with Mack 32KH224A | $112.28 | Add to Cart | |
| 9 | 33KH263A | Gear, Spider | $122.18 | Add to Cart | ||
| 10 | 37KH210 | Washer, Thrust, Pinion | Sold as a 4-pack | $79.20 | Add to Cart | |
| 11 | 62AX404 | Cone, Carrier (lh) (crdp 200) | Interchanges with Timken HM516448 | $62.96 | Add to Cart | |
| 11 | 62AX404 | Cone, Carrier (lh) (crdp 202) | Interchanges with Timken 47687, Navistar 132084R91 | $54.30 | Add to Cart | |
| 12 | 64AX267 | Cup, Carrier (lh) | Interchanges with Timken HM516414B | $97.12 | Add to Cart | |
| 13 | Gear, Bull | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 14 | Pinion, Helical | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 15 | 3AX2013 | Screw, Carrier (5/8in-18 X 3-3/4in) | Sold as a 6-pack | $223.25 | Add to Cart | |
| 16 | 711GC1146 | Washer (.640in Id) | — | Call for availability | ||
| 17 | 57KH311 | Helical Pinion | $42.50 | Add to Cart | ||
| 18 | 53KH3103 | Retainer Assembly | Interchanges with Mack 53KH53 | $582.30 | Add to Cart | |
| 19 | 56AX542 | O-ring | — | Call for availability | ||
| 20 | 3AX1883X | Screw (use W/ 297KB28) | 1/2in-20 x 1-3/4in. Interchanges with Mack 3088-X7809. Sold as a 5-pack | $27.44 | Add to Cart | |
| 20 | 3AX1797X | Screw (optional Use W/ 297KB126) | 1/2in-20 x 1-1/2in. Sold as a 10-pack | $33.00 | Add to Cart | |
| 21 | 297KB28 | Clamp (use W/ Stamped Cover) | $50.74 | Add to Cart | ||
| 22 | 62AX494 | Cone, Spur Pinion (rh) | Interchanges with Timken H715334, Navistar 179143H1 | $95.35 | Add to Cart | |
| 23 | 64AX242 | Cup, Spur Pinion (rh/lh) | Interchanges with Timken H715311, Navistar 107580R1 | $98.97 | Add to Cart | |
| 24 | 52KH220P818 | Spacer, Spur Pinion | P No. indicates thickness in thousandths of an inch | — | Call for availability | |
| 24 | 52KH220P838 | Spacer, Spur Pinion | P No. indicates thickness in thousandths of an inch | — | Call for availability | |
| 24 | 52KH220P842 | Spacer, Spur Pinion | P No. indicates thickness in thousandths of an inch | — | Call for availability | |
| 24 | 52KH220P848 | Spacer, Spur Pinion | P No. indicates thickness in thousandths of an inch | — | Call for availability | |
| 24 | 52KH220P850 | Spacer, Spur Pinion | P No. indicates thickness in thousandths of an inch | — | Call for availability | |
| 24 | 52KH220P895 | Spacer, Spur Pinion | P No. indicates thickness in thousandths of an inch | — | Call for availability | |
| 25 | 51KH320AP10 | Shim, Pinion Adjustment (.010in Thk) | — | Call for availability | ||
| 25 | 51KH320AP12 | Shim, Pinion Adjustment (.012in Thk) | — | Call for availability | ||
| 25 | 51KH320AP15 | Shim, Pinion Adjustment (.015in Thk) | — | Call for availability | ||
| 26 | 62AX408 | Cone, Spur Pinion (lh) | Interchanges with Timken H715345, Navistar 107579R91 | $69.45 | Add to Cart | |
| 27 | 541KB29 | Breather | Interchanges with Mack 541KB16. Sold as a 5-pack | $62.87 | Add to Cart | |
| 28 | 297KB126 | Clamp | Interchanges with Mack 297KB27C | $42.03 | Add to Cart | |
| 29 | 56AX423 | O-ring, Cover (lh) | Sold as a 10-pack | $56.53 | Add to Cart | |
| 30 | 84KH44 | LH | — | Call for availability | ||
| 31 | 511KB36A | Tray, Oil | — | Call for availability | ||
| 32 | 6AX1303X | Screw (3/8in-16 X 1/2in) | Interchanges with Mack 6AX1246 | — | Call for availability | |
| 33 | 37AX7U | Washer | Interchanges with Mack 39AX2. Sold as a 50-pack | $72.20 | Add to Cart | |
| 34 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Interchanges with Navistar 60001R91. Sold as a 5-pack | $19.35 | Add to Cart | |
| 35 | 35AX1251 | Washer, Bearing Cap | Sold as a 10-pack | $148.01 | Add to Cart | |
| 36 | 6AX773 | Screw, Bearing Cap (3/4in-10 X 5in) | Interchanges with Mack 6AX1674X. Sold as a 5-pack | $19.00 | Add to Cart | |
| 37 | 6AX1324X | Screw (1/2in-13 X 1-1/2in) | Interchanges with Mack 6AX873X. Sold as a 10-pack | $59.01 | Add to Cart | |
| 38 | 31AX59 | Pin, Adjustment Lock | Sold as a 2-pack | $10.91 | Add to Cart | |
| 39 | 29AX5 | Pin, Cotter | Interchanges with Mack 63SZ15. Sold as a 50-pack | $111.50 | Add to Cart | |
| 40 | 49AX235 | Plug, Filler | Interchanges with Navistar 1662472C2 | — | Call for availability | |
| 41 | 64KH416 | Housing, Assembly, Carrier | — | Call for availability | ||
| 42 | Differential Clamp Kit | Kit, Clamp | Includes (1) 297KB126, (3) 3AX1797X | $49.07 | Add to Cart | |
| 42 | Differential Clamp Kit | Kit, Clamp | Includes (1) 297KB28, (3) 3AX1883X | $62.72 | Add to Cart | |
| 43 | 342SX32 | Sealant, Silicone Rubber | Interchanges with Navistar 474517C2 | $12.93 | Add to Cart | |
| 44 | 50KH319 | Gasket, Pinion Housing | — | Call for availability | ||
| 45 | Differential Clamp Kit | Kit, Clamp | Includes (1) 297KB126, (3) 3AX1797X | $49.07 | Add to Cart |
No parts match that search — try the part number with no dashes.
This is the illustrated parts breakdown for the Mack CRDP 200 / CRDP 202 Differential — every part in these diagrams, matched to our live inventory. We stock 86 of the 114 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
