Mack TRXL-107 Transmission Parts Manual

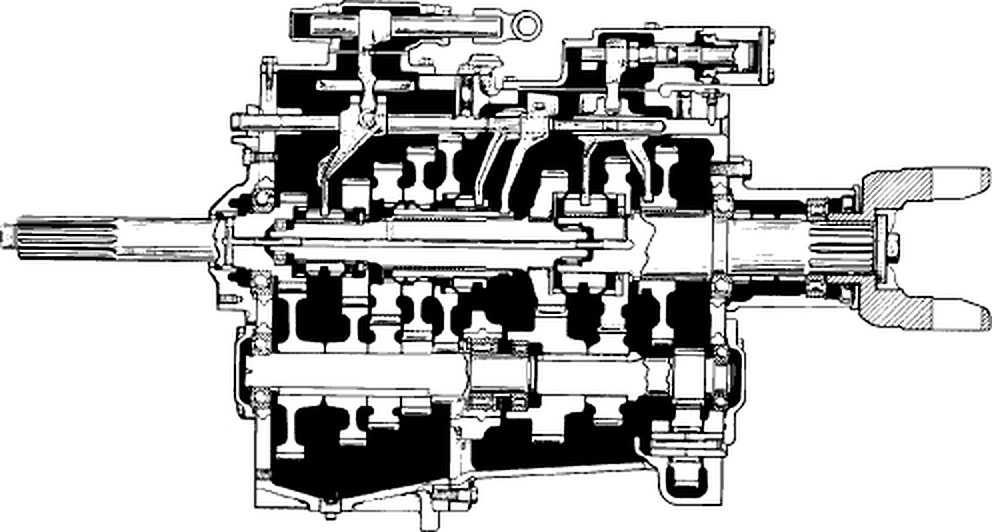

Transmission Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 207SH27A | Kit, Gasket, Transmission | Includes (2) 646KB11, (1) 617KB45, (1) 617KB44, (1) 618KB32A, (1) 648KB23, (1) 628KB126, (1) 201400, (1) 628KB310P1, (1) 628KB310P2, (1) 616KB37, (1) 616KB36AP2, (1) 628KB312AP1, (1) 628KB124, (2) 57AX45, (1) 342SX32, (3) 56AX352, (3) 56AX431, (3) 56AX424 | $52.95 | Add to Cart | |
| 2 | Transmission Gasket Kit | Kit, Gasket, Transmission | Includes (1) 628KB310P2, (1) 616KB36AP2, (1) 628KB312AP1, (2) 646KB11, (1) 618KB32A, (1) 4305310 | $16.80 | Add to Cart | |
| 3 | 208SH102 | Kit, Transmission, O-ring/retaining Ring | Includes (1) 207SH32, (3) 97AX166, (2) 97AX225, (4) 97AX229, (1) 97AX89, (1) RR-IR36-4, (1) 97AX54, (1) 97AX121 | $115.91 | Add to Cart |

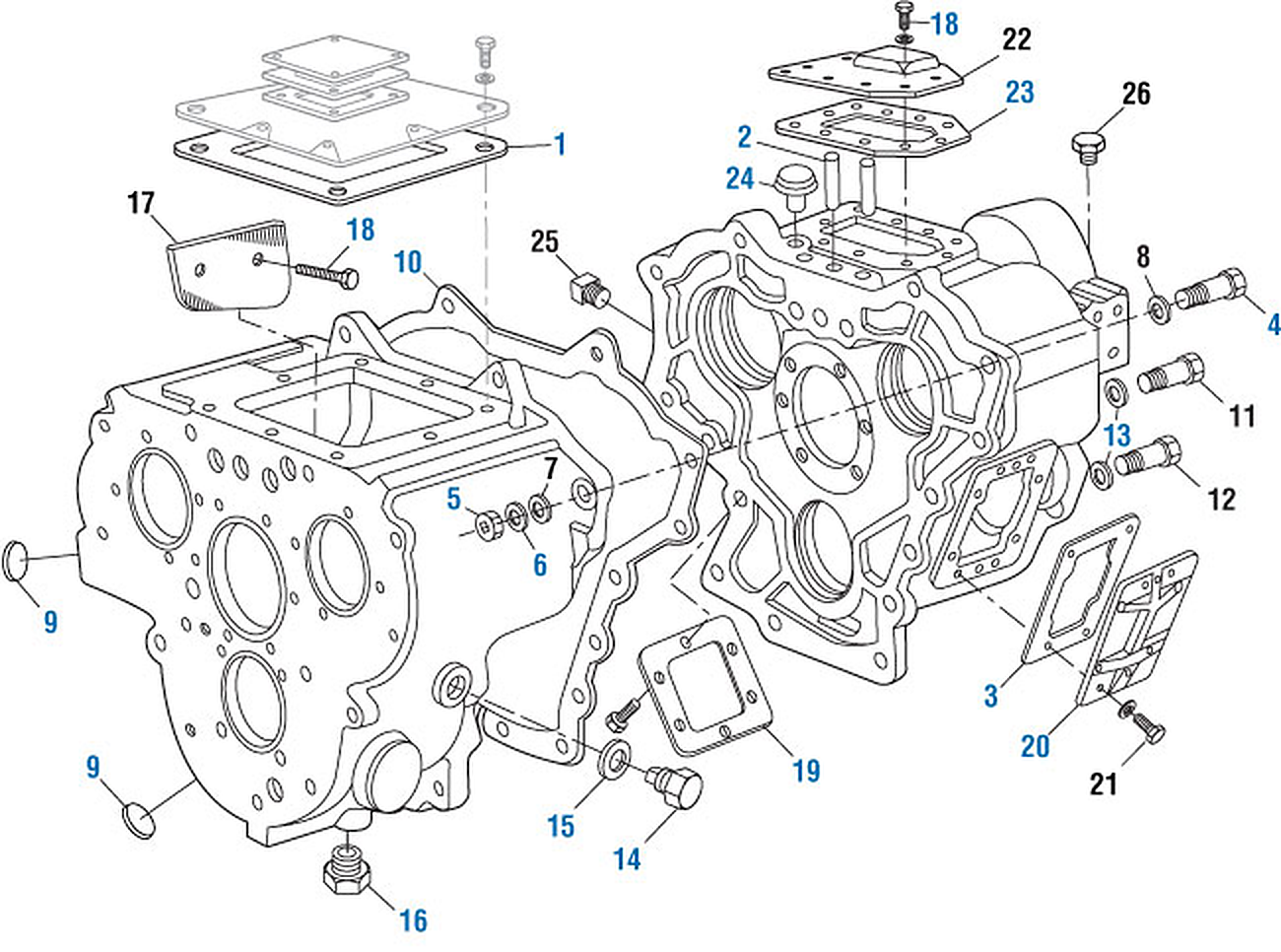

Main and Rear Case Assembly
Item 1Item 17Item 18Item 10Item 25Item 24Item 2Item 3Item 18Item 22Item 23Item 26Item 8Item 4Item 11Item 13Item 12Item 20Item 21Item 19Item 14Item 15Item 16Item 9Item 9Item 7Item 5Item 6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 618KB32A | Gasket | Sold as a 5-pack | $22.49 | Add to Cart | |
| 2 | 150KB164P1 | Bushing | Interchanges with Mack 150KB154. Sold as a 3-pack | $14.93 | Add to Cart | |
| 3 | 648KB23 | Gasket, Pto Cover | Sold as a 5-pack | $16.80 | Add to Cart | |
| 4 | 90KB111A | Screw, Dowel | $23.76 | Add to Cart | ||
| 5 | 20AX5 | Nut | Interchanges with Navistar 1662461C1 | $2.63 | Add to Cart | |
| 6 | 36AX5 | Washer, Lock | Interchanges with Navistar 1662463C1 | $2.49 | Add to Cart | |
| 7 | 37AX98X | Washer, Flat | — | Call for availability | ||
| 8 | 37AX10 | Washer, Lock | — | Call for availability | ||
| 9 | 79AX63 | Plug | — | Call for availability | ||
| 10 | 617KB44 | Gasket | Sold as a 5-pack | $38.94 | Add to Cart | |
| 11 | 6AX1206 | Screw | — | Call for availability | ||
| 12 | 6AX1203 | Screw | — | Call for availability | ||
| 13 | 37AX474 | Washer | Sold as a 10-pack | $23.80 | Add to Cart | |
| 14 | 49AX133 | Plug, Fill | $69.05 | Add to Cart | ||
| 15 | 57AX45 | Gasket | Sold as a 5-pack | $17.20 | Add to Cart | |
| 16 | 49AX235 | Plug, Drain | Interchanges with Navistar 1662472C2 | — | Call for availability | |
| 17 | 414KB118 | Oil Cleaner | — | Call for availability | ||
| 18 | 6AX1359X | Screw (3/8in-16 X 1in) | Interchanges with Navistar 1670574C1 | $2.77 | Add to Cart | |
| 19 | 412KB213P3 | Pto (rh) (6 Hole) | Interchanges with Mack 412KB218 | $129.95 | Add to Cart | |
| 20 | 16596 | Pto (lh) (8 Hole) | Interchanges with Mack 412KB310B | $19.11 | Add to Cart | |
| 21 | 6AX1179 | Screw | — | Call for availability | ||
| 22 | 408KB322A | Rear Case | — | Call for availability | ||
| 23 | 616KB36AP2 | Gasket | Interchanges with Mack 616KB38. Sold as a 10-pack | $51.09 | Add to Cart | |
| 24 | 541KB29 | Breather | Interchanges with Mack 541KB16. Sold as a 5-pack | $62.87 | Add to Cart | |
| 25 | 63AX1041 | Plug, Fill | — | Call for availability | ||
| 26 | 366KC126 | Plug, Reverse Switch | — | Call for availability |
Main Case Components
Item 1Item 14Item 13Item 12Item 11Item 11Item 10Item 8Item 9Item 8Item 4Item 3Item 2Item 1Item 27Item 42Item 41Item 40Item 39Item 34Item 33Item 38Item 43Item 37Item 36Item 35Item 31Item 31Item 32Item 30Item 29Item 28Item 25Item 23Item 22Item 21Item 20Item 17Item 19Item 18Item 6Item 5Item 15Item 26Item 7Item 24Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 97AX54 | Ring, Retaining | Sold as a 10-pack | $34.90 | Add to Cart | |
| 2 | 46AX511 | Bearing | Interchanges with BCA 205 | $8.04 | Add to Cart | |
| 2 | 46AX515 | Bearing (current Style) | Interchanges with NTN 7205 | $37.62 | Add to Cart | |
| 2 | 67AX249 | Bearing | Interchanges with NTN MA1305TV | $60.29 | Add to Cart | |
| 3 | 320KB2126A | Clutch, 4th/5th | Interchanges with Mack 320KB2115 | $184.90 | Add to Cart | |
| 4 | 97AX238 | Ring, Retaining (.121/.129in Thk) | Sold as a 10-pack | $49.60 | Add to Cart | |
| 4 | 97AX85 | Ring, Retaining (.059/.065in Thk) | — | Call for availability | ||
| 5 | 228KD236AP245 | Washer, Thrust | Dash No. indicates thickness size by inches | $31.75 | Add to Cart | |
| 5 | 228KD236AP260 | Washer, Thrust | Dash No. indicates thickness size by inches | $31.75 | Add to Cart | |
| 5 | 228KD236AP275 | Washer, Thrust | Dash No. indicates thickness size by inches | $31.75 | Add to Cart | |
| 6 | 233KD25 | Washer, Thrust | Sold as a 2-pack | $44.91 | Add to Cart | |
| 7 | 46AX482 | Bearing | Interchanges with BCA 214SL | $62.11 | Add to Cart | |
| 7 | 46AX442 | Bearing, Main Drive Pinion | Interchanges with NTN 218L, Navistar 98330691 | $91.38 | Add to Cart | |
| 8 | 233KD246 | Washer, Thrust | Sold as a 2-pack | $50.49 | Add to Cart | |
| 8 | 233KD24 | Washer, Thrust | Sold as a 2-pack | $59.80 | Add to Cart | |
| 9 | 751KB3108A | Gear, 3rd (use W/ 233KD24) | $836.35 | Add to Cart | ||
| 9 | 751KB3358 | Gear, 3rd (use W/ 233KD246) (current) | $849.98 | Add to Cart | ||
| 10 | 751KB3106B | Gear, 2nd | $488.30 | Add to Cart | ||
| 11 | 751KB3476 | Gear, 1st | Interchanges with Mack 751KB3107 | — | Call for availability | |
| 12 | 320KB340B | Clutch, 2nd/3rd | $549.58 | Add to Cart | ||
| 13 | 320KB2116A | Clutch, 1st | $605.52 | Add to Cart | ||
| 14 | 615KC4180 | Shaft, Main (.141in Retaining Ring Groove) | Interchanges with Mack 615KB4139B | $1,040.04 | Add to Cart | |
| 14 | 615KC163 | Shaft, Main (.090 In Retaining Ring Groove) | Use 615KC4180 w/ 97AX238 Retaining Ring | — | Call for availability | |
| 15 | 186KD129 | Tube, Oil | Interchanges with Mack 186KD131. Sold as a 5-pack | $17.10 | Add to Cart | |
| 17 | 56AX428 | O-ring, Countershaft Brake Piston | — | Call for availability | ||
| 17 | 56AX352 | O-ring | Interchanges with Mack 446GC290. Sold as a 10-pack | $33.10 | Add to Cart | |
| 18 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Interchanges with Navistar 60001R91. Sold as a 5-pack | $19.35 | Add to Cart | |
| 19 | 37AX472U | Washer | $427.40 | Add to Cart | ||
| 20 | 97AX181 | Ring, Retaining | Interchanges with Navistar 200365S1. Sold as a 10-pack | $36.10 | Add to Cart | |
| 21 | 46AX303 | Bearing | Interchanges with BCA 308L, Navistar 135186H1 | $65.75 | Add to Cart | |
| 22 | 503KC12 | Ring, Retaining | Sold as a 4-pack | $22.04 | Add to Cart | |
| 23 | 757KB321A | Gear, Main Drive | Interchanges with Mack 757KB3123 | — | Call for availability | |
| 24 | 97AX226 | Ring, Retaining | Sold as a 5-pack | $25.99 | Add to Cart | |
| 24 | 97AX269 | Ring, Retaining | $8.35 | Add to Cart | ||
| 25 | 757KB242A | Gear, Countershaft, 3rd | Interchanges with Mack 757KB277 | — | Call for availability | |
| 26 | 764KB499C | Gear | Interchanges with Mack 764KB1223AP1 | $933.62 | Add to Cart | |
| 27 | 432KC13 | Piston, Oil Pump | $28.33 | Add to Cart | ||
| 28 | 42AX613 | Key | Sold as a 10-pack | $69.96 | Add to Cart | |
| 29 | 228KD237P143 | Washer, Thrust | Dash No. indicates thickness size by inches | $28.30 | Add to Cart | |
| 29 | 228KD237P158 | Washer, Thrust | Dash No. indicates thickness size by inches | $28.30 | Add to Cart | |
| 29 | 228KD237P173 | Washer, Thrust | Dash No. indicates thickness size by inches | $28.30 | Add to Cart | |
| 29 | 228KD237P188 | Washer, Thrust | Dash No. indicates thickness size by inches | $28.30 | Add to Cart | |
| 29 | 228KD237P203 | Washer, Thrust | Dash No. indicates thickness size by inches | $28.30 | Add to Cart | |
| 29 | 228KD237P218 | Washer, Thrust | Dash No. indicates thickness size by inches | $28.30 | Add to Cart | |
| 29 | 228KD237P233 | Washer, Thrust | Dash No. indicates thickness size by inches | $28.30 | Add to Cart | |
| 29 | 228KD237P248 | Washer, Thrust | Dash No. indicates thickness size by inches | $34.57 | Add to Cart | |
| 29 | 228KD237P263 | Washer, Thrust | Dash No. indicates thickness size by inches | $28.30 | Add to Cart | |
| 30 | 97AX151 | Ring, Retaining | Interchanges with Mack 97AX289. Sold as a 10-pack | $49.27 | Add to Cart | |
| 31 | 97AX171 | Ring, Retaining | Sold as a 10-pack | $115.01 | Add to Cart | |
| 32 | 67AX321 | Bearing | Interchanges with BCA MA5209EL | $102.12 | Add to Cart | |
| 32 | 67AX330 | Bearing | Interchanges with BCA M5209TV | $58.13 | Add to Cart | |
| 33 | 495KB241P1 | Brake, Clutch Disc | Interchanges with Navistar 797700C1 | $113.80 | Add to Cart | |
| 34 | 351KC222 | Plate, Clutch Brake | — | Call for availability | ||
| 35 | 86KB15 | Screw | — | Call for availability | ||
| 36 | 226KD112 | Washer | — | Call for availability | ||
| 37 | 796KC128 | Sleeve | — | Call for availability | ||
| 38 | 107KD158A | Spring | — | Call for availability | ||
| 39 | 403KB271P1 | Interchanges with Mack 403KB435 | $206.42 | Add to Cart | ||
| 40 | 88AX454 | Seal | Interchanges with National 2822VGR | $38.31 | Add to Cart | |
| 41 | 789KC117 | Sleeve, Oil Pump | $38.84 | Add to Cart | ||
| 42 | 628KB323P2 | Gasket, Main Drive Cover (1/32in Thk) | /10760. Sold as a 5-pack | $16.05 | Add to Cart | |
| 42 | 628KB310P1 | Gasket (.015in Thk) | Sold as a 5-pack | $15.80 | Add to Cart | |
| 42 | 628KB310P2 | Gasket (.032in Thk) | Sold as a 5-pack | $18.20 | Add to Cart | |
| 43 | 6AX1317X | Screw (7/16in-14 X 1-1/4in) | Interchanges with Mack 4AX4. Sold as a 5-pack | $28.38 | Add to Cart |
Rear Components
Item 1Item 2Item 3Item 4Item 5Item 6Item 7Item 8Item 2Item 10Item 47Item 11Item 12Item 26Item 27Item 28Item 29Item 31Item 32Item 30Item 34Item 36Item 36Item 37Item 39Item 40Item 44Item 43Item 42Item 33Item 41Item 19Item 17Item 13Item 14Item 15Item 16Item 20Item 21Item 22Item 23Item 46Item 24Item 25Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 764KB3203B | Gear, Main Drive | $855.57 | Add to Cart | ||
| 2 | 97AX152 | Ring, Retaining | Sold as a 5-pack | $17.55 | Add to Cart | |
| 2 | 97AX89 | Ring | Sold as a 5-pack | $22.66 | Add to Cart | |
| 3 | 441KC14 | Race, Sleeve | $43.28 | Add to Cart | ||
| 4 | 97AX233 | Ring, Retaining | Sold as a 10-pack | $27.10 | Add to Cart | |
| 5 | 97AX231 | Ring, Retaining | Sold as a 5-pack | $17.20 | Add to Cart | |
| 6 | 67AX320 | Bearing | Interchanges with TOF J-2416, BCA J2416 | $17.24 | Add to Cart | |
| 7 | 320KB3119 | Clutch, Lo/direct | Interchanges with Mack 320KB2119 | $239.02 | Add to Cart | |
| 8 | 97AX91 | Ring, Retaining | Sold as a 10-pack | $54.29 | Add to Cart | |
| 9 | 228KD220 | Washer, Thrust | $37.42 | Add to Cart | ||
| 10 | 751KB3128B | Gear, Lo | — | Call for availability | ||
| 11 | 736KB318A | Gear, Reverse | Interchanges with Mack 738KB223D | $411.68 | Add to Cart | |
| 12 | 615KC233B | Mainshaft, Rear | Interchanges with Mack 615KC444A | — | Call for availability | |
| 13 | 97AX159 | Ring, Retaining | Sold as a 5-pack | $25.46 | Add to Cart | |
| 14 | 46AX410 | Bearing | Interchanges with BCA 214L, Navistar 272575R91 | $60.60 | Add to Cart | |
| 15 | 291KD29 | Gear, Speedo, Drive | — | Call for availability | ||
| 16 | 31KD236 | Spacer | — | Call for availability | ||
| 17 | 406KB152 | Rear (w/o Disc Brake) | — | Call for availability | ||
| 17 | 406KB153 | Rear (w/ Disc Brake) | — | Call for availability | ||
| 18 | 153KB15 | Bushing | Sold as a 10-pack | $47.29 | Add to Cart | |
| 19 | 628KB312AP2 | Gasket (.031in Thk) | Sold as a 5-pack | $16.05 | Add to Cart | |
| 19 | 628KB312AP1 | Gasket (.015in Thk) | Sold as a 5-pack | $16.65 | Add to Cart | |
| 20 | 6AX1361X | Screw (5/8in-11 X 1-1/2in) | Interchanges with Mack 6AX876. Sold as a 6-pack | $29.86 | Add to Cart | |
| 21 | 67AX322 | Bearing | $236.73 | Add to Cart | ||
| 22 | 97AX232 | Ring, Retaining | $9.54 | Add to Cart | ||
| 23 | 88AX391P2 | Seal, Rear | Interchanges with National 415027, Navistar 478867C1 | $31.25 | Add to Cart | |
| 24 | 297KB124P1 | Clamp | $19.11 | Add to Cart | ||
| 25 | 3AX1803X | Screw (7/8in-14 X 2-1/4in) | Interchanges with Mack 3AX1749X. Sold as a 5-pack | $41.58 | Add to Cart | |
| 26 | 80AX774 | Spacer | Interchanges with Mack 31KD1150, Mack 80AX770 | $21.85 | Add to Cart | |
| 27 | 97AX171 | Ring, Retaining | Sold as a 10-pack | $115.01 | Add to Cart | |
| 28 | 67AX291 | Bearing | Interchanges with BCA MA1209EL, Navistar 211899R91 | $82.86 | Add to Cart | |
| 29 | 97AX239 | Ring, Retaining | Interchanges with Mack 97AX230. Sold as a 10-pack | $31.10 | Add to Cart | |
| 30 | 97AX83 | Ring, Retaining | Sold as a 10-pack | $30.30 | Add to Cart | |
| 31 | 757KB352B | Gear, Main Drive | Interchanges with Mack 757KB3124 | $234.07 | Add to Cart | |
| 32 | 757KB363 | Gear, Lo | Interchanges with Mack 757KB3125 | — | Call for availability | |
| 33 | 605KC3183A | Countershaft, Rear | Interchanges with Mack 605KC3105 | $469.49 | Add to Cart | |
| 33 | 605KC3184A | Countershaft (use For Pto Drive) | Interchanges with Mack 605KC3116 | $274.38 | Add to Cart | |
| 34 | 42AX628 | Key | — | Call for availability | ||
| 35 | 46AX483 | Bearing | Interchanges with BCA 1208L, Navistar 287046R91 | $32.60 | Add to Cart | |
| 36 | 97AX181 | Ring, Retaining | Interchanges with Navistar 200365S1. Sold as a 10-pack | $36.10 | Add to Cart | |
| 37 | 56AX545 | O-ring (int. W/ 56AX431) | Sold as a 5-pack | $18.70 | Add to Cart | |
| 37 | 56AX431 | O-ring | Sold as a 10-pack | $31.70 | Add to Cart | |
| 39 | 6AX1317X | Screw (7/16in-14 X 1-1/4in) | Interchanges with Mack 4AX4. Sold as a 5-pack | $28.38 | Add to Cart | |
| 40 | 35AX1542 | Washer | Interchanges with Mack 37AX473. Sold as a 20-pack | $61.00 | Add to Cart | |
| 41 | 67AX310 | Bearing | Interchanges with BCA J36-1648, Navistar 581245R91 | $13.66 | Add to Cart | |
| 42 | 751KB223B | Gear, Reverse Idler (w/ Tooth Rounding) | $338.07 | Add to Cart | ||
| 42 | 751KB257B | Gear, Reverse Idler (w/o Tooth Rounding) | Interchanges with Mack 751KB248 | $413.72 | Add to Cart | |
| 43 | 611KC118 | Shaft, Reverse Idler | $85.09 | Add to Cart | ||
| 44 | 233KD112A | Washer, Thrust | Sold as a 2-pack | $11.29 | Add to Cart | |
| 48 | 79AX39 | Plug | Sold as a 10-pack | $18.13 | Add to Cart | |
| 46 | 171MU52P18 | Yoke, Drive (2-1/2in X 10 Spline, 3-1/2in Dia. Hub) | Interchanges with Dana 6-4-4421, Navistar 161457C1, Mack 38MU3212 | $459.97 | Add to Cart | |
| 47 | 223KD244 | Washer, Thrust, Mainshaft | Interchanges with Mack 233KD215 | $61.78 | Add to Cart |
Remote Shifter Components
Item 14Item 13Item 8Item 7Item 1Item 6Item 11Item 9Item 10Item 12Item 5Item 4Item 16Item 3Item 5Item 2Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 408KB328 | Assembly, Cover | — | Call for availability | ||
| 2 | 80AX762 | Bushing | Sold as a 2-pack | $30.86 | Add to Cart | |
| 3 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Interchanges with Mack 6AX874, Navistar 60001R91. Sold as a 5-pack | $19.35 | Add to Cart | |
| 4 | 6AX1156 | Screw | — | Call for availability | ||
| 5 | 37AX265 | Washer | Sold as a 10-pack | $23.50 | Add to Cart | |
| 6 | 616KB36AP2 | Gasket | Sold as a 10-pack | $51.09 | Add to Cart | |
| 7 | 170KC273 | Lever | — | Call for availability | ||
| 8 | 7AX264X | Screw, Lock (dog Point) | Interchanges with Mack 7AX152, Mack 7AX255. Sold as a 10-pack | $61.55 | Add to Cart | |
| 9 | 49AX146 | Plug | — | Call for availability | ||
| 10 | 37AX98 | Washer | — | Call for availability | ||
| 11 | 79AX56 | Plug | — | Call for availability | ||
| 12 | 79AX60Z | Plug | Interchanges with Mack 79AX50, Mack 79AX27. Sold as a 5-pack | $21.50 | Add to Cart | |
| 13 | 591KC169A | Assembly, Rail | Includes (1) 150KB166. Interchanges with Mack 591KC37, Mack 591KC311 | $378.91 | Add to Cart | |
| 14 | 150KB166 | Bushing | $8.98 | Add to Cart | ||
| 15 | 88AX311P4 | Seal | Sold as a 5-pack | $22.08 | Add to Cart | |
| 16 | 1MR2298 | Switch | Interchanges with Mack 1MR1330. Sold as a 5-pack | $69.14 | Add to Cart |

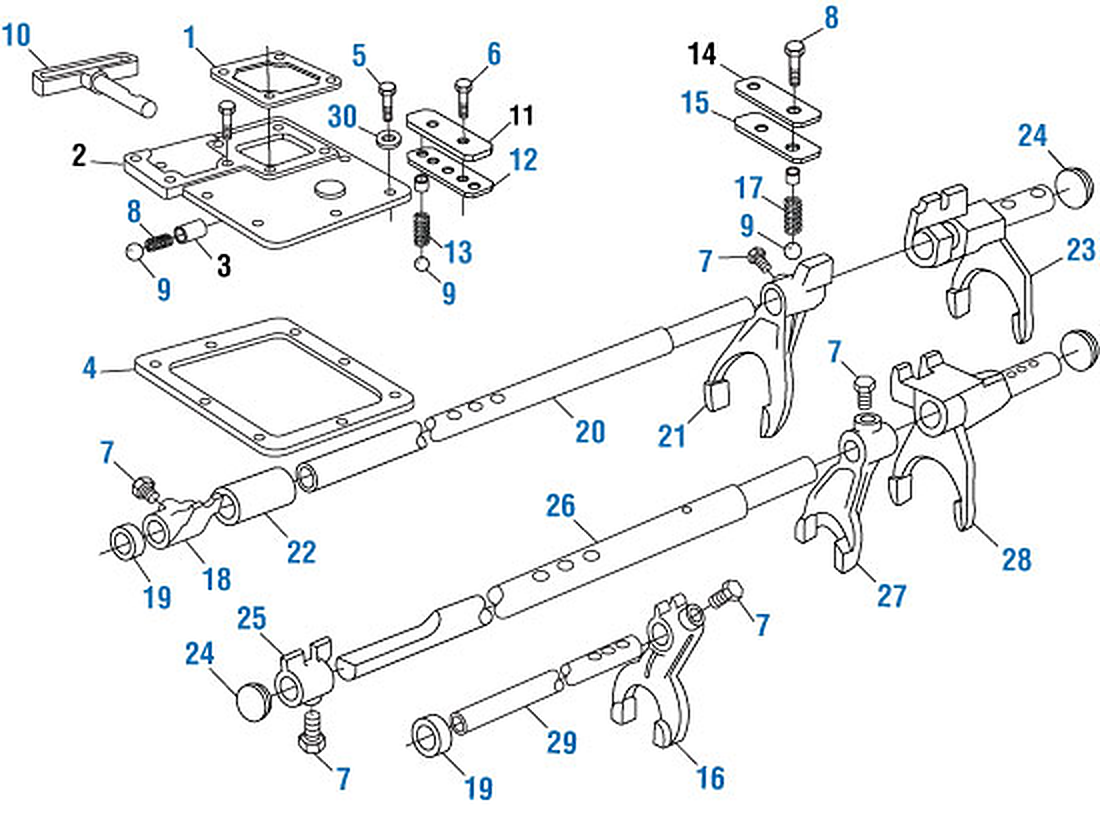

Shifter Components
Item 10Item 2Item 8Item 1Item 5Item 30Item 9Item 3Item 9Item 13Item 12Item 6Item 4Item 7Item 19Item 18Item 22Item 24Item 25Item 7Item 19Item 29Item 16Item 7Item 26Item 20Item 21Item 15Item 17Item 9Item 7Item 7Item 8Item 24Item 23Item 28Item 27Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 629KB250 | Gasket (new Style) | Sold as a 5-pack | $29.92 | Add to Cart | |
| 1 | 646KB11 | Gasket (early Style) | Sold as a 5-pack | $13.55 | Add to Cart | |
| 2 | 408KB117A | Assembly, Cover | — | Call for availability | ||
| 3 | 150KB147 | Bushing | — | Call for availability | ||
| 4 | 618KB32A | Gasket | Sold as a 5-pack | $22.49 | Add to Cart | |
| 5 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Interchanges with Mack 6AX874, Navistar 60001R91. Sold as a 5-pack | $19.35 | Add to Cart | |
| 6 | 6AX1359X | Screw (3/8in-16 X 1in) | Interchanges with Mack 6AX901X, Navistar 1670574C1 | $2.77 | Add to Cart | |
| 7 | 7AX264X | Screw, Lock (dog Point) | Interchanges with Mack 7AX255, Mack 7AX152. Sold as a 10-pack | $61.55 | Add to Cart | |
| 8 | 107KD140 | Spring | Sold as a 5-pack | $19.20 | Add to Cart | |
| 9 | 48AX17 | Ball (1/2in Dia.) | Interchanges with Mack 48AX11. Sold as a 10-pack | $27.90 | Add to Cart | |
| 10 | 136KC25BP1 | Interlock | — | Call for availability | ||
| 12 | 628KB124 | Gasket | Sold as a 10-pack | $25.60 | Add to Cart | |
| 13 | 107KD157 | Spring (3 Req’d) | Interchanges with Mack 107KD1177. Sold as a 6-pack | $23.88 | Add to Cart | |
| 15 | 628KB126 | Gasket | Sold as a 5-pack | $14.55 | Add to Cart | |
| 16 | 575KB394H | Fork, 4th/5th | $209.52 | Add to Cart | ||
| 16 | 575KB3190B | Fork, Shift | $269.13 | Add to Cart | ||
| 17 | 107KD116 | Spring (2 Req’d) | Sold as a 5-pack | $15.75 | Add to Cart | |
| 18 | 699KC2132C | Shifter, 1st/Reverse | Interchanges with Mack 699KC351 | $98.32 | Add to Cart | |
| 19 | 88AX370P3 | Seal | Interchanges with CHI 7414, National 1049. Sold as a 10-pack | $51.25 | Add to Cart | |
| 20 | 591KC2290A | Rail, 1st/Reverse | Interchanges with Mack 591KC2245 | $431.82 | Add to Cart | |
| 21 | 575KB3128A | Fork, 1st | — | Call for availability | ||
| 22 | 31KD1151 | Spacer | $12.34 | Add to Cart | ||
| 23 | 575KB3135A | Fork, Reverse | $201.38 | Add to Cart | ||
| 24 | 79AX35 | Plug (1in Welch) | — | Call for availability | ||
| 25 | 699KC2126C | Shifter, 2nd/3rd | Interchanges with Mack 699KC350 | $87.25 | Add to Cart | |
| 26 | 591KC2287B | Rail, 2nd/3rd | Interchanges with Mack 591KC2246 | $445.17 | Add to Cart | |
| 27 | 575KB3130A | Fork, 2nd/3rd | $158.17 | Add to Cart | ||
| 28 | 575KB3137B | Fork, Direct/lo | $385.34 | Add to Cart | ||
| 29 | 591KC2214A | Rail, 4th/5th | $932.86 | Add to Cart | ||
| 30 | 37AX265 | Washer, Flat (25/64in I.d.) | Sold as a 10-pack | $23.50 | Add to Cart |
No parts match that search — try the part number with no dashes.
This is the illustrated parts breakdown for the Mack TRXL-107 Transmission — every part in these diagrams, matched to our live inventory. We stock 150 of the 195 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
More Mack parts manuals: Mack Transmission Parts Manuals · Mack Differential Parts Manuals
