Meritor MD-20-14X Drive Axle Parts Manual
Carrier and Cap/Inter-Axle Diff Shift
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A23200K2221 | Carrier And Cap | 1 | Less Diff Lock 20K | $977.76 | Add to Cart |
| 1 | A23200C2239 | Carrier And Cap | 1 | Less Diff Lock 22K | Call for availability | |
| 1 | A23200N2224 | Carrier And Cap | 1 | With Diff Lock 20K | $1,184.14 | Add to Cart |
| 1 | A23200D2240 | Carrier And Cap | 1 | With Diff Lock 22K | $1,273.97 | Add to Cart |
| 2 | • Leg Cap Not Sold Separately | 2 | Call for availability | |||
| 3 | MS2201201 | • Bolt Leg Cap | 4 | With Diff Lock 20K | $10.29 | Add to Cart |
| 4 | 42X1021 | • Washer Leg Cap | 4 | With Diff Lock 20K | $102.00 | Add to Cart |
| 5 | 41X1702 | Jam Nut Thrust Screw | 1 | Less Diff Lock 22K | $115.60 | Add to Cart |
| 6 | 40X1016 | Thrust Screw | 1 | Less Diff Lock 22K | Call for availability | |
| 7 | 41X1669 | Screw Diff Bearing Adjusting Ring Lock | 4 | With Diff Lock 20K | $4.24 | Add to Cart |
| 8 | 1220P1108 | Lock Diff Bearing Adjusting Ring Inter-Axle | 2 | With Diff Lock 20K; Inter-Axle | $5.13 | Add to Cart |
| 9 | 2258N1262 | Spring | 1 | $40.70 | Add to Cart | |
| 10 | 3296A1379 | Shift Fork | 1 | $43.66 | Add to Cart | |
| 11 | 2803A3641 | Shim | As Required | $2.54 | Add to Cart | |
| 12 | 2244Z1274 | Push Rod | 1 | $23.30 | Add to Cart | |
| 12 | KIT2917 | Kit -Iad O-Rings | 1 | $5.97 | Add to Cart | |
| 13 | 5X1153 | • O-Ring Iad Shift Piston | 1 | $82.60 | Add to Cart | |
| 14 | 5X1368 | • O-Ring Carrier To Cover Iad Shift Bore | 1 | $4.83 | Add to Cart | |
| 14 | 5X1414 | • O-Ring Carrier To Cover Iad Shift Bore (Select Appropriate O-Ring To Match Channel In Carrier & Cap) | 1 | $15.64 | Add to Cart | |
| 15 | 2230Y1377 | Piston | 1 | $6.15 | Add to Cart |
Front Cover and Pump Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | MS2120352 | Screw Front Cover | 10 | Less Pump | $10.64 | Add to Cart |
| 2 | 1229D4632 | Washer Front Cover | 10 | Less Pump | $11.30 | Add to Cart |
| 3-11 | A3226P1550 | Cover Assembly Complete With Pump (Not Shown) | 1 | With Pump | $705.75 | Add to Cart |
| 3 | 3226M1547 | Cover | 1 | Less Pump | $207.93 | Add to Cart |
| 4 | A3303R1032 | • Pump | 1 | With Pump | $101.71 | Add to Cart |
| 5 | MS208016A1 | • Screw | 3 | Less Pump | $2.99 | Add to Cart |
| 6 | 1229E1669 | • Washer | 3 | Less Pump | $152.00 | Add to Cart |
| 7 | 3221K1025 | • Oil Baffle Or Pump Cover | 1 | Less Pump | $14.11 | Add to Cart |
| 7 | A3266Q1499 | • Oil Baffle Or Pump Cover | 1 | With Pump | $99.23 | Add to Cart |
| 8 | 2297U5273 | • Valve Pressure Relief | 1 | With Pump | $90.40 | Add to Cart |
| 9 | 2258Z1118 | • Spring Pump | 1 | With Pump | $26.10 | Add to Cart |
| 10 | 1229F4062 | • Washer Sealing Ring | 1 | With Pump | $45.90 | Add to Cart |
| 11 | 1250N1080 | • Plug Pressure Relief | 1 | With Pump | $27.76 | Add to Cart |
| 12 | 1250Z572 | Plug Plastic Front Cover | 1 | Less Pump | $31.50 | Add to Cart |
| 13 | A2297D5334 | Screen Pump Filter MeritorPartsOnline.com | 1 | With Pump; MeritorPartsOnline.com | $83.74 | Add to Cart |
Input Shaft and Inter-Axle Diff Components
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| KIT2826 | 1 | Less Pump | $41.31 | Add to Cart | ||
| 1 | 40X1233 | 1 | Less Pump | $17.72 | Add to Cart | |
| 2 | 1229N1730 | 1 | Less Pump | $52.70 | Add to Cart | |
| 3 | A11205X2728 | 1 | Less Pump | $104.91 | Add to Cart | |
| 4 | 2214W1271 | 1 | Less Pump | $56.63 | Add to Cart | |
| 5 | 1228U1217 | 1 | Less Pump | $25.59 | Add to Cart | |
| 6 | MS208016A1 | 1 | Less Pump | $2.99 | Add to Cart | |
| 7 | 1220T1112 | 1 | Less Pump | $14.93 | Add to Cart | |
| 8 | A1228W1713 | 1 | Less Pump | $173.20 | Add to Cart | |
| 10 | 3297D1616 | 1 | Less Pump | $617.36 | Add to Cart | |
| 10 | A3297X1610 | 1 | With Pump | $749.30 | Add to Cart | |
| 10 | 1228K37 | 1 | With Pump | $21.00 | Add to Cart | |
| 11 | 1228G1723 | 2 | Less Pump | $38.83 | Add to Cart | |
| 12 | 2297S5349 | 1 | Less Pump | $29.40 | Add to Cart | |
| 13 | 1228F1722 | 1 | Less Pump | $24.11 | Add to Cart | |
| 14 | 3892F5908 | 1 | Less Pump | $426.16 | Add to Cart | |
| 15 | 2233P1030 | 4 | Less Pump | $78.36 | Add to Cart | |
| 16 | 3278J1206 | 1 | Less Pump | No longer available - Call for replacement | ||
| 16 | 3278K1207 | 1 | With Pump | $57.63 | Add to Cart | |
| 17 | 3235V3012 | 1 | Less Pump | No longer available - Call for replacement | ||
| 18 | 2234L1442 | 1 | Less Pump | $156.68 | Add to Cart | |
| 19 | A1228P1940 | 1 | Less Pump | $57.96 | Add to Cart | |
| 20 | 1228N1938 | 1 | Less Pump | $29.99 | Add to Cart |
Forward Tandem Main Diff Components
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| KIT2638 | Kit -Pinion Nut And Washer Included In Gear Set | 1 | Call for availability | |||
| 1 | 40X1233 | • Nut Pinion | 1 | $17.72 | Add to Cart | |
| 2 | 1229W4521 | • Washer Pinion | 1 | $113.70 | Add to Cart | |
| 3 | A11228G605 | Bearing Cone Pinion Outer | 1 | $67.90 | Add to Cart | |
| 4 | 1228F604 | Bearing Cup Pinion Inner | 1 | $40.40 | Add to Cart | |
| 5 | KIT2396 | Kit -Pinion Bearing Spacers Use 2 As Required | 1 | $756.02 | Add to Cart | |
| 5 | 2203D9806 | • Spacer Pinion Bearing 5 .30mm/.209 Inch | 2 | $70.01 | Add to Cart | |
| 5 | 2203E9807 | • Spacer Pinion Bearing 5 .33mm/.210 Inch | 2 | $69.43 | Add to Cart | |
| 5 | 2203F9808 | • Spacer Pinion Bearing 5 .35mm/.211 Inch | 2 | $70.11 | Add to Cart | |
| 5 | 2203G9809 | • Spacer Pinion Bearing 5 .38mm/.212 Inch | 2 | $64.65 | Add to Cart | |
| 5 | 2203H9810 | • Spacer Pinion Bearing 5 .40mm/.213 Inch | 2 | $71.53 | Add to Cart | |
| 5 | 2203J9812 | • Spacer Pinion Bearing 5 .50mm/.217 Inch | 2 | $72.22 | Add to Cart | |
| 5 | 2203K9813 | • Spacer Pinion Bearing 5 .60mm/.220 Inch | 2 | $72.96 | Add to Cart | |
| 5 | 2203L9814 | • Spacer Pinion Bearing 5 .70mm/.224 Inch | 2 | $67.98 | Add to Cart | |
| 5 | 2203M9815 | • Spacer Pinion Bearing 5 .80mm/.228 Inch | 2 | $56.20 | Add to Cart | |
| 5 | 2203N9816 | • Spacer Pinion Bearing 5 .90mm/.232 Inch | 2 | $63.92 | Add to Cart | |
| 5 | 2203P9818 | • Spacer Pinion Bearing 6.00mm/.236 Inch | 2 | $66.58 | Add to Cart | |
| 5 | 2203Q9819 | • Spacer Pinion Bearing 6.10mm/.240 Inch | 2 | $62.32 | Add to Cart | |
| 5 | 2203R9820 | • Spacer Pinion Bearing 6.13mm/.241 Inch | 2 | $66.51 | Add to Cart | |
| 5 | 2203S9821 | • Spacer Pinion Bearing 6.15mm/.242 Inch | 2 | $53.79 | Add to Cart | |
| 5 | 2203T9822 | • Spacer Pinion Bearing 6.18mm/.243 Inch | 2 | $78.99 | Add to Cart | |
| 5 | 2203U9823 | • Spacer Pinion Bearing 6.20mm/.244 Inch | 2 | $70.01 | Add to Cart | |
| 6 | 3892J5912 | Driven Gear | 1 | $452.96 | Add to Cart | |
| 7 | 1244V1764 | Spacer Inner Pinion Bearing | 1 | $41.35 | Add to Cart | |
| 7 | KIT1647 | Kit -Inner Pinion Bearing Cup Shims Use As Required | 1 | $15.10 | Add to Cart | |
| 8 | 2203F2788 | • Shim Inner Pinion Bearing Cup .075mm/.003 Inch | 3 | $165.00 | Add to Cart | |
| 8 | 2203G2789 | • Shim Inner Pinion Bearing Cup .125mm/.005 Inch | 2 | $178.00 | Add to Cart | |
| 8 | 2203H2790 | • Shim Inner Pinion Bearing Cup .250mm/.010 Inch | 4 | $172.00 | Add to Cart | |
| 9 | 1228Z1716 | Bearing Cup Pinion Inner | 1 | $54.13 | Add to Cart | |
| 10 | A1228A1717 | Bearing Cone Pinion Inner | 1 | $169.40 | Add to Cart | |
| 11 | 2214G1255 | Adjusting Ring Main Diff | 2 | $43.96 | Add to Cart | |
| 12 | 1228Q1473 | Bearing Cup Main Diff | 2 | $55.96 | Add to Cart | |
| 13 | A1228R1474 | Bearing Cone Main Diff | 2 | $70.78 | Add to Cart | |
| 14-25 | See Next Page Main Diff Case | Call for availability | ||||
| 26 | 3107U1321 | Diff Lock Clutch Collar Diff Lock Only | 1 | $331.75 | Add to Cart | |
| 27 | Gear Set MeritorPartsOnline.com | 1 | See Page 30 | Call for availability |
Diff Case Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 14-25 | Main Diff Assembly See Diff Cases Page 29 | All | Call for availability | |||
| 14-17 | Diff Case Assembly See Diff Cases Page 29 | All | Call for availability | |||
| 14 | 3235A2783 | Diff Case Flange Half | 1 | 2 .47 | $388.76 | Add to Cart |
| 14 | 3235C2785 | Diff Case Flange Half | 3 | 3 .08 | $326.24 | Add to Cart |
| 14 | 3235E2787 | Diff Case Flange Half | 4 | 3 .42 | $414.55 | Add to Cart |
| 14 | 3235G2789 | Diff Case Flange Half | 7 | 4 .33 | $373.71 | Add to Cart |
| 15 | 3235J2792 | Diff Case Plain Half | 1 | All | $161.82 | Add to Cart |
| 15 | 3235Q2799 | Diff Case Plain Half | 1 | All | $1,201.43 | Add to Cart |
| 16 | 41X1327 | • Bolt Diff Case • | 16 | 20K | $37.00 | Add to Cart |
| 17 | 1229D4632 | • Washer Diff Case • | 16 | 20K | $11.30 | Add to Cart |
| 17 | KIT4809 | • Washer Diff Case • | 1 | 22K; Kit -Main Diff KIT 4778 | $474.01 | Add to Cart |
| 18 | 1229Q5087 | • Thrust Washer Main Diff Side Gear • | 2 | 20K | $17.66 | Add to Cart |
| 19 | 2234G1437 | • Side Gear Main Diff • | 2 | 20K | $66.69 | Add to Cart |
| 19 | 2234U1451 | • Side Gear Main Diff • | 2 | 22K | $167.36 | Add to Cart |
| 20 | 1229R1032 | • Thrust Washer Main Diff Pinion • | 4 | 20K | $124.00 | Add to Cart |
| 21 | 3278S305 | • Spider Main Diff • | 1 | 20K | $62.29 | Add to Cart |
| 21 | 3278Y1117F | • Spider Main Diff • | 1 | 22K | $146.98 | Add to Cart |
| 22 | 2233J1024 | • Pinion Gear Main Diff • | 4 | 20K | $31.35 | Add to Cart |
| 22 | 2233X1116 | • Pinion Gear Main Diff • Kit -Bolt Kit -Diff Case To Gear 2 .47 2 .64 Kit 4779 | 4 | 22K; Kit -Bolt Kit -Diff Case to Gear 2 .47 2 .64 KIT 4779 | $71.84 | Add to Cart |
| 23 | 41X1715 | • Bolt Diff Case To Gear • Kit -Bolt Kit -Diff Case To Gear 3 .08 7 .17 Kit 2317 | 12 | 20K; Kit -Bolt Kit -Diff Case to Gear 3 .08 7 .17 KIT 2317 | $28.20 | Add to Cart |
| 23 | 41X1216 | • Bolt Diff Case To Gear • | 12 | 20K | $37.70 | Add to Cart |
| 24 | 1229U1503 | • Washer Diff Case To Gear • | 12 | 20K | $113.00 | Add to Cart |
| 25 | 40X1182 | • Nut Diff Case To Gear • | 12 | 20K | $49.60 | Add to Cart |

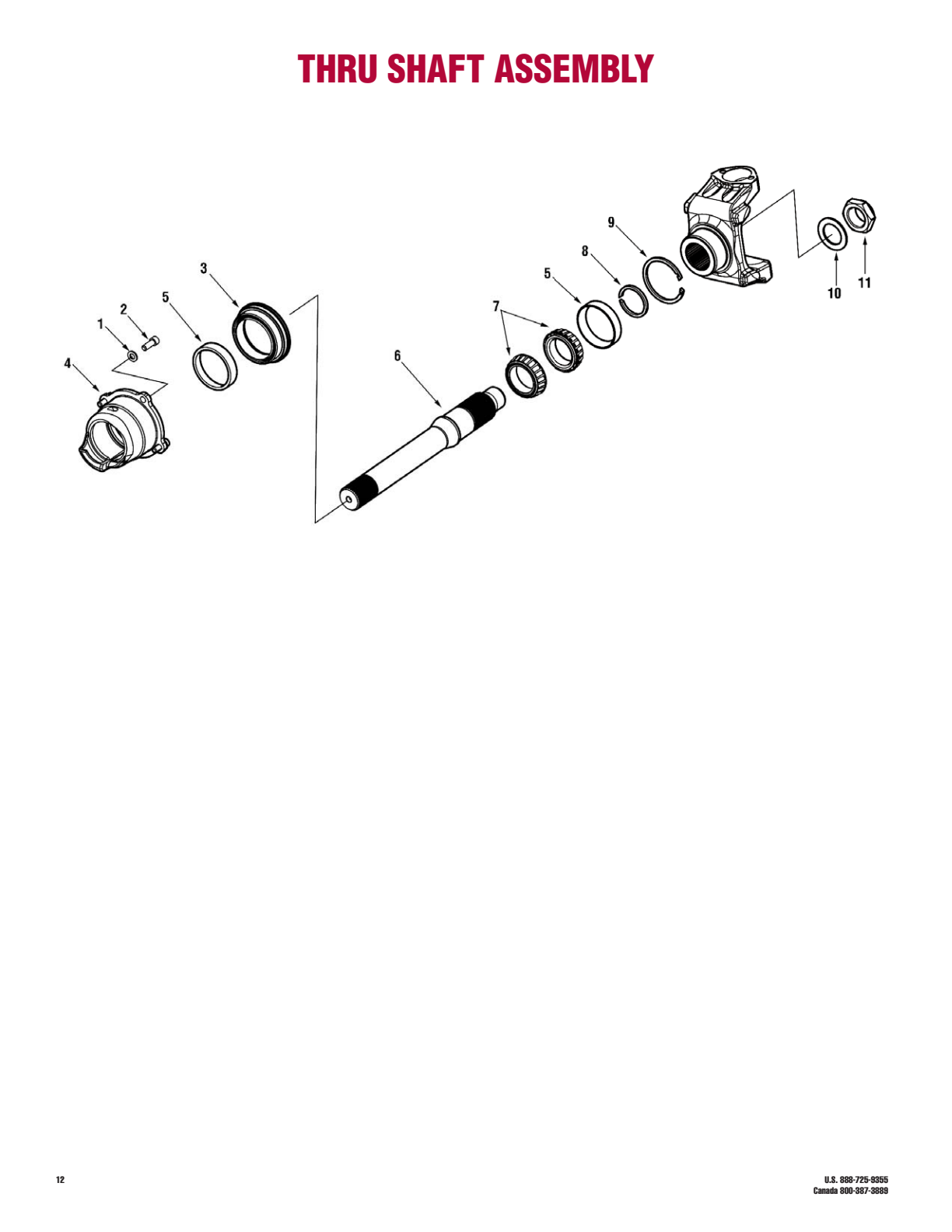

Thru Shaft Assembly Components
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1229K1597 | Washer Thru Shaft Bearing Cage | 4 | $135.00 | Add to Cart | |
| 2 | 15X387 | Capscrew Thru Shaft Bearing Cage | 4 | $40.80 | Add to Cart | |
| 2 | A173226T1112K | Kit -Complete Thru Shaft | 1 | $448.77 | Add to Cart | |
| 3 | A11205Y2729 | • Oil Seal | 1 | $92.32 | Add to Cart | |
| 4 | 3226T1112 | • Bearing Cage | 1 | $90.55 | Add to Cart | |
| 5 | 1228K1545 | • Bearing Cup | 2 | $19.18 | Add to Cart | |
| 6 | 3297M1599 | • Thru Shaft | 1 | $197.42 | Add to Cart | |
| 7 | A1228L1546 | • Bearing Cone | 2 | $21.20 | Add to Cart | |
| 8 | KIT576 | • Kit -Snap Ring | 1 | $185.63 | Add to Cart | |
| 8 | 1229P2590 | • Snap Ring .155 | 1 | $191.36 | Add to Cart | |
| 8 | 1229Q2591 | • Snap Ring .158 | 1 | $116.04 | Add to Cart | |
| 8 | 1229R2592 | • Snap Ring .161 | 1 | $103.76 | Add to Cart | |
| 8 | 1229S2593 | • Snap Ring .164 | 1 | $116.04 | Add to Cart | |
| 8 | 1229U2595 | • Snap Ring .167 | 1 | $116.64 | Add to Cart | |
| 8 | 1229V2596 | • Snap Ring .170 | 1 | $118.84 | Add to Cart | |
| 8 | 1229W2597 | • Snap Ring .173 | 1 | $229.64 | Add to Cart | |
| 8 | 1229X2598 | • Snap Ring .176 | 1 | $116.48 | Add to Cart | |
| 8 | 1229Y2599 | • Snap Ring .179 | 1 | $33.78 | Add to Cart | |
| 8 | 1229T2594 | • Snap Ring .182 | 1 | $129.00 | Add to Cart | |
| 9 | 1229W4131 | • Snap Ring/Yoke Spacer | 1 | $148.00 | Add to Cart | |
| 9 | KIT2637 | • Kit -Thru Shaft Nut And Washer | 1 | Call for availability | ||
| 10 | 1229T1736 | • Washer | 1 | $21.60 | Add to Cart | |
| 11 | 40X1237 | • Nut MeritorPartsOnline.com | 1 | $24.28 | Add to Cart |

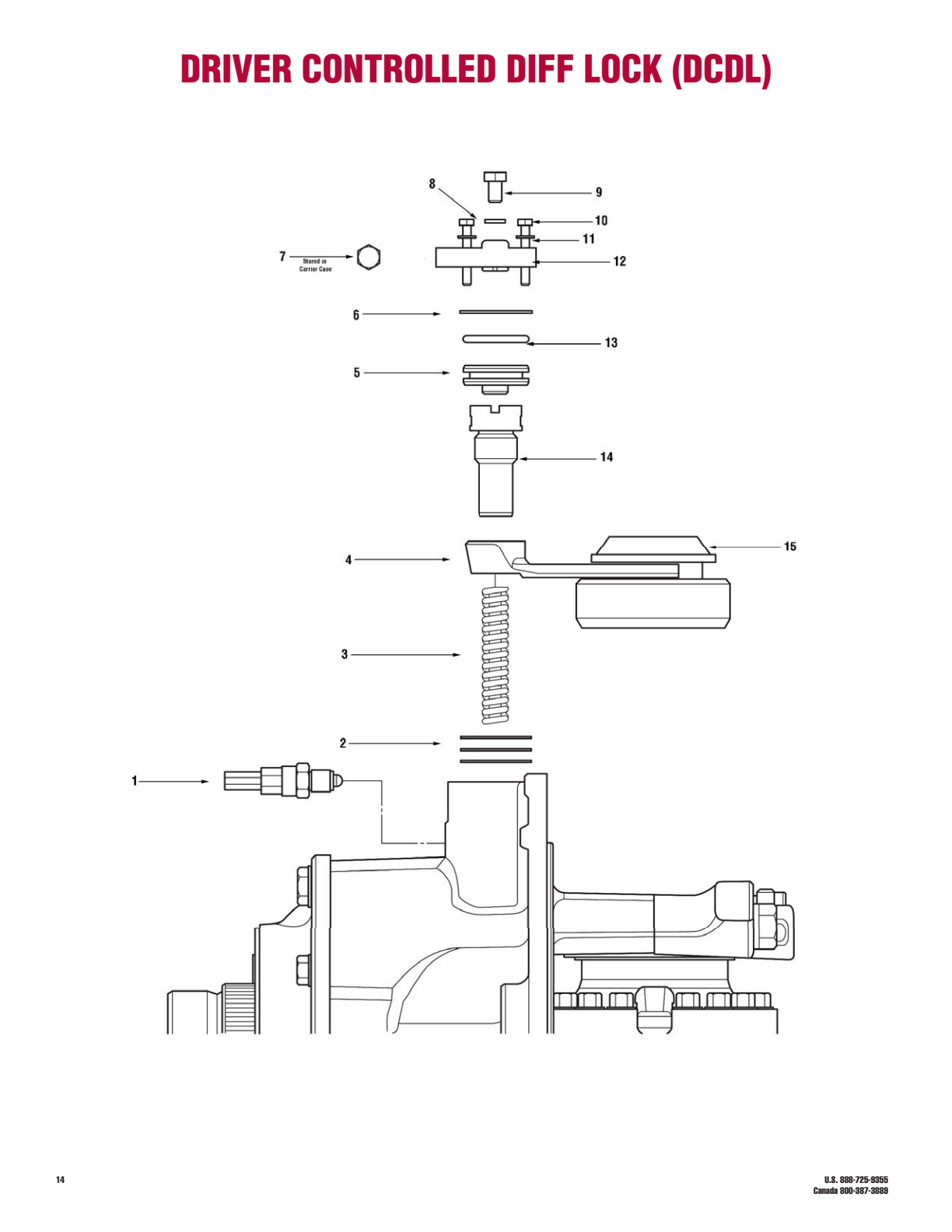

Driver Controlled Diff Lock (DCDL) Components Complete Diff Lock KIT 4782 (bolted)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | KIT4429 | Kit -Diff Lock Switch | 1 | $62.57 | Add to Cart | |
| 1 | 3237R1292 | • Diff Lock Switch | 1 | Call for availability | ||
| 1 | 3237X1298 | • Pigtail Diff Lock Switch Not Shown Separately | 1 | $52.76 | Add to Cart | |
| 2 | 2803A3641 | Shim (Use As Required) | 3 | $2.54 | Add to Cart | |
| 3 | 2258N1262 | Spring | 1 | $40.70 | Add to Cart | |
| 4 | 3296C1381 | Shift Fork | 1 | $48.00 | Add to Cart | |
| 5 | 2230Y1377 | Piston | 1 | $6.15 | Add to Cart | |
| 6 | 2208Q1005 | Gasket Diff Lock Cover | 1 | $8.72 | Add to Cart | |
| 7 | 41X1368 | Caging Bolt Manual Engaging | 1 | $25.90 | Add to Cart | |
| 8 | 5X521 | O-Ring | 1 | $157.00 | Add to Cart | |
| 9 | 41X1742 | Plug Capscrew | 1 | $15.70 | Add to Cart | |
| 10 | 41X1669 | Capscrew Diff Lock Cover | 4 | $4.24 | Add to Cart | |
| 11 | MWA506 | Washer Diff Lock Cover | 4 | $143.00 | Add to Cart | |
| 12 | 3266X1610 | Cover Diff Lock | 1 | $47.62 | Add to Cart | |
| 13 | 5X888 | O-Ring Diff Lock Piston | 1 | $82.60 | Superseded by 5X1153Add to Cart | |
| 14 | 2244N1236 | Push Rod | 1 | Call for availability | ||
| 15 | 3107U1321 | Collar Complete Diff Lock Kit 2932 (Screw-On) - | 1 | $331.75 | Add to Cart | |
| 6 | 41X1368 | Caging Bolt Manual Engaging | 1 | $25.90 | Add to Cart | |
| 7 | 5X521 | O-Ring | 1 | $157.00 | Add to Cart | |
| 8 | 41X1742 | Plug Capscrew | 1 | $15.70 | Add to Cart | |
| 9 | 3266Q1681 | Plug Capscrew | 1 | Call for availability | ||
| 10 | 5X1433 | O-Ring | 1 | $5.22 | Add to Cart | |
| 11 | 5X1153 | O-Ring | 1 | $82.60 | Add to Cart | |
| 12 | 2244Z1274 | Push Rod | 1 | $23.30 | Add to Cart | |
| 13 | 3107U1321 | Collar MeritorPartsOnline.com | 1 | $331.75 | Add to Cart |
Amboid Tandem Rear Carrier and Input Components
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A11205Z2730 | Oil Seal | 1 | $92.72 | Add to Cart | |
| 2 | A11228G605 | Bearing Cone Outer Pinion | 1 | $67.90 | Add to Cart | |
| 3 | 1228F604 | Bearing Cup Outer Pinion | 1 | $40.40 | Add to Cart | |
| 4 | A23200G2217 | Carrier And Cap | 1 | $1,460.09 | Add to Cart | |
| 5 | 42X1021 | Washer | 4 | $102.00 | Add to Cart | |
| 6 | MS2201201 | Bolt | 4 | $10.29 | Add to Cart | |
| 7 | 2297P8336 | Thrust Block | 1 | $5.64 | Add to Cart | |
| 8 | 40X1016 | Jam Nut | 1 | $22.77 | Add to Cart | |
| 9 | 10X1710 | Thrust Screw | 1 | $19.27 | Add to Cart | |
| 10 | KIT2541 | Kit -Pinion Bearing Spacers | 1 | $2,779.38 | Add to Cart | |
| 10 | 1244M2431 | Spacer Pinion Bearing 9.40mm/.370 Inch | 2 | $123.87 | Add to Cart | |
| 10 | 1244N2432 | Spacer Pinion Bearing 9.43mm/.371 Inch | 2 | $126.11 | Add to Cart | |
| 10 | 1244P2434 | Spacer Pinion Bearing 9.45mm/.372 Inch | 2 | $122.74 | Add to Cart | |
| 10 | 1244Q2435 | Spacer Pinion Bearing 9.48mm/.373 Inch | 2 | $133.44 | Add to Cart | |
| 10 | 1244R2436 | Spacer Pinion Bearing 9.50mm/.374 Inch | 2 | $127.53 | Add to Cart | |
| 10 | 1244S2437 | Spacer Pinion Bearing 9.60mm/.378 Inch | 2 | $248.06 | Add to Cart | |
| 10 | 1244T2438 | Spacer Pinion Bearing 9.70mm/.382 Inch | 2 | $120.68 | Add to Cart | |
| 10 | 1244U2439 | Spacer Pinion Bearing 9.80mm/.386 Inch | 2 | $140.28 | Add to Cart | |
| 10 | 1244V2440 | Spacer Pinion Bearing 9.90mm/.390 Inch | 2 | $125.09 | Add to Cart | |
| 10 | 1244W2441 | Spacer Pinion Bearing 10.00mm/.394 Inch | 2 | $253.68 | Add to Cart | |
| 10 | 1244X2442 | Spacer Pinion Bearing 10.10mm/.398 Inch | 2 | $115.40 | Add to Cart | |
| 10 | 1244Y2443 | Spacer Pinion Bearing 10.20mm/.402 Inch | 2 | $117.58 | Add to Cart | |
| 10 | 1244Z2444 | Spacer Pinion Bearing 10.23mm/.403 Inch | 2 | $119.72 | Add to Cart | |
| 10 | 1244A2445 | Spacer Pinion Bearing 10.25mm/.404 Inch | 2 | $118.34 | Add to Cart | |
| 10 | 1244B2446 | Spacer Pinion Bearing 10.28mm/.405 Inch | 2 | $122.74 | Add to Cart | |
| 10 | 1244C2447 | Spacer Pinion Bearing 10.30mm/.406 Inch | 2 | $118.34 | Add to Cart | |
| 11 | 1244F2346 | Spacer Inner Pinion Bearing | 1 | $32.90 | Add to Cart | |
| 12 | KIT1647 | Kit -Shims Pinion Bearing | 1 | $15.10 | Add to Cart | |
| 12 | 2203F2788 | Shim 076mm/.003 Inch | 3 | $165.00 | Add to Cart | |
| 12 | 2203G2789 | Shim .127mm/.005 Inch | 2 | $178.00 | Add to Cart | |
| 12 | 2203H2790 | Shim 254mm/.010 Inch | 4 | $172.00 | Add to Cart | |
| 13 | 1228Z1716 | Bearing Cup Inner Pinion | 1 | $54.13 | Add to Cart | |
| 14 | A1228A1717 | Bearing Cone Inner Pinion | 2 | $169.40 | Add to Cart | |
| 15 | 41X1669 | Screw Diff Adjusting Ring Lock | 2 | $4.24 | Add to Cart | |
| 16 | 1220P1108 | Lock Diff Adjusting Ring MeritorPartsOnline.com | 4 | $5.13 | Add to Cart |
Amboid Tandem Rear Main Diff
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2214G1255 | Adjusting Ring Main Diff | 2 | $43.96 | Add to Cart | |
| 2 | 1228Q1473 | Bearing Cup Main Diff | 2 | $55.96 | Add to Cart | |
| 3 | A11228R1474 | Bearing Cone Main Diff Diff Case Assemblies | 2 | Call for availability | ||
| 4-12 | A13235A2783 | Main Diff Assembly | 1 | 2 .47 264 | $1,198.15 | Add to Cart |
| 4-12 | A13235C2785 | Main Diff Assembly | 1 | 3 .08 3 .36 | $902.73 | Add to Cart |
| 4-12 | A13235E2787 | Main Diff Assembly | 1 | 3 .42 4 .11 | $1,293.87 | Add to Cart |
| 4-7 | A3235A2783 | Diff Case Assembly | 1 | 2 .47 2 .64 | $530.28 | Add to Cart |
| 4-7 | A3235C2785 | Diff Case Assembly | 1 | 3 .08 3 .36 | $528.31 | Add to Cart |
| 4-7 | A3235E2787 | Diff Case Assembly | 1 | 3 .42 4 .11 | $567.32 | Add to Cart |
| 4 | 3235J2792 | Diff Case Plain Half | 1 | All | $161.82 | Add to Cart |
| 5 | 3235A2783 | Diff Case Flange Half | 1 | 2 .47 2 .64 | $388.76 | Add to Cart |
| 5 | 3235C2785 | Diff Case Flange Half | 1 | 3 .08 3 .36 | $326.24 | Add to Cart |
| 5 | 3235E2787 | Diff Case Flange Half | 1 | 3 .42 4 .11 | $414.55 | Add to Cart |
| 6-7 | KIT2819 | Kit -Diff Case Bolts | 1 | All | $166.87 | Add to Cart |
| 6 | 41X1327 | Bolt Diff Case | 16 | $37.00 | Add to Cart | |
| 7 | 1229D4632 | Washer Diff Case Main Diff Components | 16 | $11.30 | Add to Cart | |
| 8-12 | KIT4778 | Kit -Main Diff | 1 | $371.85 | Add to Cart | |
| 8 | 1229Q5087 | Thrust Washer Main Diff Side Gear | 2 | $17.66 | Add to Cart | |
| 9 | 3278S305 | Spider Main Diff | 1 | $62.29 | Add to Cart | |
| 10 | 1229R1032 | Thrust Washer Main Diff Pinion | 4 | $124.00 | Add to Cart | |
| 11 | 2234G1437 | Side Gear Main Diff | 2 | $66.69 | Add to Cart | |
| 12 | 2234J1024 | Pinion Gears Main Diff | 4 | Call for availability | ||
| 13 | KIT4779 | Kit -Bolt Kit -Diff Case To Gear 2 .47 -2 .64 | 1 | $42.74 | Add to Cart | |
| 13 | 41X1715 | Bolt | 12 | $28.20 | Add to Cart | |
| 13-15 | KIT2317 | Kit -Bolt Kit -Diff Case To Gear 3 .08 4 .11 | 1 | $45.79 | Add to Cart | |
| 13 | 41X1216 | Bolt | 12 | $37.70 | Add to Cart | |
| 14 | 1229U1503 | Washer | 12 | $113.00 | Add to Cart | |
| 15 | 40X1182 | Nut | 12 | $49.60 | Add to Cart | |
| 16 | Gear Set See Gear Sets Page 30 | 1 | Call for availability | |||
| 16 | KIT2637 | Kit -Pinion Nut And Washer | 1 | Call for availability | ||
| 17 | 1229T1736 | Pinion Washer | 1 | $21.60 | Add to Cart | |
| 18 | 40X1237 | Pinion Nut MeritorPartsOnline.com | 1 | $24.28 | Add to Cart |
Hypoid Rear Carrier and Bearing Cage Components
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | End Yoke | 1 | See Bill Of Material | Call for availability | ||
| 2 | A11205Z2730 | Seal Input Yoke | 1 | $92.72 | Add to Cart | |
| 3 | A1228N2068 | Bearing Cone Pinion Outer | 1 | $57.37 | Add to Cart | |
| 4 | MS2120451 | Bolt Bearing Cage | 1 | $27.80 | Add to Cart | |
| 5 | 1229D4632 | Washer Bearing Cage | 1 | $11.30 | Add to Cart | |
| 6 | A3226M1053 | Bearing Cage Assemby | 1 | $341.07 | Add to Cart | |
| 7 | 1228U645 | Bearing Cup Pinion Outer | 1 | $31.30 | Add to Cart | |
| 8 | 1228F604 | Bearing Cup Pinion Inner | 1 | $40.40 | Add to Cart | |
| 9 | KIT2313 | Kit -Shim Pinion Bearing Cage | 1 | $104.23 | Add to Cart | |
| 9 | 2803Q2851 | Shim Pinion Bearing Cage 075mm/.003” | 3 | $99.70 | Add to Cart | |
| 9 | 2803R2852 | Shim Pinion Bearing Cage .125mm/.005” | 2 | $102.50 | Add to Cart | |
| 9 | 2803S2853 | Shim Pinion Bearing Cage .250mm/.010” | 4 | $47.92 | Add to Cart | |
| 9 | 2803T2854 | Shim Pinion Bearing Cage .500mm/.020” | 1 | $112.20 | Add to Cart | |
| 10 | KIT2322 | Kit -Pinion Bearing Spacers | 1 | Use 2 As Req ’d | $1,213.77 | Add to Cart |
| 10 | 2203J9474 | Spacer Pinion Bearing 8 .75mm/.345” | 2 | $58.77 | Add to Cart | |
| 10 | 2203K9475 | Spacer Pinion Bearing 8 .78mm/.346” | 2 | $52.75 | Add to Cart | |
| 10 | 2203L9476 | Spacer Pinion Bearing 8 .80mm/.347” | 2 | $106.78 | Add to Cart | |
| 10 | 2203M9477 | Spacer Pinion Bearing 8 .83mm/.348” | 2 | $116.32 | Add to Cart | |
| 10 | 2203N9478 | Spacer Pinion Bearing 8 .85mm/.349” | 2 | $117.44 | Add to Cart | |
| 10 | 2203P9480 | Spacer Pinion Bearing 8 .98mm/.354” | 2 | $61.77 | Add to Cart | |
| 10 | 2203Q9481 | Spacer Pinion Bearing 9.10mm/.358” | 2 | $125.02 | Add to Cart | |
| 10 | 2203R9482 | Spacer Pinion Bearing 9.13mm/.359” | 2 | $126.32 | Add to Cart | |
| 10 | 2203S9483 | Spacer Pinion Bearing 9.15mm/.360” | 2 | $96.32 | Add to Cart | |
| 10 | 2203T9484 | Spacer Pinion Bearing 9.18mm/.361 ” | 2 | $128.84 | Add to Cart | |
| 10 | 2203U9485 | Spacer Pinion Bearing 9.20mm/.362” | 2 | $106.46 | Add to Cart | |
| 11 | A11228G605 | Bearing Cone Pinion Inner | 1 | $67.90 | Add to Cart | |
| 12 | A23200L1676 | Carrier And Cap | 1 | 20K Less Diff Lock | $1,830.21 | Add to Cart |
| 12 | A23200A8269 | Carrier And Cap | 1 | 20K With Diff Lock | $1,075.31 | Add to Cart |
| 12 | A23200U1919 | Carrier And Cap | 1 | 22K Less Diff Lock | $1,836.42 | Add to Cart |
| 12 | A23200D2266 | Carrier And Cap | 1 | 22K With Diff Lock | $1,054.40 | Add to Cart |
| 13 | 42X1021 | Washer Leg Cap | 4 | $102.00 | Add to Cart | |
| 14 | MS2201201 | Bolt Leg Cap | 4 | $10.29 | Add to Cart | |
| 15 | 41X1637 | Screw Main Diff Adjusting Ring Lock | 2 | $6.20 | Add to Cart | |
| 16 | 41X1371 | Jam Nut Thrust Screw | 1 | 22K Only | $29.63 | Add to Cart |
| 17 | 40X1016 | Thrust Screw | 1 | 22K Only; MeritorPartsOnline.com | Call for availability |
Hypoid Rear Main Diff
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2214C1095 | Adjusting Ring Main Diff | 1 | Less Diff Lock; Right Hand Plain Half | $60.92 | Add to Cart |
| 1 | 2214Y1039 | Adjusting Ring Main Diff | 1 | With Diff Lock; Right Hand Plain Half | $87.88 | Add to Cart |
| 2 | 1228L1728 | Bearing Cup | 1 | Less Diff Lock; Right Hand Plain Half | $48.60 | Add to Cart |
| 2 | 1228F1982 | Bearing Cup | 1 | With Diff Lock; Right Hand Plain Half | $64.86 | Add to Cart |
| 3 | A1228M1729 | Bearing Cone | 1 | Less Diff Lock; Right Hand Plain Half | $108.72 | Add to Cart |
| 3 | A1228G1983 | Bearing Cone | 1 | With Diff Lock; Right Hand Plain Half | $134.29 | Add to Cart |
| 4 | 3107D1018 | Clutch Collar Not Shown | 1 | Less Diff Lock; Diff Lock Only; Diff Case Assemblies | $191.60 | Add to Cart |
| 5 | 3235J2064 | 1 | Less Diff Lock 20K; Diff Case Plain Half All | $208.41 | Add to Cart | |
| 5 | 3235U2153 | 1 | 22K; Diff Case Plain Half All | Call for availability | ||
| 5 | 3235T1918 | 1 | With Diff Lock 20X; Diff Case Plain Half All | $1,342.95 | Add to Cart | |
| 6 | 3235V1920 | 1 | Less Diff Lock 20K; Diff Case Flange Half 2 .47 2 .64 | $214.01 | Add to Cart | |
| 6 | 3235S1839 | 1 | Less Diff Lock 20K; 3 .08 3 .36 | $252.55 | Add to Cart | |
| 6 | 3235U1841 | 1 | Less Diff Lock 20K; 3 .42 4 .11 | $254.60 | Add to Cart | |
| 6 | 3235D2188 | 1 | 22K; 3 .42 4 .11 | Call for availability | ||
| 6 | 3235W1843 | 1 | Less Diff Lock 20K; 4 .33 7 .17 | $196.07 | Add to Cart | |
| 6 | 3235T2152 | 1 | 22K; 4 .33 7 .17 | Call for availability | ||
| 6 | KIT2819 | 1 | Less Diff Lock 20K; Kit -Diff Case Bolts All | $166.87 | Add to Cart | |
| 7 | 41X1327 | 16 | Less Diff Lock 20K; • Bolt Diff Case | $37.00 | Add to Cart | |
| 8 | 1229D4632 | 16 | Less Diff Lock 20K; • Washer Diff Case; Main | $11.30 | Add to Cart | |
| KIT2389 | Kit -Main Diff | 17K; Kit -Main Diff | $499.26 | Add to Cart | ||
| KIT2310 | 1 | 20K; Kit -Main Diff | $389.31 | Add to Cart | ||
| KIT2696 | 22K; Kit -Main Diff | $763.37 | Add to Cart | |||
| 9 | 2233J1024 | • Pinion Gear Main Diff | 17K; • Pinion Gear Main Diff | $31.35 | Add to Cart | |
| 9 | 2233X1116 | 22K; • Pinion Gear Main Diff | $71.84 | Add to Cart | ||
| 10 | 3278S305 | • Spider Main Diff | 17K; • Spider Main Diff | $62.29 | Add to Cart | |
| 10 | 3278Y1117F | 22K; • Spider Main Diff | $146.98 | Add to Cart | ||
| 11 | 1229R1032 | • Thrust Washer Main Diff Pinion | 17K; • Thrust Washer Main Diff Pinion | $124.00 | Add to Cart | |
| 12 | 2234M1469 | • Side Gear Main Diff | 17K; • Side Gear Main Diff | $103.24 | Add to Cart | |
| 12 | 2234G1437 | 2 | 20K; • Side Gear Main Diff | $66.69 | Add to Cart | |
| 12 | 2234U1451 | 22K; • Side Gear Main Diff | $167.36 | Add to Cart | ||
| 13 | 1229Q5087 | • Thrust Washer Main Diff | 17K; • Thrust Washer Main Diff | $17.66 | Add to Cart | |
| 13 | KIT2317 | 1 | 20K; Kit -Bolt Kit -Diff Case to Gear | $45.79 | Add to Cart | |
| 14 | 41X1216 | 12 | 20K; • Bolt Diff Case to Gear | $37.70 | Add to Cart | |
| 15 | 1229U1503 | 12 | 20K; • Washer Diff Case to Gear | $113.00 | Add to Cart | |
| 16 | 40X1182 | 12 | 20K; • Nut Diff Case to Gear | $49.60 | Add to Cart | |
| 17 | 46X1084 | 1 | 20K; Snap Ring Spigot Bearing | $29.20 | Add to Cart | |
| 18 | 1228F552 | 1 | 20K; Spigot Bearing | $44.92 | Add to Cart | |
| 19-21 | KIT2637 | 1 | 20K; • Kit -Pinion Nut And Washer | $23.72 | Add to Cart | |
| 20 | 1229T1736 | 1 | 20K; • Washer Pinion | $21.60 | Add to Cart | |
| 21 | 40X1237 | 1 | 20K; • Nut Pinion | $24.28 | Add to Cart |
Hypoid Driver Controlled Diff Lock (DCDL) Components
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| KIT4786 | Kit -Complete Diff Lock Components | 1 | 2 .00 39 Diff Spline | $643.74 | Add to Cart | |
| KIT4785 | Kit -Complete Diff Lock Components | 1 | 2 .10 41 Diff Spline | $811.63 | Add to Cart | |
| 1 | KIT4429 | Kit -Diff Lock Switch | 1 | 2 .00 39 Diff Spline | $62.57 | Add to Cart |
| 1 | 3237R1292 | Kit -Diff Lock Switch | 1 | 2 .00 39 Diff Spline; • Diff Lock Switch | Call for availability | |
| 1 | 3237X1298 | Kit -Diff Lock Switch | 1 | 2 .00 39 Diff Spline; • Pigtail Diff Lock Switch Not Shown Separately | $52.76 | Add to Cart |
| 2 | 1229U1503 | Washer | 1 | 2 .00 39 Diff Spline | $113.00 | Add to Cart |
| 3 | 2258L714 | Spring | 1 | 2 .00 39 Diff Spline | $19.44 | Add to Cart |
| 4 | 3296Z1300 | Shift Fork | 1 | 2 .00 39 Diff Spline | $103.24 | Add to Cart |
| 5 | 43X1006 | Pin | 1 | 2 .00 39 Diff Spline | $130.00 | Add to Cart |
| 6 | 3196S1137 | Tube | 1 | 2 .00 39 Diff Spline | $174.64 | Add to Cart |
| 7 | 2230N170 | Piston | 1 | 2 .00 39 Diff Spline | $34.52 | Add to Cart |
| 8 | 2208H944 | Copper Gasket Diff Lock Cover | 1 | 2 .00 39 Diff Spline | $84.76 | Add to Cart |
| 9 | 41X1333 | Caging Bolt Manual Engaging | 1 | 2 .00 39 Diff Spline | $60.60 | Add to Cart |
| 10 | MWA506 | Washer Diff Lock Cover | 4 | 2 .00 39 Diff Spline | $143.00 | Add to Cart |
| 11 | 2208L1000 | O-Ring | 1 | 2 .00 39 Diff Spline | Call for availability | |
| 12 | MS2100161 | Plug (Capscrew) Inlet | 1 | 2 .00 39 Diff Spline | $67.50 | Add to Cart |
| 13 | MS2060451 | Screw Diff Lock Cover | 4 | 2 .00 39 Diff Spline | No longer available - Call for replacement | |
| 14 | 3266F1020 | Cover Diff Lock | 1 | 2 .00 39 Diff Spline | $141.88 | Add to Cart |
| 15 | 5X1153 | O-Ring Diff Lock Piston | 1 | 2 .00 39 Diff Spline | $82.60 | Add to Cart |
| 16 | 5X1288 | O-Ring Tube | 1 | 2 .00 39 Diff Spline | $21.00 | Add to Cart |
| 17 | 2244Z52 | Push Rod | 1 | 2 .00 39 Diff Spline | Call for availability | |
| 18 | 3107H1334 | Clutch Collar | 1 | 2 .00 39 Diff Spline | $108.87 | Add to Cart |
| 18 | 3107D1018 | Clutch Collar MeritorPartsOnline.com | 1 | 2 .10 41 Diff Spline; MeritorPartsOnline.com | $191.60 | Add to Cart |
Hypoid Driver Controlled Diff Lock (DCDL) 22K Components
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| KIT2662 | Kit -Complete Diff Lock Components | 1 | $461.78 | Add to Cart | ||
| 1 | KIT4429 | • Kit -Diff Lock Switch | 1 | $62.57 | Add to Cart | |
| 1 | 3237R1292 | • Diff Lock Switch | 1 | Call for availability | ||
| 1 | 3237X1298 | • Pigtail Diff Lock Switch Not Shown Separately | 1 | $52.76 | Add to Cart | |
| 2 | 2258N1262 | • Spring | 1 | $40.70 | Add to Cart | |
| 3 | 3296Z1170 | • Shift Fork | 1 | $90.85 | Add to Cart | |
| 4 5 | KIT2824 | • Kit -Diff Lock Shift Cylinder | 1 | $150.63 | Add to Cart | |
| 6 | 5X521 | • O-Ring | 1 | $157.00 | Add to Cart | |
| 7 | 41X1368 | • Caging Bolt Manual Engaging | 1 | $25.90 | Add to Cart | |
| 8 | 3107D1018 | • Clutch Collar MeritorPartsOnline.com | 1 | $191.60 | Add to Cart |
Main Diff and Diff Case Assembly Components
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 247264 | Main Diff And Diff Case Assembly Components - Diff Case Ratios | Call for availability | ||||
| A13235A2783 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,198.15 | Add to Cart | |||
| A33235A2783 | Main Diff And Diff Case Assembly Components - Components Assembly | $2,169.34 | Add to Cart | |||
| A3235A2783 | Main Diff And Diff Case Assembly Components - Diff Case | $530.28 | Add to Cart | |||
| A23235A2783 | Main Diff And Diff Case Assembly Components - Assembly | $1,633.07 | Add to Cart | |||
| 279285 | Main Diff And Diff Case Assembly Components - Diff Case Ratios | Call for availability | ||||
| A13235B3174 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,127.66 | Add to Cart | |||
| A33235B3174 | Main Diff And Diff Case Assembly Components - Components Assembly | No longer available - Call for replacement | ||||
| A3235B3174 | Main Diff And Diff Case Assembly Components - Diff Case | $525.56 | Add to Cart | |||
| A23235B3174 | Main Diff And Diff Case Assembly Components - Assembly | $1,505.34 | Add to Cart | |||
| 307336 | Main Diff And Diff Case Assembly Components - Diff Case Ratios | Call for availability | ||||
| A13235C2785 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $902.73 | Add to Cart | |||
| A33235C2785 | Main Diff And Diff Case Assembly Components - Components Assembly | $1,570.48 | Add to Cart | |||
| A3235C2785 | Main Diff And Diff Case Assembly Components - Diff Case | $528.31 | Add to Cart | |||
| A23235C2785 | Main Diff And Diff Case Assembly Components - Assembly | $1,245.17 | Add to Cart | |||
| 342411 | Main Diff And Diff Case Assembly Components - Diff Case Ratios | Call for availability | ||||
| A13235E2787 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,293.87 | Add to Cart | |||
| A33235E2787 | Main Diff And Diff Case Assembly Components - Components Assembly | $2,216.24 | Add to Cart | |||
| A3235E2787 | Main Diff And Diff Case Assembly Components - Diff Case | $567.32 | Add to Cart | |||
| A23235E2787 | Main Diff And Diff Case Assembly Components - Assembly | $1,246.36 | Add to Cart | |||
| 433717 | Main Diff And Diff Case Assembly Components - Diff Case Ratios | Call for availability | ||||
| A13235G2789 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,311.22 | Add to Cart | |||
| A33235G2789 | Main Diff And Diff Case Assembly Components - Components Assembly | $2,559.75 | Add to Cart | |||
| A3235G2789 | Main Diff And Diff Case Assembly Components - Diff Case | $537.49 | Add to Cart | |||
| A23235G2789 | Main Diff And Diff Case Assembly Components - Assembly | $1,317.08 | Add to Cart | |||
| 390411 | Main Diff And Diff Case Assembly Components - Diff Case Ratios | Call for availability | ||||
| A43235E2787 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,297.81 | Add to Cart | |||
| A53235E2787 | Main Diff And Diff Case Assembly Components - Components Assembly | Call for availability | ||||
| 433586 | Main Diff And Diff Case Assembly Components - Diff Case Ratios | Call for availability | ||||
| A43235G2789 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $728.29 | Add to Cart | |||
| A53235G2789 | Main Diff And Diff Case Assembly Components - Components Assembly | $1,354.72 | Add to Cart | |||
| 247293 | Main Diff And Diff Case Assembly Components - Diff Case Ratios | Call for availability | ||||
| A103235V1920 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $788.11 | Add to Cart | |||
| A53235V1920 | Main Diff And Diff Case Assembly Components - Components Assembly | $809.61 | Add to Cart | |||
| A83235V1920 | Main Diff And Diff Case Assembly Components - Diff Case | $806.31 | Add to Cart | |||
| A23235V1920 | Main Diff And Diff Case Assembly Components - Assembly | $1,039.95 | Add to Cart | |||
| A103235S1839 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $783.93 | Add to Cart | |||
| A53235S1839 | Main Diff And Diff Case Assembly Components - Components Assembly | $801.45 | Add to Cart | |||
| A83235S1839 | Main Diff And Diff Case Assembly Components - Diff Case | $703.92 | Add to Cart | |||
| A23235S1839 | Main Diff And Diff Case Assembly Components - Assembly | $810.84 | Add to Cart | |||
| A103235U1841 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,907.54 | Add to Cart | |||
| A53235U1841 | Main Diff And Diff Case Assembly Components - Components Assembly | $797.46 | Add to Cart | |||
| A83235U1841 | Main Diff And Diff Case Assembly Components - Diff Case | $481.88 | Add to Cart | |||
| A23235U1841 | Main Diff And Diff Case Assembly Components - Assembly | $727.12 | Add to Cart | |||
| A103235W1843 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $933.62 | Add to Cart | |||
| A53235W1843 | Main Diff And Diff Case Assembly Components - Components Assembly | $801.98 | Add to Cart | |||
| A83235W1843 | Main Diff And Diff Case Assembly Components - Diff Case | $571.49 | Add to Cart | |||
| A23235W1843 | Main Diff And Diff Case Assembly Components - Assembly | $493.89 | Add to Cart | |||
| A93235V1920 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | No longer available - Call for replacement | ||||
| A33235V1920 | Main Diff And Diff Case Assembly Components - Components Assembly | No longer available - Call for replacement | ||||
| A93235S1839 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | No longer available - Call for replacement | ||||
| A33235S1839 | Main Diff And Diff Case Assembly Components - Components Assembly | $904.32 | Add to Cart | |||
| A93235U1841 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,571.74 | Add to Cart | |||
| A33235U1841 | Main Diff And Diff Case Assembly Components - Components Assembly | $3,039.25 | Add to Cart | |||
| A93235W1843 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,500.31 | Add to Cart | |||
| A33235W1843 | Main Diff And Diff Case Assembly Components - Components Assembly | $1,986.55 | Add to Cart | |||
| A103235D2188 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $1,023.71 | Add to Cart | |||
| A113235D2188 | Main Diff And Diff Case Assembly Components - Components Assembly | $2,245.18 | Add to Cart | |||
| A3235D2188 | Main Diff And Diff Case Assembly Components - Diff Case | No longer available - Call for replacement | ||||
| A23235D2188 | Main Diff And Diff Case Assembly Components - Assembly | $914.61 | Add to Cart | |||
| A103235T2152 | Main Diff And Diff Case Assembly Components - Assembly Main Diff | $3,338.20 | Add to Cart | |||
| A113235T2152 | Main Diff And Diff Case Assembly Components - Components Assembly | No longer available - Call for replacement | ||||
| A3235T2182 | Main Diff And Diff Case Assembly Components - Diff Case | Call for availability | ||||
| A23235T2152 | Main Diff And Diff Case Assembly Components - Assembly | No longer available - Call for replacement |
Gear Sets
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B445701F228 | Gear Sets - Gear Forward | $2,409.66 | Add to Cart | |||
| B445741R228 | Gear Sets - Sets Amboid Rear | $1,377.60 | Add to Cart | |||
| B434981F247 | Gear Sets - Gear Forward | $1,362.08 | Add to Cart | |||
| B434981R247 | Gear Sets - Sets Amboid Rear | $1,778.16 | Add to Cart | |||
| B435001F264 | Gear Sets - Gear Forward | $1,923.39 | Add to Cart | |||
| B435001R264 | Gear Sets - Sets Amboid Rear | $1,306.38 | Add to Cart | |||
| B417161R264 | Gear Sets - Hypoid Rear | $1,921.71 | Add to Cart | |||
| A444401F279 | Gear Sets - Gear Forward | $1,445.25 | Add to Cart | |||
| A444401R279 | Gear Sets - Sets Amboid Rear | $1,345.44 | Add to Cart | |||
| A445241F285 | Gear Sets - Gear Forward | $1,306.45 | Add to Cart | |||
| A445241R285 | Gear Sets - Sets Amboid Rear | $1,318.29 | Add to Cart | |||
| A422001F308 | Gear Sets - Gear Forward | $2,226.25 | Add to Cart | |||
| A422001R308 | Gear Sets - Sets Amboid Rear | $1,506.90 | Add to Cart | |||
| A436081R308 | Gear Sets - Hypoid Rear | $1,733.49 | Add to Cart | |||
| A435021F325 | Gear Sets - Gear Forward | $1,291.10 | Add to Cart | |||
| A435021R325 | Gear Sets - Sets Amboid Rear | $1,807.14 | Add to Cart | |||
| A436101R325 | Gear Sets - Hypoid Rear | $1,306.12 | Add to Cart | |||
| A422021F336 | Gear Sets - Gear Forward | $1,202.85 | Add to Cart | |||
| A422021R336 | Gear Sets - Sets Amboid Rear | $1,541.81 | Add to Cart | |||
| A436121R336 | Gear Sets - Hypoid Rear | $1,349.83 | Add to Cart | |||
| A437521F342 | Gear Sets - Gear Forward | $1,159.27 | Add to Cart | |||
| A437521R342 | Gear Sets - Sets Amboid Rear | $1,555.37 | Add to Cart | |||
| A411641R342 | Gear Sets - Hypoid Rear | $1,741.44 | Add to Cart | |||
| A422041F355 | Gear Sets - Gear Forward | $1,169.87 | Add to Cart | |||
| A422041R355 | Gear Sets - Sets Amboid Rear | $1,211.18 | Add to Cart | |||
| A436141R355 | Gear Sets - Hypoid Rear | No longer available - Call for replacement | ||||
| B422061F370 | Gear Sets - Gear Forward | $1,481.52 | Add to Cart | |||
| A422061R370 | Gear Sets - Sets Amboid Rear | $1,315.09 | Add to Cart | |||
| B436161R370 | Gear Sets - Hypoid Rear | $2,122.84 | Add to Cart | |||
| B421801F390 | Gear Sets - Gear Forward | $1,344.49 | Add to Cart | |||
| A421801R390 | Gear Sets - Sets Amboid Rear | $1,433.07 | Add to Cart | |||
| B416841R390 | Gear Sets - Hypoid Rear | $1,008.76 | Add to Cart | |||
| B421281F411 | Gear Sets - Gear Forward | $1,244.33 | Add to Cart | |||
| A421281R411 | Gear Sets - Sets Amboid Rear | $1,352.98 | Add to Cart | |||
| B416861R411 | Gear Sets - Hypoid Rear | $1,337.98 | Add to Cart | |||
| B412781F433 | Gear Sets - Gear Forward | $1,231.64 | Add to Cart | |||
| B412661R433 | Gear Sets - Hypoid Rear | $1,373.74 | Add to Cart | |||
| B412801F463 | Gear Sets - Gear Forward | $1,516.35 | Add to Cart | |||
| B412681R463 | Gear Sets - Hypoid Rear | $1,644.13 | Add to Cart | |||
| B412821F488 | Gear Sets - Gear Forward | $1,457.50 | Add to Cart | |||
| B412701R488 | Gear Sets - Hypoid Rear | $2,164.87 | Add to Cart | |||
| A412721R513 | Gear Sets - Hypoid Rear | $1,730.58 | Add to Cart | |||
| B412841F529 | Gear Sets - Gear Forward | $1,244.55 | Add to Cart | |||
| B412741R529 | Gear Sets - Hypoid Rear | $1,710.95 | Add to Cart | |||
| A413041R557 | Gear Sets - Hypoid Rear | $1,602.95 | Add to Cart | |||
| B414661F586 | Gear Sets - Gear Forward | $1,787.30 | Add to Cart | |||
| B414561R586 | Gear Sets - Hypoid Rear | $2,327.58 | Add to Cart | |||
| A414681F614 | Gear Sets - Gear Forward | $1,958.80 | Add to Cart | |||
| A414581R614 | Gear Sets - Hypoid Rear | $2,240.00 | Add to Cart | |||
| A414701F643 | Gear Sets - Gear Forward | $1,927.87 | Add to Cart | |||
| A414601R643 | Gear Sets - Hypoid Rear | $1,972.86 | Add to Cart | |||
| A414721F683 | Gear Sets - Gear Forward | $1,770.26 | Add to Cart | |||
| A414621R683 | Gear Sets - Hypoid Rear | Call for availability | ||||
| A414741F717 | Gear Sets - Gear Forward | $1,223.08 | Add to Cart | |||
| B434261R717 | Gear Sets - Hypoid Rear | $2,108.93 | Add to Cart |
Service Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| KIT4841 | Service Kits - Kits Forward Amboid Rear | $1,124.08 | Add to Cart | |||
| KIT4842 | Service Kits - Kits Forward Amboid Rear | $818.31 | Add to Cart | |||
| KIT4843 | Service Kits - Hypoid Rear | $684.67 | Add to Cart | |||
| KIT4844 | Service Kits - Hypoid Rear | $744.98 | Add to Cart | |||
| KIT2389 | Service Kits - Hypoid Rear | $499.26 | Add to Cart | |||
| KIT4778 | Service Kits - Kits Forward Amboid Rear | $371.85 | Add to Cart | |||
| KIT2310 | Service Kits - Hypoid Rear | $389.31 | Add to Cart | |||
| KIT4809 | Service Kits - Kits Forward Amboid Rear | $474.01 | Add to Cart | |||
| KIT2696 | Service Kits - Hypoid Rear | $763.37 | Add to Cart | |||
| KIT4785 | Service Kits - Hypoid Rear | $811.63 | Add to Cart | |||
| KIT4782 | Service Kits - Kits Forward Amboid Rear | $386.28 | Add to Cart | |||
| KIT4786 | Service Kits - Hypoid Rear | $643.74 | Add to Cart | |||
| KIT2932 | Service Kits - Kits Forward Amboid Rear | $413.57 | Add to Cart | |||
| KIT26622 | Service Kits - Hypoid Rear | Call for availability | ||||
| KIT29262 | Service Kits - Hypoid Rear | Call for availability | ||||
| KIT4429 | Service Kits - Kits Forward Amboid Rear | $62.57 | Add to Cart | |||
| KIT2819 | Service Kits - Kits Forward Amboid Rear | $166.87 | Add to Cart | |||
| KIT23173 | Service Kits - Kits Forward Amboid Rear | Call for availability | ||||
| KIT23172 | Service Kits - Hypoid Rear | Call for availability | ||||
| KIT47792 | Service Kits - Kits Forward Amboid Rear | Call for availability | ||||
| KIT2917 | Service Kits - Kits Forward Amboid Rear | $5.97 | Add to Cart | |||
| A3235A2779 | Service Kits - Kits Forward Amboid Rear | Call for availability | ||||
| A13235A2779 | Service Kits - Kits Forward Amboid Rear | Call for availability | ||||
| KIT2826 | Service Kits - Kits Forward Amboid Rear | $41.31 | Add to Cart | |||
| KIT2638 | Service Kits - Kits Forward Amboid Rear | $35.30 | Add to Cart | |||
| KIT2637 | Service Kits - Kits Forward Amboid Rear | $23.72 | Add to Cart | |||
| KIT1647 | Service Kits - Kits Forward Amboid Rear | $15.10 | Add to Cart | |||
| KIT2313 | Service Kits - Hypoid Rear | $104.23 | Add to Cart | |||
| KIT2396 | Service Kits - Kits Forward Amboid Rear | $756.02 | Add to Cart | |||
| KIT2541 | Service Kits - Kits Forward Amboid Rear | $2,779.38 | Add to Cart | |||
| KIT2322 | Service Kits - Hypoid Rear | $1,213.77 | Add to Cart | |||
| A173226T1112K | Service Kits - Kits Forward Amboid Rear | $448.77 | Add to Cart | |||
| KIT576 | Service Kits - Kits Forward Amboid Rear | $185.63 | Add to Cart |
Service Kits Bill of Materials
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A3235W2779 | Iad Less Pump | Gear to Case Bolts | $352.34 | Add to Cart | ||
| KIT2317 | Iad Less Pump | Gear to Case Bolts | Call for availability | |||
| 2233P1030 | Pinion Gear Iad | 4 12 | Bolt Gear to Case; 12 | $78.36 | Add to Cart | |
| 41X1216 | Pinion Gear Iad | 4 | Bolt Gear to Case; 12 | Call for availability | ||
| 3278J1206 | Spider Iad | 1 12 | Washer Gear to Case; 12 | No longer available - Call for replacement | ||
| 1229U1503 | Spider Iad | 1 | Washer Gear to Case; 12 | Call for availability | ||
| 3235W2779 | Iad Case | 1 12 | Nut Gear to Case; 12 | Call for availability | ||
| 40X1182 | Iad Case | 1 | Nut Gear to Case; 12 | Call for availability | ||
| A13235W2779 | Iad With Pump | Pinion Bearing Spacers | Call for availability | |||
| KIT2322 | Iad With Pump | Pinion Bearing Spacers | Call for availability | |||
| 2203J9474 | Pinion Gear Iad | 4 | Spacer .345; 2 | Call for availability | ||
| 3278K1207 | Spider Iad | 1 2 | Spacer .346; 2 | $57.63 | Add to Cart | |
| 2203K9475 | Spider Iad | 1 | Spacer .346; 2 | Call for availability | ||
| 2203L9476 | Iad Case | 1 | Spacer .347; 2 | Call for availability | ||
| A173226T1112K | Thru Shaft | 2 | Spacer .348 | $448.77 | Add to Cart | |
| 2203M9477 | Thru Shaft | 2 | Spacer .348 | Call for availability | ||
| A11205Y2729 | Oil Seal | 1 2 | Spacer .349; 2 | $92.32 | Add to Cart | |
| 2203N9478 | Oil Seal | 1 | Spacer .349; 2 | Call for availability | ||
| 3226T1112 | Bearing Cage | 1 2 | Spacer .354; 2 | $90.55 | Add to Cart | |
| 2203P9480 | Bearing Cage | 1 | Spacer .354; 2 | Call for availability | ||
| 1228K1545 | Bearing Cup | 2 2 | Spacer .358; 2 | $19.18 | Add to Cart | |
| 2203Q9481 | Bearing Cup | 2 | Spacer .358; 2 | Call for availability | ||
| 3297M1599 | Thru Shaft | 1 2 | Spacer .359; 2 | $197.42 | Add to Cart | |
| 2203R9482 | Thru Shaft | 1 | Spacer .359; 2 | Call for availability | ||
| A1228L1546 | Bearing Cone | 2 2 | Spacer .360; 2 | $21.20 | Add to Cart | |
| 2203S9483 | Bearing Cone | 2 | Spacer .360; 2 | Call for availability | ||
| KIT576 | Kit -Snap Ring | 1 2 | Spacer .361; 2 | $185.63 | Add to Cart | |
| 2203T9484 | Kit -Snap Ring | 1 | Spacer .361; 2 | Call for availability | ||
| 1229P2590 | Snap Ring .155 | 1 2 | Spacer .362; 2 | $191.36 | Add to Cart | |
| 2203U9485 | Snap Ring .155 | 1 | Spacer .362; 2 | Call for availability | ||
| 1229Q2591 | Snap Ring .158 | 1 | Diff Kit -2 .00-39 Spline | $116.04 | Add to Cart | |
| KIT2389 | Snap Ring .158 | 1 | Diff Kit -2 .00-39 Spline | Call for availability | ||
| 1229R2592 | Snap Ring .161 | 1 2 | Side Gear; 2 | $103.76 | Add to Cart | |
| 2234M1469 | Snap Ring .161 | 1 | Side Gear; 2 | Call for availability | ||
| 1229S2593 | Snap Ring .164 | 1 1 | Spider; 1 | $116.04 | Add to Cart | |
| 3278S305 | Snap Ring .164 | 1 | Spider; 1 | Call for availability | ||
| 1229U2595 | Snap Ring .167 | 4 4 | Pinion Gear; 4 | $116.64 | Add to Cart | |
| 2233J1024 | Snap Ring .167 | 4 | Pinion Gear; 4 | Call for availability | ||
| 1229V2596 | Snap Ring .170 | 4 2 | Thrust Washer Side Gear; 2 | $118.84 | Add to Cart | |
| 1229Q5087 | Snap Ring .170 | 4 | Thrust Washer Side Gear; 2 | Call for availability | ||
| 1229W2597 | Snap Ring .173 | 1 4 | Thrust Washer Pinion; 4 | $229.64 | Add to Cart | |
| 1229R1032 | Snap Ring .173 | 1 | Thrust Washer Pinion; 4 | Call for availability | ||
| 1229X2598 | Snap Ring .176 | 1 | Pinion Bearings Spacers | $116.48 | Add to Cart | |
| KIT2396 | Snap Ring .176 | 1 | Pinion Bearings Spacers | Call for availability | ||
| 1229Y2599 | Snap Ring .179 | 1 2 | Spacer .209; 2 | $33.78 | Add to Cart | |
| 2203D9806 | Snap Ring .179 | 1 | Spacer .209; 2 | Call for availability | ||
| 1229T2594 | Snap Ring .182 | 1 2 | Spacer .210; 2 | $129.00 | Add to Cart | |
| 2203E9807 | Snap Ring .182 | 1 | Spacer .210; 2 | Call for availability | ||
| 1229W4131 | Snap Ring | 1 2 | Spacer .211; 2 | $148.00 | Add to Cart | |
| 2203F9808 | Snap Ring | 1 | Spacer .211; 2 | Call for availability | ||
| 1229T1736 | Washer | 1 2 | Spacer .212; 2 | $21.60 | Add to Cart | |
| 2203G9809 | Washer | 1 | Spacer .212; 2 | Call for availability | ||
| 40X1237 | Nut | 1 2 | Spacer .213; 2 | $24.28 | Add to Cart | |
| 2203H9810 | Nut | 1 | Spacer .213; 2 | Call for availability | ||
| KIT1647 | Pinion Bearing Shims | 2 | Spacer .217 | $15.10 | Add to Cart | |
| 2203J9812 | Pinion Bearing Shims | 2 | Spacer .217 | Call for availability | ||
| 2203F2788 | Shim .003 | 3 2 | Spacer .220; 2 | $165.00 | Add to Cart | |
| 2203K9813 | Shim .003 | 3 | Spacer .220; 2 | Call for availability | ||
| 2203G2789 | Shim .005 | 2 2 | Spacer .224; 2 | $178.00 | Add to Cart | |
| 2203L9814 | Shim .005 | 2 | Spacer .224; 2 | Call for availability | ||
| 2203H2790 | Shim .010 | 4 2 | Spacer .228; 2 | $172.00 | Add to Cart | |
| 2203M9815 | Shim .010 | 4 | Spacer .228; 2 | Call for availability | ||
| KIT2310 | Diff Kit -2 .10-41 Spline | 2 | Spacer .232 | $389.31 | Add to Cart | |
| 2203N9816 | Diff Kit -2 .10-41 Spline | 2 | Spacer .232 | $63.92 | Add to Cart | |
| 2234G1437 | Side Gear | 2 2 | Spacer .236; 2 | $66.69 | Add to Cart | |
| 2203P9818 | Side Gear | 2 | Spacer .236; 2 | Call for availability | ||
| 3278S305 | Spider | 1 2 | Spacer .240; 2 | $62.29 | Add to Cart | |
| 2203Q9819 | Spider | 1 | Spacer .240; 2 | Call for availability | ||
| 2233J1024 | Pinion Gear | 4 2 | Spacer .241; 2 | $31.35 | Add to Cart | |
| 2203R9820 | Pinion Gear | 4 | Spacer .241; 2 | Call for availability | ||
| 1229Q5087 | Thrust Washer Side Gear | 2 2 | Spacer .242; 2 | $17.66 | Add to Cart | |
| 2203S9821 | Thrust Washer Side Gear | 2 | Spacer .242; 2 | Call for availability | ||
| 1229R1032 | Thrust Washer Pinion | 4 2 | Spacer .243; 2 | $124.00 | Add to Cart | |
| 2203T9822 | Thrust Washer Pinion | 4 | Spacer .243; 2 | Call for availability | ||
| KIT2313 | Pinion Bearing Shims | 2 | Spacer .244 | $104.23 | Add to Cart | |
| 2203U9823 | Pinion Bearing Shims | 2 | Spacer .244 | Call for availability | ||
| 2803Q2851 | Shim .003 | 3 | $99.70 | Add to Cart | ||
| 2803R2852 | Shim .005 | 2 | $102.50 | Add to Cart | ||
| 2803S2853 | Shim .010 | 4 | $47.92 | Add to Cart | ||
| 2803T2854 | Shim .020 | 1 | $112.20 | Add to Cart | ||
| 1244M2431 | Spacer .370 | 2 2 | Thrust Washer Side Gear; 2 | $123.87 | Add to Cart | |
| 2234U1451 | Spacer .370 | 2 | Thrust Washer Side Gear; 2 | Call for availability | ||
| 1244N2432 | Spacer .371 | 2 2 | Side Gear; 2 | $126.11 | Add to Cart | |
| 3278Y1117 | Spacer .371 | 2 | Side Gear; 2 | Call for availability | ||
| 1244P2434 | Spacer .372 | 2 4 | Thrust Washer Pinion; 4 | $122.74 | Add to Cart | |
| 2233X1116 | Spacer .372 | 2 | Thrust Washer Pinion; 4 | Call for availability | ||
| 1244Q2435 | Spacer .373 | 2 1 | Spider; 1 | $133.44 | Add to Cart | |
| 1229Q5087 | Spacer .373 | 2 | Spider; 1 | Call for availability | ||
| 1244R2436 | Spacer .374 | 2 4 | Pinion Gear; 4 | $127.53 | Add to Cart | |
| 1229R1032 | Spacer .374 | 2 | Pinion Gear; 4 | Call for availability | ||
| 1244S2437 | Spacer .378 | 2 | Diff Case Bolts | $248.06 | Add to Cart | |
| KIT2819 | Spacer .378 | 2 | Diff Case Bolts | Call for availability | ||
| 1244T2438 | Spacer .382 | 2 1 | Loctite Diff Case; 1 | $120.68 | Add to Cart | |
| 2297F6324 | Spacer .382 | 2 | Loctite Diff Case; 1 | Call for availability | ||
| 1244U2439 | Spacer .386 | 2 16 | Bolt Diff Case; 16 | $140.28 | Add to Cart | |
| 41X1327 | Spacer .386 | 2 | Bolt Diff Case; 16 | Call for availability | ||
| 1244V2440 | Spacer .390 | 2 16 | Washer Diff Case; 16 | $125.09 | Add to Cart | |
| 1229D4632 | Spacer .390 | 2 | Washer Diff Case; 16 | Call for availability | ||
| 1244W2441 | Spacer .394 | 2 | Input Shaft Nut & Washer | $253.68 | Add to Cart | |
| KIT2826 | Spacer .394 | 2 | Input Shaft Nut & Washer | Call for availability | ||
| 1244X2442 | Spacer .398 | 2 1 | Nut Input Yoke; 1 | $115.40 | Add to Cart | |
| 40X1233 | Spacer .398 | 2 | Nut Input Yoke; 1 | Call for availability | ||
| 1244Y2443 | Spacer .402 | 2 1 | Washer Input Yoke; 1 | $117.58 | Add to Cart | |
| 1229N1730 | Spacer .402 | 2 | Washer Input Yoke; 1 | Call for availability | ||
| 1244Z2444 | Spacer .403 | 2 | IAD O-Rings | $119.72 | Add to Cart | |
| KIT2917 | Spacer .403 | 2 | IAD O-Rings | Call for availability | ||
| 1244A2445 | Spacer .404 | 2 1 | O-Ring IAD Shift Piston; 1 | $118.34 | Add to Cart | |
| 5X1153 | Spacer .404 | 2 | O-Ring IAD Shift Piston; 1 | Call for availability | ||
| 1244B2446 | Spacer .405 | 2 1 | O-Ring Carrier IAD Bore; 1 | $122.74 | Add to Cart | |
| 5X1368 | Spacer .405 | 2 | O-Ring Carrier IAD Bore; 1 | Call for availability | ||
| 1244C2447 | Spacer .406 | 2 1 | O-Ring Carrier IAD Bore; 1 | $118.34 | Add to Cart | |
| 5X1414 | Spacer .406 | 2 | O-Ring Carrier IAD Bore; 1 | Call for availability | ||
| 3237R1292 | Nut | 1 | Switch; 1 | Call for availability | ||
| 3237X1298 | Washer | 1 | Pigtail; 1 | Call for availability | ||
| 40X1233 | Nut Input Yoke | 1 2 | Thrust Washer Side Gear; 2 | $17.72 | Add to Cart | |
| 1229Q5087 | Nut Input Yoke | 1 | Thrust Washer Side Gear; 2 | Call for availability | ||
| 1229W4521 | Washer Input Yoke | 1 2 | Side Gear; 2 | $113.70 | Add to Cart | |
| 2234G1437 | Washer Input Yoke | 1 | Side Gear; 2 | Call for availability | ||
| KIT26622 | Diff Lock Screw-In Design | 4 | Thrust Washer Pinion Gear; 1 ” 41) | Call for availability | ||
| 1229R1032 | Diff Lock Screw-In Design | 4 | Thrust Washer Pinion Gear | $124.00 | Add to Cart | |
| 3107D1018 | Clutch Collar | 1 1 | Spider; 1 | $191.60 | Add to Cart | |
| 3278S305 | Clutch Collar | 1 | Spider; 1 | Call for availability | ||
| A3261A1067 | Shift Cylinder | 1 4 | Pinion Gear; 4 | $150.63 | Superseded by KIT2824Add to Cart | |
| 2233J1024 | Shift Cylinder | 1 | Pinion Gear; 4 | Call for availability | ||
| 2244Z1222 | Push Rod | 1 | Gear to Case Bolts | Call for availability | ||
| KIT4779 | Push Rod | 1 | Gear to Case Bolts | Call for availability | ||
| 3296Z1170 | Shift Fork | 1 12 | Bolt Gear to Case; 12 | $90.85 | Add to Cart | |
| 41X1715 | Shift Fork | 1 | Bolt Gear to Case; 12 | Call for availability | ||
| 3237R1292 | Switch | 1 1 | Kit -Diff Lock Switch; 1 | Call for availability | ||
| KIT4429 | Switch | 1 | Kit -Diff Lock Switch; 1 | $62.57 | Add to Cart | |
| 3237X1298 | Wire Harness | 1 1 | Switch; 1 | $52.76 | Add to Cart | |
| 3237R1292 | Wire Harness | 1 | Switch; 1 | Call for availability | ||
| 2258N1262 | Spring | 1 1 | Pigtail; 1 | $40.70 | Add to Cart | |
| 3237X1298 | Spring | 1 | Pigtail; 1 | Call for availability | ||
| 2257M1235 | Clip | 1 | $28.90 | Add to Cart | ||
| 5X521 | O-Ring | 1 | $157.00 | Add to Cart | ||
| 41X1368 | Caging Bolt | 1 | $25.90 | Add to Cart | ||
| 3107H1334 | Collar | 1 | $108.87 | Add to Cart | ||
| 2803A3641 | Shim | 3 | Diff Lock Kit 2 .10-41 Spline | $2.54 | Add to Cart | |
| KIT4785 | Shim | 3 | Diff Lock Kit 2 .10-41 Spline; (Bolt-On) | Call for availability | ||
| 3296Z1300 | Spring | 1 | Shift Fork; 1 | Call for availability | ||
| 3296C1381 | Shift Fork | 1 1 | Clutch Collar; 1 | $48.00 | Add to Cart | |
| 3107D1018 | Shift Fork | 1 | Clutch Collar; 1 | Call for availability | ||
| 2230Y1377 | Piston | 1 1 | Shift Shaft; 1 | $6.15 | Add to Cart | |
| 2244Z52 | Piston | 1 | Shift Shaft; 1 | Call for availability | ||
| 2208Q1005 | Gasket Lock Cover | 1 1 | Pin Shift Shaft; 1 | $8.72 | Add to Cart | |
| 43X1006 | Gasket Lock Cover | 1 | Pin Shift Shaft; 1 | Call for availability | ||
| 41X1368 | Screw Manual Engaging | 1 1 | Spring; 1 | $25.90 | Add to Cart | |
| 2258L714 | Screw Manual Engaging | 1 | Spring; 1 | Call for availability | ||
| 5X521 | O-Ring Manual Engaging Screw | 1 1 | Tube Air Cylinder; 1 | $157.00 | Add to Cart | |
| 3196S1137 | O-Ring Manual Engaging Screw | 1 | Tube Air Cylinder; 1 | Call for availability | ||
| 41X1742 | Plug (Capscrew) Cylinder Cover | 1 1 | O-Ring Tube; 1 | $15.70 | Add to Cart | |
| 5X1288 | Plug (Capscrew) Cylinder Cover | 1 | O-Ring Tube; 1 | Call for availability | ||
| 41X1669 | Screw Diff Lock Cover | 4 1 | Piston; 1 | $4.24 | Add to Cart | |
| 2230N170 | Screw Diff Lock Cover | 4 | Piston; 1 | $34.52 | Add to Cart | |
| MWA506 | Washer Diff Lock Cover | 4 1 | O-Ring Piston; 1 | $143.00 | Add to Cart | |
| 5X1153 | Washer Diff Lock Cover | 4 | O-Ring Piston; 1 | $82.60 | Add to Cart | |
| 3266X1610 | Cover | 1 1 | Gasket; 1 | $47.62 | Add to Cart | |
| 2208H944 | Cover | 1 | Gasket; 1 | Call for availability | ||
| 5X1153 | O-Ring Piston | 1 1 | Cover; 1 | $82.60 | Add to Cart | |
| 3266F1020 | O-Ring Piston | 1 | Cover; 1 | Call for availability | ||
| 2244Z1274 | Push Rod | 1 1 | Shipping Plug; 1 | $23.30 | Add to Cart | |
| 1779F344 | Push Rod | 1 | Shipping Plug; 1 | Call for availability | ||
| 3107U1321 | Clutch Collar | 1 4 | Washer; 4 | $331.75 | Add to Cart | |
| MWA506 | Clutch Collar | 1 | Washer; 4 | Call for availability | ||
| KIT2932 | Diff Lock Forward Rear (Screw-In) | 4 | Capscrew | $413.57 | Add to Cart | |
| MS2060451 | Diff Lock Forward Rear (Screw-In) | 4 | Capscrew | No longer available - Call for replacement | ||
| KIT4429 | Diff Lock Switch | 1 1 | O-Ring Inlet Plug; 1 | $62.57 | Add to Cart | |
| 2208L1000 | Diff Lock Switch | 1 | O-Ring Inlet Plug; 1 | $11.48 | Add to Cart | |
| MS2100161 | Switch | 1 | Plug(Capscrew) Inlet; 1 | Call for availability | ||
| 41X1333 | Wire Harness | 1 | Caging Bolt; 1 | Call for availability | ||
| KIT4429 | Shim | 3 | Diff Lock Switch; 1 | Call for availability | ||
| 3237R1292 | Spring | 1 | Switch; 1 | Call for availability | ||
| 3237X1298 | Shift Fork | 1 | Wire Harness; 1 | Call for availability | ||
| 1229U1503 | Piston | 1 | Washer; 2 | Call for availability | ||
| KIT4786 | Screw Manual Engaging | 1 | Diff Lock Kit 2 .00-39 Spline; (Bolt-On) | Call for availability | ||
| 5X1433 | O-Ring | 1 1 | Shift Fork; 1 | $5.22 | Add to Cart | |
| 3296Z1300 | O-Ring | 1 | Shift Fork; 1 | Call for availability | ||
| 3107H1334 | O-Ring Piston | 1 | Clutch Collar; 1 | Call for availability | ||
| 2244Z52 | O-Ring | 1 | Shift Shaft; 1 | Call for availability | ||
| 41X1742 | Capscrew | 1 1 | Pin Shift Shaft; 1 | $15.70 | Add to Cart | |
| 43X1006 | Capscrew | 1 | Pin Shift Shaft; 1 | Call for availability | ||
| 3266Q1681 | Dcdl Shift Cylinder | 1 1 | Spring; 1 | $33.59 | Add to Cart | |
| 2258L714 | Dcdl Shift Cylinder | 1 | Spring; 1 | Call for availability | ||
| 3196S1137 | Push Rod | 1 | Tube Air Cylinder; 1 | Call for availability | ||
| 5X1288 | Clutch Collar | 1 | O-Ring Tube; 1 | Call for availability | ||
| 2230N170 | 1 | Piston | $34.52 | Add to Cart | ||
| 5X1153 | 1 | O-Ring Piston | $82.60 | Add to Cart | ||
| 2208H944 | 1 | Gasket | $84.76 | Add to Cart | ||
| 3266F1020 | 1 | Cover | $141.88 | Add to Cart | ||
| 1779F344 | 1 | Shipping Plug | $16.10 | Add to Cart | ||
| MWA506 | 4 | Washer | $143.00 | Add to Cart | ||
| MS2060451 | 4 | Capscrew | No longer available - Call for replacement | |||
| 2208L1000 | 1 | O-Ring Inlet Plug | $11.48 | Add to Cart | ||
| MS2100161 | 1 | Plug(Capscrew) Inlet | $67.50 | Add to Cart | ||
| 41X1333 | 1 | Caging Bolt | $60.60 | Add to Cart | ||
| 3237X1298 | 1 | Wire Harness | $52.76 | Add to Cart | ||
| 1229U1503 | 2 | Washer | $113.00 | Add to Cart | ||
| 1228F604 | Thrust Washer Side Gear | 2 | Bearing Cup Pinion Inner; 1 | Call for availability | ||
| 2234U1451 | Side Gear | 2 Inner 1 | Bearing Cone Pinion; Inner 1 | $167.36 | Add to Cart | |
| A11228G605 | Side Gear | 2 | Bearing Cone Pinion; Inner 1 | Call for availability | ||
| 1229R1032 | Thrust Washer Diff Pinion | 4 LH 1 | Bearing Cup Main Diff; LH 1 | $124.00 | Add to Cart | |
| 1228L1728 | Thrust Washer Diff Pinion | 4 | Bearing Cup Main Diff; LH 1 | $48.60 | Add to Cart | |
| 3278Y1117F | Spider | 1 LH 1 | Bearing Cone Main Diff; LH 1 | $146.98 | Add to Cart | |
| A1228M1729 | Spider | 1 | Bearing Cone Main Diff; LH 1 | Call for availability | ||
| 2233X1116 | Pinion Gear | 4 1 | Bearing Cup Pinion Outer; 1 | $71.84 | Add to Cart | |
| 1228U645 | Pinion Gear | 4 | Bearing Cup Pinion Outer; 1 | Call for availability | ||
| KIT4786 | Diff Lock Kit 2 .00-39 Spline | Outer 1 | Bearing Cone Pinion; Outer 1; (Bolt-On) | $643.74 | Add to Cart | |
| A1228N2068 | Diff Lock Kit 2 .00-39 Spline | Bearing Cone Pinion; Outer 1 | $57.37 | Add to Cart | ||
| 3296Z1300 | Shift Fork | 1 RH 1 | Bearing Cup Main Diff; RH 1 | $103.24 | Add to Cart | |
| 1228F1982 | Shift Fork | 1 | Bearing Cup Main Diff; RH 1 | Call for availability | ||
| 3107H1334 | Clutch Collar | 1 RH 1 | Bearing Cone Main Diff; RH 1 | $108.87 | Add to Cart | |
| A1228G1983 | Clutch Collar | 1 | Bearing Cone Main Diff; RH 1 | Call for availability | ||
| 2244Z52 | Shift Shaft | 1 1 | Spigot Bearing; 1 | $239.70 | Add to Cart | |
| 1228F552 | Shift Shaft | 1 | Spigot Bearing; 1 | Call for availability | ||
| 43X1006 | Pin Shift Shaft | 1 1 | Oil Seal; 1 | $130.00 | Add to Cart | |
| A11205Z2730 | Pin Shift Shaft | 1 | Oil Seal; 1 | Call for availability | ||
| 2258L714 | Spring | 1 | Snap Rings Thru Shaft | $19.44 | Add to Cart | |
| KIT576 | Spring | 1 | Snap Rings Thru Shaft | Call for availability | ||
| 3196S1137 | Tube Air Cylinder | 1 1 | Snap Ring .155; 1 | $174.64 | Add to Cart | |
| 1229P2590 | Tube Air Cylinder | 1 | Snap Ring .155; 1 | Call for availability | ||
| 5X1288 | O-Ring Tube | 1 1 | Snap Ring .158; 1 | $21.00 | Add to Cart | |
| 1229Q2591 | O-Ring Tube | 1 | Snap Ring .158; 1 | $116.04 | Add to Cart | |
| 2230N170 | Piston | 1 1 | Snap Ring .161; 1 | $34.52 | Add to Cart | |
| 1229R2592 | Piston | 1 | Snap Ring .161; 1 | Call for availability | ||
| 1229S2593 | O-Ring Piston | 1 | Snap Ring .164; 1 | $116.04 | Add to Cart | |
| 2208H944 | Gasket | 1 1 | Snap Ring .167; 1 | $84.76 | Add to Cart | |
| 1229U2595 | Gasket | 1 | Snap Ring .167; 1 | Call for availability | ||
| 3266F1020 | Cover | 1 1 | Snap Ring .170; 1 | $141.88 | Add to Cart | |
| 1229V2596 | Cover | 1 | Snap Ring .170; 1 | Call for availability | ||
| 1779F344 | Shipping Plug | 1 1 | Snap Ring .173; 1 | $16.10 | Add to Cart | |
| 1229W2597 | Shipping Plug | 1 | Snap Ring .173; 1 | Call for availability | ||
| MWA506 | Washer | 4 1 | Snap Ring .176; 1 | $143.00 | Add to Cart | |
| 1229X2598 | Washer | 4 | Snap Ring .176; 1 | Call for availability | ||
| MS2060451 | Capscrew | 4 1 | Snap Ring .179; 1 | No longer available - Call for replacement | ||
| 1229Y2599 | Capscrew | 4 | Snap Ring .179; 1 | Call for availability | ||
| 2208L1000 | O-Ring Inlet Plug | 1 1 | Snap Ring .182; 1 | Call for availability | ||
| 1229T2594 | O-Ring Inlet Plug | 1 | Snap Ring .182; 1 | $129.00 | Add to Cart | |
| MS2100161 | Plug(Capscrew) Inlet | 1 | $67.50 | Add to Cart | ||
| 41X1333 | Caging Bolt | 1 | $60.60 | Add to Cart | ||
| 1229U1503 | Washer | 2 | $113.00 | Add to Cart |
Service Carriers Reman
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| MD2014X | Service Carriers Reman - Service Tandem | Call for availability | ||||
| MD2214X | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MR2014X | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MR1714XH | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MR2014XH | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MR2214XH | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| A3200K2221 | Service Carriers Reman - Service Tandem | Call for availability | ||||
| A3200C2239 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| A3200G2217 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| B73200L1676 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| B43200L1676 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| B683200U1919 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| 3200J2220 | Service Carriers Reman - Service Tandem | Call for availability | ||||
| 3200F2216 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| 3200K1675 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MDL2014X | Service Carriers Reman - Service Tandem | Call for availability | ||||
| MDL2214X | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MRL1714XH | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MRL2014XH | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MRL2214XH | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| A3200N2224 | Service Carriers Reman - Service Tandem | Call for availability | ||||
| A3200D2240 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| A213200A8269 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| A203200A8269 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| A13200D2266 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| 3200M2223 | Service Carriers Reman - Service Tandem | Call for availability | ||||
| 3200Z8268 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MP2014X | Service Carriers Reman - Service Tandem | Call for availability | ||||
| MP2214X | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| A13200K2221 | Service Carriers Reman - Service Tandem | Call for availability | ||||
| A13200C2239 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| MPL2014X | Service Carriers Reman - Service Tandem | Call for availability | ||||
| MPL2214X | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability | ||||
| A13200N2224 | Service Carriers Reman - Service Tandem | Call for availability | ||||
| A13200D2240 | Service Carriers Reman - Carriers Reman, Tandem Rear | Call for availability |
This is the complete factory parts breakdown for the Meritor MD-20-14X Drive Axle, with every part in the manual matched to our live inventory. We stock 562 of the 771 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search. Try the part number with no dashes.
