Meritor MTC-4213 Transfer Case Parts Manual

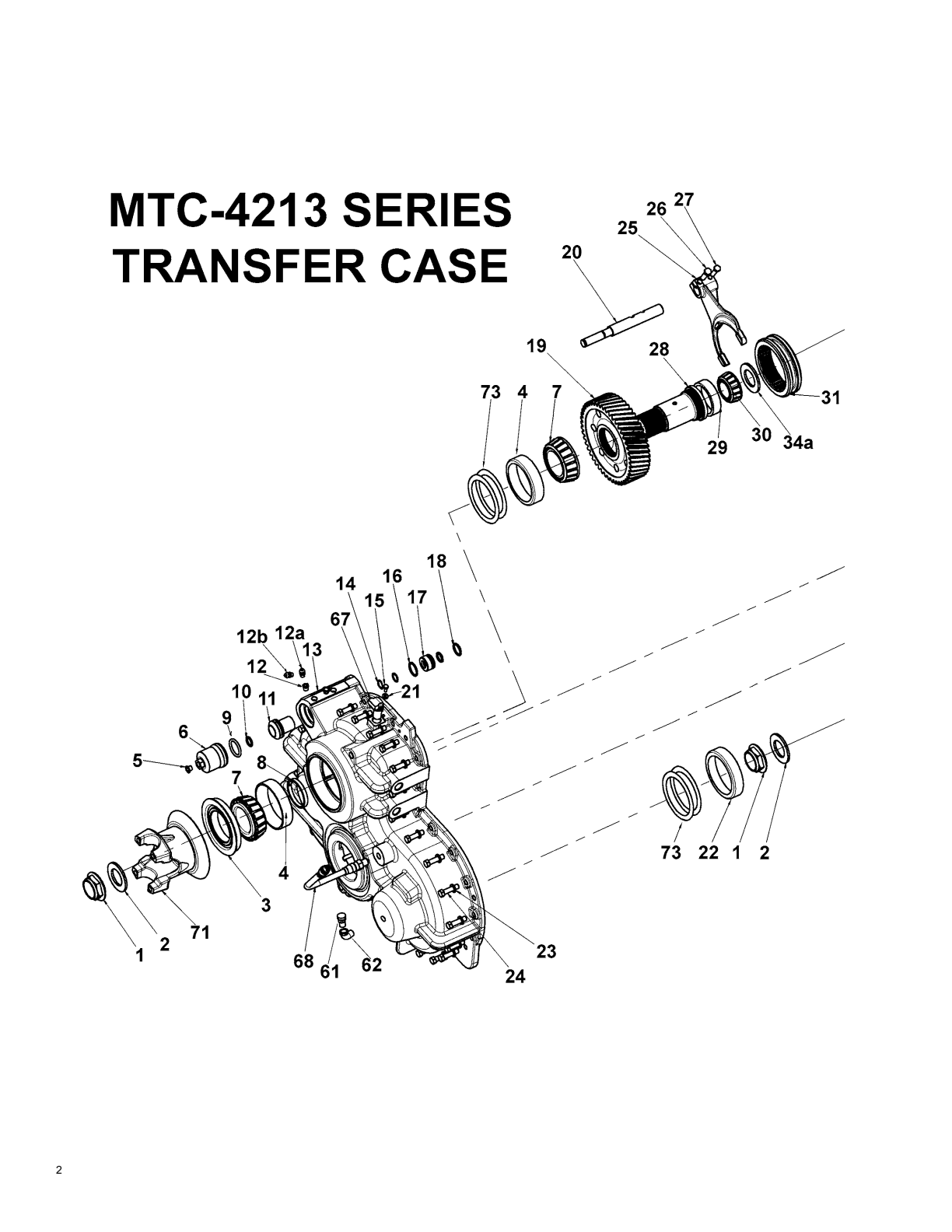

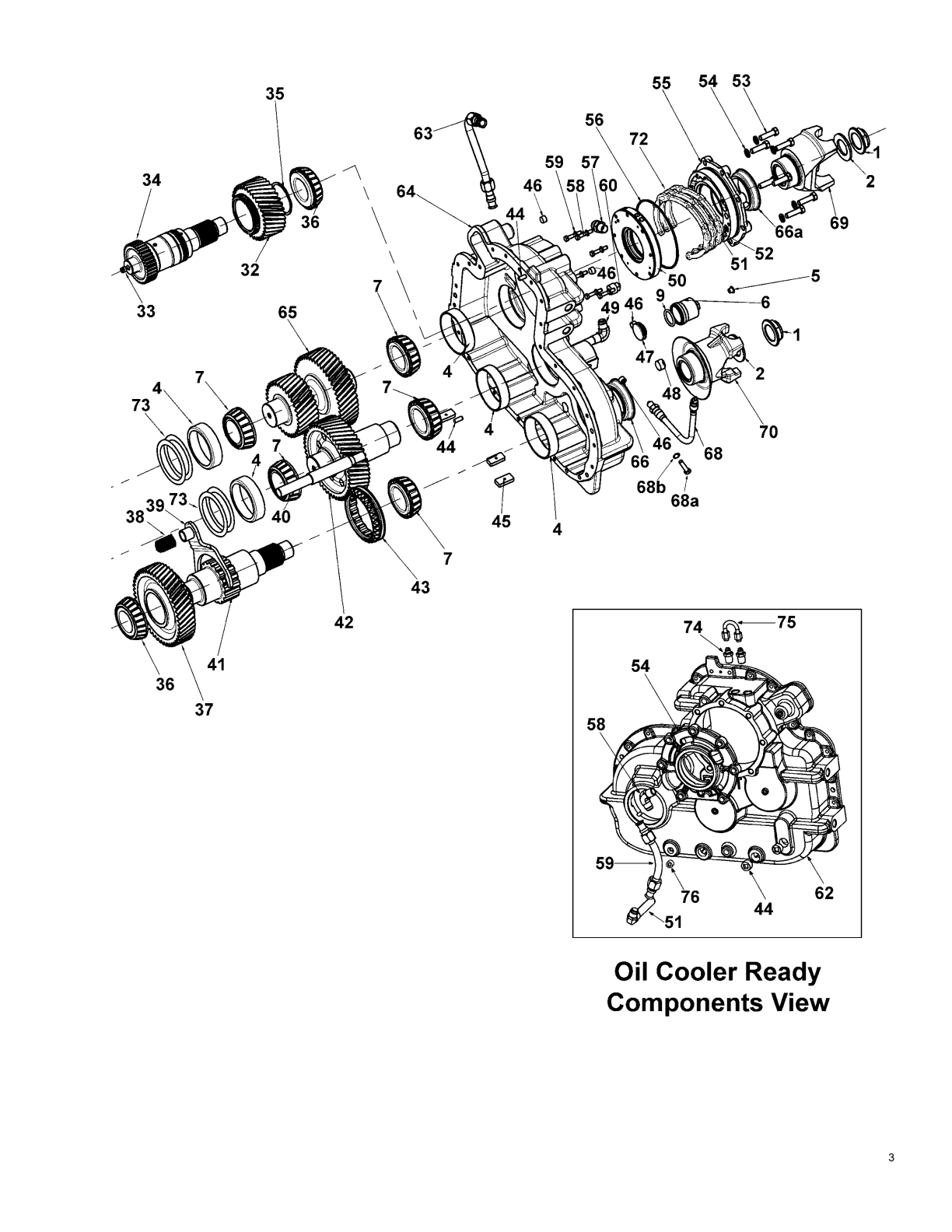

Mtc -4213 Series Transfer Case
Item 27Item 26Item 25Item 20Item 19Item 28Item 73Item 31Item 30Item 29Item 18Item 16Item 14Item 15Item 17Item 67Item 13Item 12Item 10Item 11Item 73Item 22Item 68Item 62Item 61Item 24Item 4Item 23Item 1Item 2
Item 55Item 35Item 56Item 63Item 72Item 59Item 57Item 34Item 60Item 58Item 64Item 44Item 36Item 52Item 51Item 32Item 50Item 33Item 65Item 49Item 47Item 48Item 73Item 44Item 68Item 66Item 73Item 39Item 38Item 40Item 45Item 43Item 42Item 75Item 74Item 41Item 54Item 36Item 37Item 58Item 59Item 62Item 44Item 51Item 4Item 7Item 7Item 7Item 4Item 54Item 53Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 40X1233 | Lock Nut | 4 | M45 | $17.72 | Add to Cart |
| 2 | 1229N1730 | Washer | 4 | 1 | $52.70 | Add to Cart |
| 3 | R945010 | Unitized Seal Rear Output | 1 | 3 | $109.72 | Add to Cart |
| 4 | HM212011 | Bearing Cup | 7 | 4 | $21.22 | Add to Cart |
| 5 | 1779F344 | Plug (Shipping) | 3 | $16.10 | Add to Cart | |
| 6 | 3261A1067 | Shift Cylinder | 2 | $24.14 | Add to Cart | |
| 7 | HM212049 | Bearing Cone | 7 | 2 | $37.35 | Add to Cart |
| 8 | 2803D3124 | Spacer | 1 | .362" | $62.45 | Add to Cart |
| 9 | 5X1326 | O-Ring | 2 | 1 | $17.60 | Add to Cart |
| 10 | 5X1290 | O-Ring | 2 | .734" | $4.42 | Add to Cart |
| 11 | 2230Q1369 | Piston (Outer) | 1 | $188.24 | Add to Cart | |
| 12 | 2206Q1447 | Reducer Bushing | 1 | Call for availability | ||
| 12a | A1199C1043 | Neutral Breather | 1 | $127.20 | Add to Cart | |
| 12b | A1199C1043 | Blow-By Breather | 1 | Use | $127.20 | Add to Cart |
| 12b | 3289E1097 | Blow-By Breather | 1 | Use; with cover only | Call for availability | |
| 13 | 3289K1077 | Cover Transfer | 1 | Replaced | Call for availability | |
| 13 | 3289E1097 | Cover Transfer | 1 | Replaced | $1,715.36 | Add to Cart |
| 14 | 1229A4857 | Snap Ring | 2 | .689" | Call for availability | |
| 15 | S2442 | Capscrew (Speed Sensor Retainer) | 1 | $6.64 | Add to Cart | |
| 16 | 5X1292 | O-Ring (Outer) | 1 | 1 | $20.04 | Add to Cart |
| 17 | 2230T1346 | Piston (Inner) | 1 | $219.54 | Add to Cart | |
| 18 | 5X1291 | O-Ring (Housing) | 2 | .984" | $5.48 | Add to Cart |
| 19 | 3892F5674 | High Input Gear | 1 | $3,321.99 | Add to Cart | |
| 20 | 2244T1190 | Shift Shaft | 1 | $221.83 | Add to Cart | |
| 21 | 1229X5094 | Washer (Speed Sensor Retainer) | 1 | $32.20 | Add to Cart | |
| 22 | HM813810 | Bearing Cup | 1 | 5 | $46.33 | Add to Cart |
| 23 | 1229E1513 | Washer | 26 | .47" | $174.00 | Add to Cart |
| 24 | S2714A2 | Capscrew | 26 | 7/16"-14 | $742.20 | Add to Cart |
| 25 | 3296Q1317 | Shift Fork | 1 | $283.12 | Add to Cart | |
| 26 | S1712A2 | Bolt/Capscrew | 1 | $58.87 | Add to Cart | |
| 27 | S1612A2 | Bolt/Capscrew | 1 | $49.73 | Add to Cart | |
| 28 | 3297V1452 | Shaft Rear Output | 1 | $1,873.37 | Add to Cart | |
| 29 | NP682041 | Bearing Cup | 1 | $283.25 | Add to Cart | |
| 30 | NP674708 | Bearing Cone | 1 | $103.26 | Add to Cart | |
| 31 | 3107K1181 | Collar Clutch | 1 | $537.89 | Add to Cart | |
| 32 | 3892T5662 | Gear Input (Low) | 1 | $819.35 | Add to Cart | |
| 33 | 1250M1313 | Plug Oil Restriction | 1 | .090" | $30.60 | Add to Cart |
| 34 | 3297T1450 | Shaft Input | 1 | Requires | Call for availability | |
| 34 | 2803J3312 | Shaft Input | 1 | Requires; Spacer | Call for availability | |
| 34 | 3297J1544 | Shaft Input | 1 | Replaced | $2,371.37 | Superseded by KIT2591Add to Cart |
| 34 | KIT2591 | Shaft Input | 1 | Service; with | $2,371.37 | Add to Cart |
| 34a | 2803J3312 | Spacer | 1 | For | Call for availability | |
| 34a | 3297T1450 | Spacer | 1 | use with 3297-T-1450 Input; For; Shaft | Call for availability | |
| 35 | 1229J4950 | Snap Ring | 1 | Use | $46.32 | Add to Cart |
| 35 | 3297T1450OR | Snap Ring | 1 | Use; with shafts; 3297-T-1528 | Call for availability | |
| 35 | 1229P4800 | Snap Ring | 1 | Use | $24.88 | Add to Cart |
| 35 | 3297J1544ONLY | Snap Ring | 1 | Use; with shaft | Call for availability | |
| 36 | HM813843 | Bearing Cone | 2 | 2 | $117.23 | Add to Cart |
| 37 | 3892Z5668 | Gear Front Output | 1 | $725.67 | Add to Cart | |
| 38 | 2258U411 | Spring | 1 | $211.00 | Add to Cart | |
| 39 | 3296Z1326 | Fork-Shift | 1 | Replaces | $64.40 | Add to Cart |
| 39 | A3296A1093 | Fork-Shift | 1 | Replaces | $64.40 | Superseded by 3296Z1326Add to Cart |
| 40 | 2244S1189 | Push Rod | 1 | $155.90 | Add to Cart | |
| 41 | 3297N1444 | Gear Transfer | 1 | Call for availability | ||
| 42 | 3892H5672 | Shaft Front Output | 1 | Call for availability | ||
| 43 | 3107J1284 | Collar Clutch | 1 | Replaces | $378.62 | Add to Cart |
| 43 | 3107M1183 | Collar Clutch | 1 | Replaces | $162.44 | Add to Cart |
| 44 | 1246T1190 | Dowel | 2 | .375" dia x 1 .00" long | $33.95 | Add to Cart |
| 45 | 2297K6771 | Magnet | 3 | $34.20 | Add to Cart | |
| 47 | 2230T1190 | Piston | 1 | $97.13 | Add to Cart | |
| 48 | 1250E473 | Drain Plug Magnetic | 1 | 3/4"-14 NPT square socket | $16.72 | Add to Cart |
| 49 | A2206U1347 | Fitting Assy (Screen / Elbow) | 1 | 3/4"-14 NPT | $122.90 | Add to Cart |
| 50 | A3303G1047 | Pump Assy. | 1 | Replaces A-3303-P-1030 Must; use A-3226-Z-1482 Input Cage | $1,032.71 | Add to Cart |
| 51 | 2297U5273 | Valve Pressure Relief | 1 | $90.40 | Add to Cart | |
| 52 | 2258Z1118 | Spring Relief Valve | 1 | $26.10 | Add to Cart | |
| 53 | S2814A2 | Capscrew | 7 | 1/2"-13 thd x 1 .75" | $40.10 | Add to Cart |
| 54 | 1229C1511 | Washer | 7 | .53" ID x .88" OD x .09" wide | $141.00 | Add to Cart |
| 55 | A3226Z1482 | Cage Input Bearing | 1 | Non-Oil Cooler version | $270.49 | Add to Cart |
| 55 | A3226W1479 | Cage Input Bearing | 1 | Oil Cooler ready | $446.16 | Add to Cart |
| 56 | 5X1327 | O-Ring | 1 | 7 .483" x .139" thick | $8.03 | Add to Cart |
| 57 | 2206V1348 | Male Connector | 1 | Non-Oil Cooler version | Call for availability | |
| 57 | 2206C1485 | Male Connector | 1 | Oil Cooler ready | $26.52 | Add to Cart |
| 58 | MS2080451 | Capscrew | 6 | M8 x 1 .25 | $143.50 | Add to Cart |
| 59 | 1229E1669 | Washer | 6 | .34" ID x .62" OD x .06" wide | $152.00 | Add to Cart |
| 60 | P212 | Fill Plug | 1 | 3/4"-14 NPT | $77.50 | Add to Cart |
| 61 | A1199P1394 | Breather Assy. | 1 | 3/8"-18 NPT | $175.80 | Superseded by A1199W4053Add to Cart |
| 62 | 2206F1254 | Elbow | 1 | 3/8"-18 NPT / 3/8"-18 NPT | $62.27 | Add to Cart |
| 63 | A2206R1344 | Tube Assy. | 1 | Non-Oil Cooler version | No longer available - Call for replacement | |
| 63 | A2206A1483 | Tube Assy. | 1 | Oil Cooler ready | $46.40 | Add to Cart |
| 64 | 3290X1142 | Case Transfer | 1 | Non-Oil Cooler version | Call for availability | |
| 64 | 3290D1200 | Case Transfer | 1 | Oil Cooler ready | $1,804.10 | Add to Cart |
| 65 | 3892V5664 | Gear Idler | 1 | $2,306.86 | Add to Cart | |
| 66 | R945007 | Unitized Seal Forward Output | 1 | 3 .25" ID x 4 .25" OD x .86" long | $108.48 | Add to Cart |
| 66a | A11205X2728 | Multiple-Lip Seal Input Shaft | 1 | $104.91 | Add to Cart | |
| 67 | A3280U9849 | Speed Sensor | 1 | Optional | $70.84 | Add to Cart |
| 68 | 3237W1167 | Engagement Sensor | 2 | Optional Do not use with Special; Screw (41 -X-1022) and Washer; (1229-U-1503) | Call for availability | |
| 68a | 41X1022 | Screw Special (Sensor Plug) | 2 | Optional M16 x 1 -6g Special Screw | $125.40 | Add to Cart |
| 68b | 1229U1503 | Washer | 2 | and Washer used in vehicles not; equipped with Engagement; Sensor (3237-W-1167) | $113.00 | Add to Cart |
| 69 | Yoke Input | 1 | RAP or RCE; 2-3/8"-46T spline (No Slinger) | Call for availability | ||
| 70 | Yoke Front Output | 1 | spline code ***; 2-3/8"-46T spline (Slinger opt.) | Call for availability | ||
| 71 | Yoke Rear Output | 1 | 2-3/8"-46T spline (Slinger opt.) | Call for availability | ||
| 72 | 2203K9241 | Shim .003" | Use | Input bearing cage; Use | $74.20 | Add to Cart |
| 72 | 2203L9242 | Shim .005" | As | As | $82.60 | Add to Cart |
| 72 | 2203M9243 | Shim .010" | Reqd | $96.00 | Add to Cart | |
| 73 | 2803P3110 | Shim .010" | Use | Housing bearing cups; Use | $59.20 | Add to Cart |
| 73 | 2803Q3111 | Shim .005" | As | As | $52.40 | Add to Cart |
| 73 | 2803R3112 | Shim .003" | Reqd | $58.30 | Add to Cart | |
| 74 | 2206E1513 | Male Connector | 2 | 1/2" NPT x 9/16" 37° Flare; Oil Cooler ready | $23.50 | Add to Cart |
| 75 | A2296Q1161 | Loop Tube | 1 | Oil Cooler ready for use when; cooler not connected | $26.99 | Add to Cart |
| 2803E3125 | .003" | Use | 2TS Rear cover bearing spacer; Use | $22.36 | Add to Cart | |
| 2803F3126 | .009" | As | Located next to spacer (Item 8); As | $19.08 | Add to Cart | |
| 2803G3127 | .015" | Reqd | $23.00 | Add to Cart | ||
| 2803H3128 | .021 " Mtc -4213 | KITS; SERVICE | Call for availability | |||
| 40X1233 | Lock Nut | 4 | M45 x 1 .5 thd | $17.72 | Add to Cart | |
| 1229N1730 | Washer | 4 | 1 .79" ID x 3 .00" OD x .19" wide | $52.70 | Add to Cart | |
| 40X1341 | Lock Nut | 1 | 2 .25"-12 thd | $149.13 | Add to Cart | |
| 1229E4113 | Washer | 1 | 2 .28" ID x 3 .25" OD x .32" wide | $360.25 | Add to Cart | |
| S2442 | Capscrew (Speed Sensor Retainer) | 1 | $6.64 | Add to Cart | ||
| 1229X5094 | Washer (Speed Sensor Retainer) | 1 | $32.20 | Add to Cart | ||
| S2714A2 | Capscrew | 34 | 7/16"-14 thd x 1 .75" | $742.20 | Add to Cart | |
| 1229E1513 | Washer Hardened | 34 | $174.00 | Add to Cart | ||
| S1712A2 | Bolt/Capscrew | 1 | $58.87 | Add to Cart | ||
| S1612A2 | Bolt/Capscrew | 1 | $49.73 | Add to Cart | ||
| 1250M1313 | Plug Oil Restriction | 1 | .090" orifice | $30.60 | Add to Cart | |
| 1246T1190 | Dowel | 2 | .375" dia x 1 .00" long | $33.95 | Add to Cart | |
| 1250E473 | Drain Plug Magnetic Plug | 1 | 3/4"-14 NPT square socket; 3/8"-18 NPT | $16.72 | Add to Cart | |
| P212 | Fill Plug | 1 | 3/4"-14 NPT | $77.50 | Add to Cart | |
| MS2080451 | Capscrew | 6 | M8 x 1 .25 | $143.50 | Add to Cart | |
| 1229E1669 | Washer Flat | 6 | .34" ID x .62" OD x .06" wide | $152.00 | Add to Cart | |
| S2814A2 | Capscrew | 7 | 1/2"-13 thd x 1 .75" | $40.10 | Add to Cart | |
| 1229C1511 | Washer Hardened | 7 | .53" ID x .88" OD x .09" wide | $141.00 | Add to Cart | |
| 2206C1485 | Male Connector | 1 | 3/4"-14 NPT / 1 1/16"-12 Flare | $26.52 | Add to Cart | |
| 41X1022 | Screw Special (Sensor Plug) | 2 | Optional M16 x 1 -6g | $125.40 | Add to Cart | |
| 1229U1503 | Washer | 2 | $113.00 | Add to Cart | ||
| 2203K9241 | Shim .003" | 5 | Input bearing cage | $74.20 | Add to Cart | |
| 2203L9242 | Shim .005" | 5 | $82.60 | Add to Cart | ||
| 2203M9243 | Shim .010" | 5 | $96.00 | Add to Cart | ||
| 2803P3110 | Shim .010" | 5 | Housing bearing cups | $59.20 | Add to Cart | |
| 2803Q3111 | Shim .005" | 5 | $52.40 | Add to Cart | ||
| 2803R3112 | Shim .003" | 5 | $58.30 | Add to Cart | ||
| 2803E3125 | Spacer .003" | 5 | 2TS Rear cover bearing spacer | $22.36 | Add to Cart | |
| 2803F3126 | Spacer .009" | 5 | $19.08 | Add to Cart | ||
| 2803G3127 | Spacer .015" | 5 | $23.00 | Add to Cart | ||
| 2803H3128 | Spacer .021 " | 5 | $61.88 | Add to Cart | ||
| 3297J1544 | Shaft Input | 1 | $2,371.37 | Superseded by KIT2591Add to Cart | ||
| 1229P4800 | Snap Ring | 1 | $24.88 | Add to Cart |
MTC -4213 Service KITS (cont)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3107J1284 | Collar Clutch | 1 | $378.62 | Add to Cart | ||
| 3296Z1326 | Shift Fork | 1 | $64.40 | Add to Cart | ||
| R945007 | Unitized Seal Forward Output | 1 | 3 .25" ID x 4 .25" OD x .86" long | $108.48 | Add to Cart | |
| R945010 | Unitized Seal Rear Output | 1 | 3 .25" ID x 5 .51 " OD x .86" long | $109.72 | Add to Cart | |
| A11205X2728 | Multiple-Lip Seal Input Shaft | 1 | 3 .25" ID x 4 .25" OD x .58" long | $104.91 | Add to Cart | |
| 5X1326 | O-Ring | 2 | 1 .459" ID x .208" thick | $17.60 | Add to Cart | |
| 5X1290 | O-Ring (Inner) | 2 | .734" ID x .139" thick | $4.42 | Add to Cart | |
| 1229U4857 | Snap Ring | 2 | .689" ID | $72.00 | Add to Cart | |
| 5X1292 | O-Ring | 1 | 1 .71 " ID x .139" thick | $20.04 | Add to Cart | |
| 5X1291 | O-Ring (Housing) | 2 | .984" ID x .139 thick | $5.48 | Add to Cart | |
| 5X1327 | O-Ring | 1 | 7 .483" x .139" thick | $8.03 | Add to Cart | |
| 3261A1067 | Shift Cylinder | 1 | $24.14 | Add to Cart | ||
| 2230Q1369 | Piston (Outer) | 1 | $188.24 | Add to Cart | ||
| 3290D1200 | Case Fin | 1 | $1,804.10 | Add to Cart | ||
| A3226W1479 | Input Bearing Cage Assy. | 1 | $446.16 | Add to Cart | ||
| A2296Q1161 | Tube Assy. | 1 | $26.99 | Add to Cart | ||
| A2206A1483 | Tube Assy. | 1 | $46.40 | Add to Cart | ||
| 2206C1485 | Male Connector | 1 | 3/4"-14 NPT / 1 1/16"-12 Flare | $26.52 | Add to Cart | |
| 2206E1513 | Fitting | 2 | 1/2" NPT x 9/16" 37° Flare | $23.50 | Add to Cart | |
| 5X1292 | O-Ring Plug | 1 | 1 .71 " ID x .139" thick; 7 | $20.04 | Add to Cart |
Seal Replacement Mtc -4213 Yokes
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 140TYS38A | $658.66 | Add to Cart | ||||
| 170TYS384A | No longer available - Call for replacement |
This is the complete factory parts breakdown for the Meritor MTC-4213 Transfer Case, with every part in the manual matched to our live inventory. We stock 130 of the 153 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
