Spicer 1241-C Parts Manual

View the official Spicer Transmission 1241-C parts manual (PDF)Download PDF

Drive Gear Group - Input

Item	Part No.	Description	Qty	Price
A-1	98-35-1	Drive Gear- (381) ( (1) Pieced/g) Model1241	1	—	No longer available — call for replacement
A-1	98-35-3	Drive Gear- (381) ((1) Pieced/g) Model P1241		—	Call for availability
A-1	98-35-5	-lx Input Shaft- (2 .594-20T Spline)( (2) Pieced/g) Model AMO/AP0100-4	1	$1,692.65	Superseded by 983551XAdd to Cart
A-1A	98-381-6	Snap Ring - External (model AMO/AP01000-4)	1	$7.28	Add to Cart
A-1B	98-35-7-1X	Drive Gear - (381) ( (2) Piece D/g) Model AM01 000-4		$658.96	Superseded by 993511XAdd to Cart
A-1B	98-35-9-1X	Drive Gear- (381) ((2) Pieced/g) Model AP01000-4		$754.51	Superseded by 993521XAdd to Cart
A-1C	97-381-32	Snap Ring - Internal (model AMO/AP01000-4)		$4.36	Add to Cart
A-2	550889	Bearing - Drive Gear Pocket		$28.25	Add to Cart
A-3	550914	Bearing - Drive Gear Rear (used With (1 )pc. D/g) (mods. 1241/P1241)		$152.25	Add to Cart
A-3	550981	Bearing Input Shaft Rear (models AMO/AP01000-4)	1	$1,344.75	Add to Cart
A-4	98-37-1	Spacer- (used With (1)pc. Dig) (models 1241/P1241)	1	—	No longer available — call for replacement
A-4	98-37-9	Spacer- (used With (2) Piece Dig) (models AMO/AP01000-4)		$44.01	Add to Cart
A-5	550908	Bearing - Drive Gear Front (used With (1)pc. D/g) (models 1241/P1241)	1	$105.58	Add to Cart
A-5	313747X	Bearing Input Shaft Front (models AMO/AP01000-4)		—	Call for availability
A-7	829-W	Slinger- Oil (used With (1)pc. D/g) (models 1241/P1241)		—	Call for availability
A-7	231745	Slinger- Oil (used With (2)pc. D/g) (models AMO/AP01000-4)		—	Call for availability
A-8	98-468-1	Baffle Breather (used With (1 )pc. D/g A.s .s .n 282191 0)		—	Call for availability
A-8	98-468-2	Baffle Breather (used With (2)pc. D/g. A.s .s .n 2821901)	1	$110.19	Add to Cart
A-9	184-W	Washer- 1 1/2" Id (used With (1)pc. Dig) (models 1241/P1241)	1	$6.63	Add to Cart
A-9	330734	Washer- 1 25/32" Id (used With (2)pc. Dig) (model AMO/AP01000-4)	1	$6.27	Add to Cart
A-10	500898	N Ut- 1 1/2 " -18 Hex Head (used With (1)pc. D/g) (models 1241/P1241)	1	—	Call for availability
A-10	545047	Nut 1 3/4" -12 Hex Head (used With (2)pc. Dig) (AMO/AP01 000-4)	1	$50.37	Add to Cart

Mainshaft Group - Output

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Price
B-1	98-362-1	Mainshaft- (for Base B/m 's 300977 ,300978 ,301 145 & 301146		—	Call for availability
B-1	98-362-3	Mainshaft- (for All Other Base B/m 's & All Other Shifter Hsgs.	1	$864.52	Add to Cart
B-1	98-362-2	Mainshaft- (models AP01000-4 & P1241)		$973.93	Add to Cart
B-2	98-465-4	Clutch Collar (ModelsAM01000-4 ,1241)	2	$515.72	Add to Cart
B-2	98-465-2			$518.73	Add to Cart
B-3	98-381-1	Snap Ring - External		$6.27	Add to Cart
B-4	330869	Thrust Washer - Internal Splined (181)		$24.39	Add to Cart
8 -5	330810			$23.58	Add to Cart
B-6	98-381-2	Snap Ring - Internal (AM01000-4 & 1241 Only)	3	$5.31	Add to Cart
B-6	313206	-lx- For Manual Shift Units		—	Call for availability
B-6	313206-2X	For Units With Top Mount Pto's 313051X,313232X And 313254X		—	Call for availability

Countershaft Group

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
B-7	98-8-3	Gear - Mainshaft 2nd Speed (34T) (models AM01 000 -4 & 1241}	1		$792.63	Superseded by 9981Add to Cart
B-7	98-8-6	Gear - Mainshaft 2nd Speed (34T) (models AP01000-4 & P1241)	1		—	Call for availability
B-8	98-8-13	Gear - Mainshaft 4th Speed (28T) Overdrive (models AM01000 -4 & 1241)	1		$650.05	Superseded by 9983Add to Cart
B-8	98-8-18-1X	Gear - Mainshaft Overdrive (28T)(Curvic Teeth) (mods. AP0100 -4 & P1241)			$1,605.91	Superseded by 99861XAdd to Cart
N .S	98-37-7	Spacer- Mainshaft Overdrive Lock-out			—	Call for availability
B-9	98-8-24	Gear- Mainshaft 1st Speed (44T) (AM01000-4C & 1241 -c)			$1,137.76	Superseded by 9988Add to Cart
B-9	98-8-14	Gear- Mainshaft 1st Speed (44T) (AP01 000-4C & P1241 C)			$1,277.94	Superseded by 9984Add to Cart
B-9	98-8-7	Gear- Malnshaft 1st Speed (38T) (AM01 000 -40 & 1241 -0)			$481.09	Superseded by 9982Add to Cart
B-9	98-8-20	Gear- Malnshaft 1st Speed (38T) (AP01000 -40 & P1241 -d)			—	Call for availability
B-10	98-37-2	Spacer- Mainshaft 1st Speed Gear (AM01000-4 & 1241)			$280.80	Add to Cart
B-10	98-37-6	Spacer- Mainshaft 1st Speed Gear (AP01000-4 & P1241)			$59.83	Add to Cart
B-11	550925	Bearing - Mainshaft Rear			$107.78	Add to Cart
B-13	500007-9	Key - #3 Woodruff (1/8 "x1/2 ") (for Speedo Drive Gear)			$2.59	Add to Cart
B-14	98-452-1	Gear - Speedometer Drive (4T) (mechanical)			$95.06	Add to Cart
B-14	98-452-2	Gear- Speedometer Signal (16 Grooves} (electronic)			$143.48	Add to Cart
B-15	97-381-6	Snap Ring - Speedometer Drive Or Signal Gear			$3.88	Add to Cart
B-16	330734	Washer - 1 25/32" Id			$6.27	Add to Cart
B-17	545047	Nut - 1 3/4" -12 Hex Head Sell -locking			$50.37	Add to Cart
C-1	98-30-9-1X	C':>untershaft (211) (incl Snap Ring 97-381 -30) (AM01 000-4C 1241 C)	2		—	Call for availability
C-1	98-30-10-1X	Countershaft (27T) (incl Snap Ring 97-381 -30) (AM01 000-4D ,1241 D)	2		—	Call for availability
C-2	98-210-2	Key- Square	2		$28.58	Add to Cart
C-3	98-196-7	Gear- 2nd Speed C/s (311)	2		$864.12	Superseded by 991961Add to Cart
C-4	98-196-8	Gear - 4th Speed C/s (391) Overdrive	2		$1,017.46	Superseded by 991962Add to Cart
C-5	98-1-1	Gear- Cis Drive (431)	2		$854.49	Superseded by 9911Add to Cart
C-6	550952	Bearing - Cis Front	2		$231.89	Add to Cart
C-7	97-381-30	Snap Ring - Bearing Retaining	2		$6.73	Add to Cart
C-8	97-381-34	Ring - Spacer C/s Rear Bearing (right Hand Side)	1		$4.59	Add to Cart
C-9	550720	Bearing - Cis Rear	2		$115.32	Add to Cart
C-10	636-W	Washer - Cis Bearing Retaining	2		—	Call for availability
C-11	747-D	Bolt - 112" -20 X 1 1 /8	4	version * (see the manual's footnote)	$3.13	Add to Cart

Countershaft Front Bearing Cap Group

Item	Part No.	Description	Qty	Price
E-1	98-223-5	Gasket	2	$6.02	Add to Cart
E-2	98-22-1	Cap	2	$40.23	Add to Cart
E-3	545002-4	Bqit- 3/8 " -16x 1 1/8 " Hex Head Self-locking	10	$6.93	Add to Cart

Drive Gear Bearing Cap and Retainer Group

Item	Part No.	Description	Qty	Notes	Price
F-1	98-223-1	Gasket - Drive Gear Bearing Retainer			$37.92	Add to Cart
F-2	98-360-3-1	X Retainer Assembly (used With (1)pc. Drive Gear)			—	Call for availability
F-3		Hetainer		Not sold separately - order the sub-assembly it belongs to	—	Call for availability
F-4	4328X	Breather			$56.22	Add to Cart
N .S	500113-3	Plug Breather Hole Shifter Hsg (see Ref. No. K-1 1 Page 11)			—	Call for availability
N .S	500112	Plug Breather Hole, Top Mount			—	Call for availability
N .S	98-360-4-1	X Assembly (used With (2)pc. Drive Gear)			—	Call for availability
F-5	545001-3	Bolt- 1/2 " -13 X 1 3/4" Hex Head Self-locking	6		$11.55	Add to Cart
F-6	70-223-14	Gasket - Front Bearing Cap			$16.86	Add to Cart
F-7	311726X	Cap Assembly (includes F -8 And F-9)			$190.36	Add to Cart
F-8	70-19-39	Cap	1		$190.36	Superseded by 311726XAdd to Cart
F-9	82-463-4	Oil Seal	1		$13.18	Add to Cart
F-10	545028-2	Bolt - 7/16" -14 X 1 1/2" Hex Head Self-locking	6		$2.87	Add to Cart
F-11	70-410-2	Trunion			—	Call for availability

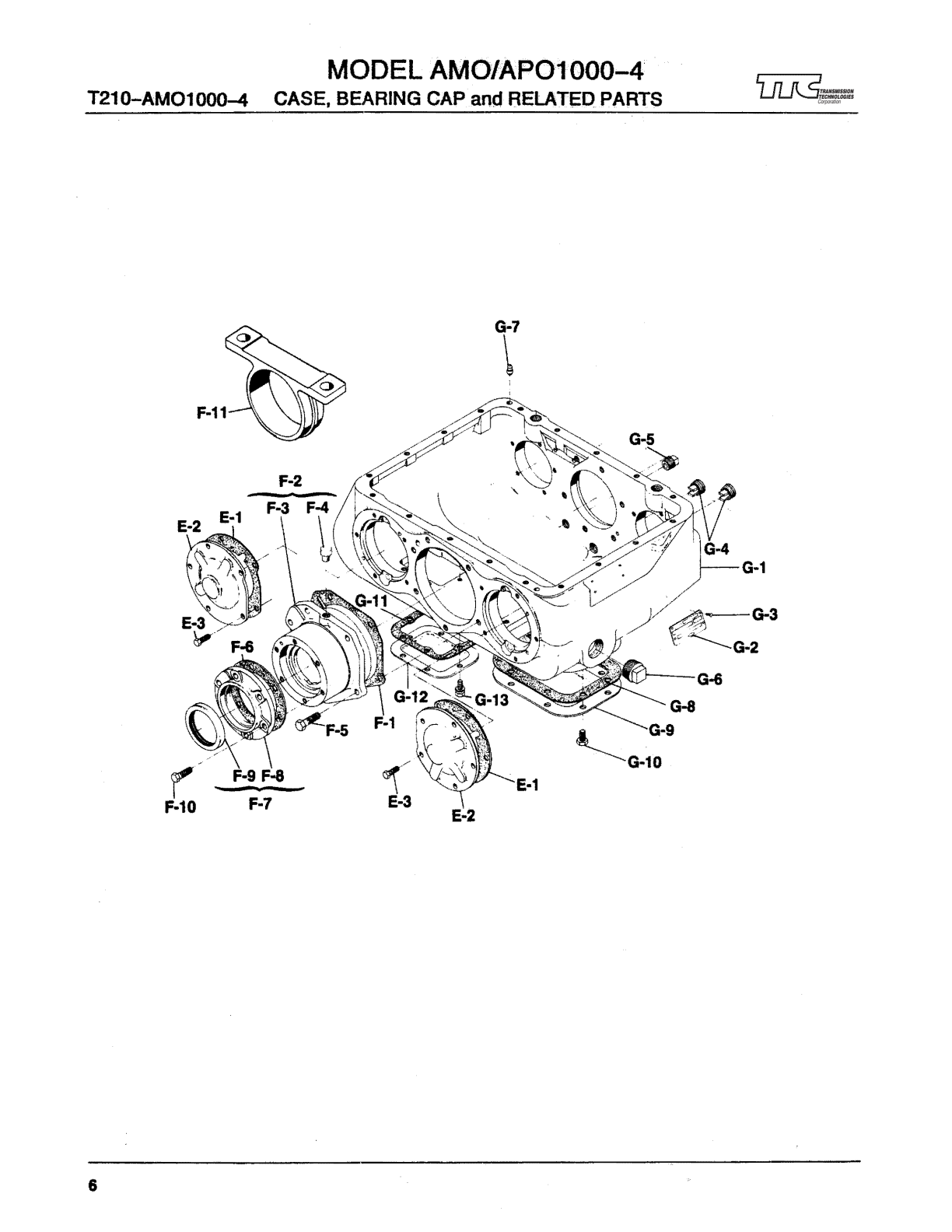

Case Group

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
F-11	98-15-1-1X	Case Assembly (includes G-1 Thru G -7)			$5,871.11	Add to Cart
G-1		Case		Not sold separately - order the sub-assembly it belongs to	—	Call for availability
G-2	NP-96	Nameplate	1		$2.16	Add to Cart
G-3	252-SP	Pin - Nameplate	4		$1.90	Add to Cart
G-4	62-39-4	Drain And Oil Line Plug	2		$9.50	Add to Cart
G-5	500114	Plug - 1/2" -14 Nptf Thermocouple			—	Call for availability
G-6	50-39-20	Plug - Magnetic Filler	1		$34.40	Add to Cart
G-7	274-SP	Dowel Pin	2		$2.77	Add to Cart
G-8	97-324-2	Gasket - 8 Bolt Pto Opening			$6.27	Add to Cart
G-9	73-267-1	Cover - 8 Bolt Pto Opening	1		$160.99	Add to Cart
G-10	545012	Bolt - 7/16" -14 X 3/4" Flanged Head Self-locking	8		$3.23	Add to Cart
G-11	97-324-1	Gasket - 6 Bolt Pto Opening			$3.91	Add to Cart
G-12	50-267-2	Cover - 6 Bolt Pto Opening	1		$122.97	Add to Cart
G-13	330800	Bolt - 3/8" -16 X 3/4" Flanged Head Self-locking	6		—	Call for availability

CASE Bearing CAP and Related Parts

Item	Part No.	Description	Qty	Price
K-6	330812	Stud 7/8" -14 & 7/8" -9 X 5 1/4" Rear Anchor	2	$25.18	Add to Cart
K-6	330812-1	Stud 7/8 " -14 & 7/8 " -9 X 5 3/4" Rear Anchor	2	$29.96	Add to Cart
K-6	330812-2	Stud 7/8 " -14 & 7/8 " -9 X 4 1/8" Rear Anchor	2	$32.21	Add to Cart
K-6	330812-3	Stud 7/8 " -14 & 7/8" -9 X 4 7/16" Rear Anchor	2	$30.95	Add to Cart
K-6	330812-4	Stud -7/8 " -14 & 7/8 " -9 X 6 3/4" Rear Anchor	2	$35.85	Add to Cart
K-6	330812-5	Stud 7/8" -14 & 7/8" -9 X 5" Rear Anchor	2	—	Call for availability
K-6	330812-7	Stud 7/8" -14 & 7/8" -9 X 6" Rear Anchor	2	—	Call for availability
K-6	330812-8	Stud 7/8 " -14 & 7/8 " -9 X 5 3/4" Rear Anchor (longer Thd On Mntg End)	2	—	Call for availability
K-6	330812-9	Stud 7/8 " -14 & 7/8 " -9 X 6 1/4" Rear Anchor	2	$32.92	Add to Cart

Mainshaft Rear Bearing Cap Group - for Gear Driven Speedometer

Item	Part No.	Description	Qty	Notes	Price
H-1	98-223-2	Gasket			$31.23	Add to Cart
H-2	98-19-1-2X	Bearing Cap Sub-assy. (includes H -3 ,h -4 And H -5)			$379.81	Superseded by 981951XAdd to Cart
H-3		Bearing Cap		Not sold separately - order the sub-assembly it belongs to	—	Call for availability
H-4	98-463-1	Oil Seal			$26.86	Add to Cart
H-5	60-475-1	Speedometer Bushing			$32.75	Add to Cart
H-6	98-453-1	Gear- Speedometer Driven (12T)			$115.05	Add to Cart
H-6	55-334-1	Plug (used Without Speedometer Driven Gear)			$88.44	Add to Cart
H-7	98-454-1-1X	Sleeve And Seal Assembly - Speedometer Driven Gear			—	No longer available — call for replacement
N .S	44-539-1	Dust Cap			$9.19	Add to Cart
H-8	545001-4	Bolt -1 12 " -13x 1 1/2 " Hex Head Self-locking	4		$1.74	Add to Cart
H-9	545001-9	Bolt- 1/2" -13 X 2 5/8" Hex Head Self-locking	2		—	Call for availability

Mainshaft Rear Bearing Cap Group - for Electronic Speedometer

Item	Part No.	Description	Qty	Notes	Price
H-1	98-223-2	Gasket			$31.23	Add to Cart
H-2	98-19-5-1X	Bearing Cap Sub-assy. (includes H -3 ,h -4 ,h -5 ,55-334 -1 & 545021)			$379.81	Add to Cart
H-3		Bearing ·cap	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
H-4	98-463-1	Oil Seal	1		$26.86	Add to Cart
H-5	60-475-1	Speedometer Bushing	1		$32.75	Add to Cart
N .S	55-334-1	Plug Speedo Outlet			$88.44	Add to Cart
N .S	545021	Plug Electronic Speedo/cruise			$18.89	Add to Cart
H-8	545001-4	B<dit - 1/2" -13 X 1 1/2" Hex Head Self-locking	4		—	Call for availability
H-9	545001-9	Bolt - 1/2" -13 X 2 5/8" Hex Head Self-locking	2		—	Call for availability

Countershaft Rear Bearing Cap Group

Item	Part No.	Description	Qty	Price
J-1	98-223-4	Gasket - Right And Left Side	2	$2.49	Add to Cart
J-2	98-22-3	Cap - Left Side		$24.32	Add to Cart
and	98-22-5	Cap - Right Side		$130.56	Add to Cart
J :2a	70-223-25	Gasket - Countershaft Plate		$4.82	Add to Cart
J-2B	98-20-2	Plate - Oil Pump Opening	1	—	Call for availability
J-2C	545005-2	Screw - Oil Pump Plate (5/16" -18 X 3/4")	4	$1.66	Add to Cart
J-3	545002-4	Bolt- 3/8" -16 X 1 1/8" Hex Head Self-locking	5	$6.93	Add to Cart
J-3A	545002-6	Bolt - 3/8" -16 X 1 3/8" Hex Head Self-locking (for Right Side Cap)	5	$2.29	Add to Cart

Adapter Plate Group

Item	Part No.	Description	Qty	Price
K-1	98-155-1	Gasket - Adapter Plate Or Shifter Housing		$22.03	Add to Cart
K-2	98-215-3	Adapter Plate	1	$1,002.64	Add to Cart
K-3	545094	Bolt - 7/16" -14 X 7/8" Socket Head Self-locking	3	$3.00	Add to Cart
K-4	330564-2	Lift Hook	2	$2.39	Add to Cart
K-5	545028	Bolt - 7/16" -14 X 1 1/4" Hex Head Self-locking	15	$3.00	Add to Cart
K-8	139-W	Washer - 29/32" Id Case Rear Anchor Stud	2	$2.82	Add to Cart
K-9	500371-9	N Ut- 7/8-14 Hex	2	—	Call for availability
K-10	70-155-4	Gasket - Shifter Housing And Pto		$9.44	Add to Cart
K-15	500114	Plug - Oil Cooler Return Hole		—	Call for availability

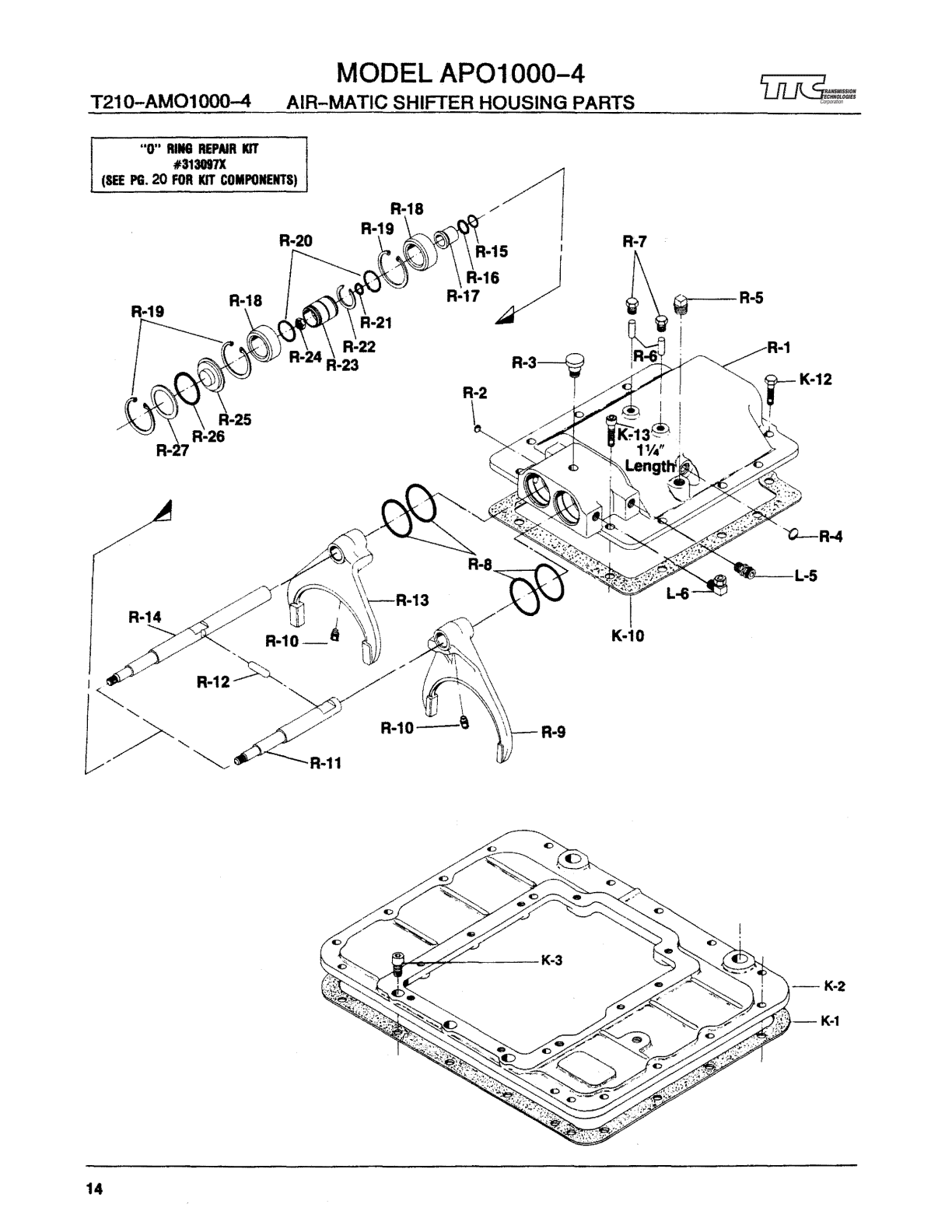

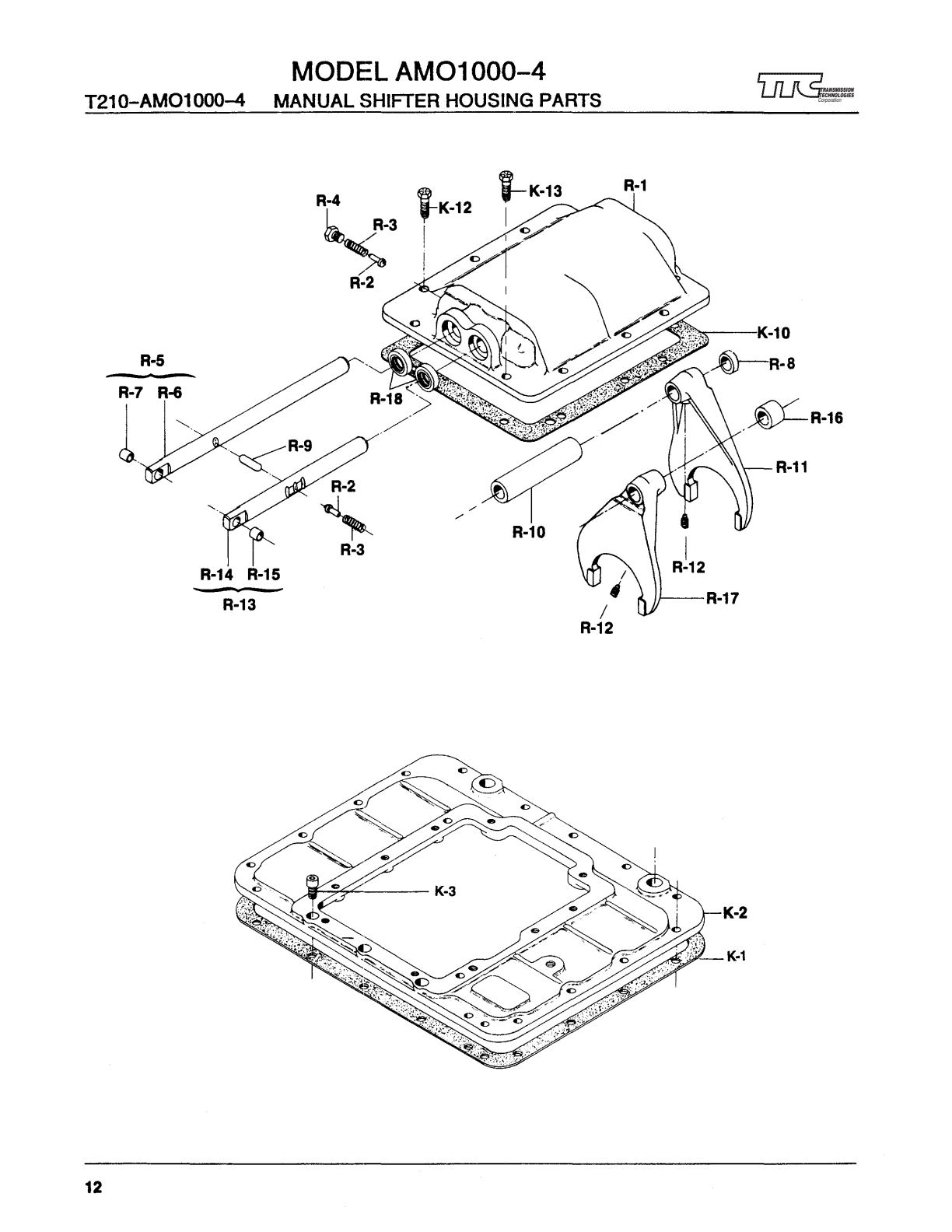

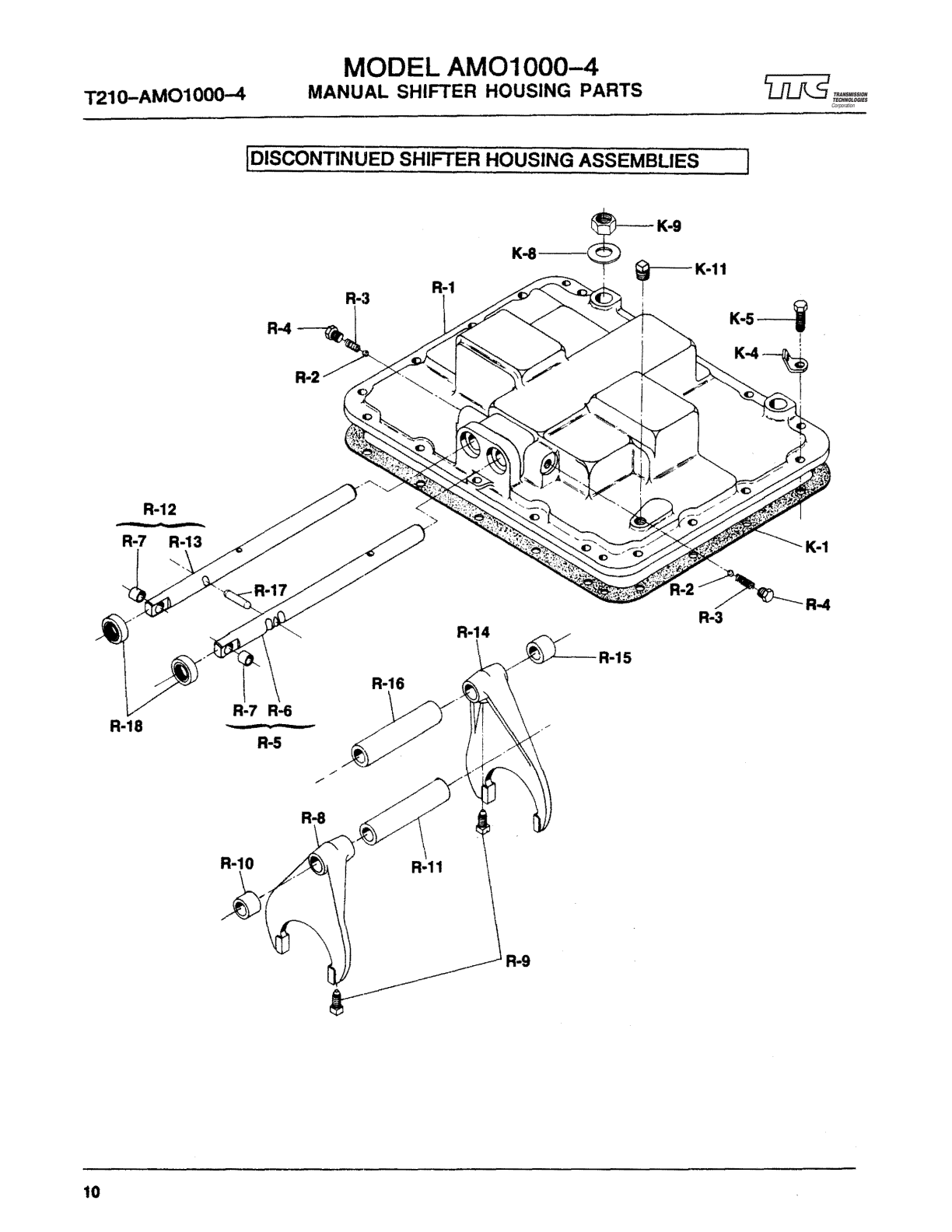

Shifter Housing Assembly • (see Note)

Item	Part No.	Description	Qty	Notes	Price
R-1		Housing-shifter (use 'with Breather In Bearing Cap) 1 1	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
R-3	97-72-4	Spring Poppet 2 2	2		—	Call for availability
R-5	98-67-16-1	'( Shift Rod And Bushing Assembly - 3rd & 4th Speed 1 -			—	Call for availability
If	98-67-17-1X	Shift Rod And Bushing Assembly • 3rd & 4th Speed 1	1	manual lists 98-67-17-1X - we stock the base part 98-67-17	$47.95	Add to Cart
R-6	98-67	·1 Shift Rod • 1			—	Call for availability
If	98-67-12	Shift Rod 1	1		—	Call for availability
R-7	71-24-14	Bushing • 1 1	1		$9.85	Add to Cart
R-8	98-66-1	Shift Fork 1 1	1		$604.11	Superseded by 986612Add to Cart
R-9	545004	Bolt • X 13As" Shift Fork Set-self-locking 2 2	2		$6.27	Superseded by 545063Add to Cart
R-10	52-203-5	Sleeve 3rd Shift Stop (o/1a" Length) 1 1	1		—	Call for availability
R-11	98-203	·1 Sleeve • Overdrive Stop (S1%2 " Length) 1			—	Call for availability
"	98-203-2	Sleeve • Overdrive Lock Nut (5 1 O/,s" Length) 1			—	Call for availability
"	98-203	·3 Sleeve Overdrive Stop (51/4'' Length)	1		—	Call for availability
R-12	98-67-16-1X	Shift Rod And Bushing Assembly • 1st & 2nd Speed 1 1	1		—	Call for availability
R-13	98-67	·1 Shift Rod • 1 1	1		—	Call for availability
R-14	98-66-1	Shift Fork 1 1	1		$604.11	Superseded by 986612Add to Cart
R-15	52-203-5	Sleeve • 1st Shift Stop (o/,a" Length) 1 1	1		—	Call for availability
R-16	98-203	·1 Sleeve 2nd Shift Stop (51'132" Length) 1 1	1		—	Call for availability
R-17	70-12-1	Interlock 1 1	1		$2.74	Add to Cart
R-18	61-463-4	Oil Seal Shift Rod 2 2	2		$7.89	Add to Cart

Parts Usted Below Are Not Included in Assembly

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Price
K-1	98-155	·1 Gasket • Shifter Housing 1 1	1	—	Call for availability
K-4	330564-2	Uft Hook 2 2	2	$2.39	Add to Cart
K-5	545028	Bolt ¥1e"-14 X 1 'ia" Hex Head Self-locking 18 18	18	$3.00	Add to Cart
K-8	139-W	Washer 22%2'' J.d. • Rear Anchor Stud • 2 2	2	$2.82	Add to Cart
K-9	550371	·9 Nut • 7 /a" 14 Hex • 2 2	2	—	Call for availability
K-11	500113	·3 (1) Or Plug • Breather - (when Breather Is In Drive Gear Bearing Retainer)		$2.13	Add to Cart
H	5951X	(1) Breather (when Breather Is Not In Drive Gear Bearing Retainer) 1	1	$7.69	Add to Cart

Technologies Manual Shifter Housing Parts T21 O -AM01 000 -4

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
R-1	70-16-10	Shifter Housing 1 1 1 1 1	1		—	Call for availability
R-2	85-438-1	Poppet - Shift Rod 2 2 2 2 2	2		$49.93	Superseded by 9743834Add to Cart
R-3	71-72-1	Spring - Shift Rod Poppet 2 2 2 2 2	2		$2.11	Superseded by 977238Add to Cart
R-5	98-67-14-1X	Shift Rod And Bushing Assembly- 1st And 2nd Speed 1 1 1 1 1	1		$165.02	Add to Cart
R-6		Shift Rod 1 1 1 1 1	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
R-771	24-14	Bushing 1 1 1 1 1	1		—	Call for availability
R-10 70	203-2	Sleeve - 2nd Speed Stop (5 7/8" Long) 1 1 1 1 1	1		—	Call for availability
R-11 98	66-12	Shift Fork- 1st And 2nd Speed 1 1 1 1 1	1		—	Call for availability
R-13 98	67-15-1X	Shift Rod And Bushing Assembly - 3rd And 4th Speed 1 1 1 1 1	1		—	Call for availability
R-14		Shift Rod 1 1 1 1 1	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
R-15 71	24-14	Bushing 1 1 1 1 1	1		—	Call for availability
R-16 72	203-5	Sleeve - Overdrive Lockout- Length 21/32" - 1 - 1 -	1		—	Call for availability
R-18 61	463-4	Oil Seal - Shift Rod 2 2 2 2 2	2		—	Call for availability
K-10 70	155-4	Gasket - Shifter Housing 1 1 - - -			—	Call for availability
K-10 70	300977	300978, 301145 & 301146) Have Been Superseded By:			—	Call for availability

Oil Cooler Kits

Item	Part No.	Description	Qty	Price
	313231-4X	Oil Pump Kit , 1	1	$946.18	Add to Cart
M-1	70-223-25	Gasket - Oil Pump 1 1	1	$4.82	Add to Cart
M-2	313292	Oil Pump Assy. (serviced As 313292-1X Which Incl M -1) 1 1	1	—	Call for availability
C-8	97-381-34	Spacer - Countershaft Rear Bearing 1 1	1	—	Call for availability
J-1	98-223-4	Gasket - Countershaft Rear Bearing Cap 1 1	1	$2.49	Add to Cart
J-2	98-22-5	Bearing Cap - Countershaft Rear 1 1	1	$130.56	Add to Cart
J-3	545002-6	Bolt- 318"-16 X 1 1/4" Hex Head Self-locking 5 5	5	$2.29	Add to Cart
M-3	545005-7	Bolt (5/16" -18 X 7/S")Piscard Screws From Plate On Cis Brg Cap 4 4	4	—	Call for availability
M-3	313231-SX	Oil Cooler And Plumbing Kit 1 1	1	—	Call for availability
M-10	313110	Oil Cooler Assembly 1 -		—	Call for availability
M-4	313229	Oil Filter 1 1	1	—	Call for availability
M-5	545051	Elbow 90 Deg Case Outlet 1 1	1	—	Call for availability
M-6	313117-3	Hose Assembly - Case To Pump 1 1	1	—	Call for availability
M-7	545051	Elbow - Pump Outlet 2 2	2	—	Call for availability
M-8	545036	Adapter- Case Inlet, Cooler Inlet & Outlet 3 -		—	Call for availability
M-9	500714-14	Reducer Bushing - Cooler Inlet & Outlet 2 -		—	Call for availability
M-11	500714-18	Reducer Bushing - Case Inlet 1 1	1	—	Call for availability
M-12	545054	Elbow 90 Deg Case Inlet 1 1	1	—	Call for availability
M-13	545053	Cluick Disconnect Coupling - Case Inlet 1 ' -		—	Call for availability
M-14	545146	Tee - Pipe (pump Inlet) 1 1	1	—	Call for availability
M-15	545049-1	Nipple - Pump Inlet 1 1	1	$5.12	Add to Cart
M-16	500114	Plug -(end Of Pipe Tee) 1 1	1	—	Call for availability
C-1	98-30-9-1X	* * Countershaft (21 1)- Model1241/P1241 -c (base B/m 's 300977,301145) - 1		—	Call for availability
C-1	98-30-10-1X	* • Countershaft (271)- Modes 1241/P1241 -d (base Bim 's 300978 ,301 146) - -	1	—	Call for availability
• Also available	IS313480	Heat Exchanger Assy. All Plumbing Hardware Is The Same As Shown In		—	Call for availability

Basic Overhaul Kits

Item	Part No.	Description	Qty	Notes	Price
T21	O-AM01	000 -4	TECHNOLOGIES		—	Call for availability
T21	313400-61X	Major Overhaul Kit (for Base B/m 's 300956,300957,300977)			$1,256.74	Superseded by 984001XAdd to Cart
T21	98-210-2	Key - Countershaft Gear	2		$28.58	Add to Cart
T21	545047	Nut - Mainshaft (1 3/4" -12)	2		$50.37	Add to Cart
T21	330734	Washer - Mainshaft Nut	2		$6.27	Add to Cart
T21	330810	Washer - Mainshalt Thrust (241) External			$23.58	Add to Cart
T21	330869	Washer - Mainshaft Thrust (1ST) Internal			$24.39	Add to Cart
T21	313432-24X	Minor Overhaul Kit			$974.57	Superseded by 984321XAdd to Cart
T21	313429-21X	Shifter Housing Parts Repair Kit			—	Call for availability
T21	313400-84X	Major Overhaul Kit (for Base B/m 's 301393,301394,301395,)			$1,256.74	Superseded by 984001XAdd to Cart
T21	98-21D-2	Key - Countershalt Gear	2		—	Call for availability
T21	313432-37X	Minor Overhaul Kit			$974.57	Superseded by 984321XAdd to Cart
T21	550720	Countershaft Rear	2		—	Call for availability
T21	550952	Countershaft Front	2		—	Call for availability
T21	550889	Drive Gear/input Shaft Pocket			—	Call for availability
T21	550908	Drive Gear Fro:rtt			—	Call for availability
T21	550914	Drive Gear Rear	1		—	Call for availability
T21	550925	Mainshaft Rear	1		—	Call for availability
T21	82-463-4	Oil Seal - Drive Gear Bearing Cap	1		$13.18	Add to Cart
T21	98-463-1	Oil Seal - Mainshatt Rear Bearing Cap	1		$26.86	Add to Cart
T21	5450N	Bearing Lubricant - Packet #2 Moly Grease			—	Call for availability
T21	545080-1	Anaerobic Sealant - Mainshaft Nut			—	Call for availability
T21	747-D	Screw - Countershaft Retaining Washer	4		$3.13	Add to Cart
T21	636-W	Washer - Countershaft Retaining	2		—	Call for availability
T21	2333-1	Service Manual			—	Call for availability
T21	2776	Bulletin - Overhaul Kit Lnst.			—	Call for availability
T21	2783	Bulletin - Mainshaft Nuts	1		—	Call for availability
T21	2747	Bulletin - Control Piping Diagram			—	Call for availability
T21	312475-25X	Gasket Kit	1		$110.01	Add to Cart
T21	313024-24X	Snap Ring Kit	1		$39.11	Add to Cart
	313432-37X	Minor Overhaul Kit (included In Major Overhaul Kit 313400-84X)			$974.57	Superseded by 984321XAdd to Cart
	313747X	Front Input Bearing Kit (includes 550982 Brg & 2845 Bulletin)			—	Call for availability
	550720	Countershaft Rear			—	Call for availability
	550952	Countershaft Front			—	Call for availability
	550889	Drive Gear/input Shaft Pocket			—	Call for availability
	550981	Input Shaft Rear			—	Call for availability
	550925	Mainshaft Rear			—	Call for availability
	82-463-4	Oil Seal · · Drive Gear Bearing Cap			$13.18	Add to Cart
	98-463-1	Oil Seal · · Mainshaft Rear Bearing Cap			$26.86	Add to Cart
	5450N	Bearing Lubricant - Packet #2 Moly Grease			—	Call for availability
	545080-1	Anaerobic Sealant - Mainshaft Nut			—	Call for availability
	747-D	Screw- Countershaft Retaining Washer	4		$3.13	Add to Cart
	636-W	Washer - Countershafl Retaining	2		—	Call for availability
	2333-1	Service Manual	1		—	Call for availability
	2783	Bulletin - Mainshaft Nuts			—	Call for availability
	2747	Bulletin - Control Piping Diagram			—	Call for availability
	312475-25X	Gasket Kit			$110.01	Add to Cart
	313024-24X	Snap Ring Kit			$39.11	Add to Cart
	313429-21X	Shifter Housing Repair Kit (included In Both Major Overhaul Kits)	1		—	Call for availability
	50-80-5	Ball - Shift Rod Poppet	2		$2.28	Add to Cart
	71-24-14	Bushing	2		$9.85	Add to Cart
	70-12-1	Interlock (for AMO/AT01000-4 & 1241)	1		$2.74	Add to Cart
	52-12-3	Interlock (for AP01000-4 & P1241)	1		$13.71	Add to Cart
	274-SP	Pin - Case/shifter Housing Dowel	2		$2.77	Add to Cart
	71-459-1	Plunger - Shift Rod Poppet	2		—	Call for availability
	85-438-1	Poppet - Shift Rod	2		$49.93	Superseded by 9743834Add to Cart
	61-463-4	Seal - Shift Rod Oil	2		$7.89	Add to Cart
	72-203-5	Sleeve - Overdrive Lockout ( .656" Long)	1		—	Call for availability
	70-203-2	Sleeve - :2nd Speed Stop (5 .875" Long)	1		—	Call for availability
	71-72-1	Spring - Shift Rod Poppet (used For Manual Shift Only)	2		$2.11	Superseded by 977238Add to Cart
	97-72-4	Spring - Shift Rod Poppet Ball	2		—	Call for availability
	97-324-1-1X	Gasket - (6) Bolt Pto (contains 97-324-1 Gasket & Lnst. Tag)	1	manual lists 97-324-1-1X - we stock the base part 97-324-1	$3.91	Add to Cart
	97-324-2-1X	Gasket- (8) Bolt Pto (contains 97 -324 -2 Gasket & Lnst. Tag)		manual lists 97-324-2-1X - we stock the base part 97-324-2	$6.27	Add to Cart
	98-155-1	Gasket - Adapter Plate To Transmission Case	1		$22.03	Add to Cart
	98-223-5	Gasket - Countershaft Front Bearing Cap	2		$6.02	Add to Cart
	98-223-4	Gasket - Countershaft Rear Bearing Cap	2		$2.49	Add to Cart
	70-223-14	Gasket - Drive Gear Bearing Cap	1		$16.86	Add to Cart
	98-223-1	Gasket - Drive Gear Bearing Retainer	1		$37.92	Add to Cart
	98-223-2	Gasket - Mainshaft Rear Bearing Cap			$31.23	Add to Cart
	70-155-4	Gasket- Shifter Housing Or Top Mount Pto			$9.44	Add to Cart
T21	97-381-30	Ring - Countershaft Front Bearing Retaining	2		$6.73	Add to Cart
T21	98-381-6	Ring - Input Shaft External (used For (2)pc. Drive Gear Only)	1		$7.28	Add to Cart
T21	97-381-32	Ring - Drive Gear Internal (used For (2)pc. Drive Gear Only)	1		$4.36	Add to Cart
T21	98-381-2	Ring - Mainshaft Internal (large)	3		$5.31	Add to Cart
T21	98-381-1	Ring - Mainshaft External (large)	3		$6.27	Add to Cart
T21	97-381-6	Ring - Speedometer Drive Gear	1		$3.88	Add to Cart

Kits Not Included in Major or Minor Overhaul Kits

Item	Part No.	Description	Qty	Notes	Price
T21	313097X	"0 " Ring Klt- (to Service Air Shifter Housing)	1		$131.09	Add to Cart
T21	70-24-2	Bushing - Piston Rod	2		$40.85	Add to Cart
T21	500166-8	Plug - Welch	1		$16.75	Add to Cart
T21	80-381-7	Ring - Cylinder Snap	6		$2.57	Add to Cart
T21	70-463-1	Ring - End Cap "0	2	version * (see the manual's footnote)	—	Call for availability
T21	70-463-7	Ring - Internal Piston 11 0 11	4		$3.68	Add to Cart
T21	70-381-9	Ring - Internal Piston Snap	2		$3.38	Add to Cart
T21	70-463-3	Ring - Outer Piston "0	4	version * (see the manual's footnote)	$4.36	Add to Cart
T21	70-463-6	Ring - Piston Rod Bushing 11 0 " (internal)	2		—	Call for availability
T21	70-463-4	Ring - Piston "0	2	version * (see the manual's footnote)	$1.75	Add to Cart
T21	97-463-7	Ring - Splitter Or Range Valve Housing "0	2	version * (see the manual's footnote)	$2.61	Add to Cart
T21	330895	Lubricant- "0 " Ring			—	Call for availability
T21	2718	Bulletin - Installation Instructions			—	Call for availability
T21	2726	Bulletin - 11 0 11 Ring Repair	1		—	Call for availability
T21	312475-26X	Gasket Kit - (to Service Units With Top Mounted Pto's)	1		$133.62	Add to Cart
T21	97-324-1-1X	Gasket- (6) Bolt Pto (includes 97-324-1 Gasket & Lnst. Tag)		manual lists 97-324-1-1X - we stock the base part 97-324-1	$3.91	Add to Cart
T21	97-324-2-1X	Gasket- (8) Bolt Pto (includes 97-324 -2 Gasket & Lnst. Tag)		manual lists 97-324-2-1X - we stock the base part 97-324-2	$6.27	Add to Cart
T21	98-155-2	Gasket - Adapter Plate To Pto Case			$12.82	Add to Cart
T21	98-155-1	Gasket - Adapter Plate To Transmission Case	1		$22.03	Add to Cart
T21	98-223-5	Gasket - Countershaft Front Bearing Cap	2		$6.02	Add to Cart
T21	98-223-4	Gasket - Countershaft Rear Bearing Cap	2		$2.49	Add to Cart
T21	70-223-14	Gasket - Drive Gear Bearing Cap			$16.86	Add to Cart
T21	98-223-1	Gasket - Drive Gear Bearing Retainer			$37.92	Add to Cart
T21	98-223-2	Gasket - Mainshaft Rear Bearing Cap	1		$31.23	Add to Cart
T21	70-223-26	Gasket - Output Shaft Front & Rear Bearing Cap	2		$4.72	Add to Cart
T21	70-223-24	Gasket - Output Shaft Rear Bearing Cap			—	Call for availability
T21	70-223-25	Gasket - Pto Oil Pump Mounting			$4.82	Add to Cart
T21	70-223-23	Gasket - Reverse Shaft Front & Rear Bearing Cap			$9.31	Add to Cart

Kit Not Included in Major or Minor Overhaul Kits

Part No.	Description	Qty	Price
3124N-32X	Small Parts Kit - (used To Service Units With Top Mounted Pto's)	1	—	Call for availability
50-80-1	Ball - Shift Rod Poppet	3	$2.70	Add to Cart
70-12-1	Interlock		$2.74	Add to Cart
98-210-2	Key - Countershatt Gear	2	$28.58	Add to Cart
425-SP	Pin - Output Drive Gear Sleeve (pto)	1	$3.23	Add to Cart
97-381-30	Snap Ring - Countershaft Front Bearing Retaining	2	$6.73	Add to Cart
98-381-2	Snap Ring - Mainshaft Internal	3	$5.31	Add to Cart
98-381-1	Snap Ring - Mainshaft External	3	$6.27	Add to Cart
98-381-3	Snap Ring - Output Drive Gear (pto)	1	$4.82	Add to Cart
70-381-5	Snap Ring - Reverse Gear Shaft	2	—	Call for availability
97-381-6	Snap Ring - Speedometer Drive Gear		$3.88	Add to Cart
747-D	Screw - Countershaft Front Bearing Retainer Washer	4	$3.13	Add to Cart
61-463-4	Oil Seal · · Output Gear Shift Rod (pto)	4	$7.89	Add to Cart
22-72-5	Spring - Poppet Output Gear Shift Rod (pto)	1	$3.15	Add to Cart
22-72-2	Spring - Shift Rod Poppet	2	$2.33	Add to Cart
636-W	Washer - Countershaft Front Bearing Retainer	2	—	Call for availability
330869	Washer - Mainshaft Internal Thrust (1 8T) (large)	3	$24.39	Add to Cart
330810	Washer - Mainshaft External Thrust (24T)	3	$23.58	Add to Cart

Bearing Kits for Top Mount PTO Assemblies

Part No.	Description	Qty	Price
312476-18X	Cup And Cone Style Bearing Kit		—	Call for availability
550913	Bearing Cup - Intermediate Gear Front		—	Call for availability
550912	Bearing Cone - Intermediate Gear Front		—	Call for availability
550228	Bearing Cup - Intermediate Gear Rear		$17.18	Add to Cart
550183	Bearing Cone - Intermediate Gear Rear	1	—	Call for availability
550449	Bearing Cup - Output Shaft Front And Rear	2	—	Call for availability
550448	Bearing Gone - Output Shaft Front And Rear	2	—	Call for availability
550447	Bearing Cup - Reverse Shaft Front And Rear	2	—	Call for availability
550446	Bearing Cone - Reverse Shaft Front And Rear	2	—	Call for availability
5450N	Packet - #2 Moly Grease	1	—	Call for availability

Bulletin - Pocket Bearing Lube Lnst.

Part No.	Description	Qty	Price
550912	Bearing Cone - Intermediate Gear Front		—	Call for availability
550913	Bearing Cup - Intermediate Gear Front		—	Call for availability
550183	Bearing Cone - Intermediate Gear Rear		—	Call for availability
550228	Bearing Cup - Intermediate Gear Rear	1	$17.18	Add to Cart
550940	Bearing - Output Shaft Front And Rear	2	$151.26	Add to Cart
550941	Bearing - Reverse Shaft Front And Rear	2	$119.94	Add to Cart

Companion Flanges and Flange Yokes

Item	Part No.	Description	Qty	Price
T21	O-AM01	000 -4	TECHNOLOGIES	—	Call for availability
T21	17108	.0 " 6 -1 -138X 6- ·1 -1731 829-W 3 .750" F -7 314" 6 -2 -749 5-2 -809		—	Call for availability
T21	18108	.o · 6 .5-1 -68X 6 .5-1 -481 829-W 3 .750" F -7 314" 6 .5-2 -329		—	Call for availability
T21	1710	6 -4 -3041X 6-4-3031 829-W 5 5/16" 22 Deg		—	Call for availability
T21	1760	6 .3-4 -171X 6 .3-4-51 829-W 6 " 30 Deg		—	Call for availability
T21	1810	6 .5-4 -2271X 6 .5-4-1971 829-W 6" 30 Deg		—	Call for availability

Tabulated Bills of Material

Item	Part No.	Description	Qty	Notes	Price
T21 O	AM01	000 -4 Tabulated Bills Of Material	TECHNOLOGIES TRANSMISSION		—	Call for availability
T21	O-AM01	000 -4 Tabulated Bills Of Material	TECHNOLOGIES		—	Call for availability

Gear Gear Page 10-11

Item	Part No.	Description	Qty	Notes	Price
Use catalog	T210-59	For Parts Breakdown On These Top Mounted Pto's (internal Lube)			—	Call for availability
T21 O	AM01	000 -4 Tabulated Bills Of Material	TECHNOLOGIES		—	Call for availability

Tabulated Bills of Material

Item	Part No.	Description	Qty	Notes	Price
T21 O	AM01	000 -4 Tabulated Bills Of Material	TECHNOLOGIES		—	Call for availability

Gear Gear Page 10-11

Item	Part No.	Description	Qty	Notes	Price
	11-76	Volvo White 98-452-1 98-453-1 313254-SX			—	Call for availability
	11-87	Marmon Motor 70-410-2 6 .5-4-2271X 6 .5-4-2171 98-452-1 98-453-1 70-16-10-12X			—	Call for availability

Tabulated Bills of Material

Item	Part No.	Description	Qty	Notes	Price
T21 O	AM01	000 -4 Tabulated Bills Of Material	TECHNOLOGIES TRANSMISSION		—	Call for availability

Gear Gear Page 14-15

Item	Part No.	Description	Qty	Notes	Price
	11-38	Mack 98-452-1 98-453-1 70-16-14-2X 313127-1X			—	Call for availability

Tabulated Bills of Material

Item	Part No.	Description	Qty	Notes	Price
T21	O-AM01	000 -4 Tabulated Bills Of Material	TECHNOLOGIES TRANSMISSION		—	Call for availability
T21 O	AM01	000 -4 Tabulated Bills Of Material	TECHNOLOGIES		—	Call for availability

Technologies Transmission Bills of Material T21 O -AM01 000 -4

Item	Part No.	Description	Qty	Price
	1241-C	1241 -c 1241 -c 1241 -c AM01000-4C		$18,643.20	Superseded by 30176525Add to Cart
	300977-1	301145 -1 301151 -1 301393 -1 301474	-1	—	Call for availability
	300977-3	301145 -2 301151 -2 301393 -2 301474 -38		—	Call for availability
	300977-11	301145 -3 301151 -3 301393 -3		—	Call for availability
	300977-12	301145 -4 301151 -4 301393 -4 301474	-2	—	Call for availability
	300977-17	301145 -5 301151 -5 301393 -5		—	Call for availability
	300977-20	301145 -6 301151 -6 301393 -6 301474	-5	—	Call for availability
	300977-22	301145 -7 301151 -7 301393 -7 301474	-6	—	Call for availability
	300977-32	301145 -8 301151 -8 301393 -8 301474	-7	—	Call for availability
	300977-39	301145 -9 301151 -9 301393 -9		—	Call for availability
	300977-40	301145 -10 301151 -10 301393 -10		—	Call for availability
	300977-46	301145 -11 301151 -11 301393 -11		—	Call for availability
	300977-49	301145 -12 301151 -12 301393 -12		—	Call for availability
	300977-50	301145 -13 301151 -13 301393 -13 301474 -42		—	Call for availability
	300977-55	301145 -14 301151 -14 301393 -14		—	Call for availability
	300977-59	301145 -15 301151 -15 301393 -15		—	Call for availability
	300977-60	301145 -16 301151 -16 301393 -16		—	Call for availability
	300977-62	301145 -17 301151 -17 301393 -17 301474	-8	—	Call for availability
	300977-67	301145 -18 301151 -18 301393 -18 301474	-9	—	Call for availability
	300977-69	301145 -19 301151 -19 301393 -19 301474 -34		—	Call for availability
	300977-74	301145 -20 301151 -20 301393 -20		—	Call for availability
	300977-75	301145 -21 301151 -21 301393 -21		—	Call for availability
	300977-76	301145 -22 301151 -22 301393 -22 301474 -24		—	Call for availability
	300977-77	301145 -23 301151 -23 301393 -23 301474 -48		—	Call for availability
	300977-81	301145 -24 301151 -24 301393 -24		—	Call for availability
	300977-37	301145 -26 301151 -26 301393 -26 301474 -10		—	Call for availability
	300977-78	301145 -27 301151 -27 301393 -27		—	Call for availability
	300977-15	301145 -28 301151 -28 301393 -28		—	Call for availability
	300977-SO	301145 -29 301151 -29 301393 -29		—	Call for availability
	300977-4	301145 -30 301151 -30 301393 -30 301474 -49		—	Call for availability
	300977-7	301145 -32 301151 -32 301393 -32 301474	-3	—	Call for availability
	300977-42	301145 -33 301151 -33 301393 -33 301474 -36		—	Call for availability
	300977-43	301145 -33		—	Call for availability
	300977-18	301145 -34 301151 -34 301393 -34		—	Call for availability
	300977-63	301145 -35 301151 -35 301393 -35		—	Call for availability
	300977-44	301145 -37 301151 -37 301393 -37		—	Call for availability
	300977-36	301145 -42 301151 -42 301393 -42		—	Call for availability
	300977-2	None 301151 -44 301393 -44		—	Call for availability
	300977-5	None 301151 -45 301393 -45		—	Call for availability
	300977-6	None 301151 -46 301393 -46 301474 -31		—	Call for availability
1241	C1241-C1241-C	1241 -c AM01000-4C		—	Call for availability
1241	301151-89	301393 -89		—	Call for availability
1241	301151-90	301393 -90		—	Call for availability
1241	301151-91	301393 -91		—	Call for availability
1241	301151-92	301393 -92		—	Call for availability
	301151-93	301393 -93		—	Call for availability
	301151-94	301393 -94		—	Call for availability
	301151-95	301393 -95 301474 -15		—	Call for availability
	301151-96	301393 -96		—	Call for availability
	301151-97	301393 -97		—	Call for availability
	301151-98	301393 -98		—	Call for availability
	301151-99	301393 -99		—	Call for availability
	301151-100	301393 -100		—	Call for availability
	301151-101	301393 -101		—	Call for availability
	301151-102	301393 -102		—	Call for availability
	301151-103	301393 -103		—	Call for availability
	301151-104	301393 -104 301474 -16		—	Call for availability
	301151-105	301393 -105 301474 -43		—	Call for availability
	301151-106	301393 -106 301474 -44		—	Call for availability
	301151-107	301393 -107		—	Call for availability
	301151-108	301393 -108		—	Call for availability
	301151-109	301393 -109		—	Call for availability
	301151-110	301393 -110		—	Call for availability
	301151-111	301393 -111		—	Call for availability
	301151-112	301393 -112		—	Call for availability
	301151-113	301393 -113 301474 -17		—	Call for availability
	301151-114	301393 -114 301474 -18		—	Call for availability
	301151-115	301393 -115		—	Call for availability
1241	01241-0	1241 -0 1241 -0 AM01000-40		—	Call for availability
300978	1301146-1	301152 -1 301394 -1 301475 -1		—	Call for availability
300978	2301146-2	301152 -2 301394 -2 301475 -2		—	Call for availability
300978	5301146-3	301152 -3 301394 -3		—	Call for availability
300978	7301146-4	301152 -4 301394 -4		—	Call for availability
300978	10301146-5	301152 -5 301394 -5 301475 -20		—	Call for availability
300978	13301146-6	301152 -6 301394 -6 301475 -5		—	Call for availability
300978	23301146-7	301152 -7 301394 -7		—	Call for availability
300978	24301146-8	301152 -8 301394 -8 301475 -29		—	Call for availability
300978	29301146-9	301152 -9 301394 -9 301475 -30		—	Call for availability
300978	31301146-10	301152 -10 301394 -10		—	Call for availability
300978	4301146-11	301152 -11 301394 -11 301475 -3		—	Call for availability
300978	27301146-12	301152 -12 301394 -12 301475 -18		—	Call for availability
300978	19301146-13	301152 -13 301394 -13 301475 -19		—	Call for availability
300978	301146-14	301152 -14 301394 -14		—	Call for availability
300978	17301146-15	301152 -15 301394 -15		—	Call for availability
300978	8301146-16	301152 -16 301394 -16		—	Call for availability
300978	301146-17	301152 -17 301394 -17		—	Call for availability
300978	18301146-18	301152 -18 301394 -18		—	Call for availability
300978	301146-19	301152 -19 301394 -19		—	Call for availability
300978	301146-20	301152 -20 301394 -20		—	Call for availability

Technologies Transmission Bills of Material T21 O -AM01000 -4

Item	Part No.	Description	Price
	301152	-48 301394 -48	—	Call for availability
301053	3301395-3	301054 -3 301396 -3 301477 -7	—	Call for availability
301053	4301395-4	301054 -4 301396 -4 301477 -11	—	Call for availability
301053	5301395-5	301054 -5 301396 -5	—	Call for availability
301053	6301395-6	301054 -6 301396 -6	—	Call for availability
301053	7301395-7	301054 -7 301396 -7	—	Call for availability
301053	8301395-8	301054 -8 301396 -8	—	Call for availability
301053-10	301395-10	301054-10 301396 -10	—	Call for availability
301053-11	301395-11	301054-11 301396 -11	—	Call for availability
301053-12	301395-12	301054-12 301396 -12	—	Call for availability
301053-13	301395-13	301054-13 301396 -13 301477 -5	—	Call for availability
301053-14	301395-14	301054-14 301396 -14 301477 -6	—	Call for availability
301053-15	301395-15	301054-15 301396 -15	—	Call for availability
301053-17	301395-17	301054-17 301396 -17 301477 -10	—	Call for availability
301053-19	301395-19	301054-19 301396 -19	—	Call for availability
301053-20	301395-20	301054-20 301396 -20	—	Call for availability
301053-21	301395-21	301054-21 301396 -21 301477 -4	—	Call for availability
301053-22	301395-22	301054-22 301396 -22	—	Call for availability
301053-24	301395-24	301054-24 301396 -24	—	Call for availability

Bills of Material

Part No.	Description	Qty	Price
T21O-AM01	000 -4	TECHNOLOGIES	—	Call for availability
P1241-C	P1241 -c AP01000 -4C P1241 -d P1241 -d AP01000 -40		—	Call for availability
301053-26	301395-26 301054-26 301396 -26		—	Call for availability
301053-27	301395-27 301054-27 301396 -27		—	Call for availability
301053-28	301395-28 301396 -28 301477 -2		—	Call for availability
301053-29	301395-29 301476 -9 301396 -29		—	Call for availability
301053-30	301395-30 - 301477 -8		—	Call for availability
301053-31	301395-31 301476 -4 - 301477 -9		—	Call for availability
301053-32	301395-32 - 301477 -12		—	Call for availability
301053-33	301395-33 301476 -3 - 301477 -13		—	Call for availability
301053-34	301395-34 - 301477 -14		—	Call for availability
301053-35	301395-35 - 301477 -15		—	Call for availability
301053-36	301395-36 - 301477 -16		—	Call for availability
301053-37	301395-37		—	Call for availability
301053-38	301395-38 301476-19		—	Call for availability
301053-39	301395-39		—	Call for availability
301053-40	301395-40 301476-16		—	Call for availability
301053-41	301395-41 301476 -6		—	Call for availability
301053-42	301395-42 301476-15		—	Call for availability
301053-43	301395-43		—	Call for availability
301053-44	301395-44		—	Call for availability

No parts match that search — try the part number with no dashes.

This is the complete factory parts breakdown for the Spicer Transmission 1241-C — every part in the manual, matched to our live inventory. We stock 181 of the 492 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

This is the Spicer Illustrated Parts List covering the 1241-C transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.

Models covered	1241-C
Transmission type	Spicer heavy-duty truck transmission
Document	Illustrated Parts List (Spicer)
Length	54 pages
Format	PDF — free download

What’s inside

Service kits & assemblies with recommended stocking quantities
Mainshaft & countershaft gear groups
Drive gears, idler & auxiliary drive gears
Case, clutch & shift-bar housings
Shift lever, forks & selector assemblies
Bearings, seals, snap rings & small parts
Air-shift and range-control components (where fitted)
Exploded parts diagrams with OEM part numbers

Spicer parts & units we stock

Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:

Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
