Spicer 1241-D Parts Manual
Drive Gear Group - Input
Item A-2Item A-1BItem A-3Item B-2Item A-4Item A-5Item B-1Item A-7Item B-3Item A-8Item B-6Item A-9Item B-6Item B-4Item B-3Item B-2Item B-6Item B-4Item B-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-1 | 98-35-1 | Drive Gear- (381) ( (1) PieceD/G) Model1241 | 1 | No longer available - Call for replacement | ||
| A-1 | 98-35-3 | Drive Gear- (381) ((1) PieceD/G) Model P1241 | Call for availability | |||
| A-1 | 98-35-5 | -LX Input Shaft- (2 .594-20T Spline)( (2) PieceD/G) Model AMO/AP0100-4 | 1 | $1,692.65 | Superseded by 983551XAdd to Cart | |
| A-1A | 98-381-6 | Snap Ring - External (Model AMO/AP01000-4) | 1 | $7.28 | Add to Cart | |
| A-1B | 98-35-7-1X | Drive Gear - (381) ( (2) Piece D/G) Model AM01 000-4 | $658.96 | Superseded by 993511XAdd to Cart | ||
| A-1B | 98-35-9-1X | Drive Gear- (381) ((2) PieceD/G) Model AP01000-4 | $754.51 | Superseded by 993521XAdd to Cart | ||
| A-1C | 97-381-32 | Snap Ring - Internal (Model AMO/AP01000-4) | $4.36 | Add to Cart | ||
| A-2 | 550889 | Bearing - Drive Gear Pocket | $28.25 | Add to Cart | ||
| A-3 | 550914 | Bearing - Drive Gear Rear (Used With (1 )Pc. D/G) (Mods. 1241/P1241) | $152.25 | Add to Cart | ||
| A-3 | 550981 | Bearing Input Shaft Rear (Models AMO/AP01000-4) | 1 | $1,344.75 | Add to Cart | |
| A-4 | 98-37-1 | Spacer- (Used With (1)pc. Dig) (Models 1241/P1241) | 1 | No longer available - Call for replacement | ||
| A-4 | 98-37-9 | Spacer- (Used With (2) Piece Dig) (Models AMO/AP01000-4) | $44.01 | Add to Cart | ||
| A-5 | 550908 | Bearing - Drive Gear Front (Used With (1)pc. D/G) (Models 1241/P1241) | 1 | $105.58 | Add to Cart | |
| A-5 | 313747X | Bearing Input Shaft Front (Models AMO/AP01000-4) | Call for availability | |||
| A-7 | 829-W | Slinger- Oil (Used With (1)pc. D/G) (Models 1241/P1241) | Call for availability | |||
| A-7 | 231745 | Slinger- Oil (Used With (2)pc. D/G) (Models AMO/AP01000-4) | Call for availability | |||
| A-8 | 98-468-1 | Baffle Breather (Used With (1 )Pc. D/G A.S .S .N 282191 0) | Call for availability | |||
| A-8 | 98-468-2 | Baffle Breather (Used With (2)pc. D/G. A.S .S .N 2821901) | 1 | $110.19 | Add to Cart | |
| A-9 | 184-W | Washer- 1 1/2" ID (Used With (1)pc. Dig) (Models 1241/P1241) | 1 | $6.63 | Add to Cart | |
| A-9 | 330734 | Washer- 1 25/32" ID (Used With (2)pc. Dig) (Model AMO/AP01000-4) | 1 | $6.27 | Add to Cart | |
| A-10 | 500898 | N Ut- 1 1/2 " -18 Hex Head (Used With (1)pc. D/G) (Models 1241/P1241) | 1 | Call for availability | ||
| A-10 | 545047 | Nut 1 3/4" -12 Hex Head (Used With (2)pc. Dig) (AMO/AP01 000-4) | 1 | $50.37 | Add to Cart |
Mainshaft Group - Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 98-362-1 | Mainshaft- (For Base B/M 'S 300977 ,300978 ,301 145 & 301146 | Call for availability | |||
| B-1 | 98-362-3 | Mainshaft- (For All Other Base B/M 'S & All Other Shifter Hsgs. | 1 | $864.52 | Add to Cart | |
| B-1 | 98-362-2 | Mainshaft- (Models AP01000-4 & P1241) | $973.93 | Add to Cart | ||
| B-2 | 98-465-4 | Clutch Collar (ModelsAM01000-4 ,1241) | 2 | $515.72 | Add to Cart | |
| B-2 | 98-465-2 | $518.73 | Add to Cart | |||
| B-3 | 98-381-1 | Snap Ring - External | $6.27 | Add to Cart | ||
| B-4 | 330869 | Thrust Washer - Internal Splined (181) | $24.39 | Add to Cart | ||
| 8 -5 | 330810 | $23.58 | Add to Cart | |||
| B-6 | 98-381-2 | Snap Ring - Internal (AM01000-4 & 1241 Only) | 3 | $5.31 | Add to Cart | |
| B-6 | 313206 | -LX- For Manual Shift Units | Call for availability | |||
| B-6 | 313206-2X | For Units With Top Mount PTO's 313051X,313232X And 313254X | Call for availability |
Countershaft Group
Item C-9Item C-10Item B-17Item B-13Item B-7Item B-16Item B-8Item B-14Item B-15Item B-11Item B-10Item B-9Item C-2Item C-3Item C-6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-7 | 98-8-3 | Gear - Mainshaft 2nd Speed (34T) (Models AM01 000 -4 & 1241} | 1 | $792.63 | Superseded by 9981Add to Cart | |
| B-7 | 98-8-6 | Gear - Mainshaft 2nd Speed (34T) (Models AP01000-4 & P1241) | 1 | Call for availability | ||
| B-8 | 98-8-13 | Gear - Mainshaft 4th Speed (28T) Overdrive (Models AM01000 -4 & 1241) | 1 | $650.05 | Superseded by 9983Add to Cart | |
| B-8 | 98-8-18-1X | Gear - Mainshaft Overdrive (28T)(Curvic Teeth) (Mods. AP0100 -4 & P1241) | $1,605.91 | Superseded by 99861XAdd to Cart | ||
| N .S | 98-37-7 | Spacer- Mainshaft Overdrive Lock-Out | Call for availability | |||
| B-9 | 98-8-24 | Gear- Mainshaft 1st Speed (44T) (AM01000-4C & 1241 -C) | $1,137.76 | Superseded by 9988Add to Cart | ||
| B-9 | 98-8-14 | Gear- Mainshaft 1st Speed (44T) (AP01 000-4C & P1241 C) | $1,277.94 | Superseded by 9984Add to Cart | ||
| B-9 | 98-8-7 | Gear- Malnshaft 1st Speed (38T) (AM01 000 -40 & 1241 -0) | $481.09 | Superseded by 9982Add to Cart | ||
| B-9 | 98-8-20 | Gear- Malnshaft 1st Speed (38T) (AP01000 -40 & P1241 -D) | Call for availability | |||
| B-10 | 98-37-2 | Spacer- Mainshaft 1st Speed Gear (AM01000-4 & 1241) | $280.80 | Add to Cart | ||
| B-10 | 98-37-6 | Spacer- Mainshaft 1st Speed Gear (AP01000-4 & P1241) | $59.83 | Add to Cart | ||
| B-11 | 550925 | Bearing - Mainshaft Rear | $107.78 | Add to Cart | ||
| B-13 | 500007-9 | Key - #3 Woodruff (1/8 "x1/2 ") (For Speedo Drive Gear) | $2.59 | Add to Cart | ||
| B-14 | 98-452-1 | Gear - Speedometer Drive (4T) (Mechanical) | $95.06 | Add to Cart | ||
| B-14 | 98-452-2 | Gear- Speedometer Signal (16 Grooves} (Electronic) | $143.48 | Add to Cart | ||
| B-15 | 97-381-6 | Snap Ring - Speedometer Drive Or Signal Gear | $3.88 | Add to Cart | ||
| B-16 | 330734 | Washer - 1 25/32" ID | $6.27 | Add to Cart | ||
| B-17 | 545047 | Nut - 1 3/4" -12 Hex Head Sell -Locking | $50.37 | Add to Cart | ||
| C-1 | 98-30-9-1X | C':>untershaft (211) (Incl Snap Ring 97-381 -30) (AM01 000-4C 1241 C) | 2 | Call for availability | ||
| C-1 | 98-30-10-1X | Countershaft (27T) (Incl Snap Ring 97-381 -30) (AM01 000-4D ,1241 D) | 2 | Call for availability | ||
| C-2 | 98-210-2 | Key- Square | 2 | $28.58 | Add to Cart | |
| C-3 | 98-196-7 | Gear- 2nd Speed C/S (311) | 2 | $864.12 | Superseded by 991961Add to Cart | |
| C-4 | 98-196-8 | Gear - 4th Speed C/S (391) Overdrive | 2 | $1,017.46 | Superseded by 991962Add to Cart | |
| C-5 | 98-1-1 | Gear- Cis Drive (431) | 2 | $854.49 | Superseded by 9911Add to Cart | |
| C-6 | 550952 | Bearing - Cis Front | 2 | $231.89 | Add to Cart | |
| C-7 | 97-381-30 | Snap Ring - Bearing Retaining | 2 | $6.73 | Add to Cart | |
| C-8 | 97-381-34 | Ring - Spacer C/S Rear Bearing (Right Hand Side) | 1 | $4.59 | Add to Cart | |
| C-9 | 550720 | Bearing - Cis Rear | 2 | $115.32 | Add to Cart | |
| C-10 | 636-W | Washer - Cis Bearing Retaining | 2 | Call for availability | ||
| C-11 | 747-D | Bolt - 112" -20 X 1 1 /8 | 4 | version * (see the manual's footnote) | $3.13 | Add to Cart |
Countershaft Front Bearing Cap Group
Item G-7Item G-5Item F-2Item F-3Item F-4Item E-1Item E-2Item G-4Item G-1Item G-11Item G-3Item E-3Item F-6Item G-2Item G-6Item G-12Item G-13Item G-8Item F-1Item F-5Item G-9Item G-10Item E-1Item F-7Item E-3Item F-10Item E-2Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 98-223-5 | Gasket | 2 | $6.02 | Add to Cart | |
| E-2 | 98-22-1 | Cap | 2 | $40.23 | Add to Cart | |
| E-3 | 545002-4 | BQit- 3/8 " -16x 1 1/8 " Hex Head Self-Locking | 10 | $6.93 | Add to Cart |
Drive Gear Bearing Cap and Retainer Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 98-223-1 | Gasket - Drive Gear Bearing Retainer | $37.92 | Add to Cart | ||
| F-2 | 98-360-3-1 | X Retainer Assembly (Used With (1)pc. Drive Gear) | Call for availability | |||
| F-3 | Hetainer | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| F-4 | 4328X | Breather | $56.22 | Add to Cart | ||
| N .S | 500113-3 | Plug Breather Hole Shifter Hsg (See Ref. No. K-1 1 Page 11) | Call for availability | |||
| N .S | 500112 | Plug Breather Hole, Top Mount | Call for availability | |||
| N .S | 98-360-4-1 | X Assembly (Used With (2)pc. Drive Gear) | Call for availability | |||
| F-5 | 545001-3 | Bolt- 1/2 " -13 X 1 3/4" Hex Head Self-Locking | 6 | $11.55 | Add to Cart | |
| F-6 | 70-223-14 | Gasket - Front Bearing Cap | $16.86 | Add to Cart | ||
| F-7 | 311726X | Cap Assembly (Includes F -8 And F-9) | $190.36 | Add to Cart | ||
| F-8 | 70-19-39 | Cap | 1 | $190.36 | Superseded by 311726XAdd to Cart | |
| F-9 | 82-463-4 | Oil Seal | 1 | $13.18 | Add to Cart | |
| F-10 | 545028-2 | Bolt - 7/16" -14 X 1 1/2" Hex Head Self-Locking | 6 | $2.87 | Add to Cart | |
| F-11 | 70-410-2 | Trunion | Call for availability |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-11 | 98-15-1-1X | Case Assembly (Includes G-1 Thru G -7) | $5,871.11 | Add to Cart | ||
| G-1 | Case | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| G-2 | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| G-3 | 252-SP | Pin - Nameplate | 4 | $1.90 | Add to Cart | |
| G-4 | 62-39-4 | Drain And Oil Line Plug | 2 | $9.50 | Add to Cart | |
| G-5 | 500114 | Plug - 1/2" -14 Nptf Thermocouple | Call for availability | |||
| G-6 | 50-39-20 | Plug - Magnetic Filler | 1 | $34.40 | Add to Cart | |
| G-7 | 274-SP | Dowel Pin | 2 | $2.77 | Add to Cart | |
| G-8 | 97-324-2 | Gasket - 8 Bolt PTO Opening | $6.27 | Add to Cart | ||
| G-9 | 73-267-1 | Cover - 8 Bolt PTO Opening | 1 | $160.99 | Add to Cart | |
| G-10 | 545012 | Bolt - 7/16" -14 X 3/4" Flanged Head Self-Locking | 8 | $3.23 | Add to Cart | |
| G-11 | 97-324-1 | Gasket - 6 Bolt PTO Opening | $3.91 | Add to Cart | ||
| G-12 | 50-267-2 | Cover - 6 Bolt PTO Opening | 1 | $122.97 | Add to Cart | |
| G-13 | 330800 | Bolt - 3/8" -16 X 3/4" Flanged Head Self-Locking | 6 | Call for availability |
CASE Bearing CAP and Related Parts
Item K-3Item K-9Item K-8Item K-10Item K-5Item K-4Item K-15Item K-2Item K-1Item J-2CItem J-2BItem J-3AItem J-2Item J-1Item K-6Item H-6Item H-7Item J-3Item J-2Item J-1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-6 | 330812 | Stud 7/8" -14 & 7/8" -9 X 5 1/4" Rear Anchor | 2 | $25.18 | Add to Cart | |
| K-6 | 330812-1 | Stud 7/8 " -14 & 7/8 " -9 X 5 3/4" Rear Anchor | 2 | $29.96 | Add to Cart | |
| K-6 | 330812-2 | Stud 7/8 " -14 & 7/8 " -9 X 4 1/8" Rear Anchor | 2 | $32.21 | Add to Cart | |
| K-6 | 330812-3 | Stud 7/8 " -14 & 7/8" -9 X 4 7/16" Rear Anchor | 2 | $30.95 | Add to Cart | |
| K-6 | 330812-4 | Stud -7/8 " -14 & 7/8 " -9 X 6 3/4" Rear Anchor | 2 | $35.85 | Add to Cart | |
| K-6 | 330812-5 | Stud 7/8" -14 & 7/8" -9 X 5" Rear Anchor | 2 | Call for availability | ||
| K-6 | 330812-7 | Stud 7/8" -14 & 7/8" -9 X 6" Rear Anchor | 2 | Call for availability | ||
| K-6 | 330812-8 | Stud 7/8 " -14 & 7/8 " -9 X 5 3/4" Rear Anchor (Longer Thd On Mntg End) | 2 | Call for availability | ||
| K-6 | 330812-9 | Stud 7/8 " -14 & 7/8 " -9 X 6 1/4" Rear Anchor | 2 | $32.92 | Add to Cart |
Mainshaft Rear Bearing Cap Group - for Gear Driven Speedometer
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 98-223-2 | Gasket | $31.23 | Add to Cart | ||
| H-2 | 98-19-1-2X | Bearing Cap Sub-Assy. (Includes H -3 ,H -4 And H -5) | $379.81 | Superseded by 981951XAdd to Cart | ||
| H-3 | Bearing Cap | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| H-4 | 98-463-1 | Oil Seal | $26.86 | Add to Cart | ||
| H-5 | 60-475-1 | Speedometer Bushing | $32.75 | Add to Cart | ||
| H-6 | 98-453-1 | Gear- Speedometer Driven (12T) | $115.05 | Add to Cart | ||
| H-6 | 55-334-1 | Plug (Used Without Speedometer Driven Gear) | $88.44 | Add to Cart | ||
| H-7 | 98-454-1-1X | Sleeve And Seal Assembly - Speedometer Driven Gear | No longer available - Call for replacement | |||
| N .S | 44-539-1 | Dust Cap | $9.19 | Add to Cart | ||
| H-8 | 545001-4 | Bolt -1 12 " -13x 1 1/2 " Hex Head Self-Locking | 4 | $1.74 | Add to Cart | |
| H-9 | 545001-9 | Bolt- 1/2" -13 X 2 5/8" Hex Head Self-Locking | 2 | Call for availability |
Mainshaft Rear Bearing Cap Group - for Electronic Speedometer
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 98-223-2 | Gasket | $31.23 | Add to Cart | ||
| H-2 | 98-19-5-1X | Bearing Cap Sub-Assy. (Includes H -3 ,H -4 ,H -5 ,55-334 -1 & 545021) | $379.81 | Add to Cart | ||
| H-3 | Bearing ·Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| H-4 | 98-463-1 | Oil Seal | 1 | $26.86 | Add to Cart | |
| H-5 | 60-475-1 | Speedometer Bushing | 1 | $32.75 | Add to Cart | |
| N .S | 55-334-1 | Plug Speedo Outlet | $88.44 | Add to Cart | ||
| N .S | 545021 | Plug Electronic Speedo/Cruise | $18.89 | Add to Cart | ||
| H-8 | 545001-4 | B<Dit - 1/2" -13 X 1 1/2" Hex Head Self-Locking | 4 | Call for availability | ||
| H-9 | 545001-9 | Bolt - 1/2" -13 X 2 5/8" Hex Head Self-Locking | 2 | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 98-223-4 | Gasket - Right And Left Side | 2 | $2.49 | Add to Cart | |
| J-2 | 98-22-3 | Cap - Left Side | $24.32 | Add to Cart | ||
| and | 98-22-5 | Cap - Right Side | $130.56 | Add to Cart | ||
| J :2a | 70-223-25 | Gasket - Countershaft Plate | $4.82 | Add to Cart | ||
| J-2B | 98-20-2 | Plate - Oil Pump Opening | 1 | Call for availability | ||
| J-2C | 545005-2 | Screw - Oil Pump Plate (5/16" -18 X 3/4") | 4 | $1.66 | Add to Cart | |
| J-3 | 545002-4 | Bolt- 3/8" -16 X 1 1/8" Hex Head Self-Locking | 5 | $6.93 | Add to Cart | |
| J-3A | 545002-6 | Bolt - 3/8" -16 X 1 3/8" Hex Head Self-Locking (For Right Side Cap) | 5 | $2.29 | Add to Cart |
Adapter Plate Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 98-155-1 | Gasket - Adapter Plate Or Shifter Housing | $22.03 | Add to Cart | ||
| K-2 | 98-215-3 | Adapter Plate | 1 | $1,002.64 | Add to Cart | |
| K-3 | 545094 | Bolt - 7/16" -14 X 7/8" Socket Head Self-Locking | 3 | $3.00 | Add to Cart | |
| K-4 | 330564-2 | Lift Hook | 2 | $2.39 | Add to Cart | |
| K-5 | 545028 | Bolt - 7/16" -14 X 1 1/4" Hex Head Self-Locking | 15 | $3.00 | Add to Cart | |
| K-8 | 139-W | Washer - 29/32" ID Case Rear Anchor Stud | 2 | $2.82 | Add to Cart | |
| K-9 | 500371-9 | N Ut- 7/8-14 Hex | 2 | Call for availability | ||
| K-10 | 70-155-4 | Gasket - Shifter Housing And PTO | $9.44 | Add to Cart | ||
| K-15 | 500114 | Plug - Oil Cooler Return Hole | Call for availability |
Shifter Housing Assembly • (see Note)
Item R-3Item R-12Item R-7Item R-18Item R-5Item R-10Item K-9Item K-8Item K-11Item R-1Item K-5Item K-4Item R-13Item K-1Item R-17Item R-3Item R-14Item R-15Item R-16Item R-7Item R-6Item R-8Item R-11Item R-9Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | Housing-Shifter (Use 'With Breather In Bearing Cap) 1 1 | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-3 | 97-72-4 | Spring Poppet 2 2 | 2 | Call for availability | ||
| R-5 | 98-67-16-1 | '( Shift Rod And Bushing Assembly - 3rd & 4th Speed 1 - | Call for availability | |||
| If | 98-67-17-1X | Shift Rod And Bushing Assembly • 3rd & 4th Speed 1 | 1 | manual lists 98-67-17-1X - we stock the base part 98-67-17 | $47.95 | Add to Cart |
| R-6 | 98-67 | ·1 Shift Rod • 1 | Call for availability | |||
| If | 98-67-12 | Shift Rod 1 | 1 | Call for availability | ||
| R-7 | 71-24-14 | Bushing • 1 1 | 1 | $9.85 | Add to Cart | |
| R-8 | 98-66-1 | Shift Fork 1 1 | 1 | $604.11 | Superseded by 986612Add to Cart | |
| R-9 | 545004 | Bolt • X 13As" Shift Fork Set-Self-Locking 2 2 | 2 | $6.27 | Superseded by 545063Add to Cart | |
| R-10 | 52-203-5 | Sleeve 3rd Shift Stop (o/1a" Length) 1 1 | 1 | Call for availability | ||
| R-11 | 98-203 | ·1 Sleeve • Overdrive Stop (S1%2 " Length) 1 | Call for availability | |||
| " | 98-203-2 | Sleeve • Overdrive Lock Nut (5 1 O/,S" Length) 1 | Call for availability | |||
| " | 98-203 | ·3 Sleeve Overdrive Stop (51/4'' Length) | 1 | Call for availability | ||
| R-12 | 98-67-16-1X | Shift Rod And Bushing Assembly • 1st & 2nd Speed 1 1 | 1 | Call for availability | ||
| R-13 | 98-67 | ·1 Shift Rod • 1 1 | 1 | Call for availability | ||
| R-14 | 98-66-1 | Shift Fork 1 1 | 1 | $604.11 | Superseded by 986612Add to Cart | |
| R-15 | 52-203-5 | Sleeve • 1st Shift Stop (O/,A" Length) 1 1 | 1 | Call for availability | ||
| R-16 | 98-203 | ·1 Sleeve 2nd Shift Stop (51'132" Length) 1 1 | 1 | Call for availability | ||
| R-17 | 70-12-1 | Interlock 1 1 | 1 | $2.74 | Add to Cart | |
| R-18 | 61-463-4 | Oil Seal Shift Rod 2 2 | 2 | $7.89 | Add to Cart |
Parts Usted Below Are Not Included in Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 98-155 | ·1 Gasket • Shifter Housing 1 1 | 1 | Call for availability | ||
| K-4 | 330564-2 | Uft Hook 2 2 | 2 | $2.39 | Add to Cart | |
| K-5 | 545028 | Bolt ¥1e"-14 X 1 'Ia" Hex Head Self-Locking 18 18 | 18 | $3.00 | Add to Cart | |
| K-8 | 139-W | Washer 22%2'' J.D. • Rear Anchor Stud • 2 2 | 2 | $2.82 | Add to Cart | |
| K-9 | 550371 | ·9 Nut • 7 /A" 14 Hex • 2 2 | 2 | Call for availability | ||
| K-11 | 500113 | ·3 (1) Or Plug • Breather - (When Breather Is In Drive Gear Bearing Retainer) | $2.13 | Add to Cart | ||
| H | 5951X | (1) Breather (When Breather Is Not In Drive Gear Bearing Retainer) 1 | 1 | $7.69 | Add to Cart |
Technologies Manual Shifter Housing Parts T21 O -AM01 000 -4
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 70-16-10 | Shifter Housing 1 1 1 1 1 | 1 | Call for availability | ||
| R-2 | 85-438-1 | Poppet - Shift Rod 2 2 2 2 2 | 2 | $49.93 | Superseded by 9743834Add to Cart | |
| R-3 | 71-72-1 | Spring - Shift Rod Poppet 2 2 2 2 2 | 2 | $2.11 | Superseded by 977238Add to Cart | |
| R-5 | 98-67-14-1X | Shift Rod And Bushing Assembly- 1st And 2nd Speed 1 1 1 1 1 | 1 | $165.02 | Add to Cart | |
| R-6 | Shift Rod 1 1 1 1 1 | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-771 | 24-14 | Bushing 1 1 1 1 1 | 1 | Call for availability | ||
| R-10 70 | 203-2 | Sleeve - 2nd Speed Stop (5 7/8" Long) 1 1 1 1 1 | 1 | Call for availability | ||
| R-11 98 | 66-12 | Shift Fork- 1st And 2nd Speed 1 1 1 1 1 | 1 | Call for availability | ||
| R-13 98 | 67-15-1X | Shift Rod And Bushing Assembly - 3rd And 4th Speed 1 1 1 1 1 | 1 | Call for availability | ||
| R-14 | Shift Rod 1 1 1 1 1 | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-15 71 | 24-14 | Bushing 1 1 1 1 1 | 1 | Call for availability | ||
| R-16 72 | 203-5 | Sleeve - Overdrive Lockout- Length 21/32" - 1 - 1 - | 1 | Call for availability | ||
| R-18 61 | 463-4 | Oil Seal - Shift Rod 2 2 2 2 2 | 2 | Call for availability | ||
| K-10 70 | 155-4 | Gasket - Shifter Housing 1 1 - - - | Call for availability | |||
| K-10 70 | 300977 | 300978, 301145 & 301146) Have Been Superseded By: | Call for availability |

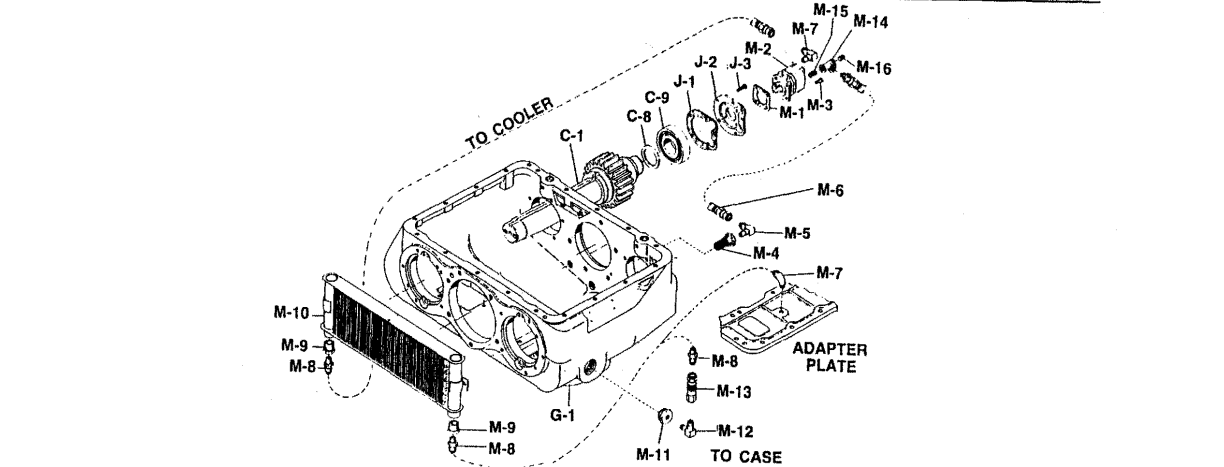

Oil Cooler Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313231-4X | Oil Pump Kit , 1 | 1 | $946.18 | Add to Cart | ||
| M-1 | 70-223-25 | Gasket - Oil Pump 1 1 | 1 | $4.82 | Add to Cart | |
| M-2 | 313292 | Oil Pump Assy. (Serviced As 313292-1X Which Incl M -1) 1 1 | 1 | Call for availability | ||
| C-8 | 97-381-34 | Spacer - Countershaft Rear Bearing 1 1 | 1 | Call for availability | ||
| J-1 | 98-223-4 | Gasket - Countershaft Rear Bearing Cap 1 1 | 1 | $2.49 | Add to Cart | |
| J-2 | 98-22-5 | Bearing Cap - Countershaft Rear 1 1 | 1 | $130.56 | Add to Cart | |
| J-3 | 545002-6 | Bolt- 318"-16 X 1 1/4" Hex Head Self-Locking 5 5 | 5 | $2.29 | Add to Cart | |
| M-3 | 545005-7 | Bolt (5/16" -18 X 7/S")Piscard Screws From Plate On Cis Brg Cap 4 4 | 4 | Call for availability | ||
| M-3 | 313231-SX | Oil Cooler And Plumbing Kit 1 1 | 1 | Call for availability | ||
| M-10 | 313110 | Oil Cooler Assembly 1 - | Call for availability | |||
| M-4 | 313229 | Oil Filter 1 1 | 1 | Call for availability | ||
| M-5 | 545051 | Elbow 90 Deg Case Outlet 1 1 | 1 | Call for availability | ||
| M-6 | 313117-3 | Hose Assembly - Case To Pump 1 1 | 1 | Call for availability | ||
| M-7 | 545051 | Elbow - Pump Outlet 2 2 | 2 | Call for availability | ||
| M-8 | 545036 | Adapter- Case Inlet, Cooler Inlet & Outlet 3 - | Call for availability | |||
| M-9 | 500714-14 | Reducer Bushing - Cooler Inlet & Outlet 2 - | Call for availability | |||
| M-11 | 500714-18 | Reducer Bushing - Case Inlet 1 1 | 1 | Call for availability | ||
| M-12 | 545054 | Elbow 90 Deg Case Inlet 1 1 | 1 | Call for availability | ||
| M-13 | 545053 | Cluick Disconnect Coupling - Case Inlet 1 ' - | Call for availability | |||
| M-14 | 545146 | Tee - Pipe (Pump Inlet) 1 1 | 1 | Call for availability | ||
| M-15 | 545049-1 | Nipple - Pump Inlet 1 1 | 1 | $5.12 | Add to Cart | |
| M-16 | 500114 | Plug -(End Of Pipe Tee) 1 1 | 1 | Call for availability | ||
| C-1 | 98-30-9-1X | * * Countershaft (21 1)- Model1241/P1241 -C (Base B/M 'S 300977,301145) - 1 | Call for availability | |||
| C-1 | 98-30-10-1X | * • Countershaft (271)- Modes 1241/P1241 -D (Base Bim 'S 300978 ,301 146) - - | 1 | Call for availability | ||
| • Also available | IS313480 | Heat Exchanger Assy. All Plumbing Hardware Is The Same As Shown In | Call for availability |
Basic Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | O-AM01 | 000 -4 | TECHNOLOGIES | Call for availability | ||
| T21 | 313400-61X | Major Overhaul Kit (For Base B/M 'S 300956,300957,300977) | $1,256.74 | Superseded by 984001XAdd to Cart | ||
| T21 | 98-210-2 | Key - Countershaft Gear | 2 | $28.58 | Add to Cart | |
| T21 | 545047 | Nut - Mainshaft (1 3/4" -12) | 2 | $50.37 | Add to Cart | |
| T21 | 330734 | Washer - Mainshaft Nut | 2 | $6.27 | Add to Cart | |
| T21 | 330810 | Washer - Mainshalt Thrust (241) External | $23.58 | Add to Cart | ||
| T21 | 330869 | Washer - Mainshaft Thrust (1ST) Internal | $24.39 | Add to Cart | ||
| T21 | 313432-24X | Minor Overhaul Kit | $974.57 | Superseded by 984321XAdd to Cart | ||
| T21 | 313429-21X | Shifter Housing Parts Repair Kit | Call for availability | |||
| T21 | 313400-84X | Major Overhaul Kit (For Base B/M 'S 301393,301394,301395,) | $1,256.74 | Superseded by 984001XAdd to Cart | ||
| T21 | 98-21D-2 | Key - Countershalt Gear | 2 | Call for availability | ||
| T21 | 313432-37X | Minor Overhaul Kit | $974.57 | Superseded by 984321XAdd to Cart | ||
| T21 | 550720 | Countershaft Rear | 2 | Call for availability | ||
| T21 | 550952 | Countershaft Front | 2 | Call for availability | ||
| T21 | 550889 | Drive Gear/Input Shaft Pocket | Call for availability | |||
| T21 | 550908 | Drive Gear Fro:rtt | Call for availability | |||
| T21 | 550914 | Drive Gear Rear | 1 | Call for availability | ||
| T21 | 550925 | Mainshaft Rear | 1 | Call for availability | ||
| T21 | 82-463-4 | Oil Seal - Drive Gear Bearing Cap | 1 | $13.18 | Add to Cart | |
| T21 | 98-463-1 | Oil Seal - Mainshatt Rear Bearing Cap | 1 | $26.86 | Add to Cart | |
| T21 | 5450N | Bearing Lubricant - Packet #2 Moly Grease | Call for availability | |||
| T21 | 545080-1 | Anaerobic Sealant - Mainshaft Nut | Call for availability | |||
| T21 | 747-D | Screw - Countershaft Retaining Washer | 4 | $3.13 | Add to Cart | |
| T21 | 636-W | Washer - Countershaft Retaining | 2 | Call for availability | ||
| T21 | 2333-1 | Service Manual | Call for availability | |||
| T21 | 2776 | Bulletin - Overhaul Kit Lnst. | Call for availability | |||
| T21 | 2783 | Bulletin - Mainshaft Nuts | 1 | Call for availability | ||
| T21 | 2747 | Bulletin - Control Piping Diagram | Call for availability | |||
| T21 | 312475-25X | Gasket Kit | 1 | $110.01 | Add to Cart | |
| T21 | 313024-24X | Snap Ring Kit | 1 | $39.11 | Add to Cart | |
| 313432-37X | Minor Overhaul Kit (Included In Major Overhaul Kit 313400-84X) | $974.57 | Superseded by 984321XAdd to Cart | |||
| 313747X | Front Input Bearing Kit (Includes 550982 Brg & 2845 Bulletin) | Call for availability | ||||
| 550720 | Countershaft Rear | Call for availability | ||||
| 550952 | Countershaft Front | Call for availability | ||||
| 550889 | Drive Gear/Input Shaft Pocket | Call for availability | ||||
| 550981 | Input Shaft Rear | Call for availability | ||||
| 550925 | Mainshaft Rear | Call for availability | ||||
| 82-463-4 | Oil Seal · · Drive Gear Bearing Cap | $13.18 | Add to Cart | |||
| 98-463-1 | Oil Seal · · Mainshaft Rear Bearing Cap | $26.86 | Add to Cart | |||
| 5450N | Bearing Lubricant - Packet #2 Moly Grease | Call for availability | ||||
| 545080-1 | Anaerobic Sealant - Mainshaft Nut | Call for availability | ||||
| 747-D | Screw- Countershaft Retaining Washer | 4 | $3.13 | Add to Cart | ||
| 636-W | Washer - Countershafl Retaining | 2 | Call for availability | |||
| 2333-1 | Service Manual | 1 | Call for availability | |||
| 2783 | Bulletin - Mainshaft Nuts | Call for availability | ||||
| 2747 | Bulletin - Control Piping Diagram | Call for availability | ||||
| 312475-25X | Gasket Kit | $110.01 | Add to Cart | |||
| 313024-24X | Snap Ring Kit | $39.11 | Add to Cart | |||
| 313429-21X | Shifter Housing Repair Kit (Included In Both Major Overhaul Kits) | 1 | Call for availability | |||
| 50-80-5 | Ball - Shift Rod Poppet | 2 | $2.28 | Add to Cart | ||
| 71-24-14 | Bushing | 2 | $9.85 | Add to Cart | ||
| 70-12-1 | Interlock (For AMO/AT01000-4 & 1241) | 1 | $2.74 | Add to Cart | ||
| 52-12-3 | Interlock (For AP01000-4 & P1241) | 1 | $13.71 | Add to Cart | ||
| 274-SP | Pin - Case/Shifter Housing Dowel | 2 | $2.77 | Add to Cart | ||
| 71-459-1 | Plunger - Shift Rod Poppet | 2 | Call for availability | |||
| 85-438-1 | Poppet - Shift Rod | 2 | $49.93 | Superseded by 9743834Add to Cart | ||
| 61-463-4 | Seal - Shift Rod Oil | 2 | $7.89 | Add to Cart | ||
| 72-203-5 | Sleeve - Overdrive Lockout ( .656" Long) | 1 | Call for availability | |||
| 70-203-2 | Sleeve - :2nd Speed Stop (5 .875" Long) | 1 | Call for availability | |||
| 71-72-1 | Spring - Shift Rod Poppet (Used For Manual Shift Only) | 2 | $2.11 | Superseded by 977238Add to Cart | ||
| 97-72-4 | Spring - Shift Rod Poppet Ball | 2 | Call for availability | |||
| 97-324-1-1X | Gasket - (6) Bolt PTO (Contains 97-324-1 Gasket & Lnst. Tag) | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | $3.91 | Add to Cart | |
| 97-324-2-1X | Gasket- (8) Bolt PTO (Contains 97 -324 -2 Gasket & Lnst. Tag) | manual lists 97-324-2-1X - we stock the base part 97-324-2 | $6.27 | Add to Cart | ||
| 98-155-1 | Gasket - Adapter Plate To Transmission Case | 1 | $22.03 | Add to Cart | ||
| 98-223-5 | Gasket - Countershaft Front Bearing Cap | 2 | $6.02 | Add to Cart | ||
| 98-223-4 | Gasket - Countershaft Rear Bearing Cap | 2 | $2.49 | Add to Cart | ||
| 70-223-14 | Gasket - Drive Gear Bearing Cap | 1 | $16.86 | Add to Cart | ||
| 98-223-1 | Gasket - Drive Gear Bearing Retainer | 1 | $37.92 | Add to Cart | ||
| 98-223-2 | Gasket - Mainshaft Rear Bearing Cap | $31.23 | Add to Cart | |||
| 70-155-4 | Gasket- Shifter Housing Or Top Mount PTO | $9.44 | Add to Cart | |||
| T21 | 97-381-30 | Ring - Countershaft Front Bearing Retaining | 2 | $6.73 | Add to Cart | |
| T21 | 98-381-6 | Ring - Input Shaft External (Used For (2)pc. Drive Gear Only) | 1 | $7.28 | Add to Cart | |
| T21 | 97-381-32 | Ring - Drive Gear Internal (Used For (2)pc. Drive Gear Only) | 1 | $4.36 | Add to Cart | |
| T21 | 98-381-2 | Ring - Mainshaft Internal (Large) | 3 | $5.31 | Add to Cart | |
| T21 | 98-381-1 | Ring - Mainshaft External (Large) | 3 | $6.27 | Add to Cart | |
| T21 | 97-381-6 | Ring - Speedometer Drive Gear | 1 | $3.88 | Add to Cart |
Kits Not Included in Major or Minor Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | 313097X | "0 " Ring Klt- (To Service Air Shifter Housing) | 1 | $131.09 | Add to Cart | |
| T21 | 70-24-2 | Bushing - Piston Rod | 2 | $40.85 | Add to Cart | |
| T21 | 500166-8 | Plug - Welch | 1 | $16.75 | Add to Cart | |
| T21 | 80-381-7 | Ring - Cylinder Snap | 6 | $2.57 | Add to Cart | |
| T21 | 70-463-1 | Ring - End Cap "0 | 2 | version * (see the manual's footnote) | Call for availability | |
| T21 | 70-463-7 | Ring - Internal Piston 11 0 11 | 4 | $3.68 | Add to Cart | |
| T21 | 70-381-9 | Ring - Internal Piston Snap | 2 | $3.38 | Add to Cart | |
| T21 | 70-463-3 | Ring - Outer Piston "0 | 4 | version * (see the manual's footnote) | $4.36 | Add to Cart |
| T21 | 70-463-6 | Ring - Piston Rod Bushing 11 0 " (Internal) | 2 | Call for availability | ||
| T21 | 70-463-4 | Ring - Piston "0 | 2 | version * (see the manual's footnote) | $1.75 | Add to Cart |
| T21 | 97-463-7 | Ring - Splitter Or Range Valve Housing "0 | 2 | version * (see the manual's footnote) | $2.61 | Add to Cart |
| T21 | 330895 | Lubricant- "0 " Ring | Call for availability | |||
| T21 | 2718 | Bulletin - Installation Instructions | Call for availability | |||
| T21 | 2726 | Bulletin - 11 0 11 Ring Repair | 1 | Call for availability | ||
| T21 | 312475-26X | Gasket Kit - (To Service Units With Top Mounted PTO's) | 1 | $133.62 | Add to Cart | |
| T21 | 97-324-1-1X | Gasket- (6) Bolt PTO (Includes 97-324-1 Gasket & Lnst. Tag) | manual lists 97-324-1-1X - we stock the base part 97-324-1 | $3.91 | Add to Cart | |
| T21 | 97-324-2-1X | Gasket- (8) Bolt PTO (Includes 97-324 -2 Gasket & Lnst. Tag) | manual lists 97-324-2-1X - we stock the base part 97-324-2 | $6.27 | Add to Cart | |
| T21 | 98-155-2 | Gasket - Adapter Plate To PTO Case | $12.82 | Add to Cart | ||
| T21 | 98-155-1 | Gasket - Adapter Plate To Transmission Case | 1 | $22.03 | Add to Cart | |
| T21 | 98-223-5 | Gasket - Countershaft Front Bearing Cap | 2 | $6.02 | Add to Cart | |
| T21 | 98-223-4 | Gasket - Countershaft Rear Bearing Cap | 2 | $2.49 | Add to Cart | |
| T21 | 70-223-14 | Gasket - Drive Gear Bearing Cap | $16.86 | Add to Cart | ||
| T21 | 98-223-1 | Gasket - Drive Gear Bearing Retainer | $37.92 | Add to Cart | ||
| T21 | 98-223-2 | Gasket - Mainshaft Rear Bearing Cap | 1 | $31.23 | Add to Cart | |
| T21 | 70-223-26 | Gasket - Output Shaft Front & Rear Bearing Cap | 2 | $4.72 | Add to Cart | |
| T21 | 70-223-24 | Gasket - Output Shaft Rear Bearing Cap | Call for availability | |||
| T21 | 70-223-25 | Gasket - PTO Oil Pump Mounting | $4.82 | Add to Cart | ||
| T21 | 70-223-23 | Gasket - Reverse Shaft Front & Rear Bearing Cap | $9.31 | Add to Cart |
Kit Not Included in Major or Minor Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3124N-32X | Small Parts Kit - (Used To Service Units With Top Mounted PTO's) | 1 | Call for availability | |||
| 50-80-1 | Ball - Shift Rod Poppet | 3 | $2.70 | Add to Cart | ||
| 70-12-1 | Interlock | $2.74 | Add to Cart | |||
| 98-210-2 | Key - Countershatt Gear | 2 | $28.58 | Add to Cart | ||
| 425-SP | Pin - Output Drive Gear Sleeve (PTO) | 1 | $3.23 | Add to Cart | ||
| 97-381-30 | Snap Ring - Countershaft Front Bearing Retaining | 2 | $6.73 | Add to Cart | ||
| 98-381-2 | Snap Ring - Mainshaft Internal | 3 | $5.31 | Add to Cart | ||
| 98-381-1 | Snap Ring - Mainshaft External | 3 | $6.27 | Add to Cart | ||
| 98-381-3 | Snap Ring - Output Drive Gear (PTO) | 1 | $4.82 | Add to Cart | ||
| 70-381-5 | Snap Ring - Reverse Gear Shaft | 2 | Call for availability | |||
| 97-381-6 | Snap Ring - Speedometer Drive Gear | $3.88 | Add to Cart | |||
| 747-D | Screw - Countershaft Front Bearing Retainer Washer | 4 | $3.13 | Add to Cart | ||
| 61-463-4 | Oil Seal · · Output Gear Shift Rod (PTO) | 4 | $7.89 | Add to Cart | ||
| 22-72-5 | Spring - Poppet Output Gear Shift Rod (PTO) | 1 | $3.15 | Add to Cart | ||
| 22-72-2 | Spring - Shift Rod Poppet | 2 | $2.33 | Add to Cart | ||
| 636-W | Washer - Countershaft Front Bearing Retainer | 2 | Call for availability | |||
| 330869 | Washer - Mainshaft Internal Thrust (1 8T) (Large) | 3 | $24.39 | Add to Cart | ||
| 330810 | Washer - Mainshaft External Thrust (24T) | 3 | $23.58 | Add to Cart |
Bearing Kits for Top Mount PTO Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 312476-18X | Cup And Cone Style Bearing Kit | Call for availability | ||||
| 550913 | Bearing Cup - Intermediate Gear Front | Call for availability | ||||
| 550912 | Bearing Cone - Intermediate Gear Front | Call for availability | ||||
| 550228 | Bearing Cup - Intermediate Gear Rear | $17.18 | Add to Cart | |||
| 550183 | Bearing Cone - Intermediate Gear Rear | 1 | Call for availability | |||
| 550449 | Bearing Cup - Output Shaft Front And Rear | 2 | Call for availability | |||
| 550448 | Bearing Gone - Output Shaft Front And Rear | 2 | Call for availability | |||
| 550447 | Bearing Cup - Reverse Shaft Front And Rear | 2 | Call for availability | |||
| 550446 | Bearing Cone - Reverse Shaft Front And Rear | 2 | Call for availability | |||
| 5450N | Packet - #2 Moly Grease | 1 | Call for availability |
Bulletin - Pocket Bearing Lube Lnst.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 550912 | Bearing Cone - Intermediate Gear Front | Call for availability | ||||
| 550913 | Bearing Cup - Intermediate Gear Front | Call for availability | ||||
| 550183 | Bearing Cone - Intermediate Gear Rear | Call for availability | ||||
| 550228 | Bearing Cup - Intermediate Gear Rear | 1 | $17.18 | Add to Cart | ||
| 550940 | Bearing - Output Shaft Front And Rear | 2 | $151.26 | Add to Cart | ||
| 550941 | Bearing - Reverse Shaft Front And Rear | 2 | $119.94 | Add to Cart |
Companion Flanges and Flange Yokes
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | O-AM01 | 000 -4 | TECHNOLOGIES | Call for availability | ||
| T21 | 17108 | .0 " 6 -1 -138X 6- ·1 -1731 829-W 3 .750" F -7 314" 6 -2 -749 5-2 -809 | Call for availability | |||
| T21 | 18108 | .O · 6 .5-1 -68X 6 .5-1 -481 829-W 3 .750" F -7 314" 6 .5-2 -329 | Call for availability | |||
| T21 | 1710 | 6 -4 -3041X 6-4-3031 829-W 5 5/16" 22 Deg | Call for availability | |||
| T21 | 1760 | 6 .3-4 -171X 6 .3-4-51 829-W 6 " 30 Deg | Call for availability | |||
| T21 | 1810 | 6 .5-4 -2271X 6 .5-4-1971 829-W 6" 30 Deg | Call for availability |

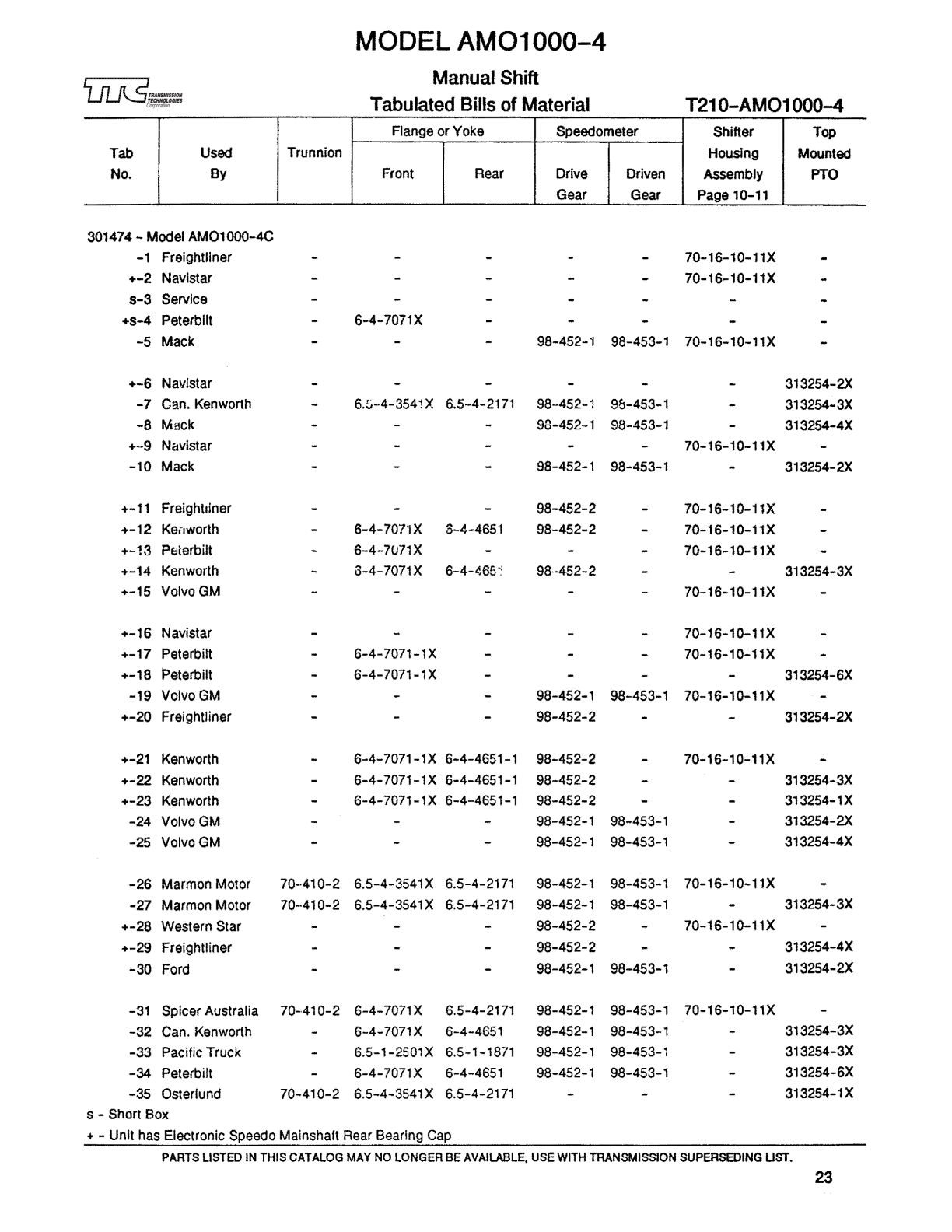

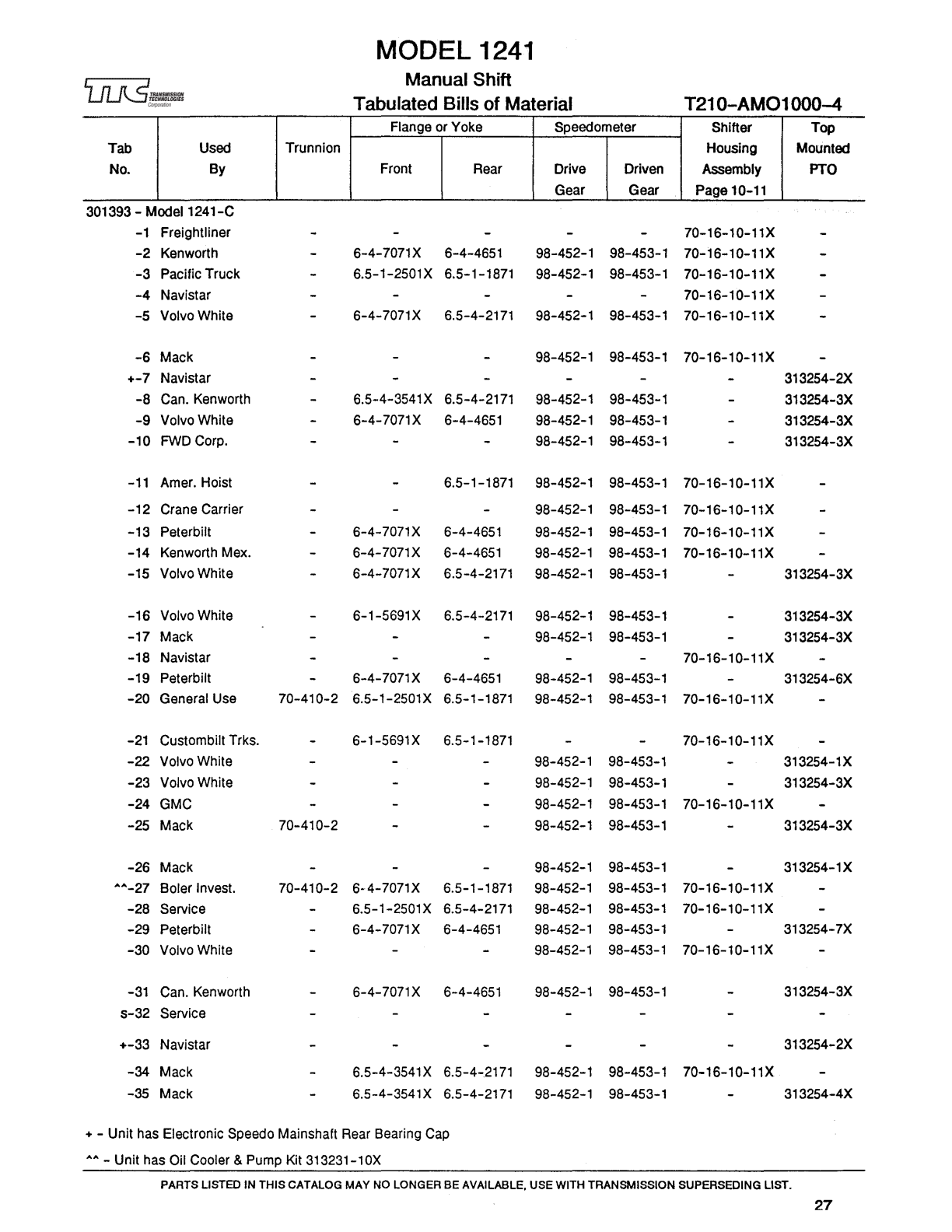

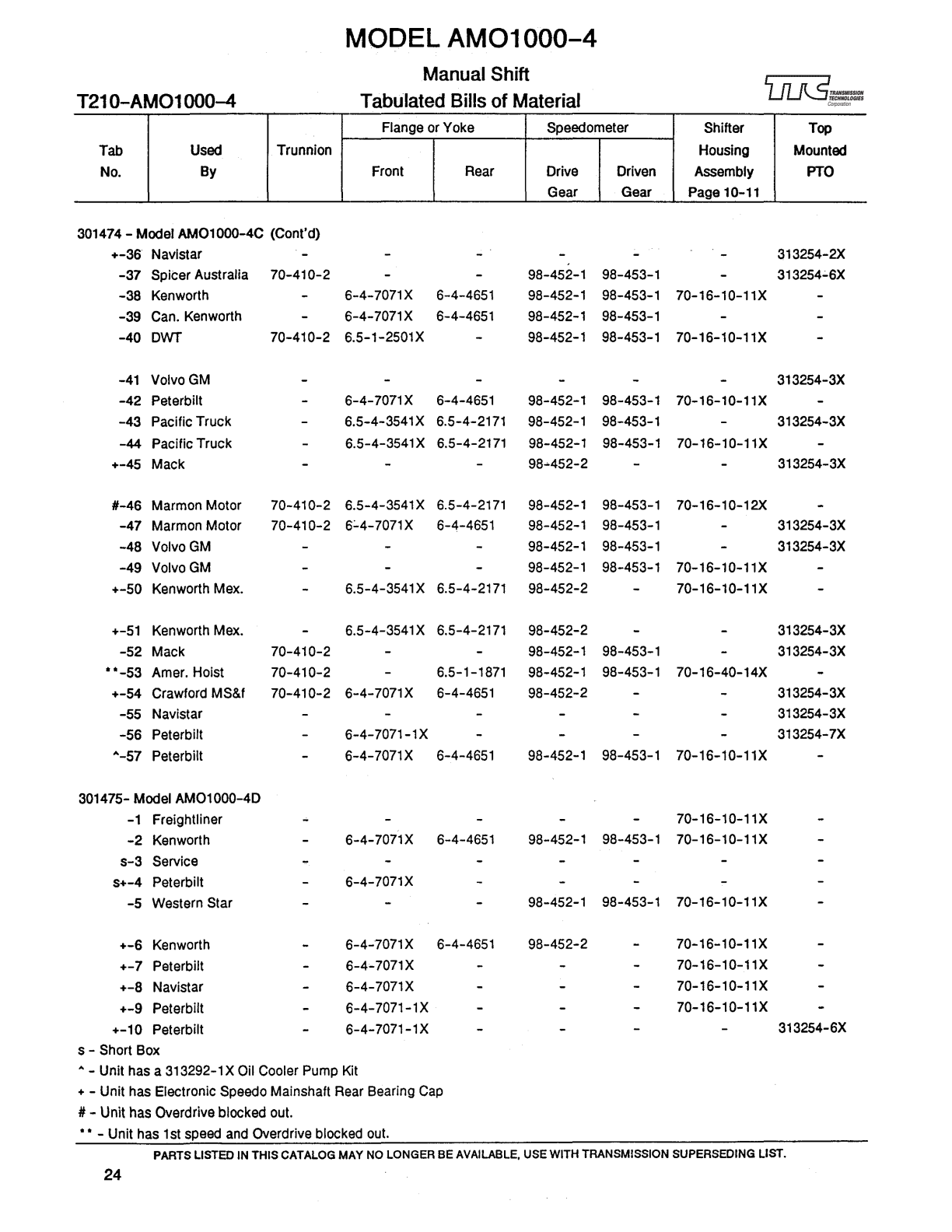

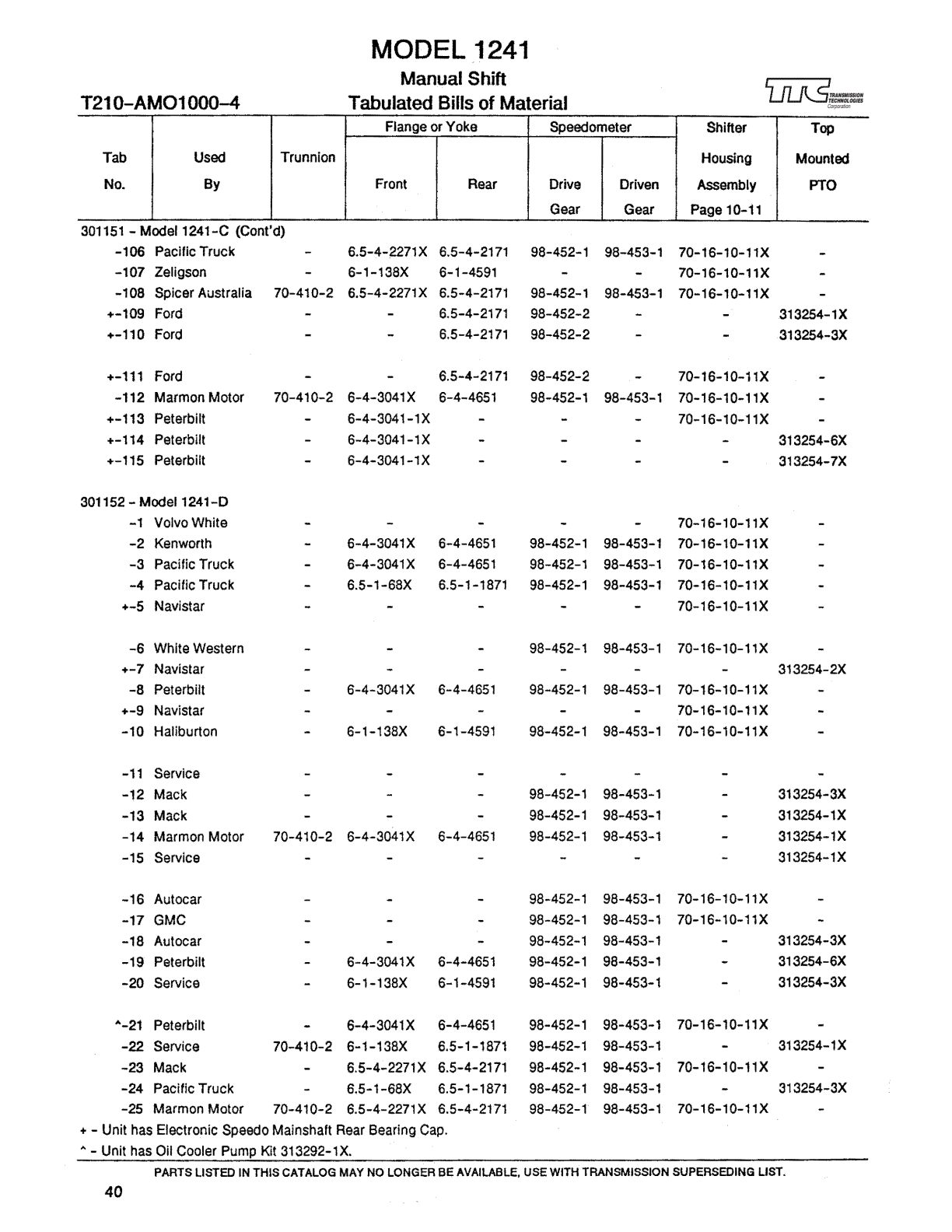

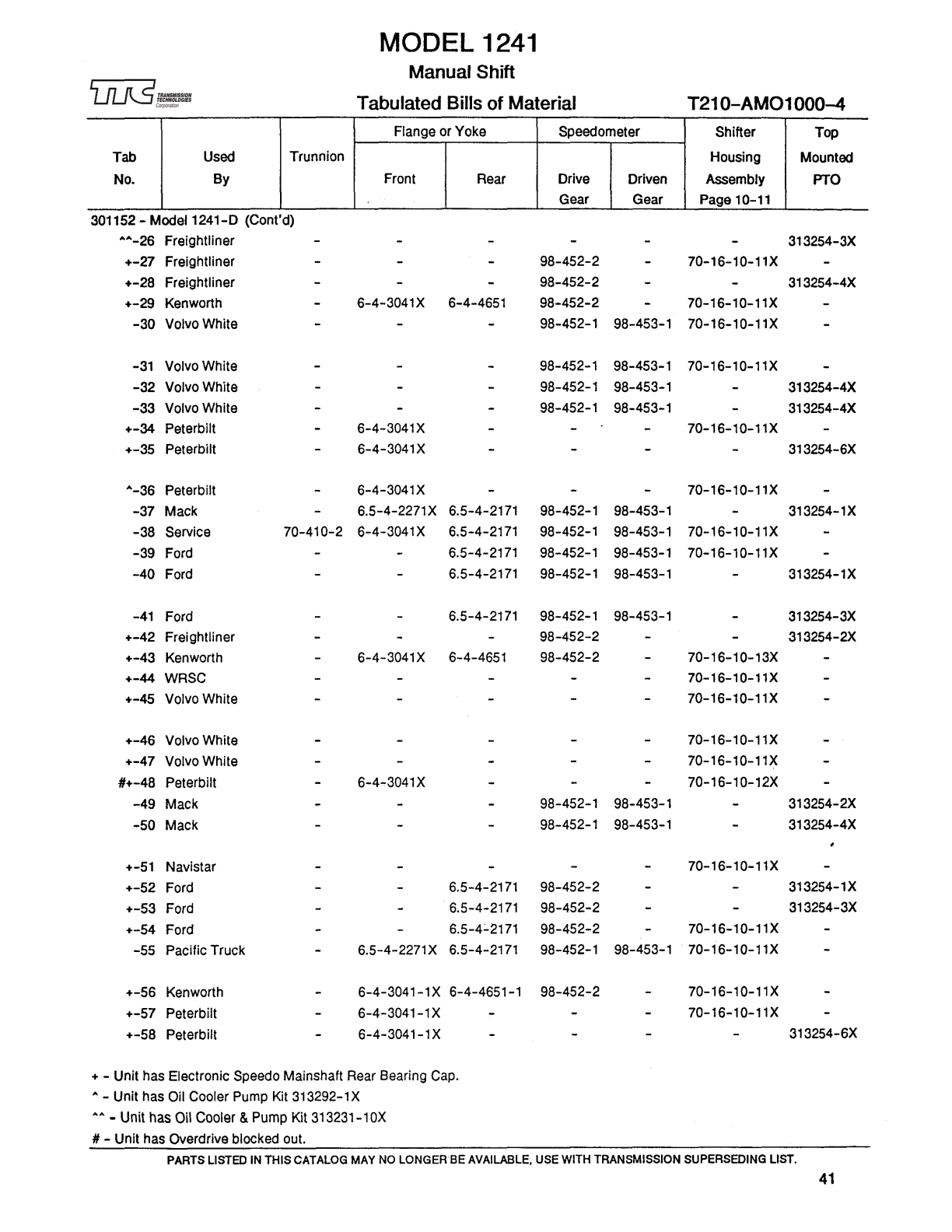

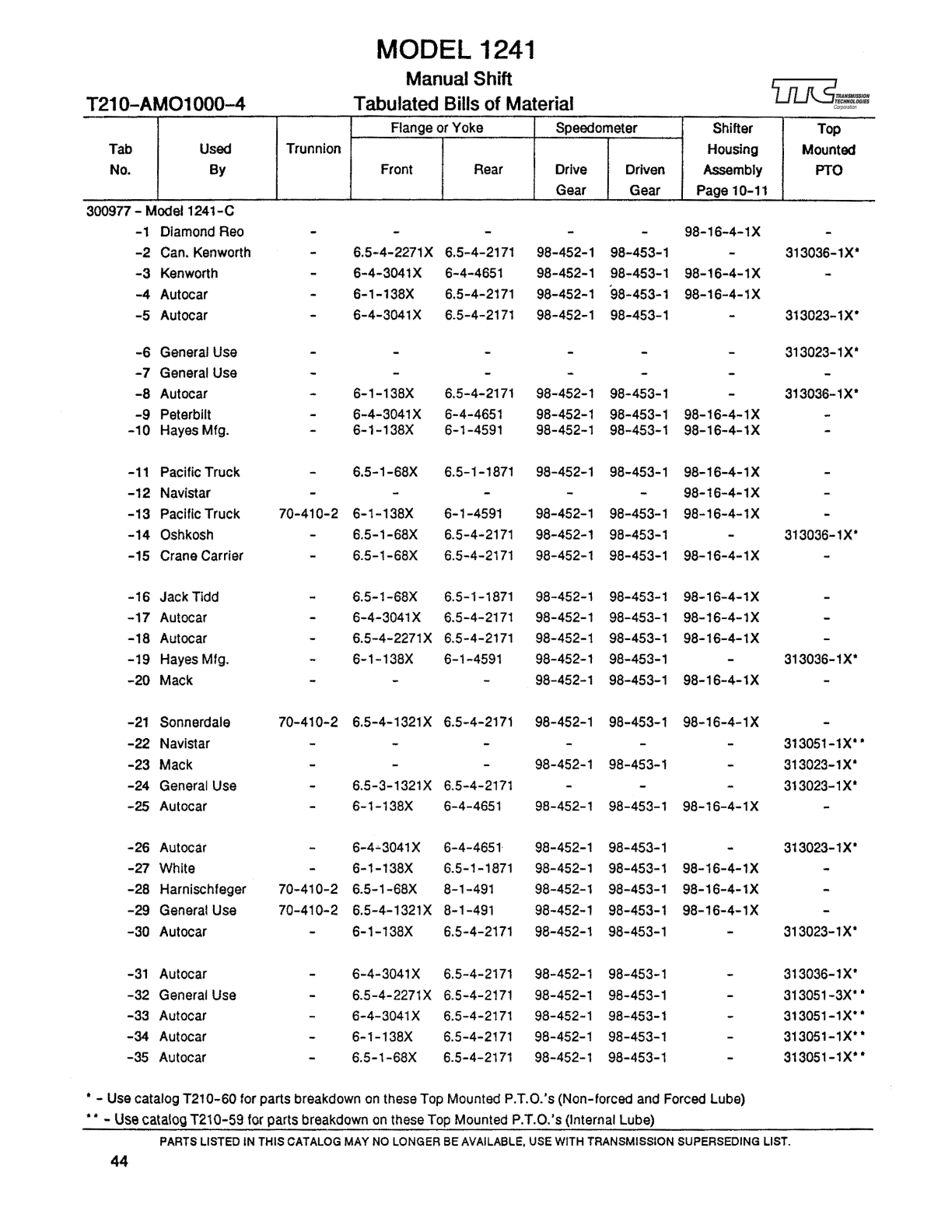

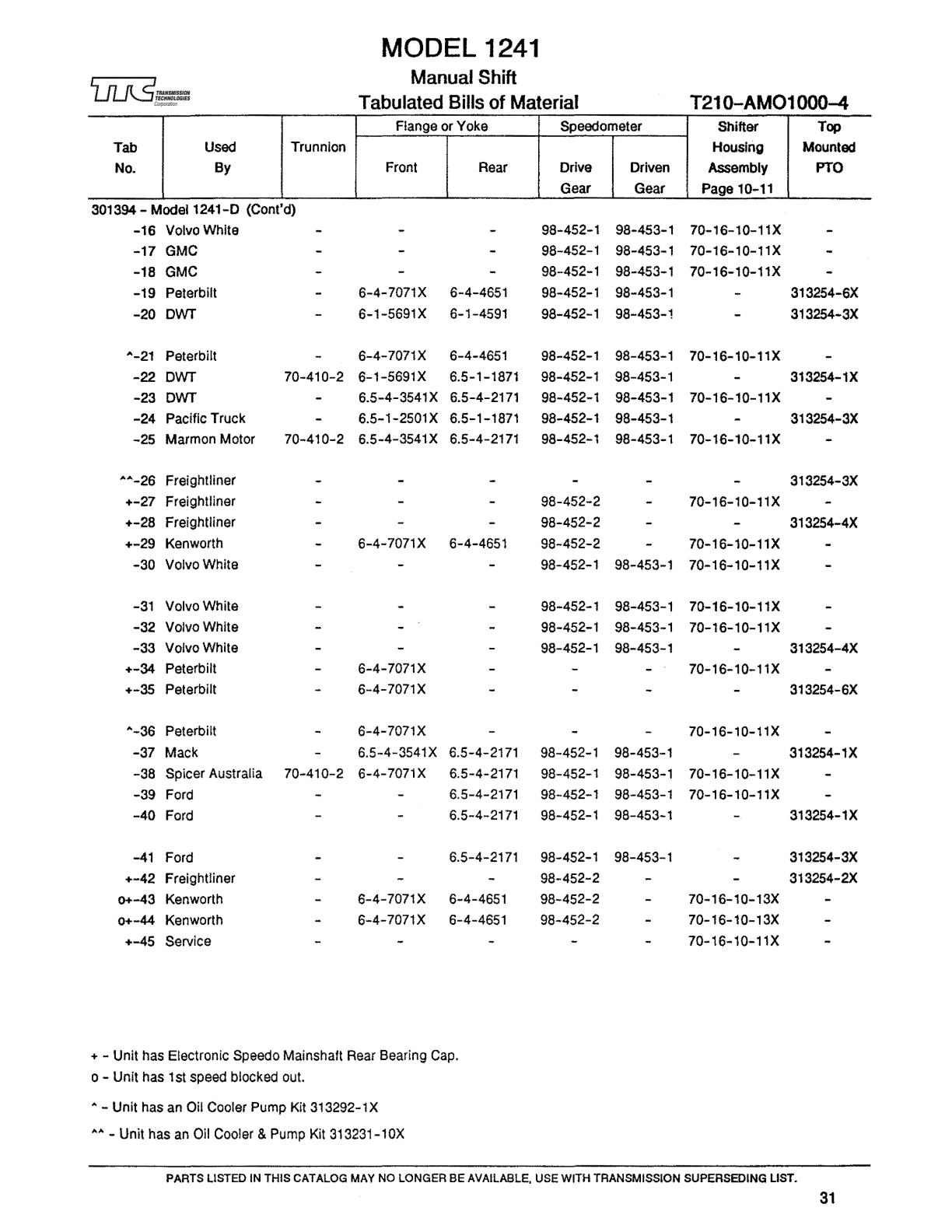

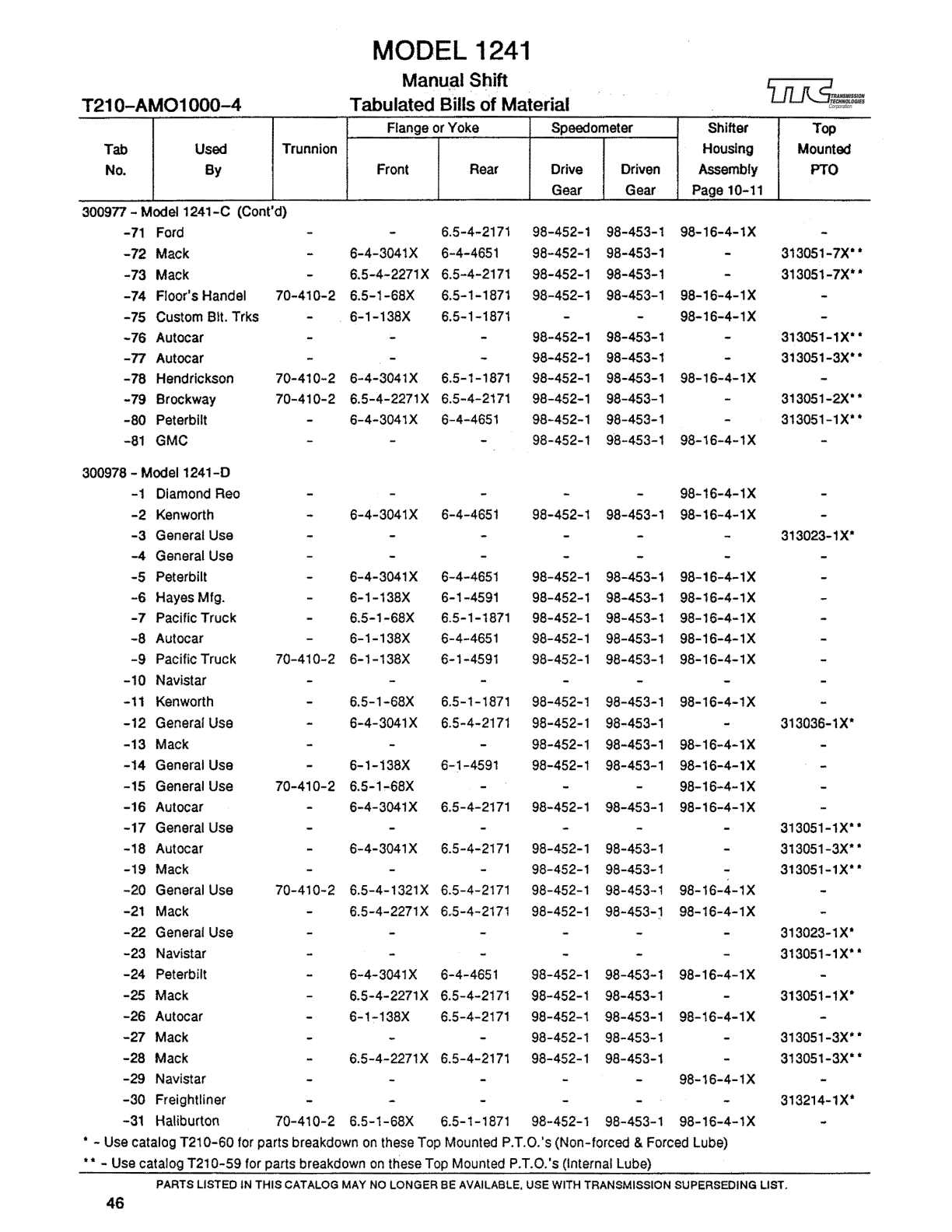

Tabulated Bills of Material

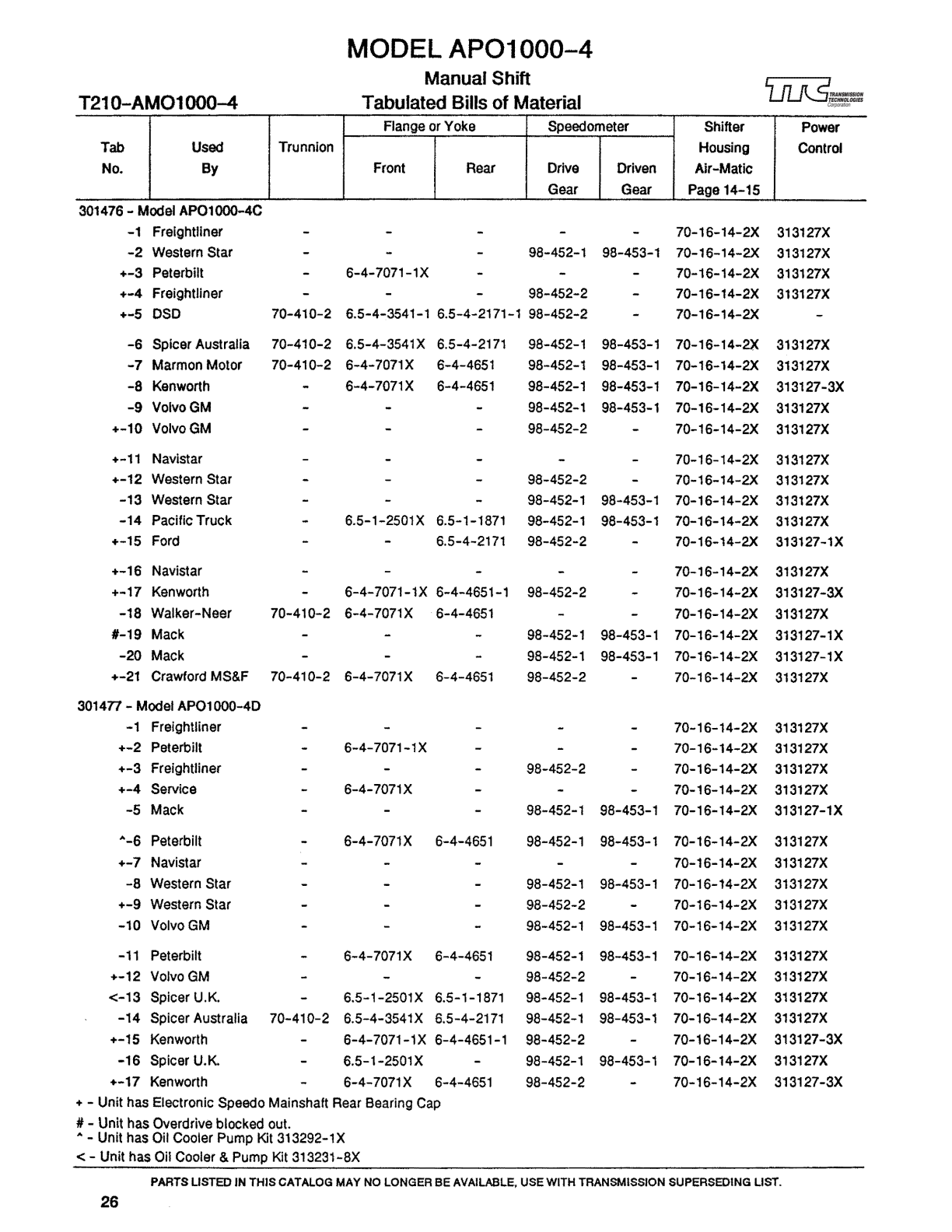

Technologies Transmission Bills of Material T21 O -AM01 000 -4
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1241-C | 1241 -C 1241 -C 1241 -C AM01000-4C | $18,643.20 | Superseded by 30176525Add to Cart | |||
| 300977-1 | 301145 -1 301151 -1 301393 -1 301474 | -1 | Call for availability | |||
| 300977-3 | 301145 -2 301151 -2 301393 -2 301474 -38 | Call for availability | ||||
| 300977-11 | 301145 -3 301151 -3 301393 -3 | Call for availability | ||||
| 300977-12 | 301145 -4 301151 -4 301393 -4 301474 | -2 | Call for availability | |||
| 300977-17 | 301145 -5 301151 -5 301393 -5 | Call for availability | ||||
| 300977-20 | 301145 -6 301151 -6 301393 -6 301474 | -5 | Call for availability | |||
| 300977-22 | 301145 -7 301151 -7 301393 -7 301474 | -6 | Call for availability | |||
| 300977-32 | 301145 -8 301151 -8 301393 -8 301474 | -7 | Call for availability | |||
| 300977-39 | 301145 -9 301151 -9 301393 -9 | Call for availability | ||||
| 300977-40 | 301145 -10 301151 -10 301393 -10 | Call for availability | ||||
| 300977-46 | 301145 -11 301151 -11 301393 -11 | Call for availability | ||||
| 300977-49 | 301145 -12 301151 -12 301393 -12 | Call for availability | ||||
| 300977-50 | 301145 -13 301151 -13 301393 -13 301474 -42 | Call for availability | ||||
| 300977-55 | 301145 -14 301151 -14 301393 -14 | Call for availability | ||||
| 300977-59 | 301145 -15 301151 -15 301393 -15 | Call for availability | ||||
| 300977-60 | 301145 -16 301151 -16 301393 -16 | Call for availability | ||||
| 300977-62 | 301145 -17 301151 -17 301393 -17 301474 | -8 | Call for availability | |||
| 300977-67 | 301145 -18 301151 -18 301393 -18 301474 | -9 | Call for availability | |||
| 300977-69 | 301145 -19 301151 -19 301393 -19 301474 -34 | Call for availability | ||||
| 300977-74 | 301145 -20 301151 -20 301393 -20 | Call for availability | ||||
| 300977-75 | 301145 -21 301151 -21 301393 -21 | Call for availability | ||||
| 300977-76 | 301145 -22 301151 -22 301393 -22 301474 -24 | Call for availability | ||||
| 300977-77 | 301145 -23 301151 -23 301393 -23 301474 -48 | Call for availability | ||||
| 300977-81 | 301145 -24 301151 -24 301393 -24 | Call for availability | ||||
| 300977-37 | 301145 -26 301151 -26 301393 -26 301474 -10 | Call for availability | ||||
| 300977-78 | 301145 -27 301151 -27 301393 -27 | Call for availability | ||||
| 300977-15 | 301145 -28 301151 -28 301393 -28 | Call for availability | ||||
| 300977-SO | 301145 -29 301151 -29 301393 -29 | Call for availability | ||||
| 300977-4 | 301145 -30 301151 -30 301393 -30 301474 -49 | Call for availability | ||||
| 300977-7 | 301145 -32 301151 -32 301393 -32 301474 | -3 | Call for availability | |||
| 300977-42 | 301145 -33 301151 -33 301393 -33 301474 -36 | Call for availability | ||||
| 300977-43 | 301145 -33 | Call for availability | ||||
| 300977-18 | 301145 -34 301151 -34 301393 -34 | Call for availability | ||||
| 300977-63 | 301145 -35 301151 -35 301393 -35 | Call for availability | ||||
| 300977-44 | 301145 -37 301151 -37 301393 -37 | Call for availability | ||||
| 300977-36 | 301145 -42 301151 -42 301393 -42 | Call for availability | ||||
| 300977-2 | None 301151 -44 301393 -44 | Call for availability | ||||
| 300977-5 | None 301151 -45 301393 -45 | Call for availability | ||||
| 300977-6 | None 301151 -46 301393 -46 301474 -31 | Call for availability | ||||
| 1241 | C1241-C1241-C | 1241 -C AM01000-4C | Call for availability | |||
| 1241 | 301151-89 | 301393 -89 | Call for availability | |||
| 1241 | 301151-90 | 301393 -90 | Call for availability | |||
| 1241 | 301151-91 | 301393 -91 | Call for availability | |||
| 1241 | 301151-92 | 301393 -92 | Call for availability | |||
| 301151-93 | 301393 -93 | Call for availability | ||||
| 301151-94 | 301393 -94 | Call for availability | ||||
| 301151-95 | 301393 -95 301474 -15 | Call for availability | ||||
| 301151-96 | 301393 -96 | Call for availability | ||||
| 301151-97 | 301393 -97 | Call for availability | ||||
| 301151-98 | 301393 -98 | Call for availability | ||||
| 301151-99 | 301393 -99 | Call for availability | ||||
| 301151-100 | 301393 -100 | Call for availability | ||||
| 301151-101 | 301393 -101 | Call for availability | ||||
| 301151-102 | 301393 -102 | Call for availability | ||||
| 301151-103 | 301393 -103 | Call for availability | ||||
| 301151-104 | 301393 -104 301474 -16 | Call for availability | ||||
| 301151-105 | 301393 -105 301474 -43 | Call for availability | ||||
| 301151-106 | 301393 -106 301474 -44 | Call for availability | ||||
| 301151-107 | 301393 -107 | Call for availability | ||||
| 301151-108 | 301393 -108 | Call for availability | ||||
| 301151-109 | 301393 -109 | Call for availability | ||||
| 301151-110 | 301393 -110 | Call for availability | ||||
| 301151-111 | 301393 -111 | Call for availability | ||||
| 301151-112 | 301393 -112 | Call for availability | ||||
| 301151-113 | 301393 -113 301474 -17 | Call for availability | ||||
| 301151-114 | 301393 -114 301474 -18 | Call for availability | ||||
| 301151-115 | 301393 -115 | Call for availability | ||||
| 1241 | 01241-0 | 1241 -0 1241 -0 AM01000-40 | Call for availability | |||
| 300978 | 1301146-1 | 301152 -1 301394 -1 301475 -1 | Call for availability | |||
| 300978 | 2301146-2 | 301152 -2 301394 -2 301475 -2 | Call for availability | |||
| 300978 | 5301146-3 | 301152 -3 301394 -3 | Call for availability | |||
| 300978 | 7301146-4 | 301152 -4 301394 -4 | Call for availability | |||
| 300978 | 10301146-5 | 301152 -5 301394 -5 301475 -20 | Call for availability | |||
| 300978 | 13301146-6 | 301152 -6 301394 -6 301475 -5 | Call for availability | |||
| 300978 | 23301146-7 | 301152 -7 301394 -7 | Call for availability | |||
| 300978 | 24301146-8 | 301152 -8 301394 -8 301475 -29 | Call for availability | |||
| 300978 | 29301146-9 | 301152 -9 301394 -9 301475 -30 | Call for availability | |||
| 300978 | 31301146-10 | 301152 -10 301394 -10 | Call for availability | |||
| 300978 | 4301146-11 | 301152 -11 301394 -11 301475 -3 | Call for availability | |||
| 300978 | 27301146-12 | 301152 -12 301394 -12 301475 -18 | Call for availability | |||
| 300978 | 19301146-13 | 301152 -13 301394 -13 301475 -19 | Call for availability | |||
| 300978 | 301146-14 | 301152 -14 301394 -14 | Call for availability | |||
| 300978 | 17301146-15 | 301152 -15 301394 -15 | Call for availability | |||
| 300978 | 8301146-16 | 301152 -16 301394 -16 | Call for availability | |||
| 300978 | 301146-17 | 301152 -17 301394 -17 | Call for availability | |||
| 300978 | 18301146-18 | 301152 -18 301394 -18 | Call for availability | |||
| 300978 | 301146-19 | 301152 -19 301394 -19 | Call for availability | |||
| 300978 | 301146-20 | 301152 -20 301394 -20 | Call for availability |
Technologies Transmission Bills of Material T21 O -AM01000 -4
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 301152 | -48 301394 -48 | Call for availability | ||||
| 301053 | 3301395-3 | 301054 -3 301396 -3 301477 -7 | Call for availability | |||
| 301053 | 4301395-4 | 301054 -4 301396 -4 301477 -11 | Call for availability | |||
| 301053 | 5301395-5 | 301054 -5 301396 -5 | Call for availability | |||
| 301053 | 6301395-6 | 301054 -6 301396 -6 | Call for availability | |||
| 301053 | 7301395-7 | 301054 -7 301396 -7 | Call for availability | |||
| 301053 | 8301395-8 | 301054 -8 301396 -8 | Call for availability | |||
| 301053-10 | 301395-10 | 301054-10 301396 -10 | Call for availability | |||
| 301053-11 | 301395-11 | 301054-11 301396 -11 | Call for availability | |||
| 301053-12 | 301395-12 | 301054-12 301396 -12 | Call for availability | |||
| 301053-13 | 301395-13 | 301054-13 301396 -13 301477 -5 | Call for availability | |||
| 301053-14 | 301395-14 | 301054-14 301396 -14 301477 -6 | Call for availability | |||
| 301053-15 | 301395-15 | 301054-15 301396 -15 | Call for availability | |||
| 301053-17 | 301395-17 | 301054-17 301396 -17 301477 -10 | Call for availability | |||
| 301053-19 | 301395-19 | 301054-19 301396 -19 | Call for availability | |||
| 301053-20 | 301395-20 | 301054-20 301396 -20 | Call for availability | |||
| 301053-21 | 301395-21 | 301054-21 301396 -21 301477 -4 | Call for availability | |||
| 301053-22 | 301395-22 | 301054-22 301396 -22 | Call for availability | |||
| 301053-24 | 301395-24 | 301054-24 301396 -24 | Call for availability |
Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21O-AM01 | 000 -4 | TECHNOLOGIES | Call for availability | |||
| P1241-C | P1241 -C AP01000 -4C P1241 -D P1241 -D AP01000 -40 | Call for availability | ||||
| 301053-26 | 301395-26 301054-26 301396 -26 | Call for availability | ||||
| 301053-27 | 301395-27 301054-27 301396 -27 | Call for availability | ||||
| 301053-28 | 301395-28 301396 -28 301477 -2 | Call for availability | ||||
| 301053-29 | 301395-29 301476 -9 301396 -29 | Call for availability | ||||
| 301053-30 | 301395-30 - 301477 -8 | Call for availability | ||||
| 301053-31 | 301395-31 301476 -4 - 301477 -9 | Call for availability | ||||
| 301053-32 | 301395-32 - 301477 -12 | Call for availability | ||||
| 301053-33 | 301395-33 301476 -3 - 301477 -13 | Call for availability | ||||
| 301053-34 | 301395-34 - 301477 -14 | Call for availability | ||||
| 301053-35 | 301395-35 - 301477 -15 | Call for availability | ||||
| 301053-36 | 301395-36 - 301477 -16 | Call for availability | ||||
| 301053-37 | 301395-37 | Call for availability | ||||
| 301053-38 | 301395-38 301476-19 | Call for availability | ||||
| 301053-39 | 301395-39 | Call for availability | ||||
| 301053-40 | 301395-40 301476-16 | Call for availability | ||||
| 301053-41 | 301395-41 301476 -6 | Call for availability | ||||
| 301053-42 | 301395-42 301476-15 | Call for availability | ||||
| 301053-43 | 301395-43 | Call for availability | ||||
| 301053-44 | 301395-44 | Call for availability |
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission 1241-C, with every part in the manual matched to our live inventory. We stock 181 of the 481 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the 1241-D transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | 1241-D |
| Transmission type | Spicer heavy-duty truck transmission |
| Document | Illustrated Parts List (Spicer) |
| Length | 54 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
