Spicer 9072 Parts Manual
Drive Gear Group (see Tab Bills for Applicable Input Shaft)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-1 | 97-35-65-1X | Input Shaft-2 .00 " -10 #306 Pil Ot | 1 | — | Call for availability | |
| A-1 | 97-35-66-1 | X · Input Shaft-1 .750 " -10 #306 Pil Ot | 1 | — | Call for availability | |
| A-1 | 97-35-81-1X | Input Shaft-1 750 " -10 #205 Pilot | 1 | — | Call for availability | |
| A-2 | 550992 | Bearing -front | 1 | $164.26 | Add to Cart | |
| A-3 | 97-381-42 | Snap Ring -bearing Retaining | — | Call for availability | ||
| A-4 | 97-381-41 | Snap Ring -bearing Cap Retaining | — | Call for availability | ||
| A-5 | 97-381-2 | Snap Ring -drive Gear Retaining | — | Call for availability | ||
| A-6 | 97-35-64 | Gear-mainshaft Drive (28T) | — | Call for availability | ||
| A-7 | 550953 | Bearing -drive Gear Pocket | $13.51 | Add to Cart |

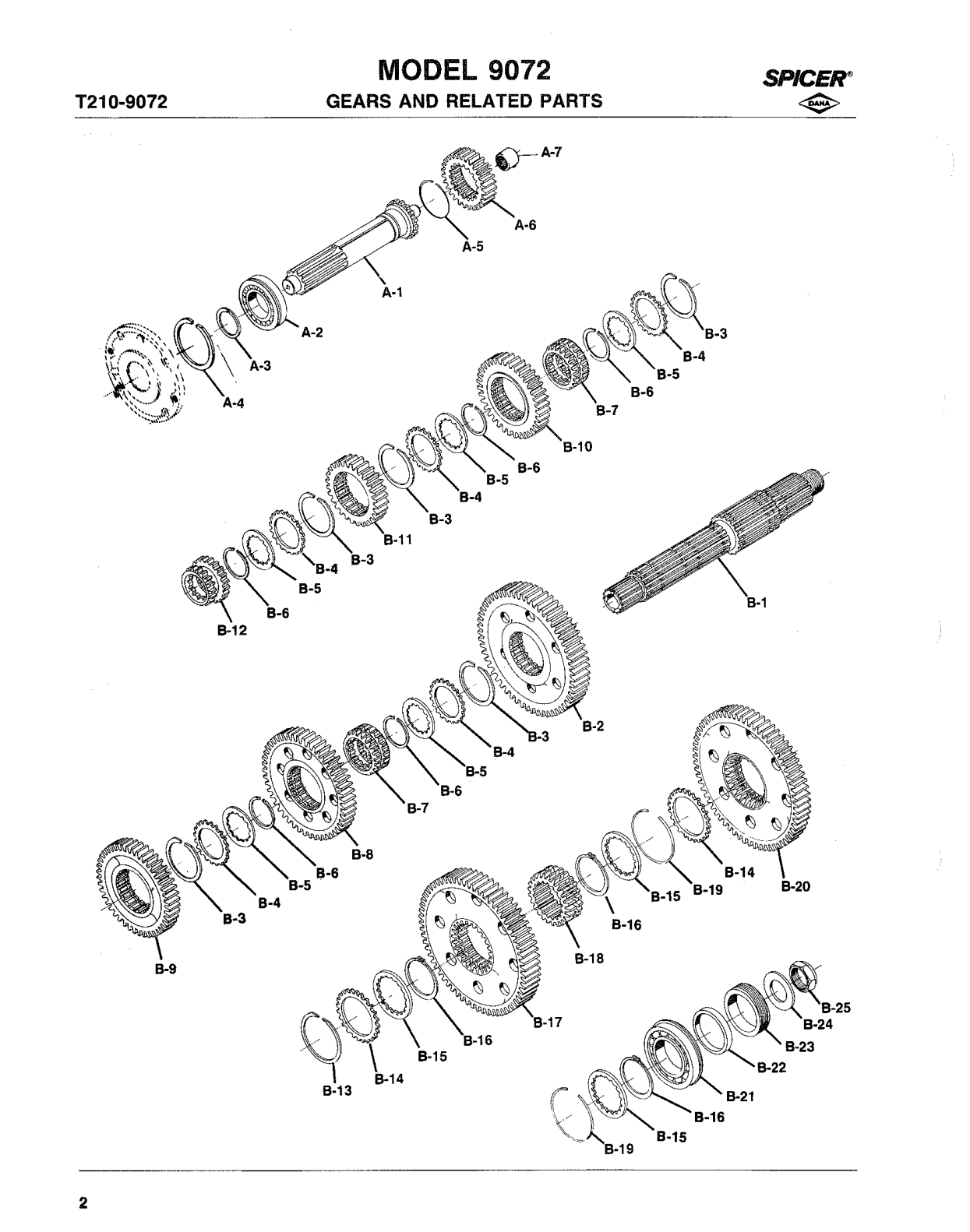

Mainshail Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 97-362-53 | Mainshaft | — | Call for availability | ||
| B-2 | 97-8-204 | Gear-2nd (56T) | — | Call for availability | ||
| B-3 | 97-381-1 | Snap Ring -internal -small | 5 | $6.27 | Add to Cart | |
| B-4 | 330814 | Thrust Washer-external (20T) | 5 | $20.46 | Add to Cart | |
| B-5 | 330730 | Thrust Washer-internal (1ST) | 5 | $14.16 | Add to Cart | |
| B-6 | 97-381-4 | Snap Ring -external -small | 5 | $3.75 | Add to Cart | |
| B-7 | 97-465-21 | Clutch Collar-2nd 3rd 4th And 5th | 2 | $124.23 | Add to Cart | |
| B-8 | 97-8-205 | Gear-3rd (48T) | 1 | — | Call for availability | |
| B-9 | 97-8-206 | Gear-4th (42T) | 1 | — | Call for availability | |
| B-10 | 97-8-207 | Gear-5th (36T) | 1 | — | Call for availability | |
| B-11 | 97-8-208 | Gear-6th (28T) | 1 | — | Call for availability | |
| B-12 | 97-465-51 | Clutch Collar-6th & 7th | 1 | — | Call for availability | |
| B-13 | 98-381-2 | Snap Ring -internal -large | 1 | $5.31 | Add to Cart | |
| B-14 | 330810 | Thrust Washer-external (24T) | 2 | $23.58 | Add to Cart | |
| B-15 | 330869 | Thrust Washer-internal -large | 3 | $24.39 | Add to Cart | |
| B-16 | 98-381-1 | Snap Ring -external -large | 3 | $6.27 | Add to Cart | |
| B-17 | 97-8-113 | Gear-1 St (64T) | 1 | $785.81 | Add to Cart | |
| B-18 | 97-465-24 | Clutch Collar-1 St And Reverse | 1 | $213.84 | Add to Cart | |
| B-19 | 97-381-32 | Snap Ring -internal (reverse Gear) | 2 | $4.36 | Add to Cart | |
| B-20 | 97-8-182 | Gear-reverse (64T) | 1 | $528.68 | Add to Cart | |
| B-21 | 550925 | Bearing -rear | 1 | $107.78 | Add to Cart | |
| B-22 | 97-37-17 | Space R | 2 | — | Call for availability | |
| B-22 | 97-37-7 | Spacer (used In Place Of Speedometer Gear) | 1 | $11.22 | Superseded by 49377Add to Cart | |
| B-24 | 330734 | Washer | 1 | $6.27 | Add to Cart | |
| B-25 | 545065 | 1 | $31.43 | Add to Cart |
Countershaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 97-30-69 | Countershaft-right Side (15T) (splined For P .t .o .) | 1 | — | Call for availability | |
| C-2 | 97-30-68 | Countershaft-left Side (15T) (slotted For Pump) | 1 | — | Call for availability | |
| C-3 | 500010-8 | Woodruff Key #29 | 12 | $2.89 | Add to Cart | |
| C-4 | 550959 | Bearing | 4 | — | Call for availability | |
| C-5 | 54-381-1 | Snap Ring | 4 | — | Call for availability | |
| C-6 | 97-196-146 | Gear-2nd (22T) | 2 | — | Call for availability | |
| C-7 | 97-196-147 | Gear-3rd (31T) | 2 | — | Call for availability | |
| C ·B | 97-196-148 | Gear -4th (38T) | 2 | — | Call for availability | |
| C-9 | 97-196-150 | Gear-5th (46T) | 2 | — | Call for availability | |
| C-10 | 97-196-152 | Gear-6th (50T) | 2 | — | Call for availability | |
| C-11 | 97-1-45 | Gear-countershaft Drive | 2 | — | Call for availability | |
| C-12 | 97-381-33 | Retaining Ring | 2 | — | Call for availability |
Reverse Idler Gear Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 97-5-1 | Gear-reverse Idler (21T) | 2 | $268.01 | Add to Cart | |
| D-2 | 97-37-1 | Bearing -spacer | 2 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing | 4 | $11.32 | Add to Cart | |
| D-4 | 500566-8 | Lockball -9/32 | 2 | version * (see the manual's footnote) | — | Call for availability |
| D-5 | 97-60-1 | Shaft-gear | 2 | $45.67 | Add to Cart |
Clutch Housing Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-2 | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| E-3 | 128C-20 | Bushing -clutch Release Shaft | 2 | $8.55 | Add to Cart | |
| E-4 | 97-96-18 | ·1 X Hand Hole Cover Assembly. | 1 | — | Call for availability | |
| N .S | 500169-1 | Zerk Fitting -grease | A.R. | — | Call for availability | |
| E-5 | 545001 | Bolt-1/2 " -13 X 1 1/4 " Hex Head Self-locking | 4 | $2.49 | Add to Cart | |
| E-6 | 170-W | Washer | 4 | — | Call for availability | |
| E-7 | 545008-3 | Bolt-5/8 " -1 1 X 1 3/4 | 10 | version * (see the manual's footnote) | — | Call for availability |
| E-8 | 330829 | Washer | 10 | — | Call for availability | |
| N .S | 545056-4 | Anaerobic Sealant. | A.R. | — | Call for availability |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 97-223-1 | G Asket | 1 | — | Call for availability | |
| F-2 | 97-19-52 | ·1X Bearing Cap And Oil Seal Assembly (see Tab Bills) | 1 | — | Call for availability | |
| F-3 | Bearing Cap (casting #97-19-37) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-4 | 97-463-36-1 | X Oil Seal -(with Installation Sleeve) | 1 | — | Call for availability | |
| F-5 | 97-381-41 | Snap Ring | 1 | — | Call for availability | |
| F-6 | 545002-4 | Bolt-3/8 " -16 X 1 " Hex Head Self-locking | 4 | $6.93 | Add to Cart |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-1 | 97-15-54 | ·1X Case Assembly | 1 | — | Call for availability | |
| N .S | NP-97 | Nameplate | 1 | — | Call for availability | |
| N .S | 252-SP | Pin -nameplate | 4 | $1.90 | Add to Cart | |
| G-2 | 62-39-3 | Filler Plug (magnetic) | 1 | $9.27 | Add to Cart | |
| G-3 | 62-39-3 | Drain Plug (magnetic) | 1 | $9.27 | Add to Cart | |
| G-4 | 97-39-1 | Drain Plug (magnetic) | 1 | — | Call for availability | |
| G-5 | 274-SP | Dowel Pin (to Locate Shifter Housing To Case) | 2 | $2.77 | Add to Cart | |
| N .S | 545056-3 | Anaerobic Sealant-aperture Covers | A.R. | — | Call for availability | |
| G-6 | 73-267-1 | Eight Bolt P .t.o Aperture Cover | 1 | $160.99 | Add to Cart | |
| G-7 | 545012 | Bolt-7/16 " -14 X 3/4 " Flanged Self-locki Ng | 8 | $3.23 | Add to Cart | |
| G-8 | 50-267-2 | Six Bolt P .t.o Aperture Cover | 1 | $122.97 | Add to Cart | |
| G-9 | 330800 | Bolt-7/16 " -14 X 3/4 | 6 | version * (see the manual's footnote) | — | Call for availability |
Mainshaft Rear Bearing Cap -For Mechanical/Electronic Speedo
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 97-223-2 | G Asket | 1 | — | Call for availability | |
| H-4 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| H-5 | 60-475-1 | Speedometer Bushing | 1 | $32.75 | Add to Cart | |
| H-6 | 97-463-33 | Oil Seal | 1 | $26.73 | Add to Cart | |
| H-7 | 545001-4 | Bolt-1/2 " · 13 X 1 1/2 " Hex Head Self-locking | 4 | $1.74 | Add to Cart | |
| H-8 | 545001 | ·8 Bolt-1/2 " -13 X 2 1/2 " Hex Head Self-locking | 2 | $2.49 | Add to Cart | |
| N .S | 55-334-1 | Plug -speedometer Outlet | 1 | $88.44 | Add to Cart | |
| H-10 | 55-454-1 | Sleeve -speedometer Driven Gear | 1 | — | No longer available — call for replacement | |
| N .S | 545021 | Plug -speedometer Outlet | 2 | $18.89 | Add to Cart |
Countershaft Rear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| N .S. | 545056-7 | Anaerobic Sealant. | A. R. | — | Call for availability | |
| J-1 | 97-22-23 | Bearing Cap | 2 | — | Call for availability | |
| J-2 | 97-96-23 | Reverse Idler Shaft Cover | 2 | — | Call for availability | |
| J-3 | 545015 | Bolt-3/8 " -16 X 15/16 " Flanged Self-locki Ng | 10 | $3.14 | Add to Cart | |
| N .S | 330564-1 | Lift Hook-reverse Idler Cover | 2 | $3.15 | Add to Cart | |
| 312795X • | C97-518-4 | Iron 2 4 .187 " 2 .625 | version * (see the manual's footnote) | — | Call for availability | |
| 312961X | C97-518-13 | ·1 Iron 3 .750 " 1 .500 " 4 .00 " 8 .50 | version * (see the manual's footnote) | — | Call for availability | |
| 97-518 ·14-1X" | C97-518-7 | Iron 2 4 .375 " 2 .375 " 3 .50 " 6 .50 | version * (see the manual's footnote) | — | Call for availability | |
| 97-518 ·15 ·1X | C97-518-2 | Iron 4 .187 " 2 .625 | version * (see the manual's footnote) | — | Call for availability | |
| 97 ·518 -16-1X | C97-518-19-1 | Alum 4 .188 " 2 .625 | version * (see the manual's footnote) | — | Call for availability | |
| 97-518 ·18 ·1X | C97-518-17 | Alum 2 4 .187 " 2 .625 | version * (see the manual's footnote) | — | Call for availability | |
| 97-518-25-1X | C97-518-13-1 | Iron 3 .750 " 1 .500 " 4 .00 11 8 .50 | version * (see the manual's footnote) | — | Call for availability | |
| '18 -28 -1X | C97-518-29 | Alum 3 .750 " 1 .500 | version * (see the manual's footnote) | — | Call for availability | |
| i18 -31 -1X | C97-518-29 | Alum 3 .750 " 1 .500 11 4 .00 " 8 .50 | version * (see the manual's footnote) | — | Call for availability | |
| 97-518-49-1X" | C97-518-7 | Iron 2 3 .750 " 2 .375 " 3 .50 " 6 .50 | version * (see the manual's footnote) | — | Call for availability |
First and Reverse Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 97-16-79-1X | Shifter Housing And Oil Trough Assembly | 1 | — | Call for availability | |
| R-2 | Shifter Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-3 | 330918 | Oil Trough | 1 | — | Call for availability | |
| R-4 | 330800 | Bolt-3/8 " -16 X 3/4 " Flanged Self-locki Ng | 3 | — | Call for availability | |
| R-5 | 312268 | Breather. | 1 | $31.32 | Add to Cart | |
| R-6 | 545000 | Blocker. | 1 | — | Call for availability | |
| R-7 | 330739-1 | Pin -backup Light | 1 | $3.98 | Add to Cart | |
| R-8 | 500114 | Oil Return Hole Plug | 1 | — | Call for availability | |
| N .S | 545056-5 | Anaerobic Sealant | A/R | — | Call for availability | |
| R-10 | 97-12-2 | Interlock-shift Rod | 3 | — | Call for availability | |
| R-11 | 97-438-19 | Pin -interlock | 3 | — | Call for availability | |
| R-12 | 97-66-53 | Shift Fork | 1 | — | Call for availability | |
| R-13 | 97-67-230 | Shift Rod | 1 | — | Call for availability | |
| R-14 | 97-354-11 | Shift Rod Bracket | 1 | — | Call for availability | |
| R-15 | 97-72-2 | Spring -plunger | 1 | — | Call for availability | |
| R-16 | 97-438-1 | Plunger | 1 | — | Call for availability | |
| R-17 | 330736 | Block-shift Bracket | 1 | — | Call for availability | |
| R-18 | 500593-6 | Pin -plunger | 1 | — | Call for availability | |
| R-19 | 545063 | Screw-7/16 " -20 X 3/4 | 6 | version * (see the manual's footnote) | $6.27 | Add to Cart |
Second and Third Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-20 | 97-66-24 | Shift Fork | 1 | $441.29 | Add to Cart | |
| R-21 | 97-67-231 | Shift Rod | 1 | — | Call for availability |
Fourth and Filth Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-22 | 97-66-11 | Shift Fork | 1 | $149.80 | Add to Cart | |
| R-23 | 97-354-27 | Shift Rod Bracket | 1 | — | Call for availability | |
| R-24 | 545072 | Bolt-1/4 " -28 X 1 3/8 " Hex Head Self-locking | 1 | — | Call for availability | |
| R-25 | 97-67-232 | Shift Rod | 1 | — | Call for availability |
Sixth and Seventh Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-26 | 97-66-102 | Shift Fork | 1 | — | Call for availability | |
| R-27 | 97-67-233 | Shift Rod | 1 | — | Call for availability | |
| R-28 | 97-354-21-3X | Shift Rod Bracket Assembly-6th And 7th | 1 | — | Call for availability | |
| R-30 | 97-438-17 | Plunger | 1 | — | Call for availability | |
| R-31 | 97-72-28 | Spring -plunger | 1 | — | Call for availability | |
| R-32 | 50-80-9 | Poppet Ball | 1 | $2.26 | Add to Cart | |
| R-33 | 97-438-20 | Pin -spring Pilot | 1 | — | Call for availability | |
| R-34 | 97-12-4 | Poppet | 1 | — | Call for availability | |
| R-35 | 97-72-29 | Spring -poppet | 1 | — | Call for availability |

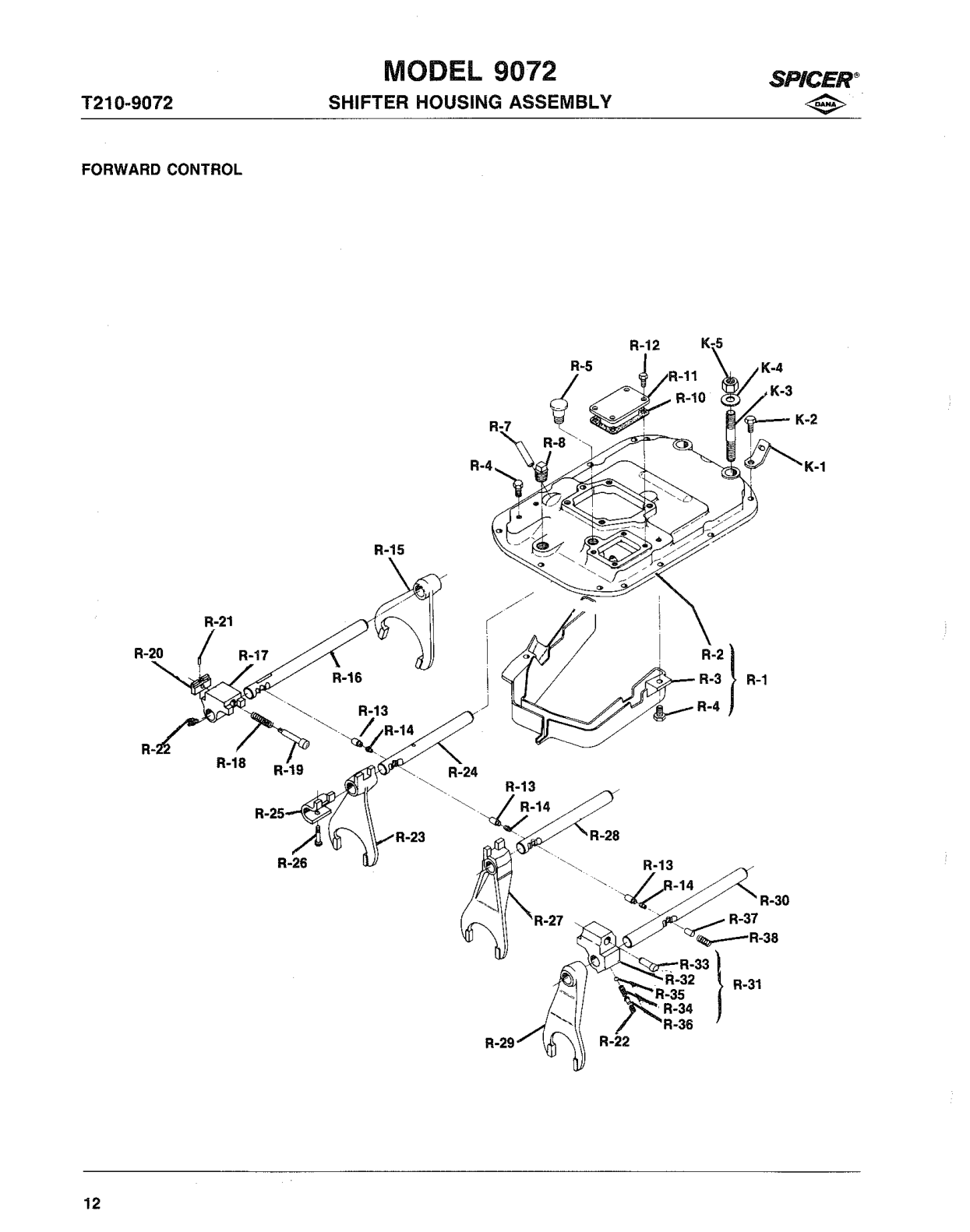

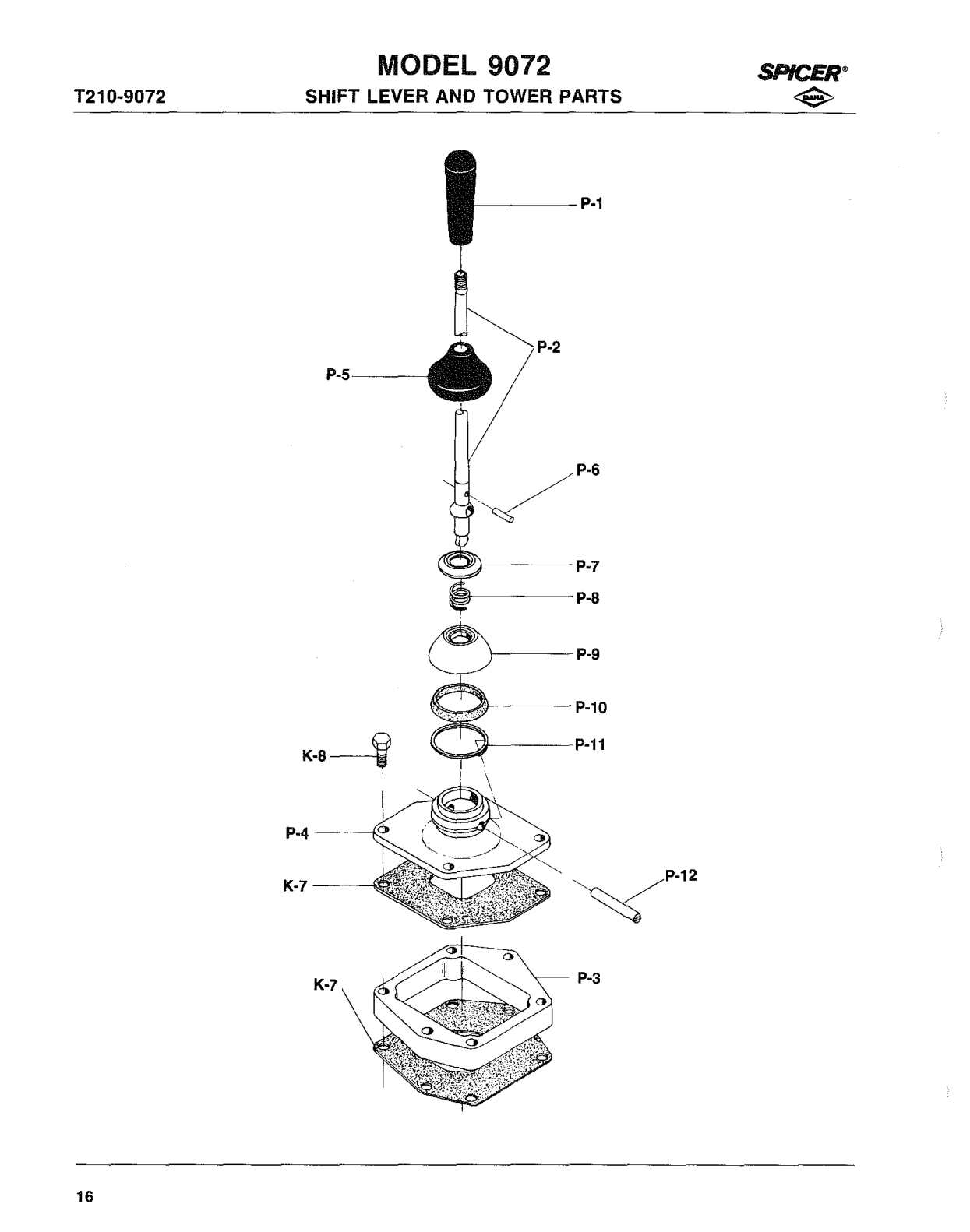

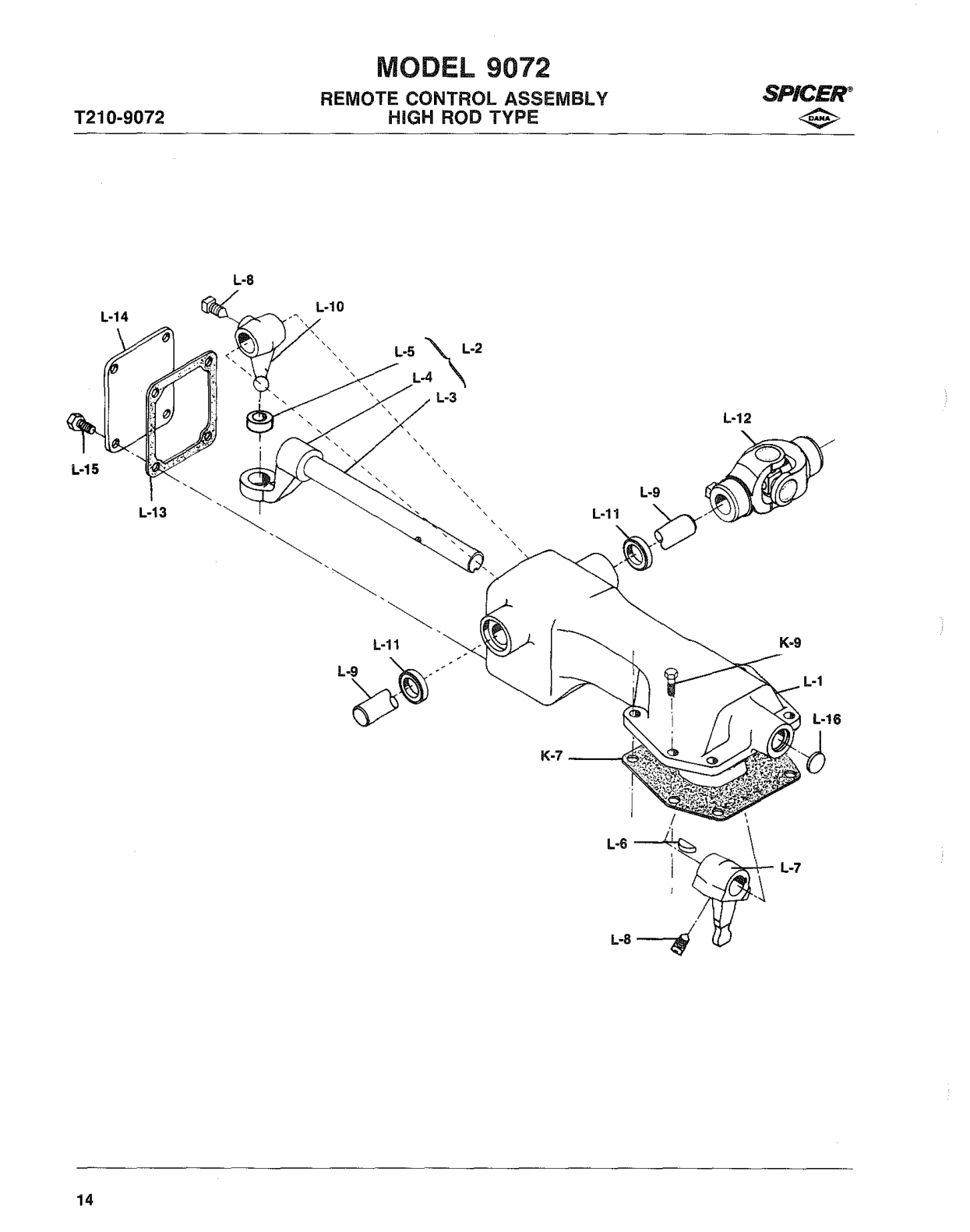

Parts Listed Below Are Not Included in Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 330564-1 | Lift Hook | 4 | $3.15 | Add to Cart | |
| K-2 | 545002-4 | Bolt-3/8 " -16 1 1/8 " Hex Head Self-locking | 10 | $6.93 | Add to Cart | |
| K-3 | 330360-18 | Stud -5/8 " -1 1 And 5/8 " -18 X 4 | 2 | version * (see the manual's footnote) | $9.03 | Add to Cart |
| K-3 | 330360-15 | Stud -5/8 " -1 1 And 5/8 " -18 X 3 1/2 | 2 | version * (see the manual's footnote) | — | Call for availability |
| K-4 | 500365-43 | Washer-5/8 " Flat | 2 | — | Call for availability | |
| K-5 | 500371-7 | Nut-5/8 " -18 | 2 | — | Call for availability | |
| N .S | 545028-4 | Cover Bolt-7/16 " -14 X 1 1/8 " Hex Head Self-locki Ng | 6 | — | No longer available — call for replacement | |
| N .S | 545056-5 | Anaerobic Sealant. | AIR | — | Call for availability |
First and Reverse Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 97-16-79-1X | Shifter Housing And Oil Trough Assembly | 1 | — | Call for availability | |
| R-2 | Shifter Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-3 | 330918 | Oil Trough | 1 | — | Call for availability | |
| R-4 | 330800 | Bolt-3/8 " -16 3/4 " Flanged Sell -locking | 3 | — | Call for availability | |
| R-5 | 312268 | Breather. | 1 | $31.32 | Add to Cart | |
| R-6 | 545000 | Blocker. | 1 | — | Call for availability | |
| R-7 | 330739-1 | Pin -backup Light | 1 | $3.98 | Add to Cart | |
| R-8 | 500114 | Oil Return Plug | 1 | — | Call for availability | |
| N .S | 545056-5 | Anaerobic Sealant. | A/R | — | Call for availability | |
| R-10 | 97-223-4 | Gasket | 1 | — | Call for availability | |
| R-11 | 97-96-2 | Cover-shifter Housing Aperture Cover | 1 | — | Call for availability | |
| R-12 | 545005-1 | Bolt-5/16 " -18 5/8 " Hex Head Sell-locking | 4 | — | Call for availability | |
| R-13 | 97-12-2 | Interlock-shift Rod | 3 | — | Call for availability | |
| R-14 | 97-438-19 | Pin -interlock | 3 | — | Call for availability | |
| R-15 | 97-66-53 | Shift Fork | 1 | — | Call for availability | |
| R-16 | 97-67-234 | Shift Rod | 1 | — | Call for availability | |
| R-17 | 97-354-11 | Shift Rod Bracket | 1 | — | Call for availability | |
| R-18 | 97-72-2 | Spring -plunger | 1 | — | Call for availability | |
| R-19 | 97-438-1 | Plunger | 1 | — | Call for availability | |
| R-20 | 330736 | Block-shift Bracket | 1 | — | Call for availability | |
| R-21 | 500593-6 | Pin -plunger | 1 | — | Call for availability | |
| R-22 | 545063 | Screw-7/16 " -20 3/4 | 6 | version * (see the manual's footnote) | $6.27 | Add to Cart |
Second and Third Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-23 | 97-66-122 | Shift Fork | 1 | $301.70 | Add to Cart | |
| R-24 | 97-67-235 | Shift Rod | 1 | — | Call for availability | |
| R-25 | 97-354-27 | Shift Rod Bracket | 1 | — | Call for availability | |
| R-26 | 545072 | Bolt-1/4 " -28 X 3/8 " Hex Head Self-locking | 1 | — | Call for availability |
Fourth and Fifth Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-27 | 97-66-104 | Shift Fork | 1 | — | Call for availability | |
| R-28 | 97-67-236 | Shift Rod | 1 | — | Call for availability |
Sixth and Seventh Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-29 | 97-66-102 | Shift Fork | 1 | — | Call for availability | |
| R-30 | 97-67-284 | Shift Rod | 1 | — | Call for availability | |
| R-31 | 97-354-21-3X | Shift Rod Bracket Assembly-6th And 7th | 1 | — | Call for availability | |
| R-32 | 97-354-21 | Shift Rod Bracket | 1 | — | Call for availability | |
| R-33 | 97-438-17 | Plunger | 1 | — | Call for availability | |
| R-34 | 97-72-28 | Spring -plunger | 1 | — | Call for availability | |
| R-35 | 50-80-9 | Poppet Ball | 1 | $2.26 | Add to Cart | |
| R-36 | 97-438-20 | Pin -spring Pilot | 1 | — | Call for availability | |
| R-38 | 97-72-29 | Spring -poppet | 1 | — | Call for availability |
Parts Listed Below Are Not Included in Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 330564-1 | Lift Hook | 4 | $3.15 | Add to Cart | |
| K-2 | 545002-4 | Bolt-3/8 " -16 1 1/8 | 10 | version * (see the manual's footnote) | $6.93 | Add to Cart |
| K-3 | 330360-18 | Stud -5/8 " -1 1 And 5/8 " -18 4 | 2 | version * (see the manual's footnote) | $9.03 | Add to Cart |
| K-3 | 330360-15 | Stud -5/8 " -1 1 And 5/8 " -18 3 1/2 | 2 | version * (see the manual's footnote) | — | Call for availability |
| K-4 | 500365-43 | Washer-5/8 " Flat | 2 | — | Call for availability | |
| K-5 | 500371-7 | Nut-5/8 " -18 | 2 | — | Call for availability | |
| N .S. | 545028-4 | Cover Bolt-7/16 " -14 1 1/8 " Hex Head Self-locking | 6 | — | No longer available — call for replacement | |
| N .S | 545056-5 | Anaerobic Sealant | AIR | — | Call for availability |
Parts Listed Below Are Not Included in Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 311866X | Cover Assembly 1 | — | Call for availability | |||
| 312755X | Cover Assembly 1 | — | Call for availability | |||
| 311914X | Cover Assembly 1 | 1 | — | Call for availability | ||
| 97-18-16-1X | Cover Assembly 1 | — | Call for availability | |||
| 85-16-42-1 | X Cover Assembly-(rotated 180 Degrees And | — | Call for availability | |||
| 97-18-3-1X | Cover Assembly | 1 | — | Call for availability | ||
| 97-18-4-1X | Cover Assembly ' 1 | — | Call for availability | |||
| L-1 | Remote Control Cover 1 1 1 1 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| N .S | 82-24-3 | Bushing -remote Control Cover 4 4 4 4 4 4 | 4 4 | $21.66 | Add to Cart | |
| L-2 | 8039X | Shift Finger Rod And Bracket Assembly 1 | — | Call for availability | ||
| L-2 | 311888X | Shift Finger Rod And Bracket Assembly 1 | 1 | — | Call for availability | |
| L-2 | 312754X | Shift Finger Rod And Bracket Assembly 1 | — | Call for availability | ||
| L-2 | 97-65-39-1X | Shift Finger Rod And Bracket Assembly 1 | — | Call for availability | ||
| L-2 | 97-65-41-1X | Shift Finger Rod And Bracket Assembly 1 | — | Call for availability | ||
| L-2 | 85-65-11-1X | Shift Finger Rod And Bracket Assembly 1 | — | Call for availability | ||
| L-2 | 97-65-32-1X | Shift Finger Rod And Bracket Assembly | 1 | — | Call for availability | |
| L-3 | Rod- Shift Finger 1 1 1 1 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| L-4 | Bracket-shift Finger 1 1 1 1 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| L-5 | 85-24-4 | Bushing -shift Bracket 1 1 1 1 1 1 | 1 1 | — | Call for availability | |
| L-6 | 500007-19 | Woodruff Key #11 1 1 1 1 1 1 | 1 1 | — | Call for availability | |
| L-7 | 82-6-9 | Finger-inner Shift 1 1 1 1 1 1 | 1 1 | — | Call for availability | |
| L-8 | 545063 | Bolt-7/16 " -20 X 13/16 " Hex-head Self-locking 2 2 2 2 2 2 | 2 2 | $6.27 | Add to Cart | |
| L-9 | 82-65-5 | Rod -remote Control 1 1 1 1 1 | 1 1 | $22.31 | Add to Cart | |
| L-9 | 82-65-22 | Rod -remote Control 1 | — | Call for availability | ||
| L-10 | 82-6-7 | Finger-outer Shaft 1 1 1 1 1 1 | 1 1 | $171.09 | Add to Cart | |
| L-11 | 28P-19 | Seal -remote Control Shift Rod 2 2 2 2 2 2 | 2 2 | — | Call for availability | |
| L-12 | 10380-SF | U -joint Assembly-control Rod 1 1 1 | 1 1 | — | Call for availability | |
| L-12 | 904388 | U -joint Assembly-control Rod 1 1 1 | — | Call for availability | ||
| L-13 | 82-118-1 | Gasket-aperture Cover 1 1 1 1 1 1 | 1 1 | — | Call for availability | |
| L-14 | 82-96-1 | Aperture Cover 1 1 1 1 1 1 | 1 1 | — | Call for availability | |
| L-15 | 545005-1 | Bolt-5/16 " -18 X 5/8 " Hex Head Self-locking 4 4 4 4 4 4 | 4 4 | — | Call for availability | |
| L-16 | 500166-16 | Expansion Plug -1 1/16 " 1 1 1 1 1 1 | 1 1 | — | Call for availability | |
| N .S | 311903X | Boot Kit-remote Control 1 1 1 1 | 1 | — | Call for availability | |
| N .S | 82-483-1 | Boot-standard 1 1 1 1 | 1 | — | Call for availability | |
| N .S | 82-432-2 | Boot-cup Type 1 1 1 1 | 1 | — | Call for availability | |
| N .S | LW-3-9 | Lockwire #18-M Gage (19 " Long) 3 3 3 3 | 3 | — | Call for availability | |
| N .S | 313259 | Valve -road Speed Governor Control 1 1 | — | Call for availability | ||
| K-7 | 97-155-12 | Gasket-remote Control Cover 1 1 1 1 1 1 | 1 1 | $4.72 | Add to Cart | |
| K-9 | 545028-4 | Bolt 7/1 6 " -14 X 1 -1/8" Hex Head Self-locking 6 6 6 6 6 6 | 6 6 | — | No longer available — call for replacement |
Parts Listed Below Are Not Included in Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 390-27 | Handle -shift Lever 1 | 1 | — | Call for availability | |
| P-1 | 390-29 | Handle -shift Lever | 1 | — | Call for availability | |
| P-2 | 250-1223 | Shift Lever-length 35 1/2 " Straight | 1 | — | Call for availability | |
| P-2 | 250-1570 | Shift Lever-length 33 " Straight | 1 | — | Call for availability | |
| P-2 | 250-1702 | ·83 Shift Lever-length 27 3/4 " Bent | 1 | — | Call for availability | |
| P-3 | 85-37-9 | Spacer-dome To Shifter Housing | 1 | $222.12 | Add to Cart | |
| K-7 | 97-155-12 | Gasket-center (6 Holes) 4 | $4.72 | Add to Cart | ||
| K-8 | 545028 | ·4 Bolt-7/16 " -14 X 1 1/8" Hex Head Self-locking 4 | $3.00 | Add to Cart | ||
| K-8 | 82-16-19X | Dome Assembly-( Center) (includes P-4 Thru P-12) | 1 | — | Call for availability | |
| K-8 | 85-16-37X | Dome Assembly-(c\lnter) (includes P-4 Thru P-12) | 1 | — | Call for availability | |
| K-8 | 97-16-27X | Dome Assembly-(forward){lncludes P-4 Thru P-12) | 1 | manual lists 97-16-27X - we stock the base part 97-16-27 | — | Call for availability |
| P-4 | 82-16-19 | Dome -shift lever-2 5/32 " Height | 1 | — | Call for availability | |
| P-4 | 85-16-37 | Dome -shift lever-3 5/32 " Height | 1 | — | Call for availability | |
| P-4 | 97-16-27 | Dome -shift lever-3 5/8 " Height | 1 | — | Call for availability | |
| P-5 | 550-5 | Grommet-shift Lever 1 | 1 1 | — | Call for availability | |
| P-6 | 286-SP | Pin -shift Lever Collar 1 | 1 1 | $2.95 | Add to Cart | |
| P-7 | 550-7 | Collar-compression 1 | 1 1 | — | Call for availability | |
| P-8 | 560-25 | Spring -compression 1 | 1 1 | — | Call for availability | |
| P-9 | 540-13 | Cap -compression 1 | 1 1 | — | Call for availability | |
| P-10 | 690-6 | Wahser-friction 1 | 1 1 | — | Call for availability | |
| P-11 | 62-381-17 | Snap Ring -rock Shaft 1 | 1 1 | — | Call for availability | |
| P-12 | 530-15 | Shaft-shift Lever Rock 1 | 1 1 | — | Call for availability | |
| K-7 | 97-155-13 | Gasket-dome To Shifter Housing (4 Holes) | 1 | $3.15 | Add to Cart |
CR-7 Shaft CR-6 Pedal Rei. Code CR-7 Shall CR-6 Pedal
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 105C-64 | 106C-1 142 106C-1047 310233X 58 105C-137 106C-1141 106C-1 169 310233X | — | Call for availability | ||
| 2 | 105C-64 | 106C-1 185 106C-438 - 59 105C-137 106C-1 185 106C-438 - | — | Call for availability | ||
| 3 | 105C-64 | 106C-1 185 106C-939 310233X 60 105C-137 106C-1 185 106C-617 310233X | — | Call for availability | ||
| 4 | 105C-64 | 106C-1 185 106C-1046 310233X 61 105C-137 106C-1 185 106C-839 310233X | — | Call for availability | ||
| 5 | 105C-64 | 106C-1 185 106C-1047 310233X 62 105C-137 106C-1 185 106C-939 310233X | — | Call for availability | ||
| 6 | 105C-64 | 106C-1 185 106C-1047 47-526-1 -1X 63 105C-137 106C-1 185 106C-939 310473X | — | Call for availability | ||
| 7 | 105C-64 | 106C-1544 106C-839 310233X 64 105C-137 106C-1 185 106C-953 310473X | — | Call for availability | ||
| 8 | 105C-68 | 106C-1 142 106C-438 - 66 105C-137 106C-1 185 106C-1046 310473X | — | Call for availability | ||
| 9 | 105C-68 | 106C-1 142 106C-617 - 67 105C-137 106C-1 185 106C-1047 310233X | — | Call for availability | ||
| 10 | 105C-68 | 106C-1 142 106C-617 310233X 68 105C-137 106C-1 185 106C-1083 310233X | — | Call for availability | ||
| 11 | 105C-68 | 106C-1 142 106C-839 310233X 69 105C-137 106C-1 185 106C-1094 - | — | Call for availability | ||
| 12 | 105C-68 | 106C-1 142 106C-939 310233X 70 105C-137 106C-1 185 106C-1094 310233X | — | Call for availability | ||
| 13 | 105C-68 | 106C-1 142 106C-1046 310233X 71 105C-137 106C-1 185 106C-1 123 - | — | Call for availability | ||
| 14 | 105C-68 | 106C-1 142 106C-1047 310233X 72 105C-137 106C-1 185 106C-1 123 310233X | — | Call for availability | ||
| 15 | 105C-68 | 106C-1278 106C-438 - 73 105C-137 106C-1 185 106C-1367 - | — | Call for availability | ||
| 16 | 105C-117 | 106C-1071 106C-939 310233X 75 105C-137 106C-1 185 106C-1375 310873X | — | Call for availability | ||
| 17 | 105C-117 | 106C-1071 106C-1094 310233X 76 105C-137 106C-1 185 106C-1515 - | — | Call for availability | ||
| 18 | 105C-117 | 106C-1 142 106C-939 310233X 1 77 105C-137 106C-1 185 106C-1529 - | — | Call for availability | ||
| 19 | 105C-117 | 106C-1 185 106C-438 - 78 105C-137 106C-1 185 330610-5 - | — | Call for availability | ||
| 20 | 105C-117 | 106C-1 185 106C-617 310233X 79 105C-137 106C-1216 106C-617 310233X | — | Call for availability | ||
| 21 | 105C-117 | 106C-1 185 106C-839 47-526-1 -1X 80 105C-137 106C-1278 106C-438 - | — | Call for availability | ||
| 22 | 105C-117 | 106C-1 185 106C-939 310233X 81 105C-137 106C-1278 106C-588 - | — | Call for availability | ||
| 23 | 105C-117 | 106C-1 185 106C-953 310873X 82 105C-137 106C-1278 106C-588 310233X | — | Call for availability | ||
| 24 | 105C-117 | 106C-1 185 106C-960 310233X 83 105C-137 106C-1278 106C-617 310233X | — | Call for availability | ||
| 25 | 105C-117 | 106C-1 185 106C-1046 310233X 84 105C-137 106C-1278 106C-939 310233X | — | Call for availability | ||
| 26 | 105C-117 | 106C-1 185 106C-1047 310233X 85 105C-137 106C-1278 106C-939 310873X | — | Call for availability | ||
| 27 | 105C-117 | 106C-1 185 106C-1083 - 86 105C-137 106C-1278 106C-960 310233X | — | Call for availability | ||
| 28 | 105C-117 | 106C-1 185 106C-1083 310233X 87 105C-137 106C-1278 106C-1046 - | — | Call for availability | ||
| 29 | 105C-117 | 106C-1 185 106C-1083 310473X 88 105C-137 106C-1278 106C-1046 310233X | — | Call for availability | ||
| 30 | 105C-117 | 106C-1 185 106C-1094 310233X 89 105C-137 106C-1278 106C-1047 - | — | Call for availability | ||
| 31 | 105C-117 | 106C-1 185 106C-1094 310873X 90 105C-137 106C-1278 106C-1047 310233X | — | Call for availability | ||
| 32 | 105C-117 | 106C-1 185 106C-1 169 310233X 91 105C-137 106C-1278 106C-1083 310233X | — | Call for availability | ||
| 33 | 105C-117 | 106C-1 185 106C-1315 - 92 105C-137 106C-1278 106C-1094 310233X | — | Call for availability | ||
| 34 | 105C-117 | 106C-1 185 106C-1315 310233X 93 105C-137 106C-1278 106C-1375 310233X | — | Call for availability | ||
| 35 | 105C-117 | 106C-1 185 106C-1315 47-526-1 -1X 94 105C-137 106C-1278 106C-1422 310233X | — | Call for availability | ||
| 36 | 105C-117 | 106C-1 185 106C-1417 310233X 95 105C-137 106C-1278 106C-1529 - | — | Call for availability | ||
| 37 | 105C-117 | 106C-1 185 106C-1417 310873X 96 105C-137 106C-1360 106C-1083 - | — | Call for availability | ||
| 38 | 105C-117 | 106C-1 185 106C-1490 310233X 97 105C-137 106C-1360 106C-1422 310233X | — | Call for availability | ||
| 39 | 105C-117 | 106C-1278 106C-939 310233X 98 105C-137 106C-1375 106C-438 310233X | — | Call for availability | ||
| 40 | 105C-117 | 106C-1278 106C-960 310873X 99 105C-137 106C-1498 106C-438 - | — | Call for availability | ||
| 41 | 105C-117 | 106C-1278 106C-1047 310233X 100 105C-137 106C-1498 106C-617 310233X | — | Call for availability | ||
| 42 | 105C-117 | 106C-1278 106C-1094 310233X 101 105C-137 106C-1498 106C-617 310473X | — | Call for availability | ||
| 43 | 105C-117 | 106C-1278 106C-1315 310233X 102 105C-137 106C-1498 106C-939 310233X | — | Call for availability | ||
| 44 | 105C-117 | 106C-1278 106C-1367 310233X 103 105C-137 106C-1498 106C-939 310473X | — | Call for availability | ||
| 45 | 105C-117 | 106C-1360 106C-1083 310233X 104 105C-137 106C-1498 106C-953 310233X | — | Call for availability | ||
| 46 | 105C-117 | 106C-1360 106C-1315 310233X 105 105C-137 106C-1498 106C-959 310233X | — | Call for availability | ||
| 47 | 105C-117 | Thru Shaft 106C-1550 - 106 105C-137 106C-1498 106C-1046 310233X | — | Call for availability | ||
| 48 | 105C-117 | Thru Shaft 106C-1558 - 107 105C-137 106C-1498 106C-1047 - | — | Call for availability | ||
| 49 | 105C-12411 | 106C-1 185 106C-438 - 109 105C-137 106C-1498 106C-1083 310233X | — | Call for availability | ||
| 50 | 105C-12411 | Thru Shaft 106C-1566 310233X 1 10 105C-137 106C-1498 106C-1094 - | — | Call for availability | ||
| 51 | 105C-12411 | Thru Shaft 1 06C-1566 310473X 111 105C-137 106C-1498 330610-11 310233X | — | Call for availability | ||
| 52 | 105C-12411 | Thru Shaft 106C-1566 310873X 112 105C-137 330601 -1 106C-939 310233X | — | Call for availability | ||
| 52A | 105C-12411 | Thru Shaft 49-510-1 310233X | — | Call for availability | ||
| 53 | 105C-132 | 106C-1 185 106C-1047 310233X 113 85-509-3 106C-1360 106C-1417 310233X | — | Call for availability | ||
| 54 | 105C-132 | 106C-1 185 106C-1083 310233X 1 14 85-509-3 Thru Shaft 106C-1578 310233X | — | Call for availability | ||
| 55 | 105C-132 | 106C-1 185 106C-1417 310873X 115 85-509-3 Thru Shaft 106C-1578 310873X | — | Call for availability | ||
| 56 | 105C-132 | 106C-1 185 46-510-9 - | — | Call for availability | ||
| 57 | 105C-132 | 106C-1278 46-510-9 - 116 312916 Thru Shaft 97-510-2 - | — | Call for availability |
THRU Shaft (used with Push Type Clutch)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-10714-062 | 106C-1083 RS-8 | 7 .969 " | — | Call for availability | ||
| 106C-11415-125 | 106C-1094 RS-8 | 8 .469 " | — | Call for availability | ||
| 106C-11426-125 | 106C-1 123 RS-8 12 | .968" | — | Call for availability | ||
| 106C-11855-750 | 106C-1 169 RS-8 | 9 .125" | — | Call for availability | ||
| 106C-12164-750 | 106C-1315 RS-8 | 7 .625 " | — | Call for availability | ||
| 106C-12784-812 | 106C-1367 RS-8 10 | .312" | — | Call for availability | ||
| 106C-13605-312 | 106C-1375 RS-8 | 6 .781 " | — | Call for availability | ||
| 106C-13756-781 | 106C-1417 RS-8 | 7 .250" | — | Call for availability | ||
| 106C-14986-500 | 106C-1422 RS-8 | 7 .500" | — | Call for availability | ||
| 106C-15447-000 | 106C-1490 RS-8 16 | .000 " | — | Call for availability | ||
| 330601-16-250 | 106C-1515 RS-5 1 | 1 .375 " | — | Call for availability | ||
| 330610-5 | RS-8 | 9 .469 " | $80.92 | Add to Cart | ||
| 330610-11 | RS-8 10 | .750 " | — | Call for availability | ||
| 46-510-9 | RS-5 | 7 .125 " | — | Call for availability | ||
| 310233X | For Left Side Mtg | — | Call for availability | |||
| 310473X | For Right Side Mtg. | — | Call for availability | |||
| 47-526-1 | -1XII Lever Type 7% | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-438 | RS-514-000 | Ii Lever Type Can Be Used On Either Right Or Left Side. | — | Call for availability | ||
| 106C-839 | RS-811-469 | Part No. Type Length | — | Call for availability | ||
| 106C-939 | RS-810-000 | 106C-1566 Splined 19 | .125" | — | Call for availability | |
| 106C-953 | RS-89-750 | 106C-1550 Keyed 16 | .375" | — | Call for availability | |
| 106C-959 | RS-811-968 | 106C-1558 Keyed 19 | .000" | — | Call for availability | |
| 106C-960 | RS-88-719 | 106C-1578 Splined 19 | .500" | — | Call for availability | |
| 106C-1046 | RS-88-968 | 49-510-1 Keyed 19 | .120" | — | Call for availability | |
| 106C-1047 | RS-89-469 | 97-510-2 Splined 19 | .313" | — | Call for availability |
Tabulated Bills OF Material T210 -9072
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | 197-19-51-1X | 97-16-79-2X | — | Call for availability | ||
| Model | 297-19-51-1X | 97-16-81 -2X | — | Call for availability | ||
| Model | 397-19-51-1X | 97-16-81 -2X | — | Call for availability | ||
| Model | 497-19-51-1X | 97-16-79-2X | — | Call for availability | ||
| Model | 597-19-51-1X | 97-16-81 -2X | — | Call for availability | ||
| Model | 697-19-51-1X | 97-16-79-2X | — | Call for availability | ||
| Model | 753-19-9-2X | 97-16-81 -2X | — | Call for availability | ||
| Model | 897-19-51-1X | 97-452-2 97-453-1 6 ·4 ·5351 97-16-81 -2X | — | Call for availability | ||
| Model | 997-19-51-1X | 97-452-2 97-453-1 6-4-5351 97-16-81 -2X | — | Call for availability | ||
| -10 | 97-19-51-1X | 97-16-81 -2X | — | Call for availability | ||
| -11 | 97-19-51-1X | 97-452-6 97-453-7 6-4-5351 97-16-79-2X | — | Call for availability | ||
| -12 | 97-19-51-1X | 97-452-14 6-4-5351 97-16-79-2X 85-16-37-17X | — | Call for availability | ||
| -13 | 97-19-51-1X | 97-16-79-2X | — | Call for availability | ||
| -14 | 97-19-51-1X | 97-16-81 -2X | — | Call for availability | ||
| -15 | 97-19-51-1X | 97-452-16 6-4-5351 97-16-81 -2X | — | Call for availability | ||
| -16 | 97-19-51-1X | 97-16-79-2X | — | Call for availability | ||
| -17 | 53-19-9-2X | 97-16-79-2X | — | Call for availability | ||
| -18 | 97-19-51-1X | 97-452-6 6 ·4-5351 97-16-81 -2X 97-16-27-71X | — | Call for availability | ||
| -19 | 97-19-51-1X | 97-452-6 97-453-7 6.3-4-41 97-16-79-2X | — | Call for availability | ||
| -20 | 97-19-51-1X | 97-452-14 6-4-5351 97-16-79-2X | — | Call for availability | ||
| -21 | 97-19-51-1X | 97-452-16 96-16-79-2X | — | Call for availability | ||
| -22 | 97-19-51-1X | 97-452-16 97-16-81 -2X | — | Call for availability | ||
| -23 | 97-19-51-1X | 97-16-81 -2X | — | Call for availability | ||
| -24 | 97-19-51-1X | 97-452-2 97-453-1 6-4-5351 97-16-81 -2X | — | Call for availability | ||
| -25 | 97-19-51-1X | 97-452-14 6-4-5351 -1 97-16-79-2X | — | Call for availability | ||
| -26 | 97-19-51-1X | 97-452-14 5-4-6531 -1 97-16-79-2X | — | Call for availability | ||
| -27 | 97-19-51-1X | 97 -16-79-2X | — | Call for availability | ||
| -28 | 97-19-51-1X | 97-452-2 97-453-1 6-1 -4881 97-16-79-2X 31 1265X | — | Call for availability | ||
| -29 | 97-19-51-1X | 97-452-2 97-453-1 97-16-79-2X | — | Call for availability | ||
| -30 | 97-19-51-1X | 97-452-2 97-453-1 6-4-5351 97-16-79-2X | — | Call for availability | ||
| -31 | 97-19-51-1X | 97-452-14 6-4-5351 -1 97-16-81 -2X | — | Call for availability | ||
| -32 | 97-19-51-1X | 97-452-14 97-16-81 -2X | — | Call for availability | ||
| -33 | 97-19-51-1X | 97-452-16 6-4-5351 -1 97-16-81 -2X | — | Call for availability | ||
| -34 | 97-19-51-1X | 97-16-79-2X | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission 9072 — every part in the manual, matched to our live inventory. We stock 69 of the 373 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the 9072 transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | 9072 |
| Transmission type | 7-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 26 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
- All Spicer transmission parts & units
- Remanufactured transmissions
- Search our catalog for Spicer 9072
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
