Spicer CM4954-D Parts Manual
Drive Gear Group -Input
Item B-5Item B-6Item B-8Item B-10Item B-11Item B-12Item B-13Item B-15Item B-17Item B-21Item B-19Item B-8Item B-20Item B-27Item B-1Item B-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | 550986 | Bearing -Mainshaft Pocket | 1 | $78.59 | Superseded by 564821Add to Cart |
Mainshaft Group -Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 49-362-1 | Mainshaft | 1 | $461.60 | Add to Cart | |
| B-2 | 545087 | / Pin -Thrust Washer Lock | 2 | $5.49 | Add to Cart | |
| B-3 | 49-8-3 | Gear-1 St Speed (45T) Mainshaft | 1 | $306.29 | Add to Cart | |
| B-4 | 550991 | Bearing -1 St & Reverse Gear Needle | 1 | $47.16 | Add to Cart | |
| B-5 | 49-47-1 | Thrust Washer-1 St & 2nd Speed Gear | 1 | $32.24 | Add to Cart | |
| B-6 | 49-381-1 | Snap Ring -1 St & 2nd Thrust Washer | 1 | $6.27 | Add to Cart | |
| B-7 | 49-8-5 | Gear-2nd Speed (38T), Mainshaft | 1 | $316.32 | Add to Cart | |
| B-8 | 550963 | '"'<,; Cti; Bearing -2nd & Reverse Speed Needle | 2 | $30.69 | Add to Cart | |
| B-9 | 313547 | Synchronizer-2nd & 3rd (See Page 14) | Call for availability | |||
| B-9 | 313616X | & 3rd Speed | 1 | $1,002.36 | Superseded by 3137602XAdd to Cart | |
| B-10 | 49-466-1 | & 3rd Speed Clutch | 1 | $102.22 | Superseded by 1014664Add to Cart | |
| B-11 | 40-381-4 | Snap Ring -2nd & 3rd Clutch Gear | 1 | $2.39 | Add to Cart | |
| B-12 | 49-8-7 | Gear-3rd Speed (34T), Mainshaft | 1 | $239.79 | Add to Cart | |
| B-13 | 550968 | Bearing -3rd Speed Mainshaft Needle | 1 | $40.49 | Add to Cart | |
| B-14 | 49-47-2 | Thrust Washer-3rd & 4th Speed Gear | 1 | $36.17 | Add to Cart | |
| B-15 | 40-381-3 | Snap Ring -3rd & 4th Thrust Washer | 1 | $2.39 | Add to Cart | |
| B-15 | 49-8-9 | (22T) For 4954-A | $226.74 | Add to Cart | ||
| B-15 | 49-8-11 | (21T) For 4954,-D | $241.33 | Add to Cart | ||
| B-17 | 550990 | Bearing -4th Speed Mainshaft Gear | $21.96 | Add to Cart | ||
| B-18 | 313558X | Synchronizer-4th & 5th Speed Gear | Call for availability | |||
| B-19 | 49-466-2 | ¥Stl>t-</R.J,-L. Gear-4th & 5th Speed Clutch (33T) | 1 | $112.70 | Superseded by 1014662Add to Cart | |
| B-20 | 40-381-1 | L Snap Ring -4th & 5th Clutch Gear | 1 | $2.46 | Add to Cart | |
| B-21 | 49-465-6 | Clutch Collar-1 St & Reverse (See Page 14) | Call for availability | |||
| • B-26 | 53-205-1 | Washer-Mainshaft Nut | $4.42 | Add to Cart | ||
| B-27 | 501200 | Nut-Mainshaft (1 .250-18) | $15.74 | Add to Cart |

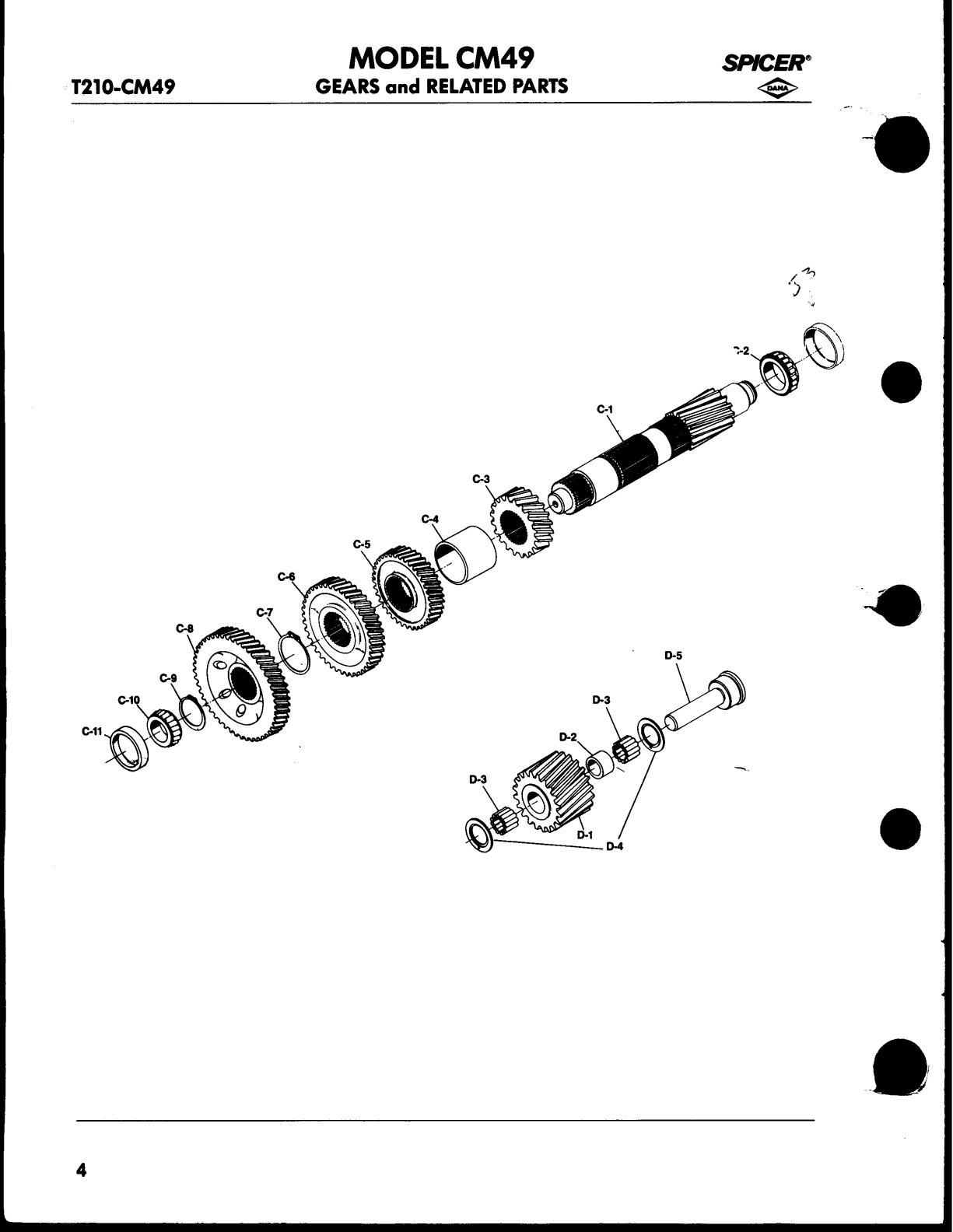

Countershaft Group -
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 49-30-3 | Countershaft (With P.T.O Drive) 7>.6.-./ '11/f?.T!.O.. | 1 | Call for availability | ||
| C-2 | 550868 | Rear | 1 | $33.17 | Add to Cart | |
| C-3 | 49-196-1 | Gear-2nd Speed (20T), Countershaft | 1 | $124.72 | Add to Cart | |
| C-4 | 49-37-5 | Spacer-2nd & 3rd Speed Gear | 1 | $28.33 | Add to Cart | |
| C-5 | 49-196-3 | Gear-3rd Speed (32T), Countershaft | 1 | $157.87 | Add to Cart | |
| C-5 | 49-196-5 | (32T) For 4954-A | $149.56 | Add to Cart | ||
| C-5 | 49-196-7 | (34T) For 4954-D | $178.98 | Add to Cart | ||
| C-7 | 27-381-5 | Snap Ring -4th Countershaft Gear | 1 | $3.07 | Add to Cart | |
| C-8 | 49-1-1 | Gear-Drive (44T), Countershaft | 1 | $197.49 | Add to Cart | |
| C-9 | 40-381-3 | Snap Ring -Countershaft Drive Gear | 1 | $2.39 | Add to Cart | |
| C-10 | 550964 | Cone -Bearing -Countershaft Front | 1 | $16.47 | Add to Cart | |
| C-11 | 550965 | Cup -Bearing -Countershaft Front | 1 | $8.37 | Add to Cart |
Reverse Idler Shaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 49-5-1 | Gear-Reverse Idler (19T) | 1 | Call for availability | ||
| D-2 | 97-37-1 | Spacer-Bearing Reverse Idler Gear | 1 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing -Reverse Idler | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Thrust Washer-Reverse Idler | 2 | $41.88 | Add to Cart |
Clutch Housing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-3 | 128C-20 | Bushing -Clutch Release Shaft | 2 | $8.55 | Add to Cart | |
| E-4 | 46-96-2 | ·1X Hand Hole Cover Assembly | 1 | Call for availability | ||
| E-5 | 40-468-1 | Oil Trough | 1 | $2.38 | Superseded by 404682Add to Cart | |
| E-6 | 545088 | Pin -Drive Oil Trough | 2 | Call for availability | ||
| E-7 | 330564-1 | Lift Hook | 1 | $3.15 | Add to Cart | |
| E-8 | 545082-7 | Bolt-Clutch Housing To Case (MF1 0 X 1 .25 X 55mm) | 16 | Call for availability | ||
| E-9 | 545086-6 | Dowel Pin -Case Front. | 2 | Call for availability | ||
| E-10 | 49-477-1 | Support-Front Shift Bar | 1 | Call for availability | ||
| E-11 | 545082-9 | Bolt-Shift Bar Support (MF1 0 X 1 .25 X 35mm) | 2 | Call for availability | ||
| N .S. | 500169-5 | Nipple -Clutch Release Shaft | 2 | Call for availability |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-2 | Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-3 | 40-463-6-1 | X Seal -Drive Gear Bearing Cap (Stem Only) | 1 | Call for availability | ||
| F-3 | 40-463 | ·4 ·1 X Seal -Drive Gear Bearing Cap (Flat Only) | 1 | Call for availability | ||
| F-4 | 545093 | Cap Screw-Drive Gear Bearing Cap | 8 | Call for availability | ||
| F-5 | 97-381-30 | Snap Ring -Bearing Drive Gear Front | 1 | $6.73 | Add to Cart | |
| F-6 | 550988 | Bearing -Drive Gear, Front | 1 | $43.69 | Add to Cart | |
| F-7 | 40-411-1 | Return Spring Bracket (Navistar Only) | 1 | $2.74 | Add to Cart | |
| F-8 | 49-468-2 | Oil Ring | 1 | $12.00 | Add to Cart |
Clutch Housing Release Shaft Hole
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| t49-518-4-2X | 49-518-4 | C40-518-2 2 817132" 1 " 3~ | version * (see the manual's footnote) | Call for availability | ||
| t49-518-5-2X | 49-518-5 | C40-518-2-1 2 817/32" 1 | version * (see the manual's footnote) | Call for availability | ||
| 49-518-6-1 | X49-518-6 | C40-518-4-1 2 6 .802 | version * (see the manual's footnote) | Call for availability |
Case Group
Item G-10Item G-5Item G-7Item G-6Item G-13Item G-12Item G-11Item G-2Item G-3Item G-17Item G-18Item G-19Item G-15Item G-16Item G-14Item G-20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S. | NP-96 | Plate -Name | 1 | $2.16 | Add to Cart | |
| N .S. | NP-196 | Plate -Patent | 1 | $2.97 | Add to Cart | |
| N .S | 252-SP | Pin -Nameplate | 4 | $1.90 | Add to Cart | |
| N .S | 330934 | Magnet Cermic | 1 | $4.72 | Add to Cart | |
| N .S. | 330800 | Plug -Side Hole(% " -16 X 3/4") | 2 | $3.27 | Add to Cart | |
| G-3 | 500100 | Plug -Filler (3/4" -14 N .P .T.F .) | 1 | Call for availability | ||
| G-4 | 62-39-3 | Plug -Magnetic Drain (314" -14 N .P .T.F .) | 1 | $9.27 | Add to Cart | |
| G-5 | 312268 | Breather-Assembly | 1 | $31.32 | Add to Cart | |
| G-6 | 40-487-1 | Insert-Poppet Spring & Ball IJ | 3 | $3.91 | Add to Cart | |
| G-7 | 40-80-1 | -;;; ·Ball -Poppet J.C?.l. -:.-:1. :3. | 3 | Call for availability | ||
| • G-8 | 97-72-23 | -Spring -Shift Bar Poppet · : · · : | 3 | $22.03 | Superseded by 10143892XAdd to Cart | |
| G-10 | 313538 | Switch -Back-Up Lite (Navistar Only) | 1 | $31.37 | Add to Cart | |
| G-10 | 313539 | Switch -Back-Up Lite (Ford) | 1 | $25.13 | Add to Cart | |
| G-11 | 40-438-1 | Pin -1 St & Reverse Select Plunger | 1 | Call for availability | ||
| G-12 | 62-72-8 | Spring -1 St & Reverse Shift Finger Plunger | 1 | No longer available - Call for replacement | ||
| G-12 | 40-72-3 | Spring -1 St & Reverse Shift Finger Plunger (R.V.I .) | 1 | Call for availability | ||
| G-13 | 40-59-1 | Plug -1 St & Reverse Plunger. | 1 | Call for availability | ||
| G-14 | 97-324-1 | ·1X Gasket-6 Bolt P.T.O. Aperture Cover | 2 | $3.91 | Add to Cart | |
| G-15 | 50-267-2 | Cover-6 Bolt P.T.O. Aperture | 2 | $122.97 | Add to Cart | |
| G-16 | 330800 | Bolt-P .T .O Aperture (% " -16 X 3/4") | 12 | Call for availability | ||
| G-17 | 49-324-1-1 | X Gasket-Reverse Idler Cover | 1 | Call for availability | ||
| G-18 | 40-96-3 | Cover-Reverse Idler : | 1 | Call for availability | ||
| G-19 | 545085 | Bolt-Reverse Idler Cover (M 10 X 1 .5 X 20mm) t2:. · · · · | 6 | Call for availability | ||
| G-20 | 49-215-1 | Spacer-Case To Clutch Housing | Call for availability | |||
| 40-19-19-2X | 63-463-1 | C: 40-19-t8 )J) 60-475-1 Dcm /2 "XIj Navistar | Call for availability | |||
| 40-19-22-2X | 63-463-1 | C 40 -19 'Li Z 60-475-1 Dcm Navistar | Call for availability | |||
| 40-19-38-2X | 63-463-1 | 40-19-38 60-475-1 Navistar | Call for availability | |||
| 40-19-39-1 X | 63-463-1 | 40-19-39 - - Ford | Call for availability | |||
| 40-19-41 -2X | 63-463-1 | 40-19-41 - Dcm Navistar | Call for availability | |||
| 40-19-42-2X | 63-463-1 | 40-19-42 - Dcm Navistar | Call for availability | |||
| 40-19-43-2X | 63-463-1 | 40-19-43 60-475-1 - Navistar | Call for availability |
Mainshaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 63-463-1 | Oil Seal -Mainshaft Rear Bearing Cap | 1 | $28.23 | Add to Cart | |
| H-4 | Cap -Mainshaft Rear Bearing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| H-6 | 40-223-1 | - ' -( Ins£ Gasket-Mainshaft Rear Bearing Cap | 1 | $9.44 | Superseded by 402234Add to Cart | |
| H-6 | 40-223-3 | -E Gasket-Mainshaft Rear Bearing Cap (Brake Only) | 1 | $10.41 | Superseded by 402235Add to Cart | |
| H-7 | 545082-3 | Bolt-Rear Bearing Cap (MF10 X 1 .378 X 35 M M) | 4 | Call for availability | ||
| H-9 | 55-454-1 | Sleeve-1 1/4 " Speedometer Driven Gear | 1 | No longer available - Call for replacement | ||
| H-9 | 97-454-2-1X | Sleeve & Oil Seal | 1 | Call for availability | ||
| N .S | 44-539-1 | Cap -Speedometer Dust | 1 | $9.19 | Add to Cart | |
| • N .S. | 55-334-1 | Plug -Speedometer (Used Without Driven Gear) | 1 | $88.44 | Add to Cart | |
| N .S | 545106 | Plug -Speedometer Outlet (Electronic) | 1 | Call for availability | ||
| H-10 | 550989 | Bearing -Mainshaft Rear | 1 | $72.30 | Add to Cart | |
| H-11 | 545021 | Plug -Electronic Speedometer (Ford) | 1 | $18.89 | Add to Cart | |
| H-12 | 37179 | Tube -Vent (Assembly To Front Of Transmission) | 1 | Call for availability | ||
| H-13 | 545084-2 | Bolt-Cap (D .C .M Brake) (MF12 X 1 .25 X 35mm) | 2 | Call for availability | ||
| H-13 | 545084-4 | Plug -Case (Rear Holes) (MF12 X 1 .25 X 16mm) | 2 | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 49-22-1 | Cap-Countershaft Rear Bearing | Call for availability | |||
| J-1 | 49-228-1 | -1[} ( .0055/.0045) | Call for availability | |||
| J-1 | 49-228-1-2 | '313 '13 · -3X ( .0110t.oo9o) | $3.93 | Add to Cart | ||
| J-1 | 49-228-1-3 | ( .0165/.0135) | Call for availability | |||
| J-3 | 550978 | Cup -Countershaft Rear Bearing | $22.03 | Add to Cart | ||
| J-4 | 330564-1 | Lift Hook | 1 | $3.15 | Add to Cart | |
| J-5 | 545002-4 | Bolt-Countershaft Rear Bearing Cap ( .375-16 X 1 .750) | 4 | $6.93 | Add to Cart |
Interlock Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| M-1 | 40-200-1 | Plate -Interlock Retainer | 1 | $19.29 | Add to Cart | |
| M-3 | 545091 | Screw-Drive (Interlock Retainer) | 2 | $2.92 | Add to Cart | |
| M-4 | 40-200-2 | Plate -Interlock | 1 | No longer available - Call for replacement |
Rear Shaft Bar Support Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| N-1 | 40-477-2 | Support-Rear Shift Bar | 1 | Call for availability | ||
| N-2 | 40-96-1 | Cap -Rear Shift Bar | 1 | $27.89 | Add to Cart | |
| N-3 | 330564-1 | Lift Hook | 1 | $3.15 | Add to Cart | |
| N-4 | 545082-1 | Bolt-Bar Cap (MF1 0 X 1 .25 X 25mm) | 4 | Call for availability | ||
| N-5 | 545082-3 | Bolt-Bar Support (MF1 0 X 1 .25 X 35mm) | 2 | Call for availability |
Companion Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1480 | U-Bolt 3 -4-8781 41%4" 22112° | Call for availability | ||||
| 1550 | U-Bolt 4-4-4491 4%4 " 21112 ° | Call for availability | ||||
| •• | 1550 | Brg Strap** 4-4-4491 -2 4%4 " 21112 ° | Call for availability | |||
| •• | 1610 | Full And 5 -4-6321 4 " 19 ° | Call for availability | |||
| •• | 1710 | Full And 6-4-7301 5114" 33112° | Call for availability |
Shift Fork and Bar-1 St & Reverse, Clips 1 3l36t5-3X-
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-2 | 49-486-2 | Clip -1 St & Reverse, 2nd & 3rd Shift Fork 4 49"486-2 | $2.34 | Add to Cart | ||
| R-2 | 49-486-3 | CliP- -1st & Reverse, 2nd & 3rd Shift Fork 4 49-486-3 | $4.06 | Add to Cart | ||
| R-3 | 313549-1X | Shift Fork And Bar-2nd & 3rd Clips & Synchronizer 1 313614-2X | Call for availability | |||
| R-3 | 313614X | Shift Fork And Bar-2nd & 3rd & Clips 1 313614 ·1X | Call for availability | |||
| R-4 | 313550X | Shift Fork And Bar-4th & 5th & Clips 1 313550-1X | $429.40 | Superseded by 3137611XAdd to Cart | ||
| R-5 | 40-486-1 | Clip -4th & 5th Shift Fork 2 40-486-1 | $3.15 | Add to Cart |
Shift Lever and DOME Assembly T210-CM49
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 39Q-27 | Handle -Shift Lever 1 1 | 1 | Call for availability | ||
| P-2 | 286-SP | Pin -Shift Lever Collar 1 1 1 | 1 | $2.95 | Add to Cart | |
| P-3 | 55Q-7 | Collar-Compression 1 1 1 | 1 | $3.15 | Add to Cart | |
| P-4 | 56Q-25 | Spring -Compression 1 1 1 | 1 | $6.27 | Add to Cart | |
| P-5 | 54Q-13 | Cup -Compression 1 1 1 | 1 | No longer available - Call for replacement | ||
| P-6 | 69Q-6 | Washer-Compression 1 1 1 | 1 | Call for availability | ||
| P-7 | 54Q-20 | Insert-Dome 1 1 1 | 1 | Call for availability | ||
| P-8 | 30-463-9 | "0 " Ring -Dome Seal 1 1 1 | 1 | $2.29 | Add to Cart | |
| JP-9 | 250-1701-20 | Sh1ft . lever-stra1ght . 1 | Call for availability | |||
| JP-9 | 25Q-1701-49 | Shift Lever-Straight 3 : ' 1 | Call for availability | |||
| JP-9 | 25Q-2461 | Shift Lever-Lower End (Rvi) - - - | 1 | Call for availability | ||
| JP-9 | 25Q-2464 | Shift Lever-Lower End 1 | Call for availability | |||
| P-10 | 53Q-15 | Shaft-Rock 1 1 1 | 1 | Call for availability | ||
| P-11 | 40-17-1 | Dome -Shift Lever (Overall | Call for availability | |||
| P-11 | 40-17-3 | Dome -Shift Lever (Overall | Call for availability | |||
| P-12 | 545028 | Bolt-Shift Tower (7/1 " -14x 1Y4") | $3.00 | Add to Cart | ||
| P-12 | 545028-1 | Bolt-Shift Tower (7/1 " -14 X 13/.t ") 4 | Call for availability | |||
| P-14 | 49-37-6 | Spacer-Tower ( .445") 1 | Call for availability |
Clutch Release Code Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 105C-64 | 106C-1142 | 106C-1047 310233X 58 105C-137 106C-1141 106C-1169 310233X | $29.93 | Add to Cart | ||
| 2 105C-64 | 106C-1185 | 106C-438 - 59 105C-137 106C-1185 106C-438 - | $17.75 | Add to Cart | ||
| 3 105C-64 | 106C-1185 | 106C-939 310233X 60 105C-137 106C-1185 106C-617 310233X | $17.75 | Add to Cart | ||
| 4 105C-64 | 106C-1185 | 106C-1046 310233X 61 105C-137 106C-1185 106C-839 310233X | $17.75 | Add to Cart | ||
| 5 105C-64 | 106C-1185 | 106C-1047 310233X 62 105C-137 106C-1185 106C-939 310233X | $17.75 | Add to Cart | ||
| 6 105C-64 | 106C-1185 | 106C-1047 47-526-1 -1X 63 105C-137 106C-1185 106C-939 310473X | $17.75 | Add to Cart | ||
| 7 105C-64 | 106C-1544 | 106C-839 310233X 64 105C-137 106C-1 185 106C-953 310473X | Call for availability | |||
| 8 105C-68 | 106C-1142 | 106C-438 - 66 105C-137 106C-1 185 106C-1046 310473X | $29.93 | Add to Cart | ||
| 9 105C-68 | 106C-1142 | 106C-617 - 67 105C-137 106C-1 185 106C-1047 310233X | $29.93 | Add to Cart | ||
| 10 105C-68 | 106C-1142 | 106C-617 310233X 68 105C-137 106C-1 185 106C-1083 310233X | $29.93 | Add to Cart | ||
| 11 105C-68 | 106C-1142 | 106C-839 310233X 69 105C-137 106C-1 185 106C-1094 - | $29.93 | Add to Cart | ||
| 12 105C-68 | 106C-1142 | 106C-939 310233X 70 105C-137 106C-1185 106C-1094 310233X | $29.93 | Add to Cart | ||
| 13 105C-68 | 106C-1142 | 106C-1046 310233X 71 105C-137 106C-1185 106C-1 123 - | $29.93 | Add to Cart | ||
| 14 105C-68 | 106C-1142 | 106C-1047 310233X 72 105C-137 106C-1185 106C-1 123 310233X | $29.93 | Add to Cart | ||
| 15 105C-68 | 106C-1278 | 106C-438 - 73 105C-137 106C-1185 106C-1367 - | Call for availability | |||
| 16 105C-117 | 106C-1071 | 106C-939 310233X 75 105C-137 106C-1 185 106C-1375 310873X | Call for availability | |||
| 17 105C-117 | 106C-1071 | 106C-1094 310233X 76 105C-137 106C-1 185 106C-1515 - | Call for availability | |||
| 18 105C-117 | 106C-1142 | 106C-939 310233X 77 105C-137 106C-1 185 106C-1529 - | $29.93 | Add to Cart | ||
| 19 105C-117 | 106C-1185 | 106C-438 - 78 105C-137 106C-1 185 330610-5 - | $17.75 | Add to Cart | ||
| 20 105C-117 | 106C-1185 | 106C-617 310233X 79 105C-137 106C-1216 106C-617 310233X | $17.75 | Add to Cart | ||
| 21 105C-117 | 106C-1185 | 106C-839 47-526-1 -1X 80 105C-137 106C-1278 106C-438 - | $17.75 | Add to Cart | ||
| 22 105C-117 | 106C-1185 | 106C-939 310233X 81 105C-137 106C-1278 106C-588 - | $17.75 | Add to Cart | ||
| 23 105C-117 | 106C-1185 | 106C-953 310873X 82 105C-137 106C-1278 106C-588 310233X | $17.75 | Add to Cart | ||
| 24 105C-1 | 17106C-1185 | 106C-960 310233X 83 105C-137 106C-1278 106C-617 310233X | Call for availability | |||
| 25 105C-1 | 17106C-1185 | 106C-1046 310233X 84 105C-137 106C-1278 106C-939 310233X | Call for availability | |||
| 26 105C-1 | 17106C-1185 | 106C-1047 310233X 85 105C-137 106C-1278 106C-939 310873X | Call for availability | |||
| 27 105C-117 | 106C-1185 | 106C-1083 - 86 105C-137 106C-1278 106C-960 310233X | $17.75 | Add to Cart | ||
| 28 105C-117 | 106C-1185 | 106C-1083 310233X 87 105C-137 106C-1278 106C-1046 - | $17.75 | Add to Cart | ||
| 29 105C-117 | 106C-1185 | 106C-1083 310473X 88 105C-137 106C-1278 106C-1046 310233X | $17.75 | Add to Cart | ||
| 30 105C-117 | 106C-1185 | 106C-1094 310233X 89 105C-137 106C-1278 106C-1047 - | $17.75 | Add to Cart | ||
| 31 105C-117 | 106C-1185 | 106C-1094 310873X 90 105C-137 106C-1278 106C-1047 310233X | $17.75 | Add to Cart | ||
| 32 105C-117 | 106C-1185 | 106C-1169 310233X 91 105C-137 106C-1278 106C-1083 310233X | $17.75 | Add to Cart | ||
| 33 105C-117 | 106C-1185 | 106C-1315 - 92 105C-137 106C-1278 106C-1094 310233X | $17.75 | Add to Cart | ||
| 34 105C-117 | 106C-1185 | 106C-1315 310233X 93 105C-137 106C-1278 106C-1375 310233X | $17.75 | Add to Cart | ||
| 35 105C-117 | 106C-1185 | 106C-1315 47-526-1 -1X 94 105C-137 106C-1278 106C-1422 310233X | $17.75 | Add to Cart | ||
| 36 105C-117 | 106C-1185 | 106C-1417 310233X 95 105C-137 106C-1278 106C-1529 - | $17.75 | Add to Cart | ||
| 37 105C-117 | 106C-1185 | 106C-1417 310873X 96 105C-137 106C-1360 106C-1083 - | $17.75 | Add to Cart | ||
| 38 105C-117 | 106C-1185 | 106C-1490 310233X 97 105C-137 106C-1360 106C-1422 310233X | $17.75 | Add to Cart | ||
| 39 105C-117 | 106C-1278 | 106C-939 310233X 98 105C-137 106C-1375 106C-438 310233X | Call for availability | |||
| 40 105C-117 | 106C-1278 | 106C-960 310873X 99 105C-137 106C-1498 106C-438 - | Call for availability | |||
| 41 105C-117 | 106C-1278 | 106C-1047 310233X 100 105C-137 106C-1498 106C-617 310233X | Call for availability | |||
| 42 105C-117 | 106C-1278 | 106C-1094 310233X 101 105C-137 106C-1498 106C-617 310473X | Call for availability | |||
| 43 105C-117 | 106C-1278 | 106C-1315 310233X 102 105C-137 106C-1498 106C-939 310233X | Call for availability | |||
| 44 105C-117 | 106C-1278 | 106C-1367 310233X 103 105C-137 106C-1498 106C-939 310473X | Call for availability | |||
| 45 105C-117 | 106C-1360 | 106C-1083 310233X 104 105C-137 106C-1498 106C-953 310233X | Call for availability | |||
| 46 105C-1 | 17106C-1360 | 106C-1315 310233X 105 105C-137 106C-1498 106C-959 310233X | Call for availability | |||
| 49 105C-124 | 106C-1185 | 106C-438 - 109 105C-137 106C-1498 106C-1083 310233X | $17.75 | Add to Cart | ||
| 53 105C-132 | 106C-1185 | 106C-1047 310233X 113 85-509-3 106C-1360 106C-1417 310233X | $17.75 | Add to Cart | ||
| 54 105C-132 | 106C-1185 | 106C-1083 310233X 1 14 85-509-3 Thru Shaft 106C-1578 310233X | $17.75 | Add to Cart | ||
| 55 105C-132 | 106C-1185 | 106C-1417 310873X 115 85-509-3 Thru Shaft 106C-1578 310873X | $17.75 | Add to Cart | ||
| 56 105C-132 | 106C-1185 | 46-510-9 - | $17.75 | Add to Cart | ||
| 57 105C-132 | 106C-1278 | 46-510-9 - 116 312916 Thru Shaft 97-510-2 - | Call for availability |
THRU Shaft {used with Push Type Clutch)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-10714-062 | 106C-1083 RS-8 7 | .969" | Call for availability | |||
| 106C-11415-125 | 106C ·1094 RS-8 8 | .469" | Call for availability | |||
| 106C-11426-125 | 106C ·1123 RS-8 12 | .968" | Call for availability | |||
| 106C-11855-750 | 106C-1169 RS-8 9 | .125" | Call for availability | |||
| 106C-12164-750 | 106C ·1315 RS-8 7 | .625" | Call for availability | |||
| 106C-12784-812 | 106C-1367 RS-8 10 | .312" | Call for availability | |||
| 106C-13605-312 | 106C-1375 RS-8 6 | .781 " | Call for availability | |||
| 106C-13756-781 | 106C-1417 RS-8 7 | .250" | Call for availability | |||
| 106C-14986-500 | 106C-1422 RS-8 7 | .500" | Call for availability | |||
| 106C-15447-000 | 106C-1490 RS-8 16 | .000" | Call for availability | |||
| 330601-16-250 | 106C-1515 RS-5 11 | .375" | Call for availability | |||
| 330610-5 | RS-8 9 | .469" | $80.92 | Add to Cart | ||
| 330610-11 | RS-8 10 | .750" | Call for availability | |||
| 46-510-9 | RS-5 7 | .125" | Call for availability | |||
| RS-5310233X | For Left Side Mtg. | Call for availability | ||||
| 310473X | For Right Side Mtg | Call for availability | ||||
| 47-526-1 | -1X• Lever Type 7V4 | version * (see the manual's footnote) | Call for availability | |||
| 310873X | Lever Type 7V4 | version * (see the manual's footnote) | Call for availability | |||
| 106C-438 | RS-514-000 | •Lever Type Can Be Used On Either Right Or Left Side. | Call for availability | |||
| 106C-839 | RS-811-469 | Part No. Tyee Length | Call for availability | |||
| 106C-839 | RS-810-000 | 106C-1566 Splined 19 .125 | version * (see the manual's footnote) | Call for availability | ||
| 106C-953 | RS-89-750 | 106C ·1550 Keyed 16 .375 | version * (see the manual's footnote) | Call for availability | ||
| 106C-959 | RS-811-968 | 106C-1558 Keyed 19 .000 | version * (see the manual's footnote) | Call for availability | ||
| 106C-960 | RS-88-719 | 106C-1578 Splined 19.500 | version * (see the manual's footnote) | Call for availability |
Major Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T210 | CM49 | Overhaul Kits | Call for availability | |||
| T210 | 313400-67X | Major Overhaul Kit | $493.88 | Superseded by 494001XAdd to Cart | ||
| T210 | 501200 | Nut-Mainshaft Output | $15.74 | Add to Cart | ||
| T210 | 53-205-1 | Washer-Mainshaft Nut | $4.42 | Add to Cart | ||
| T210 | 313401-29X | Thrust Washer Kit | Call for availability | |||
| T210 | 313429-7X | Shifter Housing Small Parts Kit | Call for availability | |||
| T210 | 313432-30X | Minor Overhaul Kit | $550.14 | Add to Cart |
Minor Overall Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T210 | 313432-30X | Minor Overhaul Kit | $550.14 | Add to Cart | ||
| T210 | 550986 | Mainshaft Pocket | 1 | $78.59 | Superseded by 564821Add to Cart | |
| T210 | 550989 | Mainshaft Rear Cone | 1 | Call for availability | ||
| T210 | 550988 | Drive Gear Front | 1 | $43.69 | Add to Cart | |
| T210 | 550963 | Mainshaft 2nd & Reverse | 2 | Call for availability | ||
| T210 | 550886 | Reverse Idler Gear | 2 | Call for availability | ||
| T210 | 550964 | Countershaft Front-Cone | Call for availability | |||
| T210 | 550965 | Countershaft Front-Cup | Call for availability | |||
| T210 | 550868 | Countershaft Rear-Cone | Call for availability | |||
| T210 | 550978 | Countershaft Rear-Cup | Call for availability | |||
| T210 | 550968 | Mainshaft 3rd Needle | Call for availability | |||
| T210 | 550991 | Mainshaft 1st Speed | 1 | Call for availability | ||
| T210 | 550990 | Mainshaft 4th Speed | 1 | $21.96 | Add to Cart | |
| T210 | 40-486-1 | Clip -Shift Fork; (4th & 5th) | 2 | $3.15 | Add to Cart | |
| T210 | 49-486-2 | Clip -Shift Fork (1st & Reverse) (2nd & 3rd) | 4 | $2.34 | Add to Cart | |
| T210 | 49-486-3 | Clip -Shift Fork (1st & Reverse) (2nd & 3rd) | 4 | $4.06 | Add to Cart | |
| T210 | 40-463-4-1X | Seal -Drive Gear (Flat Type) | $31.43 | Add to Cart | ||
| T210 | 40-463-6-1 | X Seal -Drive Gear (Stem Type) | Call for availability | |||
| T210 | 63-463-1 | Seal-Mainshaft Rear | $28.23 | Add to Cart | ||
| T210 | 545077 | #2 Moly Grease (Packet) | Call for availability | |||
| T210 | 545080-1 | Locite -Threadlock Adhesive (Vail) | Call for availability | |||
| T210 | 312475-40X | Gasket Kit | $80.54 | Add to Cart | ||
| T210 | 313438-3X | Shim Kit-Countershaft Rear | $7.85 | Add to Cart | ||
| T210 | 313024-17X | Snap Ring -Kit | $22.03 | Add to Cart | ||
| T210 | 2359 | Service Manual | Call for availability | |||
| T210 | 2770 | Bulletin -Bearing Lube Instruction | Call for availability | |||
| T210 | 2783 | Bulletin -Locite Application For Mainshaft Nut | Call for availability | |||
| T210 | 313401-29X | Thrust Washer Kit | 1 | Call for availability | ||
| T210 | 974-W | Reverse Idler | 2 | Call for availability | ||
| T210 | 49-47-2 | Mainshaft-3rd & 4th Speed | 1 | $36.17 | Add to Cart | |
| T210 | 49-47-1 | Mainshaft-1 St & 2nd Speed | 1 | Call for availability | ||
| T210 | 49-47-3 | Mainshaft-Reverse | 1 | $201.33 | Superseded by 101474Add to Cart | |
| T210 | 545087 | Pin-Lock | 2 | $5.49 | Add to Cart | |
| T210 | 313429-7X | Shifter Housing Small Parts | 1 | Call for availability | ||
| T210 | 40-80-1 | Poppet Ball | 3 | Call for availability | ||
| T210 | 40-487-1 | Insert-Poppet Spring And Ball | 3 | $3.91 | Add to Cart | |
| T210 | 40-438-1 | Pin-1st And Reverse Select Plunger | 1 | Call for availability | ||
| T210 | 97-72-23 | Spring -Shift Bar Poppet | 3 | $22.03 | Superseded by 10143892XAdd to Cart | |
| T210 | 62-72-8 | Spring -1 St & Reverse Shift Finger Plunger | 1 | No longer available - Call for replacement |
Overhaul Kits T210 -CM49
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -46•155-1 | I0I-II | '6 Tower | Call for availability |
Gasket-P .T .O Aperture Cover
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 49 | 324-1-1X | Kit -Gasket-Reverse Idler Cover | Call for availability |
Gasket-Reverse Idler Cover
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 49 | 486-3 | Clip -1 St Reverse & 2nd 3rd Shift Fork | 2 | Call for availability |
Kit-1 St & Reverse Shift Bar & Clips
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 49 | 465-7 | Collar-1 St & Reverse | Call for availability |
Tabulated Bills of Material
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission CM4954-A, with every part in the manual matched to our live inventory. We stock 126 of the 282 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the CM4954-D transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | CM4954-D |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 24 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
