Spicer CM5052-A Parts Manual
Drive Gear Group -Input
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| ·A -2 | 550930 | Cone -Main Drive Gear Bearing | 2 | $64.20 | Add to Cart | |
| ·A -3 | 550929 | Cup -Main Drive Gear Bearing | 2 | $28.81 | Add to Cart | |
| ·A -4 | 47-468-2 | Baffle -Oil Ring Drive Gear Use Only - With New Drive Gear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | |
| A-5 | 313240-3X | Spacer/Shim Kit | 1 | $33.38 | Add to Cart | |
| •A -6 | 47-468-1 | Baffle -Bearing Cap Use Only -With New Drive Gear | 1 | $3.55 | Add to Cart | |
| •A -7 | 550931 | Cone -Main Drive Gear Pocket Bearing | 1 | $34.78 | Add to Cart |
Mainshaft Group - Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| ·B -1 | 47-362-1 | Mainshalt | 1 | Call for availability | ||
| B-2 | 47-8-1 | Gear-1 St Speed (52T) | 1 | Call for availability | ||
| B-3 | 550932 | Bearing -1 St & Reverse Gear Needle Assembly | 2 | $40.03 | Add to Cart | |
| B-4 | 330866 | Thrust Washer-1 St Speed Gear | 1 | Call for availability | ||
| B-5 | 27-381-5 | Snap Ring | 1 | $3.07 | Add to Cart | |
| B-5 | 47-8-3 | (45T) Far 5052A 5052 -D 5252 -A | Call for availability | |||
| B-5 | 47-8-6 | (47T) For 5052 -B 5052 -C | Call for availability | |||
| B-7 | 47-37-5 | Spacer-Needle Roller Bearing | 3 | $18.84 | Superseded by 5948211XAdd to Cart | |
| B-8 | 313225X | Bearing -Needle Roller (122) | 1 | $18.84 | Superseded by 5948211XAdd to Cart | |
| B-9 | 47-210-1 | Woodruff Key -# 127 | 2 | $3.23 | Add to Cart | |
| B-10 | 46-466-9 | Gear-2nd & 3rd Speed Clutch (18T) | 1 | $142.84 | Add to Cart | |
| B-11 | 46-381-1 | Snap Ring | 1 | $4.22 | Add to Cart | |
| B12 | 8072X | Synchronizer-2nd & 3rd Speed (18T) | 1 | $671.12 | Add to Cart | |
| N .S | 46-466-8 | Clutch Gear-2nd & 3rd Speed (Less Synchronizer) | 1 | Call for availability | ||
| N .S | 46-8-82 | (37T/18T) For 5052 -A | Call for availability | |||
| N .S | 46-8-87 | (38T 118T) For 5052 -C | Call for availability | |||
| N .S | 46-8-95 | (40T/18T) For 5052 -B | Call for availability | |||
| N .S | 46-8-93 | (35T/18T) For 5052 -D 5252 -A | $305.04 | Add to Cart | ||
| B-14 | 330818 | Thrust Washer-3rd & 4th Speed | 1 | $35.44 | Superseded by 67471Add to Cart | |
| B-15 | 46-381-2 | Snap Ring | 2 | $6.73 | Add to Cart | |
| B-15 | 46-8-84 | (29T /15T) For 5052 -A 5052 -C | Call for availability | |||
| B-15 | 46-8-89 | (31T/15T! For 5052 -B | Call for availability | |||
| B-15 | 46-8-96 | (27TI15T For 5052 -D 5252 -A | Call for availability | |||
| B-17 | 1016-W | Thrust Washer-4th Speed Gear | $83.44 | Add to Cart | ||
| B-18 | 312764X | Synchronizer-4th & 5th Speed ( 15T 11 OT) | Call for availability | |||
| N .S | 46-466-18 | Clutch Gear-4th & 5th Speed (Less Synchronizer) | Call for availability | |||
| B-19 | 47-465-1 | Clutch Collar-] St & Reverse | $215.92 | Add to Cart | ||
| B-20 | 47-8-5 | Gear-Reverse (52T) | Call for availability | |||
| B-21 | 330867 | Thrust Washer-Reverse Gear | Call for availability | |||
| B-21 | 55-37-15 | Spacer-(Use In Place Of Speedometer Drive Gear) | Call for availability | |||
| N .S | 47-37-6 | Spacer -End Yoke | Call for availability | |||
| B-24 | 500729 | Nut-1 1/4 " -18 Hex (2" Across Flats) | $15.74 | Superseded by 501200Add to Cart | ||
| B-24 | 501200 | Nut-1 1/4 " -18 Hex ( 1 13/16 " Across Flats) | $15.74 | Add to Cart | ||
| N .S | 330668 | Washer-1 1/4" Flat (Use With 501200 Nut) | Call for availability |

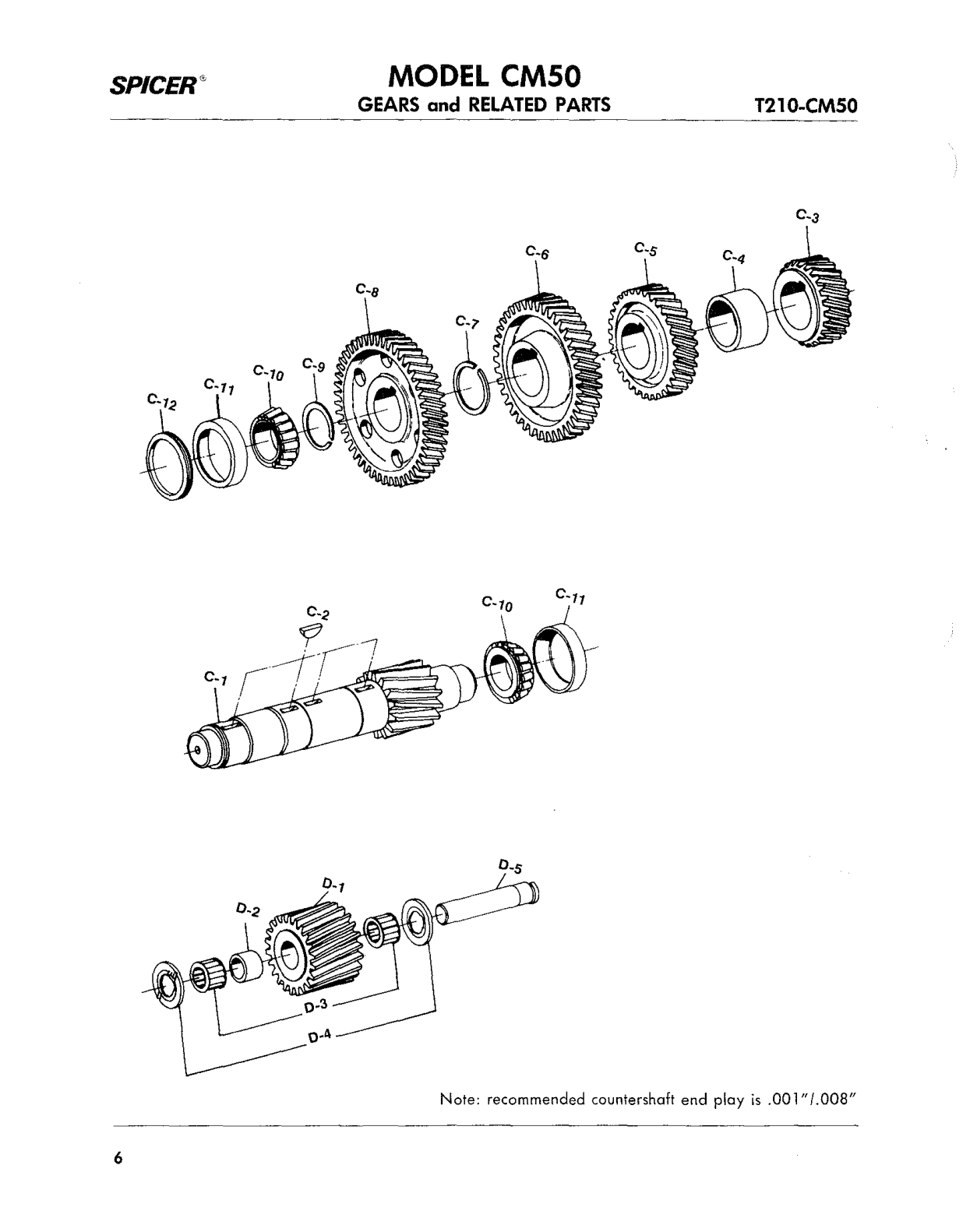

Countershaft Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| c. 1 | 47-30-1 | Countershaft | 1 | Call for availability | ||
| C-2 | 500008-37 | Woodruff Key-#F | 4 | $2.76 | Add to Cart | |
| C-2 | 46-196-11 | (24T) Lor 5052 -A, 5052-D, 5252 -A | Call for availability | |||
| C-2 | 46-196-37 | (22T) Lor 5052-B 5052 -C | Call for availability | |||
| C-4 | 46-37-5 | Spacer-2nd & 3rd Speed Gear | Call for availability | |||
| C-4 | 46-196-13 | (32T) Lor 5052 -A | Call for availability | |||
| C-4 | 46-196-17 | (34T) For 5052 -D 5252 -A | Call for availability | |||
| C-4 | 46-196-21 | (31T) Lor 5052 -C | Call for availability | |||
| C-4 | 46-196-29 | (30T) For 5052-B | Call for availability | |||
| C-4 | 46-196-35 | (39T) For 5052-B | Call for availability | |||
| C-4 | 46-196-38 | (41T) Lor 5052 -A, 5052-C | Call for availability | |||
| C-4 | 46-196-40 | (43T) Lor 5052 -D 5252-A | No longer available - Call for replacement | |||
| C-7 | 82-381-1 | SnapRing | $2.46 | Add to Cart | ||
| C-7 | 47-1-1 | (47T) Lor 5052 -A, 5052-B 5052 -C, 5052 -D | Call for availability | |||
| C-7 | 47-1-3 | (45T) Lor 5252 -A | Call for availability | |||
| C-9 | 46-381-1 | Snap Ring | 1 | $4.22 | Add to Cart | |
| C-10 | 550927 | Cone -Bearing | 2 | $32.85 | Add to Cart | |
| C-11 | 550375 | Cup -Bearing | 2 | $17.99 | Add to Cart | |
| C-12 | 47-37-3 | Spacer-Front Bearing | 1 | Call for availability | ||
| C-13 | 47-228-3-1 | Shim-Countershalt Bearing | A.R. | Call for availability |
Reverse Idler Shaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 47-5-1 | Gear-Reverse Idler (21T) | 1 | Call for availability | ||
| D-2 | 97-37-1 | Spacer-Bearing | 1 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Thrust Washer | 2 | $41.88 | Add to Cart | |
| E>-5 | 63-60-1 | Shaft-Gear | 1 | $33.08 | Add to Cart |
Drive Gears Table T210 -CM50
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 11 5/16 " 1 1/2 " -10 | 9837 | " 47 -35 -4 47-35 -33 -1 X 11 5/16 " 1 1/2 " -10 .9837 " 47 -35 -19 4 7 -35 -43 -1 X | Call for availability | |||
| 11 7/16 " 1 3/8 -10 | 9837 | " 47 -35 -8 47 -35 -24-1X 11 7116" 1 3/8 " -10 .9837 " 47 -35 -10 47 -35 -26 -1 X | Call for availability | |||
| 11 5/8 " 1 1/2" -10 | 9837 | " 47-35 -1 47 -35 -30-1X 11 5/8 " 1 1/2 " -10 .9837 " 47 -35 -3 47 -35 -32 -1 X | Call for availability | |||
| 12 1/8 " Round | 9837 | " 47 -35 -15 47 -35 -39 -1X 12 11/32 " 1 1/2 " -10 .9837" 47-35 -11 47 -35 -36 -1 X | Call for availability | |||
| 12 11/32" 1 1/2" -I | 0-9837 | " 47 -35 -6 47 -35 -35 -1X 12 19/32 ' I 1/2 " -10 .9837 " 47 -35 -9 47 -35 -25 -1X | Call for availability | |||
| 12 19/32 " I 1/2" -10 | 9837 | " 47 -35 -7 47 -35 -23 -1X | Call for availability | |||
| 12 9/16 " I 3/4 " -10 | 1-1800 | " 47 -35 -45 4 7-35 -46-1 X | Call for availability | |||
| 13 5/64 " I 1/2 " -I | 0-9837 | " 47 -35 -20 47 -35 -27 -1X | Call for availability | |||
| 13 3/16 " I 3/4 " -10 | 1-1800 | " 47 -35 -12 47 -35 -37 -1X . | Call for availability | |||
| 13 3/16 " I 3/4 " -10 | 9837 | " 47 -35 -17 47 -35 -41 -1X | Call for availability |
Companion Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1480/1550 | 5718 | 4-1 -2331 3 1116" F-3 3/4 " 3 -2-479 4-2-669 | Call for availability | |||
| 1480/1550 | 1480 | 3 -4-4271 4 9/32 " 22 1/2 ° | Call for availability | |||
| 1480/1550 | 1550 | 4-4-2511 4 5/32 | version * (see the manual's footnote) | Call for availability |
Clutch Housing Group
Item G-8Item G-9Item G-6Item E-7Item E-8Item E-1Item G-7Item G-10Item F-4Item G-4Item G-3Item G-11Item G-12Item F-5Item G-13Item E-5Item E-6Item E-4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 47-352-1 | Gasket | 1 | $12.59 | Add to Cart | |
| N .S | 128C-20 | Bushing-(Lawer Hole, Of 312830X) | 2 | $8.55 | Add to Cart | |
| E-4 | 46-96-2-1 | X Hand Hole Cover Assembly | 1 | Call for availability | ||
| N .S | 46-96-1 | Cover-Hand Hole | 1 | Call for availability | ||
| N .S | 500396-2 | Bolt-1/4 " -20 3/8 | 2 | version * (see the manual's footnote) | Call for availability | |
| N .S | 500356-9 | Lockwasher-1/4 | 2 | version * (see the manual's footnote) | Call for availability | |
| E-5 | 545001-5 | Bolt- 1 /2 " 13 1 1 /8 " Hex Head Self Locking | Call for availability | |||
| E-5 | 545001 | Bolt- 1 /2 " 13 1 1 /4 " Hex Head Self Locking | 6 | $2.49 | Add to Cart | |
| E-5 | 545001-1 | Bolt-1 /2 " 13 1 3/8 " Hex Head Self Locking | $2.59 | Add to Cart |
Countershaft Front BRG. CAP (ford Only) (gas Only)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-6 | 47-223-5 | Gasket-Countershaft Front Bearing Cap | 1 | Call for availability | ||
| E-7 | 60-22-28 | Cap -Countershaft Front Bearing | 1 | Call for availability | ||
| E-8 | 330801-1 | Bolt-71 16 " 14 7/8 " Hex Head Self Locking | 4 | $2.67 | Add to Cart |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| •F -1 | 47-223-1 | Gasket | 1 | $6.27 | Add to Cart | |
| •F -3 | Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-4 | 62-463-8 | Oil Seal | 1 | $37.74 | Superseded by 60463101XAdd to Cart | |
| F-5 | 545002-1 | Bolt-3/8 " 16 7/8 " Hex Head Self Locking | 4 | $2.23 | Add to Cart |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| G-3 | 252-SP | Pin-Nameplate | 4 | $1.90 | Add to Cart | |
| G-4 | 500100 | Filler Plug | 1 | Call for availability | ||
| G ,5 | 62-39-3 | Drain Plug -Magnetic Square Head | 1 | $9.27 | Add to Cart | |
| G ,5 | 62-39-4 | Drain Plug -Magentic (Recessed Head) | 1 | $9.50 | Add to Cart | |
| G-6 | 545002-10 | Bolt-3/8 " 16 1/2 " Hex Head | 2 | Call for availability | ||
| G-7 | 330936 | Oil Trough | 1 | Call for availability | ||
| G-8 | 545009 | Bolt-5/16 " 18 5/8 " Flanged Head Self Locking | 1 | Call for availability | ||
| G-9 | 307-D | Plug 1/2 " 13 1/2 " Hex Head | 2 | Call for availability | ||
| and | 266-D | Plug -5/8 " 11 7/16 " Hex Head | 2 | Call for availability | ||
| BP-3/5 | 545089-1 | Bolt-9/16 " 12 3/4 " Heax Head (W/O Brake Assembly) | 6 | $1.67 | Add to Cart | |
| G-10 | 22P-22 | Gasket-S Bolt P .T .O Aperture Cover | 1 | $6.27 | Superseded by 973242Add to Cart | |
| G-11 | 73-267-1 | Cover-8 Bolt P .T.O Aperture | 1 | $160.99 | Add to Cart | |
| G-12 | 545012 | Bolt-7/16 " 14 3/4 " Flanged Hex Head Self Locking | 8 | $3.23 | Add to Cart | |
| G-13 | 46-324-1 | Gasket-6 Bolt P .T .O Aperture Cover | 1 | $3.91 | Superseded by 973241Add to Cart | |
| G-14 | 50-267-2 | Cover-6 Bolt P .T.O Aperture | 1 | $122.97 | Add to Cart | |
| G-15 | 330800 | Bolt-3/8 " 16 3/4 " Hex Head Self Locking | 6 | Call for availability |
Mainshaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 46-463-8 | Oil Seal -Mainshalt Rear Bearing Cap | $17.87 | Add to Cart | ||
| ·H -4 | Cap -Mainshaft Rear Bearing | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| H-5 | 60-475-1 | Bushing -Speedometer (For 47 -19 -3 -1 X) | $32.75 | Add to Cart | ||
| H-5 | 30-475-1 | Bushing -Speedometer (Except 47 -19 -3 -1 X) | Call for availability | |||
| N .S | 500166-3 | Plug -5/16 " Expansion | Call for availability | |||
| •H -6 | 47-223-3 | Gasket-Mainshalt Rear Bearing Cap | $5.49 | Add to Cart | ||
| •H -6 | 47-223-4 | Gasket-Mainshaft Bearing (With Bendix Brake Mounting) | Call for availability |
Rear Cap
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-7 | 545001 | Bolt- 1/2 " - 13 X 1 1/4 " Hex Head Sell Locking | 8 | $2.49 | Add to Cart | |
| H-7 | 545008 | Bolt-5/8 " -11 X 1 1/4 " Hex Head Sell Locking | 2 | Call for availability | ||
| H-7 | 330180-10 | Stud-1/2 " -13 X 1/2 " 1/2 -20 X 2 1/8 "(W/O M/S Rear Brg Cap) | 6 | Call for availability | ||
| H-7 | 500371-4 | Nut-1/2 " -20 Hex | 6 | Call for availability | ||
| N .S | 47-360-1 | Retainer-Mainshaft Rear Bearing (Ford Only) | Call for availability | |||
| N .S | 55-334-1 | Plug -Speedometer Hole (Use Without Driven Gear) | $88.44 | Add to Cart | ||
| H-9 | 55-454-1 | Sleeve -1 1/4 " Speedometer Driven Gear | No longer available - Call for replacement | |||
| H-9 | 44-473-1 | Sleeve -5 " Speedometer Driven Gear | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 47-223-2 | Gasket-Countershaft Rear Bearing Cap | Call for availability | |||
| J-2 | 47-22-3 | Cap -Countershaft Rear Bearing | Call for availability | |||
| K-2 | 330564-3 | Lift Hook-Countershaft Rear Bearing Cap | $3.15 | Add to Cart |
Case Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 47-15-3-IX | 47-15-13-3X | (47-15-2-2 NP-2 62-39-3 266-D 307-D 545089-1 | Call for availability | |||
| 47-15-3-2X | 47-15-13-2X | (47-15-2-2 NP-96 62-39-3 266-D 307-D 545089-1 | Call for availability | |||
| 47-15-3-3X | 47-15-3-3X | (47-15-2-2 NP-96 62-39-3 266-D 307-D | Call for availability | |||
| )1)47-15-4-IX | 47-15-14-2X | (47-15-5 NP-96 63-39-4 500897-10 545089-1 307-D | Call for availability | |||
| )2)47-15-6-IX | 47-15-16-2X | (47-15-5 NP-96 62-39-4 500897-10 545089-1 307-D | Call for availability | |||
| )5)47-15-7-IX | 47-15-17-2X | (47-15-2-1 NP-96 62-39-3 500398-4 266-D 307-D 500897-10 | Call for availability | |||
| 47-15-9-IX | 47-15-19-2X | (47-15-2-2 NP-96 62-39-3 266-D 307-D 545089-1 | Call for availability | |||
| 47-15-9-2X | 47-15-9-2X | (47-15-2-2 NP-2 62-39-3 307-D 545089-1 | Call for availability | |||
| )3)47-15-10-IX | 47-15-20-2X | (47-15-2-2 NP-96 62-39-3 500398-4 307-D 545089-1 | Call for availability | |||
| )4)47-15-12-1X | 47-15-12-1X | (47-15-5 NP-96 62-39-4 500897-10 307-D 545089-1 | Call for availability | |||
| 47-15-13-2X | 47-15-13-2X | (47-15-18 330936 NP-96 62-39-3 266-D 307-D 545089-1 | Call for availability | |||
| 47-15-13-3X | 47-15-13-3X | (47-15-18 330936 NP-2 62-39-3 266-D 307-D 545089-1 | Call for availability | |||
| 47-15-13-4X | 47-15-13-4X | (47-15-18 330936 NP-96 62-39-3 266-D 307-D | Call for availability | |||
| •47-15-14-2X | 47-15-14-2X | (47-15-15 330936 NP-96 62-39-4 500897-10 307-D 545089-1 | Call for availability | |||
| 47-15-16-2X | 47-15-16-2X | (47-15-15 330936 NP-96 62-39-4 500897-10 307-D 545089-1 | Call for availability | |||
| 47-15-17-2X | 47-15-17-2X | (47-15-18-1 330936 NP-96 62-39-3 545002-10 266-D 307-D 500897-10 | Call for availability | |||
| H7-15-19-2X | 47-15-19-2X | (47-15-18 330936 NP-96 62-39-3 266-D 307-D 545089-1 | Call for availability | |||
| 47-15-20-2X | 47-15-20-2X | (47-15-18 330936 NP-96 62-39-3 545002-10 307-D 545089-1 | Call for availability | |||
| 47-15-22-2X | 47-15-22-2X | (47-15-15 330936 NP-96 62-39-4 500897-10 307-D 545089-1 | Call for availability | |||
| (2) -Same | AS47-15-4-LX | Except Upper Right Hand Corner Notched Hole Is Y2 " Lower | Call for availability |
Clutch Housing Dimensions T210-CMSO
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| •46 -518 -13 -IX | 46-511-13 | (46 -518 -14 2 4 3/4 " 46 -518 -13 -1X | Call for availability | |||
| 46-518-21 -IX | 46-518-21 | CI02C-477 3 5 1/16 " I " ;;)8 46 -518 -22 -1 X | Call for availability | |||
| 46-518-22-1 X | 46-518-22 | CI02C .530-1 2 5 1/16 " I " 46 -518 -22 -1X | Call for availability | |||
| 46-518-23 | 46-518-23 | C46-518-18-1 2 5 5/8 " I " 46 -518 -23 | Call for availability | |||
| 47-518-4-1 X | 47-518-4 | Special 2 6 5/8 " I " 3 3/4 " I 1/2" 47 -518 -4 -1X | Call for availability | |||
| 47-518-5 | 47-518-5 | (47 -518 -6 2 6 1/2" I 1/8 " 3 19/32 " 2 1/2" 47 -518 -5 | Call for availability | |||
| •47-518-1 0-1 X | 47-511-18 | (47-518 -11 2 4 3/4 " 47 -518 -10 -1X | Call for availability | |||
| •312256X 128C-20 | 46-518-15 | (46 -518 -16 2 6 " I " 3 5/8 " 2 1/2" 312256X | Call for availability | |||
| 312830X 128C-20 | 46-518-19 | CI02C-530-1 2 5 1/16 " I " 2 17/32 " 2 5/8 " 312830X | Call for availability |

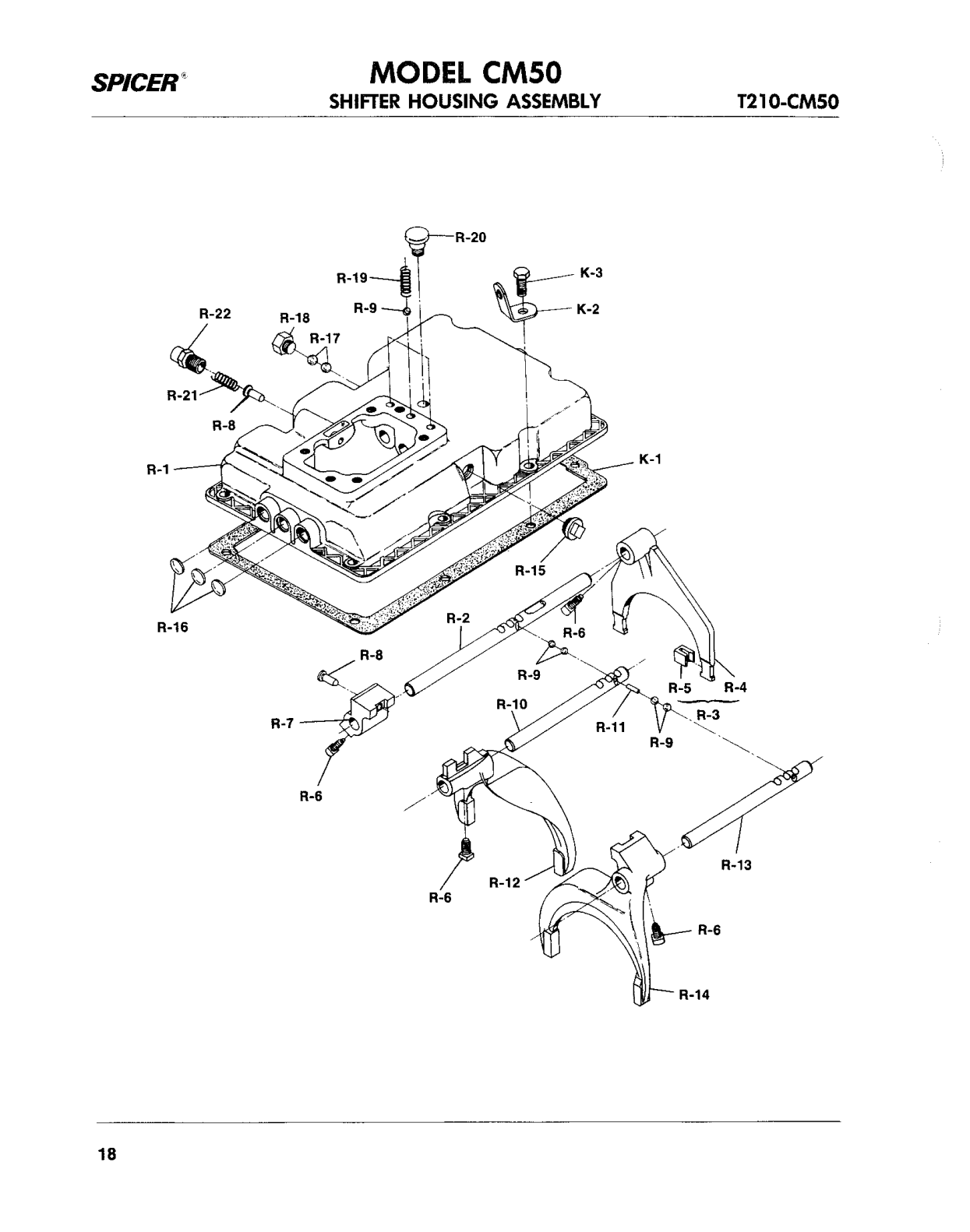

Shifter Housing Assembly T210-CMSO
Item R-16Item R-22Item R-6Item R-5Item R-4Item R-3Item R-13Item R-14Item R-20Item K-3Item R-19Item R-9Item R-18Item R-17Item R-8Item K-1Item R-1Item R-15Item R-2Item R-6Item R-8Item R-9Item R-10Item R-7Item R-11Item R-9Item R-12Item R-6Item R-6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 47-16-1 | Shifter Housing | 1 | $450.25 | Superseded by 471611Add to Cart | |
| R-2 | 47-67-1 | Rod-Reverse & 1st Shift | 1 | $52.73 | Add to Cart | |
| R-3 | 47-66-1-LX | Fork & Clip Assembly-Reverse & L St Shift (Except 47 -16 -L -LX) | 1 | Call for availability | ||
| R-4 | Fork-Reverse & L St Shift | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-5 | 46-486-2 | Clip -Shift Fork | 2 | $1.78 | Add to Cart | |
| R-6 | 745-D | Bolt-3/8 " -24 X 3/4 " Square Head Self Locking | 4 | $10.21 | Add to Cart | |
| R-7 | 53-354-1 | Bracket-Reverse & 1st Shift Rod | 1 | $243.80 | Add to Cart | |
| R-8 | 62-438-2 | Pin-1 St & Reverse Shift Finger Plunger | 2 | $6.27 | Add to Cart | |
| N .S | 330931 | Pin-1 St Reverse Shift Finger Blocker(used In 47 -16 -1 -7X Only) | l | Call for availability | ||
| N .S | 50-203-6 | Sleeve -1 St & Reverse Lockout (Used In 47 -l6 -1 -7X) | 2 | Call for availability | ||
| R-9 | 50-80-1 | Ball -Shift Rod Poppet & Interlock | 7 | $2.70 | Add to Cart | |
| R-10 | 46-67-5 | Rod-2nd & 3rd Shift | 1 | $78.92 | Add to Cart | |
| R-11 | 277-SP | Pin-Interlock | 1 | $1.93 | Add to Cart | |
| R-12 | 46-66-10 | Fork-2nd & 3rd Shift | 1 | Call for availability | ||
| R-13 | 47-67-2 | Rod-4th & 5th Shift | l | $60.87 | Add to Cart | |
| R-14 | 46-66-12 | Fork-4th & 5th Shift | 1 | Call for availability | ||
| R-15 | 545021 | Plug -Interlock | 1 | $18.89 | Add to Cart | |
| R-16 | 330894 | Expansion Plug 3 4 " (Aluminum) | 3 | Call for availability | ||
| R-17 | 50-80-4 | Ball -Backup Switch | 2 | $7.01 | Add to Cart | |
| R-18 | 330366 | Plug -Backup Switch Hole | 1 | $15.51 | Add to Cart | |
| R-19 | 44-72-2 | Spring -Shift Rod Poppet (Except 46 -16 1 -6X) | 3 | $2.39 | Superseded by 447210Add to Cart | |
| R-19 | 47-72-1 | Spring -Shift Rod Poppet (Used In 46 -16 - l-6X & 46 - l6 -L -7X) | 3 | $3.15 | Add to Cart | |
| R-20 | 312268 | Breather Assembly | l | $31.32 | Add to Cart | |
| R-22 | 38P-1 | Retainer-Shift Finger Plunger 1st & Reverse | 1 | Call for availability | ||
| K-1 | 47-155-1 | Gasket-Shifter Housing | 1 | $12.59 | Add to Cart | |
| 'K-2 | 330564-1 | Lift Hook, Shifter Housing | 2 | $3.15 | Add to Cart | |
| K-3 | 545002 | Bolt-3/8 " -16 L " Hex Head Self Locking | 6 | $1.98 | Add to Cart | |
| K-3 | 545002-4 | Bolt-3/8 " -16 1 l/8 " Hex Head Self Locking | 2 | $6.93 | Add to Cart | |
| K-3 | 545002-6 | Bolt-3/8 " -16 L 1/4 " Hex Head Self Locking (Mounting Bracket) | 2 | $2.29 | Add to Cart | |
| N .S | 500365-26 | Lockwasher 3/8 | 2 | version * (see the manual's footnote) | Call for availability | |
| N .S | 47-16-LX | 62 -72 -8 60# 2 1/64 | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-L6-3X | - - - | Call for availability | |||
| N .S | 47-16-4X | 30 -72 -6 28# 2 1/8 | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-L6-6X | 82 -72 -3 15# 2 3/8 | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-16-1 | -7Xt - - - | $450.25 | Superseded by 471611Add to Cart | ||
| N .S | 313262X | Neutral Safety Switch Actuator Kit Shipped Loose - Not Part Of Above Assembly | Call for availability |
Remote Control Assembly
Item L-13Item L-14Item L-1Item L-15Item L-8Item L-10Item L-6Item L-7Item L-3Item K-7Item L-11Item L-10Item L-12Item L-9Item L-4Item L-2Item K-6Item K-5Item K-8Item K-6Item K-4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 47-16-8-1 | X Cover Assembly (Casting 62 16 -78) 1 | 1 | Call for availability | |||
| 47-16-9-1X | Cover Assembly (Casting 62 -16 -78 -1) | 1 | Call for availability | |||
| 47-16-12-1X | Cover Assembly (Casting 62 -19 128) | 1 | Call for availability | |||
| L-1 | Remote Control Cover 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S | 82-24-3 | Bushing -Remote Control 4 4 | 4 4 | $21.66 | Add to Cart | |
| L-2 | 310647X | Shift Finger Rod & Bracket Assembly 1 1 | Call for availability | |||
| L-2 | 310879X | Shift Finger Rod & Bracket Assembly | 1 | Call for availability | ||
| L-2 | 312003X | Shift Finger Rod & Bracket Assembly | 1 | Call for availability | ||
| L-3 | Rod-Shift Finger 1 | 1 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-4 | Bracket-Shift Finger Rod 1 | 1 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-5 | 500007-19 | Woodruff Key-#1 1 (Part Of Assembly) 1 1 | 1 1 | Call for availability | ||
| L-6 | 62-6-24 | Finger-Inner Shaft 1 1 | 1 1 | Call for availability | ||
| L-7 | 545011 | Bolt-7/16 " -20 7/8 " Hex Head Self Locking 2 2 | 2 2 | $16.57 | Add to Cart | |
| L-8 | 82-65-5 | Rod-Remote Control Shalt 1 1 | 1 1 | $22.31 | Add to Cart | |
| L-9 | 82-6-7 | Finger-Outer Shift 1 1 | 1 1 | $171.09 | Add to Cart | |
| L-10 | 28P-19 | Seal -Remote Control Shift Rod 2 2 | 2 2 | Call for availability | ||
| L-11 | 10380-SF | U-Joint Assembly-Control 1 1 | 1 1 | Call for availability | ||
| L-12 | 82-118-1 | Gasket-Aperture 1 1 | 1 1 | Call for availability | ||
| L-13 | 82-96-1 | Aperture Cover 1 1 | 1 1 | Call for availability | ||
| L-14 | 545005-1 | Bolt-5/16 " -18 5/8 " Hex Head Self Locking 4 4 | 4 4 | Call for availability | ||
| L-15 | 500166-16 | Expansion Plug 1 1 /16 " 1 1 | 1 1 | Call for availability | ||
| N .S | 311903X | Boot Kit-Remote Control 1 | Call for availability | |||
| N .S | 82-483-1 | Boot 1 | Call for availability | |||
| N .S | 82-483-2 | Boot-Cup Type 1 | Call for availability | |||
| N .S | LW-3-9 | Lockwire 3 | Call for availability | |||
| K-4 | 62-155-7 | Gasket-Shifter Housing To Control Cover 1 1 | 1 1 | $9.44 | Superseded by 6215513Add to Cart | |
| K-5 | 150-V | Stud-7/16 " -14 -71 16 " -20 1 7/8 " 2 2 | 2 2 | Call for availability | ||
| K-6 | 500357-12 | Lock Washer-7/16 " 2 2 | 2 2 | Call for availability | ||
| K-7 | 500371-4 | Nut-71 16 " -20 Hex 2 2 | 2 2 | Call for availability | ||
| K-8 | 545028 | Bolt-7/16 " 14 1 1/4 " Hex Head Self Locking 4 4 | 4 4 | $3.00 | Add to Cart |
Parts Listed Below Are Not Included in Assembly
Item L-16Item L-21Item L-18Item L-23Item L-19Item L-28Item L-17Item L-27Item L-30Item K-8Item L-31Item L-29Item L-27Item L-20Item L-26Item L-30Item L-32Item K-4Item L-24Item L-25
Item BP-20Item BP-26Item BP-14Item BP-15Item BP-16Item BP-21Item BP-17Item BP-13Item BP-12Item BP-19Item BP-25Item BP-11Item BP-18Item BP-22Item BP-23Item BP-24Item BP-8Item BP-6Item BP-7Item BP-5Item BP-2Item BP-4Item B-23Item BP-10Item H-1Item BP-3Item BP-2Item BP-1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 311528-7X | Remote Control Cover Assembly (See Tab Bills) | Call for availability | ||||
| L-1 | 47-16-13 | Remote Control Cover | Call for availability | |||
| L-16 | 500007-17 | Woodruff Key#91 | Call for availability | |||
| L-17 | 62-65-26 | Shalt-Inner Shift Finger | Call for availability | |||
| L-18 | 62-6-30 | Shift Finger-Inner | Call for availability | |||
| L-19 | 545004 | Bolt-71 16 " -20 13/16 " Hex Head Self Locking | $6.27 | Superseded by 545063Add to Cart | ||
| L-20 | 62-16-92 | End Cover-Remote Control | Call for availability | |||
| L-21 | 310926X | Cam And Stud Assembly-Selection Lever | Call for availability | |||
| L-22 | 62-6-59 | Lever-Upper Selection | Call for availability | |||
| L-23 | 500381-4 | Nut -71 16 " -20 | Call for availability | |||
| L-24 | 62-65-27 | Rod-Outer Shift Lever | 1 | Call for availability | ||
| L-25 | 47-6-1 | Lever-Outer Shift | 1 | Call for availability | ||
| L-26 | 545002-7 | Bolt-3/8 " -16 1 1/2 | 1 | version * (see the manual's footnote) | $2.33 | Add to Cart |
| L-27 | 258-W | Washer-Shift Lever Rod | 2 | Call for availability | ||
| L-28 | 62-381-13 | Snap Ring | 1 | Call for availability | ||
| L-29 | 62-155-11 | Gasket-End | 1 | Call for availability | ||
| L-30 | 500357-10 | Lock Washer 51 16 | 3 | version * (see the manual's footnote) | Call for availability | |
| L-31 | 545005-2 | Bolt-51 16 " -18 7/8 | 2 | version * (see the manual's footnote) | $1.66 | Add to Cart |
| L-32 | 500397-22 | Bolt-51 16 " -18 X 2 1 /2 | 1 | version * (see the manual's footnote) | Call for availability | |
| K-4 | 62-155-7 | Gasket-Shifter Housing To Cover | 1 | $9.44 | Superseded by 6215513Add to Cart | |
| K-8 | 545028 | Bolt-71 16 " -14 1 1/4 " Hex Head Self Locking | 6 | $3.00 | Add to Cart | |
| P-1 | 390-27 | Handle -Shift Ieever 1 - - | - 1 | Call for availability | ||
| P-2 | 2S0-2332 | Shift Lever 24 1/4 " Bent | 1 | Call for availability | ||
| " | 250-1121 | Shift Lever 26 1/4 " Straight 1 | Call for availability | |||
| " | 250-1122 | Shift Lever 29 1/4 " Straight 1 | Call for availability | |||
| " | 250-1621 | Shift Lever 30 " Straight 1 | 1 | Call for availability | ||
| N .S | 550-5 | Grommet-Shift Lever (Boot) 1 | 1 | Call for availability | ||
| N .S | 47-16-3X | Dome Assembly-2 5/8 " Overall Height 1 1 | Call for availability | |||
| N .S | 47-16-5X | Dome Assembly-3 5/8 " Overall Height 1 | 1 1 | manual lists 47-16-5X - we stock the base part 47-16-5 | Call for availability | |
| P-3 | 286-SP | Pin-Shift Lever Collar 1 1 1 | 1 1 | $2.95 | Add to Cart | |
| P-4 | 550-7 | Collar-Compression 1 1 1 | 1 1 | Call for availability | ||
| P-5 | 560-25 | Spring -Compression 1 1 1 | 1 1 | Call for availability | ||
| P-6 | 540-13 | Cup -Compression 1 1 1 | 1 1 | Call for availability | ||
| P-7 | 690-6 | Washer-Friction 1 1 1 | 1 1 | Call for availability | ||
| P-8 | 47-16-3 | Dome -Shift Lever 1 1 | Call for availability | |||
| " | 47-16-5 | Dome -Shift Lever 1 | 1 1 | $127.15 | Add to Cart | |
| P-9 | 62-381-7 | Snap Ring -Rock Shaft 1 1 1 | 1 1 | $8.10 | Add to Cart | |
| P-10 | 530-15 | Shaft-Shift Lever Rock 1 1 1 | 1 1 | Call for availability | ||
| BP-1 | 1440-83 | Bar-Brake Anchor | 1 1 | Call for availability | ||
| BP-2 | 500357-14 | Lock Washer-9/16 | 6 6 | version * (see the manual's footnote) | Call for availability | |
| BP-3 | 500401-15 | Bolt-9/16 " -12 X 1 5/8 " Hex Head | 3 3 | Call for availability | ||
| BP-4 | 18B-46 | Bracket-Brake Support | 1 1 | Call for availability | ||
| BP-5 | 500401-17 | Bolt 91 16 " -12 X 1 7/8 " Hex Head | 3 3 | Call for availability | ||
| BP-6 | 30-83 | Quadrant-Brake Support | 2 2 | Call for availability | ||
| BP-7 | 500016-24 | Clevis Pin-1/2 " X 1 9/32 | 2 2 | version * (see the manual's footnote) | Call for availability | |
| BP-8 | 500024-4 | Cotter Pin-1 18 " X 7/8 | 2 2 | version * (see the manual's footnote) | Call for availability | |
| BP-10 | 8-73-130 | Bolt-Brake Drum | 4 | Call for availability | ||
| BP-11 | 20B-108 | Drum-Brake | 1 | Call for availability | ||
| BP-12 | 500357-13 | Lock Washer-1/2 | 6 | version * (see the manual's footnote) | $2.33 | Add to Cart |
| BP-13 | 500371-5 | Nut-1/2 " -20 Hex | - 4 | Call for availability | ||
| BP-14 | 311441X | Brake Band & Lining Assembly | 1 1 | Call for availability | ||
| BP-15 | Brake Band Assembly (311442X) | 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| BP-16 | 4B-34 | Lining -Brake Band (End) | 2 2 | Call for availability | ||
| BP-17 | 4B-35 | Lining -Brake Band (Center) | 1 1 | Call for availability | ||
| N .S | 500301-8 | Rivet-3/16 " X 5/32 " Flat Countersunk Tubular | 34 34 | Call for availability | ||
| BP-18 | 610-D | Bolt-Brake Band Support | 1 1 | Call for availability | ||
| BP-19 | 14B-8 | Spring -Brake Band Support | 1 1 | Call for availability | ||
| BP-20 | 10B-20 | Rod-Brake Band Adjusting | 1 | Call for availability | ||
| " | 10B-8 | Rod-Brake Band Adjusting | 1 | Call for availability | ||
| BP-21 | 12B-4 | Spring -Brake Band Adjusting Rod | 2 2 | Call for availability | ||
| BP-22 | 34B-9 | Spring -Adjusting Rod Cushion | 1 | Call for availability | ||
| BP-23 | 471-W | Washer-Adjusting Rod Cushion Rod Spring | 1 1 | Call for availability | ||
| BP-24 | 500370-4 | Nut-7/16 " -14 Hex | 2 | Call for availability | ||
| " | 500966-1 | Nut-7/16 " -14 Hex Self Locking | 1 | Call for availability | ||
| BP-25 | 500486-19 | Bolt-1/4 " -20 2 3/4 " Iii Lister Head Slotted | 1 1 | Call for availability | ||
| BP-26 | 500370-1 | Nut-1/4 " -20 Hex | 2 2 | Call for availability | ||
| H-1 | 47-223-2 | Gasket-M/S Rear Bearing Cap | 1 1 | Call for availability | ||
| B-23 | 4-1-3241 | Companion Flange | 1 | Call for availability | ||
| " | 312946X | Companion Flange Assembly (Includes 4 -1 -3241) | 1 | Call for availability | ||
| BP-10 | 330685 | Bolt-Brake Drum | 4 | Call for availability | ||
| N .S | 500365-35 | Flat Washer-7/16 | 8 | version * (see the manual's footnote) | Call for availability | |
| BP-12 | 500357-12 | Lock Washer-71 16 | 4 | version * (see the manual's footnote) | Call for availability | |
| BP-13 | 500371-4 | Nut-7/16 " -20 Hex | 4 | Call for availability | ||
| BP-3/5 | 545089-1 | Bolt-9/16 " -12 3/4 " Brake Bar Anchor (W/O Broke) | 6 6 | $1.67 | Add to Cart |
Clutch Release Parts Dimensions T210-CM50
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-617 | RS-8 10 .469 | version * (see the manual's footnote) | $92.99 | Add to Cart | ||
| 106C-839 | RS-8 1 1 .469 | version * (see the manual's footnote) | Call for availability | |||
| 106C-939 | RS-8 10 .000 | version * (see the manual's footnote) | $53.44 | Add to Cart | ||
| 106C-1083 | RS-8 7 .969 | version * (see the manual's footnote) | Call for availability | |||
| 106C-1094 | RS-8 8 .469 | version * (see the manual's footnote) | $66.58 | Add to Cart | ||
| 106C-1417 | RS-8 7 .250 | version * (see the manual's footnote) | Call for availability | |||
| 106C-1490 | RS-8 16 .000 | version * (see the manual's footnote) | Call for availability | |||
| 46-510-9 | Round 7 .125 | version * (see the manual's footnote) | Call for availability | |||
| 106C-1578 | Splined 19 .500 | version * (see the manual's footnote) | Call for availability | |||
| 106C-1582 | Splined 15 .625 | version * (see the manual's footnote) | Call for availability | |||
| 106C-1566 | Splined 19 .125 | version * (see the manual's footnote) | Call for availability |
Clutch Release Code Table
Clutch Housing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -7 Rousselle Corp | 2313216 | 47-35-15 47-19-1 -1 X 47-15-3-2X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -1 | 47-19-3-2X | 47-19-3-1X 47-16-1 IX 47-16-3-IX | Call for availability | |||
| -5 | 47-19-13-2X | 47-19-13-1X 47-452-1 47-16-I -3X | Call for availability | |||
| -6 | 47-19-9-2X | 47-19-9-IX 47-452-1 47-16-1 -3X | Call for availability | |||
| -7 | 47-19-3-2X | 47-19-3-1X 3-1 -4381 47-16-1 -IX | Call for availability | |||
| -11 | 47-19-3-2X | 47-19-3-1X 47-16-1 -IX 47-16-3-1X | Call for availability | |||
| -14 | 47-19-3-2X | 47-19-3-IX 47-16-1 -1X | Call for availability | |||
| -16 | 47-19-3-2X | 47-19-3-IX | Call for availability | |||
| -18 | 47-19-13-2X | 47-19-13-IX 47-452-1 47-16-1 -3X | Call for availability | |||
| -19 | 47-19-9-2X | 47-19-9-1X | Call for availability | |||
| -20 | 47-19-3-2X | 47-19-3-IX 44-452-2 44-453-2 5-4-1051 47-16-I -4X | Call for availability | |||
| -21 | 47-19-3-2X | 47-19-3-1X 44-452-2 44-453-2 5-4-1051 47-16-1 -IX | Call for availability | |||
| -26 | 47-19-3-2X | 47-19-3-IX 46-452-8 47-16-1 -IX | Call for availability | |||
| -27 | 47-19-13-2X | 47-19-13-1X 47-452-1 47-16-I -3X | Call for availability | |||
| -28 | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX 47-16-3-IX | Call for availability | |||
| -31 | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX | Call for availability | |||
| -36 | 47-19-3-2X | 47-19-3-1X 47-16-I -3X | Call for availability | |||
| -39 | 47-19-9-2X | 47-19-9-IX 47-452-1 47-16-I -3X | Call for availability | |||
| -40 | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX | Call for availability | |||
| -41 | 47-19-3-2X | 47-19-3-1X 47-16-1 -IX 47-16-3-IX | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -3 Ford | 47-35-8 | 47-19-20-1 X 47-15-6-IX | Call for availability | |||
| • -11 Service | 47-35-1 | 47-19-1 -IX 47-15-3-2X | $459.36 | Superseded by 533511XAdd to Cart | ||
| -29 Bissinger & Stein Special | 346-518-21-IX14 | 47-35-8 47-19-5-1 X 47-15-3-2X | Call for availability | |||
| -31 Hornischfeger | 246-518-22-1X29 | 47-35-1 47-19-1 -IX 47-15-3-2X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -46 | 47-19-3-2X | 47-19-3-IX 46-452-8 46-453-8 47-16-1 -4X 47-16-3-IX | Call for availability | |||
| -49 | 47-19-3-2X | 47-19-3-IX 5-4-1051 47-16-1 -IX | 47-16-9-2X | Call for availability | ||
| -50 | 47-19-7-2X | 47-19-7-2X 44-452-2 44-453-2 | 47-16-8-2X | Call for availability | ||
| -51 | 47-19-3-2X | 47-19-3-IX 44-452-2 44-453-2 4-4-2511 47-16-1 -IX | Call for availability | |||
| - , | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX 47-16-3-IX | Call for availability | |||
| -2 | 47-19-13-2X | 47-19-13-1 X 47-452-1 47-16-I -3X | Call for availability | |||
| -3 | 47-360-1 | 47-16-1 -IX | Call for availability | |||
| -4 | 47-19-3-2-X | 47-19-3-IX 5-4-1051 47-16-I -6X | 46-16-8-2X | Call for availability | ||
| -6 | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX | 47-16-8-2X | Call for availability | ||
| -7 | 47-19-13-2X | 47-19-13-IX 47-452-1 47-16-I -3X | Call for availability | |||
| -8 | 47-19-9-2X | 47-19-9-IX | Call for availability | |||
| 0 | 47-19-3-2X | 47-19-3-IX 55-452-6 4-1 -3241(11 47-16-1 -IX | Call for availability | |||
| , | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX | 47-16-8-2X | Call for availability | ||
| 3 | 47-19-13-2X | 47-19-13-IX 47-452-1 47-16-1 -3X | Call for availability | |||
| 4 | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX | Call for availability | |||
| 6 | 47-19-3-2X | 47-19-3-IX | Call for availability | |||
| -21 | 47-19-3-2X | 47-19-3-1 X 5-4-1051 47-16-I -6X | 47-16-12-2X | Call for availability | ||
| -23 | 47-19-9-2X | 47-19-9-IX 47-452-1 47-16-1 -3X | Call for availability | |||
| -24 | 47-19-3-2X | 47-19-3-IX 5-4-1051 47-16-1 -6X | 47-16-8-2X | Call for availability | ||
| -26 | 47-19-3-2X | 47-19-3-IX 4-1 -3241(1( 47-16-1 -IX | 47-16-8-2X | Call for availability | ||
| -31 | 47-19-3-2X | 47-19-3-IX 47-16-I -7X | 62-16-116-IX | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -25 GMC Lipe-SP | 246-518-13-1X | 47-35-4 47-19-16- 1X 47- 15-3-1X | Call for availability | |||
| -26 GMC Lipe-SP | 246-518-13 | 1X 47-35-4 47-19-16-1X 47-15-3-1 X | Call for availability | |||
| -28 GMC lipe-SP | 246-518-13-1X | 47-35-4 47-15-3-1X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -1 | 47-19-3-2X | 47-19-3-1 X 47-16-1 -IX 47-16-3-IX | Call for availability | |||
| -6 | 47-19-7-2X | 47-19-7-IX 44-452-2 47-16-I -3X | Call for availability | |||
| -7 | 47-19-3-2X | 47-19-3-IX 5-4-1051 47-16-I -4X | Call for availability | |||
| -10 | 47-19-3-2X | 47-19-3-IX 44-452-2 4-1 -3241 (I) 47-16-I -4X | 47-16-8-2X | Call for availability | ||
| -11 | 47-19-3-2X | 47-19-3-1 X 47-16-1 -IX | 31 1528-7X | Call for availability | ||
| -13 | 47-19-7-2X | 47-19-7-1 X | Call for availability | |||
| -14 | 47-19-13-2X | 47-19-13-1 X 47-452-1 47-16-1 -3X | Call for availability | |||
| -15 | 47-19-3-2X | 47-19-3-IX 44-452-2 4-1 -4071 47-16-1 -IX | Call for availability | |||
| -16 | 47-19-3-2X | 47-19-3-IX 44-452-2 44-453-2 312946X(2) 47-16-1 -3X | Call for availability | |||
| -17 | 47-19-9-2X | 47-19-9-1 X 47-452-1 | Call for availability | |||
| § -18 | 47-19-3-2X | 47-19-3-1 X 47-16-1 -IX | Call for availability | |||
| -21 | 47-19-13-2X | 47-19-13-IX 47-452-1 47-16-I -3X | Call for availability | |||
| -22 | 47-19-3-2X | 47-19-3-1 X 46-452-8 46-453-8 4-1 -3241 4716-I -4X | 47-16-8-2X | Call for availability | ||
| -25 | 47-19-7-2X | 47-19-7-1 X 44-452-2 47-16-1 -3X | Call for availability | |||
| -26 | 47-19-3-2X | 47-19-3-IX 44-452-2 47-16-I -3X | Call for availability | |||
| -29 | 47-360-1 | 47-16-1 -IX | Call for availability | |||
| -30 | 47-19-3-2X | 47-19-3-1 X 46-452-8 46-453-8 5-4-1051 47-16-I -4X 47-16-3-IX | Call for availability | |||
| -31 | 47-19-3-2X | 47-19-3-1 X 44-452-2 47-16-1 -3X | Call for availability | |||
| -33 | 47-19-9-2X | 47-19-9-1 X 47-452-1 47-16-1 -3X | Call for availability | |||
| -34 | 47-19-3-2X | 47-19-3-IX 5-4-1051 47-16-I -4X | Call for availability | |||
| -36 | 47-19-3-2X | 47-19-3-IX 44-452-2 44-453-2 4-1 -2331 47-16-1 -IX 47-16-5-21 X | Call for availability | |||
| -3 | 47-19-9-2X | 47-19-9-IX 47-452-1 47-16-1 -3X | Call for availability |
Clutch Housing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -36 GMC lipe-SP | 246-518-13-IX | 47-35-19 47-19-16-IX 47-15-3-IX | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -1 47-19-3-2X | 47-19-3-1X | 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -4 47-19-13-2X | 47-19-13-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -5 47-19-3-2X | 47-19-3-1X | 44-452-2 | Call for availability | |||
| -7 47-19-3-2X | 47-19-3-1X | 44-452-2 44-453-2 47-16-1 -1X | Call for availability | |||
| -15 | 47-19-13-2X | 47-19-13-1X 47-452-1 47-16-1 -3X | Call for availability | |||
| -21 | 47-19-3-2X | 47-19-3-1X 44-452-2 | Call for availability | |||
| -22 | 47-19-13-2X | 47-19-13-1X 47-452-1 | Call for availability | |||
| -23 | 47-19-7-2X | 47-19-7-1X | Call for availability | |||
| -24 | 47-19-3-2X | 47-19-3-1X 4-1 -3891 47-16-1 -1X | Call for availability | |||
| -26 | 47-19-3-2X | 47-19-3-1X 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -30 | 47-360-1 | 47-16-1 -1X | Call for availability | |||
| -31 | 47-19-3-2X | 47-19-3-1 X 47-16-1 -1X | Call for availability | |||
| -32 | 47-19-7-2X | 47-19-7-1X 44-452-2 47-16-1 -3X | Call for availability | |||
| -33 | 47-19-9-2X | 47-19-9-1X 47-452-1 | Call for availability | |||
| -34 | 47-19-3-2X | 47-19-3-1X 44-452-2 47-16-1 -3X | Call for availability | |||
| -36 | 47-19-7-2X | 47-19-7-1 X 44-452-2 47-16-1 -3X | Call for availability | |||
| -37 | 47-19-3-2X | 47-19-3-1 X | Call for availability | |||
| -39 | 47-19-7-2X | 47-19-7-1 X | Call for availability | |||
| -41 | 47-19-7-2X | 47-19-7-1X 44-452-2 44-453-2 47-16-1 -1X | 47-16-8-2X | Call for availability | ||
| -42 | 47-19-3-2X | 47-19-3-1 X 4 -4 -251 1 47-16-1 -4X 47-16-3-25X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -16 GMC Lipe-SP | 47-35-33-1 | X 47-19-79- 1X 47-15-1 3-3X | Call for availability | |||
| -32 Service Lipe-SP | 47-35-30-1 | X 47-19-82-1X 47-15-1 3-2X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -1 | 47-19-3-2X | 47-19-3-1 X 47-16-1 -1X 47-16-3-1 X | Call for availability | |||
| -5 | 47-19-13-2X | 47-19-13-1X 47-452-1 47-16-1 -3X | Call for availability | |||
| -6 | 47-19-9-2X | 47-19-9-1X 47-452-1 47-16-1 -3X | Call for availability | |||
| -7 | 47-19-3-2X | 47-19-3-1X 3-1 -4381 47-16-1 -1X | Call for availability | |||
| -11 | 47-19-3-2X | 47-19-3-1X 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -14 | 47-19-3-2X | 47-19-3-1 X 47-16-1 -IX | Call for availability | |||
| -16 | 47-19-3-2X | 47-19-3-1 X | Call for availability | |||
| -18 | 47-19-13-2X | 47-19-13-1X 47-452-1 47-16-1 -3X | Call for availability | |||
| -19 | 47-19-9-2X | 47-19-9-IX | Call for availability | |||
| -20 | 47-19-3-2X | 47-19-3-1X 44-452-2 44-453-2 5-4-1051 47-16-1 -4X | 47-16-8-2X | Call for availability | ||
| -21 | 47-19-3-2X | 47-19-3-IX 44-452-2 44-453-2 5-4-1051 47-16-1 -IX | Call for availability | |||
| -26 | 47-19-3-2X | 47-19-3-1 X 46-452-8 47-16-1 -IX | Call for availability | |||
| -27 | 47-19-13-2X | 47-19-13-1X 47-452-1 47-16-1 -3X | Call for availability | |||
| -28 | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX 47-16-3-IX | Call for availability | |||
| -31 | 47-19-3-2X | 47-19-3-IX 47-16-1 IX | Call for availability | |||
| -34 | 47-19-3-2X | 47-19-3-1X 47-16-1 -IX | Call for availability | |||
| -36 | 47-19-3-2X | 47-19-3-IX 47-16-1 -3X | Call for availability | |||
| -39 | 47-19-9-2X | 47-19-9-IX 47-452-1 47-16-1 -3X | Call for availability | |||
| -40 | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX | Call for availability | |||
| -41 | 47-19-3-2X | 47-19-3-IX 47-16-1 -IX 47-16-3-IX | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -71 Davey Kent | 47-35-39-1 | X 53-19-1 1 -1X 47-15-13-2X | Call for availability | |||
| • -84 Davey Kent | 47-35-39-1 | X 53-19-1 1 -1X 46-15-13-2X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| No | H-1H-3 | B -22 H -8 B -23 18 -19 23 | 20 -22 | Call for availability | ||
| -46 47-19-3-2X | 47-19-3-1 | X 46-452-8 46-453-8 47-16-1 -4X 47-16-3-1 X | Call for availability | |||
| -49 47-19-3-2X | 47-19-3-1X | 5-4-1051 47-16-1 -4X | 47-16-9-2X | Call for availability | ||
| -50 47-19-7-2X | 47-19-7-1X | 44-452-2 44-453-2 | 47-16-8-2X | Call for availability | ||
| -51 47-19-3-2X | 47-19-3-1X | 44-452-4 44-453-2 4-4-251 1 47-16-1 -4X | Call for availability | |||
| -53 47-19-3-2X | 47-19-3-1X | 5-4-1051 47-16-1 -4X | 47-16-8-2X | Call for availability | ||
| -54 47-19-3-2X | 47-19-3-1X | 47-452-2 44-453-2 4-1 -3241 47-16-1 -4X | 47-16-8-2X | Call for availability | ||
| -55 47-19-3-2X | 47-19-3-1X | 5-4-1051 47-16-1 -4X | 47-16-8-2X | Call for availability | ||
| -56 47-19-3-2X | 47-19-3-1X | 4-1 -2331 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -57 47-19-60-2X | 47-19-60-1X | 47-16-1 -1 X | Call for availability | |||
| -58 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -59 47-19-62-2X | 47-19-62-1X | 47-16-1 -1X | Call for availability | |||
| -60 47-19-60-2X | 47-19-60-1X | 47-16-1 -1 X | Call for availability | |||
| -61 47-19-61 | 2X47-19-61-1X | 47-16-1 -1 X | Call for availability | |||
| -62 47-19-62-2X | 47-19-62-1X | 47-16-1 -1X | Call for availability | |||
| -63 47-19-60-2X | 47-19-60-1X | 47-16-1 -1X | Call for availability | |||
| -64 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -65 47-19-62-2X | 47-19-62-1X | 47-16-1 -1X | Call for availability | |||
| -66 47-19-3-2X | 47-19-3-1 | X 5-1 -3171 47-16-1 -1 X 47-16-5-38X | Call for availability | |||
| -67 47-19-60-2X | 47-19-60-1X | 47-16-1 -1X | Call for availability | |||
| -68 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -69 47-19-62-2X | 47-19-62-1X | 47-16-1 -1X | Call for availability | |||
| -70 47-19-3-2X | 47-19-3-1 | X 5-4-1051 47-16-1 -IX 47-16-3-1X | Call for availability | |||
| -71 47-19-7-2X | 47-19-7-1 | X 47-452-2 47-16-1 -1X | Call for availability | |||
| -72 47-19-3-2X | 47-19-3-1 | X 5-4-1051 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -73 47-19-3-2X | 47-19-3-1 | X 47-16-1 -1X | Call for availability | |||
| -74 47-19-60-2X | 47-19-60 | 1 X 47-16-1 -1X | Call for availability | |||
| -75 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -76 47-19-62-2X | 47-19-62-1 | X 47-16-1 -1X | Call for availability | |||
| -77 47-19-3-2X | 47-19-3-1 | X 3-1 -4381 47-16-1 -15X 47-16-3-1X | Call for availability | |||
| -78 47-19-3-2X | 47-19-3-1 | X 47-452-2 44-453-2 4-1 -3241 47-16-1 -1X 47-163-25X | Call for availability | |||
| -79 47-19-3-2X | 47-19-3-1 | X 47-16-1 -1X | Call for availability | |||
| -80 47-19-3-2X | 47-19-3-1 | X 5-1 -3171 47-16-1 -1X 47-16-5-38X | Call for availability | |||
| -81 47-19-3-2X | 47-19-3-1 | X 47-452-2 47-16-1 -1X | Call for availability | |||
| -82 47-19-60-2X | 47-19-60-1 | X 47-16-1 -1X | Call for availability | |||
| -83 47-19-3-2X | 47-19-3-1X | 4-1 -2331 47-16-1 -4X 47-16-3-1X | Call for availability | |||
| -84 47-19-3-2X | 47-19-3-1X | 3-1 -4381 47-16-1 -15X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -3 Ford | 47-35-24-1 | X 47-19-72-1 X 47-15-16-2X | Call for availability | |||
| -29 Bissinger & Stein | 346-518-21-1X14 | 47-35-24-1 X 47-19-77-1X 47-15-13-2X | Call for availability | |||
| t-31 Harnischfeger lipe-SP | 246-518-22-1X2 | 47-35-30-1 X 47-19-82-1 X 47-15-13-2X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| No. | H-1H-3 | B-22 H-8 B-23 18 -19 I 23 | 20 -22 | Call for availability | ||
| -1 47-19-3-2X | 47-19-3-1 | X 47-16-1 -1X 47-16-3-1 X | Call for availability | |||
| -2 47-19-13-2X | 47-19-13-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -3 | 47-360-1 | 47-16-1 -1X | Call for availability | |||
| -4 47-19-13-2X | 47-19-13-1X | 5-4-1051 47-16-1 -6X 47-16-8-2X | Call for availability | |||
| -5 47-19-3-2X | 47-19-3-1 | X 5-4-1861 47-16-1 -1X 47-16-9-2X | Call for availability | |||
| -6 47-19-3-2X | 47-19-3-1 | X 47-16-1 -1 X 47-16-8-2X | Call for availability | |||
| -7 47-19-13-2X | 47-19-13-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -8 47-19-9-2X | 47-19-9-1 | X 47-452-1 | Call for availability | |||
| -10 47-19-3-2X | 47-19-3-1X | 55-452-6 4-1 -3241 {1) 47-16-1 1X | Call for availability | |||
| -11 47-19-3-2X | 47-19-3-1X | 47-16-1 -1X 47-16-8-2X | Call for availability | |||
| -13 47-19-13-2X | 47-19-13-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -14 47-19-3-2X | 47-19-3-1 | X 47-16-1 -1X | Call for availability | |||
| -16 47-19-3-2X | 47-19-3-1 | X | Call for availability | |||
| -21 47-19-3-2X | 47-19-3-1X | 5-4-1051 47-16-1 -6X 47-16-12-2X | Call for availability | |||
| -23 47-19-9-2X | 47-19-9-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -24 47-19-3-2X | 47-19-3-1X | 5-4-1051 47-16-1 -6X 47-16-8-2X | Call for availability | |||
| -26 47-19-3-2X | 47-19-3-1X | 4-1 -3241 {1) 47-16-1 -1X 47-16-8-2X | Call for availability | |||
| -31 47-19-3-2X | 47-19-3-1X | 5-1 -3171 47-16-1 -7X | Call for availability | |||
| -32 47-19-3-2X | 47-19-3-1X | 4-1 -2331 47-16-1 -1X 47-16-8-2X | Call for availability | |||
| -33 47-19-3-2X | 47-19-3-1 | X 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -34 47-19-3-2X | 47-19-3-1X | 47-452-2 44-453-2 4-1 -2331 47-16-1 -1X | 47-16-8-2X | Call for availability | ||
| -35 47-19-60-2X | 47-19-60-1 | X 47-16-1 -1X | Call for availability | |||
| -36 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -38 47-19-7-2X | 47-19-7-1X | 47-452-2 44-453-2 47-16-1 -1X 47-16-5-27X | Call for availability | |||
| -39 47-19-60-2X | 47-19-60-1X | 47-16-1 -1X | Call for availability | |||
| -40 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -41 47-19-62-2X | 47-19-62-1 | X 47-16-1 -1X | Call for availability | |||
| -42 47-19-60-2X | 47-19-60-1 | X 47-16-1 -1X | Call for availability | |||
| -43 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -44 47-19-62-2X | 47-19-62-1X | 47-16-1 -1X | Call for availability | |||
| -45 47-19-3-2X | 47-19-3-1 | X 47-452-2 44-453-2 4-1 -3241 47-16-1 -1X 47-16-3-1 X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -18 Service Lipe | SP47-35-30-1 | X 47-19-82-1X 47-15-13-2X | Call for availability | |||
| -26 GMC Lipe | SP246-518-13-1X | 47-35-33-1 X 47-19-79-1 X 47-15-13-3X | Call for availability | |||
| -28 GMC lipe | SP246-518-13-1X | 47-35-33-1 X 47-19-79-1X 47-15-13-3X | Call for availability |
Tabulated Bills OF Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -46 | 47-19-3-2X | 47-19-3-1 X 4-4-251 1 47-16-1 -1X | 47-16-8-3X | Call for availability | ||
| -47 | 47-19-3-2X | 47-19-3-1X 4-4-251 1 47-16-1 -14X | Call for availability | |||
| -48 | 47-19-3-2X | 47-19-3-1X 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -49 | 47-19-60-2X | 47-19-60-1X 47-16-1 -1X | Call for availability | |||
| -SO | 47-19-62-2X | 47-19-62-1 X 47-16-1 -1X | Call for availability | |||
| -51 | 47-19-3-2X | 47-19-3-1X 4-1 -2331 47-16-1 -1X | 47-16-8-2X | Call for availability | ||
| -52 | 47-19-3-2X | 47-19-3-1 X 47-452-2 44-453-2 3-4-4271 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -53 | 47-19-60-2X | 47-19-60-1X 47-16-1 -1X | Call for availability | |||
| -54 | 47-19-9-2X | 47-19-9-1 X 47-452-1 47-16-1 -3X | Call for availability | |||
| -54 | 147-19-3-2X | 47-19-3-1X 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -54 | 647-19-7-2X | 47-19-7-1 X 44-452-2 47-16-1 -1X | Call for availability | |||
| -54 | 747-19-3-2X | 47-19-3-1 X 5-4-1051 47-16-1 -4X | 47-16-8-2X | Call for availability | ||
| -10 | 47-19-3-2X | 47-19-3-1X 44-452-2 4-1 -324111) 47-16-1 -4X | 47-16-8-2X | Call for availability | ||
| -11 | 47-19-3-2X | 47-19-3-1 X 47-16-1 -4X | 31 1528-7X | Call for availability | ||
| -13 | 47-19-7-2X | 47-19-7-1X | Call for availability | |||
| -14 | 47-19-13-2X | 47-19-13-1X 47-452-1 47-16-1 -3X | Call for availability | |||
| -15 | 47-19-3-2X | 47-19-3-1X 44-452-2 4-1 -4071 47-16-1 -1X | Call for availability | |||
| -16 | 47-19-3-2X | 47-19-3-1X 44-452-2 44-453-2 312946X(2) 47-16-1 -3X | Call for availability | |||
| -17 | 47-19-9-2X | 47-19-9-1 X 47-452-1 | Call for availability | |||
| -18 | 47-19-3-2X | 47-19-3-1X 47-16-1 -1X | Call for availability | |||
| -21 | 47-19-13-2X | 47-19-13-1X 47-452-1 47-16-1 -3X | Call for availability | |||
| -22 | 47-19-3-2X | 47-19-3-1X 46-452-8 46-453-8 4-1 -3241 47-16-1 -4X | 46-16-8-2X | Call for availability | ||
| -25 | 47-19-7-2X | 47-19-7-1X 44-452-2 47-16-1 -1X | Call for availability | |||
| -26 | 47-19-3-2X | 47-19-3-1X 47-452-2 47-16-1 -1X | Call for availability | |||
| -30 | 47-19-3-2X | 47-19-3-1 X 46-452-8 46-453-8 5-4-1051 47-16-1 -4X 47-16-3-1X | Call for availability | |||
| I ll - | 312940X | 8cake Assembly, See Pages 22-23 (2) - 312662X Bcake Assembly, See Pages 22-23 | Call for availability |
Clutch Housing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -38 GMC Lipe | SP247-518-10-IX | 47-35-33-1 X 47-19-79-IX 47-15-13-3X | Call for availability | |||
| -40 GMC lipe-SP | 247-518-10-1 | X 47-35-33-1 X 47-19-79-IX 47-15-13-3X | Call for availability | |||
| -6 GMC Lipe-SP | 247-518-10-IX | 47-35-33-1 X 47-19-79-1 X 47-15-13-3X | Call for availability | |||
| -7 GMC lipe-SP | 247-518-10-IX | 47-35-33-1 X 47-19-79-1 X 47-15-13-3X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| No. | H-1H-3 | B-22 H -8 B-23 18-19 23 | 20-22 | Call for availability | ||
| -31 47-19-3-2X | 47-19-3-IX | 47-452-2 47-16-1 -IX | Call for availability | |||
| -33 47-19-9-2X | 47-19-9-IX | 47-452-1 47-16-l -3X | Call for availability | |||
| -34 47-19-3-2X | 47-19-3-1 | X 5-4-1051 47-16-l -4X | Call for availability | |||
| -36 47-19-3-2X | 47-19-3-IX | 47-452-2 44-453-2 4-1 -2331 47-16-1 -IX 47-16-5-21X | Call for availability | |||
| -38 47-19-7-2X | 47-19-7-IX | 47-452-2 47-16-1 -IX | Call for availability | |||
| -40 47-19-3-2X | 47-19-3-1 | X 47-452-2 47-16-1 -IX | Call for availability | |||
| -41 47-19-7-2X | 47-19-7-1 | X 47-452-2 47-16-1 -IX | Call for availability | |||
| -43 47-19-60-2X | 47-19-60-IX | 47-16-1 -IX | Call for availability | |||
| -44 47-19-61 | 2X47-19-61 | -IX 47-16-1 -IX | Call for availability | |||
| -45 47-19-62-2X | 47-19-62-1 | X 47-16-1 -IX | Call for availability | |||
| -46 47-19-60-2X | 47-19-60-1 | X 47-16-1 -IX | Call for availability | |||
| -47 47- | 19-61-2X47-19-61 | -IX 47-16-1 -IX | Call for availability | |||
| -48 47-19-62-2X | 47-19-62-IX | 47-16-1 -IX | Call for availability | |||
| -49 47-19-3-2X | 47-19-3-IX | 47-452-2 44-453-2 4-1 -3241 47-16-1 -IX 47-16-3-1 X | Call for availability | |||
| -51 47-19-62-2X | 47-19-62-1 | X 47-16-1 -IX | Call for availability | |||
| -1 47-19-3-2X | 47-19-3-IX | 47-16-1 -IX 47-16-3-1 X | Call for availability | |||
| -2 | 47-360-1 | 47-16-1 -IX | Call for availability | |||
| -3 47-19-9-2X | 47-19-9-IX | 47-452-1 47-16-l -3X | Call for availability | |||
| -4 47-19-9-2X | 47-19-9-IX | 47-452-1 47-16-l -3X | Call for availability | |||
| -5 47-19-13-2X | 47-19-13-1 | X 47-452-1 47-16-l -3X | Call for availability | |||
| -6 47-19-7-2X | 47-19-7-IX | 47-452-2 47-16-l -3X 47-16-1 -IX | Call for availability | |||
| -7 47-19-3-2X | 47-19-3-1X | 47-452-2 47-16-1 -1X | Call for availability | |||
| -8 47-19-60-2X | 47-19-60-1 | X 47-16-l -1X | Call for availability | |||
| -9 47-19-61 | 2X47-19-61-1X | 47-16-1 -IX | Call for availability | |||
| -10 47-19-62-2X | 47-19-62-1 | X 47-16-1 -1X | Call for availability | |||
| -11 47-19-60-2X | 47-19-60-1X | 47-16-1 IX | Call for availability | |||
| -12 47-19-62-2X | 47-19-62-1X | 47-16-1 -IX | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -1 0 GMC | 47-35-40-IX | 47-19-80-IX 47- 15- 13-3X | Call for availability | |||
| -12 GMC | 47-35-32-1 | X 47-19-82-1 X 47-15-13-3X | Call for availability | |||
| -23 GMC | 47-35-32-IX | 47-19-82-1 X 47-15-13-3X | Call for availability | |||
| -26 Service | 47-35-32-1 | X 53-19-1 1 - I X 47-15-13-2X | Call for availability | |||
| -28 GMC | 47-35-40-1X | 47-19-80-1 X 47- 15- 13-3X | Call for availability | |||
| -29 GMC | 47-35-32-1 | X 47-19-82-1 X 47-15-13-3X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| No .1 | H-1H-3 | B-22 H-8 B-23 18 -19 23 | 20 -22 | Call for availability | ||
| -1 47-19-3-2X | 47-19-3-1 | X 47-16-1 -1X 47-16-3-1 X | Call for availability | |||
| -4 47-19-13-2X | 47-19-13-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -5 47-19-3-2X | 47-19-3-1X | 47-452-2 47-16-1 -1X | Call for availability | |||
| -6 47-19-9-2X | 47-19-9-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -7 47-19-3-2X | 47-19-3-1X | 47-452-2 44-453-2 47-16-1 -1X | Call for availability | |||
| -15 47-19-13-2X | 47-19-13-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -16 47-19-9-2X | 47-19-9-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -17 47-19-3-2X | 47-19-3-1X | 5-1 -3171 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -18 47-19-7-2X | 47-19-7-1X | 47-452-2 47-16-1 -1X | Call for availability | |||
| -19 47-19-3-2X | 47-19-3-1X | 47-452-2 | Call for availability | |||
| -21 47-19-3-2X | 47-19-3-1X | 47-452-2 47-16-1 -1X | Call for availability | |||
| -22 47-19-13-2X | 47-19-13-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -23 47-19-7-2X | 47-19-7-1 | X | Call for availability | |||
| -24 47-19-3-2X | 47-19-3-1 | X 4-1 -3891 47-16-1 -1X | Call for availability | |||
| -26 47-19-3-2X | 47-19-3-1 | X 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -31 47-19-3-2X | 47-19-3-1X | 47-16-1 -1X | Call for availability | |||
| -32 47-19-7-2X | 47-19-7-1X | 47-452-2 47-16-1 -1X | Call for availability | |||
| -33 47-19-9-2X | 47-19-9-1X | 47-452-1 47-16-1 -3X | Call for availability | |||
| -34 47-19-3-2X | 47-19-3-1 | X 47-452-2 | Call for availability | |||
| -36 47-19-7-2X | 47-19-7-1X | 47-452-2 47-16-1 -1X | Call for availability | |||
| -41 47-19-7-2X | 47-19-7-1X | 44-452-2 44-453-2 47-16-1 -1X 47-16-8-2X | Call for availability | |||
| -42 47-19-3-2X | 47-19-3-1 | X 47-452-2 4-1 -2331 47-16-1 -4X 47-16-3-25X | Call for availability | |||
| -43 53-19-3-2X | 53-19-3-1X | 47-452-4 47-453-2 4-4-2511 47-16-1 -4X | Call for availability | |||
| -44 47-19-3-2X | 47-19-3-1X | 47-452-2 47-16-1 -1X | Call for availability |
Clutch Housing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -46 Chrysler lipe-SP | 246-518-22-1 | X 37 47-35-32-1 X 53-19-1 1 -IX 47-15-13-2X | Call for availability | |||
| -49 Fam'a (IHC)-Mex. lipe-SP | 246-518-22-1 | X 31 47-35-32-1 X 47-19-82-1 X 47-15-13-2X | Call for availability | |||
| -50 Vermeer lipe-SP | 246-518-22-1 | X 2 47-35-32-1 X 47-19-82 -IX 47-15-13-2X | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| No. | H-1H-3 | B-22 H-8 B-23 18 -19 23 | 20 -22 | Call for availability | ||
| -46 47-19-3-2X | 47-19-3-1X | 47-452-2 44-453-2 4-1 -2331 47-16-1 -4X 47-16-3-25X | Call for availability | |||
| -47 47-19-3-2X | 47-19-3-1X | 47-452-2 44-453-2 5-4-1051 47-16-1 -1X 47-16-3-1X | Call for availability | |||
| -48 47-19-3-2X | 47-19-3-1X | 4-1 -3611 47-16-1 -9X 47-16-3-1X | Call for availability | |||
| -49 47-19-3-2X | 47-19-3-1 | X 47-452-2 44-453-2 4-4-2511 47-16-1 -4X 47-16-3-25X | Call for availability | |||
| -50 47-19-3-2X | 47-19-3-1X | 47-16-1 -1X | 47-16-8-ZX | Call for availability | ||
| -51 47-19-3-2X | 47-19-3-1X | 3-4-4271 47-16-1 -4X 47-16-3-1X | Call for availability | |||
| -52 47-19-3-2X | 47-19-3-1X | 3-1 -4381 47-16-1 -1X 47-16-3-25X | Call for availability | |||
| -53 47-19-60-2X | 47-19-60-1 | X 47-16-1 -1X | Call for availability | |||
| -54 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -55 47-19-62-ZX | 47-19-62-1 | X 47-16-1 -1X | Call for availability | |||
| -56 47-19-60-2X | 47-19-60-1X | 47-16-1 -1X | Call for availability | |||
| -57 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -58 47-19-62-2X | 47-19-62-1X | 47-16-1 -1X | Call for availability | |||
| -59 47-19-3-2X | 47-19-3-1X | 47-16-1 -1X | Call for availability | |||
| -60 47-19-60-2X | 47-19-60-1X | 47-16-1 -1X | Call for availability | |||
| -61 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -62 47-19-62-2X | 47-19-62-1 | X 47-16-1 -1X | Call for availability | |||
| -63 47-19-3-2X | 47-19-3-1X | 47-452-2 44-453-2 3-4-4271 47-16-1 -1X | 47-16-8-ZX | Call for availability | ||
| -64 47-19-3-2X | 47-19-3-1X | 3-1 -4381 47-16-1 -1X 47-16-3-25X | Call for availability | |||
| -65 47-19-60-2X | 47-19-60-1X | 47-16-1 -1X | Call for availability | |||
| -66 47-19-61 | 2X47-19-61-1X | 47-16-1 -1X | Call for availability | |||
| -67 47-19-62-2X | 47-19-62-1X | 47-16-1 -1X | Call for availability |
Supersession List (bills of Material)
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission CM5052-A, with every part in the manual matched to our live inventory. We stock 81 of the 637 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the CM5052-A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | CM5052-A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 55 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
