Spicer ES42-5A Parts Manual
Drive Gear Group -Input
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | 550986 | Bearing M/s Pocket | 1 | $78.59 | Superseded by 564821Add to Cart |

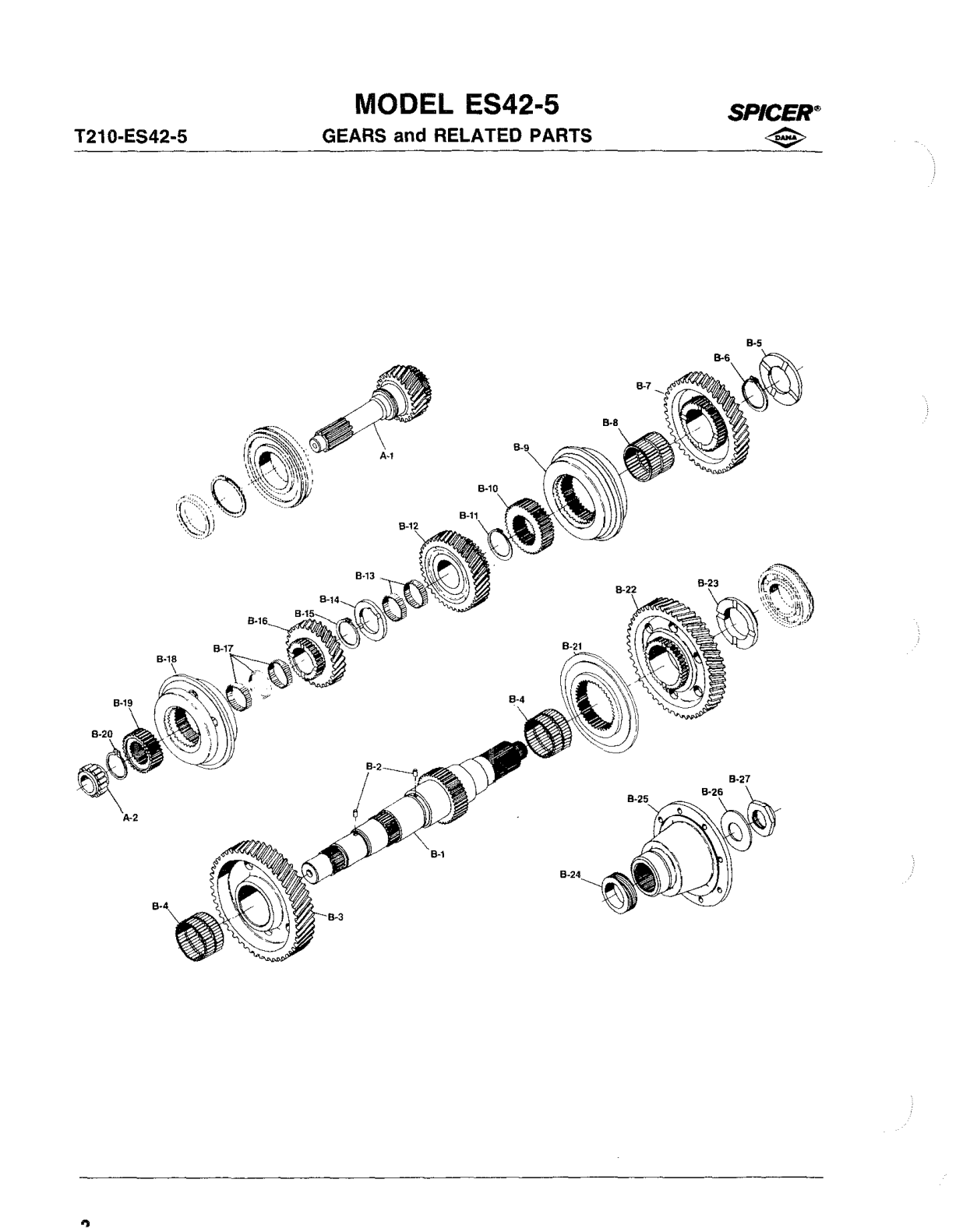

Mainshaft Group -Output
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 40-362-3 | Mainshaft | 1 | — | No longer available — call for replacement | |
| B-2 | 545087 | Pin-thrust Washer Lock | 2 | $5.49 | Add to Cart | |
| B-3 | 40-8-7 | Gear-1st Speed (46T) | 1 | — | No longer available — call for replacement | |
| B-4 | 550963 | Bearing -1 St & Reverse Gear Needle | 2 | $30.69 | Add to Cart | |
| B-5 | 40-47-2 | Thrust washer-1 St & 2nd Speed | 1 | — | Call for availability | |
| B-6 | 40-381-4 | Ring Snap, 1st & 2nd Thrust Washer. | 1 | $2.39 | Add to Cart | |
| B-7 | 40-8-5 | Gear-2nd Speed (38T) | 1 | $241.20 | Add to Cart | |
| B-8 | 550968 | Bearing -2nd Speed Needle | 1 | $40.49 | Add to Cart | |
| B-9 | 313471X | Synchronizer -2nd & 3rd Speed | 1 | $1,035.62 | Superseded by 313776XAdd to Cart | |
| B-10 | 40-466-2 | Gear-2nd & 3rd Speed Clutch | 1 | — | Call for availability | |
| B-11 | 40-381-3 | Ring Snap, 2nd & 3rd M/s Clutch | 1 | $2.39 | Add to Cart | |
| B-12 | 40-8-17 | Gear-3rd Speed (39T) | 1 | $251.97 | Add to Cart | |
| B-13 | 313661X | Bearing Kit-m/s 3rd Needle | 1 | — | Call for availability | |
| B-14 | 40-47-3 | Washer-thrust 3rd & 4th Speed | 1 | $22.13 | Add to Cart | |
| B-15 | 40-381-2 | Ring Snap -3rd & 4th Thrust Washer | 1 | $1.88 | Add to Cart | |
| B-15 | 40-8-19 | (28T) For ES42-5A | $144.69 | Add to Cart | ||
| B-15 | 40-8-21 | (26T) For ES42-5D | $342.05 | Add to Cart | ||
| B-17 | 313662X | Bearing Kit Needle & Spacer 4th | 1 | — | Call for availability | |
| B-18 | 313558X | Synchronizer-4th & 5th Speed | 1 | — | Call for availability | |
| B-19 | 49-466-2 | Gear-4th & 5th Speed Clutch (33T) | 1 | $112.70 | Superseded by 1014662Add to Cart | |
| B-20 | 40-381-1 | Ring Snap, 4th & 5th Clutch Gear | 1 | $2.46 | Add to Cart | |
| B-21 | 40-465-11 | Collar, Clutch -1 St & Reverse | 1 | — | Call for availability | |
| B-22 | 40-8-9 | Gear-reverse (46T) | 1 | $180.94 | Add to Cart | |
| B-23 | 49-47-3 | Washer, Thrust-reverse | 1 | $201.33 | Superseded by 101474Add to Cart | |
| B-23 | 53-37-1 | Spacer-used In Place Of Gear | 1 | — | Call for availability | |
| B-26 | 53-205-1 | Washer-mainshaft Nut | 1 | $4.42 | Add to Cart | |
| B-27 | 501200 | Nut-mainshaft (1 V. " -18 Hex) | 1 | $15.74 | Add to Cart |
Countershaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 40-30-1 | Countershaft | — | Call for availability | ||
| C-2 | 550966 | Bearing -countershaft Rear | — | Call for availability | ||
| C-3 | 40-196-5 | Gear-2nd Speed (20T) | — | Call for availability | ||
| C-4 | 40-37-1 | Spacer. .: .2nd & 3rd Speed Gear | $26.71 | Add to Cart | ||
| C-5 | 40-196-3 | Gear-3rd Speed (36T) | — | Call for availability | ||
| C-5 | 40-196-1 | (40T) For ES42-5A | — | Call for availability | ||
| C-5 | 40-196-7 | (42T) For ES42-5D | — | Call for availability | ||
| C-7 | 40-381-5 | Ring Snap -cis 4th Speed Gear | $2.97 | Add to Cart | ||
| C-8 | 40-1-1 | Gear-drive (49T) | $221.81 | Add to Cart | ||
| C-9 | 40-381-3 | Ring Snap 2nd & 3rd Clutch Gear | $2.39 | Add to Cart | ||
| C-10 | 550964 | Bearing Cone -cis Front | $16.47 | Add to Cart | ||
| C-11 | 550965 | Bearing Cup -cis Front | $8.37 | Add to Cart |

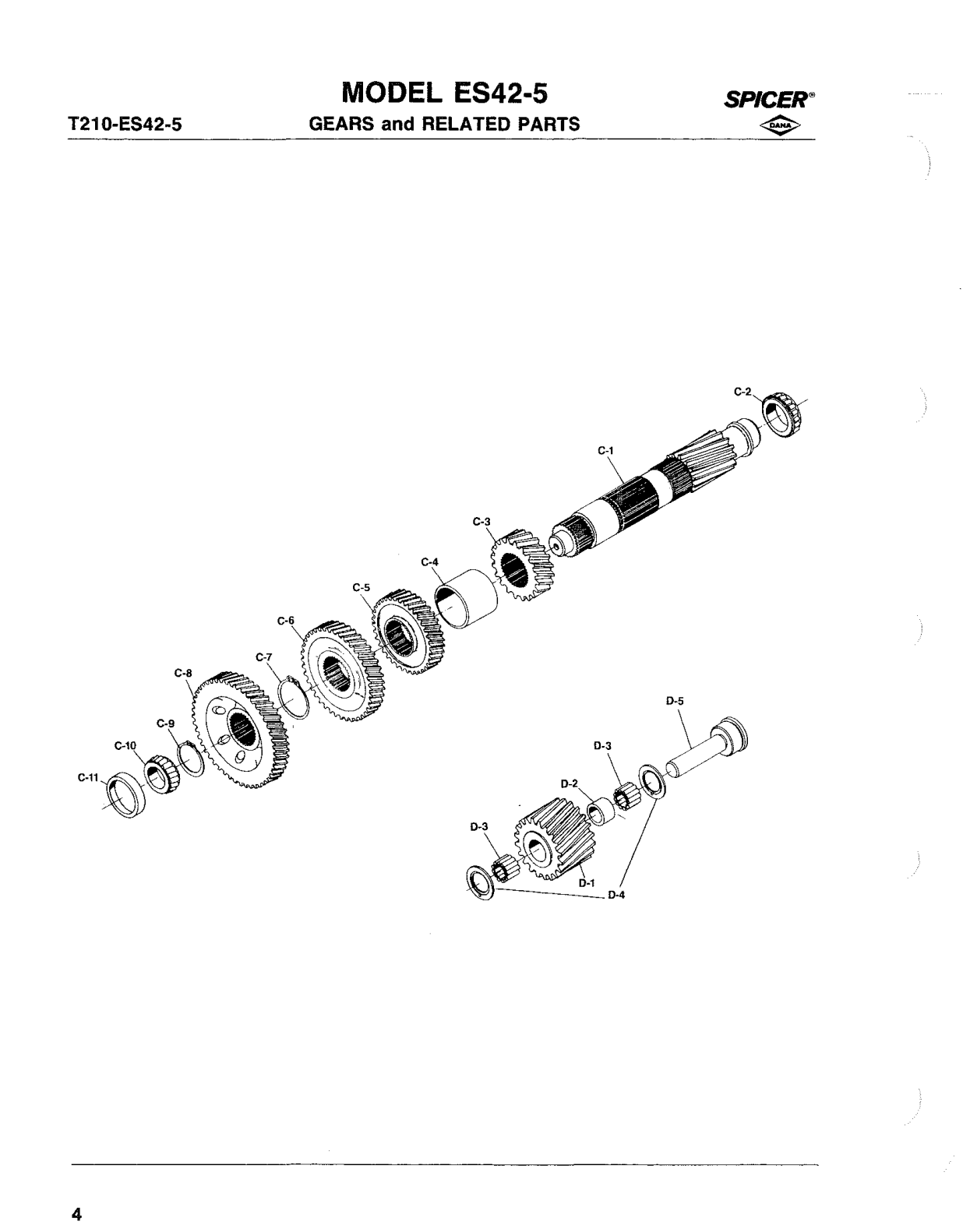

Reverse Idler Shaft Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 40-5-1 | Gear-reverse Idler (21T) | 1 | — | Call for availability | |
| D-2 | 97-37-1 | Spacer-bearing | 1 | $2.13 | Add to Cart | |
| D-3 | 550886 | Bearing -reverse Idler | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Washer-thrust Reverse Idler. | 2 | $41.88 | Add to Cart | |
| D-5 | 40-60-1 | Shaft-reverse Idler | 1 | — | Call for availability |
Clutch Housing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 49-360-3-1 | X* Retainer-case Front End (ford -gas Only) | 1 | — | Call for availability | |
| E-1 | 49-360-4-1 | X · Retainer-case Front End (gmc -gas Only) | 1 | — | Call for availability | |
| E-3 | 128C-20 | Bushing | 2 | $8.55 | Add to Cart | |
| E-4 | 46-96-2-1X | Hand Hole Cover Assembly | 1 | $44.01 | Add to Cart | |
| E-5 | 40-468-1 | Oil Trough | 1 | $2.38 | Superseded by 404682Add to Cart | |
| E-6 | 545088 | Pin | 2 | — | Call for availability | |
| E-7 | 330564-1 | Lift Hook | 1 | $3.15 | Add to Cart | |
| E-8 | 545082-2 | Bolt-clutch Housing To Case MF1 0 X 1 .25 X 30mm | 14 | — | Call for availability | |
| and | 545082-3 | Bolt-clutch Housing MF10 X 1 .25 X 35mm | — | Call for availability | ||
| E-9 | 545086 | Dowel Pin | 2 | $5.54 | Add to Cart | |
| E-10 | 40-477-1 | Support-front Shift Bar | 1 | $12.28 | Add to Cart | |
| E-11 | 545082-3 | Bolt-shift Bar Support MF1 0 X 1 .25 X 35mm | 2 | — | Call for availability | |
| E-12:1: | 40-215-1 | Adaptor-clutch Housing | 1 | — | Call for availability | |
| E-13:1 | 545008-6 | Screw- .625 -1 1 x3 .500 | 2 | version * (see the manual's footnote) | — | Call for availability |
| E-14:j: | 545008-3 | Screw- .625 -1 1 X 1 .750 | 2 | version * (see the manual's footnote) | — | Call for availability |
| E-15:1 | 545001 | Screw- .500 -13 X 1 .25 | 6 | version * (see the manual's footnote) | $2.21 | Add to Cart |

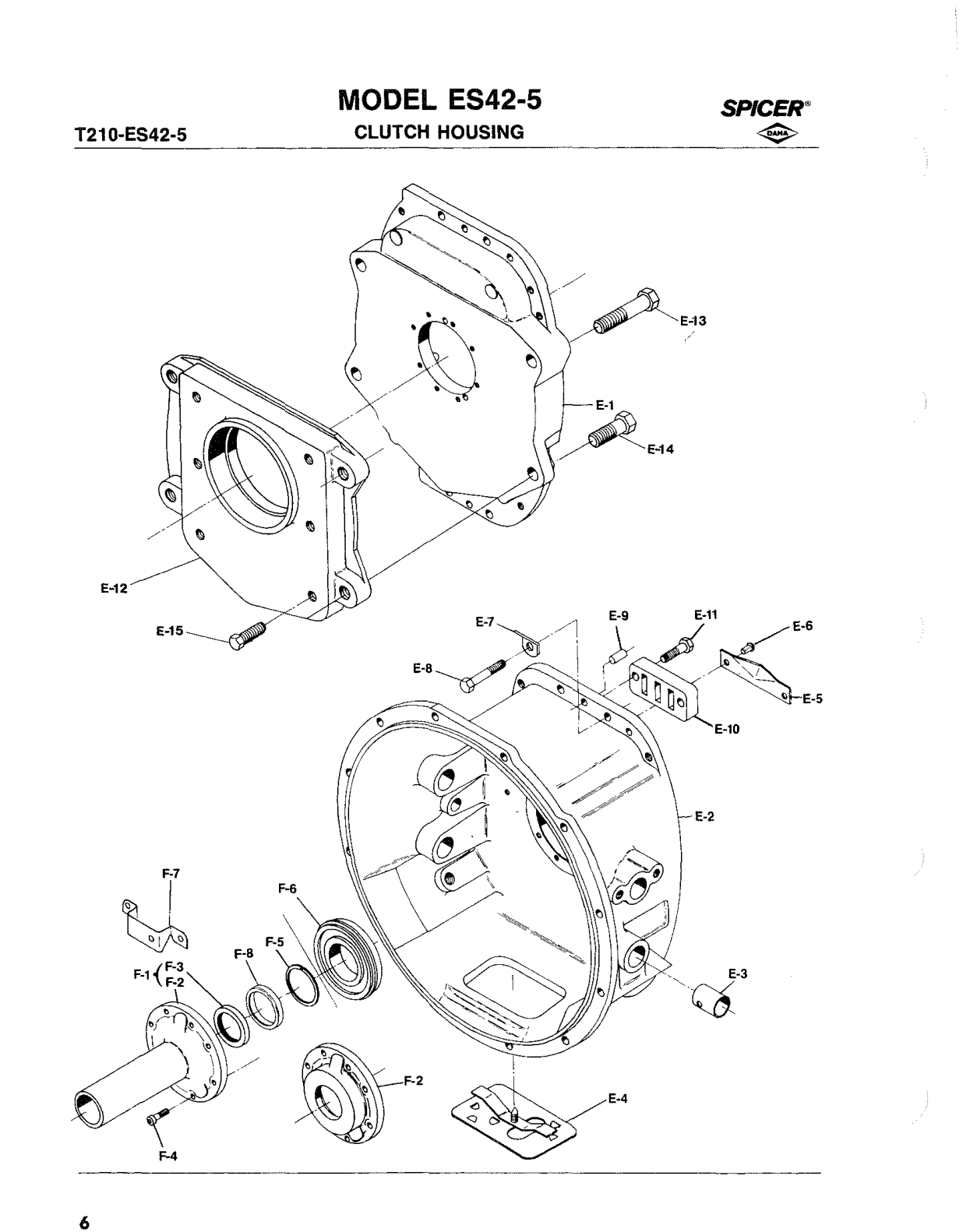

Clutch Housing Release Shaft Hole
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-15:1 | E-2E-2 | No. E Length Dia. Front Face C/l C/l | — | Call for availability | ||
| 46-518-21 | 1X46-518-21 | C102C-477 3 5 1 /,s " 1 | version * (see the manual's footnote) | — | Call for availability | |
| 49-518-4-2X | 49-518-4 | C40-518-2 2 817/32" 1 | 11 | version * (see the manual's footnote) | — | Call for availability |
| 49-518-5-2X | 49-518-5 | C40-518-2-1 2 817/az 11 1 | version * (see the manual's footnote) | — | Call for availability | |
| 49-518-6-1 | X49-518-6 | C40-518-4-1 2 6 .802 | version * (see the manual's footnote) | — | Call for availability | |
| 49-518-7 | 2X49-518-7 | C40-518-4 2 43/411 | — | Call for availability |

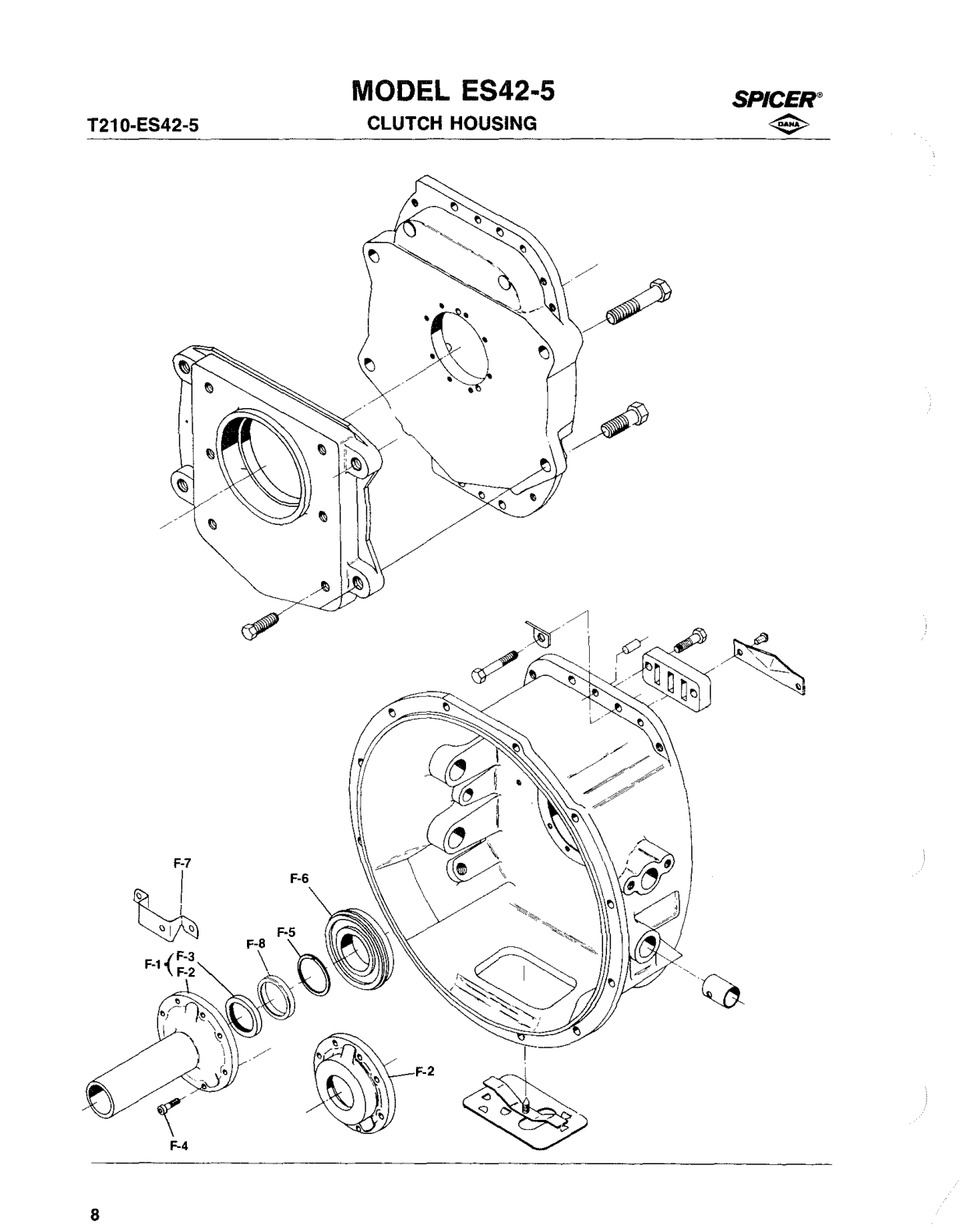

Drive Gear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-2 | Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-3 | 40-463-6-1 | X Seal -drive Gear Bearing Cap (stem Only) | 1 | — | Call for availability | |
| F-3 | 40-463-4-1 | X Seal -drive Gear Bearing Cap (flat Only) | 1 | — | Call for availability | |
| F-4 | 545093 | Cap Screw-drive Gear Bearing Cap (M6 X 1 .00 X 25mm) | 8 | — | Call for availability | |
| F-5 | 46-381-1 | Snap Ring | 1 | $4.22 | Add to Cart | |
| F-6 | 550988 | Bearing -drive Gear Front | 1 | $43.69 | Add to Cart | |
| F-7 | 40-411-1 | Return Spring Bracket (navistar Only) | 1 | $2.74 | Add to Cart | |
| F-8 | 49-468-2 | Ring Oil | 1 | $12.00 | Add to Cart |
Case Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| N .S | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| N .S | 252-SP | Pin -nameplate | 4 | $1.37 | Add to Cart | |
| G-3 | 500100 | Plug -filler (3/4"-14 N .p .t.f .) | 1 | — | Call for availability | |
| G-4 | 62-39-3 | Plug -magnetic Drain (% " -14 N .p .t .f .) | 1 | $9.27 | Add to Cart | |
| N .S | 330800 | Plug -side Hole (% " -1 6x3A ") | 2 | $3.27 | Add to Cart | |
| N .S | 330934 | Magnet, Ceramic (case, Inside Bottom Front) | 1 | $4.72 | Add to Cart | |
| G-5 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| G-6 | 40-487-1 | Insert-poppet Spring & Ball | 3 | $3.91 | Add to Cart | |
| G-7 | 40-80-1 | Ball -poppet (bssn J880705001) | 3 | — | Call for availability | |
| G-7 | 101-438-4 | Plunger-poppet (assn J880705001) | 3 | $22.03 | Superseded by 10143892XAdd to Cart | |
| G-8 | 97-72-23 | Spring -shift Bar Poppet | 3 | $22.03 | Superseded by 10143892XAdd to Cart | |
| G-10 | 313539 | Switch -back-up Lite (ford Only) | 1 | $25.13 | Add to Cart | |
| G-10 | 313538 | Switch -back-up Lite (navistar Only) | 1 | $31.37 | Add to Cart | |
| G-10 | 313552 | Switch -back-up Lite (gmc Only) | 1 | $25.15 | Add to Cart | |
| G-11 | 40-438-1 | Pin -1 St & Reverse Select Plunger | 1 | — | Call for availability | |
| G-12 | 62-72-8 | Spring -1 St & Reverse Shift Finger Plunger (standard) | 1 | — | No longer available — call for replacement | |
| G-12 | 30-72-6 | Spring -1 St & Reverse (hi No Motors L To) | 1 | $2.55 | Add to Cart | |
| G-12 | 40-72-3 | Spring -1 St & Reverse (spicer Drivetrain Australia) | 1 | — | Call for availability | |
| G-13 | 40-59-1 | Plug -1 St & Reverse Plunger | 1 | — | Call for availability | |
| G-13 | 40-59-2 | Plug -reverse Stop (w/o Reverse Gear) | 1 | — | Call for availability | |
| G-14 | 97-324-1-1X | Gasket-6 Bolt P .t.o Aperture Cover (i & R) | 2 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | $3.91 | Add to Cart |
| G-16 | 330800 | Bolt-p .t .o Aperture (i & R) (% " -16x 3f4 ") | 12 | — | Call for availability | |
| G-17 | 49-324-1-1 | X Gasket-reverse Idler Cover | 1 | — | Call for availability | |
| G-18 | 40-96-3 | Cover-reverse Idler | 1 | — | Call for availability | |
| G-19 | 545085 | Bolt-reverse Idler Cover (M10x 1 .5x20mm) | 6 | — | Call for availability | |
| 40-19-19-2X | 63-463-1 | 40-19-19 60-475-1 Dcm | — | Call for availability | ||
| 40-19-22-2X | 63-463-1 | 40-19-22 60-475-1 Dcm | — | Call for availability | ||
| 40-19-38-2X | 63-463-1 | 40-19-38 60-475-1 - 545082-3 {4) H-7 | $28.23 | Add to Cart | ||
| 40-19-39-1 | X63-463-1 | 40-19-39 - - 545082-3 ( 4) H-7 | — | Call for availability | ||
| 40-19-41 -2X | 63-463-1 | 40-19-41 Dcm | — | Call for availability | ||
| 40-19-42-2X | 63-463-1 | 40-19-42 Dcm | — | Call for availability | ||
| 40-19-43-2X | 63-463-1 | 40-19-43 - - 545082-3 (4) H-7 | $28.23 | Add to Cart |
Mainshaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 63-463-1 | Oil Seal -mainshaft Rear Bearing Cap | 1 | $28.23 | Add to Cart | |
| H-4 | Cap -mainshaft Rear Bearing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| H-6 | 40-223-1 | Gasket-mainshaft Rear Bearing Cap | 1 | $9.44 | Superseded by 402234Add to Cart | |
| H-6 | 40-223-3 | Gasket-mainshaft Rear Bearing Cap (brake Only) | 1 | $10.41 | Superseded by 402235Add to Cart | |
| H-7 | 545082-3 | Bolt-rear Bearing Cap (MF1 0 X 1 .378 X 35mm) | 4 | — | Call for availability | |
| and | 545084-4 | Plug -case (rear Holes) (MF12 X 1 .25 X 16mm) | — | Call for availability | ||
| H-9 | 55-454-1 | Sleeve-1V4 "speedometer Driven Gear | 1 | — | No longer available — call for replacement | |
| H-9 | 97-454-2-1X | Sleeve And Oil Seal | 1 | — | Call for availability | |
| N .S | 44-539-1 | Cap -speedometer Dust | 1 | $9.19 | Add to Cart | |
| N .S | 55-334-1 | Plug -speedometer (use W/o Driven Gear) | 1 | $88.44 | Add to Cart | |
| N .S | 545106 | Plug -speedometer Outlet (ford) (electronic) | 1 | — | Call for availability | |
| H-10 | 550989 | Bearing -mainshaft Rear. | 1 | $72.30 | Add to Cart | |
| H-11 | 545021 | Plug -electronic Speedometer (ford) | 1 | $18.89 | Add to Cart | |
| H-12 | 37179 | Tube -vent (assembly Toward Front Of Trans) | 1 | — | Call for availability | |
| H-13 | 545084-2 | Bolt-cap (d .c .m Brake} (MF12x1 .25x35mm) | 2 | — | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 40-22-3 | Cap -countershaft Rear Bearing | 1 | — | Call for availability | |
| J-1 | 40-228-1-1 | ( .0055/.0045) | 1 | — | Call for availability | |
| J-1 | 40-228-1-2 | ( .1 1 10/.0090) | 1 | — | Call for availability | |
| J-1 | 40-228-1-3 | ( .0165/.0135) | 1 | — | Call for availability | |
| J-3 | 550967 | Cup -countershaft Rear Bearing | 1 | — | Call for availability | |
| J-4 | 330564-1 | Lift Hook | 1 | $3.15 | Add to Cart | |
| J-5 | 545002-4 | Bolt-countershaft Rear Bearing Cap (% " -16 X Pi• ") | 4 | $6.93 | Add to Cart |
Interlock Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| M-1 | 40-200-1 | Plate -interlock Retainer | 1 | $19.29 | Add to Cart | |
| M-2 | 40-155-1 | Gasket-case To Interlock Plate | 2 | $24.73 | Superseded by 1011181Add to Cart | |
| M-3 | 545091 | Screw-drive (interlock Retainer) | 2 | $2.85 | Add to Cart | |
| M-4 | 40-200-2 | Plate -interlock | 1 | — | No longer available — call for replacement |
Rear Shaft Bar Support Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| N-1 | 40-477-2 | Support-rear Shift Bar | 1 | — | Call for availability | |
| N-2 | 40-96-1 | Cap -rear Shift Bar | 1 | $27.89 | Add to Cart | |
| N-3 | 330564-1 | Lift Hook | 1 | $3.15 | Add to Cart | |
| N-4 | 545082-1 | Bolt-shift Bar Cap (MF10 X 1 .25 X 25mm) | 4 | — | Call for availability | |
| N-5 | 545082-3 | Bolt-shift Bar Support (MF1 0 X 1 .25 X 35mm) | 2 | — | Call for availability |
Shift BAR and FORK Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 313685-1X | Shift Fork And bar-1 St & Reverse (includes (2) 49-468-3) | 1 | $396.46 | Superseded by 3137231XAdd to Cart | |
| R-2 | 49-486-3 | Clip -1 St & Reverse Shift Fork | 2 | $4.06 | Add to Cart | |
| R-3 | 313686-1X | Shift Fork And bar-2nd & 3rd (includes (2) 40-486-1) | 1 | $2,781.97 | Superseded by 313821XAdd to Cart | |
| R-4 | 40-486-1 | Clip -2nd 3rd 4th & 5th Shift Fork | 4 | $3.15 | Add to Cart | |
| R-5 | 313687 | ·1X Shift Fork And bar-4th & 5th (includes (2) 40-486-1) | 1 | — | Call for availability |
Shift Lever and DOME Assembly T21 O-ES42 -5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 390-27 | Handle -shift Lever 1 1 | 1 | — | Call for availability | |
| P-2 | 286-SP | Pin -shift Lever Collar. 1 1 | 1 | $2.89 | Add to Cart | |
| P-3 | 550-7 | Collar-compression 1 1 | 1 | — | Call for availability | |
| P-4 | 560-25 | Spring -compression 1 1 | 1 | — | Call for availability | |
| P-5 | 540-13 | Cup -compression 1 1 | 1 | — | Call for availability | |
| P-6 | 690-6 | Washer-compression 1 1 | 1 | — | Call for availability | |
| P-7 | 540-20 | Insert-dome 1 1 | 1 | — | Call for availability | |
| P-8 | 30-463-9 | "0 " Ring -dome Seal 1 1 | 1 | $1.93 | Add to Cart | |
| P-9 | 250-1701-20 | Shift Lever-straight (30 " Length) 1 | — | Call for availability | ||
| P-9 | 250-1701-49 | Shift Lever-straight (33 " Length) 1 | — | Call for availability | ||
| P-9 | 250-2461 | Shift Lever-lower End (rvi) | 1 | — | Call for availability | |
| P-10 | 530-15 | Shaft-rock 1 1 | 1 | — | Call for availability | |
| P-11 | 40-17-1 | Dome -shift Lever (overall Height 2 ") 1 | 1 | — | Call for availability | |
| P-11 | 40-17-3 | Dome -shift Lever (overall Height 3.31 ") 1 1 | — | Call for availability | ||
| P-12 | 545028 | Bolt-shift Tower ('l', " -14x1V4 ") (not | $3.00 | Add to Cart |
THRU Shaft !used with Push Type Clutch)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-10714-062 | 106C-1083 RS-8 7 .969 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-11415-125 | 106C-1094 RS-8 8 .469 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-11426-125 | 106C-1 123 RS-8 12 .968 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-11855-750 | 106C-tt69 RS-8 9 .125 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-12164-750 | 106C-t315 RS-8 7 .625 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-12784-812 | 106C-1367 RS-8 10 .312 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-13605-312 | 106C-1375 RS-8 6 .781 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-13756-781 | 106C-1417 RS-8 7 .250 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-14986-500 | 106C-1422 RS-8 7 .500 | version * (see the manual's footnote) | — | Call for availability | ||
| 330601-16-250 | 106C-1515 RS-5 11 .375 | version * (see the manual's footnote) | — | Call for availability | ||
| 330610-1 | 1 RS-8 10 .750 | version * (see the manual's footnote) | — | Call for availability | ||
| 46-510-9 | RS-5 7 .125 | version * (see the manual's footnote) | — | Call for availability | ||
| 47-526-1 | -lx• Lever Type 71/4 | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-438 | RS-514-000 | •lever Type Can Be Used On Either Right Or Left Side | — | Call for availability | ||
| 106C-839 | RS-811-469 | Part No. Type Length | — | Call for availability | ||
| 106C-939 | RS-810-000 | 106C-1566 Splined 19 .125 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-953 | RS-89-750 | 106C-1550 Keyed 16 .375 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-959 | RS-811-968 | 106C-1558 Keyed 19 .000 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-960 | RS-88-719 | 106C-1578 Splined 19 .500 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-1046 | RS-88-968 | 49-510-1 Keyed 19 .120 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-1047 | RS-89-469 | 97-510-2 Splined 19 .313 | version * (see the manual's footnote) | — | Call for availability |
Clutch Release Code Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 105C-64 | 106C-1142 106C ·1047 310233X 11 .969 60 105C-137 106C-1185 106C-617 310233X | 12 .969 | — | Call for availability | |
| 2 | 105C-64 | 106C-1185 106C ·438 - 16 .500 61 105C-137 106C-1185 106C-839 310233X | 13 .969 | — | Call for availability | |
| 3 | 105C-64 | 106C-1185 106C-939 310233X 12 .500 62 105C-137 106C-1185 106C-939 310233X | 12 .500 1 | — | Call for availability | |
| 4 | 105C-64 | 106C-1185 106C-1046 310233X 11 .468 63 105C-137 106C-1185 106C-939 310473X | 12 .500 ! | — | Call for availability | |
| 5 | 105C-64 | 106C-1185 106C-1047 310233X 11 .969 64 105C-137 106C-1185 106C-953 310473X | 12 .25o I | — | Call for availability | |
| 6 | 105C-64 | 106C-1185 106C-1047 47-526-1 -1X 11 .969 65 105C-137 106C-1185 106C-1046 310233X | — | Call for availability | ||
| 7 | 105C-64 | 106C-1544 106C-839 310233X 13 .969 66 105C-137 106C-1185 106C-1046 310473X | — | Call for availability | ||
| 8 | 105C-68 | 106C-1142 106C-438 - 16 .125 67 105C-137 106C-1185 106C-1047 310233X | 11 .969 | — | Call for availability | |
| 9 | 105C-68 | 106C-1142 106C-617 12 .594 68 105C-137 106C-1185 106C-1083 310233X | 10 .469 | — | Call for availability | |
| 10 | 105C-68 | 106C-1142 106C-617 310233X 12 .594 69 105C-137 106C-1185 106C-1094 - | 10 .969 | — | Call for availability | |
| 11 | 105C-68 | 106C-1142 106C-839 310233X 13 .594 70 105C-137 106C-1185 106C-1094 310233X | 10 .969 | — | Call for availability | |
| 12 | 105C-68 | 106C-1142 106C-939 310233X 12 .125 71 105C-137 106C-1185 106C-1123 - | 15 .468 | — | Call for availability | |
| 13 | 105C-68 | 106C-1142 106C-1046 310233X 11 .093 72 105C-137 106C-1185 106C-1123 310233X | 15 .468 | — | Call for availability | |
| 14 | 105C-68 | 106C-1142 106C-1047 310233X 1 1 .594 73 105C-137 106C-1185 106C-1367 | 12 .812 | — | Call for availability | |
| 15 | 105C-68 | 106C-1278 106C-438 - 16 .125 74 105C-137 106C-1185 106C-1367 310233X | 12 .s12 | — | Call for availability | |
| 15A | 105C-68 | 106C-1278 106C-939 310473X 12 .125 75 105C-137 106C-1185 106C-1375 310873X | I | — | Call for availability | |
| 158 | 105C-68 | 106C-1278 106C-939 310233X 12 .125 76 105C-137 106C-1185 106C-1515 - | 13 .875 | — | Call for availability | |
| 16 | 105C-1 | 17 106C-1071 106C-939 :i10233X 12 .750 77 105C-137 106C-1185 106C-1529 | 10 .812 | — | Call for availability | |
| 17 | 105C-1 | 17 106C-1071 106C-1094 310233X 11 .219 78 105C-137 106C-1185 330610-5 - | 1 1 .969 | — | Call for availability | |
| 18 | 105C-117 | 106C-1142 106C-939 310233X 12 .750 78A 105C-137 106C-1185 46-510-9 - | 9 .625 I | — | Call for availability | |
| 19 | 105C-1 | 17 106C-1185 106C-438 16 .750 79 105C-137 106C-1216 106C-617 310233X | 12 .969 | — | Call for availability | |
| 20 | 105C-1 | 17 106C-1185 106C-617 310233X 13 .219 80 105C-137 106C-1278 106C-438 | 16 .5oo | — | Call for availability | |
| 21 | 105C-1 | 17 106C-1185 106C-S39 47-526-1 -1X 14 .219 81 105C-137 106C-1278 106C-588 | — | Call for availability | ||
| 22 | 105C-117 | 106C-1185 106C-939 310233X 12 .750 82 105C-137 106C-1278 106C-588 310233X | 9 .500 | — | Call for availability | |
| 23 | 105C-117 | 106C-1185 106C-953 310873X 12 .500 83 105C-137 106C-1278 106C-617 310233X | 12 .969 | — | Call for availability | |
| 24 | 105C-117 | 106C-1185 106C-960 310233X 11 .469 84 105C-137 106C-1278 106C-939 310233X | 12 .500 | — | Call for availability | |
| 25 | 105C-1 | 17 106C-1185 106C-1046 310233X 11 .718 84A 105C-137 106C-1278 106C-939 310473X | 12 .500 | — | Call for availability | |
| 26 | 105C-1 | 17 106C-1185 106C-1047 310233X 12 .219 85 105C-137 106C-1278 106C-939 310873X | 12 .500 | — | Call for availability | |
| 27 | 105C-1 | 17 106C-1185 106C-1083 - 10 .719 86 105C-137 106C-1278 106C-960 310233X | 1 1 .219[ | — | Call for availability | |
| 28 | 105C-1 | 17 106C-1185 106C-1083 310233X 10 .719 87 105C-137 106C-127B 106C ·1046 | — | Call for availability | ||
| 29 | 105C-1 | 17 106C-1185 106C-1083 310473X 10 .719 88 105C-137 106C-1278 106C-1046 310233X | 1 1 .468 | — | Call for availability | |
| 30 | 105C-117 | 106C-1185 106C-1094 310233X 11 .219 89 105C-137 106C-1278 106C-1047 - | 1 1 .969 | — | Call for availability | |
| 31 | 105C-117 | 106C-1185 106C-1094 310873X 11 .219 90 105C-137 106C-1278 106C-1047 310233X | 11 .969 | — | Call for availability | |
| 32 | 105C-117 | 106C-1185 106C-1169 310233X 11 .875 91 105C-137 106C-1278 106C-1083 310233X | 10 .469 I | — | Call for availability | |
| 33 | 105C-1 | 17 106C-1185 106C-1315 - 10 .375 91A 105C-137 106C-1278 106C-1083 310473X | 10 .469 I | — | Call for availability | |
| 34 | 105C-1 | 17 106C-1185 106C-1315 310233X 10 .375 92 105C-137 106C-1278 106C-1094 310233X | 10 .969 | — | Call for availability | |
| 35 | 105C-117 | 106C-1185 106C-1315 47-526-1 -1X 10 .375 92A 105C-137 106C-1278 106C-1315 310233X | 10 .125 | — | Call for availability | |
| 35A | 105C-117 | 106C-1185 106C-1375 310873X 9.531 93 105C ·137 106C-1278 106C-1375 310233X | — | Call for availability | ||
| 36 | 105C-1 | 17 106C-1185 106C-1417 310233X 10 .000 94 105C-137 106C-1278 106C-1422 310233X | 10 .000 | — | Call for availability | |
| 37 | 105C-117 | 106C-1185 106C-1417 310873X 10 .000 95 105C-137 106C-1278 106C-1529 - | 10 .812 . | — | Call for availability | |
| 38 | 105C-1 | 17 106C-1185 106C-1490 310233X 18 .750 96 105C-137 106C-1360 106C-1083 - | 10 .469 | — | Call for availability | |
| 39 | 105C-117 | 106C-127B 106C-939 310233X )2. 750 96A 105C-137 106C-1360 106C-1417 310233X | 9 .750 | — | Call for availability | |
| 40 | 105C-117 | 106C-1278 106C-960 310873X 1 1 .469 97 105C-137 106C-1360 106C-1422 310233X | 10 .000 | — | Call for availability | |
| 41 | 105C-1 | 17 106C-1278 106C-1047 310233X 12 ,219 98 105C-137 106C-1375 106C-43B 310233X | 16 .500 | — | Call for availability | |
| 42 | 105C-1 | 17 106C-1278 106C-1094 310233X 1 1 .219 99 105C-137 106C-1498 106C-438 - | 16 .500 | — | Call for availability | |
| 43 | 105C-1 | 17 106C-1278 106C-1315 310233X 10 .375 100 105C-137 106C-1498 106C-617 310233X | 12 .969 | — | Call for availability | |
| 44 | 105C-117 | 106C-1278 106C-1367 310233X 13 .062 101 105C-137 106C-1498 106C-617 310473X | 12 .969 | — | Call for availability | |
| 45 | 105C-117 | 106C-1360 106C-1083 310233X 10 .719 102 105C-137 106C-1498 106C-939 310233X | 12 .500 | — | Call for availability | |
| 46 | 105C-1 | 17 106C-1360 106C-1315 310233X 10 .375 103 105C-137 106C-1498 106C-939 310473X | — | Call for availability | ||
| 46A | 105C-117 | 106C'1360 330610-10 - 12 .250 104 105C-137 106C-1498 106C-953 310233X | 12 .250 | — | Call for availability | |
| 47 | 105C-1 | 17 Thru Shaft 1 06C-1550 - - 105 105C-137 106C-1498 106C-959 310233X | 14 .468 | — | Call for availability | |
| 48 | 105C-1 | 17 Thru Shaft 1 06C-1558 106 105C-137 106C-1498 106C-1046 310233X | — | Call for availability | ||
| 49 | 105C-124 | • 106C-1185 1 06C-438 - 14 .313 107 105C-137 106C-1498 106C-1047 - | "11 .969 | — | Call for availability | |
| 50 | 105C-124 | Thru Shaft 106C-1566 310233X 108 105C-137 106C-1498 106C-1047 310233X | 1 1 .969 | — | Call for availability | |
| 51 | 105C-124 | Thru Shaft 106C-1566 310473X - 109 105C-137 106C-1498 106C-10B3 310233X | 10 .469 | — | Call for availability | |
| 52 | 105C-124 | Thru Shaft 106C-1566 310873X - 110 105C-137 106C-1498 106C-1094 - | 10 .969 | — | Call for availability | |
| 52A | 105C-124 | Thru Shaft 49-510-1 310233X - 111 105C-137 106C-1498 330610-11 310233X | 13 .250 | — | Call for availability | |
| 53 | 105C-132 | 106C-1185 106C-1047 310233X 9 .782 112 105C-137 330601 -1 106C-939 310233X | 12 .500 | — | Call for availability | |
| 54 | 105C-132 | 106C-1185 106C-1083 310233X 8 .282 112A 85-509-3 106C-1278 106C-939 310233X | 12 .750 | — | Call for availability | |
| 55 | 105C-132 | 106C-1185 106C-1417 310873X 7 .563 113 85-509-3 106C-1360 106C-1417 310233X | 10 .000 | — | Call for availability | |
| 56 | 105C-132 | 106C-1185 46-510-9 - 7 .438 114 85-509-3 Thru Shaft 1 06C-1578 310233X | — | Call for availability | ||
| 57 | 105C-132 | 106C-1278 46-510-9 - 7 .438 114A 85-509-3 Thru Shaft 106C-1578 310473X | - I | — | Call for availability | |
| 58 | 105C | · 137 106C-1141 106C-1169 310233X 11 .625 115 85-509-3 Thru Shaft 106C-1578 310873X | I | — | Call for availability | |
| 59 | 105C-137 | 106C ·1185 106C-438 16 .500 116 312916 Thru Shaft 97-510-2 | — | Call for availability |
Companion Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1480 | U -bolt 3 -4-8781 41%4 11 221f20 | — | Call for availability | |||
| 1550 | U -bolt 4-4-4491 41fs4" 211f20 | — | Call for availability | |||
| 1610 | Full Rnd 5-4-6321 4 " 19 ° | — | Call for availability | |||
| 1710 | Full Rnd 6-4-7301 5114" 331f20 | — | Call for availability |
Major Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21O-ES42-5 | Overhaul Kits 4S> | — | Call for availability | |||
| 313400-77X | Major Overhaul Kit | — | Call for availability | |||
| 501200 | Nut-mainshaft Output | $15.74 | Add to Cart | |||
| 313401-27X | Thrust Washer Kit | 1 | — | Call for availability | ||
| 313429-7X | Shifter Housing Small Parts Kit | 1 | — | Call for availability | ||
| 313432-34X | Minor Overhaul Kit | 1 | $459.62 | Add to Cart |
Minor Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313432-34X | Minor Overhaul Kit | 1 | $459.62 | Add to Cart | ||
| 550986 | Mainshaft Pocket | 1 | $78.59 | Superseded by 564821Add to Cart | ||
| 550989 | Mainshaft Rear Cone | 1 | — | Call for availability | ||
| 550988 | Drive Gear Front | $43.69 | Add to Cart | |||
| 550963 | Mainshaft 1st And Reverse | 2 | — | Call for availability | ||
| 550886 | Reverse Idler Gear | 2 | — | Call for availability | ||
| 550964 | Countershaft Front-cone | 1 | — | Call for availability | ||
| 550965 | Coun ,tershaft Front-cup | 1 | — | Call for availability | ||
| 550966 | Countershaft Rear-cone | 1 | — | Call for availability | ||
| 550967 | Countershaft Rear-cup | 1 | — | Call for availability | ||
| 550968 | Mainshaft 2nd Needle | 1 | — | Call for availability | ||
| 313661X | Kit-bearing Needle 3rd Speed | 1 | — | Call for availability | ||
| 313662X | Kit-bearing Needle 4th Speed & Spacer | 1 | — | Call for availability | ||
| 40-486-1 | Clip -shift Fork (2nd & 3rd):(4th & 5th) | 4 | $3.15 | Add to Cart | ||
| 49-486-3 | Clip -shift Fork (1st & Reverse) | 2 | $4.06 | Add to Cart | ||
| 49-468-2 | Ring -oil | 1 | $12.00 | Add to Cart | ||
| 40-463-4-1X | Seal -drive Gear (flat Type) | $31.43 | Add to Cart | |||
| 40-463-6-1X | Seal -drive Gear (stem Type) | $31.43 | Add to Cart | |||
| 63-463-1 | Seal -mainshaft Rear | $28.23 | Add to Cart | |||
| 545077 | #2 Moly Grease (packet) | 1 | — | Call for availability | ||
| 545080-1 | Locite -threadlock Adhesive (vail) | 1 | — | Call for availability | ||
| 312475-40X | Gasket Kit | 1 | $80.54 | Add to Cart | ||
| 313438-1X | Shim kit-c0untershaft Rear | 1 | — | Call for availability | ||
| 313024-14X | Snap Ring -kit | 1 | — | Call for availability | ||
| 2363 | Service Manual | 1 | — | Call for availability | ||
| 2770 | Bulletin -bearing Lube Instruction | 1 | — | Call for availability | ||
| 2783 | Bulletin -locite Apl For Mainshaft Nut | 1 | — | Call for availability | ||
| 313401-27X | Thrust Washer Kit | 1 | — | Call for availability | ||
| 974-W | Reverse Idler | 2 | — | Call for availability | ||
| 40-47-3 | Mainshaft-3rd & 4th Speed | 1 | — | Call for availability | ||
| 49-47-3 | Mainshaft-reverse | 1 | $201.33 | Superseded by 101474Add to Cart | ||
| 545087 | Pin -lock | 2 | $5.49 | Add to Cart | ||
| 40-47-2 | Washer-1 St & 2nd Speed | 1 | — | Call for availability | ||
| 313429-7X | Shifter Housing Small Parts | 1 | — | Call for availability | ||
| 40-80-1 | Poppet Ball (bssn J880705001) | 3 | — | Call for availability | ||
| 101-438-4 | Poppet Plunger (assn J880705001) | 3 | $22.03 | Superseded by 10143892XAdd to Cart | ||
| 40-487-1 | Insert-poppet Spring And Ball | 3 | $3.91 | Add to Cart | ||
| 40-438-1 | Pin -1 St & Reverse Select Plunger. | 1 | — | Call for availability | ||
| 97-72-23 | Spring -shift Bar Poppet | 3 | $22.03 | Superseded by 10143892XAdd to Cart | ||
| 62-72-8 | Spring -1 St & Reverse Shift Finger Plunger | 1 | — | No longer available — call for replacement | ||
| 2823 | Bulletin -shift Bar Assemblies And Poppet Plunger | 1 | — | Call for availability |
Overhaul Kits T21 O-ES42-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 312475-40X | Gasket Kit : | 1 | $80.54 | Add to Cart | ||
| 40-223-1 | Mainshaft Rear Bearing Cap | 1 | $9.44 | Superseded by 402234Add to Cart | ||
| 40-223-3 | Mainshaft Rear Bearing Cap (d .c .m Brake) | 1 | $10.41 | Superseded by 402235Add to Cart | ||
| 97-324-1-1X | Pto Aperture Cover | 2 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | — | Call for availability | |
| 49-324-1-1 | X Reverse Idler Cover | 1 | — | Call for availability | ||
| 40-155-1 | Tower | 1 | $24.73 | Superseded by 1011181Add to Cart | ||
| 545056-9 | Anaerobic Sealant | 1 | — | Call for availability | ||
| 2792 | Bulletin -liquid Gasket | 1 | — | Call for availability | ||
| 313024-14X | Snap Ring Kit | 1 | — | Call for availability | ||
| 40-381-2 | Mainshaft 3rd & 4th Thrust Washer | 1 | — | Call for availability | ||
| 40-381-3 | Countershaft Head End Gear | 1 | — | Call for availability | ||
| 40-381-4 | Mainshaft 1st & 2nd Thrust Washer | 1 | — | Call for availability | ||
| 40-381-5 | Countershaft 4th Gear | 1 | — | Call for availability | ||
| 46-381-1 | Mainshaft Front Bearing | 1 | — | Call for availability | ||
| 40-381-1 | 4th & 5th Clutch Gear | 1 | — | Call for availability | ||
| 40-381-6 | Drive Gear Pocket Bearing | 1 | — | Call for availability | ||
| 2811 | Bulletin -2nd Speed Bearing Overhaul | 1 | — | Call for availability | ||
| 2807 | Bulletin -drive Gear Replacement | 1 | — | Call for availability | ||
| 313438-1X | Shim Kit | 1 | — | Call for availability | ||
| 40-228-1-3 | Countershaft Rear Bearing ( .0165/ .0135) | 1 | — | Call for availability | ||
| 40-228-1-2 | Countershaft Rear Bearing ( .1 1 10/ .0090) | 1 | — | Call for availability | ||
| 40-228-1-1 | Countershaft Rear Bearing ( .005/.0045) | 1 | — | Call for availability | ||
| 2793 | Bulletin -countershaft Shim Kit | 1 | — | Call for availability | ||
| 40-463-4-1 | X Sub -assembly-oil Seal & Inst Sl (flat Cap) | — | Call for availability | |||
| 2819 | Bulletin -oil Seal Inst. Instruction | — | Call for availability | |||
| 40-463-4 | Seal -drive Gear Bearing Cap | — | Call for availability | |||
| 40-420-1 | Sleeve -oil Seal Inst. (1 .75 Dia Shaft) | — | Call for availability | |||
| 40-463-6-1 | X Sub -assembly-oil Seal & Inst Sl (stem Cap) | 1 | — | Call for availability | ||
| 40-463-6 | Seal -drive Gearing Bearing Cap | 1 | — | Call for availability | ||
| 40-420-2 | Sleeve -oil Seal Inst. (1 .500 Dia .) | 1 | — | Call for availability | ||
| 40-420-3 | Sleeve -oil Seal Inst. (1 .375 Dia .) | 1 | — | Call for availability | ||
| 97-324-1 | Gasket-pto Aperture Cover | 1 | $3.91 | Add to Cart | ||
| 330950 | Tag -instruction (service Gaskets) | 1 | — | Call for availability | ||
| 49-324-1 | Gasket-reverse Idler Cover | 1 | $13.58 | Add to Cart | ||
| 313661X | Kit -bearing Needle 3RD Speed | 1 | — | Call for availability | ||
| 550987 | Bearing -needle Roller | 2 | — | Call for availability | ||
| 313662X | Kit -bearing Needle 4TH Speed & Spacer | 1 | — | Call for availability | ||
| 551001 | Bearing -mainshaft 4th Needle | 2 | — | Call for availability | ||
| 40-37-2 | Spacer-mainshaft 4th Needle Bearing | 1 | — | Call for availability |
Clutch Housing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | ES42-5A | — | Call for availability |
Tabu La Ted Bills of Material T21 O -ES42 -5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 540-19-38-2X | 53-452-3 62-453-4 4 ·4-4491 40-18-1 | -2X | — | Call for availability | ||
| 640-19-38-2X | 53-452-4 53-453-2 4-4-4491 -1 40-18-1 | -2X | — | Call for availability | ||
| 740-19-38-2X | 3-4-8781 | — | Call for availability | |||
| 840-19-38-2X | 53-452-4 53-453-2 4-4-5221 40-17-3-5X | — | Call for availability | |||
| 940-19-22-2X | 53-452-3 | — | Call for availability | |||
| 1040-19-38-2X | 40-17-1 -12X | — | Call for availability | |||
| 1240-19-39-1 | X | — | Call for availability | |||
| 1340-19-39-1 | X | — | Call for availability | |||
| 1440-19-39-1 | X | — | Call for availability | |||
| 1540-19-39-1 | X 4-4-4611 40-17-1 -12X | — | Call for availability | |||
| 1640-19-38-2X | 53-452-4 53-453-2 40-17-1 -12X | — | Call for availability | |||
| 1740-19-39-1 | X 53-452-4 53-453-2 53-106 ·2 40-18-1 | -2X | — | Call for availability | ||
| 1840-19-38-2X | 53-452-4 53-453-2 4-4-5221 40-18-1 | -2X | — | Call for availability | ||
| 1940-19-19-2X | 53 ·452-4 53-453-2 40-18-1 | -2X | — | Call for availability | ||
| 2040-19-38-2X | 53-452-3 | — | Call for availability | |||
| 2140-19-39-1 | X 53-452-6 4-4 ·461 1 -2 | — | Call for availability | |||
| 2240-19-39-1 | X 53-452-6 3-4 ·8931 -2 | — | Call for availability | |||
| 2340-19-39-1 | X 53-452-6 5-4-6481 -1 | — | Call for availability | |||
| 2440-19-39-1 | X 53-452-6 4-4-4611 -2 | — | Call for availability | |||
| 2540-19-39-1 | X 53 ·452-6 5-4-6481 -1 | — | Call for availability | |||
| 2640-19-22-2X | 53-452-3 | — | Call for availability | |||
| 2740-19-19-2X | 53-452-3 | — | Call for availability | |||
| 2840-19-38-2X | 53-452-4 53-453-2 3-4-8781 40-17-1 -12X | — | Call for availability | |||
| 2940-19-39-1 | X 53-452-6 5-4-6481 -1 | — | Call for availability | |||
| 3040-19-39-1 | X 53-452-6 4-4-4611 -2 | — | Call for availability | |||
| 3140-19-38-2X | 53-452-4 53-453-2 53-106-2 40-18-1 | -2X | — | Call for availability | ||
| 3240-19-38-2X | 53-452-4 53-453-2 53-106-2 40-18-1 | -2X | — | Call for availability | ||
| 3340-19-42-2X | 53-452-5 | — | Call for availability | |||
| 3440-19-38-2X | 53-106 ·2 40-18-1 | -2X | — | Call for availability | ||
| 3540-19-43-2X | 53-452-5 | — | Call for availability | |||
| 3640-19-22-2X | 4-1 -6051X 40 ·17-1 -2X | — | Call for availability | |||
| 3740-19-42-2X | 53-452-5 | — | Call for availability | |||
| 3840-19-38-2X | 53 ·452-4 53-453-2 40-18-1 | -2X | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T210 | ES42-5 | Tabulated Bills Of Material | — | Call for availability | ||
| Model | ES42-5D | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 140-19-22-2X | 53-452-3 | — | Call for availability | |||
| 240-19-39-1 | X | — | Call for availability | |||
| 340-19-39-1 | X | — | Call for availability | |||
| 440-19-38-2X | 53-452-3 | — | Call for availability | |||
| 940-19-38-2X | 53-452-4 53-453-2 4-4-5221 40-17-3-5X | — | Call for availability | |||
| 1040-19-22-2X | 53-452-3 | — | Call for availability | |||
| 1140-19-39-1 | X | — | Call for availability | |||
| 1240-19-39-1 | X | — | Call for availability | |||
| 1340-19-39-1 | X | — | Call for availability | |||
| 1440-19-19-2X | 53-452-3 | — | Call for availability | |||
| 1540-19-19-2X | 53-452-4 53-453-2 40-17-3-5X | — | Call for availability | |||
| 1640-19-19-2X | 53-452-3 | — | Call for availability | |||
| 1740-19-38-2X | 53-452-4 53-453-2 53-106-2 40-17-1 -12X | — | Call for availability | |||
| 1840-19-39-1 | X 53-452-6 4-4-461 1 -2 | — | Call for availability | |||
| 1940-19-39-1 | X 53-452-6 3-4-8931 -2 | — | Call for availability | |||
| 2040-19-39-1 | X 53-452-6 5-4-6481 -1 | — | Call for availability | |||
| 2140-19-39-1 | X 53-452-6 4-4-461 1 -2 | — | Call for availability | |||
| 2240-19-39-1 | X 53-452-6 5-4-6481 -1 | — | Call for availability | |||
| 2340-19-22-2X | 53-452-3 | — | Call for availability | |||
| 2440-19-38-2X | 53-452-3 62-453-4 53-106-2 40-17-1 -12X | — | Call for availability | |||
| 2540-19-22-2X | 53-452-3 | — | Call for availability | |||
| 2640-19-38-2X | 53-452-3 | — | Call for availability | |||
| 2740-19-38-2X | 53-452-4 53-453-2 4-4-4491 -1 40-18-1 | -6X | — | Call for availability | ||
| 2840-19-19-2X | 53-452-3 | — | Call for availability | |||
| 2940-19-39-1 | X 53-452-6 5-4-6481 -1 | — | Call for availability | |||
| 3040-19-39-1 | X 53-452-6 4-4-461 1 -2 | — | Call for availability | |||
| 3140-19-38-2X | 53-452-4 53-453-2 53-106-2 40-18-1 | -2X | — | Call for availability | ||
| 3240-19-22-2X | 40-17-1 -12X | — | Call for availability | |||
| 3340-19-22-2X | 53-452-4 53-453-2 | — | Call for availability | |||
| 3440-19-38-2X | 53-452-4 53-453-2 40-17-1 -12X | — | Call for availability | |||
| 3540-19-42-2X | 53-452-5 | — | Call for availability | |||
| 3640-19-43-2X | 53-452-5 | — | Call for availability | |||
| 3740-19-42-2X | 53-452-5 | — | Call for availability | |||
| 3840-19-43-2X | 53-452-5 | — | Call for availability | |||
| 3940-19-38-2X | 53-452-3 | — | Call for availability | |||
| 4040-19-38-2X | 53-453-4 53-453-2 4-4-4491 -1 40-18-1 | -2X | — | Call for availability | ||
| 4140-19-43-2X | 53-452-5 53-106-2 40-17-1 -12X | — | Call for availability | |||
| 4240-19-41-2X | 53-452-5 | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission ES42-5A — every part in the manual, matched to our live inventory. We stock 80 of the 413 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the ES42-5A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | ES42-5A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 28 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
