Spicer ES70-5D Parts Manual
Mainshaft Group - Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 63-362-5 | Mainshaft (Overall Length 22 9/32"') | 1 | Call for availability | ||
| B-1 | 63-362-6 | Mainshaft (Overall Length 22 13/32"') (Ford Only) | 1 | Call for availability | ||
| B-2 | 63-8-1 | Gear -1 St Speed (57T) | 1 | Call for availability | ||
| B-3 | 550938 | Bearing - 1st And Rev. Needle Assy. | 2 | Call for availability | ||
| B-4 | 330884 | Thrust Washer- 1st And 2nd | 1 | Call for availability | ||
| B-5 | 63-381-1 | Snap Ring - 1st And 2nd | 1 | Call for availability | ||
| B-6 | 63-8-24 | Gear- 2nd Speed (47T) ES70-5A And ES70-5D | 1 | $319.51 | Add to Cart | |
| B-7 | 62-466-14 | Clutch Gear- 2nd And 3rd | 1 | Call for availability | ||
| B-8 | 62-381-8 | Snap Ring - 2nd And 3rd | 1 | Call for availability | ||
| B-9 | 310227X | Synchronizer- 2nd And 3rd | 1 | $581.86 | Add to Cart | |
| B-10 | 550983 | Bearing - Split Needle 2nd Speed Gear | 1 | Call for availability | ||
| B-11 | 63-47-1 | Thrust Washer- Split Needle Bearing | 1 | $34.50 | Add to Cart | |
| B-12 | 62-8-40 | Gear- 3rd Speed (39T) ES70-5A | 1 | Call for availability | ||
| B-12 | 62-8-66 | Gear- 3rd Speed (38T) ES70-5D | 1 | Call for availability | ||
| B-13 | 62-8-42 | Gear- 4th Speed (30T) ES70-5A | 1 | Call for availability | ||
| B-13 | 62-8-78 | Gear- 4th Speed (28T) ES70-5D | 1 | Call for availability | ||
| B-14 | 62-37-29 | Spacer Sleeve- 4th Speed Gear | 1 | Call for availability | ||
| B-15 | 425-SP | Pin - Spacer Sleeve | 1 | $3.23 | Add to Cart | |
| B-16 | 1001-W | Thrust Washer- 4th Speed | 1 | Call for availability | ||
| B-17 | 62-381-4 | Snap Ring - Thrust Washer | 1 | Call for availability | ||
| B-18 | 312766X | Synchronizer- 4th And 5th | $913.98 | Add to Cart | ||
| B-19 | 63-465-4 | Clutch Collar- 1st And Reverse | 1 | Call for availability | ||
| B-20 | 63-8-3 | Gear- Reverse (57T) | 1 | Call for availability | ||
| B-21 | 330871 | Thrust Washer | 1 | Call for availability | ||
| B-22 | 550612 | Cone - Rear Bearing | 1 | Call for availability | ||
| B-23 | 550929 | Cup - Rear Bearing | 1 | $28.81 | Add to Cart | |
| B-23 | 62-37-22 | Spacer- (Used In Place Of Speedometer Drive Gear) | 1 | Call for availability | ||
| B-26 | 500898 | Nut- Mainshaft (1 1/4"-18 Hex Head Self-Locking) | 1 | $93.21 | Add to Cart |
Countershaft Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 63-30-1 | Countershaft (15T) | 1 | Call for availability | ||
| C-2 | 500010-8 | Woodruff Key | 4 | $2.89 | Add to Cart | |
| C-3 | 63-196-1 | Gear- 2nd Speed (22T) ES70-5A And ES70-5D | 1 | Call for availability | ||
| C-4 | 63-37-1 | Spacer- 2nd 3rd 4th And 5th Speeds | 2 | Call for availability | ||
| C-5 | 55-196-33 | Gear- 3rd Speed (31T) ES70-5A | 1 | Call for availability | ||
| C-5 | 62-196-43 | Gear- 3rd Speed (32T) ES70-5D | 1 | Call for availability | ||
| C-<l | 62-196 | ·29 Gear · 4th Speed (40T) ES70-5A | 1 | Call for availability | ||
| C-7 | 63-1-1 | Gear- Countershaft Drive (46T) ES70-5A, ES70-5D | 1 | Call for availability | ||
| c.a | 70-381 | -<L Snap Ring - Countershaft Drive Gear | 1 | Call for availability | ||
| C-9 | 550934 | Cone - Front Bearing | 1 | Call for availability | ||
| C-10 | 550933 | Cup - Front Bearing | 1 | Call for availability | ||
| C-11 | 550936 | Cone - Taper Rear Bearing | 1 | Call for availability | ||
| C-12 | 550935 | Cup - Taper Rear Bearing | 1 | Call for availability |
Reverse Idler Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 63-5-1 | Gear- Reverse Idler | 1 | Call for availability | ||
| D-2 | 97-37-1 | Bearing Spacer | 1 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing - Roller Assy. | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Thrust Washer | 2 | $41.88 | Add to Cart | |
| r?' | IE-10-9 | Hont V;ow Of Tron•m;u;on Co • • | Call for availability |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 63-223-2 | Gasket | 1 | Call for availability | ||
| F-1 | 63-223-4 | Gasket (Ford) | 1 | Call for availability | ||
| F-3 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-4 | 60-463-10-1X | Oil Seal (Includes Installation Sleeves) | 1 | $37.74 | Add to Cart | |
| F-5 | 545002-4 | Bolt- 3/8"-16 X 1 1/8" Hex Head | 6 | $6.93 | Add to Cart |
Clutch Housing Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 63-352-2 | Gasket- Clutch Housing | 1 | $17.19 | Add to Cart | |
| E-3 | Clutch Housing (See Clutch Housing Table Page 13) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| E-4 | 46-96-2-1X | Hand Hole Cover Assy. | 1 | $44.01 | Add to Cart | |
| E-5 | 128C-20 | Bushing - Clutch Release | 4 | $8.55 | Add to Cart | |
| E-6 | 500169-5 | Zerk Fitting - Grease | 2 | Call for availability | ||
| E-7 | 545008 | Bon - 5/8"-11 X 1 1/4" Hex Head | 7 | Call for availability | ||
| E-7 | 545008-3 | Bolt- 5/8"-11 X 1 3/4" Hex Head | Call for availability | |||
| E-8 | 545028 | BaH- 7/16"-14 X 1 1/4" Hex Head Self-Locking | 1 | Call for availability | ||
| E-8 | 545028-1 | Bolt-7/16 " -14 X 1 5/8" Hex Head | Call for availability |
Counters Haft Front Bearing Cap (ford Case with Apron Front)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-9 | 63-223-5 | Gasket | 1 | Call for availability | ||
| E-10 | 63-22-2 | Bearing Cap | 1 | Call for availability | ||
| E-11 | 330800 | Bolt- 3/8"-16 X 3/4" Hex Head | 4 | Call for availability |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case (C63-15-2-1 63-15-1 -1X)(C63-15-6-1 63-15-15-1X) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-3 | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| G4 | 252-SP | Pins- Nameplate | 4 | Call for availability | ||
| G-5 | 500100 | Plug - Filler | 1 | Call for availability | ||
| G-6 | 62-39-3 | Drain Plug - Magnetic Square Head (63-15-1 -1X) | 1 | $9.27 | Add to Cart | |
| G-6 | 62-39-4 | Drain Plug - Magnetic Recessed Head (63-15-1 1 -1X 63-15-15-1X) | 1 | $9.50 | Add to Cart | |
| N .S. | 330934 | Magnet- Ceramic (Bottom Of Case) | 1 | $4.72 | Add to Cart | |
| G-7 | 266-D | Plug - 5/8"-11 X 7/16" Hex Head | 3or5 | Call for availability | ||
| G-8 | 97-324-2 | Gasket- PTO Aperture (8 BaH) | 1 | $6.27 | Add to Cart | |
| G-9 | 73-267-1 | Cover- PTO Aperture (8 BaH) | 1 | $160.99 | Add to Cart | |
| G-10 | 545012 | Ban - 7/16"-14 X 3/4" Flanged Hex Head | 8 | $3.23 | Add to Cart | |
| G-11 | 97-324-1 | Gasket- PTO Aperture (6 Bolt) | 1 | $3.91 | Add to Cart | |
| G-12 | 50-267-2 | Cover- PTO Aperture (6 Bolt) | 1 | $122.97 | Add to Cart | |
| G-13 | 330800 | Bon - 3/8"-16 X 3/4" Hex Head | 6 | Call for availability | ||
| ++Use | 313240-3X | Baffle And Shim Kit, Ff Any These Parts Are | $33.38 | Add to Cart |
Main Shaft Rear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | Cap Rear Bearing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| H-3 | 63-223-3 | Gasket | 1 | Call for availability | ||
| H-3 | 63-223-6 | Gasket- (Used Brake Mounting) | 1 | Call for availability | ||
| H-3 | 63-223-7 | Gasket- (For Electronic Speedo Cap For Ford) | 1 | Call for availability | ||
| H-4 | 63-463-1 | Oil Seal - (Ford Only) | 1 | $28.23 | Add to Cart | |
| H-4 | 60-463-8 | Oil Seal - (3 .756" O .D .) | 1 | $18.84 | Add to Cart | |
| H-4 | 71-463-12 | Oil Seal - (3 .543" O .D .) | 1 | Call for availability | ||
| H-5 | 60-475-1 | Bushing - Speedometer (5/16" I.D. Flanged) | 1 | $32.75 | Add to Cart | |
| H-5 | 30-475-1 | Bushing - Speedometer (1/4'' I .D.) | 1 | Call for availability | ||
| H-6 | 545001-1 | 112''-13 X 1 3/8" (See Bearing Cap Table For Qty.) | AIR | Call for availability | ||
| H-6 | 545001-7 | 112''-13 X 1 7/8" (See Bearing Cap Table For Qty.) | AIR | Call for availability | ||
| H-6 | 545008 | Bolt- 5/8''-11 X 1 1/4 " (See Bearing Cap Table For Qty.) | AIR | Call for availability | ||
| H-6 | 545008-1 | 5/8"-11 X 1112" (See Bearing Cap Table For Qty.) | AIR | Call for availability | ||
| H-6 | 55-334-1 | Plug - (Used When There Is No Speedometer Driven Gear) | $88.44 | Add to Cart | ||
| N .S. | 545106 | Plug - Speedometer Outlet (Ford Only) | Call for availability | |||
| N .S. | 545021 | Plug - Electronic Sensor Hole | $18.89 | Add to Cart | ||
| H-8 | 55-451-1 | Sleeve- 1 1/4" Long - Speedometer Driven Gear | Call for availability | |||
| H-8 | 44-473-1 | Sleeve- 5" Long - Speedometer Driven Gear | Call for availability | |||
| H-8 | 97-454-2-1X | Sleeve- 1 1/4" Long - Speedometer Driven Gear (With Seal) | $34.11 | Add to Cart |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 63-223-1 | Gasket | 1 | Call for availability | ||
| J-2 | 63-22-1 | Cap - Bearing | 1 | Call for availability | ||
| J-3 | 330564-3 | Hook- Lift | 1 | $3.15 | Add to Cart | |
| J-4 | 545001 | X 1112" Hex Head Self-Locking | 4 | $2.49 | Add to Cart |
THRU Shaft {used with Push Type Clutch)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-1141 | 5-125 | 106C-1083 RS-8 7 .969 | version * (see the manual's footnote) | Call for availability | ||
| 106C-1142 | 6-125 | 106C-1094 RS-8 8 .469 | version * (see the manual's footnote) | Call for availability | ||
| 106C-1185 | 5-750 | 106C-1123 RS-8 12 .968 | version * (see the manual's footnote) | Call for availability | ||
| 106C-1216 | 4-750 | 106C-1169 RS-8 9 .125 | version * (see the manual's footnote) | Call for availability | ||
| lOSC-1278 | 4-812 | 106C-1315 RS-8 7.625 | version * (see the manual's footnote) | Call for availability | ||
| 106C-1360 | 5-312 | 106C-1367 RS-8 10.312 | version * (see the manual's footnote) | Call for availability | ||
| 106C-1375 | 6-781 | 106C-1375 RS-8 6.781 | version * (see the manual's footnote) | Call for availability | ||
| lOSC-1498 | 6-500 | 106C-1417 RS-8 7.250 | version * (see the manual's footnote) | Call for availability | ||
| lOSC-1544 | 7-000 | 106C-1422 RS-8 7 .500 | version ** (see the manual's footnote) | Call for availability | ||
| 330601 -1 | 6-250 | 106C-1515 RS-5 11 .375 | version * (see the manual's footnote) | Call for availability | ||
| 330601 -1 | 330610-11 | RS-8 10 .750 | version * (see the manual's footnote) | Call for availability | ||
| 330601 -1 | 46-510-9 | RS-5 7 .125 | version * (see the manual's footnote) | Call for availability | ||
| 330601 -1 | 330610-10 | RS-8 9 .500 | version * (see the manual's footnote) | $88.67 | Add to Cart | |
| 330601 -1 | 310233X | For Left Side Mtg. | Call for availability | |||
| 330601 -1 | 310473X | For Right Side Mtg. | Call for availability | |||
| 330601 -1 | 310873X | Lever Type 7% | version * (see the manual's footnote) | Call for availability | ||
| 106C-438 | RS-514-000 | •Lever Type Can Be Used On Either Right Or Left Side. | Call for availability | |||
| 106C-839 | RS-811-469 | Part No. Type Length | Call for availability | |||
| 106C-939 | RS-810-000 | 1 06C-1566 Splined 19 .125 | version * (see the manual's footnote) | Call for availability | ||
| 106C-953 | RS-89-750 | 106C-1550 Keyed 16.375 | version * (see the manual's footnote) | Call for availability | ||
| 106C-960 | RS-88-719 | 106C-1558 Keyed 19.000 | version * (see the manual's footnote) | Call for availability | ||
| 106C-1046 | RS-88-968 | 106C-1578 Splined 19.500 | version * (see the manual's footnote) | Call for availability | ||
| 106C-1046 | 97-510-2 | Splined 19 .313 | version * (see the manual's footnote) | Call for availability |
Clutch Release Code Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 105C-64 | 106C-1142 | 106C-1047 310233X 1 1 .969 60 105C-137 106C-1 185 106C-617 310233X 12 | 969 | $29.93 | Add to Cart | |
| 2 105C-64 | 106C-1 | 185 106C-438 - 16 .500 61 105C-137 106C-1 185 106C-839 310233X 13 | 969 | Call for availability | ||
| 3 105C-64 | 106C-1 | 185 106C-939 310233X 12 .500 62 105C-137 106C-1 185 106C-939 310233X 12 | 500 | Call for availability | ||
| 4 105C-64 | 106C-1185 | 106C-1046 310233X 1 1 .468 63 105C-137 106C-1 185 106C-939 310473X 12 | 500 | $17.75 | Add to Cart | |
| 5 105C-64 | 106C-1185 | 106C ·1047 310233X 1 1 .969 64 105C-137 106C-1 185 106C-953 310473X 12 | 250 | $17.75 | Add to Cart | |
| 6 105C-64 | 106C-1185 | 106C-1047 47-526 ·1 -1X 1 1 .969 65 105C-137 106C ·1 185 106C ·1046 310233X 1 | 1 .468 | $17.75 | Add to Cart | |
| 7 105C-64 | 106C-1544 | 106C-839 310233X 13 .969 66 105C-137 106C ·1 185 106C ·1046 310473X 1 | 1 .468 | Call for availability | ||
| 8 105C-68 | 106C-1142 | 106C-438 - 16 .125 67 105C-137 106C-1 185 106C-1047 310233X 1 | 1 .969 | $29.93 | Add to Cart | |
| 9 105C-68 | 106C-1142 | 106C-617 - 12 .594 68 105C-137 106C-1 185 106C-1083 310233X 10 | 469 | $29.93 | Add to Cart | |
| 10 105C-68 | 106C-1142 | 106C-617 310233X 12 .594 69 105C-137 106C-1 185 106C-1094 - 10 | 969 | $29.93 | Add to Cart | |
| 11 105C ·68 | 106C-1 | 142 106C-839 310233X 13 .594 70 105C-137 106C-1 185 106C-1094 310233X 10 | 969 | Call for availability | ||
| 12 105C-68 | 106C-1 | 142 106C-939 310233X 12 .125 71 105C-137 106C-1 185 106C-1 123 - 15 | 468 | Call for availability | ||
| 13 105C-68 | 106C-1 | 142 106C-1046 310233X 1 1 .093 72 105C-137 106C-1 185 106C-1 123 310233X 15 | 468 | Call for availability | ||
| 14 105C-68 | 106C-1 | 142 106C-1047 310233X 1 1 .594 73 105C-137 106C-1 185 106C-1367 - 12 | 812 | Call for availability | ||
| 15 105C-68 | 106C-1278 | 106C-438 - 16 .125 74 105C-137 106C-1 185 106C-1367 310233X 12 | 812 | Call for availability | ||
| 15A 105C-68 | 106C-1278 | 106C-939 310473X 12 .125 75 105C-137 106C-1 185 106C-1375 310873X 9.281 | Call for availability | |||
| 156 105C-68 | 106C-1278 | 106C-939 310233X 12 .125 76 105C-137 106C ·1 185 106C-1515 - 13 | 875 | Call for availability | ||
| 16 105C-117 | 106C-1071 | 106C-939 310233X 12 .750 77 105C-137 106C-1 185 106C ·1529 - 10 | 812 | Call for availability | ||
| 17 105C-1 17 | 106C-1071 | 106C-1094 310233X 1 1 .219 78 105C-137 106C-1 185 330610-5 - 1 | 1 .969 | Call for availability | ||
| 18 105C-1 17 | 106C-1142 | 106C-939 310233X 12 .750 7BA 105C-137 106C-1 185 46-510-9 - 9.625 | $29.93 | Add to Cart | ||
| 19 105C ·1 17 | 106C-1185 | 106C-438 - 16 .750 79 105C ·137 106C ·1216 106C-617 310233X 12 | 969 | $17.75 | Add to Cart | |
| 20 105C-117 | 106C-1185 | 106C ·617 310233X 13 .219 80 105C-137 106C-1278 106C-438 - 16 | 500 | $17.75 | Add to Cart | |
| 21 105C-117 | 106C-1185 | 106C-839 47-526-1 -LX 14 .219 81 105C-137 106C-1278 106C-588 - 9.500 | $17.75 | Add to Cart | ||
| 22 105C-117 | 106C-1185 | 106C-939 310233X 12 .750 82 105C-137 106C-1278 106C-588 310233X 9.500 | $17.75 | Add to Cart | ||
| 23 105C-117 | 106C-1185 | 106C-953 310873X 12 .500 83 105C-137 106C-1278 106C-617 310233X 12 | 969 | $17.75 | Add to Cart | |
| 24 105C-1 17 | 106C-1185 | 106C-960 310233X 1 1 .469 84 105C-137 106C-1278 106C-939 310233X 12 | 500 | $17.75 | Add to Cart | |
| 25 105C-1 17 | 106C-1185 | 106C-1046 310233X 1 1 .718 84A 105C-137 106C-1278 106C-939 310473X 12 | 500 | $17.75 | Add to Cart | |
| 26 105C-1 17 | 106C-1185 | 106C-1047 310233X 12 .219 85 105C-137 106C-1278 106C-939 310873X 12 | 500 | $17.75 | Add to Cart | |
| 27 105C-1 17 | 106C-1185 | 106C-1083 - 10 .719 86 105C-137 106C-1278 106C-960 310233X 11 | 219 | $17.75 | Add to Cart | |
| 28 105C-1 17 | 106C-1185 | 106C-1083 310233X 10 .719 87 105C-137 106C-1278 106C-1 046 - 1 | 1 .468 | $17.75 | Add to Cart | |
| 29 105C-1 17 | 106C-1185 | 106C-1083 310473X 10 .719 88 105C-137 106C-1278 106C-1 046 310233X 11 | 468 | $17.75 | Add to Cart | |
| 30 105C-1 17 | 106C-1185 | 106C-1094 310233X 1 1 .219 89 105C-137 106C-1278 106C-1047 - 1 | 1 .969 | $17.75 | Add to Cart | |
| 31 105C-1 17 | 106C-1 | 185 106C-1094 310873X 11 .219 90 105C-137 106C-1278 106C-1047 310233X 1 | 1 .969 | Call for availability | ||
| 32 105C-1 17 | 106C-1185 | 106C-1169 310233X 11 .875 91 105C-137 106C-1278 106C-1083 310233X 10 | 469 | $17.75 | Add to Cart | |
| 33 105C-1 17 | 106C-1185 | 106C-1315 - 10 .375 91A 105C-137 106C-1278 106C-1 083 310473X 10 | 469 | $17.75 | Add to Cart | |
| 34 105C-1 17 | 106C-1185 | 106C-1315 310233X 10 .375 92 105C-137 106C-1278 106C-1094 310233X 10 | 969 | $17.75 | Add to Cart | |
| 35 105C-1 17 | 106C-1185 | 106C-1315 47-526-1 -LX 10 .375 92A 105C-137 106C-1278 106C ·1315 310233X 10 | 125 | $17.75 | Add to Cart | |
| 35A 105C-1 17 | 106C-1185 | 106C-1375 310873X 9.531 93 105C-137 106C ·1278 106C-1375 310233X 9.281 | $17.75 | Add to Cart | ||
| 36 105C-1 17 | 106C-1 | 185 106C-1417 310233X 10 .000 94 105C-137 106C-1278 106C-1422 310233X 10 | 000 | Call for availability | ||
| 37 105C-117 | 106C-1185 | 106C-1417 310873X 10 .000 95 105C-137 106C-1278 106C-1529 - 10 | 812 | $17.75 | Add to Cart | |
| 38 105C-117 | 106C-1185 | 106C-1490 310233X 18 .750 96 105C-137 106C-1360 106C-1083 - 10 | 469 | $17.75 | Add to Cart | |
| 39 105C-117 | 106C-1278 | 106C-939 310233X 12 .750 96A 105C ·137 106C-1360 106C-1417 310233X 9 | 750 | Call for availability | ||
| 40 105C-117 | 106C-1278 | 106C-960 310873X 1 1 .469 97 105C-137 106C-1360 106C-1422 310233X 10 | 000 | Call for availability | ||
| 41 105C-117 | 106C | ·1278 106C-1047 310233X 12 .219 98 105C-137 106C-1375 106C-438 310233X 16 | 500 | Call for availability | ||
| 42 105C-1 17 | 106C-1278 | 106C ·1094 310233X 11 .219 99 105C-137 106C-1498 106C-438 - 16 | 500 | Call for availability | ||
| 43 105C ·1 17 | 106C-1278 | 106C-1315 310233X 10 .375 100 105C-137 106C-1498 106C ·617 310233X 12 | 969 | Call for availability | ||
| 44 105C ·1 17 | 106C-1278 | 106C-1367 310233X 13 .062 101 105C-137 106C-1498 106C-617 310473X 12 | 969 | Call for availability | ||
| 45 105C-1 17 | 106C-1360 | 106C-1083 310233X 10 .719 102 105C ·137 106C-1498 106C-939 310233X 12 | 500 | Call for availability | ||
| 46 105C-1 17 | 106C-1360 | 106C-1315 310233X 10 .375 103 105C-137 106C-1498 106C-939 310473X 12 | 500 | Call for availability | ||
| 46A 105C-1 17 | 106C-1360 | 330610-10 - 12 .250 104 105C-137 106C-1498 106C-953 310233X 12 | 250 | Call for availability | ||
| 49 105C-124 1 | 106C | ·1 185 I 1 OBC-438 - 14 .313 107 105C-137 106C-1498 106C-1047 - 11 | 969 | Call for availability | ||
| 53 105C ·132 | 106C-1185 | 106C-1047 310233X 9 .782 112 105C-137 330601 -1 106C-939 310233X 12 | 500 | $17.75 | Add to Cart | |
| 54 105C ·132 | 106C | ·1 185 106C-1083 310233X 8 .282 1 12A 85-509-3 106C-1278 106C-939 310233X 12 | 750 | Call for availability | ||
| 55 105C-132 | 106C-1185 | 106C-1417 310873X 7 .563 113 85 ·509-3 106C-1360 106C-1417 310233X 10 | 000 | $17.75 | Add to Cart | |
| 56 105C-132 | 106C-1185 | 46-510-9 - 7 .438 114 85-509-3 Thru Shaft 1 06C-1578 310233X | $17.75 | Add to Cart | ||
| 57 105C ·132 | 106C-1278 | 46-510-9 - 7 .438 1 14A 85-509-3 Thru Shaft 1 06C-1578 310473X | Call for availability | |||
| 58 105C-137 | 106C-1141 | 106C-1169 310233X 1 1 .625 115 85-509-3 Thru Shaft 106C-1578 310873X | Call for availability | |||
| 59 105C ·137 | 106C-1185 | 106C-438 - 16 .500 116 312916 Thru Shaft 97-510 ·2 - | $17.75 | Add to Cart |
Companion Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1610 | 5-4-1661 5 .000 " 22 ° | Call for availability | ||||
| 1710 | 6-4-2361 5 .250 " 22 ° | Call for availability | ||||
| 312098X..,. | 128C-20 | C62-518-25 2 6" 1 " 3 5/8 " 2 1/2 | $8.55 | Add to Cart | ||
| 62-518-27-1X | 128C-20 | C1 02C-430-3 2 5 1/16 " 1 " 3 " 1 1/2 | version * (see the manual's footnote) | $8.55 | Add to Cart | |
| 62-518-29-1 | X128C-20 | C62-518-13 2 6 1/2 " 1 " 3 3/4 " 1 1/2 | version * (see the manual's footnote) | Call for availability | ||
| 62-518-30-1X | 128C-20 | C62-518-13 2 6 1/2 " 1 " 4 3/16 " 1 1/2 | version * (see the manual's footnote) | $8.55 | Add to Cart | |
| 62 -518 -32 | 1X128C-20 | C102C-521 6 1/2 " 1 " 3 3/4 " 1 1/2 | version * (see the manual's footnote) | Call for availability |
Shifter Housing Assembly T210 -ES70 -5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| No | 63-16-1 | - 63-16-9- 63-16-3- | Call for availability | |||
| No | 1X2X | 1X 1X 2X 4X | 5X | version * (see the manual's footnote) | Call for availability |
Parts Listed Below Are Not Included in Assembly
Item L-1Item L-3Item L-2Item K-1Item L-9Item L-15Item L-10Item L-5Item L-10Item L-7Item L-6Item L-4Item L-12Item L-13Item L-14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 47-16-9-1X | Cover Assembly {Casting No. 62-16-78-1X) - - - 1 | Call for availability | ||||
| 47-16-10-1X | Cover Assembly {Casting No. 62-16-96) - - - - | 1 | Call for availability | |||
| L-1 | Remote Control Cover 1 1 1 1 | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S. | 82-24-3 | Bushing - Remote Control Cover 4 4 4 4 | 4 | $21.66 | Add to Cart | |
| L-2 | 310647X | Shift Finger Rod And Bracket Assembly 1 1 1 - | Call for availability | |||
| L-2 | 310879X | Shift Finger Rod And Bracket Assembly - - - 1 | Call for availability | |||
| L-2 | 311661X | Shift Finger Rod And Bracket Assembly - - - - | 1 | Call for availability | ||
| L-3 | Rod Shift Finger 1 1 1 1 | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-4 | Bracket- Shift Finger Rod 1 1 1 1 | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-5 | 500007-19 | Woodruff Key- #11 1 1 1 1 | 1 | Call for availability | ||
| L-6 | 62-6-24 | Finger- Inner Shift 1 1 1 1 | 1 | Call for availability | ||
| L-7 | 545011 | 7/16"-20 X 7/8" Head Hex Self-Locking 2 2 2 2 | 2 | Call for availability | ||
| L-8 | 82-65-5 | Rod - Remote Control Shift 1 1 1 1 | $22.31 | Add to Cart | ||
| L-8 | 82-65-22 | Rod - Remote Control Shift {Counter Sunk Spots At 90 Deg .) - - - - | 1 | Call for availability | ||
| L-9 | 82-6-7 | Finger- Outer Shift 1 1 1 1 | 1 | $171.09 | Add to Cart | |
| L-10 | 28P-19 | Seal - Remote Control Shift Rod 2 2 2 2 | 2 | Call for availability | ||
| L-11 | 10380-SF | U-Joint Assembly- Control 1 - - 1 | Call for availability | |||
| L-12 | 82-118-1 | Gasket- Aperture Cover 1 1 1 1 | 1 | Call for availability | ||
| L-13 | 82-96-1 | Aperture Cover 1 1 1 1 | 1 | Call for availability | ||
| L-14 | 545005-1 | 5/16"-18 X 5/8" Hex Head Self-Locking 4 4 4 4 | 4 | Call for availability | ||
| L-15 | 500166-16 | Expansion Plug -1 1/16" 1 1 1 1 | 1 | Call for availability | ||
| N .S. | 311903X | Boot Kit- Remote Control 1 - 1 - | Call for availability | |||
| N .S. | 82-483-1 | Boot 1 - 1 - | Call for availability | |||
| N .S. | 82-483-2 | Boot- Cup Type 1 - 1 - | Call for availability | |||
| K-1 | 62-155-7 | Gasket- Shifter Housing To Control Cover 1 1 1 1 | 1 | $9.44 | Superseded by 6215513Add to Cart | |
| K-2 | 545028-4 | 7/16"-14 X 1 1/4" Hex Head Self-Lockint 4 4 4 4 | 4 | No longer available - Call for replacement |
A B Spline C- Pilot Drive Gear
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2410-362 | " 1 1/2 " · 10 .983 " 63 ·35 ·37 ·1X• | Call for availability | ||||
| 248-925 | " 1 1/2 " -10 .983 " 63 -35-45-1 X • | Call for availability | ||||
| 249-896 | " 1 1/2 " -10 .983 " 63 -35-38-1 X • | Call for availability | ||||
| 2410 | .362 " 1 3/4 " -10 1 .180 " 63 -35-34-1 X • | Call for availability | ||||
| 2510 | .362 " 1 1/2 " -10 .983 " 63 -35-39-1 X • | Call for availability | ||||
| 259-896 | " 1 3/4 " -10 1 .180 " 63 -35-52-1 X • | Call for availability | ||||
| 3010 | .362 " 1 3/4 " -1 0 1 .180 " 63 -35-36-1 X • | Call for availability |
Shift Lever and DOME Assembly T210-ES70-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 390-27 | Handle -Shift Lever 1 1 | 1 | Call for availability | ||
| P-2 | 250-1121 | Shift Lever 26V•" Straight 1 | Call for availability | |||
| P-2 | 250-1122 | Shift Lever 29V• " Straight | 1 | Call for availability | ||
| P-2 | 250-1621 | Shift Lever 30 " Straight 1 | 1 | Call for availability | ||
| P-2 | 250-1537 | Shift Lever 1 | Call for availability | |||
| P-2 | 250-2464 | Shift Lever-Lower End (3 .5") 1 | Call for availability | |||
| N .S | 550-5 | Grommet-Shift Lever (Boot) 1 1 | 1 | Call for availability | ||
| N .S | 47-16-3X | Dome Assembly-2% " Overall Height 1 | 1 | Call for availability | ||
| N .S | 47-16-5X | Dome Assembly-3% " Overall Height 1 1 1 | 1 | manual lists 47-16-5X - we stock the base part 47-16-5 | Call for availability | |
| P-3 | 286-SP | Pin -Shift Lever Collar 1 1 1 1 | 1 | $2.95 | Add to Cart | |
| P-4 | 550-7 | Collar-Compression 1 1 1 1 | 1 | Call for availability | ||
| P-5 | 560-25 | Spring -Compression 1 1 1 1 | 1 | Call for availability | ||
| P-6 | 540-13 | Cup -Compression 1 1 1 1 | 1 | Call for availability | ||
| P-7 | 690-6 | Washer-Friction 1 1 1 1 | 1 1 | Call for availability | ||
| P-8 | 47-16-3 | Dome -Shift Lever 1 | 1 | Call for availability | ||
| P-8 | 47-16-5 | Dome -Shift Lever 1 1 1 | 1 | $127.15 | Add to Cart | |
| P-9 | 62-381-7 | Snap Ring -Rock Shaft 1 1 1 1 | 1 1 | $8.10 | Add to Cart | |
| P-10 | 530-15 | Shaft-Shift Lever Rock 1 1 1 1 | 1 1 | Call for availability | ||
| K-1 | 62-155-13 | Gasket-Dome To Shifter Housing 1 1 1 1 | 1 1 | $9.44 | Add to Cart | |
| K-2 | 545002 | Screw-7/ ,6 ' -14 X 1%" Hex Head Self-Locking 4 4 4 4 | 4 4 | $1.98 | Add to Cart | |
| T21O-ES70-5 | Basic Overhaul Kits | Call for availability | ||||
| 313400-57X | Major Overhaul Kit | $1,251.54 | Superseded by 634001XAdd to Cart | |||
| 500010-8 | Woodruff Key • Countershaft 2nd ,3rd ,4th & Cis Drive Gear | 4 | $2.89 | Add to Cart | ||
| 500898 | Nut · Mainshaft | 1 | $93.21 | Add to Cart | ||
| 425-SP | Pin ·4th Mainshaft Gear Sleeve | 1 | $3.23 | Add to Cart | ||
| 313432-20X | Minor Overhaul Kit | $1,257.51 | Add to Cart | |||
| 313429-14X | Shifter Housing Small Parts Repair Kit | Call for availability | ||||
| 313401-14X | Thrust Washer Kit | Call for availability | ||||
| 500936 | Countershaft Rear Taper Cone | Call for availability | ||||
| 550183 | Rear Output Front Cone | 1 | Call for availability | |||
| 550228 | Rear Output Front Cup | 1 | $17.18 | Add to Cart | ||
| 550612 | Mainshaft Rear Cone | 1 | Call for availability | |||
| 550886 | Roller Assy Reverse Idler Gear | 2 | Call for availability | |||
| 550929 | Drive Gear Cup | 1 | $28.81 | Add to Cart | ||
| 550930 | Drive Gear Cone | 1 | $64.20 | Add to Cart | ||
| 550933 | Countershaft Front Cup | 1 | Call for availability | |||
| 550934 | Countershaft Front Cone | 1 | Call for availability | |||
| 550935 | Countershaft Rear Taper Cup | 1 | Call for availability | |||
| 550938 | 1 St And Reverse Mainshaft Needle Assy | 2 | Call for availability | |||
| 550983 | Needle Split 2nd Gear | Call for availability | ||||
| 60-463-8 | Oil Seal • Rear Bearing Cap (3. 756 " O .D .) | $18.84 | Add to Cart | |||
| 60-463-10 | ·1 X Oil Seal Kit (W/Installation Sleeves) -Drive Gear Brg Cap | Call for availability | ||||
| 545077 | Bearing Lubricant - Packet | Call for availability | ||||
| 545080 | Anaerobic Sealant • Mainshaft Nut | Call for availability | ||||
| 47-228-1 | · 1 Mainshaft Bearing | 9 | Call for availability | |||
| 47-228-2 | ·2 Mainshaft Front Bearing | Call for availability | ||||
| 47-228-2-10 | Spacer - Mainshaft Rear | $33.38 | Superseded by 3132403XAdd to Cart | |||
| 2342-6 | Service Manual | Call for availability | ||||
| 2734 | Bulletin - Thrust Washer Installation | Call for availability | ||||
| 2759 | Bulletin - Drive Gear Replacement | Call for availability | ||||
| 2770 | Bulletin - Pocket Bearing Lubrication | Call for availability | ||||
| 2783 | Bulletin - Mainshaft Nut Anaerobic Sealant | Call for availability | ||||
| 312475-29X | Gasket Kit | No longer available - Call for replacement | ||||
| 313024-22X | Snap Ring Kit | Call for availability | ||||
| 313439X | Countershaft Rear Bearing Shim Kit | Call for availability | ||||
| 38P-1 | Retainer - 1 St And Rev. Shift Finger Plunger | 1 | Call for availability | |||
| 289-SP | Pin - Interlock | 1 | Call for availability | |||
| 30-72-6 | Spring - 1 St And Rev. Shift Finger Plunger | 1 | $2.72 | Add to Cart | ||
| 32-12-1 | Interlock | 2 | Call for availability | |||
| 32-59-3 | Plug - Shift Rod Thimble | 1 | Call for availability | |||
| 500166-12 | Plug - Shift Rod Hole Expansion | 3 | Call for availability | |||
| 500598-15 | Pin - 1 St And Reverse Shift Rod Roll | 1 | Call for availability | |||
| 47-72-1 | Spring - Shift Rod Poppet Ball | 3 | $3.15 | Add to Cart | ||
| 50-80-1 | Ball - Shift Rod Poppet | 3 | $2.70 | Add to Cart | ||
| 62-438-2 | Pin - 1 St And Reverse Shift Finger Plunger | 2 | $6.27 | Add to Cart |
Basic Overhaul Kits T210-ES70-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313401-14X | Thrust Washer Kit (Included In Major Overhaul Kit) | 1 | Call for availability | |||
| 330871 | Mainshaft Rear | 1 | Call for availability | |||
| 974-W | Reverse Idler Bearing | 2 | Call for availability | |||
| 330884 | 1 St And 2nd Speed Mainshaft Gear | 1 | Call for availability | |||
| 1001-W | 4th Speed Mainshaft Gear | 1 | Call for availability | |||
| 63-47-1 | Split 2nd Gear | 1 | Call for availability | |||
| 312475-29X | Gasket Kit (Included In Minor Overhaul Kits) | 1 | No longer available - Call for replacement | |||
| 62-155-13 | Control Housing | 1 | $9.44 | Add to Cart | ||
| 63-223-1 | Countershaft Rear Bearing Cap | 1 | Call for availability | |||
| 63-223-2 | Drive Gear Bearing Cap | 1 | Call for availability | |||
| 63-223-3 | Mainshaft Rear Bearing Cap | 1 | Call for availability | |||
| 63-223-4 | Drive Gear Bearing Cap (Ford) | 1 | Call for availability | |||
| 63-223-5 | Countershaft Front Bearing Cap (Ford) | 1 | Call for availability |
Mainshaft Rear Bearing Cap (bendix Brake Cap)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 63-223-7 | Mainshaft Rear Bearing Cap (Ford) | Call for availability | ||||
| 82-118-1 | Remote Control Aperture Cover | 1 | Call for availability | |||
| 97-324-1-1X | PTO (6 Kit | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | Call for availability | ||
| 97-324-2-1X | PTO (8 Kit | 1 | manual lists 97-324-2-1X - we stock the base part 97-324-2 | $6.27 | Add to Cart | |
| 63-352-2 | Clutch Housing | 1 | Call for availability | |||
| 2749 | Bulletin - Gasket Installation | 1 | Call for availability | |||
| 313024-22X | Snap Ring Kit (Included In Minor Overhaul Kit) | 1 | Call for availability | |||
| 62-381-4 | 4th Speed Mainshaft Gear | 1 | Call for availability | |||
| 63-381-1 | 1 St And 2nd Speed Mainshaft Gear | 1 | Call for availability | |||
| 313439X | Shim Kit- Cis Rear Bearing (Included In Minor Overhaul Kit) | Call for availability | ||||
| 63-228-2-1 | Shim - Rear Bearing | 4 | Call for availability | |||
| 2789 | Bulletin- Drive Gear Replacement | 1 | Call for availability |

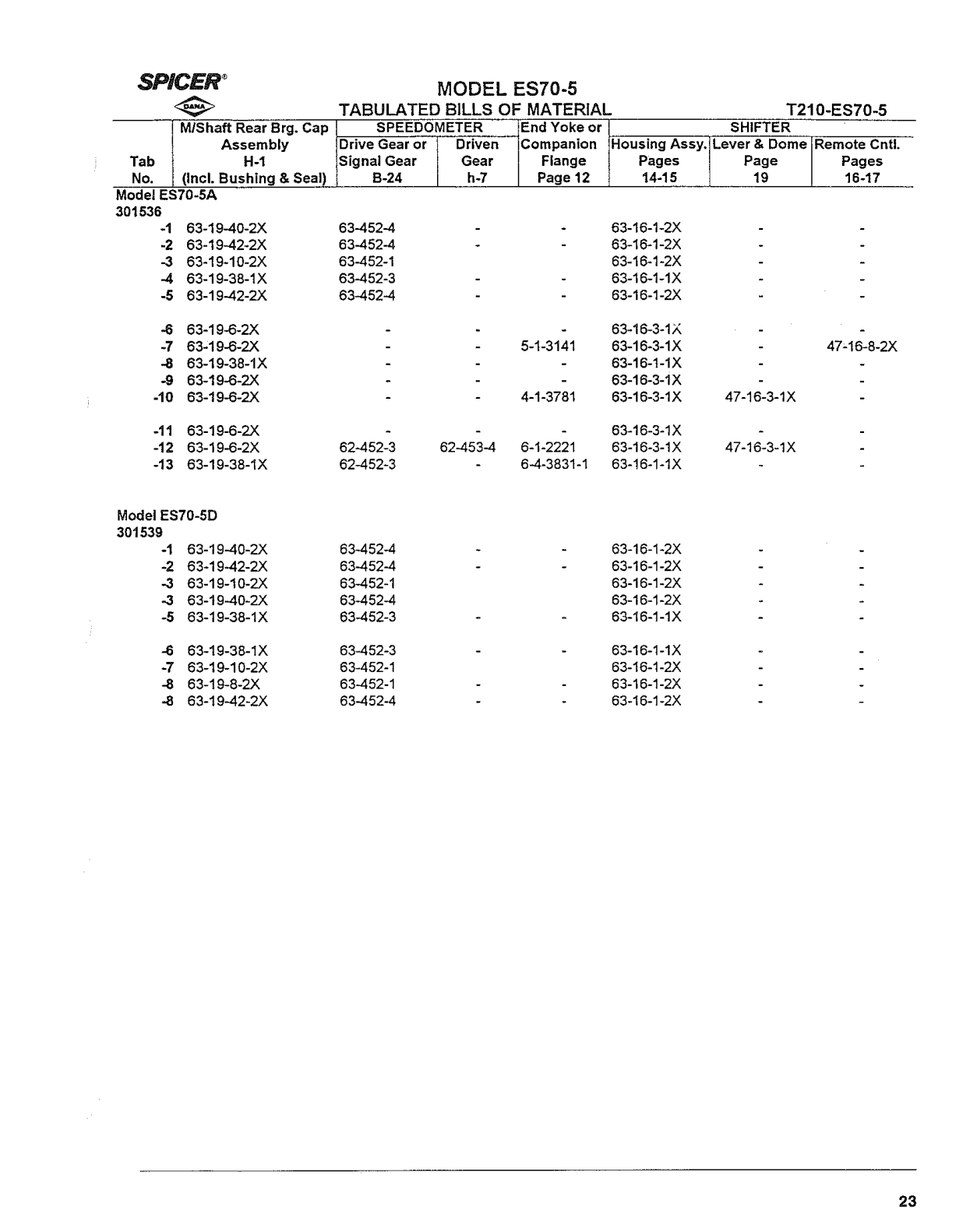

Tabulated Bills of Material
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission ES70-5A, with every part in the manual matched to our live inventory. We stock 91 of the 317 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the ES70-5D transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | ES70-5D |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 26 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
