Spicer PS110-7B Parts Manual

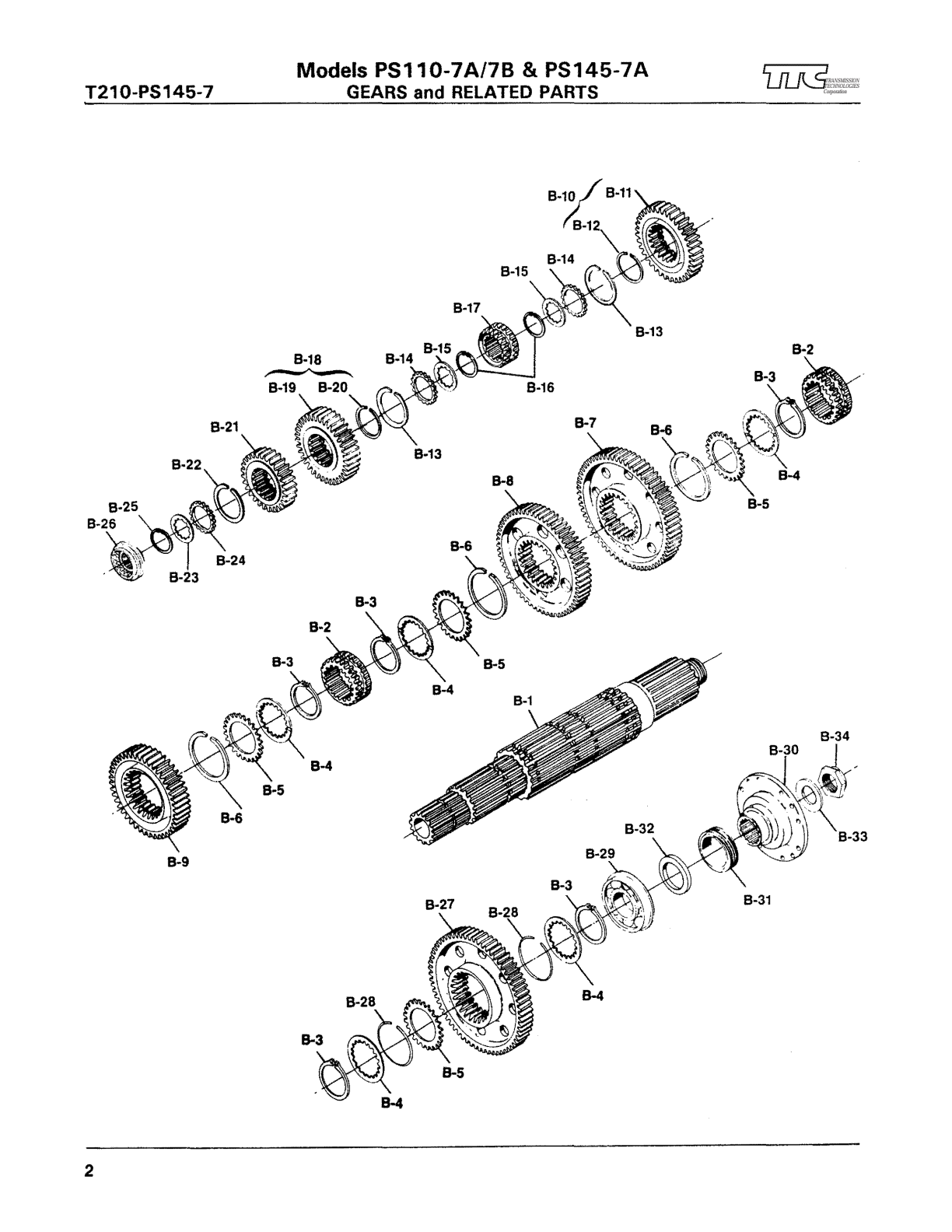

Mainshaft Group
Item B-9Item B-10Item B-14Item B-15Item B-13Item B-15Item B-18Item B-14Item B-19Item B-20Item B-16Item B-13Item B-25Item B-24Item B-23Item B-33Item B-29Item B-28Item B-28Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 8-1 | 97-362-67 | Mainshaft | 1 | $971.34 | Add to Cart | |
| 8 -2 | 97-465-59 | Clutch Collar 1 St Reverse, 2nd And 3rd Mainshaft (48T) | 2 | $181.40 | Add to Cart | |
| 8 -3 | 98-381-1 | Snap Ring - External - Large | 5 | $6.27 | Add to Cart | |
| 8 -4 | 330959 | Thrust Washer - Internal - Large (48T) | 5 | Call for availability | ||
| 8-5 | 330810 | Thrust Washer- External - Large (24T) | 4 | $23.58 | Add to Cart | |
| 8-6 | 98-381-2 | Snap Ring - Internal - Large | 3 | $5.31 | Add to Cart | |
| 8 -7 | 97-8-113 | Gear - 1 St (64T) | $785.81 | Add to Cart | ||
| 8 -8 | 97-8-134 | Gear- 2nd (58T) (For PS1 10-7A PS145-7A) | $704.32 | Add to Cart | ||
| 8 -8 | 97-8-209 | Gear- 2nd (56T) (For PS11 0-78) | $410.29 | Add to Cart | ||
| B-9 | 97-8-136 | Gear- 3rd (48T) (For PS1 10-7A, PS145-7A) | $628.73 | Add to Cart | ||
| B-9 | 97-8-211 | Gear - 3rd (46T) (For PS 11 0-78) | $380.31 | Add to Cart | ||
| B-10 | 97-8-235-1 | X Gear - 4th (40T) (For PS 11 0-7 A, PS 145 -7 A) | 1 | Call for availability | ||
| B-10 | 97-8-238-1 | X Gear - 4th (38T) (For PS 11 0-78) | 1 | Call for availability | ||
| B-11 | Gear- 4th | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| 8 -12 | 97-381-43 | Snap Ring - 4th Gear Internal Stop | 1 | Call for availability | ||
| B-13 | 97-381-1 | Snap Ring - Internal - Small | 2 | $6.27 | Add to Cart | |
| B-14 | 330814 | Thrust Washer - External - Small (20T) | 2 | $20.46 | Add to Cart | |
| B-15 | 330960 | Thrust Washer - Internal - Small (36T) | 2 | Call for availability | ||
| B-16 | 97-381-45 | Snap Ring - External - Small | 2 | Call for availability | ||
| 8 -17 | 97-465-56 | Clutch Collar - 4th And 5th Mainshaft (20T) | 1 | $168.70 | Add to Cart | |
| B-18 | 97-8-234-1X | Gear - 5th (34 T) (For PS 11 0-7 A, PS 145 -7 A) | 1 | $305.38 | Add to Cart | |
| B-18 | 97-8-237-1X | Gear - 5th (32T) (For PS 11 0 -78) | 1 | Call for availability | ||
| B-19 | Gear- 5th | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| B-20 | 97-381-43 | Snap Ring - 5th Gear Internal Stop | 1 | Call for availability | ||
| 8-21 | 97-8-232 | Gear- 6th (24T) (For PS1 10-7A, PS145-7A) | $266.03 | Add to Cart | ||
| 8-21 | 97-8-236 | Gear - 6th (26T) (For PS 11 0-78) | 1 | $261.54 | Add to Cart | |
| 8 -22 | 97-381-2 | Snap Ring - Internal | 1 | Call for availability | ||
| B-23 | 330961 | Thrust Washer - Internal (22T) | 1 | Call for availability | ||
| B-24 | 330806 | Thrust Washer- External (17T) | Call for availability | |||
| B-25 | 97-381-46 | Snap Ring - External | 1 | Call for availability | ||
| 8 -26 | 97-465-57 | Clutch Collar - 6th And 7th Mainshaft | 1 | $157.20 | Add to Cart | |
| 8 -27 | 97-8-182 | Gear- Reverse (64T) | 1 | $528.68 | Add to Cart | |
| B-28 | 97-381-32 | Snap Ring - Internal - Large | 2 | $4.36 | Add to Cart | |
| B-29 | 550925 | Bearing - Rear | $107.78 | Add to Cart | ||
| B-29 | 97-37-34 | Spacer (Used In Place Of Speedometer Gear) | 1 | Call for availability | ||
| 8 -32 | 97-37-33 | Spacer - Bearing | $42.03 | Add to Cart | ||
| B-33 | 330734 | Flat Washer | $6.27 | Add to Cart | ||
| 8 -34 | 545065 | N Ut- Mainshaft- 1 3/4 " -16 Self-Locking | $31.43 | Add to Cart |

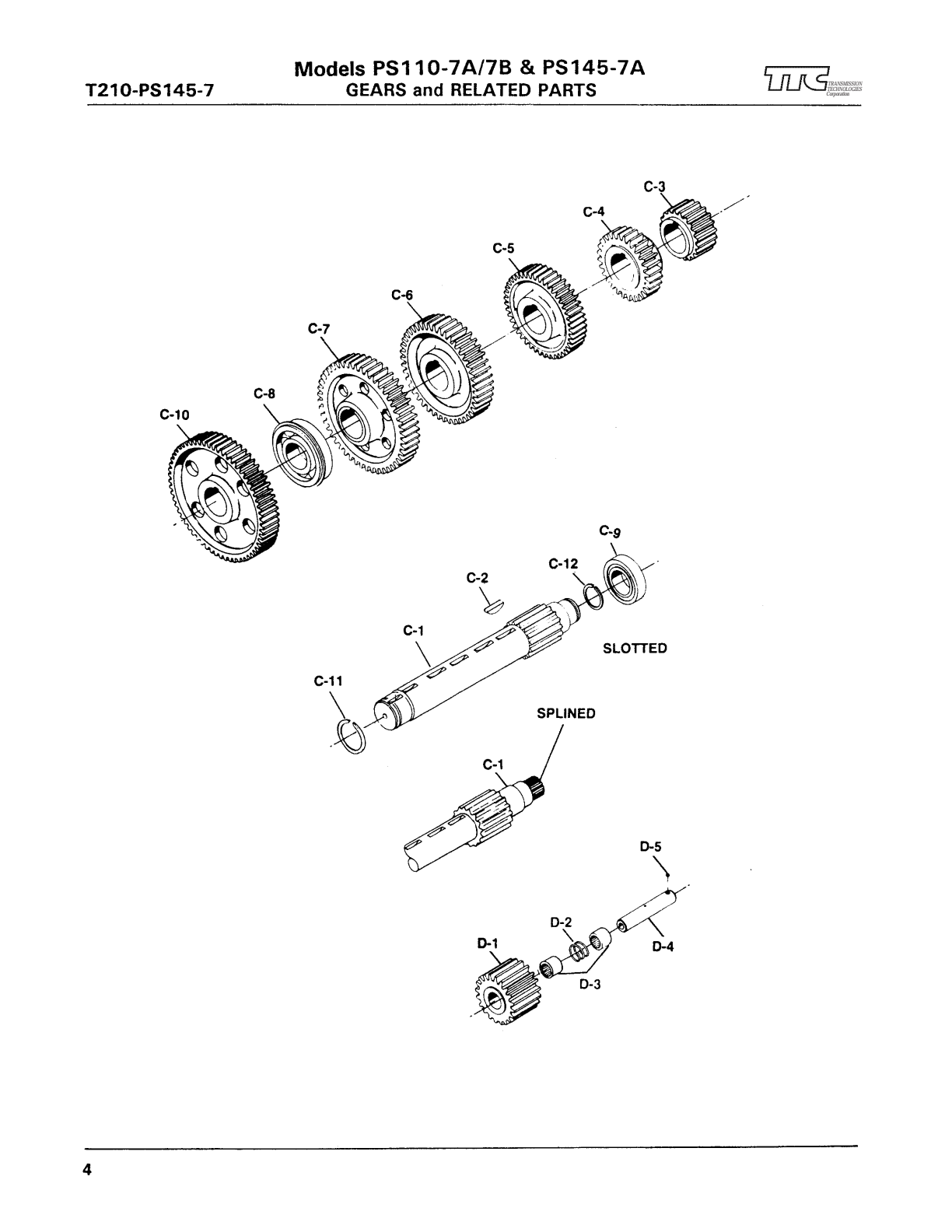

Countershaft Group
Item C-11Item C-6Item D-5Item C-5Item C-7Item C-8Item C-10Item C-12Item C-2Item C-1Item C-1Item D-2Item D-1Item D-4Item D-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 97-30-74 | (15T) Splined For P .T.O -(Standard Location Right Side) | Call for availability | |||
| C-1 | 97-30-75 | (15TI - Slotted For Pump - (Standard Location - Left Side) | Call for availability | |||
| C-2 | 500010-8 | Woodruff Key #29 | 12 | $2.89 | Add to Cart | |
| C-3 | 97-196-92 | 2nd Gear (23T) (For PS1 10-7A, PS145-7A) | 2 | Call for availability | ||
| C-3 | 97-196-154 | 2nd Gear (23T) (For PS110-7B) | 2 | Call for availability | ||
| C-4 | 97-196-19 | 3rd Gear (32T) (For PS1 10-7A, PS145-7A) | 2 | Call for availability | ||
| C-4 | 97-196-32 | 3rd Gear (32T) (For PS1 10-7BI | 2 | Call for availability | ||
| C-5 | 97-196-95 | 4th Gear (37T) (For PS1 10-7A, PS145-7AI | 2 | Call for availability | ||
| C-5 | 97-196-156 | 4ht Gear (43TI (For PS 11 0-7BI | 2 | Call for availability | ||
| C-6 | 97-196-109 | 5th Gear (44TI (For PS1 10-7A, PS145-7A) | 2 | $471.04 | Add to Cart | |
| C-6 | 97-196-158 | 5th Gear (50T) (For PS 11 0-7B) | 2 | $333.71 | Add to Cart | |
| C-7 | 97-196-1 | 10 6th Gear (43Tl (For PS1 10-7A, PS145-7AI | 2 | Call for availability | ||
| C-7 | 97-196-173 | 6th Gear (56T) (For PS 11 0-7B) | 2 | Call for availability | ||
| C-8 | 550031 | Bearing - Front | 2 | $220.28 | Add to Cart | |
| C-9 | 550959 | Bearing - Rear | 2 | Call for availability | ||
| C-10 | 97-1-50 | Drive Gear (5 7TI (For PS 11 0-7 A, PS 145-7 A) | 2 | $834.42 | Add to Cart | |
| C-10 | 97-1-56 | Drive Gear (69T) (For PS 11 0-7B) | 2 | $419.07 | Add to Cart | |
| C-11 | 97-381-30 | Snap Ring - Front Bearing Retainer | 2 | $6.73 | Add to Cart | |
| C-12 | 54-381-1 | Snap Ring - Rear Bearing Retainer | 2 | Call for availability |
Reverse Idler Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 97-5-1 | Gear - Reverse Idler (21 Tl | 2 | $268.01 | Add to Cart | |
| D-2 | 97-37-1 | Spacer - Bearing | 2 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing | 4 | $11.32 | Add to Cart | |
| D-4 | 97-60-1 | Shaft - Idler Gear | 2 | $45.67 | Add to Cart | |
| D-5 | 500566-8 | Lockball - 9/32 | 2 | version * (see the manual's footnote) | Call for availability |
Clutch Housing Group
Item G-5Item G-7Item G-8Item G-3Item G-10Item G-9Item G-4Item G-6Item G-2Item G-9Item G-10Item E-3Item E-5Item E-2Item E-4Item F-3Item F-2Item F-5Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-2 | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| E-3 | 97-24-8 | Bushing - Clutch Release Shaft | 8 | $5.45 | Add to Cart | |
| E-4 | 97-96-18-1X | Hand Hole Cover Assembly | 1 | Call for availability | ||
| E-5 | 545008-4 | Bolt - 5/8 " -1 1 X 2 " Hex Head Self-Locking | 16 | Call for availability | ||
| and | 545103 | Bolt- 3/8 " -16 X 3 " Hex Head Self-Locking | 4 | Call for availability | ||
| N .S | 330829 | Flat Washer - 5/8 " (For Use With Aluminum Housing) | 16 | Call for availability |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 97-223-1 | Gasket | $4.72 | Add to Cart | ||
| F-2 | 97-19-52-1 | X Bearing Cap And Oil Seal Assembly | 1 | Call for availability | ||
| F-3 | Bearing Cap (Casting #97-19-37) | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| F-4 | 97-463-36-1X | Oil Seal With Installation Sleeve | 1 | $38.68 | Add to Cart | |
| F-5 | 545002-4 | Bolt- 3/8 " -16 X 1 1/8 " Hex Head Self-Locking | 4 | $6.93 | Add to Cart |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| N .S | NP-96 | Name Plate | $2.16 | Add to Cart | ||
| N .S | 252-SP | Pin Name Plate | 4 | $1.90 | Add to Cart | |
| G-3 | 62-39-3 | Filler Plug (Magnetic) | $9.27 | Add to Cart | ||
| G-4 | 62-39-3 | Drain Plug (Magnetic) | 1 | $9.27 | Add to Cart | |
| G-5 | 97-39-1 | Drain Plug (Magnetic) | Call for availability | |||
| G-6 | 97-420-4 | Tube - Oil Transfer | 1 | Call for availability | ||
| G-7 | 274-SP | Dowel Pin - (To Locate Shifter Housing To Case) | 2 | $2.77 | Add to Cart | |
| G-8 | 330755 | Dowel Pin - (To Locate Clutch Housing To Case) | 2 | Call for availability | ||
| N .S | 330934 | Ceramic Magnet Bottom Front | 1 | $4.72 | Add to Cart | |
| G-9 | 50-267-2 | Cover- Six Bolt P .T.O Aperture | 2 | $122.97 | Add to Cart | |
| G-10 | 330800 | Bolt - 3/8 " -16 X 3/4 " - Flanged Head Self-Locking | 12 | Call for availability |

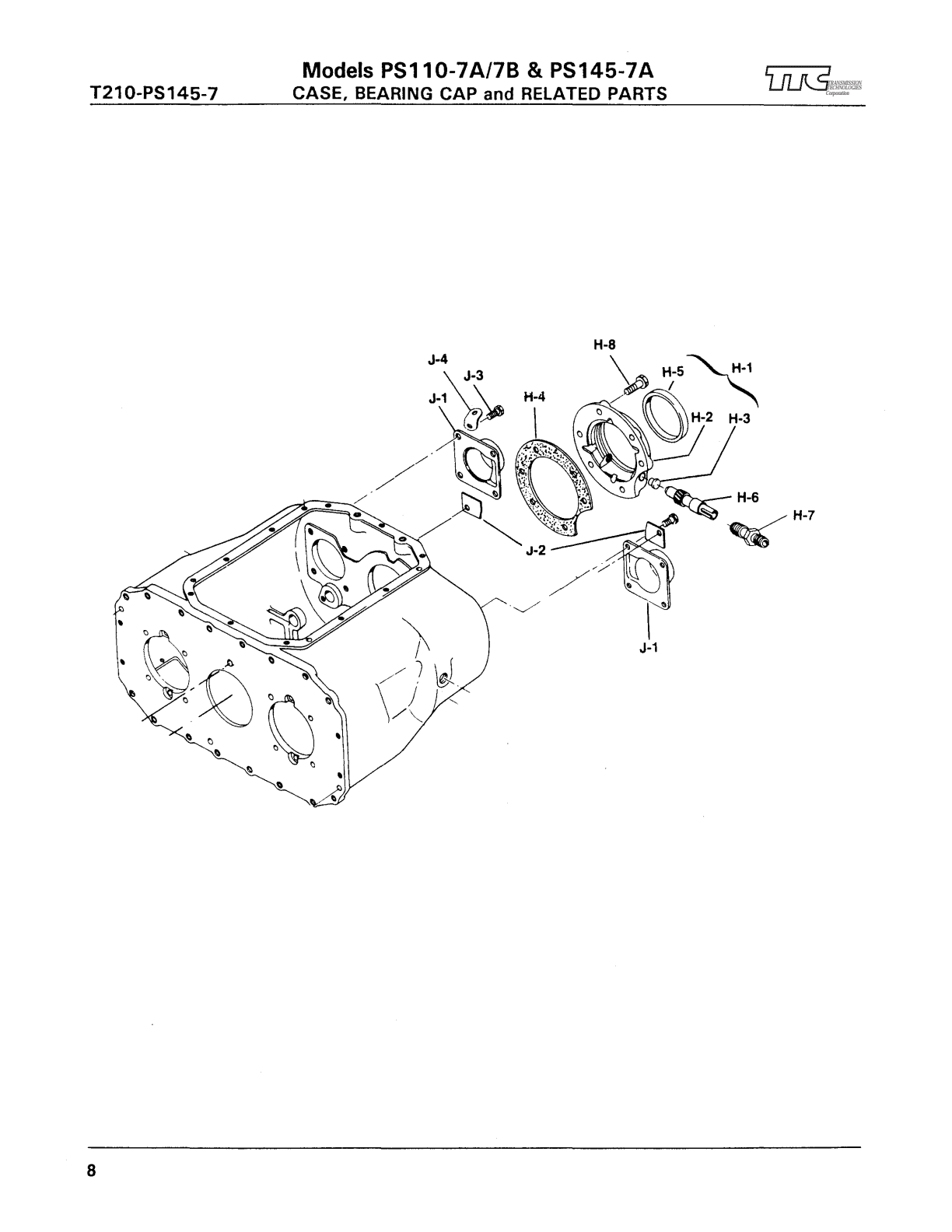

Mainshaft Rear Bearing Cap - (for Gear Driven Speedometer)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 97-19-53-1X | Bearing Cap, Bushing Gasket, And Oil Seal Assembly | No longer available - Call for replacement | |||
| H-2 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| H-3 | 60-475-1 | Bushing - Speedometer | 2 | $32.75 | Add to Cart | |
| H-4 | 97-223-2 | Gasket | 1 | $4.64 | Add to Cart | |
| H-5 | 97-463-39 | Oil Seal | 1 | $29.55 | Add to Cart | |
| N .S | 545021 | Plug Eletronic Speedometer/Cruise | 2 | $18.89 | Add to Cart | |
| N .S | 55-334-1 | Plug (Used Without Speedometer Gear) | $88.44 | Add to Cart | ||
| H-8 | 545001-4 | Bolt- 1 /2 " -13 X 1 1 /2 " Hex Head Self-Locking | 4 | $1.74 | Add to Cart | |
| and | 545001-8 | Bolt - 1 /2 " -13 X 2 1 /2 " Hex Head Self-Locking | 2 | Call for availability |
Mainshaft Rear Bearing - (for Electronic Speedometer)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 97-19-53-1 | X Bearing Cap, Bushing Gasket, And Oil Seal Assembly | 1 | Call for availability | ||
| H-2 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| H-3 | 60-475-1 | Bushing - Speedometer | 2 | $32.75 | Add to Cart | |
| H-4 | 97-223-2 | Gasket | 1 | $4.64 | Add to Cart | |
| H-5 | 97-463-39 | Oil Seal | 1 | $29.55 | Add to Cart | |
| N .S | 545021 | Plug Eletronic Speedometer/Cruise | 2 | $18.89 | Add to Cart | |
| N .S | 55-334-1 | Plug Speedometer Outlet | $88.44 | Add to Cart | ||
| H-8 | 545001-4 | Bolt- 1/2 " -13 X 1 1/2 " Hex Head Self-Locking | 4 | $1.74 | Add to Cart | |
| and | 545001-8 | Bolt- 1/2 " -13 X 2 1/2 " Hex Head Self-Locking | 2 | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 97-22-23 | Cap - Countershaft Rear Bearing | 2 | Call for availability | ||
| J-2 | 97-96-23 | Cap - Reverse Idler | 2 | Call for availability | ||
| J-3 | 545015 | Bolt- 3/8 " -16 X 15/16 " Flanged Head Self-Locking | 10 | $3.14 | Add to Cart | |
| J-4 | 330564 | Lift Hook | 2 | Call for availability | ||
| N .S | 545056 | Anaerobic Sealant | A/R | Call for availability |
Countershaft Rear Bearing Cap Group with PTO Oil Pump
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| N .S | 313292 | PTO Oil Pump Assy. | Call for availability | |||
| N .S | 97-22-21 | Countershaft Rear Bearing Cap Pump Mounting (Usually On Left Side) | 1 | Call for availability | ||
| N .S | 70-223-25 | Countershaft Oil Pump Mounting Gasket | 1 | $4.82 | Add to Cart | |
| J-1 | 97-22-23 | Cap - Countershaft Rear Bearing (Usually On Right Side) | 1 | Call for availability | ||
| N .S | 97-223-22 | Gasket Countershaft Rear Bearing Cap | 2 | Call for availability | ||
| J-3 | 545015 | Bolt- 3/8 " -16 X 15/16 " Flanged Head Self-Locking (For 97 -22 -23 Cap) | 4 | $3.14 | Add to Cart | |
| N .S | 545002-6 | Bolt- 3/8 " -16 X 1 .250 " Flanged Head Self-Locking (For 97-22-21 Cap) | 4 | $2.29 | Add to Cart | |
| N .S | 545051 | Elbow Pump Inlet 90 Deg | Call for availability |

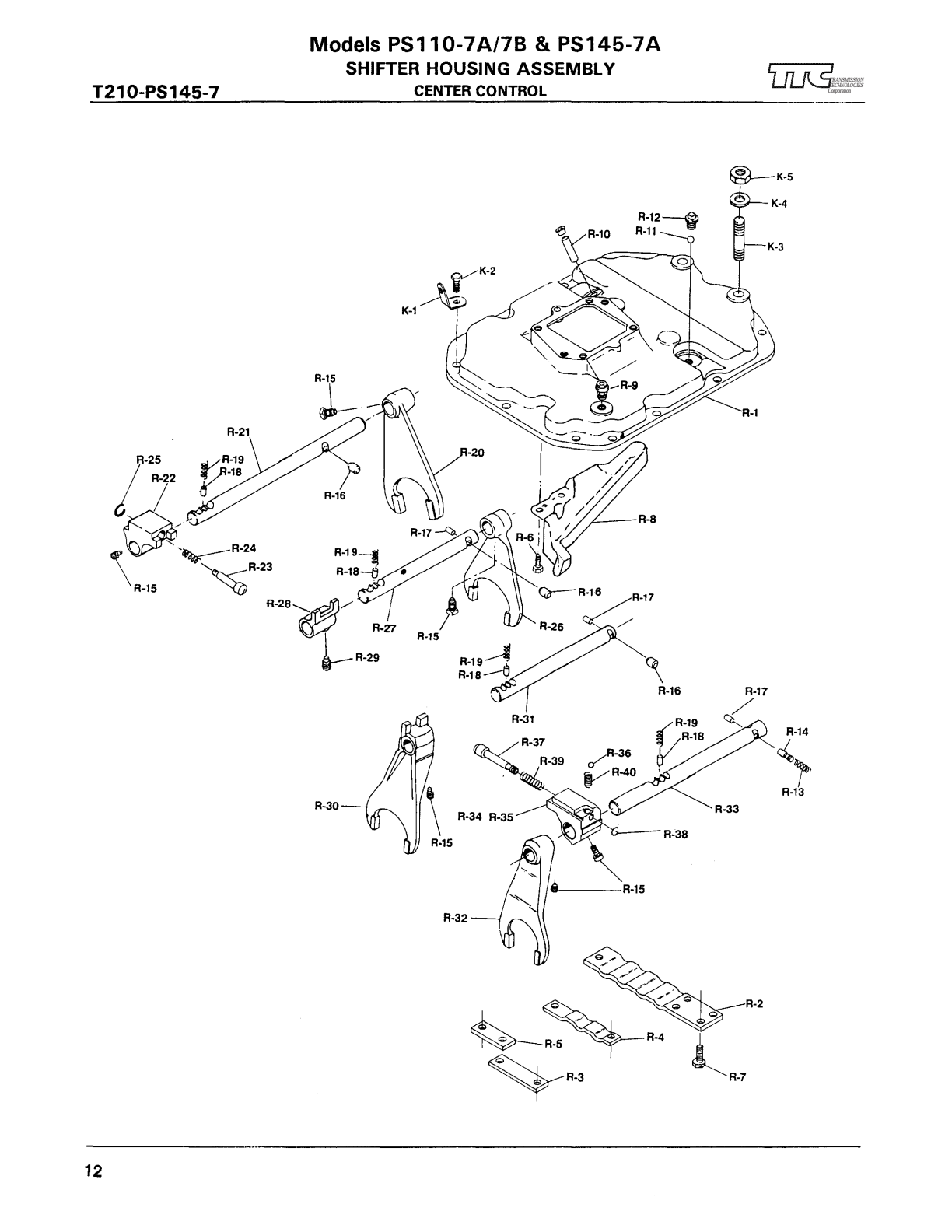

First and Reverse Shift Rod Group
Item R-20Item R-19Item R-9Item R-7Item R-17Item R-16Item R-2Item R-11Item R-10Item R-8Item R-1Item R-14Item R-17Item R-24Item R-21Item R-15Item R-16Item R-18Item R-23Item R-14Item R-17Item R-22Item R-16Item R-14Item R-15Item R-18Item R-15Item R-17Item R-13Item R-12Item R-14Item R-14Item R-4Item R-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 97-16-100-1X | Shift Housing Oil Trough And Shift Rod Retainers | 1 | manual lists 97-16-100-1X - we stock the base part 97-16-100 | Call for availability | |
| R-1 | Shift Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-2 | 97-360-9 | Retainer - Shift Rod (Rear) | 1 | Call for availability | ||
| R-3 | 97-360-10 | Retainer - Shift Rod (Center) | 1 | Call for availability | ||
| R-4 | 97-360-11 | Retainer - Shift Rod (4th ,5th ,6th & 7th) (Front) | 2 | Call for availability | ||
| R-5 | 545125-2 | Screw- Oil Trough - 3/4 " -16 X 3/4 " Self Tapping | 2 | Call for availability | ||
| R-6 | 545125-1 | Screw- Shift Rod Retainers (1 .00 " Long) Self Tapping | 9 | Call for availability | ||
| R-7 | 97-468-2 | Oil Trough | 1 | Call for availability | ||
| N .S | 545126 | Screw- Control Hsg | 4 | Call for availability | ||
| R-8 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| R-9 | 330739-1 | Pin - Back-Up Light | 1 | $3.98 | Add to Cart | |
| R-10 | 50-80-4 | Ball - Neutral Safety Switch | 1 | $7.01 | Add to Cart | |
| R-11 | 545021 | Plug - Neutral Safety Switch | 1 | $18.89 | Add to Cart | |
| R-12 | 97-72-31 | Spring - Interlock Neutral Safety Switch | 1 | Call for availability | ||
| R-13 | 97-438-25 | Plunger - Neutral Safety Switch | 1 | $69.51 | Add to Cart | |
| R-14 | 545063 | Set Screw- .437 " -20 X .750 " W/ .50 " Full Thd 60 Deg Incl Point | 7 | $6.27 | Add to Cart | |
| R-15 | 97-12-5 | Interlock - Shift Rod | 3 | Call for availability | ||
| R-16 | 194-SP | Pin - Interlock | 3 | Call for availability | ||
| R-17 | 97-438-34 | Poppet - Shift Rod | 4 | $49.93 | Add to Cart | |
| R-18 | 97-72-37 | Spring - Shift Rod Poppet | 4 | Call for availability | ||
| R-19 | 97-66-124 | Shift Fork | 1 | $655.81 | Add to Cart | |
| R-20 | 97-67-307-1X | * Shift Rod | 1 | Call for availability | ||
| R-21 | 97-354-11 | Shift Rod Bracket | 1 | Call for availability | ||
| R-22 | 97-438-30 | Plunger - 1 St And Reverse Shift Bracket | 1 | $7.46 | Add to Cart | |
| R-23 | 97-72-2 | Spring - 1 St And Reverse Shift Bracket Plunger | 1 | Call for availability | ||
| R-24 | 97-381-3 | Snap Ring - 1 St And Reverse Shift Bracket Plunger | 1 | Call for availability |
Second and Third Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-25 | 97-66-110 | Shift Fork | 1 | $246.48 | Add to Cart | |
| R-26 | 97-67-341-1X | * Shift Rod | 1 | $201.55 | Add to Cart | |
| R-27 | 97-354-3 | Shift Rod Bracket | 1 | Call for availability | ||
| R-28 | 545063 | Set Screw- .437 " -20 X .750 " W/ .50 " Full Thd 60 Deg Incl Point | 1 | $6.27 | Add to Cart |
Fourth and Fifth Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-29 | 97-66-55 | Shift Fork | 1 | Call for availability | ||
| R-30 | 97-67-293-1X | * Shift Rod | 1 | Call for availability |
Sixth and Seventh Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-31 | 97-66-120 | Shift Fork | 1 | $391.80 | Add to Cart | |
| R-32 | 97-67-292-1X | * Shift Rod | 1 | Call for availability | ||
| R-33 | 97-354-32-1X | Shift Rod Bracket Assembly | 1 | Call for availability | ||
| R-34 | 97-354-32 | Shift Rod Bracket | 1 | Call for availability | ||
| R-35 | 50-80-1 | Ball - Shift Bracket Poppet | 1 | $2.70 | Add to Cart | |
| R-36 | 97-438-27 | Plunger - Shift Bracket | 1 | Call for availability | ||
| R-37 | 97-381-47 | Snap Ring | 1 | $2.82 | Add to Cart | |
| R-38 | 97-72-34 | Spring - Shift Bracket Plunger Pin | 1 | Call for availability | ||
| R-39 | 97-72-33 | Spring - Shift Bracket Pilot Pin | 1 | Call for availability |
Parts Listed Below Are Not Included in Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| N .S | 545056-5 | Anaerobic Sealant | A/R | Call for availability | ||
| K-1 | 330564-1 | Lift Hook | 4 | $3.15 | Add to Cart | |
| K-2 | 545002-4 | Bolt- 3/8 " -16 X 1 1/2 " Hex Head Self-Locking | 10 | $6.93 | Add to Cart | |
| K-3 | 330360-15 | Stud - 5/8 " -1 1 & 5/8 " -18 X 3 1/2 | 2 | version * (see the manual's footnote) | Call for availability | |
| K-3 | 330360-18 | Stud - 5/8 " -16 & 5/8 " -18 X 4 | 2 | version * (see the manual's footnote) | $9.03 | Add to Cart |
| K-4 | 500365-43 | Washer- 5/8 " Flat | 2 | Call for availability | ||
| K-5 | 500371-7 | N Ut- 5/8 " -18 | 2 | Call for availability |
First and Reverse Shift Rod Group
Item R-15Item R-17Item R-2Item R-12Item R-11Item R-10Item R-15Item R-1Item R-21Item R-20Item R-25Item R-19Item R-18Item R-22Item R-16Item R-8Item R-17Item R-6Item R-24Item R-23Item R-16Item R-15Item R-16Item R-17Item R-19Item R-14Item R-13Item R-15Item R-15Item R-4Item R-5Item R-3Item R-7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 97-16-99-1X | Shifter Housing Oil Trough And Shift Rod Retainers | 1 | $278.55 | Add to Cart | |
| R-1 | Shift Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-2 | 97-360-9 | Retainer - Shift Rod (Rear) | 1 | Call for availability | ||
| R-3 | 97-360-11 | Retainer - Shift Rod (4th ,5th ,6th & 7th) (Front) | 1 | Call for availability | ||
| R-4 | 97-360-12 | Retainer - Shift Rod (Center) | 1 | Call for availability | ||
| R-5 | 97-360-13 | Retainer- Shift Rod (1 St & Reverse) (Front) | 1 | Call for availability | ||
| R-6 | 545125-2 | Screw - Oil Trough | 2 | Call for availability | ||
| R-7 | 545125-1 | Screw - Shift Rod Retainers (1 .00 " Long) | 9 | Call for availability | ||
| R-8 | 97-468-2 | Oil Trough | 1 | Call for availability | ||
| N .S | 545126 | Screw Control Hsg | 4 | Call for availability | ||
| R-9 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| R-10 | 330739-1 | Pin - Back-Up Light | 1 | $3.98 | Add to Cart | |
| R-11 | 50-80-4 | Ball - Neutral Safety Switch | 1 | $7.01 | Add to Cart | |
| R-12 | 545021 | Plug - Neutral Safety Switch | 1 | $18.89 | Add to Cart | |
| R-13 | 97-72-31 | Spring - Interlock Neutral Safety Switch | 1 | Call for availability | ||
| R-14 | 97-438-25 | Plunger - Interlock Neutral Safety Switch | 1 | $69.51 | Add to Cart | |
| R-15 | 545063 | Set Screw- .437 " -20 X .750 " W/ .50 " Full Thd 60 Deg Incl Point | 7 | $6.27 | Add to Cart | |
| R-16 | 97-12-5 | Interlock - Shift Rod | 3 | Call for availability | ||
| R-17 | 194-SP | Pin - Interlock | 3 | Call for availability | ||
| R-18 | 97-438-34 | Poppet - Shift Rod | 4 | $49.93 | Add to Cart | |
| R-19 | 97-72-37 | Spring - Shift Rod Poppet | 4 | Call for availability | ||
| R-20 | 97-66-124 | Shift Fork | 1 | $655.81 | Add to Cart | |
| R-21 | 97-67-303-1X | * Shift Rod | 1 | Call for availability | ||
| R-22 | 97-354-11 | Shift Rod Bracket | 1 | Call for availability | ||
| R-23 | 97-438-30 | Plunger - 1 St And Reverse Shift Bracket | 1 | $7.46 | Add to Cart | |
| R-24 | 97-72-2 | Spring - 1 St And Reverse Shift Bracket Plunger | 1 | Call for availability | ||
| R-25 | 97-381-3 | Snap Ring - 1 St And Reverse Shift Bracket Plunger | 1 | Call for availability |
Second and Third Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-26 | 97-66-110 | Shift Fork | 1 | $246.48 | Add to Cart | |
| R-27 | 97-67-344-1X | * Shift Rod | 1 | Call for availability | ||
| R-28 | 97-354-3 | Shift Rod Bracket | 1 | Call for availability | ||
| R-29 | 545063 | Set Screw- .437 " -20 X .750 " W/ .50 " Full Thd 60 Deg Incl Point | 1 | $6.27 | Add to Cart |
Fourth and Fifth Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-30 | 97-66-61 | Shift Fork | 1 | Call for availability | ||
| R-31 | 97-67-305 | -LX * Shift Rod | 1 | Call for availability |
Sixth and Seventh Shift Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-32 | 97-66-120 | Shift Fork | 1 | $391.80 | Add to Cart | |
| R-33 | 97-67-306-1X | * Shift Rod | 1 | Call for availability | ||
| R-34 | 97-354-32-1X | Shift Rod Bracket Assembly | 1 | Call for availability | ||
| R-35 | 97-354-32 | Shift Rod Bracket | 1 | Call for availability | ||
| R-36 | 50-80-1 | Ball - Shift Bracket Poppet | 1 | $2.70 | Add to Cart | |
| R-37 | 97-438-27 | Plunger - Shift Bracket | 1 | Call for availability | ||
| R-38 | 97-381-47 | Snap Ring | 1 | $2.82 | Add to Cart | |
| R-39 | 97-72-34 | Spring - Shift Bracket Plunger Pin | 1 | Call for availability | ||
| R-40 | 97-72-33 | Spring - Shift Bracket Pilot Pin | 1 | Call for availability |
Parts Listed Below Are Not Included in Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| N .S | 545056-5 | Anaerobic Sealant | A/R | Call for availability | ||
| K-1 | 330564-1 | Lift Hook | 4 | $3.15 | Add to Cart | |
| K-2 | 545002-4 | Bolt - 3/8 " -16 X 1 1 /2 " Hex Head Self-Locking | 10 | $6.93 | Add to Cart | |
| K-3 | 330360-15 | Stud - 5/8 " -1 1 & 5/8 " -18 X 3 1/2 | 2 | version * (see the manual's footnote) | Call for availability | |
| K-3 | 330360-18 | Stud - 5/8 " -16 & 5/8 " -18 X 4 | 2 | version * (see the manual's footnote) | $9.03 | Add to Cart |
| K-4 | 500365-43 | Washer- 5/8 " Flat | 2 | Call for availability | ||
| K-5 | 500371-7 | Nut- 5/8 " -18 | 2 | Call for availability |
Technologies Remote Control Assembly T210 -PS145 -7
Item L-8Item L-10Item L-11Item L-5Item L-2Item L-4Item L-3Item L-12Item L-1Item L-7Item L-14Item L-9Item L-13Item L-11Item K-9Item L-16Item K-7Item L-6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 311866X | Cover Assembly 1 | Call for availability | ||||
| 312755X | Cover Assembly 1 | Call for availability | ||||
| 311914X | Cover Assembly 1 | 1 | Call for availability | |||
| 97-18-16-1X | Cover Assembly 1 | Call for availability | ||||
| 85-16-42-1X | Cover Assembly (Rotated 180 Degrees And Welded) - - - F. - F. - | 1 - - | Call for availability | |||
| 97-18-3-1X | Cover Assembly I | 1 | Call for availability | |||
| 97-18-4-1X | Cover Assembly 1 1 1 | Call for availability | ||||
| L-1 | Remote Control Cover 1 1 1 1 1 | 1 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S | 82-24-3 | Bushing -Remote Control Cover 4 4 4 4 4 | 4 4 4 | $21.66 | Add to Cart | |
| L-2 | 8093X | Shift Finger Rod And Bracket Assembly 1 R- | Call for availability | |||
| L-2 | 311888X | Shift Finger Rod And Bracket Assembly 1 C- | 1 | Call for availability | ||
| L-2 | 312754X | Shift Finger Rod And Assembly 1 C- | Call for availability | |||
| L-2 | 97-65-39-1X | Shift Finger Rod And Bracket Assembly 1 | Call for availability | |||
| L-2 | 97-65-41-1X | Shift Finger Rod And Bracket Assembly 1 | Call for availability | |||
| L-2 | 85-65-11-1X | Shift Finger Rod And Bracket Assembly | 1 | Call for availability | ||
| L-2 | 97-65-32-1X | Shift Finger Rod And Bracket Assembly | i 1 | Call for availability | ||
| L-3 | Rod -Shift Finger 1 1 1 1 1 | 1 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-4 | Bracket-Shift Finger 1 1 1 1 1 | 1 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-5 | 85-24-4 | Bushing -Shift Bracket 1 1 1 1 1 | 1 1 1 | Call for availability | ||
| L-6 | 5000007-19 | Woodruff Key #11 1 1 1 1 1 | 1 1 1 | Call for availability | ||
| L-7 | 82-6-9 | Finger-Inner Shift 1 1 1 1 1 | 1 1 1 | Call for availability | ||
| L-8 | 545063 | Bolt-7/16 " ·20 X 13/16 " Hex Head Self-Locking ; 2 2 2 2 2 | 2 2 2 | $6.27 | Add to Cart | |
| L-9 | 82-65-5 | Rod -Remote Control 1 1 1 1 1 | 1 1 | $22.31 | Add to Cart | |
| L-9 | 82-65-22 | Rod -Remote Control : 1 | Call for availability | |||
| L-10 | 82-6-7 | Finger-Outer Shift 1 1 1 1 1 | 1 1 1 | $171.09 | Add to Cart | |
| L-11 | 28P-19 | Seal -Remote Control Shift Rod 2 2 2 2 2 | 2 2 2 | Call for availability | ||
| L-12 | 10380-SF | U -Joint Assembly-Control Rod 1 1 | 1 1 | Call for availability | ||
| L-12 | 904388 | U -Joint Assembly-Control Rod 1 1 1 | Call for availability | |||
| L-13 | 828118-1 | Gasket-Aperture Cover 1 1 1 1 1 | 1 1 1 | Call for availability | ||
| L-14 | 82-9681 | Aperture Cover 1 1 1 1 1 | 1 1 1 | Call for availability | ||
| 'l -15 | 545005-1 | Bolt-5/16 " -18 X 5/8 " Hex Head Self-Locking 4 4 4 4 4 | 4 4 4 | Call for availability | ||
| L-16 | 500166-16 | Expansion Plug -1 1116" 1 1 1 1 1 | 1 1 1 | Call for availability | ||
| N .S | 311903X | Boot Kit-Remote Control 1 1 1 1 | 1 | Call for availability | ||
| N .S | 828483-1 | Boot-Standard 1 1 1 1 | 1 | Call for availability | ||
| N .S | 82-483-2 | Boot-Cup Type 1 1 1 1 | 1 | Call for availability | ||
| N .S | LW-3-9 | Lockwire #18-M Gage (9"1ong) 3 3 3 3 | 3 | Call for availability | ||
| N .S | 313259 | Valve -Road Speed Governor Control 1 1 | Call for availability | |||
| K-7 | 97-155-12 | Gasket-Remote Control Cover 1 1 1 1 1 | 1 1 1 | $4.72 | Add to Cart | |
| K-9 | 545126 | Bolt-71 16 " -14 X 1 1/8 " Hex Head Self-Locking 4 4 44 4 | 4 4 4 | Call for availability |
Technologies Shift Lever and Dome Assembly T210 -PS145 -7
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 97-518-52 | -LX C97 -518 -35 Iron 2 4 .375 " 2 .375 " 3 .50 " 6 .50 | Call for availability | ||||
| 97-518-66-1 | X C97 -518 -33 Iron 1 3 .750 " 1 .500 " 4 .00 " 8 .50 | Call for availability |
THRU Shaft (used with Push Type Clutch)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-10714-062 | 106C-1083 RS-8 | 7 .969" | Call for availability | |||
| 106C-11415-125 | 106C-1094 RS-8 | 8 .469" | Call for availability | |||
| 106C-11426-125 | 106C-1 123 RS-8 | 12 .968" | Call for availability | |||
| 106C-11855-750 | 106C-1 169 RS-8 | 9 .125" | Call for availability | |||
| 106C-12164-750 | 106C-1315 RS-8 | 7 .625" | Call for availability | |||
| 106C-12784-812 | 106C-1367 RS-8 | 10 .312" | Call for availability | |||
| 106C-13605-312 | 106C-1375 RS-8 | 6 .781 " | Call for availability | |||
| 106C-13756-781 | 106C-1417 RS-8 | 7 .250" | Call for availability | |||
| 106C-14986-500 | 106C-1422 RS-8 | 7 .500" | Call for availability | |||
| 106C-15447-000 | 106C ·1490 RS-8 | 16 .000" | Call for availability | |||
| 330601-16-250 | 106C-1515 RS-5 | 1 1 .375" | Call for availability | |||
| 330610-5 | RS-8 | 9 .469" | $80.92 | Add to Cart | ||
| 330610-11 | RS-8 | 10 .750" | Call for availability | |||
| 46-510-9 | RS-5 | 7 .125" | Call for availability | |||
| 330610-10 | RS-8 | 9 .500" | $88.67 | Add to Cart | ||
| 310233X | For Left Side Mtg | Call for availability | ||||
| 310473X | For Right Side Mig | Call for availability | ||||
| 47-526-1 | -1X• Lever Type 7114 | version * (see the manual's footnote) | Call for availability | |||
| 310873X | Lever Type 7114 | version * (see the manual's footnote) | Call for availability | |||
| 106C-438 | RS-514-000 | •Lever Type Can Be Used On Either Right Or Left Side. | Call for availability | |||
| 106C-939 | RS-810-000 | 106C-1566 Splined 19 | .125" | Call for availability | ||
| 106C-953 | RS-89-750 | 106C-1550 Keyed 16 | .375" | Call for availability | ||
| 106C-959 | RS-811-968 | 106C-1558 Keyed 19 | .000" | Call for availability | ||
| 106C-960 | RS-88-719 | 106C-1578 Splined 19 | .500" | Call for availability |
Clutch Release Code Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 105C-64 | 106C | ·1 142 106C-1047 310233X 11 .969 60 105C-137 106C-1 185 106C-617 310233X | 12 .969 | Call for availability | ||
| 2 105C-64 | 106C-1 | 185 106C-438 - 16 .500 61 105C ·137 106C-1 185 106C-839 310233X | 13.969 | Call for availability | ||
| 3 105C-64 | 106C-1 | 185 106C-939 310233X 12 .500 62 105C-137 106C-1 185 106C-939 310233X | 12 .500 | Call for availability | ||
| 4 105C-64 | 106C-1 | 185 106C-1046 310233X 1 1 .468 63 105C-137 106C-1 185 106C-939 310473X | 12 .500 | Call for availability | ||
| 5 105C | 64106C-1 | 185 106C-1047 310233X 1 1 .969 64 105C-137 106C-1 185 106C-953 310473X | 12 .250 | Call for availability | ||
| 6 105C-64 | 106C-1 | 185 106C-1047 47-526-HX 1 1 .969 65 105C-137 106C-1 185 106C-1046 310233X | 1 1 .468 | Call for availability | ||
| 7 105C-64 | 106C-1544 | 106C-839 310233X 13.969 66 105C-137 106C-1 185 106C-1046 310473X | 11 .468 | Call for availability | ||
| 8 105C | 68106C-1 | 142 106C-438 - 16 .125 67 105C-137 106C-1 185 106C-1047 310233X | 1 1 .969 | Call for availability | ||
| 9 105C-68 | 106C-1 | 142 106C-617 - 12 .594 68 105C-137 106C-1 185 106C-1083 310233X | 10 .469 | Call for availability | ||
| 10 105C-68 | 106C-1 | 142 106C-617 310233X 12 .594 69 105C-137 106C-1 185 106C-1094 - | 10 .969 | Call for availability | ||
| 11 105C-68 | 106C-1 | 142 106C-839 310233X 13 .594 70 105C-137 106C-1 185 106C-1094 310233X | 10 .969 | Call for availability | ||
| 12 105C-68 | 106C | ·1 142 106C-939 310233X 12 .125 71 105C-137 106C-1 185 106C ·1 123 - | 15 .468 | Call for availability | ||
| 13 105C-68 | 106C | ·1 142 106C-1046 310233X 1 1 .093 72 105C-137 106C-1 185 106C-1 123 310233X | 15 .468 | Call for availability | ||
| 14 105C | 68106C-1 | 142 106C-1047 310233X 1 1 .594 73 105C-137 106C-1 185 106C-1367 - | 12 .812 | Call for availability | ||
| 15 105C-68 | 106C-1278 | 106C-438 - 16 .125 74 105C ·137 106C-1 185 106C-1367 310233X | 12 .812 | Call for availability | ||
| 15A 105C-68 | 106C-1278 | 106C-939 310473X 12 .125 75 105C ·137 106C-1 185 106C-1375 310873X | 9.281 | Call for availability | ||
| 158 105C-68 | 106C-1278 | 106C-939 310233X 12 .125 76 105C ·137 106C-1 185 106C-1515 - | 13.875 | Call for availability | ||
| 16 105C-1 | 17106C | ·1071 106C-939 310233X 12 .750 77 105C-137 106C-1185 106C-1529 - | 10 .812 | Call for availability | ||
| 17 105C-1 | 17106C-1071 | 106C-1094 310233X 1 1 .219 78 105C-137 106C-1185 330610-5 - | 1 1 .969 | Call for availability | ||
| 18 105C | 117106C-1 | 142 106C-939 310233X 12 .750 78A 105C-137 106C-1 185 46-510-9 - | 9 .625 | Call for availability | ||
| 19 105C | 117106C-1 | 185 106C-438 - 16 .750 79 105C-137 106C-1216 106C-617 310233X | 12 .969 | Call for availability | ||
| 20 105C-1 | 17106C-1 | 185 106C-617 310233X 13 .219 80 105C-137 106C ·1278 106C-438 - | 16 .500 | Call for availability | ||
| 21 105C-1 | 17106C-1 | 185 106C-839 47-526-1 -LX 14 .219 81 105C-137 106C-1278 106C-588 - | 9 .500 | Call for availability | ||
| 22 105C-1 | 17106C-1 | 185 106C-939 310233X 12 .750 82 105C-137 106C-1278 106C-588 310233X | 9 .500 | Call for availability | ||
| 23 105C-1 | 17106C-1 | 185 106C-953 310873X 12 .500 83 105C-137 106C-1278 106C-617 310233X | 12 .969 | Call for availability | ||
| 24 105C-1 | 17106C-1 | 185 106C-960 310233X 1 1 .469 84 105C-137 106C-1278 106C-939 310233X | 12 .500 | Call for availability | ||
| 25 105C-1 | 17106C-1 | 185 106C-1046 310233X 1 1 .718 84A 105C-137 106C-1278 106C-939 310473X | 12 .500 | Call for availability | ||
| 26 105C-1 | 17106C-1 | 185 106C-1047 310233X 12 .219 85 105C-137 106C-1278 106C-939 310873X | 12 .500 | Call for availability | ||
| 27 105C-1 | 17106C-1 | 185 106C-1083 - 10 .719 86 105C-137 106C-1278 106C-960 310233X | 1 1 .219 | Call for availability | ||
| 28 105C-1 | 17106C-1 | 185 106C-1083 310233X 10 .719 87 105C-137 106C-1278 106C-1046 - | 1 1 .466 | Call for availability | ||
| 29 105C-1 | 17106C-1 | 185 106C-1083 310473X 10 .719 88 105C-137 106C-1278 106C-1046 310233X | 11 .468 | Call for availability | ||
| 30 105C-1 | 17106C | ·1 185 106C-1094 310233X 11 .219 69 105C-137 106C-1278 106C-1047 - | 1 1 .969 | Call for availability | ||
| 31 105C-1 | 17106C-1 | 185 106C-1094 310873X 1 1 .219 90 105C-137 106C-1278 106C-1047 310233X | 11 .969 | Call for availability | ||
| 32 105C-1 | 17106C-1 | 185 106C-1169 310233X 1 1 .875 91 105C-137 106C-1278 106C-1083 310233X | 10 .469 | Call for availability | ||
| 33 105C-1 | 17106C-1 | 185 106C-1315 - 10 .375 91A 105C-137 106C-1278 106C-1083 310473X | 10 .469 | Call for availability | ||
| 34 105C-1 | 17106C-1 | 185 106C ·1315 310233X 10 .375 92 105C-137 106C-1278 106C-1094 310233X | 10 .969 | Call for availability | ||
| 35 105C-1 | 17106C-1185 | 106C-1315 47-526 ·1 ·1X 10 .375 92A 105C-137 106C-1278 106C-1315 310233X | 10 .125 | Call for availability | ||
| 35A 105C-1 | 17106C-1 | 185 106C-1375 310873X 9.531 93 105C-137 106C-1278 106C-1375 310233X | 9.281 | Call for availability | ||
| 36 105C-1 | 17106C-1 | 185 106C-1417 310233X 10 .000 94 105C-137 106C-1278 106C-1422 310233X | 10 .000 | Call for availability | ||
| 37 105C-1 | 17106C-1 | 185 106C-1417 310873X 10 .000 95 105C-137 106C-1278 106C-1529 | 10 .812 | Call for availability | ||
| 38 105C-1 | 17106C-1 | 185 106C-1490 310233X 18 .750 96 105C ·137 106C-1360 106C-1083 - | 10 .469 | Call for availability | ||
| 39 105C-1 | 17106C-1278 | 106C-939 310233X 12 .750 96A 105C-137 106C-1360 106C-1417 310233X | 9 .750 | Call for availability | ||
| 40 105C | 117106C | ·1278 106C ·960 310873X 1 1 .469 97 105C-137 106C-1360 106C-1422 310233X | 10 .000 | Call for availability | ||
| 41 105C | 117106C | ·1278 106C-1047 310233X 12 .219 98 105C-137 106C-1375 106C-438 310233X | 16 .500 | Call for availability | ||
| 42 105C-1 | 17106C | ·1278 106C-1094 310233X 1 1 .219 99 105C-137 106C-1498 106C-438 - | 16 .500 | Call for availability | ||
| 43 105C-1 | 17106C-1278 | 106C-1315 310233X 10 .375 100 105C-137 106C-1498 106C-617 310233X | 12 .969 | Call for availability | ||
| 44 105C-1 | 17106C-1278 | 106C-1367 310233X 13 .062 101 105C ·137 106C-1498 106C-617 310473X | 12 .969 | Call for availability | ||
| 45 105C-1 | 17106C-1360 | 106C-1083 310233X 10 .719 102 105C-137 106C-1498 106C-939 310233X | 12 .500 | Call for availability | ||
| 46 105C-1 | 17106C-1360 | 106C-1315 310233X 10 .375 103 105C ·137 106C ·1498 106C-939 310473X | 12 .500 | Call for availability | ||
| 46A 105C-1 | 17106C-1360 | 330610-10 - 12 .250 104 105C ·137 106C-1498 106C-953 310233X | 12 .250 | Call for availability | ||
| 49 105C | 1241 | 06C-1 185 I 1 06C-438 - · 14 .313 107 105C-137 106C-1498 106C-1047 - | 1 1 .969 | Call for availability | ||
| 54 105C-132 | 106C-1185 | 106C-1083 310233X 8 .282 1 12A 65-509-3 106C-1278 106C-939 310233X | 12 .750 | $17.75 | Add to Cart | |
| 55 105C-132 | 106C-1 | 185 106C-1417 310673X 7 .563 1 13 85-509-3 106C-1360 106C-1417 310233X | 10 .000 | Call for availability | ||
| 56 105C-132 | 106C-1185 | 46-51Q.9 - 7.438 1 14 85-509-3 Thru Shaft 106C-1578 310233X | $17.75 | Add to Cart | ||
| 57 105C | 132106C-1278 | 46-51Q.9 - 7 .438 1 14A 65-509-3 Thru Shaft 1 06C-1578 310473X | Call for availability | |||
| 58 105C-137 | 106C-1141 | 106C-1169 310233X 11 .625 1 15 85-509-3 Thru Shaft 106C-1578 310873X | Call for availability | |||
| 59 105C-137 | 106C-1185 | 106C-438 - 16 .500 1 16 312916 Thru Shaft 97-51Q.2 - | $17.75 | Add to Cart |
Found Only in Major Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 97 -463 | 36-1X | Oil Seal - Drive Gear Bearing Cap 1 1 | 1 | Call for availability |

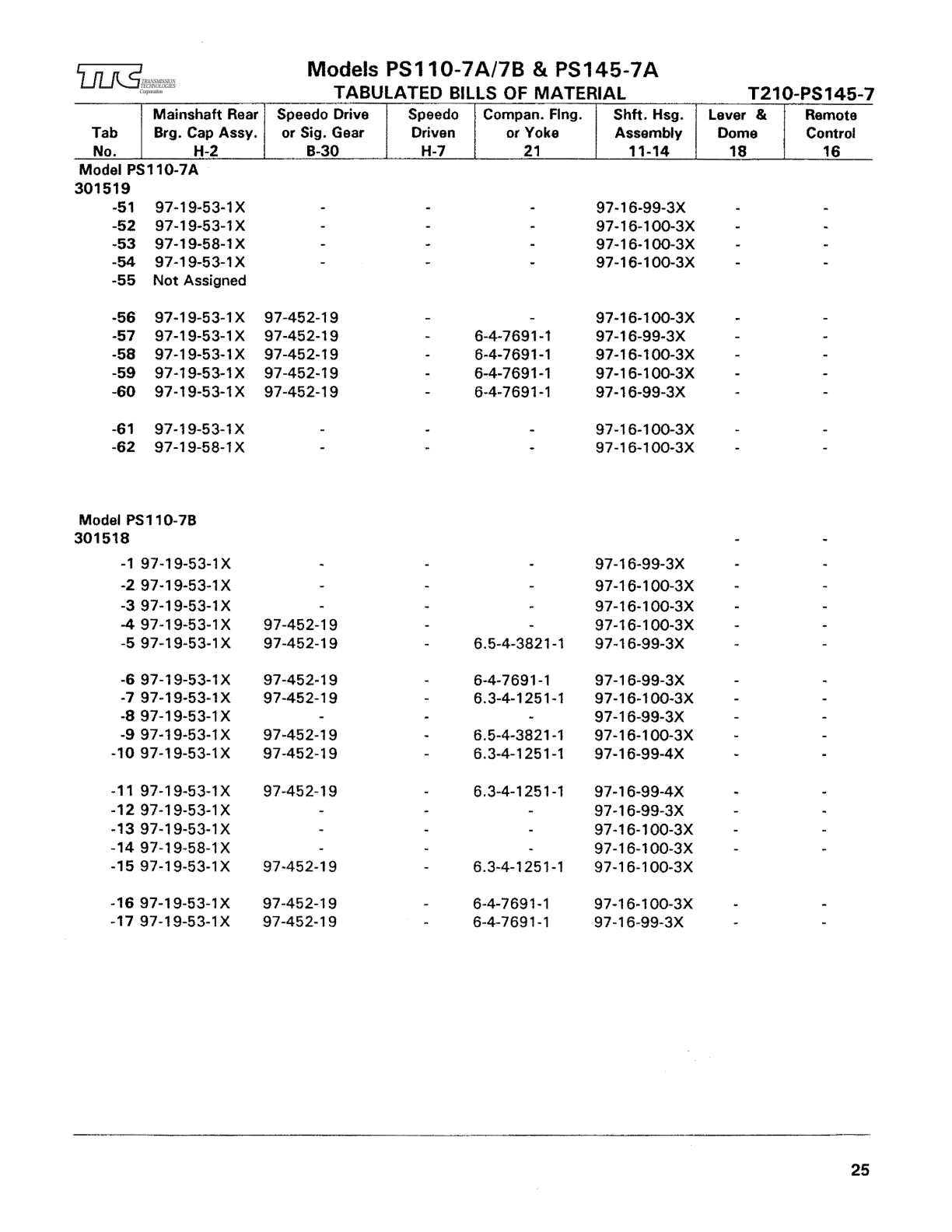

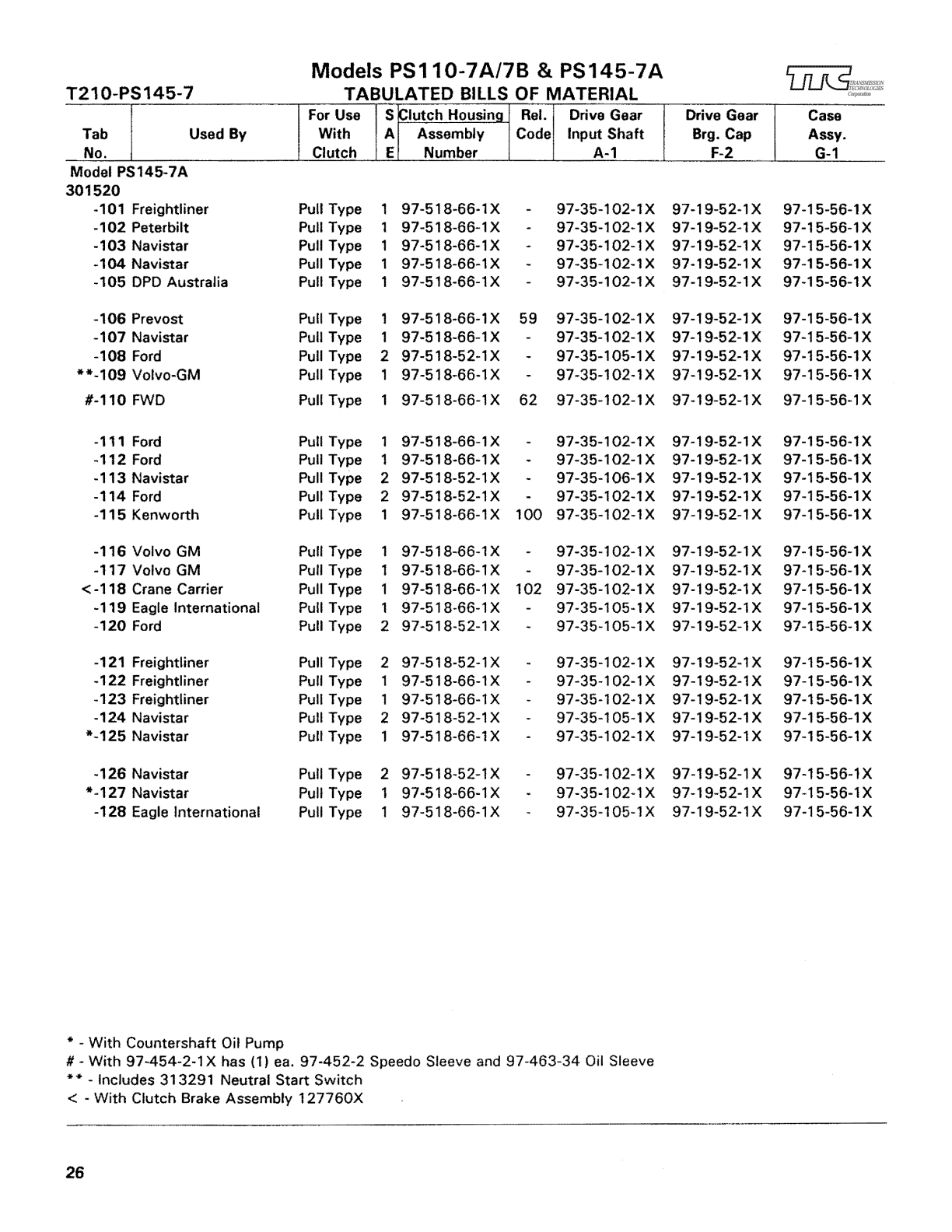

Tabulated Bills of Material
Supersession List (bills of Material)
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission PS110-7A, with every part in the manual matched to our live inventory. We stock 111 of the 349 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the PS110-7B transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | PS110-7B |
| Transmission type | 7-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 35 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
