Spicer PS125-10D Parts Manual
Drive Gear Group - Input Main Section
Item A-3Item B-3Item B-2Item B-1Item A-1Item B-7Item B-6Item B-5Item B-4Item B-12Item B-11Item B-9Item B-8Item B-10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-1 | 201-35-2 | Shaft- Input (2 .00''-1 0 Spline #306 (1 .180'' Dia .) Pilot | 1 | Call for availability | ||
| A-1 | 201-35-6 | Shaft-Input (1 .750''-10 Spline #205 ( .983'' Dia .) Pilot (PS0100-10S Only) | 1 | Call for availability | ||
| A-1 | 201-35-7 | Shaft- Input (1 .750''-1 0 Spline #306 (1 .180'' Dia .) Pilot (PS01 00-10S Only) | 1 | Call for availability | ||
| A-2 | 313645X | S/Assy Bearing & Belleville Snap Ring | 1 | $183.51 | Add to Cart | |
| A-3 | 201-381-1 | Snap Ring - Input Shaft | 1 | $3.15 | Add to Cart |
Mainshaft Group Main Section
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 201-8-49 | Gear- Drive (5th & 1Oth) (Sot) (Overdrive Transmissions) | 1 | $377.24 | Add to Cart | |
| B-1 | 201-8-57 | Gear- Drive (5th & 10th) (44T) (Direct Transmissions) | 1 | Call for availability | ||
| B-2 | 201-465-5 | Collar- M/S Clutch (4th 5th & 9th 1Oth) | 1 | $172.90 | Add to Cart | |
| B-3 | 201-8-48 | Gear- Mainshaft (4th & 9th) (40T) (Overdrive Transmissions) | 1 | $377.24 | Add to Cart | |
| B-3 | 201-8-58 | Gear- Mainshaft (4th & 9th) (54T) (Direct Transmissions) | 1 | $167.54 | Add to Cart | |
| B-4 | 201-8-46 | Gear- Mainshaft (3rd & 8th) (46T) | 1 | $268.72 | Add to Cart | |
| B-5 | 201-465-2 | Collar- Mis Clutch (2nd 3rd & 7th 8th) | 1 | $176.98 | Add to Cart | |
| B-6 | 201-8-45 | Gear- Mainshaft (2nd & 7th) (62T) | 1 | $512.66 | Add to Cart | |
| B-7 | 201-8-44 | Gear- Mainshaft (1st) (62T) | 1 | $361.53 | Add to Cart | |
| B-8 | 201-465-2 | Collar- Mis Clutch (1st & Rev.) | 1 | $176.98 | Add to Cart | |
| B-9 | 201-8-10-1X | Gear- MIShaft Reverse (Includes Thrust Ring & Rivets) | 1 | $657.38 | Add to Cart | |
| B-10 | 201-362-1-1X | Kit- Mainshaft & Snap Ring | 1 | $305.99 | Add to Cart | |
| B-11 | Mainshaft | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| B-12 | 201-381-3 | Snap Ring - Mainshaft Drive Gear- Range | 1 | $8.09 | Add to Cart |
Countershaft Group Main Section
Item C-14Item C-10Item C-12Item C-4Item C-2Item C-3Item C-13Item C-5Item C-6Item C-7Item C-8Item C-9Item C-11Item D-5Item D-3Item D-1Item C-17Item D-4Item C-15Item D-2Item C-18Item C-16Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 201-30-2 | Countershaft- Main | 2 | Call for availability | ||
| C-2 | 201-210-4-2 | Key- Countershaft Gear- Middle | 2 | $4.19 | Add to Cart | |
| C-3 | 201-210-4-3 | Key- Countershaft Gear- Front | 2 | $11.02 | Add to Cart | |
| C-4 | 201-210-4-1 | Key- Countershaft Gear- Rear | 2 | $4.64 | Add to Cart | |
| C-5 | 201-196-36 | Gear- Countershaft (1st & 6th) (28T) | 2 | $168.73 | Add to Cart | |
| C-6 | 201-196-38 | Gear- Countershaft (2nd & 7th) (38T) | 2 | $238.80 | Add to Cart | |
| C-7 | 201-312-3 | Gear- Countershaft PTO Drive | 2 | $280.05 | Add to Cart | |
| C-8 | 201-196-42 | Gear- Countershaft (3rd & 8th) (39T) | 2 | $235.80 | Add to Cart | |
| C-9 | 201-196-40 | Gear- Countershaft (4th & 9th) (63T) (Overdrive Transmissions) | 2 | $177.75 | Add to Cart | |
| C-9 | 201-196-50 | Gear- Countershaft (4th & 9th) (61T) (Direct Transmissions) | 2 | $238.69 | Add to Cart | |
| C-10 | 201-47-2 | Ring - Countershaft Thrust (Flat) | 2 | $20.15 | Add to Cart | |
| C-11 | 201-47-5 | Ring Countershaft H .E Gear Thrust | 2 | $52.11 | Add to Cart | |
| C-12 | 201-196-41 | Gear- Countershaft H .E (5th & 1Oth) (59T) (Overdrive Transmissions) | 2 | $220.13 | Add to Cart | |
| C-12 | 201-196-49 | Gear- Countershaft H .E (5th & 1Oth) (66T) (Direct Transmissions) | 2 | Call for availability | ||
| C-13 | 551013 | Bearing_- Cone Front Countershaft | 2 | $49.38 | Add to Cart | |
| C-14 | 550375 | Bearing - Cup Front Countershaft | 2 | $17.99 | Add to Cart | |
| C-15 | 201-47-3 | Ring - Countershaft (1st) Thrust | 2 | $14.83 | Add to Cart | |
| C-16 | 550182 | Bearing - Cone Rear Countershaft | 2 | $36.48 | Add to Cart | |
| C-17 | 550375 | Bearing - Cup Rear Countershaft | 2 | $17.99 | Add to Cart | |
| C-18 | 201-228-1-1 | Shim - Countershaft Rear Bearing (.005 Thick) | AIR | Call for availability | ||
| C-18 | 201-228-1-2 | Shim - Countershaft Rear Bearing (.01 0 Thick) | AIR | Call for availability | ||
| C-18 | 201-228-1-3 | Shim - Countershaft Rear Bearing (.015 Thick) | AIR | Call for availability | ||
| C-18 | 201-228-1-4 | Shim - Countershaft Rear Bearing (.020 Thick) | AIR | Call for availability | ||
| C-18 | 201-228-1-5 | Shim - Countershaft Rear Bearing (.030 Thick) | AIR | Call for availability | ||
| D-1 | 201-360-1 | Plate - Retainer Countershaft | 1 | $10.03 | Add to Cart | |
| D-2 | 545002-1 | Screw- Plate Retaining Countershaft | 3 | $2.23 | Add to Cart | |
| D-3 | 201-196-12 | Gear- Countershaft Reverse- Range (21T) | 2 | $279.20 | Add to Cart | |
| D-4 | 330952 | Washer- Countershaft Reverse Drive Gear Retaining | 2 | $3.00 | Add to Cart | |
| D-5 | 545001-5 | Screw - Reverse Drive Gear Retaining Washer | 2 | Call for availability |
Counters Haft and Synchronizer Group Range Section
Item E-6Item E-5Item E-4Item E-12Item E-2Item E-7Item E-16Item E-15Item E-13Item E-3Item E-11Item E-10Item E-1Item E-9Item E-8Item E-17Item E-14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 550996 | Bearing - Countershaft Front | 2 | $61.00 | Add to Cart | |
| E-2 | 330955 | Washer- Countershaft Reverse Idler Thrust | 2 | $20.01 | Add to Cart | |
| E-3 | 201-5-2 | Gear- Reverse Idler Countershaft | 2 | $132.94 | Add to Cart | |
| E-4 | 550997 | Bearing - Needle Reverse Idler | 2 | $14.83 | Add to Cart | |
| E-5 | 201-30-19 | Countershaft S/Assy Range (20T/48T) (Overdrive Transmissions) | 2 | $914.73 | Add to Cart | |
| E-5 | 201-30-12 | Countershaft S/Assy Range (20T/48T) (Overdrive Transmissions Less | 2 | $794.51 | Add to Cart | |
| E-5 | 201-30-17 | Countershaft S/Assy Range (20T/45T) (Direct Transmissions) | 2 | Call for availability | ||
| E-6 | 550998 | Bearing - Countershaft Rear | 2 | $135.42 | Add to Cart | |
| E-7 | 201-47-6 | Ring -Thrust Mainshaft Drive Gear | 1 | $33.46 | Add to Cart | |
| E-8 | 201-8-51 | Gear- Mainshaft Head End (26T) (Overdrive Transmissions) | 1 | $217.67 | Add to Cart | |
| E-8 | 201-8-59 | Gear- Mainshaft Head End (26T) (Direct Transmissions) | 1 | $342.97 | Add to Cart | |
| E-9 | 201-494-1 | Race - Synchronizer Outer | 1 | $204.93 | Add to Cart | |
| E-10 | 201-466-2 | Gear- Clutch Drive (High Range) | 1 | $180.99 | Add to Cart | |
| E-11 | 330954 | Washer- Mainshaft Clutch Gear Retaining (High Range) | 1 | $4.90 | Add to Cart | |
| E-12 | 545001-5 | Screw- Clutch Gear Retaining Washer (High Range) | 1 | Call for availability | ||
| E-13 | 201-563-1-1X | Synchronizer- High & Low (Includes E-14, E-15, & E-16) | 1 | $560.75 | Add to Cart | |
| E-14 | S/Assy. Synchronizer- High Range | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| E-15 | S/Assy. Synchronizer- Low Range | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| E-16 | 201-72-9 | Spring - Extension | 3 | Call for availability | ||
| E-17 | 201-465-4 | Collar- Clutch - High & Low Range | 1 | $205.39 | Add to Cart |
Mainshaft Group -Output Range Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 201-362-3 | Output Shaft | 1 | Call for availability | ||
| F-2 | 313668X | Kit- Needle Bearing - Output Shaft (Includes (2) Pes. 550975) | 1 | $78.71 | Add to Cart | |
| F-3 | 201-8-41 | Gear- Output- Low Range (52T) | 1 | No longer available - Call for replacement | ||
| F-4 | 201-47-4 | Washer- Thrust Output Shaft | 1 | $34.68 | Add to Cart | |
| F-5 | 313628X | S/Assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | |
| F-5A | Bearing Cone Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-5B | Bearing Cup Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-5C | Spacer- Bearing Cup Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-5D | Spacer- Bearing Cone Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-6 | 201-37-6 | Spacer- Speedometer | 1 | Call for availability | ||
| F-6 | 201-452-1 | Electronic Speedometer Signal Gear (16 Grooves) | 1 | $86.79 | Add to Cart | |
| F-6 | 201-452-2 | Speedometer Drive Gear (4T) Ratio 3:1 | 1 | Call for availability | ||
| F-6 | 97-453-1 | Speedometer Driven Gear (12T) | 1 | Call for availability | ||
| F-6 | 201-452-3 | Speedometer Drive Gear (8T) Ratio 2:1 | 1 | Call for availability | ||
| F-6 | 97-453-7 | Speedometer Driven Gear (16T) | 1 | Call for availability | ||
| F-6 | 330734 | Washer- Output Shaft Nut | 1 | $6.27 | Add to Cart | |
| F-!i | 545065 | Nut- Output Shaft (1 .75"-16 UNEF-3B) | 1 | $31.43 | Add to Cart |

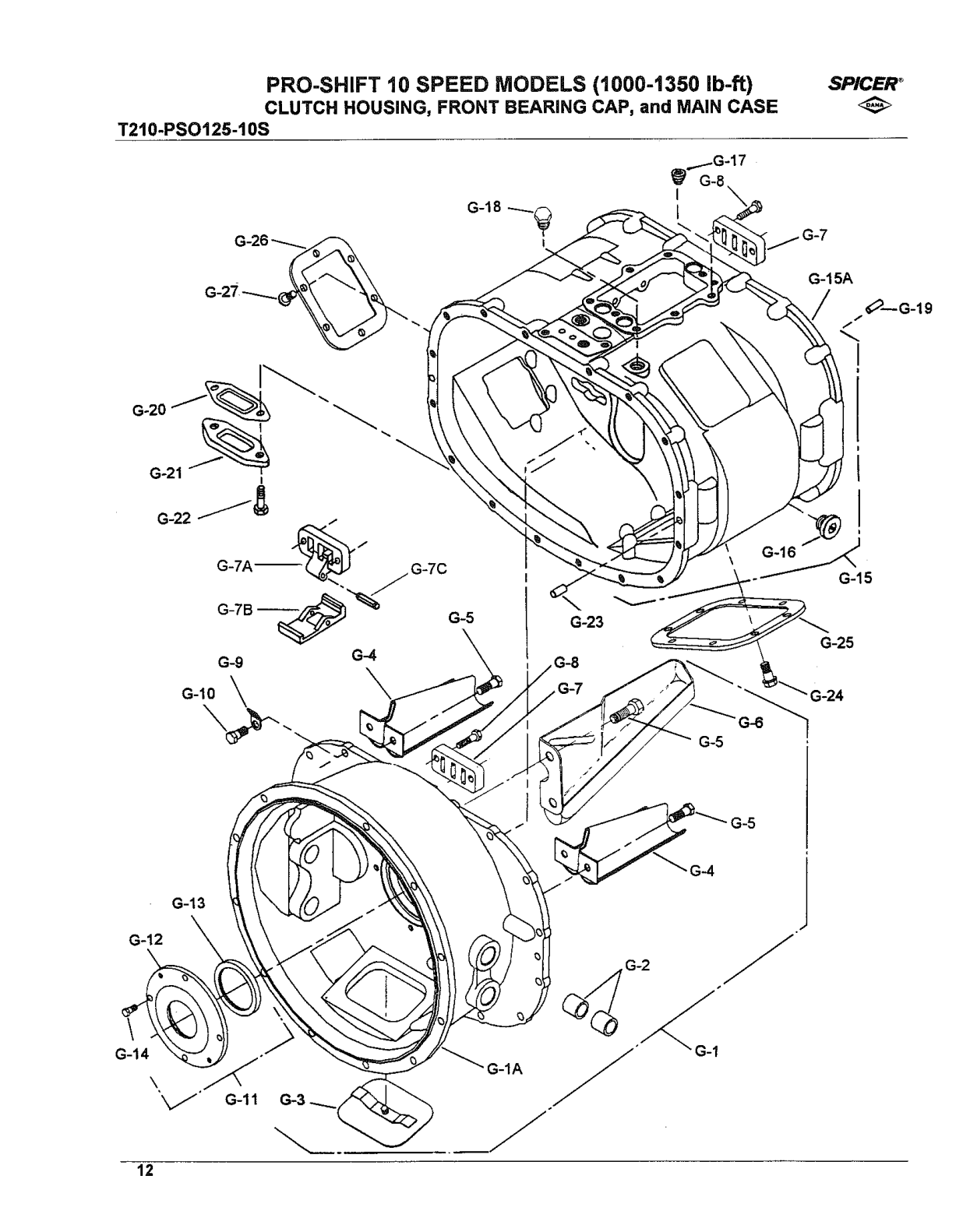

Clutch Housing Front Bearing CAP and MAIN CASE
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C4G-2 | / | Call for availability |
Clutch Housing Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-1 | 201-518-10-SX | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #1) | 1 | Call for availability | ||
| G-1 | 201-518-21-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #1) | 1 | Call for availability | ||
| G-1 | 201-518-14-5X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #2) | 1 | $1,391.14 | Add to Cart | |
| G-1 | 201-518-12-SX | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #1) | 1 | Call for availability | ||
| G-1 | 201-518-22-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #1) | 1 | Call for availability | ||
| G-1 | 201-518-8-4X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #1) | 1 | Call for availability | ||
| G-1 | 201-518-20-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #1) | 1 | Call for availability | ||
| G-1 | 201-518-19-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #1) | 1 | Call for availability | ||
| G-1 | 201-518-23-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (SAE #1) | 1 | Call for availability | ||
| N .S. | 201-463-26 | "0 " Ring - Countershaft Front (Aluminum Clutch Housings Only) | 2 | $20.25 | Add to Cart | |
| G-1A | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-2 | 97-24-8 | Bushing - Clutch Release Shaft | 4 | $5.45 | Add to Cart | |
| G-3 | 97-96-18-1X | S/Assy. - Hand Hole Cover | 1 | Call for availability | ||
| G-4 | 201-468-1 | Oil Trough - Countershaft | 2 | $16.37 | Add to Cart | |
| G-5 | 545002-13 | Screw- Oil Troughs (2 Each) ( .375"-16 X .500") | 4 | $2.29 | Add to Cart | |
| G-6 | 201-468-2 | Oil Trough Drive Gear (Less Optilube Only)(BIM 301504 | 1 | Call for availability | ||
| N .S. | 330934 | Magnet- Ceramic (Location Is Case Side Bottom) | 1 | $4.72 | Add to Cart | |
| G-7 | 40-477-1 | Support- Shift Rails (Front & Rear) | 2 | $12.28 | Add to Cart | |
| G-7A | 201-477-3 | Support- Shift Rails (Front) (Neutral Start Switch Provision) | 1 | Call for availability | ||
| G-7B | 201-200-6 | Plate - Lift (Neutral Start Switch Provision) | 1 | Call for availability | ||
| G-7C | 201-438-15-3 | Pin - Roll (2 .125") (Neutral Start Switch Provision) | 1 | Call for availability | ||
| G-8 | 545002-7 | Screw- Support Bar ( .375"-16 X 1 .50") (2 Each) | 4 | $2.33 | Add to Cart | |
| G-9 | 330969 | Lift Hook | 2 | $2.49 | Add to Cart | |
| G-10 | 545001-1 | Screw- Clutch Housing ( .500"-13 X 1 .375") | 16 | $2.59 | Add to Cart |
Front Bearing Cap Group
Item G-21Item G-22Item G-13Item G-12Item G-11Item G-17Item G-18Item G-26Item G-15AItem G-27Item G-20Item G-21Item G-16Item G-15Item G-23Item G-25Item G-24Item G-14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-11 | 201-19-2-1X | S/Assy Drive Gear Bearing Cap And Oil Seal (Includes G-12 Thru G-14) | 1 | $215.72 | Add to Cart | |
| G-12 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-13 | 97-463-36-1X | Oil Seal - Drive Cap Bearing Cap (Wflnstallation Sleeve) | 1 | $38.68 | Add to Cart | |
| G-14 | 545002-1 | Screw- Drive Gear Bearing Cap ( .375"-16 X .875") | 4 | $2.23 | Add to Cart |
Main Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-15 | 201-15-13-1X | S/Assy Main Case (Includes G-15A Thru G-22) | 1 | Call for availability | ||
| G-15 | 201-15-2-1X | S/Assy Main Case (Includes G-15A Thru G-18) (Less Optilube Bim 301504 | 1 | Call for availability | ||
| G-15 | 201-15-10-1X | S/Assy Main Case (Includes G-15A Thru G-22) (Aluminum For | Call for availability | |||
| G-15A | Case | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-16 | 545123 | Plug - Filler & Drain | 1 | $22.03 | Add to Cart | |
| G-17 | 201-39-4 | Plug - Pressure Port Hole | 1 | Call for availability | ||
| G-18 | 201-39-1 | Plug - Case Oil Return Hole | 1 | $2.67 | Add to Cart | |
| N .S | 330934 | Magnet- Ceramic (Location Is At Large PTO Opening) | 1 | $4.72 | Add to Cart | |
| G-19 | 500597-14 | Pin - Alignment (Optilube Mounting Plate) | 2 | $2.19 | Add to Cart | |
| G-20 | 201-118-4 | Gasket- Oil Outlet Cover (Location Is Case Bottom) | 1 | $3.91 | Add to Cart | |
| G-21 | 201-96-5 | Cover- Oil Outlet (Location Is Case Bottom) | 1 | $33.96 | Add to Cart | |
| G-22 | 545002-2 | Screw- Oil Outlet Cover (Location Is Case Bottom) | 2 | $2.67 | Add to Cart | |
| G-23 | 201-438-3 | Pin - Dowel Case | 4 | $3.75 | Add to Cart | |
| G-24 | 545012 | Screw- PTO Aperture Cover (8 Hole) | 8 | $3.23 | Add to Cart | |
| G-25 | 73-267-1 | Cover- PTO (8 Hole) | 1 | $160.99 | Add to Cart | |
| G-26 | 50-267-2 | Cover- PTO (6 Hole) | 1 | $122.97 | Add to Cart | |
| G-27 | 330800 | Screw- PTO Aperture Cover (6 Hole) | 6 | Call for availability |
Optilube PUMP and Related Parts
Item OL-1Item OL-2Item OL-4Item OL-8Item OL-9Item OL-5Item OL-7Item OL-11Item OL-12Item OL-10Item OL-13Item OL-6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-501-11-2X | Kit- Optilube Pump (Includes OL-1 Thru OL-13 | 1 | $598.57 | Add to Cart | ||
| OL-1 | 201-420-13X | S/Assy. - Discharge Tube | 1 | No longer available - Call for replacement | ||
| OL-2 | 545002-1 | Screw- Mounting Plate | 4 | $2.23 | Add to Cart | |
| OL-3 | 201-501-13X | S/Assy Oil Bypass Valve | 1 | $23.99 | Add to Cart | |
| OL-4 | 201-360-2 | Plate - Internal Pump Mounting | 1 | $27.70 | Add to Cart | |
| OL-5 | 545002-2 | Screw- Pump Housing | 2 | $2.67 | Add to Cart | |
| OL-6 | 201-501-11-1X | S/Assy Optilube Pump Housing And Gears (Includes OL-7 Thru OL-13) | 1 | $598.57 | Add to Cart | |
| OL-7 | Gerotor Element- Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-8 | Shaft- Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-9 | Housing Pump | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-10 | "0 " Ring -Tube | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-11 | S/Assy Inlet Tube | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-12 | Gear- Lube Pump Drive | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-13 | Ring Gear Pump Snap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability |
Interlock Parts Group
Item H-5Item H-8Item H-3Item H-1Item H-2Item H-6Item H-7Item H-15Item H-14Item H-11Item H-12Item H-18Item H-17Item H-16Item H-13Item H-9Item H-10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 313630X | S/Assy. - Williams Control | 1 | Call for availability | ||
| H-2 | 545025-2 | Elbow- Williams Control 90 Degree | 2 | $28.71 | Add to Cart | |
| H-3 | 545028-6 | Screw - Williams Control ( .438"-14 X 2 .250") | 2 | $2.13 | Add to Cart | |
| H-4 | 545109 | Tee - Adapter Williams Control | 1 | $33.48 | Add to Cart | |
| H-5 | 545130 | Elbow- Williams Control | 1 | Call for availability | ||
| N .S | 201-420-7 | Tube Support (#38163 Legris Tube Support) | AIR | Call for availability | ||
| H-6 | 201-118-1 | Gasket- Williams Control | 1 | Call for availability | ||
| H-7 | 201-438-5 | Pin - Williams Air Control Valve | 3 | Call for availability | ||
| H-8 | 545128 | Plug - 1 St And Reverse Spring Plunger | 2 | $2.84 | Add to Cart | |
| H-9 | 62-72-6 | Spring - 1 St And Reverse | 2 | Call for availability | ||
| H-10 | 40-438-1 | Pin - Plunger 1 St And Reverse | 2 | Call for availability | ||
| H-11 | 313538 | Switch - Back Up Light (Pin Connection) | 1 | $31.37 | Add to Cart | |
| H-11 | 313552 | Switch - Back Up Light (Tang Connection) | 1 | $25.15 | Add to Cart | |
| H-12 | 201-438-2 | Pin -Actuating Back Up Light Switch | 1 | $3.68 | Add to Cart | |
| H-13 | 201-200-1 | Interlock- Shifter Rail | 1 | $14.52 | Add to Cart | |
| H-14 | 201-200-2 | Plate - Interlock Retainer | 1 | $14.17 | Add to Cart | |
| H-15 | 330801-1 | Screw- Interlock Plate ( .438"-14 X .875') | 2 | $2.67 | Add to Cart | |
| H-16 | 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | |
| H-17 | 201-72-2 | Spring - Poppet Shift Rail | 3 | $3.23 | Add to Cart | |
| H-18 | 201-487-1 | Insert- Poppet Spring & Ball | 3 | Call for availability |
Shift Bar and Fork Assemblies
Item SB-6Item SB-4Item SB-13Item SB-4Item SB-1Item SB-12Item SB-10Item SB-5Item SB-14Item SB-8Item SB-7Item SB-9Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| SB-1 | 313696X | Fork And Bar Assy. -1 St And Reverse | 1 | Call for availability | ||
| SB-1 | 313795X | Fork And Bar Assy 1st And Reverse (Neutral Start SwHch Provision) | 1 | Call for availability | ||
| SB-2 | 313694X | Fork And Bar Assy 2nd And 3rd | 1 | Call for availability | ||
| SB-2 | 313796X | Fork And Bar Assy 2nd And 3rd (Neutral Start Switch Provision) | 1 | Call for availability | ||
| SB-4 | 313642-1X | Bar Assy 4th And 5th | 1 | Call for availability | ||
| SB-4 | 313818-1X | Bar Assy 4th And 5th (Neutral Start Switch Provision) | 1 | $122.96 | Add to Cart | |
| and | 201-66-18-3X | Fork Assy 4th And 5th | 1 | $550.14 | Add to Cart | |
| and | 313695X | Fork And Bar Assy 4th And 5th (Direct Transmissions) | 1 | No longer available - Call for replacement | ||
| and | 313819X | Fork And Bar Assy 4th And 5th (Direct Transmissions) (Neutral Start | 1 | Call for availability | ||
| SB-5 | 545029-3 | Screw- Fork Mounting Bracket Overdrive ( .375" X 1 .00") | 2 | Call for availability | ||
| SB-6 | 201-411-3-1X | Kit- Shift Fork Mounting Bracket Pin And Snap Rings | 1 | $90.22 | Superseded by 20141151XAdd to Cart | |
| SB-7 | Mounting Bracket -Overdrive Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-8 | Pin Mounting | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-9 | Snap Ring Mounting Bracket Pin | 2 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-9 | 313642-1X | Kit- Overdrive Shift Bar, Pins And Snap Rings | 1 | $189.54 | Add to Cart | |
| SB-11 | Snap Ring Clevis Pin | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-12 | Clevis Pin Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-13 | Shift Bar- 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-13 | 313818-1X | Kit- Overdrive Shift Bar, Pins And Snap Rings With Neutral | 1 | $122.96 | Add to Cart | |
| SB-13 | 201-66-18-3X | Kit- Overdrive Shift Fork, Pins And Snap Rings | 1 | $550.14 | Add to Cart | |
| SB-10 | Shift Fork S/Assy 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-14 | 201-486-1 | Shoe - Overdrive Shift Fork | 2 | $22.54 | Add to Cart | |
| SB-14 | 201-438-6-1X | Kit- Overdrive Shift Fork Mounting Pin And Snap Ring | 1 | $6.22 | Add to Cart | |
| SB-12 | 201-438-7-1X | Kit- Overdrive Shift Fork Bracket Pin And Snap Rings | 1 | $9.95 | Add to Cart |

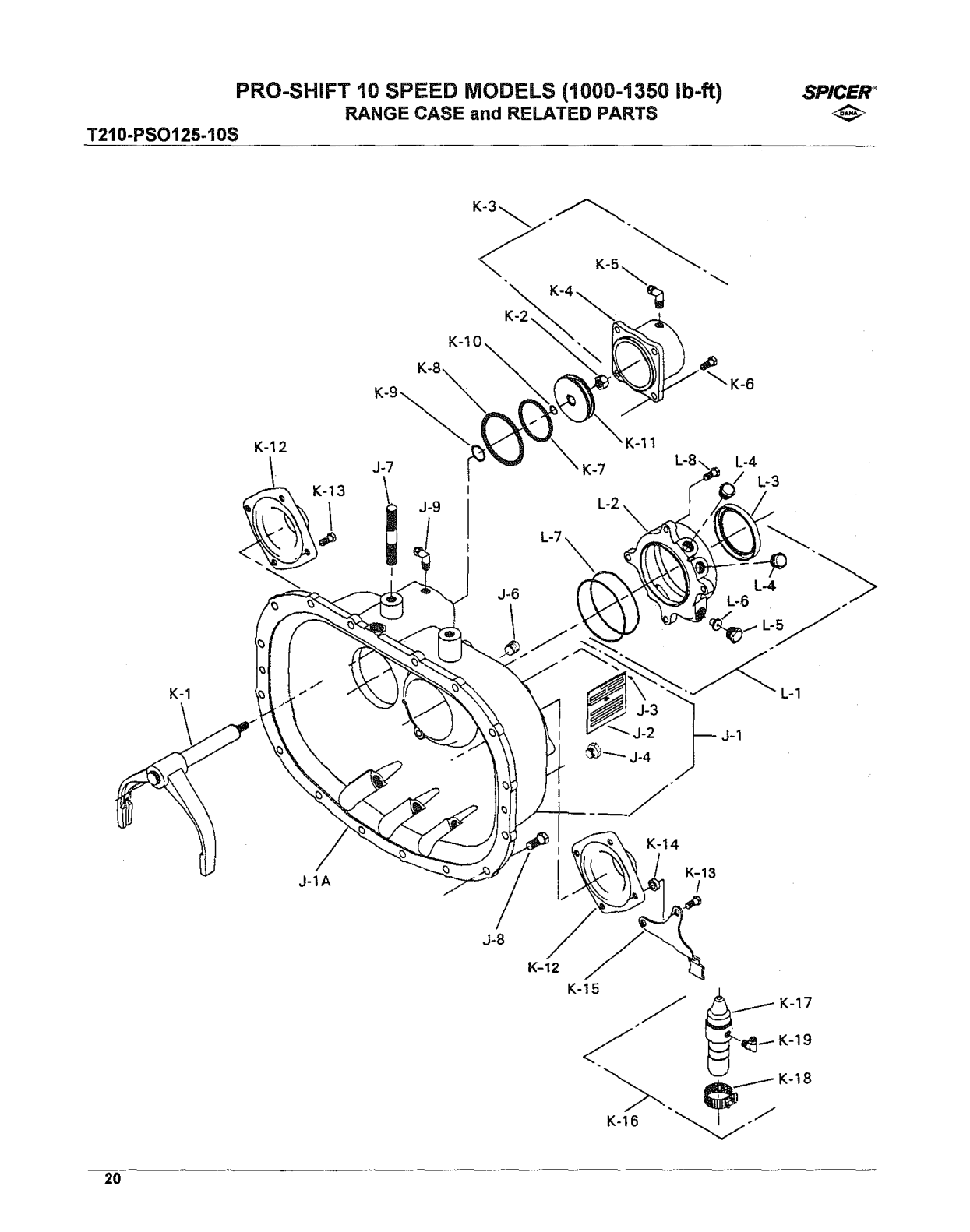

Range Case Group
Item K-12Item K-15Item K-16Item K-5Item K-4Item K-2Item K-10Item K-8Item K-6Item K-9Item K-11Item L-8Item J-7Item K-7Item K-13Item J-9Item L-2Item L-7Item J-6Item L-5Item K-1Item J-3Item J-2Item J-1Item J-4Item K-14Item K-13Item J-1AItem J-8Item K-12Item K-17Item K-19Item K-18Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 201-15-3-1X | S/Assy Case (Range) (Includes J -1A Thru J-6) | 1 | $1,092.84 | Add to Cart | |
| J-1A | Case Range | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| J-2 | NP-96 | Name Plate | 1 | $2.16 | Add to Cart | |
| J-3 | 252-SP | Pin - Name Plate | 4 | $1.90 | Add to Cart | |
| N .S. | NP-196 | Patent Plate | 1 | $2.97 | Add to Cart | |
| J-4 | 545123 | Plug - Filler & Drain Magnetic | 2 | $22.03 | Add to Cart | |
| J-6 | 201-39-1 | Plug - Temperature Indicator Hole | 1 | $2.67 | Add to Cart | |
| J-7 | 330360-7 | Stud - Rear Mounting (2.375"') | 2 | $4.65 | Add to Cart | |
| J-7 | 330360-15 | Stud - Rear Mounting (3.562"') | 2 | Call for availability | ||
| J-8 | 545001-1 | Screw- Range Case ( .500"-13 X 1 .375'') | 16 | $2.59 | Add to Cart | |
| J-9 | 545025-1 | Elbow- 90 Degree | 1 | $20.33 | Add to Cart |
Range Piston Housing and Shift Fork Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 201-66-23-2X | S/Assy Fork And Rod Range | 1 | Call for availability | ||
| K-2 | 545045 | Nut- Piston Rod - Range | 1 | $3.15 | Add to Cart | |
| K-3 | 201-501-2-1X | S/Assy- Piston Housing - Range (Includes K-4 Thru K-6) | 1 | $334.54 | Add to Cart | |
| K-4 | Housing Piston Range | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| K-5 | 545025-1 | Elbow- Piston Housing 90 Degree | 2 | $20.33 | Add to Cart | |
| K-6 | 545002-1 | Screw- Piston Housing ( .375"-16 X .875") | 4 | $2.23 | Add to Cart | |
| K-7 | 201-463-1 | "0 " Ring - Piston Shift- Range | 1 | $9.41 | Add to Cart | |
| K-8 | 201-463-2 | "0 " Ring - Piston Housing - Range | 1 | $6.67 | Add to Cart | |
| K-9 | 201-463-3 | "0 " Ring - Piston Rod - Range | 1 | $2.39 | Add to Cart | |
| K-10 | 183-463-6 | "0 " Ring - Piston To Rod - Range | 1 | Call for availability | ||
| K-11 | 201-136-7 | Piston - Shift- Range | 1 | $45.08 | Add to Cart |
Countershaft Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-12 | 201-22-3 | Cap - Countershaft Bearing | 2 | $21.43 | Add to Cart | |
| K-13 | 545002-1 | Screw- Bearing Cap ( .375"-16 X .875'') | 6 | $2.23 | Add to Cart | |
| and | 545002-7 | Screw- Bearing Cap ( .375"-16 X 1 .500") | 2 | $2.33 | Add to Cart | |
| and | 330969 | Lift Hook | 1 | $2.49 | Add to Cart | |
| K-14 | 500381-4 | Spacer - Filter Regulator | 4 | Call for availability | ||
| K-15 | 201-411-1 | Bracket- Filter Regulator | 1 | $4.70 | Add to Cart | |
| K-16 | 313644X | Kit- Power Control And Mounting Parts (Includes K-17 Thru K-19) | 1 | $881.94 | Add to Cart | |
| K-17 | 313042 | S/Assy Filter Regulator | 1 | $784.67 | Add to Cart | |
| K-18 | 330831 | Clamp - Filter Regulator Mounting | 1 | Call for availability | ||
| K-19 | 545025-1 | Elbow- Filter Regulator 90 Degree | 1 | $20.33 | Add to Cart |
Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| L-1 | 201-19-8-1X | S/Assy Electronic I Mechanical Bearing Cap Rear (Includes L-2 Thru L-5) | 1 | $395.32 | Add to Cart | |
| L-2 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-3 | 201-463-8 | Seal - Bearing Cap Rear | 1 | $43.25 | Add to Cart | |
| L-4 | 545021 | Plug - Electronic Speedometer | 2 | $18.89 | Add to Cart | |
| L-5 | 55-334-1 | Plug - Speedometer Outlet | 1 | $88.44 | Add to Cart | |
| L-7 | 201-228-2-1 | Shim - Output Shaft (.005 Thick) | AIR | Call for availability | ||
| L-7 | 201-228-2-2 | Shim - Output Shaft (.01 0 Thick) | AIR | Call for availability | ||
| L-7 | 201-228-2-3 | Shim - Output Shaft (.015 Thick) | AIR | Call for availability | ||
| L-7 | 201-228-2-4 | Shim - Output Shaft (.020 Thick) | AIR | Call for availability | ||
| L-7 | 201-228-2-5 | Shim - Output Shaft (.030 Thick) | AIR | Call for availability | ||
| L-8 | 545002-6 | Screw- Bearing Cap Rear (.375"-16 X .250'') | 4 | $2.29 | Add to Cart |
Following Parts Are Not Included in Above Assemblies:
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 201-420-5-1X | Harness - Air Tubing (48" Long) | 1 | No longer available - Call for replacement | ||
| P-1 | 201-420-5-ZX | Harness - Air Tubing (92" Long For Remote Control Use) | 1 | Call for availability | ||
| P-2 | 97-463-7 | "0 " Ring - Retaining Air Harness | 3 | $2.61 | Add to Cart | |
| P-3 | 201-483-3 | Boot- Floorboard (Oval) | 1 | $27.62 | Add to Cart | |
| P-3 | 201-483-4 | Boot- Floorboard (Oval) | 1 | Call for availability | ||
| P-3 | 201-483-5 | Boot- Floorboard (Rectangular) | 1 | Call for availability | ||
| P-3 | 313766X | Shift Knob Assy (Includes P-4 Thru P-11) | 1 | No longer available - Call for replacement | ||
| P-4 | 201-20-6 | Insert - Shift Pattern | 1 | $31.05 | Add to Cart | |
| P-5 | 201-118-5 | Gasket- Shift Knob | 1 | $2.56 | Add to Cart | |
| P-6 | 500370-4 | Nut- Shift Knob Retaining | 1 | Call for availability | ||
| P-7 | 500357-13 | Washer- Shift Knob Retaining | 1 | $2.33 | Add to Cart | |
| P-8 | 204-W | Washer- Shift Knob Stop | 1 | Call for availability | ||
| P-9 | Knob - Shift Air Valve (Serviced As 313766X) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| P-10 | 201-205-1 | Index Washer | 1 | Call for availability | ||
| P-11 | 201-438-8 | Roll Pin - Shift Knob | 1 | $2.79 | Add to Cart | |
| N .S | 201-420-7 | Tube Support | NR | Call for availability | ||
| P-12A | S/Assy Shift Lever (Single Crimp Isolator Style) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| P-12B | S/Assy Shift Lever (Double Crimp Isolator Style) (Includes Lower End) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| P-13 | 545063 | Set Screw (Single Crimp Style Isolator Only) | 1 | $6.27 | Add to Cart | |
| P-18 | 101-483-2 | Boot- Shift Tower & Lever | 1 | $26.15 | Add to Cart | |
| N .S | 33Q-15-1 | Tie Cable (Upper) | 1 | Call for availability | ||
| N .S | 33Q-15-2 | Tie Cable (Lower) | 1 | Call for availability | ||
| P-19 | 97-381-11 | Snap Ring | 1 | $11.83 | Add to Cart | |
| P-20 | 34Q-8 | Ring - Outer | 2 | $248.46 | Add to Cart | |
| P-21 | 34Q-7 | Ring -Inner | 2 | $248.46 | Add to Cart | |
| P-23 | 201-72-3 | Spring - Disc | 2 | $248.46 | Add to Cart | |
| N .S | 201-17-2X | S/Assy Tower Housing (Includes P-24 & P-25) | 1 | $284.86 | Add to Cart | |
| N .S | 201-17-3X | S/Assy Tower Housing (Includes P-24 & P-25) | 1 | Call for availability | ||
| P-24 | Tower- (6 .312" Fulcrum) (Serviced As 201 -17-2X) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| P-25 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| P-26 | 201-118-2 | Gasket- Tower Housing | 1 | $3.83 | Add to Cart | |
| P-27 | 545028-2 | Screw- Tower Housing | 6 | $2.87 | Add to Cart |
Following Parts Are Not Included in Above Assembly:
Item RC-6Item RC-1Item RC-3Item RC-2Item RC-4Item RC-7Item RC-29Item RC-8Item RC-9Item RC-30Item RC-18Item RC-11Item RC-17Item RC-16Item RC-15Item RC-22Item RC-23Item RC-16Item RC-13Item RC-12Item RC-20Item RC-21Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-18-6-3X | Remote Control Assembly | 1 | Call for availability | |||
| RC-1 | 201-18-GX | S/Assy Remote Control Housing Bushings And Ball Joint | 1 | Call for availability | ||
| RC-2 | Remote Control Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| RC-3 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| RC-4 | 40-24-1 | Bushing - Remote Control Housing | 2 | Call for availability | ||
| RC-6 | 28P-19 | Seal - Remote Control Housing | 1 | Call for availability | ||
| RC-7 | 201-65-5 | Rod - Inner Shift Control | 1 | $41.45 | Add to Cart | |
| RC-8 | 97-483-3 | Boot- Shift Rod Rubber | 1 | Call for availability | ||
| RC-9 | 33Q-15-1 | Tie - Cable | 2 | Call for availability | ||
| RC-10 | 545136 | Bolt- Outer Shift Lever | 1 | Call for availability | ||
| RC-11 | 201-6-3 | Lever- Remote Outer Shift Control | 1 | $92.60 | Add to Cart | |
| RC-12 | 500371-3 | Nut- Ball Stud | 2 | $2.29 | Add to Cart | |
| RC-12 | 500024-5 | Cotter Pin | 1 | Call for availability | ||
| RC-13 | 500362-11 | Lock Washer | 2 | Call for availability | ||
| RC-14 | 201-6-11-1X | S/Assy Selector Lever And Arm (Includes RC-15 Thru RC-22) | 1 | Call for availability | ||
| RC-15 | 545117 | Ball - Stud Selection Lever | 1 | Call for availability | ||
| RC-16 | 201-999-3 | Bearing - Race Selector Lever | 2 | Call for availability | ||
| RC-17 | 201-483-2 | Boot- Selection Lever | 1 | Call for availability | ||
| RC-18 | Lever- Selection | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S. | 313727X | Kit- Parts (Includes RC-19 And RC-20) | 1 | Call for availability | ||
| RC-19 | Nipple Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| RC-20 | Retainer- Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| RC-21 | 201-381-4 | Snap Ring - Selection Lever | 1 | Call for availability | ||
| RC-22 | 201-72-10 | Spring - Disc Selection Lever | 1 | Call for availability | ||
| RC-23 | 313673 | Ball Joint- Female | 1 | $46.61 | Add to Cart | |
| RC-24 | 545114 | Jam Nut- Turnbuckle | 2 | Call for availability | ||
| RC-25 | 201-65-6 | Tie Rod | 1 | Call for availability | ||
| RC-26 | 73Q-2 | Turn Buckle | 1 | Call for availability | ||
| RC-27 | 545113 | Jam Nut- Turnbuckle (Left Hand) | 1 | Call for availability | ||
| RC-28 | 313715 | Ball Joint- Male ( .500-13 Unc Thread On End Into Housing) | 1 | Call for availability | ||
| RC-29 | 201-6-2 | Finger- Inner Shift | 1 | $146.95 | Add to Cart | |
| RC-30 | 545137 | Screw- Shift Finger | 1 | Call for availability | ||
| N .S | 545028-2 | Screw- Control Housing ( .438"-14 X 1 .500'') | 6 | $2.87 | Add to Cart | |
| N .S | 201-118-2 | Gasket- Tower Housing | 1 | $3.83 | Add to Cart |
Service Parts Overhaul KITS
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313400-76X | Major Overhaul Kit | 1 | $1,272.81 | Superseded by 2014001XAdd to Cart | ||
| 313432-33X | Kit- Minor Overhaul | 1 | $998.94 | Add to Cart | ||
| 313669X | Range Piston Housing Repair | 1 | Call for availability | |||
| 313429-23X | Kit- Shift Tower Repair Parts | 1 | $85.70 | Add to Cart | ||
| 201-35-2 | Shaft-Input (2 .000"-10 Spline #306 (1 .180" Dia .) Pilot) | 1 | Call for availability | |||
| 201-210-4-1 | Key- Countershaft Gear Rear | 2 | $4.64 | Add to Cart | ||
| 201-210-4-2 | Key- Countershaft Gear Middle | 2 | $4.19 | Add to Cart | ||
| 201-210-4-3 | Key- Countershaft Gear Front | 2 | $11.02 | Add to Cart | ||
| 201-438-6-1X | Kit- Overdrive Shift Fork Mounting Pin And Snap Ring | 1 | $6.22 | Add to Cart | ||
| 201-438-7-1X | Kit- Overdrive Shift Fork Bracket Pin And Snap Rings | 1 | $9.95 | Add to Cart | ||
| 201-47-4 | Washer- Output Shaft Thrust (Range) | 1 | $34.68 | Add to Cart | ||
| 201-47-6 | Ring - Range Mainshaft Drive Gear Thrust | 1 | $33.46 | Add to Cart | ||
| 330955 | Washer- Countershaft Reverse Idler Thrust (Range) | 2 | $20.01 | Add to Cart | ||
| 500007-24 | Key- Woodruff PTO Gear | 2 | Call for availability | |||
| 545065 | Nut- Mainshaft | 1 | $31.43 | Add to Cart | ||
| 2367 | Manual - Service (PS0-1 0) | 1 | Call for availability | |||
| 2370 | Manual - Service (Automate) | 1 | Call for availability | |||
| 2783 | Bulletin - Mainshaft Nut (Loclite Application) | 1 | Call for availability | |||
| 312475-45X | Kit- Gasket | 1 | $37.46 | Add to Cart | ||
| 313667X | Kit- Shim | 1 | $39.63 | Add to Cart | ||
| 201-381-1 | Ring - Snap Input Shaft | 1 | $3.15 | Add to Cart | ||
| 201-381-3 | Ring -Snap Mainshaft Range Drive Gear | 1 | $8.09 | Add to Cart | ||
| 201-463-26 | "0 " Ring - Countershaft Front | 2 | $20.25 | Add to Cart | ||
| 2863 | Bulletin - "0 " Ring Installation Instructions For Spicer Lite Series | 1 | Call for availability | |||
| 201-463-8 | Seal - Output Shaft Rear Bearing Cap | 1 | $43.25 | Add to Cart | ||
| 545080-1 | Anaerobic Sealant- Mainshaft Nut (0 .5 Cc Vial) | 1 | Call for availability | |||
| 97-463-36-1X | Oil Seal - Drive Gear Bearing Cap (W/Lnstallation Tool) | 1 | $38.68 | Add to Cart | ||
| 313628X | S/Assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | ||
| 313668X | Kit- Output Shaft Gear Needle Bearing | 1 | $78.71 | Add to Cart | ||
| 550996 | Bearing - Countershaft Front | 2 | $61.00 | Add to Cart | ||
| 550998 | Bearing - Countershait Rear | 2 | $135.42 | Add to Cart | ||
| 313645X | S/Assy Bearing And Belleville Snap Ring (Input Shaft) | 1 | $183.51 | Add to Cart | ||
| 550182 | Bearing - Countershaft Rear Cone | 2 | $36.48 | Add to Cart | ||
| 550375 | Bearing - Countershaft Rear Cup | 2 | $17.99 | Add to Cart | ||
| 551010 | Bearing - Countershaft Front Cup (Before Ssn #J930506005) | 2 | Call for availability | |||
| 551011 | Bearing - Countershaft Front Cone (Before Ssn #J930506005) | 2 | Call for availability | |||
| 551013 | Bearing - Countershaft Front Cone (Alter Ssn #J930506005) | 2 | $49.38 | Add to Cart | ||
| 550997 | Bearing - Reverse Idler Needle | 2 | $14.83 | Add to Cart |
Service Parts Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313669X | Kit - Range Piston Housing Repair (Included In Major Overhaul Kit) | 1 | Call for availability | |||
| 183-463-6 | "0 " -Ring - Splitter Or Range Piston | 1 | Call for availability | |||
| 201-463-1 | "0 " -Ring - Range Shift Piston | 1 | $9.41 | Add to Cart | ||
| 201-463-2 | "0 " -Ring - Range Piston Housing | 1 | $6.67 | Add to Cart | ||
| 201-463-3 | "0 " -Ring - Range Piston Rod | 1 | $2.39 | Add to Cart | ||
| 2726 | Bulletin - "0 " Ring Lubrication Instruction | 1 | Call for availability | |||
| 330895 | Lubricant - "0 " Ring | 1 | Call for availability | |||
| 313429-23X | Kit- Shift Tower Small Parts Repair (Included In Major Overhaul Kit) | 1 | $85.70 | Add to Cart | ||
| 201-438-2 | Pin -Actuating Back-Up Light | 1 | $3.68 | Add to Cart | ||
| 201-438-5 | Pin -Air Control Valve | 3 | Call for availability | |||
| 201-487-1 | Insert- Poppet Spring And Ball | 3 | Call for availability | |||
| 201-72-2 | Spring - Shift Rail Poppet | 3 | $3.23 | Add to Cart | ||
| 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | ||
| 40-438-1 | Pin - 1st And Reverse Select Plunger | 2 | Call for availability | |||
| 20172-6 | Spring - 1st And Reverse Shift Plunger | 2 | Call for availability | |||
| 312475-45X | Gasket Kit (Included In Major And Minor Overhaul Kit) | 1 | $37.46 | Add to Cart | ||
| 201-118-1 | Gasket- Williams Air Control Valve | 1 | $6.27 | Add to Cart | ||
| 201-118-2 | Gasket- Tower Housing | 1 | $3.83 | Add to Cart | ||
| 201-155-3 | Gasket- Upper Tower | 1 | Call for availability | |||
| 2824 | Bulletin -Anaerobic Sealant Application | 1 | Call for availability | |||
| 545056-10 | Anaerobic Sealant- 50cc Tube | 1 | Call for availability | |||
| 313667X | Shim Kit (Included In Major And Minor Overhaul Kit) | 1 | $39.63 | Add to Cart | ||
| 2825 | Bulletin - Countershaft Shim Instructions | 1 | Call for availability | |||
| 201-228-1-1 | Shim - Countershaft Rear Bearing ( .005" Thick) | 4 | Call for availability | |||
| 201-228-1-2 | Shim - Countershaft Rear Bearing (.01 0" Thick) | 4 | Call for availability | |||
| 201-228-1-3 | Shim - Countershaft Rear Bearing ( .015" Thick) | 4 | Call for availability | |||
| 201-228-1-4 | Shim - Countershaft Rear Bearing ( .020" Thick) | 4 | Call for availability | |||
| 201-228-1-5 | Shim - Countershaft Rear Bearing ( .030" Thick) | 4 | Call for availability | |||
| 201-228-2-1 | Shim - Output Shaft ( .005" Thick) | 1 | Call for availability | |||
| 201-228-2-2 | Shim - Output Shaft (.01 0" Thick) | 1 | Call for availability | |||
| 201-228-2-3 | Shim - Output Shaft ( .015" Thick) | 1 | Call for availability | |||
| 201-228-2-4 | Shim - Output Shaft ( .020" Thick) | 1 | Call for availability | |||
| 201-228-2-5 | Shim - Output Shaft ( .030" Thick) | 1 | Call for availability | |||
| CP-1 | 313292-1X | Kit - Countershaft Oil Pump | 1 | $2,132.71 | Add to Cart | |
| CP-1A | 313292 | Oil Pump | 1 | Call for availability | ||
| CP-2 | 545005-7 | Screw- Oil Pump (.312-18 X .875) | 4 | Call for availability | ||
| CP-3 | 70-223-25 | Gasket- Countershaft Oil Pump Mounting | 1 | $4.82 | Add to Cart | |
| CP-4 | 201-22-2 | Countershaft Rear Bearing Cap Adapter (Right Side) | 1 | Call for availability | ||
| CP-5 | 313117-5 | Hose Assembly. - Outlet To Pump Inlet | 1 | Call for availability | ||
| CP-6 | 313697X | Filter- Oil Screen | 1 | Call for availability | ||
| CP-7 | 545002-1 | Screw- Countershaft Rear Bearing Cap | 4 | $2.23 | Add to Cart | |
| CP-8 | 545051 | Elbow- Oil Return Hole And Pump Inlet | 2 | Call for availability | ||
| CP-9 | 545049-2 | Nipple - Pump Outlet | 1 | Call for availability | ||
| CP-10 | 545140 | Elbow- Pump Outlet | 1 | Call for availability | ||
| N .S. | 2834 | Bulletin - Installation | 1 | Call for availability | ||
| N .S | 545056-10 | Anaerobic Sealant- 50cc Tube | 1 | Call for availability | ||
| AC-1 | 201-420-2-3 | Tubing Air .250" 0 .0 (Red) | 1 | Call for availability | ||
| AC-2 | 201-420-3-3 | Tubing Air .250" 0 .0 (Green) | 1 | Call for availability | ||
| AC-3 | 201-420-4-3 | Tubing Air .250" 0 .0 (Black) | 1 | Call for availability | ||
| N .S | 201-420-9 | Tubing Convoluted Condutt | 1 | Call for availability |

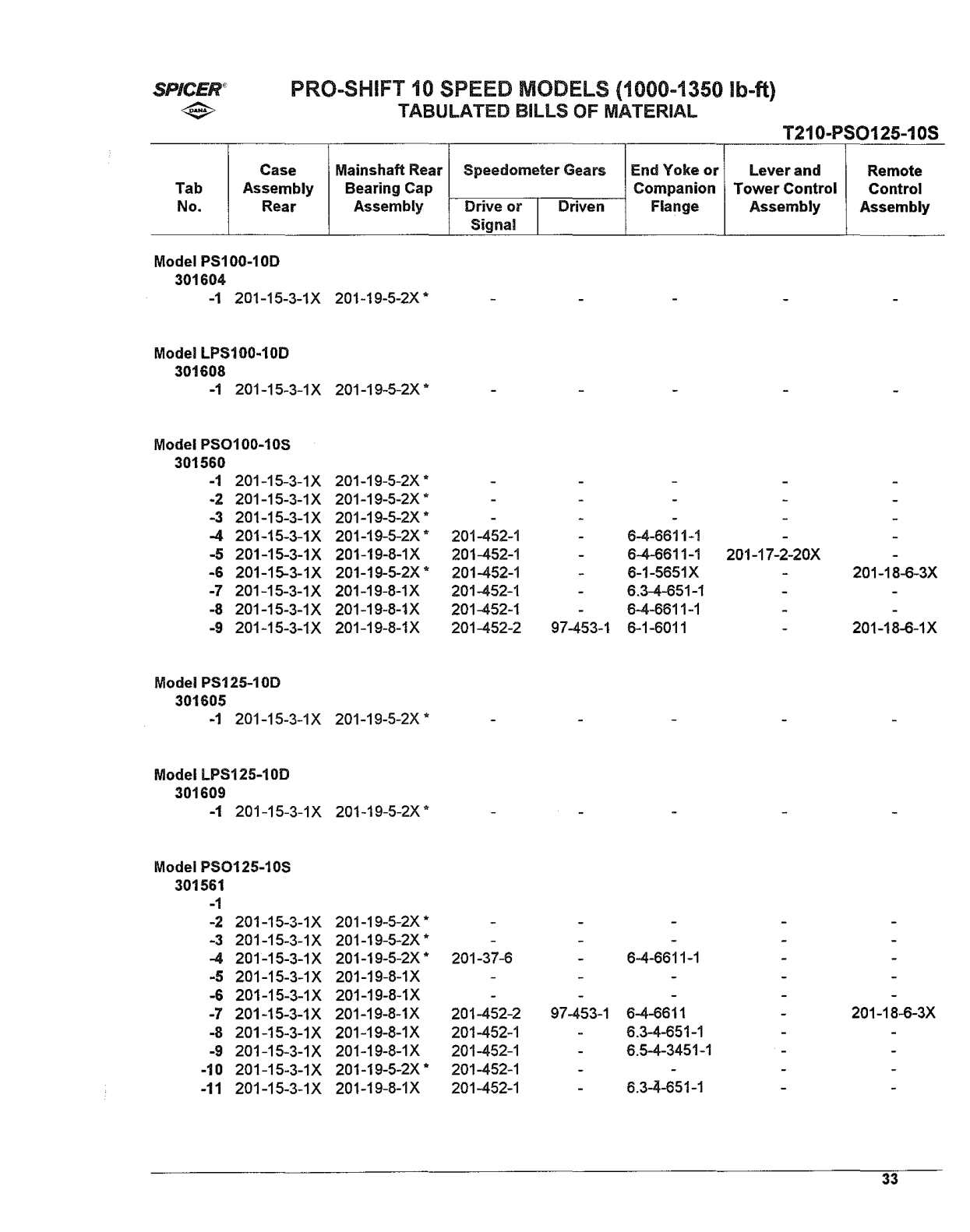

Tabulated Bills of Material

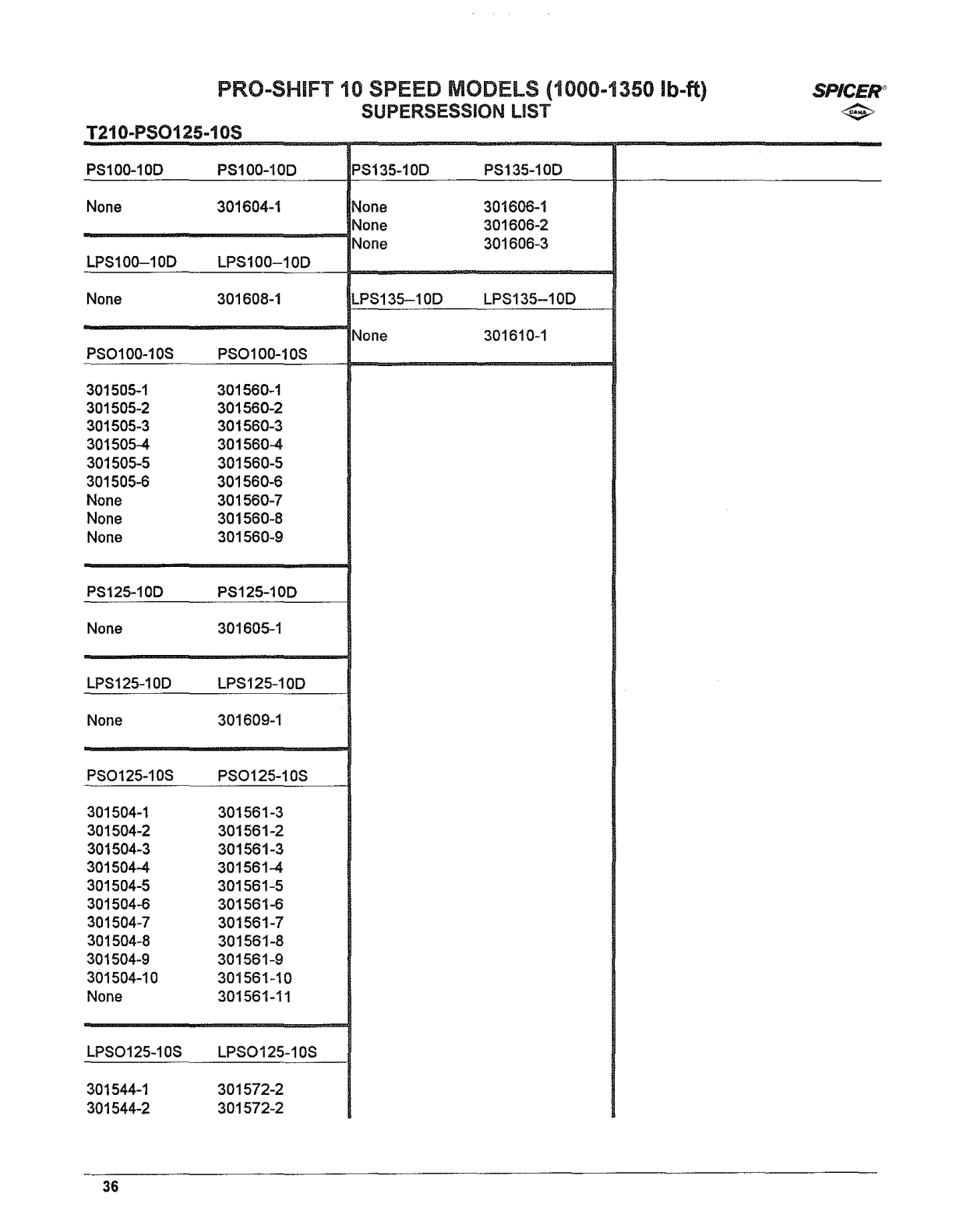

Supersession List (bills of Material)
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission LPS0125-10S, with every part in the manual matched to our live inventory. We stock 201 of the 389 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the PS125-10D transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | PS125-10D |
| Transmission type | 10-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 40 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
