Spicer PS125-9A Parts Manual
Drive Gear Group-Input Main Section
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-1 | 201-35-2 | Shaft-input 2 .00"-10 Spline #306 (1 .180" Dia .) Pilot | 1 | — | Call for availability | |
| A-1 | 201-35-6 | Shaft-input 1 .75"-10 Spline #205 ( .983" Dia .) Pilot | 1 | — | Call for availability | |
| A-1 | 201-35-7 | Shaft-input 1 .75"-10 Spline #306 (1 .180" Dia .) Pilot | 1 | — | Call for availability | |
| A-2 | 313645X | S/assy. - Bearing & Belleville Snap Ring | 1 | $183.51 | Add to Cart | |
| A-3 | 201-381-1 | Snap Ring - Input Shaft | 1 | $3.15 | Add to Cart |

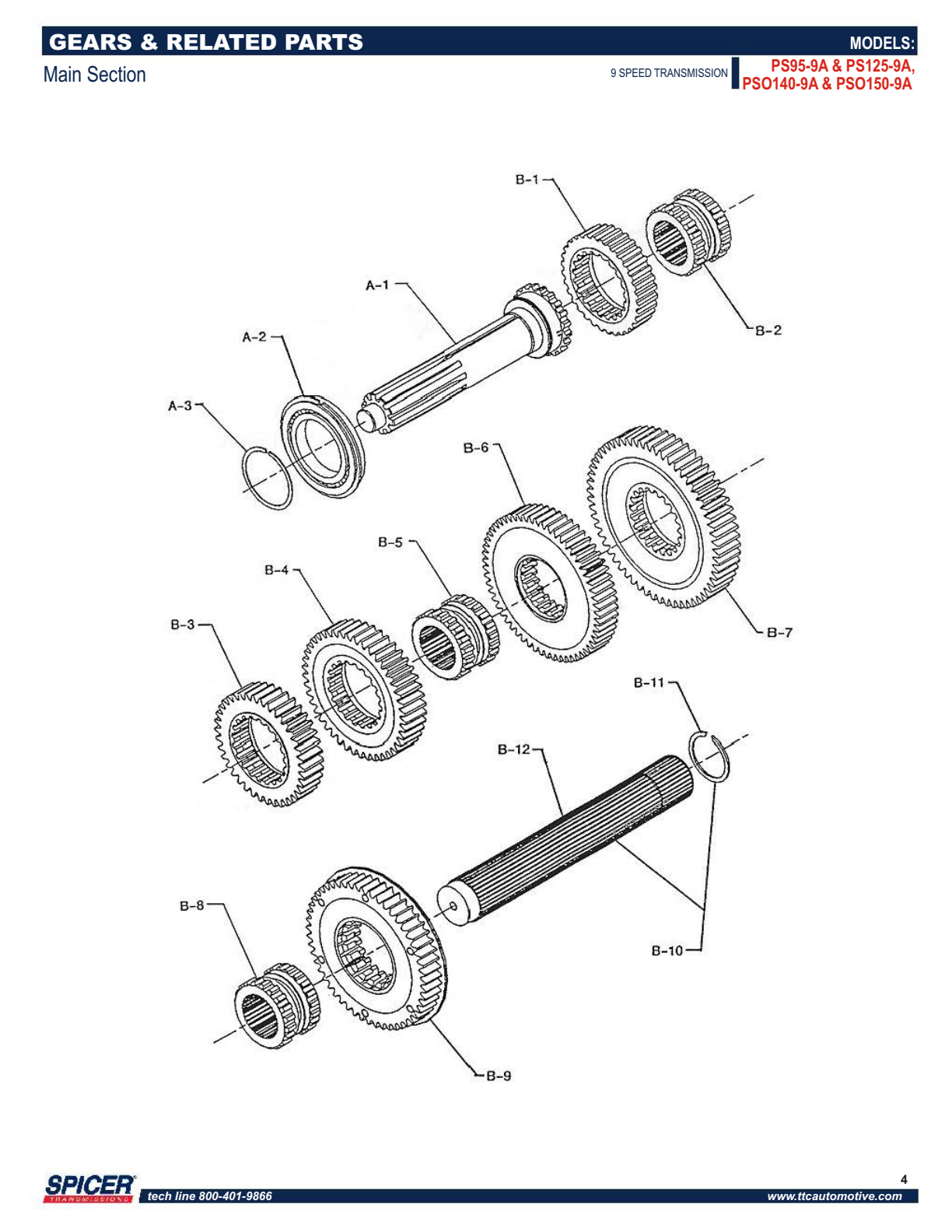

Mainshaft Group Main Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 201-8-16 | Nla Use 201 -8-43-1X Kit | 1 | $1,191.00 | Superseded by 2018431XAdd to Cart | |
| B-1 | 201-8-43 | Gear Drive (5th & 9th) (40T) (for Ps Direct Transmission) | 1 | $377.24 | Add to Cart | |
| B-1 | 201-8-2 | Gear - Drive (4th & 8th) (38T) (for Pso-overdrive Transmission) | 1 | $220.08 | Add to Cart | |
| B-2 | 201-465-2 | Collar M/s Clutch (4th 5th & 8th 9th) (for Ps Direct Transmission) | 1 | $176.98 | Add to Cart | |
| B-2 | 201-465-5 | Collar M/s Clutch (4th 5th & 8th 9th) (for Pso-overdrive Transmission) | 1 | $172.90 | Add to Cart | |
| B-3 | 201-8-2 | Gear - Mainshaft (4th & 8th) (38T) (for Ps Direct Transmission) | 1 | $220.08 | Add to Cart | |
| B-3 | 201-8-16 | Nla Use 201 -8-43-1X Kit | 1 | $1,191.00 | Superseded by 2018431XAdd to Cart | |
| B-3 | 201-8-43 | Gear-mainshaft (5th & 9th) (40T) (for Pso-overdrive Transmission) | $377.24 | Add to Cart | ||
| B-4 | 201-8-4 | Gear - Mainshaft (3rd & 7th) (44T) | 1 | $283.97 | Add to Cart | |
| B-5 | 201-465-2 | Collar M/s Clutch (2nd 3rd & 6th 7th) | 1 | $176.98 | Add to Cart | |
| B-6 | 201-8-37 | Gear - Mainshaft (2nd & 6th) (58T) | 1 | $570.78 | Add to Cart | |
| B-7 | 201-8-35 | Gear - Mainshaft (1st) (58T) | 1 | $428.31 | Add to Cart | |
| B-8 | 201-465-2 | Collar - M/s Clutch (1st & Rev.) | 1 | $176.98 | Add to Cart | |
| B-9 | 201-8-10-1X | Gear - M/shaft Reverse (includes Thrust Ring & Reivets) | 1 | $657.38 | Add to Cart | |
| B-10 | 201-362-1 | -1X Kit - Mainshaft & Snap Ring | 1 | — | Call for availability | |
| B-11 | 201-381-3 | Snap Ring - Mainshaft Drive Gear - Range | 1 | $8.09 | Add to Cart | |
| B-12 | Mainshaft | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability |

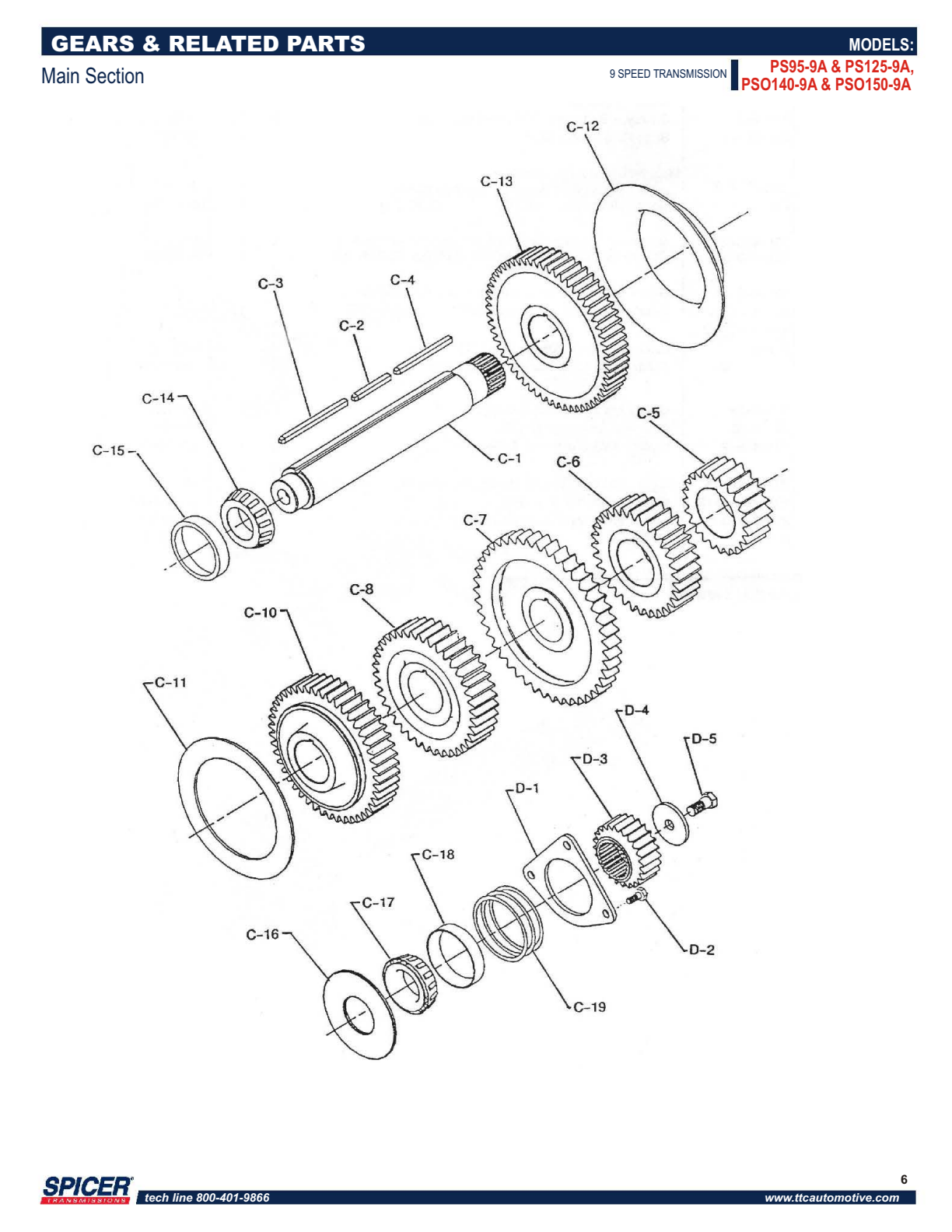

Countershaft Group Main Section
Item C-12Item C-13Item C-3Item C-4Item C-2Item C-14Item C-5Item C-15Item C-6Item C-8Item D-5Item D-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 201-30-2 | Countershaft - Main (before S/n J930506005) | 2 | — | Call for availability | |
| C-1 | 201-30-14 | Countershaft - Main (after S/n J930506005) | 2 | $467.45 | Add to Cart | |
| C-2 | 201-210-4-2 | Key - Countershaft Gear - Middle | 2 | $4.19 | Add to Cart | |
| C-3 | 201-210-4-3 | Key - Countershaft Gear - Front | 2 | $11.02 | Add to Cart | |
| C-4 | 201-210-4-1 | Key - Countershaft Gear - Rear | 2 | $4.64 | Add to Cart | |
| C-5 | 201-196-31 | Gear - Countershaft (1st) (24T) | 2 | — | Call for availability | |
| C-6 | 201-196-33 | Gear - Countershaft (2nd & 6th) (37T) | 2 | $222.70 | Add to Cart | |
| C-6 | 201-312-2 | S/s By 313762X Kit | 1 | — | Call for availability | |
| C-7 | 201-312-3 | Gear - Countershaft Pto Drive | 2 | $280.05 | Add to Cart | |
| C-7 | 201-196-6 | Nla S/s By 313762X Kit | 1 | — | Call for availability | |
| C-8 | 201-196-44 | Gear - Countershaft (3rd & 7th) (39T) | 2 | $220.85 | Add to Cart | |
| C-10 | 201-196-2 | Gear - Countershaft (4th & 8th) (46T) (for Ps) | 2 | $278.42 | Add to Cart | |
| C-10 | 201-196-14 | Nla S/s By 201 -8-43-1X Kit | 1 | $1,191.00 | Superseded by 2018431XAdd to Cart | |
| C-10 | 201-196-35 | Gear - Countershaft (4th & 8th) (52T) (for Pso) | 2 | $279.21 | Add to Cart | |
| C-11 | 201-47-2 | Ring - Countershaft Thrust (flat) | 2 | $20.15 | Add to Cart | |
| C-12 | 201-47-5 | Ring - Countershaft H .r. Gear Thrust | 2 | $52.11 | Add to Cart | |
| C-12 | 201-196-14 | Nla S/s To 201 -8-43-1X Kit | 1 | $1,191.00 | Superseded by 2018431XAdd to Cart | |
| C-13 | 201-196-35 | Gear Countershaft H .e (5th & 9th) (65T) (for Ps) | 2 | $279.21 | Add to Cart | |
| C-13 | 201-196-2 | Gear Countershaft H .e (5th & 9th) (46T) (for Pso) | 2 | $278.42 | Add to Cart | |
| C-14 | 551011 | Bearing - Cone Front Countershaft (before S/n J930506005) | 2 | — | Call for availability | |
| Or | 551013 | Bearing - Cone Front Countershaft (after S/n J930506005) | 2 | $49.38 | Add to Cart | |
| C-15 | 551010 | Bearing - Cup Front Countershaft (before S/n J930506005) | 2 | — | Call for availability | |
| Or | 550375 | Bearing - Cup Front Countershaft (after S/n J930506005) | 2 | $17.99 | Add to Cart | |
| C-16 | 201-47-3 | Ring - Countershaft (1st) Thrust | 2 | $14.83 | Add to Cart | |
| C-17 | 550182 | Bearing - Cone Rear Countershaft | 2 | $36.48 | Add to Cart | |
| C-18 | 550375 | Bearing - Cup Rear Countershaft | 2 | $17.99 | Add to Cart | |
| C-19 | 201-228-1-1 | Shim - Countershaft Rear Bearing ( .005 Thick) | A/R | — | Call for availability | |
| C-19 | 201-228-1-2 | Shim - Countershaft Rear Bearing ( .010 Thick) | A/R | — | Call for availability | |
| C-19 | 201-228-1-3 | Shim - Countershaft Rear Bearing ( .015 Thick) | A/R | — | Call for availability | |
| C-19 | 201-228-1-4 | Shim - Countershaft Rear Bearing ( .020 Thick) | A/R | — | Call for availability | |
| C-19 | 201-228-1-5 | Shim - Countershaft Rear Bearing ( .030 Thick) | A/R | — | Call for availability | |
| D-1 | 201-360-1 | Plate - Retainer Countershaft (with Opti-lube Use 1 ) | 2 | $10.03 | Add to Cart | |
| D-2 | 545002-1 | Screw - Plate Retaining Countershaft | 6 | $2.23 | Add to Cart | |
| D-3 | 201-196-12 | Gear - Countershaft Reverse - Range (21T) | 2 | $279.20 | Add to Cart | |
| D-4 | 330952 | Washer - Countershaft Reverse Drive Gear Retaining | 2 | $3.00 | Add to Cart | |
| D-5 | 545001-5 | Screw - Reverse Drive Gear Retaining Washer | 2 | — | Call for availability |
Bearing • Needle Re ,seldlet 2
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-10 201 | 466-2 | Gear Clutch Omle Ringo) I | — | Call for availability | ||
| E-13 | 201-563 | ·1 -ix Synchronizer · High & Low(lndudn E-14 E-15, E· 16) I | — | Call for availability | ||
| E-14 | Siassy Synohrontzor Low Rongo I | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| E-15 | S/assy • Synchronizer· High Range I | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| E-16 | 201-72-9-IX | Klt ·synchronizer Spnrlll' (ondudh (3) Springs) I | — | Call for availability | ||
| E-16 | Not Sold Soporatoly | Not sold separately - order the sub-assembly it belongs to | — | Call for availability |

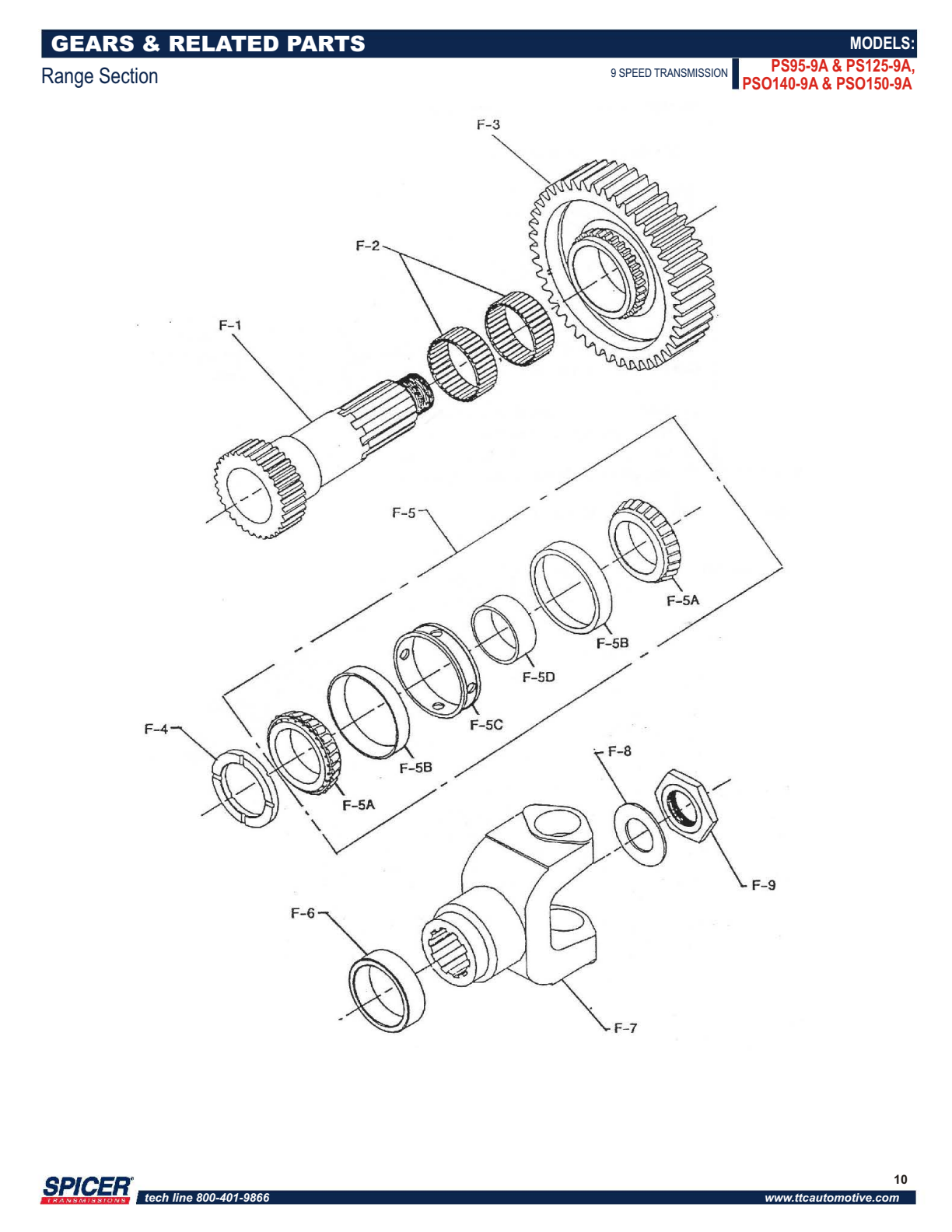

Mainshaft Group - Output Range Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 201-362-3 | Output Shaft | 1 | — | Call for availability | |
| F-2 | 313668X | Kit - Needle Bearing - Output Shaft | 1 | $78.71 | Add to Cart | |
| F-3 | 201-8-41 | Gear - Output - Low Range (52T) | 1 | — | No longer available — call for replacement | |
| F-4 | 201-47-4 | Washer - Thrust Output Shaft | 1 | $34.68 | Add to Cart | |
| F-5 | 313628X | S/assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | |
| F-5A | Bearing Cone Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5B | Bearing Cupy Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5C | Spacer Bearing Cup Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5D | Spacer Bearing Cone Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-6 | 201-37-6 | Spacer - Speedometer | 1 | — | Call for availability | |
| F-6 | 201-452-1 | Electronic Speedometer Signal Gear (16 Grooves) | 1 | $86.79 | Add to Cart | |
| F-6 | 201-452-2 | Speedometer Drive Gear (4T) | 1 | — | Call for availability | |
| F-6 | 97-453-1 | Speedometer Driven Gear (12T) | 1 | — | Call for availability | |
| F-6 | 201-452-3 | Speedometer Drive Gear (8T) | 1 | — | Call for availability | |
| F-6 | 97-453-7 | Speedometer Driven Gear (16T) | 1 | — | Call for availability | |
| F-8 | 330734 | Washer - Output Shaft Nut 1 | $6.27 | Add to Cart | ||
| F-9 | 545065 | Nut-output Shaft (1 .75" - 16 Unef - 3B) | 1 | $31.43 | Add to Cart | |
| F-9 | Not Sold Seperately | Not sold separately - order the sub-assembly it belongs to | — | Call for availability |
Clutch Housing Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-1 | 201-518-21-2X | Clutch Housing ,hand Hole Cover,oil Troughts And Bushings (sae #1 Iron) | 1 | — | Call for availability | |
| G-1 | 201-518-14-5X | Clutch Housing ,hand Hole Cover,oil Troughts And Bushings (sae #2 Iron) | 1 | $1,391.14 | Add to Cart | |
| G-1 | 201-518-25-2X | Clutch Housing ,hand Hole Cover,oil Troughts And Bushings (sae #1 Iron) | 1 | — | Call for availability | |
| G-1 | 201-518-20-2X | Clutch Housing ,hand Hole Cover,oil Troughts And Bushings (sae #1) | 1 | — | Call for availability | |
| N .S | 201-463-26 | "o”ring-countershaft Front (aluminum Clutch Housings Only) | 2 | $20.25 | Add to Cart | |
| G-1A | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-2 | 97-24-8 | Bushing - Clutch Release Shaft | 4 | $5.45 | Add to Cart | |
| G-3 | 97-96-18-1X | S/assy. - Hand Hole Cover | 1 | — | Call for availability | |
| G-4 | 201-468-1 | Oil Trough - Countershaft | 2 | $16.37 | Add to Cart | |
| G-5 | 545002-13 | Screw - Oil Troughs (2 Each) | 6 | $2.29 | Add to Cart | |
| G-6 | 201-468-2 | Oil Trough - Drive Gear (n .l .a)(less Opti-lube Only)(301504- ,505 ,544) | 1 | — | Call for availability | |
| G-7 | 40-477-1 | Support - Shift Rails (front & Rear) | 2 | $12.28 | Add to Cart | |
| G-7A | 201-477-3 | Support - Shift Rails (front)(neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-7B | 201-200-6 | Plate-lift(neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-7C | 201-438-15-3 | Pin-Roll(2 .125")(Neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-8 | 545002-7 | Screw - Support Bar (3 .75" - 16X1 .50") (2 Each) | 4 | $2.33 | Add to Cart | |
| G-9 | 330969 | Lift Hook | 2 | $2.49 | Add to Cart | |
| G-10 | 545001-1 | Screw - Clutch Housing ( .500" - 16 X 1 .375") | 16 | $2.59 | Add to Cart |
Front Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-11 | 201-19-2-1X | S/assy. - Drive Gear Bearing Cap And Oil Seal | 1 | $215.72 | Add to Cart | |
| G-12 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-13 | 97-463-36-1X | Oil Seal - Drive Cap Bearing Cap (w/installation Sleeve) | 1 | $38.68 | Add to Cart | |
| G-14 | 545002-1 | Screw - Drive Gear Bearing Cap ( .375" - 16 X 1 .875") | 4 | $2.23 | Add to Cart |
Main Case Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-15 | 201-15-13-1X | S/assy. -main Case (includes G-15A Thru G-18) | 1 | — | Call for availability | |
| G-15 | 201-15-9-1X | Ford Only(includes G-15A Thru G-18) | 1 | — | Call for availability | |
| G-15 | 201-15-10-1X | Aluminum | 1 | — | Call for availability | |
| N .S | 201-463-26 | "o”ring-countershaft Rear (aluminum Clutch Housings Only) | 4 | $20.25 | Add to Cart |
Clutch Housing, Front Bearing Cap & Main Case Models:
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-15A | Case | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-16 | 545123 | Plug - Filler & Drain With O-ring | 1 | $22.03 | Add to Cart | |
| G-17 | Washer Filler & Drain Plug | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-18 | 201-39-1 | Plug - Case Oil Return Hole | 1 | $2.67 | Add to Cart | |
| N .S | 330934 | Magnet- Ceramic(located @large Pto Opening) | 2 | $4.72 | Add to Cart | |
| G-19 | 500597-14 | Pin -alighnment(optilube Mounting Plate) | 4 | $2.19 | Add to Cart | |
| G-20 | 201-118-4 | Gasket Oil Outlet Cover(location Is Case Bottom) | 1 | $3.91 | Add to Cart | |
| G-21 | 201-96-5 | Cover-oil Outlet(location Is Case Bottom) | 1 | $33.96 | Add to Cart | |
| G-22 | 545002-2 | Screw-oil Outlet Cover(location Is Case Bottom) | 2 | $2.67 | Add to Cart | |
| G-23 | 201-438-3 | Pin-dowel Case | 4 | $3.75 | Add to Cart | |
| G-24 | 545012 | Screw - Pto Aperture Cover (8Hole) | 8 | $3.23 | Add to Cart | |
| G-25 | 73-267-1 | Cover - Pto (8 Hole) | 1 | $160.99 | Add to Cart | |
| G-26 | 50-267-2 | Cover - Pto (6 Hole) | 1 | $122.97 | Add to Cart | |
| G-27 | 330800 | Screw - Pto Aperture Cover | 6 | — | Call for availability | |
| G-27 | Not Sold Seperately | Not sold separately - order the sub-assembly it belongs to | — | Call for availability |

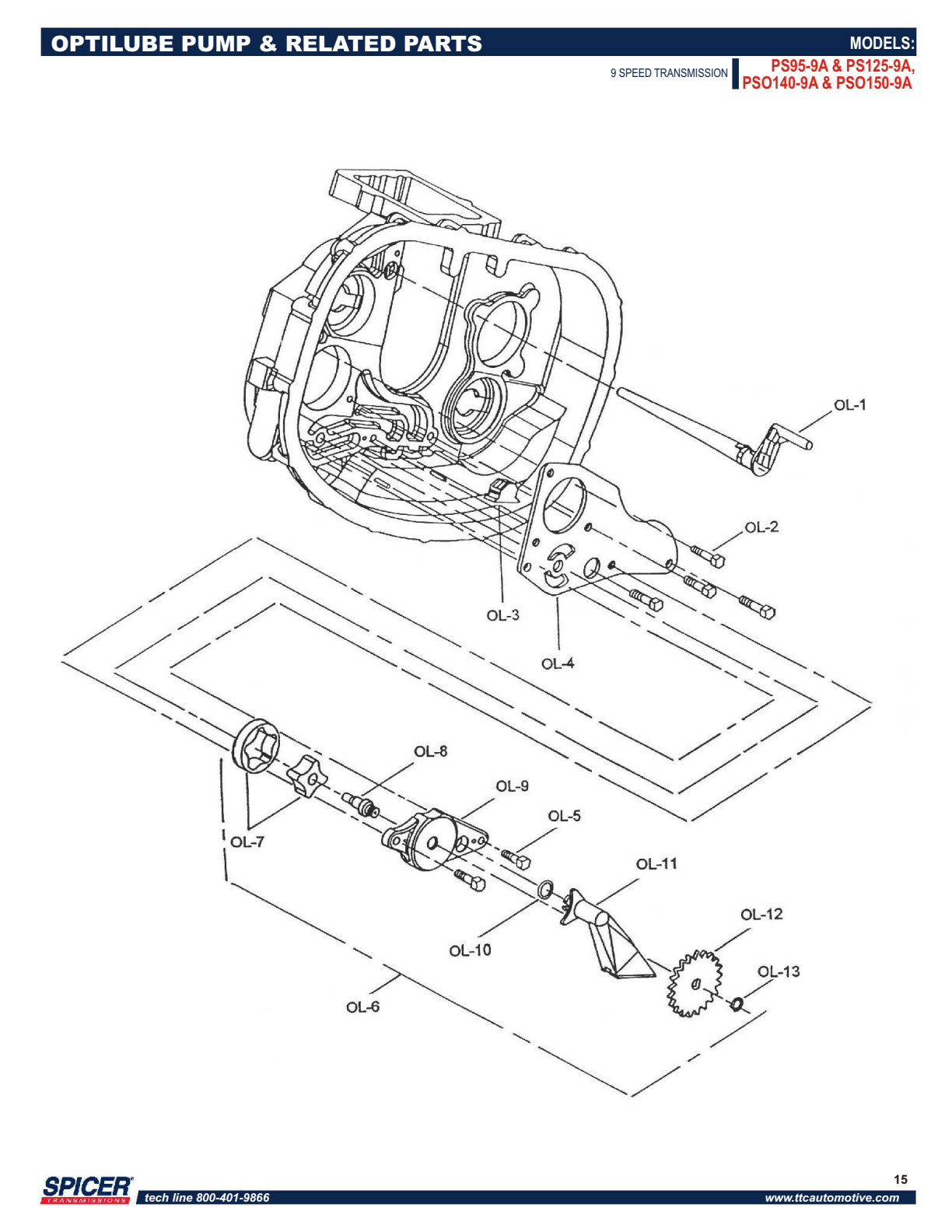

Optilube Pump & Related Parts Models:
Item OL-1Item OL-2Item OL-3Item OL-4Item OL-8Item OL-9Item OL-5Item OL-7Item OL-10Item OL-13Item OL-6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-501-11 | -2X Kit - Optilube Pump (includes OL-1 Thru OL-13) | 1 | — | Call for availability | ||
| OL-1 | 201-420-13X | S/assy - Discharge Tube | 1 | — | No longer available — call for replacement | |
| OL-2 | 545002-1 | Screw - Mounting Plate | 4 | $2.23 | Add to Cart | |
| OL-3 | 201-501-13X | S/assy. -oil Bypass Valve | 1 | $23.99 | Add to Cart | |
| OL-4 | 201-360-2 | Plate - Internal Pump Mounting | 1 | $27.70 | Add to Cart | |
| OL-5 | 545002-2 | Screw - Pump Housing | 2 | $2.67 | Add to Cart | |
| OL-6 | 201-501-11 | -1X Kit - Optilube Pump Housing And Gears (includes OL-7 Thru OL-13) | 1 | — | Call for availability | |
| OL-7 | Gerotor Element - Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-8 | Shaft - Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-9 | Housing - Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-10 | "o" Ring - Tube | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-11 | S/assy. - Inlet Tube | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-12 | Gear - Lube Pump Drive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-13 | Ring - Gear Pump Snap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability |
Interlock Parts Group
Item H-5Item H-3Item H-1Item H-7Item H-14Item H-6Item H-15Item H-18Item H-11Item H-17Item H-8Item H-13Item H-16Item H-9Item H-10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 313630X | S/assy. - Williams Control | 1 | — | Call for availability | |
| H-2 | 545025-2 | Elbow - Williams Control 90 Degrees | 2 | $28.71 | Add to Cart | |
| H-3 | 545028-6 | Screw - Williams Control ( .438" - 14x2 .2250") | 2 | $2.13 | Add to Cart | |
| H-4 | 545109 | Tee - Adapter Williams Control | 1 | $33.48 | Add to Cart | |
| H-5 | 201-449-1 | Elbow - Williams Control | 1 | $31.14 | Add to Cart | |
| H-6 | 201-118-1 | Gasket - Williams Control | 1 | — | Call for availability | |
| H-7 | 201-438-5 | Pin - Williams Air Control Valve | 3 | — | Call for availability | |
| H-8 | 545128 | Plug - 1st And Reverse Spring Plunger | 2 | $2.84 | Add to Cart | |
| H-9 | 201-72-6 | Spring - 1St And Reverse | 2 | — | Call for availability | |
| H-10 | 40-438-1 | Pin - Plunger 1St And Reverse | 2 | — | Call for availability | |
| H-11 | 313538 | Switch - Back Up Light (nav) | 1 | $31.37 | Add to Cart | |
| H-11 | 313552 | Switch - Back Up Light (paccar) | 1 | $25.15 | Add to Cart | |
| H-11 | M-556-3X | Switch - Back Up Light (mack) | 1 | $177.75 | Add to Cart | |
| H-11 | M-556-1X | Switch - Back Up Light (ford) | 1 | $59.47 | Add to Cart | |
| H-12 | 201-438-2 | Pin - Actuating Back Up Light Switch | 1 | $3.68 | Add to Cart | |
| H-13 | 201-200-1 | Interlock - Shifter Rail | 1 | $14.52 | Add to Cart | |
| H-14 | 201-200-2 | Plate - Interlock Retainer | 1 | $14.17 | Add to Cart | |
| H-15 | 330801-1 | Screw - Interlock Plate ( .438" - 14X.875") | 2 | $2.67 | Add to Cart | |
| H-16 | 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | |
| H-17 | 201-72-2 | Spring - Poppet Shift Rail | 3 | $3.23 | Add to Cart | |
| H-17 | 201-72-8-1X | On Left Front Position For 9th Gear In Coe | 1 | — | Call for availability | |
| H-17 | 201-118-2 | Gasket | $3.83 | Add to Cart | ||
| H-18 | 201-487-1 | Insert - Poppet Spring & Ball | 3 | — | Call for availability | |
| N .S | 201-420-9 | Convoluted Conduit | A/R | — | Call for availability | |
| N .S | 330971 | Clamp | A/R | $21.68 | Add to Cart | |
| N .S | 201-118-2 | Gasket-shift Lever | 1 | $3.83 | Add to Cart |
Shift Bar and Fork Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| SB-1 | 313696X | Fork And Bar Assy. - 1st And Reverse | 1 | — | Call for availability | |
| SB-1 | 313795X | Fork And Bar Assy. - 1st And Reverse (neutral Start Switch Provision) | 1 | — | Call for availability | |
| SB2 | 313694X | Fork And Bar Assy. - 2nd And 3rd | 1 | — | Call for availability | |
| SB2 | 313769X | Fork And Bar Assy. - 2nd And 3rd (neutral Start Switch Provision) | 1 | — | Call for availability | |
| SB-4 | 313695X | Fork And Bar Assy. - 4th And 5th (ps Only)(direct Transmissions) | 1 | — | No longer available — call for replacement | |
| SB-4 | 313819X | Fork And Bar Assy. - 4th And 5th (ps Only) (direct Transmissions) | 1 | — | Call for availability | |
| SB-4 | 313642-1X | Bar Assy - 4th And 5th (pso Only)(overdrive Transmissions) | 1 | $189.54 | Add to Cart | |
| SB-4 | 313818-1X | Bar Assy - 4th And 5th (pso Only)(overdrive Transmissions) | 1 | $122.96 | Add to Cart | |
| and | 201-66-18-3X | Fork And Bar Assy. - 4th And 5th (pso Only)(overdrive Transmissions) | 1 | $550.14 | Add to Cart | |
| SB-5 | 545002 | Screw - Fork Mountin Bracket Overdrive ( .375" X 1 .00") | 2 | $1.98 | Add to Cart | |
| SB-6 | 201-411-3-1X | Kit - Shift Fork Mounting Bracket, Pin And Snap Rings | 1 | $90.22 | Superseded by 20141151XAdd to Cart | |
| SB-7 | Mounting Bracket Overdrive Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-8 | Pin Mounting | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-9 | Snap Ring Mounting Bracket Pin | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability |
Repair Kits for Ref No SB-4
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| SB-9 | 313642-1X | Kit - Overdrive Shift Bar, Pins And Snap Rings | 1 | $189.54 | Add to Cart | |
| SB-8 | Pin Mounting | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-9 | Snap Ring Mounting Bracket Pin | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-11 | Snap Ring Clevis Pin | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-12 | Clevis Pin Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-13 | Shift Bar 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-13 | 313818X | Kit - Overdrive Shift Fork, Pins And Snap Rings With Neutral Start | 1 | — | Call for availability | |
| SB-13 | 201-66-18-3X | Kit - Overdrive Shift Fork, Pins And Snap Rings | 1 | $550.14 | Add to Cart | |
| SB-10 | Shift Fork And Shoe Sub Assy. 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-14 | 201-486-1 | Shoe - Overdrive Shift Fork | 2 | $22.54 | Add to Cart | |
| SB-14 | 201438-10 | Pins | — | Call for availability | ||
| SB-14 | 201-438-6-1X | Kit - Mounting Pin And Snap Rings | 1 | — | Call for availability | |
| SB-12 | 201-438-7-1X | Kit - Mounting Bracket, Pins And Snap Rings | 1 | — | Call for availability |
Range Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 201-15-3-1X | S/assy. - Case (range) (includes J-1A Thru J -6) | 1 | $1,092.84 | Add to Cart | |
| J-1A | Case -range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| J-2 | NP-96 | Name Plate | 1 | $2.16 | Add to Cart | |
| J-3 | 252-SP | Pin- Name Plate | 4 | $1.90 | Add to Cart | |
| N .S | NP-196 | Patent Plate | 1 | $2.97 | Add to Cart | |
| J-4 | 545123 | Plug - Filler & Drain Magnetic | 2 | $22.03 | Add to Cart | |
| J-5 | Washer Filler & Drain Plug | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| J-6 | 201-39-1 | Plug - Temperature Indicator Hole | 1 | $2.67 | Add to Cart | |
| J-7 | 330360-7 | Stud - Rear Mounting (2 .375") | 2 | $4.65 | Add to Cart | |
| J-7 | 330360-15 | Stud - Rear Mounting (3 .562") | — | Call for availability | ||
| J-8 | 545001-1 | Screw - Range Case ( .500"-13X1 .375") | 16 | $2.59 | Add to Cart | |
| J-9 | 545025-1 | Elbow - 90 Degree | 1 | $20.33 | Add to Cart |
Range Piston Housing and Shift Fork Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 201-66-23-2X | S/assy. - Fork And Rod And Clips - Range | 1 | — | Call for availability | |
| N .S | 201-486-3 | Clips-fork | 2 | $7.87 | Add to Cart | |
| K-2 | 545045 | Nut - Piston Rod - Range | 1 | $3.15 | Add to Cart | |
| K-3 | 201-501-2-1X | S/assy - Piston Housing - Range (includes K-4 Thru K-6) | 1 | $334.54 | Add to Cart | |
| K-4 | Housing Piston Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| K-5 | 545025-1 | Elbow - Piston Housing 90 Degree | 1 | $20.33 | Add to Cart | |
| K-6 | 545002-1 | Screw - Piston Housing ( .375" - 16X.875") | 4 | $2.23 | Add to Cart | |
| K-9 | 201-463-1 | "o" Ring - Piston Shift - Range | 1 | $9.41 | Add to Cart | |
| K-8 | 201-463-2 | "o" Ring - Piston Housing - Range | 1 | $6.67 | Add to Cart | |
| K-7 | 201-463-3 | "o" Ring - Piston Rod - Range | 1 | $2.39 | Add to Cart | |
| K-10 | 183-463-6 | "o" Ring - Piston To Rod - Range | 1 | — | Call for availability | |
| K-11 | 201-136-7 | Piston - Shift - Range | 1 | $45.08 | Add to Cart |
Countershaft Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-12 | 201-22-3 | Cap - Countershaft Bearing | 1 | $21.43 | Add to Cart | |
| K-13 | 545002-1 | Screw - Bearing Cap ( .375" - 16X.875") | 6 | $2.23 | Add to Cart | |
| and | 545002-7 | Screw - Bearing Cap ( .375" - 16X1 .500") | 2 | $2.33 | Add to Cart | |
| N .S | 330564-3 | Lift Hook | 2 | $3.15 | Add to Cart | |
| K-14 | 500381-4 | Spacer - Filter Regulator | 4 | — | Call for availability | |
| K-15 | 201-411-1 | Bracket - Filter Regulator | 1 | $4.70 | Add to Cart | |
| K-16 | 313644X | Kit Power Control And Mounting Parts (incl K-17 Thru K-19) | 1 | $881.94 | Add to Cart | |
| K-17 | 313042 | S/assy. - Filter Regulator | 1 | $784.67 | Add to Cart | |
| K-18 | 330831 | Clamp - Filter Regulator Mounting | 1 | — | Call for availability | |
| K-19 | 545025-1 | Elbow - Filter Regulator 90 Degree | 1 | $20.33 | Add to Cart |
Rear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| L-1 | 201-19-8-2X | S/assy. Elect/mech Bearing Cap Rear (incl L-2 Thru L-5) | 1 | — | Call for availability | |
| L-2 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| L-3 | 201-463-8 | Seal - Bearing Cap Rear | 1 | $43.25 | Add to Cart | |
| L-4 | 545021 | Plug - Electronic Speedometer | 2 | $18.89 | Add to Cart | |
| L-5 | 55-334-1 | Plug - Speedometer Outlet | 1 | $88.44 | Add to Cart | |
| L-7 | 201-228-2-1 | Shim - Output Shaft ( .005 Thick) | A/R | — | Call for availability | |
| L-7 | 201-228-2-2 | Shim - Output Shaft ( .010 Thick) | A/R | — | Call for availability | |
| L-7 | 201-228-2-3 | Shim - Output Shaft ( .015 Thick) | A/R | — | Call for availability | |
| L-7 | 201-228-2-4 | Shim - Output Shaft ( .020 Thick) | A/R | — | Call for availability | |
| L-7 | 201-228-2-5 | Shim - Output Shaft ( .030 Thick) | A/R | — | Call for availability | |
| L-8 | 545002-6 | Screw - Bearing Cap Rear ( .375" - 16 X .250") | 4 | $2.29 | Add to Cart |
Following Parts Are Not Included in Above Assemblies
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 201-420-5-1X | Harness - Air Tubing (48" Long) | 1 | — | No longer available — call for replacement | |
| P-1 | 201-420-5-2X | Harness - Air Tubing (92" Long For Remote Control Use) | 1 | — | Call for availability | |
| P-2 | 97-463-7 | "o" Ring - Retaining Air Harness | 3 | $2.61 | Add to Cart | |
| P-3 | 201-483-3 | Boot - Floorboard (oval) | 1 | $27.62 | Add to Cart | |
| P-3 | 201-483-4 | Boot - Floorboard (oval) | 1 | — | Call for availability | |
| P-3 | 201-483-5 | Boot - Floorboard (rectangular) | 1 | — | Call for availability | |
| N .S | 313885X | Shift Knob Assy. (includes P-4 Thru P-10) | 1 | — | Call for availability | |
| P-4 | 205-20-13 | Insert - Shift Pattern (9 Speed Spicer W/shift Pattern) | 1 | — | Call for availability | |
| P-4 | 205-20-15 | Insert - Shift Pattern ( Spicer ) | 1 | $35.41 | Add to Cart | |
| P-6 | 500370-4 | Nut - Shift Knob Retaining | 1 | — | Call for availability | |
| P-7 | 500357-13 | Washer - Shift Knob Retaining | 1 | $2.33 | Add to Cart | |
| P-8 | 204-W | Washer - Shift Knob Stop | 1 | — | Call for availability | |
| P-9 | 39Q-38-3 | N .s .s Knob Shift Air Valve (serviced As 313885X) | 1 | — | No longer available — call for replacement | |
| P-10 | 201-205-1 | Index Washer | 1 | — | Call for availability | |
| P-11 | 201-438-8 | Roll Pin - Shift Knob | 1 | $2.79 | Add to Cart | |
| N .S | 201-420-7 | Tube Support ( 3/16 ) | 1 | — | Call for availability | |
| P-13 | 545063 | Set Screw ( Single Crimp Style Only ) | 1 | $6.27 | Add to Cart | |
| P-16 | 101-483-2 | Boot - Shift Tower & Lever | 1 | $26.15 | Add to Cart | |
| N .S | 33Q-15-1 | Tie Cable (upper) | 1 | — | Call for availability | |
| N .S | 33Q-15-2 | Tie Cable (lower) | 1 | — | Call for availability | |
| P-19 | 97-381-11 | Snap Ring | 1 | $11.83 | Add to Cart | |
| P-20 | 34Q-8 | Ring - Outer | 2 | $248.46 | Add to Cart | |
| P-21 | 34Q-7 | Ring - Inner | 2 | $248.46 | Add to Cart | |
| P-23 | 201-72-3 | Spring - Disc | 2 | $248.46 | Add to Cart | |
| N .S | 201-17-2X | Sub-assy. Tower Housing (includes P-24 Thru P-25) | 1 | $284.86 | Add to Cart | |
| N .S | 201-17-3X | Sub-assy. Tower Housing (includes P-24 Thru P-25) | 1 | — | Call for availability | |
| P-24 | Tower (6 .312" Fulcrum) (serviced As 201 -17-2X) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-25 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| P-26 | 201-118-2 | Gasket - Tower Housing | 1 | $3.83 | Add to Cart | |
| P-27 | 545028-2 | Screw - Tower Housing | 6 | $2.87 | Add to Cart |
Parts Listed Below Are Not Included in Assembly
Item RC-1Item RC-3Item RC-2Item RC-4Item RC-6Item RC-7Item RC-29Item RC-8Item RC-14Item RC-9Item RC-30Item RC-10Item RC-28Item RC-18Item RC-11Item RC-27Item RC-12Item RC-26Item RC-24Item RC-17Item RC-16Item RC-15Item RC-22Item RC-24Item RC-16Item RC-13Item RC-12Item RC-20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-18-6-3X | Remote Control Assembly | 1 | — | Call for availability | ||
| RC-1 | 201-18-6X | S .assy. Remote Control Housing Bushings And Ball Joint | 1 | — | Call for availability | |
| RC-2 | Remote Control Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-3 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| RC-4 | 40-24-1 | Bushing - Remote Control Housing | 2 | — | Call for availability | |
| RC-6 | 28P-19 | Seal - Remote Control Housing | 1 | — | Call for availability | |
| RC-7 | 201-65-5 | Rod - Inner Shift Control | 1 | $41.45 | Add to Cart | |
| RC-8 | 97-483-3 | Boot - Shift Rod Rubber | 1 | — | Call for availability | |
| RC-9 | 33Q-15-1 | Tie - Cable | 2 | — | Call for availability | |
| RC-10 | 545136 | Bolt - Outer Shift Lever | 1 | — | Call for availability | |
| RC-11 | 201-6-3 | Lever - Remote Outer Shift Control | 1 | $92.60 | Add to Cart | |
| RC-12 | 500371-3 | Nut - Ball Stud | 1 | $2.29 | Add to Cart | |
| RC-13 | 500362-11 | Lock Washer | 1 | — | Call for availability | |
| RC-14 | 201-6-11-1X | S/assy. - Selector Lever And Arm (includes RC-15 Thru RC-22) | 1 | — | Call for availability | |
| RC-15 | 545117 | Ball Stud Selection Lever | 1 | — | Call for availability | |
| RC-16 | 201-999-3 | Bearing - Race Selector Lever | 2 | — | Call for availability | |
| RC-17 | 201-483-2 | Boot - Selector Lever | 1 | — | Call for availability | |
| RC-18 | Lever Selection | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| N .S | 313727X | Kit Grease Parts (includes RC-19 And RC-20) | 1 | — | Call for availability | |
| RC-19 | Nipple Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-20 | Retainer Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-21 | 201-381-4 | Snap Ring - Selection Lever | 1 | — | Call for availability | |
| RC-22 | 201-72-10 | Spring - Disc Selection Lever | 3 | — | Call for availability | |
| RC-23 | 313673 | Ball Joint - Female | 1 | $46.61 | Add to Cart | |
| RC-24 | 545114 | Jam Nut - Turnbuckle | 2 | — | Call for availability | |
| RC-25 | 201-65-6 | Tie Rod | 1 | — | Call for availability | |
| RC-26 | 73Q-2 | Turn Buckle | 1 | — | Call for availability | |
| RC-27 | 545113 | Jam Nut - Turnbuckle (left Hand) | 1 | — | Call for availability | |
| RC-28 | 313715 | Ball Joint - Male ( .500-13 Unc Thread On End Into Housing) | 1 | — | Call for availability | |
| RC-29 | 201-6-2 | Finger - Inner Shift | 1 | $146.95 | Add to Cart | |
| RC-30 | 545137 | Screw - Shift Finger | 1 | — | Call for availability | |
| N .S | 545028-2 | Screw Control Housing ( .438 14 X 1 .500") | 6 | $2.87 | Add to Cart | |
| N .S | 201-118-2 | Gasket Tower Housing | 1 | $3.83 | Add to Cart |
Service Parts Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-400-1X | Major Overhaul Kit | $1,272.81 | Add to Cart | |||
| 313432-33X | Kit - Minor Overhaul | 1 | $998.94 | Add to Cart | ||
| 313669X | Kit - Range Piston Housing Repair | 1 | — | Call for availability | ||
| 313429-23X | Kit - Shift Tower Repair Parts | 1 | $85.70 | Add to Cart | ||
| 201-210-4-1 | Key - Countershaft Gear Rear | 2 | $4.64 | Add to Cart | ||
| 201-201-4-2 | Key - Countershaft Gear Middle | 2 | — | Call for availability | ||
| 201-210-4-3 | Key - Countershaft Gear Front | 2 | $11.02 | Add to Cart | ||
| 201-438-6-1X | Kit - Overdrive Shift Fork Mounting Pin And Snap Ring | 1 | $6.22 | Add to Cart | ||
| 201-438-7-1X | Kit - Overdrive Shift Fork Bracket Pin And Snap Ring | 1 | $9.95 | Add to Cart | ||
| 201-47-4 | Washer - Output Shaft Thrust (range) | 1 | $34.68 | Add to Cart | ||
| 201-47-6 | Ring - Range Mainshaft Drive Gear Thrust | 1 | $33.46 | Add to Cart | ||
| 330955 | Washer - Countershaft Reverse Idler Thrust (range) | 2 | $20.01 | Add to Cart | ||
| 500007-24 | Key - Woodruff Pto Gear | 2 | — | Call for availability | ||
| 545065 | Nut - Mainshaft | 1 | $31.43 | Add to Cart | ||
| 545087 | Pin - Thrust Washer Lock (range Coutnershaft) | 2 | $5.49 | Add to Cart | ||
| 201-200-8 | Lock Strap | 1 | $2.79 | Add to Cart | ||
| 2783 | Bulletin - Mainshaft Nut (loctite Application) | 1 | — | Call for availability | ||
| 2362 | Maintenance Manual | 1 | — | Call for availability | ||
| 312475-45X | Kit - Gasket | 1 | $37.46 | Add to Cart | ||
| 313667X | Kit - Shim | 1 | $39.63 | Add to Cart | ||
| 201-381-1 | Ring - Snap Input Shaft | 1 | $3.15 | Add to Cart | ||
| 201-381-3 | Ring - Snap Mainshaft Range Drive Gear | 1 | $8.09 | Add to Cart | ||
| 201-436-8 | Seal - Output Shaft Rear Bearing Cap | 1 | — | Call for availability | ||
| 545080-1 | Anaerobic Sealant - Mainshaft Nut (0 .5 Cc Vial) | 1 | — | Call for availability | ||
| 545124 | Washer - Filler And Drian Plug | 3 | — | Call for availability | ||
| 97-463-36-1X | Oil - Seal Drive Gear Bearing Cap (w/installatin Tool) | 1 | $38.68 | Add to Cart | ||
| 201-463-26 | "o" Ring - Counter Shaft ( Front ) | 6 | $20.25 | Add to Cart | ||
| 313628X | S/assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | ||
| 313668X | Kit - Output Shaft Gear Needle Bearing | 1 | $78.71 | Add to Cart | ||
| 550996 | Bearing - Countershaft Front | 2 | $61.00 | Add to Cart | ||
| 550998 | Bearing - Countershaft Rear | 2 | $135.42 | Add to Cart | ||
| 551009 | Bearing - Countershaft Rear | 2 | — | Call for availability | ||
| 313645X | S/assy. - Bearing And Belleville Snap Ring (input Shaft) | 1 | $183.51 | Add to Cart | ||
| 550182 | Bearing - Countershaft Rear Cone | 2 | $36.48 | Add to Cart | ||
| 550375 | Bearing - Countershaft Rear Cup | 2 | $17.99 | Add to Cart | ||
| 551010 | Bearing - Coutnershaft Front Cup(before S/n J930506005) | — | Call for availability | |||
| 551011 | Bearing - Coutnershaft Front Cone(before S/n J930506005) | — | Call for availability | |||
| 551013 | Bearing - Coutnershaft Front Cone(after S/n J930506005) | $49.38 | Add to Cart | |||
| 550997 | Bearing - Reverse Idler Needle | 2 | $14.83 | Add to Cart | ||
| 183-463-6 | "o" - Ring - Splitter Or Range Piston | 1 | — | Call for availability | ||
| 201-463-1 | "o" - Ring - Range Shift Piston | 1 | $9.41 | Add to Cart | ||
| 201-463-2 | "o" - Ring - Range Piston Housing | 1 | $6.67 | Add to Cart | ||
| 201-463-3 | "o" - Ring - Range Piston Rod | 1 | $2.39 | Add to Cart | ||
| 2726 | Bulletin - "o" Ring Lubrication Instruction | 1 | — | Call for availability | ||
| 330895 | Lubricant - "o" Ring | 1 | — | Call for availability | ||
| 201-438-2 | Pin - Actuating Back - Up Light | 1 | $3.68 | Add to Cart | ||
| 201-438-5 | Pin - Air Control Valve | 3 | — | Call for availability | ||
| 201-487-1 | Insert - Poppett Spring And Ball | 3 | — | Call for availability | ||
| 201-72-2 | Spring - Shift Rail Poppet | 3 | $3.23 | Add to Cart | ||
| 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | ||
| 40-438-1 | Pin -1st And Reverse Select Plunger | 3 | — | Call for availability | ||
| 62-72-8 | Spring - 1st And Reverse Shift Plunger | 3 | — | No longer available — call for replacement | ||
| 312477-46X | Kit- Shift Housing Bushing Kit | 1 | $248.46 | Add to Cart | ||
| 201-72-3 | Spring-disc | 2 | $248.46 | Add to Cart | ||
| 2860 | Bulletin | 1 | — | Call for availability | ||
| 34Q-7 | Ring-inner (lower) | 1 | $248.46 | Add to Cart | ||
| 34Q-8 | Ring-outer | 2 | $248.46 | Add to Cart | ||
| 34Q-9 | Ring-inner (upper) | 2 | — | Call for availability | ||
| 201-118-1 | Gasket - Williams Air Control Valve | 1 | $6.27 | Add to Cart | ||
| 201-118-2 | Gasket - Tower Housing | 1 | $3.83 | Add to Cart | ||
| 2724 | Bulletin - Anaerobic Sealant Application | 1 | — | Call for availability | ||
| 545056-9 | Anaerobic Sealant - 24cc Tube | 1 | — | Call for availability | ||
| 313667-X | Shim Kit (included In Major And Minor Overhaul Kit) | 1 | $39.63 | Add to Cart | ||
| 2825 | Bulletin - Counterhsaft Shim Instructions | 1 | — | Call for availability | ||
| 201-228-1-1 | Shim - Coutnershaft Rear Bearing ( .005" Thick) | 4 | — | Call for availability | ||
| 201-228-1-2 | Shim - Countershaft Rear Bearing ( .010" Thick) | 4 | — | Call for availability | ||
| 201-228-1-3 | Shim - Coutnershaft Rear Bearing ( .015" Thick) | 4 | — | Call for availability | ||
| 201-228-1-4 | Shim - Countershaft Rear Bearing ( .020" Thick) | 4 | — | Call for availability | ||
| 201-228-1-5 | Shim - Countershaft Rear Bearing ( .030" Thick) | 4 | — | Call for availability | ||
| 201-228-1-8 | Shim - Countershaft Rear Bearing ( .0465/.0435) | — | Call for availability | |||
| 201-228-1-9 | Shim - Countershaft Rear Bearing ( .0515/.0485) | — | Call for availability | |||
| 201-228-2-1 | Shim - Output Shaft ( .005" Thick) | 1 | — | Call for availability | ||
| 201-228-2-2 | Shim - Output Shaft ( .010" Thick) | 1 | — | Call for availability | ||
| 201-228-2-3 | Shim - Output Shaft ( .015" Thick) | 1 | — | Call for availability | ||
| 201-228-2-4 | Shim - Output Shaft ( .020" Thick) | 1 | — | Call for availability | ||
| 201-228-2-5 | Shim - Output Shaft ( .030" Thick) | 1 | — | Call for availability | ||
| 201-8-43-1X | Kit - M/s & C/s Gear Replacement | 1 | — | Call for availability | ||
| 201-196-35 | Gear C/s H .e | 1 | $279.21 | Add to Cart | ||
| 201-8-43 | Gear M/s H .e | 1 | $377.24 | Add to Cart | ||
| 2864 | Bulletin - Head End Gear Replacement | 1 | — | Call for availability | ||
| 33333 | 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 | 3 3 3 3 3 3 3 3 P | — | Call for availability | ||
| 00000 | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 0 0 0 0 0 0 0 0 B | — | Call for availability | ||
| 11111 | 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | 1 1 1 1 1 1 1 1 S B | — | Call for availability | ||
| 55555 | 5 5 5 5 5 5 5 5 4 4 4 4 4 4 4 4 4 4 4 4 4 4 | 4 4 4 4 4 4 4 4 M | — | Call for availability | ||
| 44444 | 4 4 0 0 0 0 0 0 9 9 9 9 9 9 9 9 9 9 9 9 9 9 | 9 3 3 3 3 3 3 3 9 | — | Call for availability | ||
| 99888 | 7 7 0 0 0 0 0 0 9 9 9 9 6 6 6 6 6 6 5 5 5 5 | 5 2 2 2 1 1 1 1 I | — | Call for availability | ||
| 2-1-2-1-1 | 2 - 1 - 9 - 7 - 4 - 3 - 2 - 1 - 4 - 3 - 2 - 1 - 6 - 5 - 4 - 3 - 2 - 1 - 5 - 4 - 3 - 2 - | 1 - 6 - 2 - 1 - 7 - 6 - 2 - 1 - L | — | Call for availability | ||
| 44111 | 2 2 9 - 9 - 9 - 9 - 9 - 9 - 2 2 2 2 5 5 5 5 5 5 0 0 0 0 | 0 4 4 4 5 5 5 5 e F | — | Call for availability | ||
| 0-0-222 | 5 - 5 - A A A A A A 5 5 5 5 0 0 0 0 0 0 9 - 9 - 9 - 9 - | 9 - 0 0 0 9 - 9 - 9 - 9 - l | — | Call for availability | ||
| 99555 | 9 9 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - A A A A | A 9 - 9 - 9 - A A A A | — | Call for availability | ||
| AA9-9-9 | A A A A A A A A A A A A | A A A M | — | Call for availability | ||
| U33U3 | 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 | 3 3 3 3 3 3 3 3 | — | Call for availability | ||
| 00M0 | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 0 0 0 0 0 0 0 0 N | — | Call for availability | ||
| M11P1 | 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | 1 1 1 1 1 1 1 1 o | — | Call for availability | ||
| 66R6 | 6 6 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 | 5 5 5 5 5 5 5 5 t e | — | Call for availability | ||
| R98P8 | 7 7 3 3 4 3 3 3 6 6 6 6 8 8 8 6 6 6 5 5 5 5 | 5 7 7 7 4 4 4 4 | — | Call for availability | ||
| P5-2-CL2 | 2 - 2 - 9 - 9 - 2 - 9 - 5 - 1 - 4 - 3 - 2 - 2 - 6 - 5 - 6 - 2 - 2 - 2 - 5 - 5 - 5 - 5 - | 5 - 7 - 2 - 2 - 7 - 6 - 2 - - | — | Call for availability | ||
| 22222 | 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 | 2 2 2 2 2 2 2 2 A C | — | Call for availability | ||
| 5-5-5-5-5 | 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - | 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - s e c h | — | Call for availability | ||
| 88888 | 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 | 8 8 8 8 8 8 8 8 H | — | Call for availability | ||
| 2-2-2-2-2 | 2 - 2 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 2 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - | 1 - 2 - 1 - 1 - 1 - 1 - 1 - 1 - b o | — | Call for availability | ||
| 3-3-3-3-3 | 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - | 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - h p | — | Call for availability | ||
| 1-1-1-1-1 | 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - | 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - C e | — | Call for availability | ||
| 99999 | 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 | 9 9 9 9 9 9 9 9 a G | — | Call for availability | ||
| 77766 | 6 6 5 5 5 5 5 4 4 4 4 4 4 4 3 3 3 3 3 3 3 1 1 | 1 1 0 0 9 9 9 I | — | Call for availability | ||
| 6-2-1-4-3 | 2 - 1 - 5 - 4 - 3 - 2 - 1 - 7 - 6 - 5 - 4 - 3 - 2 - 1 - 9 - 7 - 5 - 4 - 3 - 2 - 1 - 4 - 3 | - 2 - 1 - 2 - 1 - 5 - 4 - 3 - L | — | Call for availability | ||
| 44422 | 2 2 0 0 0 0 0 5 5 5 5 5 5 5 9 - 9 - 9 - 9 - 9 - 9 - 9 - 1 9 | 9 1 1 1 4 V - V - e F | — | Call for availability | ||
| 00055 | 5 5 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - A A A A A A A 5 V | - V - 5 4 4 0 P P l | — | Call for availability | ||
| 9-9-9-9-9 | 9 - 9 - A A A A A A A A A A A A 0 | 0 0 0 9 - D D | — | Call for availability | ||
| 3T3T | 3 T 3 T 3 T 3 T 3 T 3 T 3 T 3 T 3 T 9 - 9 - 5 - 4 - 3 | - 2 - 4 - 2 - 2 - 5 - 4 - 3 - | — | Call for availability | ||
| 11122 | 1 1 1 1 1 1 1 1 2 1 1 1 1 1 2 2 2 1 2 2 2 1 1 | 1 1 1 1 1 1 1 A | — | Call for availability | ||
| 2-1-1-1-1 | 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 2 - 2 | - 2 - 2 - 2 - 2 - 2 - 2 - 2 - b o | — | Call for availability | ||
| 10044 | 0 0 0 0 0 0 0 0 4 0 0 0 0 0 4 4 4 0 4 4 4 0 0 | 0 0 0 0 0 0 0 y l u | — | Call for availability | ||
| 2-5-5-5-5 | 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 2 - 2 | - 2 - 2 - 2 - 2 - 2 - 2 - 2 - # s i | — | Call for availability | ||
| 2-2-2-7-2 | 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 7 - 7 - 6 - 2 - 7 - 6 - 2 - 2 - 2 | - 2 - 2 - 2 - 2 - 2 - 2 - 2 - | — | Call for availability | ||
| 3333 | 3 3 3 3 3 3 3 3 | 3 3 3 3 3 3 3 3 P | — | Call for availability | ||
| 0000 | 0 0 0 0 0 0 0 0 | 0 0 0 0 0 0 0 0 B | — | Call for availability | ||
| 1111 | 1 1 1 1 1 1 1 1 | 1 1 1 1 1 1 1 1 S B | — | Call for availability | ||
| 5555 | 5 5 5 5 5 5 5 5 | 5 5 5 5 5 5 5 5 M | — | Call for availability | ||
| 7777 | 7 6 6 6 6 6 6 6 | 5 5 5 5 5 5 5 5 9 | — | Call for availability | ||
| 4-3-2-1 | - 2 - 5 - 4 - 3 - 2 - 1 - 2 - 2 - | 7 - 6 - 5 - 4 - 3 - 2 - 1 - 7 - L | — | Call for availability | ||
| 1991 | 1 4 V - V - 4 4 1 2 | 5 5 5 5 5 5 5 4 e F | — | Call for availability | ||
| 5V-V-5 | 4 0 - P P 0 - 0 - 2 5 - | 0 0 0 0 0 0 0 0 l | — | Call for availability | ||
| 0PP0 | 0 9 D D 9 9 5 9 | 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - | — | Call for availability | ||
| 2222 | 2 2 2 2 2 2 2 2 | 2 2 2 2 2 2 2 2 A l | — | Call for availability | ||
| 5-5-5-5 | - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - | 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - s e c h | — | Call for availability | ||
| 8888 | 8 8 8 8 8 8 8 8 | 8 8 8 8 8 8 8 8 H | — | Call for availability | ||
| 2-2-2-2 | - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - | 1 - 1 - 2 - 1 - 1 - 1 - 1 - 2 - b o | — | Call for availability | ||
| 3-3-3-3 | - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - | 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - a h p | — | Call for availability | ||
| 9999 | 9 9 9 9 9 9 9 9 | 9 9 9 9 9 9 9 9 a G | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission PS125-9A — every part in the manual, matched to our live inventory. We stock 192 of the 428 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the PS125-9A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | PS125-9A |
| Transmission type | 9-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 34 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
