Spicer PS130-6B Parts Manual
Drive Gear Group
Item B-12Item B-16Item B-9Item B-10Item A-1Item A-2Item B-17Item B-18Item B-11Item B-9Item B-19Item B-18Item B-22Item B-10Item A-3Item B-12Item A-5Item A-6Item B-11Item B-10Item B-9Item B-13Item B-1Item B-2Item B-3Item B-4Item B-27Item B-30Item B-5Item B-6Item B-29Item B-31Item B-25Item B-3Item B-24Item B-23Item B-23Item B-4Item B-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-1 | 97-35-54 | Drive Gear Input Shaft- 2"-10 Spline | $447.65 | Add to Cart | ||
| A-1 | 97-35-53 | Drive Gear Input Shaft- '1 3 /4"-10 Spline | Call for availability | |||
| A-2 | 550946 | Pocket Bearing | $68.71 | Add to Cart | ||
| A-3 | 97-381-2 | Snap Ring | Call for availability | |||
| A-3 | 97-35-48 | (28T) -For 1463-A | Call for availability | |||
| A-3 | 97-35-50 | (26T) - For 1362-C, 1364-C | Call for availability | |||
| A-3 | 97-35-51 | (26T) -For 1362-A, 1362-B | Call for availability | |||
| A-5 | 70-381-6 | Snap Ring (Retainer) | Call for availability | |||
| A-6 | 550944 | Bearing | Call for availability |
Main Shaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 97-362-40 | Mainshaft | $766.72 | Add to Cart | ||
| B-2 | 97-465-24 | Clutch Collar- 1 St And Reverse | 1 | $213.84 | Add to Cart | |
| B-3 | 98-381-1 | Snap Ring | 3 | $6.27 | Add to Cart | |
| B-4 | 330869 | Thrust Washer- Internal (1 8T) | 3 | $24.39 | Add to Cart | |
| B-5 | 330810 | Thrust Washer- External (24T) | 2 | $23.58 | Add to Cart | |
| B-6 | 98-381 | ·2 Snap Ring | 1 | Call for availability | ||
| B-7 | 97-8-113 | 1st Gear (64T) | $785.81 | Add to Cart | ||
| B-7 | 97-8-122 | (58T) -For 1362-A | Call for availability | |||
| B-7 | 97-8-123 | (56T) -For 1362-B 1362-C, 1364-C, 1463-A | Call for availability | |||
| B-9 | 97-381-1 | Snap Ring | 3 | $6.27 | Add to Cart | |
| B-10 | 330814 | Thrust Washer- External (20T) | 3 | $20.46 | Add to Cart | |
| B-11 | 330730 | Thrust Washer- Internal (1ST) | 3 | $14.16 | Add to Cart | |
| B-12 | 97-381-4 | Snap Ring | 3 | $3.75 | Add to Cart | |
| B-13 | 97-465-21 | Clutch Collar- 2nd And 3rd | 1 | $124.23 | Add to Cart | |
| B-13 | 97-8-6 | (Sot) -Lor 1362-A | Call for availability | |||
| B-13 | 97-8-14 | (44T) -Lor 1463-A | Call for availability | |||
| B-13 | 97-8-22 | (56T) For 1362-B 1362-C 1364-C | Call for availability | |||
| B-13 | 97-8-8 | (42T) -For 1362-A | Call for availability | |||
| B-13 | 97-8-16 | (32T) -Lor 1463-A | Call for availability | |||
| B-13 | 97-8-24 | (38T) -For 1362-B 1362-C, 1364-C | Call for availability | |||
| B-16 | 97-465 | ·23 Clutch Collar- 4th Gear | 1 | Call for availability | ||
| B-17 | 97-381-35 | Snap Ring | 2 | Call for availability | ||
| B-18 | 330735 | Thrust Washer- Internal (13T) | 2 | Call for availability | ||
| B-19 | 97-381 | ·2 Snap Ring | 2 | Call for availability | ||
| B-20 | 330732 | Thrust Washer- External (17T) | 1 | Call for availability | ||
| B-20 | 97-8-10 | (34T) -For 1362-A | Call for availability | |||
| B-20 | 97-8-26 | (32T) -For 1362-B 1362-C, 1364-C | Call for availability | |||
| B-21 | 97-8-18 | 6th Overdrive Gear (Direct Drive On 5th) | $194.09 | Add to Cart | ||
| B-22 | 97-465 | ·4 Clutch Collar (5th Gear Overdrive) And Drive Gear | Call for availability | |||
| B-23 | 97-381 | ·32 Snap Ring | 2 | Call for availability | ||
| B-24 | 97-8-182 | Reverse Gear (21T) | 1 | $528.68 | Add to Cart | |
| B-25 | 550925 | Bearing Rear | 1 | $107.78 | Add to Cart | |
| B-27 | 500007-9 | Woodruff Key #.3 | 1 | $2.59 | Add to Cart | |
| B-27 | OR97-37-7 | Spacer- (Used In Place Of Speedometer Drive Gear) | 1 | Call for availability | ||
| B-29 | 97-37-17 | Speedometer Spacer. | 1 | Call for availability | ||
| B-30 | 330734 | Flat Washer | 1 | $6.27 | Add to Cart | |
| B-31 | 545065 | N Ut- 1 %"-16 Self Locking | 1 | $31.43 | Add to Cart |
Countershaft Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 97-30-29 | (15T) Right Side - Splined For P.T.O. | Call for availability | ||||
| 97-30-45 | (15T) Left Side - Slotted For Pump | Call for availability | ||||
| C-2 | 500010-8 | Woodruff Key #29 | 1 0 | $2.89 | Add to Cart | |
| C-2 | 97-196-1 | (21T) -For 1362-A | Call for availability | |||
| C-2 | 97-196-17 | (23T) -For 1362-B, 1362-C, 1364-C | Call for availability | |||
| C-2 | 97-196-45 | (24T) -For 1463-A | Call for availability | |||
| C-2 | 97-196-3 | (28T) -For 1362-A | Call for availability | |||
| C-2 | 97-196-11 | (34T) -For 1463-A | Call for availability | |||
| C-2 | 97-196-19 | (32T) -For 1362-B, 1362-C, 1364-C | Call for availability | |||
| C-2 | 97-196-83 | (37T) -For 1362-A | Call for availability | |||
| C-2 | 97-196-84 | (45T) - For 1463-A | Call for availability | |||
| C-2 | 97-196-85 | (40T) -For 1362-B, 1362-C, 1364-C | Call for availability | |||
| C-2 | 97-196-75 | (45T) - For 1362-A | Call for availability | |||
| C-2 | 97-196-79 | (48T) -for1362 -B 1362-C, 1364-C | Call for availability | |||
| C-6 | 97-196-77 | 6th Overdrive Gear (54T) For 1463-A | 2 | Call for availability | ||
| C-6 | 97-1-1 | (52T) -For 1362-A, 1362-B | Call for availability | |||
| C-6 | 97-1-3 | ( 49T) - For 1463-A | $478.37 | Add to Cart | ||
| C-6 | 97-1-26 | (54T) -For 1362-C, 1364-C | Call for availability | |||
| C-8 | 550031 | Bearing Front | 2 | $220.28 | Add to Cart | |
| C-9 | 97-381-30 | Snap Ring Retainer | 2 | $6.73 | Add to Cart | |
| C-10 | 97-381-34 | Backing Ring | 2 | $4.59 | Add to Cart | |
| C-11 | 550950 | Bearing Rear. | 2 | $120.90 | Superseded by 550969Add to Cart |
Reverse Idler Gear Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 97-5-1 | Gea R | 2 | Call for availability | ||
| D-2 | 550886 | Bearing | 4 | $11.32 | Add to Cart | |
| D-3 | 97-37-1 | Space R | 2 | $2.43 | Add to Cart | |
| D-4 | 97-60-1 | Shaft | 2 | $45.67 | Add to Cart | |
| D-5 | 500566-8 | Lockball -%211 Diameter | 2 | Call for availability |
Clutch Housing Group
Item G-5Item G-4Item G-2Item F-1Item F-4Item F-3Item G-3Item G-3Item F-1Item F-5Item F-4Item F-3Item E-9Item E-8Item E-1Item E-4Item E-7Item E-3Item E-5Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 97-352-1 | Gasket. | 1 | $4.72 | Add to Cart | |
| E-3 | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| E-4 | 128C-20 | Bushing (Except 97 -51 8 -1 6 -3X) | 4 | $8.55 | Add to Cart | |
| E-4 | 97-24-6 | Bushing (97 -51 8 -1 6 -3Xonly) | 2 | Call for availability | ||
| N .S. | 97-463-30 | Oi1Seai(97-518-16-3Xonly) | 4 | Call for availability | ||
| E-5 | 97-96-18-1X | Hand Hole Cover Assembly | 1 | Call for availability | ||
| E-7 | 330829 | Flat Washer- % " -For Use With Aluminum Clutch Housi Ng | 10 | Call for availability | ||
| E-9 | 170-W | Flat Washer- W ' -For Use With Aluminum Clutch Housing | 4 | Call for availability | ||
| E-6 | 545008-3 | Bolt- %"-11 X 1%" Hex Head Self Locking | 9 | Call for availability | ||
| E-7 | 330720 | Washer- External Tooth % | 10 | version * (see the manual's footnote) | Call for availability | |
| E-8 | 545001 | Bolt- %"-13 X 1 W' Hex Head Self Locking | 4 | $2.49 | Add to Cart | |
| E-9 | 330290 | Washer- W' External Tooth | 4 | Call for availability |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 97-223-1 | Gasket | 1 | $4.72 | Add to Cart | |
| F-3 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-4 | 97-463-32 | Oi I Seal | 1 | $26.60 | Add to Cart | |
| F-5 | 545002-4 | Bolt %"-16 X 1 W' Hex Head Self Locking | 4 | $6.93 | Add to Cart |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case. | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S. | NP-96 | Nameplace For 97-15-42-1 X, 97-15-43-1 X | 1 | $2.16 | Add to Cart | |
| N .S. | 252-SP | Nameplate Pins | 4 | Call for availability | ||
| G-3 | 62-39-3 | Drain And Filler Plug Magnetic | 2 | $9.27 | Add to Cart | |
| G-4 | 97-39-1 | Drain Plug Mag Netic | 2 | Call for availability | ||
| G-5 | 274-SP | Dowel Pins | 2 | Call for availability |
CASE Group (continued)
Item H-4Item J-4Item J-2Item J-1Item J-3Item G-6Item J-4Item G-7Item J-3Item G-8Item J-5Item J-2Item G-9Item G-10Item G-11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-6 | 46-324-1 | 6 Bolt P .T.O Gasket | 1 | $3.91 | Superseded by 973241Add to Cart | |
| G-7 | 50-267-2 | 6 Bolt P .T.O Cover | 1 | $122.97 | Add to Cart | |
| G-8 | 330800 | Bolt- % " -16 X % "Flanged Head Self Locking | 6 | Call for availability | ||
| G-9 | 22P-22 | 8 Bolt P .T.O Gasket | 1 | $6.27 | Superseded by 973242Add to Cart | |
| G-10 | 73-267-1 | 8 Bolt P .T.O Cover | 1 | $160.99 | Add to Cart | |
| G-11 | 545012 | Bolt '/" " -14 X % "Flanged Head Self Locking | 8 | $3.23 | Add to Cart |
Mainshaft REAR Bearing CAP - for Gear Driven Speedometer
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 97-223-2 | Gasket | $4.64 | Add to Cart | ||
| H-2 | 97-19-32-2X | Bearing Cap Seal And Bushing Assembly | Call for availability | |||
| H-3 | 97-463-33 | Oil Seal | $26.73 | Add to Cart | ||
| H-4 | 97-19-32-1X | Bearing Cap And Bushing Assembly | Call for availability | |||
| H-5 | 97-19-32 | Bearing Cap | Call for availability | |||
| H-6 | 60-475-1 | Bushing Speedometer | $32.75 | Add to Cart | ||
| H-6 | OR55-334-1 | Plug (Used Without Speedometer Driven Gear) | 1 | Call for availability | ||
| H-8 | 55-454-1 | Sleeve -Speedometer Gear. | 1 | No longer available - Call for replacement | ||
| N .S | 44-539-1 | Dust Cap | 1 | $9.19 | Add to Cart | |
| H-9 | 545001-4 | Bolt- % " -13 X 1 W' Hex Head Self Locking | 4 | $1.74 | Add to Cart | |
| H-9 | OR545048 | Bolt- W'-13 X 1 '/" " -Head Has Hole For Lock Wire Self Locking (Turner Only) | 4 | Call for availability |
Mainshaft REAR Bearing CAP - for Electronic Speedometer
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 97-19-46-1X | Bearing Cap And Seal Assembly | Call for availability | |||
| H-3 | 97-463-33 | Oil Seal | $26.73 | Add to Cart | ||
| H-5 | 97-19-46 | Bearing Cap | Call for availability | |||
| H-6 | 60-475-1 | Speedometer Bushing | $32.75 | Add to Cart | ||
| H-8 | 55-334-1 | Plug Outlet | $88.44 | Add to Cart | ||
| H-9 | 545001-4 | Bolt - W'-13 X 1 % "Hex Head Self Locking | 4 | $1.74 | Add to Cart |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 97-223-22 | Gasket | 2 | Call for availability | ||
| J-2 | 97-22-23 | Bearing Cap For Use With P .T.O Countershaft | 2 | Call for availability | ||
| J-3 | 97-96-23 | Reverse Idler Shaft Cover. | 2 | Call for availability | ||
| J-4 | 545015 | Bolt- % " -16 X 'O/,E" Flanged Head Self Locking | 10 | $3.14 | Add to Cart | |
| J-4 | 545002-4 | Bolt- % " -16 X 1 W' For Lift Hook (Turner Mfg Only) | 2 | $6.93 | Add to Cart | |
| J-5 | 330564-2 | Lift Hook | 2 | $2.39 | Add to Cart |
Companion Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1710 | 6-4-5351 | Call for availability | ||||
| 1810 | 6 .5-4-3021 | Call for availability |
Clutch Housing Dimensions T210-SST-6
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 6-615 | - - ___ | Call for availability | ||||
| 97-518-3 | C97-518-4 | Iron 2 4.1 87" 2 .625" 312795X | Call for availability | |||
| 97-518-12 | C97-518-13-1 | Iron 1 3 .75011 1 .500" 4.00" 8.50'1 312961X | Call for availability | |||
| 97-518-14 | C97-518-7 | Iron 2 4 .375" 2.375" 3.50" 6.5011 97-518-14-1X | Call for availability | |||
| 97-518-15 | C97-518-2 | Iron 1 4.187" 2 .625" 97-518-15-1X | Call for availability | |||
| 97-518-16 | C97-518-17-1 | Alum 1 4.1 87" 2 .625" 97-518-16-1X | Call for availability | |||
| 97-518-18 | C97-518-17 | Alum 2 4.187" 2 .625" 97-518-18-1X | Call for availability | |||
| 97-518-25 | C97-518-13-1 | Iron 1 3 .750" 1 .500" 4 .00" 8.50" 97-51 8-25-1X | Call for availability | |||
| 97-518-28 | C97-518-29 | Alum 1 3 .750" 1 .500" 4.00" 8 .50" 97-518-28-1X | Call for availability | |||
| 97-518-31 | C97-518-29 | Alum 1 3 .750" 1 .500" 4.00 " 8 .50" 97-518-31 | -1X | Call for availability | ||
| R-17R-18 | Early | Call for availability | ||||
| R-17R-14 | R-16---!1 / | Call for availability |
First and Reverse Shill Fork, Bracket and Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 97-16-25-66X | Shiller Housing And Oil Trough Assembly 1 | Call for availability | |||
| R-1 | 97-16-62-1X | Shiller Housing And Oil Trough Assembly 1 1 | 1 1 | Call for availability | ||
| R-2 | Shiller Housing 1 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-3 | 330918 | Oil Trough 1 1 1 | 1 1 | Call for availability | ||
| R-4 | 330800 | Bolt- % " -16 X % "Flanged Head Self Locking 2 2 2 2 | 2 | Call for availability | ||
| R-5 | 312268 | Breather 1 1 | 1 1 | $31.32 | Add to Cart | |
| R-5 | 5951X | Breather 1 | $7.69 | Add to Cart | ||
| R-6 | 545000 | Blocker Pin 1 1 | 1 1 | Call for availability | ||
| R-6 | 545010 | Blocker Pin 1 | Call for availability | |||
| R-7 | 330739-1 | Pin Backup Lite 1 1 1 | 1 1 | $3.98 | Add to Cart | |
| R-8 | 545021 | Plug Neutral Safety Switch 1 1 | 1 1 | $18.89 | Add to Cart | |
| R-9 | 5001 | 14 Plug -Oil Return Hole 1 1 1 | 1 1 | Call for availability | ||
| N .S | 330366 | Plug Backup Lite Switch Hole | 1 | $15.51 | Add to Cart | |
| R-10 | 97-223-4 | Gasket- Aperture Cover 1 1 1 1 | 1 | Call for availability | ||
| R-11 | 97-96-2 | Aperture Cover 1 1 1 1 | 1 | Call for availability | ||
| R-12 | 545005-1 | Bolt O/, " -18 X %" Hex Head Self Locking 4 4 4 4 | 4 | Call for availability | ||
| R-13 | 97-12-1 | Interlock 3 3 3 3 | 3 | Call for availability | ||
| R-14 | 194-SP | Pin Shill Rod 2 2 2 2 | 2 | Call for availability | ||
| R-15 | 50-80-5 | Poppet Ball 4 4 4 4 | 4 | $2.28 | Add to Cart | |
| R-16 | 97-72-11 | Spring Poppet Ball 4 4 4 4 | 4 | Call for availability | ||
| R-17 | 545011 | Bolt- 7 /,s11 -20 X 1o/1 11 Set Type Self Locking, Square Head 7 7 7 7 | 7 | $16.57 | Add to Cart | |
| R-18 | 97-66-53 | Shift Fork. 1 1 1 1 | 1 | Call for availability | ||
| R-19 | 97-67-189 | Shift Rod 1 1 | 1 | Call for availability | ||
| R-19 | 97-67-190 | Shift Rod 1 | Call for availability | |||
| R-19 | 97-67-196 | Shift Rod 1 | Call for availability | |||
| R-20 | 97-354-11 | Shift Rod Bracket. 1 1 1 1 | 1 | Call for availability | ||
| R-21 | 97-72-2 | Spring Plunger 1 1 | 1 | Call for availability | ||
| R-21 | 97-72-12 | Spring Plunger 1 | Call for availability | |||
| R-21 | 97-72-17 | Spring Plunger 1 | Call for availability | |||
| R-22 | 97-438-1 | Plunger 1 1 1 1 | 1 | Call for availability | ||
| R-23 | 330736 | Blocker- Shift Bracket 1 1 1 1 | 1 | Call for availability | ||
| R-24 | 500593-6 | Pin Plunger 1 1 1 1 | 1 | Call for availability |
Second and Third Shill Fork, Bracket and Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-25 | 97-66-23 | Shift Fork 1 1 1 1 | 1 | $420.88 | Add to Cart | |
| R-26 | 97-67-83 | Shift Rod 1 1 1 | 1 | Call for availability | ||
| R-26 | 97-67 | .125 Shill Rod 1 | Call for availability | |||
| R-27 | 97-354-3 | Shift Rod Bracket. 1 | Call for availability |
Fourth Shift Fork Bracket and Rod Group
Item K-6Item K-5Item K-4Item K-3Item K-2Item K-1Item R-24Item R-20Item R-21Item R-22Item R-36Item R-40Item R-24Item R-39Item R-23Item R-35Item R-21Item R-22Item R-20Item R-30Item R-35Item R-31Item R-29Item R-36Item R-34Item R-28Item R-37Item R-38Item R-32Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-28 | 97-66-5 | Shift Fork 1 1 | 1 1 | Call for availability | ||
| R-28 | 97-66-32 | Shift Fork | Call for availability | |||
| R-29 | 97-67-84 | Shift Rod | Call for availability | |||
| R-29 | 97-67-126 | Shift Rod 1 | Call for availability | |||
| R-30 | 97-354-3 | Shift Rod Bracket | Call for availability | |||
| R-31 | 60-203-7 | Stop Sleeve | Call for availability |
Fifth and Sixth Shill Fork, Bracket and Rod Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-32 | 97-66-5 | Shift Fork 1 1 | 1 1 | Call for availability | ||
| R-33 | 97-67-85 | Shift Rod 1 1 | 1 1 | Call for availability | ||
| R-33 | 97-67-127 | Shift Rod | Call for availability | |||
| R-34 | 97-354-21-2X | Shift Rod Bracket Assembly | 1 | Call for availability | ||
| R-35 | 97-354-21 | Shift Rod Bracket | 1 | Call for availability | ||
| R-36 | 97-438-17 | Plunger. | 1 | Call for availability | ||
| R-37 | 50-80-1 | Poppet Ball | 1 | $2.70 | Add to Cart | |
| R-38 | 97-72-23 | Spring Poppet Ball | 1 | $22.03 | Superseded by 10143892XAdd to Cart | |
| R-20 | 97-354-11 | Shift Rod Bracket | Call for availability | |||
| R-21 | 97-72-17 | Spring Plunger | Call for availability | |||
| R-22 | 97-438-1 | Plunger. | Call for availability | |||
| R-23 | 330736 | Blocker- Shift Bracket | Call for availability | |||
| R-24 | 500593-6 | Pin Plunger. | Call for availability | |||
| R-35 | 97-354-11 | Shift Rod Bracket | Call for availability | |||
| R-36 | 97-438-2 | Plunger. | Call for availability | |||
| R-39 | 97-72-8 | Spring - Plunger. | Call for availability | |||
| R-40 | 97-381-3 | Snap R1ng | Call for availability |

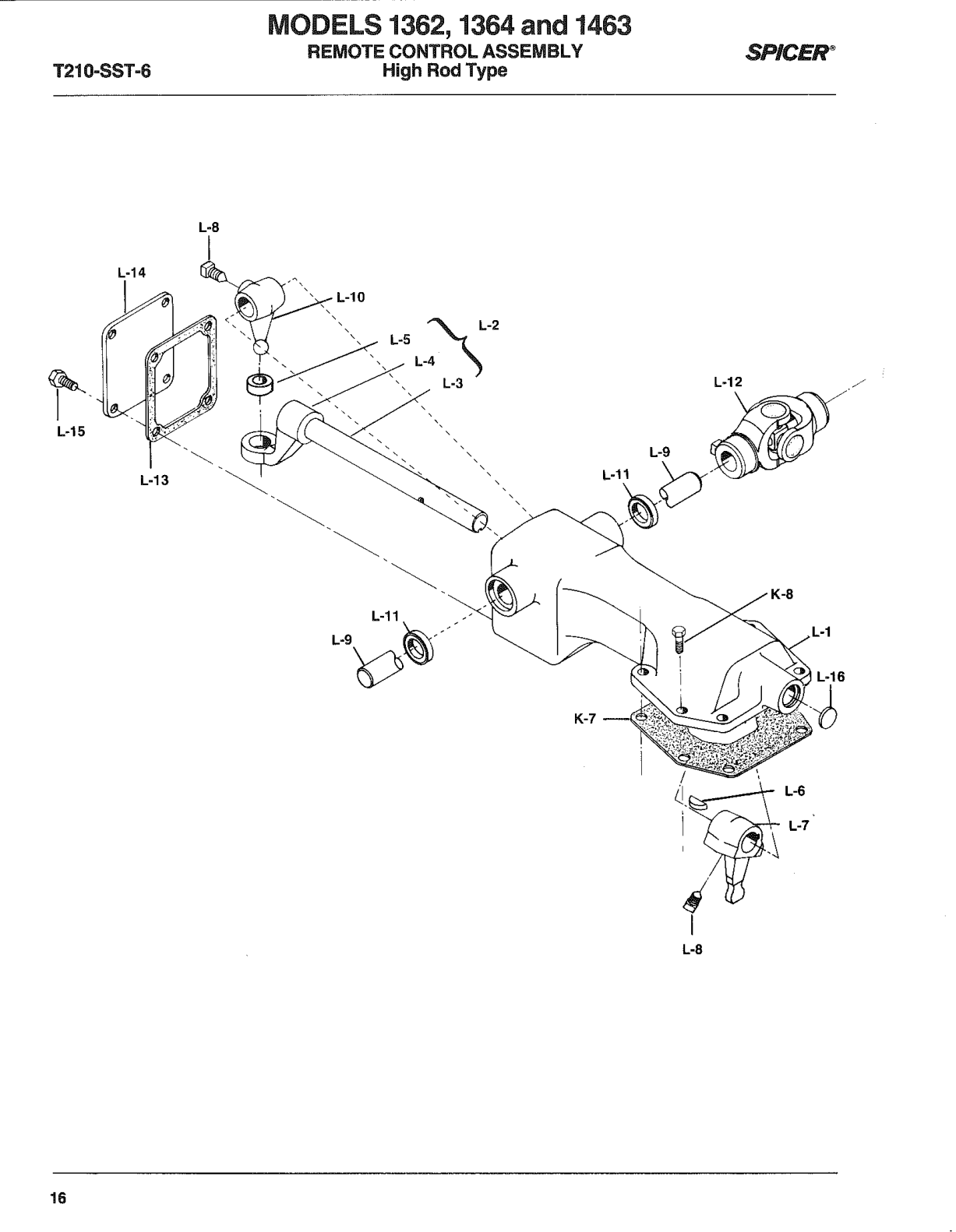

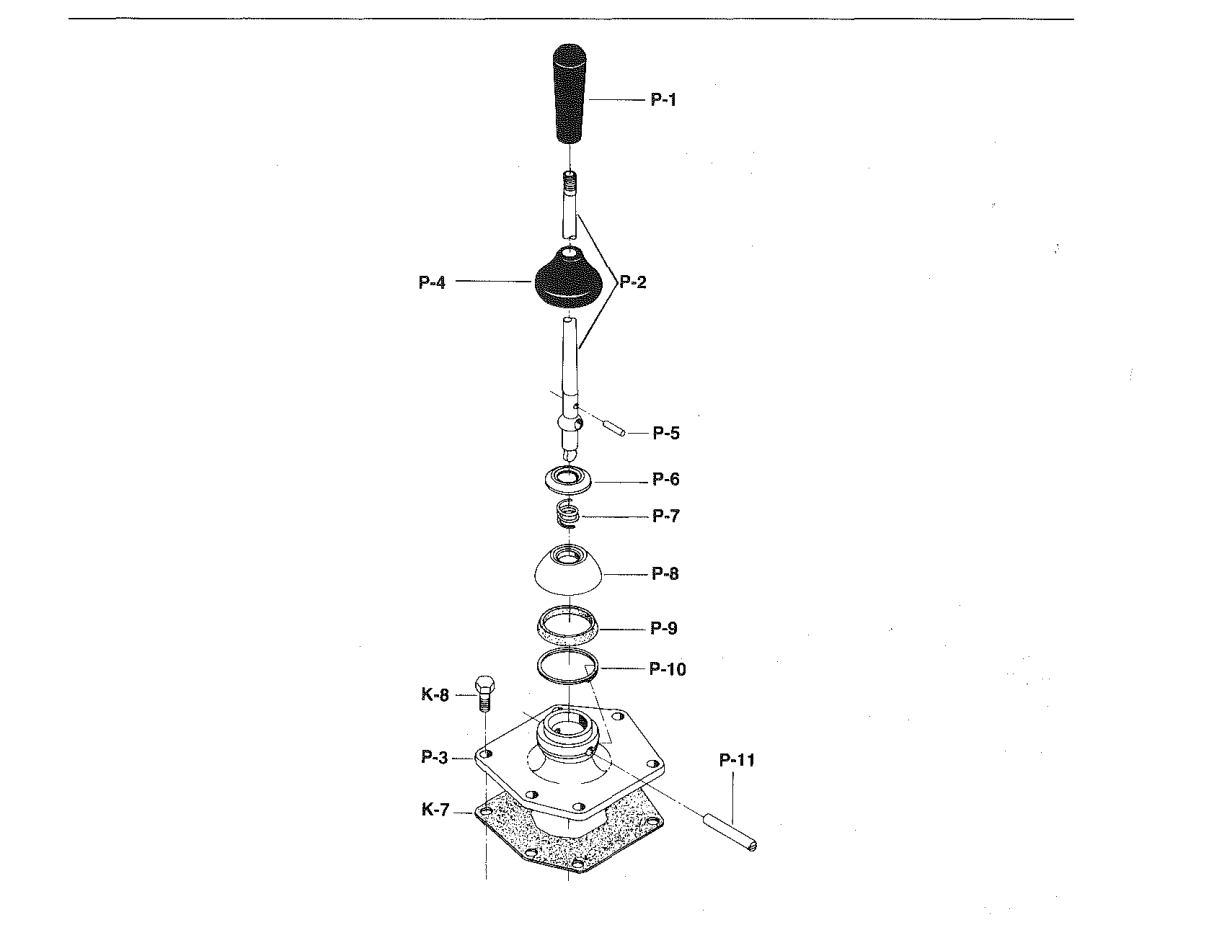

Parts Listed Below Are Not Included in Assembly
Item L-8Item L-15Item L-13Item L-10Item L-11Item L-9Item L-12Item K-8Item L-6Item L-7Item L-8Item L-14Item L-5Item L-3Item L-9Item L-11Item L-16Item K-7
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 97-155-1 | Gasket- Shifter Housing 1 1 1 | 1 1 | $15.74 | Add to Cart | |
| K-2 | 330564-1 | Lift Hook 4 4 4 4 | 4 | $3.15 | Add to Cart | |
| K-3 | 545002-4 | Bolt %" -16 X 1 W' Hex Head Self Locking 10 10 10 10 | 10 | $6.93 | Add to Cart | |
| K-4 | 330360-15 | Stud -% " -11 &% " -18x81/2 " 2 2 · - | 2 2 | Call for availability | ||
| K-4 | 330360-18 | Stud -% " -1 1 &% -1 8x4 " 2 2 | 2 2 | $9.03 | Add to Cart | |
| K-4 | 330426-1 | - - 2 - | Call for availability | |||
| K-5 | 500357-12 | Flat Washer 7/1e" 2 | Call for availability | |||
| K-5 | 500365-43 | Flat Washer- %" 2 2 - | 2 2 | Call for availability | ||
| K-6 | 500371-4 | Nut 7 /,E" -20 2 | Call for availability | |||
| K-6 | 500371-7 | Nut-% " -18 2 2 2 | 2 | Call for availability | ||
| 97-16-32-1X | Cover Assembly - - - 1 | Call for availability | ||||
| 97-18-3-1X | Cover Assembly (Positioned At t80 °) 1 - - | Call for availability | ||||
| 311866X | Cover Assembly 1 | Call for availability | ||||
| 311914X | Cover Assembly - - - - | 1 | Call for availability | |||
| 312918X | Cover Assembly 1 | Call for availability | ||||
| L-1 | Remote Control Cover 1 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N.S. | 82-24-3 | Bushing 4 4 4 | 4 4 | $21.66 | Add to Cart | |
| L-2 | 97-65-15-1X | Shift Finger Rod And Bracket Assembly - - - 1 | Call for availability | |||
| L-2 | 97-65-32-1 | X Shift Finger Rod And Bracket Assembly | Call for availability | |||
| L-2 | 8039X | Shift Finger Rod And Bracket Assembly - 1 - | Call for availability | |||
| L-2 | 311888X | Shift Finger Rod And Bracket Assembly - - - - | 1 | Call for availability | ||
| L-2 | 312917X | Shift Finger Rod And Bracket Assembly 1 | Call for availability | |||
| L-3 | Rod Shift Finger 1 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-4 | Bracket- Shift Fingerrod 1 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-5 | 85-24-4 | Bushing Shift Rod Bracket 1 1 1 | 1 1 | Call for availability | ||
| N.S. | Woodruff Key #11 (Part Of Assembly) 1 1 1 | 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-6 | 500007-19 | Woodruff Key #1 1 1 1 1 | 1 1 | Call for availability | ||
| L-7 | 82-6-9 | Finger- Inner Shift 1 1 1 | 1 1 | Call for availability | ||
| L-8 | 545004 | Bolt- '/" " -20 X "/,6 ' Hex Head Self Locking 2 2 2 | 2 2 | $6.27 | Superseded by 545063Add to Cart | |
| L-9 | 82-65-5 | Rod Remote Control Shift 1 1 | 1 | $22.31 | Add to Cart | |
| L-9 | 82-65-22 | Rod Remote Control Shift (Counter Sunk Spot At 90°) 1 | Call for availability | |||
| L-10 | 82-6-7 | Finger- Outer Shift 1 1 1 | 1 1 | $171.09 | Add to Cart | |
| L-11 | 28P-19 | Seal Remote Control Shift Rod 2 2 2 | 2 2 | Call for availability | ||
| L-12 | 10380-SF | U-Joint Assembly- Control Rod 1 1 1 | 1 1 | Call for availability | ||
| L-13 | 82-118-1 | Gasket- Aperture Cover 1 1 1 | 1 1 | Call for availability | ||
| L-14 | 82-96-1 | Aperture Cover 1 1 1 | 1 1 | Call for availability | ||
| L-15 | 545005-1 | Bolt 5/16" 18 X %" Hex Head Self Locking 4 4 4 | 4 4 | Call for availability | ||
| L-16 | 500166-16 | Expansion Plug 1 '/,6 ' 1 1 1 | 1 1 | Call for availability | ||
| N.S. | 311903X | Boot Kit - Remote Control - - 1 | 1 | Call for availability | ||
| N.S. | 82-483-1 | Boot Standard 1 | 1 | Call for availability | ||
| N.S. | 82-483-2 | Boot- Cup Type 1 | 1 | Call for availability | ||
| N.S. | LW-3-9 | Lockwire · · · · · · · · · · - - 3 | 3 - | Call for availability | ||
| K-7 | 97-155-12 | Gasket- To Remote Control Cover (Six Holes) 1 1 1 | 1 1 | $4.72 | Add to Cart | |
| K-8 | 545028-4 | Bolt- '/D' -14 X 1 'Ia" Hex Head Self Locking 6 6 6 | 6 6 | No longer available - Call for replacement | ||
| 312837X | Shift Lever And Dome Assembly | Call for availability | ||||
| P-1 | 390-29 | Handle Shift Lever | Call for availability | |||
| P-2 | 250-1223 | Shift Lever- Length 35 '/I | version * (see the manual's footnote) | Call for availability | ||
| P-2 | 82-16-19X | Dome Assembly Shift Lever | 1 | Call for availability | ||
| P-3 | 82-16-19 | Dome Shift Lever (2%2 Height) | 1 | Call for availability | ||
| P-4 | 550-5 | Grommet- Shift Lever | 1 | Call for availability | ||
| P-5 | 286-SP | Pin -Shift Lever Collar. | 1 | $2.95 | Add to Cart | |
| P-6 | 550-7 | Collar- Compression | 1 | Call for availability | ||
| P-7 | 560-25 | Spring -Compression | 1 | Call for availability | ||
| P-8 | 540-13 | Cup Compression | 1 | Call for availability | ||
| P-9 | 690-6 | Washer- Friction | 1 | Call for availability | ||
| P-10 | 62-381-7 | Snap Ri Ng | 1 | $8.10 | Add to Cart | |
| P-11 | 530-15 | Shaft- Shift Lever Rock. | 1 | Call for availability | ||
| K-7 | 82-155-6 | Gasket- Dome To Shifter Housing | 1 | $4.72 | Superseded by 9715512Add to Cart |
CR-2 Long Release Shaft
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| RS-14 | .812 106C-1278 | Call for availability | ||||
| RS-15 | .750 106C-1185 | Call for availability | ||||
| CR-6 | RS-15 | .750 62-510-22 | Call for availability | |||
| CR-6 | CR-2CR-1 | Keyed 9 .020 97-510-7 | RS-10 | Call for availability | ||
| CR-6 | RS-16 | .000 80-510-3 | Call for availability | |||
| CR-6 | CR-7RS-16 | .125 106C-1142 | Call for availability | |||
| CR-6 | RS-510 | .438 106C-636 | Call for availability | |||
| CR-6 | RS-511 | .375 106C-1515 | Call for availability | |||
| CR-6 | RS-514 | .000 106C-438 | Call for availability |
Arm Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| CR-6 | 310233X | Left Side Mtg Splined 9 .220 67-510-5 | RS-9 | Call for availability | ||
| CR-1 | 310473X | Right Side Mtg Splined 9 .469 106C-1047 | RS-8 | Call for availability | ||
| CR-1 | CR-7CR-6310873X | Lever Type Splined 9 .469 330610-5 | RS-9 | Call for availability | ||
| CR-1 | 19-125 | 106C-1566 Splined 10 .469 106C-617 | RS-8 | Call for availability | ||
| CR-1 | 19-313 | 97-510-2 Splined 10 .750 330610-11 | RS-9 | Call for availability | ||
| CR-1 | 19-500 | 106C-1578 Splined 11 .469 106C-839 | RS-8 | Call for availability | ||
| CR-1 | B644 | 16 . | Call for availability |
Major Service Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313400-38X | Major Service Kit | 1 | $1,625.21 | Superseded by 974009XAdd to Cart | ||
| 97-35-54 | Drive Gear Shaft 2" ·1 0 Spline | 1 | $447.65 | Add to Cart | ||
| 500566-8 | Ball - Reverse Idler Shaft. | 2 | Call for availability | |||
| 500010-8 | Woodruff Key #29 | 10 | $2.89 | Add to Cart | ||
| 545065 | N Ut- Mainshaft. | 1 | Call for availability | |||
| 313401-22X | Thrust Washer Kit | $526.38 | Add to Cart | |||
| 313429-3X | Shift Housing Small Parts Kit. | Call for availability | ||||
| 313432-SX | Minor Service Kit | Call for availability |
Minor Service Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313432-8X | Minor Service Kit | $1,074.43 | Superseded by 3134321XAdd to Cart | |||
| 550950 | . . | $120.90 | Superseded by 550969Add to Cart | |||
| 550031 | . . . . . . . . . . | $220.28 | Add to Cart | |||
| 550886 | . | $11.32 | Add to Cart | |||
| 550925 | $107.78 | Add to Cart | ||||
| 550994 | . | Call for availability | ||||
| 550946 | . . | $68.71 | Add to Cart |
Oil Seal -Drive Gear
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 97-463-32 | . . . . | $26.60 | Add to Cart | |||
| 97-463-33 | - . | $26.73 | Add to Cart |
Bearing Lubricant
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 545077 | . . . . . . . . . . . . . | Call for availability | ||||
| 545080 | . . . . . . . . . . . . . . . . | Call for availability |
Bearing Lube Instructions
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2770 | . . . . . . . . . . . . . . . . . | Call for availability |
Pocket Bearing Installation Instructions
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2775 | . | Call for availability | ||||
| 2783 | . | Call for availability |
Gasket Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 312475-34X | . | Call for availability |
Snap Ring Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313024-8X | . | Call for availability |
Included in Major Service KITS
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313401 | ·22X Thrust Washer Kit | Call for availability | ||||
| 330730 | Mainshaft- Internal (1ST) | 3 | Call for availability | |||
| 330732 | Mainshaft- External (17T) | 1 | Call for availability | |||
| 330735 | Mainshaft- Internal (13T) | 2 | Call for availability | |||
| 330810 | Mainshaft External (24T) | 2 | Call for availability | |||
| 330814 | Mainshaft External (20T) | 3 | $20.46 | Add to Cart | ||
| 330869 | Mainshaft- Internal (1ST) | 3 | Call for availability | |||
| 97-47-4 | Mainshaft Bearing | 1 | Call for availability | |||
| 313429 | ·2X Shiller Housing Small Parts Kit | Call for availability | ||||
| 97-12-1 | Interlock | 3 | Call for availability | |||
| 50-80-5 | Poppet Ball | 4 | $2.28 | Add to Cart | ||
| 194-SP | Pin Shift Rod | 2 | Call for availability | |||
| 97-438-1 | Plunger- 1st And Reverse | Call for availability | ||||
| 97-438-2 | Plunger- 5th And 6th | Call for availability | ||||
| 330739 | ·1 Pi N Backup Lite | Call for availability | ||||
| 500593-6 | Pin Plunger | Call for availability | ||||
| 545000 | Blocker Pi N Center Control | Call for availability | ||||
| 545010 | Blocker Pi N Forward Control | Call for availability | ||||
| 97-72-2 | Spring 1 St And Reverse | 1 | Call for availability | |||
| 97-72-8 | Spring 5th And 6th | 1 | Call for availability | |||
| 97-72-11 | Spring Poppet Ball | 4 | Call for availability | |||
| 97-72-12 | Spring Plunger | Call for availability | ||||
| 97-72-17 | Spring Plunger | Call for availability | ||||
| 97-381-3 | Snap Ring - Plunger. | Call for availability |
Included in Major and Minor Service KITS
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 312475 | ·34X Gasket Kit | Call for availability | ||||
| 22P-22 | P .T.O Aperture Cover (8 Holes) | $6.27 | Superseded by 973242Add to Cart | |||
| 46-324-1 | P .T.O Aperture Cover (6 Holes) | $3.91 | Superseded by 973241Add to Cart | |||
| 97-155-1 | Shifter Housing Case | Call for availability | ||||
| 97-223 | ·2 M/S Rear Bearing Cap | 1 | Call for availability | |||
| 97-223-22 | C/S Rear Bearing Cap | 2 | Call for availability | |||
| 97-223-25 | Piston Housing | 1 | Call for availability | |||
| 97-155-12 | Tower- Center (6 Holes) | Call for availability | ||||
| 97-155-13 | Tower- Forward (4 Holes) | Call for availability | ||||
| 97-223-1 | Drive Gear Bearing Cap | $4.72 | Add to Cart | |||
| 97-352-1 | Clutch Housing | Call for availability | ||||
| 82-118-1 | Aperture Cover- Remote Control | Call for availability | ||||
| 313024 | ·8X Snap Ring Kit | Call for availability | ||||
| 70-381-6 | Drive Gear Retainer | 1 | Call for availability | |||
| 97-381-6 | Mainshaft Internal Small | 3 | Call for availability | |||
| 97-381-2 | Mainshaft- Internal | 3 | Call for availability | |||
| 97-381 | ·4 Mainshaft- External | 3 | Call for availability | |||
| 97-381-32 | Mainshaft- Internal | 2 | Call for availability | |||
| 97-381-34 | Countershaft- Backing Rear | 2 | Call for availability | |||
| 98-381-1 | Mainshaft External | 3 | Call for availability | |||
| 98-381-2 | Mainshaft Internal | 1 | Call for availability |

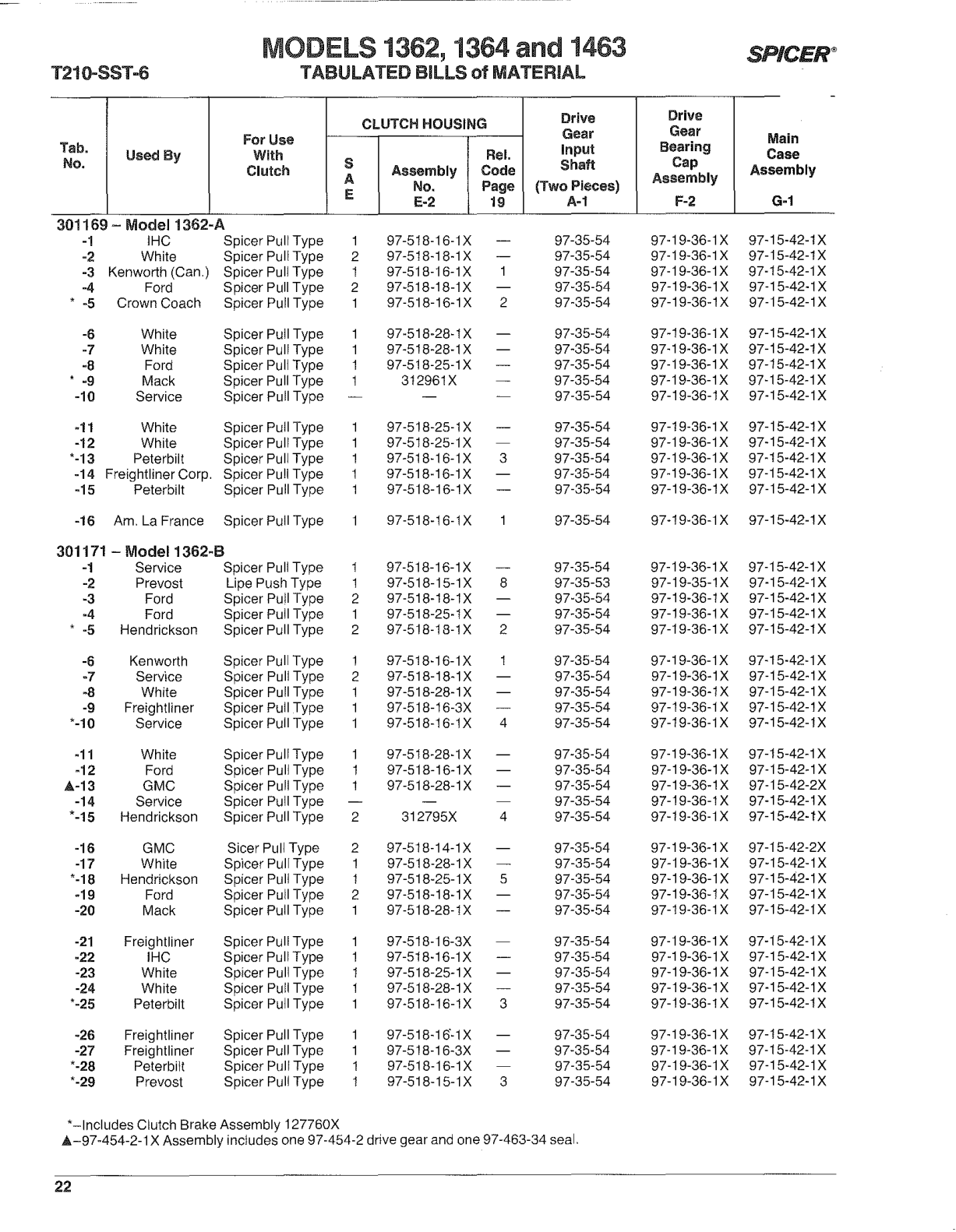

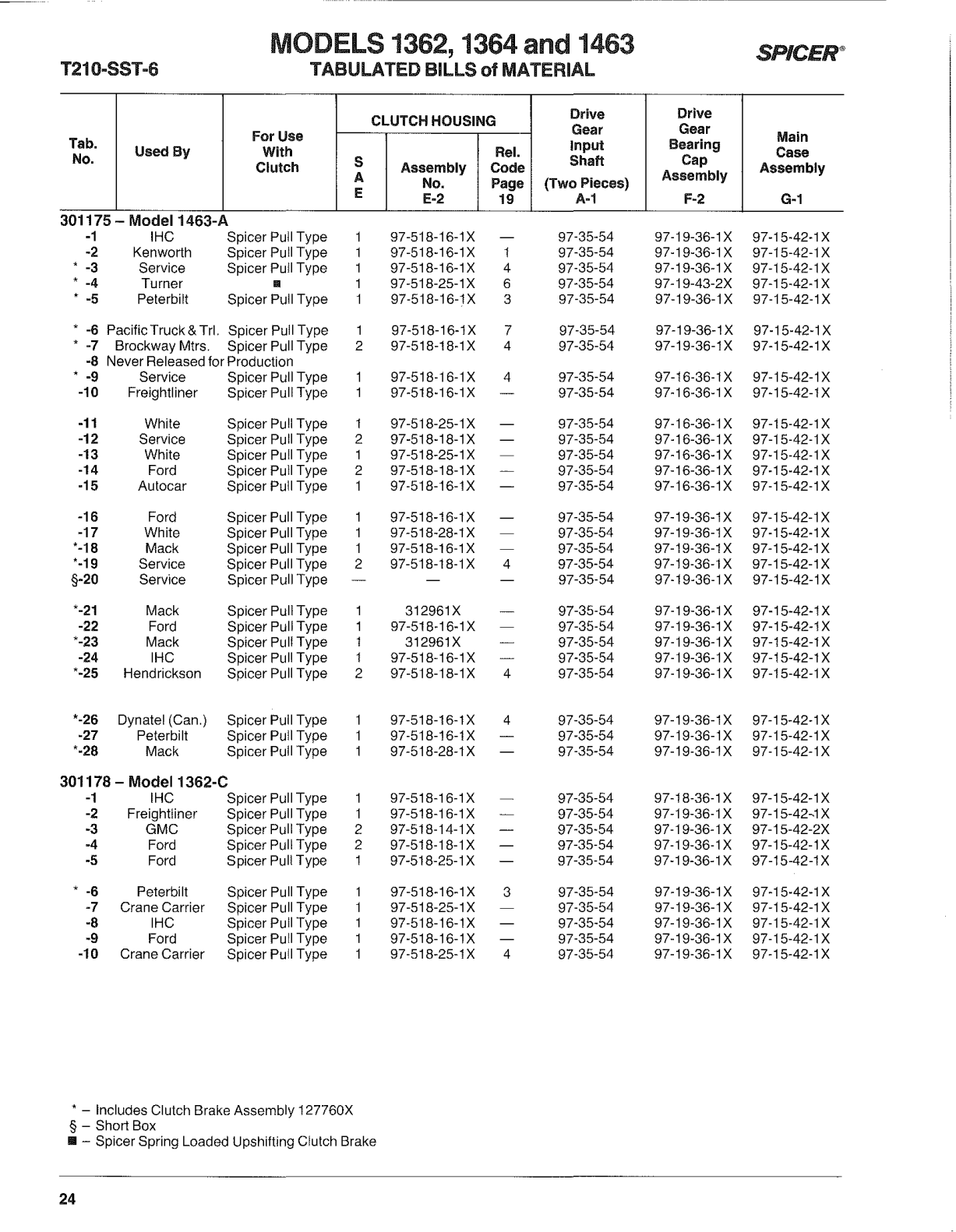

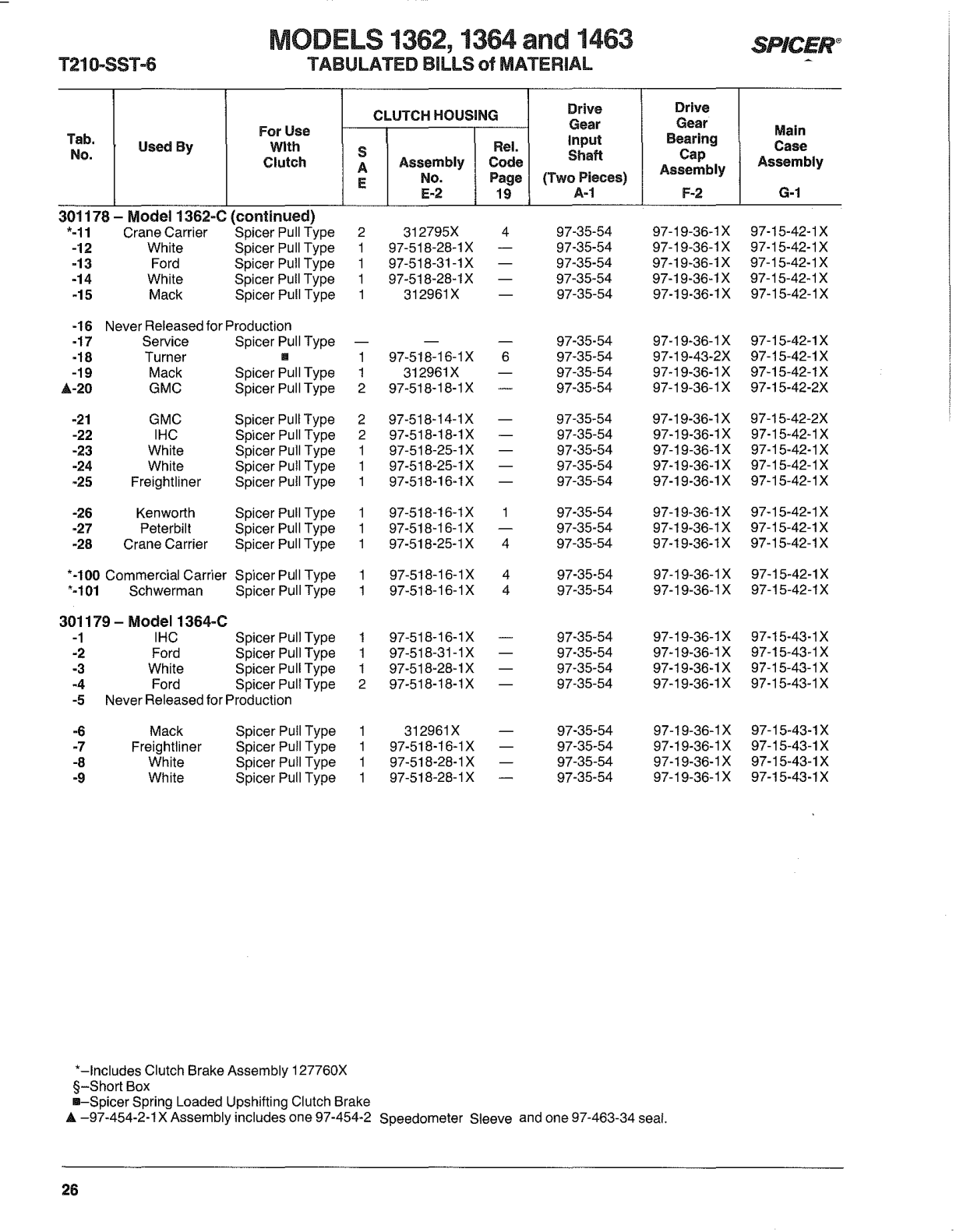

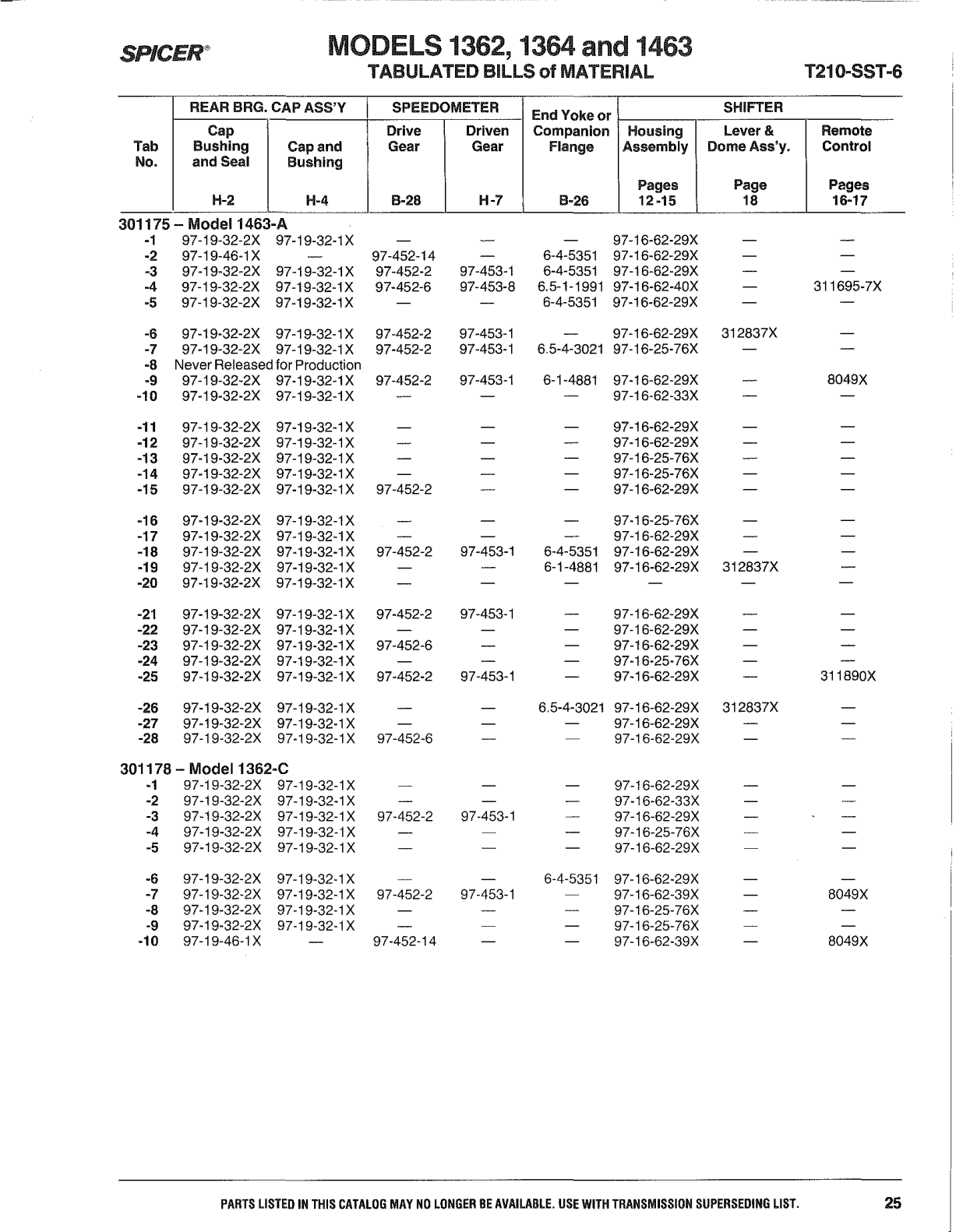

Tabulated Bills of Material
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission PS130-6B, with every part in the manual matched to our live inventory. We stock 81 of the 342 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the PS130-6B transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | PS130-6B |
| Transmission type | 6-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 31 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
