Spicer PS95-9A Parts Manual
Drive Gear Group-Input Main Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-1 | 201-35-2 | Shaft-input 2 .00"-10 Spline #306 (1 .180" Dia .) Pilot | 1 | Call for availability | ||
| A-1 | 201-35-6 | Shaft-input 1 .75"-10 Spline #205 ( .983" Dia .) Pilot | 1 | Call for availability | ||
| A-1 | 201-35-7 | Shaft-input 1 .75"-10 Spline #306 (1 .180" Dia .) Pilot | 1 | Call for availability | ||
| A-2 | 313645X | S/assy. - Bearing & Belleville Snap Ring | 1 | $183.51 | Add to Cart | |
| A-3 | 201-381-1 | Snap Ring - Input Shaft | 1 | $3.15 | Add to Cart |
Mainshaft Group Main Section
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 201-8-16 | Nla Use 201 -8-43-1X Kit | 1 | $1,191.00 | Superseded by 2018431XAdd to Cart | |
| B-1 | 201-8-43 | Gear Drive (5th & 9th) (40T) (for Ps Direct Transmission) | 1 | $377.24 | Add to Cart | |
| B-1 | 201-8-2 | Gear - Drive (4th & 8th) (38T) (for Pso-overdrive Transmission) | 1 | $220.08 | Add to Cart | |
| B-2 | 201-465-2 | Collar M/s Clutch (4th 5th & 8th 9th) (for Ps Direct Transmission) | 1 | $176.98 | Add to Cart | |
| B-2 | 201-465-5 | Collar M/s Clutch (4th 5th & 8th 9th) (for Pso-overdrive Transmission) | 1 | $172.90 | Add to Cart | |
| B-3 | 201-8-2 | Gear - Mainshaft (4th & 8th) (38T) (for Ps Direct Transmission) | 1 | $220.08 | Add to Cart | |
| B-3 | 201-8-16 | Nla Use 201 -8-43-1X Kit | 1 | $1,191.00 | Superseded by 2018431XAdd to Cart | |
| B-3 | 201-8-43 | Gear-mainshaft (5th & 9th) (40T) (for Pso-overdrive Transmission) | $377.24 | Add to Cart | ||
| B-4 | 201-8-4 | Gear - Mainshaft (3rd & 7th) (44T) | 1 | $283.97 | Add to Cart | |
| B-5 | 201-465-2 | Collar M/s Clutch (2nd 3rd & 6th 7th) | 1 | $176.98 | Add to Cart | |
| B-6 | 201-8-37 | Gear - Mainshaft (2nd & 6th) (58T) | 1 | $570.78 | Add to Cart | |
| B-7 | 201-8-35 | Gear - Mainshaft (1st) (58T) | 1 | $428.31 | Add to Cart | |
| B-8 | 201-465-2 | Collar - M/s Clutch (1st & Rev.) | 1 | $176.98 | Add to Cart | |
| B-9 | 201-8-10-1X | Gear - M/shaft Reverse (includes Thrust Ring & Reivets) | 1 | $657.38 | Add to Cart | |
| B-10 | 201-362-1 | -1X Kit - Mainshaft & Snap Ring | 1 | Call for availability | ||
| B-11 | 201-381-3 | Snap Ring - Mainshaft Drive Gear - Range | 1 | $8.09 | Add to Cart | |
| B-12 | Mainshaft | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability |
Countershaft Group Main Section
Item C-12Item C-13Item C-3Item C-4Item C-2Item C-14Item C-5Item C-15Item C-6Item C-8Item D-5Item D-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 201-30-2 | Countershaft - Main (before S/n J930506005) | 2 | Call for availability | ||
| C-1 | 201-30-14 | Countershaft - Main (after S/n J930506005) | 2 | $467.45 | Add to Cart | |
| C-2 | 201-210-4-2 | Key - Countershaft Gear - Middle | 2 | $4.19 | Add to Cart | |
| C-3 | 201-210-4-3 | Key - Countershaft Gear - Front | 2 | $11.02 | Add to Cart | |
| C-4 | 201-210-4-1 | Key - Countershaft Gear - Rear | 2 | $4.64 | Add to Cart | |
| C-5 | 201-196-31 | Gear - Countershaft (1st) (24T) | 2 | Call for availability | ||
| C-6 | 201-196-33 | Gear - Countershaft (2nd & 6th) (37T) | 2 | $222.70 | Add to Cart | |
| C-6 | 201-312-2 | S/s By 313762X Kit | 1 | Call for availability | ||
| C-7 | 201-312-3 | Gear - Countershaft Pto Drive | 2 | $280.05 | Add to Cart | |
| C-7 | 201-196-6 | Nla S/s By 313762X Kit | 1 | Call for availability | ||
| C-8 | 201-196-44 | Gear - Countershaft (3rd & 7th) (39T) | 2 | $220.85 | Add to Cart | |
| C-10 | 201-196-2 | Gear - Countershaft (4th & 8th) (46T) (for Ps) | 2 | $278.42 | Add to Cart | |
| C-10 | 201-196-14 | Nla S/s By 201 -8-43-1X Kit | 1 | $1,191.00 | Superseded by 2018431XAdd to Cart | |
| C-10 | 201-196-35 | Gear - Countershaft (4th & 8th) (52T) (for Pso) | 2 | $279.21 | Add to Cart | |
| C-11 | 201-47-2 | Ring - Countershaft Thrust (flat) | 2 | $20.15 | Add to Cart | |
| C-12 | 201-47-5 | Ring - Countershaft H .r. Gear Thrust | 2 | $52.11 | Add to Cart | |
| C-12 | 201-196-14 | Nla S/s To 201 -8-43-1X Kit | 1 | $1,191.00 | Superseded by 2018431XAdd to Cart | |
| C-13 | 201-196-35 | Gear Countershaft H .e (5th & 9th) (65T) (for Ps) | 2 | $279.21 | Add to Cart | |
| C-13 | 201-196-2 | Gear Countershaft H .e (5th & 9th) (46T) (for Pso) | 2 | $278.42 | Add to Cart | |
| C-14 | 551011 | Bearing - Cone Front Countershaft (before S/n J930506005) | 2 | Call for availability | ||
| Or | 551013 | Bearing - Cone Front Countershaft (after S/n J930506005) | 2 | $49.38 | Add to Cart | |
| C-15 | 551010 | Bearing - Cup Front Countershaft (before S/n J930506005) | 2 | Call for availability | ||
| Or | 550375 | Bearing - Cup Front Countershaft (after S/n J930506005) | 2 | $17.99 | Add to Cart | |
| C-16 | 201-47-3 | Ring - Countershaft (1st) Thrust | 2 | $14.83 | Add to Cart | |
| C-17 | 550182 | Bearing - Cone Rear Countershaft | 2 | $36.48 | Add to Cart | |
| C-18 | 550375 | Bearing - Cup Rear Countershaft | 2 | $17.99 | Add to Cart | |
| C-19 | 201-228-1-1 | Shim - Countershaft Rear Bearing ( .005 Thick) | A/R | Call for availability | ||
| C-19 | 201-228-1-2 | Shim - Countershaft Rear Bearing ( .010 Thick) | A/R | Call for availability | ||
| C-19 | 201-228-1-3 | Shim - Countershaft Rear Bearing ( .015 Thick) | A/R | Call for availability | ||
| C-19 | 201-228-1-4 | Shim - Countershaft Rear Bearing ( .020 Thick) | A/R | Call for availability | ||
| C-19 | 201-228-1-5 | Shim - Countershaft Rear Bearing ( .030 Thick) | A/R | Call for availability | ||
| D-1 | 201-360-1 | Plate - Retainer Countershaft (with Opti-lube Use 1 ) | 2 | $10.03 | Add to Cart | |
| D-2 | 545002-1 | Screw - Plate Retaining Countershaft | 6 | $2.23 | Add to Cart | |
| D-3 | 201-196-12 | Gear - Countershaft Reverse - Range (21T) | 2 | $279.20 | Add to Cart | |
| D-4 | 330952 | Washer - Countershaft Reverse Drive Gear Retaining | 2 | $3.00 | Add to Cart | |
| D-5 | 545001-5 | Screw - Reverse Drive Gear Retaining Washer | 2 | Call for availability |
Bearing • Needle Re ,seldlet 2
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-10 201 | 466-2 | Gear Clutch Omle Ringo) I | Call for availability | |||
| E-13 | 201-563 | ·1 -ix Synchronizer · High & Low(lndudn E-14 E-15, E· 16) I | Call for availability | |||
| E-14 | Siassy Synohrontzor Low Rongo I | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| E-15 | S/assy • Synchronizer· High Range I | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| E-16 | 201-72-9-IX | Klt ·synchronizer Spnrlll' (ondudh (3) Springs) I | Call for availability | |||
| E-16 | Not Sold Soporatoly | Not sold separately - order the sub-assembly it belongs to | Call for availability |
Mainshaft Group - Output Range Section
Item F-9Item F-3Item F-2Item F-1Item F-5AItem F-5BItem F-5DItem F-5CItem F-8Item F-5BItem F-5AItem F-6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 201-362-3 | Output Shaft | 1 | Call for availability | ||
| F-2 | 313668X | Kit - Needle Bearing - Output Shaft | 1 | $78.71 | Add to Cart | |
| F-3 | 201-8-41 | Gear - Output - Low Range (52T) | 1 | No longer available - Call for replacement | ||
| F-4 | 201-47-4 | Washer - Thrust Output Shaft | 1 | $34.68 | Add to Cart | |
| F-5 | 313628X | S/assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | |
| F-5A | Bearing Cone Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-5B | Bearing Cupy Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-5C | Spacer Bearing Cup Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-5D | Spacer Bearing Cone Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-6 | 201-37-6 | Spacer - Speedometer | 1 | Call for availability | ||
| F-6 | 201-452-1 | Electronic Speedometer Signal Gear (16 Grooves) | 1 | $86.79 | Add to Cart | |
| F-6 | 201-452-2 | Speedometer Drive Gear (4T) | 1 | Call for availability | ||
| F-6 | 97-453-1 | Speedometer Driven Gear (12T) | 1 | Call for availability | ||
| F-6 | 201-452-3 | Speedometer Drive Gear (8T) | 1 | Call for availability | ||
| F-6 | 97-453-7 | Speedometer Driven Gear (16T) | 1 | Call for availability | ||
| F-8 | 330734 | Washer - Output Shaft Nut 1 | $6.27 | Add to Cart | ||
| F-9 | 545065 | Nut-output Shaft (1 .75" - 16 Unef - 3B) | 1 | $31.43 | Add to Cart | |
| F-9 | Not Sold Seperately | Not sold separately - order the sub-assembly it belongs to | Call for availability |

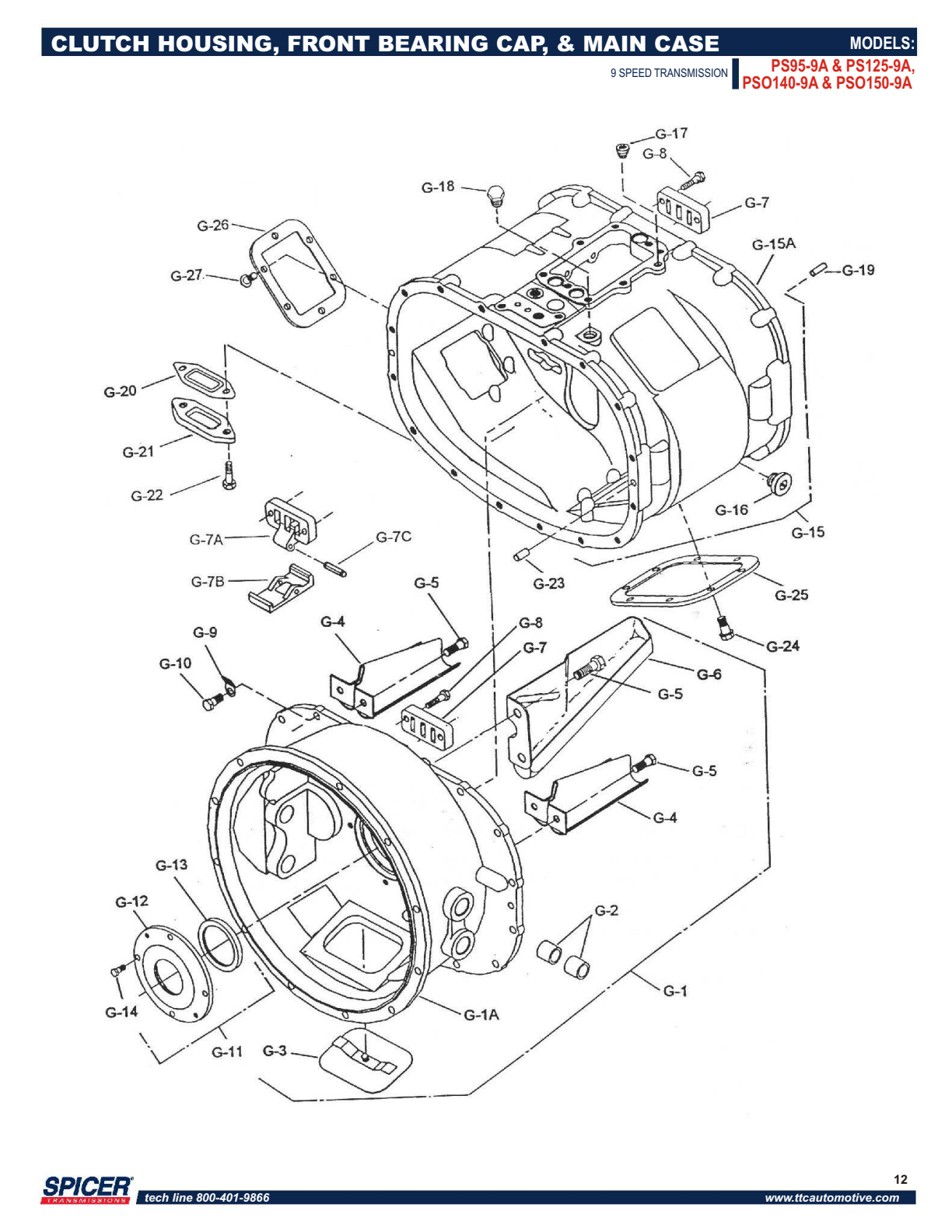

Clutch Housing Group
Item G-13Item G-17Item G-8Item G-18Item G-7Item G-26Item G-15AItem G-19Item G-20Item G-21Item G-22Item G-16Item G-15Item G-7AItem G-7CItem G-7BItem G-5Item G-23Item G-25Item G-4Item G-8Item G-9Item G-7Item G-24Item G-10Item G-6Item G-5Item G-5Item G-12Item G-2Item G-14Item G-1AItem G-11Item G-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-1 | 201-518-21-2X | Clutch Housing ,hand Hole Cover,oil Troughts And Bushings (sae #1 Iron) | 1 | Call for availability | ||
| G-1 | 201-518-14-5X | Clutch Housing ,hand Hole Cover,oil Troughts And Bushings (sae #2 Iron) | 1 | $1,391.14 | Add to Cart | |
| G-1 | 201-518-25-2X | Clutch Housing ,hand Hole Cover,oil Troughts And Bushings (sae #1 Iron) | 1 | Call for availability | ||
| G-1 | 201-518-20-2X | Clutch Housing ,hand Hole Cover,oil Troughts And Bushings (sae #1) | 1 | Call for availability | ||
| N .S | 201-463-26 | "o”ring-countershaft Front (aluminum Clutch Housings Only) | 2 | $20.25 | Add to Cart | |
| G-1A | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-2 | 97-24-8 | Bushing - Clutch Release Shaft | 4 | $5.45 | Add to Cart | |
| G-3 | 97-96-18-1X | S/assy. - Hand Hole Cover | 1 | Call for availability | ||
| G-4 | 201-468-1 | Oil Trough - Countershaft | 2 | $16.37 | Add to Cart | |
| G-5 | 545002-13 | Screw - Oil Troughs (2 Each) | 6 | $2.29 | Add to Cart | |
| G-6 | 201-468-2 | Oil Trough - Drive Gear (n .l .a)(less Opti-lube Only)(301504- ,505 ,544) | 1 | Call for availability | ||
| G-7 | 40-477-1 | Support - Shift Rails (front & Rear) | 2 | $12.28 | Add to Cart | |
| G-7A | 201-477-3 | Support - Shift Rails (front)(neutral Start Switch Provision) | 1 | Call for availability | ||
| G-7B | 201-200-6 | Plate-lift(neutral Start Switch Provision) | 1 | Call for availability | ||
| G-7C | 201-438-15-3 | Pin-Roll(2 .125")(Neutral Start Switch Provision) | 1 | Call for availability | ||
| G-8 | 545002-7 | Screw - Support Bar (3 .75" - 16X1 .50") (2 Each) | 4 | $2.33 | Add to Cart | |
| G-9 | 330969 | Lift Hook | 2 | $2.49 | Add to Cart | |
| G-10 | 545001-1 | Screw - Clutch Housing ( .500" - 16 X 1 .375") | 16 | $2.59 | Add to Cart |
Front Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-11 | 201-19-2-1X | S/assy. - Drive Gear Bearing Cap And Oil Seal | 1 | $215.72 | Add to Cart | |
| G-12 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-13 | 97-463-36-1X | Oil Seal - Drive Cap Bearing Cap (w/installation Sleeve) | 1 | $38.68 | Add to Cart | |
| G-14 | 545002-1 | Screw - Drive Gear Bearing Cap ( .375" - 16 X 1 .875") | 4 | $2.23 | Add to Cart |
Main Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-15 | 201-15-13-1X | S/assy. -main Case (includes G-15A Thru G-18) | 1 | Call for availability | ||
| G-15 | 201-15-9-1X | Ford Only(includes G-15A Thru G-18) | 1 | Call for availability | ||
| G-15 | 201-15-10-1X | Aluminum | 1 | Call for availability | ||
| N .S | 201-463-26 | "o”ring-countershaft Rear (aluminum Clutch Housings Only) | 4 | $20.25 | Add to Cart |
Clutch Housing, Front Bearing Cap & Main Case Models:
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-15A | Case | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-16 | 545123 | Plug - Filler & Drain With O-ring | 1 | $22.03 | Add to Cart | |
| G-17 | Washer Filler & Drain Plug | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-18 | 201-39-1 | Plug - Case Oil Return Hole | 1 | $2.67 | Add to Cart | |
| N .S | 330934 | Magnet- Ceramic(located @large Pto Opening) | 2 | $4.72 | Add to Cart | |
| G-19 | 500597-14 | Pin -alighnment(optilube Mounting Plate) | 4 | $2.19 | Add to Cart | |
| G-20 | 201-118-4 | Gasket Oil Outlet Cover(location Is Case Bottom) | 1 | $3.91 | Add to Cart | |
| G-21 | 201-96-5 | Cover-oil Outlet(location Is Case Bottom) | 1 | $33.96 | Add to Cart | |
| G-22 | 545002-2 | Screw-oil Outlet Cover(location Is Case Bottom) | 2 | $2.67 | Add to Cart | |
| G-23 | 201-438-3 | Pin-dowel Case | 4 | $3.75 | Add to Cart | |
| G-24 | 545012 | Screw - Pto Aperture Cover (8Hole) | 8 | $3.23 | Add to Cart | |
| G-25 | 73-267-1 | Cover - Pto (8 Hole) | 1 | $160.99 | Add to Cart | |
| G-26 | 50-267-2 | Cover - Pto (6 Hole) | 1 | $122.97 | Add to Cart | |
| G-27 | 330800 | Screw - Pto Aperture Cover | 6 | Call for availability | ||
| G-27 | Not Sold Seperately | Not sold separately - order the sub-assembly it belongs to | Call for availability |
Optilube Pump & Related Parts Models:
Item OL-1Item OL-2Item OL-3Item OL-4Item OL-8Item OL-9Item OL-5Item OL-7Item OL-10Item OL-13Item OL-6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-501-11 | -2X Kit - Optilube Pump (includes OL-1 Thru OL-13) | 1 | Call for availability | |||
| OL-1 | 201-420-13X | S/assy - Discharge Tube | 1 | No longer available - Call for replacement | ||
| OL-2 | 545002-1 | Screw - Mounting Plate | 4 | $2.23 | Add to Cart | |
| OL-3 | 201-501-13X | S/assy. -oil Bypass Valve | 1 | $23.99 | Add to Cart | |
| OL-4 | 201-360-2 | Plate - Internal Pump Mounting | 1 | $27.70 | Add to Cart | |
| OL-5 | 545002-2 | Screw - Pump Housing | 2 | $2.67 | Add to Cart | |
| OL-6 | 201-501-11 | -1X Kit - Optilube Pump Housing And Gears (includes OL-7 Thru OL-13) | 1 | Call for availability | ||
| OL-7 | Gerotor Element - Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-8 | Shaft - Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-9 | Housing - Pump | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-10 | "o" Ring - Tube | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-11 | S/assy. - Inlet Tube | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-12 | Gear - Lube Pump Drive | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| OL-13 | Ring - Gear Pump Snap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability |
Interlock Parts Group
Item H-3Item H-7Item H-5Item H-1Item H-14Item H-6Item H-15Item H-18Item H-11Item H-17Item H-8Item H-13Item H-16Item H-9Item H-10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 313630X | S/assy. - Williams Control | 1 | Call for availability | ||
| H-2 | 545025-2 | Elbow - Williams Control 90 Degrees | 2 | $28.71 | Add to Cart | |
| H-3 | 545028-6 | Screw - Williams Control ( .438" - 14x2 .2250") | 2 | $2.13 | Add to Cart | |
| H-4 | 545109 | Tee - Adapter Williams Control | 1 | $33.48 | Add to Cart | |
| H-5 | 201-449-1 | Elbow - Williams Control | 1 | $31.14 | Add to Cart | |
| H-6 | 201-118-1 | Gasket - Williams Control | 1 | Call for availability | ||
| H-7 | 201-438-5 | Pin - Williams Air Control Valve | 3 | Call for availability | ||
| H-8 | 545128 | Plug - 1st And Reverse Spring Plunger | 2 | $2.84 | Add to Cart | |
| H-9 | 201-72-6 | Spring - 1St And Reverse | 2 | Call for availability | ||
| H-10 | 40-438-1 | Pin - Plunger 1St And Reverse | 2 | Call for availability | ||
| H-11 | 313538 | Switch - Back Up Light (nav) | 1 | $31.37 | Add to Cart | |
| H-11 | 313552 | Switch - Back Up Light (paccar) | 1 | $25.15 | Add to Cart | |
| H-11 | M-556-3X | Switch - Back Up Light (mack) | 1 | $177.75 | Add to Cart | |
| H-11 | M-556-1X | Switch - Back Up Light (ford) | 1 | $59.47 | Add to Cart | |
| H-12 | 201-438-2 | Pin - Actuating Back Up Light Switch | 1 | $3.68 | Add to Cart | |
| H-13 | 201-200-1 | Interlock - Shifter Rail | 1 | $14.52 | Add to Cart | |
| H-14 | 201-200-2 | Plate - Interlock Retainer | 1 | $14.17 | Add to Cart | |
| H-15 | 330801-1 | Screw - Interlock Plate ( .438" - 14X.875") | 2 | $2.67 | Add to Cart | |
| H-16 | 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | |
| H-17 | 201-72-2 | Spring - Poppet Shift Rail | 3 | $3.23 | Add to Cart | |
| H-17 | 201-72-8-1X | On Left Front Position For 9th Gear In Coe | 1 | Call for availability | ||
| H-17 | 201-118-2 | Gasket | $3.83 | Add to Cart | ||
| H-18 | 201-487-1 | Insert - Poppet Spring & Ball | 3 | Call for availability | ||
| N .S | 201-420-9 | Convoluted Conduit | A/R | Call for availability | ||
| N .S | 330971 | Clamp | A/R | $21.68 | Add to Cart | |
| N .S | 201-118-2 | Gasket-shift Lever | 1 | $3.83 | Add to Cart |
Shift Bar and Fork Assemblies
Item SB-4Item SB-13Item SB-4Item SB-1Item SB-12Item SB-10Item SB-5Item SB-14Item SB-8Item SB-7Item SB-9Item SB-6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| SB-1 | 313696X | Fork And Bar Assy. - 1st And Reverse | 1 | Call for availability | ||
| SB-1 | 313795X | Fork And Bar Assy. - 1st And Reverse (neutral Start Switch Provision) | 1 | Call for availability | ||
| SB2 | 313694X | Fork And Bar Assy. - 2nd And 3rd | 1 | Call for availability | ||
| SB2 | 313769X | Fork And Bar Assy. - 2nd And 3rd (neutral Start Switch Provision) | 1 | Call for availability | ||
| SB-4 | 313695X | Fork And Bar Assy. - 4th And 5th (ps Only)(direct Transmissions) | 1 | No longer available - Call for replacement | ||
| SB-4 | 313819X | Fork And Bar Assy. - 4th And 5th (ps Only) (direct Transmissions) | 1 | Call for availability | ||
| SB-4 | 313642-1X | Bar Assy - 4th And 5th (pso Only)(overdrive Transmissions) | 1 | $189.54 | Add to Cart | |
| SB-4 | 313818-1X | Bar Assy - 4th And 5th (pso Only)(overdrive Transmissions) | 1 | $122.96 | Add to Cart | |
| and | 201-66-18-3X | Fork And Bar Assy. - 4th And 5th (pso Only)(overdrive Transmissions) | 1 | $550.14 | Add to Cart | |
| SB-5 | 545002 | Screw - Fork Mountin Bracket Overdrive ( .375" X 1 .00") | 2 | $1.98 | Add to Cart | |
| SB-6 | 201-411-3-1X | Kit - Shift Fork Mounting Bracket, Pin And Snap Rings | 1 | $90.22 | Superseded by 20141151XAdd to Cart | |
| SB-7 | Mounting Bracket Overdrive Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-8 | Pin Mounting | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-9 | Snap Ring Mounting Bracket Pin | 2 | Not sold separately - order the sub-assembly it belongs to | Call for availability |
Repair Kits for Ref No SB-4
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| SB-9 | 313642-1X | Kit - Overdrive Shift Bar, Pins And Snap Rings | 1 | $189.54 | Add to Cart | |
| SB-8 | Pin Mounting | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-9 | Snap Ring Mounting Bracket Pin | 2 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-11 | Snap Ring Clevis Pin | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-12 | Clevis Pin Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-13 | Shift Bar 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-13 | 313818X | Kit - Overdrive Shift Fork, Pins And Snap Rings With Neutral Start | 1 | Call for availability | ||
| SB-13 | 201-66-18-3X | Kit - Overdrive Shift Fork, Pins And Snap Rings | 1 | $550.14 | Add to Cart | |
| SB-10 | Shift Fork And Shoe Sub Assy. 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| SB-14 | 201-486-1 | Shoe - Overdrive Shift Fork | 2 | $22.54 | Add to Cart | |
| SB-14 | 201438-10 | Pins | Call for availability | |||
| SB-14 | 201-438-6-1X | Kit - Mounting Pin And Snap Rings | 1 | Call for availability | ||
| SB-12 | 201-438-7-1X | Kit - Mounting Bracket, Pins And Snap Rings | 1 | Call for availability |
Range Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 201-15-3-1X | S/assy. - Case (range) (includes J-1A Thru J -6) | 1 | $1,092.84 | Add to Cart | |
| J-1A | Case -range | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| J-2 | NP-96 | Name Plate | 1 | $2.16 | Add to Cart | |
| J-3 | 252-SP | Pin- Name Plate | 4 | $1.90 | Add to Cart | |
| N .S | NP-196 | Patent Plate | 1 | $2.97 | Add to Cart | |
| J-4 | 545123 | Plug - Filler & Drain Magnetic | 2 | $22.03 | Add to Cart | |
| J-5 | Washer Filler & Drain Plug | 2 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| J-6 | 201-39-1 | Plug - Temperature Indicator Hole | 1 | $2.67 | Add to Cart | |
| J-7 | 330360-7 | Stud - Rear Mounting (2 .375") | 2 | $4.65 | Add to Cart | |
| J-7 | 330360-15 | Stud - Rear Mounting (3 .562") | Call for availability | |||
| J-8 | 545001-1 | Screw - Range Case ( .500"-13X1 .375") | 16 | $2.59 | Add to Cart | |
| J-9 | 545025-1 | Elbow - 90 Degree | 1 | $20.33 | Add to Cart |
Range Piston Housing and Shift Fork Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 201-66-23-2X | S/assy. - Fork And Rod And Clips - Range | 1 | Call for availability | ||
| N .S | 201-486-3 | Clips-fork | 2 | $7.87 | Add to Cart | |
| K-2 | 545045 | Nut - Piston Rod - Range | 1 | $3.15 | Add to Cart | |
| K-3 | 201-501-2-1X | S/assy - Piston Housing - Range (includes K-4 Thru K-6) | 1 | $334.54 | Add to Cart | |
| K-4 | Housing Piston Range | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| K-5 | 545025-1 | Elbow - Piston Housing 90 Degree | 1 | $20.33 | Add to Cart | |
| K-6 | 545002-1 | Screw - Piston Housing ( .375" - 16X.875") | 4 | $2.23 | Add to Cart | |
| K-9 | 201-463-1 | "o" Ring - Piston Shift - Range | 1 | $9.41 | Add to Cart | |
| K-8 | 201-463-2 | "o" Ring - Piston Housing - Range | 1 | $6.67 | Add to Cart | |
| K-7 | 201-463-3 | "o" Ring - Piston Rod - Range | 1 | $2.39 | Add to Cart | |
| K-10 | 183-463-6 | "o" Ring - Piston To Rod - Range | 1 | Call for availability | ||
| K-11 | 201-136-7 | Piston - Shift - Range | 1 | $45.08 | Add to Cart |
Countershaft Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-12 | 201-22-3 | Cap - Countershaft Bearing | 1 | $21.43 | Add to Cart | |
| K-13 | 545002-1 | Screw - Bearing Cap ( .375" - 16X.875") | 6 | $2.23 | Add to Cart | |
| and | 545002-7 | Screw - Bearing Cap ( .375" - 16X1 .500") | 2 | $2.33 | Add to Cart | |
| N .S | 330564-3 | Lift Hook | 2 | $3.15 | Add to Cart | |
| K-14 | 500381-4 | Spacer - Filter Regulator | 4 | Call for availability | ||
| K-15 | 201-411-1 | Bracket - Filter Regulator | 1 | $4.70 | Add to Cart | |
| K-16 | 313644X | Kit Power Control And Mounting Parts (incl K-17 Thru K-19) | 1 | $881.94 | Add to Cart | |
| K-17 | 313042 | S/assy. - Filter Regulator | 1 | $784.67 | Add to Cart | |
| K-18 | 330831 | Clamp - Filter Regulator Mounting | 1 | Call for availability | ||
| K-19 | 545025-1 | Elbow - Filter Regulator 90 Degree | 1 | $20.33 | Add to Cart |
Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| L-1 | 201-19-8-2X | S/assy. Elect/mech Bearing Cap Rear (incl L-2 Thru L-5) | 1 | Call for availability | ||
| L-2 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-3 | 201-463-8 | Seal - Bearing Cap Rear | 1 | $43.25 | Add to Cart | |
| L-4 | 545021 | Plug - Electronic Speedometer | 2 | $18.89 | Add to Cart | |
| L-5 | 55-334-1 | Plug - Speedometer Outlet | 1 | $88.44 | Add to Cart | |
| L-7 | 201-228-2-1 | Shim - Output Shaft ( .005 Thick) | A/R | Call for availability | ||
| L-7 | 201-228-2-2 | Shim - Output Shaft ( .010 Thick) | A/R | Call for availability | ||
| L-7 | 201-228-2-3 | Shim - Output Shaft ( .015 Thick) | A/R | Call for availability | ||
| L-7 | 201-228-2-4 | Shim - Output Shaft ( .020 Thick) | A/R | Call for availability | ||
| L-7 | 201-228-2-5 | Shim - Output Shaft ( .030 Thick) | A/R | Call for availability | ||
| L-8 | 545002-6 | Screw - Bearing Cap Rear ( .375" - 16 X .250") | 4 | $2.29 | Add to Cart |
Following Parts Are Not Included in Above Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 201-420-5-1X | Harness - Air Tubing (48" Long) | 1 | No longer available - Call for replacement | ||
| P-1 | 201-420-5-2X | Harness - Air Tubing (92" Long For Remote Control Use) | 1 | Call for availability | ||
| P-2 | 97-463-7 | "o" Ring - Retaining Air Harness | 3 | $2.61 | Add to Cart | |
| P-3 | 201-483-3 | Boot - Floorboard (oval) | 1 | $27.62 | Add to Cart | |
| P-3 | 201-483-4 | Boot - Floorboard (oval) | 1 | Call for availability | ||
| P-3 | 201-483-5 | Boot - Floorboard (rectangular) | 1 | Call for availability | ||
| N .S | 313885X | Shift Knob Assy. (includes P-4 Thru P-10) | 1 | Call for availability | ||
| P-4 | 205-20-13 | Insert - Shift Pattern (9 Speed Spicer W/shift Pattern) | 1 | Call for availability | ||
| P-4 | 205-20-15 | Insert - Shift Pattern ( Spicer ) | 1 | $35.41 | Add to Cart | |
| P-6 | 500370-4 | Nut - Shift Knob Retaining | 1 | Call for availability | ||
| P-7 | 500357-13 | Washer - Shift Knob Retaining | 1 | $2.33 | Add to Cart | |
| P-8 | 204-W | Washer - Shift Knob Stop | 1 | Call for availability | ||
| P-9 | 39Q-38-3 | N .s .s Knob Shift Air Valve (serviced As 313885X) | 1 | No longer available - Call for replacement | ||
| P-10 | 201-205-1 | Index Washer | 1 | Call for availability | ||
| P-11 | 201-438-8 | Roll Pin - Shift Knob | 1 | $2.79 | Add to Cart | |
| N .S | 201-420-7 | Tube Support ( 3/16 ) | 1 | Call for availability | ||
| P-13 | 545063 | Set Screw ( Single Crimp Style Only ) | 1 | $6.27 | Add to Cart | |
| P-16 | 101-483-2 | Boot - Shift Tower & Lever | 1 | $26.15 | Add to Cart | |
| N .S | 33Q-15-1 | Tie Cable (upper) | 1 | Call for availability | ||
| N .S | 33Q-15-2 | Tie Cable (lower) | 1 | Call for availability | ||
| P-19 | 97-381-11 | Snap Ring | 1 | $11.83 | Add to Cart | |
| P-20 | 34Q-8 | Ring - Outer | 2 | $248.46 | Add to Cart | |
| P-21 | 34Q-7 | Ring - Inner | 2 | $248.46 | Add to Cart | |
| P-23 | 201-72-3 | Spring - Disc | 2 | $248.46 | Add to Cart | |
| N .S | 201-17-2X | Sub-assy. Tower Housing (includes P-24 Thru P-25) | 1 | $284.86 | Add to Cart | |
| N .S | 201-17-3X | Sub-assy. Tower Housing (includes P-24 Thru P-25) | 1 | Call for availability | ||
| P-24 | Tower (6 .312" Fulcrum) (serviced As 201 -17-2X) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| P-25 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| P-26 | 201-118-2 | Gasket - Tower Housing | 1 | $3.83 | Add to Cart | |
| P-27 | 545028-2 | Screw - Tower Housing | 6 | $2.87 | Add to Cart |
Parts Listed Below Are Not Included in Assembly
Item RC-1Item RC-3Item RC-2Item RC-4Item RC-6Item RC-7Item RC-29Item RC-8Item RC-14Item RC-9Item RC-30Item RC-10Item RC-28Item RC-18Item RC-11Item RC-27Item RC-12Item RC-26Item RC-24Item RC-17Item RC-16Item RC-15Item RC-22Item RC-24Item RC-16Item RC-13Item RC-12Item RC-20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-18-6-3X | Remote Control Assembly | 1 | Call for availability | |||
| RC-1 | 201-18-6X | S .assy. Remote Control Housing Bushings And Ball Joint | 1 | Call for availability | ||
| RC-2 | Remote Control Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| RC-3 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| RC-4 | 40-24-1 | Bushing - Remote Control Housing | 2 | Call for availability | ||
| RC-6 | 28P-19 | Seal - Remote Control Housing | 1 | Call for availability | ||
| RC-7 | 201-65-5 | Rod - Inner Shift Control | 1 | $41.45 | Add to Cart | |
| RC-8 | 97-483-3 | Boot - Shift Rod Rubber | 1 | Call for availability | ||
| RC-9 | 33Q-15-1 | Tie - Cable | 2 | Call for availability | ||
| RC-10 | 545136 | Bolt - Outer Shift Lever | 1 | Call for availability | ||
| RC-11 | 201-6-3 | Lever - Remote Outer Shift Control | 1 | $92.60 | Add to Cart | |
| RC-12 | 500371-3 | Nut - Ball Stud | 1 | $2.29 | Add to Cart | |
| RC-13 | 500362-11 | Lock Washer | 1 | Call for availability | ||
| RC-14 | 201-6-11-1X | S/assy. - Selector Lever And Arm (includes RC-15 Thru RC-22) | 1 | Call for availability | ||
| RC-15 | 545117 | Ball Stud Selection Lever | 1 | Call for availability | ||
| RC-16 | 201-999-3 | Bearing - Race Selector Lever | 2 | Call for availability | ||
| RC-17 | 201-483-2 | Boot - Selector Lever | 1 | Call for availability | ||
| RC-18 | Lever Selection | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S | 313727X | Kit Grease Parts (includes RC-19 And RC-20) | 1 | Call for availability | ||
| RC-19 | Nipple Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| RC-20 | Retainer Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| RC-21 | 201-381-4 | Snap Ring - Selection Lever | 1 | Call for availability | ||
| RC-22 | 201-72-10 | Spring - Disc Selection Lever | 3 | Call for availability | ||
| RC-23 | 313673 | Ball Joint - Female | 1 | $46.61 | Add to Cart | |
| RC-24 | 545114 | Jam Nut - Turnbuckle | 2 | Call for availability | ||
| RC-25 | 201-65-6 | Tie Rod | 1 | Call for availability | ||
| RC-26 | 73Q-2 | Turn Buckle | 1 | Call for availability | ||
| RC-27 | 545113 | Jam Nut - Turnbuckle (left Hand) | 1 | Call for availability | ||
| RC-28 | 313715 | Ball Joint - Male ( .500-13 Unc Thread On End Into Housing) | 1 | Call for availability | ||
| RC-29 | 201-6-2 | Finger - Inner Shift | 1 | $146.95 | Add to Cart | |
| RC-30 | 545137 | Screw - Shift Finger | 1 | Call for availability | ||
| N .S | 545028-2 | Screw Control Housing ( .438 14 X 1 .500") | 6 | $2.87 | Add to Cart | |
| N .S | 201-118-2 | Gasket Tower Housing | 1 | $3.83 | Add to Cart |
Service Parts Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-400-1X | Major Overhaul Kit | $1,272.81 | Add to Cart | |||
| 313432-33X | Kit - Minor Overhaul | 1 | $998.94 | Add to Cart | ||
| 313669X | Kit - Range Piston Housing Repair | 1 | Call for availability | |||
| 313429-23X | Kit - Shift Tower Repair Parts | 1 | $85.70 | Add to Cart | ||
| 201-210-4-1 | Key - Countershaft Gear Rear | 2 | $4.64 | Add to Cart | ||
| 201-201-4-2 | Key - Countershaft Gear Middle | 2 | Call for availability | |||
| 201-210-4-3 | Key - Countershaft Gear Front | 2 | $11.02 | Add to Cart | ||
| 201-438-6-1X | Kit - Overdrive Shift Fork Mounting Pin And Snap Ring | 1 | $6.22 | Add to Cart | ||
| 201-438-7-1X | Kit - Overdrive Shift Fork Bracket Pin And Snap Ring | 1 | $9.95 | Add to Cart | ||
| 201-47-4 | Washer - Output Shaft Thrust (range) | 1 | $34.68 | Add to Cart | ||
| 201-47-6 | Ring - Range Mainshaft Drive Gear Thrust | 1 | $33.46 | Add to Cart | ||
| 330955 | Washer - Countershaft Reverse Idler Thrust (range) | 2 | $20.01 | Add to Cart | ||
| 500007-24 | Key - Woodruff Pto Gear | 2 | Call for availability | |||
| 545065 | Nut - Mainshaft | 1 | $31.43 | Add to Cart | ||
| 545087 | Pin - Thrust Washer Lock (range Coutnershaft) | 2 | $5.49 | Add to Cart | ||
| 201-200-8 | Lock Strap | 1 | $2.79 | Add to Cart | ||
| 2783 | Bulletin - Mainshaft Nut (loctite Application) | 1 | Call for availability | |||
| 2362 | Maintenance Manual | 1 | Call for availability | |||
| 312475-45X | Kit - Gasket | 1 | $37.46 | Add to Cart | ||
| 313667X | Kit - Shim | 1 | $39.63 | Add to Cart | ||
| 201-381-1 | Ring - Snap Input Shaft | 1 | $3.15 | Add to Cart | ||
| 201-381-3 | Ring - Snap Mainshaft Range Drive Gear | 1 | $8.09 | Add to Cart | ||
| 201-436-8 | Seal - Output Shaft Rear Bearing Cap | 1 | Call for availability | |||
| 545080-1 | Anaerobic Sealant - Mainshaft Nut (0 .5 Cc Vial) | 1 | Call for availability | |||
| 545124 | Washer - Filler And Drian Plug | 3 | Call for availability | |||
| 97-463-36-1X | Oil - Seal Drive Gear Bearing Cap (w/installatin Tool) | 1 | $38.68 | Add to Cart | ||
| 201-463-26 | "o" Ring - Counter Shaft ( Front ) | 6 | $20.25 | Add to Cart | ||
| 313628X | S/assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | ||
| 313668X | Kit - Output Shaft Gear Needle Bearing | 1 | $78.71 | Add to Cart | ||
| 550996 | Bearing - Countershaft Front | 2 | $61.00 | Add to Cart | ||
| 550998 | Bearing - Countershaft Rear | 2 | $135.42 | Add to Cart | ||
| 551009 | Bearing - Countershaft Rear | 2 | Call for availability | |||
| 313645X | S/assy. - Bearing And Belleville Snap Ring (input Shaft) | 1 | $183.51 | Add to Cart | ||
| 550182 | Bearing - Countershaft Rear Cone | 2 | $36.48 | Add to Cart | ||
| 550375 | Bearing - Countershaft Rear Cup | 2 | $17.99 | Add to Cart | ||
| 551010 | Bearing - Coutnershaft Front Cup(before S/n J930506005) | Call for availability | ||||
| 551011 | Bearing - Coutnershaft Front Cone(before S/n J930506005) | Call for availability | ||||
| 551013 | Bearing - Coutnershaft Front Cone(after S/n J930506005) | $49.38 | Add to Cart | |||
| 550997 | Bearing - Reverse Idler Needle | 2 | $14.83 | Add to Cart | ||
| 183-463-6 | "o" - Ring - Splitter Or Range Piston | 1 | Call for availability | |||
| 201-463-1 | "o" - Ring - Range Shift Piston | 1 | $9.41 | Add to Cart | ||
| 201-463-2 | "o" - Ring - Range Piston Housing | 1 | $6.67 | Add to Cart | ||
| 201-463-3 | "o" - Ring - Range Piston Rod | 1 | $2.39 | Add to Cart | ||
| 2726 | Bulletin - "o" Ring Lubrication Instruction | 1 | Call for availability | |||
| 330895 | Lubricant - "o" Ring | 1 | Call for availability | |||
| 201-438-2 | Pin - Actuating Back - Up Light | 1 | $3.68 | Add to Cart | ||
| 201-438-5 | Pin - Air Control Valve | 3 | Call for availability | |||
| 201-487-1 | Insert - Poppett Spring And Ball | 3 | Call for availability | |||
| 201-72-2 | Spring - Shift Rail Poppet | 3 | $3.23 | Add to Cart | ||
| 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | ||
| 40-438-1 | Pin -1st And Reverse Select Plunger | 3 | Call for availability | |||
| 62-72-8 | Spring - 1st And Reverse Shift Plunger | 3 | No longer available - Call for replacement | |||
| 312477-46X | Kit- Shift Housing Bushing Kit | 1 | $248.46 | Add to Cart | ||
| 201-72-3 | Spring-disc | 2 | $248.46 | Add to Cart | ||
| 2860 | Bulletin | 1 | Call for availability | |||
| 34Q-7 | Ring-inner (lower) | 1 | $248.46 | Add to Cart | ||
| 34Q-8 | Ring-outer | 2 | $248.46 | Add to Cart | ||
| 34Q-9 | Ring-inner (upper) | 2 | Call for availability | |||
| 201-118-1 | Gasket - Williams Air Control Valve | 1 | $6.27 | Add to Cart | ||
| 201-118-2 | Gasket - Tower Housing | 1 | $3.83 | Add to Cart | ||
| 2724 | Bulletin - Anaerobic Sealant Application | 1 | Call for availability | |||
| 545056-9 | Anaerobic Sealant - 24cc Tube | 1 | Call for availability | |||
| 313667-X | Shim Kit (included In Major And Minor Overhaul Kit) | 1 | $39.63 | Add to Cart | ||
| 2825 | Bulletin - Counterhsaft Shim Instructions | 1 | Call for availability | |||
| 201-228-1-1 | Shim - Coutnershaft Rear Bearing ( .005" Thick) | 4 | Call for availability | |||
| 201-228-1-2 | Shim - Countershaft Rear Bearing ( .010" Thick) | 4 | Call for availability | |||
| 201-228-1-3 | Shim - Coutnershaft Rear Bearing ( .015" Thick) | 4 | Call for availability | |||
| 201-228-1-4 | Shim - Countershaft Rear Bearing ( .020" Thick) | 4 | Call for availability | |||
| 201-228-1-5 | Shim - Countershaft Rear Bearing ( .030" Thick) | 4 | Call for availability | |||
| 201-228-1-8 | Shim - Countershaft Rear Bearing ( .0465/.0435) | Call for availability | ||||
| 201-228-1-9 | Shim - Countershaft Rear Bearing ( .0515/.0485) | Call for availability | ||||
| 201-228-2-1 | Shim - Output Shaft ( .005" Thick) | 1 | Call for availability | |||
| 201-228-2-2 | Shim - Output Shaft ( .010" Thick) | 1 | Call for availability | |||
| 201-228-2-3 | Shim - Output Shaft ( .015" Thick) | 1 | Call for availability | |||
| 201-228-2-4 | Shim - Output Shaft ( .020" Thick) | 1 | Call for availability | |||
| 201-228-2-5 | Shim - Output Shaft ( .030" Thick) | 1 | Call for availability | |||
| 201-8-43-1X | Kit - M/s & C/s Gear Replacement | 1 | Call for availability | |||
| 201-196-35 | Gear C/s H .e | 1 | $279.21 | Add to Cart | ||
| 201-8-43 | Gear M/s H .e | 1 | $377.24 | Add to Cart | ||
| 2864 | Bulletin - Head End Gear Replacement | 1 | Call for availability | |||
| 33333 | 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 | 3 3 3 3 3 3 3 3 P | Call for availability | |||
| 00000 | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 0 0 0 0 0 0 0 0 B | Call for availability | |||
| 11111 | 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | 1 1 1 1 1 1 1 1 S B | Call for availability | |||
| 55555 | 5 5 5 5 5 5 5 5 4 4 4 4 4 4 4 4 4 4 4 4 4 4 | 4 4 4 4 4 4 4 4 M | Call for availability | |||
| 44444 | 4 4 0 0 0 0 0 0 9 9 9 9 9 9 9 9 9 9 9 9 9 9 | 9 3 3 3 3 3 3 3 9 | Call for availability | |||
| 99888 | 7 7 0 0 0 0 0 0 9 9 9 9 6 6 6 6 6 6 5 5 5 5 | 5 2 2 2 1 1 1 1 I | Call for availability | |||
| 2-1-2-1-1 | 2 - 1 - 9 - 7 - 4 - 3 - 2 - 1 - 4 - 3 - 2 - 1 - 6 - 5 - 4 - 3 - 2 - 1 - 5 - 4 - 3 - 2 - | 1 - 6 - 2 - 1 - 7 - 6 - 2 - 1 - L | Call for availability | |||
| 44111 | 2 2 9 - 9 - 9 - 9 - 9 - 9 - 2 2 2 2 5 5 5 5 5 5 0 0 0 0 | 0 4 4 4 5 5 5 5 e F | Call for availability | |||
| 0-0-222 | 5 - 5 - A A A A A A 5 5 5 5 0 0 0 0 0 0 9 - 9 - 9 - 9 - | 9 - 0 0 0 9 - 9 - 9 - 9 - l | Call for availability | |||
| 99555 | 9 9 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - A A A A | A 9 - 9 - 9 - A A A A | Call for availability | |||
| AA9-9-9 | A A A A A A A A A A A A | A A A M | Call for availability | |||
| U33U3 | 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 | 3 3 3 3 3 3 3 3 | Call for availability | |||
| 00M0 | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 0 0 0 0 0 0 0 0 N | Call for availability | |||
| M11P1 | 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | 1 1 1 1 1 1 1 1 o | Call for availability | |||
| 66R6 | 6 6 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 | 5 5 5 5 5 5 5 5 t e | Call for availability | |||
| R98P8 | 7 7 3 3 4 3 3 3 6 6 6 6 8 8 8 6 6 6 5 5 5 5 | 5 7 7 7 4 4 4 4 | Call for availability | |||
| P5-2-CL2 | 2 - 2 - 9 - 9 - 2 - 9 - 5 - 1 - 4 - 3 - 2 - 2 - 6 - 5 - 6 - 2 - 2 - 2 - 5 - 5 - 5 - 5 - | 5 - 7 - 2 - 2 - 7 - 6 - 2 - - | Call for availability | |||
| 22222 | 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 | 2 2 2 2 2 2 2 2 A C | Call for availability | |||
| 5-5-5-5-5 | 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - | 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - s e c h | Call for availability | |||
| 88888 | 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 | 8 8 8 8 8 8 8 8 H | Call for availability | |||
| 2-2-2-2-2 | 2 - 2 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 2 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - | 1 - 2 - 1 - 1 - 1 - 1 - 1 - 1 - b o | Call for availability | |||
| 3-3-3-3-3 | 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - | 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - h p | Call for availability | |||
| 1-1-1-1-1 | 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - | 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - C e | Call for availability | |||
| 99999 | 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 | 9 9 9 9 9 9 9 9 a G | Call for availability | |||
| 77766 | 6 6 5 5 5 5 5 4 4 4 4 4 4 4 3 3 3 3 3 3 3 1 1 | 1 1 0 0 9 9 9 I | Call for availability | |||
| 6-2-1-4-3 | 2 - 1 - 5 - 4 - 3 - 2 - 1 - 7 - 6 - 5 - 4 - 3 - 2 - 1 - 9 - 7 - 5 - 4 - 3 - 2 - 1 - 4 - 3 | - 2 - 1 - 2 - 1 - 5 - 4 - 3 - L | Call for availability | |||
| 44422 | 2 2 0 0 0 0 0 5 5 5 5 5 5 5 9 - 9 - 9 - 9 - 9 - 9 - 9 - 1 9 | 9 1 1 1 4 V - V - e F | Call for availability | |||
| 00055 | 5 5 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - A A A A A A A 5 V | - V - 5 4 4 0 P P l | Call for availability | |||
| 9-9-9-9-9 | 9 - 9 - A A A A A A A A A A A A 0 | 0 0 0 9 - D D | Call for availability | |||
| 3T3T | 3 T 3 T 3 T 3 T 3 T 3 T 3 T 3 T 3 T 9 - 9 - 5 - 4 - 3 | - 2 - 4 - 2 - 2 - 5 - 4 - 3 - | Call for availability | |||
| 11122 | 1 1 1 1 1 1 1 1 2 1 1 1 1 1 2 2 2 1 2 2 2 1 1 | 1 1 1 1 1 1 1 A | Call for availability | |||
| 2-1-1-1-1 | 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 2 - 2 | - 2 - 2 - 2 - 2 - 2 - 2 - 2 - b o | Call for availability | |||
| 10044 | 0 0 0 0 0 0 0 0 4 0 0 0 0 0 4 4 4 0 4 4 4 0 0 | 0 0 0 0 0 0 0 y l u | Call for availability | |||
| 2-5-5-5-5 | 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 2 - 2 | - 2 - 2 - 2 - 2 - 2 - 2 - 2 - # s i | Call for availability | |||
| 2-2-2-7-2 | 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 7 - 7 - 6 - 2 - 7 - 6 - 2 - 2 - 2 | - 2 - 2 - 2 - 2 - 2 - 2 - 2 - | Call for availability | |||
| 3333 | 3 3 3 3 3 3 3 3 | 3 3 3 3 3 3 3 3 P | Call for availability | |||
| 0000 | 0 0 0 0 0 0 0 0 | 0 0 0 0 0 0 0 0 B | Call for availability | |||
| 1111 | 1 1 1 1 1 1 1 1 | 1 1 1 1 1 1 1 1 S B | Call for availability | |||
| 5555 | 5 5 5 5 5 5 5 5 | 5 5 5 5 5 5 5 5 M | Call for availability | |||
| 7777 | 7 6 6 6 6 6 6 6 | 5 5 5 5 5 5 5 5 9 | Call for availability | |||
| 4-3-2-1 | - 2 - 5 - 4 - 3 - 2 - 1 - 2 - 2 - | 7 - 6 - 5 - 4 - 3 - 2 - 1 - 7 - L | Call for availability | |||
| 1991 | 1 4 V - V - 4 4 1 2 | 5 5 5 5 5 5 5 4 e F | Call for availability | |||
| 5V-V-5 | 4 0 - P P 0 - 0 - 2 5 - | 0 0 0 0 0 0 0 0 l | Call for availability | |||
| 0PP0 | 0 9 D D 9 9 5 9 | 9 - 9 - 9 - 9 - 9 - 9 - 9 - 9 - | Call for availability | |||
| 2222 | 2 2 2 2 2 2 2 2 | 2 2 2 2 2 2 2 2 A l | Call for availability | |||
| 5-5-5-5 | - 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - | 5 - 5 - 5 - 5 - 5 - 5 - 5 - 5 - s e c h | Call for availability | |||
| 8888 | 8 8 8 8 8 8 8 8 | 8 8 8 8 8 8 8 8 H | Call for availability | |||
| 2-2-2-2 | - 2 - 2 - 2 - 2 - 2 - 2 - 2 - 2 - | 1 - 1 - 2 - 1 - 1 - 1 - 1 - 2 - b o | Call for availability | |||
| 3-3-3-3 | - 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - | 3 - 3 - 3 - 3 - 3 - 3 - 3 - 3 - a h p | Call for availability | |||
| 9999 | 9 9 9 9 9 9 9 9 | 9 9 9 9 9 9 9 9 a G | Call for availability |
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission PS125-9A, with every part in the manual matched to our live inventory. We stock 192 of the 428 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the PS95-9A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | PS95-9A |
| Transmission type | 9-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 34 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
