Spicer PSO115-10V Parts Manual
Countershaft Group Main Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 201-30-14 | Countershaft - Main | 2 | $467.45 | Add to Cart | |
| C-2 | 201-210-4-2 | Key - Countershaft Gear- Middle | 2 | $4.19 | Add to Cart | |
| C-3 | 201-210-4-3 | Key - Countershaft Gear - Front | 2 | $11.02 | Add to Cart | |
| C-4 | 201-210-4-1 | Key - Countershaft Gear- Rear | 2 | $4.64 | Add to Cart | |
| C-5 | 201-196-38 | Gear- Countershaft (1st & 8th) (28T) | 2 | $238.80 | Add to Cart | |
| C-6 | 201-196-38 | Gear- Countershaft (2nd & 7th) (38T) | 2 | $238.80 | Add to Cart | |
| C-7 | 201-312-3 | Gear- Countershaft Pto Drive | 2 | $280.05 | Add to Cart | |
| C-8 | 201-198-42 | Gear - Countershaft (3rd & 8th) (39T) | 2 | — | Call for availability | |
| C-9 | 201-196-40 | Gear - Countershaft (4th & 9th) (63T) (overdrive Transmissions) | 2 | $177.75 | Add to Cart | |
| C-9 | 201-196-50 | Gear- Countershaft (4th & 9th) (61T) (direct Transmissions) | 2 | $238.69 | Add to Cart | |
| C-9 | 201-196-41 | Gear - Countershaft (4th & 9th) (59T) (direct Vocational Transmissions) | 2 | $220.13 | Add to Cart | |
| C-9 | 201-196-45 | Gear- Countershaft (4th & 9th) (76T) (overdrive Vocational Transmissions) | 2 | $233.89 | Add to Cart | |
| C-10 | 201-47-2 | Ring - Countershaft Thrust (flat) | 2 | $20.15 | Add to Cart | |
| C-11 | 201-47-5 | Ring - Countershaft H .e. Gear Thrust | 2 | $52.11 | Add to Cart | |
| C-12 | 201-196-41 | Gear- Countershaft H .e. (5th & 10th) (59T) (all Overdrive Transmissions) | 2 | $220.13 | Add to Cart | |
| C-12 | 201-198-49 | Gear- Countershaft H .e. (5th & 10th) (66T) (direct Transmissions) | 2 | — | Call for availability | |
| C-12 | 201-196-45 | Gear- Countershaft H .e. (5th .& 1oth) (76T) (direct Vocational | 2 | $233.89 | Add to Cart | |
| C-13 | 551013 | Bearing - Cone Front Countershaft | 2 | $49.38 | Add to Cart | |
| C-14 | 550375 | Bearing - Cup Front Countershaft | 2 | $17.99 | Add to Cart | |
| C-15 | 201-47-3 | Ring - Countershaft (1st) Thrust | 2 | $14.83 | Add to Cart | |
| C-16 | 550182 | Bearing - Cone Rear Countershaft | 2 | $36.48 | Add to Cart | |
| C-17 | 550375 | Bearing - Cup Rear Countershaft | 2 | $17.99 | Add to Cart | |
| C-18 | 201-228-1-1 | Shim - Countershaft Rear Bearing (.005 Thick} | AIR | — | Call for availability | |
| C-18 | 201-228-1-2 | Shim Countershaft Rear Bearing (.01 0 Thick) | AIR | — | Call for availability | |
| C-18 | 201-228-1-3 | Shim Countershaft Rear Bearing (.015 Thick) | AIR | — | Call for availability | |
| C-18 | 201-228-1-4 | Shim - Countershaft: Rear Bearing (.020 Thick) | AIR | — | Call for availability | |
| C-18 | 201-228-1-5 | Shim Countershaft: Rear Bearinq (.030 Thick) | AIR | — | Call for availability | |
| C-19 | 201-228-1-6 | Shim- Countershaft Rear Bearing (.090 Thick) | — | Call for availability | ||
| D-1 | 201-360-1 | Plate - Retainer Countershaft | 1 | $10.03 | Add to Cart | |
| D-2 | 545002-1 | Screw- Plate Retaining Countershaft: | 3 | $2.23 | Add to Cart | |
| ... ~ .. D-3 | 201-196-12 | Gear- Countershaft: Reverse- Range (21T) | 2 | $279.20 | Add to Cart | |
| D-4 | 330952 | Washer- Countershaft: Reverse Drive Gear Retaining | 2 | $3.00 | Add to Cart | |
| D-5 | 545001-5 | Screw - Reverse Drive Gear Retaining Washer | 2 | — | Call for availability |
Countershaft and Synchronizer Group Range Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 550996 | Bearing - Countershaft Front | 2 | $61.00 | Add to Cart | |
| E-2 | 330955 | Washer- Countershaft Reverse Idler Thrust | 2 | $20.01 | Add to Cart | |
| E-3 | 201-5-2 | Gear- Reverse Idler Countershaft | 2 | $132.94 | Add to Cart | |
| E-4 | 550997 | Bearing - Needle Reverse Idler | 2 | $14.83 | Add to Cart | |
| E-5 | 201-30-19 | Countershaft S/assy. - Range (20T/48T) (overdrive Transmissions) | 2 | $914.73 | Add to Cart | |
| E-5 | 201-30-12 | Countershaft S/assy Range (20T/48T) (overdrive Transmissions Less | 2 | $794.51 | Add to Cart | |
| E-5 | 201-30-17 | Countershaft S/assy. - Range (20T/45T) (direct Transmissions) | 2 | — | Call for availability | |
| E-5 | 201-30-16 | Countershaft S/assy. - Range (20T/52T) (all Vocational Transmissions) | 2 | $1,133.30 | Add to Cart | |
| E-6 | 550998 | Bearing - Countershaft Rear | 2 | $135.42 | Add to Cart | |
| E-7 | 201-47-6 | Ring - Thrust Mainshaft Drive Gear | 1 | $33.46 | Add to Cart | |
| E-8 | 201-8-51 | Gear- Mainshaft Head End (26T) (overdrive Transmissions) | 1 | $217.67 | Add to Cart | |
| E-8 | 201-8-59 | Gear- Mains Haft Head End (26T) (direct Transmissions) | 1 | $342.97 | Add to Cart | |
| E-8 | 201-8-55 | Gear- Mainshaft Head End (26T) (all Vocational Transmissions) | 1 | — | Call for availability | |
| E-9 | 201-494-1 | Race - Synchronizer Outer | 1 | $204.93 | Add to Cart | |
| E-10 | 201-466-2 | Gear - Clutch Drive (high Range) | 1 | $180.99 | Add to Cart | |
| E-11 | 330954 | Washer- Mainshaft Clutch Gear Retaining (high Range) | 1 | $4.90 | Add to Cart | |
| E-12 | 545001-5 | Screw- Clutch Gear Retaining Washer (high Range) | 1 | — | Call for availability | |
| E-13 | 201-563-1-1X | Synchronizer- High & Low (includes E-14 E-15, & E-16) | 1 | $560.75 | Add to Cart | |
| E-14 | S/assy. Synchronizer- High Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| E-15 | S/assy. Synchronizer- Low Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| E-16 | 201-72-9 | Spring - Extension | 3 | — | Call for availability | |
| E-17 | 201-465-4 | Collar - Clutch - High & Low Range | 1 | $205.39 | Add to Cart |

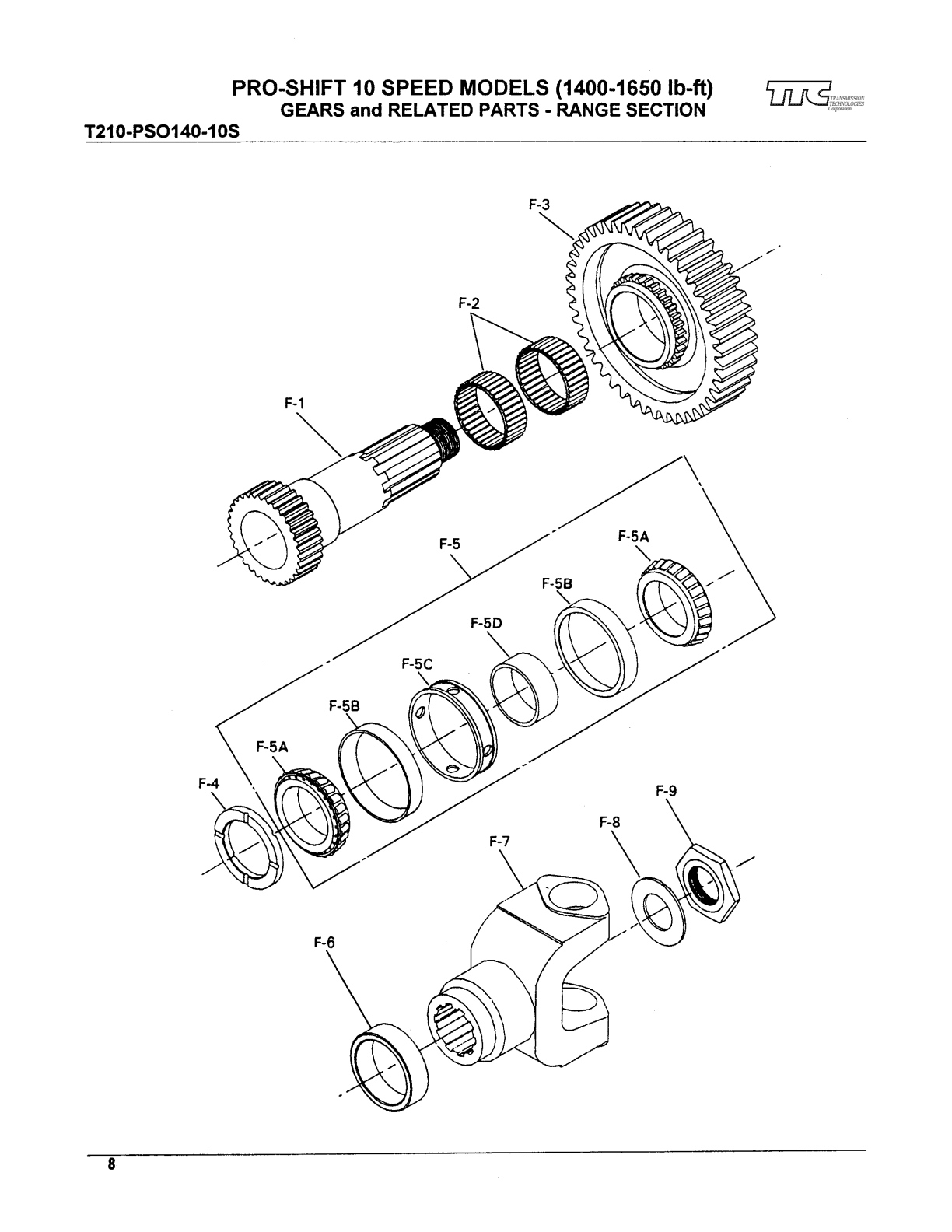

Mainshaft Group - Output Range Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 201-362-3 | Output Shaft | 1 | — | Call for availability | |
| F-2 | 313668X | Kit Needle Bearing Output Shaft (includes (2) Pes 550975) | 1 | $78.71 | Add to Cart | |
| F-3 | 201-8-41 | Gear- Output- Low Range (52T) | 1 | — | No longer available — call for replacement | |
| F-4 | 201-47-4 | Washer- Thrust Output Shaft | 1 | $34.68 | Add to Cart | |
| F-5 | 313628X | S/assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | |
| F-5A | Bearing - Cone Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5B | Bearing - Cup Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5C | Spacer- Bearing Cup Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5D | Spacer- Bearing Cone Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-6 | 201-37-6 | Spacer - Speedometer | 1 | — | Call for availability | |
| F-6 | 201-452-1 | Electronic Speedometer Signal Gear (16 Grooves) | 1 | $86.79 | Add to Cart | |
| F-6 | 201-452-2 | Speedometer Drive Gear (4T) Ratio 3:1 | 1 | — | Call for availability | |
| F-6 | 97-453-1 | Speedometer Driven Gear (12T) | 1 | — | Call for availability | |
| F-6 | 201-452-3 | Speedometer Drive Gear (8T) Ratio 2:1 | 1 | — | Call for availability | |
| F-6 | 97-453-7 | Speedometer Driven Gear (16T) | 1 | — | Call for availability | |
| F-8 | 330734 | Washer- Output Shaft Nut | 1 | $6.27 | Add to Cart | |
| F-9 | 545065 | Nut- Output Shaft (1 .75"-16 UNEF-3B) | 1 | $31.43 | Add to Cart |

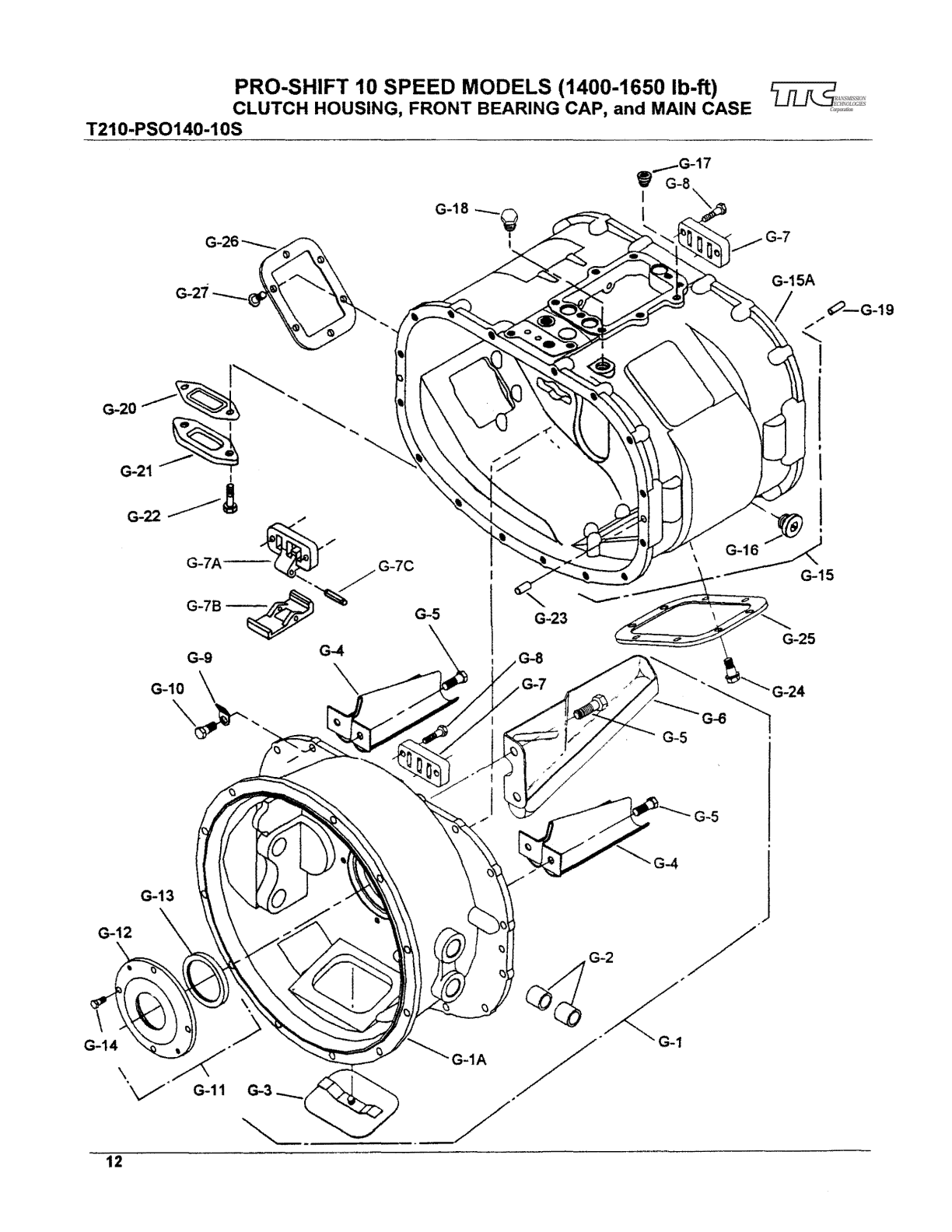

Clutch Housing Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-1 | 201-518-10-SX | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-21-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-14-SX | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #2) | 1 | — | Call for availability | |
| G-1 | 201-518-12-SX | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-22-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-8-4X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-20-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-19-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-581-23-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| N .S | 201-463-26 | "0 " Ring - Countershaft Front (aluminum Clutch Housings Only) | 2 | $20.25 | Add to Cart | |
| G-1A | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-2 | 97-24-8 | Bushing - Clutch Release Shaft | 4 | $5.45 | Add to Cart | |
| G-3 | 97-96-18-1X | S/assy. - Hand Hole Cover | 1 | — | Call for availability | |
| G-4 | 201-468-1 | Oil Trough - Countershaft | 2 | $16.37 | Add to Cart | |
| G-5 | 545002-13 | Screw- Oil Troughs (2 Each) { .375"-16 X .500") | 4 | $2.29 | Add to Cart | |
| G-6 | 201-468-2 | Oil Trough Drive Gear (less Optilube Only}(bim 301503 301506 | 1 | — | Call for availability | |
| N .S | 330934 | Magnet - Ceramic (location Is Case Side Bottom) | 1 | $4.72 | Add to Cart | |
| G-7 | 40-477-1 | Support- Shift Rails (front & Rear) | 2 | $12.28 | Add to Cart | |
| G-7A | 201-477-3 | Support- Shift Rails (front) (neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-7B | 201-200-6 | Plate - Lift (neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-7C | 201-438-15-3 | Pin - Roll (2 .125") (neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-8 | 545002-7 | Screw- Support Bar ( .375"-16 X 1 .50") (2 Each) | 4 | $2.33 | Add to Cart | |
| G-9 | 330969 | 2 | $2.49 | Add to Cart | ||
| G-10 | 545001-1 | Screw- Clutch Housing ( .500"-13 X 1 .375") | 16 | $2.59 | Add to Cart |
Jfront Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-11 | 201-19-2-1X | S/assy Drive Gear Bearing Cap And Oil Seal (includes G -12 Thru G-14) | 1 | $215.72 | Add to Cart | |
| G-12 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-13 | 97-463-36-1X | Oil Seal - Drive Cap Bearing Cap (w/installation Sleeve) | 1 | $38.68 | Add to Cart | |
| G-14 | 545002-1 | Screw- Drive Gear Bearing Cap ( .375"-16 X .875j | 4 | $2.23 | Add to Cart |
Main Case Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-15 | 201-15-13-1X | S/assy Main Case (includes G -15A Thru G-22) | 1 | — | Call for availability | |
| G-15 | 201-15-2-1X | S/assy Main Case (includes G -15A Thru G-18) {less Optilube Bim 301503 | 1 | — | Call for availability | |
| G-15 | 201-15-10-1X | S/assy Main Case (includes G -15A Thru G-22) (aluminum For | 1 | — | Call for availability | |
| G-15A | Case | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-16 | 545123 | Plug - Filler & Drain | 1 | $22.03 | Add to Cart | |
| G-17 | 201-39-4 | Plug - Pressure Port Hole | 1 | — | Call for availability | |
| G-18 | 201-39-1 | Plug - Case Oil Return Hole | 1 | $2.67 | Add to Cart | |
| N .S | 330934 | Magnet Ceramic (location Is At Large Pto Opening) | 1 | $4.72 | Add to Cart | |
| G-19 | 500597-14 | Pin -alignment (optilube Mounting Plate) | 2 | $2.19 | Add to Cart | |
| G-20 | 201-118-4 | Gasket- Oil Outlet Cover (location Is Case Bottom) | 1 | $3.91 | Add to Cart | |
| G-21 | 201-96-5 | Cover - Oil Outlet (location Is Case Bottom) | 1 | $33.96 | Add to Cart | |
| G-22 | 545002-2 | Screw- Oil Outlet Cover (location Is Case Bottom) | 2 | $2.67 | Add to Cart | |
| G-23 | 201-438-3 | Pin - Dowel Case | 4 | $3.75 | Add to Cart | |
| G-24 | 545012 | Screw- Pto Aperture Cover (8 Hole) | 8 | $3.23 | Add to Cart | |
| G-25 | 73-267-1 | Cover- Pto (8 Hole) | 1 | $160.99 | Add to Cart | |
| G-26 | 50-267-2 | Cover- Pto (6 Hole) | 1 | $122.97 | Add to Cart | |
| G-27 | 330800 | Screw- Pto Aperture Cover (6 Hole) | 6 | — | Call for availability |

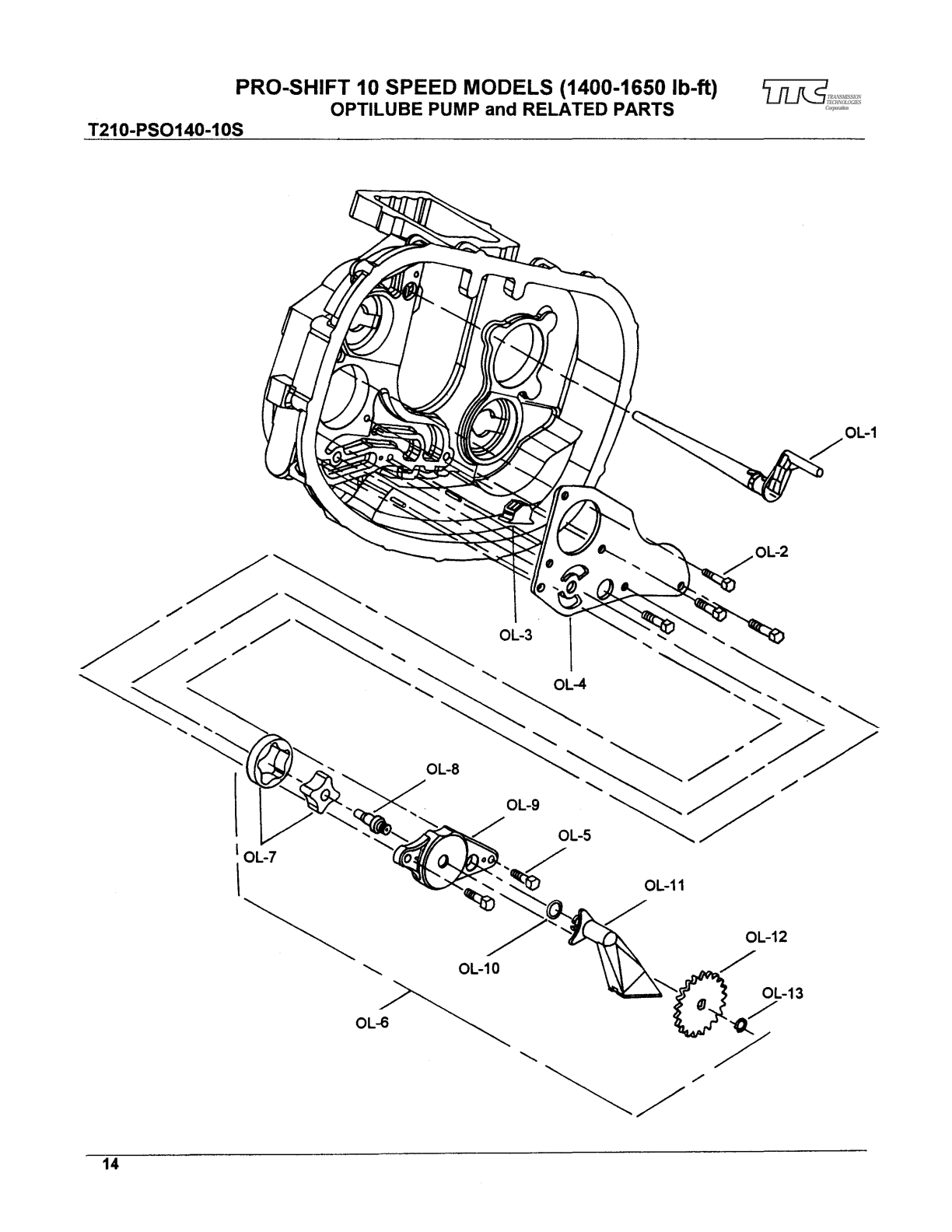

Technologies Optilube PUMP and Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-501-11-ZX | Kit- Optilube Pump (includes OL-1 Thru OL-13 | 1 | — | Call for availability | ||
| OL-1 | 201-420-13X | S/assy Discharge Tube | 1 | — | No longer available — call for replacement | |
| OL-2 | 545002-1 | Screw- Mounting Plate | 4 | $2.23 | Add to Cart | |
| OL-3 | 201-501-13X | S/assy. -oil Bypass Valve | 1 | $23.99 | Add to Cart | |
| OL-4 | 201-360-2 | Plate - Internal Pump Mounting | 1 | $27.70 | Add to Cart | |
| OL-5 | 545002-2 | Screw- Pump Housing | 2 | $2.67 | Add to Cart | |
| OL--6 | 201-501-11-1X | S/assy Optilube Pump Housing And Gears Oncludes OL-7 Thru OL-13) | 1 | $598.57 | Add to Cart | |
| OL-7 | Gerotor Element - Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-8 | Shaft- Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-9 | Housing - Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-10 | "0 " Ring - Tube | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-11 | S/assy. - Inlet Tube | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-12 | Gear - Lube Pump Drive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-13 | Ring - Gear Pump Snap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability |

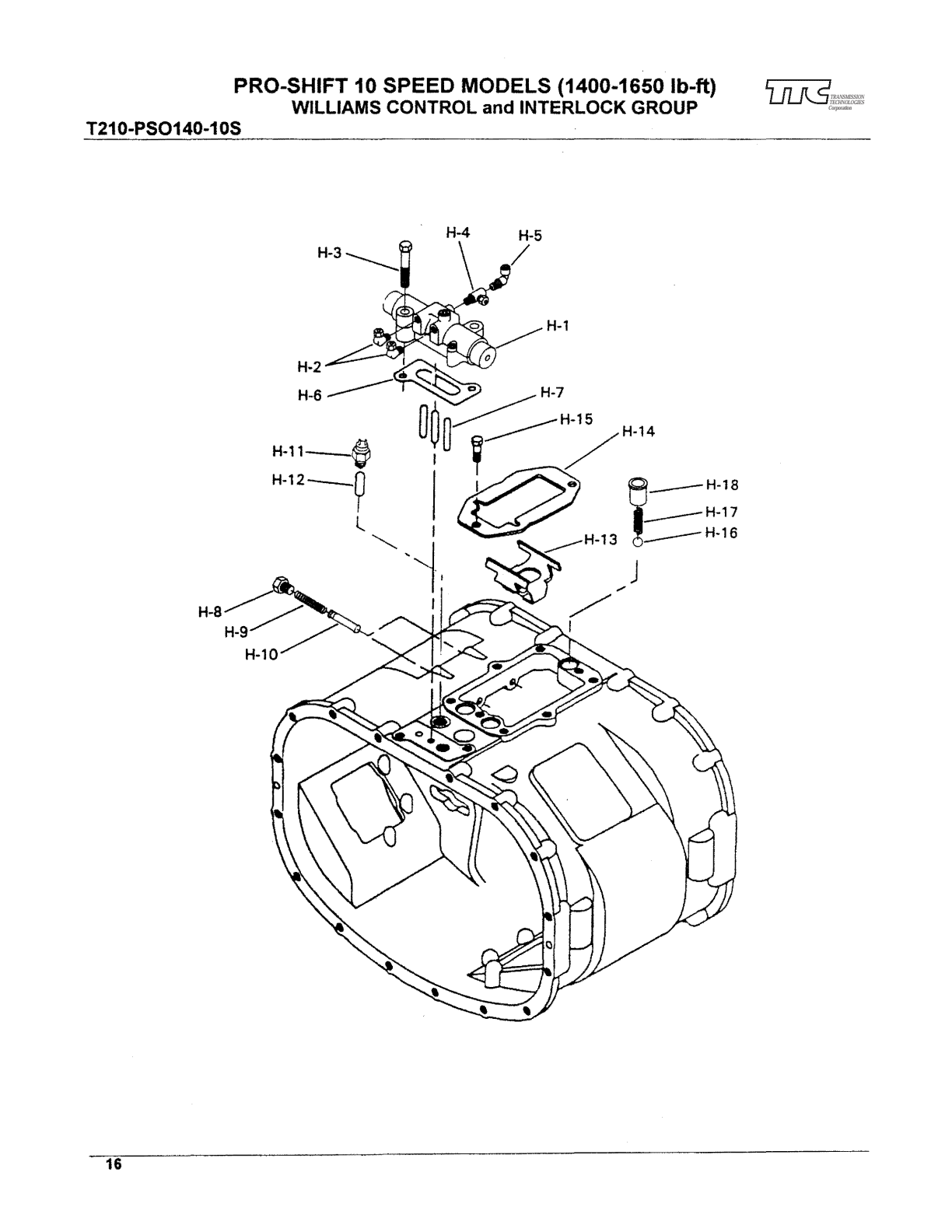

Interlock Parts Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 313630X | S/assy. - Williams Control | 1 | — | Call for availability | |
| H-2 | 545025-2 | Elbow - Williams Control 90 Degree | 2 | $28.71 | Add to Cart | |
| H-3 | 545028-6 | Screw - Williams Control ( .438"-14 X 2 .250") | 2 | $2.13 | Add to Cart | |
| H-4 | 545109 | Tee - Adapter Williams Control | 1 | $33.48 | Add to Cart | |
| H-5 | 545130 | Elbow- Williams Control | 1 | — | Call for availability | |
| N .S | 201-420-7 | Tube Support (#38163 Legris Tube Support) | AIR | — | Call for availability | |
| H-6 | 201-118-1 | Gasket- Williams Control | 1 | — | Call for availability | |
| H-7 | 201-438-5 | Pin - Williams Air Control Valve | 3 | — | Call for availability | |
| H-8 | 545128 | Plug -1 St And Reverse Spring Plunger | 2 | $2.84 | Add to Cart | |
| H-9 | 62-72-6 | Spring - 1 St And Reverse | 2 | — | Call for availability | |
| H-10 | 40-438-1 | Pin - Plunger 1 St And Reverse | 2 | — | Call for availability | |
| H-11 | 313538 | Switch - Back Up Light (pin Connection) | 1 | $31.37 | Add to Cart | |
| H-11 | 313552 | Switch - Back Up Light (tang Connection) | 1 | $25.15 | Add to Cart | |
| H-12 | 201-438-2 | Pin - Actuating Back Up Light Switch | 1 | $3.68 | Add to Cart | |
| H-13 | 201-200-1 | Interlock - Shifter Rail | 1 | $14.52 | Add to Cart | |
| H-14 | 201-200-2 | Plate - Interlock Retainer | 1 | $14.17 | Add to Cart | |
| H-15 | 330801-1 | Screw -interlock Plate ( .438"-14 X .875") | 2 | $2.67 | Add to Cart | |
| H-16 | 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | |
| H-17 | 201-72-2 | Spring - Poppet Shift Rail | 3 | $3.23 | Add to Cart | |
| H-18 | 201-487-1 | Insert - Poppet Spring & Ball | 3 | — | Call for availability |

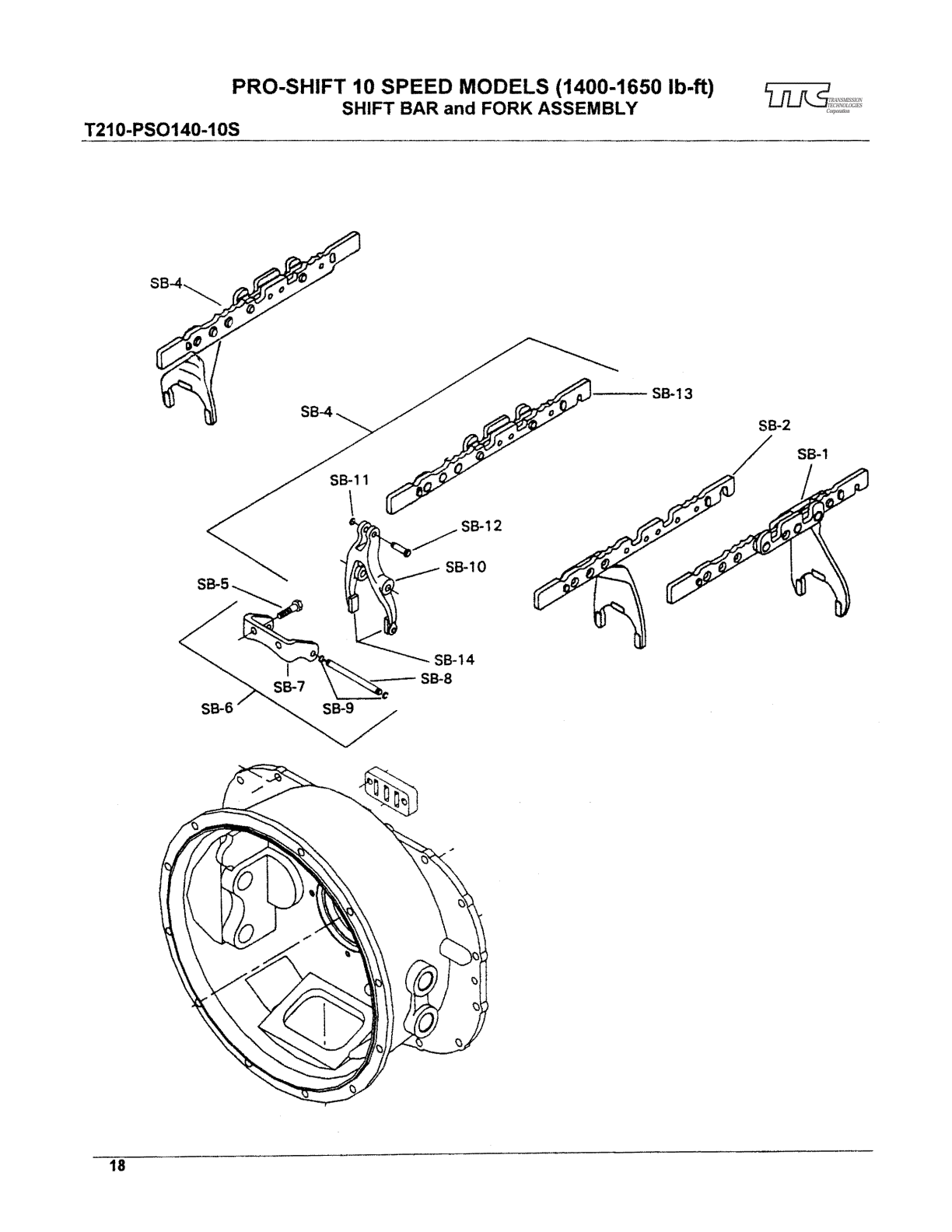

Shift Bar and Fork Assemblies
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| SB-1 | 313696X | Fork And Bar Assy. -1 St And Reverse | 1 | — | Call for availability | |
| SB-1 | 313795X | Fork And Bar Assy 1st And Reverse (neutral Start Switch Provision) | 1 | — | Call for availability | |
| SB-2 | 313694X | Fork And Bar Assy. -2nd And 3rd | 1 | — | Call for availability | |
| SB-2 | 313796X | Fork And Bar Assy. -2nd And 3rd (neutral Start Switch Provision) | 1 | — | Call for availability | |
| SB-4 | 313642-1X | Bar Assy. -4th And 5th | 1 | — | Call for availability | |
| SB-4 | 313818-1X | Bar Assy. -4th And 5th (neutral Start Switch Provision) | 1 | $122.96 | Add to Cart | |
| and | 201-66-18-JX | Fork Assy. -4th And 5th | 1 | — | Call for availability | |
| and | 313695X | Fork And Bar Assy. -4th And 5th (direct Transmissions) | 1 | — | No longer available — call for replacement | |
| and | 313819X | Fork And Bar Assy 4th And 5th (direct Transmissions) (neutral Start | 1 | — | Call for availability | |
| SB-5 | 545029-3 | Screw - Fork Mounting Bracket Overdrive {.375" X 1 .00j | 2 | — | Call for availability | |
| SB-6 | 201-411-3-1X | Kit -shift Fork Mounting Bracket Pin And Snap Rings | 1 | $90.22 | Superseded by 20141151XAdd to Cart | |
| SB-7 | Mounting Bracket -overdrive Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-8 | Pin Mounting | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-9 | Snap Ring Mounting Bracket Pin | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-9 | 313642-1X | Kit- Overdrive Shift Bar, Pins And Snap Rings | 1 | $189.54 | Add to Cart | |
| SB-11 | Snap Ring Clevis Pin | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-12 | Clevis Pin Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-13 | Shift Bar 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-13 | 313818-1X | Kit - Overdrive Shift Bar, Pins And Snap Rings With Neutral Start | 1 | $122.96 | Add to Cart | |
| SB-13 | 201-66-18-3X | Kit- Overdrive Shift Fork, Pins And Snap Rings | 1 | $550.14 | Add to Cart | |
| SB-10 | Shift Fork S/assy. - 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-14 | 201-486-1 | Shoe - Overdrive Shift Fork | 2 | $22.54 | Add to Cart | |
| SB-14 | 201-438-6-1X | Kit - Overdrive Shift Fork Mounting Pin And Snap Ring | 1 | $6.22 | Add to Cart | |
| SB-12 | 201-438-7-1X | Kit -overdrive Shift Fork Bracket Pin And Snap Rings | 1 | $9.95 | Add to Cart |
Range Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-15-3-1X | S/assy Case (range) (includes J -1A Thru J -6) | 1 | $1,092.84 | Add to Cart | ||
| J-1A | Case Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| J-2 | NP-96 | Name Plate | 1 | $2.16 | Add to Cart | |
| J-3 | 252-SP | Pin - Name Plate | 4 | $1.90 | Add to Cart | |
| N .S | NP-196 | Patent Plate | 1 | $2.97 | Add to Cart | |
| J-4 | 545123 | Plug - Filler & Drain Magnetic | 2 | $22.03 | Add to Cart | |
| J-6 | 201-39-1 | Plug - Temperature Indicator Hole | 1 | $2.67 | Add to Cart | |
| J-7 | 330360-7 | Stud - Rear Mounting (2 .375") | 2 | $4.65 | Add to Cart | |
| J-7 | 330360-15 | Stud - Rear Mounting (3 .562") | 2 | — | Call for availability | |
| J-8 | 545001-1 | Screw- Range Case ( .500"-13 X 1 .375'') | 16 | $2.59 | Add to Cart | |
| J-9 | 545025-1 | Elbow - 90 Degree | 1 | $20.33 | Add to Cart |
Range Piston Housing and Shift Fork Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 201-66-23-2X | S/assy. - Fork And Rod - Range | 1 | — | Call for availability | |
| K-2 | 545045 | Nut- Piston Rod - Range | 1 | $3.15 | Add to Cart | |
| K-3 | 201-501-2-1X | S/assy- Piston Housing - Range (includes K-4 Thru K-6) | 1 | $334.54 | Add to Cart | |
| K-4 | Housing Piston Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| K-5 | 545025-1 | Elbow- Piston Housing 90 Degree | 2 | $20.33 | Add to Cart | |
| K-6 | 545002-1 | Screw- Piston Housing ( .375"-16 X .875") | 4 | $2.23 | Add to Cart | |
| K-7 | 201-463-1 | "0 " Ring - Piston Shift - Range | 1 | $9.41 | Add to Cart | |
| K-8 | 201-463-2 | "0 " Ring - Piston Housing - Range | 1 | $6.67 | Add to Cart | |
| K-9 | 201-463-3 | "0 " Ring - Piston Rod - Range | 1 | $2.39 | Add to Cart | |
| K-10 | 183-463-6 | "0 " Ring - Piston To Rod - Range | 1 | — | Call for availability | |
| K-11 | 201-136-7 | Piston - Shift - Range | 1 | $45.08 | Add to Cart |
Countershaft Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-12 | 201-22-3 | Cap - Countershaft Bearing | 2 | $21.43 | Add to Cart | |
| K-13 | 545002-1 | Screw- Bearing Cap ( .375"-16 X .875") | 6 | $2.23 | Add to Cart | |
| and | 545002-7 | Screw- Bearing Cap ( .375"-16 X 1 .500'') | 2 | $2.33 | Add to Cart | |
| and | 330969 | Ufthook | 1 | — | Call for availability | |
| K-14 | 500381-4 | Spacer - Filter Regulator | 4 | — | Call for availability | |
| K-15 | 201-411-1 | Bracket - Filter Regulator | 1 | $4.70 | Add to Cart | |
| K-16 | 313644X | Kit- Power Control And Mounting Parts (includes K-17 Thru K-19) | 1 | $881.94 | Add to Cart | |
| K-17 | 313042 | S/assy. - Filter Regulator | 1 | $784.67 | Add to Cart | |
| K-18 | 330831 | Clamp - Filter Regulator Mounting | 1 | — | Call for availability | |
| K-19 | 545025-1 | Elbow - Filter Regulator 90 Degree | 1 | $20.33 | Add to Cart |

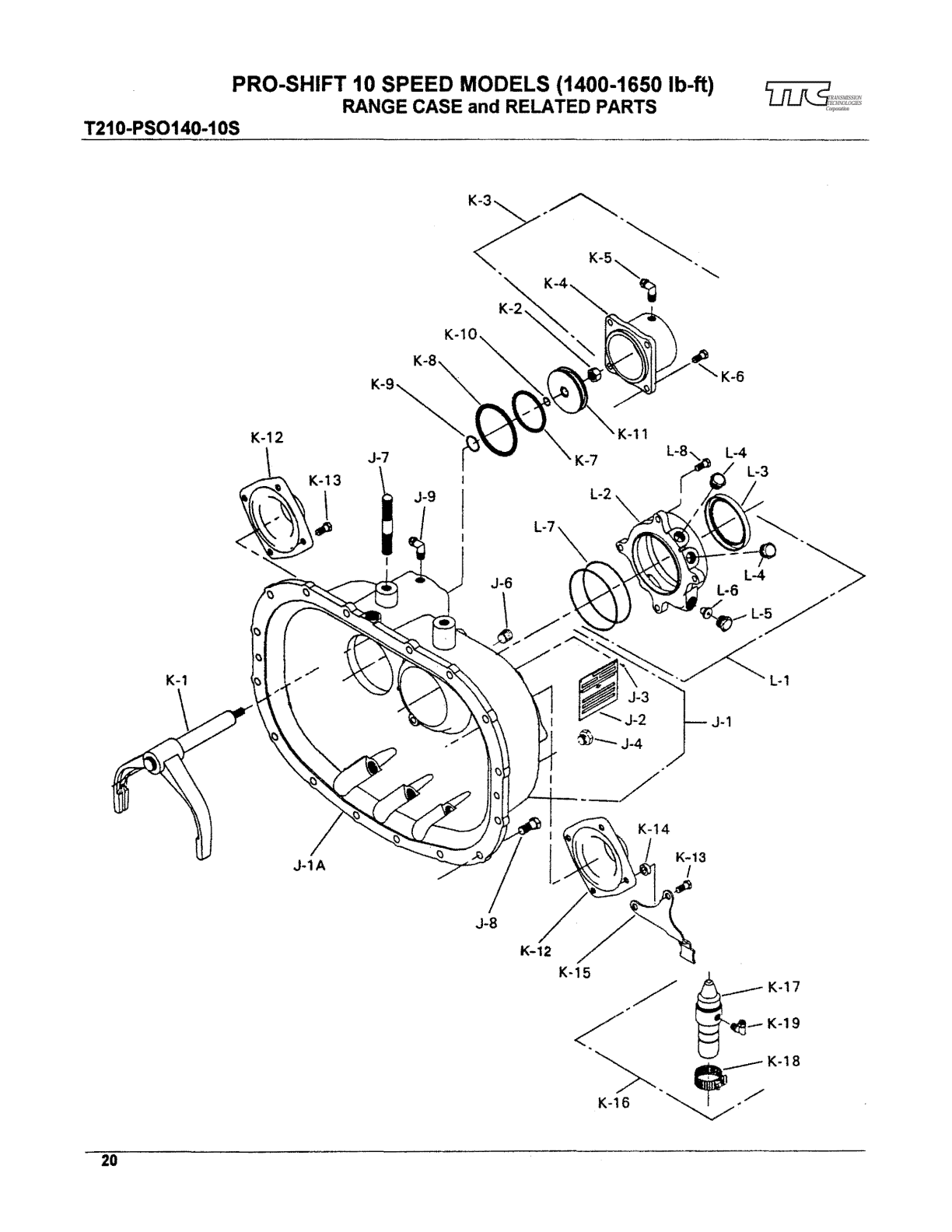

Rear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| L-1 | 201-19-8-1X | S/assy. - Electronic I Mechanical Bearing Cap Rear {includes L-2 Thru L-5) | 1 | $395.32 | Add to Cart | |
| L-2 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| L-3 | 201-463-8 | Seal - Bearing Cap Rear | 1 | $43.25 | Add to Cart | |
| L-4 | 545021 | Plug - Electronic Speedometer | 2 | $18.89 | Add to Cart | |
| L-5 | 55-334-1 | Plug - Speedometer Outlet | 1 | $88.44 | Add to Cart | |
| L-7 | 201-228-2-1 | Shim - Output Shaft ( .005 Thick) | AIR | — | Call for availability | |
| L-7 | 201-228-2-2 | Shim Output Shaft (.01 0 Thick) | AIR | — | Call for availability | |
| L-7 | 201-228-2-3 | Shim Output Shaft ( .015 Thick) | AIR | — | Call for availability | |
| L-7 | 201-228-2-4 | Shim Output Shaft ( .020 Thick) | AIR | — | Call for availability | |
| L-7 | 201-228-2-5 | Shim Output Shaft ( .030 Thick) | AIR | — | Call for availability | |
| L-8 | 545002-6 | Screw- Bearing Cap Rear ( .375"-16 X .250'') | 4 | $2.29 | Add to Cart |
Following Parts Are Not Included in Above Assemblies:
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 201-420-5-1X | Harness- Air Tubing (48" Long) | 1 | — | No longer available — call for replacement | |
| P-1 | 201-420-5-2X | Harness- Air Tubing (92" Long For Remote Control Use) | 1 | — | Call for availability | |
| P-2 | 97-463-7 | "0 " Ring - Retaining Air Harness | 3 | $2.61 | Add to Cart | |
| P-3 | 201-483-3 | Boot- Floorboard (oval) | 1 | $27.62 | Add to Cart | |
| P-3 | 201-483-4 | Boot- Floorboard (oval) | 1 | — | Call for availability | |
| P-3 | 201-483-5 | Boot- Floorboard (rectangular) | 1 | — | Call for availability | |
| P-3 | 313766X | Shift Knob Assy (includes P-4 Thru P-11) | 1 | — | No longer available — call for replacement | |
| P-4 | 201-20-6 | Insert - Shift Pattern | 1 | $31.05 | Add to Cart | |
| P-5 | 201-118-5 | Gasket - Shift Knob | 1 | $2.56 | Add to Cart | |
| P-6 | 500370-4 | Nut- Shift Knob Retaining | 1 | — | Call for availability | |
| P-7 | 500357-13 | Washer - Shift Knob Retaining | 1 | $2.33 | Add to Cart | |
| P-8 | 204-W | Washer - Shift Knob Stop | 1 | — | Call for availability | |
| P-9 | Knob - Shift Air Valve (serviced As 313766X) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-10 | 201-205-1 | Index Washer | 1 | — | Call for availability | |
| P-11 | 201-438-8 | Roll Pin - Shift Knob | 1 | $2.79 | Add to Cart | |
| N .S. | 201-420-7 | Tube Support | AIR | — | Call for availability | |
| P-12A | S/assy. Shift Lever (single Crimp Isolator Style) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-128 | S/assy. Shift Lever (double Crimp Isolator Style) (includes Lower End) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-13 | 545063 | Set Screw (single Crimp Style Isolator Only) | 1 | $6.27 | Add to Cart | |
| P-18 | 101-483-2 | Boot- Shift Tower & Lever | 1 | $26.15 | Add to Cart | |
| N .S. | 330-15-1 | Tie - Cable (upper} | 1 | — | Call for availability | |
| N .S. | 330-15-2 | Tie - Cable (lower) | 1 | — | Call for availability | |
| P-19 | 97-381-11 | Snap Ring | 1 | $11.83 | Add to Cart | |
| P-20 | 34Q-8 | Ring - Outer | 2 | $248.46 | Add to Cart | |
| P-21 | 34Q-7 | Ring - Inner | 2 | $248.46 | Add to Cart | |
| P-23 | 201-72-3 | Spring - Disc | 2 | $248.46 | Add to Cart | |
| N .S. | 201-17-2X | S/assy. - Tower Housing (includes P-24 & P-25) | 1 | $284.86 | Add to Cart | |
| N .S. | 201-17-3X | S/assy. - Tower Housing (includes P-24 & P-25) | 1 | — | Call for availability | |
| P-24 | Tower- (6 .312" Fulcrum) (serviced As 201 -17-2X) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-25 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| P-26 | 201-118-2 | Gasket- Tower Housing | 1 | $3.83 | Add to Cart | |
| P-27 | 545028-2 | Screw- Tower Housing | 6 | $2.87 | Add to Cart |
Following Parts Are Not Included in Above Assembly:
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-18 | .&-3X Remote Control Assembly | 1 | — | Call for availability | ||
| RC-1 | 201-18 | .&x S/assy -remote Control Housing Bushings And Ball Joint | 1 | — | Call for availability | |
| RC-2 | Remote Control Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-3 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| RC-4 | 40-24-1 | Bushing - Remote Control Housing | 2 | — | Call for availability | |
| RC-6 | 28P-19 | Seal - Remote Control Housing | 1 | — | Call for availability | |
| RC-7 | 201-65-5 | Rod - Inner Shift Control | 1 | $41.45 | Add to Cart | |
| RC-8 | 97-483-3 | Boot - Shift Rod Rubber | 1 | — | Call for availability | |
| RC-9 | 33Q-15-1 | Tie -cable | 2 | — | Call for availability | |
| RC-10 | 545136 | Bolt- Outer Shift Lever | 1 | — | Call for availability | |
| RC-12 | 500371 | -3 Nut - Ball Stud | 2 | — | Call for availability | |
| RC-12 | 500024-5 | Cotter Pin | 1 | — | Call for availability | |
| RC-13 | 500362-11 | Lock Washer | 2 | — | Call for availability | |
| RC-14 | 201-6-11 | -1 X S/assy Selector Lever And Ann (includes RC-15 Thru RC-22) | 1 | — | Call for availability | |
| RC-15 | 5451 | 17 Ball - Stud Selection Lever | 1 | — | Call for availability | |
| RC-16 | 201-999-3 | Bearing - Race Selector Lever | 2 | — | Call for availability | |
| RC-17 | 201-483-2 | Boot- Selection Lever | 1 | — | Call for availability | |
| RC-18 | Lever Selection | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| N .S | 313727X | Kit- Grease Parts (includes RC-19 And RC-20) | 1 | — | Call for availability | |
| RC-19 | Nipple -selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-20 | Retainer Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-21 | 201-381 | -4 Snap Ring - Selection Lever | 1 | — | Call for availability | |
| RC-22 | 201-72-10 | Spring - Disc Selection Lever | 1 | — | Call for availability | |
| RC-23 | 313673 | Ball Joint- Female | 1 | $46.61 | Add to Cart | |
| RC-24 | 5451 | 14 Jam Nut- Turnbuckle | 2 | — | Call for availability | |
| RC-26 | 73Q-2 | Tum Buckle | 1 | — | Call for availability | |
| RC-27 | 5451 | 13 Jam Nut- Turnbuckle (left Hand) | 1 | — | Call for availability | |
| RC-28 | 313715 | Ball Joint- Male ( .500-13 Unc Thread On End Into Housing) | 1 | — | Call for availability | |
| RC-29 | 201-6-2 | Finger - Inner Shift | 1 | $146.95 | Add to Cart | |
| RC-30 | 545137 | Screw- Shift Finger | 1 | — | Call for availability | |
| N .S | 545028-2 | Screw- Control Housing ( .438"-14 X 1 .5001 | 6 | $2.87 | Add to Cart | |
| N .S | 201-1 | 18-2 Gasket- Tower Housing | 1 | — | Call for availability |
THRU Shaft (used with Push Type Clutch)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-10714-062 | 106C-1083 RS-8 | 7 .969" | — | Call for availability | ||
| 106C-11415-125 | 106C-1094 RS-8 | 8 .469" | — | Call for availability | ||
| 106C-11426-125 | 106C-1 123 RS-8 | 12 .968" | — | Call for availability | ||
| 106C-11855-750 | 106C-1 169 RS-8 | 9 .125" | — | Call for availability | ||
| 106C-12164-750 | 106C-1315 RS-8 | 7 .625" | — | Call for availability | ||
| 106C-12784-812 | 106C-1367 RS-8 | 10 .312" | — | Call for availability | ||
| 106C-13605-312 | 106C-1375 RS-8 | 6 .781 " | — | Call for availability | ||
| 106C-13756-781 | 106C-1417 RS-8 | 7 .250" | — | Call for availability | ||
| 106C-14986-500 | 106C-1422 RS-8 | 7 .500" | — | Call for availability | ||
| 106C-15447-000 | 106C-1490 RS-8 | 16 .000" | — | Call for availability | ||
| 330601-16-250 | 106C-1515 RS-5 | 1 1 .375" | — | Call for availability | ||
| 330610-5 | RS-8 | 9 .469" | $80.92 | Add to Cart | ||
| 330610-11 | RS-8 | 10 .750" | — | Call for availability | ||
| 46-510-9 | RS-5 | 7 .125" | — | Call for availability | ||
| 330610-10 | RS-8 | 9 .500" | $88.67 | Add to Cart | ||
| 310233X | For Left Side Mtg | — | Call for availability | |||
| 310473X | For Right Side Mtg | — | Call for availability | |||
| 47-526-1 | -1X• Lever Type 7V4 • | — | Call for availability | |||
| 310873X | Lever Type 7% | version * (see the manual's footnote) | — | Call for availability | ||
| 106C-438 | RS-514-000 | •lever Type Can Be Used On Either Right Or Left Side. | — | Call for availability | ||
| 106C-939 | RS-810-000 | 106C-1566 Splined 19 | .125" | — | Call for availability | |
| 106C-953 | RS-89-750 | 106C-1550 Keyed 16 | .375" | — | Call for availability | |
| 106C-960 | RS-88-719 | 106C-1578 Splined 19 | .500" | — | Call for availability |
Service Parts Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T210 | 313400-76X | Major Overhaul Kit | 1 | $1,272.81 | Superseded by 2014001XAdd to Cart | |
| T210 | 313432-33X | Kit - Minor Overhaul | 1 | $998.94 | Add to Cart | |
| T210 | 313669X | Kit - Range Piston Housing Repair | 1 | — | Call for availability | |
| T210 | 313429-23X | Kit- Shift Tower Repair Parts | 1 | $85.70 | Add to Cart | |
| T210 | 201-35-2 | Shaft- Input (2.000"-1 0 Spline #306 (1 .180" Dia .) Pilot) | 1 | — | Call for availability | |
| T210 | 201-210-4-1 | Key - Countershaft Gear Rear | 2 | $4.64 | Add to Cart | |
| T210 | 201-210-4-2 | Key - Countershaft Gear Middle | 2 | $4.19 | Add to Cart | |
| T210 | 201-210-4-3 | Key- Countershaft Gear Front | 2 | $11.02 | Add to Cart | |
| T210 | 201-438-6-1X | Kit - Overdrive Shift Fork Mounting Pin And Snap Ring | 1 | $6.22 | Add to Cart | |
| T210 | 201-438-7-1X | Kit - Overdrive Shift Fork Bracket Pin And Snap Rings | 1 | $9.95 | Add to Cart | |
| T210 | 201-47-4 | Washer- Output Shaft Thrust (range) | 1 | $34.68 | Add to Cart | |
| T210 | 201-47-6 | Ring - Range Mainshaft Drive Gear Thrust | 1 | $33.46 | Add to Cart | |
| T210 | 330955 | Washer- Countershaft Reverse Idler Thrust (range) | 2 | $20.01 | Add to Cart | |
| T210 | 500007-24 | Key - Woodruff Pto Gear | 2 | — | Call for availability | |
| T210 | 545065 | Nut - Mainshaft | 1 | $31.43 | Add to Cart | |
| T210 | 2367 | Manual - Service (PS0-1 0) | 1 | — | Call for availability | |
| T210 | 2370 | Manual - Service (automate) | 1 | — | Call for availability | |
| T210 | 2783 | Bulletin - Mainshaft Nut (loctite Application) | 1 | — | Call for availability | |
| T210 | 312475-45X | Kit- Gasket | 1 | $37.46 | Add to Cart | |
| T210 | 313667X | Kit- Shim | 1 | $39.63 | Add to Cart | |
| T210 | 201-381-1 | Ring - Snap Input Shaft | 1 | $3.15 | Add to Cart | |
| T210 | 201-381-3 | Ring - Snap Mainshaft Range Drive Gear | 1 | $8.09 | Add to Cart | |
| T210 | 201-463-26 | "0 " Ring - Countershaft Front | 2 | $20.25 | Add to Cart | |
| T210 | 2863 | Bulletin - "0 " Ring Installation Instructions For Spicer Lite Series | 1 | — | Call for availability | |
| T210 | 201-463-8 | Seal - Output Shaft Rear Bearing Cap | 1 | $43.25 | Add to Cart | |
| T210 | 545080-1 | Anaerobic Sealant- Mainshaft Nut (0.5 Cc Vial) | 1 | — | Call for availability | |
| T210 | 97-463-36-1X | Oil Seal - Drive Gear Bearing Cap (w/lnstallation Tool) | 1 | $38.68 | Add to Cart | |
| T210 | 313628X | S/assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | |
| T210 | 313668X | Kit - Output Shaft Gear Needle Bearing | 1 | $78.71 | Add to Cart | |
| T210 | 550996 | Bearing - Countershaft Front | 2 | $61.00 | Add to Cart | |
| T210 | 550998 | Bearing - Countershaft Rear | 2 | $135.42 | Add to Cart | |
| T210 | 313645X | S/assy. - Bearing And Belleville Snap Ring (input Shaft) | 1 | $183.51 | Add to Cart | |
| T210 | 550182 | Bearing - Countershaft Rear Cone | 2 | $36.48 | Add to Cart | |
| T210 | 550375 | Bearing - Countershaft Rear Cup | 2 | $17.99 | Add to Cart | |
| T210 | 551010 | Bearing - Countershaft Front Cup (before Ssn #J930506005) | 2 | — | Call for availability | |
| T210 | 551011 | Bearing - Countershaft Front Cone (before Ssn #J930506005) | 2 | — | Call for availability | |
| T210 | 551013 | Bearing - Countershaft Front Cone (after Ssn #J930506005) | 2 | $49.38 | Add to Cart | |
| T210 | 550997 | Bearing - Reverse Idler Needle | 2 | $14.83 | Add to Cart | |
| 313669X | Kit - Range Piston Housing Repair (included In Major Overhaul Kit) | 1 | — | Call for availability | ||
| 183-463-6 | "0 " -ring - Splitter Or Range Piston | 1 | — | Call for availability | ||
| 201-463-1 | "0 " -ring - Range Shift Piston | 1 | $9.41 | Add to Cart | ||
| 201-463-2 | "0 " -ring - Range Piston Housing | 1 | $6.67 | Add to Cart | ||
| 201-463-3 | "0 " -ring - Range Piston Rod | 1 | $2.39 | Add to Cart | ||
| 2726 | Bulletin - "0 " Ring Lubrication Instruction | 1 | — | Call for availability | ||
| 330895 | Lubricant - "0 " Ring | 1 | — | Call for availability | ||
| 313429-23X | Kit- Shift Tower Small Parts Repair (included In Major Overhaul Kit) | 1 | $85.70 | Add to Cart | ||
| 201-438-2 | Pin -actuating Back-up Ught | 1 | $3.68 | Add to Cart | ||
| 201-438-5 | Pin -air Control Valve | 3 | — | Call for availability | ||
| 201-487-1 | Insert- Poppet Spring And Ball | 3 | — | Call for availability | ||
| 201-72-2 | Spring - Shift Rail Poppet | 3 | $3.23 | Add to Cart | ||
| 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | ||
| 40-438-1 | Pin - 1 St And Reverse Select Plunger | 2 | — | Call for availability | ||
| 20172-6 | Spring - 1st And Reverse Shift Plunger | 2 | — | Call for availability | ||
| 312475-45X | Gasket Kit (included In Major And Minor Overhaul Kit) | 1 | $37.46 | Add to Cart | ||
| 201-118-1 | Gasket- Williams Air Control Valve | 1 | $6.27 | Add to Cart | ||
| 201-118-2 | Gasket- Tower Housing | 1 | $3.83 | Add to Cart | ||
| 201-155-3 | Gasket- Upper Tower | 1 | — | Call for availability | ||
| 2824 | Bulletin - Anaerobic Sealant Application | 1 | — | Call for availability | ||
| 545056-10 | Anaerobic Sealant - 50cc Tube | 1 | — | Call for availability | ||
| 313667X | Shim Kit (included In Major And Minor Overhaul Kit) | 1 | $39.63 | Add to Cart | ||
| 2825 | Bulletin - Countershaft Shim Instructions | 1 | — | Call for availability | ||
| 201-228-1-1 | Shim - Countershaft Rear Bearing ( .005" Thick) | 4 | — | Call for availability | ||
| 201-228-1-2 | Shim - Countershaft Rear Bearing (.01 0" Thick) | 4 | — | Call for availability | ||
| 201-228-1-3 | Shim - Countershaft Rear Bearing ( .015" Thick) | 4 | — | Call for availability | ||
| 201-228-1-4 | Shim - Countershaft Rear Bearing ( .020" Thick) | 4 | — | Call for availability | ||
| 201-228-1-5 | Shim - Countershaft Rear Bearing ( .030" Thick) | 4 | — | Call for availability | ||
| 201-228-2-1 | Shim - Output Shaft ( .005" Thick) | 1 | — | Call for availability | ||
| 201-228-2-2 | Shim - Output Shaft (.01 0" Thick) | 1 | — | Call for availability | ||
| 201-228-2-3 | Shim - Output Shaft ( .015" Thick) | 1 | — | Call for availability | ||
| 201-228-2-4 | Shim - Output Shaft ( .020" Thick) | 1 | — | Call for availability | ||
| 201-228-2-5 | Shim - Output Shaft ( .030" Thick) | 1 | — | Call for availability | ||
| CP-1 | 313292-1X | Kit - Countershaft Oil Pump | 1 | $2,132.71 | Add to Cart | |
| CP-1A | 313292 | Oil Pump | 1 | — | Call for availability | |
| CP-2 | 545005-7 | Screw - Oil Pump (.312-18 X .875) | 4 | — | Call for availability | |
| CP-3 | 70-223-25 | Gasket- Countershaft Oil Pump Mounting | 1 | $4.82 | Add to Cart | |
| CP-4 | 201-22-2 | Countershaft Rear Bearing Cap Adapter (right Side) | 1 | — | Call for availability | |
| CP-S | 313117-5 | Hose Assembly. - Outlet To Pump Inlet | 1 | — | Call for availability | |
| CP-6 | 313697X | Filter - Oil Screen | 1 | — | Call for availability | |
| CP-7 | 545002-1 | Screw - Countershaft Rear Bearing Cap | 4 | $2.23 | Add to Cart | |
| CP-8 | 545051 | Elbow- Oil Return Hole And Pump Inlet | 2 | — | Call for availability | |
| CP-9 | 545049-2 | Nipple - Pump Outlet | 1 | — | Call for availability | |
| CP-10 | 545140 | Elbow - Pump Outlet | 1 | — | Call for availability | |
| N .S. | 2834 | Bulletin - Installation | 1 | — | Call for availability | |
| N .S. | 545056-10 | Anaerobic Sealant - 50cc Tube | 1 | — | Call for availability | |
| AC-1 | 201-420-2-3 | Tubing -air .250" 0 .0 (red) | 1 | — | Call for availability | |
| AC-2 | 201-420-3-3 | Tubing -air .250" 0 .0 (green) | 1 | — | Call for availability | |
| AC-3 | 201-420-4-3 | Tubing Air .250" 0 .0 (black) | 1 | — | Call for availability | |
| N .S | 201-420-9 | Tubing Convoluted Conduit | 1 | — | Call for availability |
Technologies Tabula Ted Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | 1201-15-3-1X | 201 -19 -5 -2X | — | Call for availability | ||
| Model | 2201-15-3-1X | 201 -19 -5 -2X | — | Call for availability | ||
| Model | 3201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 4201-15-3-1X | 201 -19-8 -1X | — | Call for availability | ||
| Model | 5201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .5 -4-3451 -1 201 -17 -2 -20X | — | Call for availability | ||
| Model | 6201-15-3-1X | 201 -19 -5 -2X 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 7201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6-4-6611 -1 | — | Call for availability | ||
| Model | 8201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 9201-15-3-1X | 201 -19 -5 -2X 201 -452-1 | — | Call for availability | ||
| Model | 10201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 11201-15-3-1X | 201 -19-5 -2X • 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 12201-15-3-1X | 201 -19 -5 -2X * 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 13201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 14201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6-4-6611 | — | Call for availability | ||
| Model | 15201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 17201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6-4-6611 -1 | — | Call for availability | ||
| Model | 18201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 19201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 20201-15-3-1X | 201 -19 -5 -2X * 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 21201-15-3 | ,1X 201 -19-5 -2X * 201 -452-1 6 .5 -4-3451 -1 201 | -18 -6-1X | — | Call for availability | |
| Model | 22201-15-3-1 | X 201 -19-5 -2X * 201 -452-1 | — | Call for availability | ||
| Model | 23201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 24201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 25201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6-4-6611 -1 201 -17 -2 -76X | — | Call for availability | ||
| Model | 26201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6-4-6611 -1 | — | Call for availability | ||
| Model | 27201-15-3 | -ix 201 -19-8 -1X 201 -452 -2 97-453 -1 6-1 -6011 201 | -18 -6-1X | — | Call for availability |
Technologies Tabula Ted Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2201-15-3-1X | 201 -19-5-2X | version * (see the manual's footnote) | — | Call for availability | ||
| 3201-15-3-1X | 201 -19-5-2X * 201 -452-1 6-4-6611 -1 | — | Call for availability | |||
| 5201-15-3-1X | 201 -19-8-1X | — | Call for availability | |||
| 1201-15-3-1X | 201 -19-8-1X | — | Call for availability | |||
| Model | 1201-15-3-1X | 201 -19-5-2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 2201-15-3-1X | 201 -19-5-2X * 201 -452-1 6 .5-4-3451 -1 | — | Call for availability | ||
| Model | 3201-15-3-1X | 201 -19-5-2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 5201-15-3-1X | 201 -19-8-1X | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | 1201-15-3-1X | 201 -19-5 -2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 2201-15-3-1X | 201 -19 -5 -2X | — | Call for availability | ||
| Model | 3201-15-3-1X | 201 -19 -5 -2X | — | Call for availability | ||
| Model | 4201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .5 -4-3451 -1 201 -17-2-30X | — | Call for availability | ||
| Model | 5201-15-3-1X | 201 -19-8 -1X | — | Call for availability | ||
| Model | 6201-15-3-1X | 201 -19 -5 -2X 201 -452-1 | — | Call for availability | ||
| Model | 7201-15-3-1X | 201 -19-8 -1X 201 -452 -2 97-453 -1 6-4-6611 201 -17-2-1X | — | Call for availability | ||
| Model | 9201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 10201-15-3-1X | 201 -19-8 -1X | — | Call for availability | ||
| Model | 12201-15-3-1X | 201 -19-8 -1X | — | Call for availability | ||
| Model | 13201-15-3-1X | 201 -19 -5 -2X 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 14201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 15201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 16201-15-3-1X | 201 -19-B-1 .x 201 -452-1 6 .3 -4-651 | — | Call for availability | ||
| Model | 17201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6-4-6611 -1 | — | Call for availability | ||
| Model | 18201-15-3-1X | 201 -19-5 -2X • 201 -452-1 6 .5 -4-3451 201 -17-2-76X | — | Call for availability | ||
| Model | 19201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 20201-15-3-1X | 201 -19-5 -2X | version * (see the manual's footnote) | — | Call for availability |
With A Assembly Rei Drive Bearing Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | PS0165-10S | (cont'd .) | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | PS0165-10S | (cont'd.) | — | Call for availability | ||
| Model | 5201-15 | -3 -1X 201 -19-8-1X | — | Call for availability | ||
| Model | 6201-15 | -3 -1X 201 -19-8-1X | — | Call for availability | ||
| Model | 7201-15 | -3 -1X 201 -19-5 -2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 8201-15 | -3 -1X 201 -19-5 -2X * 201 -452-1 6.5-4-3451 | — | Call for availability | ||
| Model | 9201-15 | -3 -1X 201 -19-5 -2X * 201 -452-1 6 .5-4-3451 -1 | — | Call for availability | ||
| Model | 10201-15 | -3 -1X 201 -19-5 -2X * 6.3 -4-651 -1 | — | Call for availability | ||
| Model | 11201-15 | -3 -1X 201 -19-5-2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 1201-15 | -3 -1X 201 -19-5 -2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 2201-15 | -3 -1X 201 -19-5 -2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 3201-15-3 | -1X 201 -19-5 -2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 4201-15 | -3 -1X 201 -19-8-1X | — | Call for availability | ||
| Model | 12201-15 | -3 -1X 201 -19 -5 -2X 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 13201-15 | -3 -1X 201 -19-5-2X * 201 -452-1 6 .5-4-3451 -1 | — | Call for availability | ||
| Model | 14201-15 | -3 -1X 201 -19 -5 -2X 201 -452-1 6-4-6611 | — | Call for availability | ||
| Model | 15201-15 | -3 -1X 201 -19-8-1X 201 -452-1 6.3 -4-651 -1 | — | Call for availability | ||
| Model | 16201-15 | -3 -1X 201 -19 -5 -2X 201 -452-1 6.3 -4-651 -1 | — | Call for availability | ||
| Model | 17201-15 | -3 -1X 201 -19-5-2X * 201 -452-1 6-4-6611 -1 | — | Call for availability | ||
| Model | 18201-15 | -3 -1X 201 -19-5 -2X * 201 -452-1 6.5-4-3451 -1 | — | Call for availability | ||
| Model | 19201-15 | -3 -1X 201 -19-5-2X * 201 -452-1 6.5-4-3451 -1 | — | Call for availability | ||
| Model | 20201-15 | -3 -1X 201 -19-5-2X * 201 -452-1 6.3 -4-651 -1 | — | Call for availability | ||
| Model | 21201-15 | -3 -1X 201 -19-5-2X * 201 -452-1 6.5-4-3451 -1 201 -18-6-1X | — | Call for availability | ||
| Model | 22201-15 | -3 -1X 201 -19-5 -2X * 201 -452-1 | — | Call for availability | ||
| Model | 23201-15 | -3 -1X 201 -19-5-2X * 201 -452-1 6.3 -4-651 -1 | — | Call for availability | ||
| Model | 3201-15 | -3 -1X 201 -19-5-2X * 201 -452-1 6-4-6611 -1 | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | 1201-15-3-1X | 201 -19 -5 -2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 2201-15-3-1X | 201 -19 -5 -2X | — | Call for availability | ||
| Model | 3201-15-3-1X | 201 -19 -5 -2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 4201-15-3-1X | 201 -19-8 -1X 201 -452-1 6 .5 -4-3451 201 -17 -2-3X | — | Call for availability | ||
| Model | 5201-15-3-1X | 201 -19-8 -1X | — | Call for availability | ||
| Model | 6201-15-3-1X | 201 -19 -5 -2X 201 -452-1 | — | Call for availability | ||
| Model | 7201-15-3-1X | 201 -19 -8 -1X 201 -452 -2 97-453 -1 6-4-6611 201 -17-2-1X | — | Call for availability | ||
| Model | 8201-15-3-1X | 201 -19-8 -1X | — | Call for availability | ||
| Model | 9201-15-3 | -ix 201 -19 -8 -1X 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 10201-15-3-1X | 201 -19 -5 -2X | — | Call for availability | ||
| Model | 11201-15-3-1X | 201 -19 -5 -2X * 201 -452-1 | — | Call for availability | ||
| Model | 12201-15-3-1 | X 201 -19 -5 -2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 13201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .3 -4-651 -1 | — | Call for availability | ||
| Model | 14201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| Model | 15201-15-3-1X | 201 -19-5 -2X * 201 -452-1 6 .5 -4-3451 -1 | — | Call for availability | ||
| PS86-10V | PS86-10V | LPS0140 -10S LPS0140 -10S PS0150 -10S PS0150 -10S | — | Call for availability | ||
| None | 301587-1 | 301545-1 301573 -2 301503 -1 301563 -1 | — | Call for availability | ||
| None | 301587-2 | 301545 -2 301573 -2 301503 -2 301563 -2 | — | Call for availability | ||
| None | 301587-3 | 301545 -3 301573 -3 301503 -3 301563 -3 | — | Call for availability | ||
| None | 301588-1 | LLPS0140-10S LLPS0140-1 Os 301503 -8 301563 -3 | — | Call for availability | ||
| None | 301588-2 | 301503 -9 301563 -9 | — | Call for availability | ||
| None | 301589-1 | PS145 -10D PS145 -10D 301503 -14 301563 -14 | — | Call for availability | ||
| 301506-1 | 301562-1 | None 301563 -19 | — | Call for availability | ||
| 301506-2 | 301562-2 | None 301563 -20 | — | Call for availability | ||
| 301506-3 | 301562-1 | LPS145-10D LPS145-10D | — | Call for availability | ||
| 301506-5 | 301562-5 | None 301611 -1 LPS0150-1 Os LPS0150 -10S | — | Call for availability | ||
| 301506-6 | 301562-6 | None 301611 -2 | — | Call for availability | ||
| 301506-7 | 301562-7 | None 301611 -3 301546-1 301574-1 | — | Call for availability | ||
| 301506-8 | 301562-8 | None 301611 -4 301546-2 301574-2 | — | Call for availability | ||
| 301506-9 | 301562-9 | None 301611 -5 301546-3 301574-2 | — | Call for availability | ||
| 301506-10 | 301562-10 | None 301574-4 | — | Call for availability | ||
| 301506-11 | 301562-11 | None 301574-5 | — | Call for availability | ||
| 301506-12 | 301562-12 | LLPS145-10D LLPS145-10D None 301574-6 | — | Call for availability | ||
| 301506-14 | 301562-14 | None 301703 -1 | — | Call for availability | ||
| 301506-15 | 301562-15 | None 301703 -2 LLPS0150-1 Os LLPS0150-10S | — | Call for availability | ||
| 301506-16 | 301562-10 | None 301703 -3 | — | Call for availability | ||
| 301506-17 | 301562-17 | None 301703 -4 None 301706-1 | — | Call for availability | ||
| 301506-18 | 301562-18 | None 301703 -5 None 301706-2 | — | Call for availability | ||
| 301506-21 | 301562-21 | PS0145 -10V PS0145 -10V | — | Call for availability | ||
| 301506-23 | 301562-23 | None 301582-1 | — | Call for availability | ||
| None | 301562-24 | None 301582-2 | — | Call for availability | ||
| None | 301562-25 | None 301582-3 | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission LLPS145-10D — every part in the manual, matched to our live inventory. We stock 186 of the 557 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the PSO115-10V transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | PSO115-10V |
| Transmission type | 10-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 47 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
- All Spicer transmission parts & units
- Remanufactured transmissions
- Search our catalog for PSO115-10V
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
