Truck Windshield Wiper & Washer Parts & Diagrams
Wiper Components

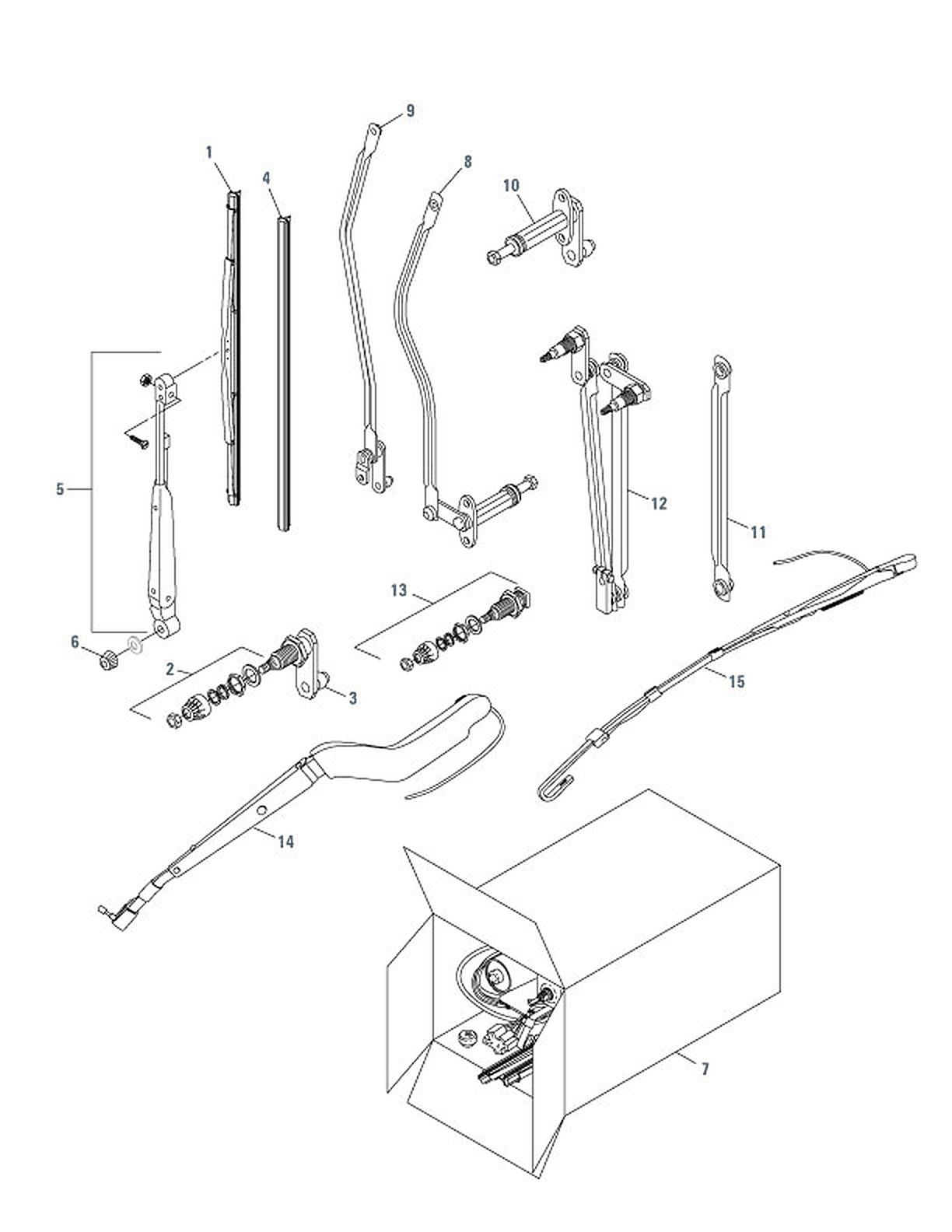

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3115-1567577 | Blade, Assembly (20in) | Mack part number | $28.50 | Add to Cart | |
| 1 | 62QT311P2 | Blade, Assembly (16in) | Mack part number | $15.69 | Add to Cart | |
| 1 | 62QT36A | Blade, Assembly (20in) | Mack part number | $18.51 | Add to Cart | |
| 1 | 62QT38A | Blade, Assembly (16in) | Mack part number | $20.44 | Add to Cart | |
| 1 | 62QT38 | Blade, Assembly (16in) | Mack part number | $20.44 | Add to Cart | |
| 1 | 7623-C110015 | Blade Assembly (16in Rigid) | Mack part number | $22.87 | Add to Cart | |
| 1 | 3115-1879277 | Blade Assembly (12in Rigid) | Mack part number | $23.31 | Add to Cart | |
| 1 | 3115-1567477 | Blade Assembly (Winter Blade) (18in) | Mack part number | $39.02 | Add to Cart | |
| 1 | 3115-1582377 | Blade Assembly (Winter Blade) (16in) | Mack part number. R, DM & RM Models w/ Air Wiper | $20.79 | Add to Cart | |
| 1 | 3115-1880277 | Blade Assembly (22in Rigid) | Mack part number. MR Model w/ Air System | $24.47 | Add to Cart | |
| 1 | 62QT423 | Blade Assembly (28in) | Mack part number. MR Model w/ Electric Wiper | $22.28 | Add to Cart | |
| 1 | 3115-3282077 | Blade Assembly (CH & CX Models) | Mack part number | $16.17 | Add to Cart | |
| 1 | 3115-3131877 | Blade Assembly (18in) | Mack part number. RB & RD Models w/ Electric Wiper. Interchanges with Mack 62QT432 | $15.41 | Add to Cart | |
| 1 | 62QT418M | Blade Assembly (20in) | Mack part number. Interchanges with Mack 935-3398110517 | $45.74 | Add to Cart | |
| 1 | 3115-3132477 | Blade Assembly (24in) | Mack part number | Call for availability | ||
| 2 | 34RC2114M | Kit, Pivot Hardware (CH Models) | Mack part number. Use w/ 33QT238AM & 33QT239AM | $29.39 | Add to Cart | |
| 3 | 33QT238AM | Pivot, Wiper Arm (LH) (CH Models) | Mack part number | $31.60 | Add to Cart | |
| 3 | 33QT239AM | Pivot, Wiper Arm (RH) (CH Models) | Mack part number | $31.60 | Add to Cart | |
| 4 | 8274-SP8605LR | Blade Refill | Mack part number. (For 3115-1567577 Blade Assy.) (20in) | $20.94 | Add to Cart | |
| 4 | 3115-1621477 | Blade Refill | Mack part number. (For 62QT38A Blade Assy.) (16in) | $19.90 | Add to Cart | |
| 4 | 3115-1621377 | Blade Refill (20in) | Mack part number | $14.29 | Add to Cart | |
| 5 | 7623-KIT50R | Arm Assembly (RH) | Mack part number. R, U & RD Models w/ Air Wipers | $34.73 | Add to Cart | |
| 5 | 7623-KIT49L | Arm Assembly (LH) | Mack part number. R, U & RD Models w/ Air Wipers | $40.08 | Add to Cart | |
| 5 | 3115-1034258 | Arm Assembly | Mack part number. Adjustable, 14-16in Lg | $38.59 | Add to Cart | |
| 5 | 62QT417AM | Arm Assembly | Mack part number. (Early 2000 CH Models) (RH & LH) | $49.62 | Add to Cart | |
| 5 | 62QT329 | Arm Assembly (LH) | Mack part number. RB, RD Models w/ Electric Wipers | $36.35 | Add to Cart | |
| 5 | 62QT328 | Arm Assembly (RH) | Mack part number. RB, RD Models w/ Electric Wipers | $37.62 | Add to Cart | |
| 5 | 62QT422 | Arm Assembly (RH & LH) | Mack part number. MR Models w/ Electric Wipers | $170.58 | Add to Cart | |
| 5 | 62QT57 | Arm, Assembly (R/H) (LE Models) | Mack part number. Interchanges with Mack 62QT57A | $257.53 | Add to Cart | |
| 5 | 62QT56 | Arm, Assembly (L/H) (LE Models) | Mack part number. Interchanges with Mack 62QT56A | $302.36 | Add to Cart | |
| 5 | 62QT59 | Arm, Assembly (RH & LH) | Mack part number. CH & CX Models. Interchanges with Mack 62QT514 | $94.83 | Add to Cart | |
| 6 | 90RU2115 | Driver | Mack part number. Sold as a 5-pack | $25.79 | Add to Cart | |
| 7 | 242SX46 | Kit, Conversion (Air To Electric) | Mack part number. Includes (1) 1MR3484M, (1) 42MR29M, (1) 41MR4296, (1) 33QT449, (1) 33QT450B, (1) 33QT394, (1) 63QT310, (1) 62QT329, (1) 62QT328, (2) 3115-3131877. R/RB/RD/RS/RW/DM Models | $2,431.37 | Add to Cart | |
| 8 | 33QT449 | Link/Pivot, Wiper (RH) (R/RB/RD/RS/RW/DM Models) (W/ Electric Wipers) | Mack part number | $470.73 | Add to Cart | |
| 9 | 33QT450B | Link, Pivot, Wiper (LH) (R/RB/RD/RS/RW/DM Models) | Mack part number. w/ Electric Wipers | $241.81 | Add to Cart | |
| 10 | 33QT394 | Pivot, Link, Wiper (LH) (R/RB/RD/RS/RW/DM Models) | Mack part number. w/ Electric Wipers | $224.83 | Add to Cart | |
| 11 | 33QT444M | Linkage, Wiper Arm (RH) (CH Models) | Mack part number | $56.10 | Add to Cart | |
| 12 | 33QT56A | Linkage, Wiper (CH/CL/CT/CX Models) | Mack part number | $219.58 | Add to Cart | |
| 12 | 23550705 | Linkage, Wiper (Pinnacle Model) | New design. Mack part number | Call for availability | ||
| 13 | 33QT248A | Pivot, Wiper (RH/LH) (MC/MR Models) | Mack part number | $108.22 | Add to Cart | |
| 14 | A22-47433-002 | Arm, Wiper Assembly (Freightliner Century Models) | Freightliner part number | $174.85 | Add to Cart | |
| 15 | A22-51969-000 | Arm, Wiper Assembly (Freightliner Columbia Models) | Freightliner part number | $93.98 | Add to Cart |
Wiper - Motors & Brackets
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| UTA6685540M025WJ | Motor, Wiper | Fits Freightliner FLD Models | $112.45 | Add to Cart | ||
| 3539699C91 | Motor, Wiper | Fits International 2000 / 3000 / 4000 / 8000 Series. Navistar part number | $199.24 | Add to Cart | ||
| 1653908C91 | Motor, Wiper | Fits International 9600 / 9700 / 9800 Series. Navistar part number | $977.10 | Add to Cart | ||
| 2504129C91 | Motor, Wiper | Fits International 5000 / 9000 Series. Navistar part number | $935.48 | Add to Cart | ||
| 2594086C91 | Motor, Wiper | Fits International 3000 / 4000 / 7000 / 8000 Series. Navistar part number | $175.61 | Add to Cart | ||
| 63QT516 | Motor, Wiper | Fits Mack CH / CL / CX Models | $172.24 | Add to Cart | ||
| 29AM3 | Screw (M6 X 1 X 14) (Use W/ 63QT516 Motor) | Fits Mack Multiple. Sold as a 10-pack | $45.97 | Add to Cart | ||
| 82710518 | Motor, Wiper | Fits Mack CHU / CXN / CHU Models. Volvo part number | $494.52 | Add to Cart | ||
| 63QT513 | Motor, Wiper (LH) | Fits Mack LE Models | $991.55 | Add to Cart | ||
| 63QT514 | Motor, Wiper (RH) | Fits Mack LE Models | Call for availability | |||
| 63QT520 | Motor, Wiper | Fits Mack MR Models. (12 VDC) (RH/LH) | $218.06 | Add to Cart | ||
| 63QT411 | Motor, Wiper | Fits Mack R Model | $646.01 | Add to Cart | ||
| 63QT310 | Motor, Wiper | Fits Mack RB / RD Models | $144.71 | Add to Cart | ||
| 85150366 | Motor, Wiper | Fits Volvo Multiple | $154.21 | Add to Cart | ||
| 41MR4296 | Harness, Wiper | Fits Mack DM / U / R / RB / RD / RW Models | $966.88 | Add to Cart | ||
| 30QS4419M | Bracket, Wiper | Fits Mack Early CH Models | $25.08 | Add to Cart | ||
| 30QS4518M | Bracket, Wiper | Fits Mack Current CH/CL/CXModels. Use w/ 63QT516 Motor | $65.06 | Add to Cart | ||
| 82277591 | Bracket, Wiper | Fits Mack CHU / CXN / GU Models. Use w/ Wiper Motor | $44.78 | Add to Cart |
Wiper - Control Valves & Knobs
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1653421C91 | Valve, Wiper Control | Navistar part number | $37.60 | Add to Cart | ||
| 7623-K1165SF | Valve, Wiper Control | Mack part number | $51.60 | Add to Cart | ||
| 7623-8894419 | Control, Valve Knob (Used W/ 1653421C91 And 7623-K1165SF) | Mack part number | $93.77 | Add to Cart | ||
| 7623-7547070 | Valve, Wiper Air Control (Current) | Fits R/RB/RD/DM & RW Models). Mack part number | $646.01 | Add to Cart | ||
| 35QT229 | Valve, Wiper Control | Fits DM / R/ RB / RD / RW. Mack part number | $58.91 | Add to Cart |
Wiper - Windshield Washer Fluid Pumps
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 9823-103496 | Kit, Pump, Windshield Washer Fluid | Fits Mack CH Models. Includes (1) 9823-104307, (1) 9823-C5098 | $49.20 | Add to Cart | ||
| 3604375C1 | Pump, Windshield Washer Fluid | Fits International 1000 / 3000 / 4000 / 7000 / 8000 Models. Navistar part number | $20.28 | Add to Cart | ||
| 9823-104307 | Pump, Windshield Washer Fluid | Fits Mack CH Models | $48.08 | Add to Cart | ||
| 9823-C5098 | Screen, Nut | Fits Mack CH Models | $3.52 | Add to Cart | ||
| 9823-100010 | Pump, Windshield Washer Fluid | Fits Mack DM / R / RB /RD / RW Models | $100.93 | Add to Cart | ||
| 216-22110112 | Pump, Windshield Washer Fluid | Fits Mack MR / MR688S Models. Used w/ 34QT38M / 34QT412M / 25128543 & 34QT418M Washer Fluid Reservoirs | $28.84 | Add to Cart | ||
| 9823-5098 | Screen, Windshield Washer Pump | Fits Mack Multiple | $11.02 | Add to Cart |
Wiper - Reservoirs & Caps
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 34QT38M | Reservoir, Washer Fluid | Fits Mack CH / CL / CV / CX | $77.55 | Add to Cart | |
| 2 | 8QT218M | Reservoir, Cap | Mack part number | $5.26 | Add to Cart | |
| 3 | 34QT412M | Reservoir, Washer Fluid | Fits Mack MR688S | $169.24 | Add to Cart | |
| 4 | 34QT418M | Reservoir, Washer Fluid | Fits Mack CHN / CHU / CXU Models | $190.43 | Add to Cart | |
| 5 | 25128543 | Reservoir, Washer Fluid | Fits Mack RD Models. Interchanges with Mack 34QT410M | $137.43 | Add to Cart | |
| 6 | 216-22110112 | Pump, Washer Fluid | Mack part number. Used w/ 34QT38M / 34QT412M / 25128543 & 34QT418M Washer Fluid Reservoirs | $28.84 | Add to Cart | |
| 7 | N5355001 | Reservoir, Washer | New design. Fits PACCAR Multiple | $63.42 | Add to Cart | |
| 7 | R86-6001 | Reservoir, Washer | New design. Fits PACCAR Multiple | $89.10 | Add to Cart |
Wiper - Switches & Knobs
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1MR3485M | Switch, Wiper (2 Speed) | Mack part number | $21.90 | Add to Cart | |
| 1 | 1MR3484M | Switch, Wiper (2 Speed, Intermittent) | Mack part number | $228.41 | Add to Cart | |
| 1 | 42MR29M | Knob, Wiper Switch | Mack part number | $14.17 | Add to Cart | |
| 1 | 41MR4296 | Switch, Wiper (Windshield Washer Harness) | Mack part number. used w/Switch 1MR3484M. (1) 1 Pin Female Connector. (1) 4 Pin Female Connector. (1) 7 Slot Female Connector. (3) Eyebolt Connector. (1) Slot Male Connector | $966.88 | Add to Cart | |
| 1 | 1MR1368 | Switch, Windshield Washer | Mack part number. 1/2in-32 Thread | $12.26 | Add to Cart | |
| 1 | 1MR4317 | Switch, Wiper/Washer | Mack part number. 6 Pin Connector | $20.08 | Add to Cart | |
| 1 | 3534329C1 | Switch, Wiper Control | Navistar part number. 8 Pin Connector, 12VDC. Interchanges with Mack 9538-100612 | $157.06 | Add to Cart | |
| 1 | 06-46159-001 | Switch, Wiper (Wiper Control Switch) | Freightliner part number. 8 Pin Connector | $293.40 | Add to Cart | |
| 1 | 1MR4336 | Switch, Wiper (CV, CX, Chn, Cxn Models) | Mack part number. Yellow/White LED | $105.44 | Add to Cart | |
| 1 | 1MR4323M16 | Switch, Rock (CU Models) | Mack part number. Interchanges with Mack 25024693 | $46.84 | Add to Cart | |
| 1 | 1MR4336P2 | Switch, Wiper (CV, CX, Chn, Cxn Models) | Mack part number. Blue LED. Interchanges with Mack 20801117 | $154.84 | Add to Cart |
Wiper - Hoses
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 243AX8F | Hose, Windshield Washer | Mack part number. (11/64in ID) (25ft Roll) | $56.05 | Add to Cart | |
| 1 | 243AX8F1000 | Hose, Windshield Washer | Mack part number. (11/64in ID) (1000ft Roll) | $2,181.09 | Add to Cart |
Wiper - Fittings
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 7623-192518 | Fittings | Fits Mack CH / CL / CY. Sold as a 2-pack | $30.59 | Add to Cart | |
| 2 | 16QT29 | Fittings, Windshield Washer Tee | Fits Mack CH / CL / CY. Sold as a 5-pack | $22.74 | Add to Cart | |
| 3 | 35QT226M | Fittings, Windshield Washer Elbow Fitting | Fits Mack CH / CL / CY. Sold as a 5-pack | $17.65 | Add to Cart | |
| 4 | 1349-3398699032 | Fittings, Windshield Washer Fitting | Fits Mack Early CH / CL. Use w/ 62QT417AM Arm Assy | $46.76 | Add to Cart | |
| 5 | 28644 | Fitting, Water Connection | New design. Fits Freightliner Multiple. Gates part number | Call for availability |
