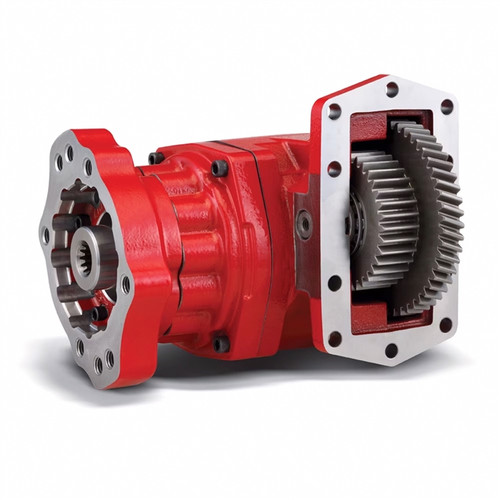

The Chelsea 288GGFJP-M5XV or 288GGFJPM5XV is a 10-bolt constant mesh power take-off built on the 288 Series platform, which delivers a continuous duty torque rating of up to 390 lb-ft. Output is via a round shaft with a 1-1/4" key. The cast iron housing rides on wider gears and larger-capacity bearings compared to the predecessor 287 Series. Ductile iron bearing caps are 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap improves clamp load and reduces vibration-induced wear from modern engine designs. Rotatable cast-iron flanges reduce clearance and interference issues. Nine speed ratios cover both low and high speed applications. Wet Spline Lubrication is available and provides 7 to 10 times greater shaft life. A hose is included. Common markets include snow and ice, vacuum, aerial, and refuse applications. Call us to confirm proper fit for your application.
Features
10-bolt constant mesh design with cast iron housing
Ductile iron bearing caps, 117% stronger than gray iron
O-ring seal configuration between housing and bearing cap improves clamp load and reduces vibration effects
Round shaft output (1-1/4" key); positive stop feature eliminates oil seal damage from shaft coupling
Nine speed ratios including low and high speeds
Wet Spline Lubrication option provides 7 to 10 times greater pump shaft life; hose included
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: Round Shaft, 1-1/4" Key
- Continuous Duty Torque: Up to 390 lb-ft
- Speed Ratios: Nine (includes low and high speeds)
- Housing Material: Cast Iron
- Bearing Caps: Ductile Iron
- Lubrication Options: Pressure Lube or Wet Spline
- Replaces: Chelsea 287 Series
