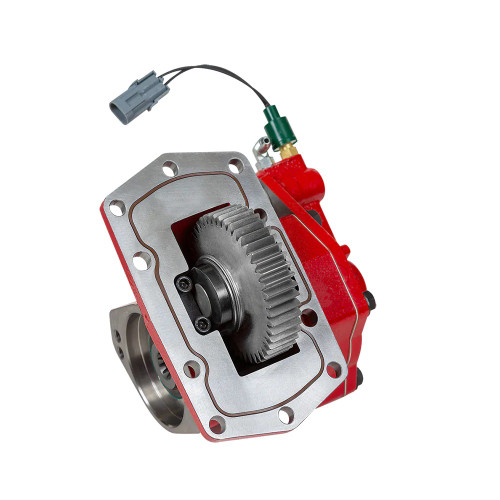

The Chelsea 210 Series Power Take-Off, part number 210FMMFP-K4XP or 210FMMFPK4XP, is engineered specifically for the Ford TorqShift 10R140 10-speed automatic transmission. It mounts via a Ford 10-bolt pattern and uses a hydraulic shift with a 46-tooth spur input gear at a 46/36 gear ratio, producing 144% output speed. Intermittent torque capacity reaches up to 235 lb-ft (319 Nm). The 210 Series features Chelsea's patented noise-suppression system, Electronic Overspeed Control, and simplifies installation with a single hose connection plus an integrated cartridge valve and pressure switch. Typical applications include tow and recovery, service trucks, small dump trucks, and fire and rescue. Available for both 2WD and 4WD configurations. Call us to confirm proper fit for your specific chassis and pump selection.
Features
Chelsea 210 Series PTO for Ford TorqShift 10R140 10-speed automatic transmission
Ford 10-bolt mounting pattern, compatible with 2WD and 4WD applications
Hydraulic shift with 46-tooth spur input gear and 46/36 gear ratio (144% output speed)
Intermittent torque rating up to 235 lb-ft (319 Nm)
Patented noise-suppression system with Electronic Overspeed Control (EOC)
Single hose connection with integrated cartridge valve and pressure switch for simplified installation
Tech Specs
- Series: Chelsea 210
- Application: Ford TorqShift 10R140 10-speed automatic transmission
- Mounting: Ford 10-bolt
- Shift Type: Hydraulic
- Input Gear: 46-tooth spur (MF designator)
- Gear Ratio: 46/36 (144% output speed)
- Intermittent Torque: up to 235 lb-ft (319 Nm)
- Continuous Operation: No
- Lubrication: Internal
- Available For: 2WD and 4WD
Additional Information
The Chelsea 210 Series pairs with the Ford 10R140 transmission to serve a range of work truck markets including aerial, water drilling, tow and recovery, small dump, and fire and rescue. The integrated cartridge valve and pressure switch reduce the number of external components required during installation. Smart Start is available as a standard option on this series. Parker Chelsea documents for this series include the 210/810 Series Owner's Manual, 210 Series Parts List, and 210 Series Sales Literature.Parts Manual: Chelsea 210 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
