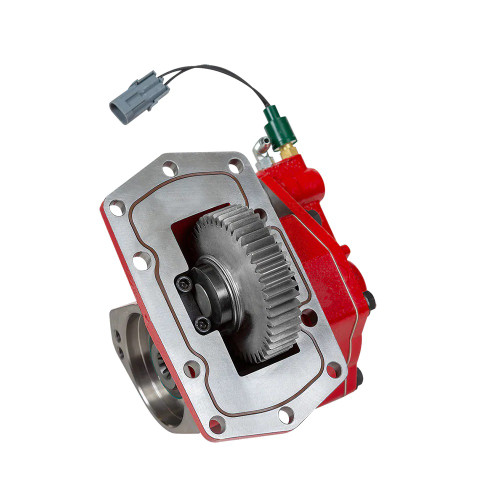

The Chelsea 210FMMFP-B218 or 210FMMFPB218 is a 210 Series Power Take-Off engineered for Ford Super Duty trucks equipped with the Ford 10R140 TorqShift 10-speed automatic transmission. This series uses hydraulic shift with a Ford 10-bolt mounting pattern and delivers up to 235 lb-ft (319 Nm) intermittent torque. The 46-tooth spur input gear produces 144% output speed (M ratio, 46/36). Internal lubrication is built in. The 210 Series features a patented noise-suppression system, Electronic Overspeed Control, and a single-hose connection with an integrated cartridge valve and pressure switch for simplified installation. Fits 2WD and 4WD applications. Call us to confirm proper fit for your application.
Features
Chelsea 210 Series PTO for Ford 10R140 TorqShift 10-speed automatic transmission
Hydraulic shift with Ford 10-bolt mounting pattern
Up to 235 lb-ft (319 Nm) intermittent torque capacity
46-tooth spur input gear, 46/36 ratio delivering 144% output speed
Patented noise-suppression system with Electronic Overspeed Control (EOC)
Single-hose connection with integrated cartridge valve and pressure switch for reduced installation time
Tech Specs
- Series: Chelsea 210 Series
- Application: Ford Super Duty with 10R140 TorqShift 10-Speed Automatic Transmission
- Mounting Type: Ford 10-Bolt
- Shift Type: Hydraulic
- Input Gear: 46-Tooth Spur (MF designator)
- Gear Ratio: 46/36 - 144% Output Speed (M designator)
- Intermittent Torque: Up to 235 lb-ft (319 Nm)
- Lubrication: Internal (P designator)
- Continuous Operation: No
- Available For: 2WD and 4WD applications
Additional Information
The Chelsea 210 Series is designed for work truck applications including tow and recovery, service trucks, small dump trucks, and fire and rescue. Output shaft options available across the 210 Series include 1-1/4 in. keyed, 3/4 in. 11T SAE A Pilot, and 7/8 in. 13T SAE A Pilot configurations. The Smart Start feature is available as standard on this series. For installation guidance, Parker Chelsea publishes the 210/810 Series Owner's Manual and 210 Series Parts List. Contact Pro Gear and Transmission to confirm the correct configuration for your truck and hydraulic system.Parts Manual: Chelsea 210 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
