Eaton Fuller FS-4205A Parts Manual
Complete unit, in stock

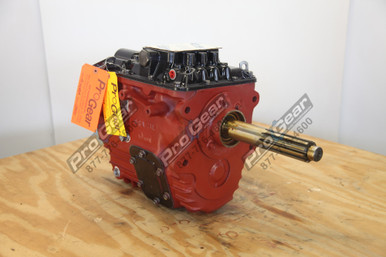

FS-4205A Eaton Fuller Transmission
$2,495.00$7,505.84
+ $750.00 refundable core deposit
Rebuilding this unit? Every part below is priced and ready to order. If the FS-4205A is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.

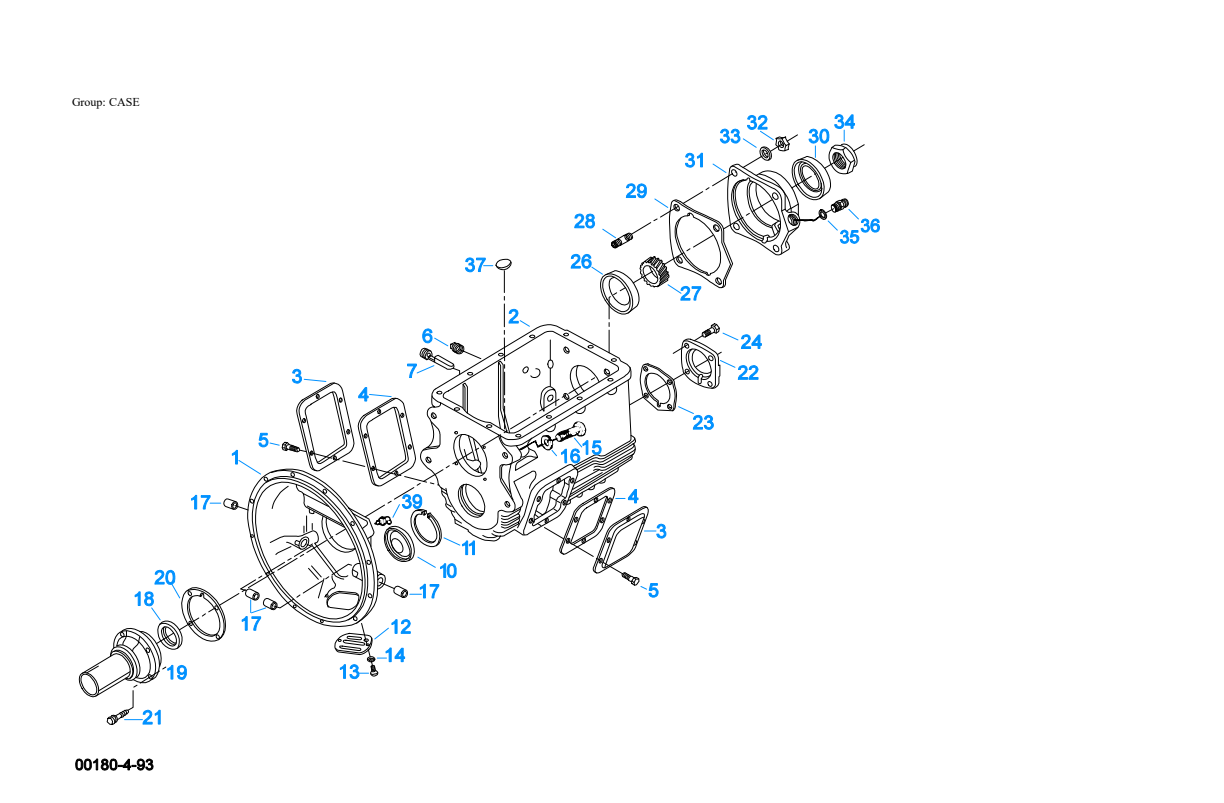

Case
Item 4Item 1Item 1Item 17Item 2Item 5Item 27Item 22Item 29Item 28Item 18Item 2Item 21Item 12Item 23Item 5Item 4Item 3Item 14Item 17Item 24Item 19Item 34Item 32Item 10Item 33Item 37Item 26Item 31Item 3Item 17Item 39Item 35Item 30Item 11Item 6Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5205 | Clutch Hsg Assy | 1 | Replaces 21646. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | No longer available - Call for replacement | |
| 1 | A-5629 | Clutch Hsg Assy | 1 | Replaces 23721, 229219. #3 PUSH-IRON | $1,553.92 | Add to Cart |
| 1 | A-5634 | Clutch Hsg Assy | 1 | Replaces 23726, 3316236, 3316237, A-5632, A-5771. #2 ALUMINUM, ABOVE CENTER LINE PULL TYPE | $429.71 | Add to Cart |
| 1 | A-5751 | Clutch Hsg Assy | 1 | Replaces 4300418. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | $328.83 | Add to Cart |
| 1 | A-7513 | Clutch Hsg Assy | 1 | Replaces 3316239. #2 ALUMINUM, PUSH TYPE (FORK) | No longer available - Call for replacement | |
| 2 | S-1874 | Case Assy | 1 | Replaces 4300878. | $1,025.01 | Add to Cart |
| 2 | S-1923 | Case Assy | 1 | Replaces 4300816, 4301032, 4301099. | $1,400.55 | Add to Cart |
| 2 | S-1924 | No Longer Available | 1 | Replaces 4301033. | Call for availability | |
| 3 | 201398 | Pto Cover | 2 | $9.08 | Add to Cart | |
| 4 | 201400 | Gasket | 2 | $10.64 | Add to Cart | |
| 5 | 239613 | Capscrew | 12 | 3/8"-16X5/8" | $4.45 | Add to Cart |
| 6 | X-12-1210 | Pipe Plug | 1 | Replaces X121206. | $4.89 | Add to Cart |
| 7 | X-12-1207 | Pipe Plug | 1 | Replaces X121202X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 10 | 239783 | Plug | 1 | $4.78 | Add to Cart | |
| 11 | 240040 | Snap Ring | 1 | $6.11 | Add to Cart | |
| 12 | 23380 | Cover | 1 | Replaces 206466. | $5.20 | Add to Cart |
| 13 | 1C408 | Capscrew | 2 | 1/4"-20 | $1.41 | Add to Cart |
| 14 | X-3-400 | Lockwasher | 2 | Replaces 4E04. 1/4" | $1.17 | Add to Cart |
| 15 | X-8-903 | Capscrew | 4 | Replaces 1C936. 9/16"-12X2-1/4" | $3.66 | Add to Cart |
| 16 | 4E09 | Lockwasher | 4 | 9/16" | $1.33 | Add to Cart |
| 17 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 17 | 8677 | Bushing | 2 | USE W/A-5205 CLUTCH HSG ASSY | $19.09 | Add to Cart |
| 18 | 4300121 | Oil Seal | 1 | Replaces 3315623. SHAFT 1.873, WIDTH .375, OD 2.68 | $9.12 | Add to Cart |
| 18 | 4300204 | Oil Seal | 1 | Replaces 235394. SHAFT 1.873, WIDTH .375 | $7.21 | Add to Cart |
| 18 | 4300798 | Oil Seal | 1 | Replaces 235393. SHAFT 1.625, WIDTH .375 | $6.14 | Add to Cart |
| 19 | 23147 | Front Brg Cover-pull | 1 | Replaces 3315538. USE 4300121 OIL SEAL | $131.46 | Add to Cart |
| 19 | 237743 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $208.16 | Add to Cart |
| 19 | 238870 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $256.10 | Add to Cart |
| 19 | 239821 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $109.20 | Add to Cart |
| 19 | 4300354 | Front Brg Cover-push | 1 | USE 4300204 OR 4300798 OIL SEAL | $204.88 | Add to Cart |
| 19 | 4300355 | Front Brg Cover-push | 1 | USE 4300204 OIL SEAL | $229.94 | Add to Cart |
| 19 | 4300882 | Front Brg Cover-push | 1 | Replaces 237335. USE 4300798 OIL SEAL | $160.59 | Add to Cart |
| 20 | 240321 | Gasket | 1 | $16.12 | Add to Cart | |
| 21 | 239614 | Screw | 4 | 5/16-18X.81 | $7.31 | Add to Cart |
| 22 | 4300261 | C/s Rear Brg Cover | 1 | $21.15 | Add to Cart | |
| 23 | 240017 | Shim .004 | 1 | QUANTITY AS REQUIRED | $4.81 | Add to Cart |
| 23 | 240018 | Shim .007 | 1 | QUANTITY AS REQUIRED | $3.51 | Add to Cart |
| 23 | 240019 | Shim .010 | 1 | QUANTITY AS REQUIRED | $4.61 | Add to Cart |
| 23 | 240020 | Shim .020 | 1 | QUANTITY AS REQUIRED | $5.23 | Add to Cart |
| 23 | 4300980 | Shim .040 | 1 | $19.11 | Add to Cart | |
| 24 | X-8-688 | Capscrew | 4 | 3/8"-16X1" | $2.77 | Add to Cart |
| 26 | K-3919 | Bearing Kit | 1 | Replaces 654166, 654137. | $45.00 | Add to Cart |
| 27 | 21555 | Speedo Rotor | 1 | $52.27 | Add to Cart | |
| 27 | 3314356 | Speedo Drive Gear | 1 | 5 TEETH | $90.11 | Add to Cart |
| 27 | 3314448 | Speedo Drive Gear | 1 | 6 TEETH | $74.35 | Add to Cart |
| 27 | 86301 | Speedo Drive Gear | 1 | 5 TEETH | $64.32 | Add to Cart |
| 28 | 239433 | Stud | 4 | 1/2"-20X2-5/16" | $5.16 | Add to Cart |
| 29 | 240329 | Shim .004 | 1 | QUANTITY AS REQUIRED | $7.84 | Add to Cart |
| 29 | 240330 | Shim .007 | 1 | QUANTITY AS REQUIRED | $4.33 | Add to Cart |
| 29 | 240331 | Shim .010 | 1 | QUANTITY AS REQUIRED | $7.49 | Add to Cart |
| 29 | 240332 | Shim .020 | 1 | QUANTITY AS REQUIRED | $10.26 | Add to Cart |
| 29 | 4300981 | Shim .040 | 1 | $41.65 | Add to Cart | |
| 30 | 208385 | Oil Seal | 1 | $11.73 | Add to Cart | |
| 30 | 4300203 | Oil Seal | 1 | Replaces 229985237983. SHAFT 2.503, WIDTH .5 | $7.31 | Add to Cart |
| 31 | 4300846 | Rear Brg Cover | 1 | Replaces 241101. USE 4300203 OIL SEAL | $268.57 | Add to Cart |
| 31 | 4300849 | No Longer Available | 1 | Replaces 241615. USE 4300203 OIL SEAL | Call for availability | |
| 31 | 4300877 | Rear Brg Cover | 1 | Replaces 241099. USE 4300203 OIL SEAL | $309.21 | Add to Cart |
| 31 | 4300970 | Rear Brg Cover | 1 | Replaces 3315498. USE 208385 OIL SEAL | Call for availability | |
| 31 | 4300972 | Rear Brg Cover | 1 | Replaces 241102. USE 4300203 OIL SEAL | Call for availability | |
| 31 | 4301053 | Rear Brg Cover | 1 | Replaces 241100. USE 4300203 OIL SEAL | $284.76 | Add to Cart |
| 31 | K-7038 | Rear Brg Cover Kit | 1 | Replaces 4302614. USE 4300203 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $177.36 | Add to Cart |
| 31 | K-7039 | Rear Brg Cover Kit | 1 | Replaces 4302615. USE 4300203 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $620.19 | Add to Cart |
| 31 | S-7030 | Rear Brg Cover Assy | 1 | Replaces 4300845, 4302037. USE 4300203 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $525.00 | Add to Cart |
| 31 | S-7031 | Rear Brg Cover Assy | 1 | Replaces 4301677, 4302039. USE 4300203 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $338.71 | Add to Cart |
| 32 | 86D8 | Nut | 4 | Replaces 86D08. 1/2"-20 | $2.63 | Add to Cart |
| 33 | 239436 | Washer | 4 | 1/2" | $2.49 | Add to Cart |
| 34 | 21937 | Nut | 1 | Replaces 216053, 235656, 238026. 1-1/4"-18 | $20.79 | Add to Cart |
| 35 | 4301954 | Sensor Seal | 1 | $4.84 | Add to Cart | |
| 36 | 86016 | Sleeve | 1 | $46.86 | Add to Cart | |
| 37 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 39 | 4300301 | FITTING-45 Degree | 2 | Replaces 11H15. | $5.45 | Add to Cart |
| 39 | 4872 | FITTING-90 Degree | 2 | Replaces 12H15. | $3.41 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 672070 | Bearing Cup | 1 | $76.76 | Superseded by K4156Add to Cart | |
| 2 | 675246 | Bearing Cone | 1 | $76.76 | Superseded by K4156Add to Cart | |
| 3 | 240767 | Snap Ring | 1 | $8.86 | Add to Cart | |
| 4 | 241012 | Drive Gear-cntrshft | 1 | $149.72 | Add to Cart | |
| 5 | 4301535 | 4TH Gear-cntrshft | 1 | $119.58 | Add to Cart | |
| 6 | 4301536 | 3RD Gear-cntrshft | 1 | $106.51 | Add to Cart | |
| 7 | 241017 | 2ND Gear-cntrshft | 1 | $118.47 | Add to Cart | |
| 8 | 230292 | Key | 2 | $4.27 | Add to Cart | |
| 9 | 4301537 | Countershaft | 1 | $269.46 | Add to Cart | |
| 10 | 666554 | Bearing Cone | 1 | $57.37 | Superseded by K4157Add to Cart | |
| 11 | 730362 | Bearing Cup | 1 | $57.37 | Superseded by K4157Add to Cart |
Input Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4301526 | Input SHAFT-1.50" Push | 1 | USE 4300882 FRONT BRG COVER | $240.60 | Add to Cart |
| 1 | 4301614 | In/shaft- 1.75"PUSH/PULL | 1 | USE 23147 OR 4300882 FRONT BRG COVER | $289.01 | Add to Cart |
| 1 | 4301615 | In/shaft- 1.50"PUSH/PULL | 1 | USE 23147 FRONT BRG COVER | $241.16 | Add to Cart |
| 1 | 4301616 | Input SHAFT-1.50" Push | 1 | USE 4300882 FRONT BRG COVER | $243.49 | Add to Cart |
| 1 | 4301618 | Input SHAFT-1.50" Push | 1 | USE 4300882 FRONT BRG COVER | $252.37 | Add to Cart |
| 1 | 4301619 | No Longer Available | 1 | USE 239821 OR 4300882 FRONT BRG COVER | Call for availability | |
| 1 | 4301620 | Input SHAFT-1.50" Push | 1 | USE 4300354 OR 4300355 FRONT BRG COVER | $249.68 | Add to Cart |
| 1 | 4301622 | Input SHAFT-1.375" Push | 1 | USE 237743 FRONT BRG COVER | $198.03 | Add to Cart |
| 2 | 1314774 | Bearing Cup | 1 | 1.118",1.375" & 1.50" INPUT | $46.68 | Superseded by K4154Add to Cart |
| 2 | 235417 | Bearing Cup | 1 | 1.75" INPUT | $60.51 | Superseded by K4153Add to Cart |
| 3 | 1314773 | Bearing Cone | 1 | 1.118",1.375" & 1.50" INPUT | $46.68 | Superseded by K4154Add to Cart |
| 3 | 235418 | Bearing Cone | 1 | 1.75" INPUT | $60.51 | Superseded by K4153Add to Cart |
| 4 | 235414 | Bearing | 14 | $1.79 | Add to Cart | |
| 5 | 235415 | Washer | 1 | $6.58 | Add to Cart | |
| 6 | 235416 | Snap Ring | 1 | $4.78 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-2116 | Shim Kit | 1 | $151.47 | Add to Cart | ||
| K-2143 | Gasket Kit | 1 | $15.02 | Add to Cart | ||
| K-2144 | Small Parts Kit | 1 | $139.34 | Add to Cart | ||
| K-3421 | Synchronizer Kit | 1 | Replaces K-7004. | $515.53 | Add to Cart | |
| K-3479 | Synchronizer Kit | 1 | Replaces K-7005. | $387.39 | Add to Cart | |
| K-3919 | Bearing Kit | 1 | Replaces 654166, 654137. | $45.00 | Add to Cart | |
| K-7000 | Basic Rebuild Kit | 1 | 1.50 INPUT - 2.00 OUTPUT | $383.76 | Add to Cart | |
| K-7013 | Basic Rebuild Kit | 1 | 1.75 INPUT SHAFT | $410.42 | Add to Cart | |
| K-7038 | Rear Brg Cover Kit | 1 | Replaces 4302614. | $177.36 | Add to Cart | |
| K-7039 | Rear Brg Cover Kit | 1 | Replaces 4302615. | $620.19 | Add to Cart | |
| K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart | |
| K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart | |
| S-1578 | Shift Lever Assy 3-1/2" | 1 | COMPLETE ASSY - ALUMINUM HOUSING HIGH - LEVER HEIGHT 3- 1/2" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $494.57 | Add to Cart | |
| S-1827 | Shift Lever Assy 3-1/8" | 1 | Replaces S-7079. COMPLETE ASSY - ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $483.17 | Add to Cart | |
| S-1874 | Case Assy | 1 | Replaces 4300878. | $1,025.01 | Add to Cart | |
| S-1923 | Case Assy | 1 | Replaces 4300816, 4301032, 4301099. | $1,400.55 | Add to Cart | |
| S-1924 | No Longer Available | 1 | Replaces 4301033. | Call for availability | ||
| S-7030 | Rear Brg Cover Assy | 1 | Replaces 4300845, 4302037. | $525.00 | Add to Cart | |
| S-7031 | Rear Brg Cover Assy | 1 | Replaces 4301677, 4302039. | $338.71 | Add to Cart | |
| S-7045 | Shift Lever Assy 2-7/8" | 1 | COMPLETE ASSY - ALUMINUM HOUSING LOW - LEVER HEIGHT 2- 7/8" 33" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $548.46 | Add to Cart | |
| S-7077 | Shift Bar Housing Assy | 1 | Replaces 239834, 4302944. COMPLETE REVERSE SWITCH POSITION - RIGHT FRONT | $782.91 | Add to Cart | |
| S-7085 | Shift Bar Hsg Assy | 1 | Replaces 4300336, 4302956. COMPLETE - W/NEUTRAL SWITCH PROVISION REVERSE SWITCH POISTION - RIGHT REAR | $784.51 | Add to Cart |
Lever Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart |
| 2 | 201054 | Pin | 2 | FOR HSGS WITHOUT PIN SLEEVES | $5.88 | Add to Cart |
| 2 | 23180 | Pin | 2 | FOR HSGS WITH PIN SLEEVES | $4.86 | Add to Cart |
| 3 | 4300690 | Spring | 1 | Replaces 229337. | $9.49 | Add to Cart |
| 4 | 23181 | Washer | 1 | $2.77 | Add to Cart | |
| 5 | 21722 | Shift Lever 27-1/2" | 1 | USE WITH K-7062 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 5 | 228648 | Gear Shift Lever | 1 | USE WITH 233080 STRAIGHT LEVER - "BEND TO SUIT" | No longer available - Call for replacement | |
| 5 | 241076 | Shift Lever 27-1/2" | 1 | USE WITH K-7061 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 5 | 4302823 | Shift Lever 33" | 1 | USE WITH A-6448 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 6 | 202484 | Dust Cover | 1 | $7.34 | Add to Cart | |
| 7 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 8 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 9 | 201401 | Shift Knob | 1 | 3/8"X24 THREAD | $19.73 | Add to Cart |
| 10 | K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart |
| 11 | K-7065 | Shift Lever Hsg Kit | 1 | Replaces 4302704, 4302711, A-6448. ALUMINUM HOUSING LOW - LEVER HEIGHT 2-7/8" | $52.90 | Add to Cart |

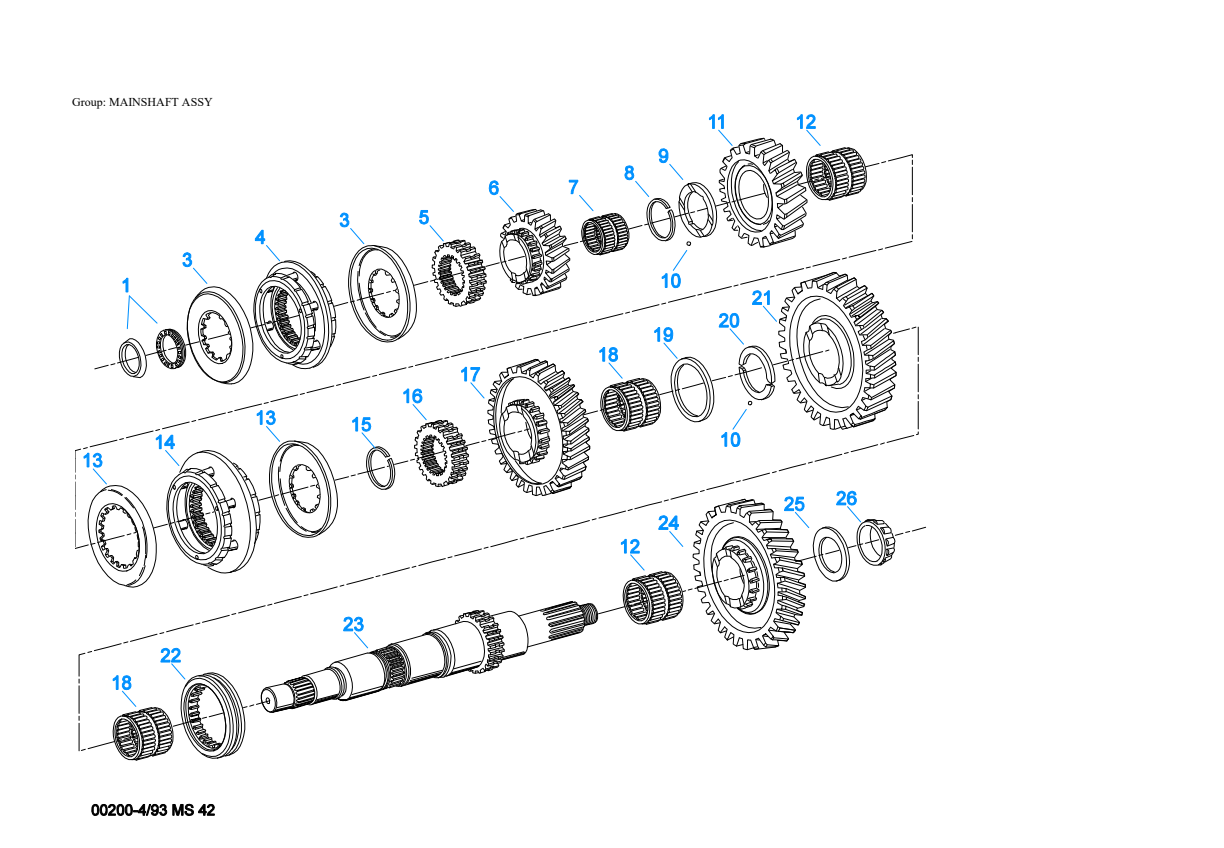

Mainshaft Assy
Item 7Item 4Item 11Item 8Item 14Item 12Item 20Item 26Item 16Item 1Item 12Item 9Item 5Item 10Item 18Item 3Item 17Item 24Item 18Item 15Item 19Item 13Item 6Item 21Item 13Item 23Item 10Item 3Item 25Item 22Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3704 | Bearing & Race Kit | 1 | Replaces 235382, 235383. | $46.86 | Add to Cart |
| 3 | 3001435 | Synchronizer Cup | 2 | Replaces 4301565. | $57.09 | Add to Cart |
| 4 | A-6609 | Synchronizer Assy 4/5 | 1 | Replaces A-6144. | $387.39 | Add to Cart |
| 5 | 4303689 | Clutch Hub 4/5 | 1 | Replaces 4301534. | $46.68 | Add to Cart |
| 6 | 4303796 | 4TH Gear-mainshaft | 1 | Replaces 4301527. | $131.03 | Add to Cart |
| 7 | 239651 | Bearing | 1 | $17.79 | Add to Cart | |
| 8 | 224069 | Snap Ring | 1 | $4.50 | Add to Cart | |
| 9 | 23127 | Washer | 1 | $46.74 | Add to Cart | |
| 10 | 10J06 | Steel Ball | 2 | 3/16" | $1.71 | Add to Cart |
| 11 | 4301528 | 3RD Gear-mainshaft | 1 | $157.66 | Add to Cart | |
| 12 | 239818 | Bearing | 2 | $39.34 | Add to Cart | |
| 13 | 4301467 | Synchronizer Cup | 2 | $44.85 | Add to Cart | |
| 14 | A-6608 | Synchronizer Assy 2/3 | 1 | Replaces A-6137. | $370.99 | Add to Cart |
| 15 | 240037 | Snap Ring | 1 | $2.78 | Add to Cart | |
| 16 | 4301533 | Clutch Hub 2/3 | 1 | $59.28 | Add to Cart | |
| 17 | 4301529 | 2ND Gear-mainshaft | 1 | $172.24 | Add to Cart | |
| 18 | 239653 | Bearing | 2 | $25.13 | Add to Cart | |
| 19 | 235379 | Retainer | 1 | $18.30 | Add to Cart | |
| 20 | 235378 | Split Washer | 2 | $15.28 | Add to Cart | |
| 21 | 4301530 | 1ST Gear-mainshaft | 1 | $217.09 | Add to Cart | |
| 22 | 4301566 | Sliding Clutch | 1 | $87.29 | Add to Cart | |
| 23 | 4301532 | Mainshaft | 1 | $387.65 | Add to Cart | |
| 24 | 4301531 | Reverse Gear- Mainshaft | 1 | $174.41 | Add to Cart | |
| 25 | 240026 | Washer | 1 | $16.42 | Add to Cart | |
| 26 | K-3919 | Bearing Kit | 1 | Replaces 654166, 654137. | $45.00 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart | |
| 71231 | Gasket Sealant | 1 | 8 MILLILITER SIZE | $33.25 | Add to Cart | |
| 71232 | Thread Adhesive | 1 | 10 MILLILITER SIZE | $28.73 | Add to Cart |
Remote Control
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3316284 | Control Housing Assy | 1 | Replaces 3316285. | Call for availability | |
| 2 | 12F100 | Plug 1" | 1 | $2.88 | Add to Cart | |
| 3 | 3312252 | Bushing | 3 | $5.88 | Add to Cart | |
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 5 | 3315948 | Breather | 1 | USE WITH 3316284 HOUSING ASSY | $14.64 | Add to Cart |
| 5 | 4300217 | Breather | 1 | $23.79 | Add to Cart | |
| 6 | 3316290 | Shift Finger | 1 | $108.97 | Add to Cart | |
| 7 | 3315272 | Screw | 2 | $5.85 | Add to Cart | |
| 8 | 3312745 | Washer | 1 | $4.32 | Add to Cart | |
| 9 | 3315837 | Spring | 1 | $7.74 | Add to Cart | |
| 10 | 3312225 | Oil Seal | 1 | $11.35 | Add to Cart | |
| 11 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 12 | 3314302 | Boot | 1 | $8.81 | Add to Cart | |
| 13 | 3316288 | No Longer Available | 1 | LEVER HEIGHT 5-1/8" | Call for availability | |
| 13 | A-5312 | Shaft & Lever Assy | 1 | LEVER HEIGHT 85MM (3.35") | $122.12 | Add to Cart |
| 999 | A-5497 | No Longer Available | 1 | LEVER HEIGHT 5-1/8" | Call for availability |
Reverse Idler Gear Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20 | 240023 | Washer | 2 | $6.86 | Add to Cart | |
| 21 | 240024 | Spacer | 1 | $23.74 | Add to Cart | |
| 22 | 4301592 | Idler Gear | 1 | Replaces 239799. | $152.49 | Add to Cart |
| 23 | 240022 | Idler Shaft | 1 | $35.21 | Add to Cart | |
| 24 | 201929 | Shaft Lock | 1 | $2.63 | Add to Cart | |
| 25 | X-8C-600 | Capscrew | 1 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
| 26 | 235376 | Bearing | 52 | $1.73 | Add to Cart |
Shift Bar Housing
Item 7Item 4Item 2Item 5Item 27Item 17Item 1Item 10Item 33Item 24Item 27Item 8Item 16Item 11Item 9Item 6Item 3Item 15Item 21Item 31Item 31Item 3Item 3Item 13Item 20Item 13Item 32Item 32Item 26Item 28Item 3Item 30Item 22Item 25Item 25Item 3Item 33Item 23Item 29Item 20Item 21Item 11Item 11Item 14Item 12Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6534 | Shift Bar Hsg Assy | 1 | Replaces 239834, 4302944. HOUSING ONLY REVERSE SWITCH POISTION - RIGHT FRONT | $215.16 | Add to Cart |
| 1 | A-6538 | Shift Bar Hsg Assy | 1 | Replaces 4300336, 4302956. HOUSING ONLY - W/NEUTRAL SWITCH PROVISION REVERSE SWITCH POISTION - RIGHT REAR | $234.20 | Add to Cart |
| 2 | 240038 | Gasket | 1 | $5.39 | Add to Cart | |
| 3 | 10J14 | Steel Ball | 10 | 7/16" - REVERSE SWITCH | $1.81 | Add to Cart |
| 3 | 10J14 | Steel Ball | 13 | 7/16" - W/NEUTRAL SWITCH PROVISION | $1.81 | Add to Cart |
| 4 | 4303939 | Spring | 3 | Replaces 201045. | $1.61 | Add to Cart |
| 5 | 235621 | Plug 1" | 1 | $13.94 | Add to Cart | |
| 6 | 235622 | Gasket | 1 | $2.11 | Add to Cart | |
| 7 | 240496 | Spacer | 1 | $3.95 | Add to Cart | |
| 8 | 233794 | Spring | 1 | $4.63 | Add to Cart | |
| 9 | 23576 | Plunger | 1 | $33.53 | Add to Cart | |
| 10 | 235052 | Ca Plug | 1 | 9/16 - 18 | $1.50 | Add to Cart |
| 10 | 4303656 | Plug | 1 | Replaces 15917. 9/16 - 18, THREADED | $2.91 | Add to Cart |
| 11 | X-8C-600 | Capscrew | 13 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
| 12 | 4301719 | Ball Retainer- Reverse | 1 | $1.76 | Add to Cart | |
| 13 | 238370 | Lifting Eye | 2 | $4.99 | Add to Cart | |
| 14 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 15 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 16 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 17 | 4301718 | Ball Retainer- Neutral | 1 | $2.39 | Add to Cart | |
| 20 | 233043 | Capscrew | 4 | 3/8"-16X1" - USE W/4301277 RETAINER | $4.04 | Add to Cart |
| 21 | 4301277 | Shift Bar Retainer | 2 | $21.53 | Add to Cart | |
| 22 | 4301541 | Yoke Bar 1ST/REV | 1 | USE W/239834, 4302944 OR A-6534 HOUSING | $66.54 | Add to Cart |
| 22 | 4302656 | Yoke Bar 1ST/REV | 1 | USE W/4300336, 4302956 OR A-6538 HOUSING | $50.19 | Add to Cart |
| 23 | 4301540 | Yoke Bar 2ND/3RD | 1 | $55.08 | Add to Cart | |
| 24 | 4301539 | Yoke Bar 4TH/5TH | 1 | $49.45 | Add to Cart | |
| 25 | 201044 | Pin | 2 | W/NEUTRAL SWITCH PROVISION | $2.91 | Add to Cart |
| 25 | 201044 | Pin | 1 | REVERSE SWITCH | $2.91 | Add to Cart |
| 26 | 4300402 | Shift Block 1ST/REV | 1 | $57.98 | Add to Cart | |
| 27 | 14J1818 | Pin | 2 | $3.01 | Add to Cart | |
| 28 | A-6146 | Yoke Assy 2ND/3RD | 1 | Replaces 4301595. | $93.27 | Add to Cart |
| 29 | A-6145 | Yoke Assy 4TH/5TH | 1 | Replaces 4301593. | $95.16 | Add to Cart |
| 30 | 4300401 | Shift Yoke 1ST/REV | 1 | $119.53 | Add to Cart | |
| 31 | 227675 | Insert - Yoke Pad | 4 | $7.01 | Add to Cart | |
| 32 | 1JM6028 | Pin | 2 | $2.24 | Add to Cart | |
| 33 | 1JM3528 | Pin | 2 | $1.78 | Add to Cart | |
| 999 | S-7077 | Shift Bar Housing Assy | 1 | Replaces 239834, 4302944. COMPLETE REVERSE SWITCH POSITION - RIGHT FRONT | $782.91 | Add to Cart |
| 999 | S-7085 | Shift Bar Hsg Assy | 1 | Replaces 4300336, 4302956. COMPLETE - W/NEUTRAL SWITCH PROVISION REVERSE SWITCH POISTION - RIGHT REAR | $784.51 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller FS-4205A, with every part in the manual matched to our live inventory. We stock 207 of the 227 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Case Countershaft Assy Input Shaft Kits & Assemblies Lever Assy Mainshaft Assy Miscellaneous Remote Control Reverse Idler Gear Assy Shift Bar Housing
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the FS-4205A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | FS-4205A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 19 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for FS-4205A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
