Eaton Fuller RTLO-12713A Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTLO-12713A is past saving, we also stock reman and new Eaton Fuller 13 speed transmissions, ready to ship.
Need the in-cab reference for this 13-speed? Order the 13-speed shift pattern diagram (Eaton P/N 4300764) with your parts.
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4303673 | Spacer | 1 | Replaces 4302046. | $52.87 | Add to Cart |
| 2 | 5566508-BOX | Bearing | 1 | Replaces 5566503, 5566508. | $147.25 | Add to Cart |
| 3 | 4300894 | Retainer | 1 | $50.06 | Add to Cart | |
| 4 | X-8-645 | Capscrew | 6 | 3/8"-16X1" | $1.78 | Add to Cart |
| 5 | 4300911 | Spacer | 1 | $33.48 | Add to Cart | |
| 6 | K-2808 | Repl Kit-drive Gear | 1 | Replaces 4300932, 4300938. | $264.54 | Add to Cart |
| 7 | 4303185 | Washer | 1 | Replaces 4300901. | $13.50 | Add to Cart |
| 8 | 4301254 | Snap Ring | 1 | $2.12 | Add to Cart |

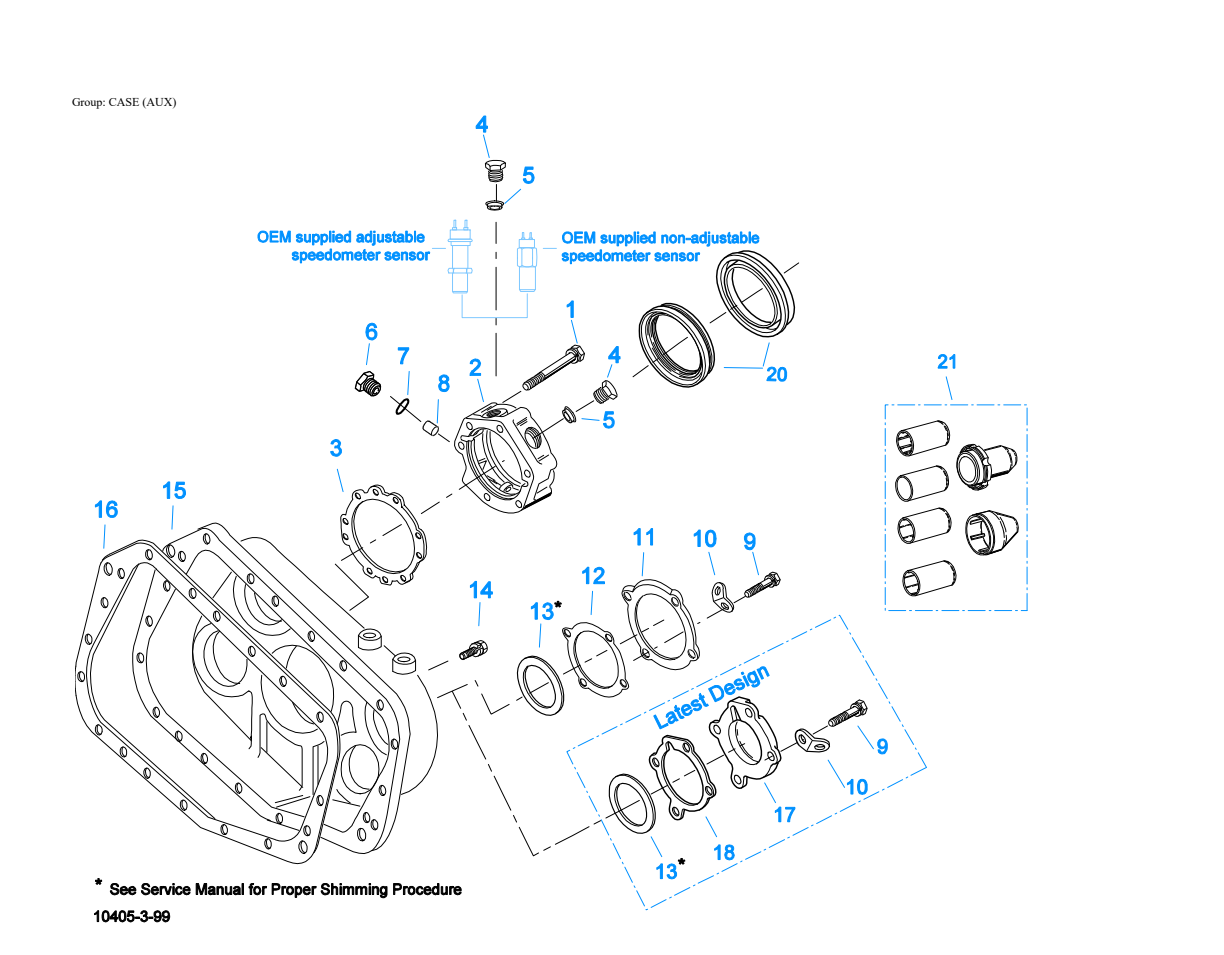

Case (Aux)
Item 14Item 7Item 8Item 6Item 10Item 9Item 13Item 16Item 2Item 21Item 5Item 5Item 13Item 17Item 4Item 3Item 12Item 11Item 18Item 9Item 1Item 4Item 15Item 10Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-605 | Capscrew | 6 | 3/8"-16X3" | $4.71 | Add to Cart |
| 2 | S-2106 | Rear Brg Cover Assy | 1 | Replaces 22732, 23368, 4302025, S-1552. | $198.53 | Add to Cart |
| 3 | 21364 | Gasket | 1 | $2.65 | Add to Cart | |
| 4 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 5 | 4301954 | Sensor Seal | 2 | $4.84 | Add to Cart | |
| 6 | 20226 | Plug-mechanical | 1 | $4.15 | Add to Cart | |
| 7 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 8 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 9 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 10 | 20815 | Lifting Eye | 2 | $2.88 | Add to Cart | |
| 11 | 4300925 | Rear Bearing Cover | 2 | Replaces 4300185. PRIOR TO SERIAL NUMBER 51126209 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $32.54 | Add to Cart |
| 12 | 4300186 | Gasket | 2 | PRIOR TO SERIAL NUMBER 51126209 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $7.39 | Add to Cart |
| 13 | K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart |
| 14 | X-8L-602 | Capscrew | 17 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 14 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 15 | 4300917 | Rear Housing | 1 | PRIOR TO SERIAL NUMBER | $358.28 | Add to Cart |
| 15 | 4303588 | Rear Housing | 1 | BEGINNING W/SERIAL NUMBER 51126209 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $496.85 | Add to Cart |
| 16 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 17 | 4302320 | Cover | 2 | Replaces 21346. BEGINNING W/SERIAL NUMBER 51126209 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $43.61 | Add to Cart |
| 18 | 4305978 | Gasket | 1 | Replaces 4302246. BEGINNING W/SERIAL NUMBER 51126209 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $7.06 | Superseded by 4309436Add to Cart |
| 20 | K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 21 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement |

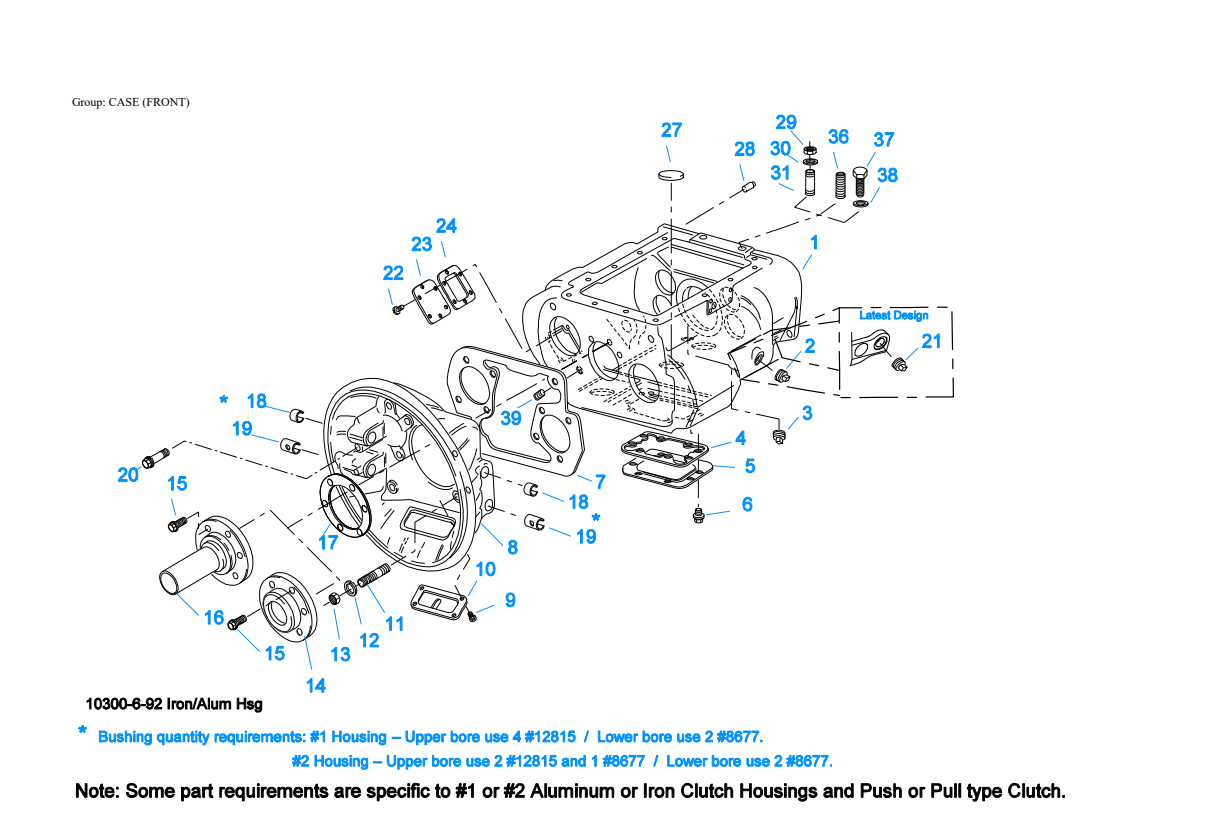

Case (Front)
Item 1Item 1Item 7Item 7Item 4Item 37Item 10Item 11Item 16Item 6Item 14Item 22Item 19Item 27Item 8Item 9Item 2Item 12Item 28Item 39Item 15Item 19Item 38Item 24Item 3Item 36Item 29Item 5Item 31Item 21Item 18Item 23Item 3Item 20Item 15Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2083 | Case Assy | 1 | Replaces 4301074. | $1,755.98 | Add to Cart |
| 1 | S-2258 | Case Assy | 1 | Replaces 4301715. FOR USE W/INTEGRAL PUMP | $2,077.78 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-4772 | Clutch Housing Assy | 1 | Replaces A-4771. #2 PUSH-PULL ALUM. | $2,336.63 | Add to Cart |
| 8 | A-6064 | Clutch Housing Assy | 1 | Replaces A-4342, A-4770, A-6062, A-6063, A-6065. #1 PUSH-PULL ALUM. | $1,376.22 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Bearing Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 20549 | Front Bearing Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 21 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 2 | A-6756 | Welded Countershaft Assy | 2 | Replaces A-5942. C/S 4303648 - D/G 4300935 S/G 4300936 | $483.47 | Add to Cart |
| 3 | 21342 | Spacer | 2 | $8.55 | Add to Cart |

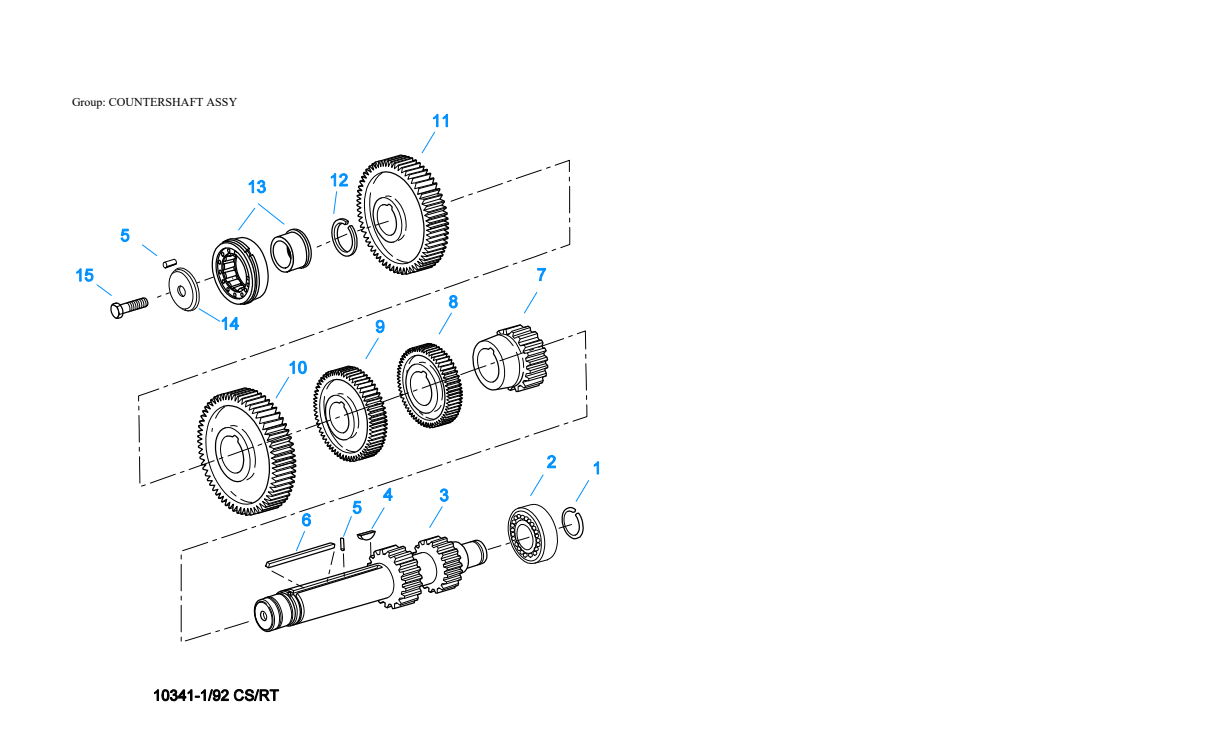

Countershaft Assy
Item 1Item 7Item 14Item 10Item 9Item 8Item 12Item 5Item 4Item 15Item 11Item 6Item 2Item 3Item 5Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | No longer available - Call for replacement | ||
| 3 | K-2958 | Cntrshft-w/rev & Lo | 2 | Replaces 4300032, 4300243. | $295.99 | Add to Cart |
| 4 | X-6-E | Key | 2 | $4.27 | Superseded by 230292Add to Cart | |
| 5 | 62511 | Roll Pin | 4 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 21025 | 1ST Gear-cntrshft | 2 | Replaces 19629. | $81.66 | Add to Cart |
| 8 | 21264 | 2ND Gear-cntrshft | 2 | Replaces 19623. | $90.80 | Add to Cart |
| 9 | 21262 | Od Gear-cntrshft | 2 | Replaces 19639, 21027. | $239.18 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 20840 | Pto Gear - Upper | 1 | $105.45 | Add to Cart | |
| 11 | 4305665 | Drive Gear-cntrshft | 2 | Replaces 21018, 4305069. | $165.05 | Add to Cart |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

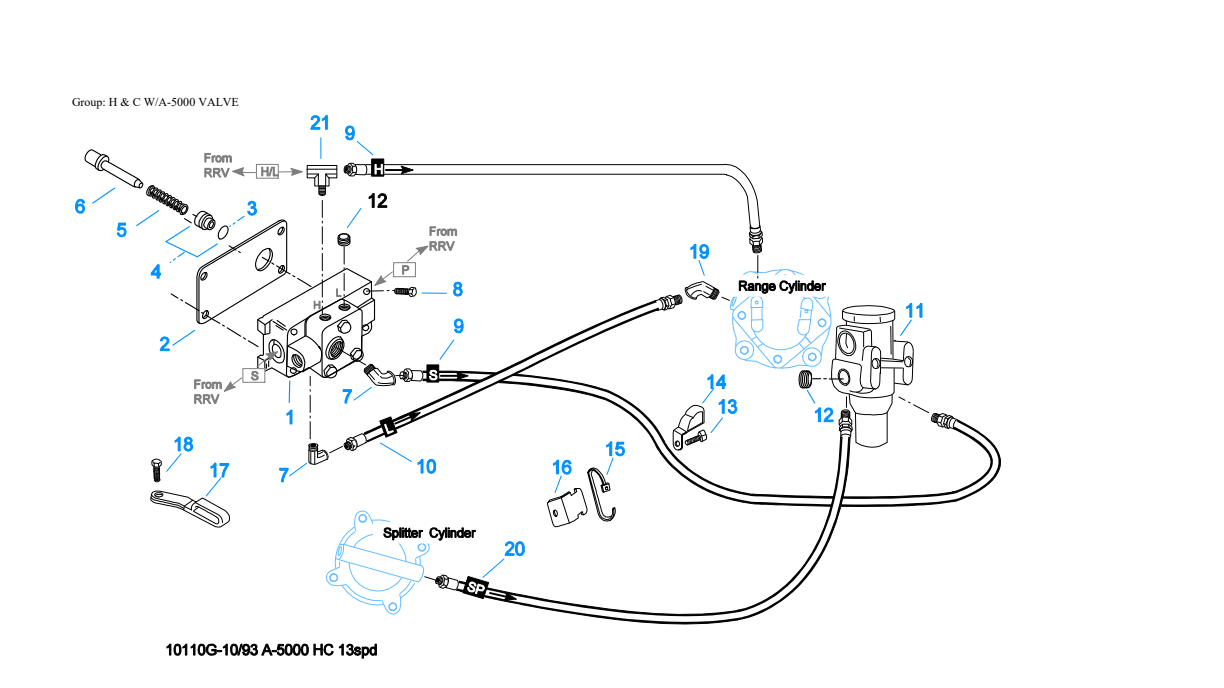

H & C W/A-5000 Valve
Item 4Item 7Item 7Item 9Item 8Item 6Item 20Item 2Item 13Item 1Item 9Item 17Item 11Item 19Item 21Item 5Item 15Item 12Item 16Item 4Item 10Item 3Item 18Item 12Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 2 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55509 | Hose Assy | 2 | 34" | $25.31 | Add to Cart |
| 10 | 55518 | Hose Assy | 1 | 32" | $19.83 | Add to Cart |
| 11 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 20 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
| 21 | 21086 | Branch Tee | 1 | 1/8" | $13.10 | Add to Cart |

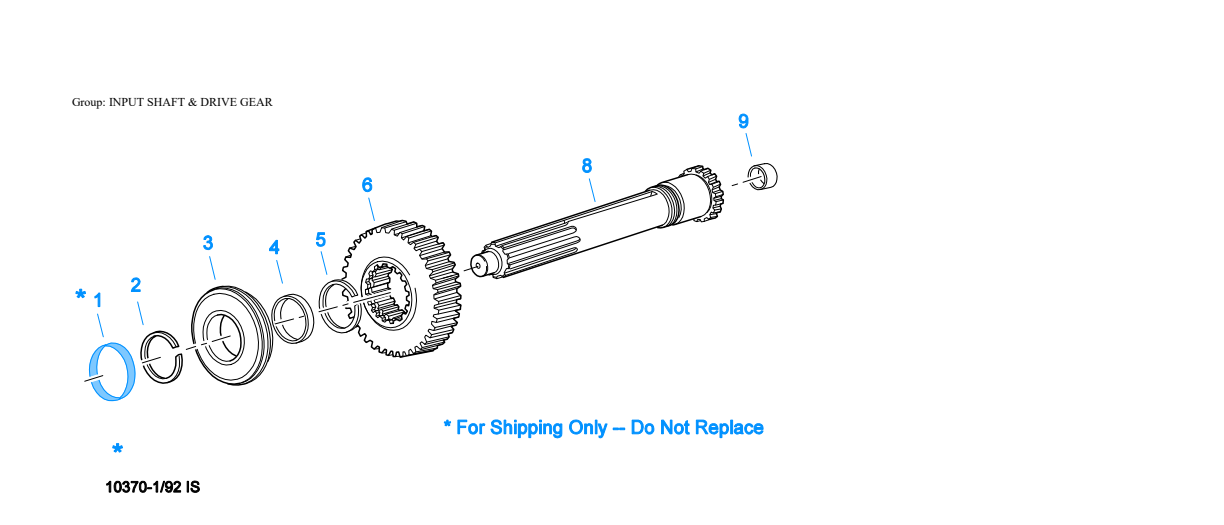

Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 22961 | Main Drive Gear | 1 | Replaces 22959. | $140.48 | Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 23566. 2" PULL | $110.63 | Add to Cart |
| 8 | S-1660 | Input Shaft | 1 | Replaces 23567. 2" PUSH | $364.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart |

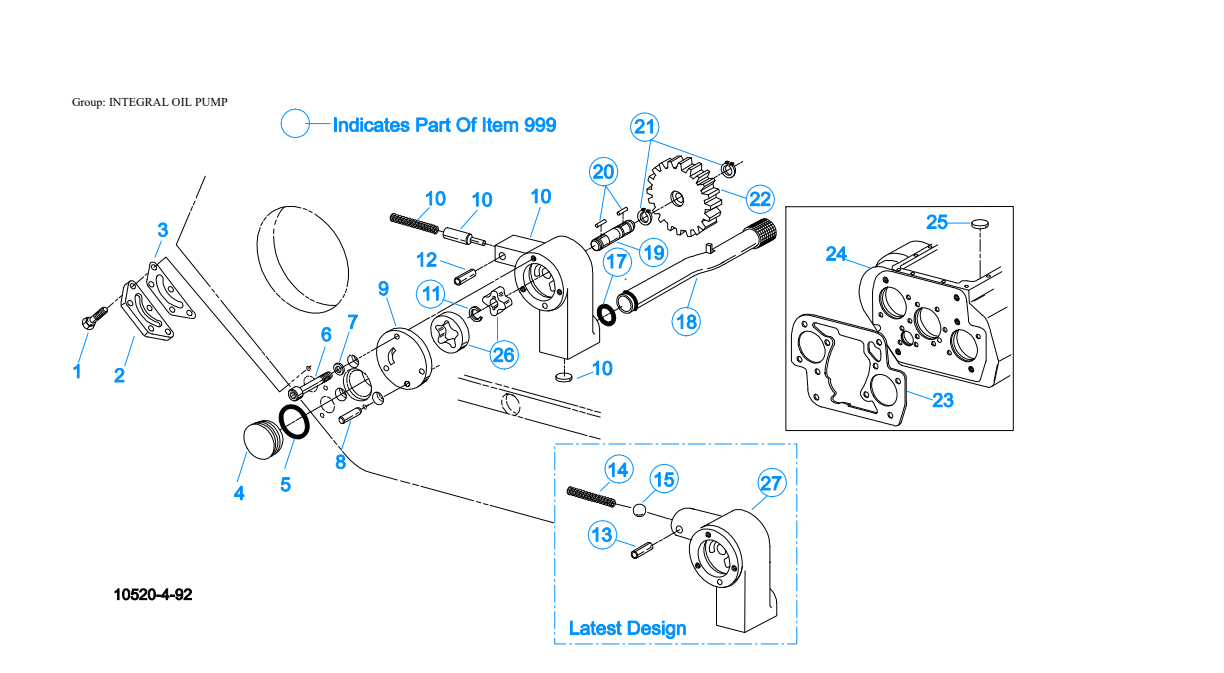

Integral Oil Pump
Item 9Item 4Item 7Item 8Item 26Item 18Item 2Item 21Item 6Item 3Item 2Item 5Item 2Item 22Item 1Item 10Item 23Item 10Item 20Item 10Item 13Item 7Item 10Item 12Item 11Item 19Item 17Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-409 | Capscrew | 5 | 1/4"-20X5/8" - USE WITH 4300751 COVER | $1.87 | Add to Cart |
| 1 | X-8C-430 | Capscrew | 5 | 1/4"-20X7/8" - USE WITH 20513 COVER | $1.76 | Add to Cart |
| 2 | K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart |
| 3 | 20514 | Gasket | 1 | $2.07 | Add to Cart | |
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | X-8-448 | Screw | 3 | Replaces X8445. 1/4"-20X1-1/4" | $1.76 | Add to Cart |
| 7 | 20824 | Washer | 3 | $18.88 | Add to Cart | |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303107 | Retainer | 1 | Replaces 20510. | $30.74 | Add to Cart |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | 20518 | Crescent Ring | 1 | $1.59 | Add to Cart | |
| 12 | 62516 | Roll Pin | 1 | Replaces 62521. | $1.84 | Add to Cart |
| 13 | 62514 | Roll Pin | 1 | Call for availability | ||
| 14 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 15 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 20508 | Drive Shaft | 1 | $53.01 | Add to Cart | |
| 20 | 20509 | Key | 2 | $10.21 | Add to Cart | |
| 21 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 22 | 20511 | Drive Gear | 1 | $367.14 | Add to Cart | |
| 23 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 24 | S-2258 | Case Assy | 1 | Replaces 4301715. FOR USE W/INTEGRAL PUMP | $2,077.78 | Add to Cart |
| 25 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 26 | 20507 | Element | 1 | $104.16 | Add to Cart | |
| 27 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-. | $367.14 | Add to Cart |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |

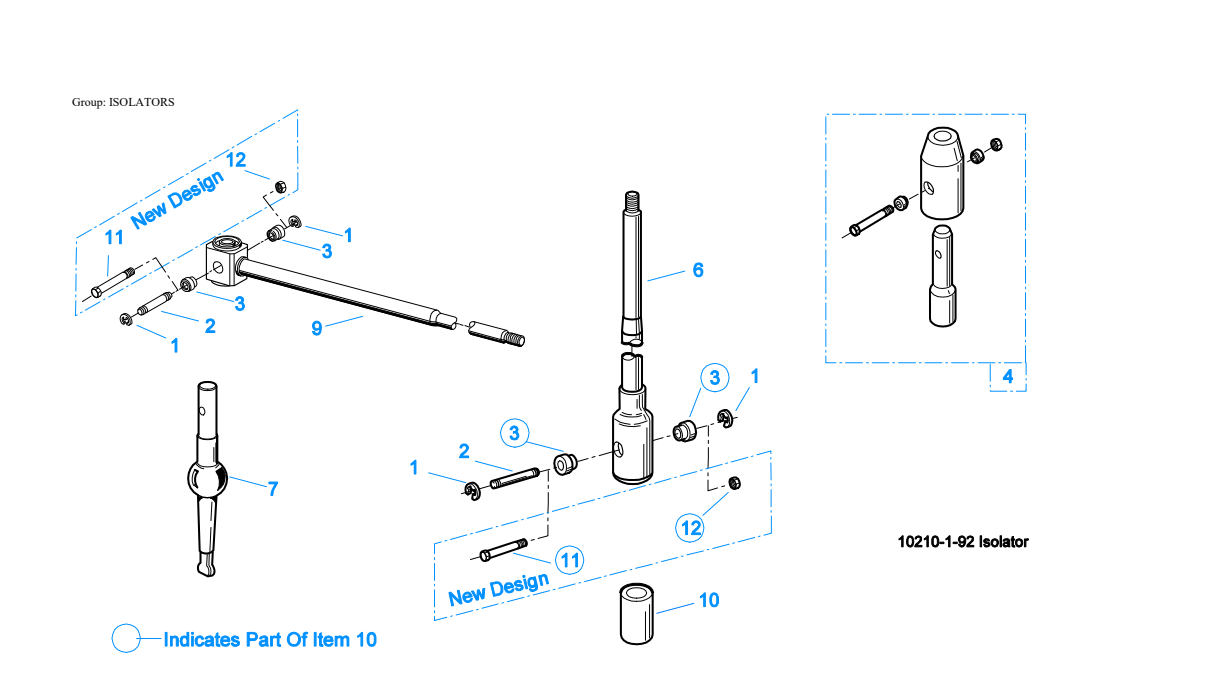

Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 7 | 4301168 | Stub Lever | 1 | MID TOWER | $113.11 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1603 | Gasket Kit | 1 | FOR AUXILIARY SECTION | $18.46 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1826 | Master Valve Repair Kit | 1 | FOR A-4900 VALVE | $39.95 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart | |
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2199 | Gasket Kit | 1 | $80.16 | Add to Cart | ||
| K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2285 | Basic Rebuild Kit | 1 | $826.62 | Add to Cart | ||
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2439 | Key & Washer Kit | 1 | CONTAINS 3-SIDED KEY | $104.71 | Add to Cart | |
| K-2468 | Clutch Installation Kit | 1 | FOR USE WITH S-1659 INPUT SHAFT ASSY AND 81504 INPUT SHAFT BEARING | $318.86 | Add to Cart | |
| K-2767 | Basic Overhaul Kit | 1 | $729.45 | Add to Cart | ||
| K-2768 | Basic Overhaul Kit | 1 | FOR AUXILIARY SECTION | $351.27 | Add to Cart | |
| K-2801 | Small Parts Kit | 1 | $167.54 | Add to Cart | ||
| K-2802 | O-ring Kit-range | 1 | $19.17 | Add to Cart | ||
| K-2803 | O-ring Kit - Splitter | 1 | $10.99 | Add to Cart | ||
| K-2804 | O-ring Kit-complete | 1 | $19.92 | Add to Cart | ||
| K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart | |
| K-2806 | Shim Kit | 1 | FOR C/S OIL PUMP | $104.63 | Add to Cart | |
| K-2808 | Repl Kit-drive Gear | 1 | Replaces 4300932, 4300938. | $264.54 | Add to Cart | |
| K-2809 | Range Cylinder Kit | 1 | $135.98 | Add to Cart | ||
| K-2958 | Countershaft Repl Kit | 1 | Replaces 4300032, 4300243. | $295.99 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart | |
| K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart | |
| K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart | |
| K-3151 | Washer Update Kit | 1 | $731.36 | Add to Cart | ||
| K-3193 | Master Valve Repair Kit | 1 | FOR A-6913 VALVE | $31.14 | Add to Cart | |
| K-3195 | Master Valve Repair Kit | 1 | FOR A-7313 VALVE | $42.55 | Add to Cart | |
| K-3209 | Idler Shaft Repl Kit | 1 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart | |
| K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 4300927, 4304031, 4304032, A-6862. | $103.52 | Add to Cart | |
| K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart | |
| K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3497 | Synchronizer Replacement Kit | 1 | Replaces K-3200. SLIDING CLUTCH INCLUDED IN KIT | $508.76 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | |||
| K-4125 | Clutch Installation Kit (rt), Hydraulic Release | 1 | STANDARD RT INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $455.35 | Superseded by K4125CLAdd to Cart | |
| S-1219 | Yoke Assy Low-rev | 1 | $72.34 | Add to Cart | ||
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1445 | Shift Bar Hsg (x) | 1 | Replaces 18920, 20135, 20214, 20215, 2048721135, 4302452. HOUSING ONLY (X) | $1,001.65 | Add to Cart | |
| S-1446 | Shift Bar Hsg (xf) | 1 | Replaces 21136. HOUSING ONLY (XF) | $999.67 | Add to Cart | |
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | ||
| S-1527 | Shift Bar Hsg Assy (x) | 1 | Replaces 20215, 21135, 4302452. COMPLETE (X) | $1,530.41 | Add to Cart | |
| S-1528 | Shift Bar Hsg Assy (xf) | 1 | Replaces 21136. COMPLETE (XF) | $1,372.01 | Add to Cart | |
| S-1659 | Input Shaft | 1 | Replaces 20535235664302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart | |
| S-1660 | Input Shaft | 1 | Replaces 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2083 | Case Assy | 1 | Replaces 4301074. | $1,755.98 | Add to Cart | |
| S-2106 | Rear Brg Cover Assy | 1 | Replaces 22732, 23368, 4302025, S-1552. | $198.53 | Add to Cart | |
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2258 | Case Assy | 1 | Replaces 4301715. FOR USE W/INTEGRAL PUMP | $2,077.78 | Add to Cart | |
| S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart | |
| S-2578 | Roadranger Valve Assy | 1 | $152.54 | Add to Cart | ||
| S-2767R | Reman Range Section Assy | 1 | $2,852.95 | Add to Cart | ||
| S-3108 | Mainshaft Assy | 1 | Replaces 4303402, 4303403, S-2562, S-3101. | $191.07 | Add to Cart |

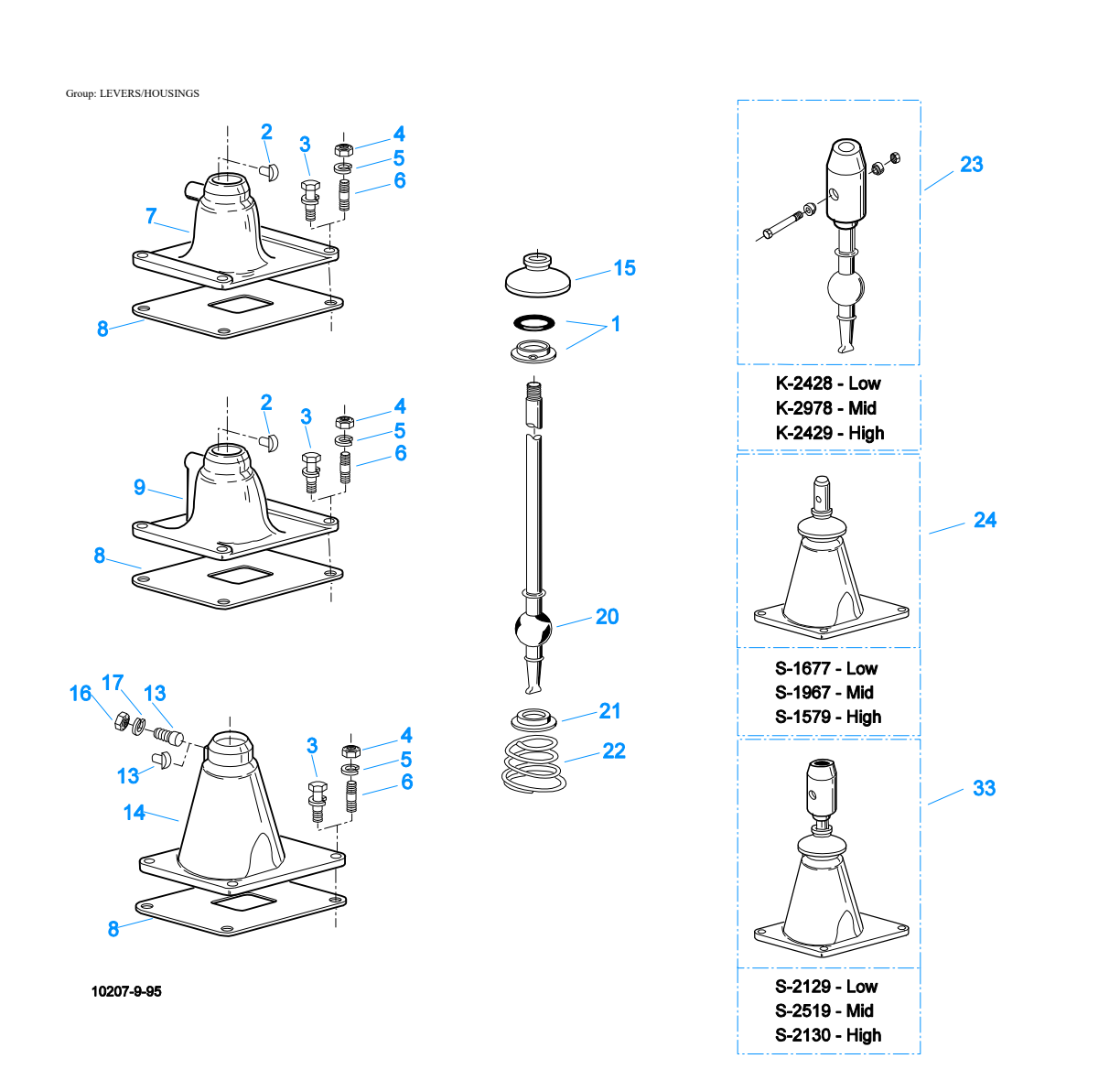

Levers/Housings
Item 17Item 7Item 14Item 4Item 5Item 15Item 1Item 24Item 3Item 8Item 6Item 6Item 22Item 8Item 5Item 1Item 5Item 2Item 6Item 20Item 21Item 4Item 16Item 9Item 23Item 33Item 3Item 4Item 3Item 2Item 8Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 4 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 5 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 6 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4305294 | Gasket | 1 | Replaces 4303431. | $10.08 | Add to Cart |
| 9 | K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart |
| 13 | 4303030 | Pin | 1 | $9.45 | Add to Cart | |
| 13 | 6541 | Pin | 1 | 3/8" - USED W/17167 ONLY | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 17 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 23 | K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 24 | S-1967 | Shift Tower Assy | 1 | MID TOWER | $226.05 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 33 | S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart |

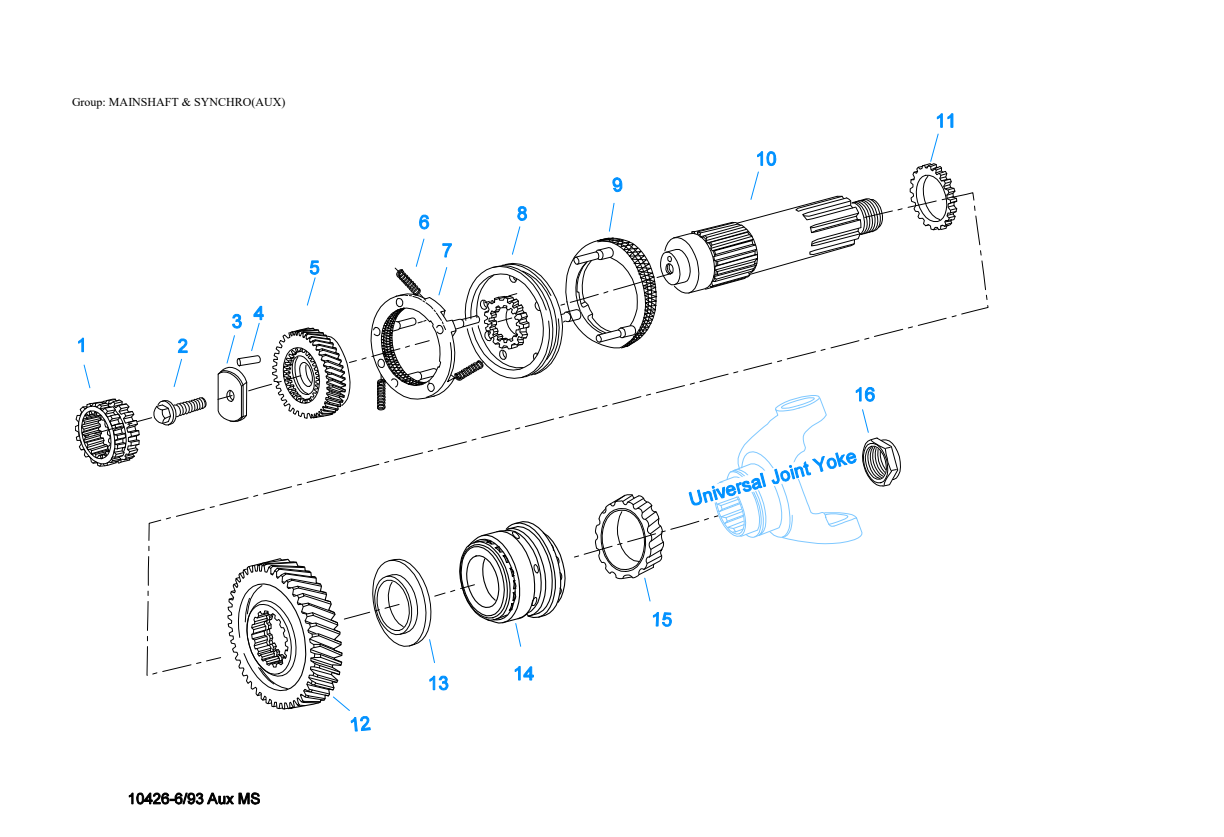

Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4300907 | Sliding Clutch | 1 | $64.96 | Add to Cart | |
| 2 | X-7-1007 | Screw | 1 | 5/8"-18X1-3/4" | $3.82 | Add to Cart |
| 3 | A-6429 | Retainer Assy | 1 | Replaces 4302334. | $29.24 | Superseded by A8030Add to Cart |
| 4 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 5 | 4302041 | Splitter Gear- Mainshaft | 1 | Replaces 4301838. | $244.99 | Add to Cart |
| 6 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 7 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 8 | 4301840 | Sliding Clutch | 1 | Replaces 4303386. | $177.82 | Add to Cart |
| 9 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 10 | 4301079 | Auxiliary Mainshaft | 1 | $216.33 | Add to Cart | |
| 11 | 4301842 | Washer | 1 | $15.71 | Add to Cart | |
| 12 | 4300940 | Reduction Gear | 1 | Replaces 4300934. | $301.49 | Add to Cart |
| 13 | 4300912 | Spacer | 1 | $84.43 | Add to Cart | |
| 14 | 21355-BOX | Bearing | 1 | Replaces 21355. | $212.19 | Add to Cart |
| 15 | 20192 | Rotor | 1 | $36.80 | Add to Cart | |
| 16 | 22254 | Nut | 1 | $15.84 | Add to Cart |

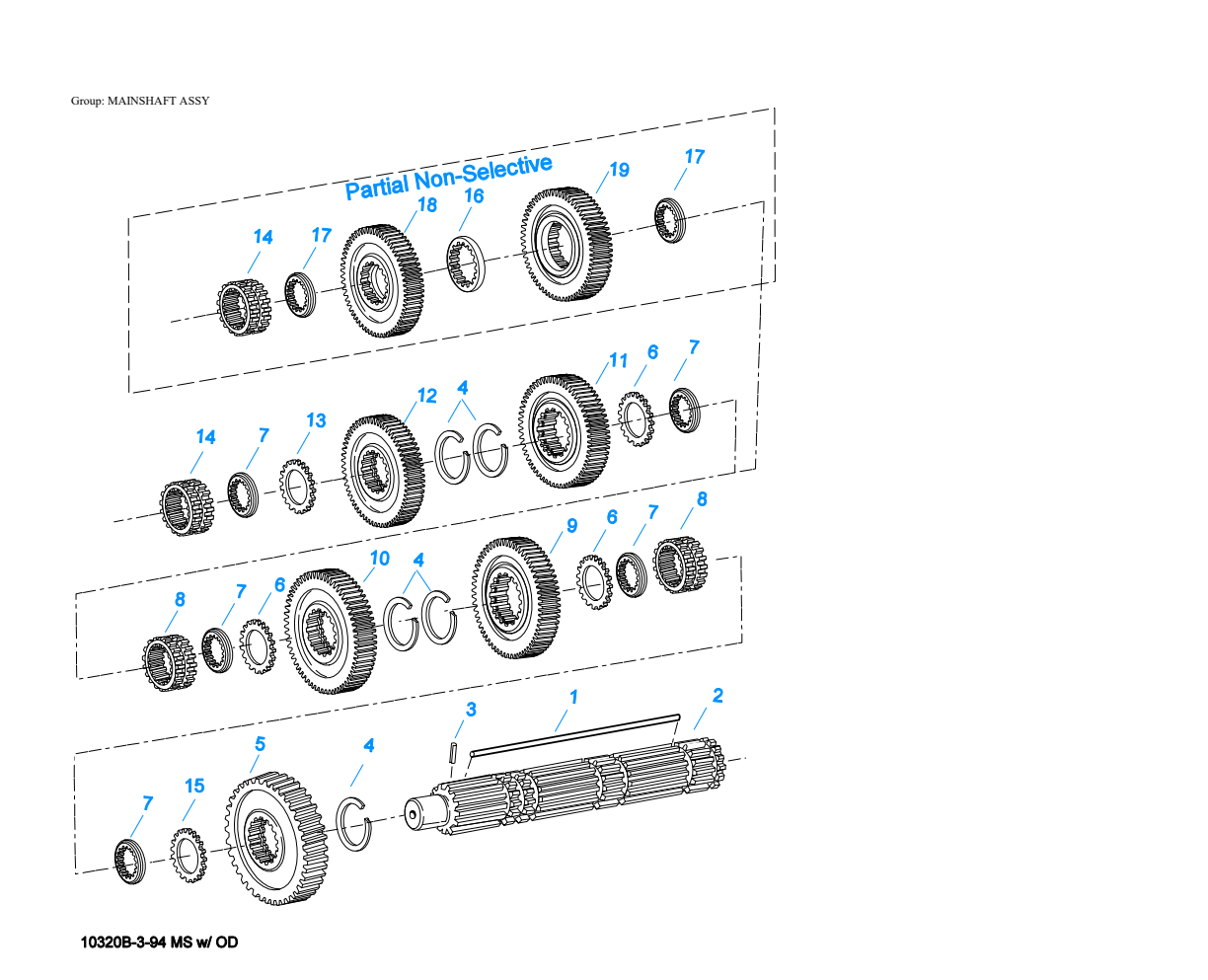

Mainshaft Assy
Item 6Item 15Item 8Item 9Item 10Item 8Item 6Item 3Item 11Item 16Item 2Item 6Item 1Item 14Item 19Item 18Item 7Item 4Item 7Item 17Item 5Item 7Item 14Item 7Item 4Item 4Item 17Item 12Item 13Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304615 | 3-SIDED Key | 1 | Replaces 4300120. | $5.90 | Add to Cart |
| 1 | K-2439 | Key & Washer Kit | 1 | CONTAINS 3-SIDED KEY | $104.71 | Add to Cart |
| 2 | S-3108 | Mainshaft Assy | 1 | Replaces 4303402, 4303403, S-2562, S-3101. | $191.07 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 5 | $2.20 | Add to Cart | |
| 5 | 23653 | Reverse Gear- Mainshaft | 1 | $234.70 | Add to Cart | |
| 6 | 14749 | Spacer | 3 | $6.93 | Add to Cart | |
| 7 | 4300382 | Washer .249-WHITE | 5 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 5 | OPTIONAL 4300382-4300387 OR | No longer available - Call for replacement | |
| 7 | 4300387 | Washer .274-BLACK | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 5 | $9.36 | Add to Cart | |
| 8 | 16118 | Sliding Clutch | 2 | $42.03 | Add to Cart | |
| 9 | 4300242 | Lo Gear-mainshaft | 1 | Replaces 4300033. | $170.92 | Add to Cart |
| 10 | 21024 | 1ST Gear-mainshaft | 1 | Replaces 19628. | $158.52 | Add to Cart |
| 11 | 19622 | 2ND Gear-mainshaft | 1 | Replaces 21263, 4300246. | $108.54 | Add to Cart |
| 12 | 23102 | Od Gear-mainshaft | 1 | Replaces 22960, 4300190. | $134.54 | Add to Cart |
| 13 | 22032 | Spacer | 1 | $9.49 | Add to Cart | |
| 14 | 4304317 | Sliding Clutch | 1 | Replaces 22026. | $93.65 | Add to Cart |
| 15 | 4302047 | Spacer | 1 | $15.38 | Add to Cart | |
| 16 | 4303603 | Washer | 1 | Replaces 4302397. | $14.45 | Add to Cart |
| 17 | 4302398 | Washer | 2 | $10.08 | Add to Cart | |
| 18 | 4302393 | Od Gear-mainshaft | 1 | Replaces 4305070. | $212.50 | Add to Cart |
| 19 | 4302394 | 2ND Gear-mainshaft | 1 | Replaces 4302395. | $139.21 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4300764 | Shift Diagram Label | 1 | RTLO/RTLOF | $28.59 | Add to Cart | |
| 4301194 | Shift Diagram Label | 1 | RTLO/RTLOF WITH VALVE LEFT OF DRIVER | $28.59 | Add to Cart | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |

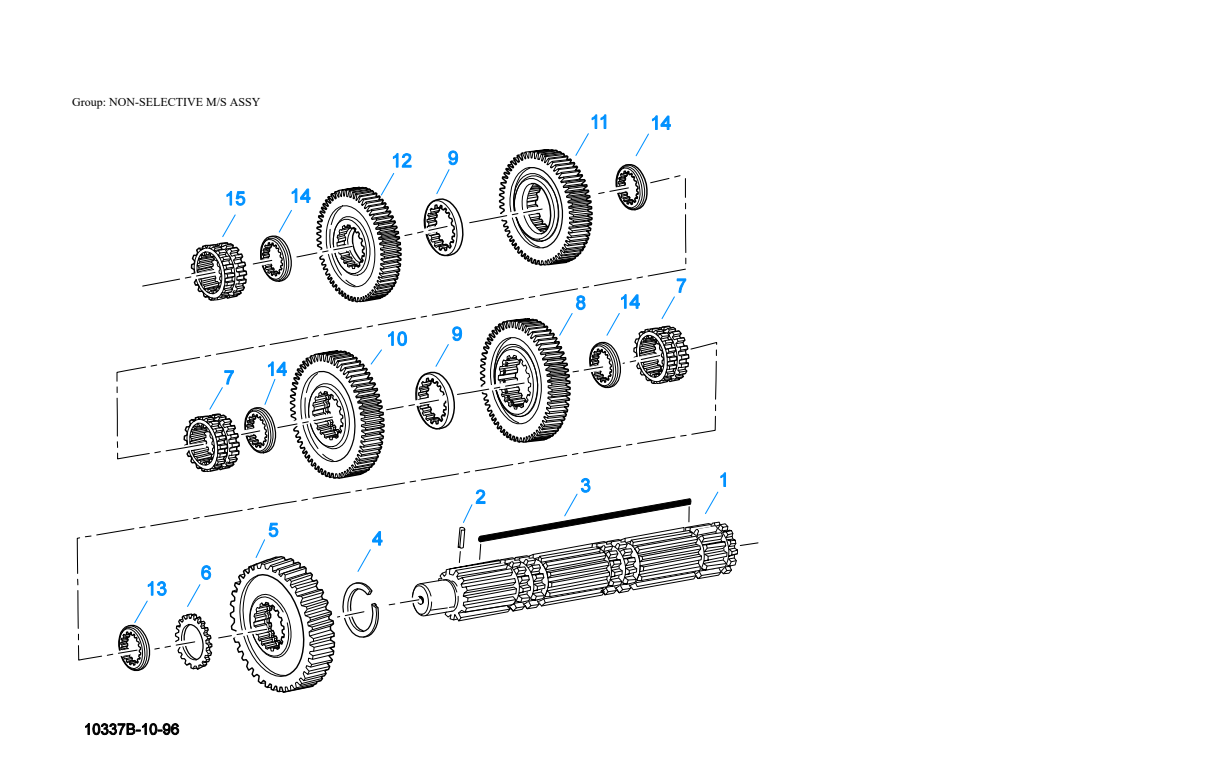

Non-Selective M/S Assy
Item 1Item 7Item 14Item 14Item 7Item 9Item 14Item 14Item 9Item 10Item 15Item 5Item 4Item 2Item 3Item 6Item 8Item 12Item 11Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-3108 | Mainshaft Assy | 1 | Replaces 4303402, 4303403, S-2562, S-3101. | $191.07 | Add to Cart |
| 2 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 3 | 4304615 | 3-SIDED Key | 1 | Replaces 4300120. | $5.90 | Add to Cart |
| 4 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 5 | 23653 | Reverse Gear- Mainshaft | 1 | $234.70 | Add to Cart | |
| 6 | 4302047 | Spacer | 1 | $15.38 | Add to Cart | |
| 7 | 16118 | Sliding Clutch | 2 | $42.03 | Add to Cart | |
| 8 | 4303412 | Lo Gear-mainshaft | 1 | Replaces 4303410. | $161.07 | Add to Cart |
| 9 | 4303603 | Washer | 2 | Replaces 4302397. | $14.45 | Add to Cart |
| 10 | 4303420 | 1ST Gear-mainshaft | 1 | Replaces 4303408. | $154.64 | Add to Cart |
| 11 | 4302394 | 2ND Gear-mainshaft | 1 | Replaces 4302395. | $139.21 | Add to Cart |
| 12 | 4302393 | Od Gear-mainshaft | 1 | Replaces 4305070. | $212.50 | Add to Cart |
| 13 | 4300382 | Washer .249-WHITE | 1 | $12.09 | Add to Cart | |
| 14 | 4302398 | Washer | 4 | $10.08 | Add to Cart | |
| 15 | 4304317 | Sliding Clutch | 1 | Replaces 22026. | $93.65 | Add to Cart |

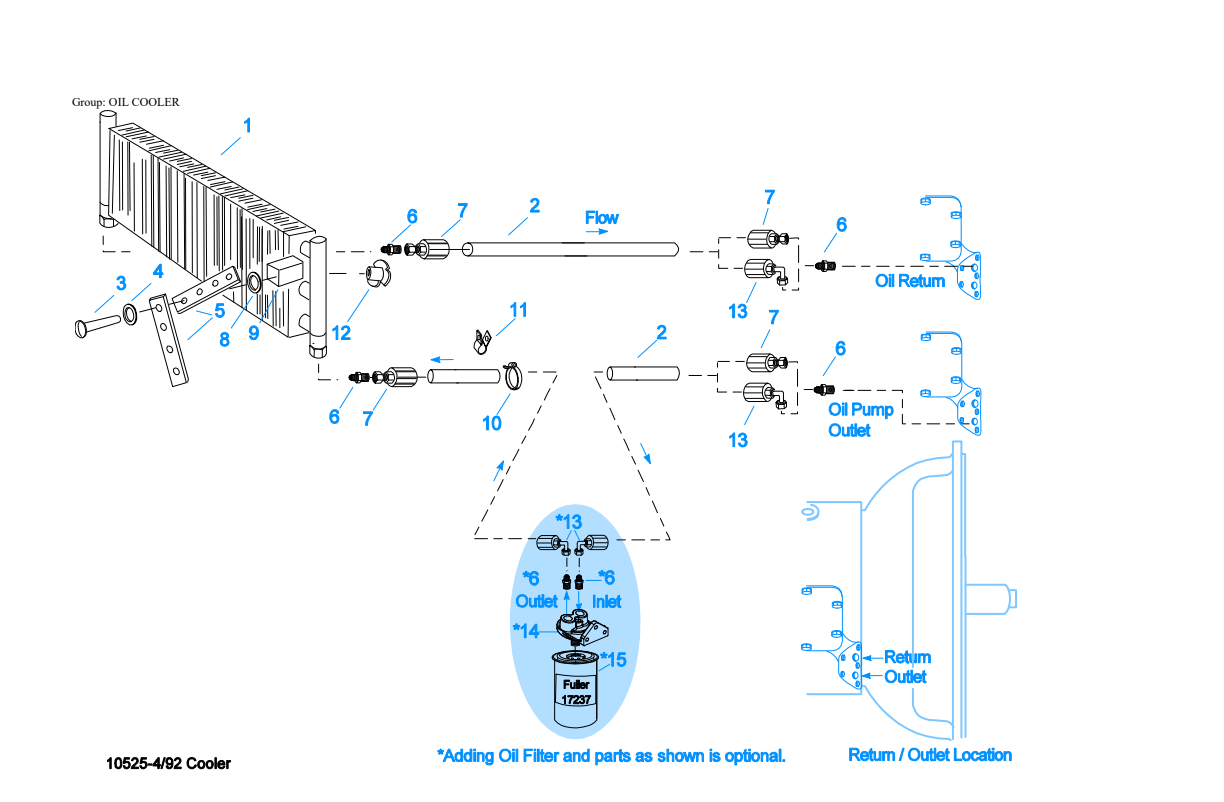

Oil Cooler
Item 11Item 7Item 1Item 4Item 10Item 9Item 7Item 2Item 7Item 6Item 6Item 7Item 6Item 3Item 13Item 12Item 6Item 13Item 2Item 8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 4 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |

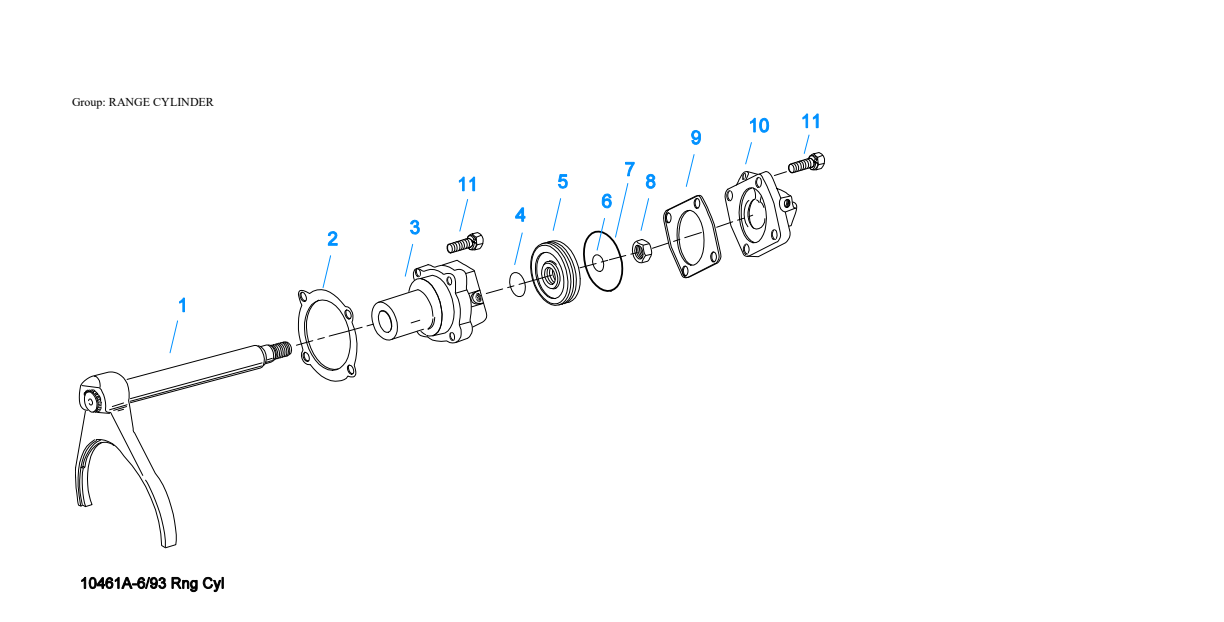

Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6188 | Welded Yoke Assy | 1 | $143.29 | Add to Cart | |
| 2 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 3 | 4301847 | Cylinder | 1 | $86.49 | Add to Cart | |
| 4 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 5 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 6 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 7 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 8 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 9 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 10 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart | |
| 11 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |

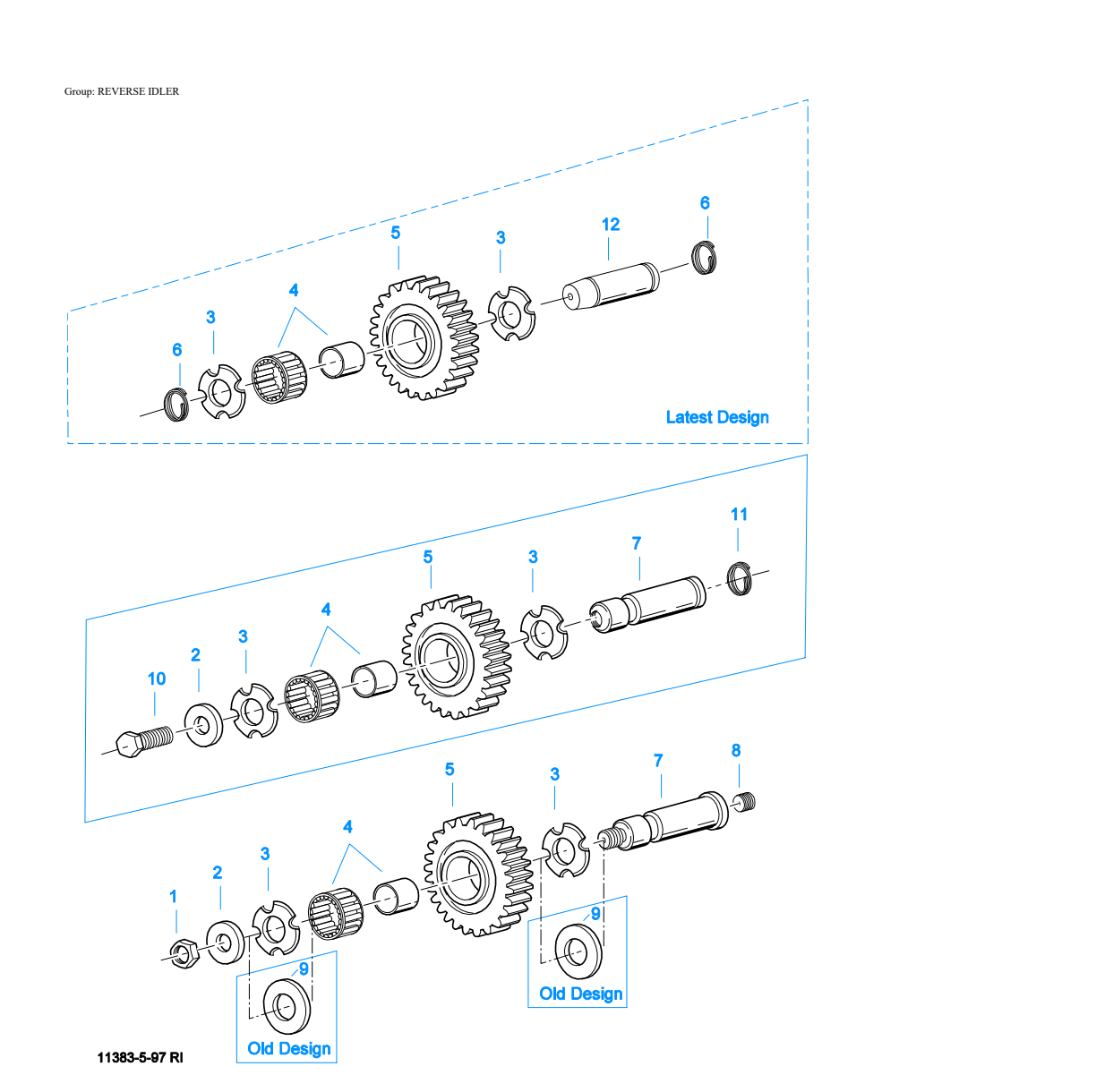

Reverse Idler
Item 7Item 11Item 7Item 4Item 2Item 5Item 4Item 6Item 9Item 10Item 2Item 8Item 12Item 9Item 4Item 3Item 6Item 5Item 3Item 5Item 3Item 3Item 3Item 3Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 4303336 | Retaining Ring | 4 | $2.70 | Add to Cart | |
| 7 | K-3209 | Idler Shaft Repl Kit | 2 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 4 | $5.69 | Superseded by 4302982Add to Cart | |
| 10 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | 4305513 | Idler Shaft | 2 | $22.92 | Add to Cart |

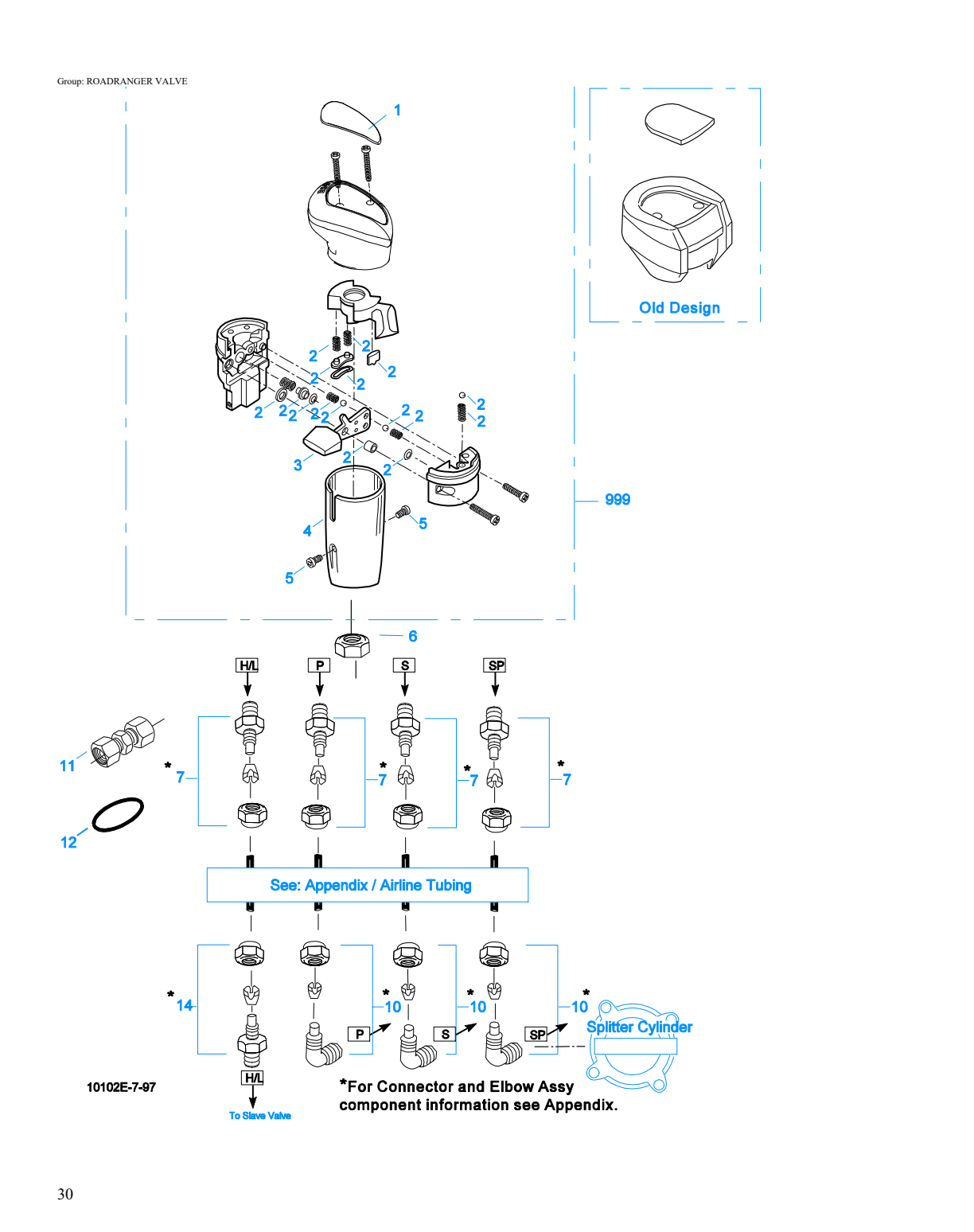

Roadranger Valve
Item 1Item 10Item 10Item 10Item 2Item 11Item 4Item 2Item 2Item 2Item 2Item 2Item 2Item 2Item 5Item 7Item 5Item 7Item 12Item 6Item 7Item 3Item 7Item 14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586113 | Shift Diagram Medallion | 1 | RTLO - W/SHIFT PATTERN | $28.59 | Add to Cart |
| 2 | K-3193 | Master Valve Repair Kit | 1 | FOR A-6913 VALVE | $31.14 | Add to Cart |
| 2 | K-3195 | Master Valve Repair Kit | 1 | FOR A-7313 VALVE | $42.55 | Add to Cart |
| 3 | 20495 | Lever | 1 | $15.43 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 4 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 4 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 14 | 84002 | Connector Assy | 1 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 14 | 84004 | Connector Assy | 1 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 14 | 84006 | Connector Assy | 1 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 999 | A-6913 | Roadranger Valve Assy | 1 | Replaces A-4900. STANDARD-W/LOGO | $77.25 | Add to Cart |
| 999 | A-7313 | Roadranger Valve Assy | 1 | Replaces A-5313. (LEFT OF DRIVER)-W/LOGO | $158.91 | Add to Cart |
| 999 | S-2578 | Roadranger Valve Assy | 1 | RTLO - W/SHIFT PATTERN | $152.54 | Add to Cart |

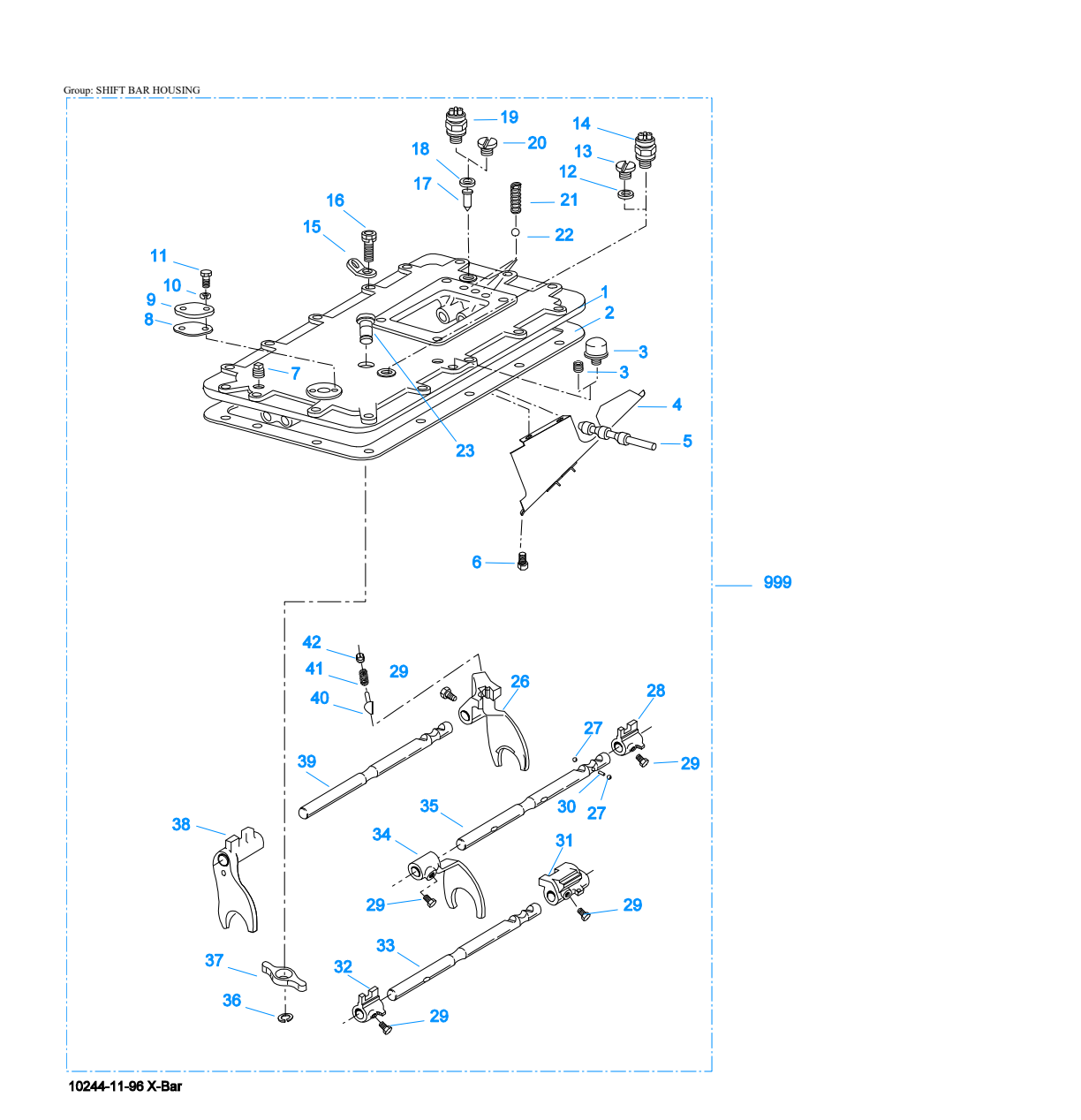

Shift Bar Housing
Item 1Item 7Item 17Item 6Item 12Item 14Item 15Item 10Item 22Item 29Item 4Item 34Item 39Item 35Item 36Item 16Item 28Item 5Item 23Item 40Item 29Item 18Item 38Item 3Item 30Item 19Item 42Item 29Item 41Item 11Item 33Item 8Item 27Item 27Item 21Item 32Item 31Item 29Item 37Item 20Item 29Item 26Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1445 | Shift Bar Hsg | 1 | Replaces 18920, 20135, 20214, 20215, 2048721135, 4302452. HOUSING ONLY (X) | $1,001.65 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 20070 | Oil Trough | 1 | $17.04 | Add to Cart | |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 6 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 8 | 20209 | Gasket | 1 | $2.29 | Add to Cart | |
| 9 | 20199 | Plate | 1 | Replaces 18724. | $13.20 | Add to Cart |
| 10 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8-406 | Capscrew | 2 | 1/4"-20X3/4" | $1.71 | Add to Cart |
| 12 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4"- OR USE 14 PCS OF X- 8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart |
| 26 | 16131 | Shift Yoke | 1 | REVERSE/LO | $203.23 | Add to Cart |
| 27 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 28 | 14658 | Shift Block | 1 | 1ST/2ND | $43.77 | Add to Cart |
| 29 | 3220 | Lockscrew | 5 | $4.28 | Add to Cart | |
| 30 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 31 | 19063 | Shift Block | 1 | 3RD/OD | $44.48 | Add to Cart |
| 32 | 20120 | Shift Block | 1 | Replaces 18924. 3RD/OD | $52.32 | Add to Cart |
| 33 | 18928 | Yoke Bar | 1 | Replaces 4302760. 3RD/OD | $84.83 | Add to Cart |
| 34 | 18922 | Shift Yoke | 1 | 1ST/2ND | $81.23 | Add to Cart |
| 35 | 18927 | Yoke Bar | 1 | 1ST/2ND | $90.07 | Add to Cart |
| 36 | 4302070 | Snap Ring | 1 | $256.36 | Add to Cart | |
| 37 | 4303225 | Actuator | 1 | $12.87 | Add to Cart | |
| 38 | 4305575 | Shift Yoke | 1 | Replaces 20450. 3RD/OD | $142.49 | Add to Cart |
| 39 | 18926 | Yoke Bar | 1 | REVERSE/LO | $83.31 | Add to Cart |
| 40 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 41 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 42 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 999 | S-1527 | Shift Bar Hsg Assy | 1 | Replaces 20215, 21135, 4302452. COMPLETE (X) | $1,530.41 | Add to Cart |
Slave Valve - A-
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |

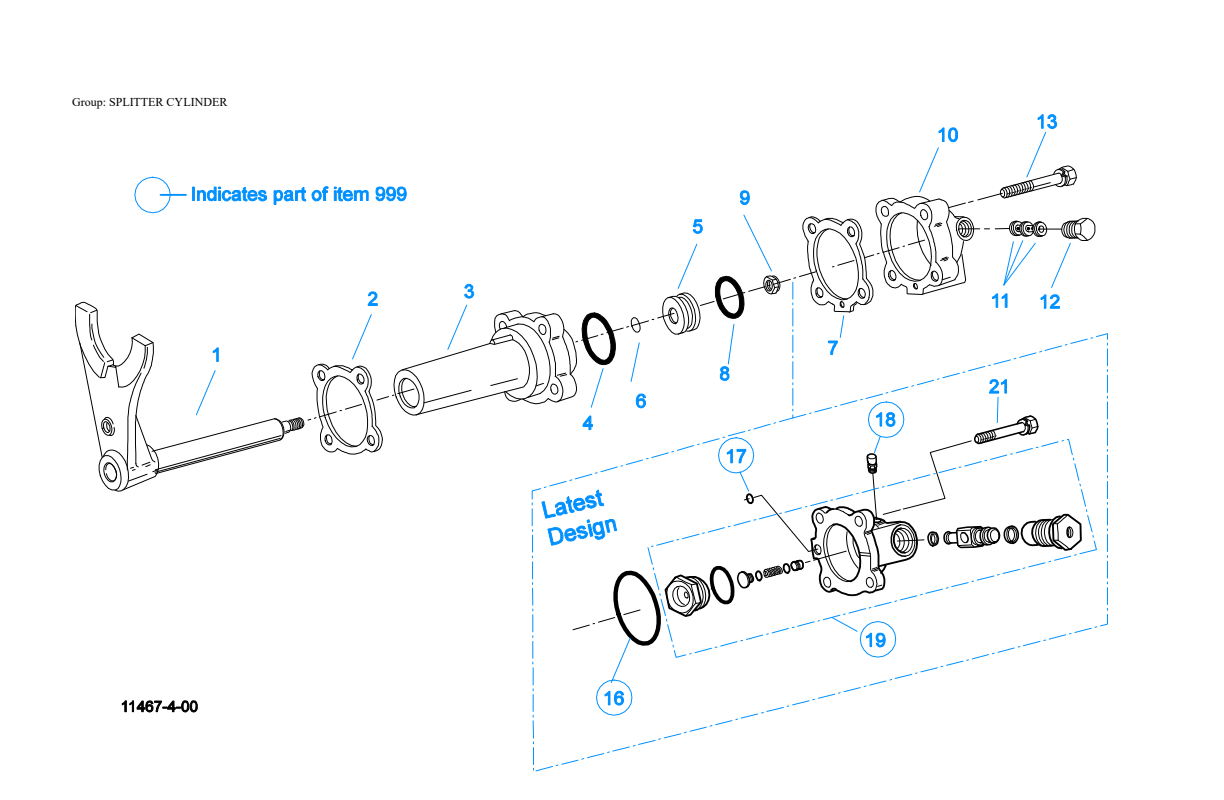

Splitter Cylinder
Item 1Item 4Item 2Item 12Item 9Item 10Item 17Item 11Item 6Item 21Item 8Item 13Item 5Item 16Item 3Item 7Item 18Item 19Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-7012 | Splitter Yoke Assy | 1 | Replaces A-6304, A-6892. | $100.85 | Add to Cart |
| 2 | 14632 | Gasket | 1 | PRIOR TO SERIAL NUMBER 51126209 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $2.06 | Add to Cart |
| 2 | 4303583 | Gasket | 1 | BEGINNING W/SERIAL NUMBER 51126209 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $1.99 | Add to Cart |
| 3 | 21609 | Splitter Cylinder | 1 | PRIOR TO SERIAL NUMBER 51126209 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $763.13 | Add to Cart |
| 3 | 4303582 | Splitter Cylinder | 1 | BEGINNING W/SERIAL NUMBER 51126209 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $102.56 | Superseded by 4306632Add to Cart |
| 4 | 21208 | O-ring | 1 | $4.80 | Add to Cart | |
| 5 | 4301964 | Piston | 1 | $111.49 | Add to Cart | |
| 6 | 13653 | O-ring | 1 | $3.00 | Add to Cart | |
| 7 | 17073 | Gasket | 1 | $2.39 | Add to Cart | |
| 8 | 21209 | O-ring | 1 | $5.37 | Add to Cart | |
| 9 | X-1-805 | Nut | 1 | $1.84 | Add to Cart | |
| 10 | K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 4300927, 4304031, 4304032, A-6862. | $103.52 | Add to Cart |
| 11 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |
| 12 | 15719 | Plug | 1 | $5.86 | Add to Cart | |
| 13 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 16 | 5568534 | O-ring | 1 | $1.50 | Add to Cart | |
| 17 | 13653 | O-ring | 1 | $3.00 | Add to Cart | |
| 18 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 19 | K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 4300927, 4304031, 4304032, A-6862. | $103.52 | Add to Cart |
| 21 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 999 | K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 4300927, 4304031, 4304032, A-6862. | $103.52 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RTLO-12713A, with every part in the manual matched to our live inventory. We stock 442 of the 454 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/A-5000 Valve Input Shaft & Drive Gear Integral Oil Pump Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Non-Selective M/S Assy Oil Cooler Range Cylinder Reverse Idler Roadranger Valve Shift Bar Housing Slave Valve - A- Splitter Cylinder
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTLO-12713A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTLO-12713A |
| Transmission type | 13-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 39 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTLO-12713A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
