Eaton Fuller RTLOF-18913A Parts Manual
Complete unit, in stock
RTLOF-18913A Eaton Fuller Transmission
$4,395.00$12,987.56
+ $3,500.00 refundable core deposit
Rebuilding this unit? Every part below is priced and ready to order. If the RTLOF-18913A is past saving, we also stock reman and new Eaton Fuller 13 speed transmissions, ready to ship.
Need the in-cab reference for this 13-speed? Order the 13-speed shift pattern diagram (Eaton P/N 4300764) with your parts.

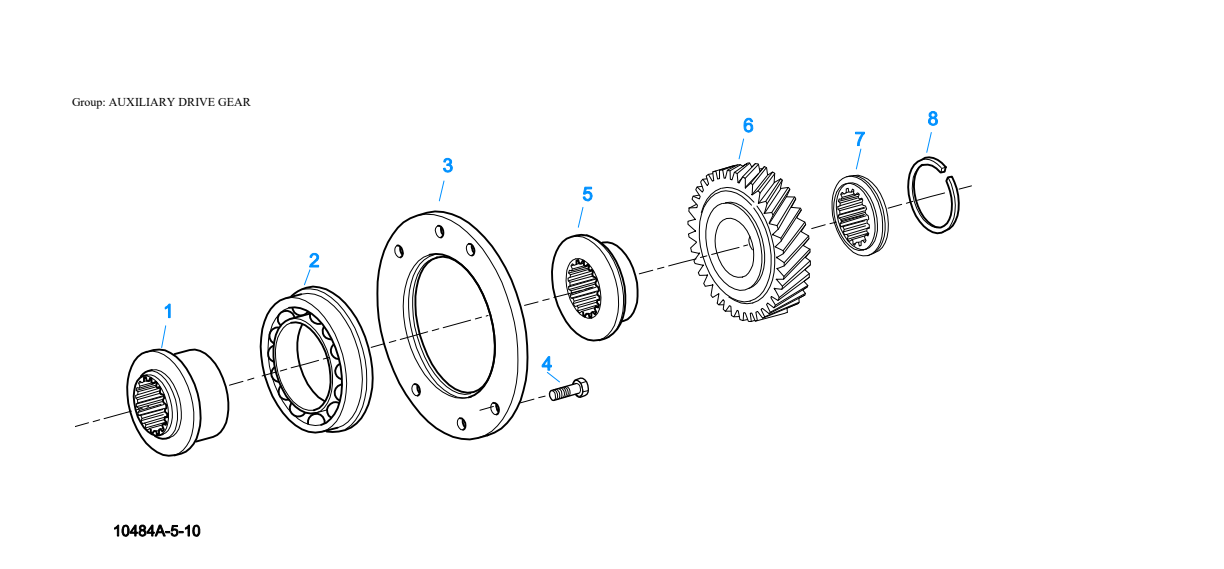

Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4303673 | Spacer | 1 | Replaces 4302046. | $52.87 | Add to Cart |
| 2 | 5566508-BOX | Bearing | 1 | Replaces 5566503, 5566508. | $147.25 | Add to Cart |
| 3 | 4300894 | Retainer | 1 | $50.06 | Add to Cart | |
| 4 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 5 | 4300911 | Spacer | 1 | $33.48 | Add to Cart | |
| 6 | K-2808 | Repl Kit-drive Gear | 1 | Replaces 4300932, 4300938. | $264.54 | Add to Cart |
| 7 | 4303185 | Washer | 1 | Replaces 4300901. | $13.50 | Add to Cart |
| 8 | 4301254 | Snap Ring | 1 | $2.12 | Add to Cart |

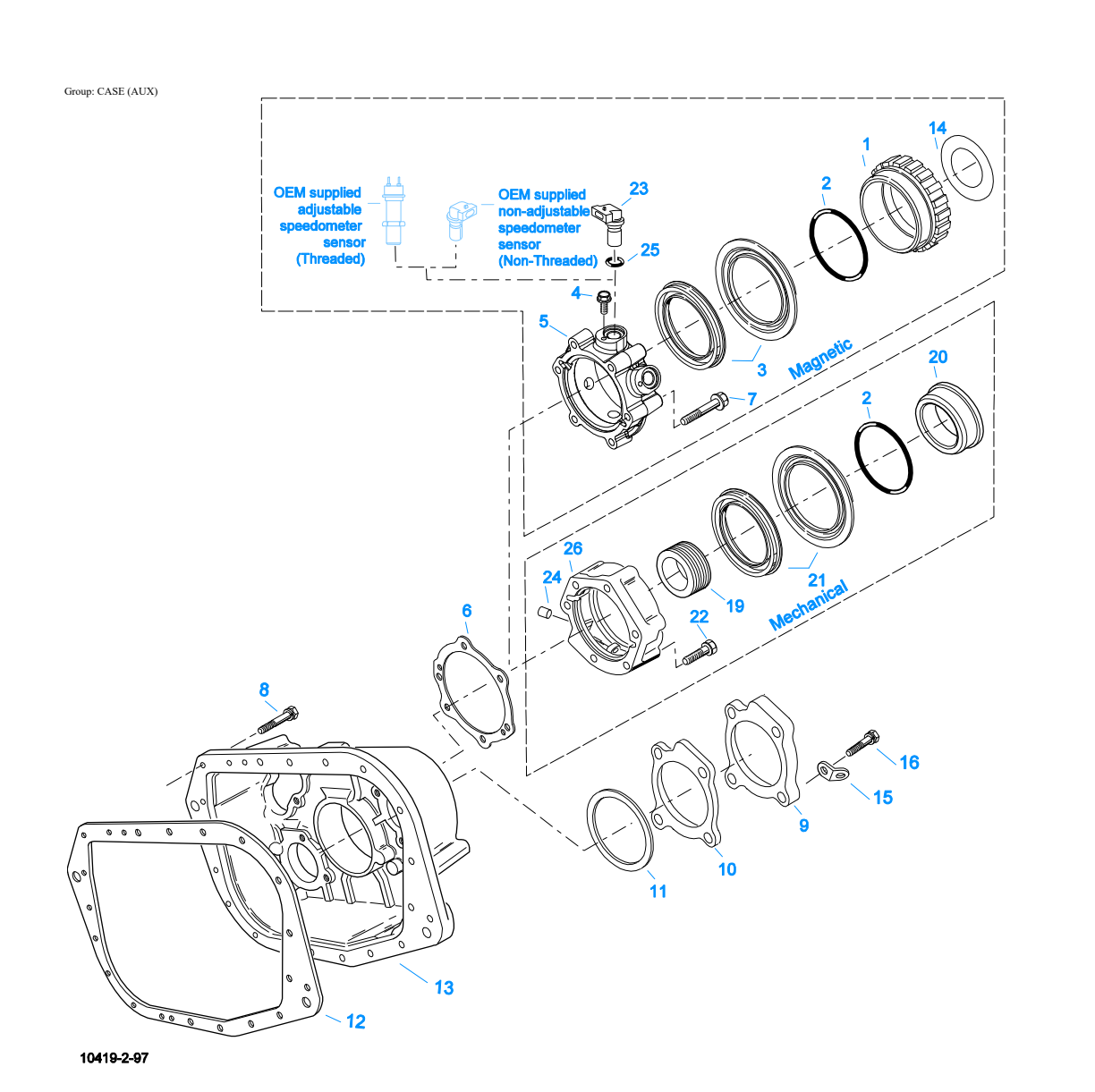

Case (Aux)
Item 7Item 1Item 14Item 6Item 5Item 8Item 2Item 20Item 11Item 16Item 2Item 24Item 10Item 25Item 15Item 9Item 22Item 26Item 3Item 19Item 23Item 21Item 13Item 12Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart |
| 2 | 5568511 | O-ring | 1 | $3.05 | Add to Cart | |
| 3 | K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart |
| 4 | X-8-0801M | Capscrew | 2 | M8 X 1.25 X 12MM | $2.57 | Add to Cart |
| 5 | S-2809 | Rear Bearing Cover Assy | 1 | Replaces 4302332, 4303872, 4304652, 4305830. PUSH-IN/THREAD-IN MAGNETIC PICK-UP | $218.01 | Add to Cart |
| 6 | 1009551 | Gasket - Red Edge Molded | 1 | RED EDGE MOLDED GASKET - UNCOMPRESSED THICKNESS .043 - .051 - NOT INTERCHANGEABLE WITH ANY OTHER GASKET | $6.27 | Add to Cart |
| 6 | 4302247 | Gasket - Purple Edge Molded | 1 | NON EDGE MOLDED GASKET - UNCOMPRESSED THICKNESS - .013 - .018 - NOT INTERCHANGABLE WITH ANY OTHER GASKET | $6.40 | Add to Cart |
| 7 | X-8L-611 | Capscrew | 4 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 7 | X-8L-614 | Capscrew | 6 | 3/8"-16X2" USE W/4303872 RBC | $3.24 | Add to Cart |
| 7 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 8 | X-8L-602 | Capscrew | 17 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 8 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 9 | 4302320 | Cover | 2 | Replaces 21346. | $43.61 | Add to Cart |
| 10 | 4305978 | Gasket | 2 | Replaces 4302246. | $7.06 | Superseded by 4309436Add to Cart |
| 11 | K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart |
| 12 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 13 | 4303641 | Rear Housing | 1 | $787.99 | Add to Cart | |
| 14 | 4304653 | Shield | 1 | $7.90 | Add to Cart | |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 86104 | Speedo Drive Gear | 1 | $89.10 | Add to Cart | |
| 20 | S-2503 | Speedo Spacer Assy | 1 | Replaces 4302590. MECHANICAL | $163.12 | Add to Cart |
| 21 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 22 | X-8L-616 | Capscrew | 6 | Replaces X8616. 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 23 | K-3454 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | $48.61 | Superseded by K4148Add to Cart |
| 23 | K-3455 | Speed Sensor Kit, Dual | 1 | Replaces A-7046, A-7518. DUAL PICK-UP (4 PIN) | $56.53 | Superseded by K4151Add to Cart |
| 24 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 25 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 26 | S-2502 | Rear Brg Cover Assy | 1 | Replaces 4303604, 4305827. MECHANICAL - 4:00 OPENING | $214.47 | Add to Cart |
| 26 | S-2859 | Rear Brg Cover Assy | 1 | Replaces 4302732, 4305826. MECHANICAL - 6:00 OPENING | $185.76 | Add to Cart |
Case (Front)
Item 1Item 7Item 1Item 7Item 4Item 37Item 10Item 11Item 16Item 6Item 14Item 21Item 22Item 19Item 27Item 8Item 9Item 12Item 28Item 39Item 15Item 19Item 40Item 38Item 24Item 3Item 36Item 29Item 5Item 2Item 31Item 18Item 23Item 3Item 20Item 15Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2661 | Case Assy | 1 | Replaces 4303650, 4303720. PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $2,088.06 | Add to Cart |
| 1 | S-2999 | Case Assembly | 1 | Replaces 4304068, 4305809, S-2751. BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $2,335.48 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-4772 | Clutch Housing Assy | 1 | Replaces A-4344, A-4771. #2 PUSH-PULL ALUM. | $2,336.63 | Add to Cart |
| 8 | A-5992 | Clutch Housing Assy | 1 | Replaces 4301103. #1 PULL ALUM.(SPECIAL-LIGHTER WEIGHT) | $698.49 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Bearing Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 20549 | Front Bearing Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 21 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $15.41 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 40 | 4302680 | Bushing | 1 | $2.67 | Add to Cart |
Case (Front) Forced Lube
Item 4Item 1Item 7Item 44Item 11Item 24Item 9Item 5Item 6Item 22Item 20Item 29Item 18Item 16Item 18Item 2Item 2Item 8Item 27Item 40Item 31Item 14Item 3Item 17Item 28Item 38Item 15Item 41Item 36Item 37Item 12Item 23Item 43Item 10Item 39Item 3Item 42Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-3000 | Case Assembly | 1 | Replaces 4305389, 4305809, S-2912. | $2,150.07 | Add to Cart |
| 2 | 4304023 | Plug | 2 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 3 | A-7194 | Lube Tube Assy | 1 | Replaces 4304921, A-7141. CAN BE USED W/4305389 OR 4305105 CASE | $85.55 | Add to Cart |
| 3 | A-7471 | Extended Lube Tube Assy | 1 | Replaces 4305393. CAN ONLY BE USED W/4305389 CASE | $78.66 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | K-3671 | Forced Lube Cl Hsg Kit | 1 | Replaces A-7148. #1 PULL IRON | $524.96 | Add to Cart |
| 8 | K-3672 | Forced Lube Cl Hsg Kit | 1 | Replaces A-7149, A-7150. #1 PULL IRON - NODAL MOUNT - UPPER/LOWER | $728.84 | Add to Cart |
| 8 | K-3673 | Forced Lube Cl Hsg Kit | 1 | Replaces A-7146. #1 PULL ALUMINUM - NODAL MOUNT | $882.70 | Add to Cart |
| 8 | K-3676 | Forced Lube Cl Hsg Kit | 1 | Replaces A-7145. #1 PULL ALUMINUM | $560.84 | Add to Cart |
| 8 | K-3677 | Forced Lube Cl Hsg Kit | 1 | Replaces A-7592. #1 PULL IRON - NODAL MOUNT - UPPER | $651.82 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Bearing Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 20549 | Front Bearing Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490 | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460 | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 40 | 4302680 | Bushing | 1 | $2.67 | Add to Cart | |
| 41 | 13835 | O-ring | 2 | $2.17 | Add to Cart | |
| 42 | 13653 | O-ring | 2 | $3.00 | Add to Cart | |
| 43 | 5568544 | O-ring | 1 | $2.11 | Add to Cart | |
| 44 | 13834 | O-ring | 1 | $1.50 | Add to Cart |

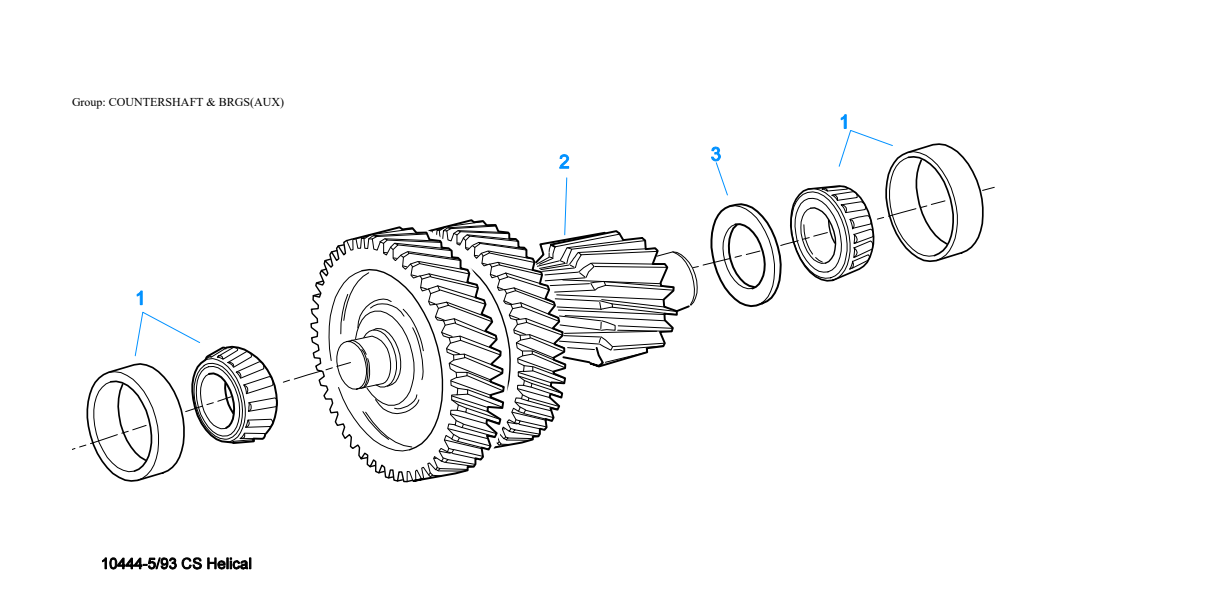

Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 2 | A-6756 | Welded Countershaft Assy | 2 | Replaces A-5942. C/S 4303648 - D/G 4300935 S/G 4300936 | $483.47 | Add to Cart |
| 3 | 21342 | Spacer | 2 | $8.55 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 0 | S-3065 | Countershaft Assembly, Left | 1 | COMPLETE COUNTERSHAFT ASSEMBLY, LEFT, FOR MODELS BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $1,266.09 | Add to Cart |
| 0 | S-3066 | Countershaft Assembly, Right | 1 | COMPLETE COUNTERSHAFT ASSEMBLY, RIGHT, FOR MODELS BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $1,266.09 | Add to Cart |
| 1 | 14317 | Snap Ring | 2 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $1.81 | Add to Cart |
| 1 | 4302082 | Snap Ring | 2 | BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $1.99 | Add to Cart |
| 2 | 4302712 | Bearing | 2 | BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $43.49 | Add to Cart |
| 2 | 4303667 | Bearing | 2 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $146.31 | Add to Cart |
| 3 | 4304073 | Cntrshft-w/rev & Lo | 2 | BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $335.51 | Add to Cart |
| 3 | K-2958 | Countershaft Repl Kit | 2 | Replaces 4300032, 4300243. PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $295.99 | Add to Cart |
| 4 | X-6-E | Key | 2 | $4.27 | Superseded by 230292Add to Cart | |
| 5 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 4300241 | 1ST Gear-cntrshft | 2 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN | $221.43 | Add to Cart |
| 7 | 4304765 | 1ST Gear-cntrshft | 2 | Replaces 4303702, 4304520. BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $193.66 | Add to Cart |
| 8 | 4300247 | 2ND Gear-cntrshft | 2 | $183.28 | Add to Cart | |
| 9 | 4303666 | Od Gear - Cntrshft | 2 | Replaces 4304508, 4304315. | $199.49 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 11 | 4302666 | Drive Gear-cntrshft | 2 | $185.54 | Add to Cart | |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 4302677, 4304598, 4306332. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

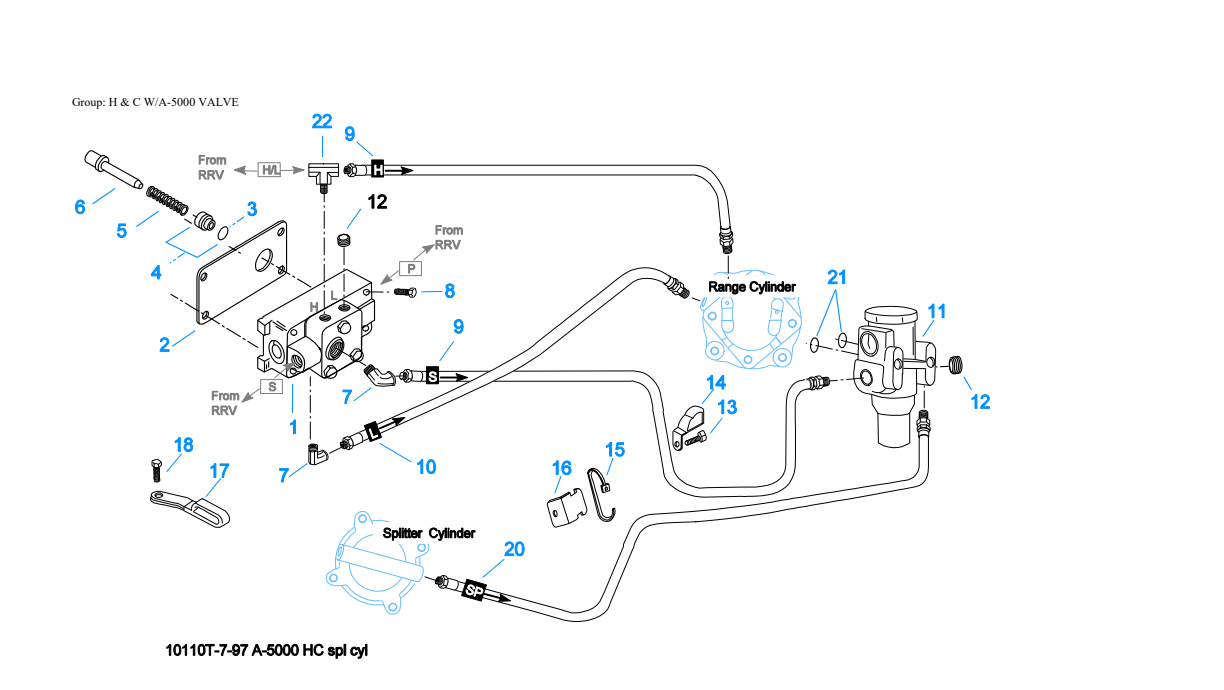

H & C W/A-5000 Valve
Item 7Item 7Item 17Item 15Item 4Item 9Item 1Item 9Item 6Item 12Item 3Item 2Item 8Item 13Item 10Item 22Item 5Item 16Item 21Item 20Item 4Item 11Item 18Item 12Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 2 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55528 | Hose Assy | 2 | 36" | $22.77 | Add to Cart |
| 10 | 55509 | Hose Assy | 1 | 34" | $25.31 | Add to Cart |
| 11 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 20 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
| 21 | 15114 | O-ring | 2 | $1.59 | Add to Cart | |
| 22 | 21086 | Branch Tee | 1 | 1/8" | $13.10 | Add to Cart |
Heat Exchanger
Item 4Item 4Item 10Item 7Item 1Item 17Item 14Item 1Item 5Item 9Item 11Item 6Item 8Item 18Item 11Item 3Item 13Item 3Item 5Item 18Item 15Item 2Item 2Item 12Item 16Item 15Item 6Item 6Item 6Item 6Item 6Item 6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3952 | Heat Exchanger Kit | 1 | Replaces 5586612, 5586625. 3/4" PORTS | $629.36 | Add to Cart |
| 1 | K-3963 | Heat Exchanger Kit | 1 | Replaces 5586600, K-3620. MUST USE WHEN REPLACING 5586600 HEAT EXCHANGER WITH | $645.28 | Add to Cart |
| 2 | K-3954 | Heat Exchanger Kit | 1 | Replaces 5586614, 5586627. 3/4" PORTS | $626.47 | Add to Cart |
| 2 | K-3965 | Heat Exchanger Kit | 1 | Replaces 5586602, K-3362, K-3622. MUST USE WHEN REPLACING 5586602 HEAT EXCHANGER WITH 5/8" PORTS, 5/8" TO 3/4" ADAPTERS ARE INCLUDED IN THIS KIT | $642.63 | Add to Cart |
| 3 | K-3955 | Heat Exchanger Kit | 1 | Replaces 5586615, 5586628. 3/4" PORTS | $702.22 | Add to Cart |
| 3 | K-3966 | Heat Exchanger Kit | 1 | Replaces 5586603, K-3623, K-3655. MUST USE WHEN REPLACING 5586603 HEAT EXCHANGER WITH 5/8" PORTS, 5/8" TO 3/4" ADAPTERS ARE INCLUDED IN THIS KIT | $718.74 | Add to Cart |
| 4 | K-3956 | Heat Exchanger Kit | 1 | Replaces 5586629. 3/4" PORTS | $592.32 | Add to Cart |
| 4 | K-3967 | Heat Exchanger Kit | 1 | Replaces 5586604, 5586616, K-3624. MUST USE WHEN REPLACING 5586604 HEAT EXCHANGER WITH 5/8" PORTS, 5/8" TO 3/4" ADAPTERS ARE INCLUDED IN THIS KIT | $642.63 | Add to Cart |
| 5 | K-3959 | Heat Exchanger Kit | 1 | Replaces 5586633. 3/4" PORTS | $590.27 | Add to Cart |
| 5 | K-3968 | Heat Exchanger Kit | 1 | Replaces 5586605, K-3360, K-3625. MUST USE WHEN REPLACING 5586605 HEAT EXCHANGER WITH 5/8" PORTS, 5/8" TO 3/4" ADAPTERS ARE INCLUDED IN THIS KIT | $609.68 | Superseded by K4249Add to Cart |
| 5 | K-3972 | Heat Exchanger Kit | 1 | Replaces 5586609, 5586620. | $606.21 | Add to Cart |
| 6 | 21425 | Strap | 2 | $1.73 | Add to Cart | |
| 7 | 5588101 | Oil Hose Assembly | 1 | Replaces 5586901. 14.5" | $34.82 | Add to Cart |
| 7 | 5588103 | Oil Hose Assembly | 1 | Replaces 5586903. 30.0" | $43.68 | Add to Cart |
| 7 | 5588107 | Oil Hose Assembly | 1 | Replaces 5586907. 45.0" | $56.36 | Add to Cart |
| 7 | 5588109 | Oil Hose Assembly | 1 | Replaces 5586909. 28.0" | $44.47 | Add to Cart |
| 8 | 5588102 | Oil Hose Assembly | 1 | Replaces 5586902. 26.5" | $43.11 | Add to Cart |
| 8 | 5588105 | Oil Hose Assembly | 1 | Replaces 5586905. 21.5" | $42.87 | Add to Cart |
| 8 | 5588106 | Oil Hose Assembly | 1 | Replaces 5586906. 40.0" | $52.49 | Add to Cart |
| 8 | 5588108 | Oil Hose Assembly | 1 | Replaces 5586908. 52.0" | $59.88 | Add to Cart |
| 9 | 4304076 | Elbow | 1 | FOR OIL PUMP "A" PORT | $27.98 | Add to Cart |
| 10 | 4301123 | Elbow | 1 | FOR OIL PUMP "B" PORT | $18.13 | Add to Cart |
| 11 | X-8C-6109 | Capscrew | 2 | 3/8"-16X1-1/4" | $2.16 | Add to Cart |
| 12 | X-8L-602 | Capscrew | 1 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 13 | X-8C-6109 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.16 | Add to Cart |
| 14 | X-8L-602 | Capscrew | 3 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 15 | X-8C-6111 | Screw | 2 | 3/8"-16X3/4" | $3.82 | Add to Cart |
| 16 | K-3902 | Mounting Bracket | 1 | Replaces 4304665. | $113.45 | Add to Cart |
| 17 | 4304683 | Bracket | 1 | $56.96 | Add to Cart | |
| 18 | 4303681 | Hose Clamp | 1 | $3.24 | Add to Cart |
Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 4302662 | Main Drive Gear | 1 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $116.66 | Add to Cart |
| 6 | 4304510 | Main Drive Gear | 1 | Replaces 43036954304314. BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $182.62 | Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 20535235664302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart |
| 8 | S-1660 | Input Shaft | 1 | Replaces 20536, 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart |
Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 7 | 4301168 | Stub Lever | 1 | MID TOWER | $113.11 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |

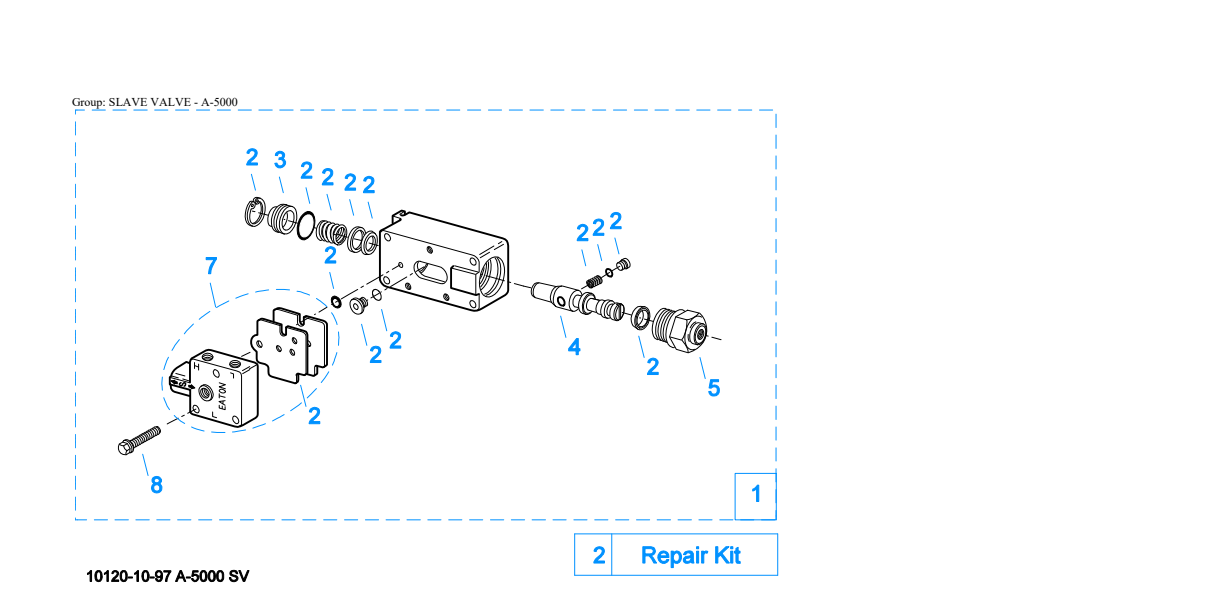

| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart | |
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2468 | Clutch Installation Kit | 1 | FOR USE WITH S-1659 INPUT SHAFT ASSY AND 81504 INPUT SHAFT BEARING | $318.86 | Add to Cart | |
| K-2804 | O-ring Kit-complete | 1 | $19.92 | Add to Cart | ||
| K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart | |
| K-2808 | Repl Kit-drive Gear | 1 | Replaces 4300932, 4300938. | $264.54 | Add to Cart | |
| K-2809 | Range Cylinder Kit | 1 | $135.98 | Add to Cart | ||
| K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart | |
| K-2958 | Countershaft Repl Kit | 1 | Replaces 4300032, 4300243. | $295.99 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart | |
| K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart | |
| K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart | |
| K-3193 | Master Valve Repair Kit | 1 | FOR A-6913 VALVE | $31.14 | Add to Cart | |
| K-3195 | Master Valve Repair Kit | 1 | FOR A-7313 VALVE | $42.55 | Add to Cart | |
| K-3286 | Basic Rebuild Kit | 1 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $1,089.28 | Add to Cart | |
| K-3287 | Basic Overhaul Kit | 1 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $1,301.04 | Add to Cart | |
| K-3288 | Gasket Kit | 1 | $53.11 | Add to Cart | ||
| K-3327 | Small Parts Kit | 1 | $104.87 | Add to Cart | ||
| K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 4300927, 4304031, 4304032, A-6862. | $103.52 | Add to Cart | |
| K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart | |
| K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3425 | Basic Overhaul Kit | 1 | BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $970.30 | Add to Cart | |
| K-3426 | Basic Rebuild Kit | 1 | BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $776.87 | Add to Cart | |
| K-3454 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | $48.61 | Superseded by K4148Add to Cart | |
| K-3455 | Speed Sensor Kit, Dual | 1 | Replaces A-7046, A-7518. DUAL PICK-UP (4 PIN) | $56.53 | Superseded by K4151Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3497 | Synchronizer Replacement Kit | 1 | Replaces K-3200. SLIDING CLUTCH INCLUDED IN KIT | $508.76 | Add to Cart | |
| K-3748 | Master Rebuilder Kit | 1 | USE TO REBUILD RTLO-18913A BEGINNING WITH S/N 51267046 & ALL S/N STARTING WITH AN ALPHA CHARACTER W/NON- SELECTIVE WASHERS AND FORCED LUBE ONLY | $2,949.72 | Add to Cart | |
| K-4125 | Clutch Installation Kit (rt), Hydraulic Release | 1 | STANDARD RT INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $455.35 | Superseded by K4125CLAdd to Cart | |
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | ||
| S-1659 | Input Shaft | 1 | Replaces 20535235664302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart | |
| S-1660 | Input Shaft | 1 | Replaces 20536, 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2269 | Shift Bar Hsg | 1 | Replaces 4302679. HOUSING ONLY (RTLOF) | $454.29 | Add to Cart | |
| S-2270 | Shift Bar Hsg | 1 | Replaces 4302675. HOUSING ONLY (RTLO) | $475.84 | Add to Cart | |
| S-2271 | Shift Bar Hsg Assy | 1 | Replaces 4302679. COMPLETE (RTLOF) FOR UNITS BUILT PRIOR TO THE FORCED LUBRICATION SYSTEM DESIGN | $1,180.41 | Add to Cart | |
| S-2272 | Shift Bar Hsg Assy | 1 | Replaces 4302675. COMPLETE (RTLO) FOR UNITS BUILT PRIOR TO THE FORCED LUBRICATION SYSTEM DESIGN | $1,319.62 | Add to Cart | |
| S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart | |
| S-2502 | Rear Brg Cover Assy | 1 | Replaces 4303604, 4305827. MECHANICAL - 4:00 OPENING | $214.47 | Add to Cart | |
| S-2503 | Speedo Spacer Assy | 1 | Replaces 4302590. | $163.12 | Add to Cart | |
| S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart | |
| S-2578 | Roadranger Valve Assy | 1 | $152.54 | Add to Cart | ||
| S-2661 | Case Assy | 1 | Replaces 4303650, 4303720. PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER USE FOR UNITS BUILT PRIOR TO THE FORCED LUBRICATION SYSTEM DESIGN | $2,088.06 | Add to Cart | |
| S-2742 | Range Section Assy | 1 | FOR UNITS BUILT PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER - NOTE: UNITS BEGINNING WITH "R" WILL REQUIRE FURTHER INVESTIGATION | $3,609.28 | Add to Cart | |
| S-2761 | Range Section Assy | 1 | FOR UNIT BUILT BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER - NOTE: UNITS BEGINNING WITH "R" WILL REQUIRE FURTHER INVESTIGATION | $3,599.81 | Add to Cart | |
| S-2809 | Rear Bearing Cover Assy | 1 | Replaces 4302332, 4303872, 4304652, 4305830. PUSH-IN/THREAD-IN MAGNETIC PICK-UP | $218.01 | Add to Cart | |
| S-2859 | Rear Brg Cover Assy | 1 | Replaces 4302732, 4305826. MECHANICAL - 6:00 OPENING | $185.76 | Add to Cart | |
| S-2910 | Shift Bar Hsg Assy | 1 | Replaces 4302675. COMPLETE (RTLO) FOR UNITS BUILT WITH THE FORCED LUBRICATION SYSTEM DESIGN | $1,201.96 | Add to Cart | |
| S-2911 | Shift Bar Hsg Assy | 1 | Replaces 4302679. COMPLETE (RTLOF) FOR UNITS BUILT WITH THE FORCED LUBRICATION SYSTEM DESIGN | $1,203.96 | Add to Cart | |
| S-2999 | Case Assembly | 1 | Replaces 4304068, 4305809, S-2751. BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER USE FOR UNITS BUILT PRIOR TO THE FORCED LUBRICATION SYSTEM DESIGN | $2,335.48 | Add to Cart | |
| S-3000 | Case Assembly | 1 | Replaces 4305389, 4305809, S-2912. USE FOR UNITS BUILT WITH THE FORCED LUBRICATION SYSTEM DESIGN | $2,150.07 | Add to Cart | |
| S-3056 | Complete Mainshaft Assembly | 1 | COMPLETE MAINSHAFT ASSEMBLY, FOR MODELS BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $1,318.48 | Add to Cart | |
| S-3065 | Countershaft Assembly, Left | 1 | COMPLETE COUNTERSHAFT ASSEMBLY, LEFT, FOR MODELS BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $1,266.09 | Add to Cart | |
| S-3066 | Countershaft Assembly, Right | 1 | COMPLETE COUNTERSHAFT ASSEMBLY, RIGHT, FOR MODELS BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $1,266.09 | Add to Cart | |
| S-3108 | Mainshaft Assy | 1 | Replaces 4302658, 4303403, S-2268, S-2560. | $191.07 | Add to Cart |
Levers/Housings
Item 17Item 7Item 14Item 4Item 5Item 15Item 1Item 24Item 3Item 8Item 6Item 6Item 22Item 8Item 5Item 1Item 5Item 2Item 6Item 20Item 21Item 4Item 16Item 9Item 23Item 33Item 3Item 4Item 3Item 2Item 8Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 4 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 5 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 6 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4305294 | Gasket | 1 | Replaces 4303431. | $9.67 | Add to Cart |
| 9 | K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart |
| 13 | 4303030 | Pin | 1 | $9.45 | Add to Cart | |
| 13 | 6541 | Pin | 1 | 3/8" - USED W/17167 ONLY | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 17 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 23 | K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 24 | S-1967 | Shift Tower Assy | 1 | MID TOWER | $226.05 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 33 | S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart |
Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4300907 | Sliding Clutch | 1 | $64.96 | Add to Cart | |
| 2 | X-7-1007 | Screw | 1 | 5/8"-18X1-3/4" | $3.82 | Add to Cart |
| 3 | A-6429 | Retainer Assy | 1 | Replaces 4302334. | $29.24 | Superseded by A8030Add to Cart |
| 4 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 5 | 4302041 | Splitter Gear- Mainshaft | 1 | Replaces 4301838. | $244.99 | Add to Cart |
| 6 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 7 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 8 | 4301840 | Sliding Clutch | 1 | Replaces 4303386. | $177.82 | Add to Cart |
| 9 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 10 | 4303649 | Mainshaft | 1 | $173.23 | Add to Cart | |
| 11 | 4301842 | Washer | 1 | $15.71 | Add to Cart | |
| 12 | 4300940 | Reduction Gear | 1 | Replaces 4300934. | $301.49 | Add to Cart |
| 13 | 4300912 | Spacer | 1 | $84.43 | Add to Cart | |
| 14 | 5556503-BOX | Bearing | 1 | Replaces 5556503. | $165.74 | Add to Cart |
| 16 | K-4122 | Hex Flange Crimped Nut Kit | 1 | Replaces 4302321, 4306520. | $34.01 | Add to Cart |
Mainshaft Assy
Item 1Item 7Item 14Item 14Item 7Item 9Item 14Item 14Item 9Item 10Item 15Item 5Item 4Item 2Item 3Item 6Item 8Item 12Item 11Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 0 | S-3056 | Complete Mainshaft Assembly | 1 | COMPLETE MAINSHAFT ASSEMBLY, FOR MODELS BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $1,318.48 | Add to Cart |
| 1 | S-3108 | Mainshaft Assy | 1 | Replaces 4302658, 4303403, S-2268, S-2560. | $191.07 | Add to Cart |
| 2 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 3 | 4304615 | 3-SIDED Key | 1 | Replaces 4300120. | $5.90 | Add to Cart |
| 4 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 5 | 23653 | Reverse Gear- Mainshaft | 1 | $234.70 | Add to Cart | |
| 6 | 4302047 | Spacer | 1 | $15.38 | Add to Cart | |
| 7 | 16118 | Sliding Clutch | 2 | $42.03 | Add to Cart | |
| 8 | 4303412 | Lo Gear-mainshaft | 1 | Replaces 4303410. | $161.07 | Add to Cart |
| 9 | 4303603 | Washer | 2 | Replaces 4302397. | $14.45 | Add to Cart |
| 10 | 4303406 | 1ST Gear-mainshaft | 1 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $154.64 | Superseded by 4303420Add to Cart |
| 10 | 4303701 | 1ST Gear-mainshaft | 1 | BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $169.88 | Add to Cart |
| 11 | 4302670 | 2ND Gear-mainshaft | 1 | $164.57 | Add to Cart | |
| 12 | 4304514 | Od Gear-mainshaft | 1 | Replaces 43026644303698, 4304316. | $145.10 | Add to Cart |
| 13 | 4300382 | Washer .249-WHITE | 1 | $12.09 | Add to Cart | |
| 14 | 4302398 | Washer | 4 | $10.08 | Add to Cart | |
| 15 | 4304317 | Sliding Clutch | 1 | Replaces 22026. | $93.65 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4300764 | Shift Diagram Label | 1 | Replaces 19819, 20161. RTLO/F-18913A MODELS | $28.59 | Add to Cart | |
| 4303611 | Shift Diagram Label | 1 | RTLO/F-18913A-T2 MODELS | $28.59 | Add to Cart | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Oil Cooler
Item 11Item 7Item 1Item 4Item 10Item 9Item 7Item 2Item 7Item 6Item 6Item 7Item 6Item 3Item 13Item 12Item 6Item 13Item 2Item 8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 4 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |
Oil Filter
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19419 | Connector | 1 | $9.93 | Add to Cart | |
| 2 | X-8-453 | Screw | 4 | $2.49 | Add to Cart | |
| 3 | X-8-452 | Screw | 1 | $2.75 | Add to Cart | |
| 4 | 4304820 | Gasket | 1 | $9.09 | Add to Cart | |
| 5 | 4301123 | Elbow | 1 | $18.13 | Add to Cart | |
| 6 | K-3441 | Oil Filter/adapter Kit | 1 | Replaces A-7174. | $256.71 | Add to Cart |
| 7 | 4304827 | Oil Filter Element | 1 | $28.15 | Add to Cart | |
| 8 | 17007 | Elbow | 1 | $12.99 | Add to Cart | |
| 9 | K-3441 | Oil Filter/adapter Kit | 1 | $256.71 | Add to Cart | |
| 10 | A-7300 | Aux Countershaft Cover Assy | 1 | $140.84 | Add to Cart |
Oil Pump
Item 7Item 17Item 10Item 21Item 16Item 21Item 2Item 22Item 12Item 27Item 13Item 6Item 25Item 24Item 8Item 15Item 9Item 23Item 18Item 20Item 1Item 26Item 19Item 14Item 3Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-409 | Capscrew | 5 | 1/4"-20X5/8" | $1.87 | Add to Cart |
| 2 | K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart |
| 3 | 20514 | Gasket | 1 | $2.07 | Add to Cart | |
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | X-8-448 | Screw | 3 | Replaces X8445. 1/4"-20X1-1/4" | $1.76 | Add to Cart |
| 7 | 20824 | Washer | 3 | $18.88 | Add to Cart | |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303773 | Retainer | 1 | $41.32 | Add to Cart | |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 12 | 20509 | Key | 1 | $10.21 | Add to Cart | |
| 13 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 14 | 4303774 | Pump Drive Gear | 1 | Replaces 4304880. | $64.04 | Add to Cart |
| 15 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 16 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 4303775 | Spring | 1 | $8.37 | Add to Cart | |
| 18 | 4303780 | Tube | 1 | USE W/A-6772 | $22.26 | Add to Cart |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 20 | 4303828 | Plug | 1 | $16.88 | Add to Cart | |
| 21 | X-8-686 | Capscrew | 2 | USE ONLY FOR RTLO/F-18913A-T2 MODELS | $1.97 | Add to Cart |
| 22 | 4305715 | Splitter Lube Tube | 1 | Replaces A-7197. | $41.73 | Add to Cart |
| 23 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 24 | S-2661 | Case Assy | 1 | Replaces 4303650, 4303720. PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | $2,088.06 | Add to Cart |
| 24 | S-2999 | Case Assembly | 1 | Replaces 4304068, 4305809, S-2751. BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | $2,335.48 | Add to Cart |
| 25 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 26 | X-8-447 | Screw | 2 | $2.85 | Add to Cart | |
| 27 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
Oil Pump (Forced Lube)
Item 11Item 17Item 14Item 8Item 9Item 7Item 6Item 27Item 12Item 24Item 18Item 16Item 25Item 15Item 21Item 23Item 22Item 26Item 19Item 10Item 13Item 21Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | X-8-448 | Screw | 3 | Replaces X8445. 1/4"-20X1-1/4" | $1.76 | Add to Cart |
| 7 | 20824 | Washer | 3 | $18.88 | Add to Cart | |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303773 | Retainer | 1 | $41.32 | Add to Cart | |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529. | $367.14 | Add to Cart |
| 11 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 12 | 20509 | Key | 1 | $10.21 | Add to Cart | |
| 13 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 14 | 4303774 | Pump Drive Gear | 1 | Replaces 4304880. | $64.04 | Add to Cart |
| 15 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 16 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 4303775 | Spring | 1 | $8.37 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 4304629 | Plug | 1 | $7.19 | Add to Cart | |
| 21 | X-8-686 | Capscrew | 2 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 22 | 4305715 | Splitter Lube Tube | 1 | Replaces A-7197. | $41.73 | Add to Cart |
| 23 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 24 | S-3000 | Case Assembly | 1 | Replaces 4305389, 4305809, S-2912. | $2,150.07 | Add to Cart |
| 25 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 26 | X-8-447 | Screw | 2 | $2.85 | Add to Cart | |
| 27 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | SEENOTEFIELD | Serial# Information | 1 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | Call for availability | |
| 2 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 3 | 4301847 | Cylinder | 1 | $86.49 | Add to Cart | |
| 4 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 5 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 6 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 7 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 8 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 9 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 10 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart | |
| 11 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 12 | A-6188 | Welded Yoke Assy | 1 | $143.29 | Add to Cart |
Range Cylinder - Latest
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | SEENOTEFIELD | Serial# Information | 1 | BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | Call for availability | |
| 2 | 22823 | Shift Yoke | 1 | Replaces 16775. | $82.40 | Add to Cart |
| 3 | X-7-809 | Bolt | 2 | Replaces X7810, X7811. 1/2"-20X1-3/4" | $1.89 | Add to Cart |
| 4 | A-6690 | Range Cylinder Assy | 1 | Replaces 4303595. | $88.77 | Add to Cart |
| 5 | X-8L-607 | Capscrew | 4 | Replaces X8607. 3/8"-16X2-1/4", 3/8"-16X2-1/4" | $3.06 | Add to Cart |
| 6 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 7 | 4303596 | Yoke Bar | 1 | $56.12 | Add to Cart | |
| 8 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 9 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 10 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 11 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 12 | 22826 | Gasket | 1 | $8.09 | Add to Cart | |
| 13 | 4303926 | Cover | 1 | $126.77 | Add to Cart | |
| 14 | 14347 | Gasket | 1 | $2.29 | Add to Cart |
Reverse Idler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | K-3209 | Idler Shaft Repl Kit | 2 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart |
| 7 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 8 | 4303336 | Retaining Ring | 4 | $2.70 | Add to Cart | |
| 9 | 4305513 | Idler Shaft | 2 | $22.92 | Add to Cart |
Roadranger Valve
Item 1Item 10Item 10Item 10Item 2Item 11Item 4Item 2Item 2Item 2Item 2Item 2Item 2Item 2Item 5Item 7Item 5Item 7Item 12Item 6Item 7Item 3Item 7Item 14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586113 | Shift Diagram Medallion | 1 | RTLO - W/SHIFT PATTERN | $28.59 | Add to Cart |
| 2 | K-3193 | Master Valve Repair Kit | 1 | FOR A-6913 VALVE | $31.14 | Add to Cart |
| 2 | K-3195 | Master Valve Repair Kit | 1 | FOR A-7313 VALVE | $42.55 | Add to Cart |
| 3 | 20495 | Lever | 1 | $15.43 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 4 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 4 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 14 | 84002 | Connector Assy | 1 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 14 | 84004 | Connector Assy | 1 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 14 | 84006 | Connector Assy | 1 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 999 | A-6913 | Roadranger Valve Assy | 1 | Replaces A-4900. STANDARD-W/LOGO | $77.25 | Add to Cart |
| 999 | A-7313 | Roadranger Valve Assy | 1 | Replaces A-5313. (LEFT OF DRIVER)-W/LOGO | $158.91 | Add to Cart |
| 999 | S-2578 | Roadranger Valve Assy | 1 | RTLO - W/SHIFT PATTERN | $152.54 | Add to Cart |
Shift Bar Housing
Item 4Item 1Item 17Item 7Item 14Item 41Item 6Item 27Item 19Item 29Item 12Item 37Item 21Item 29Item 28Item 15Item 29Item 26Item 40Item 8Item 5Item 34Item 38Item 36Item 31Item 33Item 27Item 3Item 39Item 22Item 42Item 23Item 16Item 18Item 29Item 20Item 35Item 30Item 29Item 32Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2269 | Shift Bar Hsg | 1 | Replaces 4302679. HOUSING ONLY (RTLOF) | $454.29 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 20070 | Oil Trough | 1 | WILL CAUSE INTERFERENCE ON UNITS BUILT WITH THE FORCED LUBRICATION SYSTEM. | $17.04 | Add to Cart |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 6 | X-8-423 | Capscrew | 2 | NOT TO BE USED ON UNITS BUILT WITH THE FORCED LUBRICATION SYSTEM. | $4.98 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 8 | X-8L-609 | Capscrew | 1 | 3/8"-16X1-3/4" | $2.11 | Add to Cart |
| 12 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 13 | 3/8"-16X1-1/4" OR USE 11 PCS OF X- 8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart |
| 26 | 16338 | Shift Yoke | 1 | REVERSE/LO | $301.13 | Add to Cart |
| 27 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 28 | 15770 | Shift Block | 1 | 1ST/2ND | $59.80 | Add to Cart |
| 29 | 22943 | Lockscrew | 1 | USE W/15770 SHIFT BLOCK | $15.26 | Add to Cart |
| 29 | 3220 | Lockscrew | 4 | $4.28 | Add to Cart | |
| 30 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 31 | 19062 | Shift Block | 1 | 3RD/OD | $52.62 | Add to Cart |
| 32 | 20120 | Shift Block | 1 | Replaces 18924. 3RD/OD | $52.32 | Add to Cart |
| 33 | 18931 | Yoke Bar | 1 | Replaces 4302759. 3RD/OD | $72.63 | Add to Cart |
| 34 | 18922 | Shift Yoke | 1 | 1ST/2ND | $81.23 | Add to Cart |
| 35 | 18930 | Yoke Bar | 1 | 1ST/2ND | $88.80 | Add to Cart |
| 36 | 4302070 | Snap Ring | 1 | $256.36 | Add to Cart | |
| 37 | 4303225 | Actuator | 1 | $12.87 | Add to Cart | |
| 38 | 4305575 | Shift Yoke | 1 | Replaces 20450. 3RD/OD | $142.49 | Add to Cart |
| 39 | 18929 | Yoke Bar | 1 | REVERSE/LO | $70.01 | Add to Cart |
| 40 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 41 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 42 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 999 | S-2271 | Shift Bar Hsg Assy | 1 | Replaces 4302679. COMPLETE (RTLOF) FOR UNITS BUILT PRIOR TO THE FORCED LUBRICATION SYSTEM DESIGN | $1,180.41 | Add to Cart |
| 999 | S-2911 | Shift Bar Hsg Assy | 1 | Replaces 4302679. COMPLETE (RTLOF) FOR UNITS BUILT WITH THE FORCED LUBRICATION SYSTEM DESIGN | $1,203.96 | Add to Cart |
Slave Valve - A-
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
Splitter Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | SEENOTEFIELD | Serial# Information | 1 | PRIOR TO SERIAL NUMBER 51267046 & PRIOR TO SERIAL NUMBERS STARTING WITH AN ALPHA CHATACTER | Call for availability | |
| 2 | 4303583 | Gasket | 1 | $1.99 | Add to Cart | |
| 3 | 4303582 | Splitter Cylinder | 1 | $102.56 | Superseded by 4306632Add to Cart | |
| 4 | 21208 | O-ring | 1 | $4.80 | Add to Cart | |
| 5 | 4301964 | Piston | 1 | $111.49 | Add to Cart | |
| 6 | 13653 | O-ring | 1 | $3.00 | Add to Cart | |
| 7 | 17073 | Gasket | 1 | $2.39 | Add to Cart | |
| 8 | 21209 | O-ring | 1 | $5.37 | Add to Cart | |
| 9 | X-1-805 | Nut | 1 | $1.84 | Add to Cart | |
| 10 | K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 4300927, 4304031, 4304032, A-6862. | $103.52 | Add to Cart |
| 11 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |
| 12 | 15719 | Plug | 1 | $5.86 | Add to Cart | |
| 13 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 14 | A-7012 | Splitter Yoke Assy | 1 | Replaces A-6304, A-6892. | $100.85 | Add to Cart |
Splitter Cylinder-Latest
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | SEENOTEFIELD | Serial# Information | 1 | BEGINNING W/SERIAL NUMBER 51267046 & ALL SERIAL NUMBERS STARTING WITH AN ALPHA CHARACTER | Call for availability | |
| 2 | 4303583 | Gasket | 1 | $1.99 | Add to Cart | |
| 3 | 4303582 | Splitter Cylinder | 1 | $102.56 | Superseded by 4306632Add to Cart | |
| 4 | 21208 | O-ring | 1 | $4.80 | Add to Cart | |
| 5 | 4301964 | Piston | 1 | $111.49 | Add to Cart | |
| 6 | 13653 | O-ring | 1 | $3.00 | Add to Cart | |
| 7 | X-1-805 | Nut | 1 | $1.84 | Add to Cart | |
| 8 | 21209 | O-ring | 1 | $5.37 | Add to Cart | |
| 9 | A-7012 | Splitter Yoke Assy | 1 | Replaces A-6304, A-6892. | $100.85 | Add to Cart |
| 12 | 5568534 | O-ring | 1 | $1.50 | Add to Cart | |
| 13 | 13653 | O-ring | 1 | $3.00 | Add to Cart | |
| 14 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 15 | K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 4300927, 4304031, 4304032, A-6862. | $103.52 | Add to Cart |
| 18 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 999 | K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 4300927, 4304031, 4304032, A-6862. | $103.52 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RTLOF-18913A, with every part in the manual matched to our live inventory. We stock 560 of the 578 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Case (Front) Forced Lube Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/A-5000 Valve Heat Exchanger Input Shaft & Drive Gear Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Oil Cooler Oil Filter Oil Pump Oil Pump (Forced Lube) Range Cylinder Range Cylinder - Latest Reverse Idler Roadranger Valve Shift Bar Housing Slave Valve - A- Splitter Cylinder Splitter Cylinder-Latest
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTLOF-18913A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTLOF-18913A |
| Transmission type | 13-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 47 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTLOF-18913A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
