Fabco TC 110 Parts Manual

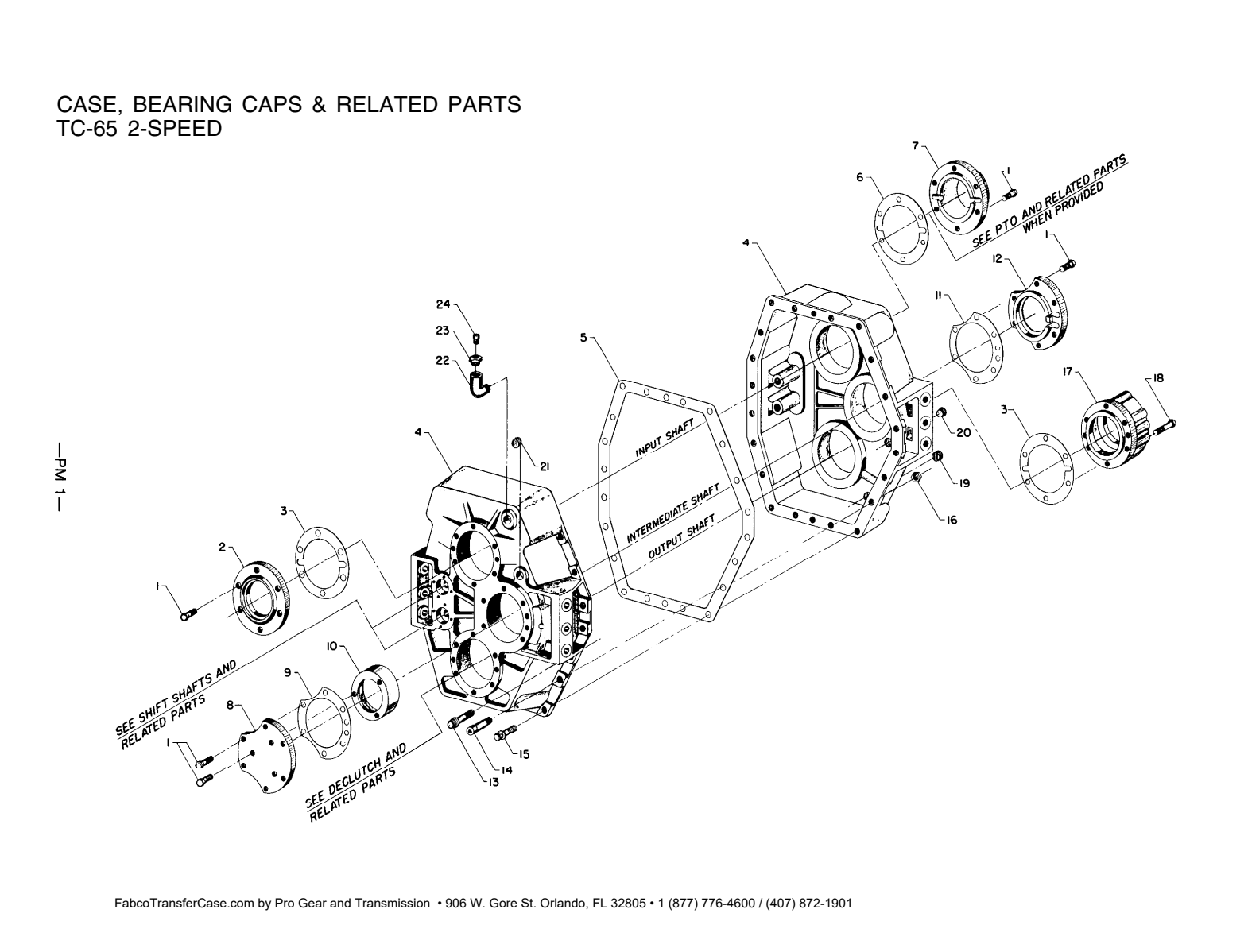

Case, Bearing Caps And Related Parts Tc-65 2-Speed
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 265-0238 | Bolt, 7/w14 X 1¼ 27 | 21 | $7.99 | Add to Cart | |
| 2 | 237-0357 | Carrier, Seal 1 | 1 | $394.47 | Add to Cart | |
| 3 | 427-0372 | Gasket, Seal Carrier 2 | 2 | — | Call for availability | |
| 4 | 468-0012 | Housing Assy. Transfer Case 1 , (incl 724 532 Bolts & 688 564 Nuts Qty-4) . , | 1 | — | Call for availability | |
| 5 | 427-0373 | Gasket, Main Case 1 | 1 | — | Call for availability | |
| 6 | 744-0278 | Shim Pto .030 Thick (coral) } , | $18.52 | Add to Cart | ||
| 744-0279 | Shim Pto .015 Thick (pink) As , | $16.76 | Add to Cart | |||
| 744-0282 | Shim Pto .005 Thick (blue) Required , | $13.54 | Add to Cart | |||
| 744-0283 | Shim Pto .002 Thick (red) (see Note , | 1) | $13.54 | Add to Cart | ||
| 7 | 235-0353 | Cap Upper Rear Case 1 , | — | Call for availability | ||
| 8 | 235-0347 | Cap Intermediate Shaft Front 1 , | 1 | — | Call for availability | |
| 9 | 427-0374 | Gasket, Intermediate Shaft 1 | 1 | — | Call for availability | |
| 10 | 736-0745 | Ring Bearing Adapter 1 , | 1 | — | Call for availability | |
| 11 | 744-0289 | Shim Inter. Shaft .030 Thick (coral) } As , | — | No longer available — call for replacement | ||
| 744-0292 | Shim Inter. Shaft .015 Thick (pink) Required , | — | Call for availability | |||
| 744-0293 | Shim Inter. Shaft .005 Thick (blue) (see Note , | 1) | — | No longer available — call for replacement | ||
| 744-0294 | Shim Inter. Shaft .002 Thick (red) , | — | Call for availability | |||
| 12 | 235-0348 | Cap Intermediate Shaft Rear 1 , | 1 | — | Call for availability | |
| 13 | 724-0532 | Screw, ½-13 X 2¾ Ferry Head 6 | 6 | — | No longer available — call for replacement | |
| 14 | 265-0837 | Bolt, 5/s X 2 Shoulder 2 | 2 | — | Call for availability | |
| 15 | 724-0529 | Screw, ½-13 X 1¾ Ferry Head 8 | 8 | $10.23 | Add to Cart | |
| 16 | 688-0564 | Nut, ½-13 Flexloc 8 | 8 | — | Call for availability | |
| 17 | 237-0356 | Carrier, Speedo Gear & Seal 1 | 1 | — | Call for availability | |
| 18 | 265-0369 | Bolt, 7/15-14 X 2¾ 6 | 6 | — | Call for availability | |
| 19 | 758-0274 | Plug ¾ Magnetic Socket Head Pipe 1 , | 1 | $8.70 | Add to Cart | |
| 20 | 758-0268 | Plug ¾ 1 , | 1 | — | Call for availability | |
| 21 | 758-0344 | Plug ¾ Breakoff 1 , | 1 | $125.52 | Add to Cart | |
| 22 | 359-0267 | Elbow, ¾ X 90° 1 | 1 | $9.36 | Add to Cart | |
| 23 | 356-0236 | Hex Bushing ¾-1/a 1 , | 1 | — | Call for availability | |
| 24 | 836-0222 | Breather, 1/s NPT 1 6 & 11 Select Shims To Give .003- .008 End Float On Each Shaft. | 1 | $14.69 | Add to Cart |
Tc-65 2-Speed
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 688-0633 | Nut, Self Locking 1¼-18 4 , | 4 | $15.30 | Add to Cart | ||
| 2 | 927-0775 | 002 Washer, Hardened 4 | 4 | — | Call for availability | |
| 352-0346 | Flange Input (1710) } 1 , | 1 | — | Call for availability | ||
| 352-0364 | Flange Input (1810) , | — | Call for availability | |||
| 4 | 732-0328 | Seal Oil 2 , | 2 | $87.86 | Add to Cart | |
| 5 | 233-0282 | Bearing Cup 4 | 4 | — | No longer available — call for replacement | |
| 6 | 233-0283 | Bearing Cone 4 | 4 | — | No longer available — call for replacement | |
| 7 | 234-0389 | Bearing Inner Race 1 | 1 | $1,453.13 | Add to Cart | |
| 8 | 746-0732 | Pin Inner Race Lock 3 , | 3 | — | No longer available — call for replacement | |
| 9 | 765-0273 | Needle Bearing Rollers 496 | 496 | — | Call for availability | |
| 10 | 736-0746 | Ring Needle Bearing Spacer 5 , | 5 | — | Call for availability | |
| 11 | 432-0423 | Gear, 34 Tooth 1 | 1 | $1,085.63 | Add to Cart | |
| 12 | 432-0426 | Clutch Collar 2 | 2 | $1,103.38 | Add to Cart | |
| 13 | 432-0428 | Clutch Gear 2 | 2 | — | Call for availability | |
| 14 | 742-0795 | Shaft, Input 1 | 1 | $2,735.56 | Add to Cart | |
| 15 | 927-0644 | Washer, Steel Thrust 2 | 2 | $1,491.00 | Add to Cart | |
| 16 | 234-0392 | Bearing Inner Race 2 , | 2 | — | Call for availability | |
| 17 | 432-0422 | Gear, 46 Tooth 2 | 2 | $2,089.65 | Add to Cart | |
| 18 | 736-0754 | Spacer, Gear 1 | 1 | $806.55 | Add to Cart | |
| 19 | 883-0484 | Tube Blanking Sleeve 1 , | — | — | Call for availability | |
| 20 | 432-0398 | Gear, Declutch And Pto 1 | 2 | — | Call for availability | |
| 21 | 233-0376 | Bearing Cup 1 | 1 | $123.43 | Add to Cart | |
| 22 | 233-0377 | Bearing Cone 1 | 1 | $106.63 | Add to Cart | |
| 23 | 736-0748 | Ring Spacer 1 , | 1 | — | Call for availability | |
| 24 | 432-0424 | Gear, Counter Shaft, 43 Tooth 1 | 1 | $1,117.50 | Add to Cart | |
| 25 | 736-0749 | Ring Spacer 1 , | 1 | — | Call for availability | |
| 26 | 432-0425 | Gear, Counter Shaft, 34 Tooth 1 | 1 | — | Call for availability | |
| 27 | 742-0798 | Shaft, Intermediate 1 | 1 | — | Call for availability | |
| 28 | 966-0296 | Key, Woodruff-intermediate Gears 2 | 2 | — | No longer available — call for replacement | |
| 29 | 742-0796 | Shaft, Output 1 | 1 | — | Call for availability | |
| 30 | 883-0475 | Tube Bearing Adapter 1 , | 1 | — | Call for availability | |
| 31 | 883-0474 | Tube Spacer 1 , | 1 | $1,262.25 | Add to Cart | |
| 32 | 432-0432 | Gear, Speedo Drive 6 Tooth 1 , | 1 | $267.68 | Add to Cart | |
| 33 | 432-0429 | Gear, Speedo Driven 13 Tooth 1 , | 1 | $161.52 | Add to Cart | |
| 34 | 883-0473 | Sleeve Speedo Driven Gear 1 , | 1 | $194.82 | Add to Cart | |
| 35 | 882-0299 | Tube Speedometer Driven Gear 1 , (not Used 1980 & Later Cases) On | 1 | — | Call for availability | |
| 36 | 352-0345 | Flange Rear Output (1710) } 1 , | 1 | — | Call for availability | |
| 352-0373 | Flange Rear Output (1810) , | — | Call for availability | |||
| 37 | 233-0379 | Bearing Cone 1 | 1 | $905.04 | Add to Cart | |
| 38 | 233-0378 | Bearing Cup 1 | 1 | — | No longer available — call for replacement | |
| 39 | 234-0432 | Sleeve Spacing 1 , | 1 | — | No longer available — call for replacement | |
| 1 | 688-0372 | Nut, Hex Jam ¾-16 3 , | 2 | — | Call for availability | |
| 2 | 265-0366 | Bolt, ¼ X 1 12 | 8 | $1.73 | Add to Cart | |
| 3 | 265-0985 | Bolt, Shift Rod Stop Short 3 , | 1 | — | No longer available — call for replacement | |
| 4 | 235-0354 | Cap Shift Adjustment 3 , | 2 | — | No longer available — call for replacement | |
| 5 | 675-0224 | “o” Ring 6 | 8 | — | Call for availability | |
| 6 | 742-0822 | Shaft, Shift 1 | 2 | — | Call for availability | |
| 7 | 947-0223 | Lockwire 2 | 2 | $46.99 | Add to Cart | |
| 8 | 265-0768 | Bolt, 7/15-20 X 1½ Drilled Head 4 | 4 | $21.89 | Add to Cart | |
| 9 | 367-0254 | Fork, Shift 2 | 2 | $590.15 | Add to Cart | |
| 10 | 883-0479 | Tube Shift Cylinder Adapter 1 , | 2 | $54.52 | Add to Cart | |
| 11 | 777-0465 | Spring Shift Shaft 1 , | 2 | — | No longer available — call for replacement | |
| 13 | 782-0288 | “o” Ring Piston Shaft Seal 1 , | 2 | $6.16 | Add to Cart | |
| 14 | 339-0223 | Felt Wiper 1 | 2 | $13.62 | Add to Cart | |
| 15 | 753-0232 | Piston Shift 1 , | 2 | $77.81 | Add to Cart | |
| 16 | 927-0643 | Washer 1 | 2 | $8.10 | Add to Cart | |
| 17 | 688-0464 | Nut, Flexloc 1 | 2 | $8.21 | Add to Cart | |
| 18 | 883-0887 | 002 Tube Shift Cylinder, 3 .375 Lg 1 , . | 2 | — | Call for availability | |
| 19 | 235-0352 | Cap Shift Cylinder 1 , | 2 | $63.16 | Add to Cart | |
| 20 | 265-0772 | Bolt, ¼ -20 X 4½ 4 | 8 | $7.83 | Add to Cart | |
| 21 | 742-0823 | Shaft, Shift (stationary) 1 | — | Call for availability | ||
| 22 | 265-0984 | Bolt, Shift Rod Stop Long — , | 1 | — | No longer available — call for replacement | |
| 23 | 675-0326 | “o” Ring 1 | 2 | — | Call for availability |
Case, Bearing Caps And Related Parts Tc-80 Single Speed
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 265-0238 | Bolt, 7/1s-14 X 1¼ 33 | 27 | $7.99 | Add to Cart | |
| 2 | 237-0357 | Carrier, Seal 2 | 2 | $394.47 | Add to Cart | |
| 3 | 427-0372 | Gasket, Seal Carrier 2 | 2 | — | Call for availability | |
| 4 | 468-0012 | Housing Assy. Transfer Case 1 , (incl 724 532 Bolts & 688 564 Nuts Qty-4) . , | 1 | — | Call for availability | |
| 5 | 427-0373 | Gasket, Main Case 1 | 1 | — | Call for availability | |
| 6 | 744-0278 | Shim Pto .030 Thick (coral) } As , | $18.52 | Add to Cart | ||
| 744-0279 | Shim Pto .015 Thick (pink) Required , | $16.76 | Add to Cart | |||
| 744-0282 | Shim Pto .005 Thick (blue) (see Note , | 1) | $13.54 | Add to Cart | ||
| 744-0283 | Shim Pto .002 Thick (red) , | $13.54 | Add to Cart | |||
| 7 | 235-0353 | Cap Upper Rear Case 1 , | — | — | Call for availability | |
| 8 | 235-0347 | Cap Intermediate Shaft Front 1 , | 1 | — | Call for availability | |
| 9 | 427-0374 | Gasket, Intermediate Shaft 1 | 1 | — | Call for availability | |
| 10 | 736-0745 | Ring Bearing Adapter 1 , | 1 | — | Call for availability | |
| 11 | 744-0289 | Shim Inter. Shaft .030 Thick (coral) } As , | — | No longer available — call for replacement | ||
| 744-0292 | Shim Inter. Shaft .015 Thick (pink) Required , | — | Call for availability | |||
| 744-0293 | Shim Inter. Shaft .005 Thick (blue) (see Note , | 1) | — | No longer available — call for replacement | ||
| 744-0294 | Shim Inter. Shaft .002 Thick (red) , | — | Call for availability | |||
| 12 | 235-0348 | Cap Intermediate Shaft Rear 1 , | 1 | — | Call for availability | |
| 13 | 724-0532 | Screw, ½-13 X 2¾ Ferry Head 6 | 6 | — | No longer available — call for replacement | |
| 14 | 265-0837 | Bolt, 5/a X 2 Shoulder 2 | 2 | — | Call for availability | |
| 15 | 724-0529 | Screw, ½-13 X 1¾ Ferry Head 8 | 8 | $10.23 | Add to Cart | |
| 16 | 688-0564 | Nut ½-13 Flexloc 8 , | 8 | — | Call for availability | |
| 19 | 758-0274 | Plug ¾ Magnetic Socket Head Pipe 1 , | 1 | $8.70 | Add to Cart | |
| 20 | 758-0268 | Plug ¾ 1 , | 1 | — | Call for availability | |
| 21 | 758-0344 | Plug ¾ Breakoff 1 , | 1 | $125.52 | Add to Cart | |
| 22 | 359-0267 | Elbow, ¾ X 90° #150 Blk 1 | 1 | $9.36 | Add to Cart | |
| 23 | 356-0236 | Hex Bushing ¾-1/a Blk 1 , | 1 | — | Call for availability | |
| 24 | 836-0222 | Breather, 1/a NPT 1 6 & 11 Select Shims To Give .003- .008 End Float On Each Shaft. | 1 | $14.69 | Add to Cart |
Tc-80 Single Speed
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 688-0633 | Nut, Self Locking 4 | 4 | $15.30 | Add to Cart | |
| 2 | 927-0775 | 002 Washer, Hardened 4 | 4 | — | Call for availability | |
| 352-0346 | Flange Input (1710) } , | — | Call for availability | |||
| 352-0364 | Flange Input (1810) , | — | Call for availability | |||
| 4 | 732-0328 | Seal Oil 2 , | 2 | $87.86 | Add to Cart | |
| 5 | 233-0282 | Bearing Cup 4 | 4 | — | No longer available — call for replacement | |
| 6 | 233-0283 | Bearing Cone 4 | 4 | — | No longer available — call for replacement | |
| 7 | 234-0432 | Sleeve Spacing 2 , | 2 | — | No longer available — call for replacement | |
| 8 | 432-0426 | Clutch Collar 2 | 2 | $1,103.38 | Add to Cart | |
| 9 | 432-0428 | Clutch Gear 2 Shaft, Input /)v,a... 7 ' -f- 'l. Ipi 1 ~ | 2 | — | Call for availability | |
| 11 | 927-0644 | Washer, Steel Thrust 2 | 2 | $1,491.00 | Add to Cart | |
| 12 | 234-0392 | Bearing Inner Race 2 , | 2 | — | Call for availability | |
| 13 | 746-0732 | Pin Inner Race Lock 2 , | 2 | — | No longer available — call for replacement | |
| 14 | 765-0273 | Needle Bearing Rollers 372 | 372 | — | Call for availability | |
| 15 | 736-0746 | Ring Needle Bearing Spacer 4 , | 4 | — | Call for availability | |
| 16 | 432-0422 | Gear 46 Tooth 2 | 2 | $2,089.65 | Add to Cart | |
| 17 | 736-0754 | Spacer, Gear 1 | 1 | $806.55 | Add to Cart | |
| 18 | 883-0484 | Tube Blanking Sleeve 1 , | — | — | Call for availability | |
| 19 | 432-0398 | Gear, Declutch And Pto 1 | 2 | — | Call for availability | |
| 20 | 233-0376 | Bearing Cup 1 | 1 | $123.43 | Add to Cart | |
| 21 | 233-0377 | Bearing Cone 1 | 1 | $106.63 | Add to Cart | |
| 22 | 736-0748 | Ring Spacer 1 , | 1 | — | Call for availability | |
| 23 | 883-0485 | Spacer, Gear 1 | 1 | — | Call for availability | |
| 24 | 432-0425 | Gear, Counter Shaft, 34 Tooth 1 Shaft, Intermediate 1 | 1 | — | Call for availability | |
| 26 | 966-0296 | Key, Woodruff-intermediate Gears 1 | 1 | — | No longer available — call for replacement | |
| 27 | 233-0379 | Bearing Cone 1 | 1 | $905.04 | Add to Cart | |
| 28 | 233-0378 | Bearing Cup 1 | 1 | — | No longer available — call for replacement | |
| 29 | 742-0796 | Shaft, Output 1 | 1 | — | Call for availability | |
| 30 | 883-0475 | Tube Bearing Adapter 1 , | 1 | — | Call for availability | |
| 31 | 352-0349 | Flange Output Rear (1710) } 1 , | 1 | — | Call for availability | |
| 352-0365 | Flange Output Rear (1810) —pm 10— | — | Call for availability |
Tc-80 Single-Speed
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 688-0372 | Nut, Hex Jam ¾-16 4 , | 3 | — | Call for availability | |
| 2 | 265-0366 | Bolt, ¼ X 1 16 | 12 | $1.73 | Add to Cart | |
| 3 | 265-0985 | Bolt, Shift Rod Stop Short 4 , | 2 | — | No longer available — call for replacement | |
| 4 | 235-0354 | Cap Shift Adjustment 4 , | 3 | — | No longer available — call for replacement | |
| 5 | 675-0224 | “o” Ring 4 | 6 | — | Call for availability | |
| 6 | 742-0822 | Shaft, Shift — | 1 | — | Call for availability | |
| 7 | 947-0223 | Lockwire 2 | 2 | $46.99 | Add to Cart | |
| 8 | 265-0768 | Bolt 7/15-20 1½ Drilled Head 4 X , | 4 | $21.89 | Add to Cart | |
| 9 | 367-0254 | Fork, Shift 2 | 2 | $590.15 | Add to Cart | |
| 10 | 883-0479 | Tube Shift Cylinder Adapter — , | 1 | $54.52 | Add to Cart | |
| 11 | 777-0465 | Spring Shift Shaft — , | 1 | — | No longer available — call for replacement | |
| 13 | 782-0288 | “o” Ring Piston Shaft Seal , — | 1 | $6.16 | Add to Cart | |
| 14 | 339-0223 | Felt Wiper — | 1 | $13.62 | Add to Cart | |
| 15 | 753-0232 | Piston Shift , — | 1 | $77.81 | Add to Cart | |
| 16 | 927-0643 | Washer — | 1 | $8.10 | Add to Cart | |
| 17 | 688-0464 | Nut, Flexloc — | 1 | $8.21 | Add to Cart | |
| 18 | 883-0887 | 002 Tube Shift Cylinder, 3 .375 Long — , | 1 | — | Call for availability | |
| 19 | 235-0352 | Cap Shift Cylinder — , | 1 | $63.16 | Add to Cart | |
| 20 | 265-0772 | Bolt, ¼ -20 X 4½ — | 4 | $7.83 | Add to Cart | |
| 21 | 742-0823 | Shift, Shaft (stationary) 2 | 1 | — | Call for availability | |
| 22 | 265-0984 | Bolt, Shift Rod Stop Long — , | 1 | — | No longer available — call for replacement | |
| 23 | 675-0326 | “o” Ring — | 1 | — | Call for availability |

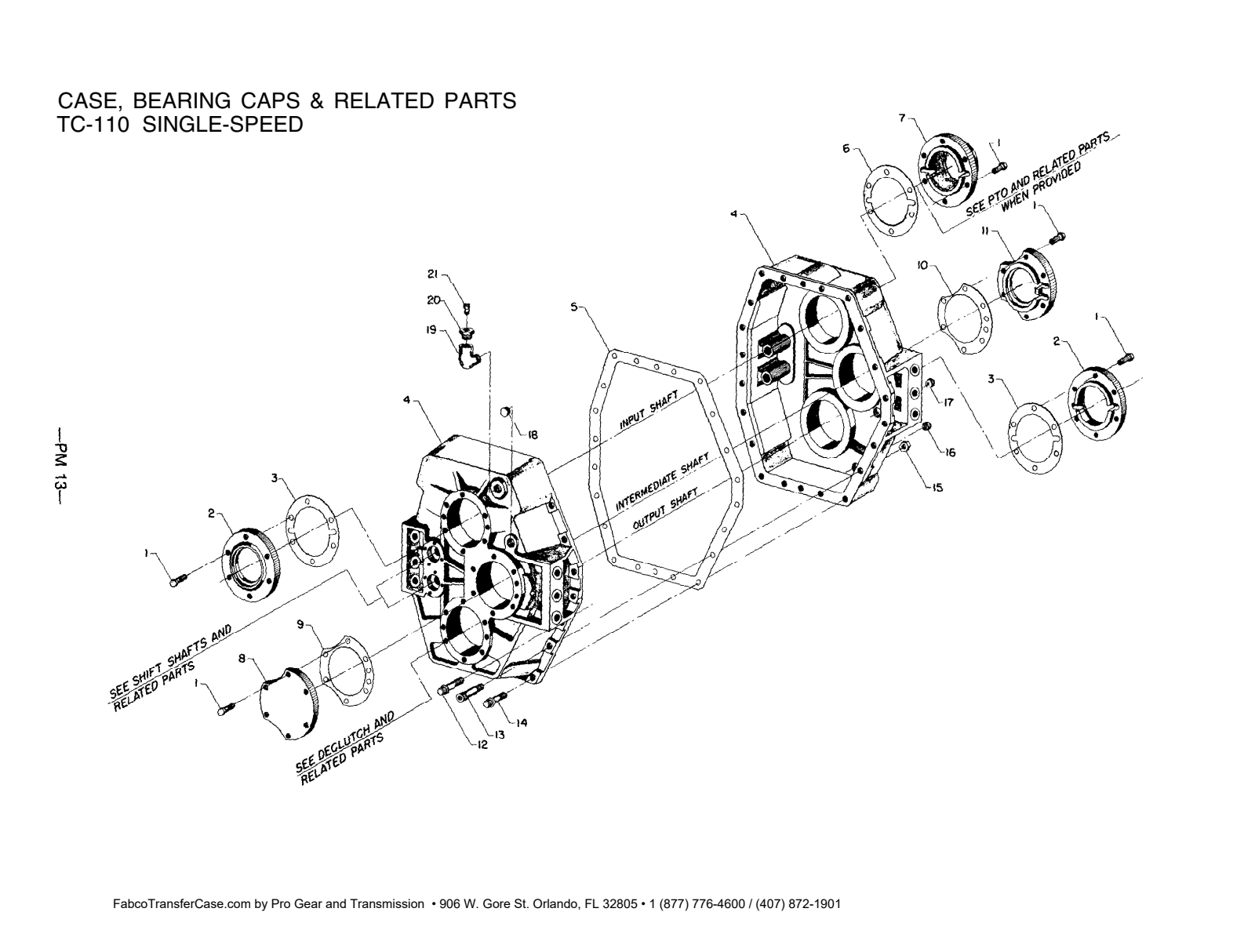

Case Bearing Caps And Related Parts Tc-110 Single Speed
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 265-0238 | Bolt 7/,s-14 X 1¼ 30 | 24 | $7.99 | Add to Cart | |
| 2 | 237-0357 | Carrier Seal 2 | 2 | $394.47 | Add to Cart | |
| 3 | 427-0372 | Gasket, Seal Carrier 2 | 2 | — | Call for availability | |
| 4 | 468-0012 | Housing Assy. Transfer Case 1 , , (lncl 724 532 Bolts & . 688 564 Nuts Qty-4) , | 1 | — | Call for availability | |
| 5 | 427-0373 | Gasket, Main Case 1 | 1 | — | Call for availability | |
| 6 | 744-0278 | Shim Upper Shaft .030 Thick (coral) } , | $18.52 | Add to Cart | ||
| 744-0279 | Shim Upper Shaft .015 Thick (pink) As , | $16.76 | Add to Cart | |||
| 744-0282 | Shim Upper Shaft .005 Thick (blue) Required , | $13.54 | Add to Cart | |||
| 744-0283 | Shim Upper Shaft .002 Thick (red) (see Note , | 1) | $13.54 | Add to Cart | ||
| 7 | 235-0353 | Cap Upper Rear Case 1 , | — | — | Call for availability | |
| 8 | 235-0392 | Cap Intermediate Shaft, Front 1 , | 1 | — | Call for availability | |
| 9 | 427-0374 | Gasket, Intermediate Shaft, Cap 1 | 1 | — | Call for availability | |
| 10 | 744-0289 | Shim Inter. Shaft .030 Thick (coral) } , | — | No longer available — call for replacement | ||
| 744-0292 | Shim Inter. Shaft .015 Thick (pink) As , | — | Call for availability | |||
| 744-0293 | Shim Inter. Shaft .005 Thick (blue) Required , | — | No longer available — call for replacement | |||
| 744-0294 | Shim Inter. Shaft .002 Thick (red) (see Note , | 1) | — | Call for availability | ||
| 11 | 235-0348 | Cap Intermediate Shaft Rear 1 , | 1 | — | Call for availability | |
| 12 | 724-0532 | Screw, ½-13 X 2¾ Ferryhead 6 | 6 | — | No longer available — call for replacement | |
| 13 | 265-0837 | Bolt, 5/a X 2 Shoulder 2 | 2 | — | Call for availability | |
| 14 | 724-0529 | Screw, ½-13 X 1¾ Ferryhead 8 | 8 | $10.23 | Add to Cart | |
| 15 | 688-0564 | Nut, ½-13 Flexloc 8 | 8 | — | Call for availability | |
| 16 | 758-0274 | Plug ¾ Mag Socket Head Pipe 1 , . | 1 | $8.70 | Add to Cart | |
| 17 | 758-0268 | Plug ¾ 1 , | 1 | — | Call for availability | |
| 18 | 758-0344 | Plug Breakoff, ¾ NPT 1 , | 1 | $125.52 | Add to Cart | |
| 19 | 359-0267 | ¾x 90° Street Elbow 1 | 1 | $9.36 | Add to Cart | |
| 20 | 356-0236 | ¾-1/a Pipe Bushing 1 | 1 | — | Call for availability | |
| 21 | 836-0222 | Breather, 1/a NPT 1 6 & 10 Select Shims To Give .003- .008 End Float On Each | 1 | $14.69 | Add to Cart |

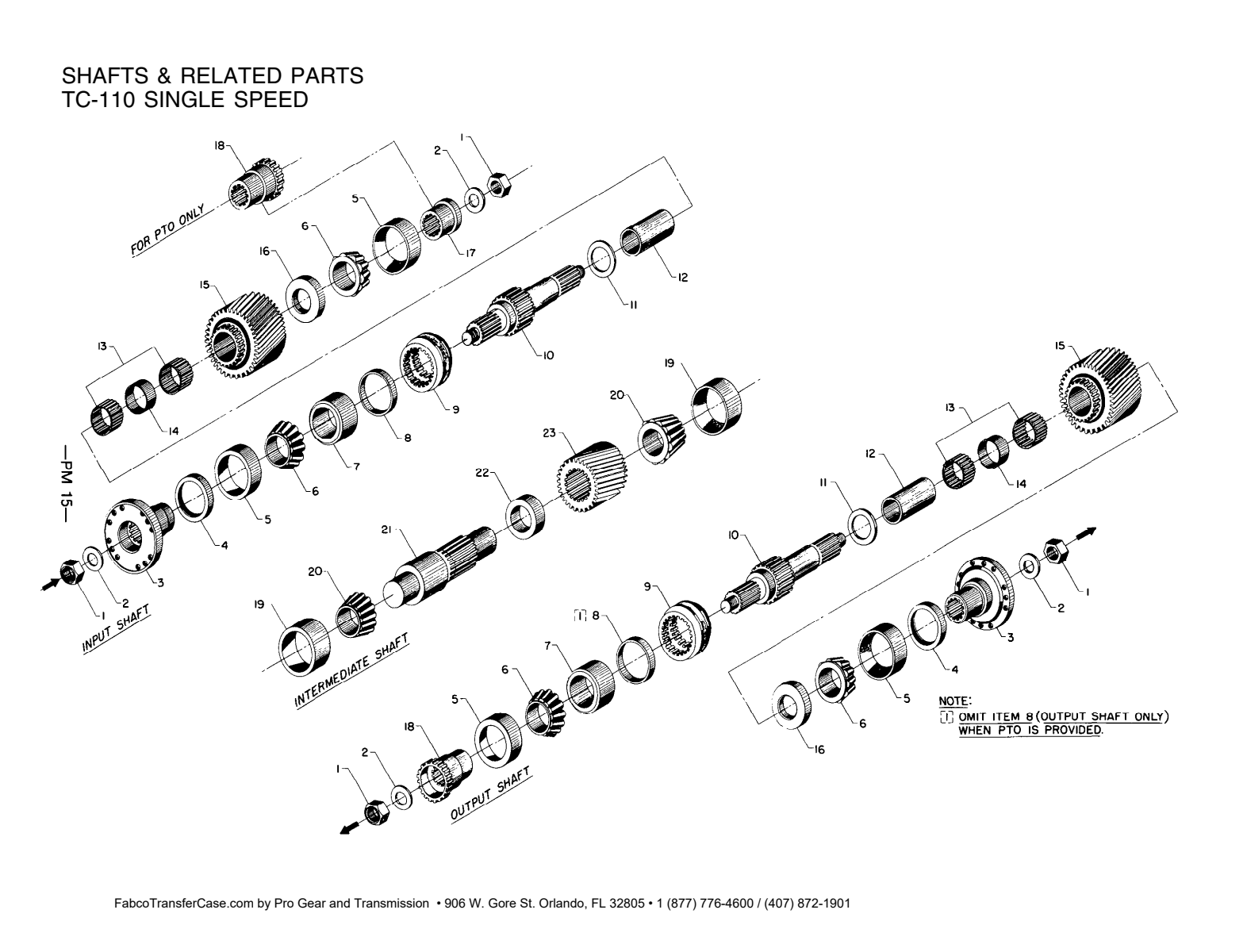

Tc-110 Single Speed
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 688-0639 | Nut, 1½-18 4 | 4 | $32.18 | Add to Cart | |
| 2 | 927-0775 | 005 Washer, Hardened 4 | 4 | — | Call for availability | |
| 3 | 352-0387 | Flange Input-output (1810) } 2 , | 2 | — | Call for availability | |
| 352-0436 | Flange Input-output (1710) , | — | Call for availability | |||
| 4 | 732-0328 | Seal Oil 2 , | 2 | $87.86 | Add to Cart | |
| 5 | 233-0282 | Bearing Cup 4 | 4 | — | No longer available — call for replacement | |
| 6 | 233-0283 | Bearing Cone 4 | 4 | — | No longer available — call for replacement | |
| 7 | 736-0846 | Ring Spacer 2 , | 2 | — | Call for availability | |
| 8 | 736-0845 | Ring Spacer 2 , | 1 | — | Call for availability | |
| 9 | 432-0426 | Clutch Collar 2 | 2 | $1,103.38 | Add to Cart | |
| 10 | 742-0932 | Shaft, Input & Output 2 | 2 | — | Call for availability | |
| 11 | 927-0724 | Thrust Washer 2 | 2 | — | Call for availability | |
| 12 | 233-0435 | Bearing Inner Race 2 , | 2 | — | Call for availability | |
| 13 | 233-0436 | Roller Bearing Assy. 4 | 4 | — | Call for availability | |
| 14 | 736-0849 | Ring Needle Bearing Spacer 2 , , | 2 | — | Call for availability | |
| 15 | 432-0495 | Gear, Upper & Lower 2 | 2 | — | Call for availability | |
| 16 | 736-0844 | Ring Bearing Spacer 2 , | 2 | — | Call for availability | |
| 17 | 883-0695 | Tube Blanking Sleeve 1 , | — | — | Call for availability | |
| 18 | 432-0496 | Gear, Declutch And Pto 1 | 2 | — | Call for availability | |
| 19 | 233-0378 | Bearing Cup 2 | 2 | — | No longer available — call for replacement | |
| 20 | 233-0379 | Bearing Cone 2 | 2 | $905.04 | Add to Cart | |
| 21 | 742-0929 | Shaft, Intermediate 1 | 1 | — | Call for availability | |
| 22 | 736-0887 | Ring Intermediate Shaft Spacer 1 , | 1 | — | Call for availability | |
| 23 | 432-0497 | Gear, Intermediate 1 | 1 | $1,295.58 | Add to Cart | |
| 1 | 688-0372 | Nut, Hex Jam ¾-16 — , | 1 | — | Call for availability | |
| 2 | 265-0366 | Bolt, ¼-20 X 1 — | 4 | $1.73 | Add to Cart | |
| 3 | 265-0984 | Bolt, Shift Rod Stop Long — , | 1 | — | No longer available — call for replacement | |
| 4 | 235-0354 | Cap Shift Adjust — , | 1 | — | No longer available — call for replacement | |
| 5 | 675-0224 | “o” Ring — | 4 | — | Call for availability | |
| 6 | 742-0942 | Shaft, Shift — | 1 | — | Call for availability | |
| 7 | 947-0223 | Lockwire — | 1 | $46.99 | Add to Cart | |
| 8 | 265-0768 | Bolt, 7/,s-20 X 1½ Drilled Head — | 2 | $21.89 | Add to Cart | |
| 9 | 367-0254 | Fork, Shift — | 1 | $590.15 | Add to Cart | |
| 10 | 883-0479 | Tube Shift Cylinder Adapter — , | 1 | $54.52 | Add to Cart | |
| 11 | 777-0465 | Spring Shift Shaft — , | 1 | — | No longer available — call for replacement | |
| 13 | 782-0288 | “o” Ring Piston Shaft — , | 1 | $6.16 | Add to Cart | |
| 14 | 339-0223 | Felt Wiper — | 1 | $13.62 | Add to Cart | |
| 15 | 753-0232 | Piston Shift — | 1 | $77.81 | Add to Cart | |
| 16 | 675-0326 | “o” Ring — | 1 | — | Call for availability | |
| 17 | 927-0643 | Washer — | 1 | $8.10 | Add to Cart | |
| 18 | 688-0464 | Nut, Flexloc — | 1 | $8.21 | Add to Cart | |
| 19 | 883-0887 | 002 Tube Shift Cylinder, 3 .375 Long — , | 1 | — | Call for availability | |
| 20 | 235-0352 | Cap Shift Cylinder — , | 1 | $63.16 | Add to Cart | |
| 21 | 265-0772 | Bolt, ¼-20 X 4½ — | 4 | $7.83 | Add to Cart | |
| 22 | 265-0343 | Bolt, ¼-20 X ½ (cover) 16 | 8 | $8.01 | Add to Cart | |
| 23 | 235-0372 | Cap Cover 4 , | 2 | $16.48 | Add to Cart | |
| 24 | 427-0399 | Gasket, Shift Shaft Cap 4 | — | $72.58 | Add to Cart |

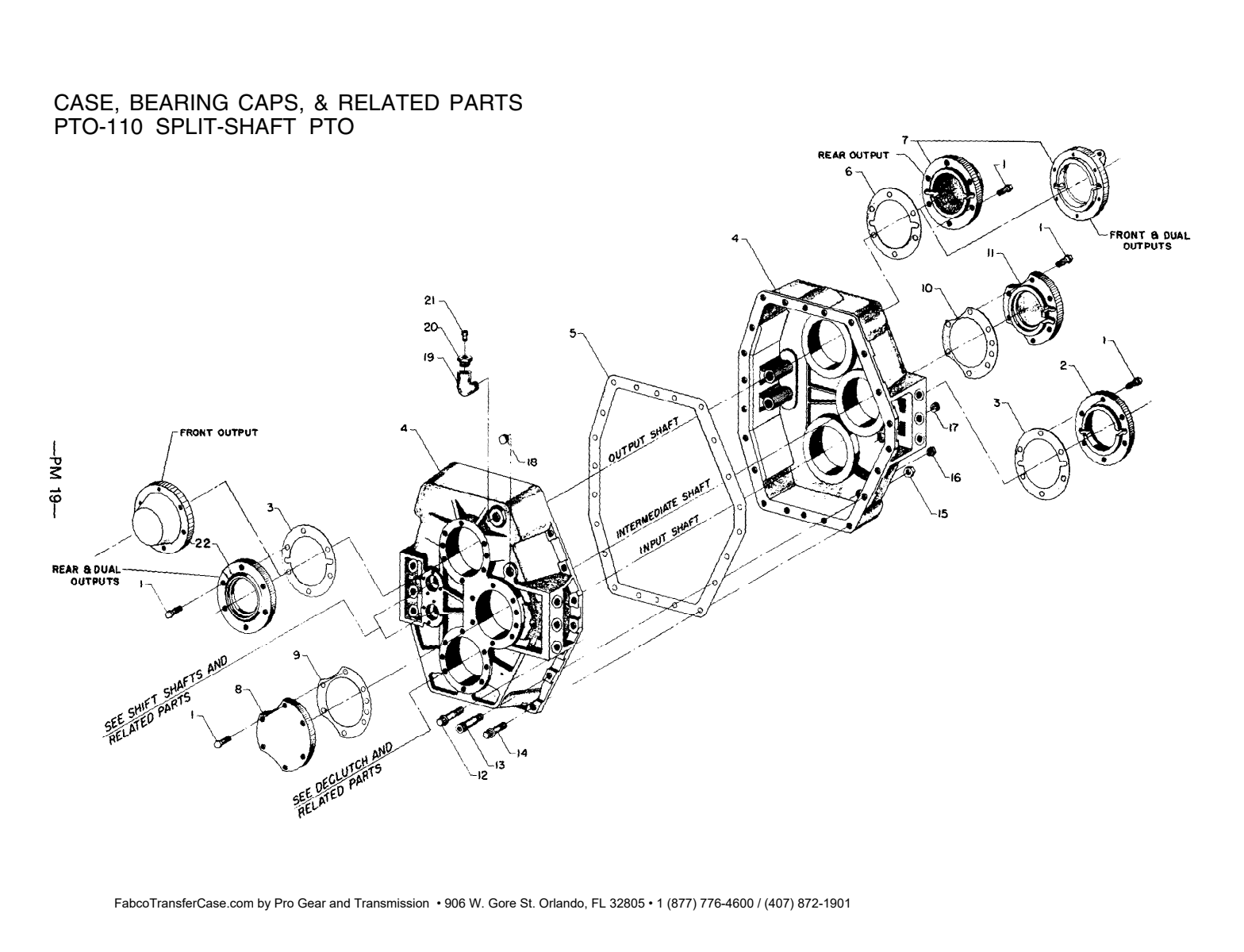

Case, Bearing Caps And Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 265-0238 | 30 | 30 | 30 | $7.99 | Add to Cart |
| 2 | 237-0357 | Carrier Seal 1 | 1 | 1 | $394.47 | Add to Cart |
| 3 | 427-0372 | Gasket, Seal Carrier 2 | 2 | 2 | — | Call for availability |
| 4 | 468-0012 | Housing Ass’y, Transfer Case 1 , (incl 724 532 Bolts & . 688 564 Nuts Qty. -4) , | 1 | 1 | — | Call for availability |
| 5 | 427-0373 | Gasket, Main Case 1 } | 1 | 1 | — | Call for availability |
| 6 | 744-0278 | Shim Upper Shaft .030 Thick (coral) , | $18.52 | Add to Cart | ||
| 744-0279 | Shim Upper Shaft .015 Thick (pink) , As | Required | $16.76 | Add to Cart | ||
| 744-0282 | Shim Upper Shaft .005 Thick (blue) , (see | Note 1) | $13.54 | Add to Cart | ||
| 744-0283 | Shim Upper Shaft .002 Thick (red) , | $13.54 | Add to Cart | |||
| 7 | 235-0353 | Cap Upper Front Case — , | — | 1 | — | Call for availability |
| 237-0438 | Carrier, Upper Front 1 | 1 | — | No longer available — call for replacement | ||
| 8 | 235-0392 | Cap Intermediate Shaft, Rear 1 , | 1 | 1 | — | Call for availability |
| 9 | 427-0374 | Gasket, Intermediate Shaft, Cap 1 } | 1 | 1 | — | Call for availability |
| 10 | 744-0289 | Shim Inter. Shaft .030 Thick (coral) , | — | No longer available — call for replacement | ||
| 744-0292 | Shim Inter. Shaft .015 Thick (pink) , As | Required | — | Call for availability | ||
| 744-0293 | Shim Inter. Shaft .005 Thick (blue) , (see | Note 1) | — | No longer available — call for replacement | ||
| 744-0294 | Shim Inter. Shaft .002 Thick (red) , | — | Call for availability | |||
| 11 | 235-0442 | Cap Intermediate Shaft Front 1 , 2% 1/2-13 X | 1 | 1 | — | Call for availability |
| 12 | 724-0532 | Screw, Ferryhead 6 Sfax 2 | 6 | 6 | — | No longer available — call for replacement |
| 13 | 265-0837 | Bolt, Shoulder 2 1 2-13x 1% | 2 | 2 | — | Call for availability |
| 14 | 724-0529 | Screw, ; Ferryhead 8 | 8 | 8 | $10.23 | Add to Cart |
| 15 | 688-0564 | Nut, % -13 Flexloc 8 | 8 | 8 | — | Call for availability |
| 16 | 758-0274 | Plug 3/4 Mag Socket Head Pipe 1 , . | 1 | 1 | $8.70 | Add to Cart |
| 17 | 758-0268 | Plug 3/4 1 , | 1 | 1 | — | Call for availability |
| 18 | 758-0344 | Plug Breakoff, NPT 1 , ¾x 90° | 1 | 1 | $125.52 | Add to Cart |
| 19 | 359-0267 | Street Elbow 1 ¾-1/a | 1 | 1 | $9.36 | Add to Cart |
| 20 | 356-0236 | Pipe Bushing 1 | 1 | 1 | — | Call for availability |
| 21 | 836-0222 | Breather, 1/a NPT 1 | 1 | 1 | $14.69 | Add to Cart |
| 22 | 235-0387 | Cap Upper Rear 1 , | — | — | — | Call for availability |
| 237-0439 | Carrier, Upper Rear — 6 & 10 Select Shims To Give .003- .008 End Float On Each Shaft. | 1 | 1 | — | Call for availability |

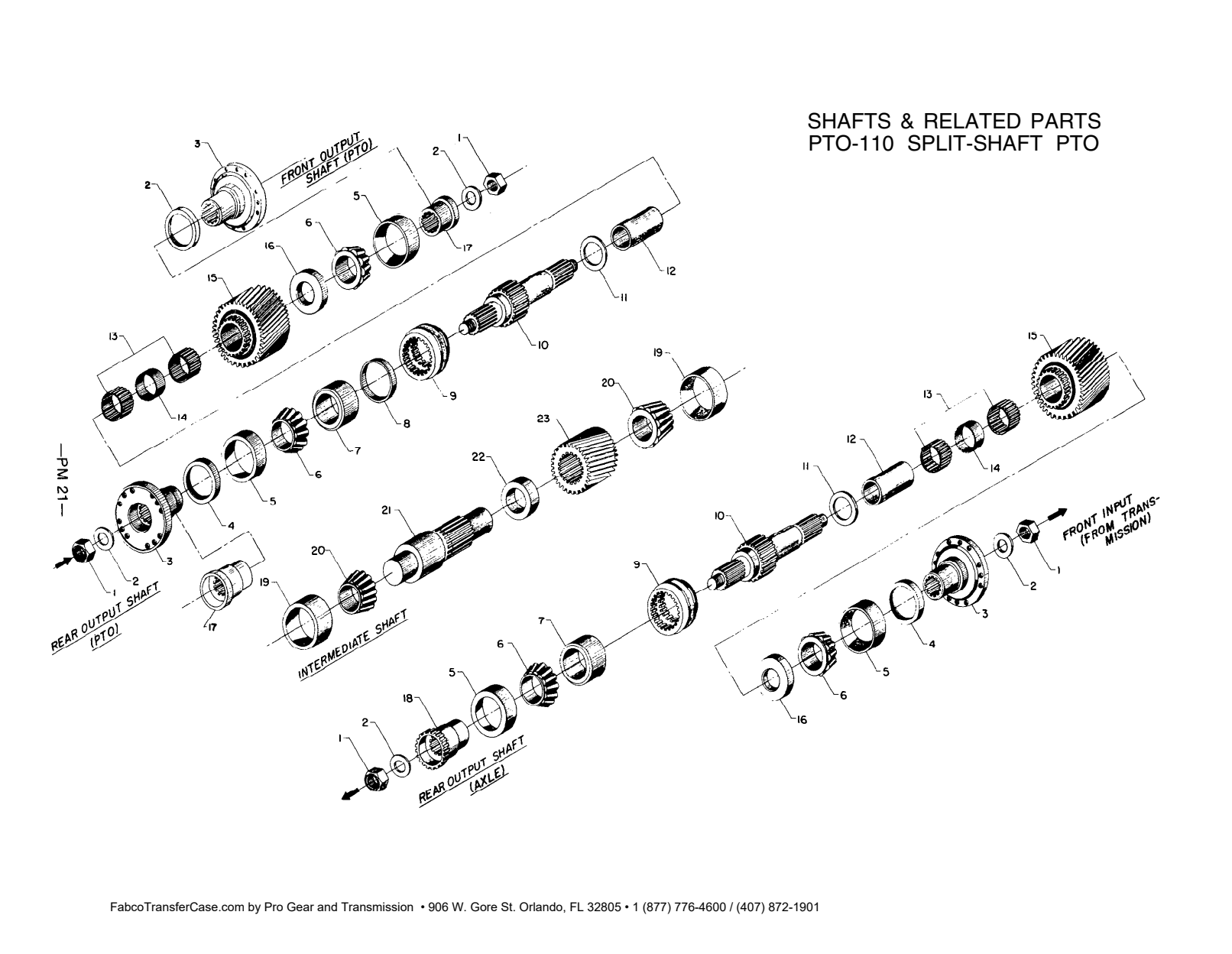

Shafts And Related Parts Pto-110 Front Dual Rear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 688-0639 | Nut 1 1/2-18 4 , | 4 | 4 | $32.18 | Add to Cart |
| 2 | 927-0775 | 005 Washer Hardened 4 , | 4 | 4 | — | Call for availability |
| 3 | 352-0387 | Flange Input-output (1810) } , 2 | 3 | 2 | — | Call for availability |
| 352-0436 | Flange Input-output (1 710) , | — | Call for availability | |||
| 4 | 732-0328 | Seal Oil 2 , | 3 | 2 | $87.86 | Add to Cart |
| 5 | 233-0282 | Bearing Cup 4 | 4 | 4 | — | No longer available — call for replacement |
| 6 | 233-0283 | Bearing Cone 4 | 4 | 4 | — | No longer available — call for replacement |
| 7 | 736-0846 | Ring Spacer 2 , | 2 | 2 | — | Call for availability |
| 8 | 736-0845 | Ring Spacer 1 , | 1 | 1 | — | Call for availability |
| 9 | 432-0426 | Clutch Collar 2 | 2 | 2 | $1,103.38 | Add to Cart |
| 10 | 742-0932 | Shaft Input & Output 2 , | 2 | 2 | — | Call for availability |
| 11 | 927-0724 | Thrust Washer 2 | 2 | 2 | — | Call for availability |
| 12 | 233-0435 | Bearing Inner Race 2 , | 2 | 2 | — | Call for availability |
| 13 | 233-0436 | Roller Bearing Ass’y 4 . | 4 | 4 | — | Call for availability |
| 14 | 736-0849 | Ring Needle Bearing Spacer 2 , , | 2 | 2 | — | Call for availability |
| 15 | 432-0495 | Gear Upper & Lower 2 , | 2 | 2 | — | Call for availability |
| 16 | 736-0844 | Ring Bearing Spacer 2 , | 2 | 2 | — | Call for availability |
| 17 | 883-0695 | Tube Blanking Sleeve , | 1 | — | Call for availability | |
| 18 | 432-0496 | Gear Declutch And Pto 1 , | 1 | 1 | — | Call for availability |
| 19 | 233-0378 | Bearing Cup 2 | 2 | 2 | — | No longer available — call for replacement |
| 20 | 233-0379 | Bearing Cone 2 | 2 | 2 | $905.04 | Add to Cart |
| 21 | 742-0929 | Shaft Intermediate , | 1 | — | Call for availability | |
| 22 | 736-0887 | Ring Intermediate Shaft Spacer , | 1 | — | Call for availability | |
| 23 | 432-0497 | Gear Intermediate , | $1,295.58 | Add to Cart |

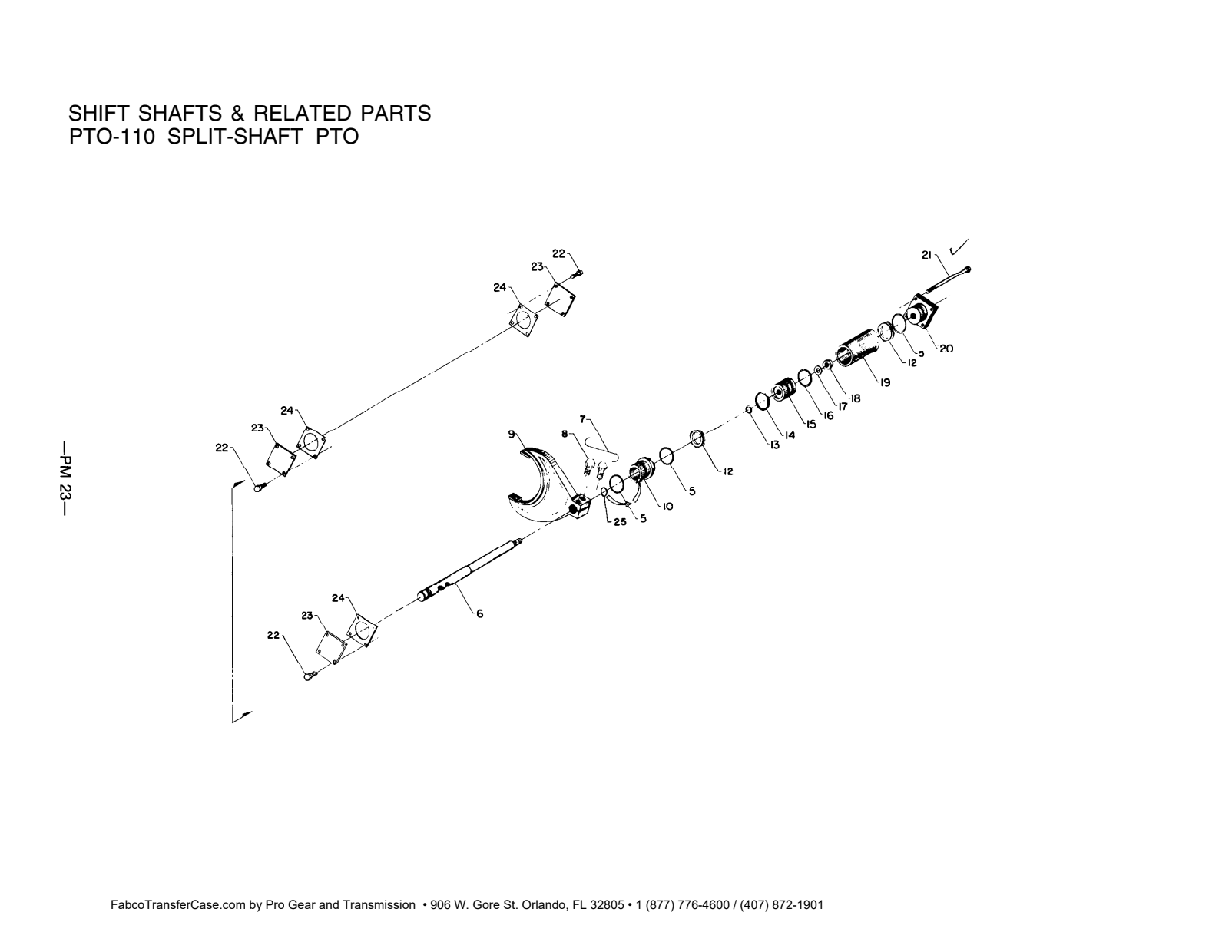

Shift Shaft And Related Parts Pto-110
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5 | 675-0224 | O -ri Ng 1 | — | Call for availability | ||
| 6 | 769-0262 | Shaft Shift 1 , | — | Call for availability | ||
| 7 | 947-0223 | Lockwi Re | $46.99 | Add to Cart | ||
| 8 | 265-0768 | Bolt Drilled Head , | $21.89 | Add to Cart | ||
| 9 | 367-0254 | Fork Shift 1 , | $590.15 | Add to Cart | ||
| 10 | 883-0877 | Tube Shift Cylinder Adapter 1 , | $94.59 | Add to Cart | ||
| 12 | 736-0747 | Stop Ring 2 | $9.38 | Add to Cart | ||
| 13 | 782-0288 | O -ring Piston Shaft , | $6.16 | Add to Cart | ||
| 14 | 339-0223 | Felt Wiper | $13.62 | Add to Cart | ||
| 15 | 753-0232 | Piston Shift 1 | $77.81 | Add to Cart | ||
| 16 | 675-0326 | O -ring 1 | — | Call for availability | ||
| 17 | 927-0643 | Washer 1 | $8.10 | Add to Cart | ||
| 18 | 688-0464 | Nut Flexloc , 1 | $8.21 | Add to Cart | ||
| 19 | 883-0887 | 004 Tube Shift Cylinder, 2 .938 Long 1 , | — | Call for availability | ||
| 20 | 235-0352 | Cap Shift Cylinder 1 , | $63.16 | Add to Cart | ||
| 21 | 265-0982 | Bolt 1/4-20 X 4% 4 , | $11.84 | Add to Cart | ||
| 22 | 265-0343 | Bolt 1/4-20 X 1/2 (cover) 12 , | $8.01 | Add to Cart | ||
| 23 | 235-0372 | Cap Cover 3 , | $16.48 | Add to Cart | ||
| 24 | 427-0399 | Gasket Shift Shaft Cap 3 , | $72.58 | Add to Cart | ||
| 25 | 675-0316 | O -ring 1 —pm 24— | — | Call for availability |
Tc-65, Tc-80 & Tc-110
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 688-0633 | Nut Self Locking , z.J)o'/1l | 1 | $15.30 | Add to Cart | ||
| 2 | 927-0775 | 002 Washer, Hardened 3 s-2. -l/., � | — | Call for availability | ||
| 352-0428 | Flange, Output (1710) · | 1 | — | Call for availability | ||
| 352-0344 | Flange, Output (1550/1710) ;_r--a. • If 31. Jfi '0 | - ori.3- | — | Call for availability | ||
| 4 | 732-0328 | Seal, Oil | 1 | $87.86 | Add to Cart | |
| 5 | 233-0377 | Bearing Cone | 2 | $106.63 | Add to Cart | |
| 6 | 233-0376 | Bearing Cup Thick} | 2 | $123.43 | Add to Cart | |
| 7 | 736-0767 | Ring, Bearing Spacer .323 Thick | One As | — | Call for availability | |
| 736-0797 | Ring, Bearing Spacer .328 | Required | — | Call for availability | ||
| 736-0896 | Ring, Bearing Spacer .313 Thick | (See Note | 2) | — | Call for availability | |
| 736-0897 | Ring, Bearing Spacer .318 Thick | — | Call for availability | |||
| 9 | 265-0238 | Bolt, 7 /15-14 X 1 ¼l | 8 | $7.99 | Add to Cart | |
| 10 | 237-0359 | Carrier, Bearing And Seal | $862.84 | Add to Cart | ||
| 11 | 742-0797 | Shaft, Front Drive | — | Call for availability | ||
| 12 | 432-0427 | Clutch Gear | — | Call for availability | ||
| 13 | 762-0288 | Snap Ring | $9.84 | Add to Cart | ||
| 14 | 432-0426 | Clutch Collar | $1,103.38 | Add to Cart | ||
| 15 | 367-0254 | Fork, Shift | $590.15 | Add to Cart | ||
| 16 | 265-0768 | Bolt, 7/w20 X 11/z Drilled Headl | 2 | $21.89 | Add to Cart | |
| 17 | 947-0223 | Lockwire | $46.99 | Add to Cart | ||
| 18 | 427-0375 | Gasket | $27.66 | Add to Cart | ||
| 19 | 724-0677 | Capscrew, Ferry Hd. 7 /,6-14 X 2¼l , | 6 | $10.43 | Add to Cart | |
| 20 | 468-0478 | Housing, Declutch | 1 | — | Call for availability | |
| 21 | 265-0343 | Bolt, Capscrew ¼-20 X ½ | 4 | $8.01 | Add to Cart | |
| 22 | 792-0866 | Plate, Declutch Unit Cover | $20.44 | Add to Cart | ||
| 23 | 427-0376 | Gasket, Declutch Cover | $19.13 | Add to Cart | ||
| 24 | 758-0328 | Plug, 1 " Welch 5/,s Dia. X 1 ¼l | $12.30 | Add to Cart | ||
| 25 | 746-0628 | Pin, | $34.21 | Add to Cart | ||
| 26 | 927-0427 | Washer, Copper | $8.16 | Add to Cart | ||
| 27 | 798-0245 | Switch, Shift Indicating | $30.28 | Add to Cart | ||
| 28 | 675-0224 | "o" Ring | 3 | — | Call for availability | |
| 29 | 883-0482 | Tube, Shift Cylinder Adapter | $99.33 | Add to Cart | ||
| 30 | 777-0477 | Spring, Shift Shaft | $26.12 | Add to Cart | ||
| 31 | 736-0747 | Stop Ring | $9.38 | Add to Cart | ||
| 32 | 742-0799 | Shaft, Shift | $233.54 | Add to Cart | ||
| 33 | 782-0288 | "o" Ring, Piston Shaft Seal | $6.16 | Add to Cart | ||
| 34 | 339-0223 | Felt Wiper | $13.62 | Add to Cart | ||
| 35 | 753-0232 | Piston Shift , | $77.81 | Add to Cart | ||
| 36 | 927-0643 | Washer | $8.10 | Add to Cart | ||
| 37 | 688-0464 | Nut, Flexloc | $8.21 | Add to Cart | ||
| 38 | 883-0887 | 001 Tube, Shift Cylinder, 2 .75 Long | — | Call for availability | ||
| 39 | 235-0352 | Cap, Shift Cylinder ¼-20 X 3¾l | $63.16 | Add to Cart | ||
| 40 | 265-0769 | Bolt, Capscrew } | 4 | $8.73 | Add to Cart | |
| 41 | 744-0278 | Shim, Lower Shatt .030 Thk (coral) | As | $18.52 | Add to Cart | |
| 744-0279 | Shim, Lower Shaft .015 Thk (pink) | Required | $16.76 | Add to Cart | ||
| 744-0282 | Shim, Lower Shaft .005 Thk (blue) | (See Note | 1) | $13.54 | Add to Cart | |
| 744-0283 | Shim, Lower Shaft .002 Thk (red) | $13.54 | Add to Cart | |||
| 42 | 675-0326 | "o" Ring Select Shims To Give .003-.008 End Float On Shaft.l Select Spacer To Give .003-.008 End Float On Shaft.l | — | Call for availability |

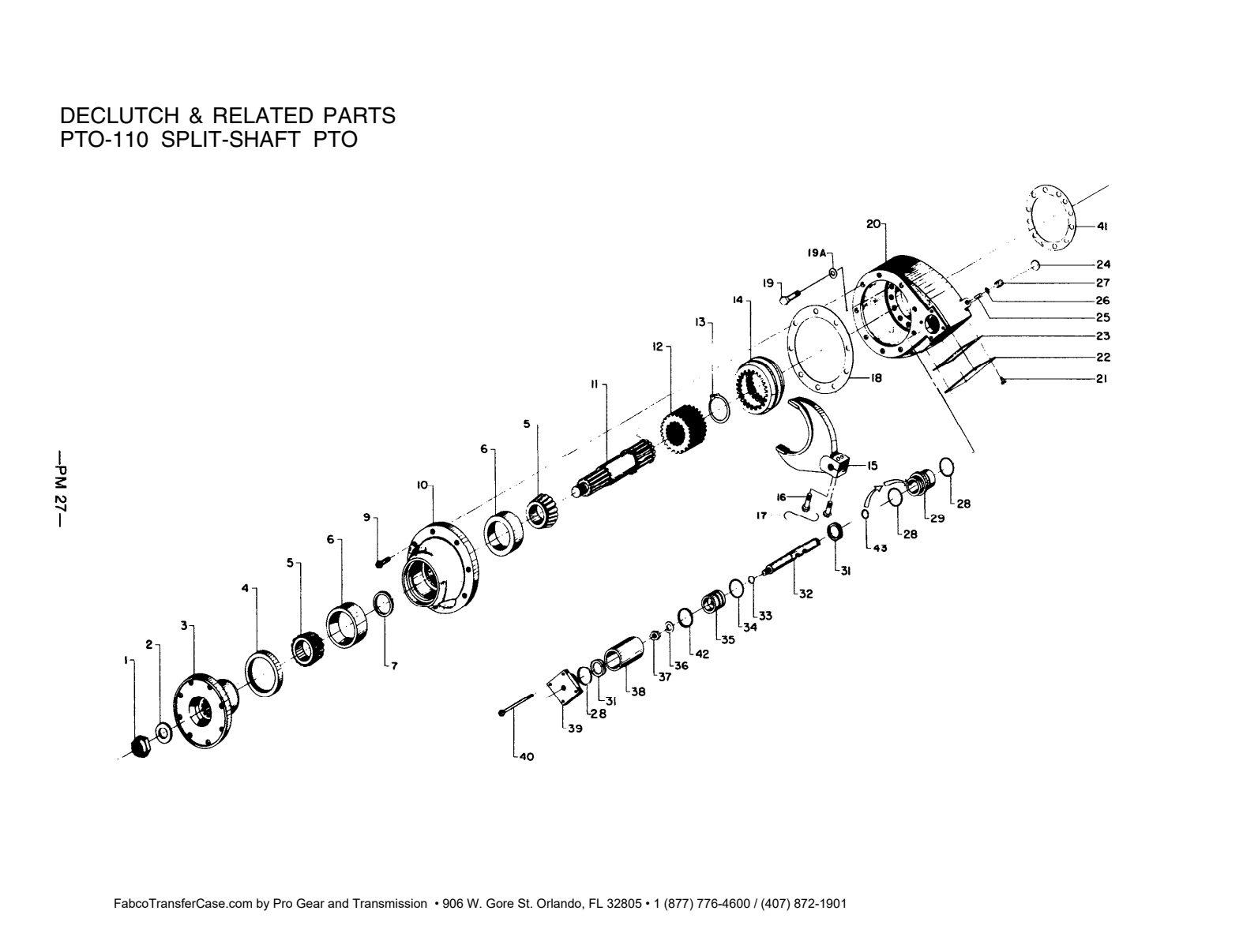

Declutch And Related Parts Pto-1 10
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 688-0639 | Nut, Self Locking | 1 | $32.18 | Add to Cart | |
| 2 | 927-0775 | 005 Washer, Hardened | 1 | — | Call for availability | |
| 3 | 352-0457 | Flange Output (1710) } , | 1 | — | Call for availability | |
| 352-0458 | Flange Output (1810) , | — | Call for availability | |||
| 4 | 732-0328 | Seal Oil , | 1 | $87.86 | Add to Cart | |
| 5 | 233-0443 | Bearing Cone | 2 | $87.23 | Add to Cart | |
| 6 | 233-0444 | Bearing Cup | 2 | $62.92 | Add to Cart | |
| 7 | 736-0939 | Ring Bearing Spacer .360 Thick , } | One As | $270.14 | Add to Cart | |
| 736-0942 | Ring Bearing Spacer .365 Thick , | Required | $211.79 | Add to Cart | ||
| 736-0943 | Ring Bearing Spacer .370 Thick , | (See Note | 2) | $256.47 | Add to Cart | |
| 736-0944 | Ring Bearing Spacer .375 Thick . | $256.47 | Add to Cart | |||
| 736-0959 | Ring Bearing Spacer .380 Thick , | $96.87 | Add to Cart | |||
| 736-0962 | Ring Bearing Spacer .385 Thick , | $56.02 | Add to Cart | |||
| 9 | 265-0238 | Bolt, | 8 | $7.99 | Add to Cart | |
| 10 | 237-0427 | Carrier, Bearing And Seal | 1 | — | Call for availability | |
| 11 | 769-0259 | Shaft, Front Drive | 1 | — | Call for availability | |
| 12 | 432-0427 | Clutch Gear | 1 | — | Call for availability | |
| 13 | 762-0288 | Snap Ring | 1 | $9.84 | Add to Cart | |
| 14 | 432-0426 | Clutch Collar | 1 | $1,103.38 | Add to Cart | |
| 15 | 367-0254 | Fork Shift | 1 | $590.15 | Add to Cart | |
| 16 | 265-0768 | Bolt, Drilled Head | 2 | $21.89 | Add to Cart | |
| 17 | 947-0223 | Lockwire | 1 | $46.99 | Add to Cart | |
| 18 | 427-0375 | Gasket | 1 | $27.66 | Add to Cart | |
| 19 | 724-0677 | Capscrew, Ferry Hd 7/is-14 X 2¼ . , | 6 | $10.43 | Add to Cart | |
| 20 | 468-0478 | Housing Declutch , | 1 | — | Call for availability | |
| 21 | 265-0343 | Bolt, Capscrew 1/4-20 X 1/2 | 4 | $8.01 | Add to Cart | |
| 22 | 792-0866 | Plate Declutch Unit Cover , | 1 | $20.44 | Add to Cart | |
| 23 | 427-0376 | Gasket, Declutch Cover | 1 | $19.13 | Add to Cart | |
| 24 | 758-0328 | Plug 1 ” Welch , | 1 | $12.30 | Add to Cart | |
| 25 | 746-0628 | Pin Dia. X 1% , · | $34.21 | Add to Cart | ||
| 26 | 927-0427 | Washer, Copper | 1 | $8.16 | Add to Cart | |
| 27 | 798-0245 | Switch Shift Indicating , | 1 | $30.28 | Add to Cart | |
| 28 | 675-0224 | O-ring | 3 | — | Call for availability | |
| 29 | 883-0877 | Tube Shift Cylinder Adapter , | 1 | $94.59 | Add to Cart | |
| 31 | 736-0747 | Stop Ring | 2 | $9.38 | Add to Cart | |
| 32 | 769-0263 | Shaft, Shift | 1 | $297.57 | Add to Cart | |
| 33 | 782-0288 | O-ring Piston Shaft Seal , | 1 | $6.16 | Add to Cart | |
| 34 | 339-0223 | Felt Wiper | 1 | $13.62 | Add to Cart | |
| 35 | 753-0232 | Piston Shift , | 1 | $77.81 | Add to Cart | |
| 36 | 927-0643 | Washer | 1 | $8.10 | Add to Cart | |
| 37 | 688-0464 | Nut, Flexloc | 1 | $8.21 | Add to Cart | |
| 38 | 883-0887 | 004 Tube Shift Cylinder, 2 .94 Long , | 1 | — | Call for availability | |
| 39 | 235-0352 | Cap Shift Cylinder , | 1 | $63.16 | Add to Cart | |
| 40 | 265-0982 | Bolt, Capscrew | 4 | $11.84 | Add to Cart | |
| 41 | 744-0278 | Shim Lower Shaft .030 Thick (coral) } , | $18.52 | Add to Cart | ||
| 744-0279 | Shim Lower Shaft .015 Thick (pink) , | As Required | $16.76 | Add to Cart | ||
| 744-0282 | Shim Lower Shaft .005 Thick (blue) , | (See | Note 1) | $13.54 | Add to Cart | |
| 744-0283 | Shim Lower Shaft .002 Thick (red) , | $13.54 | Add to Cart | |||
| 42 | 675-0326 | O-ring | 1 | — | Call for availability | |
| 43 | 675-0316 | O-ring 41 Select Shims To Give .003- .008 End Float On 7 Select Spacer To Give .003- .008 End Float On | 1 | — | Call for availability |
Tc-65, Tc-80 & Tc-110
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 688-0633 | Nut, Self Locking | $15.30 | Add to Cart | |||
| 2 | 927-0775 | 002 Washer, Hardened | — | Call for availability | ||
| 3 | 352-0344 | Flange, P.t.o. (1550/1710) | — | Call for availability | ||
| 4 | 732-0328 | Seal Oil , | $87.86 | Add to Cart | ||
| 5 | 233-0377 | Bearing Cone | 2 | $106.63 | Add to Cart | |
| 6 | 233-0376 | Bearing Cup | 2 | $123.43 | Add to Cart | |
| 7 | 736-0767 | Ring, Beanng Spacer .323 Tllick } | — | Call for availability | ||
| 736-0797 | Ring, Bearing Spacer .328 Thick | As | — | Call for availability | ||
| 736-0896 | Ring, Bearing Spacer .313 Thick | Required | — | Call for availability | ||
| 736-0897 | Ring, Bearing Spacer .318 Thick | (See Note | 1) | — | Call for availability | |
| 9 | 265-0238 | Bolt, 7 /16·14 X 1¼l | 8 | $7.99 | Add to Cart | |
| 10 | 237-0359 | Carrier, Bearing And Seal | $862.84 | Add to Cart | ||
| 11 | 742-0797 | Shaft, P.t.o. Drive | — | Call for availability | ||
| 12 | 432-0427 | Clutch Gear | — | Call for availability | ||
| 13 | 762-0288 | Snap Ring | $9.84 | Add to Cart | ||
| 14 | 432-0426 | Clutch Collar | $1,103.38 | Add to Cart | ||
| 15 | 367-0254 | Fork, Shift | $590.15 | Add to Cart | ||
| 16 | 265-0768 | Bolt, 7I1s-20 X 1 ½ Drilled Headl | $21.89 | Add to Cart | ||
| 17 | 947-0223 | Lockwire | $46.99 | Add to Cart | ||
| 18 | 427-0375 | Gasket | $27.66 | Add to Cart | ||
| 19 | 724-0677 | Capscrew, Ferry Hd., 7/16-14 X 2¼ Select Spacer To Give .003-.008 End Float On Shaft.l | $10.43 | Add to Cart | ||
| 20 | 468-0478 | Housing P.t.o. , | 1 | — | Call for availability | |
| 21 | 265-0343 | Bolt, Capscrew ¼-20 X ½ | 4 | $8.01 | Add to Cart | |
| 22 | 792-0866 | Plate, P.t.o. Unit Cover | 1 | $20.44 | Add to Cart | |
| 23 | 427-0376 | Gasket, P.t.o. Cover | 1 | $19.13 | Add to Cart | |
| 24 | 758-0328 | Plug, 1 " Welch | 1 | $12.30 | Add to Cart | |
| 25 | 746-0628 | Pin, 5/1s Dia. X 1 ¼l | 1 | $34.21 | Add to Cart | |
| 26 | 927-0427 | Washer, Copper | 1 | $8.16 | Add to Cart | |
| 27 | 798-0245 | Switch, Shift Indicating | 1 | $30.28 | Add to Cart | |
| 28 | 675-0224 | "o" Ring | 3 | — | Call for availability | |
| 29 | 883-0482 | Tube, Shift Cylinder Adapter | $99.33 | Add to Cart | ||
| 30 | 777-0477 | Spring, Shift Shaft | $26.12 | Add to Cart | ||
| 31 | 736-0747 | Stop Ring | $9.38 | Add to Cart | ||
| 32 | 742-0799 | Shaft, Shift | $233.54 | Add to Cart | ||
| 33 | 782-0288 | "o" Ring, Piston Shaft Seal | $6.16 | Add to Cart | ||
| 34 | 339-0223 | Felt Wiper | $13.62 | Add to Cart | ||
| 35 | 753-0232 | Piston, Shift | $77.81 | Add to Cart | ||
| 36 | 927-0643 | Washer | $8.10 | Add to Cart | ||
| 37 | 688-0464 | Nut, Flexloc | $8.21 | Add to Cart | ||
| 38 | 883-0887 | 001 Tube, Shift Cylinder, 2.75 Long | — | Call for availability | ||
| 39 | 235-0352 | Cap, Shift Cylinder | $63.16 | Add to Cart | ||
| 40 | 265-0769 | Bolt, ¼-20 X 3¾ | 4 | $8.73 | Add to Cart | |
| 42 | 675-0326 | "o" Ring | — | Call for availability |
786 314 Kit, Lubrication Pump Tc-65 80 110
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 255-0244 | Clamp, Hose | — | Call for availability | ||
| 2 | 273-0688 | Bracket, Oil Filter Mtg. | — | Call for availability | ||
| 3 | 345-0262 | Filter Housing | — | Call for availability | ||
| 4 | 345-0263 | Filter Cartridge | — | No longer available — call for replacement | ||
| 5 | 357-0287 | Adapter, Male, ¼ NPT X 9/,e-18, 37° Jigl | $32.89 | Add to Cart | ||
| 6 | 357-0385 | Tee, 911G-18 ¼ NPT F 9/w18l X X | $149.28 | Add to Cart | ||
| 7 | 357-0544 | Nipple, Hex, ¼ | 1 | — | Call for availability | |
| 8 | 357-0628 | Elbow, 90l ° ¾ NPT M X 9/,s-18, 37° , | 2 | $13.13 | Add to Cart | |
| 9 | 357-0697 | Elbow, 90° ½ NPT M X 9/,s-18, 37l ° Jigl , | $19.95 | Add to Cart | ||
| 10 | 357-0929 | Elbow, 90° ½ NPT X ¾ Fpt , | — | No longer available — call for replacement | ||
| 11 | 357-0942 | Tee, % NPT Male Branch | — | Call for availability | ||
| 12 | 357-0949 | Connector, Male 1/4 Npt, 9/w18, 37° Jigl | — | Call for availability | ||
| 13 | 469-0786 | Hose Ass'y, Filter To Pump | — | Call for availability | ||
| 14 | 469-0796 | Hose Ass'y, Sump To Filter & Pump To Tee | — | No longer available — call for replacement | ||
| 15 | 469-0826 | Hose Ass'y, Tee To Front | — | No longer available — call for replacement | ||
| 16 | 724-0386 | Screw, Self-tapping, ¼-20 X ¼ | — | Call for availability | ||
| 17 | 927-0338 | Washer, Spring Lock, ¼ | $13.73 | Add to Cart | ||
| 18 | 786-0287 | Pump, Oil | — | Call for availability | ||
| 19 | 788-0488 | Stud, ¼-20 X ¼·28 X 1 ¼ | — | Call for availability | ||
| 20 | 688-0323 | Nut, Hex, ¼-28 | $5.40 | Add to Cart | ||
| 21 | 927-0355 | Washer, Lock, Int. Tooth, ¼ | — | Call for availability | ||
| 22 | 427-0435 | Gasket, Oil Pump | — | Call for availability | ||
| 23 | 235-0442 | Cap, Intermediate, Pump Mtg. (replaces 235 348) | — | Call for availability | ||
| 24 | 237-0393 | Carrier, Brg. & Seal Pto , (replaces 237 359) | $830.95 | Add to Cart | ||
| 25 | 237-0439 | Carrier, Seal Input , (replaces 237 357) | — | Call for availability |
Lubrication Pump And Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 255-0244 | Clamp Hose , | 1 | — | Call for availability | |
| 2 | 273-0688 | Bracket Oil Filter Mtg , . | 1 | — | Call for availability | |
| 3 | 345-0262 | Filter Housing | 1 | — | Call for availability | |
| 4 | 345-0263 | Filter Cartridge | 1 | — | No longer available — call for replacement | |
| 5 | 357-0287 | Adapter Male ¼ NPT X 9/16-18 37 ° Jic , , , | 1 | $32.89 | Add to Cart | |
| 6 | 357-0633 | Tee, 9/,5 -18 X ¼ NPT M X 9 /,5 -18 | 1 | — | Call for availability | |
| 8 | 357-0628 | ~ ½ | 2 | $13.13 | Add to Cart | |
| 9 | 357-0288 | Adapter Male 9/16-18 X NPT , , | 1 | — | Call for availability | |
| 10 | 357-0929 | Elbow 90 ° ½x% Fpt , | 1 | — | No longer available — call for replacement | |
| 11 | 357-0942 | ~ R > R - | 1 | — | Call for availability | |
| 12 | 357-0949 | Connector Male ¾ Npt, 9/ 16-18 37° J Ic , , | 1 | — | Call for availability | |
| 13 | 469-0786 | Hose Ass’y Filter To Pump . , | 1 | — | Call for availability | |
| 14 | 469-0796 | Hose Ass’y Sump To Filter & Pump To Tee . , | 2 | — | No longer available — call for replacement | |
| 15 | 469-0795 | Hose Ass’y Tee To Front . , | 1 | — | Call for availability | |
| 16 | 724-0386 | Screw Self-tapping ¼-20 X ¼ , , | 2 | — | Call for availability | |
| 17 | 927-0338 | Washer Spring Lock ¼ , , | 2 | $13.73 | Add to Cart | |
| 18 | 786-0286 | Pump Oil , | 1 | — | Call for availability | |
| 19 | 788-0488 | Stud ¼-20 X ¼-28 X 1 ¼ , | 3 | — | Call for availability | |
| 20 | 688-0323 | Nut Hex ¼-28 , , | 3 | $5.40 | Add to Cart | |
| 21 | 927-0355 | Washer Lock Int Tooth ¼ , , . , | 3 | — | Call for availability | |
| 22 | 427-0435 | Gasket Oil Pump , | 1 | — | Call for availability |
Overhaul Kits:
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 233-0302 | TC-65 Bearing Kit | — | Call for availability | |||
| 233-0303 | TC-80 Bearing Kit | — | Call for availability | |||
| 233-0309 | TC-1 10 Bearing Kit | — | Call for availability | |||
| 427-0301 | °"' TC-65 80 & 110 Seal And Gasket Kit , - TC-65 80 & 110 Gasket Kit , - | — | No longer available — call for replacement | |||
| 872-0490 | Shim Kit | — | Call for availability | |||
| 233-0311 | TC-65 80 & 1 10 Declutch Bearing Overhaul , | Kit | — | Call for availability | ||
| 233-0312 | PTO-1 10 Declutch Bearing Overhaul Kit | — | Call for availability | |||
| 295-0309 | Shift Cylinder Overhaul Kit —pm 35— | — | No longer available — call for replacement |
Additional Parts Listed In This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 427-0314 | TC-65, 80 & 110 Gasket Kit | — | Call for availability | |||
| 786-0314 | Lubrication Pump Kit, TC-65, TC-80 & TC-110 | — | Call for availability | |||
| 883-0887-001 | Tube, Shift Cylinder, 2.75 Long | $107.78 | Add to Cart | |||
| 883-0887-002 | Tube, Shift Cylinder, 3.375 Long | — | No longer available — call for replacement | |||
| 883-0887-004 | Tube, Shift Cylinder, 2.938 Long | $304.45 | Add to Cart | |||
| 927-0775-002 | Washer, Hardened | $105.17 | Add to Cart | |||
| 927-0775-005 | Washer, Hardened | $61.55 | Add to Cart |
This is the complete factory parts breakdown for the Fabco Transfer Case TC-65-80-110 — every part in the manual, matched to our live inventory. We stock 254 of the 524 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

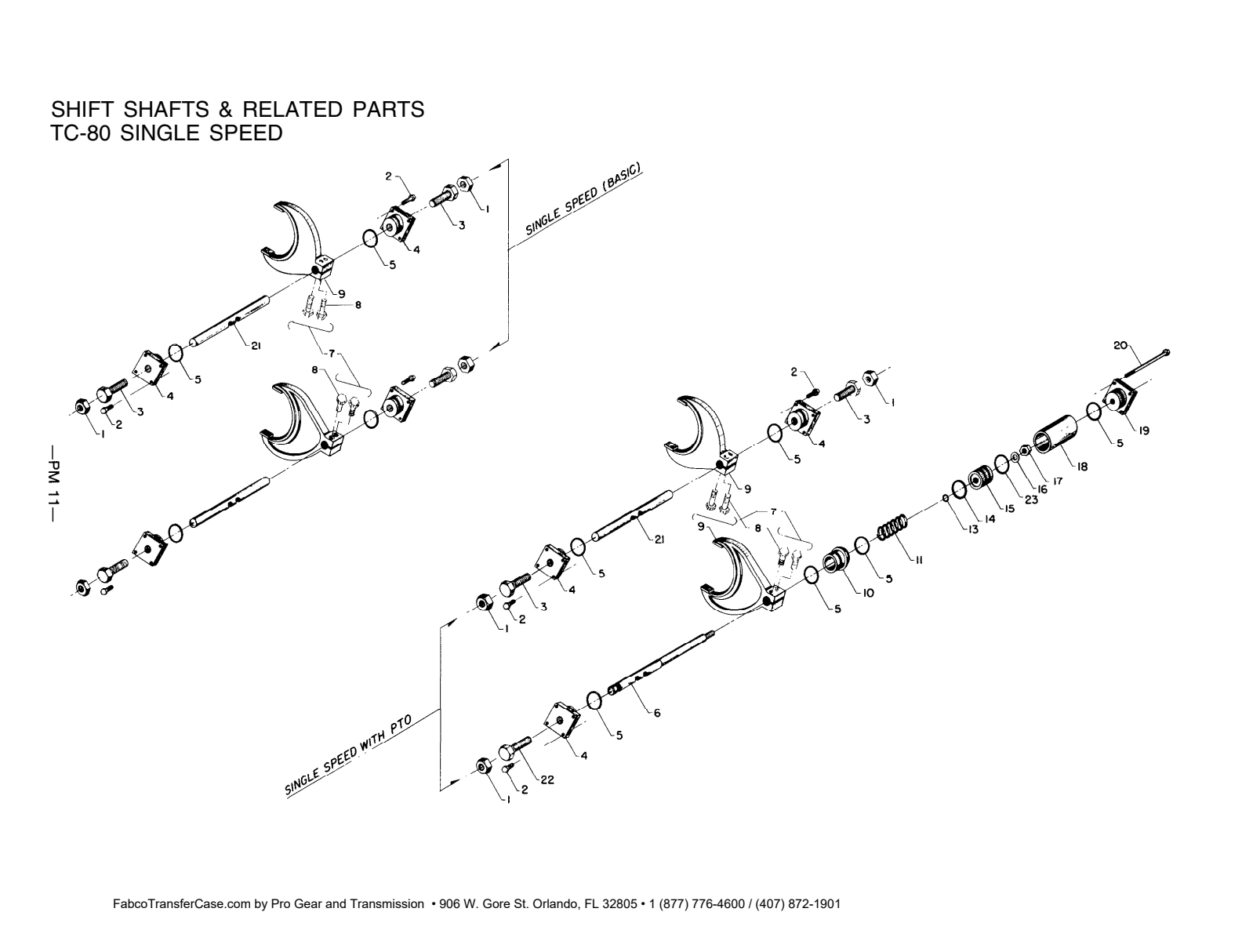

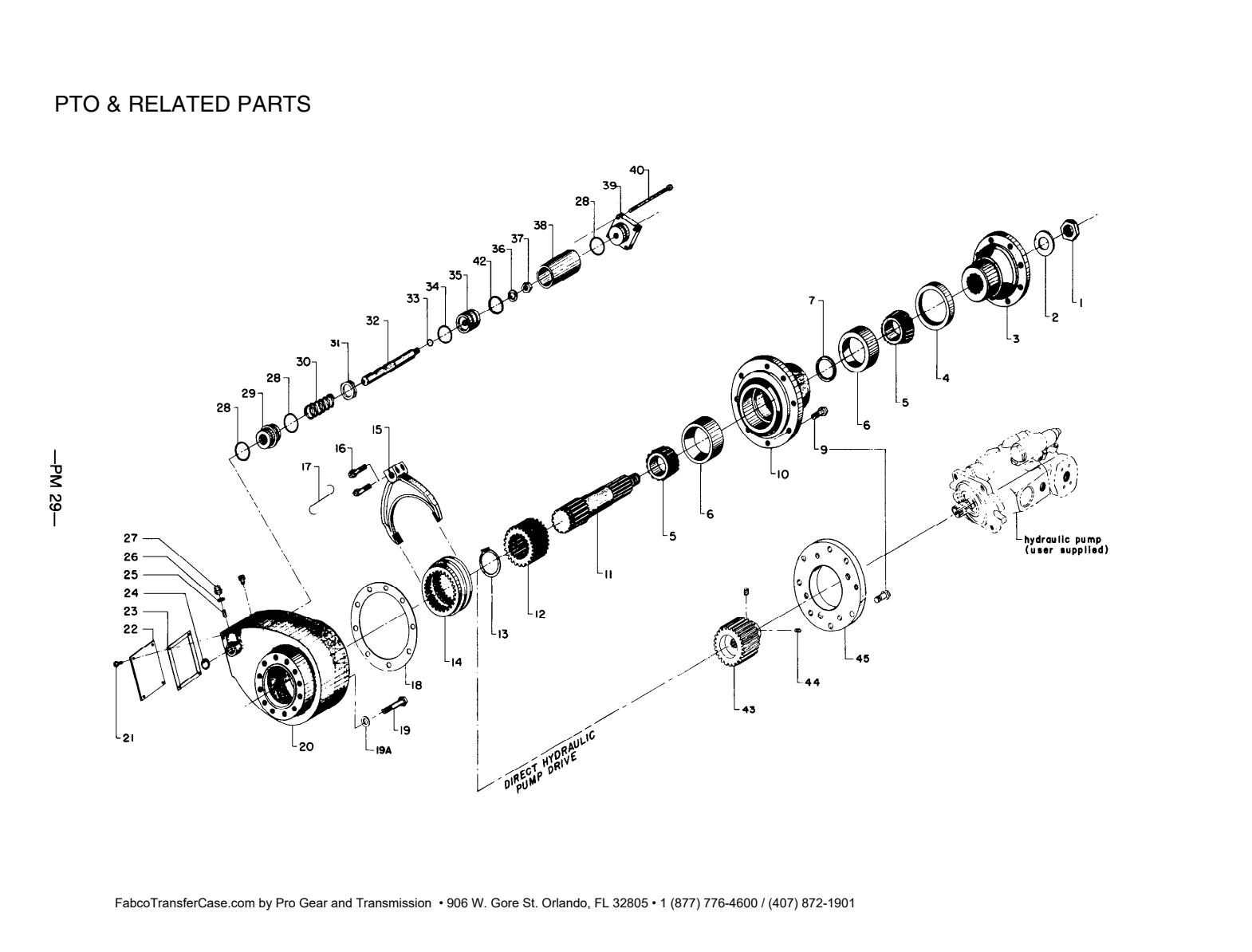

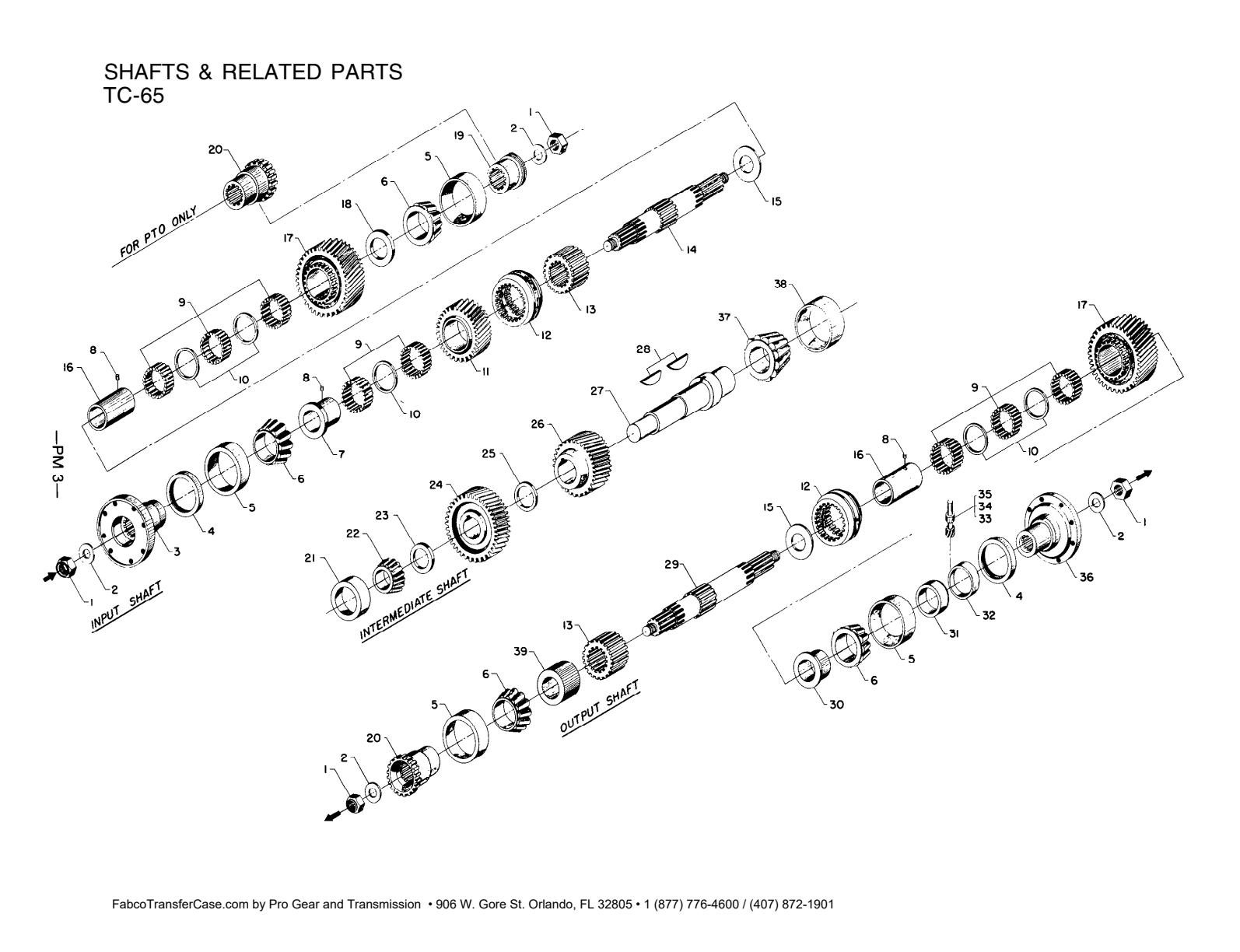

Case, Bearing Caps And Related Parts Tc-65 2-Speed Tc-65 2-Speed Case, Bearing Caps And Related Parts Tc-80 Single Speed Tc-80 Single Speed Tc-80 Single-Speed Case Bearing Caps And Related Parts Tc-110 Single Speed Tc-110 Single Speed Case, Bearing Caps And Related Parts Shafts And Related Parts Pto-110 Front Dual Rear Shift Shaft And Related Parts Pto-110 Tc-65, Tc-80 & Tc-110 Declutch And Related Parts Pto-1 10 Tc-65, Tc-80 & Tc-110 786 314 Kit, Lubrication Pump Tc-65 80 110 Lubrication Pump And Related Parts Overhaul Kits: Additional Parts Listed In This Manual
No parts match that search — try the part number with no dashes.
This Fabco Illustrated Parts List covering the 110 transfer case covers the shafts, gear sets, housings and service parts for your transfer case, with exploded diagrams and OEM part numbers.
| Models covered | 110 |
| Transfer case type | Fabco transfer case |
| Document | Illustrated Parts List (Fabco) |
| Length | 38 pages |
| Format | PDF — view below or download free |
What’s inside
- Input, output & idler shaft assemblies
- Gear sets & ratio components
- Case halves, covers & housings
- Shift mechanism & air-control parts
- Bearing, seal & gasket kits
- Power-take-off & split-shaft components (where fitted)
- Exploded diagrams with OEM part numbers
Fabco parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Fabco transfer case units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
