Fabco TC 160 Parts Manual
Main Case
Item 38Item 69Item 48Item 69Item 38Item 39Item 34Item 45Item 75Item 25Item 13Item 46Item 29Item 25Item 16Item 33AItem 80Item 60Item 41Item 18Item 40Item 74Item 69Item 39Item 65AItem 48Item 36Item 37Item 55Item 42Item 65AItem 49Item 25Item 69Item 68Item 53Item 48Item 16Item 52Item 18Item 56Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 233-0282 | Bearing Cup | 4 | No longer available - Call for replacement | ||
| 2 | 233-0283 | Bearing Cone | 4 | No longer available - Call for replacement | ||
| 5 | 233-0378 | Bearing Cup | 2 | No longer available - Call for replacement | ||
| 6 | 233-0379 | Bearing Cone | 2 | $905.04 | Add to Cart | |
| 7 | 233-0436 | *roller Bearing Assembly (w/neutral) | 2 | Call for availability | ||
| 8 | 233-0443 | Bearing Cone | 2 | $87.23 | Add to Cart | |
| 9 | 233-0444 | Bearing Cup | 2 | $62.92 | Add to Cart | |
| 10 | 233-0467 | *bearing Inner Race (w/neutral) | 1 | Call for availability | ||
| 11 | 235-0352 | Cap Shift Cylinder , | 1 | $63.16 | Add to Cart | |
| 13 | 235-0492 | +cap Pump (w/pump) , | 1 | $398.05 | Add to Cart | |
| 15 | 235-0533 | Cap Intermediate Front , , | 1 | Call for availability | ||
| 16 | 235-0534 | +cap Intermediate Rear (basic) , , | 1 | Call for availability | ||
| 17 | 235-0535 | +cap Intermediate Rear (w/pump) , , | 1 | Call for availability | ||
| 18 | 237-0357 | +carrier, Seal Top Input , And Rear Output (basic) | 2 | $394.47 | Add to Cart | |
| 19 | 237-0362 | +carrier, Seal Top Rear (basic) , | 1 | Call for availability | ||
| 21 | 237-0427 | Carrier, Declutch Bearing And Seal | 1 | Call for availability | ||
| 22 | 237-0438 | +carrier, Seal Top Rear (w/pump) , | 1 | No longer available - Call for replacement | ||
| 23 | 237-0439 | +carrier, Seal Front Input (w/pump) , | 1 | Call for availability | ||
| 25 | 265-0238 | Bolt, 7/16-14 X 1¼ | 38 | $7.99 | Add to Cart | |
| 29 | 265-0394 | +bolt, 5/16-24 X 23/4 (w/pump) | 6 | No longer available - Call for replacement | ||
| 30 | 265-0768 | Bolt, 7/1 6-20 X 1½ Drilled Head , | 4 | $21.89 | Add to Cart | |
| 31 | 265-0769 | Bolt, ¼ -20 X 3¾ | 4 | $8.73 | Add to Cart | |
| 33 | 356-0236 | Hex Reducer Bushing 3/4” X 1/8” , | 1 | Call for availability | ||
| 33A | 359-0267 | Street Elbow, 3/4” X 90° | 1 | $9.36 | Add to Cart | |
| 34 | 339-0223 | Felt Wiper | 1 | $13.62 | Add to Cart | |
| 36 | 352-0457 | Flange Front Output, 1710 , | 1 | Call for availability | ||
| 37 | 352-0458 | Flange Front Output, 1810 , | Call for availability | |||
| 38 | 352-0474-002 | Flange Front Input And Rear Output, 1710 , | Call for availability | |||
| 39 | 352-0474-003 | Flange Front Input And Rear Output, 1810 , | Call for availability | |||
| 40 | 367-0254 | Fork, Shift | 1 | $590.15 | Add to Cart | |
| 41 | 427-0372 | Gasket, Seal Carrier, Front Input And Rear Output | 2 | Call for availability | ||
| 42 | 427-0375 | Gasket Declutch Carrier , | 1 | $27.66 | Add to Cart | |
| 43 | 427-0376 | Gasket Declutch Cover , | 1 | $19.13 | Add to Cart | |
| 45 | 427-0468 | + Gasket, Oil Pump (w/pump) | 1 | $48.53 | Add to Cart | |
| 46 | 427-0478 | Gasket, Intermediate | 1 | Call for availability | ||
| 48 | 432-0426 | Gear, Clutch Collar | 3 | $1,103.38 | Add to Cart | |
| 49 | 432-0563 | Gear, Clutch | 1 | $931.46 | Add to Cart | |
| 50 | 432-0428 | Gear, Clutch | 2 | Call for availability | ||
| 52 | 432-0495 | Gear, Upper And Lower | 2 | Call for availability | ||
| 53 | 432-0564 | Gear, Clutch Drive | 1 | Call for availability | ||
| 54 | 432-0267 | @gear, Intermediate | 1 | Call for availability | ||
| 55 | 468-0478 | Housing Declutch , | 1 | Call for availability | ||
| 56 | 468-0952 | Housing Transfer Case , | 1 | Call for availability | ||
| 56A | 539-0352 | @ Key, ½ X 3¼ Special | 1 | Call for availability | ||
| 60 | 675-0224 | O-ring Shift Cylinder , | 3 | Call for availability | ||
| 61 | 675-0326 | O-ring Piston , | 1 | Call for availability | ||
| 64 | 688-0464 | Nut, Shift Shaft Piston | 1 | $8.21 | Add to Cart | |
| 65A | 688-0694 | Nut, 1½-12 | 5 | $26.83 | Add to Cart | |
| 68 | 724-0677 | Screw, 7/16-14 X 2¼ | 6 | $10.43 | Add to Cart | |
| 69 | 732-0328 | Seal Oil , | 4 | $87.86 | Add to Cart | |
| 70 | 736-0747 | Stop Ring , | 1 | $9.38 | Add to Cart | |
| 71 | 736-0849 | * Ring Spacer Needle Bearing (w/neutral) , | 1 | Call for availability | ||
| 74 | 736-0939 | Ring Bearing Spacer .360 , | $270.14 | Add to Cart | ||
| 74A | 736-0942 | Ring Bearing Spacer .365 , | 1 | $211.79 | Add to Cart | |
| 74B | 736-0943 | Ring Bearing Spacer .370 , | (A/R) | $256.47 | Add to Cart | |
| 74C | 736-0944 | Ring Bearing Spacer .375 , | (See | $256.47 | Add to Cart | |
| 74D | 736-0959 | Ring Bearing Spacer .380 , | Note 1) | $96.87 | Add to Cart | |
| 74E | 736-0962 | Ring Bearing Spacer .385 , | $56.02 | Add to Cart | ||
| 75 | 736-0952 | Ring Pump Spacer , | 1 | Call for availability | ||
| 76 | 736-0953 | * Ring Clutch Ret. , | 1 | Call for availability | ||
| 80 | 742-0799 | Shaft, Shift (declutch) | 1 | $233.54 | Add to Cart |

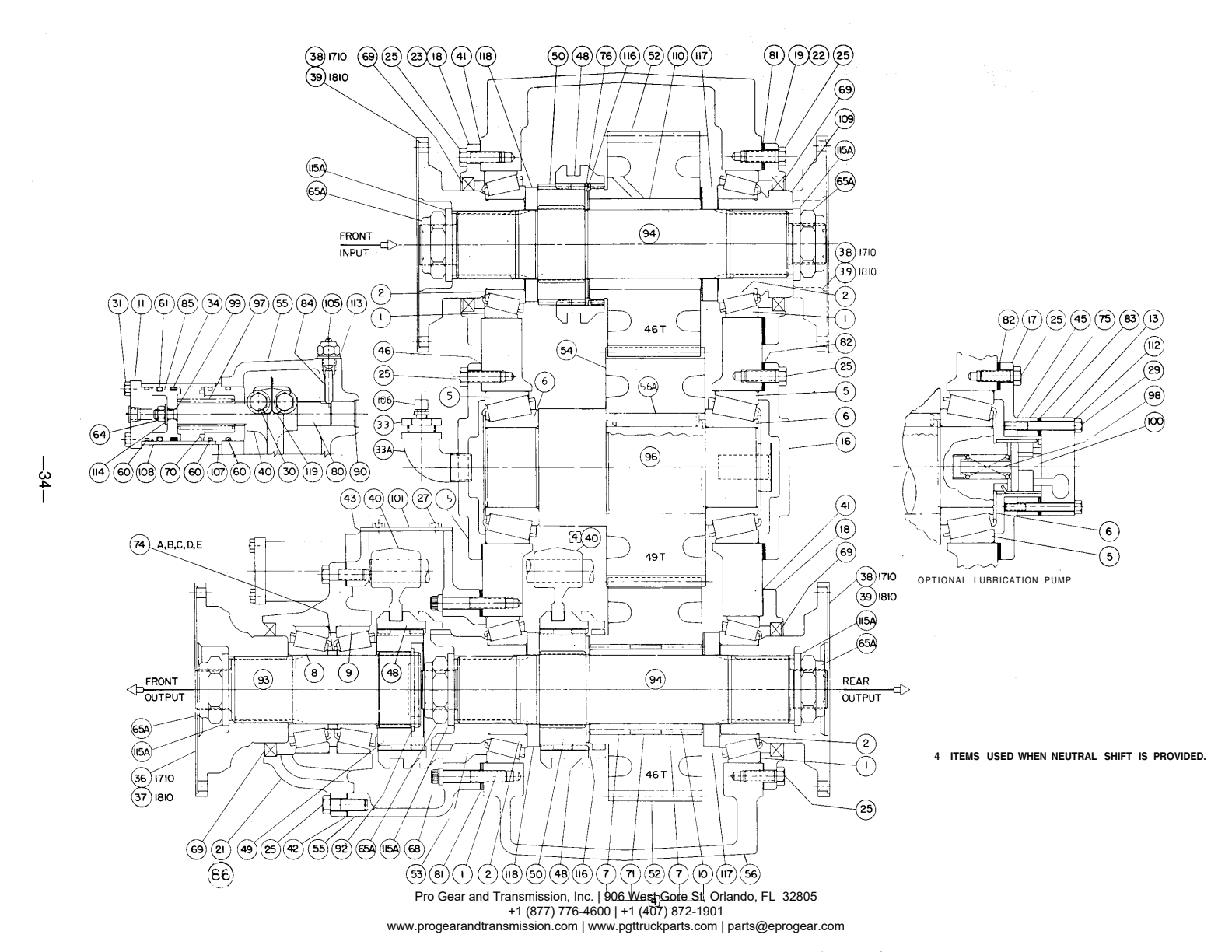

Main Case (Cont .)
Item 109Item 85Item 99Item 97Item 83Item 82Item 82Item 112Item 86Item 100Item 96Item 108Item 107Item 101Item 93Item 92Item 86Item 117Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 81 | 744-0278 | Shim Upper & Lower Shaft, .030 Coral , | $18.52 | Add to Cart | ||
| 744-0279 | Shim Upper & Lower Shaft, .015 Pink , | A/R | $16.76 | Add to Cart | ||
| 744-0282 | Shim Upper & Lower Shaft, .005 Blue , | $13.54 | Add to Cart | |||
| 744-0283 | Shim Upper & Lower Shaft, .002 Red , | $13.54 | Add to Cart | |||
| 82 | 744-0347-001 | Shim Interm Shaft, .002 Red , . | Call for availability | |||
| 744-0347-002 | Shim Interm Shaft, .005 Blue , . | A/R | Call for availability | |||
| 744-0347-003 | Shim Interm Shaft, .015 Pink , . | Call for availability | ||||
| 744-0347-004 | Shim Interm Shaft, .030 Coral , . | Call for availability | ||||
| 83 | 744-0324 | Shim Pump , | $9.27 | Add to Cart | ||
| 84 | 746-0628 | Pin 5/16 Diameter , | 1 | $34.21 | Add to Cart | |
| 85 | 753-0232 | Piston Shift , | 1 | $77.81 | Add to Cart | |
| 86 | 758-0255 | Plug ¼ Sq Hd Blk. Pipe , . . | 2 | $54.00 | Add to Cart | |
| 90 | 758-0328 | Plug 1 ” Welch , | 1 | $12.30 | Add to Cart | |
| 92 | 762-0288 | Snap Ring | 1 | $9.84 | Add to Cart | |
| 93 | 769-0358 | Shaft, Front Output | 1 | Call for availability | ||
| 94 | 769-0362 | Shaft, Upper & Lower | 2 | Call for availability | ||
| 96 | 769-0445 | @shaft, Intermediate | 1 | Call for availability | ||
| 97 | 777-0477 | Spring Shift Shaft , Spacer To Set End Play Of Shaft. See Service Manual 110 Replaces Items 7 10 & 71 Item 76 Is Quantity , . Is No Shift Fork, Shaft Or Cylinder. Used When No Lubrication Pump Is Present. If Lubrication Shown On Pages 42 & 43 . To S/n 103B84) Splined Intermediate Shaft And - 618L84 Thru S/n 402G86 Exc S/n 372F86 & 373F86) . 373F86 422F86 & On) Key, Gear & Shaft, , , — | 1 | second | $26.12 | Add to Cart |
| 98 | 777-0536 | + Spring Assembly, Pump (w/pump) | 1 | $292.74 | Add to Cart | |
| 99 | 782-0288 | O-ring Piston Shaft , | 1 | $6.16 | Add to Cart | |
| 100 | 786-0288 | + Pump Cartridge (w/pump) | 1 | Call for availability | ||
| 101 | 792-0866 | Plate Declutch Cover , | 1 | $20.44 | Add to Cart | |
| 105 | 798-0245 | Switch Shift Indicating , | 1 | $30.28 | Add to Cart | |
| 106 | 836-0222 | Breather, 1/8 NPT | 1 | $14.69 | Add to Cart | |
| 107 | 883-0482 | Tube Shift Cylinder Adapter , | 1 | $99.33 | Add to Cart | |
| 108 | 883-0887-001 | Tube Shift Cylinder, 2 .75 Long , | 1 | $107.78 | Add to Cart | |
| 109 | 883-0932 | Tube Blanking Sleeve , | 1 | Call for availability | ||
| 110 | 883-0947 | * Tube Gear Sleeve , | 1 | Call for availability | ||
| 112 | 927-0299 | Washer, 5/16 Lock | 1 | $5.05 | Add to Cart | |
| 113 | 927-0427 | Washer, Copper | 1 | $8.16 | Add to Cart | |
| 114 | 927-0643 | Washer, Shift Shaft | 1 | $8.10 | Add to Cart | |
| 927-0775-005 | Washer, Flange & Declutch | 5 | $61.55 | Add to Cart | ||
| 116 | 927-0778 | Washer, Inner Thrust | 2 | Call for availability | ||
| 117 | 927-0779 | Washer, Thrust (rear) | 2 | Call for availability | ||
| 927-0782 | Washer, Thrust (front) | 2 | Call for availability | |||
| 119 | 947-0223 | Wire Lock , In The Bottom Shaft Clutch Collar To Lock The Gear 22 23 29 45 98 & 100 Are Used With Filter, , , , , , , Rings: | $46.99 | Add to Cart |
Power Takeoff, Direct Pump Drive & Neutral Shift
Item 61Item 85Item 99Item 31Item 80Item 80Item 61Item 43Item 99Item 101Item 85Item 64Item 114Item 108Item 108Item 66Item 115Item 93AItem 65Item 35Item 48Item 42Item 55Item 48Item 55Item 42Item 69Item 20Item 68Item 49Item 25Item 68Item 102Item 27Item 44Item 60Item 114Item 66Item 31Item 60Item 95Item 30Item 40Item 107Item 14Item 97Item 60Item 60Item 108Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3 | 233-0376 | Bearing Cup | 2 | $123.43 | Add to Cart | |
| 4 | 233-0377 | Bearing Cone | 2 | $106.63 | Add to Cart | |
| 11 | 235-0352 | Cap Shift Cylinder , | 1 | $63.16 | Add to Cart | |
| 20 | 237-0393 | Carrier, Bearing And Seal | 1 | $830.95 | Add to Cart | |
| 25 | 265-0238 | Bolt, 7/16-14 X 1½ | 8 | $7.99 | Add to Cart | |
| 27 | 265-0343 | Bolt, Capscrew, ¼ -20 X ½ | 4 | $8.01 | Add to Cart | |
| 30 | 265-0768 | Bolt, 7/16 X 1½ Drilled Head , | 2 | $21.89 | Add to Cart | |
| 31 | 265-0769 | Bolt, ¼ -29 X 3¾ | 4 | $8.73 | Add to Cart | |
| 34 | 339-0223 | Felt Wiper | 1 | $13.62 | Add to Cart | |
| 35 | 352-0344 | Flange Pto (1550/1710) , | 1 | Call for availability | ||
| 40 | 367-0254 | Fork, Shift | 1 | $590.15 | Add to Cart | |
| 42 | 427-0375 | Gasket | 1 | $27.66 | Add to Cart | |
| 43 | 427-0376 | Gasket, Pto Cover | 1 | $19.13 | Add to Cart | |
| 48 | 432-0426 | Clutch Collar | 1 | $1,103.38 | Add to Cart | |
| 49 | 432-0563 | Clutch Gear | 1 | $931.46 | Add to Cart | |
| 55 | 468-0478 | Housing Pto , | 1 | Call for availability | ||
| 60 | 675-0224 | O-ring | 3 | Call for availability | ||
| 61 | 675-0326 | O-ring | 1 | Call for availability | ||
| 64 | 688-0464 | Nut, Flexloc | 1 | $8.21 | Add to Cart | |
| 65 | 688-0633 | Nut, Self Locking | 1 | $15.30 | Add to Cart | |
| 68 | 724-0677 | Capscrew, Ferry Hd 7/16-14 X 2¼ . , | 6 | $10.43 | Add to Cart | |
| 69 | 732-0328 | Seal Oil , | 1 | $87.86 | Add to Cart | |
| 70 | 736-0747 | Stop Ring Spacer To Set End Play Of Shaft. Manual Sec. Vi F 22 , , , . Shift Parts With Neut. | 1 | $9.38 | Add to Cart | |
| 12 | 235-0372 | Plate Cover , — | 2 | $16.48 | Add to Cart | |
| 14 | 235-0496 | Cap Shift Shaft Support 1 , | — | Call for availability | ||
| 24 | 237-0455 | Carrier, Shift Shaft Stop 1 | Call for availability | |||
| 29A | 265-0553 | Bolt, ¼ -29 X ½ 4 | Call for availability | |||
| 73A | 736-0767 | Ring Brg Spacer .323 Thick , . | Call for availability | |||
| 736-0797 | Ring Brg Spacer .328 Thick , . | (A/R) | Call for availability | |||
| 736-0896 | Ring Brg Spacer .313 Thick , . | (See | Call for availability | |||
| 736-0897 | Ring Brg Spacer .318 Thick , . | Note) | Call for availability | |||
| 80 | 742-0799 | Shaft, Shift | 1 | $233.54 | Add to Cart | |
| 84 | 746-0628 | Pin 5/16 Diameter X 1¼ , | 1 | $34.21 | Add to Cart | |
| 85 | 753-0232 | Piston Shift , | 1 | $77.81 | Add to Cart | |
| 90 | 758-0328 | Plug 1 ” Welch , | 1 | $12.30 | Add to Cart | |
| 92 | 762-0288 | Snap Ring | 1 | $9.84 | Add to Cart | |
| 93A | 769-0323 | Shaft, Pto Drive | 1 | Call for availability | ||
| 97 | 777-0477 | Spring Shift Shaft , | 1 | $26.12 | Add to Cart | |
| 99 | 782-0288 | O-ring Piston Shaft Seal , | 1 | $6.16 | Add to Cart | |
| 101 | 792-0866 | Plate Pto Unit Cover , | 1 | $20.44 | Add to Cart | |
| 105 | 798-0245 | Switch Shift Indicating , | 1 | $30.28 | Add to Cart | |
| 107 | 883-0482 | Tube Shift Cylinder Adapter , | 1 | $99.33 | Add to Cart | |
| 108 | 883-0887-001 | Tube Shift Cylinder, 2 .75 Long , | 1 | $107.78 | Add to Cart | |
| 113 | 927-0427 | Washer, Copper | 1 | $8.16 | Add to Cart | |
| 114 | 927-0643 | Washer | 1 | $8.10 | Add to Cart | |
| 115 | 927-0775-002 | Washer, Hardened | 1 | $105.17 | Add to Cart | |
| 119 | 947-0223 | Lockwire Pump Drive Only (sae “c” Mtg) | 1 | $46.99 | Add to Cart | |
| 51 | 432-0494 | Gear, Hydraulic Pump Drive | 1 | $1,029.36 | Add to Cart | |
| 66 | 724-0244 | Screw, Set, Socket Hd | 1 | $8.13 | Add to Cart | |
| 102 | 792-0867 | Plate Pump Mounting , With Neut. | 1 | $734.41 | Add to Cart | |
| 32 | 265-0985 | Bolt, Stop 3/4-16 2½ 1 X , , | — | No longer available - Call for replacement | ||
| 44 | 427-0399 | Gasket, Shift Cap 1 | 2 | $72.58 | Add to Cart | |
| 63 | 688-0372 | Nut, Jam 3/4-16 1 , | — | Call for availability | ||
| 95 | 769-0363 | Shaft, Neutral Shift 1 | Call for availability |
Main Housing
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 26 | 265-0239 | Bolt, 7/16 -14 X 1 | 18 | $8.79 | Add to Cart | |
| 47 | 427-0479 | Gasket Main Cover , | 1 | No longer available - Call for replacement | ||
| 56 | 468-0952 | Housing Main , | 1 | Call for availability | ||
| 58 | 626-0258 | Name Plate "oil Level " , | 1 | Call for availability | ||
| 59 | 626-0262 | Name Plate "fabco " , | 1 | Call for availability | ||
| 84A | 747-0224 | Drive Screw | 2 | Call for availability | ||
| 84B | 747-0237 | Rivet, 1/8x1/2 | 4 | Call for availability | ||
| 86 | 758-0255 | Plug 1/4 Bik. Pipe , | 1 | $54.00 | Add to Cart | |
| 87 | 758-0268 | Plug 3/4 Pipe , | 1 | Call for availability | ||
| 88 | 758-0274 | Plug 3/4 Pipe Mag , . | 1 | $8.70 | Add to Cart | |
| 89 | 758-0293 | Plug 1/2 Dryseal , | 1 | $5.11 | Add to Cart | |
| 104 | 793-0389 | Cover Housing , | 1 | Call for availability |
All Parts Are Common To Tc-160 Except The Pump Parts Rear Axle Declutch Parts And Pto Shift Parts Listed Below (Highlighted Items On Page 40 .)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 29 | 265-0828 | Bolt, 5/16 -24 X 3 (pump Housing) | 6 | $6.90 | Add to Cart | |
| 31 | 265-0982 | Bolt, 1/4 -20 X 4 -3/4 (rear Axle & Pto Shift Cyls .) | 8 | $11.84 | Add to Cart | |
| 62 | 675-0316 | O-ring 7/8 I .d X 3/16 , . | 2 | Call for availability | ||
| 75 | 736-0986 | Ring Pump Spacer , | 1 | Call for availability | ||
| 80 | 769-0263 | Shaft, Shift, Declutch | 1 | $297.57 | Add to Cart | |
| 95 | 769-0394 | Shaft, Shift, Pto | 1 | Call for availability | ||
| 100 | 786-0292 | Pump Cartridge | 1 | Call for availability | ||
| 107 | 883-0877 | Tube Shift Cylinder Adapter , | 2 | $94.59 | Add to Cart | |
| 108 | 883-0887-004 | Tube Shift Cylinder (2 .9 4 Lg .) , Drive Parts For Pto -160 Description | 2 | $304.45 | Add to Cart | |
| 27A | 265-0548 | Bolt, 1/4-20 X 1 -1/4 | 3 | $1.68 | Add to Cart | |
| 42A | 427-0499 | Gasket, Declutch Hydraulic Pump Mounting Plate , | 1 | $33.30 | Add to Cart | |
| 48A | 432-0644 | Gear, Clutch Collar Special | 2 | $1,166.92 | Add to Cart | |
| 51 | 432-0585 | Gear, Pump Drive Top Rear (sae "b") | 1 | Call for availability | ||
| 51A | 432-0626 | Gear, Pump Drive Top Front (sae "e ") | 1 | $1,041.35 | Add to Cart | |
| 55A | 468-0583 | Housing Declutch Top Rear , , | 1 | Call for availability | ||
| 68A | 724-0268 | Screw, Ferry Hd 7/16 -16 X 1 Lg . , . | 8 | $7.95 | Add to Cart | |
| 76A | 762-0334 | Ring Internal Snap , | 2 | $12.03 | Add to Cart | |
| 102 | 793-0433 | Plate Hydraulic Pump Mounting (sae "b") , | 1 | Call for availability | ||
| 102A | 793-0432 | Plate Hydraulic Pump Mounting (sae "e ") , | 1 | $1,158.12 | Add to Cart | |
| 105A | 357-0395 | Plug 9/16 -18 , | 2 | Call for availability |
Piping Lubrication
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 265-0238 | Bolt, H .h 7/16 -14 1 ¼ " X . . | TC | $7.99 | Add to Cart | |
| 2 | 265-0345 | Bolt, H .h 5/16 -18 X 1 " . . | Call for availability | |||
| 3 | 273-0699 | Bracket Oil Filter Mounting , | Call for availability | |||
| 4 | 345-0267 | Filter, Oil | $132.57 | Add to Cart | ||
| 5 | 345-0268 | Strainer Oil , | $136.09 | Add to Cart | ||
| 7 | 356-0255 | Reducer Bushing ½ X 3/8 | $10.88 | Add to Cart | ||
| 8 | 357-0327 | Elbow 90 ° 3/8 NPT X 3/4 -16 Jic , , | No longer available - Call for replacement | |||
| 10 | 357-0783 | El Bow 45 ° ½ NPT X 1 -1/16 -12 Jic , , | No longer available - Call for replacement | |||
| 17 | 469-0823 | 001 Hose Assembly #8 Pump To Filter , , | Call for availability | |||
| 18 | 469-0825 | 001 Hose Assembly #12 Sump To Pump , , | Call for availability | |||
| 19 | 793-0398 | Plate ,filter Mounting | Call for availability | |||
| 20 | 824-0275 | Tee 3/4 Fem NPT X 3/4 NPT , . 3/4 NPT X | SSPTO | $84.88 | Add to Cart | |
| 21 | 927-0299 | Washer Lock 5/16 , Only | $5.05 | Add to Cart | ||
| 11 | 357-0633 | Tee ¼ NPT X 9/16 -18 Jig X , 9/16 -18 Jic | Call for availability | |||
| 12 | 357-0959 | Adapter Long ¼ NPT X 9/16 -18 Jic , , , | Call for availability | |||
| 13 | 469-0822-017 | Hose Assembly #6 Filter To Rear , , Carrier | Call for availability | |||
| 14 | 469-0822-018 | Hose Assembly #6 Rear Carrier To , , Front Carrier | No longer available - Call for replacement | |||
| 6 | 355-0584 | Nipple ¼ NPT 11/2 Lg , , | Call for availability | |||
| 9 | 357-0385 | Tee ¼ NPT X 9/16 -18 Jic X , 9/16 -18 Jic | $149.28 | Add to Cart | ||
| 16 | 469-0789 | Hose Asse Mbly #6 Pto To Front Carrier , , Pump Drives Only | Call for availability | |||
| 12A | 357-0898 | Elbow 90 ° ¼ NPT X 9/16 -18 Jic , , | $22.74 | Add to Cart | ||
| 13A | 469-0822-020 | Hose Assembly #6 Filter To , , Declutch Housing | No longer available - Call for replacement | |||
| 16A | 469-0822-021 | Hose Assembly #6 Declutch To , , Declutch | No longer available - Call for replacement |
This is the complete factory parts breakdown for the Fabco Transfer Case TC-160, with every part in the manual matched to our live inventory. We stock 115 of the 206 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Main Case Main Case (Cont .) Power Takeoff, Direct Pump Drive & Neutral Shift Main Housing All Parts Are Common To Tc-160 Except The Pump Parts Rear Axle Declutch Parts And Pto Shift Parts Listed Below (Highlighted Items On Page 40 .) Piping Lubrication
No parts match that search. Try the part number with no dashes.
This Fabco Illustrated Parts List covering the 160 transfer case covers the shafts, gear sets, housings and service parts for your transfer case, with exploded diagrams and OEM part numbers.
| Models covered | 160 |
| Transfer case type | Fabco transfer case |
| Document | Illustrated Parts List (Fabco) |
| Length | 15 pages |
| Format | PDF — view below or download free |
What’s inside
- Input, output & idler shaft assemblies
- Gear sets & ratio components
- Case halves, covers & housings
- Shift mechanism & air-control parts
- Bearing, seal & gasket kits
- Power-take-off & split-shaft components (where fitted)
- Exploded diagrams with OEM part numbers
Fabco parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Fabco transfer case units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
