Mack T2110B / T2110D Transmission Parts Manual
11 Speed Transmission - Multi-Speed Reverse
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | Bearing and Seal Kit | Kit, Bearing & Seal | Includes (1) 46AX410, (6) 62AX487, (3) 67AX343, (2) 67AX204, (1) 67AX311, (3) 62AX489, (6) 64AX292, (3) 127539, (1) A1228H1204, (3) 64AX16, (3) 62AX292, (2) 394A, (1) 390A, (1) 399A, (1) 207SH42, (1) 56AX381, (2) 14765, (1) 56AX568, (1) Mack, (1) 31KD2136, (3) 223KD267, (1) 223KD317A, (7) 223KD316A, (3) 223KD262, (1) 223KD241, (1) 107KD116, (1) 107KD118, (3) 107KD157, (4) 48AX17, (2) 49AX262, (1) 79AX71, (1) 49AX259, (1) 207SH34 | $1,526.56 | Add to Cart | |
| 2 | 207SH42 | Kit, Gasket & Seal | Includes (1) 629KB331A, (1) 629KB328B, (1) 629KB335A, (1) 629KB411, (1) 629KB53A, (1) 629KB250, (1) 629KB251, (3) 88AX349P3, (1) 88AX454, (1) 88AX463, (1) 342SX32, (1) 56AX558, (3) 56AX539, (3) 56AX541, (1) 56AX381, (2) 14765, (1) 56AX568 | $134.82 | Add to Cart | |
| 3 | 207SH34 | Kit, Shim | Includes (3) 741KC321CP3, (3) 741KC321CP6, (3) 741KC323P15, (3) 741KC321CP30, (3) 741KC323P3, (3) 741KC323P6, (3) 741KC323P15, (3) 741KC323P30 | $249.51 | Add to Cart | |
| 4 | Range Cylinder O-Ring Kit | Kit, O-ring | Includes (3) 56AX539, (1) 5X1083, (1) 56AX557, (1) 446GC1103, (1) 56AX558, (1) 56AX559, (1) 56AX560, (1) 17453, (1) 56AX561, (1) 14765, (2) 56AX568, (3) 56AX541, (1) 14142, (1) 56AX545 | $35.21 | Add to Cart | |
| 5 | Retaining Ring Kit | Kit, Retaining Rings | Includes (1) 97AX54, (1) 97AX226, (5) 97AX171, (1) 97AX266, (2) 97AX284, (1) 97AX260, (1) 97AX262, (1) 555AM4, (10) 97AX151 | $157.46 | Add to Cart |

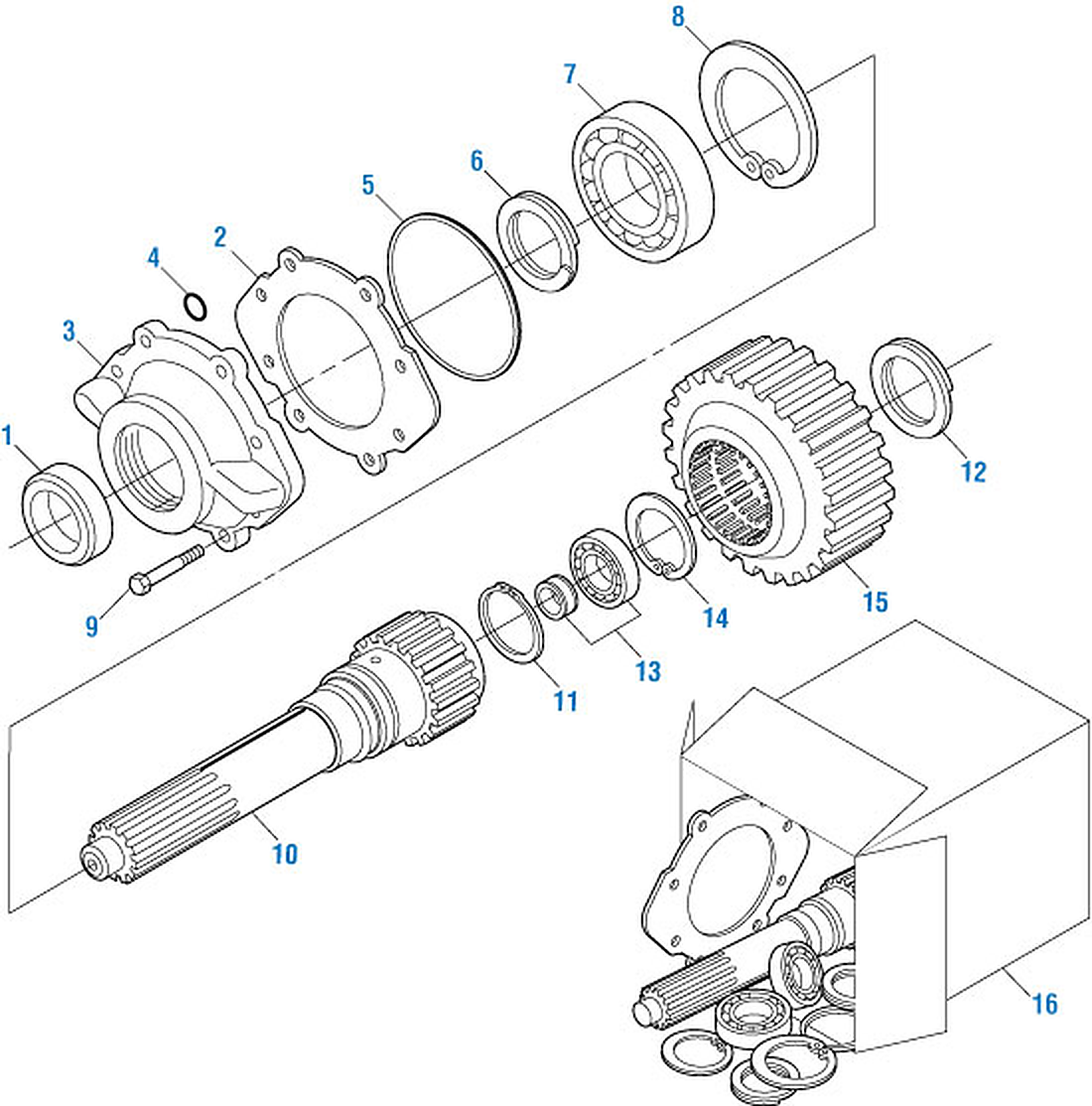

Input Shaft Components
Item 12Item 15Item 14Item 13Item 11Item 10Item 16Item 9Item 8Item 7Item 6Item 5Item 2Item 4Item 3Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 88AX454 | Seal, Oil | Interchanges with Mack 88AX390P2, National 2822VGR | $38.31 | Add to Cart | |
| 2 | 629KB328B | Gasket, Front Cover | Sold as a 5-pack | $55.52 | Add to Cart | |
| 3 | 403KB295 | Main Drive (w/o Oil Pump Set-up) | Interchanges with Mack 403KB288P2 | $267.27 | Add to Cart | |
| 4 | 56AX543 | O-ring, Cover | Interchanges with Mack 56AX497 | — | Call for availability | |
| 5 | 56AX347 | O-ring, Cover | Sold as a 5-pack | $24.64 | Add to Cart | |
| 6 | 97AX226 | Ring, Retaining | Sold as a 5-pack | $25.99 | Add to Cart | |
| 7 | 46AX410 | Bearing, Main Drive | Interchanges with Mack 46AX91 | $60.60 | Add to Cart | |
| 8 | 97AX262 | Ring, Retaining | Sold as a 5-pack | $78.29 | Add to Cart | |
| 9 | 6AX1317X | Screw (7/16in-14 X 1-1/4in) | Interchanges with Mack 4AX4. Sold as a 5-pack | $28.38 | Add to Cart | |
| 10 | 764KB4203E | Gear, Main Drive | Interchanges with Mack 764KB288 | $730.92 | Add to Cart | |
| 11 | 97AX54 | Ring, Retaining | Sold as a 10-pack | $34.90 | Add to Cart | |
| 12 | 97AX260 | Ring, Retaining | Sold as a 5-pack | $43.23 | Add to Cart | |
| 13 | 67AX311 | Bearing | Interchanges with BCA MA1205EL | $61.41 | Add to Cart | |
| 14 | 97AX125 | Ring, Retaining | $20.20 | Add to Cart | ||
| 15 | 764KB3260A | Gear, Pinion | $332.34 | Add to Cart | ||
| 16 | Maxitorque Input Shaft Kit | Kit, Input Shaft | New design. Includes (1) 764KB4203D, (1) 629KB328B, (1) 88AX454, (1) 97AX226, (1) 97AX262, (1) 97AX54, (1) RR-IR36-4, (1) 97AX260, (1) 46AX410, (1) 67AX311. w/o Oil Pump and w/o Flywheel PTO units | $352.74 | Add to Cart |

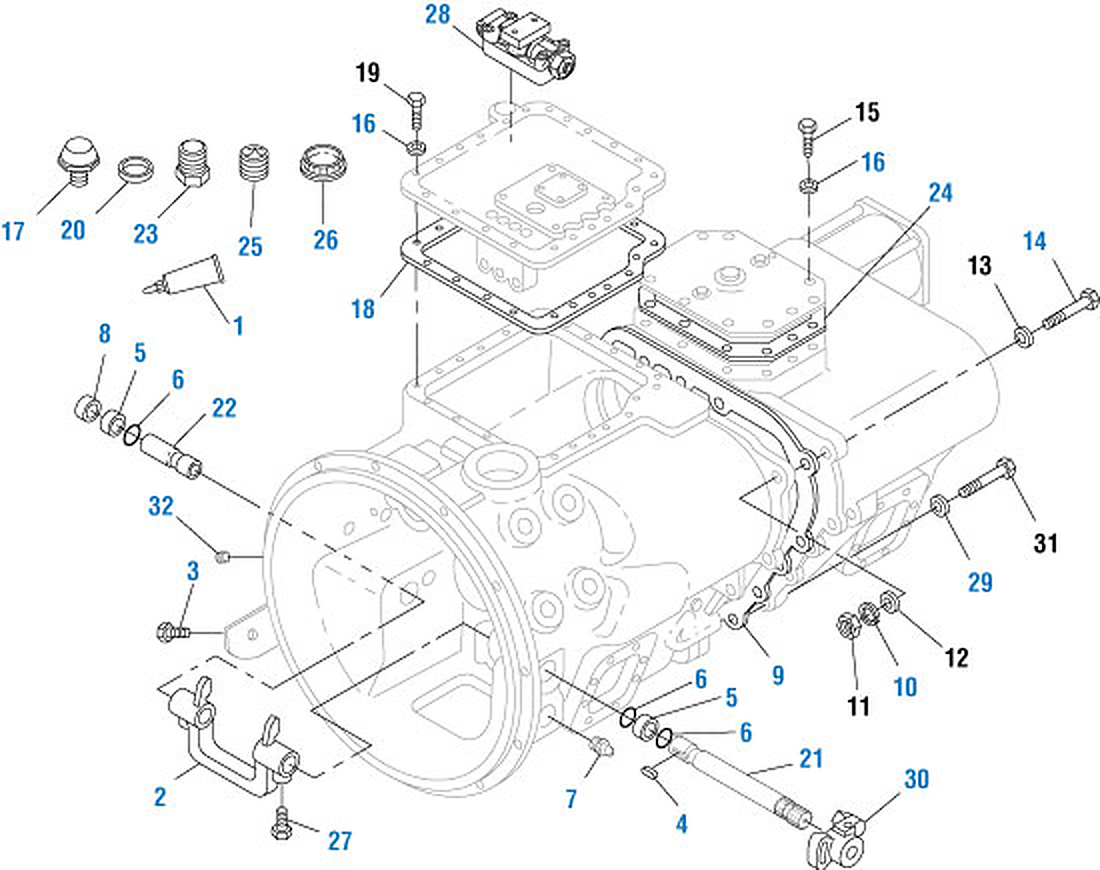

Compound and Main Case Assembly
Item 27Item 4Item 7Item 2Item 30Item 21Item 6Item 5Item 6Item 9Item 11Item 10Item 12Item 29Item 31Item 3Item 32Item 22Item 6Item 5Item 8Item 1Item 18Item 17Item 20Item 23Item 25Item 26Item 16Item 19Item 28Item 14Item 13Item 24Item 16Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3092340 | Sealant, Silicone Rubber (cartridge Gun Tube 310 Ml) | New design. Interchanges with Mack 20732000 | $195.16 | Add to Cart | |
| 1 | 342SX32 | Sealant, Silicone Rubber | Interchanges with Mack 243SX26, Navistar 474517C2 | $12.93 | Add to Cart | |
| 2 | 301KD43B | Yoke, Clutch Release | $129.97 | Add to Cart | ||
| 3 | 6AX1359X | Screw, Pto Cover (3/8in-16 X 1in) | Interchanges with Mack 6AX1274X, Navistar 1670574C1 | $2.77 | Add to Cart | |
| 4 | 43AX41 | Key | Sold as a 5-pack | $14.30 | Add to Cart | |
| 5 | 67AX204 | Bearing | 2 | Interchanges with TOF B-1612, Navistar 550839R91. Sold as a 2-pack | $19.73 | Add to Cart |
| 6 | 88AX349P3 | Seal | Interchanges with Mack 3088-9169. Sold as a 3-pack | $16.07 | Add to Cart | |
| 7 | 44AX115 | Fitting, Grease (1/8in X 27 Thread) | Interchanges with Navistar 109461 | $2.46 | Add to Cart | |
| 8 | 79AX71 | Plug, Cup (1-1/4in) | Interchanges with Navistar 23623R1. Sold as a 5-pack | $13.14 | Add to Cart | |
| 9 | 629KB53A | Gasket | Interchanges with Mack 629KB53. Sold as a 6-pack | $80.09 | Add to Cart | |
| 10 | 36AX5 | Washer, Lock | Interchanges with Navistar 1662463C1 | $2.49 | Add to Cart | |
| 11 | 21AX918 | Nut | — | Call for availability | ||
| 12 | 37AX10 | Washer, Flat | — | Call for availability | ||
| 13 | 37AX98 | Washer | — | Call for availability | ||
| 14 | 90KB111A | Screw, Dowel | $23.76 | Add to Cart | ||
| 15 | 551KC29 | Screw (3/8in-16 X 1-1/2in) | — | Call for availability | ||
| 16 | 37AX7U | Washer | Interchanges with Mack 39AX2. Sold as a 50-pack | $72.20 | Add to Cart | |
| 17 | 541KB25 | Breather | Sold as a 5-pack | $72.85 | Add to Cart | |
| 18 | 629KB411 | Gasket, Cover | Interchanges with Mack 629KB417. Sold as a 6-pack | $30.79 | Add to Cart | |
| 19 | 551KC28 | Screw | — | Call for availability | ||
| 20 | 79AX57X | Plug, Cup (7/8in) | Interchanges with Navistar 373553R1. Sold as a 5-pack | $13.78 | Add to Cart | |
| 21 | 604KC34A | Shaft, Clutch Release | $120.15 | Add to Cart | ||
| 22 | 604KC277A | Shaft, Clutch Release | $48.39 | Add to Cart | ||
| 23 | 49AX262 | Plug, Shift Rail | Sold as a 4-pack | $21.05 | Add to Cart | |
| 24 | 629KB335A | Gasket, Cover | Sold as a 5-pack | $63.77 | Add to Cart | |
| 25 | 49AX234Z | Plug, Temperature Sending Unit Boss (1/4in Npt) | Interchanges with Navistar 444631. Sold as a 5-pack | $6.57 | Add to Cart | |
| 26 | 49AX259 | Plug, Pivot | Sold as a 5-pack | $15.25 | Add to Cart | |
| 27 | 7AX264X | Screw, Lock (dog Point) | Interchanges with Mack 7AX152, Mack 7AX255. Sold as a 10-pack | $61.55 | Add to Cart | |
| 28 | 216KD41 | Valve, Slave (early) | $263.34 | Add to Cart | ||
| 28 | 216KD42B | Valve, Slave (current) | $711.73 | Add to Cart | ||
| 29 | 35AX1249 | Washer | $2.53 | Add to Cart | ||
| 30 | 14RU265B | Lever, Adjusting (straight Side Spline) | Interchanges with Mack 33MX316 | $141.52 | Add to Cart | |
| 30 | 4RU362 | Lever (involute Spline) | Interchanges with Mack 33MX315, Mack 14RU362 | $73.13 | Add to Cart | |
| 31 | 6AX1327 | Screw (1/2in-13 X 2in) | — | Call for availability | ||
| 32 | 49AX224 | Plug, Magnetic Filler | $4.89 | Add to Cart |

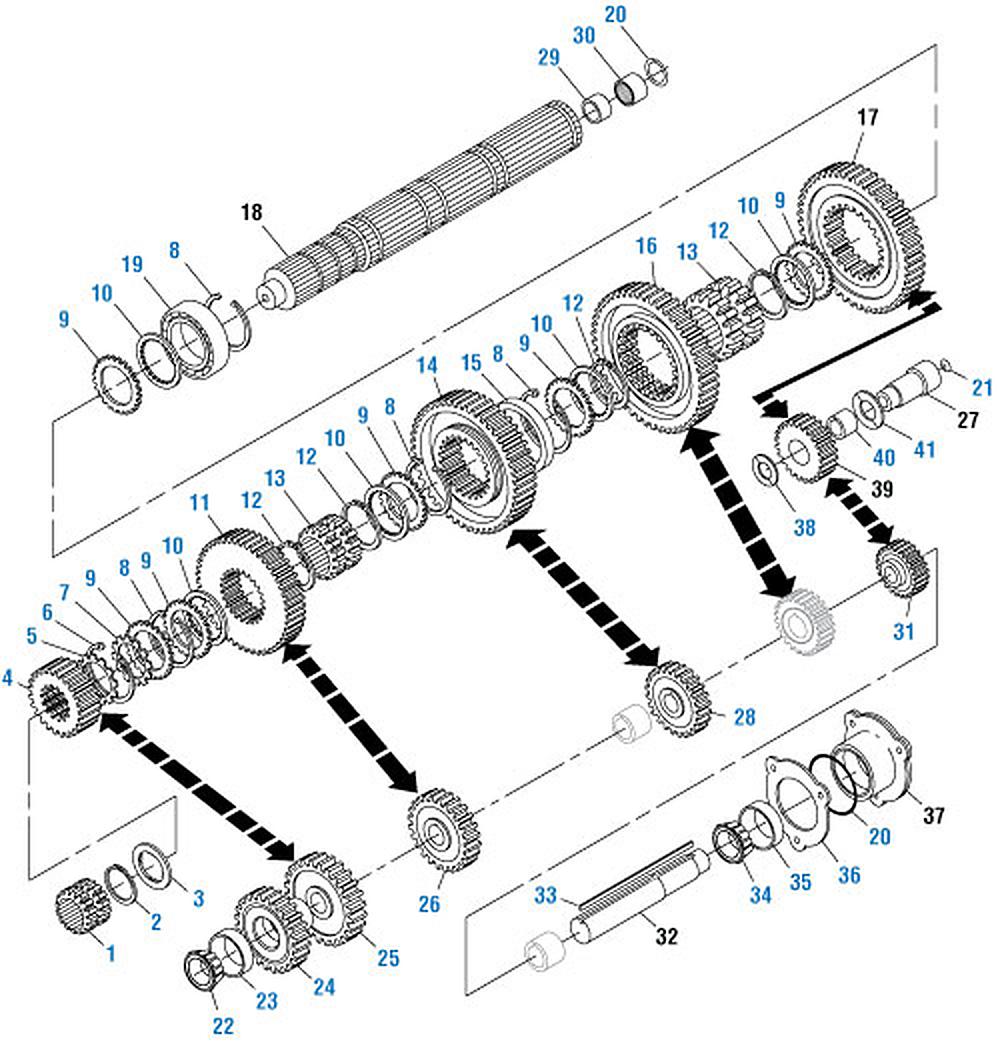

Main Case Components
Item 9Item 10Item 19Item 8Item 18Item 20Item 17Item 9Item 10Item 12Item 13Item 16Item 12Item 10Item 9Item 8Item 15Item 14Item 8Item 9Item 10Item 12Item 13Item 12Item 11Item 10Item 9Item 8Item 9Item 7Item 6Item 5Item 4Item 21Item 41Item 40Item 39Item 31Item 29Item 17Item 37Item 20Item 36Item 35Item 34Item 32Item 30Item 33Item 26Item 25Item 24Item 23Item 22Item 1Item 2Item 3Item 1Item 2Item 3Item 22Item 23Item 24Item 25Item 26Item 33Item 32Item 34Item 35Item 36Item 20Item 37Item 28Item 31Item 38Item 39Item 40Item 41Item 27Item 21Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 320KB3136 | Clutch | $110.32 | Add to Cart | ||
| 2 | 97AX238 | Ring, Retaining (use W/ Early Mainshaft) | Sold as a 10-pack | $49.60 | Add to Cart | |
| 2 | 555AM4 | Ring, Retaining (use W/ Current Mainshafts) | Sold as a 5-pack | $17.05 | Add to Cart | |
| 3 | 223KD241 | Washer, Thrust | 1 | $23.50 | Add to Cart | |
| 4 | 751KB3450A | Gear, Mainshaft (4th/8th) | $463.37 | Add to Cart | ||
| 5 | 223KD317A | Washer, Thrust | 1 | $37.22 | Add to Cart | |
| 6 | 97AX266 | Ring, Retaining | Sold as a 5-pack | $23.73 | Add to Cart | |
| 7 | 223KD253 | Washer, Thrust | $39.24 | Add to Cart | ||
| 8 | 97AX171 | Ring, Retaining | Sold as a 10-pack | $115.01 | Add to Cart | |
| 9 | 223KD316A | Washer, Thrust | 5 | Sold as a 2-pack | $46.79 | Add to Cart |
| 10 | 223KD249 | Washer, Thrust | 5 | $23.60 | Add to Cart | |
| 11 | 751KB3366B | Gear, Mainshaft (3rd/8th) | $267.27 | Add to Cart | ||
| 12 | 97AX151 | Ring, Retaining | 2 | Sold as a 10-pack | $49.27 | Add to Cart |
| 13 | 320KB3137A | Clutch, Sliding | 2 | $171.44 | Add to Cart | |
| 14 | 751KB3363A | Gear, Mainshaft (2nd/7th) | $138.06 | Add to Cart | ||
| 15 | 233KD39 | Washer, Thrust | $26.78 | Add to Cart | ||
| 16 | 751KB3466 | Gear, Mainshaft (1st/6th) | Interchanges with Mack 751KB41432, Mack 751KB3365 | $370.06 | Add to Cart | |
| 17 | 751KB4122 | Gear, Mainshaft, Reverse | — | Call for availability | ||
| 18 | 615KC4205 | Mainshaft | — | Call for availability | ||
| 19 | 46AX517 | Bearing, Mainshaft (rear) | $230.97 | Add to Cart | ||
| 20 | 56AX508 | O-ring, Countershaft, Rear Bearing Retainer | Sold as a 5-pack | $23.15 | Add to Cart | |
| 21 | 79AX39 | Plug, Expansion | Sold as a 10-pack | $18.13 | Add to Cart | |
| 22 | 62AX489 | Cone | $20.86 | Add to Cart | ||
| 23 | 64AX294 | Cup | $12.46 | Add to Cart | ||
| 24 | 757KB434A | Gear, Countershaft, Maindrive | $569.25 | Add to Cart | ||
| 25 | 757KB428A | Gear, Countershaft (4th/8th) | $511.76 | Add to Cart | ||
| 26 | 757KB3223 | Gear, Countershaft | $486.32 | Add to Cart | ||
| 27 | 611KC43 | Shaft, Reverse Idler | — | Call for availability | ||
| 28 | 757KB3312B | Gear, Countershaft (1st/5th) | $298.01 | Add to Cart | ||
| 29 | 80AX775 | Race, Bearing | $47.44 | Add to Cart | ||
| 30 | 67AX335 | Bearing | $14.78 | Add to Cart | ||
| 31 | 757KB3177 | Gear, Countershaft, Reverse | $122.91 | Add to Cart | ||
| 32 | 605KC4182 | Countershaft | — | Call for availability | ||
| 33 | 42AX642 | Key | $43.41 | Add to Cart | ||
| 34 | 62AX487 | Cone | $15.38 | Add to Cart | ||
| 35 | 64AX292 | Cup | $9.72 | Add to Cart | ||
| 36 | 741KC321CP3 | Shim (.003in Thk) | Sold as a 3-pack | $29.16 | Add to Cart | |
| 36 | 741KC321CP6 | Shim (.006in Thk) | Sold as a 3-pack | $29.16 | Add to Cart | |
| 36 | 741KC321CP15 | Shim (.015in Thk) | Sold as a 3-pack | $29.16 | Add to Cart | |
| 36 | 741KC321CP30 | Shim (.030in Thk) | Sold as a 3-pack | $29.16 | Add to Cart | |
| 37 | 451KC398B | Retainer | — | Call for availability | ||
| 38 | 223KD267 | Washer, Thrust | 3 | Sold as a 3-pack | $70.49 | Add to Cart |
| 39 | 751KB2104 | Gear, Reverse Idler | — | Call for availability | ||
| 40 | 67AX343 | Bearing | $38.45 | Add to Cart | ||
| 41 | 223KD262 | Washer, Thrust | 3 | Sold as a 3-pack | $18.56 | Add to Cart |

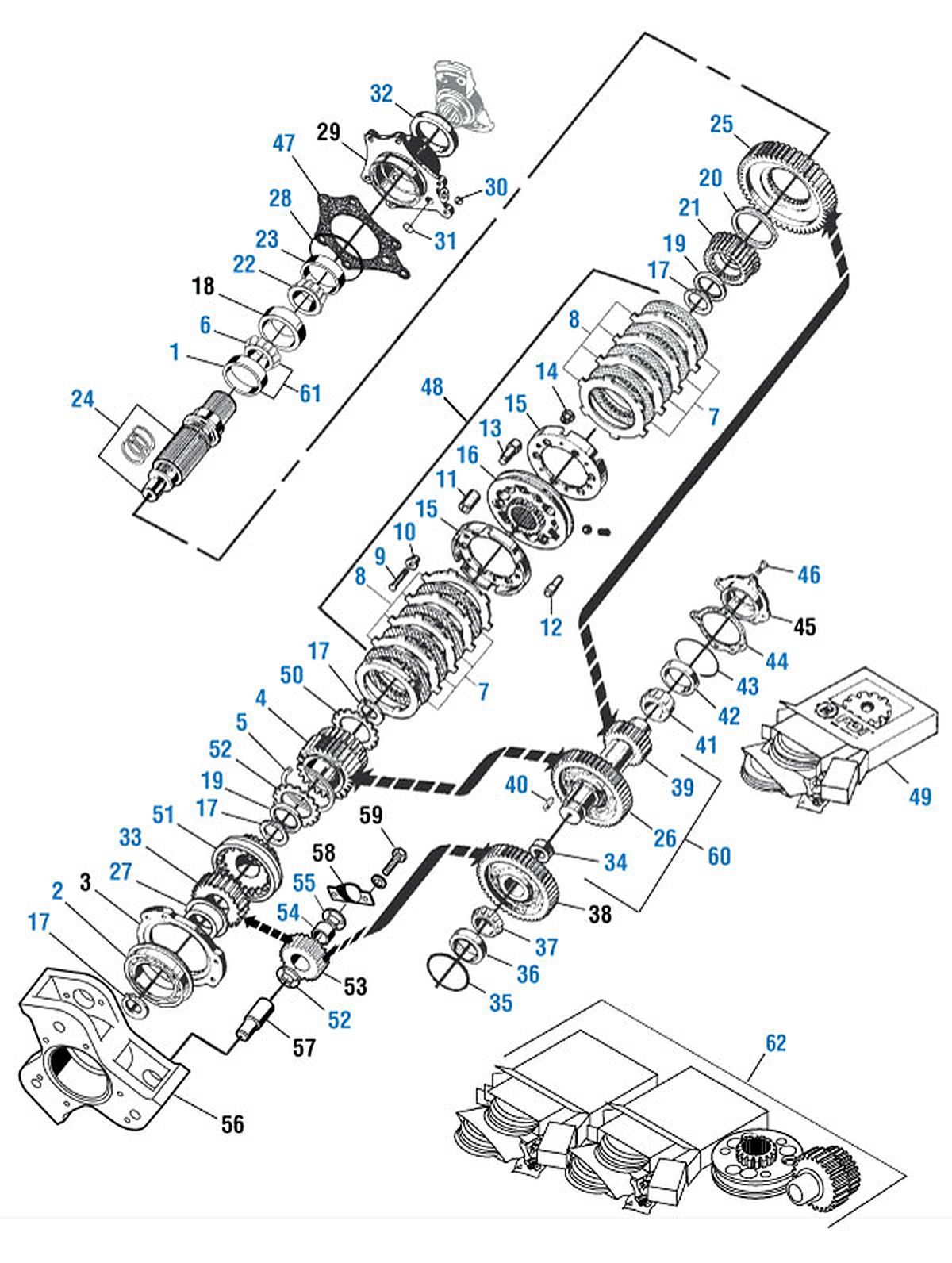

Rear Case Components
Item 49Item 60Item 35Item 36Item 37Item 38Item 34Item 26Item 39Item 41Item 42Item 43Item 44Item 45Item 46Item 56Item 57Item 52Item 53Item 40Item 49Item 54Item 55Item 58Item 59Item 7Item 12Item 7Item 25Item 20Item 21Item 19Item 17Item 8Item 14Item 15Item 13Item 16Item 11Item 15Item 10Item 9Item 8Item 48Item 17Item 50Item 4Item 5Item 52Item 19Item 17Item 51Item 33Item 27Item 3Item 2Item 17Item 30Item 31Item 61Item 24Item 1Item 6Item 18Item 22Item 23Item 28Item 47Item 32Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | NTN394A | Cup (available In Timken By Adding -tim) | $17.09 | Add to Cart | ||
| 2 | 46AX517 | Bearing | Interchanges with Navistar 1666389C1, BCA 118L | $230.97 | Add to Cart | |
| 3 | 251KB56 | Bearing Retainer | — | Call for availability | ||
| 4 | 751KB4128 | Gear, Compound, Main Drive | $657.84 | Add to Cart | ||
| 4 | 751KB4177 | Gear | New design | $608.77 | Add to Cart | |
| 4 | 751KB4175 | Gear, Compound (used W/ 320KB464 Synchronizer) | New design | $526.47 | Add to Cart | |
| 5 | 97AX171 | Ring, Retaining | Sold as a 10-pack | $115.01 | Add to Cart | |
| 6 | NTN399A | Cone (available In Timken By Adding -tim) | Interchanges with Mack 62AX503 | $21.24 | Add to Cart | |
| 7 | 495KB361 | Disc, Friction | 8 | Interchanges with Mack 495KB363. Sold as a 8-pack | $156.29 | Add to Cart |
| 8 | 495KB367 | Disc, Reaction | 8 | Sold as a 8-pack | $115.24 | Add to Cart |
| 9 | 6AX1606X | Screw, Synchronizer (5/16in-18 X 1-7/8in) | Interchanges with Mack 6AX1582. Sold as a 6-pack | $79.79 | Add to Cart | |
| 10 | 298KB213 | Clamp, Support Pin (front) | Sold as a 6-pack | $75.44 | Add to Cart | |
| 11 | 301KC243C | Sleeve, Synchronizer Support | Sold as a 3-pack | $66.68 | Add to Cart | |
| 12 | 301KC34 | Pin, Synchronizer (lo Clutch) | Sold as a 3-pack | $57.32 | Add to Cart | |
| 13 | 301KC33 | Pin, Synchronizer (hi Clutch) | Sold as a 3-pack | $50.09 | Add to Cart | |
| 14 | 298KB214 | Clamp, Support Pin (rear) | Sold as a 6-pack | $82.27 | Add to Cart | |
| 15 | 53KC486E | Housing, Synchronizer | Interchanges with Mack 53KC486C | $195.00 | Add to Cart | |
| 16 | 21636360 | Clutch, Synchronizer (backtapper Gear) | New design. Used w/ 320KB464 & 85132094 Synchronizer | $614.28 | Add to Cart | |
| 16 | 320KB459A | Clutch, Synchronizer | Interchanges with Mack 320KB459 | $500.30 | Add to Cart | |
| 17 | 97AX151 | Ring, Retaining | Interchanges with Mack 97AX289. Sold as a 10-pack | $49.27 | Add to Cart | |
| 18 | 31KD2176 | Spacer | — | Call for availability | ||
| 19 | 223KD249 | Washer, Thrust | $23.60 | Add to Cart | ||
| 20 | 97AX284 | Ring, Retaining | Interchanges with Mack 97AX261. Sold as a 5-pack | $26.95 | Add to Cart | |
| 21 | 84KC47 | Hub, Lo Range | $578.39 | Add to Cart | ||
| 21 | 84KC411 | Hub, Lo Range (used W/ 85132094 Synchronizer) | New design | $593.74 | Add to Cart | |
| 22 | NTN390A | Cone | Interchanges with Mack 62AX502 | $36.99 | Add to Cart | |
| 23 | NTN394A | Cup (available In Timken By Adding -tim) | $17.09 | Add to Cart | ||
| 24 | 601KC439P2 | Mainshaft | Interchanges with Mack 601KC439 | $966.55 | Add to Cart | |
| 25 | 751KB3493 | Gear, Lo Range | $904.40 | Add to Cart | ||
| 26 | 757KB4106 | Gear, Auxiliary Countershaft (keyed) | Interchanges with Mack 757KB4118 | $741.49 | Add to Cart | |
| 26 | 22031266 | Gear, Auxiliary Countershaft (splined) (current) | New design | $600.25 | Add to Cart | |
| 27 | 788KC286 | Sleeve | $199.82 | Add to Cart | ||
| 28 | 56AX432 | O-ring | Sold as a 10-pack | $39.10 | Add to Cart | |
| 30 | 153KB15 | Bushing, Speedometer Drive | Sold as a 10-pack | $47.29 | Add to Cart | |
| 31 | 56AX540 | O-ring | Interchanges with Navistar 3213549R1. Sold as a 10-pack | $22.76 | Add to Cart | |
| 32 | 88AX463 | Seal | Interchanges with National 4489VX | $16.50 | Add to Cart | |
| 33 | 751KB3495A | Gear, Compound | $547.62 | Add to Cart | ||
| 34 | 31KD2109AP2 | Spacer, Countershaft (1-5/8in Thk.) | $21.88 | Add to Cart | ||
| 35 | 56AX539 | O-ring, Countershaft, Forward Bearing Retainer | Interchanges with Mack 56AX401. Sold as a 3-pack | $9.60 | Add to Cart | |
| 36 | 64AX292 | Cup | Interchanges with Timken LM501310 | $9.72 | Add to Cart | |
| 37 | 62AX487 | Cone | Interchanges with Timken LM501349 | $15.38 | Add to Cart | |
| 38 | 757KB3326 | Gear, Countershaft Multi-speed Reverse | — | Call for availability | ||
| 39 | 605KC4227 | Countershaft (keyed Shaft) | Use w/ (2)42AX647, , 757KB4106 | $655.99 | Add to Cart | |
| 40 | 42AX647 | Key, Countershaft (1/2in X 5-7/16in) | $15.81 | Add to Cart | ||
| 40 | 42AX641 | Key (1/2in X 1-7/8in) | Use. Sold as a 5-pack | $28.88 | Add to Cart | |
| 41 | 62AX292 | Cone | Interchanges with Timken 3780, Navistar 400287R91 | $41.23 | Add to Cart | |
| 42 | 64AX16 | Cup | Interchanges with BCA 3720, Navistar 168468R1 | $19.88 | Add to Cart | |
| 43 | 56AX541 | O-ring | Interchanges with Mack 56AX510. Sold as a 5-pack | $18.00 | Add to Cart | |
| 44 | 741KC323P3 | Shim (.003in Thk) | Sold as a 3-pack | $32.22 | Add to Cart | |
| 44 | 741KC323P6 | Shim (.006in Thk) | Sold as a 3-pack | $32.22 | Add to Cart | |
| 44 | 741KC323P15 | Shim (.015in Thk) | Sold as a 3-pack | $32.22 | Add to Cart | |
| 44 | 741KC323P30 | Shim (.030in Thk) | Sold as a 3-pack | $51.28 | Add to Cart | |
| 45 | 451KC3112 | Retainer | — | Call for availability | ||
| 46 | 6AX1317X | Screw (7/16in-14 X 1-1/4in) | Interchanges with Mack 4AX4. Sold as a 5-pack | $28.38 | Add to Cart | |
| 47 | 629KB331A | Gasket | Sold as a 5-pack | $67.49 | Add to Cart | |
| 49 | 85132094 | Assembly, Synchronizer (backtapper Gear) | New design. Includes (3) 6AX1606X, (3) 301KC35, (8) 495KB361, (8) 495KB367, (3) 107KD247, (3) 298KB213, (3) 298KB214, (1) 21636360 | $1,087.02 | Add to Cart | |
| 48 | 320KB3147 | Assembly, Synchronizer | $1,086.39 | Add to Cart | ||
| 49 | 85132094 | Assembly, Synchronizer (backtapper Gear) (for 320KB464) | New design. Includes (3) 6AX1606X, (3) 301KC35, (8) 495KB361, (8) 495KB367, (3) 107KD247, (3) 298KB213, (3) 298KB214, (1) 21636360 | $1,087.02 | Add to Cart | |
| 49 | 208SH99A | Kit, Synchronizer | Includes (8) 495KB361, (8) 495KB367, (3) 301KC33, (3) 301KC34, (3) 301KC35, (3) 107KD247, (3) 301KC243C | $528.96 | Add to Cart | |
| 50 | 223KD316A | Washer, Thrust | Sold as a 2-pack | $46.79 | Add to Cart | |
| 51 | 320KB3141 | Clutch | $291.09 | Add to Cart | ||
| 52 | 223KD267 | Washer, Thrust | Sold as a 3-pack | $70.49 | Add to Cart | |
| 53 | 751KB2104 | Gear, Reverse Idler | — | Call for availability | ||
| 54 | 67AX343 | Bearing, Reverse Idler | $38.45 | Add to Cart | ||
| 55 | 223KD262 | Washer, Thrust | Sold as a 3-pack | $18.56 | Add to Cart | |
| 56 | 251KB56 | Cage, Reverse Idler Gear | — | Call for availability | ||
| 57 | 611KC333 | Shaft, Reverse Idler | — | Call for availability | ||
| 58 | 207KC22 | Lockplate, Reverse Idler Shaft | — | Call for availability | ||
| 59 | 6AX1296X | Screw, Self Lock (5/16in-18 X 3/4in) | — | Call for availability | ||
| 60 | 605KC4134 | Kit, Countershaft (w/ Keyed Shaft) | Includes (1) 757KB4106, (2) 42AX641 | $1,026.42 | Add to Cart | |
| 61 | 8929430 | Kit, Bearing | Includes (2) 399A, (2) 394A | — | Call for availability |
Front Shifter Components
Item 21Item 31Item 17Item 30Item 21Item 29Item 7Item 22Item 21Item 23Item 24Item 20Item 25Item 26Item 27Item 21Item 28Item 12Item 4Item 11Item 4Item 10Item 4Item 8Item 9Item 5Item 6Item 16Item 15Item 32Item 33Item 14Item 6Item 5Item 4Item 18Item 19Item 3Item 2Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 49AX259 | Plug | Sold as a 5-pack | $15.25 | Add to Cart | |
| 2 | 21AX918 | Nut | — | Call for availability | ||
| 3 | 36AX5 | Washer | $2.49 | Add to Cart | ||
| 4 | 35AX1446X | Washer | Sold as a 5-pack | $16.25 | Add to Cart | |
| 5 | 107KD256 | Spring, Shift Rail | — | Call for availability | ||
| 6 | 48AX19 | Ball, Interlock (13/16in Dia) | Sold as a 3-pack | $11.79 | Add to Cart | |
| 7 | 301KC248 | Pin | Sold as a 5-pack | $19.95 | Add to Cart | |
| 8 | 107KD256 | Spring, Shift Rail | — | Call for availability | ||
| 9 | 48AX3 | Ball, Shift Rail (3/8in Dia.) | — | Call for availability | ||
| 10 | 31KD2169 | Spacer | $38.68 | Add to Cart | ||
| 11 | 107KD256 | Bracket, Rocker | — | Call for availability | ||
| 12 | 3AX2050 | Bolt, Hex Head (1/2-20in X 2-1/2in) | — | Call for availability | ||
| 13 | 3AX1731 | Screw (3/8-24 Nf X 1-3/4in) | Sold as a 5-pack | $17.45 | Add to Cart | |
| 14 | 521KC216 | Rocker, Range Shift | — | Call for availability | ||
| 15 | 37AX265 | Washer (13/32in Id X 3/4in Od) | Interchanges with Mack 35AX1463. Sold as a 10-pack | $23.50 | Add to Cart | |
| 16 | 20AX3 | Nut (3/8in-24 Nf) | $2.29 | Add to Cart | ||
| 17 | 591KC3166 | Rail, Shift (4th/5th) | — | Call for availability | ||
| 18 | 107KD242 | Spring | Sold as a 5-pack | $17.35 | Add to Cart | |
| 19 | 56AX436 | O-ring | Sold as a 10-pack | $24.00 | Add to Cart | |
| 20 | 575KB3303C | Fork | $204.75 | Add to Cart | ||
| 21 | 7AX264X | Screw | Sold as a 10-pack | $61.55 | Add to Cart | |
| 22 | 411KC18A | Plunger | $22.04 | Add to Cart | ||
| 23 | 107KD118 | Spring | Sold as a 5-pack | $31.10 | Add to Cart | |
| 24 | 575KB3306B | Fork | $172.77 | Add to Cart | ||
| 25 | 699KC42 | Shifter (1st/Reverse) | — | Call for availability | ||
| 26 | 107KD116 | Spring | Sold as a 5-pack | $15.75 | Add to Cart | |
| 27 | 48AX17 | Ball | Sold as a 10-pack | $27.90 | Add to Cart | |
| 28 | 591KC3164A | Rail, Shift (1st/Reverse) | — | Call for availability | ||
| 29 | 575KB3320D | Fork | $157.05 | Add to Cart | ||
| 30 | 591KC3165A | Rail, Shift (2nd/3rd) | — | Call for availability | ||
| 31 | 699KC43 | Shifter (4th/5th) | — | Call for availability | ||
| 32 | 629KB250 | Gasket, Cover | Sold as a 5-pack | $29.92 | Add to Cart | |
| 33 | 629KB411 | Gasket | Sold as a 6-pack | $30.79 | Add to Cart |

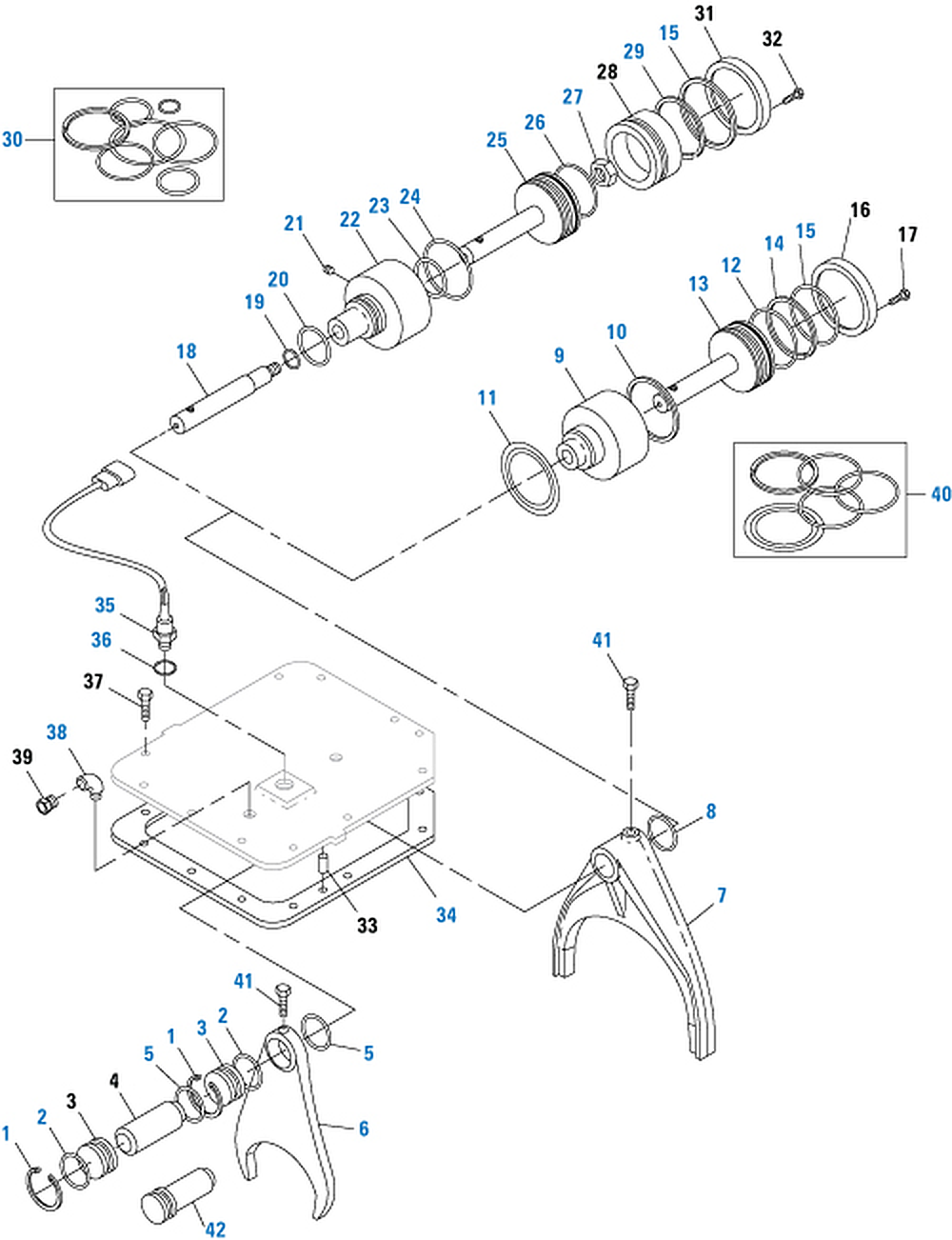

Rear Shifter Components
Item 30Item 15Item 29Item 28Item 27Item 26Item 25Item 23Item 22Item 21Item 20Item 19Item 18Item 35Item 40Item 17Item 36Item 37Item 38Item 39Item 41Item 2Item 3Item 1Item 5Item 4Item 3Item 2Item 1Item 6Item 5Item 33Item 34Item 7Item 8Item 41Item 40Item 11Item 9Item 10Item 13Item 12Item 14Item 15Item 17Item 32Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 97AX113 | Ring, Retaining (1-1/4in Id) | Sold as a 5-pack | $13.05 | Add to Cart | |
| 2 | 56AX568 | O-ring (1-7/16in Od - 1-3/16in Id) | Interchanges with Mack 56AX589. Sold as a 10-pack | $26.90 | Add to Cart | |
| 3 | 336KC221 | Plug, Shift Cover (3/4in Id) | — | Call for availability | ||
| 4 | 591KC3177 | Rail, Forward-reverse (multi-speed) | — | Call for availability | ||
| 5 | 14765 | O-ring (1in Id X 1-1/4in Od) | $2.70 | Add to Cart | ||
| 6 | 575KB467A | Fork, Hi-reverse | Interchanges with Mack 575KB467 | $429.21 | Add to Cart | |
| 7 | 575KB457 | Fork, Range (hi-lo) | Interchanges with Mack 575KB485 | $382.65 | Add to Cart | |
| 8 | 56AX557 | O-ring (2-5/16in Id X 2-1/2in Od) | Sold as a 10-pack | $29.30 | Add to Cart | |
| 9 | 55KC421 | Cylinder, Range Housing | $226.79 | Add to Cart | ||
| 10 | 561KC23 | O-ring | Sold as a 5-pack | $337.01 | Add to Cart | |
| 11 | 629KB251 | Gasket | Sold as a 5-pack | $34.90 | Add to Cart | |
| 12 | 561KC22 | O-ring | Sold as a 5-pack | $318.37 | Add to Cart | |
| 13 | 591KC3194 | Rail, Range (w/ 5.50in Shaft) | $174.29 | Add to Cart | ||
| 13 | 591KC3194P2 | Rail, Range (w/ 6.25in Shaft) | $189.93 | Add to Cart | ||
| 14 | 89KB21 | Ring, Wear | Sold as a 5-pack | $169.46 | Add to Cart | |
| 15 | 56AX558 | O-ring | Sold as a 10-pack | $38.80 | Add to Cart | |
| 17 | 6AX1642 | Bolt | — | Call for availability | ||
| 18 | 591KC3180 | Rail | — | Call for availability | ||
| 19 | 446GC1103 | O-ring | Sold as a 10-pack | $27.20 | Add to Cart | |
| 20 | 56AX557 | O-ring | Sold as a 10-pack | $29.30 | Add to Cart | |
| 21 | 641KB19 | Breather | Sold as a 5-pack | $21.67 | Add to Cart | |
| 22 | 55KC420 | Cylinder, Range | $305.35 | Add to Cart | ||
| 23 | 56AX533 | O-ring | $1.96 | Add to Cart | ||
| 25 | 336KC335 | Piston, Range | — | Call for availability | ||
| 26 | 56AX559 | O-ring | Sold as a 10-pack | $35.30 | Add to Cart | |
| 27 | 21AX360 | Nut | Sold as a 5-pack | $13.60 | Add to Cart | |
| 28 | 336KC334 | Piston, Range | — | Call for availability | ||
| 29 | 17453 | O-ring | $5.35 | Add to Cart | ||
| 30 | Range Cylinder O-Ring Kit | Kit, O-ring Range | Includes (1) 14142, (1) 446GC1103, (1) 56AX558, (1) 56AX559, (1) 56AX561, (1) 17453, (1) 56AX557 | $10.18 | Add to Cart | |
| 30 | Range Cylinder O-Ring Kit | Kit, O-ring Range (major) | Includes (3) 56AX539, (1) 5X1083, (1) 56AX557, (1) 446GC1103, (1) 56AX558, (1) 56AX559, (1) 56AX560, (1) 17453, (1) 56AX561, (2) 14765, (2) 56AX568, (3) 56AX541, (1) 14142, (1) 56AX545 | $35.21 | Add to Cart | |
| 32 | 6AX1710 | Bolt | — | Call for availability | ||
| 33 | 502KB113 | Dowel | — | Call for availability | ||
| 34 | 629KB335A | Gasket, Cover Rear | Sold as a 5-pack | $63.77 | Add to Cart | |
| 35 | 1MR3482M | Switch, Back-up (w/ Connector) | Normally Open. Interchanges with Mack 1MR3483M | $38.46 | Add to Cart | |
| 36 | 56AX381 | O-ring | Interchanges with CAT 0336042. Sold as a 10-pack | $40.70 | Add to Cart | |
| 37 | 551KC28 | Screw (3/8-16 Nc X 1-1/4in) | — | Call for availability | ||
| 38 | 745-230809 | Fitting | Interchanges with Mack 6AX407. Sold as a 5-pack | $18.45 | Add to Cart | |
| 39 | 63AX6 | Bushing, Reducer (1/4-1/8in Npt) | — | Call for availability | ||
| 40 | 207SH36A | Kit, Range Cylinder O-ring (early) | Includes (1) 5X1083, (1) 56AX557, (1) 56AX559, (1) 56AX560, (1) 56AX552, (1) 56AX569, (2) 14765, (1) 56AX558, (1) 56AX561, (3) 56AX568, (1) 56AX381 | $23.84 | Add to Cart | |
| 40 | 207SH38 | Kit, Range Cylinder | Includes (1) 89KB21, (1) 561KC22, (1) 561KC23, (1) 56AX558, (2) 14765, (2) 56AX568, (1) 629KB251 | $151.68 | Add to Cart | |
| 41 | 7AX264X | Screw, Lock | Sold as a 10-pack | $61.55 | Add to Cart |
No parts match that search — try the part number with no dashes.
This is the illustrated parts breakdown for the Mack T2110B / T2110D Transmission — every part in these diagrams, matched to our live inventory. We stock 201 of the 249 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
More Mack parts manuals: Mack Transmission Parts Manuals · Mack Differential Parts Manuals
