Muncie A1 Series Parts List & Service Manual
Parts List and Description
Item 29Item 30Item 30Item 31Item 16Item 15Item 35Item 34Item 33Item 17Item 18Item 24Item 27Item 28Item 29Item 30Item 30Item 32Item 31Item 13Item 13Item 25Item 24Item 27Item 13Item 13Item 30Item 31Item 32Item 30Item 28Item 29Item 26Item 36Item 37Item 38Item 38Item 23Item 42Item 43Item 41Item 36Item 36Item 37Item 44Item 38Item 36Item 42Item 43Item 23Item 38Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 01 | 10T24175 | Input Needle | 2 | $15.28 | Add to Cart | |
| 02 | 21T34281 | Thrust Washer Input Ratio Gear | 2 | $23.77 | Add to Cart | |
| 04 | 49T33959 | Shift Collar | 1 | $182.04 | Add to Cart | |
| 05 | 07T33974 | Idler Shaft | 1 | $68.56 | Add to Cart | |
| 06 | 03T40079 | Input Gear – | 1 | No longer available - Call for replacement | ||
| 07 | 19T31664 | Socket Head | 4 | $7.44 | Add to Cart | |
| 08 | 15T35612 | Idler Shaft Cap | 2 | $24.83 | Add to Cart | |
| 09 | 13T38286 | Idler Shaft Gasket | 2 | $6.36 | Add to Cart | |
| 10 | 01T41147 | PTO Housing | 1 | $845.82 | Add to Cart | |
| 11 | 19T34530 | Buttonhead Screw | 2 | $4.09 | Add to Cart | |
| 12 | 28T41154 | Air/Cable Cover | 1 | Call for availability | ||
| 13 | 12T41163 | O-Ring (Qty O-Ring Boss | 3 | $3.31 | Add to Cart | |
| 15 | 28T41391 | Poppet Ball (E-Hydra | 1 | $3.30 | Add to Cart | |
| 16 | 27T41384 | Spring (E-Hydra | 1 | $10.49 | Add to Cart | |
| 17 | 12T41760 | Poppet O-Ring | 2 | $3.61 | Add to Cart | |
| 18 | 28T41383 | Poppet Cap | 2 | $27.84 | Add to Cart | |
| 19 | 36MCL100 | Nameplate Switch (Includes | 1 | Call for availability | ||
| 30T38111 | Indicator Switch (White N .O - | 1 | $41.70 | Add to Cart | ||
| 30T38110 | Indicator Switch (Black N .C - | 1 | $41.70 | Add to Cart | ||
| 21 | 19T33233 | Hex Head Capscrew | 2 | $4.09 | Add to Cart | |
| 22 | 15T34323 | Bearing Cap | 1 | $32.91 | Add to Cart | |
| 23 | 12T36751 | O-Ring | 2 | $8.14 | Add to Cart | |
| 24 | 19T41162 | Socket Head | 2 | $8.07 | Add to Cart | |
| 19T41158 | Socket Head | 2 | $3.53 | Add to Cart | ||
| 04 | 04T34277 | 13T | $360.60 | Add to Cart | ||
| 05 | 04T34275 | 16T | $360.60 | Add to Cart | ||
| 06 | 04T34441 | 19T | $360.60 | Add to Cart | ||
| 07 | 04T34271 | 21T | $360.60 | Add to Cart | ||
| 08 | 04T35186 | 23T | $360.60 | Add to Cart | ||
| 09 | 04T34399 | 24T | $360.60 | Add to Cart | ||
| 12 | 04T35155 | 27T | $360.60 | Add to Cart | ||
| 13 | 04T35363 | 28T | $360.60 | Add to Cart | ||
| 15 | 04T34598 | 30T | $360.60 | Add to Cart | ||
| 18 | 04T34605 | 31T | $360.60 | Add to Cart | ||
| 25 | 28T41155 | Lever (Cable) | 1 | $29.45 | Add to Cart | |
| 26 | 26T41165 | Pin (Cable) | 1 | $2.57 | Add to Cart | |
| 27 | 28T41151 | Cable Shift Cover | 1 | $108.00 | Add to Cart | |
| 28T41150 | Air Shift Cover | 1 | $85.27 | Add to Cart | ||
| 28 | 28T41153 | Piston Control (Cable) (Steel) | 1 | $125.32 | Add to Cart | |
| 28T41152 | Piston Control (Air) (Aluminum) | 1 | $81.75 | Add to Cart | ||
| 29 | 17T41157 | Shifter Shaft (Cable/Air) | 1 | $23.32 | Add to Cart | |
| 17T41693 | Shifter Shaft (E-Hydra) | 1 | $60.87 | Add to Cart | ||
| 30 | 24T41160 | Klip Ring | 2 | $2.42 | Add to Cart | |
| 31 | 28T41159 | Yoke | 1 | $30.54 | Add to Cart | |
| 32 | 27T41156 | Air/Cable Spring | 1 | $5.99 | Add to Cart | |
| 33 | 28TA4685 | Cylinder Assembly (1214KES5C00) Retainer Included | 1 | $390.76 | Add to Cart | |
| 34 | 19T41164 | Buttonhead Screw | 2 | $1.93 | Add to Cart | |
| 35 | 24T41161 | Snap Ring (E-Hydra Only) | 1 | $1.87 | Add to Cart | |
| 36 | 10T21017 | Output Bearing | 2 | $74.28 | Add to Cart | |
| 37 | 06T36857 | Output Shaft “B” | 1 | $149.09 | Add to Cart | |
| 06T39143 | Output Shaft “K” | 1 | $209.55 | Add to Cart | ||
| 06T35048 | Output Shaft “Q” & “S” | 1 | $209.55 | Add to Cart | ||
| 06T37335 | Output Shaft “T” | 1 | $209.55 | Add to Cart | ||
| 38 | 24T23937 | Snap Ring Output Ratio Gear Flange/Seal Kit | 2 | $9.34 | Add to Cart | |
| 41 | 58T38789 | Installation Ring (“K” Output Only) | 1 | $16.48 | Add to Cart | |
| 42 | 19T34717 | Hex Head Screw “B” | 4 | $5.30 | Add to Cart | |
| 19T34462 | Socket Head Capscrew “K” | 4 | $4.09 | Add to Cart | ||
| 19T39257 | Socket Head Capscrew “S” & “T” | 4 | $3.30 | Add to Cart | ||
| 43 | 25T35724 | Output Shaft “K” “Q” & “S” Caplug , | 1 | $2.31 | Add to Cart | |
| 25T37387 | Output Shaft “T” Caplug | 1 | $2.22 | Add to Cart | ||
| 44 | 26T01627 | “B” Shaft Woodruff Key | 1 | $5.78 | Add to Cart | |
| 26MCC120 | Cable (Included With Cable Shift Option PTO) | 1 | Call for availability | |||
| 15TA5220 | “B” Flange/Seal Assembly | $85.99 | Add to Cart | |||
| 14TA3996 | “K” Flange/Seal Assembly | $278.76 | Add to Cart | |||
| 14TA3999 | “S” Flange/Seal Assembly | $278.76 | Add to Cart | |||
| 14TA4819 | “G ” Flange/Seal Assembly | $447.15 | Add to Cart |
Table B - Flange/Seal Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 14TA3997 | “Q” & “T” Flange/Seal Assembly | 14T39141 - Hydraulic Flange 11T37790 - Output Shaft Seal | $278.76 | Add to Cart |
Table A Gear Set Selection - Ratio Designator
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 39 | 02T34278 | Output Ratio Gear, Ratio 04 (36T) | $310.25 | Add to Cart | ||
| 39 | 02T34276 | Output Ratio Gear, Ratio 05 (34T) | $310.25 | Add to Cart | ||
| 39 | 02T34440 | Output Ratio Gear, Ratio 06 (31T) | $310.25 | Add to Cart | ||
| 39 | 02T34272 | Output Ratio Gear, Ratio 07 (29T) | $310.25 | Add to Cart | ||
| 39 | 02T35185 | Output Ratio Gear, Ratio 08 (26T) | $310.25 | Add to Cart | ||
| 39 | 02T34398 | Output Ratio Gear, Ratio 09 (26T) | $310.25 | Add to Cart | ||
| 39 | 02T35162 | Output Ratio Gear, Ratio 12 (23T) | $310.25 | Add to Cart | ||
| 39 | 02T35362 | Output Ratio Gear, Ratio 13 (21T) | $282.00 | Add to Cart | ||
| 39 | 02T39172 | Output Ratio Gear, Ratio 15 (20T) | $310.25 | Add to Cart | ||
| 39 | 02T34601 | Output Ratio Gear, Ratio 18 (18T) | $310.25 | Add to Cart |

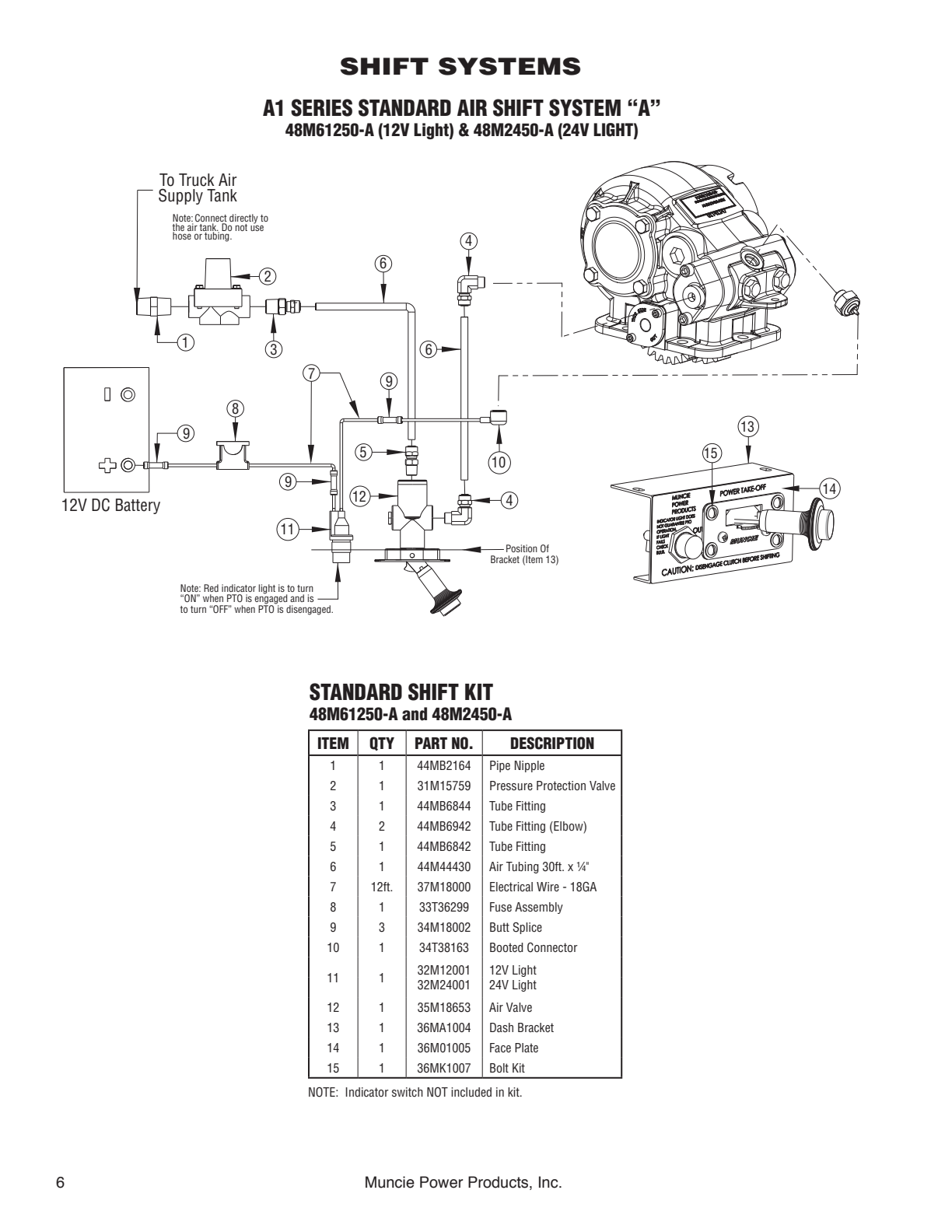

A1 Standard Air Shift System “A”: 48M61250-A (12V Light) & 48M2450-A (24V Light)
Item 6Item 1Item 2Item 3Item 6Item 4Item 6Item 8Item 9Item 9Item 7Item 9Item 5Item 11Item 4Item 10Item 12Item 13Item 14Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 44MB2164 | Pipe Nipple | 1 | $5.22 | Add to Cart | |
| 2 | 31M15759 | Pressure Protection Valve | 1 | $120.08 | Add to Cart | |
| 3 | 44MB6844 | Tube Fitting | 1 | $9.14 | Add to Cart | |
| 4 | 44MB6942 | Tube Fitting (Elbow) | 2 | $10.62 | Add to Cart | |
| 5 | 44MB6842 | Tube Fitting | 1 | $6.66 | Add to Cart | |
| 6 | 44M44430 | Air Tubing 30ft. X ¼" | 1 | Call for availability | ||
| 7 | 37M18000 | Electrical Wire - 18GA | $2.18 | Add to Cart | ||
| 8 | 33T36299 | Fuse Assembly | 1 | $11.93 | Add to Cart | |
| 9 | 34M18002 | Butt Splice | 3 | $2.93 | Add to Cart | |
| 10 | 34T38163 | Booted Connector | 1 | $8.77 | Add to Cart | |
| 11 | 32M12001 | 12V Light | $44.73 | Add to Cart | ||
| 11 | 32M24001 | 24V Light | $44.73 | Add to Cart | ||
| 12 | 35M18653 | Air Valve | 1 | $209.42 | Add to Cart | |
| 13 | 36MA1004 | Dash Bracket | 1 | $49.06 | Add to Cart | |
| 14 | 36M01005 | Face Plate | 1 | $7.44 | Add to Cart | |
| 15 | 36MK1007 | Bolt Kit | 1 | $5.27 | Add to Cart |
A1 Cable Shift Kit “C”: 16TK5184-14 and 16TK5184-23
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 36M16818 | Dash Face Plate | 1 | $4.85 | Add to Cart | |
| 2 | 32M12001 | Indicator Light | 1 | $44.73 | Add to Cart | |
| 3 | 33T36299 | Fuse Holder | 1 | $11.93 | Add to Cart | |
| 4 | 34T38163 | Booted Connector | 2 | $8.77 | Add to Cart | |
| 30T38111 | Indicator Switch - 14 | $41.70 | Add to Cart | |||
| 30T38110 | $41.70 | Add to Cart | ||||
| 190ST0018G0 | 6 -10 Cable Shift Kit Cable (Not Included | 1 | $103.32 | Add to Cart | ||
| 11 | 28MCC120 | In Kit) | 1 | $102.06 | Add to Cart | |
| N.S. | 28MK0155 | Cable Knob | 1 | $9.53 | Add to Cart |
“Z” Heavy Cable Kit 47TA5316
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| I3058 | Clamp A1 Heavy Cable Instruction | 1 | Call for availability | |||
| KB55GM3108 | 9' Groove Mount Cable | 1 | Call for availability | |||
| 1441A | 10-32 Screw | 2 | $1.91 | Add to Cart | ||
| 161091000 | Pivot Pin | 1 | $61.03 | Add to Cart | ||
| 175412001 | 10/32 Jam Nut | 1 | Call for availability | |||
| 19M10000 | Capscrew | 1 | $5.27 | Add to Cart | ||
| 21MZ0022 | Washer | 1 | $3.19 | Add to Cart | ||
| 21M11100 | Lock Washer | 2 | $1.78 | Add to Cart | ||
| 21T37991 | Lock Washer | 1 | $2.41 | Add to Cart | ||
| 22MX1032 | 10-32 Hex Nut | 2 | $1.94 | Add to Cart | ||
| 22MX2520 | ¼-20 Hex Nut Pin | 1 | $2.00 | Add to Cart | ||
| 26MZ0050 | 1 | $3.19 | Add to Cart | |||
| 28MK2520A | Knob | 1 | $15.23 | Add to Cart | ||
| 58T42414 | Alpha Heavy Cable Bracket | 1 | Call for availability |
A1 Electric-Air Shift System “E”: 48M61200-A & 48M62400-A
Item 8Item 4Item 15Item 3Item 6Item 5Item 8Item 10Item 3Item 6Item 3Item 2Item 1Item 10Item 11Item 10Item 7Item 9Item 12Item 14Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 44MB2164 | Pipe Nipple | 1 | $5.22 | Add to Cart | |
| 2 | 31M15759 | Pressure Protection Valve | 1 | $120.08 | Add to Cart | |
| 3 | 44MB6844 | Tube Fitting | 3 | $9.14 | Add to Cart | |
| 4 | 44MB6942 | Tube Fitting (Elbow) | 1 | $10.62 | Add to Cart | |
| 5 | 35M30692 | 12V Solenoid Valve | $314.26 | Add to Cart | ||
| 5 | 35M31692 | 24V Solenoid Valve | $314.26 | Add to Cart | ||
| 6 | 45M44430 | Air Tubing 30ft. X ¼" | 1 | $64.95 | Add to Cart | |
| 7 | 37M18000 | Electrical Wire - 18GA | $2.18 | Add to Cart | ||
| 8 | 34M18009 | Eyelet Terminal | 1 | $2.82 | Add to Cart | |
| 9 | 34M18250 | Spade Terminal | 3 | $2.93 | Add to Cart | |
| 10 | 34M18002 | Butt Splice | 3 | $2.93 | Add to Cart | |
| 11 | 33T36299 | Fuse Assembly | 1 | $11.93 | Add to Cart | |
| 12 | 36MA1005 | Dash Bracket | 1 | $12.04 | Add to Cart | |
| 13 | 36M01007 | Face Plate | 1 | $5.37 | Add to Cart | |
| 14 | 30T35687 | Switch 12V DC | $66.82 | Add to Cart | ||
| 14 | 30T35712 | Switch 24V DC | $133.85 | Add to Cart | ||
| 15 | 34T38163 | Booted Connector | 1 | $8.77 | Add to Cart | |
| N.S. | 36MK1007 | Bolt Kit | 1 | $5.27 | Add to Cart |
Activation Kit 48TK4686
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 30T39590 | Rocker Switch | 1 | $172.25 | Add to Cart | |
| 2 | 36MA1005 | Dash Bracket | 1 | $12.04 | Add to Cart | |
| 3 | 32MSR12V | Light | 3 | $14.21 | Add to Cart | |
| 4 | 36T35431 | Faceplate | 1 | $5.69 | Add to Cart | |
| 5 | 34T39591 | Harness | 1 | $433.79 | Add to Cart | |
| 6 | 37T39628 | Grommet | 1 | $7.44 | Add to Cart |
A1 Installation Kit: Stud Kit
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20T39529 | Step Stud 1 IN84-03 PTO Manual 2 36M35644 Frame Label | 2 | $16.19 | Add to Cart | |
| 2 | 22T37605 | Whiz-Lock Nut 1 13M35091 .010" Gasket 1 36T38634 Visor Label | 2 | $2.28 | Add to Cart | |
| 3 | 20M39035 | Metric Stud M10 X 1 .5 X 40 .020" Gasket 1 13M35092 1 36M35652 Dash Label | 4 | Call for availability | ||
| 4 | 22T39282 | Spiralock Nut Nameplate 1 36M111NP | 4 | $2.77 | Add to Cart |
A1 Installation Kit 48TK5174
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20TK4768 | Stud Kit | 1 | $85.78 | Add to Cart | ||
| 36MK3841 | Safety Label Packet | 1 | $6.12 | Add to Cart | ||
| 52MK1001 | Gasket/Instruction Pack | 1 | $10.55 | Add to Cart |
Gasket/Instruction Pack 52MK1001
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 13M35091 | .010" Gasket | 1 | $2.33 | Add to Cart | ||
| 13M35092 | .020" Gasket | 1 | $2.33 | Add to Cart | ||
| 36M111NP | Nameplate | 1 | $2.22 | Add to Cart |
Safety Label Packet 36MK3841
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 36M35644 | Frame Label | 2 | $3.65 | Add to Cart | ||
| 36T38634 | Visor Label | 1 | $5.57 | Add to Cart | ||
| 36M35652 | Dash Label | 1 | $2.22 | Add to Cart |
Other Parts Shown in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 11T37790 | Shaft Seal | $13.58 | Add to Cart | |||
| 14T35464 | S Hydraulic Flange - PTO | $254.41 | Add to Cart | |||
| 14T37779 | K Hydraulic Flange CS20 | $254.41 | Add to Cart | |||
| 14T38981 | Hydraulic Flange 6" / 7" CS24 CS25 | $431.09 | Add to Cart | |||
| 14T39141 | Hydraulic Flange, F, Q, R, T PTO Output | $254.41 | Add to Cart | |||
| 15T41683 | Open Bearing Cap (Piloted) | $72.50 | Add to Cart | |||
| 48M61250-A | Standard Air Shift Kit | $405.56 | Add to Cart | |||
| 16TK5184-14 | A1 Cable Cover Kit Dodge | $188.20 | Add to Cart | |||
| 16TK5184-23 | A1 Cable Cover Kit-Dodge | $188.20 | Add to Cart | |||
| 36MK1210-A | Dash Plate And Light Kit | $71.52 | Add to Cart | |||
| 47TA5316 | Dodge A1 Heavy Cable Kit | $431.57 | Add to Cart | |||
| 48M61200-A | PTO Air Shift Cylinder Installation Kit | $686.05 | Add to Cart | |||
| 48M62400-A | Electric Air Kit | $717.21 | Add to Cart | |||
| 48TK4686 | TG Series PTO Activation Kit | $317.42 | Add to Cart | |||
| 48TK5174 | Dodge PTO Installation Kit | $157.23 | Add to Cart |
A1 Dimensions
| Item | Part No. | Description | Qty | Notes | Price |
|---|
This is the complete factory parts breakdown for the Muncie PTO A1, with every part in the manual matched to our live inventory. We stock 158 of the 168 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search. Try the part number with no dashes.
This Muncie Parts & Service Manual covering the A1 power take-off helps you identify the correct gears, shafts, kits and service parts for your power take-off before you order. 158 of the parts it lists are in stock to buy on this page.
| Models covered | A1 |
| PTO type | Muncie power take-off |
| Document | Parts & Service Manual (Muncie) |
| Length | 13 pages |
| Format | PDF, free to view or download |
What’s inside
- Parts List and Description
- Table B - Flange/Seal Assembly
- Table A Gear Set Selection - Ratio Designator
- A1 Cable Shift Kit “C”: 16TK5184-14 and 16TK5184-23
- “Z” Heavy Cable Kit 47TA5316
- A1 Electric-Air Shift System “E”: 48M61200-A & 48M62400-A
- Activation Kit 48TK4686
- A1 Installation Kit: Stud Kit
- Exploded views with Muncie part numbers
Muncie parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Muncie PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
