Spicer 5952-A Parts Manual
Drive Gear Group -Input
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | 550930 | Cone -main Drive Gear Bearing | 2 | $64.20 | Add to Cart | |
| A-3 | 550929 | Cup -main Drive Gear Bearing | 2 | $28.81 | Add to Cart | |
| A-4 • | 47-468-2 | Baffle -oil Ring Drive | 1 | $33.38 | Superseded by 3132403XAdd to Cart | |
| A-s | 47-2211-2 | ·2 Spacer/shim | 1 | — | Call for availability | |
| A-6 • | 47-468-1 | Baffle -bearing Cap | 1 | $3.55 | Add to Cart | |
| A-7 | 550931 | Cone -main Drive Gear Pocket Bearing | 1 | $34.78 | Add to Cart |

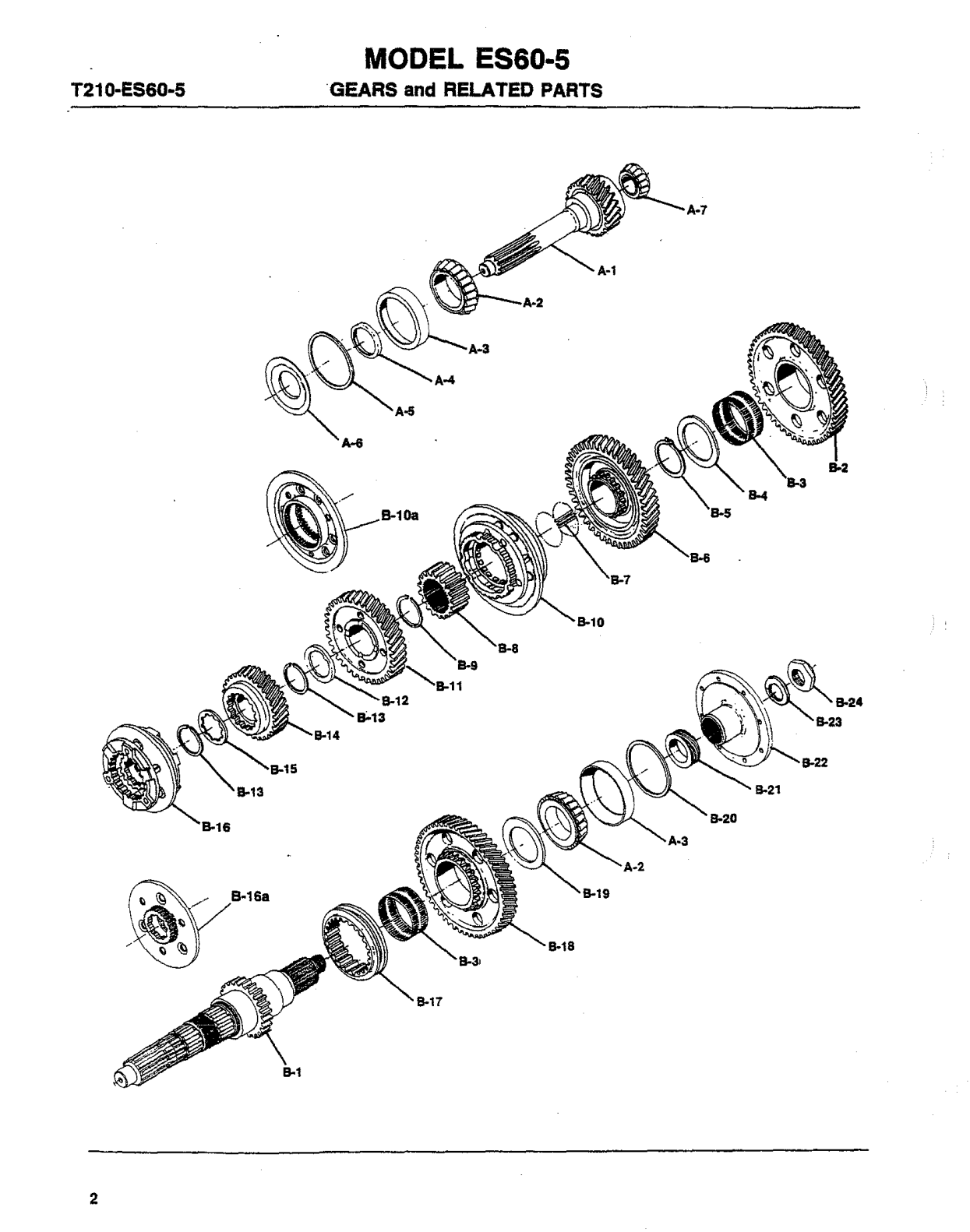

Mainshaft Group -Output
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 53-362-3 | Mainshafl | · i | — | Call for availability | |
| B-1 | 53-362-8 | Mainshafl -(13/• " ·10 Spline I Nd Ustrial) | 1 | — | Call for availability | |
| B-2 | 59-8-10 | Gear-1 St Speed (42T) | 1 | — | Call for availability | |
| B-3 | 550932 | Bearing ' -1st & ·reverse Gear Needle Assembly. | 2 | $40.03 | Add to Cart | |
| B-4 | 330866 | Thrust Washer-1 St Speed Gear | 1 | — | Call for availability | |
| B-5 | 27-381 | ·5 Snap Ri Ng | 1 | — | Call for availability | |
| B-5 | 59-8-8 | (36T) For ES60-5A, ES&D-5D, ES6o-5 ·e, 5952A, 59520 5952E | $581.61 | Superseded by 6785Add to Cart | ||
| B-5 | 59-8-9 | (37T) For ES60 .5C, 5952C | — | Call for availability | ||
| B-7 | 59-482 | ·1 ·1X Bearing Kit-mainshafl 2nd Speed Needle Roller (61 Needles) | 1 | — | Call for availability | |
| B-8 | 59-466-3 | Gear-2nd & 3rd Speed Clutch (40T) | 1 | $217.97 | Add to Cart | |
| B-10 | 313536X | Synchronizer-2nd & 3rd Speed (1ST) | 1 | $1,039.90 | Add to Cart | |
| B-10A | 59-465-1 | Clutch Collar (used In Place Of Synchronizer) (40T) | 1 | — | Call for availability | |
| B-10A | 59-8-5 | (35T) For Es&d-sa, 5952A | $628.73 | Superseded by 6783Add to Cart | ||
| B-10A | 59-8-7 | (31T) For ES60-5C, 5952C | — | Call for availability | ||
| B-10A | 59-8-4 | (33T) For ES60 .5D ES60 .5E 59520 5952E | $721.78 | Superseded by 6784Add to Cart | ||
| B-12 | 330818 | Thrust Washer-3rd & 4th Speed | 1 | $35.44 | Superseded by 67471Add to Cart | |
| B-13 | 53-381 | ·2 Snap Ri Ng | 2 | — | Call for availability | |
| B-13 | 59-11-1 | (27T) For Es&d-sd, ES60 ·5E 5952-D, 5952-E | — | Call for availability | ||
| B-13 | 59-8-2 | (29T) For ES60 ·5A, ES80 ·5C 5952-A, 5952-C | $487.31 | Superseded by 6782Add to Cart | ||
| B-15 | 1016-W | Thrust Washer-4th Speed Gear | 1 | $83.44 | Add to Cart | |
| B-16 | 313535X | Synchronizer-4th & 5th Speed (31T/10T) | 1 | $470.56 | Add to Cart | |
| B-16A | 59-466 | ·1 -1X Clutch Gear & Cam Plate | — | Call for availability | ||
| B-17 | 47-465-1 | Clutch Collar-1 St & Reverse | 1 | $215.92 | Add to Cart | |
| B-18 | 53-8-1 | Gear-reverse (42T) · | i | $403.79 | Add to Cart | |
| B-19 | 330867 | Thrust Washer-reverse | 1 | — | Call for availability | |
| B-20 | 313240-3X | Spacer & Shim Kit To Adjust Mainshaft End Play | 1 | $33.38 | Add to Cart | |
| B-20 | 53-37-1 | Spacer-(use In Place Of Speedometer Drive ge11 -r) | 1 | — | Call for availability | |
| B-23 | 53-205-1 | Washer-1 V•" Flat | 1 | $4.42 | Add to Cart | |
| B-24 | 501200 | N Ut -1 Y " 1 8hex | 1 | — | Call for availability |
Countershaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 59-30-3 | Countershaft | 1 | $555.90 | Add to Cart | |
| C-1 | 59-30 | .1 Countershaft (for Rear Potooo Drive) | 1 | — | Call for availability | |
| C-1 | 59-196-8 | (19T) For ES6G-5A, ES&G-50, ES60 ·5E 5952-A, 5952-D 5952-E | $330.96 | Superseded by 671965Add to Cart | ||
| C-1 | 59-196-9 | (1ST) For ES6G-5C, 5952-C | — | Call for availability | ||
| C-3 | 59-37-1 | Spacer-2nd & 3rd Speed Gear | 1 | $65.92 | Add to Cart | |
| C-3 | 59-196-4 | (32T) For ES&o-50 Es&o-se, 5952-D, 5952-E | $429.78 | Superseded by 671964Add to Cart | ||
| C-3 | 59-196-5 | (30T) For ES6G-5A, 5952-A | — | Call for availability | ||
| C-3 | 59-196-7 | (25T) For ES6G-5C, 5952-C | — | Call for availability | ||
| C-3 | 59-196-1 | (43T) For ESSG-50 ES6G-5E, 5952-D 5952-E | $549.33 | Superseded by 671961Add to Cart | ||
| C-3 | 59-196-2 | (41T) For ES60-5A, ES6G-5C, 5952-A, 5952-C | $691.63 | Superseded by 671962Add to Cart | ||
| C-6 | 59-381 | ·2 Snap Ring | 1 | — | Call for availability | |
| C-6 | 59-1-1 | (43T) For ES60-5E 5952-E | — | Call for availability | ||
| C-6 | 59-1-2 | (43T) forES6G-5A, ES6G-5C, ES60 ·5D 5952-A, 5952-C 5952-D | — | Call for availability | ||
| C-8 | 59-381 | -1 Snap Ring | 1 | — | Call for availability | |
| C-9 | 550927 | Cone -bearing | 2 | $32.85 | Add to Cart | |
| C-10 | 550375 | Cup -bearing | 2 | $17.99 | Add to Cart | |
| C-11 | 47-37-3 | Spacer-front Bearing O O | 1 | — | Call for availability | |
| C-12 | 313438X | Shim Kit To Adjust Countershaft End Play | 1 | $6.73 | Add to Cart |
Reverse Idler Shaft Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 59-5-1 | Gear-reverse Idler (17T) | 1 | — | Call for availability | |
| D-2 | 97-37-1 | Spacer (spring) -bearing (spring) | 1 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Thrust Washer | 2 | $41.88 | Add to Cart | |
| D-5 | 63-SG-1 | Shaft-gear | 1 | — | Call for availability |
Drive Gear Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 218-844 | " 1 112" ·10 .9837 " 59-35 -3 -1X | — | Call for availability | |||
| 2110-407 | " .9837 " 59-35-9-1X | — | Call for availability | |||
| 218-532 | " 1Y2"-10 .9837 " 59-35-4-1X | — | Call for availability | |||
| 219-345 | " .9837 " 59-35 ·18 ·1X | — | Call for availability | |||
| 219-782 | " 1 1 .1800" 59-35-1 0.1 X | — | Call for availability | |||
| 219-814 | " 1 1 12" ·10 .9837 " 59-35-6-1X | — | Call for availability | |||
| 2110-298 | " 1 '12"-10 .9837 " 59-35 -7 ·1X | — | Call for availability | |||
| 2110-564 | 1 '12"-10 .9837 " 59-35-5-1X | — | Call for availability | |||
| 238-844 | " 1 112"-10 .9837 " 59-35-1 -1X | — | Call for availability | |||
| 2310-125 | " 1Y2"-10 .9837 " 59-35 -11 -1X | — | Call for availability | |||
| 2310-407 | " 1 '12"-10 .9837" 59-35 ·17 ·1X | — | Call for availability | |||
| 2310 | .407 " 1 .1800" 59-35 -14-1X | — | Call for availability | |||
| 239-564 | " 1Y2"-10 .9837 " 59-35-12-1X | — | Call for availability | |||
| 239-782 | " 13 .4"-10 1 .1800" 59-35 -15 -1X | — | Call for availability |
Series Diameter Flange Assembly Face Length M ·male Size
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1610 | 5-1 -6321 | — | Call for availability | |||
| 1710 | 6-1 -5751 | — | Call for availability | |||
| 1480 | U -bolt 3-4-8781 4''164" 22V2° | — | Call for availability | |||
| 1550 | U -bolt 4-4-4491 4'!64" 21 ° | — | Call for availability |
Clutch Housing Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 47-352-1 | Gasket | 1 | $12.59 | Add to Cart | |
| N .S | 128C-20 | Bushing -(312256X & 312830X) | 2 | $8.55 | Add to Cart | |
| E-4 | 46-96-2-1X | Hand Hole Cover Assembly | 1 | $44.01 | Add to Cart | |
| E-4 | 545001 | -size 112"-13 X 1V• | version * (see the manual's footnote) | — | Call for availability | |
| E-4 | 545001-1 | 1f2" ·13 X 1% | version * (see the manual's footnote) | $2.59 | Add to Cart | |
| E-4 | 545001-5 | 112" ·13 X 11,1, | version * (see the manual's footnote) | — | Call for availability | |
| E-4 | 545001-6 | V•"-13 X 1% | version * (see the manual's footnote) | — | Call for availability |
Countershaft Front Bearing CAP (used with 59-15 ·5-2X Case)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-6 | 47-223-5 | Gasket-countershaft Front Bearing Cap | 1 | — | Call for availability | |
| E-7 | 60-22-28 | Cap-ccuntershaft Front Bearing | 1 | — | Call for availability | |
| E-8 | 330801-1 | X 718 " Hex Head Self-locki Ng | 4 | — | Call for availability |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 47-223-1 | Gasket | 1 | $6.27 | Add to Cart | |
| F-3 | Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-4 | 611-463-10 | Oil Seal | 1 | — | Call for availability | |
| F-5 | 545002-1 | Bolt-% " -16 X Vb" Hex Head Self-locking | 4 | $2.23 | Add to Cart |

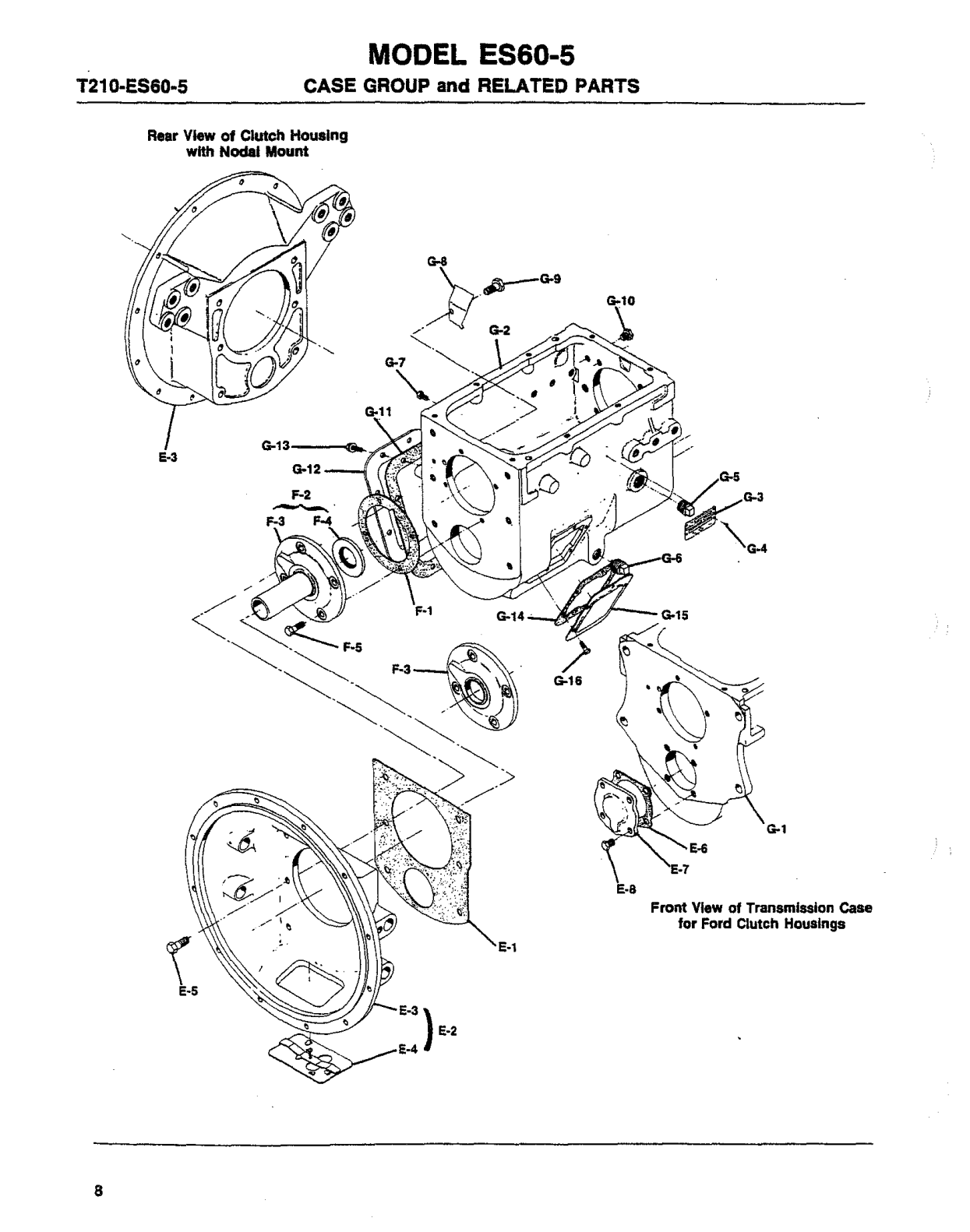

Case Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-3 | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| G-4 | 252-5P | Pin -nameplate | 4 | — | Call for availability | |
| G-5 | 500100 | Filler Plug | 1 | — | Call for availability | |
| G-6 | 62-39-3 | Drain Plug -magnetic Square Head | 1 | $9.27 | Add to Cart | |
| G-6 | 62-39-4 | Drain Plug -magnetic (recessed Head) | 1 | $9.50 | Add to Cart | |
| G-7 | 545002-10 | Bolt-% " -16 X 112" Hex Head | 2 | — | Call for availability | |
| G-8 | 330923 | Oil Trough | 1 | — | Call for availability | |
| G-9 | 545009 | Bolt-o/ " -18 X % "flanged Head Self-locking | 1 | — | Call for availability | |
| G-10 | 307-D | Plug-112"-13 X V2" Hex Head | 2 | — | Call for availability | |
| G-10 | 266-D | Plug -% " -1 1 X Y, Hex H Ead | 2 | — | Call for availability | |
| N .S | 545089-1 | Plug -9/,8 " ·12 X % " Hex Head Brake Anchor Bar | 6 | $1.67 | Add to Cart | |
| G-11 | 97-324-2-1 | X Gasket Kit- -8 Bolt P.t.o. Aperture Cover | 1 | — | Call for availability | |
| G-12 | 73-267-1 | Cover--8 Bolt P.t.o. Aperture | 1 | $160.99 | Add to Cart | |
| G-13 | 545012 | Bolt-7 " -14 X "4" Flanged Hex Head Self-locking | 8 | $3.23 | Add to Cart | |
| G-14 | 97-324-1-1X | Gasket Kit- -8 Bolt P.t.o. Aperture Cover | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | $3.91 | Add to Cart |
| G-15 | 50-267-2 | Cover--8 Bolt P.t.o. Aperture | 1 | $122.97 | Add to Cart | |
| G-16 | 330800 | Bolt--"a. " -16 3/•" Hex Head Self-locking | 6 | — | Call for availability |
Mainshaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 60-463-8 | Oil Seal -mainshaft Rear Bearing Cap | 1 | $18.84 | Add to Cart | |
| H-2 | 63-463-1 | Oil Seal (ford Only) | 1 | $28.23 | Add to Cart | |
| H-6 | 47-223 | ·3 Gasket-mainshaft Rear Bearing Cap | 1 | — | Call for availability | |
| H-6 | 53-223-1 | Gasket-mainshaft Rear Bearing Cap | — | Call for availability | ||
| H-6 | 60-223-7 | Gasket-mainshaft Rear Bearing Cap (ford Only) | 1 | — | Call for availability | |
| H-7 | 545001 | Bolt-V2 " -13 X 1V•" Hex Head Self Locking | 4 | $2.49 | Add to Cart | |
| and | 545008 | Bolt-% " -1 1 X 1V• " Hex Head Self Locking (for Brake Cap) | 2 | — | Call for availability | |
| and | 55-334-1 | Plug -speedometer Hole {use W/o Driven Gear) | 1 | $88.44 | Add to Cart | |
| N .S | 545021 | Plug -speedometer Outlet {electronic Bearing Caps) | 1 | $18.89 | Add to Cart | |
| H-9 | 55-454-1 | Sleeve -length W. Speedometer Driven Gear | 1 | — | No longer available — call for replacement | |
| H-9 | 44-473-1 | Sleeve -length 5 " Speedometer Driven Gear | 1 | — | Call for availability | |
| H-9 | 97-454-2-1X | Sleeve -length 1 V•" Speedometer Driven Gear {with Seal) | 1 | $34.11 | Add to Cart | |
| H-1 | 0545002 | ·1 Bolt-countershaft Rear Bearing Cap | 4 | — | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 59-22-1 | Cap-countershaft Rear Bearing | 1 | — | Call for availability | |
| K-2 | 330564-3 | Lift Hook-countershaft Rear Bearing Cap | 1 | $3.15 | Add to Cart |
Clutch Housing Dimensions T21 O. .ESS0-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 46-518-13--1X" | C46-518-14 | 2 4 3As" 545001 | -5 | — | Call for availability | |
| · 46-518-21 | 1XC102C-477 | 3 5 1 /,s " 1 " 545001 | -5 | — | Call for availability | |
| 46-518 | 22-1XC1 | 02C-530-1 2 Sv,e" 1 " 545001 | -5 | — | Call for availability | |
| 46-518-23 | C46-518 | ·18-1 2 5% 1 " 545001 | — | Call for availability | ||
| 47-518-10-1X | C47-518-11 | 2 4% " 545001 | -5 | — | Call for availability | |
| 312256X* | 128C-20 | C46-518-16 2 6 " 1 " 35/s" 21f2" 545001 | ·5 | $8.55 | Add to Cart | |
| 312830X | 128C-20 | C1 02C-53Q.1 2 Sy,s" 1 " 217/az" 2%11 545001 | -5 | $8.55 | Add to Cart |
Parts Listed Below Are Not Included in Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 47-16-1-1 | Shifter Housing | 1 | $450.25 | Add to Cart | |
| R-2 | 47-67-1 | Rod -reverse & 1st Shift | 1 | $52.73 | Add to Cart | |
| R-3 | 59-66-1-1X | Fork & Clip Assembly-reverse & 1st Shift | 1 | — | No longer available — call for replacement | |
| R-4 | Fork-reverse & 1st Shift | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-5 | 46-486-2 | Clip -shift Fork | 2 | $1.78 | Add to Cart | |
| R-6 | 330639 | Bolt-% • -24 X % • Square Head Self-locking | 4 | $10.21 | Superseded by 745DAdd to Cart | |
| R-7 | 53-354-1 | Bracket-reverse & 1 St Shift Rod | 1 | $243.80 | Add to Cart | |
| R-8 | 62-438-2 | Pin -1 St & Reverse Shift Finger Plunger | 2 | $6.27 | Add to Cart | |
| R-10 | 46-67-5 | Rod -2nd & 3rd Shift | 1 | $78.92 | Add to Cart | |
| R-12 | 53-66-3-1X | Fork-2nd & 3rd Shift | 1 | $398.71 | Superseded by 536632XAdd to Cart | |
| R-13 | Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-14 | 53-486-1 | Clip ' -shift Fork | 2 | $14.96 | Add to Cart | |
| R-15 | 47-67-2 | Rod -4th & 5th Shift | 1 | $60.87 | Add to Cart | |
| R-16 | 53-66-1 | Fork-4th & 5th Shift | 1 | $1,191.84 | Superseded by 536611XAdd to Cart | |
| R-17 | 545021 | Plug -interlock | 1 | $18.89 | Add to Cart | |
| R-18 | 330894 | Expansion Plug -34 " (aluminum) | 3 | — | Call for availability | |
| R-19 | 50-80-4 | Ball -backup Switch | 2 | $7.01 | Add to Cart | |
| R-20 | 330366 | Plug -backup Switch Hole | 1 | $15.51 | Add to Cart | |
| R-21 | 50-80-1 | Ball -shift Rod Poppet | 3 | $2.74 | Add to Cart | |
| R-22 | 47-72-1 | Spring -shift Rod Poppet Ball | 3 | $3.15 | Add to Cart | |
| R-23 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| R-25 | 38P-1 | Retainer -shift Finger Plunger 1 St & Reverse | 1 | — | Call for availability | |
| K-1 | 47-155-1 | Gasket-shifter Housing | 1 | $12.59 | Add to Cart | |
| K-2 | 330564-1 | Lift Hook-shifter Housing | 2 | $3.15 | Add to Cart | |
| K-3 | 545002 | Bolt-% " -16 X 1 " Hex Head Self-locki Ng | 6 | $1.98 | Add to Cart | |
| K-3 | 545002-4 | Bolt-% " -16 X 1Va" Hex Head Self-locking | 2 | $6.93 | Add to Cart | |
| N .S | 313262X | Neutral Safety Switch Actuator Kit (see Tab Bills) | — | Call for availability | ||
| N .S | 47-16-1-SX | 62-72-8 60# 2%4 | version * (see the manual's footnote) | — | Call for availability | |
| N .S | 47-16-1-11X | 30-72-6 28# 2Va | version * (see the manual's footnote) | — | Call for availability | |
| N .S | 47-16-1-13X | 30-72-6 28# 2Va | version * (see the manual's footnote) | — | Call for availability | |
| N .S | 47-16-1-12X | 82 ·72 ·3 15# 2o/s | version * (see the manual's footnote) | — | Call for availability | |
| N .S | 47-16-1-16X | 62-72 ·8 60# 2Ys4 | version * (see the manual's footnote) | — | Call for availability | |
| N .S | 47-16-1-17X | 62-72-8 60# 2%4 | version * (see the manual's footnote) | — | Call for availability | |
| N .S | 47-16-1-18X | 62 ·72 ·8 60# 2V | version * (see the manual's footnote) | — | Call for availability | |
| 47-16-8-1X | Cover Assembly(casting No 62-16-78) | — | Call for availability | |||
| 47-16-9-1X | Cover Assembly(casting No 62-16-78-1) | — | Call for availability | |||
| L-1 | . . . . . . . . . . . . . . . . . . . . . - - | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| .S | 82-24-3 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | $21.66 | Add to Cart | ||
| L-2 | 310879X | Shift Finger Rod & Bracket Assembly R-t | 1 | — | Call for availability | |
| L-2 | 312003X | . . . . . . . . . . . . . . . . . . . . . . . . | — | Call for availability | ||
| L-3 | . . . . . . . . . . . . . . . . . . . . . . . | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| L-4 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| L-5 | 500007-19 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | — | Call for availability | ||
| L-7 | 545011 | Bolt-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | $16.57 | Add to Cart | ||
| L-8 | 82-65-5 | $22.31 | Add to Cart | |||
| L-9 | 82-6-7 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | $171.09 | Add to Cart | ||
| L-10 | 28P-19 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | — | Call for availability | ||
| L-11 | 10380-SF | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | — | Call for availability | ||
| L-13 | 82-96-1 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | — | Call for availability | ||
| L-15 | 500166-16 | . . . . . . . . . . . . . . . . . . . . | — | Call for availability | ||
| N .S | 82-483-1 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | $22.03 | Add to Cart | ||
| N .S | 82-483-2 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | — | Call for availability | ||
| N .S | LW-3-9 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | — | Call for availability | ||
| K-4 | 62-155-7 | $9.44 | Superseded by 6215513Add to Cart | |||
| K-8 | 545028-4 | . . . . . . . . . . . . . . . . . . . . | — | No longer available — call for replacement | ||
| 311528-7X | Remote Control Cover Assembly (see Tab Bills) | 1 | — | Call for availability | ||
| L-1 | 47-16-13 | Remote Control Cover | 1 | — | Call for availability | |
| L-16 | 500007-17 | Woodruff Key #91 | 1 | — | Call for availability | |
| L-17 | 62-65-26 | Shaft-inner Shift Finger | 1 | — | Call for availability | |
| L-18 | 62-6-30 | Shift Finger-inner | 1 | — | Call for availability | |
| L-19 | 545063 | Bolt- '/ " -20 X 1:Y, Hex Head Self-locking | 1 | $6.27 | Add to Cart | |
| L-20 | 62-16-92 | End Cover-remote Control | 1 | — | Call for availability | |
| L-21 | 310926X | Cam And Stud Assembly-selection Lever | 1 | — | Call for availability | |
| L-22 | 62-6-59 | Lever-upper Selection | 1 | — | Call for availability | |
| L-23 | 500381-4 | Nut- '/ " -20 | 1 | — | Call for availability | |
| L-24 | 62-65-27 | Rod -outer Shift Lever. | 1 | — | Call for availability | |
| L-25 | 47-6-1 | Lever-outer Shift | 1 | — | Call for availability | |
| L-26 | 545002-7 | Bolt-% " ·16 X 11f• | 1 | version * (see the manual's footnote) | $2.33 | Add to Cart |
| L-27 | 258-W | Washer-shift Lever Rod | 2 | — | Call for availability | |
| L-28 | 62-381-13 | Snap Ri Ng | 1 | — | Call for availability | |
| L-29 | 62-155-1 | 1 Gasket-end Cover | 1 | — | Call for availability | |
| L-30 | 500357-10 | Lock Washer •its | 1 | version * (see the manual's footnote) | — | Call for availability |
| L-31 | 545005-2 | Bolt-•116'-18 X % | 2 | version * (see the manual's footnote) | $1.66 | Add to Cart |
| L-32 | 500397-22 | Bolt-5/, " -18 X 2 1 F• | 1 | version * (see the manual's footnote) | — | Call for availability |
| P-139Q-27 | Handle -shift Lever | — | Call for availability | |||
| P-2250-1121 | Shift Lever 26V• " Straight | — | Call for availability | |||
| 250-1 | 122 Shift Lever 29V4 " Straight | — | Call for availability | |||
| 25Q-1621 | Shift Lever 30 " Straight | — | Call for availability | |||
| 250-1537 | Shift Lever | — | Call for availability | |||
| 250-2464 | Shift Lever-lower End (3 .5") | — | Call for availability | |||
| 47-16-3X | Dome Assembly-2% " Overall Height 1 -f-1 | -1 | — | Call for availability | ||
| 47-16-5X | Dome Assembly-3% " Overall Height | manual lists 47-16-5X - we stock the base part 47-16-5 | — | Call for availability | ||
| P-3286-SP | Pin -shift Lever Collar | — | Call for availability | |||
| P-4550-7 | Collar-compression | — | Call for availability | |||
| P-5560-25 | Spring -compression | — | Call for availability | |||
| P-6540-13 | Cup -compression | — | Call for availability | |||
| P-7690-6 | Washer-friction | — | Call for availability | |||
| P-847-16 | ·3 Dome -shift Lever · | — | Call for availability | |||
| 47-16 | ·5 Dome -shift Lever | — | Call for availability | |||
| P-962-381 | ·7 Snap Ring -rock Shaft | — | Call for availability | |||
| P-1053Q-15 | Shaft-shift Lever Rock | — | Call for availability | |||
| K-462-155 | ·7 Gasket-dome To Shifter Housing | — | Call for availability | |||
| K-8545002 | Screw-7/ " -14 X 1Ys" Hex Head Self-locking | — | Call for availability |
Clutch Release Code Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1105C-64 | 106C-1142 106C-1047 310233X 58 105C-137 106C-1141 106C-1169 | — | Call for availability | |||
| 2105C-64 | 106C-1185 106C-438 - 59 105C-137 106C-1185 106C-438 3102~ | — | Call for availability | |||
| 3105C-64 | 106C-1185 106C-939 310233X 60 105C ·137 106C-1185 106C-617 310233X | — | Call for availability | |||
| 4105C-64 | 106C-1185 106C-1046 310233X 61 105C ·137 106C-1185 106C-839 310233X | — | Call for availability | |||
| 5105C-64 | 106C-1185 106C-1047 310233X 62 106C-137 108C-1185 108(; .939 310233X | — | Call for availability | |||
| 6105C-64 | 106C-1185 106C-1047 47 ·526-1 -1X 63 105C-137 106C-1185 108C-839 310473X | — | Call for availability | |||
| 7105C-64 | 106C-1544 108C-839 310233X 64 105(; .137 106C-1185 106C-953 310473X | — | Call for availability | |||
| 8105C-88 | 106C-1142 106C-438 - 66 105C-137 108C-1185 106C-1046 310473X | — | Call for availability | |||
| 9105C-68 | 106C-1142 108C-617 67 10SC-137 108C-1185 106C-1047 310233X | — | Call for availability | |||
| 1010SC-68 | 108C-1142 106C-617 310233X 68 105C-137 108C ·1185 106C-1083 310233X | — | Call for availability | |||
| 111050-68 | 106C-1142 108C-839 310233X 69 105C-137 108C-1185 106C-1094 | — | Call for availability | |||
| 12105C-68 | 106C-1142 106C-939 310233X 70 105C-137 106C-1185 106C-1094 310233X | — | Call for availability | |||
| 13105C-68 | 108C-1142 108C-1046 310233X 71 105C ·137 106C-1185 106C-1123 | — | Call for availability | |||
| 14105C-68 | 106C-1142 108C-1047 310233X 72 105C ·137 108C-1185 106C-1123 310233X | — | Call for availability | |||
| 15105C-68 | 106C-1278 106C-436 - 73 1050 · 137 106C-1185 106C-1367 | — | Call for availability | |||
| 16105C-117 | 106C-1071 108C-939 310233X 75 105C-137 106C-1185 108C-1375 310873>- | — | Call for availability | |||
| 17105C-117 | 106C-1071 106C-1094 310233X 76 10SC-137 108C-1185 106C-1515 | — | Call for availability | |||
| 18105C-117 | 106C-1142 108C-839 310233X 77 105C-137 108C-1185 108C-1529 | — | Call for availability | |||
| 19105C-117 | 106C-1185 108C-436 - 78 1050 · 137 106C-1185 330810.5 | — | Call for availability | |||
| 20105C-117 | 106C-1185 108C-617 310233X 79 105C-137 108C-1216 106C-617 310233X | — | Call for availability | |||
| 21105C-117 | 108C-1185 108C-838 47 -526 -hx Ao 105C-137 106C ·1278 106C-438 | — | Call for availability | |||
| 22105C-117 | 106C-1185 106C-939 310233X 81 105C-137 108C ·1278 106C-588 | — | Call for availability | |||
| 23105C-117 | 108C-1185 106C-953 310873X 82 105C-137 106C-1278 106C-588 310233X | — | Call for availability | |||
| 24105C-117 | 106C-1185 106C-960 310233X 83 105C ·137 106C-1278 108C-617 310233X | — | Call for availability | |||
| 25105C-117 | 106C-1185 106C-1046 310233X 64 105C-137 108C-1278 106C ·939 310233X | — | Call for availability | |||
| 2610SC-117 | 106C-1185 108C-1047 310233X As 105C-137 106C-1278 106C-939 310873X | — | Call for availability | |||
| 27105C-117 | 108C-1185 106C-1083 - 88 105C-137 108C ·1278 106C-960 310233X | — | Call for availability | |||
| 28105C-117 | 106C-1185 108C-1083 310233X 67 105C-137 108C-1278 106C-1046 | — | Call for availability | |||
| 29105C-117 | 108C-1185 106C-1083 310473X 88 105C ·137 106C-1278 106C-1046 310233X | — | Call for availability | |||
| 30105C-117 | 108C-1185 106C-1094 310233X 89 10SC-137 106C-1278 106C ·1047 | — | Call for availability | |||
| 31105C-117 | 106C-1185 106C-1094 310873X 90 10SC-137 108C-1278 108C-1047 310233)( | — | Call for availability | |||
| 32105C-117 | 106C-1185 106C-1169 310233X 91 105C-137 108(; .1278 108C-1083 310233: | — | Call for availability | |||
| 33105C-117 | 106C-1185 106C-1315 - 92 10SC ·137 108C-1278 108C-1094 310233>- | — | Call for availability | |||
| 34105C-117 | 106C-1185 106C-1315 310233X 93 105C-137 1080 ·1278 108C-1375 310233X | — | Call for availability | |||
| 35105C-117 | 106C-1185 106C-1315 47 ·526-1 ·1X 94 105C ·137 106C-1278 108C-1422 310233X | — | Call for availability | |||
| 36105C-117 | 106C-1185 106C-1417 310233X 95 105C-137 108C-1278 106C-1529 | — | Call for availability | |||
| 37105C-117 | 106C-1185 106C-1417 310873X 96 105C-137 106C-1360 106C-1083 | — | Call for availability | |||
| 38105C-117 | 106C-1185 106C-1490 310233X 97 105C-137 108C-1360 108C-1422 310233X | — | Call for availability | |||
| 39105C-117 | 108C-1278 106C-939 310233X 98 105C-137 108C ·1375 108C-436 310233X | — | Call for availability | |||
| 40105C-117 | 106C-1278 108C-960 310873X 99 105C-137 108C-1498 106C-436 | — | Call for availability | |||
| 41105C-117 | 106C-1278 106C-1047 310233X 100 105C-137 106C ·1498 105C ·617 310233X | — | Call for availability | |||
| 42105C-117 | 106C-1278 106C-1094 310233X 101 105C-137 106C-1498 106C-617 310473X | — | Call for availability | |||
| 43105C-117 | 108C-1278 106C-1315 310233X 102 105C-137 106C-1498 106C ·939 310233X | — | Call for availability | |||
| 44105C-117 | 106C-1278 106C-1367 310233X 103 105C-137 108C ·1498 106C-939 310473X | — | Call for availability | |||
| 45105C-117 | 106C-1360 106C-1083 310233X 104 105C ·137 106C-1498 106C ·953 310233X | — | Call for availability | |||
| 46105C-117 | 106C-1360 108C-1315 310233X 105 105C-137 108C-1498 106C-959 310233X | — | Call for availability | |||
| 47105C-117 | Thru Shaft 106C-1550 - 106 105C-137 108C-1498 106C-1046 310233X | — | Call for availability | |||
| 52A105C-12411I | Thru Shaft 49-510.1 310233X | — | Call for availability | |||
| 53105C-132 | 106C-1185 106C-1047 310233X 113 85-509-3 106C ·1360 106C-1417 310233X | — | Call for availability | |||
| 54105C-132 | 106C-1185 108C-1083 310233X 114 85-509-3 Thru Shaft 1 OllC-1578 310233X | — | Call for availability | |||
| 55105C-132 | 106C-1185 106C ·1417 310873X 115 85-509-3 Thru Shaft 1 OBC-1578 310873X | — | Call for availability | |||
| 56105C-132 | 106C-1185 46-510..9 - | — | Call for availability | |||
| 57105C-132 | 106C ·1278 46-510.9 - 116 312916 Thru Shaft 97 ·510 ·2 | — | Call for availability |
THRU Shaft (used Whh Push Type Clutch)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-10714-062 | 106C-1083 RS-8 | 7..969" | — | Call for availability | ||
| 106C-11415-125 | 106C-1094 RS-8 | 8 .469 " | — | Call for availability | ||
| 106C-11426-125 | 106C-1123 RS-8 12 | .968 ' | — | Call for availability | ||
| 106C-11855-750 | 106C-1169 RS-8 | 9 .125 " | — | Call for availability | ||
| 106C-12164-750 | 106C-1315 RS-8 | 7 .625 " | — | Call for availability | ||
| 106C-12784-812 | 106C-1367 RS-8 10 | .312 ' | — | Call for availability | ||
| 106C-13605-312 | 106C-1375 RS-8 | 6 .781 | — | Call for availability | ||
| 106C-13756-781 | 106C-1417 RS-8 | 7 .250 " | — | Call for availability | ||
| 106C-14986-500 | 106C-1422 RS-8 | 7 .500 " | — | Call for availability | ||
| 106C-15447-000 | 106C-1490 RS-8 16 | .000 " | — | Call for availability | ||
| 330601-16-250 | 106C-1515 RS-5 1 | 1 .375 " | — | Call for availability | ||
| 106C-438 | RS-514-000 | •lever Type Can Be Used On Either Right Or Left Side. | — | Call for availability | ||
| 106C-588 | RS-57 | .000 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-617 | RS-810 | .469 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-839 | RS-811 | .469 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-939 | RS-810-000 | 106C-1566 Splined 19. | 125 " | — | Call for availability | |
| 106C-953 | RS-89 | .750' 106C-1550 Keyed 16 | .375 " | — | Call for availability | |
| 106C-959 | RS-81 | 1 .968 ' 106C-1 558 Keyed 19.000 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-960 | RS-88 | .719" 106C-1578 Splined 19.500 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-1046 | RS-88 | .968 ' 49-5111-1 Keyed 19.120 | version * (see the manual's footnote) | — | Call for availability | |
| 106C-1047 | RS-89 | .469" 97·5111-2 Splined 19.313 | — | Call for availability |
Major Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21O-ES60 | ·5 Basic Overhaul Kits | — | Call for availability | |||
| 313400-68X | Major Overhaul Kit | 1 | $707.37 | Superseded by 674001XAdd to Cart | ||
| 500008-37 | Woodruff Key-#f | 4 | $2.76 | Add to Cart | ||
| 53-205-1 | Washer-mainshaft | 1 | $4.42 | Add to Cart | ||
| 501200 | Nut-mainshaft Output | 1 | $15.74 | Add to Cart | ||
| 313401-13X | Thrust Washer Kit | 1 | $169.55 | Add to Cart | ||
| 313429-6X | Shifter Housing Small Parts Kit | 1 | $31.43 | Add to Cart | ||
| 313432-31X | Minor Overhaul Kit | 1 | $589.11 | Add to Cart |
Minor Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313432-31X | Minor Overhaul Kit | 1 | $589.11 | Add to Cart | ||
| 550375 | Countershaft-cup | 2 | — | Call for availability | ||
| 550927 | Countershaft-cone | 2 | — | Call for availability | ||
| 550886 | Reverse Idler Shaft | 2 | — | Call for availability | ||
| 550929 | Drive Gear & Mainshaft Rear-cup | 2 | $28.81 | Add to Cart | ||
| 550930 | Drive Gear & Mainshaft Rear-cone | 2 | $64.20 | Add to Cart | ||
| 550931 | Drive Gear-pocket | 1 | $34.78 | Add to Cart | ||
| 550932 | 1 St & Reverse Mainshaft Needle Bearing | 2 | $40.03 | Add to Cart | ||
| 59-482-1-1X | Needle Roller Bearing & Spacer Kit | 1 | $18.84 | Add to Cart | ||
| 60-463-10-1X | Oil Seal Kit-drive Gear Bearing Cap | 1 | $37.74 | Add to Cart | ||
| 60-463-8 | Oil Seal Kit-mainshaft Rear Bearing Cap · | 1 | $18.84 | Add to Cart | ||
| 63-463-1 | Oil Seal Kit-mainshaft Rear-ford Only | 1 | $28.23 | Add to Cart | ||
| 545077 | Bearing Lubricant | 1 | — | Call for availability | ||
| 545080 | Locite | 1 | — | Call for availability | ||
| 2770 | Bearing Lube Instruction | 1 | — | Call for availability | ||
| 2783 | Locite Application For Mainshaft Nut | 1 | — | Call for availability | ||
| 312475-28X | Gasket Kit | 1 | $72.07 | Add to Cart | ||
| 313024-18X | Snap Ring Kit | 1 | $106.29 | Add to Cart | ||
| 313240-3X | Baffle & Shim Kit-drive Gear | 1 | $33.38 | Add to Cart | ||
| 313438X | Shim Kit-countershaft Rear. | 1 | $6.73 | Add to Cart | ||
| 2360 | Service Manual | 1 | — | Call for availability |
Thrust Washer Kit 1
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 974-W | Countershaft-reverse Idler | 2 | — | Call for availability | ||
| 1016-W | Mainshaft-4th Speed | 1 | — | Call for availability | ||
| 330818 | Mainshaft-3rd & 4th Speed | 1 | $35.44 | Superseded by 67471Add to Cart | ||
| 330866 | Mainshaft-1 St Speed | 1 | — | Call for availability | ||
| 330867 | Mainshaft-reverse | 1 | — | Call for availability | ||
| 313429-6X | Shifter Housing Small Parts Kit | 1 | $31.43 | Add to Cart | ||
| 2N-SP | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | — | Call for availability | |||
| 5D-8D-1 | Shift Rod Poppet & Interlock Bail | 7 | — | Call for availability | ||
| 5D-80-4 | Backup Switch Ball | 2 | — | Call for availability | ||
| 62-438-2 | Plunger-1 St & Reverse : | 2 | — | Call for availability | ||
| 62-72-8 | Spring -shift Finger Plunger 1st & Reverse | 1 | — | No longer available — call for replacement | ||
| 312475-28X | Gasket Kit | 1 | $72.07 | Add to Cart | ||
| 82-118-1 | Remote Control -aperture Cover | 1 | — | Call for availability | ||
| 47-155-1 | Shifter Housing | 1 | — | Call for availability | ||
| 62-155-7 | Control Cover | 1 | $9.44 | Superseded by 6215513Add to Cart | ||
| 47-223-1 | Drive Gear Bearing Cap | 1 | $6.27 | Add to Cart | ||
| 47-223-2 | Countershaft Rear Bearing Cap | 1 | — | Call for availability | ||
| 47-223-3 | Mainshaft Rear Bearing Cap | 1 | $5.49 | Add to Cart | ||
| 47-223-4 | Mainshaft Rear Bearing Cap -for Brake Mounting | 1 | — | Call for availability | ||
| 47-223-5 | Countershaft Front Bearing Cap | 1 | — | Call for availability | ||
| 53-223-1 | Mainshaft Rear Bearing Cap -for Brake Mounting | 1 | — | Call for availability | ||
| 63-223-7 | Mainshaft Bearing Cap -for Ford Only | 1 | — | Call for availability | ||
| 47-352-1 | Clutch Housing | 1 | $12.59 | Add to Cart | ||
| 97-324-1-1X | P .t.o. (6 Holes) Kit | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | — | Call for availability | |
| 97-324-2-1X | P.t.o. (8 Holes) Kit | 1 | manual lists 97-324-2-1X - we stock the base part 97-324-2 | — | Call for availability | |
| 313024-18X | Snap Ring Kit | 1 | $106.29 | Add to Cart | ||
| 27-381-5 | Mainshaft · | 1 | — | Call for availability | ||
| 46-381-1 | Countershaft & Mainshaft | 2 | — | Call for availability | ||
| 53-381-2 | Mainshaft | 2 | — | Call for availability | ||
| 59-381-1 | Countershaft | 1 | — | Call for availability | ||
| 313240-3X | Baffle & Shim Kit -mainshaft | 1 | $33.38 | Add to Cart | ||
| 47-228-1-1 | Adjusting Shim -mainshaft Rear | 9 | $3.40 | Add to Cart | ||
| 47-228-2-2 | Shim -mainshaft .front | 1 | — | Call for availability | ||
| 47-228-2-10 | Spacer-mainshaft Rear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | ||
| 47-468-1 | Baffle -bearing Cap Front | 1 | $3.55 | Add to Cart | ||
| 47-468-2 | Baffle -oil Ring Drive Gear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | ||
| 2789 | Bulletin -baffle & Shim Kit | 1 | — | Call for availability | ||
| 2759 | Bulletin -drive Gear Replacement | 1 | — | Call for availability | ||
| 313438X | Shim Kit -countershaft Rear | 1 | $6.73 | Add to Cart | ||
| 47-228-3-1 | Shim -rear Bearing | 4 | — | Call for availability |
With Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T210-ES60-5 | Tabulated Bills Of Material | — | Call for availability |
Tabula Ted Bills of Material T21 Q. .ESS0-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 153-19-1 | -4)( 47 ·16-1 -bx 47 ·16-3-1X | — | Call for availability | |||
| 353-19-1 | -4X 53-452-2 47-16-1 -8){ | — | Call for availability | |||
| 453-19-3-4X | 53-452 ·2 47-16-1 -8){ | — | Call for availability | |||
| 653-19 | ·12-4X 47 ·16-1 -8X | 47-J6-S-2X | — | Call for availability | ||
| 953-19-12-4X | 53-452-3 62-453-4 5-4-6321 47-16-1 -1 1X | 47-16-8-2){ | — | Call for availability | ||
| 1153-19-1 | -4X 53-452-2 47-16-1 -8){ | — | Call for availability | |||
| 1553-19-12-4X | - 47-16-1 -8){ 47 ·16-3-1X | — | Call for availability | |||
| 1653-19-12-4X | 53-452-3 62-453-4 47-16-1 -1 1X | — | Call for availability | |||
| 1853-19-1 | -4X 53-452-3 47-16-1 -8){ | — | Call for availability | |||
| 1953-19-12-4X | 47-16-1 -16X | — | Call for availability | |||
| 2053-19-12-4X | 53-452-3 62-453-4 47-16-1 -8){ 47-16-3-25){ | — | Call for availability | |||
| 2153-19-12-4X | 47-16-1 -8){ | — | Call for availability | |||
| 2253-19-12-4X | 47-16-1 -8){ | — | Call for availability | |||
| 2353-19-12-4X | 47-16-1 -8X | — | Call for availability | |||
| 2853-19-12-4X | 47-16-1 -8){ | — | Call for availability | |||
| 2953-19-12-4X | 47-16-1 -8){ 47-16-3-1 .){ | — | Call for availability | |||
| 3953-19-13-2X | 47-16-1 -8X | — | Call for availability | |||
| 4053-19-15-2X | 47-16-1 -8){ | — | Call for availability | |||
| 4153-19-17-2X | 47-16-1 -8){ | — | Call for availability | |||
| 4253-19-13-2X | 47-16-1 -8){ | — | Call for availability | |||
| 4353-19-15-2X | 47-16-1 -8){ | — | Call for availability | |||
| 4453-19-17-2X | 47-16-1 -8){ | — | Call for availability | |||
| 4553-19-12-4X | 53-106-1 47-16-1 -sx 47-16-5-38){ | — | Call for availability | |||
| 4653-19-13-2X | 47-16-1 -8){ | — | Call for availability | |||
| 4753-19-15-2X | 47-16-1 -8X | — | Call for availability | |||
| 4653-19-17-2X | 47-16-1 -8X | — | Call for availability | |||
| 4953-19-12-4X | 53-452-3 62-453-4 5-4-8321 47 ·16-1 -8X 47-16 ·3-tX | — | Call for availability | |||
| 5153-19-12-4X | 53-452-3 62-453-4 5-4-6321 47-16-1 -8X 47-16-3-1){ | — | Call for availability |
With Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | ES60-5C | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5553-19-12-4X | 47-16-1 -bx 47-16-3-1X | — | Call for availability | |||
| 5653-19-12-4X | 53 -452-3 62-453 -4 47-16-1 -bx | 47 ·16-6-2X | — | Call for availability | ||
| 5753-19-12-4X | 53 -452-3 47 ·16-1 -bx | — | Call for availability | |||
| 5853-19-12-4X | 53 -106-2 47 ·16-1 -16X 47 ·16-3 -1X | — | Call for availability | |||
| 5953-19-13-2X | 47 ·16-1 -bx | — | Call for availability | |||
| 6053-19-7-4X | 53 -452-4 53 -453 -2 47 ·16-1 ·11X | — | Call for availability | |||
| 6153-19-12-4X | 3 -4-8781 47 ·16-1 -16X 47 ·16-3 -1X | — | Call for availability | |||
| 6253-19-12-4X | 47 ·16-1 -bx | — | Call for availability | |||
| 6353-19-12-4X | 53 -452-3 47 ·16-1 -bx | — | Call for availability | |||
| 8453-19-12-4X | 53 -452-3 47 ·16-1 -bx | — | Call for availability | |||
| 6553-19-22-1X | 53 -452-6 4-4-4611 -2 47 ·16-1 -bx | — | Call for availability | |||
| 6653-19-22-1 | X 53 -452-6 5-4-6481 ·1 47 ·16-1 -bx | — | Call for availability | |||
| 6753-19-22-1 | X 53 -452-6 4-4-4611 -2 47 ·16-1 -bx | — | Call for availability | |||
| 6853-19-22-1X | 53 -452-6 5-4-6481 -1 47 ·16-1 -bx | — | Call for availability | |||
| 6953-19-22-1 | X 53 -452-6 5-4-6481 -1 47-16-1 -bx | — | Call for availability | |||
| 7053-19-12-4X | 47-16-1 -18X | — | Call for availability | |||
| 7153-19-12-4X | 53 -106-1 47 ·16-1 -bx 47 ·16-3 -1X | — | Call for availability | |||
| 7253-19-12-4X | 53 -452-4 53 -453 -2 4-4-4491 47-16-1 -11X | — | Call for availability | |||
| 7353-19-12-4X | 53 -452-4 53 -453 -2 4-4-4491 47-16-1 -bx 47 ·16-5-43X | — | Call for availability | |||
| 7453-19-12-4X | 47 ·16-1 -13X | — | Call for availability | |||
| 7553-19-12-4X | 5-4-6321 47 ·16-1 ·11X | — | Call for availability | |||
| 7653-19-7-4X | 53 -452 ·3 47 ·16-1 -bx | — | Call for availability | |||
| 153-19-1-4X | 47-16-1 -bx 47-16-3-1X | — | Call for availability | |||
| 253-19-12-4X | 53 -452-3 47 ·16-1 -bx | — | Call for availability | |||
| 353-19-12-4X | 53 -452-3 62-453 -4 47-16-1 -11X | — | Call for availability | |||
| 453-19-12-4X | 5-4-6321 47 ·16-1 ·11X | 47 ·16-6-2X | — | Call for availability | ||
| 553-19-7-4X | 53 -452 ·3 47-16-1 -bx | — | Call for availability | |||
| 653-19-12-4X | 5-4-6321 47 ·16-1 ·11X | 47 ·16-8-2X | — | Call for availability | ||
| 953-19-1-4X | 53 -452-2 47 ·16 ·1 -10X | — | Call for availability | |||
| 1053-19-12-4X | 53 -452 ·3 53 -106-2 47-16-1 -bx | — | Call for availability | |||
| 1153-19-3-4X | 53 -452-2 47-16-1 -bx | — | Call for availability | |||
| 1253-19-12-4X | 47 ·16-1 -bx | — | Call for availability | |||
| 1353-19-12-4X | 47-16-1 -bx | — | Call for availability | |||
| 1453-19-12-4X | 47-16-1 -10X | — | Call for availability | |||
| 1553-19-1-4X | 47-16-1 -bx | — | Call for availability | |||
| 1653-19-12-4X | 53 -106-2 47-16-1 -11X | — | Call for availability | |||
| 1753-19-12-4X | 53 -106 ·2 47-16-1 -bx 47 ·16-3 -1X | — | Call for availability | |||
| 1853-19-7-4X | 53 -452-3 47-16-1 -bx | — | Call for availability | |||
| 1953-19-12-4X | 53 -452-3 47-16-1 -bx | — | Call for availability | |||
| 2053-19-12-4X | 53 -452-3 5-4-6321 47-16-1 -bx | — | Call for availability | |||
| 2153-19-12-4X | 53 -452-3 62-453 -4 5-4-6321 47-16-1 -11X 47-16-3-1X | — | Call for availability | |||
| 2253-19-12-4X | 53 -452-3 47 ·16-1 -8X | — | Call for availability | |||
| 2353-19-3-4X | 53 -452 ·2 47-16-1 -bx | — | Call for availability | |||
| 2453-19-12-4X | 5-4-6321 47 ·16-1 -11X | — | Call for availability | |||
| 2553-19-12-4X | 53 -452-3 62-453 -4 53 -106-2 47-16-1 -!tx 47-16-5-21X | — | Call for availability | |||
| 2653-19-12-4X | 47 ·16-1 -bx 47 ·16-3 -1X | — | Call for availability | |||
| 2753-19-7-4X | 53 -452 ·3 47-16-1 -bx | — | Call for availability | |||
| 2853-19-12-4X | 53 -452-3 47-16-1 -bx | — | Call for availability | |||
| 2953-19-12-4X | 53 -452-3 47-16-1 -bx | — | Call for availability | |||
| 3053-19-7-4X | 53 -452-3 47-16-1 -bx | — | Call for availability | |||
| 3153-19-1-4X | 53 -452-2 47-16-1 -bx | — | Call for availability | |||
| 3253-19-13-2X | 47-16-1 -bx | — | Call for availability |
Whh Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | ES60-5C | — | Call for availability | |||
| Model | ES60-5D | — | Call for availability |
Tabula Ted Bills of Material T210-ES60-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3353-19-15 | -2X 47 ·16-1 -bx | — | Call for availability | |||
| 3453-19-17 | ·2X 47 ·16-1 -bx | — | Call for availability | |||
| 3553-19-13 | -2)( 47 ·16-1 -bx | — | Call for availability | |||
| 3653-19-15 | ·2X 47 ·16-1 -bx | — | Call for availability | |||
| 3753-19-17 | ·2X 47 ·16-1 -bx | — | Call for availability | |||
| 3653-19-12-4X | 53 -452 -3 62-453 -4 53 -106-2 47 ·16-1 -bx 47 ·16-3 -1X | — | Call for availability | |||
| 3953-19-13 | -2)( 47 ·16-1 -bx | — | Call for availability | |||
| 4053-19-12-4X | 47 ·16-1 -bx 47 ·16-3 -1X | — | Call for availability | |||
| 4153-19-17 | ·2X 47 ·16-1 -bx | — | Call for availability | |||
| 4253-19-15 | -2)( 47 ·16-1 -bx | — | Call for availability | |||
| 4353-19-12-4X | 53 -106-2 47 ·16-1 ·11X | — | Call for availability | |||
| 4453-19-12-4X | 53 -106-2 47 ·16-1 ·11X | — | Call for availability | |||
| 4553-19-12-4X | 47 ·16-1 -bx | — | Call for availability | |||
| 4653-19-12-4X | 53 -106 ·2 47 ·16-1 ·11X | — | Call for availability | |||
| 4753-19-12-4X | 47 ·16-1 -13X | — | Call for availability | |||
| 4953-19-12-4X | 4-4-4491 47 ·16-1 -17X | — | Call for availability | |||
| 153-19-1-4X | 47 ·16-1 -bx 47 ·16-3 -1X | — | Call for availability | |||
| 253-19-3-4X | 53 -452 ·2 47 ·16-1 -bx | — | Call for availability | |||
| 353-19-3 | -4X 53 -452 -2 47 ·16-1 -bx | — | Call for availability | |||
| 453-19-1-4X | 53 -452 ·2 47 ·16-1 -bx | — | Call for availability | |||
| 553-19-7-4X | 53 -452 -3 47 ·16-1 -bx | — | Call for availability | |||
| 653-19-12-4X | 53 -452 -3 47 ·16-1 -bx | — | Call for availability | |||
| 753-19-12-4X | 53 -452 -3 47 ·16-1 -bx | — | Call for availability | |||
| 853-19-7-4X | 53 -452 ·3 47-16-1 -bx | — | Call for availability | |||
| G53-19-12-4X | 53 -452-3 47 ·16-1 -bx | — | Call for availability | |||
| 1053-19-7-4X | 53 -452 ·3 47 ·16-1 -bx | — | Call for availability | |||
| 1153-19-13 | -2X 47 ·16-1 -bx | — | Call for availability | |||
| 1253-19-15 | -2)( 47 ·16-1 -bx | — | Call for availability | |||
| 1353-19-17-2X | 47 ·16-1 -bx | — | Call for availability | |||
| 1453-19-13 | -2X 47 ·16-1 -sx | — | Call for availability | |||
| 1553-19-17-2X | 47-16-1 -sx | — | Call for availability | |||
| 1653-19-15 | -2X 47-16-1 -bx | — | Call for availability | |||
| 1753-19-15 | -2X 47'16-1 -bx | — | Call for availability | |||
| 1853-19-17-2X | 47 ·16-1 ·8X | — | Call for availability | |||
| 1953-19-12-4X | 47 ·16-1 -bx 47 ·1 -6-3 -1X | — | Call for availability | |||
| 2053-19-13 | -2)( 47 ·16-1 -bx | — | Call for availability | |||
| 2153-19-12 | ·2X 53 -452 ·3 47-16-1 -bx | — | Call for availability | |||
| 2253-19-7 | ·2X 53 -452-3 47 ·16-1 -bx | — | Call for availability | |||
| 2353-19-12-4X | 53 -106 ·2 47 ·16-1 -bx 47 ·16 ·3 -1X | — | Call for availability | |||
| 2453-19-HX | 53 -452 -2 47 ·16-1 -bx | — | Call for availability | |||
| 2553-19-12-4X | 5-4-6321 47-16 ·1 -llx | 47-16-6 ·2X | — | Call for availability | ||
| 2653-19-12-4X | 53 -452 ·3 62-453 -4 47-16-1 -bx 47-16-3 -25X | — | Call for availability | |||
| 2753-19-3 | -4X 53 -452-2 47-16-1 -bx | — | Call for availability | |||
| 2853-19-1 | -4X 53 -452 ·2 47-16-1 -sx | — | Call for availability | |||
| 2953-19-26-2X | 53 -452 ·5 47-16-1 -sx | — | Call for availability | |||
| 153-19-12-4X | 53 -452 ·3 47-16-1 -sx | — | Call for availability | |||
| 253-19-3 | -4X 53 -452 ·2 47-16-1 -bx | — | Call for availability | |||
| 353-19-12-4X | 53 -452-3 62-453 -4 47-16-1 -11X | — | Call for availability | |||
| 453-19-12-4X | 53 -452 ·3 47-16-1 -sx | — | Call for availability |
With Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | O-ES60-5 | Tabulated Bills Of Material | — | Call for availability |
Tabula Ted Bills of Material T21 O-ES60-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 553-19-7-4X | 53 -452 -3 47 ·16-1 -8X | — | Call for availability | |||
| 853-19-1-4X | 53 -452 -2 47-16-1 -bx | — | Call for availability | |||
| 953-19-3-4X | 53 -452-2 47-16-1 -8X | — | Call for availability | |||
| 1053-19-7-4X | 53 -452-3 47-16-1 -sx | — | Call for availability | |||
| 1153-19-12-4X | 53 -452-3 47-16-1 -sx | — | Call for availability | |||
| 1253-19-12-4X | 53 -452 -3 47-16-1 -sx | — | Call for availability | |||
| 1353-19-1-4X | 53 -452 -2 47-16-1 -sx | — | Call for availability | |||
| 1553-19-12-4X | 53 -106-2 47-16-1 -sx | — | Call for availability | |||
| 1653-19-12-4X | 47-16-1 -sx | — | Call for availability | |||
| 1753-19-12-4X | 47-16-1 -sx 47 ·16-3 -1X | — | Call for availability | |||
| 1853-19-12-4X | 47-16-1 -sx | — | Call for availability | |||
| 1953-19-12-4X | 47-16-1 -10X | — | Call for availability | |||
| 2053-19-12-4X | 47-16-1 -10X | — | Call for availability | |||
| 2153-19-12-4X | 47-16-1 -sx | — | Call for availability | |||
| 2253-19-7-4X | 53 -452-3 47 ·16-1 -bx | — | Call for availability | |||
| 2353-19-3-4X | 53 -452 -2 47-16-1 -sx | — | Call for availability | |||
| 2453-19-12-4X | 53 -452 ·3 47-16-1 -10X | — | Call for availability | |||
| 2553-19-12-4X | 53 -452-3 62-453 -4 53 -106-2 47-16-1 -12X 47'16-3 -25X | — | Call for availability | |||
| 2653-19-7-4X | 53 -452-3 47-16-1 -sx | — | Call for availability | |||
| 2753-19-12-4X | 53 -452-3 47-16-1 -sx | — | Call for availability | |||
| 2853-19-12-4X | 53 -452 ·3 47-16-1 -sx | — | Call for availability | |||
| 2953-19-7-4X | 53 -452 -3 47-16-1 -sx | — | Call for availability | |||
| 3053-19-12-4X | 53 -452-4 53 -453 -2 4-4-4491 47-16-1 -11X | — | Call for availability | |||
| 3153-19-12-4X | 53 -452-3 47-16-1 -sx | — | Call for availability | |||
| 3253-19-7-4X | 53 -452-3 47-16-1 -sx | — | Call for availability | |||
| 3353-19-12-4X | 53 -106-2 47-16-1 -13X 47-16-3 -lx | — | Call for availability | |||
| 3453-19-12-4X | 47-16-1 -sx | 47-16-8-2X | — | Call for availability | ||
| 3553-19-13-2X | 47-16-1 -sx | — | Call for availability | |||
| 3653-19-15-2X | 47-16-1 -sx | — | Call for availability | |||
| 3753-19-17-2X | 47-16-1 -sx | — | Call for availability | |||
| 3853-19-13-2X | 47-16-1 -sx | — | Call for availability | |||
| 3953-19-15-2X | 47-16-1 -sx | — | Call for availability | |||
| 4053-19-17-2X | 47-16-1 -sx | — | Call for availability | |||
| 4153-19-12-4X | 47 ·16 ·1 -sx | — | Call for availability | |||
| 4253-19-13-2X | 47-15-1 -sx | — | Call for availability | |||
| 4353-19-15-2X | 47-16-1 -bx | — | Call for availability | |||
| 4453-19-17-2X | 47-16-1 -8X | — | Call for availability | |||
| 4553-19-12-4X | 47 ·16-1 -sx 47-16 ·3 ·1X | — | Call for availability | |||
| 4653-19-7-4X | 53 -452-3 47-16-1 -8X | — | Call for availability | |||
| 4753-19-12-4X | 53 -452-3 47 ·16-1 -sx | — | Call for availability | |||
| 4853-19-3-4X | 53 -452-2 53 -106-2 47-16-1 -sx 47-16-5-21X | — | Call for availability | |||
| 4953-19-7-4X | 53 -452-4 53 -453 -2 47 ·16-1 -11X | — | Call for availability | |||
| 5053-19-12-4X | 53 -452-3 62-453 -4 53 ·106-2 47-16 ·1 -11X | — | Call for availability | |||
| 5153-19-22 | ·1 X 53 -452-8 4-4-4611 ·2 47 ·16 ·1 -sx | — | Call for availability | |||
| 5253-19-22 | ·1 X 53 -452-8 5-4-6481 -1 47-16 ·1 -sx | — | Call for availability | |||
| 5353-19-22 | ·1 X 53 -452-8 4-4-4611 -2 47 ·16-1 -bx | — | Call for availability | |||
| 5453-19-22 | ·1X 53 -452-8 5-4-6481 -1 47-16-1 -sx | — | Call for availability | |||
| 5553-19-22 | ·1 X 53 -452-6 5-4-8461 -1 47-16-1 -bx | — | Call for availability | |||
| 5653-19-12-4X | 53 -452-4 53 -453 -2 4-4-4491 47 ·16-1 -11X | — | Call for availability | |||
| 5753-19-12-4X | 53 -452 '4 53 -453 -2 4-4-4491 47-16 ·1 -bx 47-16-5-43X | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 153-19-1-4X | 47 -16 -hlx 47-16-3 -1X | — | Call for availability | |||
| 253-19-12-4X | 47-16-1 -ax 47-16-3 -1X | — | Call for availability | |||
| 553-19-1-4X | 53 -452-2 47-16-1 -8X | — | Call for availability | |||
| 653-19-3-4X | 53 -452-2 47-16-1 -8X | — | Call for availability | |||
| 953-19-12-4X | 53 -452-3 47-16-1 -bx | — | Call for availability | |||
| 1053-19-12-4X | 47-16-1 -llx | 47-16-6-2X | — | Call for availability | ||
| 1153-19-12-4X | 47-16-1 -8X 47-16-3 -1X | — | Call for availability | |||
| 1453-19-12-4X | 47-16-1 -8X | — | Call for availability | |||
| 1553-19-12-4X | 53 -452 ·3 62-453 -4 5-4-6321 47-16-1 -11X | 47 -16-8 ·2X | — | Call for availability | ||
| 1853-19-1-4X | 53 -452-2 47-16-1 -8X | — | Call for availability | |||
| 1953-19-3-4X | 53 -452 ·2 47-16-1 -8X | — | Call for availability | |||
| 2053-19-12-4X | 53 -452-3 62-453 -4 5-4-6321 47-16-1 -11X | 47-16-8 -2X | — | Call for availability | ||
| 2153-19-12-4X | 53 -452-3 62-453 -4 5-4-6321 47-16-1 -llx | — | Call for availability | |||
| 2253-19-12-4X | 47-16-1 -sx 47-16-3 -1X | — | Call for availability | |||
| 2353-19-12-4X | 47-16-1 -8X 47-16-3 -1X | — | Call for availability | |||
| 2453-19-12-4X | 53 -452 ·3 62-453 -4 47-16-1 ·11X | — | Call for availability | |||
| 2653-19-12-4X | 53 -452 ·3 62-453 -4 47-16-1 -sx | — | Call for availability | |||
| 2753-19-1-4X | 53 -452-3 47-16-1 -llx | — | Call for availability | |||
| 2953-19-12-4X | 47-16-1 -16X | — | Call for availability | |||
| 3053-19-12-4X | 53 -452-3 62-453 -4 47-16-1 -bx 47-16-3 -25X | — | Call for availability | |||
| 3153-19-12-4X | 47-16-1 -8X | — | Call for availability | |||
| 3253-19-12-4X | 47-16-1 -sx | — | Call for availability | |||
| 3453-19-12-4X | 47-16-1 -sx | — | Call for availability | |||
| 3553-19-12-4X | 53 -106-2 47-16-1 -bx | 47-16-6-2X | — | Call for availability | ||
| 3653-19-12-4X | 47-16-1 ·10X | — | Call for availability | |||
| 3753-19-12-4X | 47-16-1 -llx | 47-16-8 -2X | — | Call for availability | ||
| 3953-19-3-4X | 53 -452-2 47-16-1 -bx | — | Call for availability | |||
| 4053-19-12-4X | 47-16-1 -bx | — | Call for availability | |||
| 4153-19-12-4X | 47-16-1 -8X 47-16-3 -1X | — | Call for availability | |||
| 4253-19-12-4X | 47-16-1 -sx | — | Call for availability | |||
| 4353-19-12-4X | 5-4-6321 47-16-1 -11X | 47-16-8 -2X | — | Call for availability | ||
| 4753-19-12-4X | 47-16-1 -bx 47-16-3 -1X | — | Call for availability | |||
| 4953-19-12-4X | 5-4-6321 47-16-1 -11X | 47-16-9-2X | — | Call for availability |
With Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | O-ES60-5 | Tabulated Bills Of Material | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5153-19-12-4X | 53-452-4 53-453-2 4-4-4491 47-16-1 ·1 1X | — | Call for availability | |||
| 5253-19-1 | 2-4X 53-452-3 47-16-1 -8X | — | Call for availability | |||
| 5353-19-12-4X | 5-4-6321 47-16-1 -1 1X | 47-16-8-2X | — | Call for availability | ||
| 5553-19-12-4X | 5-4-6321 47-16-1 -11X | 47-16-8-2X | — | Call for availability | ||
| 5653-19-12-4X | 53-106-2 47-16-1 -8X 47-16-3-1X | — | Call for availability | |||
| 5753-19-13-2X | 47-16-1 -8X | — | Call for availability | |||
| 5953-19-17-2X | 47-16-1 -8X | — | Call for availability | |||
| 6053-19-13-2X | 47-16-1 -8X | — | Call for availability | |||
| 6153-19-15-2X | 47-16-1 -8X | — | Call for availability | |||
| 6253-19-17-2X | 47-16-1 -6X | — | Call for availability | |||
| 6653-19-12-4X | 53-106-1 47-16-1 -bx 47-16-5-38X | — | Call for availability | |||
| 6753-19-13-2X | 4?-16-1 -8X | — | Call for availability | |||
| 6653-19-15-2X | 47-16-1 -8X | — | Call for availability | |||
| 6953-19-17-2X | 47-16-1 -8X | — | Call for availability | |||
| 7053-19-12-4X | 53-452-3 62-453-4 5-4-6321 47-16-1 -bx 47-16 '3 ·1X | — | Call for availability | |||
| 7153-19-7-4X | 53-452-3 47-16-1 -8X | — | Call for availability | |||
| 7253-19-12-4X | 53-452-3 62-453-4 5-4-6321 47-16-1 -bx 47 ·16-3-1X | — | Call for availability | |||
| 7353-19-12-4X | 47-16-1 -16X | — | Call for availability | |||
| 7753-19-12-4X | 53-106 '2 47-16'1 -16X | — | Call for availability | |||
| 7853-19-12-4X | 53-452 ·3 62-453-4 53-106-2 47-16'1 -8X 47-16 ·3-25X | — | Call for availability | |||
| 8153-19-12-4X | 47-16-1 -sx 47-16'3-1X | — | Call for availability | |||
| 8253-19-12-4X | 53-452 ·3 62-453-4 47 ·16-1 -8X | 47-16-8-2X | — | Call for availability | ||
| 8353-19-12-4X | 53-452-3 47-16-1 -sx | — | Call for availability | |||
| 8453-19-12-4X | 53-106'2 47-16'1 ·16X 47-16-3-1X | — | Call for availability | |||
| 8553-19-13-2X | 47 ·16-1 -8X | — | Call for availability | |||
| 8753-19-7-4X | 53-452-4 53-453-2 47-16-1 ·1 1X | — | Call for availability | |||
| 8853 | ·19-12-4X 3-4-6781 47-16'1 ·16X 47-16-3-1X | — | Call for availability | |||
| 9053-19-12-4X | 47 ·16-1 -sx | — | Call for availability | |||
| 9553-19-12-4X | 53-452 ·3 47-16'1 -sx | — | Call for availability | |||
| 9953-19-12-4X | 53-452-3 47 ·16-1 -8X | — | Call for availability |
With Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | ES60-5 | Tabula Ted Bills Of Material | — | Call for availability |
Tabulated Bills of Material T210-ES60-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 10353-19-22-1X | 53-452-6 4-4-4611 -2 47 ·16-1 -6X | — | Call for availability | |||
| 10453-19-22-1X | 53-452-6 5-4-6481 ·1 47-16-1 -6X | — | Call for availability | |||
| 10553-19-22-1X | 53-452 ·6 4-4-4611 ·2 47-16-1 -8X | — | Call for availability | |||
| 10653-19-22-1X | 53-452 ·6 5-4-6481 -1 47 ·16-1 -6X | — | Call for availability | |||
| 10753-19-22-1X | 53-452-6 5-4-6481 ·1 47 ·16-1 -8X | — | Call for availability | |||
| 10853-19-12-4X | 47 ·16-1 ·18X | — | Call for availability | |||
| 10953-19-12-4X | 53-106-1 47 ·16-1 -bx 47-16-3-1X | — | Call for availability | |||
| 11053-19-12-4X | 53-452-4 53-453-2 4-4-4491 47 ·16-1 -11X | — | Call for availability | |||
| 11153-19-12-4X | 53-452-4 53-453-2 4-4-4491 47-16-1 -8X 47-1 6-5-43X | — | Call for availability | |||
| 11253-19-12-4X | 47-16-1 -13X | — | Call for availability | |||
| 11353-19-12-4X | 5-4-6321 47-16-1 -11X | — | Call for availability | |||
| 12653-19-7-4X | 53-452 ·3 47 ·16-1 -8X | — | Call for availability | |||
| 153-19-1-4X | 47-16-1 -8X 47-16-3-1X | — | Call for availability | |||
| 253-19-12-4X | 53-452-3 47-16-1 -8X | — | Call for availability | |||
| 353-19-12-4X | 53-452-3 62-453-4 47-16-1 -11X | — | Call for availability | |||
| 453-19-12-4X | 5-4-6321 47-16-1 -11X | 47-16-8-2X | — | Call for availability | ||
| 653-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 753-19-12-4X | 5+6321 47-16-1 ·11X | 47 ·16-8-2X | — | Call for availability | ||
| 1453-19-1-4X | 53-452-2 47-16-1 -10X | — | Call for availability | |||
| 1553-19-12-4X | 53-452-3 53-106-2 47-16-1 -sx | — | Call for availability | |||
| 1753-19-3-4X | 53-452-2 47-16-1 -8X | — | Call for availability | |||
| 1853-19-12-4X | 47-16-1 -8X | — | Call for availability | |||
| 1953-19-12-4X | 47-16 ·1 -sx | — | Call for availability | |||
| 2053-19-12-4X | 47-16 ·1 -10X | — | Call for availability | |||
| 2153-19-1-4X | 47-16-1 -sx | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2353-19-12-4X | 53-106-2 47 ·16-1 -1 1X | — | Call for availability | |||
| 2453-19-12-4X | 53-106-2 47-16-1 -8X 47 ·16-3-1X | — | Call for availability | |||
| 2553-19-7-4X | 53-452 ·3 47 ·16-1 -8X | — | Call for availability | |||
| 2653-19-12-4X | 53-452 ·3 47-16-1 -bx | — | Call for availability | |||
| 2853-19-12-4X | 53-452-3 5-4-8321 47-16-1 -8X | — | Call for availability | |||
| 3053-19-12-4X | 53-452-3 .62-453-4 5-4-8321 47-16-1 -1 1X 47 ·16-3-1X | — | Call for availability | |||
| 3153-19-12-4X | 53-452-3 47 ·16-1 -8X | — | Call for availability | |||
| 3353-19-3-4X | 53-452 ·2 47-16-1 -ax | — | Call for availability | |||
| 3453-19-12-4X | 5-4-8321 47-16-1 -1 1X | — | Call for availability | |||
| 3653-19-12-4X | 53-452-3 62-453-4 53-106-2 47-16-1 -8X 47-16-5-21X | — | Call for availability | |||
| 3753-19-12-4X | 47 ·16-1 -8X 47 ·16-3-1X | — | Call for availability | |||
| 3653-19-7-4X | 53-452-3 47-16-1 -ax | — | Call for availability | |||
| 3953-19-12-4X | 53-452-3 47-16-1 -8X | — | Call for availability | |||
| 4053-19-12-4X | 53-452 ·3 47-16-1 -8X | — | Call for availability | |||
| 4153-19-7-4X | 53-452-3 47-16-1 -8X | — | Call for availability | |||
| 4253-19-1-4X | 53-452-2 47-16-1 -8X | — | Call for availability | |||
| 4353-19-13-2X | 47-16-1 -8X | — | Call for availability | |||
| 4453-19-15-2X | 47-16-1 -8X | — | Call for availability | |||
| 4553-19-17-2X | 47-16-1 -8X | — | Call for availability | |||
| 4653-19-13-2X | 47-16-1 -bx | — | Call for availability | |||
| 4753-19-15-2X | 47-16-1 -8X | — | Call for availability | |||
| 4653-19-17-2X | 47-16-1 -8X | — | Call for availability | |||
| 4953-19-12-4X | 53-452-3 62-453-4 53-106-2 47-16-1 -8X 47-16-3-1X | — | Call for availability | |||
| 5053-19-13-2X | 47-16-1 -sx | — | Call for availability | |||
| 5153-19-12-4X | 47-16-1 -8X 47-16-3-1X | — | Call for availability | |||
| 5253-19-17-2X | 47-16-1 -8X | — | Call for availability | |||
| 5353-19-15-2X | 47-16-1 -8X | — | Call for availability | |||
| 5453-19-12-4X | 53-106-2 47-16-1 -11X | — | Call for availability | |||
| 5553-19-12-4X | 53-106-2 47-16-1 -1 1X | — | Call for availability | |||
| 5653-19-12-4X | 47-16-1 -8X | — | Call for availability | |||
| 6053-19-12-4X | 53-106-2 47-16-1 -11X | — | Call for availability | |||
| 5953-19-1 | 2-4X 53-452-3 47-16-1 -8X | — | Call for availability | |||
| 7053-19-12-4X | 4-4-4491 47-16-1 -17X | — | Call for availability |
With Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | O-ES60-5 | Tabulated Bills Of Material | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 153-19-1-4X | 47-16-1 -8)( 47-16-3-1X | — | Call for availability | |||
| 353-19-3-4X | 53-452-2 47-16-1 -8)( | — | Call for availability | |||
| 453-19-3-4X | 53-452-2 47-16-1 -8)( | — | Call for availability | |||
| 553-19-1-4X | 53-452-2 47-16-1 -bx | — | Call for availability | |||
| 653-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 753-19-12-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 853-19-12-4X | 53-452-3 47-16-1 -8)( | — | Call for availability | |||
| 953-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 1053-19-12-4X | 53-452-3 47-16-1 -8)( | — | Call for availability | |||
| 1253-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 1453-19-15-2X | 47-16-1 -bx | — | Call for availability | |||
| 1553-19-17-2X | 47-16-1 -bx | — | Call for availability | |||
| 1653-19-13-2X | 47-16-1 -8)( | — | Call for availability | |||
| 1753-19-17-2X | 47:16-1 -8)( | — | Call for availability | |||
| 1853-19-15-2X | 47-16-1 -8)( | — | Call for availability | |||
| 1953-19-15-2X | 47-16-1 -bx | — | Call for availability | |||
| 2053-19-17-2X | 47-16-1 -bx | — | Call for availability | |||
| 2153-19-12-4X | 47-16-1 -bx 47-1 -6-3-1X | — | Call for availability | |||
| 2253-19-13-2X | 47-16-1 -bx | — | Call for availability | |||
| 2353-19-12-2X | 53-452-3 47-16-1 -8)( | — | Call for availability | |||
| 2453-19-7-2X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 2553-19-12-4X | 53-106-2 47-16-1 -bx 47-16-3-1X | — | Call for availability | |||
| 2653-19-1-4X | 53-452-2 47-16-1 -bx | — | Call for availability | |||
| 2753-19-12-4X | 5-4-6321 47-16-1 -bx | 47-16-8-2X | — | Call for availability | ||
| 2853-19-12-4X | 53-452-3 62-453-4 47-16-1 -bx 47-16-3-25X | — | Call for availability | |||
| 3253-19-3-4X | 53-452-2 47-16-1 -bx | — | Call for availability | |||
| 3353-19-1-4X | 53-452-2 47-16-1 -bx | — | Call for availability | |||
| 4153-19-26-2X | 53-452-5 47-16-1 -8X | — | Call for availability | |||
| 4253-19-24-2X | 53-452-5 47-16-1 -bx | — | Call for availability |
With Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | O-ES60-5 | Tabula Ted Bills Of Material | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| S53-19-12-4X | 53-452-3 47-16-1 -ix | — | Call for availability | |||
| SS3-19-3-4X | 53-452 ·2 47-16-1 -ix | — | Call for availability | |||
| 7S3-19-12-4X | 53-452-3 62-453-4 47-16-1 -11X | — | Call for availability | |||
| 853-19-12-4X | 53-452-3 47-16-1 -ix | — | Call for availability | |||
| G53-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 1553-19-1-4X | 53-452-2 47-16-1 -bx | — | Call for availability | |||
| 1653-19-3-4X | 53-452-2 47-16-1 -bx | — | Call for availability | |||
| 1853-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 1953-19-12-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 2153-19-12-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 2253-19-1-4X | 53-452-2 47-16-1 -bx | — | Call for availability | |||
| 2453-19-12-4X | 53-106-2 47-16-1 -bx | — | Call for availability | |||
| 2553-19-12-4X | 47-16-1 -bx | — | Call for availability | |||
| 2653-19-12-4X | 47-16-1 -bx 47-16-3-1X | — | Call for availability | |||
| 2753-19-12-4X | 47-16-1 -bx | — | Call for availability | |||
| 2853-19-12-4X | 47-16-1 ·10X | — | Call for availability | |||
| 2953-19-12-4X | 47-16-1 -10X | — | Call for availability | |||
| 3153-19-12-4X | 47-16-1 -8X | — | Call for availability | |||
| 3253-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 3353-19-3-4X | 53-452-2 47-16-1 -bx | — | Call for availability | |||
| 3453-19-12-4X | 53-452-3 47-16-1 -lox | — | Call for availability | |||
| 3553-19-12-4X | 53-452-3 62-453-4 53-106-2 47-16-1 -12X 47-16-3-25X | — | Call for availability | |||
| 3653-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 3753-19-12-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 3853-19-12-4X | 53-452 ·3 47-16-1 -bx | — | Call for availability | |||
| 3953-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 4353-19-12-4X | 53-452-4 53-453-2 4-4-4491 47-16-1 -11X | — | Call for availability | |||
| 4453-19-12-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 4553-19-7-4X | 53-452-3 47-16-1 -bx | — | Call for availability | |||
| 4753-19-12-4X | 53-452-3 62-453-4 5-4-6321 47-16-1 -6X 47-16-3-1X | — | Call for availability | |||
| 4653-19-12-4X | 53-106-2 47-16-1 -13X 47-16-3-1X | — | Call for availability | |||
| 5053-19-12-4X | 47-16-1 -8X | 47-16-8-2X | — | Call for availability | ||
| 5353-19-13-2X | 47-16-1 -bx | — | Call for availability |
Whh Clutch S Assembly Code Main Drive Drive Gear Main Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21 | O-ES60-5 | Tabulated Bills Of Material | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5553-19-17-2X | 47-16-1 -8X | — | Call for availability | |||
| 5653-19 | ·13-2)( 47 ·16-1 -8X | — | Call for availability | |||
| 5853-19 | ·17-2X 47 ·16-1 -8X | — | Call for availability | |||
| 5953-19-1 | 2-4X 47 ·16-1 -8X | — | Call for availability | |||
| 6553-19-1 | 3-2X 47 ·16-1 -8X | — | Call for availability | |||
| 6653-19-1 | 5-2X 47 ·16-1 -8X | — | Call for availability | |||
| 6753-19-17 | ·2X 47 ·16-1 -8X | — | Call for availability | |||
| 7153-19-12-4X | 47-16-1 -8X 47 ·15-3-1X | — | Call for availability | |||
| 7253-19-7-4X | 53-452-3 47 ·16-1 -8X | — | Call for availability | |||
| 7353-19-12-4X | 53-452-3 47-16-1 -8X | — | Call for availability | |||
| 7453-1 | 9-3-4X 53-452-2 53-105-2 47-16-1 -8X 47 ·16-5 ·21X | — | Call for availability | |||
| 7553-19-7-4X | 53-452-4 53-453-2 47-16-1 -11X | — | Call for availability | |||
| 8353-19-12-4X | 53-452-3 62-453-4 53-105-2 47-16-1 ·11X | — | Call for availability | |||
| 6453-19-22 | ·1X 53-452-8 4-4-4611 -2 47-16-1 -8X | — | Call for availability | |||
| 8553-19-22-1 | X 53-452-6 5-4-6481 ·1 47 ·16-1 -8X | — | Call for availability | |||
| 8653-19-22 | ·1X 53-452-6 4-4-461 1 ·2 47 ·16-1 -8X | — | Call for availability | |||
| 8753-19-22-1 | X 53-452-6 5-4-6481 -1 47 ·16-1 -6X | — | Call for availability | |||
| 8853-19-22 | ·1X 53-452-6 5-4-8481 -1 47 ·16-1 -8X | — | Call for availability | |||
| 8953-19-12-4X | 53-452-4 53-453-2 4-4-4491 47 ·16-1 ·1 1X | — | Call for availability | |||
| 9053-19-12-4X | 53-452'4 53-453-2 4-4-4491 47 ·15-5-43X | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission 5952-A — every part in the manual, matched to our live inventory. We stock 99 of the 797 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the 5952-A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | 5952-A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 48 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
