Spicer 5952-E Parts Manual

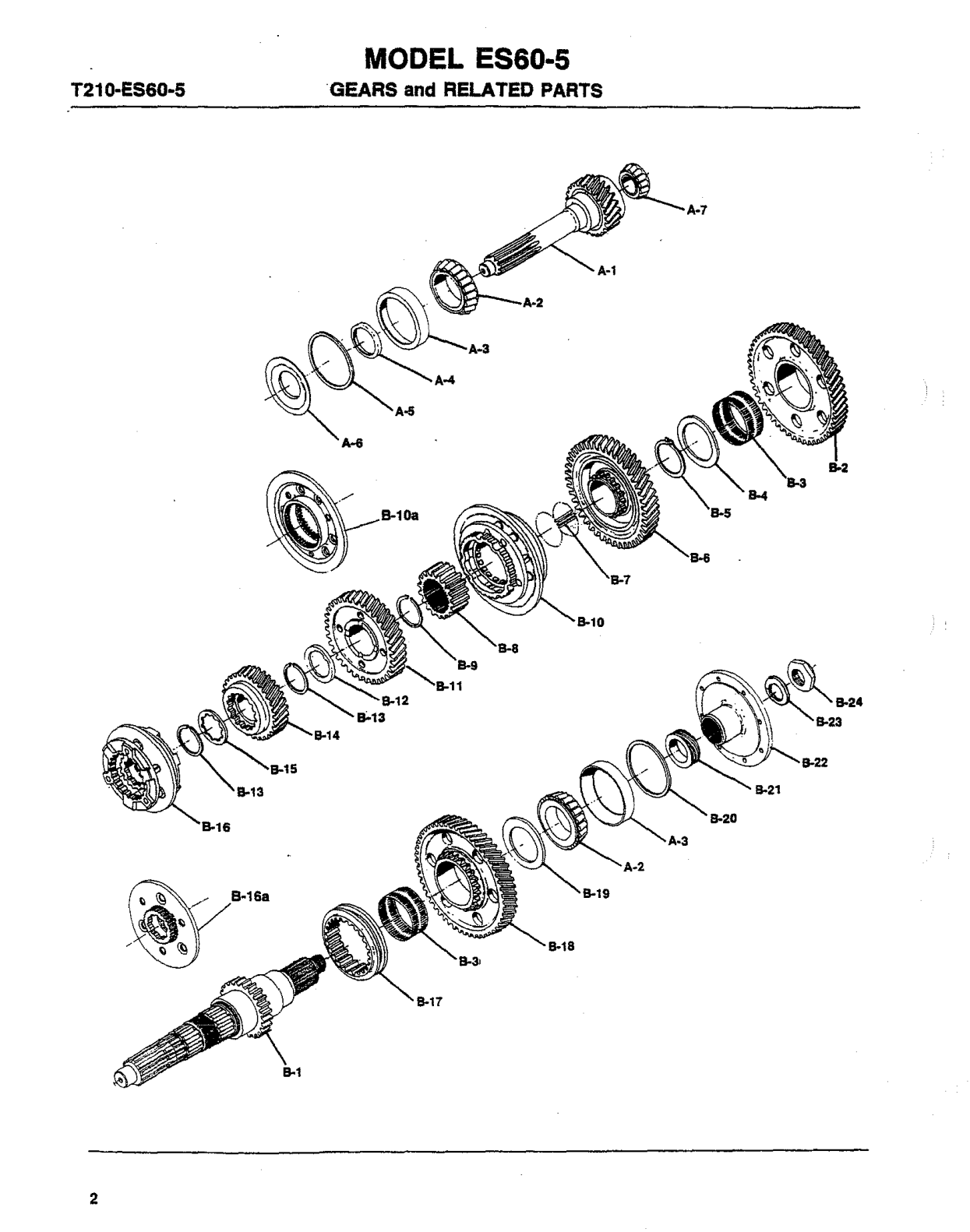

Drive Gear Group -Input
Item A-3Item B-2Item B-3Item B-10AItem B-7Item B-10Item B-8Item B-12Item B-24Item B-13Item B-23Item B-15Item B-16Item A-3Item A-2Item B-16AItem B-19Item B-18Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | 550930 | Cone -Main Drive Gear Bearing | 2 | $64.20 | Add to Cart | |
| A-3 | 550929 | Cup -Main Drive Gear Bearing | 2 | $28.81 | Add to Cart | |
| A-4 | 47-468-2 | Baffle -Oil Ring Drive | 1 | $33.38 | Superseded by 3132403XAdd to Cart | |
| A-s | 47-2211-2 | ·2 Spacer/Shim | 1 | Call for availability | ||
| A-6 | 47-468-1 | Baffle -Bearing Cap | 1 | $3.55 | Add to Cart | |
| A-7 | 550931 | Cone -Main Drive Gear Pocket Bearing | 1 | $34.78 | Add to Cart |
Mainshaft Group -Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 53-362-3 | Mainshafl | · i | Call for availability | ||
| B-1 | 53-362-8 | Mainshafl -(13/• " ·10 Spline I Nd Ustrial) | 1 | Call for availability | ||
| B-2 | 59-8-10 | Gear-1 St Speed (42T) | 1 | Call for availability | ||
| B-3 | 550932 | Bearing ' -1st & ·Reverse Gear Needle Assembly. | 2 | $40.03 | Add to Cart | |
| B-4 | 330866 | Thrust Washer-1 St Speed Gear | 1 | Call for availability | ||
| B-5 | 27-381 | ·5 Snap Ri Ng | 1 | Call for availability | ||
| B-5 | 59-8-8 | (36T) For ES60-5A, ES&D-5D, ES6o-5 ·E, 5952A, 59520 5952E | $581.61 | Superseded by 6785Add to Cart | ||
| B-5 | 59-8-9 | (37T) For ES60 .5C, 5952C | Call for availability | |||
| B-7 | 59-482 | ·1 ·1X Bearing Kit-Mainshafl 2nd Speed Needle Roller (61 Needles) | 1 | Call for availability | ||
| B-8 | 59-466-3 | Gear-2nd & 3rd Speed Clutch (40T) | 1 | $217.97 | Add to Cart | |
| B-10 | 313536X | Synchronizer-2nd & 3rd Speed (1ST) | 1 | $1,039.90 | Add to Cart | |
| B-10A | 59-465-1 | Clutch Collar (Used In Place Of Synchronizer) (40T) | 1 | Call for availability | ||
| B-10A | 59-8-5 | (35T) For ES&D-SA, 5952A | $628.73 | Superseded by 6783Add to Cart | ||
| B-10A | 59-8-7 | (31T) For ES60-5C, 5952C | Call for availability | |||
| B-10A | 59-8-4 | (33T) For ES60 .5D ES60 .5E 59520 5952E | $721.78 | Superseded by 6784Add to Cart | ||
| B-12 | 330818 | Thrust Washer-3rd & 4th Speed | 1 | $35.44 | Superseded by 67471Add to Cart | |
| B-13 | 53-381 | ·2 Snap Ri Ng | 2 | Call for availability | ||
| B-13 | 59-11-1 | (27T) For ES&D-SD, ES60 ·5E 5952-D, 5952-E | Call for availability | |||
| B-13 | 59-8-2 | (29T) For ES60 ·5A, ES80 ·5C 5952-A, 5952-C | $487.31 | Superseded by 6782Add to Cart | ||
| B-15 | 1016-W | Thrust Washer-4th Speed Gear | 1 | $83.44 | Add to Cart | |
| B-16 | 313535X | Synchronizer-4th & 5th Speed (31T/10T) | 1 | $470.56 | Add to Cart | |
| B-16A | 59-466 | ·1 -1X Clutch Gear & Cam Plate | Call for availability | |||
| B-17 | 47-465-1 | Clutch Collar-1 St & Reverse | 1 | $215.92 | Add to Cart | |
| B-18 | 53-8-1 | Gear-Reverse (42T) · | i | $403.79 | Add to Cart | |
| B-19 | 330867 | Thrust Washer-Reverse | 1 | Call for availability | ||
| B-20 | 313240-3X | Spacer & Shim Kit To Adjust Mainshaft End Play | 1 | $33.38 | Add to Cart | |
| B-20 | 53-37-1 | Spacer-(Use In Place Of Speedometer Drive ge11 -R) | 1 | Call for availability | ||
| B-23 | 53-205-1 | Washer-1 V•" Flat | 1 | $4.42 | Add to Cart | |
| B-24 | 501200 | N Ut -1 Y " 1 8hex | 1 | Call for availability |
Countershaft Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 59-30-3 | Countershaft | 1 | $555.90 | Add to Cart | |
| C-1 | 59-30 | .1 Countershaft (For Rear PoToOO Drive) | 1 | Call for availability | ||
| C-1 | 59-196-8 | (19T) For ES6G-5A, ES&G-50, ES60 ·5E 5952-A, 5952-D 5952-E | $330.96 | Superseded by 671965Add to Cart | ||
| C-1 | 59-196-9 | (1ST) For ES6G-5C, 5952-C | Call for availability | |||
| C-3 | 59-37-1 | Spacer-2nd & 3rd Speed Gear | 1 | $65.92 | Add to Cart | |
| C-3 | 59-196-4 | (32T) For ES&o-50 ES&o-SE, 5952-D, 5952-E | $429.78 | Superseded by 671964Add to Cart | ||
| C-3 | 59-196-5 | (30T) For ES6G-5A, 5952-A | Call for availability | |||
| C-3 | 59-196-7 | (25T) For ES6G-5C, 5952-C | Call for availability | |||
| C-3 | 59-196-1 | (43T) For ESSG-50 ES6G-5E, 5952-D 5952-E | $549.33 | Superseded by 671961Add to Cart | ||
| C-3 | 59-196-2 | (41T) For ES60-5A, ES6G-5C, 5952-A, 5952-C | $691.63 | Superseded by 671962Add to Cart | ||
| C-6 | 59-381 | ·2 Snap Ring | 1 | Call for availability | ||
| C-6 | 59-1-1 | (43T) For ES60-5E 5952-E | Call for availability | |||
| C-6 | 59-1-2 | (43T) forES6G-5A, ES6G-5C, ES60 ·5D 5952-A, 5952-C 5952-D | Call for availability | |||
| C-8 | 59-381 | -1 Snap Ring | 1 | Call for availability | ||
| C-9 | 550927 | Cone -Bearing | 2 | $32.85 | Add to Cart | |
| C-10 | 550375 | Cup -Bearing | 2 | $17.99 | Add to Cart | |
| C-11 | 47-37-3 | Spacer-Front Bearing O O | 1 | Call for availability | ||
| C-12 | 313438X | Shim Kit To Adjust Countershaft End Play | 1 | $6.73 | Add to Cart |
Reverse Idler Shaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 59-5-1 | Gear-Reverse Idler (17T) | 1 | Call for availability | ||
| D-2 | 97-37-1 | Spacer (Spring) -Bearing (Spring) | 1 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Thrust Washer | 2 | $41.88 | Add to Cart | |
| D-5 | 63-SG-1 | Shaft-Gear | 1 | Call for availability |
Drive Gear Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 218-844 | " 1 112" ·10 .9837 " 59-35 -3 -1X | Call for availability | ||||
| 2110-407 | " .9837 " 59-35-9-1X | Call for availability | ||||
| 218-532 | " 1Y2"-10 .9837 " 59-35-4-1X | Call for availability | ||||
| 219-345 | " .9837 " 59-35 ·18 ·1X | Call for availability | ||||
| 219-782 | " 1 1 .1800" 59-35-1 0.1 X | Call for availability | ||||
| 219-814 | " 1 1 12" ·10 .9837 " 59-35-6-1X | Call for availability | ||||
| 2110-298 | " 1 '12"-10 .9837 " 59-35 -7 ·1X | Call for availability | ||||
| 2110-564 | 1 '12"-10 .9837 " 59-35-5-1X | Call for availability | ||||
| 238-844 | " 1 112"-10 .9837 " 59-35-1 -1X | Call for availability | ||||
| 2310-125 | " 1Y2"-10 .9837 " 59-35 -11 -1X | Call for availability | ||||
| 2310-407 | " 1 '12"-10 .9837" 59-35 ·17 ·1X | Call for availability | ||||
| 2310 | .407 " 1 .1800" 59-35 -14-1X | Call for availability | ||||
| 239-564 | " 1Y2"-10 .9837 " 59-35-12-1X | Call for availability | ||||
| 239-782 | " 13 .4"-10 1 .1800" 59-35 -15 -1X | Call for availability |
Series Diameter Flange Assembly Face Length M ·male Size
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1610 | 5-1 -6321 | Call for availability | ||||
| 1710 | 6-1 -5751 | Call for availability | ||||
| 1480 | U -Bolt 3-4-8781 4''164" 22V2° | Call for availability | ||||
| 1550 | U -Bolt 4-4-4491 4'!64" 21 ° | Call for availability |

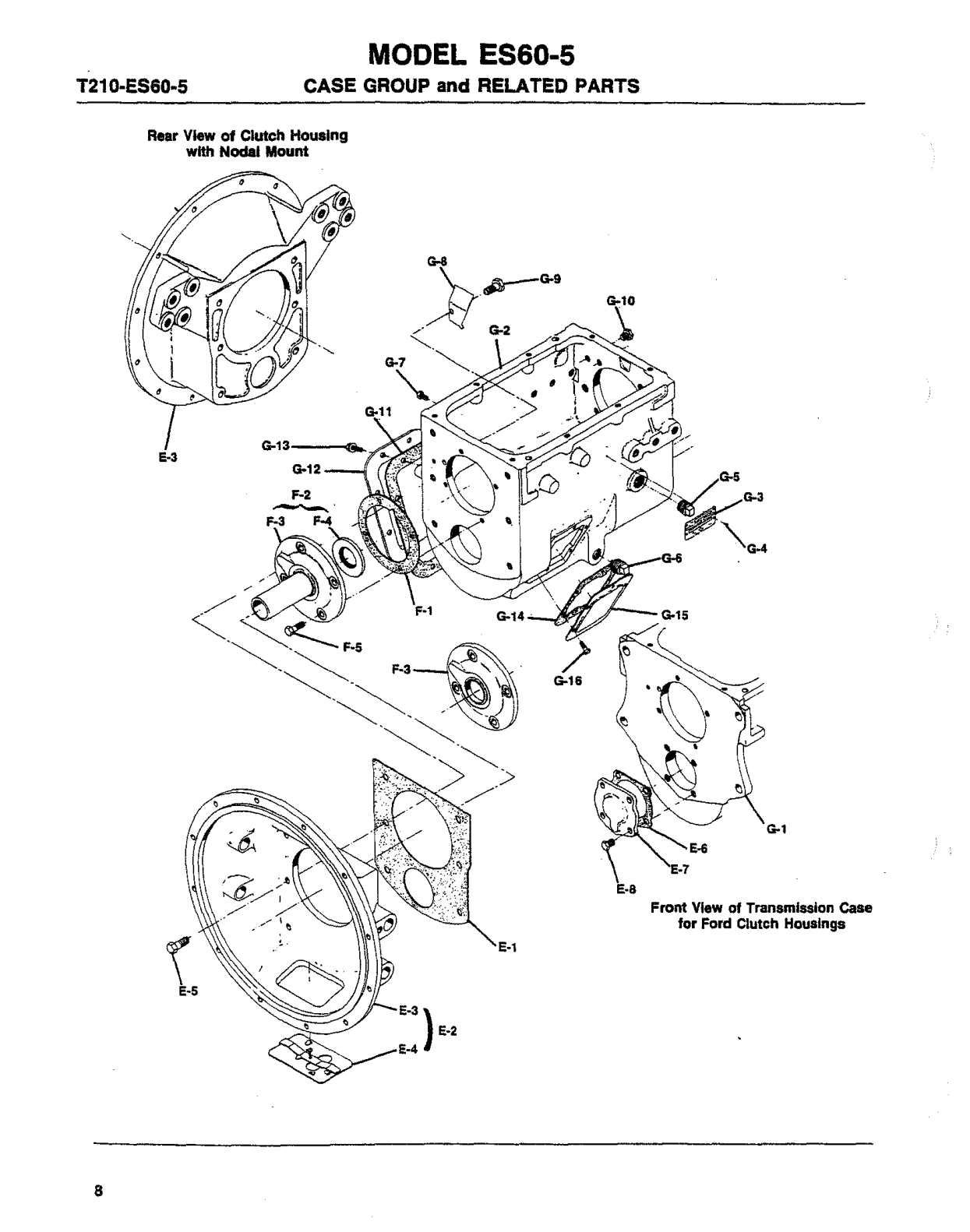

Clutch Housing Group
Item E-4Item G-16Item E-8Item E-1Item G-10Item G-2Item G-7Item G-11Item G-13Item G-12Item G-5Item G-3Item F-4Item G-14Item G-15Item F-5Item E-6Item E-7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 47-352-1 | Gasket | 1 | $12.59 | Add to Cart | |
| N .S | 128C-20 | Bushing -(312256X & 312830X) | 2 | $8.55 | Add to Cart | |
| E-4 | 46-96-2-1X | Hand Hole Cover Assembly | 1 | $44.01 | Add to Cart | |
| E-4 | 545001 | -Size 112"-13 X 1V• | version * (see the manual's footnote) | Call for availability | ||
| E-4 | 545001-1 | 1f2" ·13 X 1% | version * (see the manual's footnote) | $2.59 | Add to Cart | |
| E-4 | 545001-5 | 112" ·13 X 11,1, | version * (see the manual's footnote) | Call for availability | ||
| E-4 | 545001-6 | V•"-13 X 1% | version * (see the manual's footnote) | Call for availability |
Countershaft Front Bearing CAP (used with 59-15 ·5-2X Case)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-6 | 47-223-5 | Gasket-Countershaft Front Bearing Cap | 1 | Call for availability | ||
| E-7 | 60-22-28 | Cap-Ccuntershaft Front Bearing | 1 | Call for availability | ||
| E-8 | 330801-1 | X 718 " Hex Head Self-Locki Ng | 4 | Call for availability |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 47-223-1 | Gasket | 1 | $6.27 | Add to Cart | |
| F-3 | Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-4 | 611-463-10 | Oil Seal | 1 | Call for availability | ||
| F-5 | 545002-1 | Bolt-% " -16 X VB" Hex Head Self-Locking | 4 | $2.23 | Add to Cart |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-3 | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| G-4 | 252-5P | Pin -Nameplate | 4 | Call for availability | ||
| G-5 | 500100 | Filler Plug | 1 | Call for availability | ||
| G-6 | 62-39-3 | Drain Plug -Magnetic Square Head | 1 | $9.27 | Add to Cart | |
| G-6 | 62-39-4 | Drain Plug -Magnetic (Recessed Head) | 1 | $9.50 | Add to Cart | |
| G-7 | 545002-10 | Bolt-% " -16 X 112" Hex Head | 2 | Call for availability | ||
| G-8 | 330923 | Oil Trough | 1 | Call for availability | ||
| G-9 | 545009 | Bolt-O/ " -18 X % "Flanged Head Self-Locking | 1 | Call for availability | ||
| G-10 | 307-D | Plug-112"-13 X V2" Hex Head | 2 | Call for availability | ||
| G-10 | 266-D | Plug -% " -1 1 X Y, Hex H Ead | 2 | Call for availability | ||
| N .S | 545089-1 | Plug -9/,8 " ·12 X % " Hex Head Brake Anchor Bar | 6 | $1.67 | Add to Cart | |
| G-11 | 97-324-2-1 | X Gasket Kit- -8 Bolt P.T.O. Aperture Cover | 1 | Call for availability | ||
| G-12 | 73-267-1 | Cover--8 Bolt P.T.O. Aperture | 1 | $160.99 | Add to Cart | |
| G-13 | 545012 | Bolt-7 " -14 X "4" Flanged Hex Head Self-Locking | 8 | $3.23 | Add to Cart | |
| G-14 | 97-324-1-1X | Gasket Kit- -8 Bolt P.T.O. Aperture Cover | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | $3.91 | Add to Cart |
| G-15 | 50-267-2 | Cover--8 Bolt P.T.O. Aperture | 1 | $122.97 | Add to Cart | |
| G-16 | 330800 | Bolt--"A. " -16 3/•" Hex Head Self-Locking | 6 | Call for availability |
Mainshaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 60-463-8 | Oil Seal -Mainshaft Rear Bearing Cap | 1 | $18.84 | Add to Cart | |
| H-2 | 63-463-1 | Oil Seal (Ford Only) | 1 | $28.23 | Add to Cart | |
| H-6 | 47-223 | ·3 Gasket-Mainshaft Rear Bearing Cap | 1 | Call for availability | ||
| H-6 | 53-223-1 | Gasket-Mainshaft Rear Bearing Cap | Call for availability | |||
| H-6 | 60-223-7 | Gasket-Mainshaft Rear Bearing Cap (Ford Only) | 1 | Call for availability | ||
| H-7 | 545001 | Bolt-V2 " -13 X 1V•" Hex Head Self Locking | 4 | $2.49 | Add to Cart | |
| and | 545008 | Bolt-% " -1 1 X 1V• " Hex Head Self Locking (For Brake Cap) | 2 | Call for availability | ||
| and | 55-334-1 | Plug -Speedometer Hole {Use W/O Driven Gear) | 1 | $88.44 | Add to Cart | |
| N .S | 545021 | Plug -Speedometer Outlet {Electronic Bearing Caps) | 1 | $18.89 | Add to Cart | |
| H-9 | 55-454-1 | Sleeve -Length W. Speedometer Driven Gear | 1 | No longer available - Call for replacement | ||
| H-9 | 44-473-1 | Sleeve -Length 5 " Speedometer Driven Gear | 1 | Call for availability | ||
| H-9 | 97-454-2-1X | Sleeve -Length 1 V•" Speedometer Driven Gear {With Seal) | 1 | $34.11 | Add to Cart | |
| H-1 | 0545002 | ·1 Bolt-Countershaft Rear Bearing Cap | 4 | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 59-22-1 | Cap-Countershaft Rear Bearing | 1 | Call for availability | ||
| K-2 | 330564-3 | Lift Hook-Countershaft Rear Bearing Cap | 1 | $3.15 | Add to Cart |
Clutch Housing Dimensions T21 O. .ESS0-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 46-518-13--1X" | C46-518-14 | 2 4 3As" 545001 | -5 | Call for availability | ||
| · 46-518-21 | 1XC102C-477 | 3 5 1 /,S " 1 " 545001 | -5 | Call for availability | ||
| 46-518 | 22-1XC1 | 02C-530-1 2 SV,e" 1 " 545001 | -5 | Call for availability | ||
| 46-518-23 | C46-518 | ·18-1 2 5% 1 " 545001 | Call for availability | |||
| 47-518-10-1X | C47-518-11 | 2 4% " 545001 | -5 | Call for availability | ||
| 312256X* | 128C-20 | C46-518-16 2 6 " 1 " 35/s" 21f2" 545001 | ·5 | $8.55 | Add to Cart | |
| 312830X | 128C-20 | C1 02C-53Q.1 2 SY,s" 1 " 217/az" 2%11 545001 | -5 | $8.55 | Add to Cart |
Parts Listed Below Are Not Included in Assembly
Item R-21Item R-8Item R-2Item R-6Item R-1Item R-3Item R-22Item R-23Item K-3Item R-20Item K-2Item R-19Item R-25Item R-8Item K-1Item R-17Item R-18Item R-5Item R-7Item R-4Item R-6Item R-10Item R-15Item R-6Item R-14Item R-13Item R-12Item R-16
Item L-1Item L-16Item L-23Item L-17Item L-30Item L-20Item L-28Item L-18Item L-19Item L-28Item L-22Item L-27Item L-29Item L-27Item L-26Item L-30Item L-32Item K-4Item L-24Item L-25Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 47-16-1-1 | Shifter Housing | 1 | $450.25 | Add to Cart | |
| R-2 | 47-67-1 | Rod -Reverse & 1st Shift | 1 | $52.73 | Add to Cart | |
| R-3 | 59-66-1-1X | Fork & Clip Assembly-Reverse & 1st Shift | 1 | No longer available - Call for replacement | ||
| R-4 | Fork-Reverse & 1st Shift | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-5 | 46-486-2 | Clip -Shift Fork | 2 | $1.78 | Add to Cart | |
| R-6 | 330639 | Bolt-% • -24 X % • Square Head Self-Locking | 4 | $10.21 | Superseded by 745DAdd to Cart | |
| R-7 | 53-354-1 | Bracket-Reverse & 1 St Shift Rod | 1 | $243.80 | Add to Cart | |
| R-8 | 62-438-2 | Pin -1 St & Reverse Shift Finger Plunger | 2 | $6.27 | Add to Cart | |
| R-10 | 46-67-5 | Rod -2nd & 3rd Shift | 1 | $78.92 | Add to Cart | |
| R-12 | 53-66-3-1X | Fork-2nd & 3rd Shift | 1 | $398.71 | Superseded by 536632XAdd to Cart | |
| R-13 | Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-14 | 53-486-1 | Clip ' -Shift Fork | 2 | $12.30 | Add to Cart | |
| R-15 | 47-67-2 | Rod -4th & 5th Shift | 1 | $60.87 | Add to Cart | |
| R-16 | 53-66-1 | Fork-4th & 5th Shift | 1 | $1,191.84 | Superseded by 536611XAdd to Cart | |
| R-17 | 545021 | Plug -Interlock | 1 | $18.89 | Add to Cart | |
| R-18 | 330894 | Expansion Plug -34 " (Aluminum) | 3 | Call for availability | ||
| R-19 | 50-80-4 | Ball -Backup Switch | 2 | $7.01 | Add to Cart | |
| R-20 | 330366 | Plug -Backup Switch Hole | 1 | $15.51 | Add to Cart | |
| R-21 | 50-80-1 | Ball -Shift Rod Poppet | 3 | $2.70 | Add to Cart | |
| R-22 | 47-72-1 | Spring -Shift Rod Poppet Ball | 3 | $3.15 | Add to Cart | |
| R-23 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| R-25 | 38P-1 | Retainer -Shift Finger Plunger 1 St & Reverse | 1 | Call for availability | ||
| K-1 | 47-155-1 | Gasket-Shifter Housing | 1 | $12.59 | Add to Cart | |
| K-2 | 330564-1 | Lift Hook-Shifter Housing | 2 | $3.15 | Add to Cart | |
| K-3 | 545002 | Bolt-% " -16 X 1 " Hex Head Self-Locki Ng | 6 | $1.98 | Add to Cart | |
| K-3 | 545002-4 | Bolt-% " -16 X 1Va" Hex Head Self-Locking | 2 | $6.93 | Add to Cart | |
| N .S | 313262X | Neutral Safety Switch Actuator Kit (See Tab Bills) | Call for availability | |||
| N .S | 47-16-1-SX | 62-72-8 60# 2%4 | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-16-1-11X | 30-72-6 28# 2Va | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-16-1-13X | 30-72-6 28# 2Va | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-16-1-12X | 82 ·72 ·3 15# 2o/s | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-16-1-16X | 62-72 ·8 60# 2Ys4 | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-16-1-17X | 62-72-8 60# 2%4 | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-16-1-18X | 62 ·72 ·8 60# 2V | version * (see the manual's footnote) | Call for availability | ||
| 47-16-8-1X | Cover Assembly(Casting No 62-16-78) | Call for availability | ||||
| 47-16-9-1X | Cover Assembly(Casting No 62-16-78-1) | Call for availability | ||||
| L-1 | . . . . . . . . . . . . . . . . . . . . . - - | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| .S | 82-24-3 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | $21.66 | Add to Cart | ||
| L-2 | 310879X | Shift Finger Rod & Bracket Assembly R-T | 1 | Call for availability | ||
| L-2 | 312003X | . . . . . . . . . . . . . . . . . . . . . . . . | Call for availability | |||
| L-3 | . . . . . . . . . . . . . . . . . . . . . . . | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| L-4 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| L-5 | 500007-19 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Call for availability | |||
| L-7 | 545011 | Bolt-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | $16.57 | Add to Cart | ||
| L-8 | 82-65-5 | $22.31 | Add to Cart | |||
| L-9 | 82-6-7 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | $171.09 | Add to Cart | ||
| L-10 | 28P-19 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Call for availability | |||
| L-11 | 10380-SF | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Call for availability | |||
| L-13 | 82-96-1 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Call for availability | |||
| L-15 | 500166-16 | . . . . . . . . . . . . . . . . . . . . | Call for availability | |||
| N .S | 82-483-1 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | $22.03 | Add to Cart | ||
| N .S | 82-483-2 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Call for availability | |||
| N .S | LW-3-9 | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Call for availability | |||
| K-4 | 62-155-7 | $9.44 | Superseded by 6215513Add to Cart | |||
| K-8 | 545028-4 | . . . . . . . . . . . . . . . . . . . . | No longer available - Call for replacement | |||
| 311528-7X | Remote Control Cover Assembly (See Tab Bills) | 1 | Call for availability | |||
| L-1 | 47-16-13 | Remote Control Cover | 1 | Call for availability | ||
| L-16 | 500007-17 | Woodruff Key #91 | 1 | Call for availability | ||
| L-17 | 62-65-26 | Shaft-Inner Shift Finger | 1 | Call for availability | ||
| L-18 | 62-6-30 | Shift Finger-Inner | 1 | Call for availability | ||
| L-19 | 545063 | Bolt- '/ " -20 X 1:Y, Hex Head Self-Locking | 1 | $6.27 | Add to Cart | |
| L-20 | 62-16-92 | End Cover-Remote Control | 1 | Call for availability | ||
| L-21 | 310926X | Cam And Stud Assembly-Selection Lever | 1 | Call for availability | ||
| L-22 | 62-6-59 | Lever-Upper Selection | 1 | Call for availability | ||
| L-23 | 500381-4 | Nut- '/ " -20 | 1 | Call for availability | ||
| L-24 | 62-65-27 | Rod -Outer Shift Lever. | 1 | Call for availability | ||
| L-25 | 47-6-1 | Lever-Outer Shift | 1 | Call for availability | ||
| L-26 | 545002-7 | Bolt-% " ·16 X 11f• | 1 | version * (see the manual's footnote) | $2.33 | Add to Cart |
| L-27 | 258-W | Washer-Shift Lever Rod | 2 | Call for availability | ||
| L-28 | 62-381-13 | Snap Ri Ng | 1 | Call for availability | ||
| L-29 | 62-155-1 | 1 Gasket-End Cover | 1 | Call for availability | ||
| L-30 | 500357-10 | Lock Washer •Its | 1 | version * (see the manual's footnote) | Call for availability | |
| L-31 | 545005-2 | Bolt-•116'-18 X % | 2 | version * (see the manual's footnote) | $1.66 | Add to Cart |
| L-32 | 500397-22 | Bolt-5/, " -18 X 2 1 F• | 1 | version * (see the manual's footnote) | Call for availability | |
| P-139Q-27 | Handle -Shift Lever | Call for availability | ||||
| P-2250-1121 | Shift Lever 26V• " Straight | Call for availability | ||||
| 250-1 | 122 Shift Lever 29V4 " Straight | Call for availability | ||||
| 25Q-1621 | Shift Lever 30 " Straight | Call for availability | ||||
| 250-1537 | Shift Lever | Call for availability | ||||
| 250-2464 | Shift Lever-Lower End (3 .5") | Call for availability | ||||
| 47-16-3X | Dome Assembly-2% " Overall Height 1 -f-1 | -1 | Call for availability | |||
| 47-16-5X | Dome Assembly-3% " Overall Height | manual lists 47-16-5X - we stock the base part 47-16-5 | Call for availability | |||
| P-3286-SP | Pin -Shift Lever Collar | Call for availability | ||||
| P-4550-7 | Collar-Compression | Call for availability | ||||
| P-5560-25 | Spring -Compression | Call for availability | ||||
| P-6540-13 | Cup -Compression | Call for availability | ||||
| P-7690-6 | Washer-Friction | Call for availability | ||||
| P-847-16 | ·3 Dome -Shift Lever · | Call for availability | ||||
| 47-16 | ·5 Dome -Shift Lever | Call for availability | ||||
| P-962-381 | ·7 Snap Ring -Rock Shaft | Call for availability | ||||
| P-1053Q-15 | Shaft-Shift Lever Rock | Call for availability | ||||
| K-462-155 | ·7 Gasket-Dome To Shifter Housing | Call for availability | ||||
| K-8545002 | Screw-7/ " -14 X 1Ys" Hex Head Self-Locking | Call for availability |

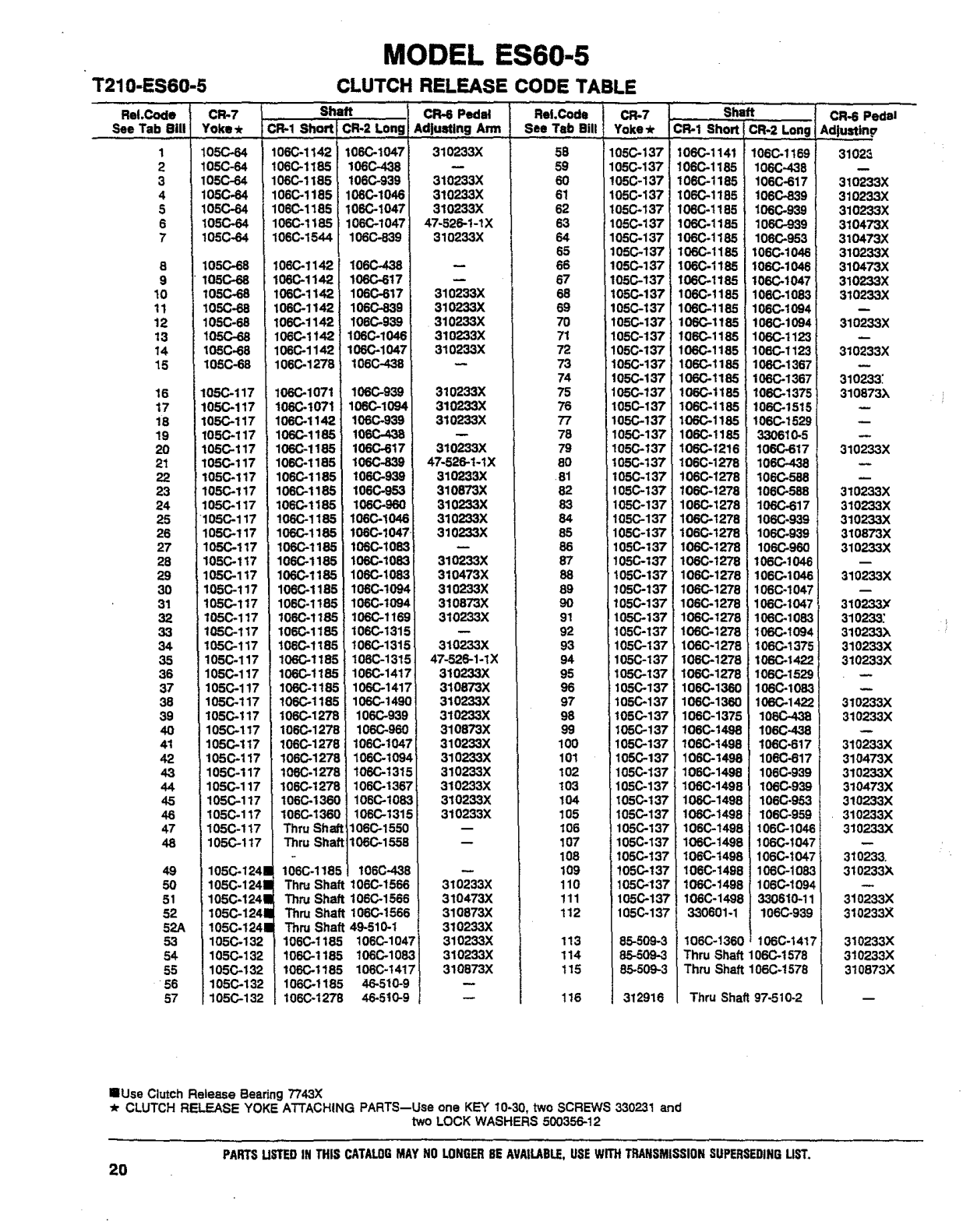

Clutch Release Code Table
Major Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21O-ES60 | ·5 Basic Overhaul Kits | Call for availability | ||||
| 313400-68X | Major Overhaul Kit | 1 | $707.37 | Superseded by 674001XAdd to Cart | ||
| 500008-37 | Woodruff Key-#F | 4 | $2.76 | Add to Cart | ||
| 53-205-1 | Washer-Mainshaft | 1 | $4.42 | Add to Cart | ||
| 501200 | Nut-Mainshaft Output | 1 | $15.74 | Add to Cart | ||
| 313401-13X | Thrust Washer Kit | 1 | $169.55 | Add to Cart | ||
| 313429-6X | Shifter Housing Small Parts Kit | 1 | $31.43 | Add to Cart | ||
| 313432-31X | Minor Overhaul Kit | 1 | $589.11 | Add to Cart |
Minor Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313432-31X | Minor Overhaul Kit | 1 | $589.11 | Add to Cart | ||
| 550375 | Countershaft-Cup | 2 | Call for availability | |||
| 550927 | Countershaft-Cone | 2 | Call for availability | |||
| 550886 | Reverse Idler Shaft | 2 | Call for availability | |||
| 550929 | Drive Gear & Mainshaft Rear-Cup | 2 | $28.81 | Add to Cart | ||
| 550930 | Drive Gear & Mainshaft Rear-Cone | 2 | $64.20 | Add to Cart | ||
| 550931 | Drive Gear-Pocket | 1 | $34.78 | Add to Cart | ||
| 550932 | 1 St & Reverse Mainshaft Needle Bearing | 2 | $40.03 | Add to Cart | ||
| 59-482-1-1X | Needle Roller Bearing & Spacer Kit | 1 | $18.84 | Add to Cart | ||
| 60-463-10-1X | Oil Seal Kit-Drive Gear Bearing Cap | 1 | $37.74 | Add to Cart | ||
| 60-463-8 | Oil Seal Kit-Mainshaft Rear Bearing Cap · | 1 | $18.84 | Add to Cart | ||
| 63-463-1 | Oil Seal Kit-Mainshaft Rear-Ford Only | 1 | $28.23 | Add to Cart | ||
| 545077 | Bearing Lubricant | 1 | Call for availability | |||
| 545080 | Locite | 1 | Call for availability | |||
| 2770 | Bearing Lube Instruction | 1 | Call for availability | |||
| 2783 | Locite Application For Mainshaft Nut | 1 | Call for availability | |||
| 312475-28X | Gasket Kit | 1 | $72.07 | Add to Cart | ||
| 313024-18X | Snap Ring Kit | 1 | $106.29 | Add to Cart | ||
| 313240-3X | Baffle & Shim Kit-Drive Gear | 1 | $33.38 | Add to Cart | ||
| 313438X | Shim Kit-Countershaft Rear. | 1 | $6.73 | Add to Cart | ||
| 2360 | Service Manual | 1 | Call for availability |
Thrust Washer Kit 1
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 974-W | Countershaft-Reverse Idler | 2 | Call for availability | |||
| 1016-W | Mainshaft-4th Speed | 1 | Call for availability | |||
| 330818 | Mainshaft-3rd & 4th Speed | 1 | $35.44 | Superseded by 67471Add to Cart | ||
| 330866 | Mainshaft-1 St Speed | 1 | Call for availability | |||
| 330867 | Mainshaft-Reverse | 1 | Call for availability | |||
| 313429-6X | Shifter Housing Small Parts Kit | 1 | $31.43 | Add to Cart | ||
| 2N-SP | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . | Call for availability | ||||
| 5D-8D-1 | Shift Rod Poppet & Interlock Bail | 7 | Call for availability | |||
| 5D-80-4 | Backup Switch Ball | 2 | Call for availability | |||
| 62-438-2 | Plunger-1 St & Reverse : | 2 | Call for availability | |||
| 62-72-8 | Spring -Shift Finger Plunger 1st & Reverse | 1 | No longer available - Call for replacement | |||
| 312475-28X | Gasket Kit | 1 | $72.07 | Add to Cart | ||
| 82-118-1 | Remote Control -Aperture Cover | 1 | Call for availability | |||
| 47-155-1 | Shifter Housing | 1 | Call for availability | |||
| 62-155-7 | Control Cover | 1 | $9.44 | Superseded by 6215513Add to Cart | ||
| 47-223-1 | Drive Gear Bearing Cap | 1 | $6.27 | Add to Cart | ||
| 47-223-2 | Countershaft Rear Bearing Cap | 1 | Call for availability | |||
| 47-223-3 | Mainshaft Rear Bearing Cap | 1 | $5.49 | Add to Cart | ||
| 47-223-4 | Mainshaft Rear Bearing Cap -For Brake Mounting | 1 | Call for availability | |||
| 47-223-5 | Countershaft Front Bearing Cap | 1 | Call for availability | |||
| 53-223-1 | Mainshaft Rear Bearing Cap -For Brake Mounting | 1 | Call for availability | |||
| 63-223-7 | Mainshaft Bearing Cap -For Ford Only | 1 | Call for availability | |||
| 47-352-1 | Clutch Housing | 1 | $12.59 | Add to Cart | ||
| 97-324-1-1X | P .T.O. (6 Holes) Kit | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | Call for availability | ||
| 97-324-2-1X | P.T.O. (8 Holes) Kit | 1 | manual lists 97-324-2-1X - we stock the base part 97-324-2 | Call for availability | ||
| 313024-18X | Snap Ring Kit | 1 | $106.29 | Add to Cart | ||
| 27-381-5 | Mainshaft · | 1 | Call for availability | |||
| 46-381-1 | Countershaft & Mainshaft | 2 | Call for availability | |||
| 53-381-2 | Mainshaft | 2 | Call for availability | |||
| 59-381-1 | Countershaft | 1 | Call for availability | |||
| 313240-3X | Baffle & Shim Kit -Mainshaft | 1 | $33.38 | Add to Cart | ||
| 47-228-1-1 | Adjusting Shim -Mainshaft Rear | 9 | $3.40 | Add to Cart | ||
| 47-228-2-2 | Shim -Mainshaft .Front | 1 | Call for availability | |||
| 47-228-2-10 | Spacer-Mainshaft Rear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | ||
| 47-468-1 | Baffle -Bearing Cap Front | 1 | $3.55 | Add to Cart | ||
| 47-468-2 | Baffle -Oil Ring Drive Gear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | ||
| 2789 | Bulletin -Baffle & Shim Kit | 1 | Call for availability | |||
| 2759 | Bulletin -Drive Gear Replacement | 1 | Call for availability | |||
| 313438X | Shim Kit -Countershaft Rear | 1 | $6.73 | Add to Cart | ||
| 47-228-3-1 | Shim -Rear Bearing | 4 | Call for availability |

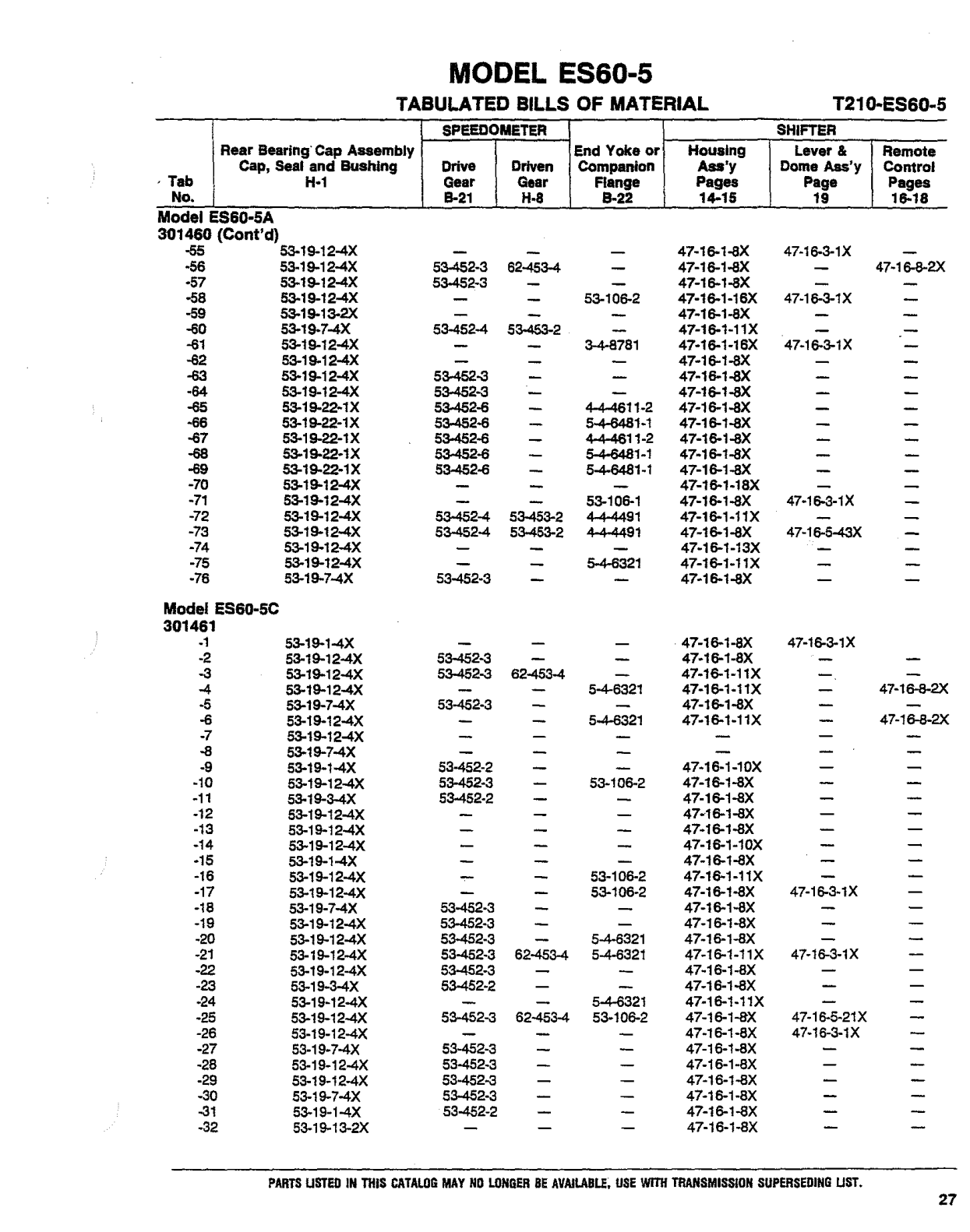

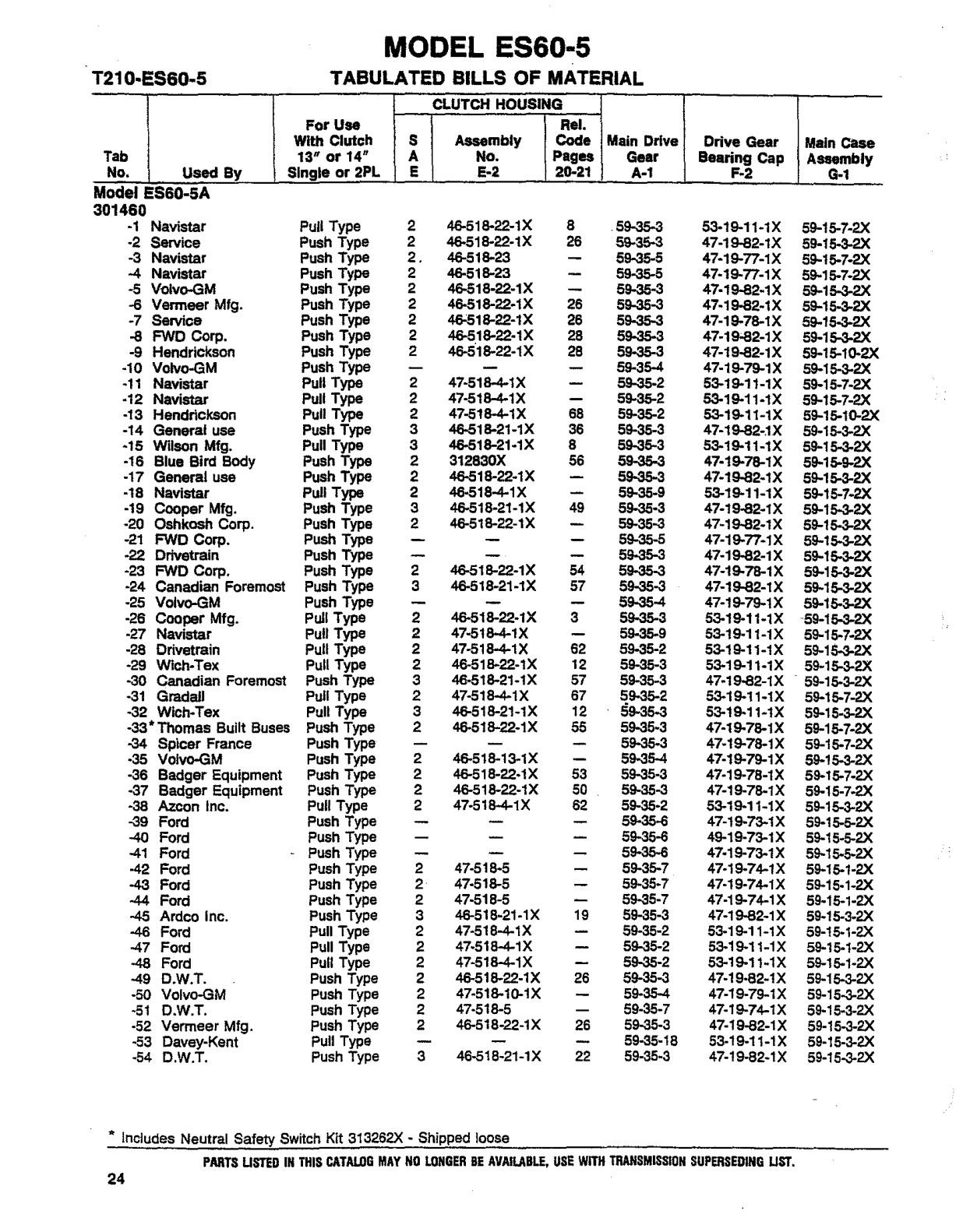

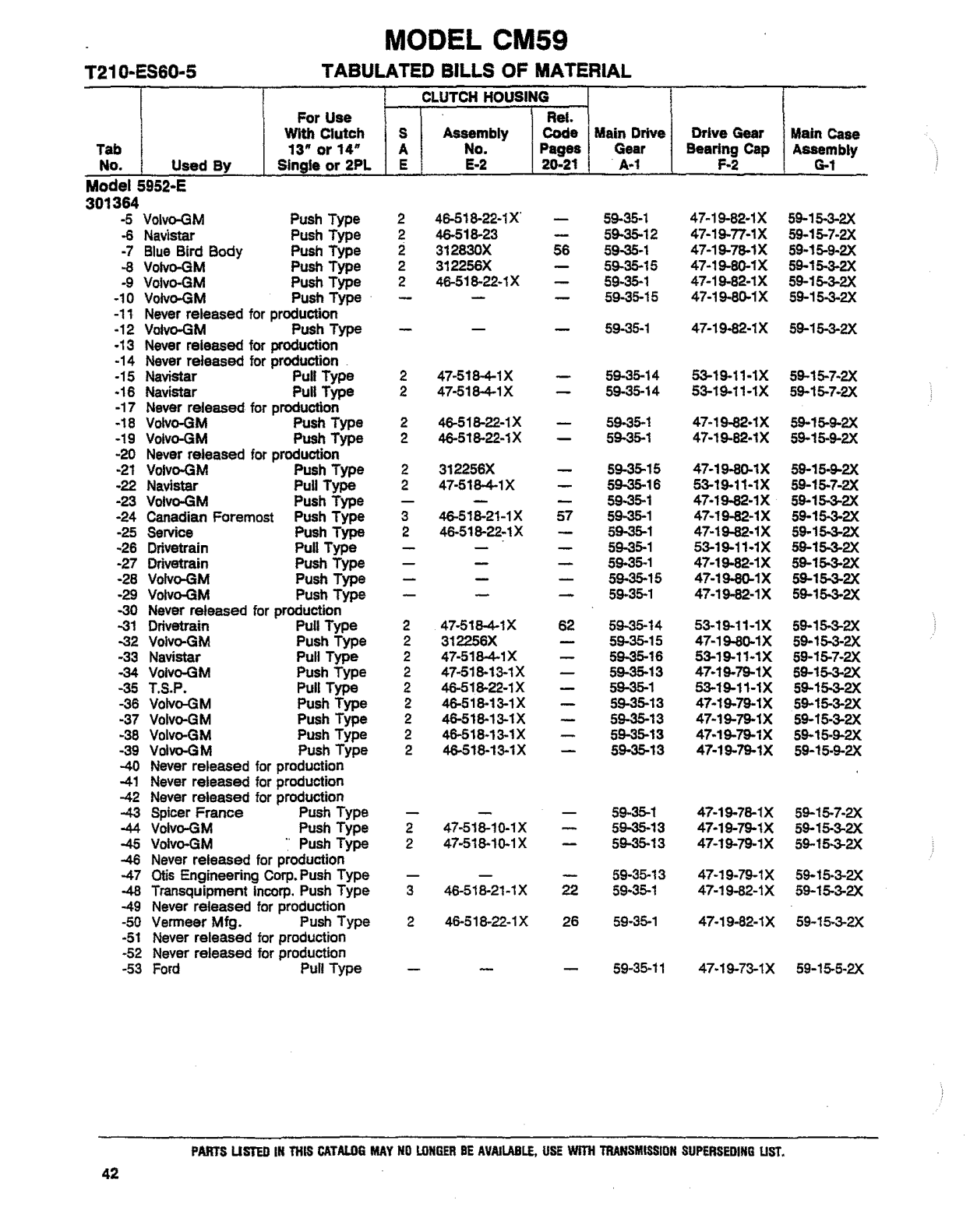

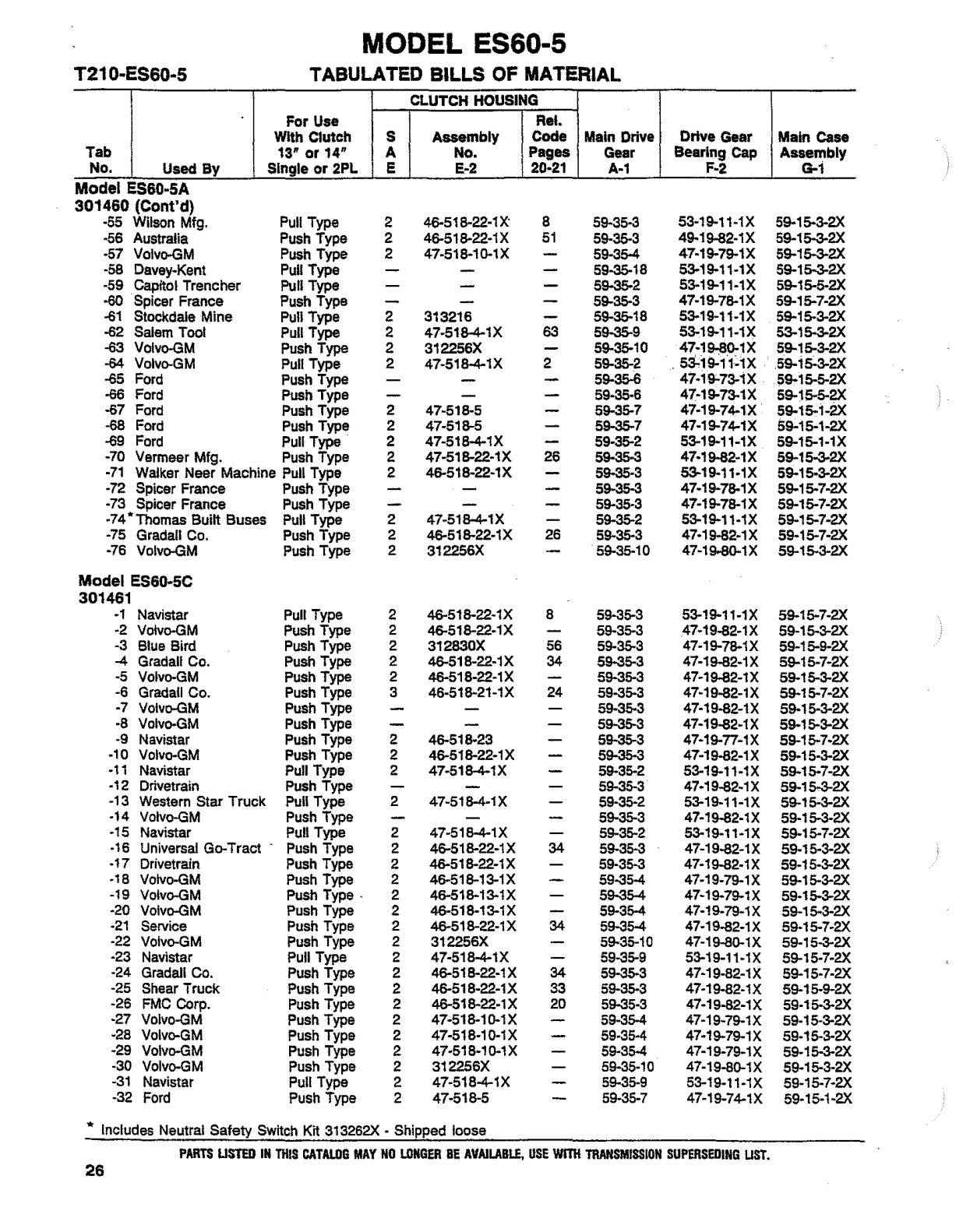

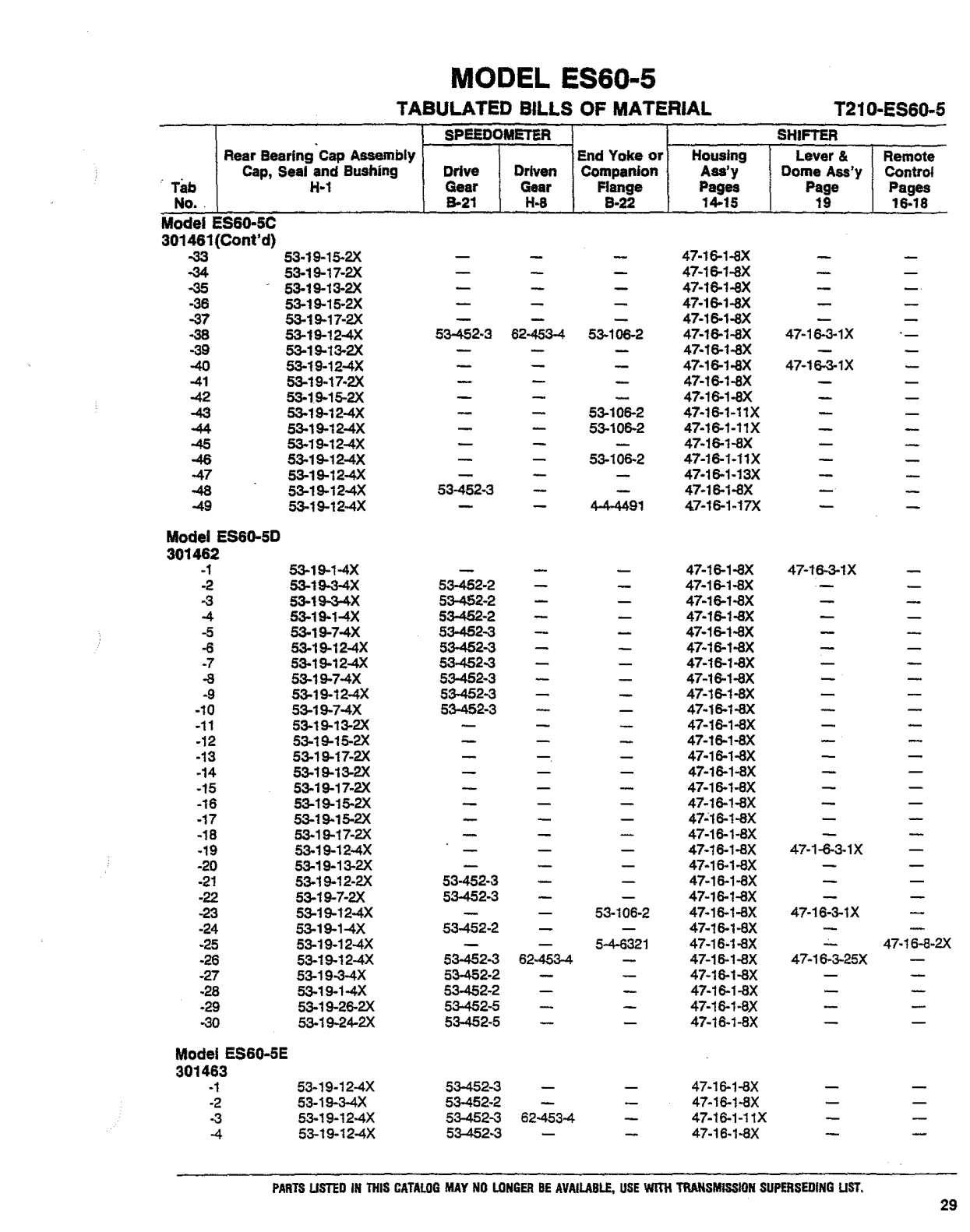

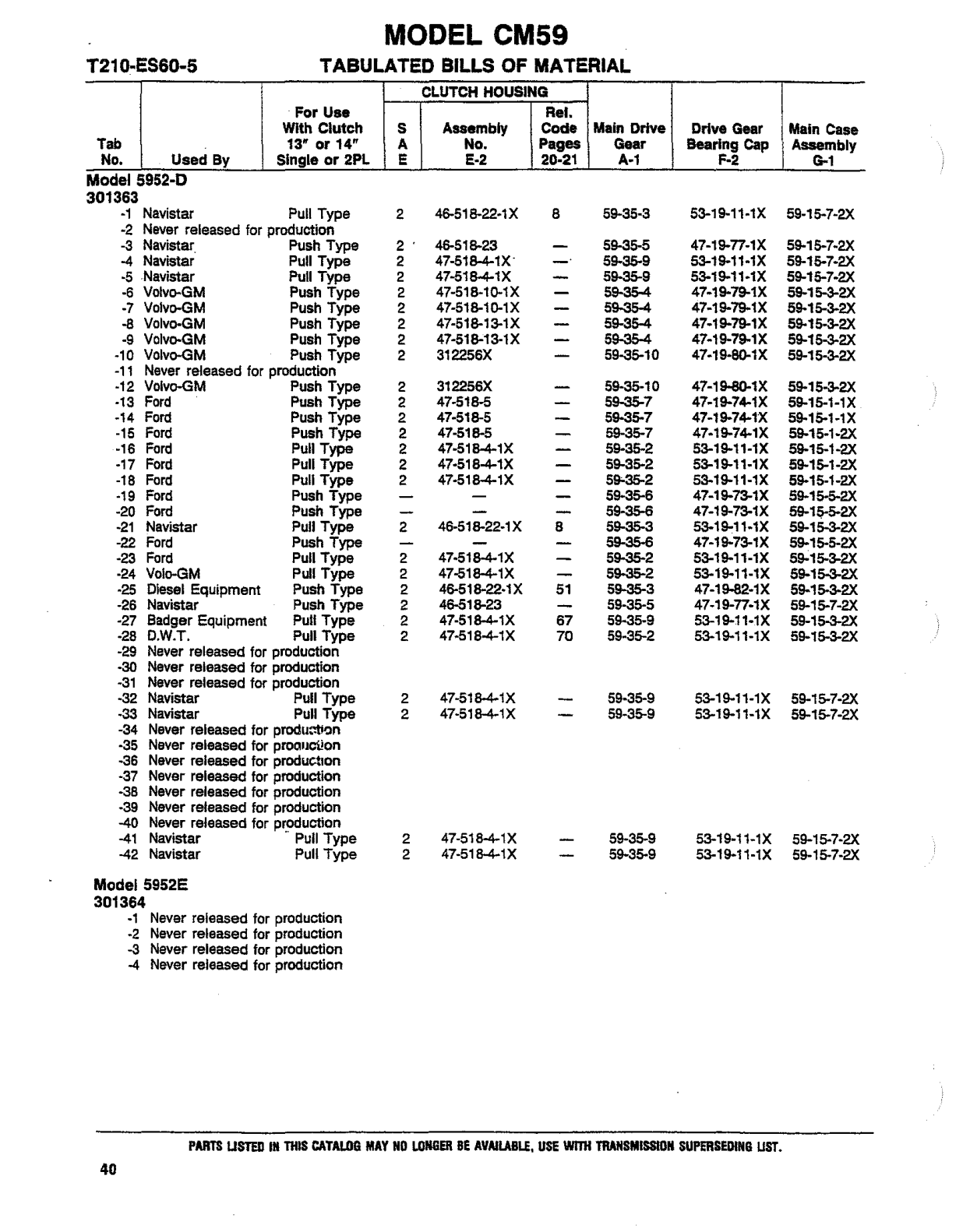

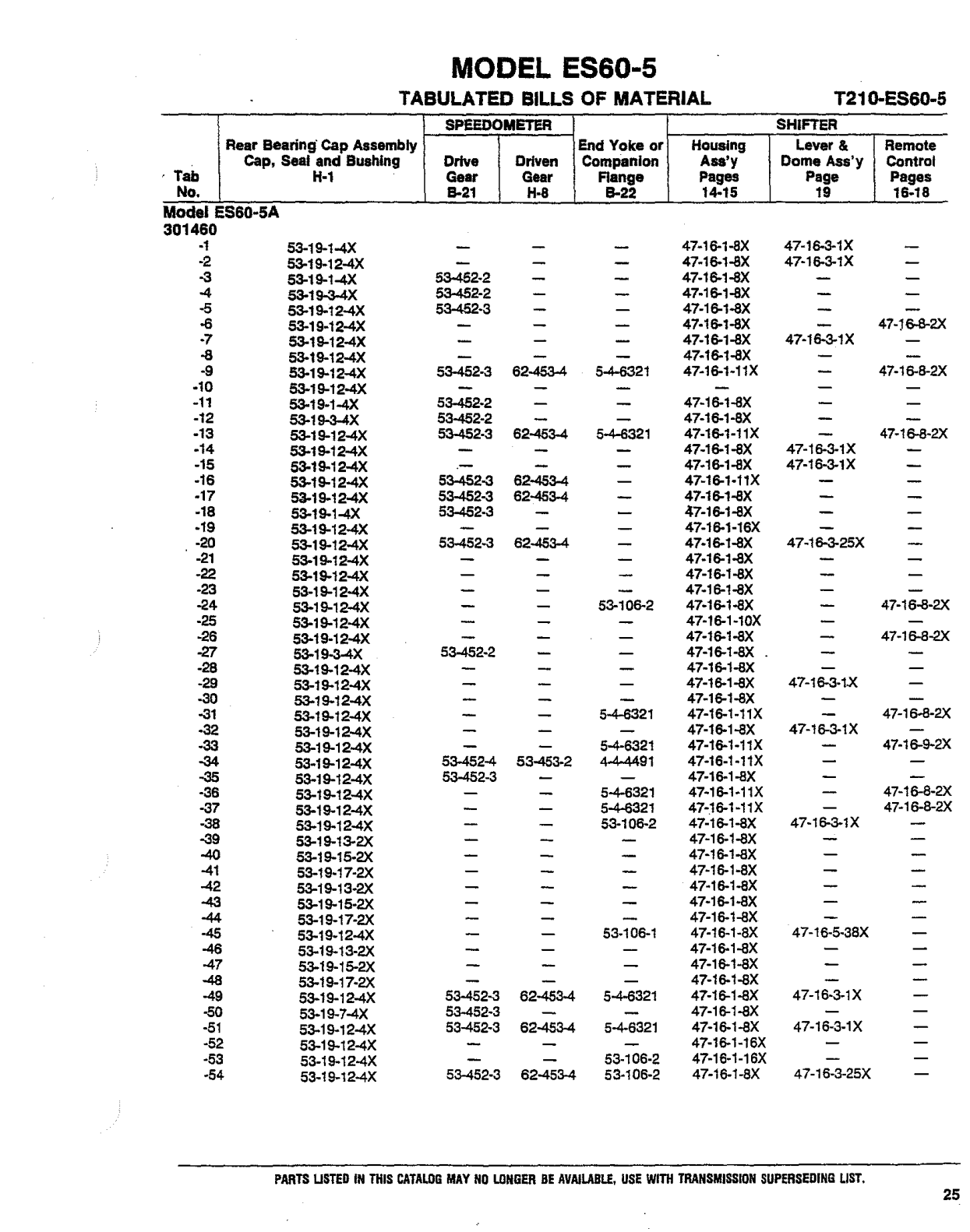

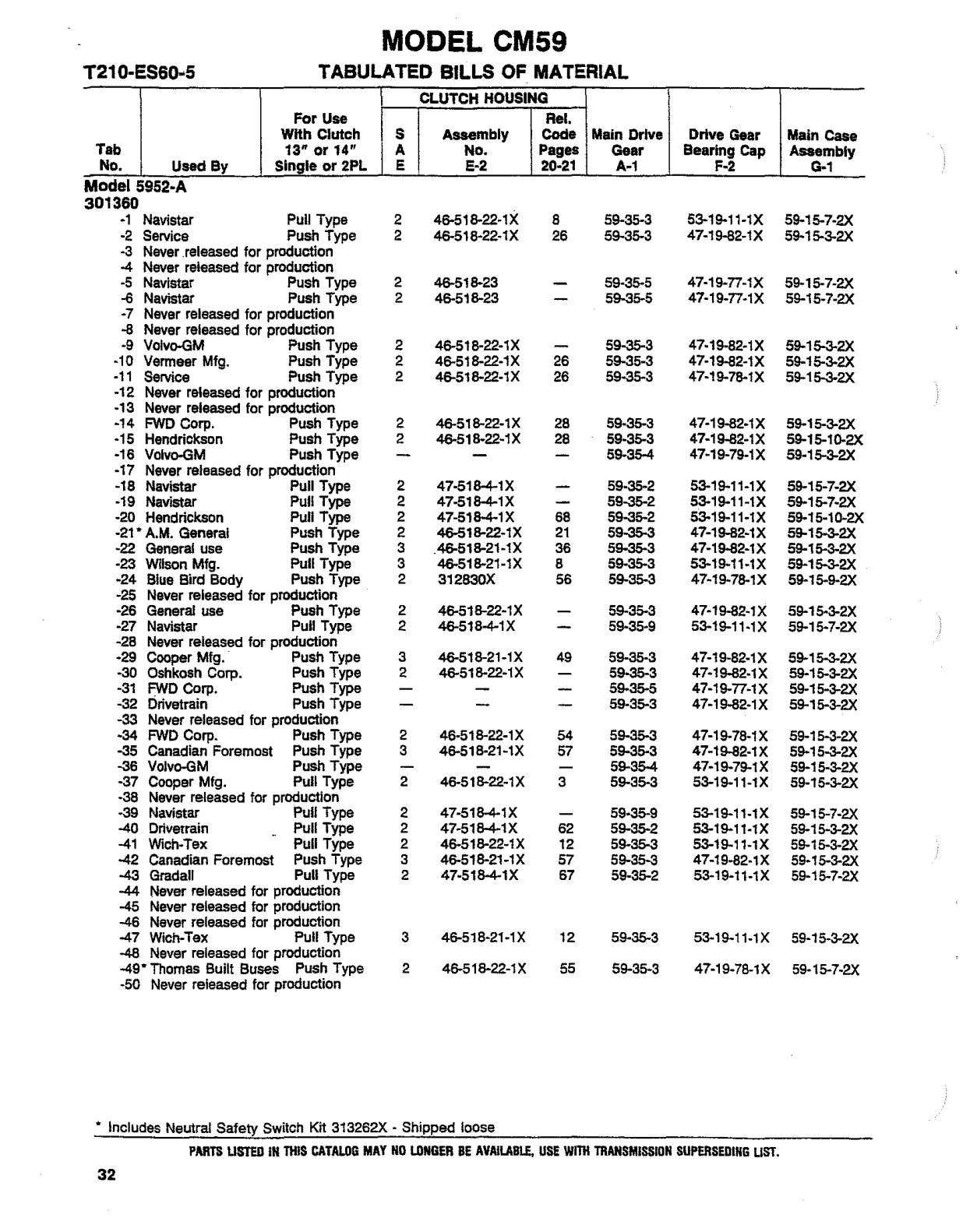

Tabulated Bills of Material
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission 5952-A, with every part in the manual matched to our live inventory. We stock 99 of the 298 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the 5952-E transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | 5952-E |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 48 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
