Fabco TC 142 Parts Manual
Parts List

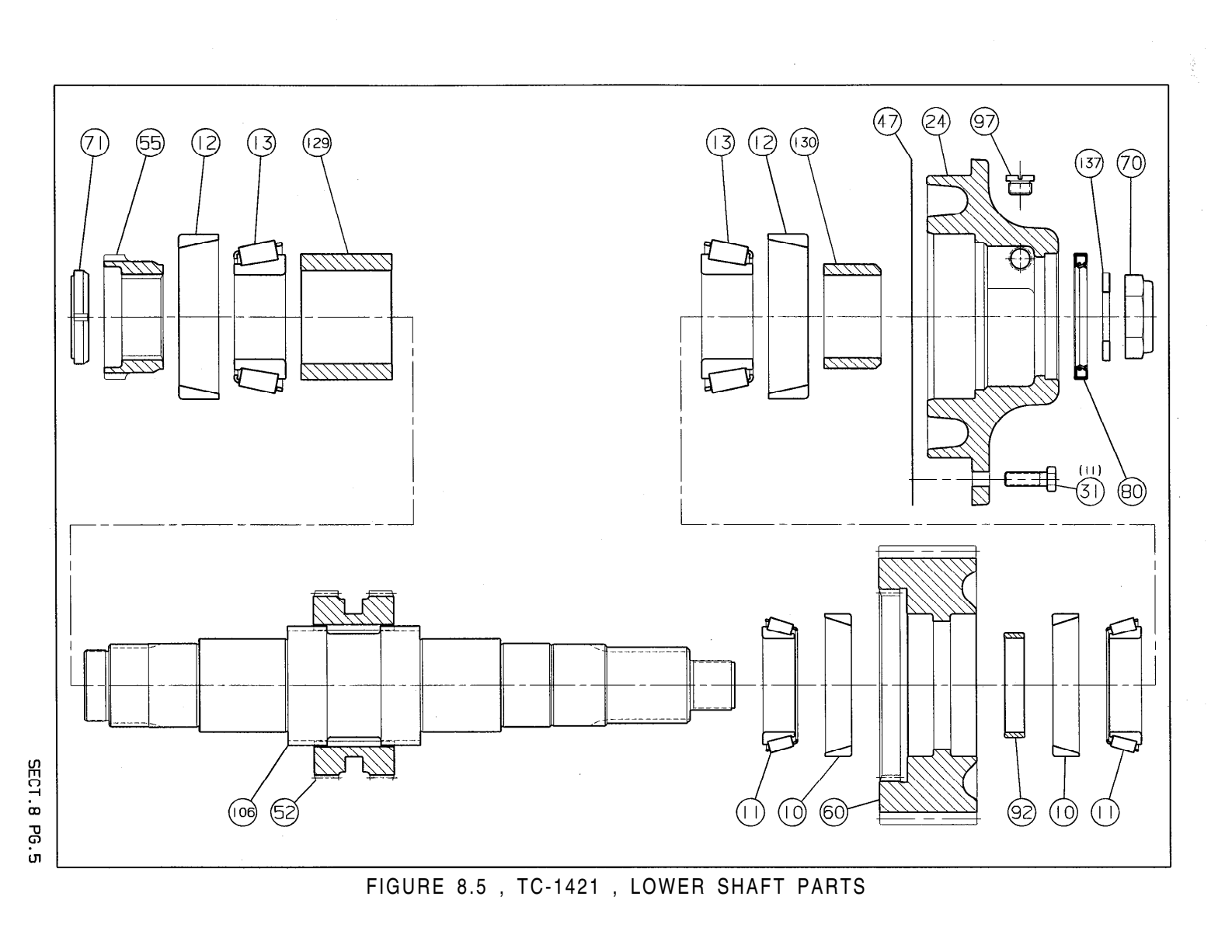

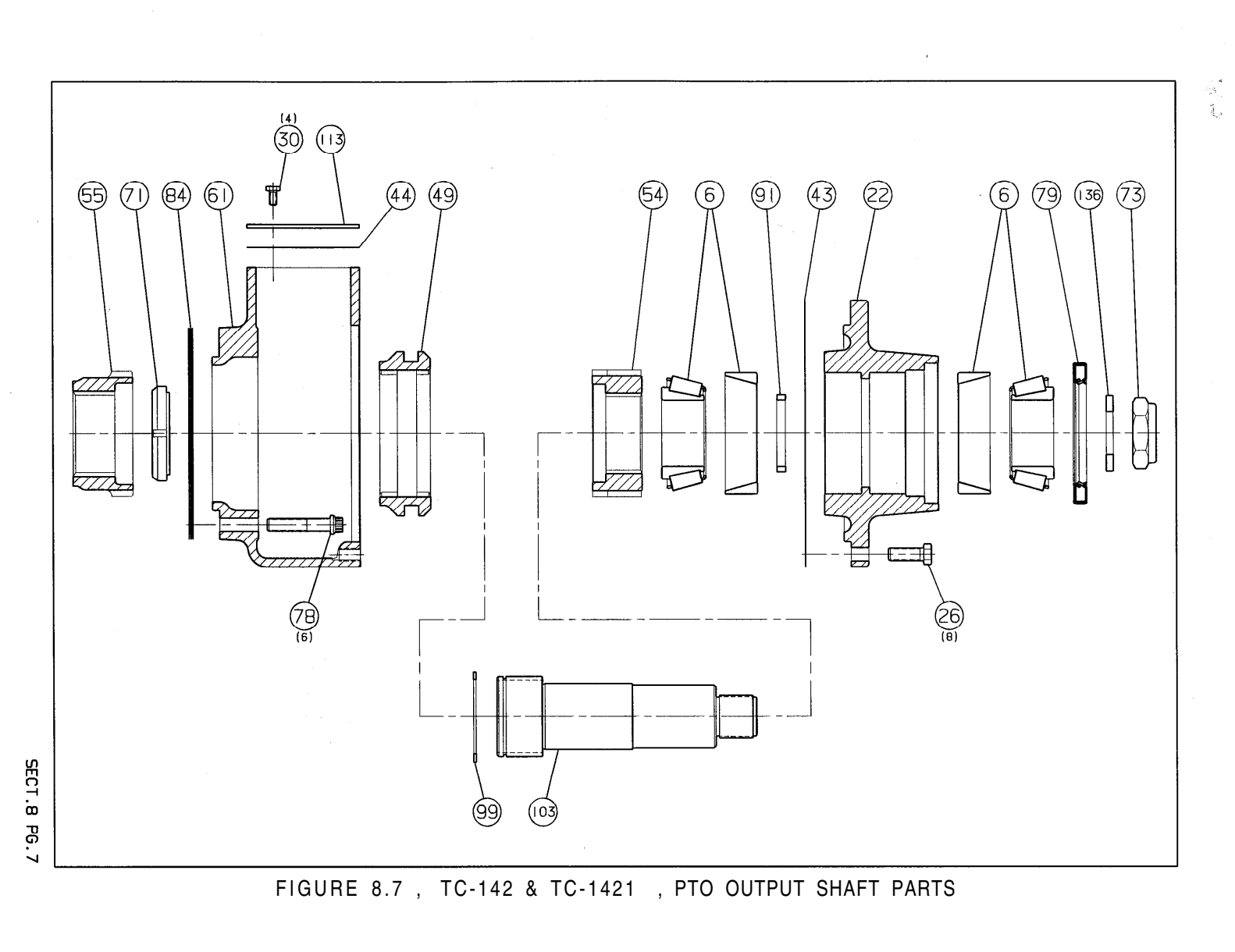

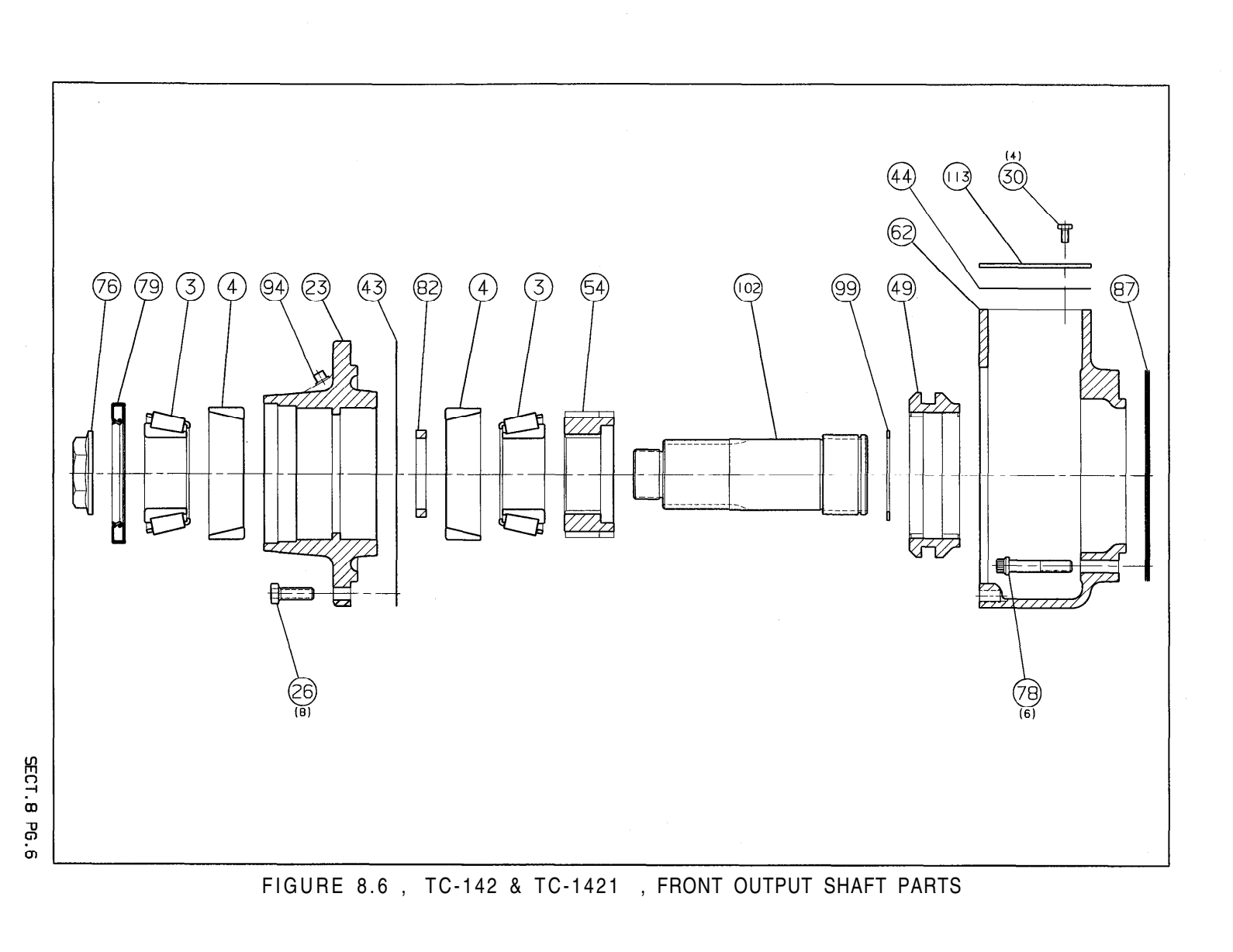

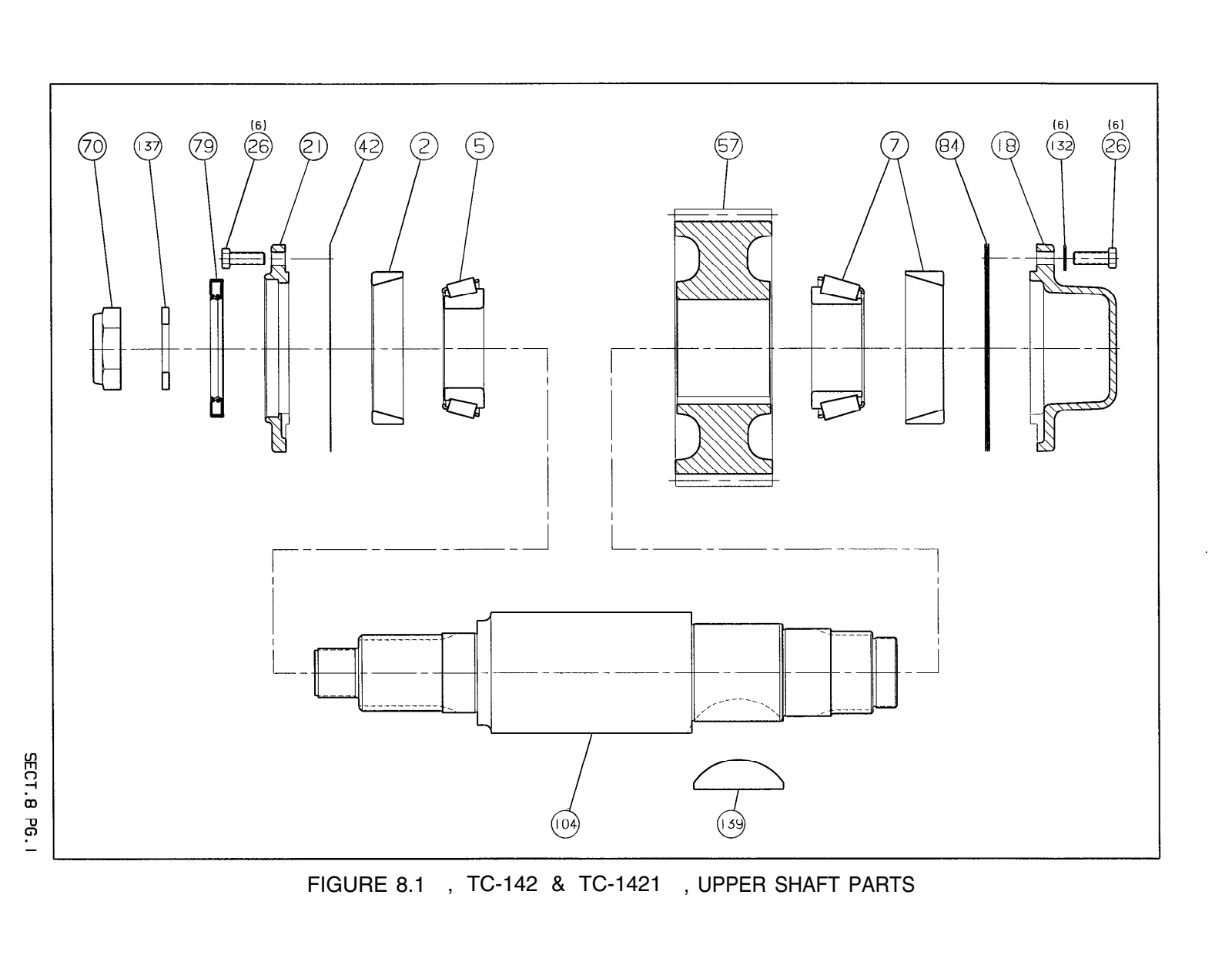

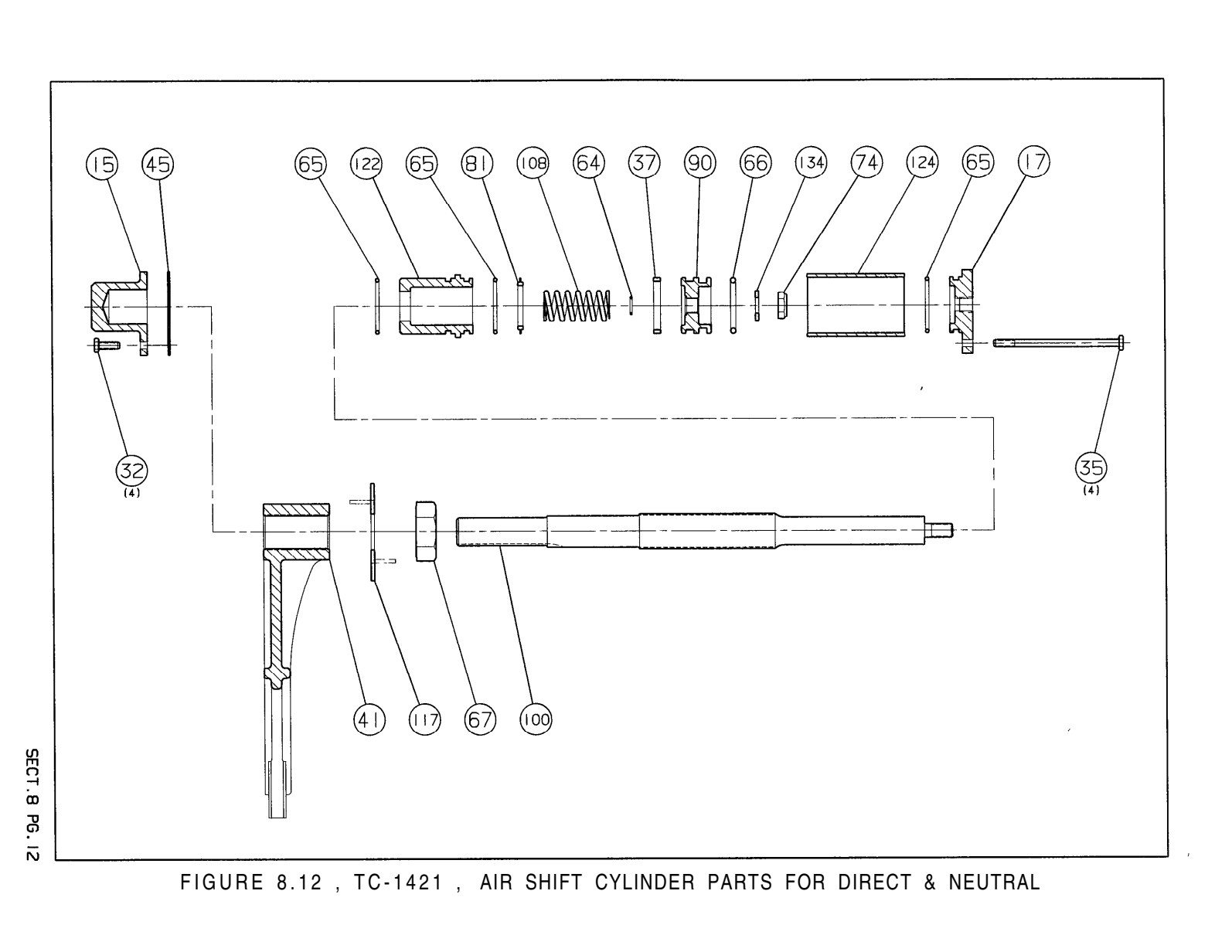

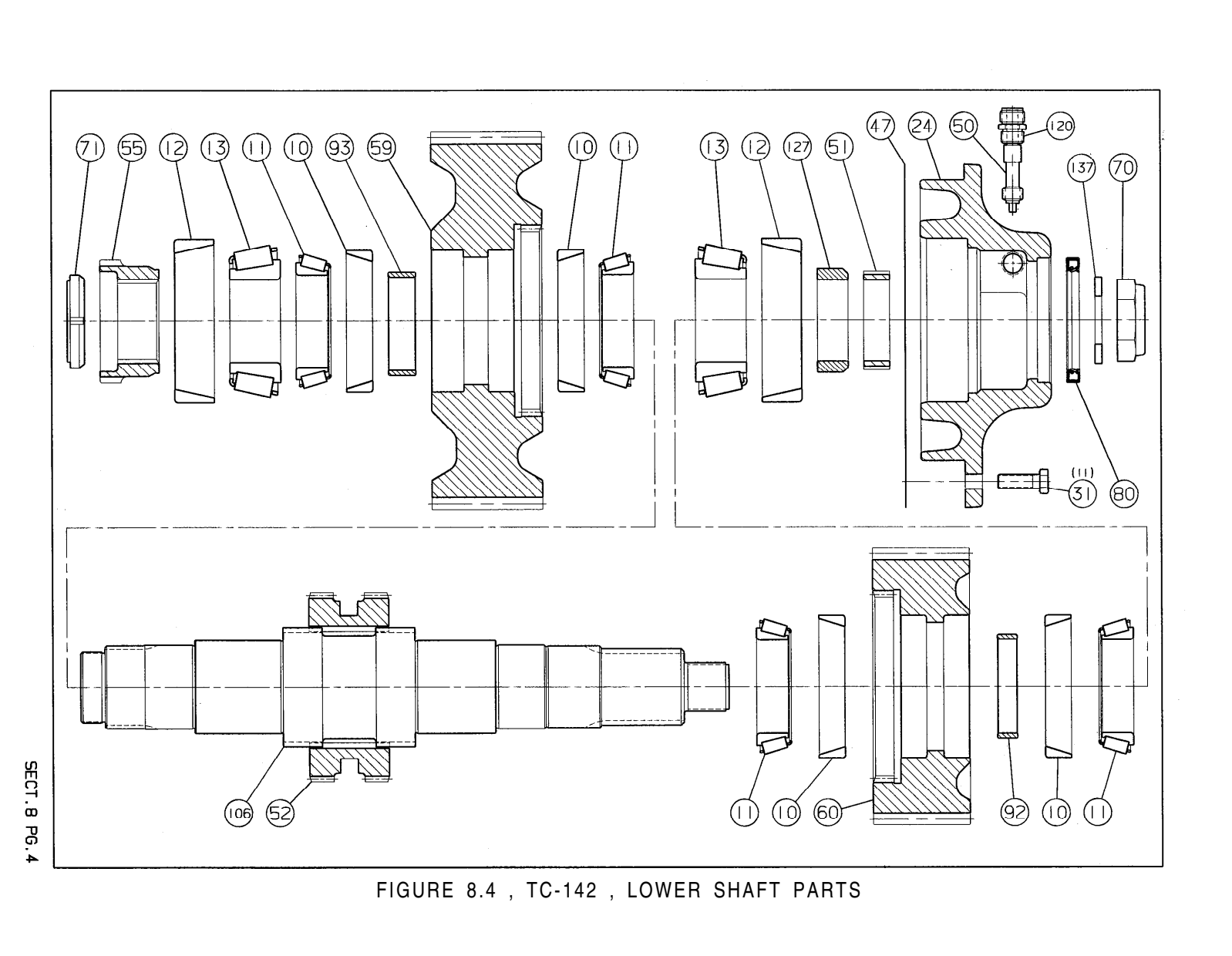

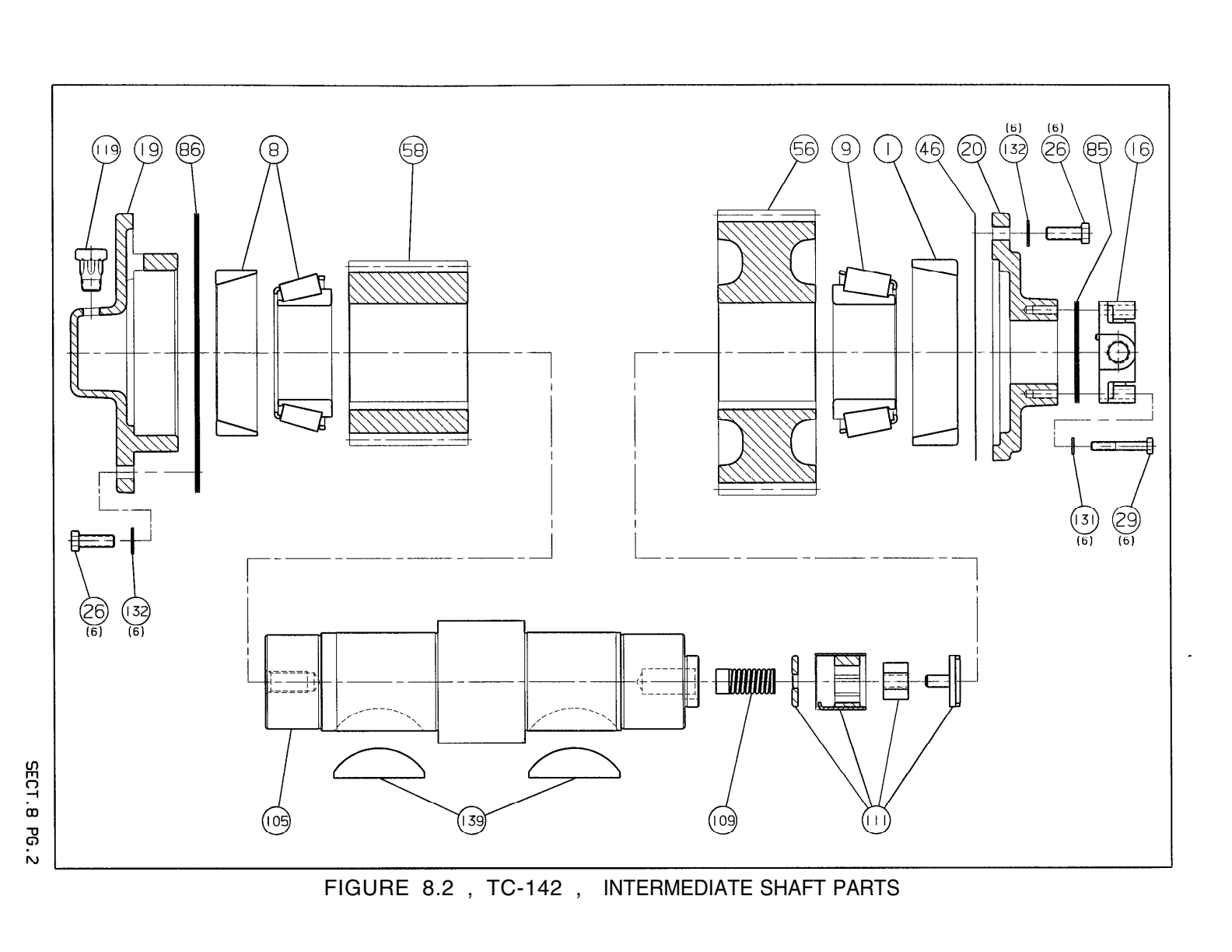

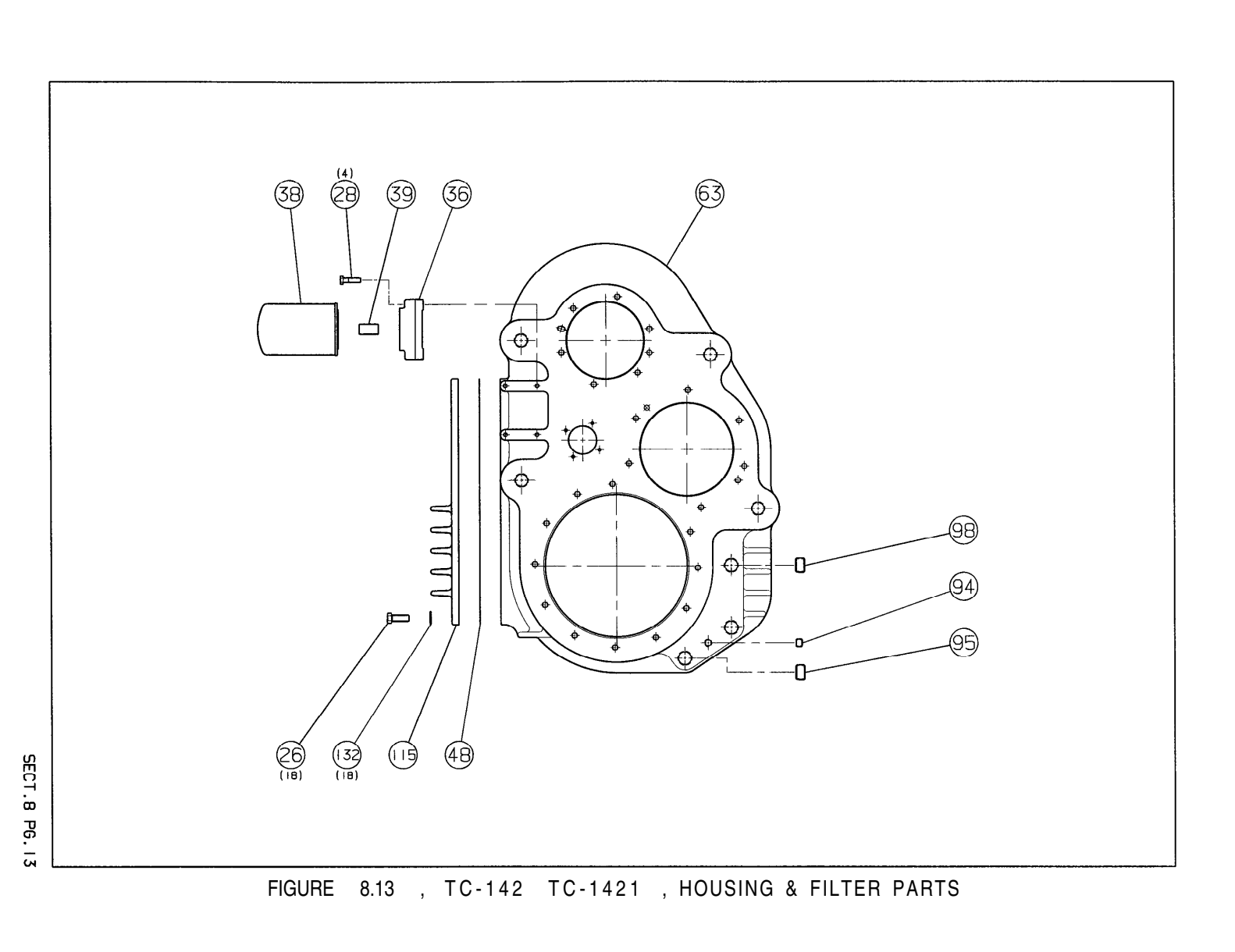

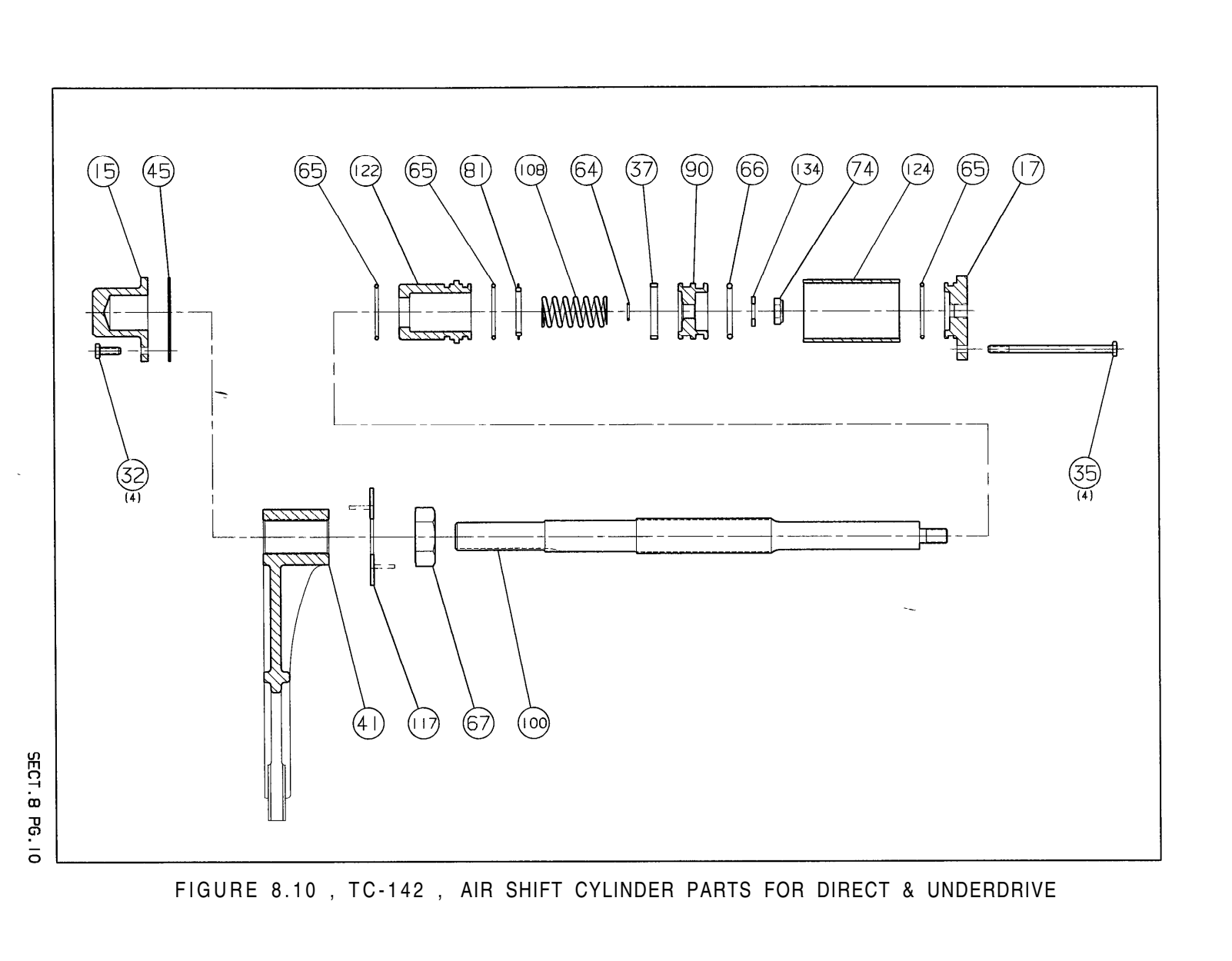

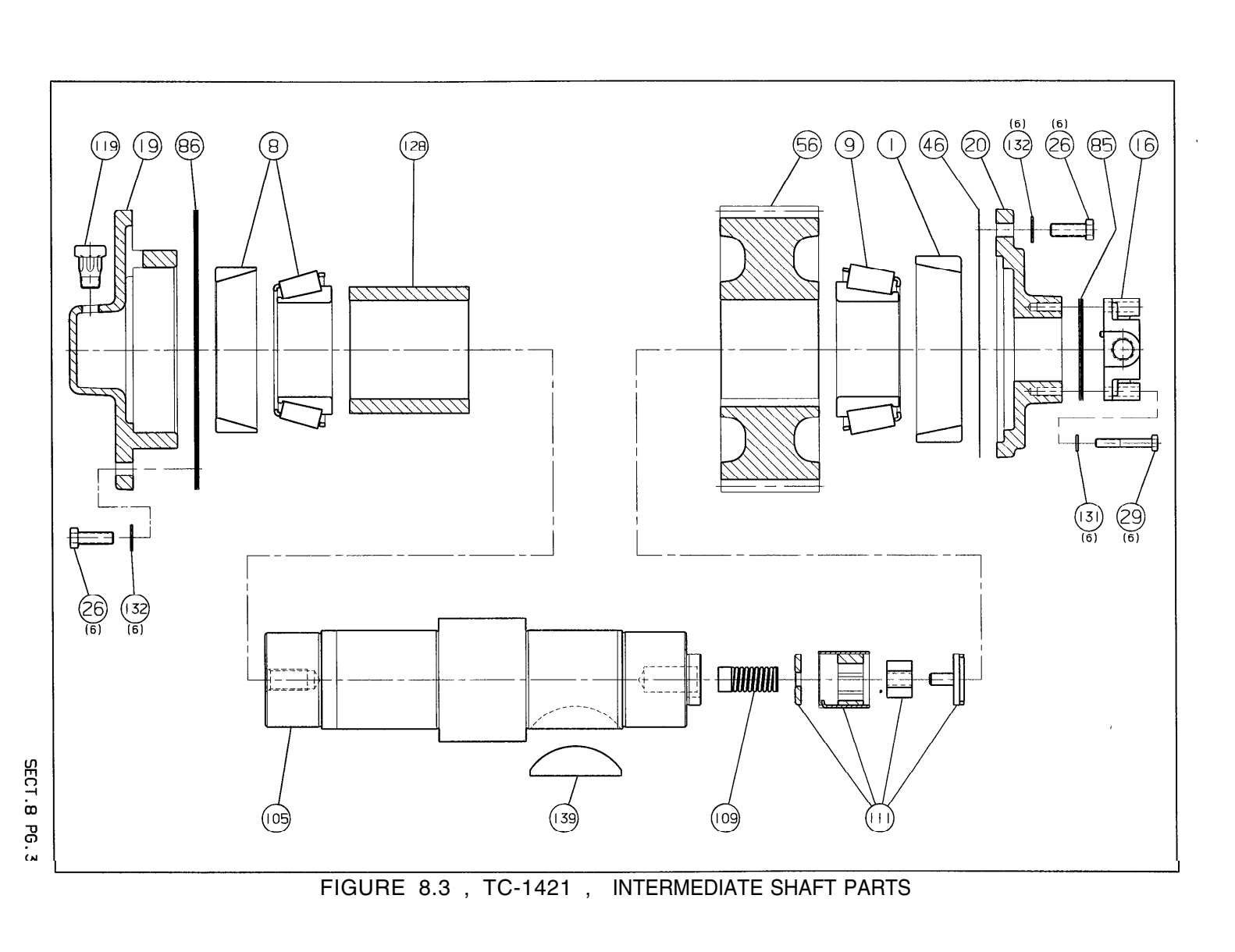

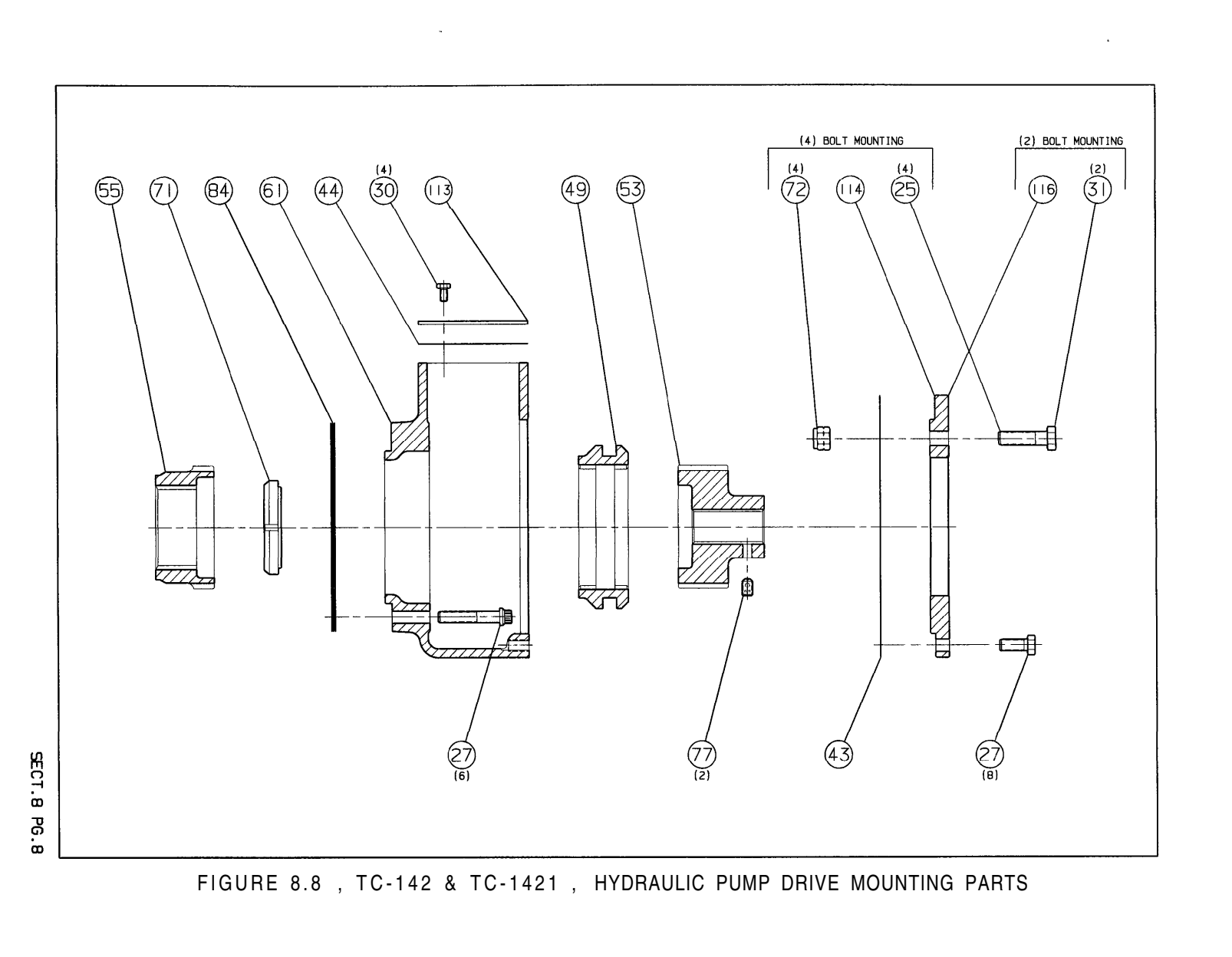

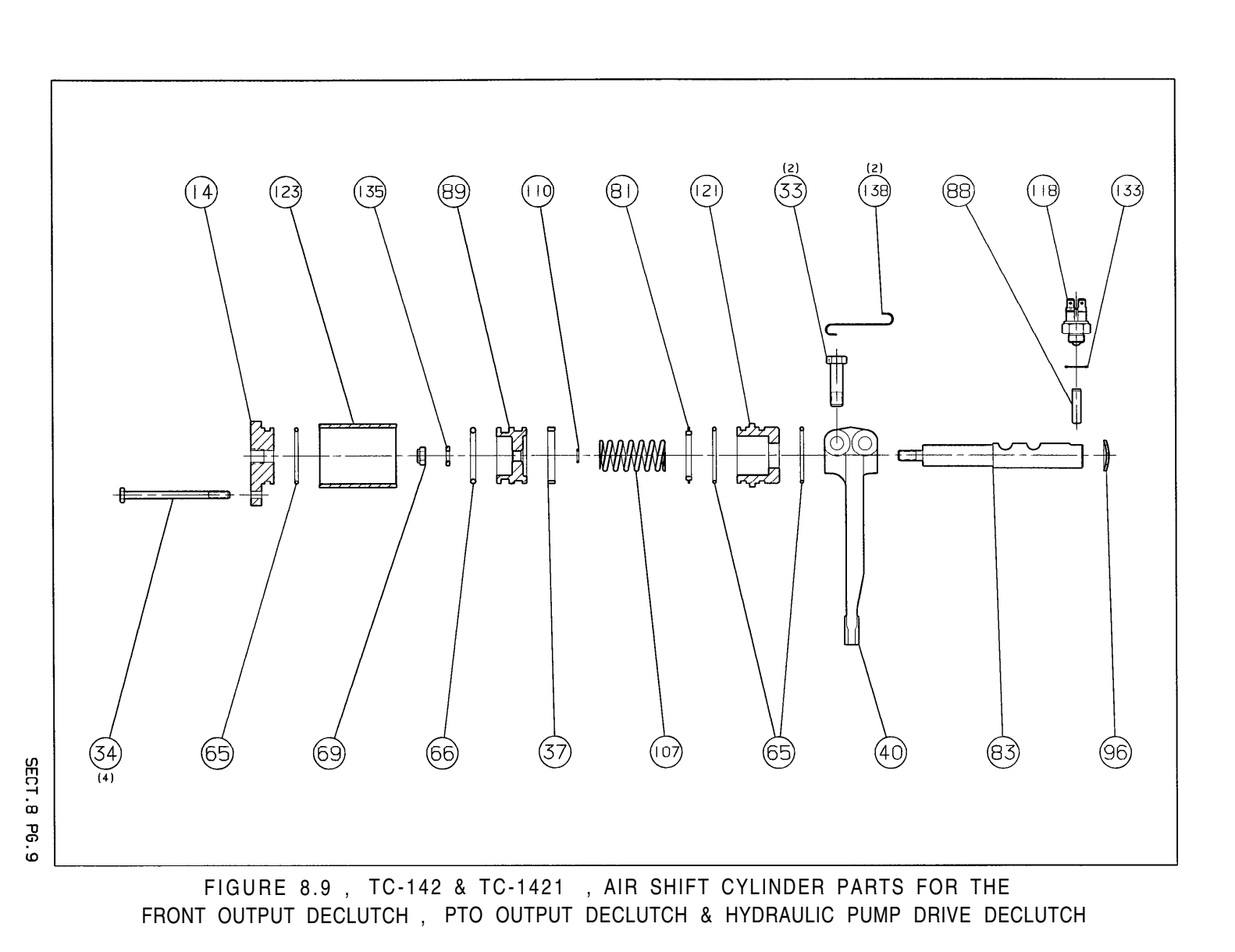

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 233-0245 | Bearing Cup | 1 1 | $320.07 | Add to Cart | |
| 2 | 233-0375 | Bearing Cup | 1 1 | $122.55 | Add to Cart | |
| 3 | 233-0443 | Bearing Cone | 2 2 | $87.23 | Add to Cart | |
| 4 | 233-0444 | Bearing Cup | 2 2 | $62.92 | Add to Cart | |
| 5 | 233-0489 | Bearing Cone | 1 1 | $103.05 | Add to Cart | |
| 6 | 233-0523 | Bearing Cup & Cone Assembly | 2 2 | $298.53 | Add to Cart | |
| 7 | 233-0524 | Bearing Cup & Cone Assembly | 1 1 | $489.62 | Add to Cart | |
| 8 | 233-0525 | Bearing Cup & Cone Assembly | 1 1 | $763.53 | Add to Cart | |
| 9 | 233-0526 | Bearing Cone | 1 1 | $239.70 | Add to Cart | |
| 10 | 233-0527 | Bearing Cup | 4 2 | $78.09 | Add to Cart | |
| 11 | 233-0528 | Bearing Cone | 4 2 | $108.67 | Add to Cart | |
| 12 | 233-0554 | Bearing Cup | 2 2 | $127.98 | Add to Cart | |
| 13 | 233-0556 | Bearing Cone | 2 2 | $183.43 | Add to Cart | |
| 14 | 235-0352 | Cap Shift Cylinder , | 3 2 | $63.16 | Add to Cart | |
| 15 | 235-0388 | Cap Shifter Shaft, Front , | 1 1 | $871.13 | Add to Cart | |
| 16 | 235-0492 | Cap Oil Pump , | 1 1 | $398.05 | Add to Cart | |
| 17 | 235-0528 | Cap Shift Cylinder, Inside Recessed , | 1 1 | $63.16 | Add to Cart | |
| 18 | 235-0577 | Cap Upper Shaft, Rear , | 1 1 | $308.06 | Add to Cart | |
| 19 | 235-0579 | Cap Intermediate Shaft, Front , | 1 1 | $375.95 | Add to Cart | |
| 20 | 235-0583 | Cap Intermediate Shaft, Rear , | 1 1 | — | Call for availability | |
| 21 | 237-0357 | Carrier, Upper Shaft, Front | 1 1 | $394.47 | Add to Cart | |
| 22 | 237-0393 | Carrier, Bearings & Seal Pto Output , | 1 1 | $830.95 | Add to Cart | |
| 23 | 237-0427 | Carrier, Bearings & Seal Front Output , | 1 1 | — | Call for availability | |
| 24 | 237-0593 | Carrier, Lower Shaft, Rear | 1 1 | $1,570.67 | Add to Cart | |
| 25 | 265-0229 | Bolt, H .h 1/2-13 X 1 3/4 . | 4 4 | $1.99 | Add to Cart | |
| 26 | 265-0238 | Bolt, H .h 7/16-14 X 1 1/4 . | 52 52 | $7.99 | Add to Cart | |
| 27 | 265-0239 | Bolt, H .h 7/16-14 X 1 . | 8 8 | $8.79 | Add to Cart | |
| 28 | 265-0323 | Bolt, H .h 5/16-18 X 1 1/4 . | 4 4 | $5.77 | Add to Cart | |
| 29 | 265-0325 | Bolt, H .h 5/16-18 X 2 . | 6 6 | $7.06 | Add to Cart | |
| 30 | 265-0343 | Bolt, H .h 1/4-20 X 1/2 . | 8 8 | $8.01 | Add to Cart |
Parts List Cont’D
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 31 | 265-0363 | Bolt, H .h 1/2-13 X 1 1/2 . | 13 13 | $15.91 | Add to Cart | |
| 32 | 265-0386 | Bolt, H .h 1/4-20 X 3/4 . | 4 4 | $5.22 | Add to Cart | |
| 33 | 265-0768 | Bolt, H .h 7/16-20 X 1 3/8 . , Grade 8 With Drilled Head | 4 4 | $21.89 | Add to Cart | |
| 34 | 265-0769 | Bolt, H .h 1/4-20 X 3 3/4 . | 8 8 | $8.73 | Add to Cart | |
| 35 | 265-0772 | Bolt, H .h 1/4-20 X 4 1/2 . | 4 4 | $7.83 | Add to Cart | |
| 36 | 273-0764 | Bracket, Filter Mounting | 1 1 | — | No longer available — call for replacement | |
| 37 | 339-0223 | Felt Wiper | 4 3 | $13.62 | Add to Cart | |
| 38 | 345-0267 | Filter, Oil | 1 1 | $132.57 | Add to Cart | |
| 39 | 356-0365 | Nipple Oil Filter , | 1 1 | $19.48 | Add to Cart | |
| 40 | 367-0254 | Fork, Shift, Declutches | 2 2 | $590.15 | Add to Cart | |
| 41 | 367-0278 | Fork, Shift, Direct | 1 1 | $1,049.63 | Add to Cart | |
| 42 | 427-0372 | Gasket, Upper Shaft, Front | 1 1 | — | Call for availability | |
| 43 | 427-0375 | Gasket, Declutch Carriers | 2 2 | $27.66 | Add to Cart | |
| 44 | 427-0376 | Gasket, Declutch Covers | 2 2 | $19.13 | Add to Cart | |
| 45 | 427-0399 | Gasket, Shifter Shaft Cap Front , | 1 1 | $72.58 | Add to Cart | |
| 46 | 427-0428 | Gasket, Intermediate Cap Rear , | 1 1 | $36.72 | Add to Cart | |
| 47 | 427-0432 | Gasket, Lower Carrier, Rear | 1 1 | $95.31 | Add to Cart | |
| 48 | 427-0434 | Gasket, Housing Cover | 1 1 | $77.37 | Add to Cart | |
| 49 | 432-0426 | Gear, Clutch Collar, Declutches | 2 2 | $1,103.38 | Add to Cart | |
| 50 | 432-0429 | Gear, Speedo Driven 13T , | 1 0 | $161.52 | Add to Cart | |
| 51 | 432-0432 | Gear, Speedo Drive 6T , | 1 0 | $267.68 | Add to Cart | |
| 52 | 432-0485 | Gear, Clutch Collar, 33 Clutch Teeth | 1 1 | 1 | — | Call for availability |
| 432-0698 | Gear, Clutch Collar, 33 Tapered Clutch Teeth | 1 1 | 1 | $2,102.23 | Add to Cart | |
| 53 | 432-0494 | Gear, Pump Drive | 1 1 | $1,029.36 | Add to Cart | |
| 54 | 432-0563 | Gear, Clutch Declutches , | 2 2 | $931.46 | Add to Cart | |
| 55 | 432-0636 | Gear, Declutch | 2 2 | — | Call for availability | |
| 56 | 432-0646 | Gear, Intermediate Shaft, Spur, 49T | 1 1 | 1 | — | Call for availability |
| 432-0679 | Gear, Intermediate Shaft, Helical 47T , | 1 1 | 1 | $2,392.33 | Add to Cart | |
| 57 | 432-0647 | Gear, Upper Shaft, Spur, 48T | 1 1 | 1 | — | Call for availability |
| 432-0682 | Gear, Upper Shaft, Helical 45T , | 1 | $2,812.78 | Add to Cart | ||
| 58 | 432-0648 | Gear, Intermediate Shaft, Spur, 31T | 1 0 | 1 | — | Call for availability |
| 432-0683 | Gear, Intermediate Shaft, Helical 29T , | 1 0 | 1 | $1,606.32 | Add to Cart | |
| 59 | 432-0649 | Gear, Lower Shaft, Spur, 66T | 1 0 | 1 | — | Call for availability |
| 432-0684 | Gear, Lower, 62 Helical Teeth | 1 0 | 1 | — | Call for availability | |
| 432-0699 | Gear, Lower, 62 Helical Teeth And Tapered Clutch Teeth | 1 0 | 1 | $5,761.49 | Add to Cart | |
| 60 | 432-0652 | Gear, Lower Shaft, Spur 48T | 1 1 | 1 | — | Call for availability |
| 432-0685 | Gear, Lower, 45 Helical Teeth | 1 0 | 1 | — | Call for availability | |
| 432-0722 | Gear, Lower, 45 Helical Teeth And Tapered Clutch Teeth | 1 0 | 1 | $4,006.43 | Add to Cart | |
| 61 | 478-0232 | Housing Declutch Pto Output , , | 1 1 | $1,147.74 | Add to Cart | |
| 62 | 478-0259 | Housing Declutch Front Output , , | 1 1 | $706.73 | Add to Cart | |
| 63 | 478-0263 | Housing Transfer Case , | 1 1 | $13,008.50 | Add to Cart | |
| 64 | 675-0014 | O-ring Shifter Shaft, Direct , | 1 1 | — | Call for availability | |
| 65 | 675-0224 | O-ring Shift Cylinders , | 11 11 | — | Call for availability | |
| 66 | 675-0326 | O-ring Shift Pistons , | 4 3 | — | Call for availability | |
| 67 | 688-0245 | Nut, Jam 1 1/4-12 , | 1 1 | $17.69 | Add to Cart | |
| 68 | 688-0395 | Nut, Hex, 1/4-20 | 4 0 | $5.48 | Add to Cart | |
| 69 | 688-0464 | Nut, Lock, 3/8-24 | 3 2 | $8.21 | Add to Cart | |
| 70 | 688-0642 | Nut, Lock, 1 3/4-16 | 2 2 | $121.53 | Add to Cart | |
| 71 | 688-0645 | Nut, Lock, 2 .548-18 | 2 2 | $118.09 | Add to Cart | |
| 72 | 688-0693 | Nut, Lock, 1/2-13 | 4 4 | — | Call for availability | |
| 73 | 688-0694 | Nut, Lock, 1 1/2-12 | 1 1 | $26.83 | Add to Cart | |
| 74 | 688-0725 | Nut, Lock, 1/2-13 | 1 1 | $11.25 | Add to Cart | |
| 75 | 688-0726 | Nut, Lock, 1/2-13 | 1 1 | $8.14 | Add to Cart | |
| 76 | 688-0738 | Nut, Lock, 1 3/4-12 | 1 1 | — | Call for availability | |
| 77 | 724-0244 | Screw, Socket Set, Lock, 3/8-16 X 5/8 | 2 2 | $8.13 | Add to Cart | |
| 78 | 724-0677 | Screw, 12-pt, 7/16-14 X 2 1/4 | 12 12 | $10.43 | Add to Cart | |
| 79 | 732-0333 | Seal Oil Input, Front & Pto Outputs , , | 3 3 | $53.59 | Add to Cart | |
| 80 | 732-0355 | Seal Oil Rear Output , , | 1 1 | $53.59 | Add to Cart | |
| 81 | 736-0747 | Stop Ring Piston , | 4 3 | $9.38 | Add to Cart | |
| 82 | 736-0939 | Spacer Bearing .360 Thick, Front Output Shaft , | A/R A/R | 2 | $270.14 | Add to Cart |
| 736-0942 | Spacer Bearing .365 Thick, Front Output Shaft , | A/R A/R | 2 | $211.79 | Add to Cart | |
| 736-0943 | Spacer Bearing .370 Thick, Front Output Shaft , | A/R A/R | 2 | $256.47 | Add to Cart | |
| 736-0944 | Spacer Bearing .375 Thick, Front Output Shaft , | A/R A/R | 2 | $256.47 | Add to Cart | |
| 736-0959 | Spacer Bearing .380 Thick, Front Output Shaft , | A/R A/R | 2 | $96.87 | Add to Cart | |
| 736-0962 | Spacer Bearing .385 Thick, Front Output Shaft , | A/R A/R | 2 | $56.02 | Add to Cart | |
| 83 | 742-0799 | Shaft Shifter, Declutch | 2 2 | $233.54 | Add to Cart | |
| 84 | 744-0278 | Shim Coral .030 Thick, Upper Shaft Rear , | A/R A/R | 3 | $18.52 | Add to Cart |
| 744-0279 | Shim Pink .015 Thick, Upper Shaft Rear , | A/R A/R | 3 | $16.76 | Add to Cart | |
| 744-0282 | Shim Blue .005 Thick, Upper Shaft Rear , | A/R A/R | 3 | $13.54 | Add to Cart | |
| 744-0283 | Shim Red .002 Thick, Upper Shaft Rear , | A/R A/R | 3 | $13.54 | Add to Cart | |
| 85 | 744-0324 | Shim Oil Pump , | A/R A/R | 4 | $9.27 | Add to Cart |
| 86 | 744-0332 | Shim Coral .030 Thick, Intermediate Shaft Front , | A/R A/R | 3 | $34.74 | Add to Cart |
| 744-0333 | Shim Pink .015 Thick, Intermediate Shaft Front , | A/R A/R | 3 | $29.60 | Add to Cart | |
| 744-0334 | Shim Blue .005 Thick, Intermediate Shaft Front , | A/R A/R | 3 | $26.99 | Add to Cart | |
| 744-0335 | Shim Red .002 Thick, Intermediate Shaft Front , | A/R A/R | 3 | $26.38 | Add to Cart | |
| 87 | 744-0357-001 | Shim Red .002 Thick, Lower Shaft Front , | A/R A/R | 3 | $13.84 | Add to Cart |
| 744-0357-002 | Shim Blue .005 Thick, Lower Shaft Front , | A/R A/R | 3 | $13.86 | Add to Cart | |
| 744-0357-003 | Shim Pink .015 Thick, Lower Shaft Front , | A/R A/R | 3 | $15.67 | Add to Cart | |
| 744-0357-004 | Shim Coral .030 Thick, Lower Shaft Front , | A/R A/R | 3 | $18.83 | Add to Cart | |
| 88 | 746-0628 | Pin Dowel 5/16 X 1 1/4 , , | 2 2 | $34.21 | Add to Cart | |
| 89 | 753-0232 | Piston Shift , | $77.81 | Add to Cart | ||
| 90 | 753-0245 | Piston Shift, Direct , | 1 1 | $94.72 | Add to Cart | |
| 91 | 756-0233-003 | Spacer Bearing .306 Thick, Pto Output Shaft , | A/R A/R | 2 | $191.20 | Add to Cart |
| 756-0233-004 | Spacer Bearing .311 Thick, Pto Output Shaft , | A/R A/R | 2 | $107.49 | Add to Cart | |
| 756-0233-005 | Spacer Bearing .316 Thick, Pto Output Shaft , | A/R A/R | 2 | $1,186.24 | Add to Cart | |
| 756-0233-006 | Spacer Bearing .321 Thick, Pto Output Shaft , | A/R A/R | 2 | $1,346.45 | Add to Cart | |
| 756-0233-007 | Spacer Bearing .326 Thick, Pto Output Shaft , | A/R A/R | 2 | $1,107.54 | Add to Cart | |
| 756-0233-008 | Spacer Bearing .331 Thick, Pto Output Shaft , | A/R A/R | 2 | $73.09 | Add to Cart | |
| 756-0233-009 | Spacer Bearing .336 Thick, Pto Output Shaft , | A/R A/R | 2 | $73.26 | Add to Cart | |
| 92 | 756-0237-001 | Spacer Bearing .725 Thick, Lower 48T Gear , | A/R A/R | 5 | $64.34 | Add to Cart |
| 756-0237-002 | Spacer Bearing .720 Thick, Lower 48T Gear , | A/R A/R | 5 | $53.02 | Add to Cart | |
| 756-0237-003 | Spacer Bearing .715 Thick, Lower 48T Gear , | A/R A/R | 5 | $41.83 | Add to Cart | |
| 756-0237-004 | Spacer Bearing .710 Thick, Lower 48T Gear , | A/R A/R | 5 | $89.39 | Add to Cart | |
| 93 | 756-0237-005 | Spacer Bearing .997 Thick, Lower 66T Gear , | A/R 0 | 5 | $50.91 | Add to Cart |
| 756-0237-006 | Spacer Bearing .992 Thick, Lower 66T Gear , | A/R 0 | 5 | $92.65 | Add to Cart | |
| 756-0237-007 | Spacer Bearing .987 Thick, Lower 66T Gear , | A/R 0 | 5 | $86.84 | Add to Cart | |
| 756-0237-008 | Spacer Bearing .982 Thick, Lower 66T Gear , | A/R 0 | 5 | $43.99 | Add to Cart | |
| 94 | 758-0255 | Plug Square Head 1/4 NPT , , | 2 2 | $54.00 | Add to Cart | |
| 95 | 758-0274 | Plug Socket Head Magnetic, 3/4 NPT , , | 1 1 | $8.70 | Add to Cart | |
| 96 | 758-0328 | Plug 1 ” Welch , | 2 2 | $12.30 | Add to Cart | |
| 97 | 758-0342 | Plug Speedo 13/16-20 , , | 0 1 | — | No longer available — call for replacement | |
| 98 | 758-0352 | Plug Square Head 3/4 NPT , , | 1 1 | $8.03 | Add to Cart | |
| 99 | 762-0288 | Snap Ring | 2 2 | $9.84 | Add to Cart | |
| 100 | 769-1354 | Shaft, Shifter, Direct | 1 1 | — | Call for availability | |
| 101 | 769-0389 | Shaft, Shifter, Neutral | 1 0 | $444.37 | Add to Cart | |
| 102 | 776-0234 | Shaft, Front Output | 1 1 | $2,845.69 | Add to Cart | |
| 103 | 776-0237 | Shaft, Pto Output | 1 1 | $2,664.07 | Add to Cart | |
| 104 | 776-0243 | Shaft, Upper | 1 1 | $4,643.06 | Add to Cart | |
| 105 | 776-0244 | Shaft, Intermediate | 1 1 | $2,272.08 | Add to Cart | |
| 106 | 776-0278 | Shaft, Lower | 1 1 | — | Call for availability | |
| 107 | 777-0477 | Spring Shifter Shaft, Declutches , | 2 2 | $26.12 | Add to Cart | |
| 108 | 777-0486 | Spring Shifter Shaft, Direct , | 1 1 | $230.21 | Add to Cart | |
| 109 | 777-0536 | Spring Assembly, Oil Pump , | 1 1 | $292.74 | Add to Cart | |
| 110 | 782-0288 | O-ring Shifter Shaft, Declutches , | 3 2 | $6.16 | Add to Cart | |
| 111 | 786-0292 | Pump Cartridge | 1 1 | — | Call for availability | |
| 112 | 788-0546-002 | Stud 1/4-20 X 9 , | 4 0 | $22.76 | Add to Cart | |
| 113 | 792-0866 | Plate Declutch Cover , | 2 2 | $20.44 | Add to Cart | |
| 114 | 792-0867 | Plate Sae (4) Bolt Hydraulic Pump Mounting , | 1 1 | $734.41 | Add to Cart | |
| 115 | 793-0275 | Plate Housing Cover , | 1 1 | $484.36 | Add to Cart | |
| 116 | 793-0436 | Plate Sae (2) Bolt Hydraulic Pump Mounting , | 1 1 | $570.04 | Add to Cart | |
| 117 | 793-0464 | Plate Shift Fork Nut, Locking , | 1 1 | $31.80 | Add to Cart | |
| 118 | 798-0245 | Switch Shift Indicator, Declutches , | 2 2 | $30.28 | Add to Cart | |
| 119 | 836-0223 | Vent, 3/8 NPT | 1 1 | $22.40 | Add to Cart | |
| 120 | 883-0473 | Tube Sleeve Speedo Driven Gear , , | 1 0 | $194.82 | Add to Cart | |
| 121 | 883-0482 | Tube Shift Cylinder Adapters Declutches , , | 2 2 | $99.33 | Add to Cart | |
| 122 | 883-0683 | Tube Shift Cylinder Adapters Direct , , | 1 1 | $399.49 | Add to Cart | |
| 123 | 883-0887-001 | Tube Shift Cylinder, Declutches 2 .75 Long , , | 2 2 | $107.78 | Add to Cart | |
| 124 | 883-0887-005 | Tube Shift Cylinder, Direct, 3 .50 Long , | 1 1 | $144.80 | Add to Cart | |
| 125 | 883-0887-006 | Tube Shift Cylinder, Neutral 3 .06 Long , , | 1 0 | $114.00 | Add to Cart | |
| 126 | 883-0893 | Tube Shift Cylinder Adapter, Neutral , | 1 0 | $105.73 | Add to Cart | |
| 127 | 883-0996-001 | Tube Spacer, Rear Output , | 1 0 | $248.47 | Add to Cart | |
| 128 | 884-0234 | Tube Spacer, Intermediate Shaft , | 0 1 | — | No longer available — call for replacement | |
| 129 | 884-0235 | Tube Spacer, Lower Shaft , | 0 1 | — | Call for availability | |
| 130 | 884-0256-001 | Tube Spacer, Rear Output , | 0 1 | — | Call for availability | |
| 131 | 927-0299 | Washer, Lock, 5/16 | 6 6 | $5.05 | Add to Cart | |
| 132 | 927-0347 | Washer, Flat, 7/16 | 38 38 | $5.09 | Add to Cart | |
| 133 | 927-0427 | Washer, Copper | 2 2 | $8.16 | Add to Cart | |
| 134 | 927-0553 | Washer, Shifter Shaft, Direct | 1 1 | $8.07 | Add to Cart | |
| 135 | 927-0643 | Washer, Shifter Shaft, Declutches | 3 2 | $8.10 | Add to Cart | |
| 136 | 927-0775-005 | Washer, Pto Output | 1 1 | $61.55 | Add to Cart | |
| 137 | 927-0775-006 | Washer, Input & Rear Output | 2 2 | $227.61 | Add to Cart | |
| 138 | 947-0223 | Lockwire | 2 2 | $46.99 | Add to Cart | |
| 139 | 966-0327 | Key Number Etched On The Gear. Caution: If One Gear Is Replaced Retain Compatibility. Contact Fabco Engineering For Technical Spacer, See Section 6 .7 Of Service Manual . See Section 6 .5 Of Service Manual . Section 6 .8 Of Service Manual . Spacer, See Section 6 .3 Of Service Manual . | 3 2 | $150.07 | Add to Cart |
Suction Line (Sump To Pump) Pressure Line (Pump To Filter) Pressure Line (Filter To Housing) Pressure Line (Filter To Pto Carrier) Pressure Line (Pto Carrier To Housing)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 626-0228 | Name Plate | 1 1 | — | No longer available — call for replacement | ||
| 724-0276 | Drive Screws Name Plate , Lubrication Piping Suction Line (sump To Pump) | 2 2 | $7.94 | Add to Cart | ||
| 824-0275 | Street Tee 3/4 NPT , | 1 | $84.88 | Add to Cart | ||
| 345-0268 | Strainer, Oil | 1 | $136.09 | Add to Cart | ||
| 357-0967 | 45° Street Elbow, 3/4 NPT | 1 | $61.44 | Add to Cart | ||
| 469-0825-004 | # 12 Hose Assembly | 1 | $66.29 | Add to Cart | ||
| 357-0575 | 90° Elbow, 1/2 NPT X # 12 Jic | 1 | $49.97 | Add to Cart | ||
| 357-0472 | 90° Street Elbow, 1/2 NPT Pressure Line (pump To Filter) | 1 | $68.15 | Add to Cart | ||
| 357-0238 | Adapter, 3/8 NPT X # 8 Jic | 1 | $6.33 | Add to Cart | ||
| 469-0823-003 | # 8 Hose Assembly | 1 | $1,092.33 | Add to Cart | ||
| 357-0966 | 45° Elbow, 1/2 NPT X # 8 Jic Pressure Line (filter To Housing) | 1 | $21.75 | Add to Cart | ||
| 357-0697 | 90° Elbow, 1/2 NPT X # 6 Jic | 1 | $19.95 | Add to Cart | ||
| 469-0778 | # 6 Hose Assembly | 1 | $86.76 | Add to Cart | ||
| 357-0935 | 90° Street Elbow, 1/4 NPT X 3/8 NPT Pressure Line (filter To Pto Carrier) | 1 | $26.85 | Add to Cart | ||
| 469-0822-007 | # 6 Hose Assembly | 1 | — | No longer available — call for replacement | ||
| 357-0385 | Street Tee 1/4 NPT X # 6 Jic , | 1 | $149.28 | Add to Cart | ||
| 355-0584 | Nipple 1/4 NPT X 1 1/2 Long , Pressure Line (pto Carrier To Housing) | 1 | — | Call for availability |
This is the complete factory parts breakdown for the Fabco Transfer Case TC-142 — every part in the manual, matched to our live inventory. We stock 162 of the 190 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Parts List Parts List Cont’D Suction Line (Sump To Pump) Pressure Line (Pump To Filter) Pressure Line (Filter To Housing) Pressure Line (Filter To Pto Carrier) Pressure Line (Pto Carrier To Housing)
No parts match that search — try the part number with no dashes.
This Fabco Illustrated Parts List covering the 142 transfer case covers the shafts, gear sets, housings and service parts for your transfer case, with exploded diagrams and OEM part numbers.
| Models covered | 142 |
| Transfer case type | Fabco transfer case |
| Document | Illustrated Parts List (Fabco) |
| Length | 23 pages |
| Format | PDF — view below or download free |
What’s inside
- Input, output & idler shaft assemblies
- Gear sets & ratio components
- Case halves, covers & housings
- Shift mechanism & air-control parts
- Bearing, seal & gasket kits
- Power-take-off & split-shaft components (where fitted)
- Exploded diagrams with OEM part numbers
Fabco parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Fabco transfer case units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
