Fabco TC 141 Parts Manual

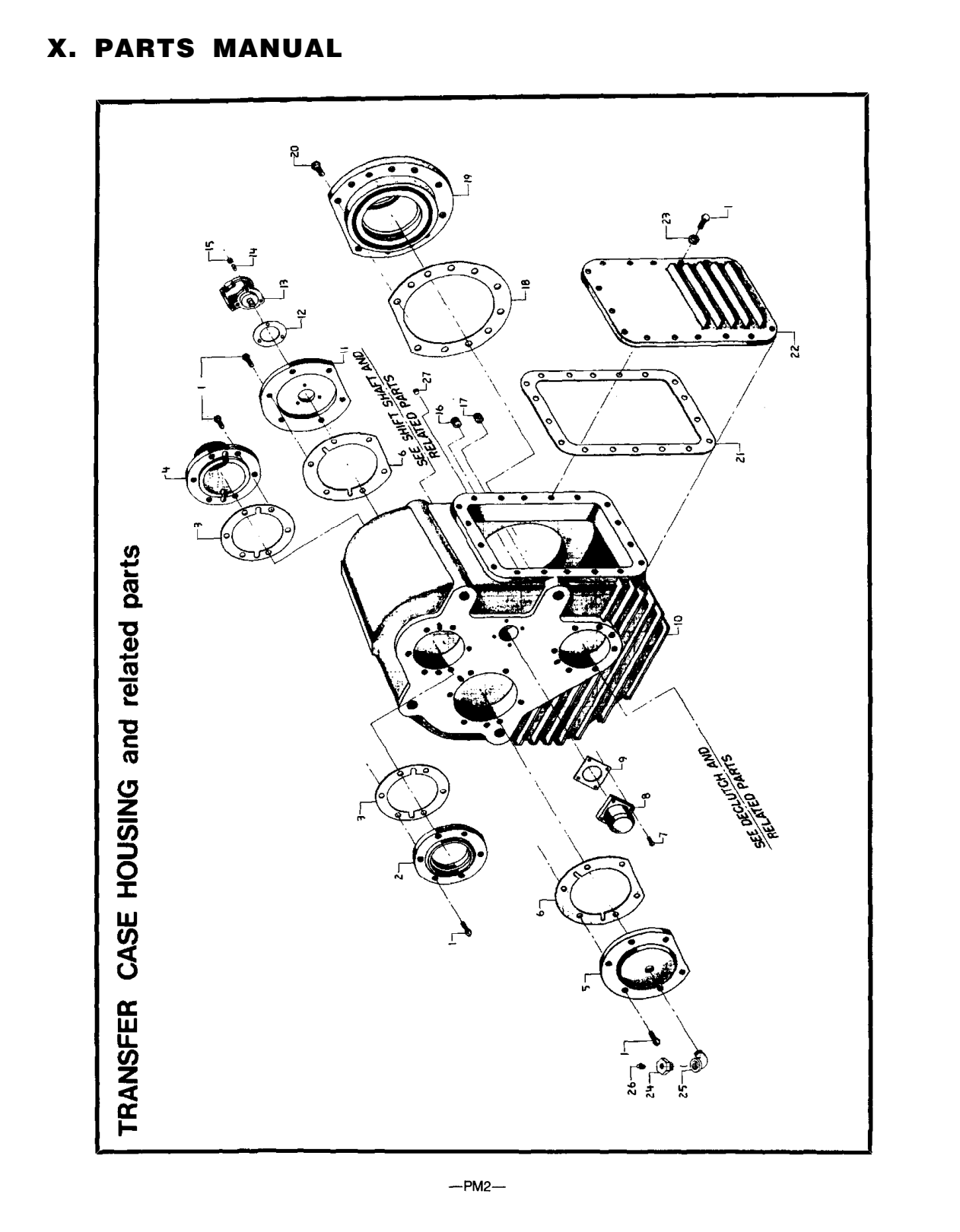

Transfer Case Housing And Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 265-0238 | Bolt, 7/16-14 × 1¼ Grade 5 | 42 | $7.99 | Add to Cart | |
| 2 | 237-0357 | Carrier, Upper Shaft Front Seal | 1 | $394.47 | Add to Cart | |
| 3 | 427-0372 | Gasket, Upper Shaft, Seal Carrier | 2 | Call for availability | ||
| 4 | 235-0368 | Cap, Upper Shaft Rear (exc. Pto & Dpd) | 1 | Call for availability | ||
| 5 | 235-0543 | Cap Intermediate Shaft Front | 1 | Call for availability | ||
| 6 | 427-0428 | Gasket, Intermediate Shaft Cap | 2 | $36.72 | Add to Cart | |
| 7 | 265-0386 | Bolt, 1/4-20 × 3/4 Grade 5 | 4 | $5.22 | Add to Cart | |
| 8 | 235-0388 | Cap Shift Shaft | 1 | $871.13 | Add to Cart | |
| 9 | 427-0399 | Gasket, Shift Shaft | 1 | $72.58 | Add to Cart | |
| 10 | 468-0586 | Housing Transfer Case | 1 | Call for availability | ||
| 235-0386 | Cap Intermediate Shaft Rear | 1 | Call for availability | |||
| 12 | 427-0435 | Gasket, Oil Pump | 1 | Call for availability | ||
| 13 | 786-0283 | Pump Oil | 1 | $1,895.99 | Add to Cart | |
| 14 | 788-0546-005 | Stud ¼ -20 × ¼ -28 × 1¼ | 3 | No longer available - Call for replacement | ||
| 15 | 688-0692 | Nut, Esna, ¼-28 | 3 | Call for availability | ||
| 16 | 758-0268 | Plug 3/4 Pipe | 1 | Call for availability | ||
| 17 | 758-0274 | Plug 3/4 Magnetic Pipe | 1 | $8.70 | Add to Cart | |
| 18 | 427-0432 | Gasket, Lower Shaft Speedometer And Seal | Carrier | 1 | $95.31 | Add to Cart |
| 19 | 237-0374 | Carrier, Lower Shaft Speedometer And Seal | 1 | $1,483.23 | Add to Cart | |
| 20 | 265-0363 | Bolt, ½-13 × 1½ Grade 5 | 11 | $15.91 | Add to Cart | |
| 21 | 427-0434 | Gasket, Cover Plate | 1 | $77.37 | Add to Cart | |
| 22 | 793-0275 | Plate, Transfer Case Cover | 1 | $484.36 | Add to Cart | |
| 23 | 927-0684 | Washer, Flat, 7/16 | 18 | $1.25 | Add to Cart | |
| 24 | 356-0236 | Bushing Hex Reducer, %.i-% | 1 | Call for availability | ||
| 25 | 359-0267 | Elbow, 90° Street, ¾ NPT | 1 | $9.36 | Add to Cart | |
| 26 | 836-0222 | Breather, NPT | 1 | $14.69 | Add to Cart | |
| 27 | 758-0255 | Plug Square Hd ¼ NPT | 1 | $54.00 | Add to Cart |

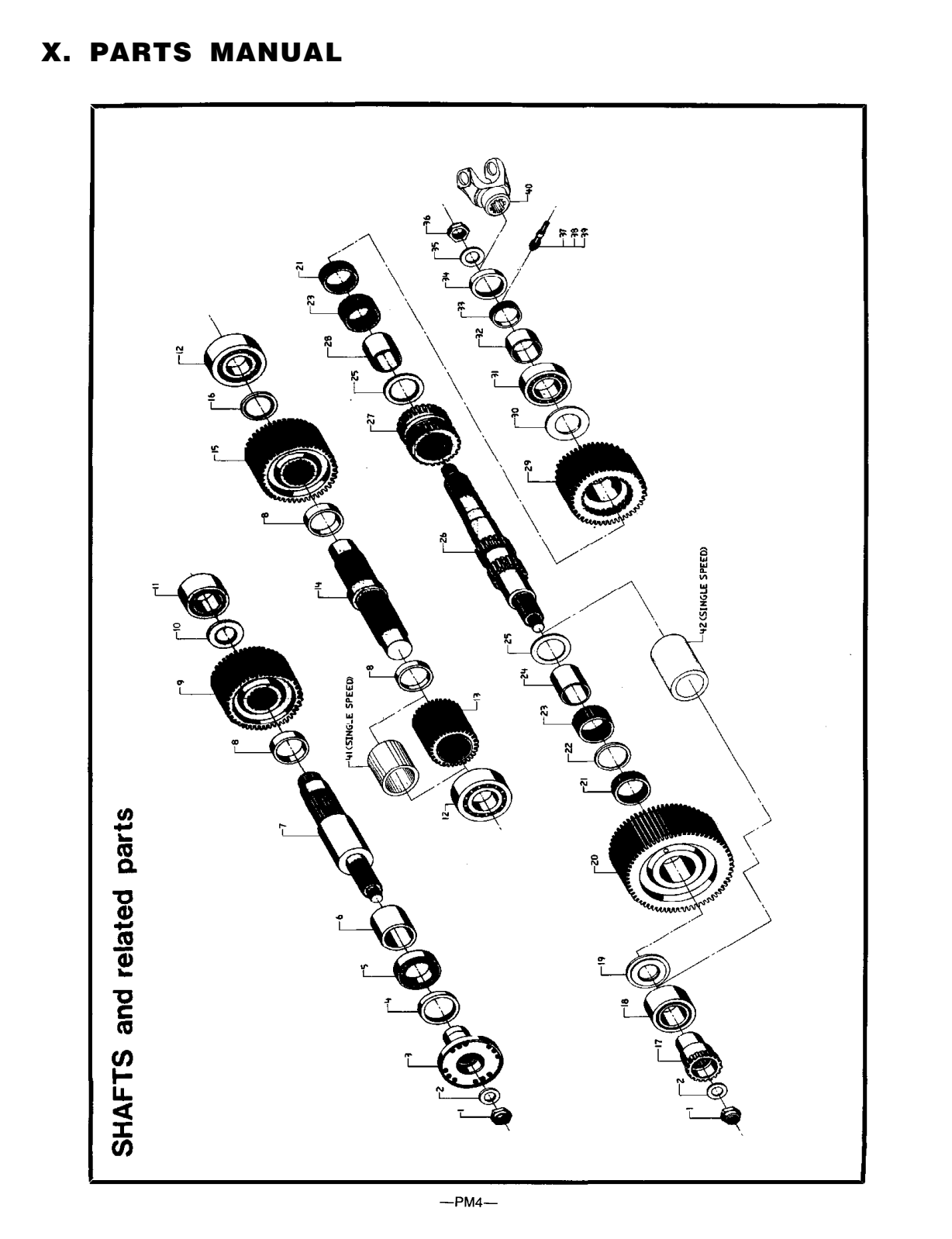

Shafts And Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 352-0427 | Flange Input, 1710 , Seal Input Flange , Bearing Upper Shaft Front , Tube Upper Shaft Front Spacer , Shaft, Upper Ring Shaft Spacer , Gear, Upper Shaft Input (48 Tooth) | 1 | $2,229.53 | Add to Cart | ||
| 10 | 736-0894 | Ring Upper Shaft Rear Spacer , Bearing Upper Shaft Rear | 1 | Call for availability | ||
| 12 | 232-0375 | Bearing Intermediate Shaft | 2 | Call for availability | ||
| 13 | 432-0483 | Gear, Intermediate Shaft Underdrive (31 Tooth) | 1 | Call for availability | ||
| 14 | 742-0893 | Shaft, Intermediate | 1 | Call for availability | ||
| 15 | 432-0482 | Gear, Intermediate Shaft Direct Drive (49 Tooth) | 1 | Call for availability | ||
| 16 | 927-0699 | Ring Intermediate Shaft Rear Spacer | 1 | Call for availability | ||
| 17 | 432-0489 | Gear, Declutch | 1 | Call for availability | ||
| 18 | 232-0378 | Bearing Lower Shaft Front Ball | 1 | Call for availability | ||
| 19 | 927-0697 | Washer, Lower Shaft Front Thrust | 1 | Call for availability | ||
| 20 | 432-0484 | Gear, Lower Shaft Underdrive (66 Tooth) | 1 | $437.08 | Add to Cart | |
| 21 | 765-0284 | Bearing Lower Shaft Narrow Needle | 2 | Call for availability | ||
| 22 | 736-0835 | Ring Lower Shaft Needle Bearing Spacer | 1 | Call for availability | ||
| 23 | 765-0285 | Bearing Lower Shaft Wide Needle | 2 | Call for availability | ||
| 24 | 233-0434 | Race Lower Shaft Front Needle Bearing | 1 | Call for availability | ||
| 25 | 927-0694 | Washer, Lower Shaft Inner Thrust | 2 | Call for availability | ||
| 26 | 742-0895 | Shaft, Lower | 1 | Call for availability | ||
| 27 | 432-0485 | Collar, Clutch | 1 | Call for availability | ||
| 28 | 233-0433 | Race Lower Shaft Rear Needle Bearing | 1 | Call for availability | ||
| 29 | 432-0488 | Gear, Lower Shaft Direct Drive (48 Tooth) | 1 | Call for availability | ||
| 30 | 927-0696 | Washer, Lower Shaft Rear Thrust | 1 | No longer available - Call for replacement |
Shift Shaft And Related Parts Basic P-Speed Pto & & Single Speed Direct Pump
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 688-0245 | Nut, Jam | 1 1 | $17.69 | Add to Cart | |
| 2 | 769-0354 | Shaft, Shift | 1 1 | $2,988.74 | Add to Cart | |
| 3 | 367-0278 | Fork, Underdrive | 1 1 | $1,049.63 | Add to Cart | |
| 4 | 427-0399 | Gasket, Shift Shaft | 1 1 | $72.58 | Add to Cart | |
| 5 | 883-0683 | Tube Shift Cylinder Adapter | 1 1 | $399.49 | Add to Cart | |
| 6 | 675-0224 | O-ring 1¾ I .d | 2 4 | Call for availability | ||
| 7 | 777-0486 | Spring Shift Shaft | 1 1 | $230.21 | Add to Cart | |
| 8 | 736-0747 | Ring Stop | 1 2 | $9.38 | Add to Cart | |
| 9 | 675-0014 | O-ring Piston Seal | 1 1 | Call for availability | ||
| 339-0223 | Wiper, Felt | 1 2 | $13.62 | Add to Cart | ||
| 753-0245 | Piston Shift | 1 1 | $94.72 | Add to Cart | ||
| 675-0326 | O-ring I .d | 1 2 | Call for availability | |||
| 927-0553 | Washer, Piston Nut | 1 1 | $8.07 | Add to Cart | ||
| 688-0725 | Nut, Flexloc | $11.25 | Add to Cart | |||
| 883-0887 | 005 Tube Shift Cylinder (3.50” Long) | 1 1 | Call for availability | |||
| 235-0528 | Cap, Shift Cylinder | $63.16 | Add to Cart | |||
| 265-0772 | Bolt, ¼ -20 × 4½ Grade 5 | $7.83 | Add to Cart | |||
| 688-0726 | Nut, Special | 1 | $8.14 | Add to Cart | ||
| 883-0893 | Adapter, Neutral Cylinder | 1 | $105.73 | Add to Cart | ||
| 20 | 769-0389 | Shaft, Neutral Shift | 1 | $444.37 | Add to Cart | |
| 21 | 782-0288 | O-ring Piston Seal | 1 | $6.16 | Add to Cart | |
| 22 | 753-0232 | Piston Shift | 1 | $77.81 | Add to Cart | |
| 23 | 927-0643 | Washer, Piston Nut | 1 | $8.10 | Add to Cart | |
| 24 | 688-0464 | Nut, Flexlock | 1 | $8.21 | Add to Cart | |
| 25 | 883-0887 | 006 Tube Shift Cylinder, (3.062” Long) | 1 | Call for availability | ||
| 26 | 235-0352 | Cap, Shift Cylinder | 1 | $63.16 | Add to Cart | |
| 27 | 788-0546 | 002 Stud ¼ -20 × 9 | 4 | Call for availability | ||
| 28 | 688-0395 | Nut, ¼-20 | 4 | $5.48 | Add to Cart |
Declutch And Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 352-0383 | Flange Front Output (1810) , Seal Front Output , Bearing Declutch Cone , Cup Declutch Bearing , Ring Declutch Spacer ( .323) | 1 | Call for availability | |||
| 736-0797 | Ring Declutch Spacer ( .328) , (as Req | ’d) 1 | Call for availability | |||
| 736-0896 | Ring Declutch Spacer ( .313) | Call for availability | ||||
| 736-0897 | Ring Declutch Spacer ( .318) , Bolt, 7/16-14 × 1¼ Grade 5 | 8 | Call for availability | |||
| 10 | 237-0359 | Carrier, Declutch Shaft, Declutch Output | 1 | $862.84 | Add to Cart | |
| 12 | 432-0427 | Gear, Clutch | Call for availability | |||
| 13 | 762-0288 | Ring Snap Declutch Output Shaft | $9.84 | Add to Cart | ||
| 14 | 432-0426 | Collar, Clutch | $1,103.38 | Add to Cart | ||
| 15 | 367-0254 | Fork, Declutch Shift | $590.15 | Add to Cart | ||
| 16 | 265-0768 | Bolt, 7/16-14 × 2¼ Grade 5 | 2 | $21.89 | Add to Cart | |
| 17 | 947-0223 | Wire #18 Gauge ( .048) × 5½ Lock | 1 | $46.99 | Add to Cart | |
| 18 | 427-0375 | Gasket, Declutch Carrier | 1 | $27.66 | Add to Cart | |
| 19 | 724-0677 | Cap Screw, Ferry Head 7/16-14 × 2¼ | 6 | $10.43 | Add to Cart | |
| 20 | 468-0633 | Housing Declutch | Call for availability | |||
| 21 | 265-0343 | Bolt, ¼ -20 × ½ Grade 5 | $8.01 | Add to Cart | ||
| 22 | 792-0866 | Plate Declutch Cover | $20.44 | Add to Cart | ||
| 23 | 427-0376 | Gasket, Declutch Cover Plate | $19.13 | Add to Cart | ||
| 24 | 758-0328 | Plug 1 ” Welch | $12.30 | Add to Cart | ||
| 25 | 746-0628 | Plunger | $34.21 | Add to Cart | ||
| 26 | 927-0427 | Washer, Copper | $8.16 | Add to Cart | ||
| 27 | 798-0245 | Switch Shift Indicating | $30.28 | Add to Cart | ||
| 28 | 675-0224 | O-ring 1¾ I .d | 1 | Call for availability |
+P.T.O And Related Parts
Item 28Item 28Item 15Item 16Item 10Item 27Item 26Item 25Item 24Item 23Item 12Item 22Item 14Item 18Item 19Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | 927-0775 | 002 Washer, Pto Flange Nut | Call for availability | |||
| 3 | 352-0344 | Flange Pto | 1 | Call for availability | ||
| 4 | 732-0328 | Seal Pto Flange , Cone Pto Bearing | 2 | $87.86 | Add to Cart | |
| 6 | 233-0376 | Cup Pto Bearing | 1 | $123.43 | Add to Cart | |
| 7 | 736-0767 | Ring Pto Spacer ( .323) | Call for availability | |||
| 736-0797 | Ring Pto Spacer ( .328) , (as Req ’d) | 1 | Call for availability | |||
| 736-0896 | Ring Pto Spacer ( .313) | Call for availability | ||||
| 736-0897 | Ring Pto Spacer ( .318) | Call for availability | ||||
| 9 | 265-0238 | Bolt, 7/16-14 1¼ Grade 5 | $7.99 | Add to Cart | ||
| 10 | 237-0393 | Carrier, Pto | $830.95 | Add to Cart | ||
| 11 | 742-0797 | Shaft, Pto Output | Call for availability | |||
| 12 | 432-0427 | Gear, Clutch | Call for availability | |||
| 13 | 762-0288 | Ring Snap Pto Output Shaft , , Pump Drive | $9.84 | Add to Cart | ||
| 14 | 432-0426 | Collar, Clutch | 1 | $1,103.38 | Add to Cart | |
| 15 | 367-0254 | Fork, Pto Shift | 1 | $590.15 | Add to Cart | |
| 16 | 265-0768 | Bolt, 7/16-14 × 2¼ Grade 5 | 2 | $21.89 | Add to Cart | |
| 17 | 947-0223 | Wire #18 Gauge ( .048) × 5½ Lock | 1 | $46.99 | Add to Cart | |
| 18 | 427-0375 | Gasket, Pto Carrier | 1 | $27.66 | Add to Cart | |
| 19 | 265-0845 | Bolt, 7/16-20 × 1¼ Grade 5 | 6 | $2.76 | Add to Cart | |
| 20 | 468-0583 | Housing Pto | 1 | Call for availability | ||
| 21 | 265-0343 | Bolt, ¼ -20 × ½ Grade 5 | 4 | $8.01 | Add to Cart | |
| 22 | 792-0866 | Plate Pto Cover | 1 | $20.44 | Add to Cart | |
| 23 | 427-0376 | Gasket, Pto Cover Plate | 1 | $19.13 | Add to Cart | |
| 24 | 758-0328 | Plug 1 ” Welch | 1 | $12.30 | Add to Cart | |
| 25 | 746-0628 | Plunger | 1 | $34.21 | Add to Cart | |
| 26 | 927-0427 | Washer, Copper | 1 | $8.16 | Add to Cart | |
| 27 | 798-0245 | Switch Shift Indicating | 1 | $30.28 | Add to Cart | |
| 28 | 675-0224 | O-ring 1¾ I .d | 3 | Call for availability |
Lockout And Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 10 | 432-0532 | Gear, Lockout Ring Retaining | 1 | No longer available - Call for replacement | ||
| 12 | 432-0426 | Collar, Clutch | 1 | $1,103.38 | Add to Cart | |
| 13 | 367-0254 | Fork, Lockout Shift | 1 | $590.15 | Add to Cart | |
| 14 | 265-0768 | Bolt, 7/16-20 × 1½ Grade 5 | 2 | * TO SPECIFICATION CHECK EXISTING PART BEFORE ORDERING | $21.89 | Add to Cart |
| 15 | 947-0233 | Wire #18 Gauge , ( .048) 5½ Lock | 1 | Call for availability | ||
| 16 | 427-0375 | Gasket, Lockout Carrier | $27.66 | Add to Cart | ||
| 17 | 265-0845 | Bolt, 7/16-14 × 1¼ Grade 5 | 6 | $2.76 | Add to Cart | |
| 18 | 468-0633 | Housing Lockout | 1 | Call for availability | ||
| 19 | 265-0343 | Bolt, ¼ -20 × ½ Grade 5 | 4 | $8.01 | Add to Cart | |
| 20 | 792-0866 | Plate Lockout Cover | $20.44 | Add to Cart | ||
| 21 | 427-0376 | Gasket, Lockout Cover Plate | 1 | $19.13 | Add to Cart | |
| 22 | 746-0628 | Plunger | $34.21 | Add to Cart | ||
| 23 | 927-0427 | Washer, Copper (as Req | ’d) 1 | $8.16 | Add to Cart | |
| 24 | 798-0245 | Switch Shift Indicating | 1 | $30.28 | Add to Cart | |
| 25 | 758-0328 | Plug 1 ” Welch | 1 | $12.30 | Add to Cart | |
| 26 | 427-0499 | Gasket, Lockout Housing | $33.30 | Add to Cart | ||
| 27 | 432-0528 | Gear, 26/74 Sun | Call for availability | |||
| 769-0386 | Shaft, 26/74 Inner | 4 | Call for availability | |||
| 742-0973 | Shaft, 50/50 Inner | Call for availability | ||||
| 28 | 265-0769 | Bolt, ¼ -20 × 3¾ Grade 5 | $8.73 | Add to Cart | ||
| 29 | 235-0352 | Cap Shift Cylinder | $63.16 | Add to Cart |
26/74 Lower Shaft And Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 10 | 927-0694 | Washer, Inner Thrust Shaft, Planetary, Lower | 2 | Call for availability | ||
| 12 | 432-0485 | Collar, Clutch | 1 | Call for availability | ||
| 13 | 233-0433 | Race Needle Bearing Rear | 1 | Call for availability | ||
| 14 | 432-0488 | Gear, Direct Drive (48 Tooth) | 1 | Call for availability | ||
| 15 | 927-0696 | Washer, Rear Thrust | 1 | No longer available - Call for replacement | ||
| 16 | 232-0369 | Bearing Rear Ball | 1 | Call for availability | ||
| 17 | 427-0437 | Gasket, Rear Face Plate | 1 | Call for availability | ||
| 18 | 793-0283 | Plate Planetary Rear Face Cover | 1 | Call for availability | ||
| 19 | 265-0238 | Bolt, 7/16-14 × 1¼ Grade 5 | 4 | $7.99 | Add to Cart | |
| 20 | 427-0435 | Gasket, Oil Pump | 1 | Call for availability | ||
| 21 | 786-0283 | Pump Oil | 1 | $1,895.99 | Add to Cart | |
| 22 | 788-0546 | 005 Stud ¼ -20 × ¼ -28 × 1¼ | 3 | Call for availability | ||
| 23 | 688-0492 | Nut, ¼ -28 | 3 | Call for availability | ||
| 24 | 265-0363 | Bolt, ½-13 × 1½ Grade 5 | 1 1 | $15.91 | Add to Cart | |
| 25 | 762-0266 | Ring Planet Pin Snap | 3 | Call for availability | ||
| 26 | 237-0387 | Carrier, Planet | 1 | Call for availability | ||
| 27 | 746-0684 | Pin Planet | 3 | Call for availability | ||
| 28 | 736-0868 | Spacer, Planet Pin | 6 | $337.42 | Add to Cart | |
| 29 | 233-0437 | Bearing Planet Pin Needle | 9 | $223.76 | Add to Cart | |
| 30 | 736-0869 | Ring Planet Pin Needle Brg Spcr | 6 | $38.41 | Add to Cart | |
| 31 | 432-0525 | Gear, Planet (20 Tooth) | 3 | $824.47 | Add to Cart |
50/50 Lower Shaft And Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | 736-0873 | Washer, Front Thrust Gear, Underdrive (66 Tooth) Bearing Needle Narrow , , Ring Needle Bearing Spacer | 1 | Call for availability | ||
| 8 | 765-0285 | Bearing Needle Wide | 2 | Call for availability | ||
| 9 | 233-0434 | Race Needle Bearing Front | 1 | Call for availability | ||
| 10 | 927-0694 | Washer, Inner Thrust Shaft, Differential Lower | 2 | Call for availability | ||
| 12 | 432-0485 | Collar, Clutch | 1 | Call for availability | ||
| 13 | 233-0433 | Race Needle Bearing Rear | 1 | Call for availability | ||
| 14 | 432-0488 | Gear, Direct Drive (48 Tooth) | 1 | Call for availability | ||
| 15 | 927-0725 | Washer, Rear Thrust | 1 | Call for availability | ||
| 16 | 232-0384 | Bearing Ball Rear | 1 | Call for availability | ||
| 17 | 427-0437 | Gasket, Rear Face Plate | 1 | Call for availability | ||
| 18 | 793-0325 | Plate Differential Rear Face Cover | 1 | Call for availability | ||
| 19 | 265-0238 | Bolt, 7/16-14 × 1¼ Grade 5 | 4 | $7.99 | Add to Cart | |
| 20 | 427-0435 | Gasket, Oil Pump | 1 | Call for availability | ||
| 21 | 786-0283 | Pump Oil | 1 | $1,895.99 | Add to Cart | |
| 22 | 788-0546 | 005 Stud ¼ -20 × ¼ -28 × 1¼ | 3 | Call for availability | ||
| 23 | 688-0492 | Nut, ¼ -28 Esna | 3 | Call for availability | ||
| 24 | 265-0363 | Bolt, ½-13 × 1½ Grade 5 | 1 1 | $15.91 | Add to Cart | |
| 25 | 688-0256 | Nut, 5/8-18 | 8 | Call for availability | ||
| 26 | 468-0682 | Set, Differential Case | 1 | Call for availability | ||
| 27 | 742-0973 | Shaft, Inner | 1 | Call for availability | ||
| 28 | 927-0737 | Washer, Differential Side Gear Thrust | 2 | $20.91 | Add to Cart | |
| 29 | 432-0535 | Gear, Differential Side | 2 | $352.85 | Add to Cart | |
| 30 | 432-0536 | Gear, Differential Pinion | 4 | $123.85 | Add to Cart |
Lubrication Plumbing
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 10 | 469-0782 | Hose Assembly, Filter-pump | Call for availability | |||
| 11 | 469-0788 | Hose Assembly, Pump-housing | Call for availability | |||
| 12 | 357-0935 | Elbow 90° 1/4MP-3/8FP , Direct Pump Drive | $26.85 | Add to Cart | ||
| 13 | 357-0929 | Elbow, 90° 1/2MP-3/8FP | 1 | No longer available - Call for replacement | ||
| 14 | 469-0779 | Hose Assembly, Pump-tee | Call for availability | |||
| 15 | 357-0385 | Tee 9/16-18 (2) × 1/4FP | $149.28 | Add to Cart | ||
| 16 | 355-0584 | Nipple 1/4P × 1 -1/2 | 1 | Call for availability | ||
| 17 | 469-0778 | Hose Assembly, Tee-housing | $86.76 | Add to Cart | ||
| 19 | 469-0822-012 | Hose Ass’y, Sump-filter 1 — Ass’y, Filter-pump Pump-diff. Housing 2 | $44.34 | Add to Cart | ||
| 21 | 356-0255 | Reducer, 1/2P × 3/8P 1 1 9/16-18×3/8P×9/16-18 1 1 , Ass’y, Pump-housing 1 1 | $10.88 | Add to Cart | ||
| 24 | 357-0952 | Elbow, 45° 3/8NPT×9/16-18 1 , — Ass’y, Sump-filter 1 — Ass’y, Filter-pump 1 — Ass’y Pump-diff. Hsg 1 | Call for availability |
Additional Parts Listed In This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 232-0372 | Bearing, Upper Shaft Front | No longer available - Call for replacement | ||||
| 232-0373 | Bearing, Upper Shaft Rear | $577.95 | Add to Cart | |||
| 232-0376 | Bearing, Lockout Carrier Ball | $239.41 | Add to Cart | |||
| 232-0379 | Bearing, Planetary Carrier Cap | Call for availability | ||||
| 232-0382 | Bearing, Differential Case Ball | Call for availability | ||||
| 232-0383 | Bearing, Rear Output Shaft Ball | Call for availability | ||||
| 233-0306 | Bearing Kit, Tc 140 (declutch) | Call for availability | ||||
| 233-0307 | Bearing Kit, Tc (with 50/50 Differential) | Call for availability | ||||
| 233-0308 | Bearing Kit, Tc 140 (with 26/74 Differential) | Call for availability | ||||
| 233-0311 | Bearing Kit, Declutch & Pto | Call for availability | ||||
| 233-0377 | Bearing, Declutch Cone | $106.63 | Add to Cart | |||
| 235-0397 | Cap, Planetary Carrier | Call for availability | ||||
| 235-0434 | Cap, Differential Carrier | Call for availability | ||||
| 237-0378 | Carrier, Lockout Bearing | Call for availability | ||||
| 237-0379 | Carrier, Output Seal | Call for availability | ||||
| 237-0382 | Carrier, Rear Seal | Call for availability | ||||
| 255-0244 | Hose Clamp | Call for availability | ||||
| 265-0369 | Bolt, 7/16-14 × 2¾ Grade 5 | Call for availability | ||||
| 265-0754 | Bolt, 5/8-18 × 5 Grade 5 | No longer available - Call for replacement | ||||
| 265-0923 | Bolt, 7/16-14 × 7 Grade 5 | $8.16 | Add to Cart | |||
| 265-0965 | Bolt, 3/8-16 × 1½ Grade 5 | $1.86 | Add to Cart | |||
| 273-0688 | Bracket, Filter Mounting | Call for availability | ||||
| 277-0264 | Gross, Differential Spider | $255.35 | Add to Cart | |||
| 295-0309 | Shift Cylinder Overhaul Kit | No longer available - Call for replacement | ||||
| 345-0262 | Housing, Filter | Call for availability | ||||
| 345-0263 | Cartridge, Filter | No longer available - Call for replacement | ||||
| 352-0398 | Flange, Input, 1810 | $2,104.20 | Add to Cart | |||
| 352-0428 | Flange, Front Output (1710) | Call for availability | ||||
| 357-0288 | Adapter, 1/2P × 9/16-18 | Call for availability | ||||
| 357-0628 | Elbow, Male 90°, 3/8P × 9/16-18 | $13.13 | Add to Cart | |||
| 357-0697 | Elbow, Male 90°, 1/2P × 9/16-18 | $19.95 | Add to Cart | |||
| 357-0954 | Tee, 9/16-18×3/8P×9/16-18 | Call for availability | ||||
| 427-0303 | Seal And Gasket Kit, Tc 140 (declutch) | No longer available - Call for replacement | ||||
| 427-0305 | Seal And Gasket Kit, Tc 140 (with 50/50 Or 26/74 Differential) | No longer available - Call for replacement | ||||
| 427-0438 | Gasket, Output Seal Carrier | Call for availability | ||||
| 427-0449 | Gasket, Declutch Housing | Call for availability | ||||
| 432-0330 | Pinion Kit, Tc 140 (with 50/50 Differential) | Call for availability | ||||
| 432-0429 | Gear, Speedometer Driven (13 Tooth) | $161.52 | Add to Cart | |||
| 432-0432 | Gear, Speedometer Drive | $267.68 | Add to Cart | |||
| 432-0479 | Gear, Upper Shaft Input (48 Tooth) | Call for availability | ||||
| 432-0494 | Gear, Pump Drive | $1,029.36 | Add to Cart | |||
| 432-0526 | Gear, Internal (62 Tooth) | $10,572.36 | Add to Cart | |||
| 432-0529 | Gear, Pto Declutch | Call for availability | ||||
| 432-0584 | Gear, Sun (22 Tooth) | $1,156.65 | Add to Cart | |||
| 468-0627 | Housing, Planetary | Call for availability | ||||
| 468-0672 | Housing, Differential | Call for availability | ||||
| 469-0783 | Hose Assembly, Filter-pump | Call for availability | ||||
| 469-0822-011 | Hose Ass'y, Pump-housing | Call for availability | ||||
| 469-0822-013 | Hose Ass'y, Filter-pump & Pump-diff. Housing | Call for availability | ||||
| 469-0822-014 | Hose Ass'y, Sump-filter | No longer available - Call for replacement | ||||
| 469-0822-015 | Hose Ass'y, Filter-pump | No longer available - Call for replacement | ||||
| 469-0822-016 | Hose Ass'y, Pump-diff. Hsg. | $42.82 | Add to Cart | |||
| 668-0633 | Nut, Self Locking 1¼-18 | Call for availability | ||||
| 675-0279 | O-ring, 13 I.D. | Call for availability | ||||
| 688-0287 | Nut, 7/16-14 | No longer available - Call for replacement | ||||
| 688-0633 | Nut, Self Locking 1¼-18 | $15.30 | Add to Cart | |||
| 688-0639 | Nut, Self Locking 1½-18 | $32.18 | Add to Cart | |||
| 688-0642 | Nut, Self Locking 1¾-16 | $121.53 | Add to Cart | |||
| 688-0644 | Nut, Planet Carrier | $260.39 | Add to Cart | |||
| 688-0645 | Nut, Lockout Clutch Gear | $118.09 | Add to Cart | |||
| 724-0244 | Set Screw, Socket Hd, Nylok | $8.13 | Add to Cart | |||
| 724-0386 | Screw, Self Tapping, 1/4-20 × 1/2 | Call for availability | ||||
| 724-0622 | Capscrew, Nytok Ferryhead 5/8 × 18 × 2 | Call for availability | ||||
| 732-0333 | Seal, Rear Output | $53.59 | Add to Cart | |||
| 732-0355 | Seal, Lower Shaft Rear Output | $63.09 | Add to Cart | |||
| 732-0358 | Seal, Front Output | $74.57 | Add to Cart | |||
| 736-0833 | Ring, Retaining | $62.75 | Add to Cart | |||
| 736-0839 | Tube, Upper Shaft Front Spacer | No longer available - Call for replacement | ||||
| 736-0872 | Ring, Speedometer Gear Spacer | Call for availability | ||||
| 736-0887 | Ring, Shaft Spacer | Call for availability | ||||
| 736-0927 | Spacer, Intermediate Shaft (replaces Item 13) | Call for availability | ||||
| 736-0928 | Spacer, Lower Shaft (replaces Items 19 Thru 25, Qty 1 Each) | Call for availability | ||||
| 736-0987 | Ring, Retaining | $99.12 | Add to Cart | |||
| 742-0799 | Shaft, Declutch Shift | $233.54 | Add to Cart | |||
| 742-0953 | Shaft, Planetary, Lower | Call for availability | ||||
| 742-0963 | Shaft, Planetary Rear Output | Call for availability | ||||
| 742-0972 | Shaft, Differential Lower | Call for availability | ||||
| 742-0974 | Shaft, Rear Output | Call for availability | ||||
| 742-0986 | Shaft, Upper | Call for availability | ||||
| 762-0327 | Snap Ring, Sun Gear | $19.63 | Add to Cart | |||
| 777-0477 | Spring, Declutch Shift Shaft | $26.12 | Add to Cart | |||
| 788-0487 | Stud, 7/16-14 × 10¾ | Call for availability | ||||
| 788-0546-002 | Stud, ¼-20 × 9 | $22.76 | Add to Cart | |||
| 792-0867 | Plate, Mounting | $734.41 | Add to Cart | |||
| 882-0299 | Tube, Speedometer Driven Gear (prior To 1980) | Call for availability | ||||
| 883-0473 | Sleeve, Speedometer Driven Gear | $194.82 | Add to Cart | |||
| 883-0482 | Tube, Declutch Shift Cylinder Adapter | $99.33 | Add to Cart | |||
| 883-0676 | Spacer, Speedometer Drive Gear | No longer available - Call for replacement | ||||
| 883-0877-001 | Tube, Shift Cylinder (2.75" Long) | Call for availability | ||||
| 883-0887-001 | Tube, Shift Cylinder (2.75" Long) | $107.78 | Add to Cart | |||
| 883-0887-005 | Tube, Shift Cylinder (3.50" Long) | $144.80 | Add to Cart | |||
| 883-0887-006 | Tube, Shift Cylinder, (3.062" Long) | $114.00 | Add to Cart | |||
| 927-0338 | Washer, Spring Lock, 1/4 | $13.73 | Add to Cart | |||
| 927-0738 | Washer, Differential Pinion | $3.43 | Add to Cart | |||
| 927-0744 | Washer, Pto Declutch Gear Special | Call for availability | ||||
| 927-0775-002 | Washer, Declutch Flange Nut | $105.17 | Add to Cart | |||
| 927-0775-005 | Washer, Input Flange Nut | $61.55 | Add to Cart | |||
| 927-0775-006 | Washer, Rear Output Yoke Nut | $227.61 | Add to Cart | |||
| 965-0836 | Yoke, End, Rear Output (1810) | $427.58 | Add to Cart | |||
| 965-0843 | Yoke, End, Rear Output (1710) | $349.37 | Add to Cart |
This is the complete factory parts breakdown for the Fabco Transfer Case TC-140, with every part in the manual matched to our live inventory. We stock 150 of the 302 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Transfer Case Housing And Related Parts Shafts And Related Parts Shift Shaft And Related Parts Basic P-Speed Pto & & Single Speed Direct Pump Declutch And Related Parts +P.T.O And Related Parts Lockout And Related Parts 26/74 Lower Shaft And Related Parts 50/50 Lower Shaft And Related Parts Lubrication Plumbing Additional Parts Listed In This Manual
No parts match that search. Try the part number with no dashes.
This Fabco Illustrated Parts List covering the 141 transfer case covers the shafts, gear sets, housings and service parts for your transfer case, with exploded diagrams and OEM part numbers.
| Models covered | 141 |
| Transfer case type | Fabco transfer case |
| Document | Illustrated Parts List (Fabco) |
| Length | 22 pages |
| Format | PDF, view below or download free |
What’s inside
- Input, output & idler shaft assemblies
- Gear sets & ratio components
- Case halves, covers & housings
- Shift mechanism & air-control parts
- Bearing, seal & gasket kits
- Power-take-off & split-shaft components (where fitted)
- Exploded diagrams with OEM part numbers
Fabco parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Fabco transfer case units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
