F20 Series

Muncie F20 Series PTO Units

The Muncie F20 Series is Muncie's PTO for Ford trucks with the 10R140 transmission. Parker Chelsea's PTO for the same transmission is the Chelsea 210 Series.

F20 Series features

• Shift types for gas or diesel engines, standard or with Muncie Start, plus a reduced harness with wiring pigtails only.
• Single mode (stationary or mobile) or dual mode (both stationary and mobile) operation.
• One internal speed ratio, 1.18:1.
• Outputs: a 1-1/4 inch round shaft, an SAE B shaft with an SAE A 2-bolt flange, or a 3/4 inch 11 tooth shaft with a Muncie N mount or an SAE A 2-bolt flange.

Find your exact unit

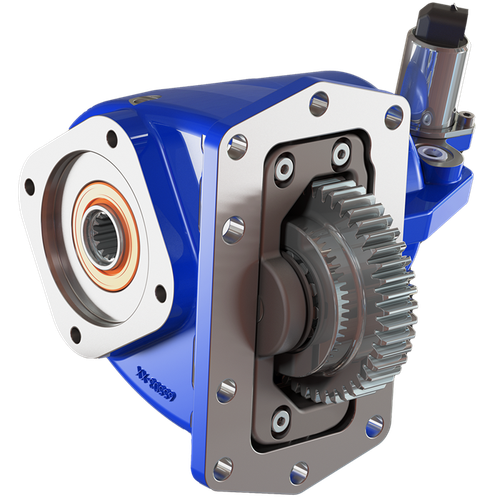

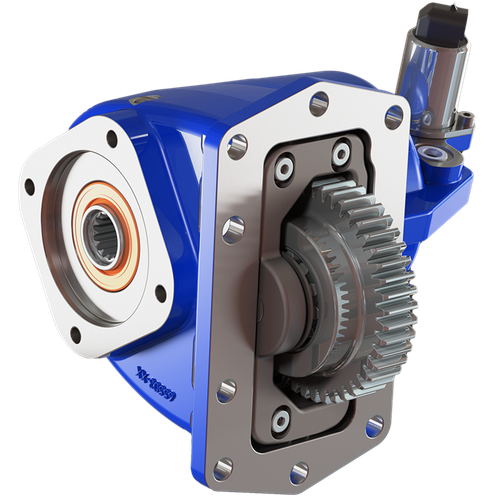

Start with the full model number on your PTO. An F20 model number reads: F20, the F13 gear for the Ford 10R140, the 12 speed ratio, then the shift type, assembly arrangement 5, the output and the operating mode. For example, F20-F1312-GX51XPB is a gas engine standard unit with a round shaft and dual mode operation.

For repairs, use our Muncie F20 Series parts list and service manual or shop all Muncie PTO parts. Compare the F20 with the Muncie FR6Q Series and the Chelsea 210 Series, or browse all Muncie PTO series. Not sure which unit fits? Call us toll free at (877) 776-4600 and we will match a PTO to your transmission and application.
