Spicer CM5552-A Parts Manual
Drive Gear Group - Input
Item B-10Item A-7Item B-2Item B-3Item B-4Item B-5Item A-3Item B-6Item A-4Item B-7Item A-5Item B-8Item B-11Item B-10AItem B-12Item B-24Item B-13Item B-23Item B-14Item B-15Item B-13Item B-20Item B-16Item A-3Item A-2Item B-16AItem B-19Item B-18Item B-17Item B-1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | 550930 | Cone - Main Drive Gear Bearing | 2 | $64.20 | Add to Cart | |
| A-3 | 550929 | Cup - Main Drive Gear Bearing | 2 | $28.81 | Add to Cart | |
| A-4 | 47-468-2 | Baffle Oil Ring Drive Gear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | |
| A-5 | 47-228-2 | -2 • Spacer/Shim - Drive Gear Bearing | 1 | Call for availability | ||
| A-6 | 47-468-1 | • Baffle Bearing Cap | 1 | $3.55 | Add to Cart | |
| A-7 | 550931 | Cone Drive Gear Pocket Bearing | $34.78 | Add to Cart | ||
| • Included | IN313240-3X | Kit. | Call for availability |
Mainshaft Group - Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 53-362-3 | Mainshaft (2 .00 " -40 Fine Spline) | 1 | $571.08 | Add to Cart | |
| B-1 | 53-362-8 | Main Shaft (1 3/4" 10 Spline Industrial) | 1 | Call for availability | ||
| B-2 | 53-8-9 | Gear-1 St Speed (42T) | 1 | Call for availability | ||
| B-3 | 550932 | Bearing - 1st & Rev. Gear Needle Assy. | 2 | $40.03 | Add to Cart | |
| B-4 | 330866 | Thrust Washer - 1st Speed Gear | 1 | Call for availability | ||
| B-5 | 27-381-5 | Snap Ring - 1st Speed Thrust Washer | $3.07 | Add to Cart | ||
| B-6 | 53-8-10 | Gear- 2nd Speed (36T) 5552A,5552D ,5852A (Before Sin 2741653) | 1 | $354.67 | Add to Cart | |
| B-6 | 53-8-24 | Gear- 2nd Speed (36T) 5552A,5552D ,5852A (Start & After Sin 2741653) | 1 | Call for availability | ||
| B-6 | 53-8-12 | Gear- 2nd Speed (37T) 5552B ,5552C (Before Sin 2741653) | 1 | Call for availability | ||
| B-6 | 53-8-30 | Gear- 2nd Speed (37T) 5552B ,5552C (Start & After Sin 2741653) | 1 | Call for availability | ||
| B-7 | 59-482-1-1X | Bearing Kit- 2nd Speed Needle (Includes 61 Needles) | 1 | $18.84 | Add to Cart | |
| B-8 | 53-466-1 | Gear- 2nd & 3rd Clutch (18T) (Before Sin 2741653) | 1 | $143.40 | Add to Cart | |
| B-8 | 59-466-3 | Gear- 2nd & 3rd Clutch (40T) (Starting & After Sin 2741653) | 1 | $217.97 | Add to Cart | |
| B-9 | 46-381-1 | Snap Ring - 2nd & 3rd Clutch Gear | 1 | $4.22 | Add to Cart | |
| B-10 | 313459X | Synchronizer- 2nd & 3rd (18T) (Before Sin 2741653) | $242.59 | Add to Cart | ||
| B-10 | 313536X | Synchronizer- 2nd & 3rd (40T) (Starting & After Sin 2741653) | 1 | $1,039.90 | Add to Cart | |
| B-10A | 53-465-6 | Clutch Collar -(Less Synchronizer)( Before Sin 2741653) | 1 | Call for availability | ||
| B-10A | 59-465-1 | Clutch Collar- (Less Synch .)(Starting & After Sin 2741653) | 1 | Call for availability | ||
| B-11 | 53-8-16 | Gear- 3rd Speed (37T) 5552A (Before Sin 2741653) | Call for availability | |||
| B-11 | 53-8-28 | Gear- 3rd Speed (37T) 5552A (Starting & After Sin 2741653) | Call for availability | |||
| B-11 | 53-8-19 | Gear- 3rd Speed (40T) 5552B (Before Sin 2741653) | 1 | Call for availability | ||
| B-11 | 53-8-32 | Gear- 3rd Speed (40T) 5552B (Starting & After Sin 2741653) | 1 | Call for availability | ||
| B-11 | 53-8-18 | Gear- 3rd Speed (38T) 5552C (Before Sin 2741653) | 1 | Call for availability | ||
| B-11 | 53-8-34 | Gear- 3rd Speed (38T) 5552C (Starting & After Sin 2741653) | 1 | Call for availability | ||
| B-11 | 53-8-14 | Gear- 3rd Speed (35T) 5552D ,5852A (Before Sin 2741653) | 1 | Call for availability | ||
| B-11 | 53-8-26 | Gear - 3rd Speed (35T) 5552D ,5852A (Start & After Sin 2741653) | 1 | Call for availability | ||
| B-12 | 330818 | Thrust Washer- 3rd & 4th Speed | 1 | $35.44 | Superseded by 67471Add to Cart | |
| B-13 | 53-381-2 | Snap Ring - 3rd & 4th Thrust Washer | 2 | $6.40 | Add to Cart | |
| B-14 | 53-8-22 | Gear- 4th Speed (29T) 5552A,5552C | 1 | Call for availability | ||
| B-14 | 53-8-23 | Gear- 4th Speed (31T) 5552B | 1 | Call for availability | ||
| B-14 | 53-8-21 | Gear- 4th Speed (27T) 5552D ,5852A | 1 | Call for availability | ||
| B-15 | 1016-W | Thrust Washer- 4th Speed | 1 | $83.44 | Add to Cart | |
| B-16 | 313453X | Synchronizer- 4th & 5th Speed | 1 | $481.50 | Add to Cart | |
| B-16A | 53-466-3-1X | Clutch Gear - 4th & 5th (Used In Place Of Synchronizer) | $481.50 | Superseded by 313453XAdd to Cart | ||
| B-17 | 47-465-1 | Clutch Collar - 1st & Rev. | 1 | $215.92 | Add to Cart | |
| B-18 | 53-8-1 | Gear- Reverse (42T) | 1 | $403.79 | Add to Cart | |
| B-19 | 330867 | Thrust Washer- Reverse Gear | 1 | Call for availability | ||
| B-20 | 313240-3X | Spacer & Shim Kit (To Adjust Mainshaft End Play) | $33.38 | Add to Cart | ||
| B-20 | 53-37-1 | Spacer (Used In Place Of Speedometer Drive Gear) | Call for availability | |||
| B-23 | 53-205-1 | Washer- 1 1/4" Flat | 1 | $4.42 | Add to Cart | |
| B-24 | 501200 | N Ut- Mainshaft (1 1/4" -18 Hex) | 1 | $15.74 | Add to Cart |

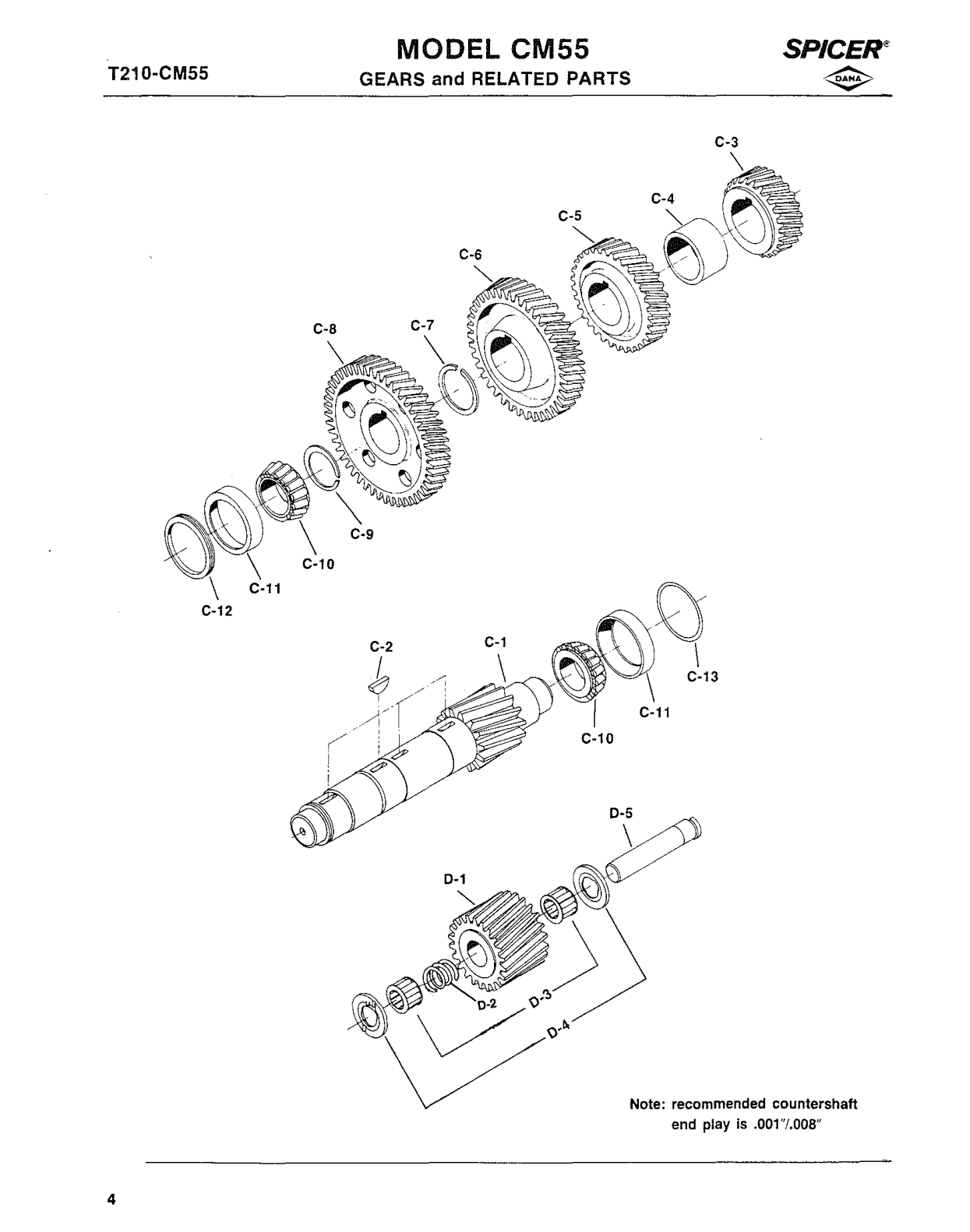

Countershaft Group
Item C-12Item C-2Item C-5Item C-10Item C-13Item C-11Item C-3Item C-4Item C-6Item C-8Item C-7Item C-9Item C-10Item C-11Item C-1Item D-5Item D-1Item D-2Item D-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 53-30-3 | Countershaft (12T) | $635.17 | Add to Cart | ||
| C-2 | 500008-37 | Woodruff Key | 4 | $2.76 | Add to Cart | |
| C-3 | 53-196-1 | Gear- 2nd Speed (1ST) 5552B ,5552C | Call for availability | |||
| C-3 | 53-196-3 | Gear- 2nd Speed (19T) 5552A,5552D ,5852A | $222.62 | Add to Cart | ||
| C-4 | 46-37-5 | Spacer - 2nd & 3rd Speed Gear | 1 | Call for availability | ||
| C-5 | 46-196-13 | Gear - 3rd Speed (32T) 5552A | Call for availability | |||
| C-5 | 46-196-29 | Gear - 3rd Speed (30T) 5552B | 1 | Call for availability | ||
| C-5 | 46-196-21 | Gear- 3rd Speed (31T) 5552C | 1 | Call for availability | ||
| C-5 | 46-196-17 | Gear- 3rd Speed (34T) 5552D ,5852A | Call for availability | |||
| C-6 | 46-196-38 | Gear- 4th Speed (41T) 5552A,5552C | Call for availability | |||
| C-6 | 46-196-35 | Gear- 4th Speed (39T) 5552B | 1 | Call for availability | ||
| C-6 | 46-196-40 | Gear- 4th Speed (43T) 5552D ,5852A | 1 | No longer available - Call for replacement | ||
| C-7 | 82-381-1 | Snap Ring - 4th Speed Gear | $2.46 | Add to Cart | ||
| C-8 | 47-1-1 | Gear- Countershaft Drive (47T) 5552A,5552B ,5552C ,5552D | 1 | $347.80 | Add to Cart | |
| C-8 | 47-1-3 | Gear- Countershaft Drive (45T) 5852A | Call for availability | |||
| C-9 | 46-381-1 | Snap Ring - Countershaft Drive Gear | $4.22 | Add to Cart | ||
| C-10 | 550927 | Bearing -Cone Countershaft | 2 | $32.85 | Add to Cart | |
| C-11 | 550375 | Bearing - Cup Countershaft | 2 | $17.99 | Add to Cart | |
| C-12 | 47-37-3 | Spacer - Front Bearing Countershaft | 1 | Call for availability | ||
| C-13 | 47-228-3 | Shim - Countershaft Rear Bearing ( .005 " Thick) | A/R | Call for availability |
Reverse Idler Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 59-5-1 | Gear- Reverse Idler | Call for availability | |||
| D-2 | 97-37-1 | Spacer- Reverse Idler Bearing | 1 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing - Roller Reverse Idler | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Thrust Washer | 2 | $41.88 | Add to Cart | |
| D-5 | 63-60-1 | Shaft - Reverse Idler | $33.08 | Add to Cart |
Companion Flanges and End Yokes
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 53-106-1 | Companion Flange - 1480/1550 Series, 8" Flange Dia., M-6 7/16" Pilot (9x3 Or 12x4 Brake) | 1 | Call for availability | |||
| 53-106-2 | Companion Flange - 1480/1550 Series, Rectangular, F-3 3/4" Pilot (Air Brake) | 1 | Call for availability | |||
| 4-1-6041 | Companion Flange - 1480/1550 Series (Gmc, 9x3 Brake) | 1 | Call for availability | |||
| 4-1-6051X | Companion Flange Assembly - 1480/1550 Series, Includes Bolts (Gmc, 9x3 Brake) | 1 | Call for availability | |||
| 5-1-6321 | Companion Flange - 1610 Series, 6 7/8" Flange Dia., F-6 5/8" Pilot (Air Brake) | 1 | Call for availability | |||
| 6-1-5751 | Companion Flange - 1710 Series (Air Brake) | 1 | Call for availability | |||
| 3-4-8781 | End Yoke - 1480 Series, U-Bolt (Air Brake, Navistar/GM) | 1 | Call for availability | |||
| 3-4-8931-2 | End Yoke - 1480 Series, Bearing Strap, Thru Holes (Air Brake, Ford Only) | 1 | Call for availability | |||
| 4-4-4491 | End Yoke - 1550 Series, U-Bolt (Air Brake, Navistar/GM) | 1 | Call for availability | |||
| 4-4-4491-1 | End Yoke - 1550 Series, Bearing Strap, Tapped Holes (Air Brake, Navistar/GM) | 1 | Call for availability | |||
| 4-4-4491-2 | End Yoke - 1550 Series, Bearing Strap, Thru Holes (Air Brake, Ford Only) | 1 | Call for availability | |||
| 4-4-4591 | Flange Yoke - 1550 Series, Full Round (10x3 Brake, Ford Only) | 1 | Call for availability | |||
| 4-4-4601 | Flange Yoke - 1550 Series, U-Bolt (12x4 Brake, Ford Only) | 1 | Call for availability | |||
| 4-4-4611 | End Yoke - 1550 Series, U-Bolt (Air Brake, Ford Only) | 1 | Call for availability | |||
| 4-4-4611-1 | End Yoke - 1550 Series, Bearing Strap, Tapped Holes (Air Brake, Ford Only) | 1 | Call for availability | |||
| 4-4-4611-2 | End Yoke - 1550 Series, Bearing Strap, Thru Holes (Air Brake, Ford Only) | 1 | Call for availability | |||
| 4-4-6111-1X | End Yoke Assembly - 1550 Series, Half Round, Includes Brake Drum (12x4 Brake, Navistar) | 1 | Call for availability | |||
| 5-4-6321 | End Yoke - 1610 Series, Full Round (Air Brake, Navistar/GM) | 1 | Call for availability | |||
| 5-4-6321-1 | End Yoke - 1610 Series, Half Round (Air Brake, Navistar/GM) | 1 | Call for availability | |||
| 5-4-6481 | End Yoke - 1610 Series, Full Round (Air Brake, Ford Only) | 1 | Call for availability | |||
| 5-4-6481-1 | End Yoke - 1610 Series, Half Round (Air Brake, Ford Only) | 1 | Call for availability | |||
| 5-4-6491 | Flange Yoke - 1610 Series, Full Round (12x4 Brake, Ford Only) | 1 | Call for availability | |||
| 5-4-7611-1X | End Yoke Assembly - 1610 Series, Half Round, Includes Brake Drum (12x4 Brake, Navistar) | 1 | Call for availability | |||
| 6-4-7301 | End Yoke - 1710 Series, Full Round (Air Brake, Navistar/GM) | 1 | Call for availability | |||
| 6-4-7301-1 | End Yoke - 1710 Series, Half Round (Air Brake, Navistar/GM) | 1 | Call for availability |
Clutch Housing Group
Item E-3Item E-1Item G-16Item E-8Item G-8Item G-10Item G-2Item G-7Item G-11Item G-12Item G-5Item G-3Item F-3Item F-4Item G-6Item F-1Item G-15Item F-5Item F-3Item E-6Item E-7Item E-3Item E-2Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 47-352-1 | Gasket | 1 | $12.59 | Add to Cart | |
| E-3 | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S | 128C-20 | Bushing (312256X & 312830)() | 2 | $8.55 | Add to Cart | |
| E-4 | 46-96-2-1X | Hand Hole Cover Assy. | 1 | $44.01 | Add to Cart | |
| E-4 | 47-96-1-1X | Hand Hole Cover Assy. (Used For 47 -518 -4 -1 X Only) | 1 | Call for availability | ||
| E-4 | 545001 | Size 1/2 " -13 X 1 1/4 | version * (see the manual's footnote) | Call for availability | ||
| E-4 | 545001-1 | Size 1/2 " -13 X 1 3/8 | version * (see the manual's footnote) | Call for availability | ||
| E-4 | 545001-5 | Size1/2 " -1 3x1 1/8 | version * (see the manual's footnote) | Call for availability | ||
| E-4 | 545001-6 | Size 1/2 " -13 X 1 5/8 | version * (see the manual's footnote) | Call for availability | ||
| E-6 | 47-223-5 | Gasket - Countershaft Front Bearing Cap | 1 | Call for availability | ||
| E-7 | 60-22-28 | Cap - Countershaft Front Bearing | 1 | Call for availability | ||
| E-8 | 330801-1 | Bolt -7/1 6 " -14 X 7/8 " Hex Head Self-Locking | 4 | $2.67 | Add to Cart |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 47-223-1 | Gasket | $6.27 | Add to Cart | ||
| F-3 | Cap Drive Gear Bearing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-4 | 60-463-10-1X | Oil Seal - (Includes Installation Sleeves) | $37.74 | Add to Cart | ||
| F-5 | 545002-1 | Bolt- 3/8 " -16 X 7/8 " Hex Head Self-Locking | 4 | $2.23 | Add to Cart |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-3 | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| N .S | NP-196 | Patent Plate | $2.97 | Add to Cart | ||
| G-4 | 252-SP | Pin - Nameplate | 4 | $1.90 | Add to Cart | |
| G-5 | 500100 | Filler Plug | 1 | Call for availability | ||
| G-6 | 62-39-3 | Drain Plug - Magnetic Square Head | 1 | $9.27 | Add to Cart | |
| G-6 | 62-39-4 | Drain Plug - Magnetic Recessed Head | 1 | $9.50 | Add to Cart | |
| G-7 | 545002-10 | Bolt- 3/8 " -16 X 1/2 " Hex Head (Left Hand Side) | 2 | Call for availability | ||
| G-8 | 330923 | Oil Trough | Call for availability | |||
| G-9 | 545009 | Bolt- 5/16 " -18 X 5/8 " Flanged Head Self-Locking | 1 | Call for availability | ||
| G-10 | 307-D | Plug - 1/2 " -13 X 1/2 " Hex Head | 2 | Call for availability | ||
| and | 266-D | Plug - 5/8 " -1 1 X 7/16 " Hex Head | 2 | Call for availability | ||
| N .S | 545089-1 | Plug 9/16 " -12 X 3/4 " Hex Head Brake Anchor Bar | 6 | $1.67 | Add to Cart | |
| G-11 | 97-324-2 | Gasket- 8 Bolt P .T .O Aperture Cover | 1 | $6.27 | Add to Cart | |
| G-12 | 73-267-1 | Cover- 8 Bolt P .T .O Aperture | 1 | $160.99 | Add to Cart | |
| G-13 | 545012 | Bolt- 7/16 " -14 X 3/4 " Flanged Hex Head Self-Locking | 8 | $3.23 | Add to Cart | |
| G-14 | 97-324-1 | Gasket- 6 Bolt P .T .O Aperture Cover | 1 | $3.91 | Add to Cart | |
| G-15 | 50-267-2 | Cover-: 6 Bolt P .T .O Aperture | 1 | $122.97 | Add to Cart | |
| G-16 | 330800 | Bolt- 3/8 " -16 X 3/4 " Hex Head Self-Locking | 6 | Call for availability |
Mainshaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 60-463-8 | Oil Seal - Mainshaft Rear Bearing Cap | 1 | $18.84 | Add to Cart | |
| H-2 | 63-463-1 | Oil Seal - (Ford Only) | 1 | $28.23 | Add to Cart | |
| H-3 | Cap Mainshaft Rear Bearing | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| H-5 | 47-223-3 | Gasket- Mainshaft Rear Bearing Cap | 1 | $5.49 | Add to Cart | |
| H-5 | 53-223-1 | Gasket- (Navistar Bendix Brake Mounting) | 1 | Call for availability | ||
| H-5 | 63-223-7 | Gasket- (Ford Only) | 1 | Call for availability | ||
| H-6 | 545001 | Bolt- 1/2 " -13 X 1 1/4 " Hex Head Self-Locking | 4 | $2.49 | Add to Cart | |
| and | 545008 | Bolt- 5/8 " -1 1 X 1 1/4 " Hex Head Self-Locking (For Brake Cap) | 2 | Call for availability | ||
| and | 55-334-1 | Plug - Speedometer Hole (Use When No Driven Gear) | 1 | $88.44 | Add to Cart | |
| H-8 | 55-454-1 | Sleeve - 1 1/4 " Long Speedo Driven Gear | No longer available - Call for replacement | |||
| H-8 | 44-473-1 | Sleeve - 5 " Long Speedo Driven Gear | Call for availability | |||
| H-8 | 97-454-2-1X | Sleeve - 1 1/4 " Long Speedo Driven Gear (With Seal) | $34.11 | Add to Cart |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 59-22-1 | Cap - Countershaft Rear Bearing | 1 | Call for availability | ||
| J-1A | 47-22-3 | Cap - Countershaft Rear Bearing | 1 | Call for availability | ||
| J-2 | 545001 | Bolt- 1/2 -13 X 1 1/4 " Hex Head Self-Locking | 4 | $2.49 | Add to Cart | |
| N .S | 47-223-2 | Gasket- Countershaft Rear Brg Cap (Use With 47 -22 -3 Cap) | 1 | Call for availability | ||
| K-2 | 330564-3 | Lift Hook - Countershaft Rear Bearing Cap | 1 | $3.15 | Add to Cart | |
| K-2 | 330564-1 | Lift Hook- Countershaft Rear Bearing Cap | $3.15 | Add to Cart | ||
| K-2 | 53-452-2 | (5 Teeth) Supplied By OEM Navistar Only | Call for availability | |||
| K-2 | 53-452-3 | (5 Teeth)' 62 -453-4 (15 Teeth) 3 : 1 Gmc Only | Call for availability | |||
| K-2 | 53-452-4 | (4 Teeth)' 53-453-2 (12 Teeth) 3 : 1 Rvi & Mack | Call for availability | |||
| K-2 | 53-452-5 | (Electronic)' • Not Required Navistar | Call for availability | |||
| K-2 | 53-452-6 | (Electronic)' • Not Required Ford Only | Call for availability | |||
| K-2 | 97-454-2 | -1X (With Oil Seal) (See H -8 Page 10) | Call for availability | |||
| K-2 | 53-452 | -5 & 53-452 -6 Both Have (16) Grooves. | Call for availability |
Clutch Housing Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-2 | 46-518-13-1X | Clutch Housing Assembly - SAE 2, Casting C46-518-14 (Nodal Mount), Use Bolt 545001-5 | 1 | Call for availability | ||
| E-2 | 46-518-21-1X | Clutch Housing Assembly - SAE 3, Casting C102C-477, Use Bolt 545001-5 | 1 | Call for availability | ||
| E-2 | 46-518-22-1X | Clutch Housing Assembly - SAE 2, Casting C102C-530-1, Use Bolt 545001-5 | 1 | Call for availability | ||
| E-2 | 46-518-23 | Clutch Housing Assembly - SAE 2, Casting C46-518-18-1, Use Bolt 545001 | 1 | Call for availability | ||
| E-2 | 47-518-4-1X | Clutch Housing Assembly - SAE 2, Special Casting, Use Bolt 545001-1 | 1 | No longer available - Call for replacement | ||
| E-2 | 47-518-5 | Clutch Housing Assembly - SAE 2, Casting C47-518-6, Use Bolt 545001-6 | 1 | Call for availability | ||
| E-2 | 47-518-10-1X | Clutch Housing Assembly - SAE 2, Casting C47-518-11, Use Bolt 545001-5 | 1 | Call for availability | ||
| E-2 | 312256X | Clutch Housing Assembly - SAE 2, Casting C46-518-16, Bushing 128C-20 (Nodal Mount), Use Bolt 545001-5 | 1 | Call for availability | ||
| E-2 | 312830X | Clutch Housing Assembly - SAE 2, Casting C102C-530-1, Bushing 128C-20, Use Bolt 545001-5 | 1 | Call for availability | ||
| 128C-20 | Bushing - Clutch Release Shaft Hole (312256X And 312830X Housings) | 2 | $8.55 | Add to Cart |
Shifter Housing Assembly
Item R-18Item R-8Item R-2Item R-6Item R-9Item R-10Item R-1Item R-14Item R-12Item R-15Item R-22Item R-23Item R-21Item K-3Item K-2Item R-20Item R-19Item R-25Item R-8Item K-1Item R-17Item R-5Item R-7Item R-4Item R-11Item R-3Item R-9Item R-6Item R-13Item R-6Item R-16Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 47-16-1-1 | Shifter Housing | 1 | $450.25 | Add to Cart | |
| R-2 | 47-67-1 | Rod - 1 St And Reverse Shift | 1 | $52.73 | Add to Cart | |
| R-3 | 59-66-1-1X | Fork & Clip Assy. - 1 St And Reverse Shift | 1 | No longer available - Call for replacement | ||
| R-4 | Fork- 1 St And Reverse Shift | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-5 | 46-486-2 | Clip - Shift Fork | 2 | $1.78 | Add to Cart | |
| R-6 | 330639 | Bolt- 3/8 " -24 X 3/4 " Square Head Self-Locking | 4 | $10.21 | Superseded by 745DAdd to Cart | |
| R-7 | 53-354-1 | Bracket- 1 St And Reverse Shift Rod | 1 | $243.80 | Add to Cart | |
| R-8 | 62-438-2 | Pin - 1 St And Reverse Shift Finger Plunger | 2 | $6.27 | Add to Cart | |
| R-9 | 50-80-1 | Ball - Shift Rod Poppet And Interlock | 4 | $2.70 | Add to Cart | |
| R-10 | 46-67-5 | Rod - 2nd And 3rd Shift | 1 | $78.92 | Add to Cart | |
| R-11 | 277-SP | Pin - Interlock | 1 | $1.93 | Add to Cart | |
| R-12 | 53-66-3-1X | Fork - 2nd And 3rd Shift | 1 | $398.71 | Superseded by 536632XAdd to Cart | |
| R-13 | Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-14 | 53-486-1 | Clip - Shift Fork | 2 | $12.30 | Add to Cart | |
| R-15 | 47-67-2 | Rod -4th And 5th Shift | 1 | $60.87 | Add to Cart | |
| R-16 | 53-66-1 | Fork - 4th And 5th Shift | 1 | $1,191.84 | Superseded by 536611XAdd to Cart | |
| R-17 | 545021 | Plug - Interlock | 1 | $18.89 | Add to Cart | |
| R-18 | 330894 | Expansion Plug - 3/4 " (Aluminum) | 3 | Call for availability | ||
| R-19 | 50-80-4 | Ball -Backup Switch | 2 | $7.01 | Add to Cart | |
| R-20 | 330366 | Plug - Backup Switch Hole | 1 | $15.51 | Add to Cart | |
| R-21 | 50-80-1 | Ball - Shift Rod Poppet | 3 | $2.70 | Add to Cart | |
| R-22 | 47-72-1 | Spring - Shift Rod Poppet | 3 | $3.15 | Add to Cart | |
| R-23 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| R-25 | 38P-1 | Retainer- Shift Finger Plunger 1 St And Reverse | 1 | Call for availability | ||
| K-1 | 47-155-1 | Gasket - Shifter Housing | 1 | $12.59 | Add to Cart | |
| K-2 | 330564-1 | Lift Hook - Shifter Housing | 2 | $3.15 | Add to Cart | |
| K-3 | 545002 | Bolt - 3/8 " -16 X 1 " Hex Head Self-Locking | 6 | $1.98 | Add to Cart | |
| and | 545002-4 | Bolt- 3/8 " -16 X 1 1/8 " Hex Head Self-Locking (For Lift Hook) | 2 | $6.93 | Add to Cart | |
| N .S | 313262X | 0 Neutral Start Switch Actuator Kit (See Tab Bills) | 1 | Call for availability |
Remote Control Assembly - High Rod Type
Item L-2Item L-1Item K-1Item L-15Item L-5Item L-10Item L-7Item L-8Item L-6Item L-9Item L-4Item L-12Item L-7Item L-13Item L-14Item K-2Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 47-16-8-1X | Cover Assembly (Casting No. 62-16-78) | 1 | Call for availability | |||
| 47-16-9-1X | Cover Assembly (Casting No. 62-16-78-1X) | 1 | Call for availability | |||
| 47-16-10-1X | Cover Assembly (Casting No. 62-16-96) | 1 | Call for availability | |||
| 311860X | Cover Assembly (Casting No. 62-19-96) | 1 | Call for availability | |||
| L-1 | Remote Control Cover | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N.S. | 82-24-3 | Bushing - Remote Control Cover | 4 | $21.66 | Add to Cart | |
| L-2 | 310647X | Shift Finger Rod And Bracket Assembly | 1 | Call for availability | ||
| L-2 | 310879X | Shift Finger Rod And Bracket Assembly | 1 | Call for availability | ||
| L-2 | 311661X | Shift Finger Rod And Bracket Assembly | 1 | Call for availability | ||
| L-3 | Rod - Shift Finger | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-4 | Bracket - Shift Finger Rod | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-5 | 500007-19 | Woodruff Key #11 | 1 | Call for availability | ||
| L-6 | 62-6-24 | Finger - Inner Shift | 1 | Call for availability | ||
| L-7 | 545011 | Bolt - 7/16"-20 X 7/8" Hex Head Self-Locking | 2 | $16.57 | Add to Cart | |
| L-7 | 545063 | Bolt - 7/16"-20 X 13/16" Square Head Self-Locking | 2 | $6.27 | Add to Cart | |
| L-8 | 82-65-5 | Rod - Remote Control Shift | 1 | $22.31 | Add to Cart | |
| L-8 | 82-65-22 | Rod - Remote Control Shift (Counter Sunk Spots At 90 Deg.) | 1 | Call for availability | ||
| L-9 | 82-6-7 | Finger - Outer Shift | 1 | $171.09 | Add to Cart | |
| L-10 | 28P-19 | Seal - Remote Control Shift Rod | 2 | Call for availability | ||
| L-11 | 10380-SF | U-Joint Assembly - Control | 1 | Call for availability | ||
| L-12 | 82-118-1 | Gasket - Aperture Cover | 1 | Call for availability | ||
| L-13 | 82-96-1 | Aperture Cover | 1 | Call for availability | ||
| L-14 | 545005-1 | Bolt - 5/16"-18 X 5/8" Hex Head Self-Locking | 4 | Call for availability | ||
| L-15 | 500166-16 | Expansion Plug - 1 1/16" | 1 | Call for availability | ||
| N.S. | 311903X | Boot Kit - Remote Control | 1 | Call for availability | ||
| N.S. | 82-483-1 | Boot | 1 | Call for availability | ||
| N.S. | 82-483-2 | Boot - Cup Type | 1 | Call for availability | ||
| N.S. | LW-3 | Lockwire | 3 | Call for availability | ||
| K-1 | 62-155-7 | Gasket - Shifter Housing To Control Cover (Not Included In Assembly) | 1 | $9.44 | Superseded by 6215513Add to Cart | |
| K-2 | 545028-4 | Bolt - 7/16"-14 X 1 1/4" Hex Head Self-Locking (Not Included In Assembly) | 4 | No longer available - Call for replacement |
Remote Control Assembly - Two Lever Type (cable or Rod Control)
Item L-18Item K-8Item L-16Item L-17Item L-20Item L-21Item L-23Item L-19Item L-28Item L-22Item L-27Item L-30Item L-31Item L-29Item L-27Item L-26Item L-30Item L-32Item K-4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 311528-7X | Remote Control Cover Assembly (See Tab Bills) | 1 | Call for availability | |||
| L-1 | 47-16-13 | Remote Control Cover | 1 | Call for availability | ||
| L-16 | 500007-17 | Woodruff Key #91 | 1 | Call for availability | ||
| L-17 | 62-65-26 | Shaft - Inner Shift Finger | 1 | Call for availability | ||
| L-18 | 62-6-30 | Shift Finger - Inner | 1 | Call for availability | ||
| L-19 | 545063 | Bolt - 7/16"-20 X 13/16" Hex Head Self-Locking | 1 | $6.27 | Add to Cart | |
| L-20 | 62-16-92 | End Cover - Remote Control | 1 | Call for availability | ||
| L-21 | 310926X | Cam And Stud Assembly - Selection Lever | 1 | Call for availability | ||
| L-22 | 62-6-59 | Lever - Upper Selection | 1 | Call for availability | ||
| L-23 | 500381-4 | Nut - 7/16"-20 | 1 | $2.11 | Add to Cart | |
| L-24 | 62-65-27 | Rod - Outer Shift Lever | 1 | Call for availability | ||
| L-25 | 47-6-1 | Lever - Outer Shift | 1 | Call for availability | ||
| L-26 | 545002-7 | Bolt - 3/8"-16 X 1 1/2" | 1 | $2.33 | Add to Cart | |
| L-27 | 258-W | Washer - Shift Lever Rod | 2 | Call for availability | ||
| L-28 | 62-381-13 | Snap Ring | 1 | Call for availability | ||
| L-29 | 62-155-11 | Gasket - End Cover | 1 | Call for availability | ||
| L-30 | 500357-10 | Lock Washer 5/16" | 1 | Call for availability | ||
| L-31 | 545005-2 | Bolt - 5/16"-18 X 7/8" | 2 | $1.66 | Add to Cart | |
| L-32 | 500397-22 | Bolt - 5/16"-18 X 2 1/2" | 1 | Call for availability | ||
| K-4 | 62-155-7 | Gasket - Shifter Housing To Control Cover (Not Included In Assembly) | 1 | $9.44 | Superseded by 6215513Add to Cart | |
| K-8 | 545028-4 | Bolt - 7/16"-14 X 1 1/4" Hex Head Self-Locking (Not Included In Assembly) | 4 | No longer available - Call for replacement |
Shift Lever and Dome Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 39Q-27 | Handle - Shift Lever | 1 | Call for availability | ||
| P-2 | 25Q-1121 | Shift Lever - 26 1/4" Straight | 1 | Call for availability | ||
| P-2 | 25Q-1122 | Shift Lever - 29 1/4" Straight | 1 | Call for availability | ||
| P-2 | 25Q-1621 | Shift Lever - 30" Straight | 1 | Call for availability | ||
| P-2 | 25Q-1537 | Shift Lever - 35" Straight | 1 | Call for availability | ||
| P-2 | 25Q-1896 | Shift Lever - 28" Bent | 1 | Call for availability | ||
| P-2 | 25Q-2075 | Shift Lever - 29 3/16" Bent | 1 | Call for availability | ||
| P-2 | 25Q-2163 | Shift Lever - 31 29/64" Bent | 1 | Call for availability | ||
| P-2 | 25Q-2330 | Shift Lever - Lower Lever, 5.20" Straight | 1 | Call for availability | ||
| P-2 | 25Q-2388 | Shift Lever - 24 5/8" Bent | 1 | Call for availability | ||
| P-2 | 25Q-2316 | Shift Lever - Lower Lever, 9 7/16" Straight | 1 | Call for availability | ||
| P-2 | 25Q2315 | Shift Lever - 26 1/4" Bent | 1 | Call for availability | ||
| N.S. | 55Q-5 | Grommet - Shift Lever (Boot) | 1 | Call for availability | ||
| N.S. | 55Q-14 | Grommet - Shift Lever (Boot) | 1 | Call for availability | ||
| 47-16-3X | Dome Assembly - 2 5/8" Overall Height | 1 | Call for availability | |||
| 47-16-4X | Dome Assembly - 3 5/32" Overall Height | 1 | Call for availability | |||
| 47-16-5X | Dome Assembly - 3 5/8" Overall Height | 1 | manual lists 47-16-5X - we stock the base part 47-16-5 | Call for availability | ||
| 47-16-7X | Dome Assembly - 5 5/32" Overall Height | 1 | Call for availability | |||
| 47-16-7-28X | Dome Assembly - 5 5/32" Overall Height | 1 | Call for availability | |||
| P-3 | 286-SP | Pin - Shift Lever Collar | 1 | $2.95 | Add to Cart | |
| P-4 | 55Q-7 | Collar - Compression | 1 | $3.15 | Add to Cart | |
| P-5 | 56Q-25 | Spring - Compression | 1 | $6.27 | Add to Cart | |
| P-6 | 54Q-13 | Cup - Compression | 1 | No longer available - Call for replacement | ||
| P-7 | 69Q-6 | Washer - Friction | 1 | Call for availability | ||
| P-8 | 47-16-3 | Dome - Shift Lever (C62-16-24-1) | 1 | Call for availability | ||
| P-8 | 47-16-4 | Dome - Shift Lever (C62-16-30-1) | 1 | Call for availability | ||
| P-8 | 47-16-5 | Dome - Shift Lever (C62-16-67) | 1 | $127.15 | Add to Cart | |
| P-8 | 47-16-7 | Dome - Shift Lever (C62-16-125) | 1 | Call for availability | ||
| P-9 | 62-381-7 | Snap Ring - Rock Shaft | 1 | $8.10 | Add to Cart | |
| P-10 | 53Q-15 | Shaft - Shift Lever Rock | 1 | $6.27 | Add to Cart | |
| N.S. | 500008-15 | Key - Shift Lever Upper End | 1 | Call for availability | ||
| N.S. | 500389-7 | Nut - Shift Lever Upper End | 1 | Call for availability | ||
| N.S. | 500024-7 | Cotter Pin - Upper Shift Lever | 1 | Call for availability | ||
| K-1 | 62-155-7 | Gasket - Dome To Shifter Housing (Not Included In Assembly) | 1 | $9.44 | Superseded by 6215513Add to Cart | |
| K-2 | 545028-4 | Screw - 7/16"-14 X 1 1/4" Hex Head Self-Locking (Not Included In Assembly) | 4 | No longer available - Call for replacement |
Clutch Release Parts - Shafts, Arms and Yokes
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| CR-1 | 106C-1071 | Clutch Release Shaft - Short, 4.062" | 1 | Call for availability | ||
| CR-1 | 106C-1141 | Clutch Release Shaft - Short, 5.125" | 1 | Call for availability | ||
| CR-1 | 106C-1142 | Clutch Release Shaft - Short, 6.125" | 1 | $29.93 | Add to Cart | |
| CR-1 | 106C-1185 | Clutch Release Shaft - Short, 5.750" | 1 | $17.75 | Add to Cart | |
| CR-1 | 106C-1216 | Clutch Release Shaft - Short, 4.750" | 1 | Call for availability | ||
| CR-1 | 106C-1278 | Clutch Release Shaft - Short, 4.812" | 1 | Call for availability | ||
| CR-1 | 106C-1360 | Clutch Release Shaft - Short, 5.312" | 1 | Call for availability | ||
| CR-1 | 106C-1498 | Clutch Release Shaft - Short, 6.500" | 1 | $19.52 | Add to Cart | |
| CR-1 | 106C-1544 | Clutch Release Shaft - Short, 7.000" | 1 | Call for availability | ||
| CR-1 | 330601-1 | Clutch Release Shaft - Short, 6.250" | 1 | $17.31 | Add to Cart | |
| CR-2 | 106C-438 | Clutch Release Shaft - Long, Type RS-5, 14.000" | 1 | Call for availability | ||
| CR-2 | 106C-588 | Clutch Release Shaft - Long, Type RS-5, 7.000" | 1 | Call for availability | ||
| CR-2 | 106C-617 | Clutch Release Shaft - Long, Type RS-8, 10.469" | 1 | $92.99 | Add to Cart | |
| CR-2 | 106C-839 | Clutch Release Shaft - Long, Type RS-8, 11.469" | 1 | Call for availability | ||
| CR-2 | 106C-939 | Clutch Release Shaft - Long, Type RS-8, 10.000" | 1 | $53.44 | Add to Cart | |
| CR-2 | 106C-953 | Clutch Release Shaft - Long, Type RS-8, 9.750" | 1 | Call for availability | ||
| CR-2 | 106C-959 | Clutch Release Shaft - Long, Type RS-8, 11.968" | 1 | Call for availability | ||
| CR-2 | 106C-960 | Clutch Release Shaft - Long, Type RS-8, 8.719" | 1 | Call for availability | ||
| CR-2 | 106C-1046 | Clutch Release Shaft - Long, Type RS-8, 8.968" | 1 | $76.21 | Add to Cart | |
| CR-2 | 106C-1047 | Clutch Release Shaft - Long, Type RS-8, 9.469" | 1 | $40.85 | Add to Cart | |
| CR-2 | 106C-1083 | Clutch Release Shaft - Long, Type RS-8, 7.969" | 1 | Call for availability | ||
| CR-2 | 106C-1094 | Clutch Release Shaft - Long, Type RS-8, 8.469" | 1 | $66.58 | Add to Cart | |
| CR-2 | 106C-1123 | Clutch Release Shaft - Long, Type RS-8, 12.968" | 1 | Call for availability | ||
| CR-2 | 106C-1169 | Clutch Release Shaft - Long, Type RS-8, 9.125" | 1 | Call for availability | ||
| CR-2 | 106C-1315 | Clutch Release Shaft - Long, Type RS-8, 7.625" | 1 | Call for availability | ||
| CR-2 | 106C-1367 | Clutch Release Shaft - Long, Type RS-8, 10.312" | 1 | Call for availability | ||
| CR-2 | 106C-1375 | Clutch Release Shaft - Long, Type RS-8, 6.781" | 1 | Call for availability | ||
| CR-2 | 106C-1417 | Clutch Release Shaft - Long, Type RS-8, 7.250" | 1 | Call for availability | ||
| CR-2 | 106C-1422 | Clutch Release Shaft - Long, Type RS-8, 7.500" | 1 | Call for availability | ||
| CR-2 | 106C-1490 | Clutch Release Shaft - Long, Type RS-8, 16.000" | 1 | Call for availability | ||
| CR-2 | 106C-1515 | Clutch Release Shaft - Long, Type RS-5, 11.375" | 1 | Call for availability | ||
| CR-2 | 106C-1529 | Clutch Release Shaft - Long, Type RS-5, 8.312" | 1 | Call for availability | ||
| CR-2 | 330610-5 | Clutch Release Shaft - Long, Type RS-8, 9.469" | 1 | $80.92 | Add to Cart | |
| CR-2 | 330610-11 | Clutch Release Shaft - Long, Type RS-8, 10.750" | 1 | Call for availability | ||
| CR-2 | 46-510-9 | Clutch Release Shaft - Long, Type RS-5, 7.125" | 1 | Call for availability | ||
| CR-2 | 330610-10 | Clutch Release Shaft - Long, Type RS-8, 9.500" | 1 | $88.67 | Add to Cart | |
| CR-6 | 310233X | Pedal Adjusting Arm - Left Side Mounting | 1 | Call for availability | ||
| CR-6 | 310473X | Pedal Adjusting Arm - Right Side Mounting | 1 | Call for availability | ||
| CR-6 | 47-526-1-1X | Pedal Adjusting Arm - Lever Type 7 1/4" (Either Side) | 1 | Call for availability | ||
| CR-6 | 310873X | Pedal Adjusting Arm - Lever Type 7 1/4" (Either Side) | 1 | Call for availability | ||
| 106C-1566 | Thru Shaft (Push Type Clutch) - Splined, 19.125" | 1 | Call for availability | |||
| 106C-1550 | Thru Shaft (Push Type Clutch) - Keyed, 16.375" | 1 | Call for availability | |||
| 106C-1558 | Thru Shaft (Push Type Clutch) - Keyed, 19.000" | 1 | Call for availability | |||
| 106C-1578 | Thru Shaft (Push Type Clutch) - Splined, 19.500" | 1 | Call for availability | |||
| 49-510-1 | Thru Shaft (Push Type Clutch) - Keyed, 19.120" | 1 | Call for availability | |||
| 97-510-2 | Thru Shaft (Push Type Clutch) - Splined, 19.313" | 1 | Call for availability | |||
| CR-7 | 105C-64 | Clutch Release Yoke - Spicer 15 1/2" SP, Pull Type | 1 | Call for availability | ||
| CR-7 | 105C-68 | Clutch Release Yoke - Spicer 14" SP, Pull Type | 1 | Call for availability | ||
| CR-7 | 105C-117 | Clutch Release Yoke - Spicer And Others, Push Type | 1 | Call for availability | ||
| CR-7 | 105C-124 | Clutch Release Yoke - Spicer AL And AR, Push Type (Use 7743X Bearing) | 1 | Call for availability | ||
| CR-7 | 105C-132 | Clutch Release Yoke - Spicer And Others, Push Type | 1 | Call for availability | ||
| CR-7 | 105C-137 | Clutch Release Yoke - Spicer 15 1/2" And 14" 2P, Pull Type | 1 | $54.53 | Add to Cart | |
| CR-7 | 85-509-3 | Clutch Release Yoke - Spicer And Others, Push Type | 1 | Call for availability | ||
| 10-30 | Key - Clutch Release Yoke Attaching | 1 | $8.04 | Add to Cart | ||
| 330231 | Screw - Clutch Release Yoke Attaching | 2 | $3.15 | Add to Cart | ||
| 500356-12 | Lock Washer - Clutch Release Yoke Attaching | 2 | $2.43 | Add to Cart | ||
| 7743X | Clutch Release Bearing (With 105C-124 Yoke) | 1 | Call for availability | |||
| 2306-12 | Spring - Clutch Release Bearing (With 105C-124 Yoke) | 2 | Call for availability |
Major Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T21O-CM55 | Basic Overhaul Kits | Call for availability | ||||
| 313400-45X | Major Overhaul Kit | 1 | $723.59 | Superseded by 554001XAdd to Cart | ||
| 500008-37 | Woodruff Key- #F | 4 | $2.76 | Add to Cart | ||
| 53-205-1 | Washer- Mainshaft | 1 | $4.42 | Add to Cart | ||
| 501200 | Nut - Mainshaft | 1 | $15.74 | Add to Cart | ||
| 313401-13X | Thrust Washer Kit | 1 | $169.55 | Add to Cart | ||
| 313429-6X | Shifter Housing Repair Parts Kit | 1 | Call for availability | |||
| 313432-10X | Minor Overhaul Kit | 1 | $428.87 | Add to Cart |
Minor Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313432-10X | Minor Overhaul Kit | 1 | $428.87 | Add to Cart | ||
| 550375 | Countershaft - Cup | 2 | Call for availability | |||
| 550927 | Countershaft - Cone | 2 | Call for availability | |||
| 550886 | Reverse Idler Shaft | 2 | Call for availability | |||
| 550929 | Drive Gear And Mainshaft Rear- Cup | 2 | $28.81 | Add to Cart | ||
| 550930 | Drive Gear And Mainshaft Rear - Cone | 2 | $64.20 | Add to Cart | ||
| 550931 | Drive Gear - Pocket | 1 | $34.78 | Add to Cart | ||
| 550932 | 1 St And Reverse Mainshaft Needle Bearing Assy. | 2 | $40.03 | Add to Cart | ||
| 59-482-1-1X | Needle Roller Bearing And Spacer Kit | 1 | $18.84 | Add to Cart | ||
| 60-463-8 | Oil Seal - Mainshaft Rear | 1 | $18.84 | Add to Cart | ||
| 60-463-10-1X | Oil Seal - Drive Gear | 1 | $37.74 | Add to Cart | ||
| 63-463-1 | Oil Seal - Mainshaft Rear (Ford Only) | 1 | $28.23 | Add to Cart | ||
| 46-463-8 | Oil Seal - Mainshaft Rear Bearing Cap | 1 | $17.87 | Add to Cart | ||
| 545007 | Bearing Lubricant | Call for availability | ||||
| 545008-1 | Loctite | 1 | Call for availability | |||
| 2770 | Bearing Lube Instructions | 1 | Call for availability | |||
| 2783 | Loctite Application Instructions Tor Mainshaft Nut | 1 | Call for availability | |||
| 2734 | Bulletin For Thrust Washer Installation | 1 | Call for availability | |||
| 2759 | Bulletin For Drive Gear Replacement | 1 | Call for availability | |||
| 312475-28X | Gasket Kit | 1 | $72.07 | Add to Cart | ||
| 313024-13X | Snap Ring Kit | 1 | Call for availability | |||
| 313240-3X | Baffle And Shim Kit - Drive Gear | 1 | $33.38 | Add to Cart | ||
| 313438X | Shim Kit - Countershaft Rear | 1 | $6.73 | Add to Cart | ||
| 2355 | Service Manual | 1 | Call for availability |
Basic Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313429-6X | Shifter Housing Repair Parts Kit | 1 | Call for availability | |||
| 266-SP | Interlock Pin | 1 | Call for availability | |||
| 50-80-1 | Ball - Shift Rod Poppet And Interlock | 7 | $2.70 | Add to Cart | ||
| 50-80-4 | Ball - Backup Switch | 2 | $7.01 | Add to Cart | ||
| 62-438-2 | Plunger - 1 St And Reverse | 2 | Call for availability | |||
| 47-72-1 | Spring - Shift Rod Poppet | 3 | $3.15 | Add to Cart | ||
| 62-72-8 | Spring - Shift Finger Plunger 1 St And Reverse | No longer available - Call for replacement | ||||
| 312475-28X | Gasket Kit | 1 | $72.07 | Add to Cart | ||
| 82-118-1 | Remote Control - Aperture Cover | 1 | Call for availability | |||
| 47-155-1 | Shifter Housing | 1 | Call for availability | |||
| 62-155-7 | Control Cover | 1 | $9.44 | Superseded by 6215513Add to Cart | ||
| 47-223-1 | Drive Gear Bearing Cap | $6.27 | Add to Cart | |||
| 47-223-2 | Countershaft Rear Bearing Cap | Call for availability | ||||
| 47-223-3 | Mainshaft Rear Bearing Cap | 1 | $5.49 | Add to Cart | ||
| 47-223-4 | Mainshaft Rear Bearing Cap - For Brake Mounting | 1 | Call for availability | |||
| 47-223-5 | Countershaft Front Bearing Cap | 1 | Call for availability | |||
| 53-223-1 | Mainshaft Rear Bearing Cap - For Brake Mounting | 1 | Call for availability | |||
| 63-223-7 | Mainshaft Rear Bearing Cap -For Ford Only | 1 | Call for availability | |||
| 47-352-1 | Clutch Housing | 1 | $12.59 | Add to Cart | ||
| 97-324-1-1X | P .T .O (6 Holes) Kit | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | Call for availability | ||
| 97-324-2-1X | P .T .O (8 Holes) Kit | manual lists 97-324-2-1X - we stock the base part 97-324-2 | Call for availability | |||
| 313024-13X | Snap Ring Kit | 1 | Call for availability | |||
| 27-381-5 | Mainshaft | 2 | Call for availability | |||
| 46-381-1 | Countershaft And Mainshaft | 2 | Call for availability | |||
| 53-381-2 | Mainshaft | 2 | Call for availability | |||
| 82-381-1 | Countershaft | Call for availability | ||||
| 46-381-2 | Mainshaft - 3rd And 4th Speed Gear | $6.73 | Add to Cart | |||
| 313240-3X | Baffle And Shim Kit - Mainshaft | 1 | $33.38 | Add to Cart | ||
| 47-228-1-1 | Adjusting Shim - Mainshaft Rear | 9 | $3.40 | Add to Cart | ||
| 47-228-2-2 | Shim - Mainshaft Front | 1 | Call for availability | |||
| 47-228-2-10 | Spacer - Mainshaft Rear | $33.38 | Superseded by 3132403XAdd to Cart | |||
| 47-468-1 | Baffle - Bearing Cap Front | $3.55 | Add to Cart | |||
| 47-468-2 | Baffle - Oil Ring Drive Gear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | ||
| 2789 | Bulletin - Baffle And Shim Kit | 1 | Call for availability | |||
| 313438X | Shim Kit - Countershaft Rear | 1 | $6.73 | Add to Cart | ||
| 47-228-3-1 | Shim - Rear Bearing | 4 | Call for availability | |||
| 2759 | Bulletin - Drive Gear Replacement | 1 | Call for availability |
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission CM5552-A, with every part in the manual matched to our live inventory. We stock 142 of the 410 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the CM5552-A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | CM5552-A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 80 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
