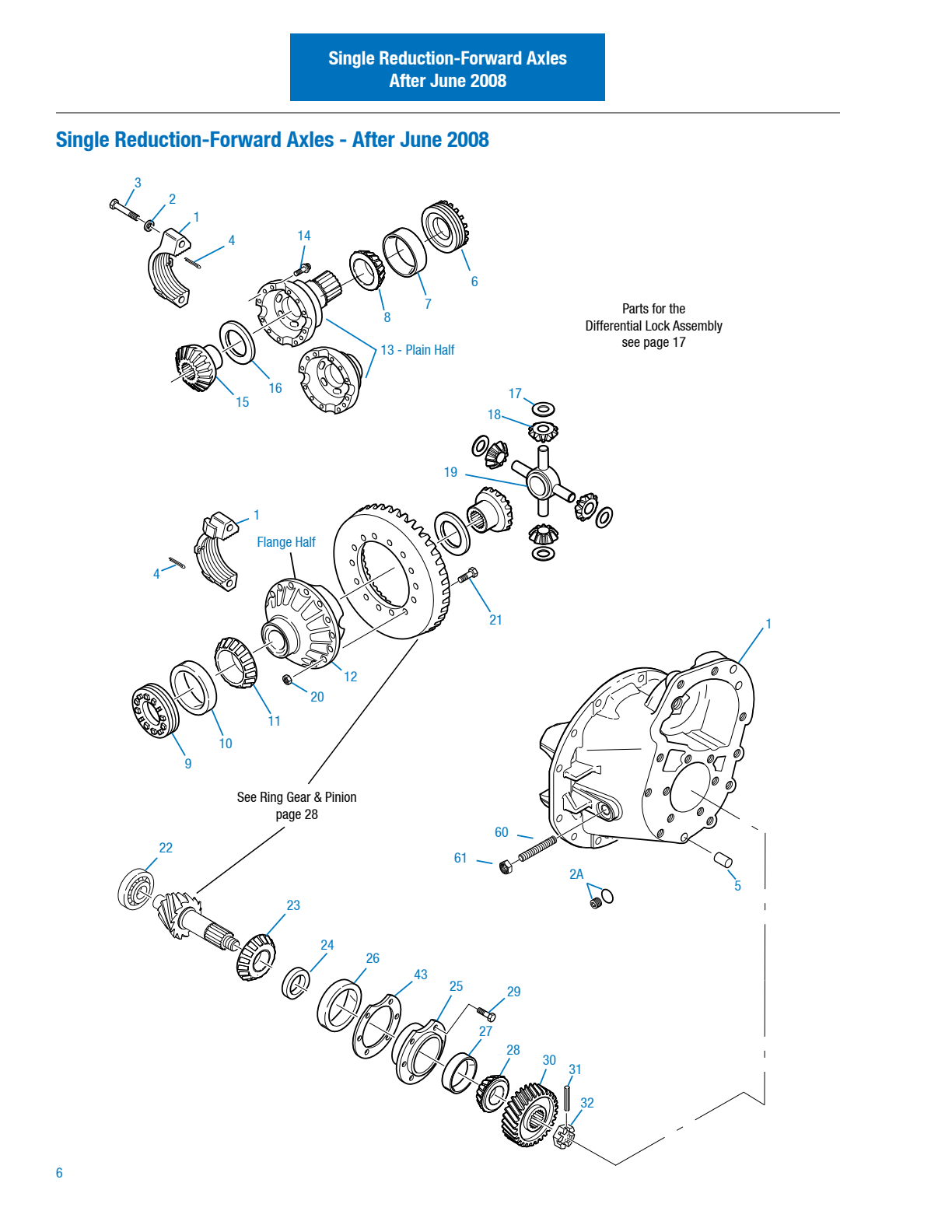

Dana Spicer DSP41 Single Reduction Drive Axle Parts Manual
Single Reduction-Forward Axles
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 504030 | Kit (Contents Identified With) - DSP40(P)/DSP41(P) | Contents Identified with | Call for availability | |||
| 504031 | Kit (Contents Identified With) - DDP40(P)/DDP41(P) | Contents Identified with | No longer available - Call for replacement | |||
| 1 | 132466 | Forward Carrier/Cap Sub-Assy Standard Mdls 132038 | 1 | $1,902.63 | Add to Cart | |
| 1 | 132467 | Forward Carrier/Cap Sub-Assy Diff-Lock Mdls 132043 | 1 | $2,151.37 | Add to Cart | |
| 2 | 210288 | Flat Washer | 4 | $1.06 | Add to Cart | |
| 2A | 131809 | Plug, O-Ring | 1 | O-ring not sold seperately | $16.70 | Add to Cart |
| 3 | 210095 | Capscrew | 4 | $5.03 | Add to Cart | |
| 4 | 090873 | Cotter Pin | 2 | Call for availability | ||
| 5 | 007641 | Dowel Pin | 2 | $3.83 | Add to Cart | |
| 6 | 129130 | Diff Brg Adjuster - Plain Half - DSP40(P)/DSP41(P) | 1 | $45.05 | Add to Cart | |
| 6 | 128616 | Diff Brg Adjuster - Plain Half - DDP40(P)/DDP41(P) | 1 | $88.75 | Add to Cart | |
| 7 | 129566 | Brg Cup - Plain Half - DSP40(P)/DSP41(P) | 1 | $63.29 | Add to Cart | |
| 7 | 15092 | Brg Cup - Plain Half - DDP40(P)/DDP41(P) | 1 | $106.57 | Add to Cart | |
| 8 | 129565 | Brg Cone - Plain Half - DSP40(P)/DSP41(P) | 1 | $112.18 | Add to Cart | |
| 8 | 128604 | Brg Cone - Plain Half - DDP40(P)/DDP41(P) | 1 | Call for availability | ||
| 9 | 129128 | Diff Brg Adjuster - Flange Half | 1 | $56.84 | Add to Cart | |
| 10 | 129564 | Brg Cup - Flange Half | 1 | No longer available - Call for replacement | ||
| 11 | 129563 | Brg Cone - Flange Half | 1 | No longer available - Call for replacement | ||
| 12 | 508653 | Diff Case-RH (Flg Half) 133737 note-12 (Ratios 2.64 To 3.25) - DSP40(P)/DSP41(P) | 1 | Ratios 2.64 to 3.25 | $494.09 | Add to Cart |
| 12 | 508724 | Diff Case-RH (Flg Half) 133737 note-12 (Ratios 2.64 To 3.25) - DDP40(P)/DDP41(P) | 1 | Ratios 2.64 to 3.25 | $1,715.01 | Add to Cart |
| 12 | 508654 | Diff Case-RH (Flg Half) 133738 note-12 (Ratios 3.36 To 3.90) - DSP40(P)/DSP41(P) | Ratios 3.36 to 3.90 | $480.55 | Add to Cart | |
| 12 | 508725 | Diff Case-RH (Flg Half) 133738 note-12 (Ratios 3.36 To 3.90) - DDP40(P)/DDP41(P) | Ratios 3.36 to 3.90 | $1,178.51 | Add to Cart | |
| 12 | 508655 | Diff Case-RH (Flg Half) 133739 note-12 (Ratios 4.11 To 4.88) - DSP40(P)/DSP41(P) | Ratios 4.11 to 4.88 | $412.14 | Add to Cart | |
| 12 | 508726 | Diff Case-RH (Flg Half) 133739 note-12 (Ratios 4.11 To 4.88) - DDP40(P)/DDP41(P) | Ratios 4.11 to 4.88 | $498.76 | Add to Cart | |
| 12 | 508656 | Diff Case-RH (Flg Half) 133740 note-12 (Ratios 5.29 To 7.17) - DSP40(P)/DSP41(P) | Ratios 5.29 to 7.17 | $1,178.20 | Add to Cart | |
| 12 | 508727 | Diff Case-RH (Flg Half) 133740 note-12 (Ratios 5.29 To 7.17) - DDP40(P)/DDP41(P) | Ratios 5.29 to 7.17 | $1,135.22 | Add to Cart | |
| 13 | 132437 | Diff Case-LH (Plain Half)-Standard | 1 | See note-12 below | $230.69 | Add to Cart |
| 13 | 128607 | Diff Case-LH (Plain Half)-Standard Diff Case-LH (Plain Half)-Diff Lock (See note-12 Below) | 1 | See note-12 below | Call for availability | |
| 14 | 127465 | Capscrew | 12 | $3.47 | Add to Cart | |
| 14 | 510397 | Capscrew Side Gear Kit (Includes Items 15-19) | Includes items 15-19 | Call for availability | ||
| 14 | 510396 | Capscrew Kit W/O Side Gears (Includes Items 16-19) | Includes items 16-19 | $336.55 | Add to Cart | |
| 15 | 127368 | Side Gear - 41 Inv Spline | 2 | $67.19 | Add to Cart | |
| 16 | 127386 | Side Gear Thrust Washer | 2 | $3.58 | Add to Cart | |
| 17 | 129305 | Side Pinion Thrust Washer | 4 | $2.49 | Add to Cart | |
| 18 | 133784 | Side Pinion | 4 | $80.82 | Add to Cart | |
| 19 | 129599 | Diff Spider | 1 | $192.11 | Add to Cart | |
| 19 | 508652 | Diff Spider Nut & Bolt Kit (Includes Items 20-21) | 1 | Includes items 20-21 | $65.24 | Add to Cart |
| 20 | 126216 | Nut - Ring Gear | 16 | $2.89 | Add to Cart | |
| 21 | 129686 | Bolt - Ring Gear | 16 | No longer available - Call for replacement | ||
| 22 | 127484 | Pinion Pilot Brg | 1 | Call for availability | ||
| 23 | 129560 | Pinion Brg Cone - Inner | 1 | $111.74 | Add to Cart | |
| 133737 | note-12 1 Ratios 2.64 To 3.25 | Call for availability | ||||
| 133738 | note-12 Ratios 3.36 To 3.90 | Call for availability | ||||
| 133739 | note-12 Ratios 4.11 To 4.88 | Call for availability | ||||
| 133740 | note-12 Ratios 5.29 To 7.17 | Call for availability | ||||
| 24 | 504043 | Pinion Brg Spacer (Svc Kit) | AR | Individual Pinion Bearing Spacers Listed on pg 11 | $208.82 | Add to Cart |
| 25 | 129767 | Pinion Brg Cage & Cup Assy | 1 | Cage#127488C Includes item 25-27 | Call for availability | |
| 26 | 129561 | Pinion Brg Cup - Inner | 1 | $59.96 | Add to Cart | |
| 27 | 012495 | Pinion Brg Cup - Outer | 1 | Call for availability | ||
| 28 | 127535 | Pinion Brg Cone - Outer | 1 | Call for availability | ||
| 29 | 210115 | Capscrew | 6 | $2.61 | Add to Cart | |
| 30 | 127523 | Pinion Helical Gear | 1 | $112.05 | Add to Cart | |
| 31 | 118807 | Roll Pin | 1 | $1.70 | Add to Cart | |
| 32 | 126182 | Slotted Pinion Nut | 1 | M42-1.5 (55mm socket) | $24.47 | Add to Cart |
| 32 | 513880 | Slotted Pinion Nut Manifold Parts Kit - Non Pump (Non Pump - Includes 132435) | 1 | NON PUMP - Includes 132435 #132435-NSS | $91.16 | Add to Cart |
| A1 | 132443 | Seal Manifold Assy - Non Pump Output Side Gear - Non Pump (Non Pump) | 1 | NON PUMP | No longer available - Call for replacement | |
| A1 | 504026 | Seal Manifold Assy - Non Pump Input Shaft Kit - Non Pump (Non Pump - Includes 132447,128049,132439) | 1 | NON PUMP - Includes 132447,128049,132439 | $180.26 | Add to Cart |
| A4 | 504029 | Input Shaft-Non Pump #132447 Manifold Parts Kit - Pump Model (Pump Models - Includes 133964,134010,) | 1 | PUMP MODELS - Includes 133964,134010, 129338,134011,131366 #131366-NSS | $154.74 | Add to Cart |
| B1 | 133964 | Seal Manifold Assy Pump Filter Screen Assy (Pump Models) | 1 | PUMP MODELS | $54.40 | Add to Cart |
| B1 | 134010 | Seal Manifold Assy Pump Collar Lock (Pump Models) | 1 | PUMP MODELS | $5.07 | Add to Cart |
| B1 | 129338 | Seal Manifold Assy Pump Clamp (Pump Models) | 1 | PUMP MODELS | $3.73 | Add to Cart |
| B1 | 134011 | Seal Manifold Assy Pump Lube Hose (Pump Models) | 1 | PUMP MODELS | $38.89 | Add to Cart |
| B1 | 504028 | Seal Manifold Assy Pump Lube Pump Kit (Pump Models - Includes 132060, 131541,) | 1 | PUMP MODELS - Includes 132060, 131541, 132061, 131368 | No longer available - Call for replacement | |
| B1 | 504028 | Seal Manifold Assy Pump Output Side Gear - Pump Model (Pump Models) | 1 | PUMP MODELS #132061-NSS | No longer available - Call for replacement | |
| B1 | 504028 | Seal Manifold Assy Pump Lube Pump #131368 (Pump Models) | 1 | PUMP MODELS | No longer available - Call for replacement | |
| B1 | 131541 | Seal Manifold Assy Pump Pump Locking Pin (Pump Models) | 1 | PUMP MODELS | $1.58 | Add to Cart |
| B1 | 504027 | Seal Manifold Assy Pump Input Shaft Kit - Pump Model (Pump Models - Includes 132446, 128049, 132439) | 1 | PUMP MODELS - Includes 132446, 128049, 132439 #132446-NSS | $170.42 | Add to Cart |
| 33 | 110811 | Bearing Race | 1 | $43.30 | Add to Cart | |
| 34 | 132060 | Bearing Cone | 1 | $174.49 | Add to Cart | |
| 35 | 134192 | Inter-Axle Diff Assy | 1 | 134192 replaces 128634, 129771 | $215.49 | Add to Cart |
| 36 | 130907 | Helical Side Gear & Bushing | 1 | (Includes item 37) Assy Gear Stamp#130906-NSS | No longer available - Call for replacement | |
| 37 | 129371 | Bushing - Helical Gear | 2 | $81.76 | Add to Cart | |
| 38 | 132439 | Thrust Washer - Helical Gear | 1 | $25.89 | Add to Cart | |
| 39 | 127510 | Lockout Sliding Clutch | 1 | Call for availability | ||
| 132435 | A Manifold Parts Kit - Non Pump 1 Non Pump - Includes | Call for availability | ||||
| 132061 | Single Reduction #131366-NSS | No longer available - Call for replacement | ||||
| 131368 | Single Reduction #131366-NSS | Call for availability | ||||
| 132446 | B10 Input Shaft Kit - Pump Model 1 Pump Models - Includes | Call for availability | ||||
| 128049 | B10 Input Shaft Kit - Pump Model 1 Pump Models - Includes | $18.13 | Add to Cart | |||
| 128634 | 35 Inter-Axle Diff Assy 1 Replaces | Call for availability | ||||
| 129771 | 35 Inter-Axle Diff Assy 1 Replaces | Call for availability | ||||
| 40 | 128700 | Oil Retainer | 1 | $6.75 | Add to Cart | |
| 41 | 129558 | Input Shaft Bearing Cone | 1 | Call for availability | ||
| 42 | 1008912 | Bearing Cup | 1 | can use 129559 | Call for availability | |
| For PDU Cover | 216224 | & Lockout Details See Page 20 & Shim Kit (Includes Shims & Oil Seals 127591/127592) | 1 | Includes shims & oil seals 127591/127592 | $172.26 | Add to Cart |
| For PDU Cover | 504032 | & Lockout Details See Page 20 Shim Kit (Includes 5 Each Of The Shims Listed Below) | 1 | Includes 5 each of the shims listed below | $113.07 | Add to Cart |
| 43 | 127595 | Shim.003” | AR | $3.42 | Add to Cart | |
| 43 | 127596 | Shim.003” Shim.005” | $3.58 | Add to Cart | ||
| 43 | 127597 | Shim.003” Shim.010” | $3.61 | Add to Cart | ||
| 43 | 127598 | Shim.003” Shim.020” | $4.74 | Add to Cart | ||
| 43 | 127599 | Shim.003” Shim.030” | $6.60 | Add to Cart | ||
| 44 | 128703 | Oil Seal-V-Ring | 1 | $27.82 | Add to Cart | |
| 45 | 129575 | Input Brg Cover Assy | 1 | Cast#129574C, Includes item 42 | No longer available - Call for replacement | |
| 46 | 210115 | Bearing Cover Cap Screw | 6 | $2.61 | Add to Cart | |
| 47 | 127591 | Oil Seal | 1 | $33.28 | Add to Cart | |
| 48 | 128049 | Locknut | 1 | In 510593 Kit, M42-1.5 (55mm socket) | $18.13 | Add to Cart |
| 49 | 129577 | Lube Trough | 1 | $7.90 | Add to Cart | |
| 50 | 130823 | Power Divider Cover | 1 | 11 hole design | $483.90 | Add to Cart |
| 51 | 128415 | Washer - Capscrew | 11 | Call for availability | ||
| 52 | 210091 | Capscrew Long | 11 | $3.20 | Add to Cart | |
| 52 | 510870 | Capscrew Long & Compression Spring Kit (Includes Items 53 & 54) | 1 | Includes Items 53 & 54 | Call for availability | |
| 53 | 129856 | Shift Fork Assy | 1 | Order kit 510870 | Call for availability | |
| 54 | 129859 | Compression Spring | 1 | $5.31 | Add to Cart | |
| 55 | 129573 | Piston Cover Assy | 1 | Includes Cover #129578 and item 56 | $25.00 | Add to Cart |
| 56 | 129579 | O-Ring | 1 | $3.17 | Add to Cart | |
| 57 | 129580 | Piston | 1 | $6.47 | Add to Cart | |
| 59 | 599792 | Shipping Plug | 1 | $1.13 | Add to Cart | |
| 60 | 126193 | Thrust Screw | 1 | $47.65 | Add to Cart | |
| 61 | 210184 | Jam Nut | 1 | $22.84 | Add to Cart | |
| 62 | 107276S | Rtv - Sealant | 1 | Not Illustrated | $17.75 | Add to Cart |
| Summary | 510052 | Of Kits And Assemblies Air L/O Kit - Complete (Includes: 53-59) | Includes: 53-59 | Call for availability | ||
| Summary | 510053 | Of Kits And Assemblies Repair Kit (Includes: 55-58) | Includes: 55-58 | $30.66 | Add to Cart | |
| Summary | 510870 | Of Kits And Assemblies Shift Fork & Compression Spring Kit (Includes: 53-54) | Includes: 53-54 | $71.26 | Add to Cart | |
| 129559 | 42 Bearing Cup 1 Can Use | Call for availability | ||||
| 510593 | 48 Locknut 1 In Kit, M42-1.5 (55mm Socket) | Call for availability | ||||
| 129578 | 55 Piston Cover Assy 1 Includes Cover And Item 56 | Call for availability | ||||
| 510393 | Kit (Contents Identified With) - DSP40(P)/DSP41(P) | Contents Identified with | Call for availability | |||
| 510399 | Kit (Contents Identified With) - DDP40(P)/DDP41(P) | Contents Identified with | Call for availability | |||
| 512812 | (Contents Identified With) - DSP40(P)/DSP41(P) | Contents Identified with | No longer available - Call for replacement | |||
| 512800 | (Contents Identified With) - DDP40(P)/DDP41(P) | Contents Identified with | No longer available - Call for replacement | |||
| 512087 | Fasteners From Pg 24 Note 1 DSP40, DSP41 510023-NLA Casting | Call for availability | ||||
| 130809 | Fasteners From Pg 24 Note 1 DSP40, DSP41 510023-NLA Casting | Call for availability | ||||
| 130814 | Must Purchase Complete Carrier. DDP40, DDP41 510027-NLA Casting | Call for availability | ||||
| 210288 | 2 Flat Washer 4 | $1.06 | Add to Cart | |||
| 131809 | 2A Plug & O-Ring Assembly 1 O-Ring Not Sold Seperately | $16.70 | Add to Cart | |||
| 210095 | 3 Capscrew 4 | $5.03 | Add to Cart | |||
| 090873 | 4 Cotter Pin 2 Replaces | Call for availability | ||||
| 126156 | 4 Cotter Pin 2 Replaces | Call for availability | ||||
| 007641 | 5 Dowel Pin 2 | $3.83 | Add to Cart | |||
| 129130 | 6 Diff Brg Adjuster - Plain Half 1 | $45.05 | Add to Cart | |||
| 128616 | 6 Diff Brg Adjuster - Plain Half 1 | $88.75 | Add to Cart | |||
| 129566 | 7 Brg Cup - Plain Half 1 | $63.29 | Add to Cart | |||
| 015092 | 7 Brg Cup - Plain Half 1 | Call for availability | ||||
| 129565 | 8 Brg Cone - Plain Half 1 | $112.18 | Add to Cart | |||
| 128604 | 8 Brg Cone - Plain Half 1 | Call for availability | ||||
| 129128 | 9 Diff Brg Adjuster - Flange Half 1 | $56.84 | Add to Cart | |||
| 129564 | 10 Brg Cup - Flange Half 1 Replaces | No longer available - Call for replacement | ||||
| 90943 | 10 Brg Cup - Flange Half 1 Replaces | No longer available - Call for replacement | ||||
| 129563 | 11 Brg Cone - Flange Half 1 Replaces 6082 | No longer available - Call for replacement | ||||
| 133737 | (Was 129464)note-12 Ratios 2.64 To 3.25 | Call for availability | ||||
| 508653 | (Was 129464)note-12 Ratios 2.64 To 3.25 | Call for availability | ||||
| 508724 | (Was 129464)note-12 Ratios 2.64 To 3.25 | Call for availability | ||||
| 133738 | (Was 129465)note-12 Ratios 3.36 To 3.90 | Call for availability | ||||
| 508654 | (Was 129465)note-12 Ratios 3.36 To 3.90 | Call for availability | ||||
| 508725 | (Was 129465)note-12 Ratios 3.36 To 3.90 | Call for availability | ||||
| 133739 | (Was 129466)note-12 Ratios 4.11 To 4.88 | Call for availability | ||||
| 508655 | (Was 129466)note-12 Ratios 4.11 To 4.88 | Call for availability | ||||
| 508726 | (Was 129466)note-12 Ratios 4.11 To 4.88 | Call for availability | ||||
| 133740 | (Was 129467)note-12 Ratios 5.29 To 7.17 | Call for availability | ||||
| 508656 | (Was 129467)note-12 Ratios 5.29 To 7.17 | Call for availability | ||||
| 508727 | (Was 129467)note-12 Ratios 5.29 To 7.17 | Call for availability | ||||
| 132437 | 13 Diff Case-LH (Plain Half)-Standard Mdl 1 --- Was See note-12 Below | $230.69 | Add to Cart | |||
| 127498 | 13 Diff Case-LH (Plain Half)-Standard Mdl 1 --- Was See note-12 Below | Call for availability | ||||
| 128607 | Diff Case-LH (Plain Half)-Diff Lock Mdl 1 | Call for availability | ||||
| 127465 | 14 Capscrew 12 | $3.47 | Add to Cart | |||
| 128619 | 14 Capscrew 12 | Call for availability | ||||
| 510397 | Side Gear Kit (Includes Items 15-19) | Includes items 15-19 | Call for availability | |||
| 510396 | Kit W/O Side Gears (Includes Items 16-19) | Includes items 16-19 | $336.55 | Add to Cart | ||
| 15 | 127368 | Side Gear 41 Inv Spline | 2 | $67.19 | Add to Cart | |
| 16 | 127386 | Side Gear Thrust Washer | 2 | $3.58 | Add to Cart | |
| 17 | 129305 | Side Pinion Thrust Washer | 4 | $2.49 | Add to Cart | |
| 18 | 133784 | Side Pinion | 4 | Was 129765 | $80.82 | Add to Cart |
| 19 | 129599 | Diff Spider | 1 | $192.11 | Add to Cart | |
| 19 | 508652 | Diff Spider Nut & Bolt Kit (Includes Items 20-21) | Includes items 20-21 | $65.24 | Add to Cart | |
| 20 | 126216 | Nut | 16 | $2.89 | Add to Cart | |
| 21 | 129686 | Bolt | 16 | 129686 Replaces 128806 | No longer available - Call for replacement | |
| 22 | 127484 | Pinion Pilot Brg | 1 | Call for availability | ||
| 23 | 129560 | Pinion Brg Cone - Inner | 1 | $111.74 | Add to Cart | |
| 24 | 504043 | Pinion Brg Spacer (Svc Kit) | AR | Individual Pinion Bearing Spacers Listed on page 11 | $208.82 | Add to Cart |
| 25 | 129767 | Pinion Brg Cage & Cup Assy | 1 | Includes item 25-27 Cage #127488C NSS | Call for availability | |
| 26 | 129561 | Pinion Brg Cup - Inner | 1 | $59.96 | Add to Cart | |
| 27 | 012495 | Pinion Brg Cup - Outer | 1 | Call for availability | ||
| 28 | 127535 | Pinion Brg Cone - Outer | 1 | Call for availability | ||
| 29 | 210115 | Capscrew | 6 | $2.61 | Add to Cart | |
| 30 | 127523 | Pinion Helical Gear | 1 | $112.05 | Add to Cart | |
| 31 | 118807 | Roll Pin | 1 | $1.70 | Add to Cart | |
| 32 | 126182 | Slotted Pinion Nut | 1 | $24.47 | Add to Cart | |
| 33 | 127545 | Output Shaft O-Ring | 2 | $3.02 | Add to Cart | |
| 34 | 127536 | Output Shaft Brg Cup | 1 | $71.58 | Add to Cart | |
| 35 | 110812 | Output Shaft Brg Cone | 1 | $74.18 | Add to Cart | |
| 36 | 127645 | Output Shaft Side Gear | 1 | $78.66 | Add to Cart | |
| 37 | 085997 | Snap Ring | 1 | Call for availability | ||
| 38 | 134192 | Inter-Axle Diff Assy | 1 | Replaces 128634 and 129771 | $215.49 | Add to Cart |
| 39 | 130907 | Helical Side Gear & Bushing | 1 | Replaces 127495 Gear #130906 NSS | No longer available - Call for replacement | |
| 40 | 129371 | Bushing - Helical Gear | 2 | Replaces 127543 | $81.76 | Add to Cart |
| 41 | 128702 | Thrust Washer - Helical Gear | 1 | Call for availability | ||
| 42 | 127510 | Lockout Sliding Clutch | 1 | Call for availability | ||
| 43 | 510593 | Input Shaft Kit | 1 | Includes Items 41, 43, 55 shaft# 129770-NSS | Call for availability | |
| 44 | 128700 | Oil Retainer | 1 | $6.75 | Add to Cart | |
| 129765 | 18 Side Pinion 4 Was | Call for availability | ||||
| 128806 | 21 Bolt 16 Replaces | Call for availability | ||||
| 127488C | Cage Nss | Call for availability | ||||
| 128634 | 38 Inter-Axle Diff Assy 1 Replaces And | Call for availability | ||||
| 129771 | 38 Inter-Axle Diff Assy 1 Replaces And | Call for availability | ||||
| 127495 | 39 Helical Side Gear & Bushing 1 Replaces | Call for availability | ||||
| 130906 | Gear Nss Includes Item 40 | Call for availability | ||||
| 127543 | 40 Bushing - Helical Gear 2 Replaces | Call for availability | ||||
| 510394 | Shaft# 129770-NSS Replaces | Call for availability | ||||
| 45 | 129558 | Input Shaft Bearing Cone | 1 | Replaces 820643 | Call for availability | |
| 46 | 130823 | Pdu Cover | 1 | See Note 46, replaces 129572 | $483.90 | Add to Cart |
| 47 | 128415 | Washer | 11 | Call for availability | ||
| 48 | 210091 | Capscrew Long | 11 | See Note 46 | $3.20 | Add to Cart |
| 49 | 1008912 | Bearing Cup | 1 | Can use 129559 | Call for availability | |
| 49 | 216224 | Bearing Cup & Shim Kit (Includes Shims & Oil Seals 127591/127592) | 1 | Includes shims & oil seals 127591/127592 | $172.26 | Add to Cart |
| 49 | 504032 | Bearing Cup Shim Kit (Includes 5 Each Of The Shims Listed Below) | 1 | Includes 5 each of the shims listed below | $113.07 | Add to Cart |
| 50 | 127595 | Shim.003” | AR | $3.42 | Add to Cart | |
| 50 | 127596 | Shim.003” Shim.005” | $3.58 | Add to Cart | ||
| 50 | 127597 | Shim.003” Shim.010” | $3.61 | Add to Cart | ||
| 50 | 127598 | Shim.003” Shim.020” | $4.74 | Add to Cart | ||
| 50 | 127599 | Shim.003” Shim.030” | $6.60 | Add to Cart | ||
| 51 | 128703 | Oil Seal-V-Ring | 1 | $27.82 | Add to Cart | |
| 52 | 129575 | Input Brg Cover Assy - #129574C | Includes item 49 | No longer available - Call for replacement | ||
| 53 | 210115 | Bearing Cover Cap Screw | 6 | $2.61 | Add to Cart | |
| 54 | 127591 | Oil Seal | 1 | $33.28 | Add to Cart | |
| 55 | 128049 | Locknut | 1 | In 510394 Kit (M42-1.5) | $18.13 | Add to Cart |
| 56 | 129577 | Lube Trough | 1 | $7.90 | Add to Cart | |
| 57 | 129856 | Shift Fork Assy | 1 | Order Kit 510870 | Call for availability | |
| 58 | 129859 | Compression Spring | 1 | $5.31 | Add to Cart | |
| 58 | 510870 | Compression Spring & Compression Spring Kit (Includes 57-58) | 1 | Includes 57-58 | Call for availability | |
| 59 | 129573 | Piston Cover Assy | 1 | Includes Cover #129578 & Item 60 | $25.00 | Add to Cart |
| 60 | 129579 | O-Ring | 1 | $3.17 | Add to Cart | |
| 61 | 129580 | Piston | 1 | $6.47 | Add to Cart | |
| 63 | 599792 | Shipping Plug | 1 | $1.13 | Add to Cart | |
| 64 | 127534 | Lube Pump Assembly | 1 | Pump Models Only | $876.22 | Add to Cart |
| 65 | 127551 | Capscrew | 3 | Pump Models Only | $7.79 | Add to Cart |
| 66 | 128628 | Drive Coupling - Service | 1 | Pump Models Only | $27.03 | Add to Cart |
| 67 | 090897 | Pipe Plug | 5 | Pump Models Only | Call for availability | |
| 68 | 127649 | Filter Screen Assy | 1 | Pump Models Only | $69.05 | Add to Cart |
| 69 | 126193 | Thrust Screw | 1 | M24 x 2-6g | $47.65 | Add to Cart |
| 70 | 210184 | Jam Nut | 1 | $22.84 | Add to Cart | |
| 71 | 107276S | Rtv - Sealant | 1 | Not Illustrated | $17.75 | Add to Cart |
| 820643 | 45 Input Shaft Bearing Cone 1 Replaces | Call for availability | ||||
| 129572 | 46 Pdu Cover 1 See Note 46, Replaces | Call for availability | ||||
| 129559 | 49 Bearing Cup 1 Can Use | Call for availability | ||||
| 129574C | 52 Input Brg Cover Assy - Includes Item 49 | Call for availability | ||||
| 510394 | 55 Locknut 1 In Kit (M42-1.5) | Call for availability | ||||
| 129578 | 59 Piston Cover Assy 1 Includes Cover & Item 60 | Call for availability | ||||
| 510052 | Air L/O Kit - Complete Includes Items 57- 59, 61- 62 | Call for availability | ||||
| 510053 | Repair Kit Includes Items 59, 61-62 | $30.66 | Add to Cart |
Pinion Bearing Spacers
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P20060 | Pinion Bearing Spacer DSP40(P), DSP41(P), DDP40(P), DDP41(P) RSP40, RSP41, RDP40, RDP41, P22060S/D | Call for availability | ||||
| 504043 | Pinion Brg Spacer Kit: (Includes Items W/*) Pinion Brg Spacer Kit: (Includes Items W/*) | $208.82 | Add to Cart | |||
| 504016 | Pinion Brg Spacer Kit: (Includes Items W/*) Pinion Brg Spacer Kit: (Includes Items W/*) | $208.71 | Add to Cart | |||
| 129079 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $58.26 | Add to Cart | |||
| 91552 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $27.98 | Add to Cart | |||
| 129080 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | Call for availability | ||||
| 91553 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | No longer available - Call for replacement | ||||
| 129081 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $42.03 | Add to Cart | |||
| 91554 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $27.27 | Add to Cart | |||
| 129082 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $13.35 | Add to Cart | |||
| 91555 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | No longer available - Call for replacement | ||||
| 129083 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $13.35 | Add to Cart | |||
| 91556 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $37.27 | Add to Cart | |||
| 129084 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $13.35 | Add to Cart | |||
| 91557 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $22.65 | Add to Cart | |||
| 129085 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $40.61 | Add to Cart | |||
| 91558 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $30.51 | Add to Cart | |||
| 129086 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $50.39 | Add to Cart | |||
| 91559 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $34.17 | Add to Cart | |||
| 129087 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $29.58 | Add to Cart | |||
| 91560 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $29.25 | Add to Cart | |||
| 129088 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $30.66 | Add to Cart | |||
| 91561 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | No longer available - Call for replacement | ||||
| 129089 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $40.61 | Add to Cart | |||
| 91562 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $30.06 | Add to Cart | |||
| 129090 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $34.57 | Add to Cart | |||
| 91564 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $30.62 | Add to Cart | |||
| 129091 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $35.08 | Add to Cart | |||
| 91566 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $30.62 | Add to Cart | |||
| 129093 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $35.08 | Add to Cart | |||
| 91568 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $48.18 | Add to Cart | |||
| 129097 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $35.08 | Add to Cart | |||
| 91572 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $25.49 | Add to Cart | |||
| 129099 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $34.57 | Add to Cart | |||
| 91576 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $25.49 | Add to Cart | |||
| 129101 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $35.99 | Add to Cart | |||
| 91580 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $26.27 | Add to Cart | |||
| 129103 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $29.47 | Add to Cart | |||
| 91584 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $26.27 | Add to Cart | |||
| 129105 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $31.89 | Add to Cart | |||
| 91588 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $30.34 | Add to Cart | |||
| 129107 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $30.23 | Add to Cart | |||
| 91592 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $27.89 | Add to Cart | |||
| 129109 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $31.14 | Add to Cart | |||
| 91596 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $28.61 | Add to Cart | |||
| 129111 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $35.11 | Add to Cart | |||
| 91600 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $28.61 | Add to Cart | |||
| 129113 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $37.37 | Add to Cart | |||
| 91602 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $33.92 | Add to Cart | |||
| 129115 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $37.03 | Add to Cart | |||
| 91604 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $33.25 | Add to Cart | |||
| 129117 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $37.14 | Add to Cart | |||
| 91606 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $38.05 | Add to Cart | |||
| 129119 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $38.99 | Add to Cart | |||
| 91608 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $31.81 | Add to Cart | |||
| 129120 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $44.10 | Add to Cart | |||
| 91610 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $40.23 | Add to Cart | |||
| 129121 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $49.14 | Add to Cart | |||
| 91611 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $33.81 | Add to Cart | |||
| 129122 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $43.36 | Add to Cart | |||
| 91612 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $25.97 | Add to Cart | |||
| 129123 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $51.88 | Add to Cart | |||
| 91613 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $28.36 | Add to Cart | |||
| 129124 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $51.13 | Add to Cart | |||
| 91614 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $38.16 | Add to Cart | |||
| 129125 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $50.39 | Add to Cart | |||
| 91615 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $42.42 | Add to Cart | |||
| 129126 | New Spacers Spacer Thickness Bearing Spacers Part Number Spacer Thickness | $49.07 | Add to Cart |
Wheel Differential Lock Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 128627 | 1 Fixed Curvic Clutch Gear 1 | $243.01 | Add to Cart | |||
| 129433 | 2 Snap Ring 1 | $5.38 | Add to Cart | |||
| 126840 | 3 SL Curvic Clutch Gear - 41 Inv Spline 1 | $308.10 | Add to Cart | |||
| 128614 | 4 Compression Spring 1 | $31.19 | Add to Cart | |||
| 217465 | Shift Fork Assy Includes Items 5-6 | $92.61 | Add to Cart | |||
| 128611C | 5 Shift Fork - Nss 1 ––– Fork – Nss | Call for availability | ||||
| 128609 | 5 Shift Fork - Nss 1 ––– Fork – Nss | Call for availability | ||||
| 210020 | 6 Spring Pin 1 | $1.32 | Add to Cart | |||
| 128617 | 7 Push Rod 1 | No longer available - Call for replacement | ||||
| 128640 | 8 Piston Driver 1 | No longer available - Call for replacement | ||||
| 128618 | 9 Set Screw 1 | $15.15 | Add to Cart | |||
| 128624 | 10 Piston 1 | $18.69 | Add to Cart | |||
| 210180 | 11 O-Ring 1 | $10.02 | Add to Cart | |||
| 129425 | 12 Piston Cover 1 | $131.75 | Add to Cart | |||
| 128643 | 13 Gasket 1 | $4.54 | Add to Cart | |||
| 128744 | 14 Capscrew - Flg Head 2 | $2.94 | Add to Cart | |||
| 128274 | 15 Capscrew 1 M12 X 1.5 | $3.43 | Add to Cart | |||
| 129034 | 16 Washer 1 | $5.46 | Add to Cart | |||
| 129035 | 17 Switch 1 | $111.85 | Add to Cart | |||
| 129047 | 18 Wiring Harness 1 | $32.74 | Add to Cart |
Rear Axles
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 510398 | Kit (Contents Identified With) - RSP40/RSP41 | Contents Identified with | Call for availability | |||
| 510400 | Kit (Contents Identified With) - RDP40/RDP41 | Contents Identified with Includes 1-3, 32-34 and fasteners from | No longer available - Call for replacement | |||
| 1 | 510018 | Diff Carr & Brg Caps Kit 512087 Page 24 (Casting # 130824) | Casting # 130824 | $1,363.28 | Add to Cart | |
| 1 | 510017 | Diff Carr & Brg Caps Kit See Note-1 (Casting # 130827) | Casting # 130827 | $1,363.94 | Add to Cart | |
| 2 | 210288 | Flat Washer | 4 | $1.06 | Add to Cart | |
| 2a | 131809 | Plug & O-Ring Assembly | 1 | O-ring not sold seperately | $16.70 | Add to Cart |
| 3 | 210095 | Capscrew | 4 | $5.03 | Add to Cart | |
| 4 | 90873 | Cotter Pin | 2 | $21.90 | Add to Cart | |
| 5 | 129130 | Diff Brg Adjuster - Plain Half - RSP40/RSP41 | 1 | $45.05 | Add to Cart | |
| 5 | 128616 | Diff Brg Adjuster - Plain Half - RDP40/RDP41 | 1 | $88.75 | Add to Cart | |
| 6 | 015092 | Bearing Cup - Plain Half | 1 129566 | Call for availability | ||
| 7 | 128604 | Bearing Cone - Plain Half | 1 129565 | Call for availability | ||
| 8 | 129128 | Diff Brg Adjuster - Flange Half | 1 | $56.84 | Add to Cart | |
| 9 | 129564 | Bearing Cup - Flange Half | 1 129564 | No longer available - Call for replacement | ||
| 10 | 129563 | Bearing Cone - Flange Half | 1 129563 | No longer available - Call for replacement | ||
| 11 | 508653 | Diff Case-RH (Flg Half) 133737 (Was 129464)note-11 (Ratios 2.64 To 3.25) - RSP40/RSP41 | Ratios 2.64 to 3.25 | $494.09 | Add to Cart | |
| 11 | 508724 | Diff Case-RH (Flg Half) 133737 (Was 129464)note-11 (Ratios 2.64 To 3.25) - RDP40/RDP41 | Ratios 2.64 to 3.25 | $1,715.01 | Add to Cart | |
| 11 | 508654 | Diff Case-RH (Flg Half) 133738 (Was 129465)note-11 (Ratios 3.36 To 3.90) - RSP40/RSP41 | Ratios 3.36 to 3.90 | $480.55 | Add to Cart | |
| 11 | 508725 | Diff Case-RH (Flg Half) 133738 (Was 129465)note-11 (Ratios 3.36 To 3.90) - RDP40/RDP41 | Ratios 3.36 to 3.90 | $1,178.51 | Add to Cart | |
| 11 | 508655 | Diff Case-RH (Flg Half) 133739 (Was 129466)note-11 (Ratios 4.11 To 4.88) - RSP40/RSP41 | Ratios 4.11 to 4.88 | $412.14 | Add to Cart | |
| 11 | 508726 | Diff Case-RH (Flg Half) 133739 (Was 129466)note-11 (Ratios 4.11 To 4.88) - RDP40/RDP41 | Ratios 4.11 to 4.88 | $498.76 | Add to Cart | |
| 11 | 508656 | Diff Case-RH (Flg Half) 133740 (Was 129467)note-11 (Ratios 5.29 To 7.17) - RSP40/RSP41 | Ratios 5.29 to 7.17 | $1,178.20 | Add to Cart | |
| 11 | 508727 | Diff Case-RH (Flg Half) 133740 (Was 129467)note-11 (Ratios 5.29 To 7.17) - RDP40/RDP41 | Ratios 5.29 to 7.17 | $1,135.22 | Add to Cart | |
| 12 | 132437 | Diff Case-LH (Plain Half)-Standard | 1 | Was 127498 see note-11 below | $230.69 | Add to Cart |
| 12 | 128607 | Diff Case-LH (Plain Half)-Standard Diff Case-LH (Plain Half)-Diff Lock | 1 | Call for availability | ||
| 13 | 127465 | Capscrew - RSP40/RSP41 | 12 | $3.47 | Add to Cart | |
| 13 | 128619 | Capscrew - RDP40/RDP41 | 12 | Call for availability | ||
| 13 | 510397 | Capscrew Side Gear Kit (Includes Items 14-18) | Includes items 14-18 | Call for availability | ||
| 13 | 510396 | Capscrew Kit W/O Side Gears (Includes Items 15-18) | Includes items 15-18 | $336.55 | Add to Cart | |
| 14 | 127368 | Side Gear 41 Inv Spline | 2 | $67.19 | Add to Cart | |
| 15 | 127386 | Side Gear Thrust Washer | 2 127386 | $3.58 | Add to Cart | |
| 16 | 129305 | Side Pinion Thrust Washer | 4 129305 | $2.49 | Add to Cart | |
| 17 | 129765 | Side Pinion | 4 | Call for availability | ||
| 18 | 129599 | Diff Spider | 1 | $192.11 | Add to Cart | |
| P20060 | Rear Axles | Call for availability | ||||
| P20060D | Rear Axles | Call for availability | ||||
| P22060 | Rear Axles | Call for availability | ||||
| P22060D | Rear Axles | Call for availability | ||||
| 512087 | Page 24 --- Casting # | Call for availability | ||||
| 130824 | Page 24 --- Casting # | Call for availability | ||||
| 130827 | See Note-1 --- Casting # | Call for availability | ||||
| 129566 | 6 Bearing Cup - Plain Half 1 • • | $63.29 | Add to Cart | |||
| 129565 | 7 Bearing Cone - Plain Half 1 • • | $112.18 | Add to Cart | |||
| 133737 | (Was 129464)note-11 Ratios 2.64 To 3.25 | Call for availability | ||||
| 133738 | (Was 129465)note-11 Ratios 3.36 To 3.90 | Call for availability | ||||
| 133739 | (Was 129466)note-11 Ratios 4.11 To 4.88 | Call for availability | ||||
| 133740 | (Was 129467)note-11 Ratios 5.29 To 7.17 | Call for availability | ||||
| 127498 | 12 Diff Case-LH (Plain Half)-Standard 1 --- Was See note-11 Below | Call for availability | ||||
| 508652 | Nut & Bolt Kit (Includes Items 19-20) | Includes items 19-20 | $65.24 | Add to Cart | ||
| 19 | 126216 | Nut | 16 | $2.89 | Add to Cart | |
| 20 | 129686 | Bolt | 16 | No longer available - Call for replacement | ||
| 21 | 127485 | Pinion Pilot Brg | 1 127485 | Call for availability | ||
| 22 | 129562 | Pinion Brg Cone - Inner | 1 129562 | $116.39 | Add to Cart | |
| 23 | 504016 | Pinion Brg Spacer (Svc Kit) | 1 | Individual Pinion Brg Spacers Listed on page 11 | $208.71 | Add to Cart |
| 24 | 129768 | Pinion Brg Cage & Cup Assy Cage #127481C (Standard Design) | Standard Design | Call for availability | ||
| 24 | 129996 | Pinion Brg Cage & Cup Assy Cage #129995C (Parking Brake Design) | Parking Brake Design | No longer available - Call for replacement | ||
| 25 | 129561 | Pinion Brg Cup - Inner | 1 129561 | $59.96 | Add to Cart | |
| 26 | 012495 | Pinion Brg Cup - Outer | 1 012495 | Call for availability | ||
| 27 | 012496 | Pinion Brg Cone - Outer | 1 012496 | Call for availability | ||
| 28 | 210115 | Capscrew | 6 | $2.61 | Add to Cart | |
| 28 | 216225 | Capscrew & Shim Kit (Includes Items 29-30, 34) | Includes items 29-30, 34 | $61.86 | Add to Cart | |
| 28 | 504032 | Capscrew Shim Kit (Includes 5 Each Of The Shims Listed Below) | Includes 5 each of the shims listed below | $113.07 | Add to Cart | |
| 29 | 127595 | Shim.003 | AR 127595 | Shim.005 Shim.010 Shim.020 Shim.030 | $3.42 | Add to Cart |
| 30 | 127591 | Oil Seal | 1 127591 | $33.28 | Add to Cart | |
| 31 | 127589 | Pinion Nut | 1 | M36 x 1.5 (55mm socket) | $13.13 | Add to Cart |
| 32 | 126193 | Thrust Screw | 1 | M24 x 2-6g | $47.65 | Add to Cart |
| 33 | 210184 | Jam Nut | 1 | $22.84 | Add to Cart | |
| 33 | 107276S | Jam Nut Rtv Sealant (Not Illustrated) | 1 107276S | Not Illustrated | $17.75 | Add to Cart |
| P20060 | Rear Axles | Call for availability | ||||
| P20060D | Rear Axles | Call for availability | ||||
| P22060 | Rear Axles | Call for availability | ||||
| P22060D | Rear Axles | Call for availability | ||||
| 127481C | Cage Nss Standard Design | Call for availability | ||||
| 129995C | Cage Nss Parking Brake Design | Call for availability | ||||
| 27596 | Shim.005 • • | Call for availability | ||||
| 127596 | Shim.005 • • | $3.58 | Add to Cart | |||
| 27597 | Shim.010 • • | Call for availability | ||||
| 127597 | Shim.010 • • | $3.61 | Add to Cart | |||
| 27598 | Shim.020 • • | Call for availability | ||||
| 127598 | Shim.020 • • | $4.74 | Add to Cart | |||
| 27599 | Shim.030 • • | Call for availability | ||||
| 127599 | Shim.030 • • | $6.60 | Add to Cart |
Output Shaft and Axle Housings
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 119881 | Outer Bearing Adjuster Nut | 2 | $28.59 | Add to Cart | |
| 2 | 129132 | Lockwasher - W/Tab | 2 | $4.03 | Add to Cart | |
| 3 | 119883 | Dowel-Type Lockwasher | 2 | $20.49 | Add to Cart | |
| 4 | 119882 | Inner Bearing Adjuster Nut | 2 | $34.16 | Add to Cart | |
| 6 | 507162 | U-Tube Breather Kit | 1 | $18.32 | Add to Cart | |
| 7 | 54254 | Magnetic Drain Plug - 3/4” | 1 | All D/R models | Call for availability | |
| 12 | 129492 | Non-Magnetic Plug 3/4” | 1 | $5.32 | Add to Cart | |
| 12 | 129491 | Magnetic Plug - 3/4” | 1 | $4.88 | Add to Cart | |
| 13 | 90898 | Temperature Sensor Plug 1/2” | 1 | $2.77 | Add to Cart | |
| 14 | 129486 | Lube Tag (For 3/4” Plug) | 1 | Part - Not Illustrated | $2.29 | Add to Cart |
| 14 | 216227 | Lube Tag (For 3/4” Plug) Kit (Includes Items 15-16) | 1 | Includes Items 15-16 | Call for availability | |
| 16 | 127588 | Locknut - Hex | 1 | M39 x 1.5 (55mm socket) | $16.30 | Add to Cart |
| 17 | 127592 | Oil Seal | 1 | $103.46 | Add to Cart | |
| 18 | 129594 | Snap Ring .103” | 1 | $10.66 | Add to Cart | |
| 19 | 127539 | Bearing Cup | 2 | $12.46 | Add to Cart | |
| 20 | 127540 | Bearing Cone | 2 | $22.94 | Add to Cart | |
| 21 | 126917 | Seal Driver | 1 | In Kit 217414 - See Page 34 | $45.14 | Add to Cart |
| 22 | 128706 | Adapter | 1 | In Kit 217414 - See Page 34 | Call for availability | |
| 23 | 129293 | Loctite Adhesive | 1 | Not Illustrated, .5 ml Tube | $7.49 | Add to Cart |
| 24 | 107276S | Rtv Sealant | 1 | Not Illustrated, 3 oz. Tube | $17.75 | Add to Cart |
| 127646 | 15 Output Shaft - Nss | Call for availability | ||||
| 217414 | 21 Seal Driver 1 In Kit - See Page 34 | $73.99 | Add to Cart |
Carrier Mounting Flange Design Change
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 127567 | Carrier Mounting Flange Design Change 4 Nut | $5.23 | Add to Cart | |||
| 127641 | 4 Stud | $4.95 | Add to Cart | |||
| 129293 | Thick Flange – After 6/3/02 1 Loctite 271 0.5 Ml. Tube | Call for availability | ||||
| 130836 | 8 Capscrew (45 Mm) - Short | $2.95 | Add to Cart | |||
| 130837 | 4 Capscrew (70 Mm) - Long | $3.73 | Add to Cart | |||
| 130877 | 12 Washer | $1.75 | Add to Cart | |||
| 511600 | Hardware Kit | $104.25 | Add to Cart | |||
| 107276S | C C C C 1 Rtv Sealant 3 Oz. Tube | $17.75 | Add to Cart | |||
| 127567 | Carrier Mounting Flange Design Change 4 Nut | $5.23 | Add to Cart | |||
| 127641 | 4 Stud | $4.95 | Add to Cart | |||
| 129293 | 1 Loctite 271 0.5 Ml. Tube | Call for availability | ||||
| 130836 | Original Design Flange – Before 6/3/02* 10 Capscrew (Was | $2.95 | Add to Cart | |||
| 130158 | Original Design Flange – Before 6/3/02* 10 Capscrew (Was | Call for availability | ||||
| 130877 | 12 Washer (Was | $1.75 | Add to Cart | |||
| 29804 | 12 Washer (Was | $47.50 | Add to Cart | |||
| 130809 | Diff. Carrier Casting DSP40, DSP41 | Call for availability | ||||
| 129539 | Diff. Carrier Casting DSP40, DSP41 | Call for availability | ||||
| 129540 | Diff. Carrier Casting DSP40, DSP41 | Call for availability | ||||
| 130814 | Diff. Carrier Casting DDP40, DDP40(P), DDP41, DDP41(P) | Call for availability | ||||
| 129550 | Diff. Carrier Casting DDP40, DDP40(P), DDP41, DDP41(P) | Call for availability | ||||
| 130819 | Diff. Carrier Casting DSP40(P), DSP41(P) | Call for availability | ||||
| 129551 | Diff. Carrier Casting DSP40(P), DSP41(P) | Call for availability | ||||
| 130822 | Pdu Cover Casting All “D” Forward Carriers - 11 Hole | Call for availability | ||||
| 129571 | Pdu Cover Casting All “D” Forward Carriers - 11 Hole | Call for availability | ||||
| 130824 | Diff. Carrier Casting RSP40, RSP41 | Call for availability | ||||
| 129351C | Diff. Carrier Casting RSP40, RSP41 | Call for availability | ||||
| 129541 | Diff. Carrier Casting RSP40, RSP41 | Call for availability | ||||
| 130827 | Diff. Carrier Casting RDP40, RDP41 | Call for availability | ||||
| 128600 | Diff. Carrier Casting RDP40, RDP41 | Call for availability | ||||
| 511600 | None Axle Hsg Hardware Kit - Thin Flange Models Use Only In Models With Thin Flange Carrier Design | $104.25 | Add to Cart | |||
| 512087 | None Axle Hsg Hardware Kit - Thick Flange Models Use Only In Models With Thick Flange Carrier Design | $117.81 | Add to Cart | |||
| 130836 | Capscrew - 45 Mm Use In All Models (New & Old Design) | $2.95 | Add to Cart | |||
| 130158 | Capscrew - 45 Mm Use In All Models (New & Old Design) | Call for availability | ||||
| 210173 | Capscrew - 45 Mm Use In All Models (New & Old Design) | Call for availability | ||||
| 130837 | None Capscrew - 70 Mm Use Only In Models With Thick Flange Carrier Design | $3.73 | Add to Cart | |||
| 130158 | NLA Capscrew - 40 Mm Replaced By Capscrew | Call for availability | ||||
| 130836 | NLA Capscrew - 40 Mm Replaced By Capscrew | $2.95 | Add to Cart | |||
| 210173 | NLA Capscrew - 40 Mm Replaced By Capscrew | Call for availability | ||||
| 130836 | NLA Capscrew - 40 Mm Replaced By Capscrew | $2.95 | Add to Cart | |||
| 130877 | Flat Washer Use In All Models (New & Old Design) - *Old Part Not | $1.75 | Add to Cart | |||
| 29804 | Flat Washer Use In All Models (New & Old Design) - *Old Part Not | $47.50 | Add to Cart | |||
| 29804 | None Flat Washer Used Only In Brake Assemblies - *Part Not Obsolete | $47.50 | Add to Cart | |||
| 130823 | Pdu Cover - 11 Hole All “D” Forward Carriers (New Cover Uses 11 Capscrews) | $483.90 | Add to Cart | |||
| 129572 | Pdu Cover - 11 Hole All “D” Forward Carriers (New Cover Uses 11 Capscrews) | Call for availability | ||||
| 129572 | NLA Pdu Cover - 9 Hole Old And New Covers Not Interchangeable | Call for availability | ||||
| 510023 | NLA-Note 1 Carrier & Cap Kit DSP40, DSP41 | Call for availability | ||||
| 510024 | NLA-Note 1 Carrier & Cap Kit DSP40(P), DSP41(P) | Call for availability | ||||
| 510027 | NLA-Note 1 Carrier & Cap Kit DDP40, DDP41 | No longer available - Call for replacement | ||||
| 510028 | NLA-Note 1 Carrier & Cap Kit DSP40(P), DSP41(P) | Call for availability | ||||
| 510017 | Carrier & Cap Kit RDP40, RDP41 | $1,363.94 | Add to Cart | |||
| 131828 | Carrier & Cap Kit RDP40, RDP41 | Call for availability | ||||
| 510018 | Carrier & Cap Kit RSP40, RSP41 | $1,363.28 | Add to Cart | |||
| 131812 | Carrier & Cap Kit RSP40, RSP41 | Call for availability |
Axle Shafts
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 127437 | Axle Shaft 1 41 1.87 4” 8.500 8(.635) Str | $354.63 | Add to Cart | |||
| 38976 | Axle Shaft 1 41 1.87 4” 8.500 8(.635) Str | Call for availability | ||||
| 127438 | Axle Shaft DSP40 1 41 1.87 4” 8.500 8(.635) Str | $410.70 | Add to Cart | |||
| 43307 | Axle Shaft DSP40 1 41 1.87 4” 8.500 8(.635) Str | Call for availability | ||||
| 128514 | Axle Shaft RSP40 1 41 1.87 4” 8.500 8(.773) Str | $583.18 | Add to Cart | |||
| 38130 | Axle Shaft RSP40 1 41 1.87 4” 8.500 8(.773) Str | Call for availability | ||||
| 128515 | Axle Shaft DSP41 1 41 1.87 4” 8.500 8(.773) Str | $502.11 | Add to Cart | |||
| 42460 | Axle Shaft DSP41 1 41 1.87 4” 8.500 8(.773) Str | Call for availability | ||||
| 128516 | Axle Shaft RSP41 1 41 1.87 4” 8.500 8(.948) Tpr | $442.30 | Add to Cart | |||
| 38976 | Axle Shaft RSP41 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| P20060D | Axle Shaft 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 128517HX | Axle Shaft 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 43307 | Axle Shaft 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| P22060D | Axle Shaft 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 128521 | Axle Shaft 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 38130 | Axle Shaft 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 128522 | Axle Shaft 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 42460 | Axle Shaft 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 127437 | Axle Shaft 1 41 1.87 4” 8.500 8(.635) Str | $354.63 | Add to Cart | |||
| 38976 | Axle Shaft 1 41 1.87 4” 8.500 8(.635) Str | Call for availability | ||||
| 128435 | Axle Shaft DDP40 1 41 1.87 11” 8.500 8(.635) Str | $549.68 | Add to Cart | |||
| 43307 | Axle Shaft DDP40 1 41 1.87 11” 8.500 8(.635) Str | Call for availability | ||||
| 128514 | Axle Shaft RDP40 1 41 1.87 38.13 4” 8.500 8(.773) Str | $583.18 | Add to Cart | |||
| 128559 | Axle Shaft DDP41 1 41 1.87 42.46 11” 8.500 8(.773) Str | $653.25 | Add to Cart | |||
| 128516 | Axle Shaft RDP41 1 41 1.87 4” 8.500 8(.948) Tpr | $442.30 | Add to Cart | |||
| 38976 | Axle Shaft RDP41 1 41 1.87 4” 8.500 8(.948) Tpr | Call for availability | ||||
| P20060D | Axle Shaft 1 41 1.87 11” 8.500 8(.948) Tpr | Call for availability | ||||
| 128561HX | Axle Shaft 1 41 1.87 11” 8.500 8(.948) Tpr | Call for availability | ||||
| 43307 | Axle Shaft 1 41 1.87 11” 8.500 8(.948) Tpr | Call for availability | ||||
| P22060D | Axle Shaft 1 41 1.87 38.13 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 128521 | Axle Shaft 1 41 1.87 38.13 4” 8.500 8(.948) Tpr | Call for availability | ||||
| 128563 | Axle Shaft 1 41 1.87 42.46 11” 8.500 8(.948) Tpr | No longer available - Call for replacement | ||||
| 13885 | Tapered Dowel 1.00” .630” .469” For 5/8” Studs - Split Dowel Design | Call for availability | ||||
| 132993 | Tapered Dowel 1.00” .630” .469” For 5/8” Studs | $7.32 | Add to Cart | |||
| 13886 | Gasket 8 Hole | Call for availability | ||||
| 29804 | Washer | $47.50 | Add to Cart | |||
| 60600 | Axle Shaft Nut 5/8”, 18 Thread | Call for availability | ||||
| 127794 | Stud - Wheel 5/8”, 18 Thread | $76.25 | Add to Cart |
Gear & Pinion Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 211462 | Gear & Pinion Service Kit 2.64 Ratio | 37/14 teeth, 14.90 in. ring gear | $1,849.49 | Add to Cart | ||
| 211463 | Gear & Pinion Service Kit 2.85 Ratio | 37/13 teeth, 15.40 in. ring gear | $2,591.42 | Add to Cart | ||
| 132228 | Ring Gear 2.85 Ratio, Mated Set | 37/13 teeth, 15.40 in. ring gear | Call for availability | |||
| 132197 | Drive Pinion 2.85 Ratio, Mated Set | 37/13 teeth, 15.40 in. ring gear | Call for availability | |||
| 509423 | Gear & Pinion Service Kit 2.93 Ratio | 41/14 teeth, 15.40 in. ring gear | $1,844.70 | Add to Cart | ||
| 132229 | Ring Gear 2.93 Ratio, Mated Set | 41/14 teeth, 15.40 in. ring gear | Call for availability | |||
| 132198 | Drive Pinion 2.93 Ratio, Mated Set | 41/14 teeth, 15.40 in. ring gear | Call for availability | |||
| 513386 | Gear & Pinion Service Kit 3.08 Ratio | 37/12 teeth, 15.40 in. ring gear | $1,731.31 | Add to Cart | ||
| 132230 | Ring Gear 3.08 Ratio, Mated Set | 37/12 teeth, 15.40 in. ring gear | Call for availability | |||
| 132200 | Drive Pinion 3.08 Ratio, Mated Set | 37/12 teeth, 15.40 in. ring gear | Call for availability | |||
| 513385 | Gear & Pinion Service Kit 3.25 Ratio | 39/12 teeth, 15.40 in. ring gear | $1,621.42 | Add to Cart | ||
| 132232 | Ring Gear 3.25 Ratio, Mated Set | 39/12 teeth, 15.40 in. ring gear | Call for availability | |||
| 132303 | Drive Pinion 3.25 Ratio, Mated Set | 39/12 teeth, 15.40 in. ring gear | Call for availability | |||
| 513384 | Gear & Pinion Service Kit 3.36 Ratio | 37/11 teeth, 15.40 in. ring gear | $1,718.06 | Add to Cart | ||
| 132234 | Ring Gear 3.36 Ratio, Mated Set | 37/11 teeth, 15.40 in. ring gear | Call for availability | |||
| 132304 | Drive Pinion 3.36 Ratio, Mated Set | 37/11 teeth, 15.40 in. ring gear | Call for availability | |||
| 504056 | Gear & Pinion Service Kit 3.42 Ratio | 41/12 teeth, 15.40 in. ring gear | $2,032.97 | Add to Cart | ||
| 513382 | Gear & Pinion Service Kit 3.70 Ratio | 37/10 teeth, 15.40 in. ring gear | $1,661.06 | Add to Cart | ||
| 132238 | Ring Gear 3.70 Ratio, Mated Set | 37/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 132307 | Drive Pinion 3.70 Ratio, Mated Set | 37/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 513381 | Gear & Pinion Service Kit 3.90 Ratio | 39/10 teeth, 15.40 in. ring gear | $1,240.21 | Add to Cart | ||
| 132240 | Ring Gear 3.90 Ratio, Mated Set | 39/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 132309 | Drive Pinion 3.90 Ratio, Mated Set | 39/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 513379 | Gear & Pinion Service Kit 4.33 Ratio | 39/9 teeth, 15.40 in. ring gear | $1,135.20 | Add to Cart | ||
| 132244 | Ring Gear 4.33 Ratio, Mated Set | 39/9 teeth, 15.40 in. ring gear | Call for availability | |||
| 132309 | Drive Pinion 4.33 Ratio, Mated Set | 39/9 teeth, 15.40 in. ring gear | Call for availability | |||
| 513378 | Gear & Pinion Service Kit 4.63 Ratio | 37/8 teeth, 15.70 in. ring gear | $1,101.64 | Add to Cart | ||
| 132246 | Ring Gear 4.63 Ratio, Mated Set | 37/8 teeth, 15.70 in. ring gear | Call for availability | |||
| 132216 | Drive Pinion 4.63 Ratio, Mated Set | 37/8 teeth, 15.70 in. ring gear | Call for availability | |||
| 513377 | Gear & Pinion Service Kit 4.88 Ratio | 39/8 teeth, 15.70 in. ring gear | $1,625.38 | Add to Cart | ||
| 132248 | Ring Gear 4.88 Ratio, Mated Set | 39/8 teeth, 15.70 in. ring gear | Call for availability | |||
| 132217 | Drive Pinion 4.88 Ratio, Mated Set | 39/8 teeth, 15.70 in. ring gear | Call for availability | |||
| 513376 | Gear & Pinion Service Kit 5.29 Ratio | 37/7 teeth, 15.70 in. ring gear | $1,458.39 | Add to Cart | ||
| 132250 | Ring Gear 5.29 Ratio, Mated Set | 37/7 teeth, 15.70 in. ring gear | Call for availability | |||
| 132220 | Drive Pinion 5.29 Ratio, Mated Set | 37/7 teeth, 15.70 in. ring gear | Call for availability | |||
| 513375 | Gear & Pinion Service Kit 5.57 Ratio | 39/7 teeth, 15.70 in. ring gear | $1,545.89 | Add to Cart | ||
| 132252 | Ring Gear 5.57 Ratio, Mated Set | 39/7 teeth, 15.70 in. ring gear | Call for availability | |||
| 132222 | Drive Pinion 5.57 Ratio, Mated Set | 39/7 teeth, 15.70 in. ring gear | Call for availability | |||
| 513374 | Gear & Pinion Service Kit 6.17 Ratio | 37/6 teeth, 15.65 in. ring gear | $1,750.27 | Add to Cart | ||
| 132254 | Ring Gear 6.17 Ratio, Mated Set | 37/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 132224 | Drive Pinion 6.17 Ratio, Mated Set | 37/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 127391 | Gear & Pinion Service Kit 6.50 Ratio | 39/6 teeth, 15.40 in. ring gear | Call for availability | |||
| 511571 | Gear & Pinion Service Kit 6.50 Ratio | 39/6 teeth, 15.65 in. ring gear | $1,764.91 | Add to Cart | ||
| 134017 | Ring Gear 6.50 Ratio, Mated Set | 39/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 134019 | Drive Pinion 6.50 Ratio, Mated Set | 39/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 511572 | Gear & Pinion Service Kit 7.17 Ratio | 43/6 teeth, 15.65 in. ring gear | $2,424.43 | Add to Cart | ||
| 211478 | Gear & Pinion Service Kit 2.64 Ratio - Rear Axle | 37/14 teeth, 14.90 in. ring gear | $2,119.49 | Add to Cart | ||
| 132112 | Ring Gear 2.64 Ratio, Mated Set - Rear Axle | 37/14 teeth, 14.90 in. ring gear | Call for availability | |||
| 132068 | Drive Pinion 2.64 Ratio, Mated Set - Rear Axle | 37/14 teeth, 14.90 in. ring gear | Call for availability | |||
| 211479 | Gear & Pinion Service Kit 2.85 Ratio - Rear Axle | 37/10 teeth, 15.40 in. ring gear | $2,558.04 | Add to Cart | ||
| 132113 | Ring Gear 2.85 Ratio, Mated Set - Rear Axle | 37/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 132069 | Drive Pinion 2.85 Ratio, Mated Set - Rear Axle | 37/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 509424 | Gear & Pinion Service Kit 2.93 Ratio - Rear Axle | 41/14 teeth, 15.40 in. ring gear | $2,290.56 | Add to Cart | ||
| 132114 | Ring Gear 2.93 Ratio, Mated Set - Rear Axle | 41/14 teeth, 15.40 in. ring gear | Call for availability | |||
| 132070 | Drive Pinion 2.93 Ratio, Mated Set - Rear Axle | 41/14 teeth, 15.40 in. ring gear | Call for availability | |||
| 513373 | Gear & Pinion Service Kit 3.08 Ratio - Rear Axle | 37/12 teeth, 15.40 in. ring gear | $1,722.04 | Add to Cart | ||
| 132115 | Ring Gear 3.08 Ratio, Mated Set - Rear Axle | 37/12 teeth, 15.40 in. ring gear | Call for availability | |||
| 132072 | Drive Pinion 3.08 Ratio, Mated Set - Rear Axle | 37/12 teeth, 15.40 in. ring gear | Call for availability | |||
| 513372 | Gear & Pinion Service Kit 3.25 Ratio - Rear Axle | 39/12 teeth, 15.40 in. ring gear | $1,631.90 | Add to Cart | ||
| 132117 | Ring Gear 3.25 Ratio, Mated Set - Rear Axle | 39/12 teeth, 15.40 in. ring gear | Call for availability | |||
| 132074 | Drive Pinion 3.25 Ratio, Mated Set - Rear Axle | 39/12 teeth, 15.40 in. ring gear | Call for availability | |||
| 513371 | Gear & Pinion Service Kit 3.36 Ratio - Rear Axle | 37/11 teeth, 15.40 in. ring gear | $1,530.64 | Add to Cart | ||
| 132119 | Ring Gear 3.36 Ratio, Mated Set - Rear Axle | 37/11 teeth, 15.40 in. ring gear | Call for availability | |||
| 132076 | Drive Pinion 3.36 Ratio, Mated Set - Rear Axle | 37/11 teeth, 15.40 in. ring gear | Call for availability | |||
| 504055 | Gear & Pinion Service Kit 3.42 Ratio - Rear Axle | 41/12 teeth, 15.40 in. ring gear | $2,976.72 | Add to Cart | ||
| 513369 | Gear & Pinion Service Kit 3.70 Ratio - Rear Axle | 37/10 teeth, 15.40 in. ring gear | $1,689.90 | Add to Cart | ||
| 132123 | Ring Gear 3.70 Ratio, Mated Set - Rear Axle | 37/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 132083 | Drive Pinion 3.70 Ratio, Mated Set - Rear Axle | 37/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 513368 | Gear & Pinion Service Kit 3.90 Ratio - Rear Axle | 39/10 teeth, 15.40 in. ring gear | $1,515.53 | Add to Cart | ||
| 132125 | Ring Gear 3.90 Ratio, Mated Set - Rear Axle | 39/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 132086 | Drive Pinion 3.90 Ratio, Mated Set - Rear Axle | 39/10 teeth, 15.40 in. ring gear | Call for availability | |||
| 513366 | Gear & Pinion Service Kit 4.33 Ratio - Rear Axle | 39/9 teeth, 15.40 in. ring gear | $2,357.26 | Add to Cart | ||
| 132130 | Ring Gear 4.33 Ratio, Mated Set - Rear Axle | 39/9 teeth, 15.40 in. ring gear | Call for availability | |||
| 132094 | Drive Pinion 4.33 Ratio, Mated Set - Rear Axle | 39/9 teeth, 15.40 in. ring gear | Call for availability | |||
| 513365 | Gear & Pinion Service Kit 4.63 Ratio - Rear Axle | 37/8 teeth, 15.70 in. ring gear | $2,428.22 | Add to Cart | ||
| 132132 | Ring Gear 4.63 Ratio, Mated Set - Rear Axle | 37/8 teeth, 15.70 in. ring gear | Call for availability | |||
| 132097 | Drive Pinion 4.63 Ratio, Mated Set - Rear Axle | 37/8 teeth, 15.70 in. ring gear | Call for availability | |||
| 513364 | Gear & Pinion Service Kit 4.88 Ratio - Rear Axle | 39/8 teeth, 15.70 in. ring gear | $1,661.40 | Add to Cart | ||
| 132135 | Ring Gear 4.88 Ratio, Mated Set - Rear Axle | 39/8 teeth, 15.70 in. ring gear | Call for availability | |||
| 132101 | Drive Pinion 4.88 Ratio, Mated Set - Rear Axle | 39/8 teeth, 15.70 in. ring gear | Call for availability | |||
| 513363 | Gear & Pinion Service Kit 5.29 Ratio - Rear Axle | 37/7 teeth, 15.70 in. ring gear | $1,416.57 | Add to Cart | ||
| 132137 | Ring Gear 5.29 Ratio, Mated Set - Rear Axle | 37/7 teeth, 15.70 in. ring gear | Call for availability | |||
| 132104 | Drive Pinion 5.29 Ratio, Mated Set - Rear Axle | 37/7 teeth, 15.70 in. ring gear | Call for availability | |||
| 513362 | Gear & Pinion Service Kit 5.57 Ratio - Rear Axle | 39/7 teeth, 15.70 in. ring gear | $1,665.16 | Add to Cart | ||
| 132139 | Ring Gear 5.57 Ratio, Mated Set - Rear Axle | 39/7 teeth, 15.70 in. ring gear | Call for availability | |||
| 132107 | Drive Pinion 5.57 Ratio, Mated Set - Rear Axle | 39/7 teeth, 15.70 in. ring gear | Call for availability | |||
| 513361 | Gear & Pinion Service Kit 6.17 Ratio - Rear Axle | 37/6 teeth, 15.65 in. ring gear | $1,382.11 | Add to Cart | ||
| 132141 | Ring Gear 6.17 Ratio, Mated Set - Rear Axle | 37/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 132109 | Drive Pinion 6.17 Ratio, Mated Set - Rear Axle | 37/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 211493 | Gear & Pinion Service Kit 6.50 Ratio - Rear Axle | 39/6 teeth, 15.65 in. ring gear | $2,393.00 | Add to Cart | ||
| 132143 | Ring Gear 6.50 Ratio, Mated Set - Rear Axle | 39/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 132110 | Drive Pinion 6.50 Ratio, Mated Set - Rear Axle | 39/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 211494 | Gear & Pinion Service Kit 7.17 Ratio - Rear Axle | 43/6 teeth, 15.65 in. ring gear | $1,228.19 | Add to Cart | ||
| 132145 | Ring Gear 7.17 Ratio, Mated Set - Rear Axle | 43/6 teeth, 15.65 in. ring gear | Call for availability | |||
| 132111 | Drive Pinion 7.17 Ratio, Mated Set - Rear Axle | 43/6 teeth, 15.65 in. ring gear | Call for availability |
Service Carriers - Single Reduction
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 682965 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682997 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675965 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675997 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 681529 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 681530 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682966 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682998 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675966 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675998 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682967 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682999 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675967 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675999 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682968 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682000 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675968 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676000 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682969 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682001 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675969 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676001 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 681535 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 681536 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682970 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682002 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675970 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676002 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682971 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682003 | Ratio Carrier Carrier Non-Pump Pump | $4,417.10 | Add to Cart | |||
| 675971 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676003 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682972 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682004 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675972 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676004 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682973 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682005 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675973 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676005 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682974 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682006 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675974 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676006 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682975 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682007 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675975 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676007 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682976 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682008 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675976 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676008 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682977 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682009 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675977 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676009 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682978 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682010 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675978 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676010 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682979 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682011 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675979 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676011 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682980 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682012 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675980 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 676012 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682014 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682013 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682949 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682981 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675949 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675981 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 681532 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 681533 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682950 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682982 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675950 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675982 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682951 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682983 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675951 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675983 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682952 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682984 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675952 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675984 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682953 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682985 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675953 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675985 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 681538 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 691539 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682954 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682986 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675954 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675986 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682955 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682987 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675955 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675987 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682956 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682988 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675956 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675988 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682957 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682989 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675957 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675989 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682958 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682990 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675958 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675990 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682959 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682991 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675959 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675991 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682960 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682992 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675960 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675992 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682961 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682993 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675961 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675993 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682962 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682994 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675962 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675994 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682963 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682995 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675963 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675995 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682964 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682996 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 675964 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 675996 | Ratio Carrier Carrier Non-Pump Pump | Call for availability | ||||
| 682015 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| 682016 | Ratio Carrier Carrier Non-Pump Pump | No longer available - Call for replacement | ||||
| P20060S | Service Carrier RSP40, RSP41, | Call for availability | ||||
| P20060SR | Service Carrier RSP40, RSP41, | Call for availability | ||||
| P22060S | Service Carrier RSP40, RSP41, | Call for availability | ||||
| P22060SR | Service Carrier RSP40, RSP41, | Call for availability | ||||
| 676029 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681531 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676030 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676031 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681514 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676032 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681515 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676033 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681516 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681537 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676034 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681517 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676035 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681518 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676036 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681519 | Ratio Carrier Carrier | $3,164.42 | Add to Cart | |||
| 676037 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681520 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676038 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681521 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676039 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681522 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676040 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681523 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676041 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681524 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676042 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681525 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676043 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681526 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676044 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681527 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681443 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| P20060D | Service Carrier RDP40, RDP41, | Call for availability | ||||
| P20060DR | Service Carrier RDP40, RDP41, | Call for availability | ||||
| P22060D | Service Carrier RDP40, RDP41, | Call for availability | ||||
| P22060DR | Service Carrier RDP40, RDP41, | Call for availability | ||||
| 676013 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681534 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676014 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676015 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681463 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676016 | Ratio Carrier Carrier | $4,251.24 | Add to Cart | |||
| 681464 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676017 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681465 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681540 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676018 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681466 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676019 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681467 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676020 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681468 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676021 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681469 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676022 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681470 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676023 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681471 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676024 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681472 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676025 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681473 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676026 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681474 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676027 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681475 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 676028 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681476 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681444 | Ratio Carrier Carrier | No longer available - Call for replacement | ||||
| 681477 | Ratio Carrier Carrier | No longer available - Call for replacement |
Yokes and Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 127550 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127617 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127618 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127619 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127620 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127621 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127622 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 210831 | Yokes And Flange 170-4-201-1X SPL170 25° X 5.27 2.16 5.51 | Call for availability | ||||
| 210833 | Yokes And Flange 250-4-81-1X SPL250 25° X 5.49 2.36 5.31 | Call for availability | ||||
| 127558 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127624 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127638 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 128722 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 128737 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 210835 | Yokes And Flange 170-4-221-1X SPL170 25° X 5.27 2.16 5.51 | Call for availability | ||||
| 210837 | Yokes And Flange 170-4-241-1X SPL170 45° X 6.50 2.16 5.51 | Call for availability | ||||
| 127415 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 127637 | Assy# Number Series Angle Style A B C | $13.51 | Add to Cart | |||
| 128720 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 128721 | Assy# Number Series Angle Style A B C | No longer available - Call for replacement | ||||
| 128745 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 128746 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 129019 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 129043 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 129164 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 129166 | Assy# Number Series Angle Style A B C | Call for availability | ||||
| 210839 | Yokes And Flange 170-4-261-1X SPL170 25° X 5.16 2.16 5.51 | Call for availability | ||||
| 210841 | Yokes And Flange 170-4-281-1X SPL170 45° X 6.24 2.16 5.51 | Call for availability | ||||
| 210875 | Yokes And Flange RPL20 30° X 4.85 N/A 5.30 | Call for availability | ||||
| 210877 | Yokes And Flange RPL20 42° X 5.69 N/A 5.30 | Call for availability | ||||
| 210923 | Yokes And Flange 90-4-251-1X SPL90 15° X 4.75 1.61 4.53 | Call for availability |
Kits and Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 512087 | This Kit Contains Installation Tools Used For Installing Driveline Oil Seals. Axle Housing Hardware Kit - Thick Flange Carriers | $117.81 | Add to Cart | |||
| 511600 | Using These Tools Ensures Proper Installation Of The Seal. Failure To Use Axle Housing Hardware Kit - Thin Flange Carriers | $104.25 | Add to Cart | |||
| 217414 | Oil Seal Driver Installation Kit: Basic Overhaul Kit - DD Models Before June 2008 | $73.99 | Add to Cart | |||
| 510399 | Oil Seal Driver Installation Kit: Basic Overhaul Kit - DD Models Before June 2008 | $1,147.81 | Add to Cart | |||
| 510400 | Basic Overhaul Kit - RD Models Before June 2008 | No longer available - Call for replacement | ||||
| 510393 | Basic Overhaul Kit - DS Models Before June 2008 | $1,223.33 | Add to Cart | |||
| 126917 | These Tools May Result In An Improperly Installed Or Damaged Seal. | $45.14 | Add to Cart | |||
| 510398 | Basic Overhaul Kit - RS Models Before June 2008 | $265.35 | Add to Cart | |||
| 504030 | Basic Overhaul Kit - D40K Standard Mdls After June 2008 | $1,073.06 | Add to Cart | |||
| 504031 | Basic Overhaul Kit - D40K Diff-Lock Mdls After June 2008 | No longer available - Call for replacement | ||||
| 216234 | Bearing Kit - DS Models Before June 2008 | No longer available - Call for replacement | ||||
| 216248 | Bearing Kit - RS Models Before June 2008 | $420.70 | Add to Cart | |||
| 512800 | Bearing Kit - DD Models Before June 2008 | No longer available - Call for replacement | ||||
| 512805 | Bearing Kit - RD Models Before June 2008 | $725.11 | Add to Cart | |||
| 129767 | Cage & Cup Assy - All “D” Models | Call for availability | ||||
| 126917 | Cage & Cup Assy - All “R” Models - Std | Call for availability | ||||
| 129768 | Cage & Cup Assy - All “R” Models - Std | Call for availability | ||||
| 129996 | Cage & Cup Assy - All “R” Models - Parking Brake Option | No longer available - Call for replacement | ||||
| 129575 | Input Brg Cover Assy - “D” Models | No longer available - Call for replacement | ||||
| 510593 | Input Shaft Kit - All “D” Models - Before June 2008 | Call for availability | ||||
| 504027 | Input Shaft Kit - D40K Pump Models - After June 2008 | $170.42 | Add to Cart | |||
| 504026 | Input Shaft Kit - D40K Non-Pump Models-After June 2008 | $180.26 | Add to Cart | |||
| 134192 | Inter-Axle Diff Assy - All “D” Models | $215.49 | Add to Cart | |||
| 127534 | Lube Pump Assembly - All Models Before June 2008 | $876.22 | Add to Cart | |||
| 504028 | Lube Pump Parts Kit - All Models After June 2008 | No longer available - Call for replacement | ||||
| 128706 | Manifold Parts Kit - Pump Mdls After June 2008 | Call for availability | ||||
| 504029 | Manifold Parts Kit - Pump Mdls After June 2008 | $154.74 | Add to Cart | |||
| 217414 | Oil Seal Driver Installation Kit - All Models | $73.99 | Add to Cart | |||
| 216224 | Oil Seal & Shim Kit - All “D” Models | $172.26 | Add to Cart | |||
| 126917 | Oil Seal & Shim Kit - All “R” Models | $45.14 | Add to Cart | |||
| 216225 | Oil Seal & Shim Kit - All “R” Models | $61.86 | Add to Cart | |||
| 216227 | Output Shaft Kit - All “D” Models | $232.39 | Add to Cart | |||
| 504043 | Pinion Brg Spacer Kit - All “D” Models | $208.82 | Add to Cart | |||
| 504016 | Pinion Brg Spacer Kit - All “R” Models | $208.71 | Add to Cart | |||
| 504032 | Pinion Brg Cage Shim Kit - All “D” And “R” Models | $113.07 | Add to Cart | |||
| 508652 | Ring Gear Nut & Bolt Kit - All Models | $65.24 | Add to Cart | |||
| 510870 | Shift Fork & Spring Kit - All “D” Models | $71.26 | Add to Cart | |||
| 508653 | Wheel Diff Case Kit - 2.64 To 3.25 - All DS/RS Models | $494.09 | Add to Cart | |||
| 508654 | Wheel Diff Case Kit - 3.36 To 3.90 - All DS/RS Models | $480.55 | Add to Cart | |||
| 508655 | Wheel Diff Case Kit - 4.11 To 4.88 - All DS/RS Models | $412.14 | Add to Cart | |||
| 508656 | Wheel Diff Case Kit - 5.29 To 7.17 - All DS/RS Models | $1,178.20 | Add to Cart | |||
| 508724 | Wheel Diff Case Kit - 2.64 To 3.25 - All DD/RD Models | $1,715.01 | Add to Cart | |||
| 508725 | Wheel Diff Case Kit - 3.36 To 3.90 - All DD/RD Models | $1,178.51 | Add to Cart | |||
| 508726 | Wheel Diff Case Kit - 4.11 To 4.88 - All DD/RD Models | $498.76 | Add to Cart | |||
| 508727 | Wheel Diff Case Kit - 5.29 To 7.17 - All DD/RD Models | $1,135.22 | Add to Cart | |||
| 216229 | Wheel Diff Side Gear Kit - 41 Inv | $215.37 | Add to Cart | |||
| 216228 | Wheel Diff Kit - W/O Side Gears - All Models | $258.16 | Add to Cart |
Carrier Assemblies by Ratio - DSP41
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| DSP40P264CF | DSP40 2.64 Ratio Carrier, DSP40P264CF Dana Spicer Core Free Carrier | 2.64 | $4,417.10 | Add to Cart | ||
| DSP40P264 | DSP40 2.64 Ratio Carrier, DSP40P264 Meritor Dsp40 | 2.64 | $6,003.06 | Add to Cart | ||
| DSP40285CF | DSP40 2.85 Ratio Carrier, DSP40285CF Dana Spicer Core Free Carrier | 2.85 | $4,417.12 | Add to Cart | ||
| DSP40P285 | DSP40 2.85 Ratio Carrier, DSP40P285 Meritor Dsp40 | 2.85 | $6,003.06 | Add to Cart | ||
| DSP40P293CF | DSP40 2.93 Ratio Carrier, DSP40P293CF Dana Spicer Core Free Carrier | 2.93 | $4,417.10 | Add to Cart | ||
| DSP40P293 | DSP40 2.93 Ratio Carrier, DSP40P293 Meritor Dsp40 | 2.93 | $6,003.06 | Add to Cart | ||
| DSP40P308CF | DSP40 3.08 Ratio Carrier, DSP40P308CF Dana Spicer Core Free Carrier | 3.08 | $4,417.12 | Add to Cart | ||
| DSP40P308 | DSP40 3.08 Ratio Carrier, DSP40P308 Meritor Dsp40 | 3.08 | $6,003.06 | Add to Cart | ||
| DSP40P325CF | DSP40 3.25 Ratio Carrier, DSP40P325CF Dana Spicer Core Free Carrier | 3.25 | $4,417.10 | Add to Cart | ||
| DSP40P325 | DSP40 3.25 Ratio Carrier, DSP40P325 Meritor Dsp40 | 3.25 | $6,003.06 | Add to Cart | ||
| DSP40R336 | DSP40 3.36 Ratio Carrier, DSP40R336 Spicer Front Differential Carrier, 3.36 Ratio | 3.36 | $2,695.00 | Add to Cart | ||
| DSP40P336CF | DSP40 3.36 Ratio Carrier, DSP40P336CF Dana Spicer Core Free Carrier | 3.36 | $4,417.10 | Add to Cart | ||
| DSP40P336 | DSP40 3.36 Ratio Carrier, DSP40P336 Meritor Dsp40 | 3.36 | $6,003.06 | Add to Cart | ||
| DSP40P342CF | DSP40 3.42 Ratio Carrier, DSP40P342CF Dana Spicer Core Free Carrier | 3.42 | $4,417.10 | Add to Cart | ||
| DSP40P342 | DSP40 3.42 Ratio Carrier, DSP40P342 Meritor Dsp40 | 3.42 | $6,003.06 | Add to Cart | ||
| DSP40P355CF | DSP40 3.55 Ratio Carrier, DSP40P355CF Dana Spicer Core Free Carrier | 3.55 | $4,417.12 | Add to Cart | ||
| DSP40P355 | DSP40 3.55 Ratio Carrier, DSP40P355 Meritor Dsp40 | 3.55 | $6,003.06 | Add to Cart | ||
| DSP40P370CF | DSP40 3.70 Ratio Carrier, DSP40P370CF Dana Spicer Core Free Carrier | 3.70 | $4,417.10 | Add to Cart | ||
| DSP40P370 | DSP40 3.70 Ratio Carrier, DSP40P370 Meritor Dsp40 | 3.70 | $6,003.06 | Add to Cart | ||
| DSP40P390CF | DSP40 3.90 Ratio Carrier, DSP40P390CF Dana Spicer Core Free Carrier | 3.90 | $4,417.10 | Add to Cart | ||
| DSP40P390 | DSP40 3.90 Ratio Carrier, DSP40P390 Meritor Dsp40 | 3.90 | $6,003.06 | Add to Cart | ||
| DSP40P411CF | DSP40 4.11 Ratio Carrier, DSP40P411CF Dana Spicer Core Free Carrier | 4.11 | $4,417.10 | Add to Cart | ||
| DSP40P411 | DSP40 4.11 Ratio Carrier, DSP40P411 Meritor Dsp40 | 4.11 | $6,003.06 | Add to Cart | ||
| DSP40P433CF | DSP40 4.33 Ratio Carrier, DSP40P433CF Dana Spicer Core Free Carrier | 4.33 | $4,417.12 | Add to Cart | ||
| DSP40P433 | DSP40 4.33 Ratio Carrier, DSP40P433 Meritor Dsp40 | 4.33 | $6,003.06 | Add to Cart | ||
| DSP40P463CF | DSP40 4.63 Ratio Carrier, DSP40P463CF Dana Spicer Core Free Carrier | 4.63 | $4,417.12 | Add to Cart | ||
| DSP40P463 | DSP40 4.63 Ratio Carrier, DSP40P463 Meritor Dsp40 Differential | 4.63 | $6,003.06 | Add to Cart | ||
| DSP40488CF | DSP40 4.88 Ratio Carrier, DSP40488CF Dana Spicer Core Free Carrier | 4.88 | $4,417.10 | Add to Cart | ||
| DSP40P488 | DSP40 4.88 Ratio Carrier, DSP40P488 Meritor Dsp40 | 4.88 | $6,003.06 | Add to Cart | ||
| DSP40529CF | DSP40 5.29 Ratio Carrier, DSP40529CF Dana Spicer Core Free Carrier | 5.29 | $4,417.12 | Add to Cart | ||
| DSP40P529 | DSP40 5.29 Ratio Carrier, DSP40P529 Meritor Dsp40 | 5.29 | $6,003.06 | Add to Cart | ||
| DSP40P557CF | DSP40 5.57 Ratio Carrier, DSP40P557CF Dana Spicer Core Free Carrier | 5.57 | $4,417.12 | Add to Cart | ||
| DSP40P557 | DSP40 5.57 Ratio Carrier, DSP40P557 Meritor Dsp40 | 5.57 | $6,003.06 | Add to Cart | ||
| DSP40PN617CF | DSP40 6.17 Ratio Carrier, DSP40PN617CF Dana Spicer Core Free Carrier | 6.17 | $4,417.10 | Add to Cart | ||
| DSP40P617 | DSP40 6.17 Ratio Carrier, DSP40P617 Meritor Dsp40 | 6.17 | $6,003.06 | Add to Cart | ||
| DSP40650CF | DSP40 6.50 Ratio Carrier, DSP40650CF Dana Spicer Core Free Carrier | 6.50 | $4,417.10 | Add to Cart | ||
| DSP40P650 | DSP40 6.50 Ratio Carrier, DSP40P650 Meritor Dsp40 | 6.50 | $6,003.06 | Add to Cart | ||
| DSP40P717CF | DSP40 7.17 Ratio Carrier, DSP40P717CF Dana Spicer Core Free Carrier | 7.17 | $4,417.10 | Add to Cart | ||
| RSP40264 | RSP40 2.64 Ratio Carrier, RSP40264 Meritor Rsp40 | 2.64 | $2,572.75 | Add to Cart | ||
| RSP40264CF | RSP40 2.64 Ratio Carrier, RSP40264CF Dana Spicer Core Free Carrier | 2.64 | $3,021.46 | Add to Cart | ||
| RSP40285 | RSP40 2.85 Ratio Carrier, RSP40285 Meritor Rsp40 | 2.85 | $2,572.75 | Add to Cart | ||
| RSP40285CF | RSP40 2.85 Ratio Carrier, RSP40285CF Dana Spicer Core Free Carrier | 2.85 | $3,021.46 | Add to Cart | ||
| RSP40293 | RSP40 2.93 Ratio Carrier, RSP40293 Meritor - Dana Rsp40 Differential | 2.93 | $2,572.75 | Add to Cart | ||
| RSP40293CF | RSP40 2.93 Ratio Carrier, RSP40293CF Dana Spicer Core Free Carrier | 2.93 | $3,021.46 | Add to Cart | ||
| RSP40308 | RSP40 3.08 Ratio Carrier, RSP40308 Meritor - Dana Rsp40 Differential | 3.08 | $2,572.75 | Add to Cart | ||
| RSP40308CF | RSP40 3.08 Ratio Carrier, RSP40308CF Dana Spicer Core Free Carrier | 3.08 | $3,021.46 | Add to Cart | ||
| RSP40325 | RSP40 3.25 Ratio Carrier, RSP40325 Meritor Rsp40 | 3.25 | $2,572.75 | Add to Cart | ||
| RSP40325CF | RSP40 3.25 Ratio Carrier, RSP40325CF Dana Spicer Core Free Carrier | 3.25 | $3,021.46 | Add to Cart | ||
| RSP40336 | RSP40 3.36 Ratio Carrier, RSP40336 Meritor Rsp40 | 3.36 | $2,572.75 | Add to Cart | ||
| RSP40336CF | RSP40 3.36 Ratio Carrier, RSP40336CF Dana Spicer Core Free Carrier | 3.36 | $3,021.46 | Add to Cart | ||
| RSP40342 | RSP40 3.42 Ratio Carrier, RSP40342 Meritor Rsp40 | 3.42 | $2,572.75 | Add to Cart | ||
| RSP40342CF | RSP40 3.42 Ratio Carrier, RSP40342CF Dana Spicer Core Free Carrier | 3.42 | $3,021.46 | Add to Cart | ||
| RSP40355 | RSP40 3.55 Ratio Carrier, RSP40355 Meritor - Dana Rsp40 Differential | 3.55 | $2,572.75 | Add to Cart | ||
| RSP40355CF | RSP40 3.55 Ratio Carrier, RSP40355CF Dana Spicer Core Free Carrier | 3.55 | $3,021.46 | Add to Cart | ||
| RSP40370 | RSP40 3.70 Ratio Carrier, RSP40370 Meritor Rsp40 | 3.70 | $2,572.75 | Add to Cart | ||
| RSP40370CF | RSP40 3.70 Ratio Carrier, RSP40370CF Dana Spicer Core Free Carrier | 3.70 | $3,021.46 | Add to Cart | ||
| RSP40390 | RSP40 3.90 Ratio Carrier, RSP40390 Meritor Rsp40 | 3.90 | $2,572.75 | Add to Cart | ||
| RSP40390CF | RSP40 3.90 Ratio Carrier, RSP40390CF Dana Spicer Core Free Carrier | 3.90 | $3,021.46 | Add to Cart | ||
| RSP40411 | RSP40 4.11 Ratio Carrier, RSP40411 Meritor Rsp40 | 4.11 | $2,572.75 | Add to Cart | ||
| RSP40411CF | RSP40 4.11 Ratio Carrier, RSP40411CF Dana Spicer Differential Carrier | 4.11 | $3,021.46 | Add to Cart | ||
| RSP40433 | RSP40 4.33 Ratio Carrier, RSP40433 Meritor Rsp40 | 4.33 | $2,572.75 | Add to Cart | ||
| RSP40433CF | RSP40 4.33 Ratio Carrier, RSP40433CF Dana Spicer Core Free Carrier | 4.33 | $3,021.46 | Add to Cart | ||
| RSP40463 | RSP40 4.63 Ratio Carrier, RSP40463 Meritor Rsp40 | 4.63 | $2,572.75 | Add to Cart | ||
| RSP40463CF | RSP40 4.63 Ratio Carrier, RSP40463CF Dana Spicer Core Free Carrier | 4.63 | $3,021.46 | Add to Cart | ||
| RSP40488 | RSP40 4.88 Ratio Carrier, RSP40488 Meritor - Dana Rsp40 | 4.88 | $2,572.75 | Add to Cart | ||
| RSP40488CF | RSP40 4.88 Ratio Carrier, RSP40488CF Dana Spicer Core Free Carrier | 4.88 | $3,021.46 | Add to Cart | ||
| RSP40529 | RSP40 5.29 Ratio Carrier, RSP40529 Meritor Rsp40 | 5.29 | $2,572.75 | Add to Cart | ||
| RSP40529CF | RSP40 5.29 Ratio Carrier, RSP40529CF Dana Spicer Core Free Carrier | 5.29 | $3,021.46 | Add to Cart | ||
| RSP40557 | RSP40 5.57 Ratio Carrier, RSP40557 Meritor Rsp40 | 5.57 | $2,572.75 | Add to Cart | ||
| RSP40557CF | RSP40 5.57 Ratio Carrier, RSP40557CF Dana Spicer Core Free Carrier | 5.57 | $3,021.45 | Add to Cart | ||
| RSP40617 | RSP40 6.17 Ratio Carrier, RSP40617 Meritor Rsp40 | 6.17 | $2,572.75 | Add to Cart | ||
| RSP40617CF | RSP40 6.17 Ratio Carrier, RSP40617CF Dana Spicer Core Free Carrier | 6.17 | $3,021.46 | Add to Cart | ||
| RSP40650 | RSP40 6.50 Ratio Carrier, RSP40650 Meritor Rsp40 | 6.50 | $2,572.75 | Add to Cart | ||
| RSP40650CF | RSP40 6.50 Ratio Carrier, RSP40650CF Dana Spicer Core Free Carrier | 6.50 | $3,021.46 | Add to Cart | ||
| RSP40717CF | RSP40 7.17 Ratio Carrier, RSP40717CF Dana Spicer Core Free Carrier | 7.17 | $3,021.46 | Add to Cart |
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Dana Spicer DSP41 Single Reduction Drive Axle, with every part in the manual matched to our live inventory. We stock 463 of the 985 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Part of the Dana Spicer 40 Series Single Reduction Tandem Drive Axle parts manual (the full 40 series book: DSH/DDH40-44 forward, RSH/RDH40-44 rear).
