Meritor RT-46-164EH Drive Axle Parts Manual

View the official Meritor RT-46-164EH Drive Axle parts manual (PDF)Download PDFService Manual MM-5 (Single-Reduction Carriers)Service Manual MM-5A (Carriers & Front Drive Steer)Service Manual MM-5B (Tandem Forward-Rear Units)Housing Repair Manual MM-8

Forward Carriers of Tandem Axles

Item	Part No.	Description	Qty	Notes	Price
1	40X1233	Nut Input Yoke & Shaft	1	Included in KIT 2826	$17.72	Add to Cart
1A	1229N1730	Washer Input Nut	1		$52.70	Add to Cart
2, 3		Yoke & Deflector Assembly Input	1	SEE YOKE CHARTS	—	Call for availability
4	MS2120402	Capscrew Input Bearing Cage	7		$78.80	Add to Cart
5	MWA512	Washer Input Bearing Cage	7		$131.00	Add to Cart
6	A11205X2728	Seal & Sleeve Assembly Input Shaft	1		$104.91	Add to Cart
7, 10	A3226S1137	Bearing, Cage & Cup Assy. Input	1	All less pump	$284.07	Add to Cart
7, 10	A3226H1126	Bearing, Cage & Cup Assy. Input	1	All with pump	$339.22	Add to Cart
8	2203K9241	Shims Input Bearing .003"/.076mm Included		in KIT 2429; Use as	$74.20	Add to Cart
8	2203L9242	Shims Input Bearing .003"/.076mm Included	As req.	cage .005"/.127mm	$82.60	Add to Cart
8	2203M9243	Shims Input Bearing .003"/.076mm Included		.010"/.254mm	$96.00	Add to Cart
9	5X1343	O-ring Input Bearing Cage	1		$15.60	Add to Cart
10	HM813810	Cup Input Shaft Bearing	1		$46.33	Add to Cart
11	HM813843	Cone Input Shaft Bearing	1		$117.23	Add to Cart
12	3221P1004	Baffle Oil Use	1	without oil pump	$74.40	Add to Cart
13	1229E1669	Washer Oil Baffle	3		$152.00	Add to Cart
14	MS2080161	Capscrew Oil Baffle	3		$84.00	Add to Cart
15, 1	A3297T1606	Input Shaft & Nut Assembly	1	All less pump	$605.75	Add to Cart
15, 1	A13297S1605	Input Shaft & Nut Assembly	1	Input shaft, nut, ball & pin assy. Carriers; with pump; All others	$806.27	Add to Cart
15, 1	KIT2624	Input Shaft & Nut Assembly	1	For old style A1 -3297-H-1022; input shaft	—	Call for availability
16	1229S4985	Thrust Washer Helical Drive Gear Included	1	in KIT 2796	$101.78	Add to Cart
17	3892T4934	Gear Helical Drive Gear	1		$534.91	Superseded by 3892S5947Add to Cart
18	MS210045A1	Capscrew Inter-axle Diff. Case	8		—	Call for availability
19	1229K1597	Washer Inter-axle Diff. Case	8		$135.00	Add to Cart
20, 18, 19	A53235A2393	Case Assembly Inter-axle	1	After 10/00	$297.54	Add to Cart
20, 18, 19	A13235A2393	Case Assembly Inter-axle	1	Prior to 10/00.; Includes Items 25; & 27	$678.62	Add to Cart
20,18, 19, 21	A33235A2393	Diff. Case & Pinion Nest Assy Inter-axle ,		Includes Items 25; & 27 1; ,	$995.60	Add to Cart
21	3278N300	Spider (cross) Inter-axle Diff.	1	Included in KIT 2248	$191.16	Add to Cart
22	2233K245	Pinion Gear Inter-axle Diff.	4		$54.50	Add to Cart
23	1229Q2929	Thrust Washer Inter-axle Diff. Pinion	4		$131.40	Add to Cart
24	2297S5349	Snap Ring Inter-axle Diff.	1		$29.40	Add to Cart
25	3107P1212	Clutch Collar Inter-axle Diff. Included	1	in KIT 2796; After 10/00	$99.92	Add to Cart
25	A13235A2393	Clutch Collar Inter-axle Diff. Included	1	Prior to 10/00.; Includes Items 25; & 27	$678.62	Add to Cart
26	2234T1190	Side Gear Inter-axle Diff., Rear	1		$266.84	Add to Cart
27	3296B1328	Shift Fork Inter-axle Diff.	1		$88.41	Add to Cart
28	JLM714149	Cone Rear Side Gear Bearing	1		$65.21	Add to Cart
29	JLM714110	Cup Rear Side Gear Bearing	1		$25.66	Add to Cart
30	41X1208	Adjusting Screw Shift Shaft	1		$35.00	Add to Cart
31	MN3121	Jam Nut Adjusting Screw	1		—	No longer available — call for replacement
32	2258U411	Spring Shift Shaft Return	1		$211.00	Add to Cart
33	KIT2825	Shift Shaft Inter-axle Diff.	1		$159.31	Add to Cart
34	KIT2825	Shift Assy. Inter-axle Diff. Air	1	Screw-in style	$159.31	Add to Cart
34	A3261L350	Shift Assy. Inter-axle Diff. Air	1	Bolt-on style	—	Call for availability
35	10X1334	Capscrew Air Shift Assembly	4	Bolt-on style	$53.00	Add to Cart
35	KIT2644A	Capscrew Air Shift Assembly	4	cap assembly Less diff. lock Ratios; 3.91 4.10, 4.30, 4.56; Original design; ,	—	Call for availability
35	KIT2644B	Capscrew Air Shift Assembly	4	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
35	A23200Q1837	Capscrew Air Shift Assembly	4	Screw-in; IAD shifter, w/thrust screw	—	Call for availability
35	A23200J1908	Capscrew Air Shift Assembly With Diff. Lock Cylinder,	4	Less pump, Screw-in; IAD & main diff. shift; With diff. lock cylinder,; with thrust screw	$1,164.93	Add to Cart
35	A23200K1909	Capscrew Air Shift Assembly	4	With pump, Screw-in; IAD shifter, w/thrust screw	—	Call for availability
	A23200K1909	Cap Assembly With Diff. Lock Screw-in Cylinder,		IAD & main diff. shift; with thrust screw	$1,665.51	Add to Cart
	KIT2640A	Ratios		3.91 4.10, 4.30, 4.56; Original design; ,	—	Call for availability
	KIT2640B	Ratios 4.89,		5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
36A	15X1167	Thrust Screw (not Shown)	1		$197.36	Add to Cart
36B	1227D472	Jam Nut (not Shown)	1		$62.92	Add to Cart
37	1229W1557	Washer Carrier To Housing	12	Ref. only not	$34.00	Add to Cart
38	NL1101	Nut Carrier To Housing Stud Included	2	with any	$70.40	Add to Cart
39	10X1599	Capscrew Carrier To Long	3	carrier	$120.40	Add to Cart
39	10X1594	Capscrew Carrier To Long	7	housing Short	$69.40	Add to Cart
40, 50	A396541	Drive Gear Pinion & Nut Assembly		3.07 Ratio; Use 1 as	$2,708.70	Add to Cart
40, 50	A396561	Drive Gear Pinion & Nut Assembly	As req.	3.21 Ratio	$3,021.85	Add to Cart
40, 50	A396581	Drive Gear Pinion & Nut Assembly		3.42 Ratio	$2,524.01	Add to Cart
40, 50	A396601	Drive Gear Pinion & Nut Assembly		3.58 Ratio	$2,886.96	Add to Cart
40, 50	A396621	Drive Gear Pinion & Nut Assembly		3.73 Ratio	$3,220.57	Add to Cart
40, 50	A398761	Drive Gear Pinion & Nut Assembly		3.91 Ratio	$2,655.23	Add to Cart
40, 50	A398781	Drive Gear Pinion & Nut Assembly		4.10 Ratio	$2,536.76	Add to Cart
40, 50	A398801	Drive Gear Pinion & Nut Assembly		4.30 Ratio	$2,561.51	Add to Cart
40, 50	A398821	Drive Gear Pinion & Nut Assembly		4.56 Ratio	$2,311.58	Add to Cart
40, 50	A396641	Drive Gear Pinion & Nut Assembly		4.89 Ratio	$2,515.67	Add to Cart
40, 50	A396661	Drive Gear Pinion & Nut Assembly		5.38 Ratio	$2,515.83	Add to Cart
40, 50	A396721	Drive Gear Pinion & Nut Assembly		5.63 Ratio	$3,504.84	Add to Cart
40, 50	A396741	Drive Gear Pinion & Nut Assembly		6.14 Ratio	$3,229.30	Add to Cart
40, 50	A398921	Drive Gear Pinion & Nut Assembly		6.43 Ratio	$2,974.63	Add to Cart
40, 50	A410641	Drive Gear Pinion & Nut Assembly		6.83 Ratio	$2,813.70	Add to Cart
40, 50	A398961	Drive Gear Pinion & Nut Assembly		7.17 Ratio	$2,952.64	Add to Cart
41	H715343	Cone Drive Pinion Inner Bearing	1		$126.63	Add to Cart
42	H715311	Cup Drive Pinion Inner Bearing	1		$58.98	Add to Cart
43	2203F2788	Shims Pinion Inner .003"/.076mm Included		in KIT 2429; Use as	$165.00	Add to Cart
43	2203G2789	Shims Pinion Inner .003"/.076mm Included	As req.	bearing cup .005"/.127mm	$178.00	Add to Cart
43	2203H2790	Shims Pinion Inner .003"/.076mm Included		.010"/.254mm	$172.00	Add to Cart
44	1244W1765	Spacer Pinion Bearing Inner	1		$177.84	Add to Cart
45	3892U4909	Gear Helical Driven	1		$382.23	Superseded by 3892Q5945Add to Cart
46	2203V9824	Spacers Pinion .451 "/11 .45mm Included		in KIT 2397; Use 2 as	$155.00	Add to Cart
46	2203W9825	Spacers Pinion .451 "/11 .45mm Included	As req.	bearing outer .452"/11 .48mm	$156.58	Add to Cart
46	2203X9826	Spacers Pinion .451 "/11 .45mm Included		(variable thickness) .453"/11 .50mm	$129.98	Add to Cart
46	2203Y9827	Spacers Pinion .451 "/11 .45mm Included		.454"/11 .53mm	$155.40	Add to Cart
46	2203Z9828	Spacers Pinion .451 "/11 .45mm Included		.455"/11 .55mm	$164.30	Add to Cart
46	2203A9829	Spacers Pinion .451 "/11 .45mm Included		.459"/11 .65mm	$179.82	Add to Cart
46	2203B9830	Spacers Pinion .451 "/11 .45mm Included		.463"/11 .75mm	$129.20	Add to Cart
46	2203C9831	Spacers Pinion .451 "/11 .45mm Included		.467"/11 .85mm	$91.65	Add to Cart
46	2203D9832	Spacers Pinion .451 "/11 .45mm Included		.470"/11 .95mm	$185.26	Add to Cart
46	2203E9833	Spacers Pinion .451 "/11 .45mm Included		.474"/12.05mm	$187.14	Add to Cart
46	2203F9834	Spacers Pinion .451 "/11 .45mm Included		.478"/12.15mm	$189.00	Add to Cart
46	2203G9835	Spacers Pinion .451 "/11 .45mm Included		.482"/12.25mm	$190.96	Add to Cart
46	2203H9836	Spacers Pinion .451 "/11 .45mm Included		.483"/12.28mm	$192.80	Add to Cart
46	2203J9838	Spacers Pinion .451 "/11 .45mm Included		.484"/12.30mm	$194.74	Add to Cart
46	2203K9839	Spacers Pinion .451 "/11 .45mm Included		.485"/12.33mm	$196.66	Add to Cart
46	2203L9840	Spacers Pinion .451 "/11 .45mm Included		.486"/12.35mm	$171.08	Add to Cart
47	65500	Cup Drive Pinion Outer Bearing	1		$69.06	Add to Cart
48	65237	Cone Drive Pinion Outer Bearing	1		$150.87	Add to Cart
49	1229G4063	Washer Drive Pinion	1		$41.73	Add to Cart
50	40X1145	Nut Drive Pinion	1		$34.32	Add to Cart
51	3266C1095	Cover Drive Pinion	1		$54.84	Add to Cart
52	1229K1597	Washer Drive Pinion Cover	5		$135.00	Add to Cart
53	MS2100201	Capscrew Drive Pinion Cover	5		$184.00	Add to Cart
54	2214U1269	Adjusting Rings Diff. Bearing	2	Both sides; 1628, 1648 carriers	$154.07	Add to Cart
	2214Z1144			RH side	—	No longer available — call for replacement
	2214G1125		2	Both sides; All other non-ABS	$57.18	Add to Cart
55	A11228B600	Cups Diff. Bearing	2	Both sides; 1628, 1648 carriers; 1703, 1818, 1837 carriers	$567.51	Add to Cart
55	52618	Cups Diff. Bearing	1	LH side; All others; RH side	$60.66	Add to Cart
56	A11228B600	Cones Diff. Bearing	2	Both sides; 1628, 1648 carriers; 1703, 1818, 1837 carriers	$567.51	Add to Cart
56	52400	Cones Diff. Bearing	1	LH side; All others; RH side	$162.89	Add to Cart
57	41X1275	Capscrew Main Diff. Case	12		$73.10	Add to Cart
58	1229U1503	Washer Main Diff. Case	12		$113.00	Add to Cart
59, 57, 58	A103235F1982	Case Assembly Main Diff. Ratios 3.07,	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Less diff. lock; ,	$2,348.08	Add to Cart
59, 57, 58	A103235H198423	Case Assembly Main Diff. Ratios 3.07,		Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
59, 57, 58	A53235G2113	Case Assembly Main Diff. Ratios 3.07,		Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43; 6.83, 7.17; Less diff. lock	$1,455.80	Add to Cart
59, 57, 58	A3235E2111	Case Assembly Main Diff. Ratios 3.07,		Ratios; 3.91 4.10, 4.30, 4.56; 3200-J-2116; ,	$1,151.70	Add to Cart
59, 57, 58	A3235G2113	Case Assembly Main Diff. Ratios 3.07,		Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Less diff. lock; 6.83, 7.17	$1,198.45	Add to Cart
59, 57, 58	A123235F1982	Case Assembly Main Diff. Ratios 3.07,		Ratios; 3.91 4.10, 4.30, 4.56; With diff. lock; ,	$2,878.00	Add to Cart
59, 57, 58	A123235H198423	Case Assembly Main Diff. Ratios 3.07,		Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
65, 66, 67, 68	A113235F1982	Ratios	As req.	3.91 4.10, 4.30, 4.56; Less diff. lock; ,	—	Call for availability
65, 66, 67, 68	A113235H198423	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
65, 66, 67, 68	A63235G2113	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43; 6.83, 7.17; Less diff. lock	—	Call for availability
65, 66, 67, 68	A13235E2111	Ratios	As req.	3.91 4.10, 4.30, 4.56; 3200-J-2116; ,	—	Call for availability
65, 66, 67, 68	A13235G2113	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Less diff. lock; 6.83, 7.17	—	Call for availability
65, 66, 67, 68	A133235F1982	Ratios	As req.	3.91 4.10, 4.30, 4.56; With diff. lock; ,	—	Call for availability
65, 66, 67, 68	A133235H198423	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
65, 66, 67, 68	A23235S217723	Ratios	As req.	3.91 4.10, 4.30, 4.56; Internal ABS,; ,	—	Call for availability
173, 174, 175	A23235T217823	Ratios 4.89,		5.38, 5.63, 6.14,; 6.43, Less diff. lock,; 6.83, 7.17; Less pump	—	Call for availability
173, 174, 175	A43235S217723	Ratios 4.89,		Ratios; 3.91 4.10, 4.30, 4.56; Internal ABS,; ,	—	Call for availability
173, 174, 175	A43235T217823	Ratios 4.89, 23 No Longer Available Contact Florence Specifications For Assistance		5.38, 5.63, 6.14,; 6.43, Less diff. lock,; 6.83, 7.17; With pump; 23 No Longer Available Contact Florence Specifications for; assistance	—	Call for availability
68A	A143235F1982	Ratios	As req.	3.91 4.10, 4.30, 4.56; ,	—	Call for availability
68A	A143235H198423	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
68A	A83235G2113	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
68A	A73235E2111	Ratios	As req.	3.91 4.10, 4.30, 4.56; ,	—	Call for availability
68A	A73235G2113	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
173, 174, 175	A13235S217723	Ratios	As req.	3.91 4.10, 4.30, 4.56; Internal ABS,; ,	—	Call for availability
173, 174, 175	A13235T217823	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Less diff. lock,; 6.83, 7.17; Less pump	—	Call for availability
173, 174, 175	A53235S217723	Ratios	As req.	3.91 4.10, 4.30, 4.56; Internal ABS,; ,	—	Call for availability
173, 174, 175	A33235T217823	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Less diff. lock,; 6.83, 7.17; With pump	—	Call for availability
60	41X1276	Bolt Gear To Diff. Case Included	12	in KIT 2426	$42.40	Add to Cart
61	42X1024	Washer Diff. Bearing Cap	4		$31.60	Add to Cart
62	41X1018	Capscrew Diff. Bearing Cap	4		$77.88	Add to Cart
63	19X1087	Pin Adjusting Ring Lock	2	ABS carriers	—	No longer available — call for replacement
63	KIT4284	Pin Adjusting Ring Lock	1	All others	—	Call for availability
64	1229L3002	Thrust Washer Side Gear	2	Included in	$81.36	Add to Cart
65	2234C1069	Side Gear Diff.	2	KIT 2318	$71.39	Add to Cart
66	3278W335	Spider Diff. (cross)	1	with spider,	$97.18	Add to Cart
67	2233M1001	Gear Diff. Pinion	4	KIT 2341	$50.23	Add to Cart
68	1229K3001	Thrust Washer Diff. Pinion	4	less spider	$21.96	Add to Cart
68A	A3230C1043	No-spin Assembly	1		$6,153.08	Add to Cart
69	1229U1503	Washer Gear To Diff. Case Included	12	in KIT 2426	$113.00	Add to Cart
70	40X1182	Nut Gear To Diff. Case Parts Are For Main Differential Lock	12	PARTS ARE FOR MAIN DIFFERENTIAL LOCK	$49.60	Add to Cart
71	KIT4429	Dcdl Switch Kit	1		$62.57	Add to Cart
71	41X1022	Dcdl Switch Kit	1	Plug DCDL switchport Non-DCDL; applications only	—	Call for availability
72	1227P1056	Lock Nut Sensor/switch	1	Used on carriers with; 3266-F-1020 air cyl.; cover; prior to 11/93	$80.00	Add to Cart
73	2258N1262	Spring Main Diff. Lock	1	After 11/93	$40.70	Add to Cart
73	2258L714	Spring Main Diff. Lock	1	Prior to 11/93	$19.44	Add to Cart
74	43X1006	Roll Pin Spring Retaining	1	Prior to 11/93	$130.00	Add to Cart
75	KIT2824	Shift Shaft Main Diff. Lock	1	After 11/93	$150.63	Add to Cart
75	2244L1026	Shift Shaft Main Diff. Lock	1	All others prior to 11/93	$71.59	Add to Cart
77	KIT2824	Piston Main Diff. Lock	1	After 11/93	$150.63	Add to Cart
77	2230N170	Piston Main Diff. Lock	1	Prior to 11/93	$34.52	Add to Cart
78	5X1198	O-ring Piston	1	After 11/93	$38.56	Add to Cart
78	5X1153	O-ring Piston	1	Prior to 11/93	$82.60	Add to Cart
79	3196F32	Tube Air Cylinder	1	Prior to 11/93	$40.74	Add to Cart
80	2208H944	Gasket Air Cylinder Cover	1	Prior to 11/93	$84.76	Add to Cart
81	41X1368	Capscrew Manual Engaging	1	After 11/93	$25.90	Add to Cart
81	41X1333	Capscrew Manual Engaging	1	Prior to 11/93	$60.60	Add to Cart
81A	5X521	O-ring	1		$157.00	Add to Cart
82	KIT2824	Cover Air Cylinder	1	Screw-in style; After 11/93	$150.63	Add to Cart
82	3266F1020	Cover Air Cylinder	1	Bolt-on style; Prior to 11/93	$141.88	Add to Cart
82A	1250U1217	Plug Screw-in Dcdl Cylinder Hole Non-dcdl	1	applications only	$94.65	Add to Cart
83	MS2100161	Plug Air Cylinder Cover	1	Prior to 11/93	—	Call for availability
84	2208L1000	Gasket Plug	1	Prior to 11/93	$11.48	Add to Cart
85	41X1364	Capscrew Air Cylinder Cover	4	Prior to 11/93	$55.50	Add to Cart
86	MWA506	Washer Air Cylinder Cover	4	Prior to 11/93	$143.00	Add to Cart
87	3107B1094	Clutch Collar Main Diff. Lock	1	All others	$228.09	Add to Cart
88	3296B1172	Shift Fork Main Diff. Lock Three	1	One pc. design; After 11/93	$96.11	Add to Cart
88	3296Y11691	Shift Fork Main Diff. Lock Three	1	Prior to 11/93	—	Call for availability
89	43X1007	Pin Shift Fork Three Parts Are For Oil Pump	2	pc. design; PARTS ARE FOR OIL PUMP	$51.40	Add to Cart
90	3264N1522	Shield Filter	1		$68.89	Add to Cart
91	1250N1080	Plug Oil Pressure Relief Valve Eliminated	1	on carriers	$27.76	Add to Cart
92	1229F4062	Washer Plug	1	built after 5/97	$45.90	Add to Cart
93	2258Z1118	Spring Oil Pressure Relief Valve	1		$26.10	Add to Cart
94	2297U5273	Pressure Relief Valve Oil	1		$90.40	Add to Cart
95	1246M1131	Dowel Input Cage To Oil Pump	2	No longer used	$23.53	Add to Cart
96	5X1034	O-ring Oil Pump	1		$45.20	Add to Cart
97	A3303P1030	Oil Pump Assembly	1	All others	$536.09	Add to Cart
97	KIT2624	Oil Pump Assembly	1	For old style A1 -3297-H-1022; input shaft	—	Call for availability
98	1229E1669	Washer Oil Pump	6		$152.00	Add to Cart
99	MS2080451	Capscrew Oil Pump	6		$143.50	Add to Cart
100	3280V8394	Oil Filter	1		$34.67	Add to Cart
101	2297Z5278	Adaptor Oil Filter	1		$19.20	Add to Cart
102	A2297D5334	Screen & Plug Assembly Oil Filter Parts Are For The Carriers With Internal A.b.s.	1	PARTS ARE FOR THE CARRIERS WITH INTERNAL A.B.S.; SENSORS	$83.74	Add to Cart

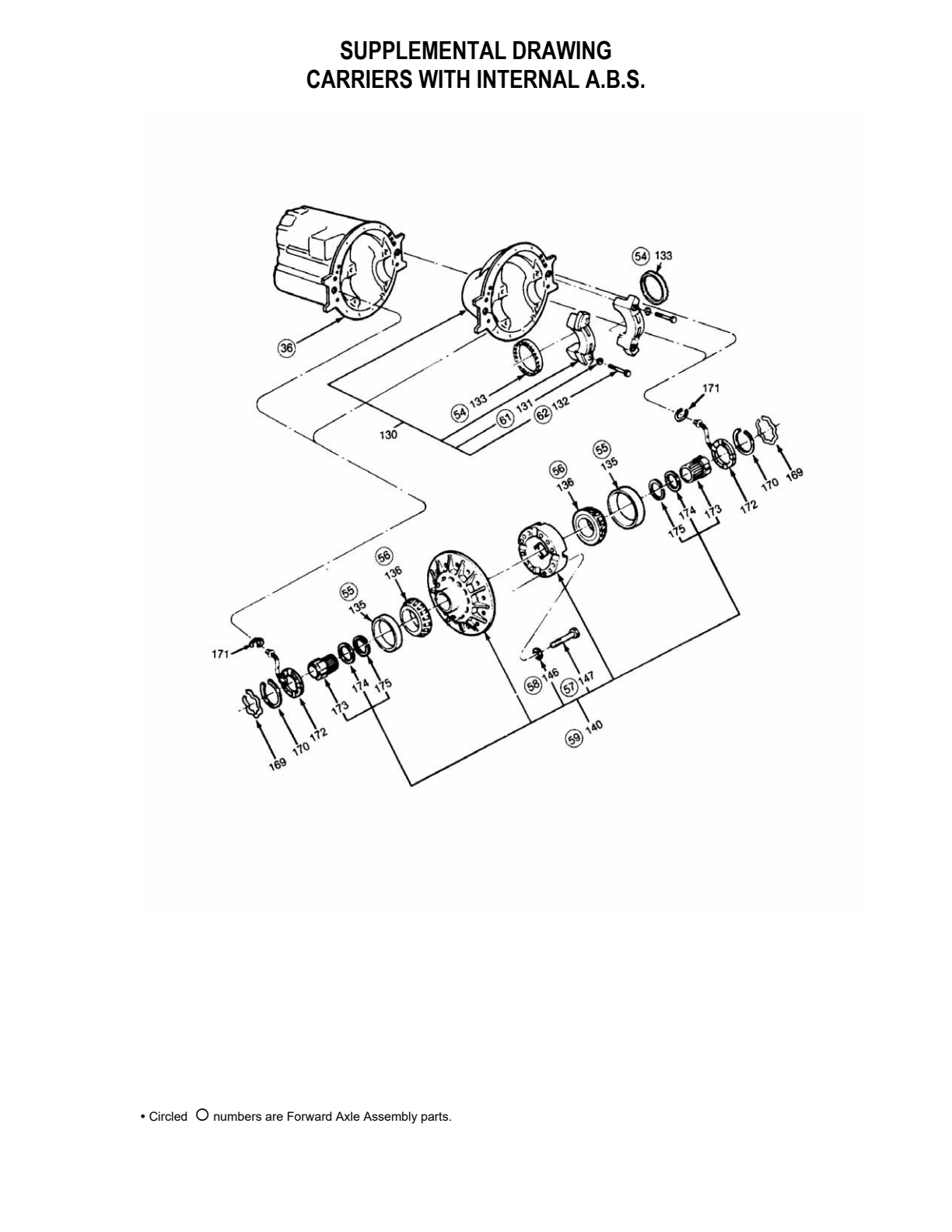

169	2258G1255	Wave Washer Adjusting Ring	2		$20.99	Add to Cart
170	1229U4519	Snap Ring Connector	2		$22.24	Add to Cart
171	1229F4452	Snap Ring Adjusting Ring	2		$8.94	Add to Cart
172	SA13280X9150	Sensor Abs	2	RH side	$653.66	Add to Cart
173	3216G4375	Drive Tube	2		$427.40	Add to Cart
174	42X1408	Washer Drive Tube	2		—	No longer available — call for replacement
175	1229D4528	Snap Ring Drive Tube 1 Prior To 11/92 All Carriers (except 3200-Z-1560) Used Piece Design Fork (3296-R-1084) Which Was Replaced 3296-Y-1169 In 11/92.	2	1 Prior to 11/92 all carriers (except 3200-Z-1560) used; the three; piece design fork (3296-R-1084) which was replaced; by; 3296-Y-1169 in 11/92.	$50.00	Add to Cart

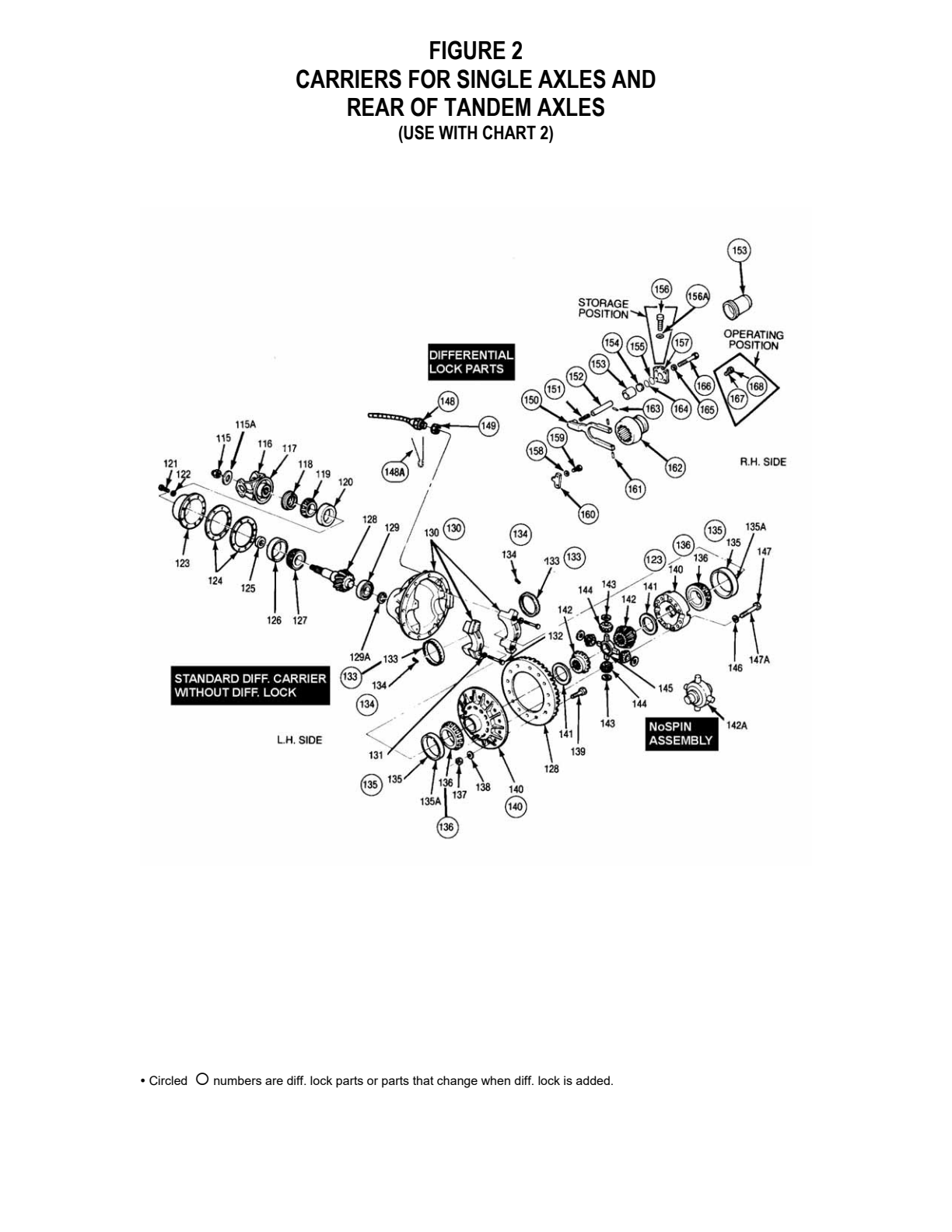

Carriers for Single Axles and Rears of Tandem Axles

Item	Part No.	Description	Qty	Notes	Price
115	40X1233	Nut Drive Pinion	1		$17.72	Add to Cart
115A	1229N1730	Washer Pinion Nut	1		$52.70	Add to Cart
116, 117		Input Yoke Assembly	1	SEE YOKE CHARTS	—	Call for availability
118	A11205A2731	Oil Seal Assembly Rear Pinion	1		$92.72	Add to Cart
119	HM813843	Cone Drive Pinion Outer Bearing	1		$117.23	Add to Cart
120	HM813810	Cup Drive Pinion Outer Bearing	1		$46.33	Add to Cart
121	MS2120451	Capscrew Pinion Bearing Cage	8		$27.80	Add to Cart
122	MWA512	Washer Pinion Bearing Cage	8		$131.00	Add to Cart
123	A3226R1006	Pinion Bearing Cage & Cups Assembly	1		$452.91	Add to Cart
124	2803Y2755	Shims Pinion Bearing .002"/.050mm Included		in KIT 1592; Use as	$49.80	Add to Cart
124	2803Z2756	Shims Pinion Bearing .002"/.050mm Included	As req.	cage .005"/.125mm	$56.60	Add to Cart
124	2803A2757	Shims Pinion Bearing .002"/.050mm Included		.008"/.200mm	$61.20	Add to Cart
124	2803B2758	Shims Pinion Bearing .002"/.050mm Included		.020"/.500mm	$33.36	Add to Cart
125	2803D2500	Spacers Pinion .250"/6.35mm Included		in KIT 1593; Use 2	$53.90	Add to Cart
125	2803E2501	Spacers Pinion .250"/6.35mm Included	As req.	bearing .251 "/6.38mm	$53.90	Add to Cart
125	2803F2502	Spacers Pinion .250"/6.35mm Included		.252"/6.40mm	$53.90	Add to Cart
125	2803N2510	Spacers Pinion .250"/6.35mm Included		.253"/6.43mm	$52.94	Add to Cart
125	2803G2503	Spacers Pinion .250"/6.35mm Included		.254"/6.45mm	$52.94	Add to Cart
125	2803H2504	Spacers Pinion .250"/6.35mm Included		.256"/6.50mm	$76.78	Add to Cart
125	2803J2506	Spacers Pinion .250"/6.35mm Included		.260"/6.60mm	$52.94	Add to Cart
125	2803K2507	Spacers Pinion .250"/6.35mm Included		.261 "/6.63mm	$52.94	Add to Cart
125	2803L2508	Spacers Pinion .250"/6.35mm Included		.262"/6.65mm	$52.94	Add to Cart
125	2803M2509	Spacers Pinion .250"/6.35mm Included		.263"/6.68mm	$52.94	Add to Cart
127	1228V594	Cone Drive Pinion Inner Bearing	1		$666.76	Add to Cart
128, 115	B4277619	Drive Gear, Pinion & Nut Assy.		2.50 ratio; Use 1	—	Call for availability
128, 115	B4345419	Drive Gear, Pinion & Nut Assy.	As req.	2.67 ratio	—	Call for availability
128, 115	A415721	Drive Gear, Pinion & Nut Assy.		2.80 ratio	$2,941.56	Add to Cart
128, 115	A415741	Drive Gear, Pinion & Nut Assy.		2.93 ratio	$2,294.59	Add to Cart
128, 115	A3989853	Drive Gear, Pinion & Nut Assy.		3.07 ratio	—	Call for availability
128, 115	A4200212	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A3990053	Drive Gear, Pinion & Nut Assy.		3.21 ratio	—	Call for availability
128, 115	A4199012	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A3990253	Drive Gear, Pinion & Nut Assy.		3.42 ratio	—	Call for availability
128, 115	A4200412	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A3990453	Drive Gear, Pinion & Nut Assy.		3.58 ratio	—	Call for availability
128, 115	A4199212	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A3990653	Drive Gear, Pinion & Nut Assy.		3.73 ratio	—	Call for availability
128, 115	A4199412	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A4246612	Drive Gear, Pinion & Nut Assy.		3.91 ratio	—	Call for availability
128, 115	A3988454	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A3988654	Drive Gear, Pinion & Nut Assy.		4.10 ratio	—	Call for availability
128, 115	A4200612	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A3988854	Drive Gear, Pinion & Nut Assy.		4.30 ratio	—	Call for availability
128, 115	A4199612	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A3989054	Drive Gear, Pinion & Nut Assy.		4.56 ratio	—	Call for availability
128, 115	A4198812	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A4002453	Drive Gear, Pinion & Nut Assy.		4.89 ratio	—	Call for availability
128, 115	A4199812	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A418281	Drive Gear, Pinion & Nut Assy.		5.13 ratio	$2,039.47	Add to Cart
128, 115	A4246812	Drive Gear, Pinion & Nut Assy.		5.13 ratio	—	Call for availability
128, 115	A42196124	Drive Gear, Pinion & Nut Assy.		5.29 ratio	—	Call for availability
128, 115	A4010453	Drive Gear, Pinion & Nut Assy.		5.38 ratio	—	Call for availability
128, 115	A4200012	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A4247012	Drive Gear, Pinion & Nut Assy.		5.63 ratio	—	Call for availability
128, 115	A4010653	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A4263012	Drive Gear, Pinion & Nut Assy.		6.14 ratio	—	Call for availability
128, 115	A4011053	Drive Gear, Pinion & Nut Assy.			—	Call for availability
128, 115	A4011653	Drive Gear, Pinion & Nut Assy.		6.43 ratio	—	Call for availability
128, 115	A4106613	Drive Gear, Pinion & Nut Assy.		6.83 ratio	—	Call for availability
128, 115	A4012253	Drive Gear, Pinion & Nut Assy.		7.17 ratio	—	Call for availability
129	1228Y1221	Spigot Bearing Drive Pinion One		piece bearing; Use for carriers that have; been 1; upgraded to snap ring gearsets; only	$209.15	Add to Cart
129	1228B1042	Spigot Bearing Drive Pinion One		Use with new snap ring design	$88.23	Superseded by A1228Q2253Add to Cart
129	A11228P1004	Spigot Bearing Drive Pinion One		Two; piece bearing; Use with original non-snap ring; design	$499.24	Add to Cart
129A	46X1029	Snap Ring Spigot Bearing Use With	1	1228-B-1042 and; 1228-Y-1221	$40.20	Add to Cart
129A	A23200A1821	Snap Ring Spigot Bearing Use With	1	Differential carrier & cap Less differential lock With; thrust screw	—	Call for availability
132	KIT2657A	Assy. Ratios 3.07,		Ratios; 3.91 4.10, 4.30, 4.56; Aluminum; ,	—	Call for availability
132	KIT2657B	Assy. Ratios 3.07,		Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
132	A23200P1706	Assy. Ratios 3.07,		New bearings	—	Call for availability
132	A23200E2137	Assy. Ratios 3.07,		New bearings; / tapered dowels	—	Call for availability
132	KIT2642A	Assy. Ratios 3.07,		Ratios; 3.91 4.10, 4.30, 4.56; Original design,; ,	—	Call for availability
132	KIT2658A	Assy. Ratios 3.07,		Ratios; 3.91 4.10, 4.30, 4.56; Aluminum; ,	—	Call for availability
132	KIT2658B	Assy. Ratios 3.07,		Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
132	A23200D1928	Assy. Ratios 3.07,		Malleable; w/screw-in main diff.; shifter	—	No longer available — call for replacement
132	A23200T1892	Assy. Ratios 3.07,		Malleable; w/screw-in main diff.; shifter	—	Call for availability
132	A23200F2138	Assy. Ratios 3.07, Shifter		Malleable; w/screw-in main diff.; shifter; / with tapered dowels	—	Call for availability
132	KIT2643A	Assy. Ratios 3.07,		Ratios; 3.91 4.10, 4.30, 4.56; Original design,; ,	—	No longer available — call for replacement
130A	15X1167	Thrust Screw (not Shown)	1		$197.36	Add to Cart
130B	1227D472	Jam Nut (not Shown)	1		$62.92	Add to Cart
131	42X1024	Washer Diff. Bearing Cap	4		$31.60	Add to Cart
132	41X1018	Capscrew Diff. Bearing Cap	4		$77.88	Add to Cart
133	2214U1269	Adjusting Ring Diff. Bearing		LH & RH; 1511 1560, 1658,; 1660 2; ,	$154.07	Add to Cart
133	2214G1125	Adjusting Ring Diff. Bearing	1	LH; 1708, 1712, 1823, 1825,	$57.18	Add to Cart
133	2214J1128	Adjusting Ring Diff. Bearing		RH; 1892, 1897, 1928,; 2138	$65.29	Add to Cart
133	2214Z1144	Adjusting Ring Diff. Bearing		RH	—	No longer available — call for replacement
133	2214G1125	Adjusting Ring Diff. Bearing			$57.18	Add to Cart
134	19X1087	Pin Adjusting Ring	2	ABS carriers	—	No longer available — call for replacement
134	KIT4284	Pin Adjusting Ring	1	All others	—	Call for availability
135	A11228B600	Cup Differential Bearing		LH & RH; 1511 1560, 1658,; 1660 2; ,; LH; 1708, 1712, 1823, 1825,	$567.51	Add to Cart
135	52618	Cup Differential Bearing		RH; 1892, 1897, 1928, 1929,; 2138; LH & RH	$60.66	Add to Cart
135A	2297T41807	Adhesive Diff. Bearing Cup	1		—	Call for availability
136	A11228B600	Cone Differential Bearing		LH & RH; 1511 1560, 1658,; 1660 2; ,; LH; 1708, 1712, 1823, 1825,	$567.51	Add to Cart
136	52400	Cone Differential Bearing		RH; 1892, 1897, 1928, 1929,; 2138; LH & RH	$162.89	Add to Cart
137	40X1182	Nut Diff. Case To Gear Included	12	in KIT 2426	$49.60	Add to Cart
138	1229U1503	Washer Diff. Case To Gear	12		$113.00	Add to Cart
139	41X127610	Bolt Diff. Case To Gear 7 No Longer Available	12	7 No longer available; 10 For Coach; Quality use 41 -X-1555; (KIT 4745)	—	Call for availability
	A113235F19826	Ratios		3.91 4.10, 4.30, 4.56; Less diff. lock; ,	—	Call for availability
	A113235H198423	Ratios 4.89,		5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
	A133235F19826	Ratios		3.91 4.10, 4.30, 4.56; With diff. lock; ,	—	Call for availability
	A133235H198423	Ratios 4.89,		5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
	A13235R2202	Ratios		2.50, 2.67, 2.80, 2.93	—	Call for availability
	A13235C210911	Ratios 3.07,		3.21 3.42, 3.58,; 3; ,; ,	—	Call for availability
	A13235E211112	Ratios		3.91 4.10, 4.30, 4.56; ,	—	Call for availability
	A13235G211313	Ratios 4.89,		5.38, 5.63, 6.14,; 6.43, Less diff. lock; 6.83, 7.17	—	Call for availability
	A33235E211115	Ratios		3.91 4.10, 4.30, 4.56; Alum; ,; Alum	—	Call for availability
	A33235G211316	Ratios 4.89,		5.38, 5.63, 6.14,; 6.43; 6.83, 7.17; With diff. lock	—	Call for availability
	A113235F1982	Ratios		3.91 4.10, 4.30, 4.56; Less diff. lock; ,	—	Call for availability
	A133235F1982	Ratios		3.91 4.10, 4.30, 4.56; With diff. lock; ,	—	Call for availability
	A63235G2113	Ratios 4.89,		5.38, 5.63, 6.14,; 6.43, Aluminum,; 6.83, 7.17; Less diff. lock	—	Call for availability
	PLUSKIT2318	3.91		4.10, 4.30, 4.56; With or Without diff.; lock; ,	—	Call for availability
	A33235F19826	Ratios		3.91 4.10, 4.30, 4.56; ,	—	Call for availability
	A33235H198423	Ratios 4.89,		5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
173, 174, 175	A43235S217723	All Shown Are 2.38"-46 Axle Spline. Ratios	As req.	3.91 4.10, 4.30, 4.56; Internal ABS,; ,	—	Call for availability
173, 174, 175	A43235T217823	All Shown Are 2.38"-46 Axle Spline. Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Less diff. lock,; 6.83, 7.17; Aluminum	—	Call for availability
173, 174, 175	A23235S217723	All Shown Are 2.38"-46 Axle Spline. Ratios	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Internal ABS,; ,	—	Call for availability
173, 174, 175	A23235T217823	All Shown Are 2.38"-46 Axle Spline. Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Less diff. lock,; 6.83, 7.17; Malleable iron	—	Call for availability
146, 147	A143235F19826	All Shown Are 2.38"-46 Axle Spline. 3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Less diff. lock; ,	—	Call for availability
146, 147	A143235H198423	All Shown Are 2.38"-46 Axle Spline. 3.91	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
146, 147	A73235C2109	All Shown Are 2.38"-46 Axle Spline. 3.91	As req.	Ratios 3.07,; 3.21 3.42, 3.58,; 3; ,	—	Call for availability
146, 147	A73235E2111	All Shown Are 2.38"-46 Axle Spline. 3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Less diff. lock; ,	—	Call for availability
146, 147	A73235G2113	All Shown Are 2.38"-46 Axle Spline. 3.91	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
146, 147	A143235F1982	All Shown Are 2.38"-46 Axle Spline. 3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Less diff. lock; ,	—	Call for availability
146, 147	A83235G2113	All Shown Are 2.38"-46 Axle Spline. 3.91 5 For Use With Carriers Built Prior To Sept. 1 1988. , (applies To Ratios 3.91 Thru 4.56 Only.) 11 For Coach Quality Use A1 -3235-Y-2469 12 For Coach Quality Use A1 -3235-P-2460 13 For Coach Quality Use A1 -3235-M-2457	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Aluminum; 6.83, 7.17; Less diff. lock; 5 For use with carriers built prior to Sept. 1 1988.; 6 For; use with carriers produced; after Sept. 1 1988; ,; (Applies to ratios 3.91 thru 4.56 only.); retro-fitted; with KIT 2468 or KIT; 2655 only.; 11 For Coach Quality use A1 -3235-Y-2469; 14 For; Coach Quality use A3-3235-Y-2469; 12 For Coach Quality use A1 -3235-P-2460; 15 For; Coach Quality use A3-3235-P-2460; 13 For Coach Quality use A1 -3235-M-2457; 16 For; Coach Quality use A3-3235-M-2457	—	Call for availability
147	A103235F19826	3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Less diff. lock; ,	—	Call for availability
147	A103235H198423	3.91	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
147	A123235F19826	3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; With diff. lock; ,	—	Call for availability
147	A123235H198423	3.91	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
147	A3235R2202	3.91	As req.	Ratios; 2.50, 2.67, 2.80, 2.93; 3200-A-1821	$1,548.39	Add to Cart
147	A3235C210917	3.91	As req.	Ratios 3.07,; 3.21 3.42, 3.58,; 3; ,	—	Call for availability
147	A3235E211118	3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Less diff. lock; ,	—	Call for availability
147	A3235G211319	3.91	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
147	A23235E211121	3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Alum; ,; Alum	—	Call for availability
147	A103235F1982	3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; Less diff. lock; ,	$2,348.08	Add to Cart
147	A123235F1982	3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; With diff. lock; ,	$2,878.00	Add to Cart
147	A53235G2113	3.91	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Aluminum,; 6.83, 7.17; Less diff. lock	$1,455.80	Add to Cart
147	A23235F19826	3.91	As req.	Ratios; 3.91 4.10, 4.30, 4.56; ,	—	Call for availability
147	A3235H198423	3.91	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
147	A23235H198423	3.91	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43,; 6.83, 7.17	—	Call for availability
173, 174, 175	A53235S217723	Ratios	As req.	3.91 4.10, 4.30, 4.56; Internal ABS,; ,	—	Call for availability
173, 174, 175	A33235T217823	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Less diff. lock,; 6.83, 7.17; Aluminum	—	Call for availability
173, 174, 175	A13235S217723	Ratios	As req.	3.91 4.10, 4.30, 4.56; Internal ABS,; ,	—	Call for availability
173, 174, 175	A13235T217823	Ratios	As req.	Ratios 4.89,; 5.38, 5.63, 6.14,; 6.43, Less diff. lock,; 6.83, 7.17; Malleable iron	—	Call for availability
141	1229L3002	Thrust Washer Side Gear Included	2	in KIT 2318	$81.36	Add to Cart
142	2234C1069	Side Gear Differential	2	46 Spline	$71.39	Add to Cart
142	2234C1069N	Side Gear Differential	2	Coach Quality; Included in KIT; 2575	—	Call for availability
142	2234D1070	Side Gear Differential	2	50 Spline	$213.97	Add to Cart
142A	A3230C1043	No-spin Assembly	1	46 Spline	$6,153.08	Add to Cart
143	1229K3001	Thrust Washer Diff. Pinion Included	4	in KIT 2318	$21.96	Add to Cart
144	2233M1001	Gear Diff. Pinion	4		$50.23	Add to Cart
145	3278W335	Spider Diff.	1		$97.18	Add to Cart
146	1229U1503	Washer Diff. Case	12		$113.00	Add to Cart
147	41X1275	Capscrew Diff. Case	12		$73.10	Add to Cart
147A	2297C7049	Thread Locking Liquid 5 For Use With Carriers Built Prior To Sept. 1 1988. , (applies To Ratios 3.91 Thru 4.56 Only.) 17 For Coach Quality Use A-3235-Y-2469 18 For Coach Quality Use A-3235-P-2460 19 For Coach Quality Use A-3235-M-2457	1	5 For use with carriers built prior to Sept. 1 1988.; 6 For; use with carriers produced; after Sept. 1 1988; ,; (Applies to ratios 3.91 thru 4.56 only.); retro-fitted; with KIT 2468 or KIT; 2655 only.; 17 For Coach Quality use A-3235-Y-2469; 20 For; Coach Quality use A2-3235-Y-2469; 18 For Coach Quality use A-3235-P-2460; 21 For; Coach Quality use A2-3235-P-2460; 19 For Coach Quality use A-3235-M-2457; 22 For; Coach Quality use A2-3235-M-2457	—	Call for availability
148	KIT4429	Dcdl Switch Kit	1		$62.57	Add to Cart
148	41X1022	Dcdl Switch Kit	1	Plug sensor port	—	Call for availability
149	1227P1056	Lock Nut Sensor/switch	1	Prior to 11/93; Used on carriers with; 3266-F-1020 air cyl.; cover	$80.00	Add to Cart
150	3296B1172	Shift Fork Main Diff. Lock Three	1	One pc. design; After 11/93	$96.11	Add to Cart
150	3296Y11691	Shift Fork Main Diff. Lock Three	1	Prior to 11/93	—	Call for availability
151	2258N1262	Spring Main Diff. Lock	1	After 11/93	$40.70	Add to Cart
151	2258L714	Spring Main Diff. Lock	1	Prior to 11/93	$19.44	Add to Cart
152	2244Y51	Shift Shaft Main Diff. Lock	1	1511 1560, 1660; ,	$37.74	Add to Cart
152	2244L1026	Shift Shaft Main Diff. Lock	1	1708, 1712, 1823	$71.59	Add to Cart
152	KIT2824	Shift Shaft Main Diff. Lock	1	1892, 1897, 1928, 1929,; 2138	$150.63	Add to Cart
152A	42X1027	Washer Piston (not Shown)	1	Prior to 11/93	$412.60	Add to Cart
153	KIT2824	Shift Cylinder Housing	1	Screw-in style; After 11/93	$150.63	Add to Cart
153	3196F32	Shift Cylinder Housing	1	Tube air cylinder; Bolt-on style; Prior to 11/93	$40.74	Add to Cart
153A	1250U1217	Plug Cylinder Hole	1		$94.65	Add to Cart
154	KIT2824	Piston Main Diff. Lock	1	After 11/93	$150.63	Add to Cart
154	2230N170	Piston Main Diff. Lock	1	Prior to 11/93	$34.52	Add to Cart
155	2208H944	Gasket Air Cylinder Cover	1	Prior to 11/93	$84.76	Add to Cart
156	41X1368	Capscrew Manual Engaging	1	After 11/93	$25.90	Add to Cart
156	41X1333	Capscrew Manual Engaging	1	Prior to 11/93	$60.60	Add to Cart
156A	5X521	O-ring	1		$157.00	Add to Cart
157	3266F1020	Cover Air Cylinder	1	Bolt-on style; Prior to 11/93	$141.88	Add to Cart
158	MWA508	Washer Adjusting Ring Lock Capscrew	2		$181.00	Add to Cart
159	MS2080201	Capscrew Adjusting Ring Lock	2		$193.00	Add to Cart
160	1220K89	Lock Adjusting Ring	1		$73.60	Add to Cart
161	43X1007	Pin Shift Fork Three	2	pc. design	$51.40	Add to Cart
162	3107F1020	Clutch Collar Main Diff. Lock	1	1511 1660, 1628; ,	—	No longer available — call for replacement
162	3107B1094	Clutch Collar Main Diff. Lock	1	46 Spline; 1708, 1712, 1823, 1825,; 1892; 1894, 1897, 1928, 1929,; 2138	$228.09	Add to Cart
162	3107C1095	Clutch Collar Main Diff. Lock	1	50 Spline; 1708, 1823	—	No longer available — call for replacement
163	43X1006	Roll Pin Spring Retaining	1	Prior to 11/93	$130.00	Add to Cart
164	5X1198	O-ring Piston	1	After 11/93	$38.56	Add to Cart
164	5X1153	O-ring Piston	1	Prior to 11/93	$82.60	Add to Cart
165	MWA506	Washer Air Cylinder Cover	4	Prior to 11/93	$143.00	Add to Cart
166	41X1364	Capscrew Air Cylinder Cover	4	Prior to 11/93	$55.50	Add to Cart
167	2208L1000	Gasket Plug	1	Prior to 11/93	$11.48	Add to Cart
168	MS2100161	Plug Air Cylinder Cover Parts Are For Carriers With Internal A.b.s.	1	Prior to 11/93; PARTS ARE FOR CARRIERS WITH INTERNAL A.B.S.; SENSORS	—	Call for availability
169	2258G1255	Wave Washer Adjusting Ring	2		$20.99	Add to Cart
170	1229F4452	Snap Ring Adjusting Ring	2		$8.94	Add to Cart
171	1229U4519	Snap Ring Sensor	2		$22.24	Add to Cart
173	3216G43757	Drive Tube	2		—	Call for availability
174	42X1408	Washer Drive Tube	2		—	No longer available — call for replacement
175	1229D4528	Snap Ring Drive Tube	2		$50.00	Add to Cart
172	SA13280X9150	Sensor Abs	1	RH side	$653.66	Add to Cart

Output (thru) Shaft Assembly Parts

Item	Part No.	Description	Qty	Notes	Price
200	A23226T1112S	Output (thru) Shaft, Bearing Cage And Seal Assy. Includes Items		201 202, 205; thru 211 1; ,	$661.54	Add to Cart
201	3297V1010	Shaft Output (thru)	1		$223.83	Add to Cart
202	A3226T1112	Bearing Cage & Inner Cup Assy. Output	1		$121.57	Add to Cart
202A		Deflector (no Longer Used)	1	No longer available	—	Call for availability
203	1229K1597	Washer Output Bearing Cage Capscrew	4		$135.00	Add to Cart
204	15X387	Capscrew Output Bearing Cage	4		$40.80	Add to Cart
205	JLM104910	Cups Innter & Outer Output Bearing	2		$9.75	Add to Cart
206	LM104949	Cones Innter & Outer Output Bearing	2		$53.48	Add to Cart
207	1229P2590	Snap Ring (spacer) Output Bearing .155 Inch Included		in KIT 576; Use 1 as	$191.36	Add to Cart
207	1229Q2591	Snap Ring (spacer) Output Bearing .155 Inch Included .158 Inch	As req.		$116.04	Add to Cart
207	1229R2592	Snap Ring (spacer) Output Bearing .155 Inch Included .161 Inch			$103.76	Add to Cart
207	1229S2593	Snap Ring (spacer) Output Bearing .155 Inch Included .164 Inch			$116.04	Add to Cart
207	1229T2594	Snap Ring (spacer) Output Bearing .155 Inch Included .167 Inch			$129.00	Add to Cart
207	1229U2595	Snap Ring (spacer) Output Bearing .155 Inch Included .170 Inch			$116.64	Add to Cart
207	1229V2596	Snap Ring (spacer) Output Bearing .155 Inch Included .173 Inch			$118.84	Add to Cart
207	1229W2597	Snap Ring (spacer) Output Bearing .155 Inch Included .176 Inch			$229.64	Add to Cart
207	1229X2598	Snap Ring (spacer) Output Bearing .155 Inch Included .179 Inch			$116.48	Add to Cart
207	1229Y2599	Snap Ring (spacer) Output Bearing .155 Inch Included .182 Inch			$33.78	Add to Cart
208	1229W4131	Snap Ring Spacer Output Bearing/yoke	1		$148.00	Add to Cart
209	A11205Y2729	Oil Seal Output Bearing Cage 2 Piece	1	(seal & sleeve)	$92.32	Add to Cart
210	1229T1736	Washer Yoke Nut (output) Included	1	in KIT 2637	$21.60	Add to Cart
211	40X1237	Nut Output Yoke 8 Use A1 -1205-Y-2729 Seal & Sleeve. Do Not Use Deflector.	1		$24.28	Add to Cart

Housing Assembly Parts

Item	Part No.	Description	Qty	Notes	Price
212		Axle Housing Assembly	1	AS SPECIFIED	—	Call for availability
213	KIT2902	Breather Assembly Housing	1		$12.52	Add to Cart
214	4X1922	Stud Carrier To Housing Forward-rear Only	1	Long	$45.30	Add to Cart
214	4X1921	Stud Carrier To Housing Forward-rear Only	1	Short; For 12 mtg. hole version	$35.50	Add to Cart
215	P28S	Plug Heat Indicator	1	Use as required	$103.50	Add to Cart
216	P212	Plug Filler Hole	1		$77.50	Add to Cart
217	1229W1557	Washer Carrier To Housing Forward-rear Only	2	For 12 mtg. hole version	$34.00	Add to Cart
217	1229W1557	Washer Carrier To Housing Forward-rear Only Nut	3	For 15 mtg. hole version	$34.00	Add to Cart
218	N1101	Nut Carrier To Housing Stud Forward-rear Only	2	For 12 mtg. hole version	$21.40	Add to Cart
219	10X1594	Capscrew Carrier To Forward-rear Axles,	7	1 -3/4" Long; For 12 mtg. hole version	$69.40	Add to Cart
219	10X1594	Capscrew Carrier To Forward-rear Axles, Housing Rp & Rd 23-160/164,	9	For 15 mtg. hole version	$69.40	Add to Cart
219	10X1594	26-160/164	5	For tapered dowel versions23	$69.40	Add to Cart
219	10X1595	Capscrew Carrier To Forward-rear Axles,	4	2" Long; For tapered dowel versions23	$246.80	Add to Cart
219	10X1599	Capscrew Carrier To Forward-rear Axles,	3	3-1/2" Long; All forwards	$120.40	Add to Cart
219	10X1594	Rear-rear & Single Axles,	8	1 -3/4" Long	$69.40	Add to Cart
219	10X1594	Rs & Rr 23-160/164,	5	For tapered dowel versions23	$69.40	Add to Cart
219	10X1595	26-160/164	3	2" Long; For tapered dowel versions23	$246.80	Add to Cart
219	10X1600	Capscrew Carrier To Forward-rear Axles,	4	3-1/2" Long	$28.92	Add to Cart
219	10X1767	Capscrew Carrier To Forward-rear Axles,	1	4-1/4" Long	—	Call for availability
220	1229W1557	Washer Carrier To Housing Forward-rear Only	10	For 12 mtg. hole version	$34.00	Add to Cart
220	1229W1557	Washer Carrier To Housing Forward-rear Only Capscrew	12	For 15 mtg. hole version	$34.00	Add to Cart
220	1229W1557	Rear-rear & Singles	12		—	Call for availability
221	1250E473	Plug Drain (magnetic)	1		$16.72	Add to Cart
222	A1205Q2487	Oil Seal Assembly	2	Unitized	$150.94	Add to Cart
222	A1205T696	Use	2	with wiper below	—	Call for availability
222A	1199E1669	Wiper Housing Spindle Inner (optional)	2	Not shown; Chrome plated	$305.68	Add to Cart
227	1227W517	Nut Bearing Adjusting Inner	2		$20.68	Superseded by R002303Add to Cart
228	1229U1009	Washer Adjusting Nut	2	Off-highway	$14.84	Superseded by R002304Add to Cart
229	1229F4634S	Tanged Washer & Adjusting Nut Washer	2	On-highway	—	Call for availability
230	1227R330	Nut Outer Jam 23 Dowel Part Number Is 1246-V-1166. Quantity 6 For Forward	2	(KIT 4288); and quantity 4 for rear (KIT; 4291).	$20.80	Superseded by R002305Add to Cart

AXLE Shaft SETS FOR 160, 161 and 164 Series Axles

Item	Part No.	Description	Qty	Notes	Price
	SHAFTSETSFOR160161AND	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	164SERIESAXLES	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3202Q8805	Axle Shaft Sets For 160, 161 And 164 Series Axles			$632.77	Add to Cart
	3202B8816	Axle Shaft Sets For 160, 161 And 164 Series Axles			$839.68	Add to Cart
	3202Y8683	Axle Shaft Sets For 160, 161 And 164 Series Axles			$631.39	Add to Cart
	3202P8804	Axle Shaft Sets For 160, 161 And 164 Series Axles			$3,934.08	Add to Cart
	3202G9003	Axle Shaft Sets For 160, 161 And 164 Series Axles			$683.28	Add to Cart
	3202A8815	Axle Shaft Sets For 160, 161 And 164 Series Axles			$4,749.76	Add to Cart
	3202H9004	Axle Shaft Sets For 160, 161 And 164 Series Axles			$748.94	Add to Cart
	3202R8806	Axle Shaft Sets For 160, 161 And 164 Series Axles			$723.87	Add to Cart
	3202Y9125	Axle Shaft Sets For 160, 161 And 164 Series Axles			$604.23	Add to Cart
	3202Z9126	Axle Shaft Sets For 160, 161 And 164 Series Axles			$661.73	Add to Cart
	3202C8817	Axle Shaft Sets For 160, 161 And 164 Series Axles			$1,236.85	Add to Cart
	3202C9129	Axle Shaft Sets For 160, 161 And 164 Series Axles			$916.69	Add to Cart
	3202J9344	Axle Shaft Sets For 160, 161 And 164 Series Axles			$627.43	Add to Cart
	3202K9345	Axle Shaft Sets For 160, 161 And 164 Series Axles			$754.91	Add to Cart
	3202L9346	Axle Shaft Sets For 160, 161 And 164 Series Axles			$892.00	Add to Cart
	3202G9393	Axle Shaft Sets For 160, 161 And 164 Series Axles			$1,069.50	Add to Cart
	3206X1532	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3206Z1534	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	RT40160TANDEM	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	RC23160	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3202X8110	Axle Shaft Sets For 160, 161 And 164 Series Axles			$1,166.43	Add to Cart
	3206T1190	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	No longer available — call for replacement
	RT46160TANDEM	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3202A9127	Axle Shaft Sets For 160, 161 And 164 Series Axles			$4,020.79	Add to Cart
	3202B9128	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3202D9130	Axle Shaft Sets For 160, 161 And 164 Series Axles			$5,045.25	Add to Cart
	3202Y9489	Axle Shaft Sets For 160, 161 And 164 Series Axles			$1,563.90	Add to Cart
	3202Z9490	Axle Shaft Sets For 160, 161 And 164 Series Axles			$2,495.82	Add to Cart
	3202A9491	Axle Shaft Sets For 160, 161 And 164 Series Axles			$2,203.26	Add to Cart
	3202L9502	Axle Shaft Sets For 160, 161 And 164 Series Axles			$4,372.23	Add to Cart
	3202L9918	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3202K9553	Axle Shaft Sets For 160, 161 And 164 Series Axles			$1,355.69	Add to Cart
	3202A9647	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3202F9574	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3202E9573	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	No longer available — call for replacement
	3202G9575	Axle Shaft Sets For 160, 161 And 164 Series Axles			$856.70	Add to Cart
	3202J9916	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	RT50160TANDEM	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	RT56164TANDEM	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	RT46164TANDEM	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	RT52160TANDEM	Axle Shaft Sets For 160, 161 And 164 Series Axles			—	Call for availability
	3202Q9403	Axle Shaft Sets For 160, 161 And 164 Series Axles			$6,354.38	Add to Cart

Axle Shafts

Item	Part No.	Description	Qty	Notes	Price
	3206X1532	Dia 2.00", Length Spline 37.44", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			—	Call for availability
	3206Z1534	Dia 2.00", Length Spline 43.80", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			—	Call for availability
	3202J9344	Dia 2.25", Length Spline 36.57", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$627.43	Add to Cart
	3202Y9125	Dia 2.25", Length Spline 36.57", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .78", Circle Hole 7.00", Type Straight			$604.23	Add to Cart
	3202G9393	Dia 2.25", Length Spline 37.31 ", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$1,069.50	Add to Cart
	3202Y9489	Dia 2.25", Length Spline 37.44", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .64", Circle Hole 7.00", Type Straight			$1,563.90	Add to Cart
	3202Q8805	Dia 2.25", Length Spline 37.44", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$632.77	Add to Cart
	3202K9553	Dia 2.25", Length Spline 39.44", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$1,355.69	Add to Cart
	3202A9127	Dia 2.25", Length Spline 39.44", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .78", Circle Hole 7.00", Type Straight			$4,020.79	Add to Cart
	3202Y8683	Dia 2.25", Length Spline 39.59", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$631.39	Add to Cart
	3202E9573	Dia 2.25", Length Spline 40.31 ", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .64", Circle Hole 7.00", Type Straight			—	No longer available — call for replacement
	3202H9004	Dia 2.25", Length Spline 40.31 ", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$748.94	Add to Cart
	3202P8804	Dia 2.25", Length Spline 41 .57", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .78", Circle Hole 7.00", Type Taper			$3,934.08	Add to Cart
	3202A8815	Dia 2.25", Length Spline 41 .73", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .78", Circle Hole 7.00", Type Straight			$4,749.76	Add to Cart
	3202K9345	Dia 2.25", Length Spline 42.91 ", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$754.91	Add to Cart
	3202Z9126	Dia 2.25", Length Spline 42.91 ", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .78", Circle Hole 7.00", Type Straight			$661.73	Add to Cart
	3202L9346	Dia 2.25", Length Spline 43.07", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$892.00	Add to Cart
	3202C9129	Dia 2.25", Length Spline 43.07", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .78", Circle Hole 7.00", Type Straight			$916.69	Add to Cart
	3202X8110	Dia 2.25", Length Spline 43.40", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$1,166.43	Add to Cart
	3202Z9490	Dia 2.25", Length Spline 43.80", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .64", Circle Hole 7.00", Type Straight			$2,495.82	Add to Cart
	3202G9003	Dia 2.25", Length Spline 43.80", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$683.28	Add to Cart
	3202A9491	Dia 2.25", Length Spline 43.93", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .64", Circle Hole 7.00", Type Straight			$2,203.26	Add to Cart
	3202B8816	Dia 2.25", Length Spline 43.93", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$839.68	Add to Cart
	3202B9128	Dia 2.25", Length Spline 45.74", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .78", Circle Hole 7.00", Type Straight			—	Call for availability
	3202A9647	Dia 2.25", Length Spline 45.90", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			—	Call for availability
	3202D9130	Dia 2.25", Length Spline 45.90", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .78", Circle Hole 7.00", Type Straight			$5,045.25	Add to Cart
	3202F9574	Dia 2.25", Length Spline 46.61 ", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .64", Circle Hole 7.00", Type Straight			—	Call for availability
	3202R8806	Dia 2.25", Length Spline 46.61 ", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$723.87	Add to Cart
	3202G9575	Dia 2.25", Length Spline 46.78", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .64", Circle Hole 7.00", Type Straight			$856.70	Add to Cart
	3202C8817	Dia 2.25", Length Spline 46.78", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$1,236.85	Add to Cart
	3202Q9403	Dia 2.25", Length Spline 46.90", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			$6,354.38	Add to Cart
	3206T1190	Dia 2.25", Length Spline 49.67", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			—	No longer available — call for replacement
	3202J9916	Dia 2.25", Length Spline 52.79", Size Spline 2.35"-46, Len. Flange 3.03", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			—	Call for availability
	3202L9918	Dia 2.25", Length Spline 52.92", Size Spline 2.35"-46, Len. Flange 9.14", Dia. No. Of 8.38", Holes Hole 8, Size Bolt .73", Circle Hole 7.00", Type Taper			—	Call for availability

Round Bearing Type Yokes

Item	Part No.	Description	Qty	Notes	Price
	16NYS388A	Round Bearing Type Yokes — Part Number			$1,065.16	Add to Cart
	A3260T1034	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	16NYS3812A	Round Bearing Type Yokes — Part Number			$858.18	Add to Cart
	A3260G1125	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	17N47181X	Round Bearing Type Yokes — Part Number			$575.26	Add to Cart
	A3260U359	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	17N47771X	Round Bearing Type Yokes — Part Number			$506.68	Add to Cart
	A3260R1058	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	176NYS3814A	Round Bearing Type Yokes — Part Number			—	Call for availability
	A3260V360	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	18N43731X	Round Bearing Type Yokes — Part Number			$350.43	Add to Cart
	A3260C1147	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	16N46271	Round Bearing Type Yokes — Part Number			$206.48	Add to Cart
	3260G111	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	16N46241	Round Bearing Type Yokes — Part Number			$367.61	Add to Cart
	3260H112	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	17NYS32100	Round Bearing Type Yokes — Part Number			$346.95	Add to Cart
	3260Q121	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	17NYS3299	Round Bearing Type Yokes — Part Number			$346.95	Add to Cart
	3260P120	Round Bearing Type Yokes — Production Part Number			—	Call for availability
	17NYS3838A	Round Bearing Type Yokes — Part Number			—	Call for availability
	18NYS3827A	Round Bearing Type Yokes — Part Number			—	Call for availability

Wing Bearing Type Yokes

Item	Part No.	Description	Qty	Notes	Price
	TH72NYS3826A	Forward Input/ — 4.25", Spline 2.32", Hub 3.25", Pilot Keyway 5.84", .63", Dia. No 2.38"-46			—	Call for availability
	A3260B1146	Production Part For Forward Input/			$2,888.29	Add to Cart
	TH82NYS3831A	Rear Axle — 4.25", Spline 2.32", Hub 3.25", Pilot Keyway 8.13", .63", Dia. No 2.38"-46			—	Call for availability
	A3260H1308	Production Part For Rear Axle			—	Call for availability
	TH92NYS3873A	4.22", Spline 2.32", Hub 3.25", Pilot Keyway 8.25", .63", Dia. No 2.38"-46			—	Call for availability
	A3260K1129	Production Part			—	Call for availability
	TH72NYS32244	Forward Output/ — 3.81 ", Spline 2.31 ", Hub 3.00", Pilot Keyway 5.84", .63", Dia. No 2.00"-39			—	Call for availability
	3260S123	Production Part For Forward Output/			—	Call for availability
	DR92NYS3226	Rear Axle — 4.44", Spline 2.31 ", Hub 3.00", Pilot Keyway 8.25", .63", Dia. No 2.00"-39			—	Call for availability
	3260B132	Production Part For Rear Axle			—	Call for availability
	TH72NYS3826A	Rear Input/ — 4.25", Spline 2.32", Hub 3.25", Pilot Keyway 5.84", .63", Dia. No 2.38"-46			—	Call for availability
	A3260B1146	Production Part For Rear Input/			$2,888.29	Add to Cart
	DR72NYS3824A	Rear Axle And — 4.25", Spline 2.32", Hub 3.25", Pilot Keyway 5.84", .63", Dia. No 2.38"-46			—	Call for availability
	A3260Z1144	Production Part For Rear Axle And			—	Call for availability
	TH82NYS3831A	Single Axle — 4.25", Spline 2.32", Hub 3.25", Pilot Keyway 8.13", .63", Dia. No 2.38"-46			—	Call for availability
	A3260H1308	Production Part For Single Axle			—	Call for availability
	TH92NYS3873A	Applications — 4.22", Spline 2.32", Hub 3.25", Pilot Keyway 8.25", .63", Dia. No 2.38"-46			—	Call for availability
	A3260K1129	Production Part For Applications			—	Call for availability

Easy Service (strap) Type Yokes

Item	Part No.	Description	Qty	Notes	Price
	17N471811X	Easy Service (strap) Type Yokes — Part Number			$307.06	Add to Cart
	A3260G1229	Easy Service (strap) Type Yokes — Production Part Number			—	Call for availability
	176TYS3827A	Easy Service (strap) Type Yokes — Part Number			$293.70	Add to Cart
	A3260P1264	Easy Service (strap) Type Yokes — Production Part Number			—	Call for availability
	18N437311X	Easy Service (strap) Type Yokes — Part Number			$272.76	Add to Cart
	A3260L1260	Easy Service (strap) Type Yokes — Production Part Number			—	Call for availability
	16TYS3276	Easy Service (strap) Type Yokes — Part Number			$244.92	Add to Cart
	3260D1668	Easy Service (strap) Type Yokes — Production Part Number			—	Call for availability
	17TYS3299	Easy Service (strap) Type Yokes — Part Number			$201.23	Add to Cart
	3260A1535	Easy Service (strap) Type Yokes — Production Part Number			—	Call for availability
	17N476211	Easy Service (strap) Type Yokes — Part Number			$204.50	Add to Cart
	3260R1292	Easy Service (strap) Type Yokes — Production Part Number			—	Call for availability
	16N473411X	Easy Service (strap) Type Yokes — Part Number			$474.06	Add to Cart
	A3260L1234	Easy Service (strap) Type Yokes — Production Part Number			—	Call for availability
	17TYS3876A	Easy Service (strap) Type Yokes — Part Number			—	Call for availability
	18TYS3827A	Easy Service (strap) Type Yokes — Part Number			$243.44	Add to Cart

Axle Model to Carrier to Kit Cross Reference

Item	Part No.	Description	Qty	Notes	Price
	KIT1592	Axle Model To Carrier To Kit Cross Reference — Kit Number			$75.00	Add to Cart
	KIT1593	Axle Model To Carrier To Kit Cross Reference — Kit Number			$544.79	Add to Cart
	KIT2317	Axle Model To Carrier To Kit Cross Reference — Kit Number			$45.79	Add to Cart
	KIT2318	Axle Model To Carrier To Kit Cross Reference — Kit Number			$559.20	Add to Cart
	KIT2341	Axle Model To Carrier To Kit Cross Reference — Kit Number			$532.04	Add to Cart
	KIT2406	Axle Model To Carrier To Kit Cross Reference — Kit Number			$113.89	Add to Cart
	KIT2414	Axle Model To Carrier To Kit Cross Reference — Kit Number			$967.46	Add to Cart
	KIT2426	Axle Model To Carrier To Kit Cross Reference — Kit Number			$65.43	Add to Cart
	KIT2796	Axle Model To Carrier To Kit Cross Reference — Kit Number			$2,039.72	Add to Cart
	KIT2614	Axle Model To Carrier To Kit Cross Reference — Kit Number			$70.21	Add to Cart
	KIT2655391	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2655410	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2655430	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2655456	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2657	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2657A	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2657B	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2658	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2658A	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2658B	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT4284	Axle Model To Carrier To Kit Cross Reference — Kit Number			$5.42	Add to Cart
	KIT4415	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,424.32	Add to Cart
	KITRR23160	Axle Model To Carrier To Kit Cross Reference — Kit Number			$6,034.58	Add to Cart
	KIT2468391	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2468410	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2468430	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2468456	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2642	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2642A	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2642B	Axle Model To Carrier To Kit Cross Reference — Kit Number			$2,042.83	Add to Cart
	KIT2643	Axle Model To Carrier To Kit Cross Reference — Kit Number			$3,165.11	Add to Cart
	KIT2643A	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	No longer available — call for replacement
	KIT2643B	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,998.88	Add to Cart
	KIT2750	Axle Model To Carrier To Kit Cross Reference — Kit Number			$124.19	Add to Cart
	KIT2691	Axle Model To Carrier To Kit Cross Reference — Kit Number			$86.08	Add to Cart
	KIT2615	Axle Model To Carrier To Kit Cross Reference — Kit Number			$862.88	Add to Cart
	KIT2698	Axle Model To Carrier To Kit Cross Reference — Kit Number			$553.98	Add to Cart
	KIT2659	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT4428	Axle Model To Carrier To Kit Cross Reference — Kit Number			$961.56	Add to Cart
	KITRR23160B	Axle Model To Carrier To Kit Cross Reference — Kit Number			$2,493.30	Add to Cart
	KIT2762	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,696.49	Add to Cart
	KIT4426	Axle Model To Carrier To Kit Cross Reference — Kit Number			$906.24	Add to Cart
	KITRR23160A	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,504.12	Add to Cart
	KIT576	Axle Model To Carrier To Kit Cross Reference — Kit Number			$185.63	Add to Cart
	KIT2397	Axle Model To Carrier To Kit Cross Reference — Kit Number			$775.69	Add to Cart
	KIT2424	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,393.90	Add to Cart
	KIT2429	Axle Model To Carrier To Kit Cross Reference — Kit Number			$49.47	Add to Cart
	KIT2483	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2489	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,252.88	Add to Cart
	KIT2637	Axle Model To Carrier To Kit Cross Reference — Kit Number			$23.72	Add to Cart
	KIT2638	Axle Model To Carrier To Kit Cross Reference — Kit Number			$35.30	Add to Cart
	KIT2644	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2644A	Axle Model To Carrier To Kit Cross Reference — Kit Number			$3,337.65	Add to Cart
	KIT2644B	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT4420	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,043.27	Add to Cart
	KITRP23160A	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2618	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,638.68	Add to Cart
	KIT4422	Axle Model To Carrier To Kit Cross Reference — Kit Number			$752.28	Add to Cart
	KIT4288	Axle Model To Carrier To Kit Cross Reference — Kit Number			$37.44	Add to Cart
	KIT4423	Axle Model To Carrier To Kit Cross Reference — Kit Number			$841.55	Add to Cart
	KITRP23160B	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2764	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,693.59	Add to Cart
	KIT2624	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,123.60	Add to Cart
	KIT2640	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2640A	Axle Model To Carrier To Kit Cross Reference — Kit Number			$3,709.55	Add to Cart
	KIT2640B	Axle Model To Carrier To Kit Cross Reference — Kit Number			$1,976.54	Add to Cart
	KIT2641	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2641A	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2641B	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KITRP23160	Axle Model To Carrier To Kit Cross Reference — Kit Number			—	Call for availability
	KIT2616	Axle Model To Carrier To Kit Cross Reference — Kit Number			$3,170.31	Add to Cart
	KIT2766	Axle Model To Carrier To Kit Cross Reference — Kit Number			$2,859.08	Add to Cart
	KIT2763	Axle Model To Carrier To Kit Cross Reference — Kit Number			$3,294.33	Add to Cart

Service Kits

Item	Part No.	Description	Qty	Notes	Price
1	40X1145	Nut Forward-rear Carriers With	1	I .A.D. and without main diff. lock.	$34.32	Add to Cart
2	KIT2318	Main Diff. Kit With Spider RP-23-160, RP-23-164, RP-26-160	1		$559.20	Add to Cart
3	KIT2424	Iad Kit With Spider 3200-J-1648, 3200-P-1628	1		$1,393.90	Add to Cart
4	KIT2429	Shim Kit	1		$49.47	Add to Cart
5	KIT2637	Input Nut And Washer Kit	1		—	Call for availability
6	40X1233	Pinion Nut	1		$17.72	Add to Cart
7	1229N1730	Pinion Washer	1		$52.70	Add to Cart
8	KIT2397	Spacer Kit	1		$775.69	Add to Cart
9	KIT4420	Bearing & Seal Kit	1		$1,043.27	Add to Cart
2	40X1233	Lock Nut RD-23-160, RD-23-164, RD-26-160	1		$17.72	Add to Cart
3	1229N1730	Washer 3200-M-1703, 3200-Q-1837,	1	3200-X-1818, 3200-J-2116	$52.70	Add to Cart
4	KIT2318	Main Diff. Kit With Spider	1		$559.20	Add to Cart
5	KIT2424	Iad Kit With Spider	1		$1,393.90	Add to Cart
6	KIT2429	Shim Kit	1		$49.47	Add to Cart
7	KIT2637	Input Nut And Washer Kit	1		—	Call for availability
9	KIT4422	Bearing & Seal Kit	1		$752.28	Add to Cart
2	40X1233	Lock Nut RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$17.72	Add to Cart
3	1229N1730	Washer RP-26-160	1		$52.70	Add to Cart
4	KIT2318	Main Diff. Kit With Spider 3200-J-1908, 3200-K-1701	1	3200-K-1909, 3200-V-1894,; ,	$559.20	Add to Cart
5	KIT2397	Spacer Kit 3200-W-1713, 3200-W-1895,	1	3200-Y-1819, 3200-Z-1820	$775.69	Add to Cart
6	KIT2424	Iad Kit With Spider	1		$1,393.90	Add to Cart
7	KIT2429	Shim Kit	1		$49.47	Add to Cart
8	KIT2637	Input Nut And Washer Kit	1		—	Call for availability
9	KIT4423	Bearing & Seal Kit	1		$841.55	Add to Cart
1	KIT1592	Shim Kit Single And Rear-rear Carriers	1	without main diff. lock.	$75.00	Add to Cart
2	KIT1593	Spacer Kit RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$544.79	Add to Cart
3	KIT2318	Main Diff. Kit With Spider 3200-C-1511 3200-T-1658, ,	1	3200-V-1660, 3200-Z-1560	$559.20	Add to Cart
4	40X1233	Pinion Nut	1		$17.72	Add to Cart
5	1229N1730	Pinion Washer	1		$52.70	Add to Cart
6	KIT4415	Bearing & Seal Kit	1		$1,424.32	Add to Cart
1	40X1233	Lock Nut Single And Rear-rear Carriers	1	without main diff. lock.	$17.72	Add to Cart
2	1229N1730	Washer RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$52.70	Add to Cart
3	KIT1592	Shim Kit 3200-A-1821 3200-H-1854, ,	1	3200-J-1856, 3200-P-1706	$75.00	Add to Cart
4	KIT1593	Spacer Kit	1		$544.79	Add to Cart
5	KIT2318	Main Diff. Kit With Spider	1		$559.20	Add to Cart
6	KIT4426	Bearing & Seal Kit	1		$906.24	Add to Cart
2	1229W4521	Washer RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$113.70	Add to Cart
3	KIT1592	Shim Kit 3200-C-1823, 3200-D-1928,	1	3200-E-1825, 3200-E-1929,	$75.00	Add to Cart
4	KIT1593	Spacer Kit 3200-R-1708, 3200-T-1892,	1	3200-V-1712, 3200-Y-1897	$544.79	Add to Cart
6	KIT4428	Bearing & Seal Kit	1		$961.56	Add to Cart
1	1229P2590	Snap Ring 3.94mm/.155 In. Output Shaft Snap Ring Kit	1		$191.36	Add to Cart
2	1229Q2591	Snap Ring 4.01mm/.158 In. RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$116.04	Add to Cart
3	1229R2592	Snap Ring 4.09mm/.161 In. RP-26-160	1		$103.76	Add to Cart
4	1229S2593	Snap Ring 4.17mm/.164 In.	1		$116.04	Add to Cart
5	1229T2594	Snap Ring 4.24mm/.167 In.	1		$129.00	Add to Cart
6	1229U2595	Snap Ring 4.32mm/.170 In.	1		$116.64	Add to Cart
7	1229V2596	Snap Ring 4.39mm/.173 In.	1		$118.84	Add to Cart
8	1229W2597	Snap Ring 4.47mm/.176 In.	1		$229.64	Add to Cart
9	1229X2598	Snap Ring 4.55mm/.179 In.	1		$116.48	Add to Cart
10	1229Y2599	Snap Ring 4.62mm/.182 In.	1		$33.78	Add to Cart
1	2803Y2755	0.002 in./0.050 Mm Shim RS-23-160, RS-23-161 RS-25-160, ,	4	RS-26-160	$49.80	Add to Cart
2	2803Z2756	0.005 in./0.125 Mm Shim	2		$56.60	Add to Cart
3	2803A2757	0.008 in./0.200 Mm Shim	4		$61.20	Add to Cart
4	2803B2758	0.020 in./0.500 Mm Shim	1		$33.36	Add to Cart
1	2803D2500	.250 in./6.35 Mm Spacer Pinion Bearing Spacers	2		$53.90	Add to Cart
2	2803E2501	.251 in./6.38 Mm Spacer RR-23-160, RS-23-160, RS-23-161	2	RS-25-160, RS-26-160; ,	$53.90	Add to Cart
3	2803F2502	.252 in./6.40 Mm Spacer 3200-A-1821 3200-A-1899, ,	2	3200-C-1511 3200-C-1823,; ,	$53.90	Add to Cart
4	2803N2510	.253 in./6.45 Mm Spacer 3200-C-1831 3200-D-1928, ,	2	3200-E-1825, 3200-E-1929,	$52.94	Add to Cart
5	2803G2503	.254 in./6.45 Spacer 3200-H-1854, 3200-J-1752, Mm 3200-K-1753, 3200-P-1706,	2	3200-J-1804, 3200-J-1856,; 3200-R-1708, 3200-S-1839,	$52.94	Add to Cart
6	2803H2504	.256 in./6.50 Mm Spacer 3200-T-1658, 3200-T-1892,	2	3200-U-1399, 3200-V-1660,	$76.78	Add to Cart
7	2803J2506	.260 in./6.60 Mm Spacer 3200-V-1712, 3200-W-1791	2	3200-Y-1897, 3200-Z-1560	$52.94	Add to Cart
8	2803K2507	.261 in./6.63 Mm Spacer	2	,	$52.94	Add to Cart
9	2803L2508	.262 in./6.65 Mm Spacer	2		$52.94	Add to Cart
10	2803M2509	.263 in./6.68 Mm Spacer	2		$52.94	Add to Cart
1	41X1216	Capscrew Gear To Case Bolt Kit (17.0	12	mm bolts prior to 4-88)	$37.70	Add to Cart
2	1229U1503	Washer RD-23-160, RD-23-164, RD-26-160,	12	RP-23-160, RP-23-164,	$113.00	Add to Cart
3	40X1182	Lock Nut RP-26-160, RR-23-160, RR-23-164, RS-25-160, RS-26-160	12	RR-26-160, RS-23-160,	$49.60	Add to Cart
1	2233M1001	Differential Pinion, Finished Main Diff. Kit With Spider.	4		$50.23	Add to Cart
2	2234C1069	Differential Side Gear, Finished RS-23-160, RS-23-161 RS-25-160 ,	2		$71.39	Add to Cart
3	3278W335	Differential Spider	1		$97.18	Add to Cart
4	1229L3002	Side Gear Thrust Washer	2		$81.36	Add to Cart
5	1229K3001	Differential Pinion Washer	4		$21.96	Add to Cart
1	1229L3002	Side Gear Thrust Washer Main Diff. Kit Less Spider.	2		$81.36	Add to Cart
3	2233M1001	Differential Pinion, Finished	4		$50.23	Add to Cart
4	1229K3001	Differential Pinion Washer	4	29	$21.96	Add to Cart
1	2203V9824	.451 in./11 .45 Mm Spacer Pinion Bearing Spacers	2		$155.00	Add to Cart
2	2203W9825	.452 in./11 .48 Mm Spacer RD-23-160, RD-23-164, RD-26-160,	2	RP-23-160, RP-23-164,	$156.58	Add to Cart
3	2203X9826	.453 in./11 .50 Mm Spacer RP-26-160	2		$129.98	Add to Cart
4	2203Y9827	.454 in./11 .53 Mm Spacer	2		$155.40	Add to Cart
5	2203Z9828	.455 in./11 .55 Mm Spacer	2		$164.30	Add to Cart
6	2203A9829	.459 in./11 .65 Mm Spacer	2		$179.82	Add to Cart
7	2203B9830	.463 in./11 .75 Mm Spacer	2		$129.20	Add to Cart
8	2203C9831	.467 in./11 .85 Mm Spacer	2		$91.65	Add to Cart
9	2203D9832	.470 in./11 .95 Mm Spacer	2		$185.26	Add to Cart
10	2203E9833	.474 in./12.05 Mm Spacer	2		$187.14	Add to Cart
11	2203F9834	.478 in./12.15 Mm Spacer	2		$189.00	Add to Cart
12	2203G9835	.482 in./12.25 Mm Spacer	2		$190.96	Add to Cart
13	2203H9836	.483 in./12.28 Mm Spacer	2		$192.80	Add to Cart
14	2203J9838	.484 in./12.30 Mm Spacer	2		$194.74	Add to Cart
15	2203K9839	.485 in./12.33 Mm Spacer	2		$196.66	Add to Cart
16	2203L9840	.486 in./12.35 Mm Spacer	2		$171.08	Add to Cart
1	3196F32	Air Cylinder Tube Bolt-on Shifter.	1		$40.74	Add to Cart
2	2230N170	Piston RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$34.52	Add to Cart
3	5X1153	O-ring RP-26-160, RS-23-160, RS-23-161	1	RS-25-160, RS-26-160; ,	$82.60	Add to Cart
4	2208H944	Gasket 3200-C-1511 3200-Z-1560, ,	1	3200-P-1628, 3200-V-1660,	$84.76	Add to Cart
5	41X1333	Capscrew 3200-K-1701 3200-R-1708, , 3200-Y-1819, 3200-C-1823,	1	3200-V-1712, 3200-W-1713,; 3200-E-1825	$60.60	Add to Cart
6	41X1364	Capscrew	4		$55.50	Add to Cart
7	MWA506	Washer	4		$143.00	Add to Cart
8	42X1027	Washer	1		$412.60	Add to Cart
1	3266F1020	Cover Services Carriers With Main	1	diff. lock, prior to 11/93.	$141.88	Add to Cart
2	MWA506	Washer RS-23-160, RS-23-161 RS-25-160, ,	4	RS-26-160	$143.00	Add to Cart
3	2208L1000	Gasket 3200-C-1511 3200-P-1628, ,	1	3200-V-1660	$11.48	Add to Cart
4	MS2100161	Capscrew	1		$67.50	Add to Cart
5	41X1364	Capscrew	4		$55.50	Add to Cart
6	2208H944	Gasket	1		$84.76	Add to Cart
7	3196F32	Air Cylinder Tube	1		$40.74	Add to Cart
8	5X1153	O-ring	1		$82.60	Add to Cart
9	2230N170	Piston	1		$34.52	Add to Cart
10	42X1027	Washer	1		$412.60	Add to Cart
11	2244Y51	Shift Shaft	1		$37.74	Add to Cart
12	43X1006	Shift Shaft Pin	1		$130.00	Add to Cart
13	2258L714	Spring	1		$19.44	Add to Cart
14	43X1007	Shift Fork Pin	2		$51.40	Add to Cart
15	41X1333	Capscrew	1		$60.60	Add to Cart
16	3296Y1169	Shift Fork	1		$562.65	Add to Cart
17	3107F1020	Shift Collar	1		—	No longer available — call for replacement
18	KIT4429	Dcdl Switch Kit	1		$62.57	Add to Cart
19	1227P1056	Sensor Adjusting Nut	1		$80.00	Add to Cart
1	2234T1190	Differential Side Gear, Finished I .a.d. Nest With Spider	1		$266.84	Add to Cart
2	3892T4934	Integral Gear (helical, Forward, Side Gear) RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$534.91	Superseded by 3892S5947Add to Cart
3	3278N300	Differential Spider RP-26-160	1		$191.16	Add to Cart
4	2233K245	Differential Pinion, Finished 3200-J-1648, 3200-J-1908,	4	3200-K-1701 3200-K-1857,; ,	$54.50	Add to Cart
5	1229Q2929	Pinion Thrust Washer 3200-K-1909, 3200-L-1858, 3200-Q-1837, 3200-V-1894,	4	3200-M-1703, 3200-P-1628,; 3200-W-1713, 3200-W-1895,	$131.40	Add to Cart
6	1229S4985	Thrust Washer 3200-X-1818, 3200-Y-1819,	1	3200-Z-1820, 3200-J-2116,	$101.78	Add to Cart
7	2297S5349	Snap Ring 3200-K-2117, 3200-L-2118	1		$29.40	Add to Cart
1	1229U1503	Washer Gear To Case Bolt Kit (16.5	12	mm bolts after 4-88)	$113.00	Add to Cart
2	40X1182	Lock Nut RD-23-160, RD-23-164, RD-26-160,	12	RP-23-160, RP-23-164,	$49.60	Add to Cart
3	41X1276	Capscrew RP-26-160, RR-23-160, RR-23-164, RS-23-161 RS-25-160, RS-26-160 ,	12	RR-26-160, RS-23-160,	$42.40	Add to Cart
1	2203K9241	Shim .076mm/.003 In. RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$74.20	Add to Cart
2	2203L9242	Shim .127mm/.005 In. RP-26-160	1		$82.60	Add to Cart
3	2203M9243	Shim .254mm/.010 In.	4		$96.00	Add to Cart
4	2203F2788	Shim .076mm/.003 In.	1		$165.00	Add to Cart
5	2203G2789	Shim .127mm/.005 In.	1		$178.00	Add to Cart
6	2203H2790	Shim .254mm/.010 In.	4		$172.00	Add to Cart
1	3892T4934	Gear (helical, Forward, Side Gear) RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,; Integral	$534.91	Superseded by 3892S5947Add to Cart
2	3892U4909	Gear RP-26-160	1	Helical	$382.23	Superseded by 3892Q5945Add to Cart
1	2234T1190	Differential Side Gear, Finished I .a.d. Nest Less Spider	1		$266.84	Add to Cart
3	2233K245	Differential Pinion, Finished RP-26-160	4		$54.50	Add to Cart
4	1229Q2929	Pinion Thrust Washer 3200-J-1648, 3200-J-1908,	4	3200-K-1701 3200-K-1857,; ,	$131.40	Add to Cart
5	1229S4985	Thrust Washer 3200-K-1909, 3200-L-1858, 3200-Q-1837, 3200-V-1894, 3200-X-1818, 3200-Y-1819, 3200-K-2117, 3200-L-2118	1	3200-M-1703, 3200-P-1628,; 3200-W-1713, 3200-W-1895,; 3200-Z-1820, 3200-J-2116,	$101.78	Add to Cart
1	2234C1069N	Side Gear Coach Quality Main Diff. Kit	2	with spider.	—	Call for availability
2	2233M1001	Differential Pinion RS-23-160, RS-23-161 RS-25-160 ,	4		$50.23	Add to Cart
3	3278W335	Spider	1		$97.18	Add to Cart
4	1229K3001	Thrust Washer	4		$21.96	Add to Cart
5	1229L3002	Thrust Washer	2		$81.36	Add to Cart
1	2230N170	Piston Main Diff. Lock Piston Kit.	1		$34.52	Add to Cart
2	5X1153	O-ring RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$82.60	Add to Cart
3	41X1333	Capscrew RP-26-160, RS-23-160, RS-23-161	1	RS-25-160, RS-26-160; ,	$60.60	Add to Cart
4	41X1359	Shift Unit Bolt 3200-C-1511 3200-Z-1560, ,	4	3200-P-1628, 3200-V-1660,	$2.57	Add to Cart
5	MWA506	Washer 3200-K-1701 3200-R-1708, , 3200-Y-1819, 3200-Z-1820,	4	3200-V-1712, 3200-W-1713,; 3200-C-1823, 3200-E-1825; 31	$143.00	Add to Cart
1	3296Y1169	Shift Fork Main Diff. Lock Actuator Kit.	1		$562.65	Add to Cart
2	3107B1094	Clutch Collar RP-23-160, RP-23-164, RP-26-160,	1	RS-23-160, RS-23-161; ,	$228.09	Add to Cart
3	43X1007	Shift Fork Pin RS-25-160, RS-26-160	2		$51.40	Add to Cart
4	2244L1026	Shift Shaft 3200-K-1701 3200-R-1708, ,	1	3200-V-1712, 3200-W-1713,	$71.59	Add to Cart
5	43X1006	Shift Shaft Pin 3200-Y-1819, 3200-Z-1820,	1	3200-C-1823, 3200-E-1825	$130.00	Add to Cart
6	2258L714	Spring	1		$19.44	Add to Cart
8	2230N170	Piston	1		$34.52	Add to Cart
9	5X1153	O-ring	1		$82.60	Add to Cart
10	2208H944	Gasket	1		$84.76	Add to Cart
11	3266F1020	Cover	1		$141.88	Add to Cart
12	MWA506	Washer	4		$143.00	Add to Cart
13	41X1364	Capscrew	4		$55.50	Add to Cart
14	2208L1000	Gasket	1		$11.48	Add to Cart
15	MS2100161	Capscrew	1		$67.50	Add to Cart
16	41X1333	Capscrew	1		$60.60	Add to Cart
17	KIT4429	Dcdl Switch Kit	1		$62.57	Add to Cart
18	1227P1056	Sensor Adjusting Nut	1		$80.00	Add to Cart
1	41X1080	Capscrew Carrier And Cap Update Kit	4		$156.00	Add to Cart
2	41X1364	Capscrew RP-23-160, RP-23-164, RP-26-160	4		$55.50	Add to Cart
3	MWA506	Washer 3200-K-1701	4		$143.00	Add to Cart
4	KIT2825	Shift Kit	1		$159.31	Add to Cart
5	KIT2763	Carrier & Cap Assembly	1		—	Call for availability
1	A23200J2116S	& Cap Assembly Carrier And Cap Update Kit	1	Carrier	$1,863.80	Add to Cart
2	KIT2825	RD-23-160, RD-23-164, RD-26-160 3200-M-1703	1	Shift Kit	$159.31	Add to Cart
1	A13297S1605	Pump Update Kit	1	Input Shaft	—	Call for availability
2	A3303P1030	Assembly RD-23-160, RD-23-164, RD-26-160 3200-P-1628	1	Oil Pump	$536.09	Add to Cart
1	40X1237	M39 X 1 .5 Nut Thread Front	1	input, rear input.; Input Nut	$24.28	Add to Cart
2	1229T1736	RD160, RD164, RP160, RP164,	1	RR160, RR164, RS160, RS161; Washer	$21.60	Add to Cart
1	40X1233	M45 X 1 .5 Nut Thread Front	1	input.; Lock Nut	$17.72	Add to Cart
2	1229W4521	RD160, RD164, RP160, RP164,	1	RR160, RR164, RS160, RS161; Washer	$113.70	Add to Cart
1	KIT2763	Carrier & Cap Assembly Carrier And Cap Update Kit	1	(with diff case assembly, fast ratios) for	$3,294.33	Add to Cart
2	A23261Q1057	Iad Shift Cylinder Assembly Diff. Lock	1		$159.31	Superseded by KIT2825Add to Cart
3	3107B1094	Clutch Collar RD-23-160, RD-23-164, RD-26-160	1		$228.09	Add to Cart
4	41X1364	Capscrew 3200-P-1628	4		$55.50	Add to Cart
5	MWA506	Washer	4		$143.00	Add to Cart
6	2214G1125	Adjusting Ring	1		$57.18	Add to Cart
7	2214J1128	Adjusting Ring	1		$65.29	Add to Cart
10	52618	Bearing Cup	1		$60.66	Add to Cart
11	52400	Differential Bearing Cone	1		$162.89	Add to Cart
12	A23235C2109	Unloaded Differential Case	1		$1,633.59	Add to Cart
2	A23261Q1057	Iad Shift Cylinder Assembly Ratios) For Diff. Lock	1		$159.31	Superseded by KIT2825Add to Cart
12	A23235E2111	Unloaded Differential Case	1		$1,512.50	Add to Cart
12	A23235G2113	Unloaded Differential Case	1	33	$1,494.82	Add to Cart
1	KIT2766	Carrier & Cap Assembly Carrier And Cap Update Kit	1	(with diff case assembly, fast ratios) less	$2,859.08	Add to Cart
3	41X1080	Capscrew RP-23-160, RP-23-164, RP-26-160	4		$156.00	Add to Cart
4	MWA506	Washer 3200-P-1628	4		$143.00	Add to Cart
5	2214G1125	Adjusting Ring	1		$57.18	Add to Cart
6	2214J1128	Adjusting Ring	1		$65.29	Add to Cart
9	52400	Differential Bearing Cone	1		$162.89	Add to Cart
11	A53235C2109	Unloaded Differential Case	1		$1,252.01	Add to Cart
2	A23261Q1057	Iad Shift Cylinder Assembly Ratios) Less Diff. Lock	1		$159.31	Superseded by KIT2825Add to Cart
11	A53235E2111	Unloaded Differential Case	1		$1,478.21	Add to Cart
11	A53235G2113	Unloaded Differential Case	1		$1,455.80	Add to Cart
1	A23200P1706	Carrier & Cap Assembly Carrier And Cap Update Kit	1	(with diff case assembly, fast ratios) less	$1,081.97	Add to Cart
2	2214G1125	Adjusting Ring Diff. Lock	2		$57.18	Add to Cart
5	1228B1042	Spigot Bearing	1		$88.23	Superseded by A1228Q2253Add to Cart
6	A3235C2109	Unloaded Differential Case	1		$1,183.83	Add to Cart
2	2214G1125	Adjusting Ring Ratios) Less Diff. Lock	2		$57.18	Add to Cart
6	A3235E2111	Unloaded Differential Case	1		$1,151.70	Add to Cart
2	A3235G2113	Unloaded Differential Case Ratios) Less Diff. Lock	1		$1,198.45	Add to Cart
6	1228B1042	Spigot Bearing	1		$88.23	Superseded by A1228Q2253Add to Cart
1	KIT2762	Carrier & Cap Assembly Carrier And Cap Update Kit	1	(with diff case assembly, fast ratios) for	$1,696.49	Add to Cart
2	3107B1094	Clutch Collar Diff. Lock.	1		$228.09	Add to Cart
3	A23235C2109	Unloaded Differential Case RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$1,633.59	Add to Cart
4	2214G1125	Adjusting Ring 3200-V-1660, 3200-Z-1560	1		$57.18	Add to Cart
5	2214J1128	Adjusting Ring	1		$65.29	Add to Cart
7	41X1364	Capscrew	4		$55.50	Add to Cart
10	52400	Differential Bearing Cone	1		$162.89	Add to Cart
11	52618	Bearing Cup	1		$60.66	Add to Cart
2	A23235E2111	Unloaded Differential Case Ratios) For Diff. Lock	1		$1,512.50	Add to Cart
3	3107B1094	Clutch Collar RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$228.09	Add to Cart
4	2214J1128	Adjusting Ring 3200-V-1660, 3200-Z-1560	1		$65.29	Add to Cart
11	41X1364	Capscrew	4		$55.50	Add to Cart
2	A23235G2113	Unloaded Differential Case Ratios) For Diff. Lock	1		$1,494.82	Add to Cart
1	A23200X1818	Carrier & Cap Assembly Carrier And Cap Update Kit	1	(with diff case assembly, fast ratios) less	—	Call for availability
2	A3235C2109	Unloaded Differential Case Diff. Lock. Conversion Kit From	1	bolt-on to screw-in I .A.D. shifter.	$1,183.83	Add to Cart
3	A23261Q1057	Iad Shift Cylinder Assembly RD-23-160, RD-23-164, RD-26-160	1		$159.31	Superseded by KIT2825Add to Cart
2	A3235E2111	Unloaded Differential Case Ratios) Less Diff. Lock. Conversion	1	kit from bolt-on to screw-in I .A.D.	$1,151.70	Add to Cart
3	A23261Q1057	Iad Shift Cylinder Assembly Shifter.	1		$159.31	Superseded by KIT2825Add to Cart
2	A3235G2113	Unloaded Differential Case Ratios) Less Diff. Lock. Conversion	1	kit from bolt-on to screw-in I .A.D.	$1,198.45	Add to Cart
1	KIT2634	Carrier & Cap Update Kit Carrier And Cap Update Kit	1	(with diff case assembly, fast ratios) less	—	Call for availability
2	A53235C2109	Unloaded Differential Case Diff. Lock	1		$1,252.01	Add to Cart
5	52618	Bearing Cup	1		$60.66	Add to Cart
6	52400	Differential Bearing Cone	1		$162.89	Add to Cart
8	2214G1125	Adjusting Ring	1		$57.18	Add to Cart
9	1228B1042	Spigot Bearing	1		$88.23	Superseded by A1228Q2253Add to Cart
2	A53235E2111	Unloaded Differential Case Ratios) Less Diff. Lock	1		$1,478.21	Add to Cart
3	2214G1125	Adjusting Ring RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$57.18	Add to Cart
4	2214J1128	Adjusting Ring 3200-C-1511	1		$65.29	Add to Cart
7	52400	Differential Bearing Cone	1		$162.89	Add to Cart
8	52618	Bearing Cup	1		$60.66	Add to Cart
2	A53235G2113	Unloaded Differential Case Ratios) Less Diff. Lock	1		$1,455.80	Add to Cart
2	A23235C2109	Unloaded Differential Case Diff. Lock	1		$1,633.59	Add to Cart
2	41X1364	Capscrew RS-23-160, RS-23-161 RS-25-160, ,	4	RS-26-160	$55.50	Add to Cart
3	MWA506	Washer 3200-C-1823, 3200-D-1928,	4	3200-R-1708, 3200-T-1892	$143.00	Add to Cart
1	A3261A1067	Dcdl Shift Cylinder Main Diff. Lock, Screw-in Shift,	1	Services all new style screw in type	$150.63	Superseded by KIT2824Add to Cart
2	2244Z1222	Push Rod Main Differential Lock Carriers	1		—	Call for availability
3	5X521	O-ring RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$157.00	Add to Cart
4	41X1368	Caging Bolt RP-26-160 3200-T-1892, 3200-V-1894	1	37	$25.90	Add to Cart
1	3296B1172	Shift Fork Main Diff. Lock Kit.	1		$96.11	Add to Cart
2	3107B1094	Clutch Collar RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$228.09	Add to Cart
3	2244Z1222	Push Rod RP-26-160, RR-23-160, RR-23-164,	1	RR-26-160, RS-23-160,	—	Call for availability
4	2258N1262	Spring RS-23-161 RS-25-160, RS-26-160 ,	1		$40.70	Add to Cart
5	A3261A1067	Dcdl Shift Cylinder 3200-T-1892, 3200-V-1894, 3200-J-1908, 3200-K-1909,	1	3200-W-1895, 3200-Y-1897,; 3200-D-1928, 3200-E-1929,	$150.63	Superseded by KIT2824Add to Cart
6	2230T1190	Piston 3200-K-2117, 3200-L-2118	1		$97.13	Add to Cart
7	41X1368	Caging Bolt	1		$25.90	Add to Cart
8	5X521	O-ring	1		$157.00	Add to Cart
9	KIT4429	Dcdl Switch Kit	1		$62.57	Add to Cart
1	2244Z1222	Push Rod Screw-in Shifter.	1		—	Call for availability
2	2258N1262	Spring RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$40.70	Add to Cart
3	A3261A1067	Dcdl Shift Cylinder RP-26-160	1		$150.63	Superseded by KIT2824Add to Cart
4	41X1368	Caging Bolt 3200-T-1892, 3200-V-1894,	1	3200-K-2117	$25.90	Add to Cart
5	5X521	O-ring	1		$157.00	Add to Cart
1	A23200T1892	Carrier & Cap Assembly Carrier And Cap Update Kit	1	(with diff. lock)	$1,086.21	Add to Cart
2	KIT2691	Shift Cylinder Kit RR-23-160, RR-23-164, RR-26-160,	1	RS-23-160, RS-23-161; ,	$86.08	Add to Cart
3	3296B1172	Shift Fork RS-25-160, RS-26-160	1		$96.11	Add to Cart
4	2258N1262	Spring 3200-C-1823, 3200-D-1928,	1	3200-R-1708, 3200-T-1892,	$40.70	Add to Cart
5	2206L1156	Elbow Fitting 3200-V-1894, 3200-K-2117	1		$25.72	Add to Cart
1	A23200K2117S	Carrier & Cap Assembly Carrier And Cap Update Kit	1	(with diff. lock, with pump)	$2,455.71	Add to Cart
2	KIT2691	Shift Cylinder Kit RP-23-160, RP-23-164, RP-26-160	1		$86.08	Add to Cart
3	3296B1172	Shift Fork 3200-V-1894, 3200-Z-1820,	1	3200-K-2117	$96.11	Add to Cart
4	2258N1262	Spring	1		$40.70	Add to Cart
5	2206L1156	Elbow Fitting	1		$25.72	Add to Cart
1	A23200L2118S	Carrier & Cap Assembly Carrier And Cap Update Kit	1	(with diff. lock, less pump)	$1,881.17	Add to Cart
2	KIT2691	Shift Cylinder Kit RD-23-160, RD-23-164, RD-26-160	1		$86.08	Add to Cart
3	3296B1172	Shift Fork 3200-W-1895, 3200-Y-1819,3200-L-2118	1		$96.11	Add to Cart
1	A23200K2117S	& Cap Assembly Carrier And Cap Update Kit	1	(less diff. lock, with pump). RP-23-160,; Carrier	$2,455.71	Add to Cart
2	1250U1217	RP-23-164, RP-26-160. 3200-V-1894,	1	3200-Z-1820, 3200-K-2117; Plug	$94.65	Add to Cart
1	A13235A2393	Case Assembly I .a.d. Assembly. RD-23-160,	1	RD-23-164, RD-26-160, RP-23-160,; Differential	$678.62	Add to Cart
2	KIT2424	With Spider RP-23-164, RP-26-160	1	IAD Kit	—	Call for availability
1	A3261A1067	Shift Cylinder Main Differential Kit	1	DCDL	$150.63	Superseded by KIT2824Add to Cart
2	2244Z1222	Rod 160 Series	1	Push	—	Call for availability
1	A43261Q1057	Cylinder I .a.d. Kit	1	IAD Shift	—	Call for availability
2	2244Y1221	Rod 160 Series	1	Push	—	Call for availability
1	40X1233	Input Shaft Nut And Washer	1	kit; Locknut	$17.72	Add to Cart
2	1229N1730		1	Washer	$52.70	Add to Cart
1	2214N1262	Ring Adjusting Ring Kit	1	Adjusting	—	Call for availability
2	1229F4452	Ring	2	Snap	$8.94	Add to Cart
1	A2297C8765	Breather Kit	1	Breather	$5.64	Add to Cart
2	A3196J1336	Tube	1	Breather	$7.42	Add to Cart
1	41X1637	Capscrew Lock Pin Kit	2		$6.20	Add to Cart
2	1199R2176	Cotter Pin 160 Series	2		$141.00	Add to Cart
3	1246P1134	Spirol Pin	1		$4.96	Add to Cart
1	10X1595	Bolt For Tapered Dowel 164EH	4	Forward Carriers	$246.80	Add to Cart
2	10X1599	Bolt RD-23-164, RP-23-164	2		$120.40	Add to Cart
3	1246V1166	Dowel 3200-J-2116, 3200-K-2117,	6	3200-L-2118	$19.60	Add to Cart
1	10X1595	Bolt Tapered Dowel For RR-23-164	3		$246.80	Add to Cart
2	10X1767	Bolt 3200-E-2137, 3200-F-2138	1		—	Call for availability
3	1246V1166	Dowel	4		$19.60	Add to Cart
1	A11205A2731	Oil Seal Assembly RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$92.72	Add to Cart
2	HM813843	Bearing Cone 3200-C-1511 3200-T-1658, ,	1	3200-V-1660, 3200-Z-1560	$117.23	Add to Cart
4	HM813810	Bearing Cup	1		$46.33	Add to Cart
5	A11228B600	Bearing Assembly	2		—	Call for availability
6	1228V594	Bearing	1		—	Call for availability
7	A11228P1004	Bearing Assembly	1		$499.24	Add to Cart
1	65500	Bearing Cup RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$69.06	Add to Cart
2	65237	Bearing Cone RP-26-160	1		$150.87	Add to Cart
3	H715311	Bearing Cup 3200-J-1648, 3200-P-1628	1		$58.98	Add to Cart
4	H715343	Bearing Cone	1		$126.63	Add to Cart
5	HM813810	Bearing Cup	1		$46.33	Add to Cart
6	HM813843	Bearing Cone	1		$117.23	Add to Cart
7	JLM714110	Bearing Cup	1		$25.66	Add to Cart
8	JLM714149	Bearing Cone	1		$65.21	Add to Cart
9	A11228B600	Bearing Assembly	2		—	Call for availability
10	A1205X2728	Oil Seal Assembly	1		—	Call for availability
11	5X1034	O-ring	1		$45.20	Add to Cart
12	5X1343	O-ring	1	39	$15.60	Add to Cart
3	65237	Bearing Cone 3200-J-2116	1		$150.87	Add to Cart
4	65500	Bearing Cup	1		$69.06	Add to Cart
5	H715311	Bearing Cup	1		$58.98	Add to Cart
6	H715343	Bearing Cone	1		$126.63	Add to Cart
7	HM813810	Bearing Cup	1		$46.33	Add to Cart
8	HM813843	Bearing Cone	1		$117.23	Add to Cart
9	JLM714110	Bearing Cup	1		$25.66	Add to Cart
10	JLM714149	Bearing Cone	1		$65.21	Add to Cart
11	5X1343	O-ring	1		$15.60	Add to Cart
12	A1205X2728	Oil Seal Assembly	1		—	Call for availability
1	52400	Differential Bearing Cone For All Diff. Lock Capable Except	1	original design.	$162.89	Add to Cart
2	52618	Bearing Cup RD-23-160, RD-23-164, RD-26-160,	1	RP-23-160, RP-23-164,	$60.66	Add to Cart
5	65237	Bearing Cone 3200-W1895, 3200-Y-1819, 3200-L-2118	1	3200-Z-1820, 3200-K-2117,	$150.87	Add to Cart
6	65500	Bearing Cup	1		$69.06	Add to Cart
7	A1205X2728	Oil Seal Assembly	1		—	Call for availability
8	H715343	Bearing Cone	1		$126.63	Add to Cart
9	H715311	Bearing Cup	1		$58.98	Add to Cart
10	HM813810	Bearing Cup	1		$46.33	Add to Cart
11	HM813843	Bearing Cone	1		$117.23	Add to Cart
12	JLM714110	Bearing Cup	1		$25.66	Add to Cart
13	JLM714149	Bearing Cone	1		$65.21	Add to Cart
14	5X1034	O-ring	1		$45.20	Add to Cart
15	5X1343	O-ring	1		$15.60	Add to Cart
1	1228B1042	Spigot Bearing Less Diff. Lock	1		$88.23	Superseded by A1228Q2253Add to Cart
2	1228V594	Bearing RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	—	Call for availability
3	A11205A2731	Oil Seal Assembly 3200-A-1821 3200-H-1854, ,	1	3200-J-1856, 3200-P-1706	$92.72	Add to Cart
1	1228B1042	Spigot Bearing With Diff. Lock	1		$88.23	Superseded by A1228Q2253Add to Cart
3	A11205A2731	Oil Seal Assembly 3200-C-1823, 3200-D-1928,	1	3200-E-1825, 3200-E-1929,	$92.72	Add to Cart
4	52400	Differential Bearing Cone 3200-R-1708, 3200-T-1892,	1	3200-V-1712, 3200-Y-1897	$162.89	Add to Cart
9	HM813810	Bearing Cup	1		$46.33	Add to Cart
10	HM813843	Bearing Cone	1		$117.23	Add to Cart
1	3237R1292	Switch Dcdl Switch Kit	1	DCDL	—	Call for availability
2	3237X1298	Harness	1	DCDL	$52.76	Add to Cart
1	41X1555	Capscrew Coach Quality Gear To Case	12	bolt kit (16.5 mm bolts after 4-88)	$47.70	Add to Cart
3	1229U1503	Washer RP-26-160, RR-23-160, RR-23-164, RS-23-161 RS-25-160, RS-26-160 ,	12	RR-26-160, RS-23-160,	$113.00	Add to Cart
1	A23235F1982	Unloaded Differential Case Diff. Case And Gearset Update	1	with diff. lock, prior to 9/1/88.	—	Call for availability
2	A398846	Gearset RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$1,702.78	Add to Cart
3	KIT2426	Bolt Kit 3200-Z-1560	1		—	Call for availability
2	A398866	Gearset RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	—	No longer available — call for replacement
2	A398886	Gearset RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$2,495.39	Add to Cart
2	A398906	Gearset RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$1,741.87	Add to Cart
1	A398846	Gearset Diff. Case And Gearset Upgrade	1	kit.	$1,702.78	Add to Cart
2	A123235F1982	Unloaded Differential Case RS-23-160, RS-23-161 RS-25-160, ,	1	RS-26-160	$2,878.00	Add to Cart
3	KIT2426	Bolt Kit 3200-C-1511	1		—	Call for availability
1	A398866	Gearset Diff. Case And Gearset Upgrade	1	kit.	—	No longer available — call for replacement
1	A398886	Gearset Diff. Case And Gearset Upgrade	1	kit.	$2,495.39	Add to Cart
1	A398906	Gearset Diff. Case And Gearset Upgrade	1	kit.	$1,741.87	Add to Cart

Carrier Assemblies Used on RT-46-164EH — 160/161/164 Series

Item	Part No.	Description	Qty	Notes	Price
	A13200A1821	Carrier A1-3200-A-1821 — Fits RR20160, RR23160, RR23164, RR25160, RR26160, RR29160, RT40160, RT46160 …		160s	—	Call for availability
	A13200D1928	Carrier A1-3200-D-1928 — Fits RR20160, RR23160, RR23164, RR25160, RR26160, RR29160, RT40160, RT46160 …		160s	—	Call for availability
	A13200J1908	Carrier A1-3200-J-1908 — Fits RD20160, RD23160, RD23164, RD25160, RD26160, RT40160, RT46160, RT46164 …		160s	—	No longer available — call for replacement
	A13200J2116	Carrier A1-3200-J-2116 — Fits RD20160, RD23160, RD23164, RD25160, RD26160, RT40160, RT46160, RT46164 …		160s	—	No longer available — call for replacement
	A13200K1909	Carrier A1-3200-K-1909 — Fits RP20160, RP23160, RP23164, RP25160, RP26160, RP29160, RT40160, RT46160 …		160s	—	Call for availability
	A13200K2117	Carrier A1-3200-K-2117 — Fits RP20160, RP23160, RP23164, RP25160, RP26160, RP29160, RT40160, RT46160 …		160s	—	No longer available — call for replacement
	A13200P1706	Carrier A1-3200-P-1706 — Fits RR20160, RR23160, RR23164, RR25160, RR26160, RR29160, RS21160, RS21161 …		160s	$3,886.85	Add to Cart
	A13200T1892	Carrier A1-3200-T-1892 — Fits RR20160, RR23160, RR23164, RR25160, RR26160, RR29160, RT40160, RT46160 …		160s	$4,480.70	Add to Cart
	A173200P1706	Carrier A17-3200-P-1706 — Fits RR20160, RR23160, RR23164, RR25160, RR26160, RR29160, RT40160, RT46160 …		160s	—	No longer available — call for replacement
	A3200E2137	Carrier A-3200-E-2137 — Fits RR20160, RR23160, RR23164, RR25160, RR26160, RR29160, RS21160, RS21161 …		160s	$5,519.53	Add to Cart
	A3200F2138	Carrier A-3200-F-2138 — Fits RR20160, RR23160, RR23164, RR25160, RR26160, RR29160, RS21160, RS21161 …		160s	$4,480.70	Add to Cart
	A3200J2116	Carrier A-3200-J-2116 — Fits RD20160, RD23160, RD23164, RD25160, RD26160, RT40160, RT46160, RT46164 …		160s	$7,266.58	Add to Cart
	A3200K2117	Carrier A-3200-K-2117 — Fits RP20160, RP23160, RP23164, RP25160, RP26160, RP29160, RT40160, RT46160 …		160s	$6,909.75	Add to Cart
	A33200K2117	Carrier A3-3200-K-2117 — Fits RP20160, RP23160, RP23164, RP25160, RP26160, RP29160, RT40160, RT46160 …		160s	$7,451.80	Add to Cart
	A33200L2118	Carrier A3-3200-L-2118 — Fits RD20160, RD23160, RD23164, RD25160, RD26160, RT40160, RT46160, RT46164 …		160s	$7,235.35	Add to Cart
	A53200K1909	Carrier A5-3200-K-1909 — Fits RP20160, RP23160, RP23164, RP25160, RP26160, RP29160, RT40160, RT46160 …		160s	—	Call for availability
	A63200Q1837	Carrier A6-3200-Q-1837 — Fits RD20160, RD23160, RD23164, RD25160, RD26160, RT40160, RT46160, RT46164 …		160s	—	Call for availability

This is the complete factory parts breakdown for the Meritor RT-46-164EH Drive Axle — every part in the manual, matched to our live inventory. We stock 732 of the 1036 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

No parts match that search — try the part number with no dashes.
