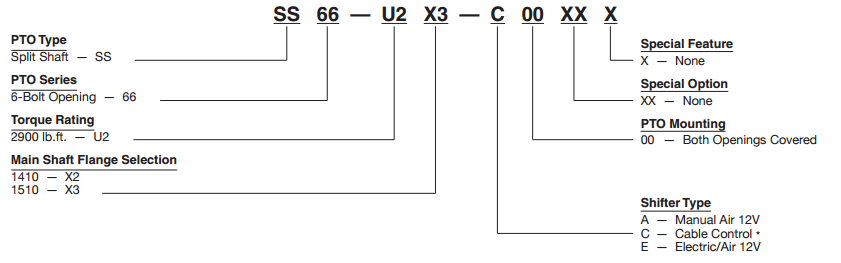

Muncie Split Shaft PTO P/N: SS66-U2X2-A00XXX or SS66U2X2A00XXX
Muncie Split Shaft PTO P/N: SS66-U2X2-A00XXX or SS66U2X2A00XXX

List Price: $8,154.12
Our Price: $7,188.37
Sale Price: $6,222.62
Savings: $1,931.50
CONDITION: New


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Product Code: 3053-SS66U2X2A00XXX
Qty:

Description Technical Specs Extended Information

The Muncie SS66 Split Shaft PTO, part number SS66-U2X2-A00XXX or SS66U2X2A00XXX, mounts in-line with the driveline to deliver power to two PTO positions simultaneously, or to expand the options behind a single existing PTO. Two 6-bolt PTO openings accept common series including the TG and CS6. The thru-shaft uses Spicer 1410 and 1500/1510 series flanges and is rated for up to 2,900 lb-ft of maximum torque. Engagement is accomplished via air-shift or heavy-duty push/pull cable, giving installation flexibility across a wide range of truck platforms. Overall dimensions are 8.75 in. H x 10.38 in. W x 16.75 in. L. Call us to confirm proper fit for your application.
Features
  • Dual 6-bolt PTO openings accept TG, CS6, and other common PTO series Thru-shaft flanges: Spicer 1410 and 1500/1510 series Maximum thru-shaft torque rating: 2,900 lb-ft Engagement via air-shift or heavy-duty push/pull cable Can be used behind a single PTO to expand to multiple PTO outputs Overall dimensions: 8.75 in. H x 10.38 in. W x 16.75 in. L
