Fabco TC237HD Transfer Case P/N: 873-2144-004 or 8732144004

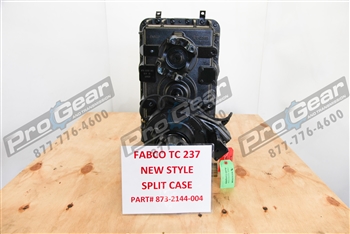

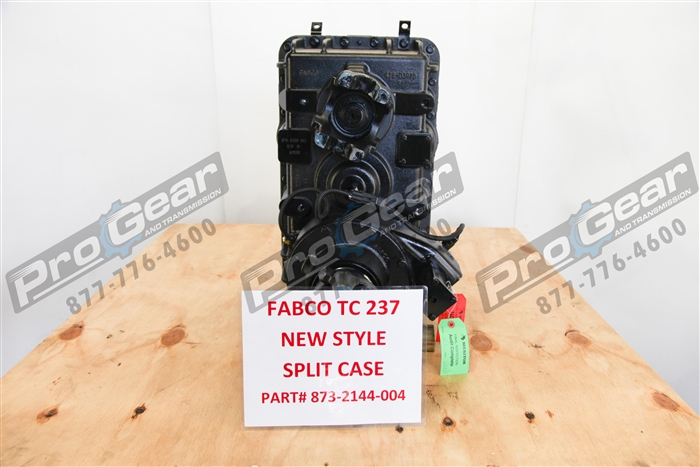

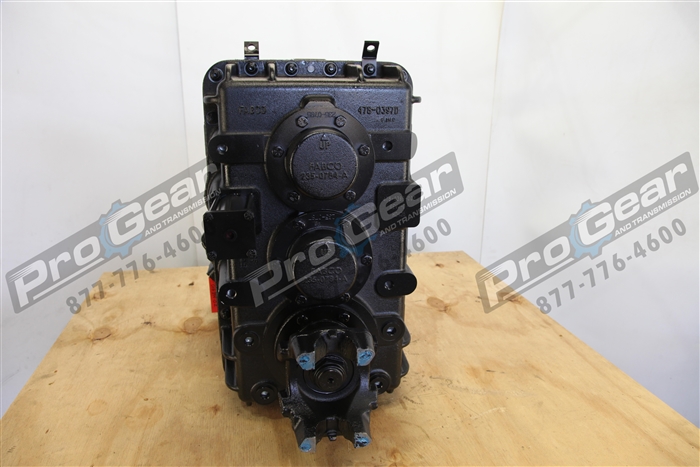

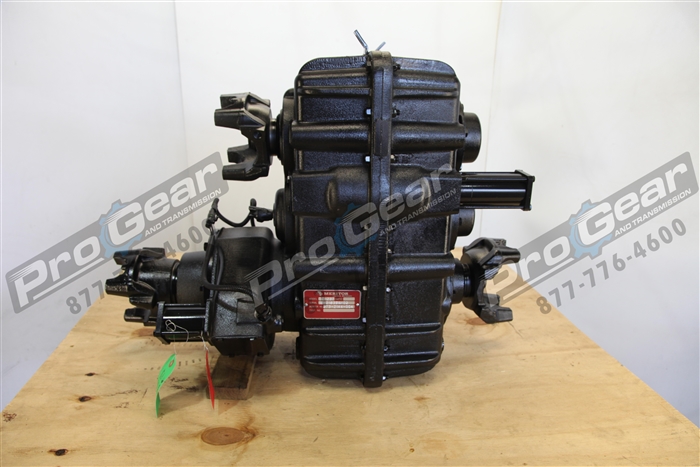

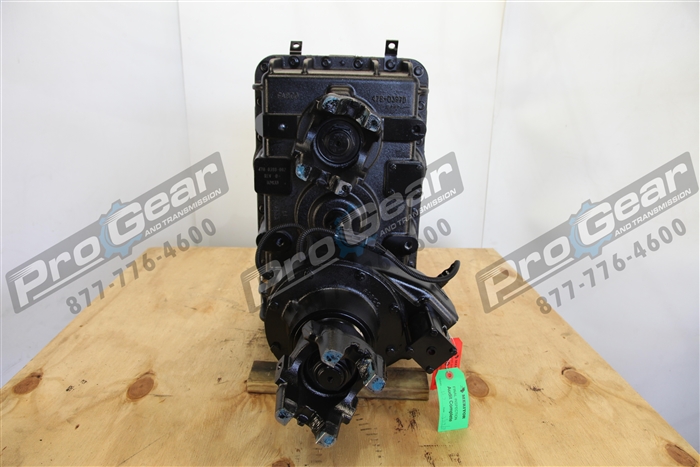

New Fabco TC237HD Transfer Case
Fabco Meritor TC 237 HD Transfer Case 873-2144-004

Alternative Views:
NEW Fabco Meritor TC237HD Transfer Case
List Price: $43,758.08
Our Price: $34,841.57
Sale Price: $23,644.60
Savings: $20,113.48
Core Charge: $7,500.00
CONDITION: New


Availability: Usually Ships in 3 to 5 Business Days
Product Code: FAB-TC237HD
Qty:

Description Technical Specs Extended Information

The Fabco TC237HD is a two-speed, three-shaft, constant-mesh transfer case built around a declutch mechanism for front axle and under-drive engagement. Fabco part number 873-2144-004 or 8732144004. Rated at 6,000 lb-ft input torque, 350 HP, and 3,500 RPM input speed. Gear ratios are 1:1 High and 2.22:1 Low, using helical and spur gearing. The aluminum housing rides on tapered roller bearings and shifts via an integral air cylinder. Input and rear output shafts measure 1.95 inches with a 38-involute spline; the front output is 2.25 inches with a 10-parallel spline. Shaft drop spacing is 12.00 inches to both rear and front outputs. This unit also interchanges with several additional Fabco part numbers when yokes are changed - contact Pro Gear and Transmission with your data tag information to confirm the correct configuration for your application.



Fabco parts
Features
  • Two-speed operation: 1:1 High and 2.22:1 Low gear ratios Helical and spur constant-mesh gearing with tapered roller bearings Integral air cylinder shift mechanism Input and rear output: 1.95-inch shaft, 38-involute spline; front output: 2.25-inch shaft, 10-parallel spline 12.00-inch shaft drop spacing to both rear and front outputs Aluminum housing; splash lubrication using SAE 50 or SAE 90 oil, 6.5-quart capacity Optional full-power PTO and mechanical shift mechanism available
