Rebuilt TC 237 HD Fabco Meritor Transfer Case For Sale, Fabco part number 873-2144-004 or 8732144004. TC237HD Will Interchange with the following part numbers, You just
have to change yokes. 873 0061 004, 873 1061 004, 873 2061 004, 873 3061 004, 873
4061 004, 873 0144 004, 873 1144 004, 873 3144 004 and 873 4144 004

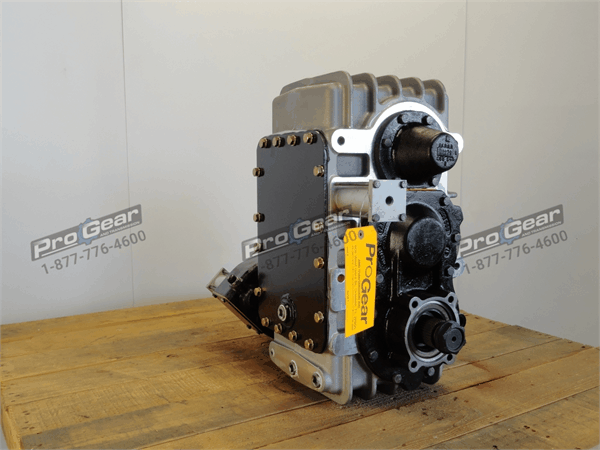

The Fabco Meritor Model TC-237HD Transfer Case is a
two-speed, three-shaft, constant-mesh design featuring a Declutch mechanism for
front axle and under-drive engagement.
Ratings — Nominal *
Input Torque 6,000 Lb. Ft. Input Horsepower 350 HP. Input
Speed 3,500 RPM Ratio: High 1:1 Low 2.22:1
All
new, used or rebuilt transfer cases are sold exchange. Core charges will apply and may be
refunded in whole or in part upon delivery and inspection. Unit will be
subject to manufacturer's core policy unless otherwise stated in
writing.
Due to the many configurations of this Fabco unit, we will need the following information to quote you the correct unit:
Please provide the following information from the Data Tag located on your transfer case:
You can send a clear picture of the data tag or fill in the below information and send it to us.
Model Number ___________________________
Fabco part number:_______________________
Serial number: ___________________________

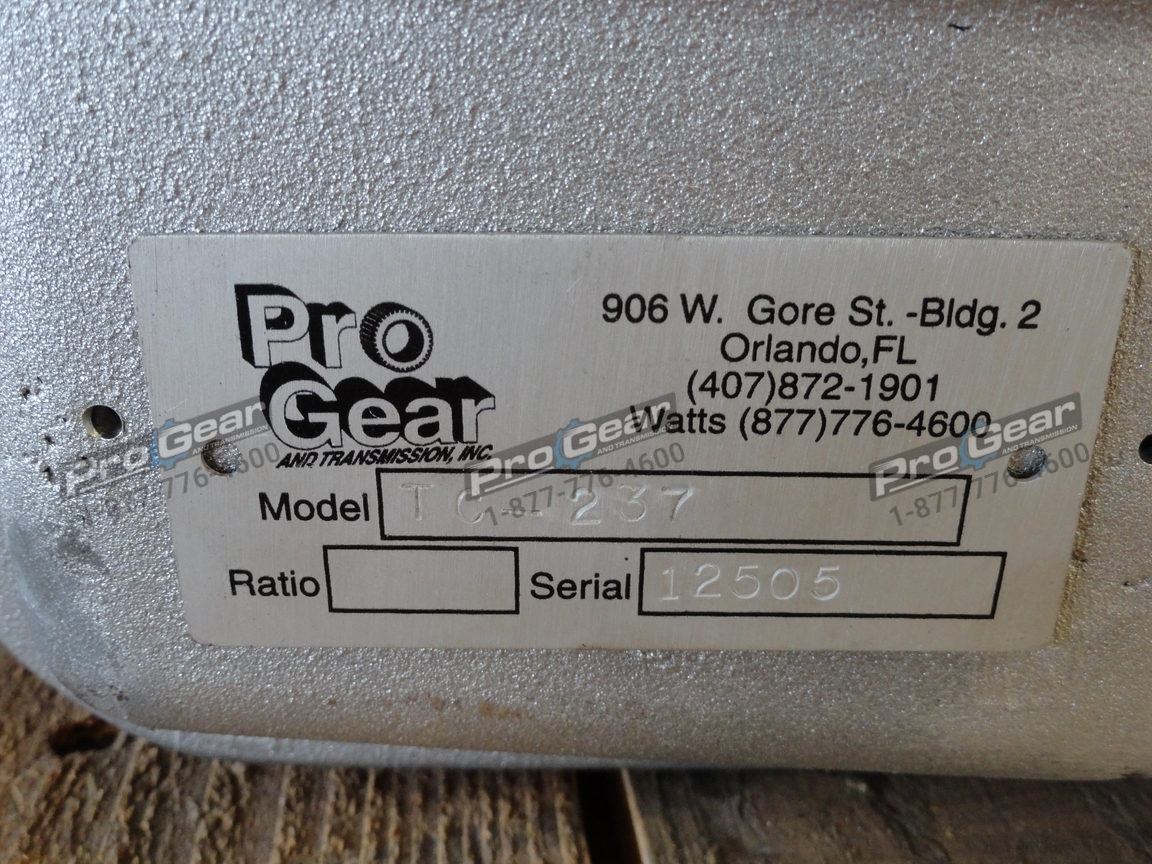

Your Data Tag should look like this:
We offer new, used, and rebuilt Fabco transfer cases. We also offer Fabco parts and repair services on your existing unit. We can pick it up from anywhere, repair or rebuild it and send it back from you. Give us a call today!
- Gear Type: Helical & Spur. Shaft Sizes: Input/Rear Output: 1.95 Inches, 38 Involute Spline
Front Output: 2.25 Inches, 10 Parallel Spline. Shaft Spacing (Drop) 12.00 Inches to Rear Output 12.00 Inches to Front Output.
Shift Mechanism: Integral Air Cylinder Bearings: Tapered Roller. Lubrication System: Splash. Lubricant: SAE 50 or SAE 90 Oil Capacity: 6.5 Quarts. Weight-Dry: 360 Lb. Housing: Aluminum
| Input Torque | 6,000 Lb. Ft.
| | Horsepower | 350 HP | | Input Speed | 3,500 RPM | Ratios
High
Low
|
1:1
2.22:1
| | Gear Type | Helical & Spur
| Shaft Sizes
Input/Front Output
Rear Output |
1.95 Inches, 38 Involute Spline
2.25 Inches, 10 Parallel Spline
| Shaft Spacing (Drop)
| 12 Inches - to Rear Output
12 Inches - to Front Output
| Housing
| Aluminum
| | Shift Mechanisms | Integral Air Cylinders | | Bearings | Tapered Roller | | Lubrication System | Splash | | Lubricant Specification | SAE 50 or SAE 90 | | Lubricant Capacity-Nominal | 6.5 Quarts | | Weight - Dry | 360-lbs | | Options | Full power PTO
Mechanical Shift Mechanism
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Freight: All heavy packages are shipped via truck freight best way unless customer requests otherwise. You can contact us with your shipping requirements and instructions.
Freight Quote available upon request. Please contact us with your shipping address.
|
|
|
|
|
|
|
